LED TV
Chassis : UWK60
Model : UE32K5500AW
UE40K5500AW
UE49K5500AW
UE55K5500AW
SERVICE
LED TV Contents
1. Precautions
2. Product specications
3. Disassembly and Reassembly
4. Troubleshooting
5. Wiring Diagram
Manual
UE**K5500AW
Page 2
Contents
1. Precautions ..............................................................................................................1-1
1-1. Safety Precautions .........................................................................................................1-1
1-1-1. Warnings
1-1-2. Servicing the LED TV
1-1-3. Fire and Shock Hazard
1-1-4. Product Safety Notices
1-2. Servicing Precautions
1-2-1. General Servicing Precautions
1-3. Static Electricity Precautions
1-4. Installation Precautions
2. Product Specications............................................................................................2-1
2-1. Product information ........................................................................................................2-1
2-2. Product specication
2-2-1. Detailed Specications
2-2-2. Specications

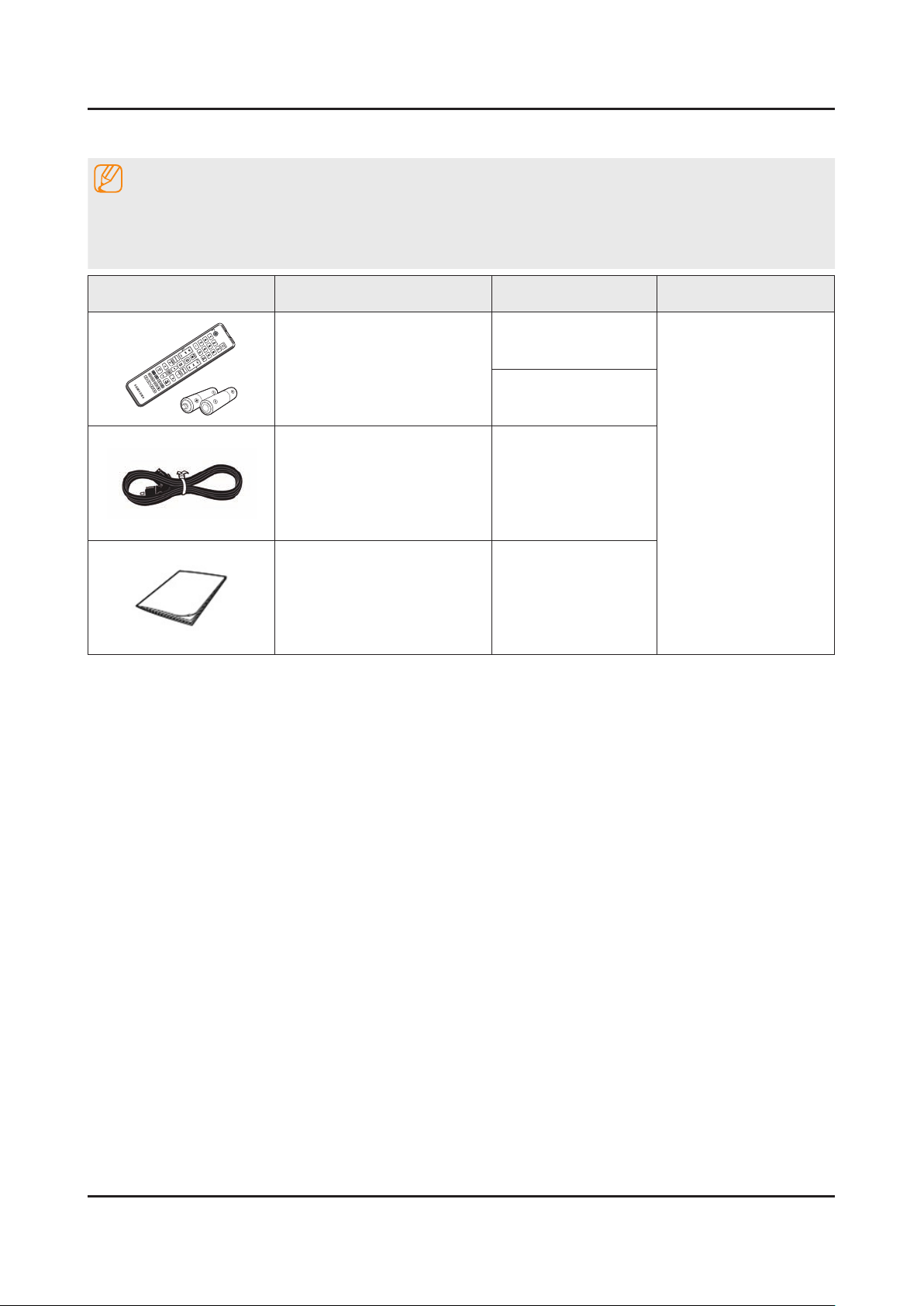

2-3. Accessories
..............................................................................................................1-1
...........................................................................................1-1
........................................................................................1-1
........................................................................................1-2
.....................................................................................................1-3
............................................................................1-3
..........................................................................................1-4
..................................................................................................1-5
......................................................................................................2-2
.........................................................................................2-2
.....................................................................................................2-15
.................................................................................................................2-16
3. Disassembly and Reassembly ............................................................................... 3-1
3-1. Disassembly and Reassembly .......................................................................................3-1
4. Troubleshooting ......................................................................................................4-1
4-1. Troubleshooting ..............................................................................................................4-1
4-2. How to Check Fault Symptom
4-2-1. Power
4-2-2. Main
4-2-3. Video
4-2-4. Audio
4-2-5. Network
4-2-6. Smart Hub
4-2-7. Bluetooth / WiFi Module
4-3. Factory Mode Adjustments
4-3-1. Detail Factory Option
4-3-2. Entering Factory Mode
4-3-3. Factory Data
4-4. White Balance
4-4-1. Calibration
4-4-2. Service Adjustment
4-4-3. Adjustment
4-5. Software Upgrade
4-5-1. By USB
4-5-2. By Online
4-5-3. Alternative Software (Backup)
4-6. The Rear Dimension of K5500 Models
...................................................................................................................4-2
.....................................................................................................................4-6
.................................................................................................................. 4-11
..................................................................................................................4-14
..............................................................................................................4-15
..........................................................................................................4-16
......................................................................................................4-25
..............................................................................................................4-41
..........................................................................................................4-41
.........................................................................................................4-43
.........................................................................................................4-44
..............................................................................................................4-44
...........................................................................................................4-44
........................................................................................4-2
.....................................................................................4-18
...........................................................................................4-20
.........................................................................................4-20
.......................................................................................4-24
............................................................................................4-41
............................................................................4-44
.........................................................................4-45
Page 3
5. Wiring Diagram ........................................................................................................5-1
5-1. Wiring Diagram ...............................................................................................................5-1
5-2. Connector
5-3. Connector Functions
.......................................................................................................................5-2
......................................................................................................5-4
ANNEX. Exploded View & Part List [UE32K5500AWXXH VA01] ....................ANNEX-1
1-1. Exploded View ......................................................................................................ANNEX-1
1-1-1. Parts List
2-1. Electrical Parts List
....................................................................................................ANNEX-1
...............................................................................................ANNEX-2
ANNEX. Exploded View & Part List [UE40K5500AWXXH FA01] ....................ANNEX-1
1-1. Exploded View ......................................................................................................ANNEX-1
1-1-1. Parts List
2-1. Electrical Parts List
....................................................................................................ANNEX-1
...............................................................................................ANNEX-2
ANNEX. Exploded View & Part List [UE49K5500AWXXH BA01] ...................ANNEX-1
1-1. Exploded View ......................................................................................................ANNEX-1
1-1-1. Parts List
2-1. Electrical Parts List
....................................................................................................ANNEX-1
...............................................................................................ANNEX-2
ANNEX. Exploded View & Part List [UE55K5500AWXXH VA01] ....................ANNEX-1
1-1. Exploded View ......................................................................................................ANNEX-1
1-1-1. Parts List
2-1. Electrical Parts List
....................................................................................................ANNEX-1
...............................................................................................ANNEX-2
Page 4
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
© 2016 Samsung Electronics Co.,Ltd.
All rights reserved.
Printed in Korea
Page 5
3. Disassembly and Reassemble
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LED TV.
This LED TV contains electrostatically sensitive devices. Use caution when handling these components.
WARNING

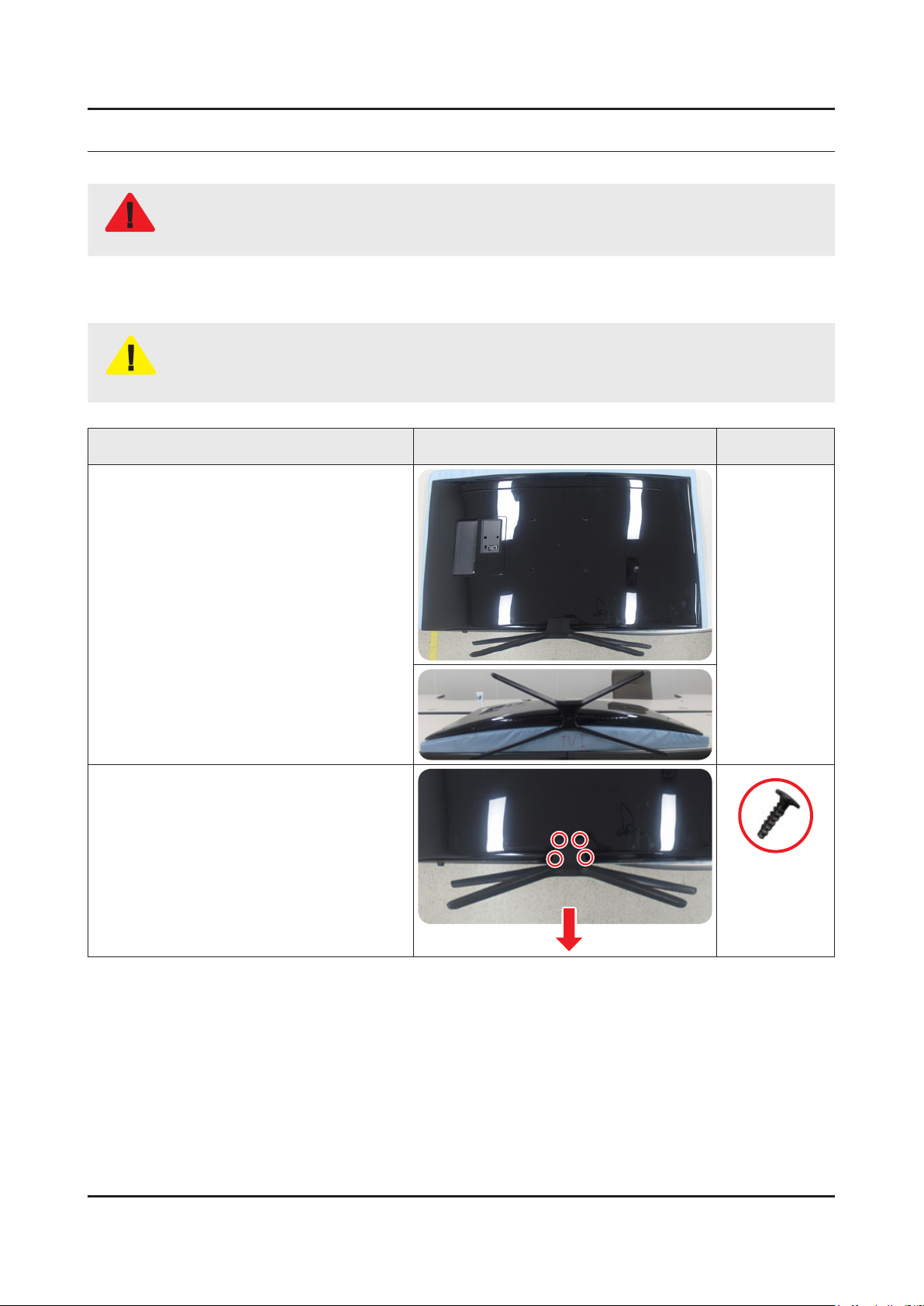

3-1. Disassembly and Reassembly
Disconnect the LED TV from the power source before disassembly.1.
Follow these directions carefully; never use metal instruments to pry apart the cabinet.2.
CAUTION
Place TV face down on cushioned table.
If there is no additional coment, it is same for all inches.3.
Description Picture Description Note
1
Remove the Stand Screws(4EA) and then
2
pull out the Stand.
M4XL24
3-1
Page 6
3-2
3. Disassembly and Reassemble
Description Picture Description Note
BN81-12884A
BN81-10739A

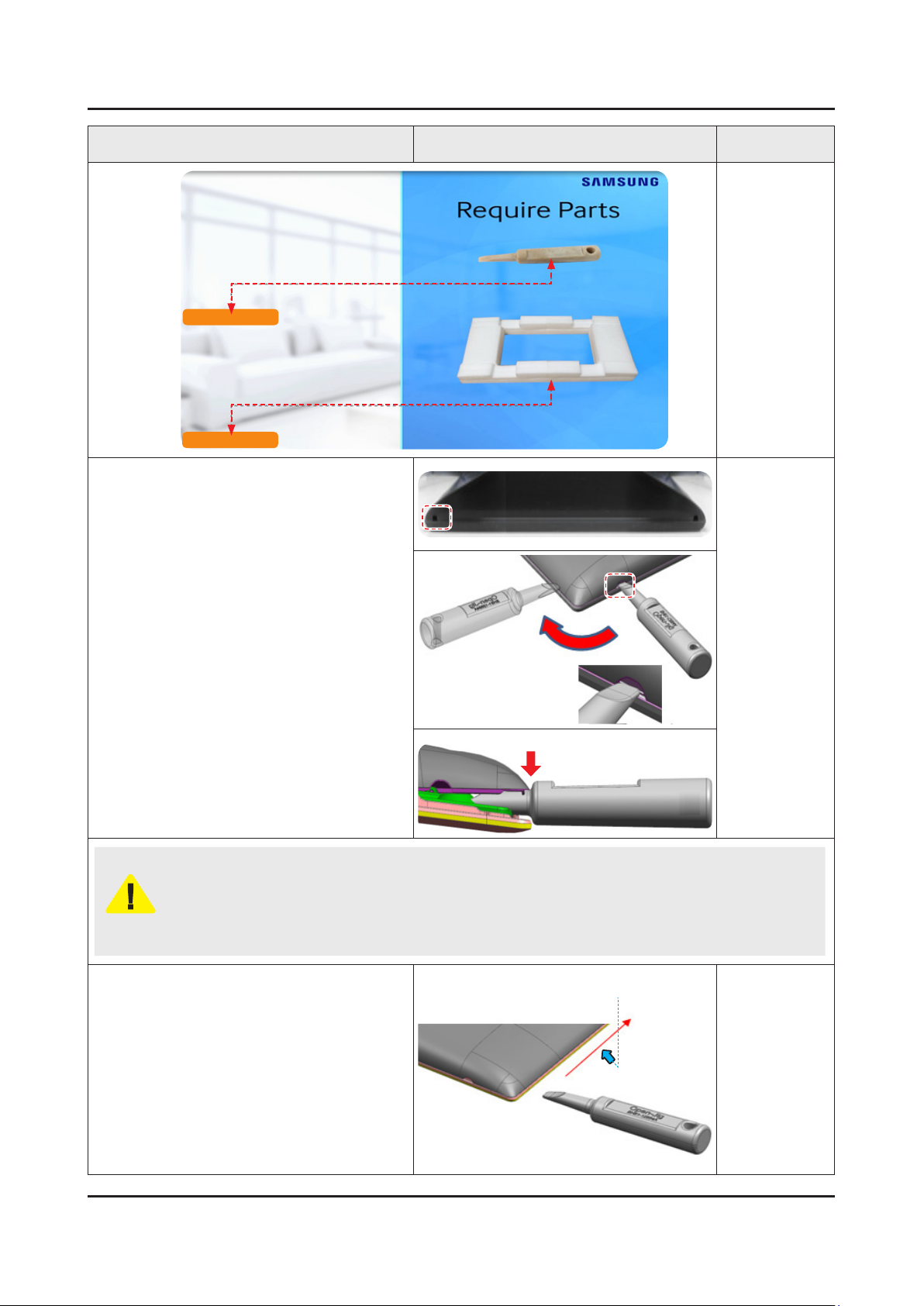

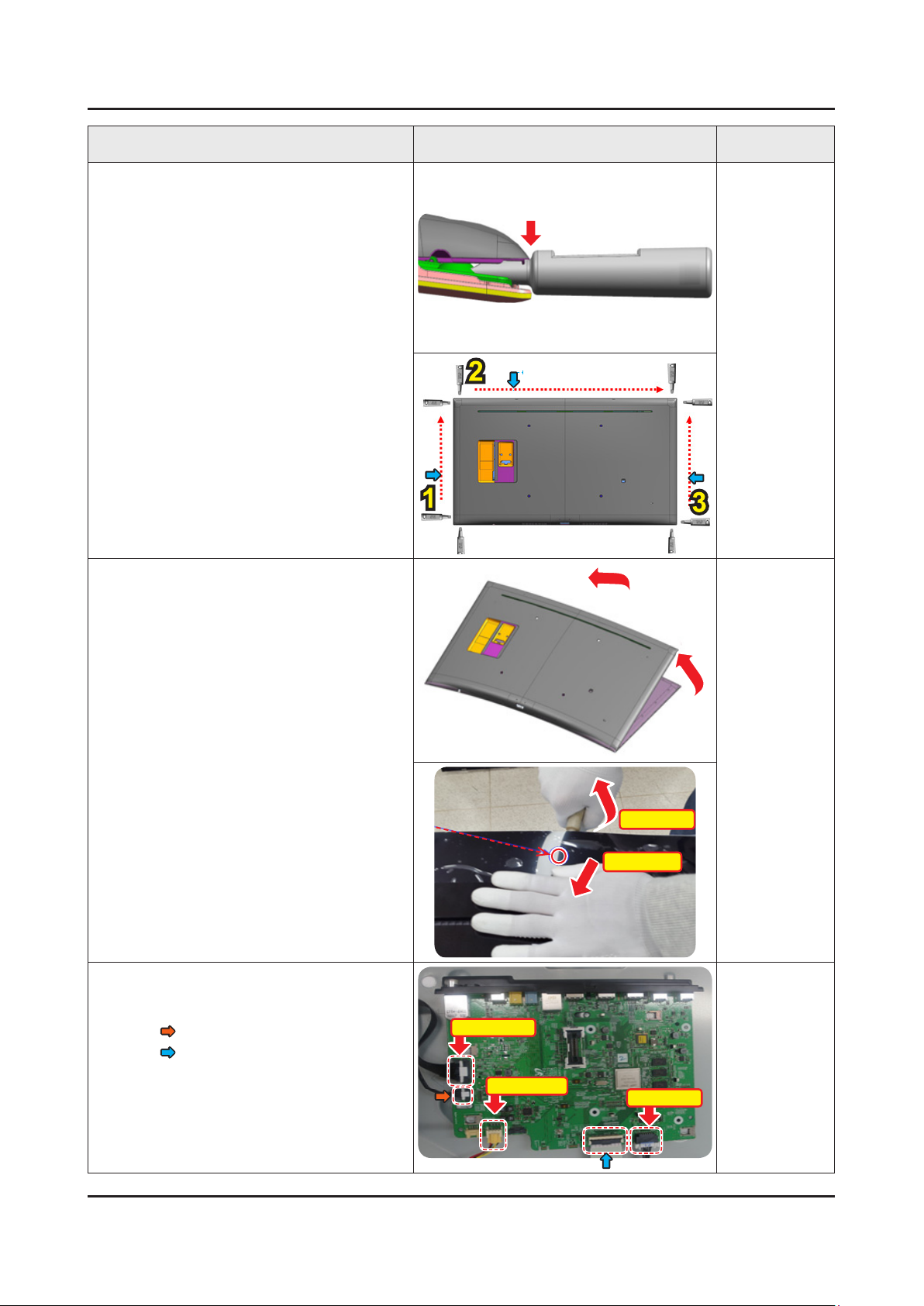

Insert the Opening-Jig at the indicated
3
positions to release bottom left corners of
the rear cover.
Opening-Jig(BN81-12884) is required.•
Be careful during disassembly at Parting(must glove).•
Be careful during disassembly at corner ribs.•
Hooks can be damaged when disassembling is done by hands or tools which is bigger than •
CAUTION
Open-Jig should be fully inserted and then
4
pry to release the rear cover mounting
clips. Move indicated direction.
Opening-Jig.
Be careful the damage of Chassis-Front and Cover-Rear.•
Insert Opening-Jig as shown in the picture.
Open Direction
Page 7
3-3
3. Disassembly and Reassemble
Description Picture Description Note
Jig Direction
Jig Direction
Jig Direction
Gently lift up the Rear Cover as shown in
5
the picture.
(It can be opened when the 3 edges are
disassembled.)
Remove the Function Cable, WIFI cable,
6
Speaker Cable, SMPS Cable and LVDS
Cable.
• Function Cable
• LVDS Cable
JIG Open
Press SET
WIFI Cable
Speak Cable
SMPS Cable
Page 8
3-4
3. Disassembly and Reassemble
Description Picture Description Note

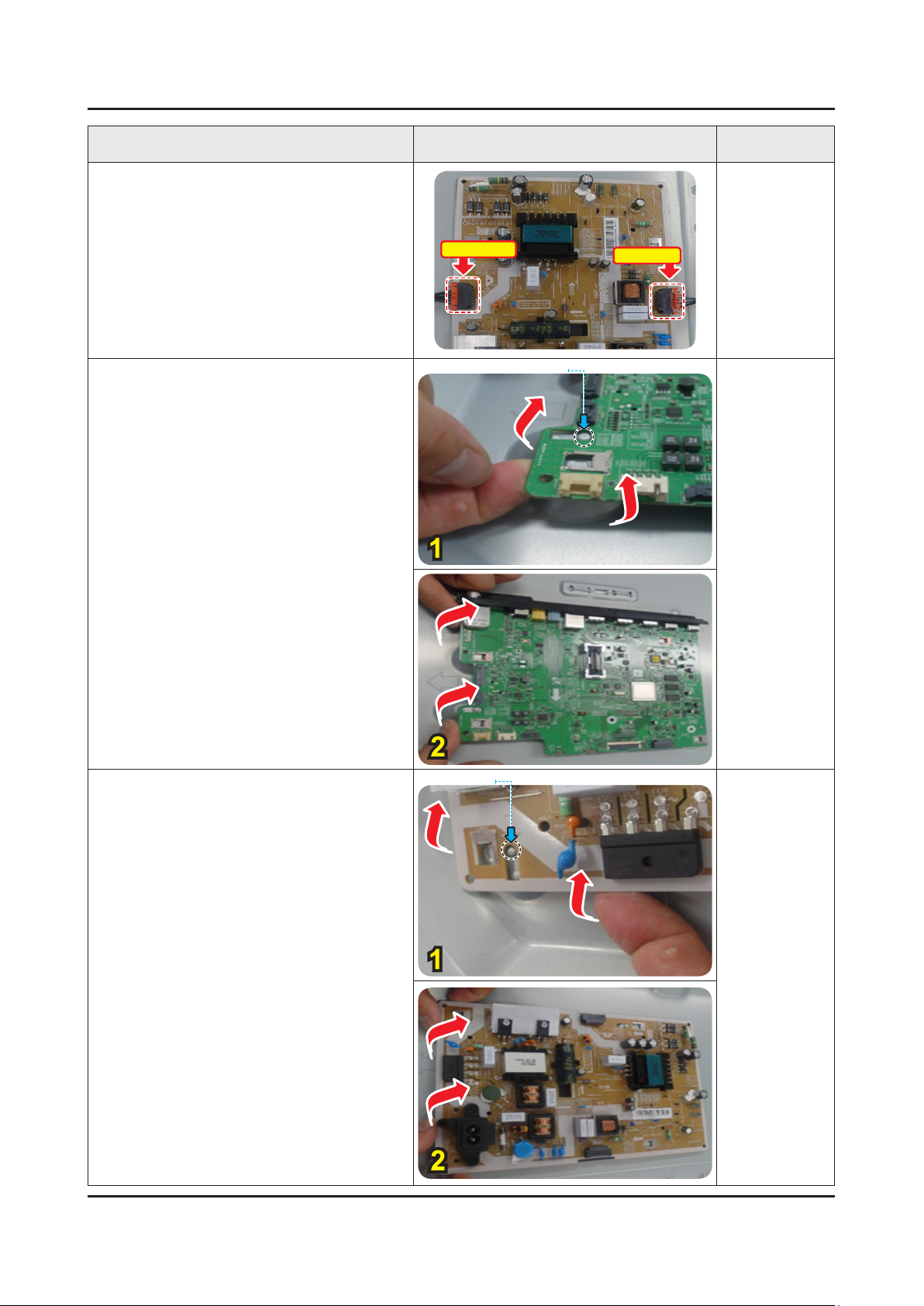

Remove the SMPS Cable and BLU Cable.
7
Removing Main Board.
8
Gently lift up (Bottom Right corner) to •
release the lock.
Use both hands to hold the board and •
slide UP to release the board.
SMPS Cable
BLU Cable
Locking
Removing SMPS Board.
9
Gently lift up (Bottom Left corner) to •
release the lock.
Use both hands to hold the board and •
slide UP to release.
Locking
Page 9
3-5
3. Disassembly and Reassemble
Description Picture Description Note

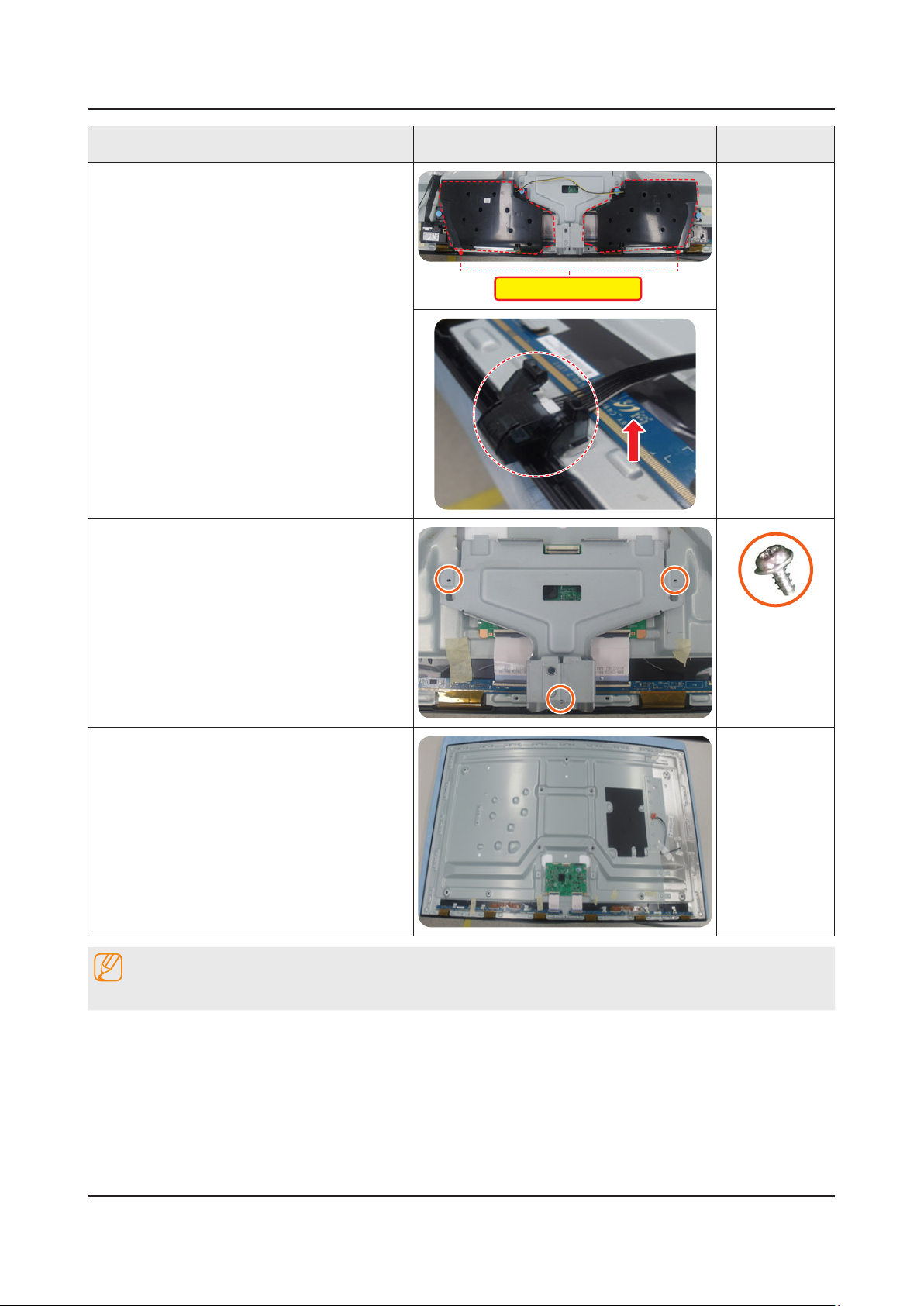

Remove the speaker and function.
10
Remove Bracket-Stand Link. (Screws, 3ea)
11
ASSY SPEAKER P (R/L)
Completed disassembly.
12
NOTE
Reassembly procedures are in the reverse order of disassembly procedures.
6001-003016
Page 10
ANNEX. Exploded View & Part List
ANNEX. Exploded View & Part List [UE32K5500AWXXH VA01]

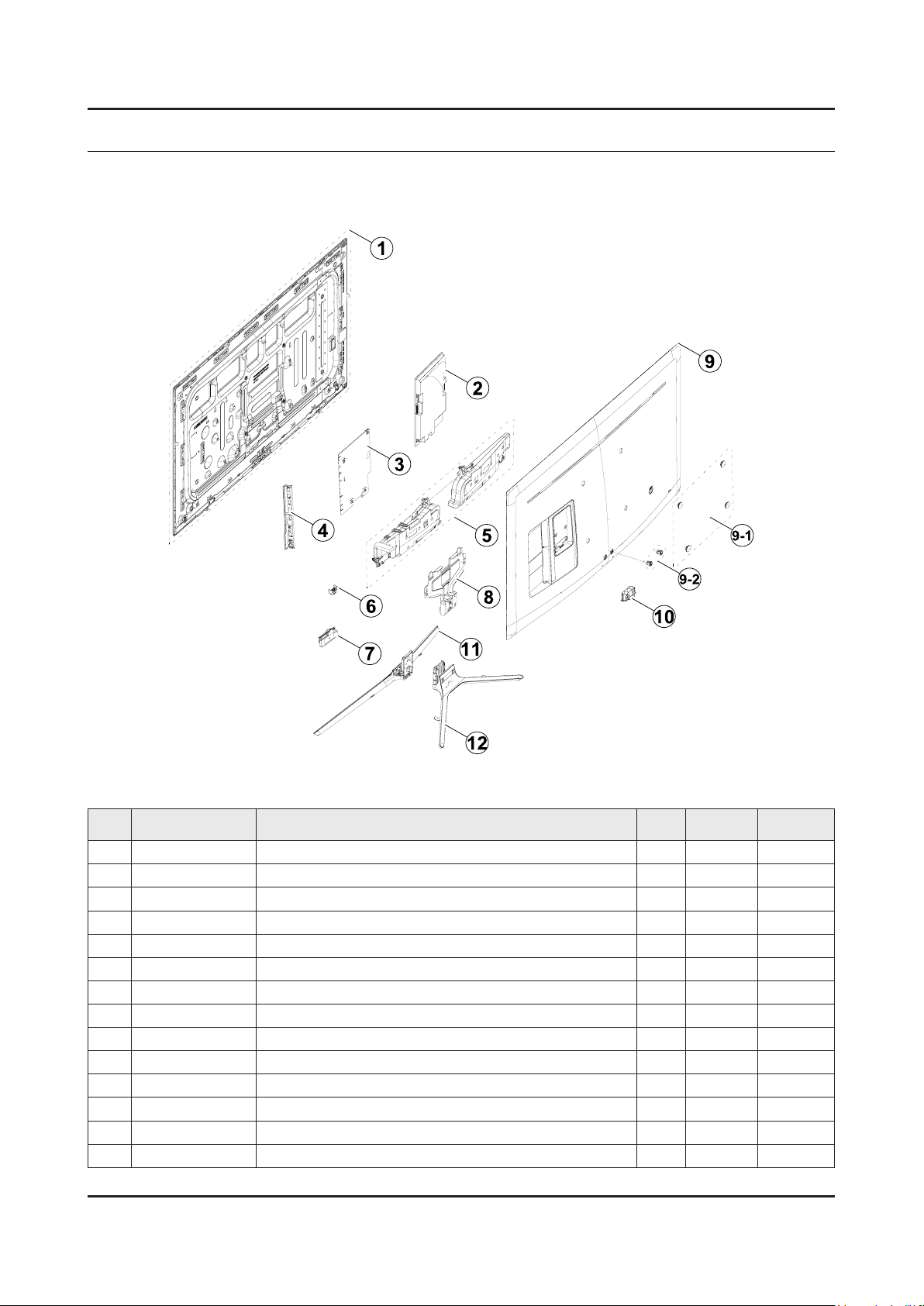

1-1. Exploded View
1-1-1. Parts List
No. Code No. Description & Specication Q’ty SA/SNA Remark
1 BN95-02613A PRODUCT LCD-AUO; CY-KK032BGAV1V/H,K5500,B 1 SA
2 BN94-10883A ASSY PCB POWER; 32" TV PD-Board 1 SA
3 BN94-10935E ASSY PCB MAIN; UK5500N,32 1 SA
4 BN63-15481A COVER-TERMINAL SIDE; 40K5500,HIPS,MOLD,HB 1 SA
5 BN96-39969A ASSY SPEAKER P-FRONT; TV-SPK,K5500,6ohm,1 1 SA
6 BN96-39802B ASSY BOARD P-FUNCTION TACT; K6200/K5500/K 1 SA
7 BN59-01240A NETWORK-WLAN CLIENT; WCK720Q,USB 2.0,16P, 1 SA
8 BN61-13356A BRACKET-STAND LINK; 32K5500,EGI-SECC,T1.2 1 SNA
9 BN96-40253C ASSY COVER P-REAR; 32K5500,PC+ABS+ED20%,V 1 SA
9-1 BN63-15198A COVER-CAP; 55KS7500,ABS+PMMA,T0.1,HB,BK00 4 SNA
9-2 BN63-15933A COVER-CAP; 49K6200,PC+ABS+ED20%,MOLD,V-1, 2 SNA
10 BN63-15932A COVER-BOTTOM; 49K6200,PC+ABS+ED20%,MOLD,V 1 SA
11 BN96-40074A ASSY STAND P-FRONT; 32K5500,PC+ABS,BK0008 1 SA
12 BN96-40075A ASSY STAND P-REAR; 32K5500,PC+ABS,BK0008 1 SA
ANNEX-1
Page 11
ANNEX-2
ANNEX. Exploded View & Part List
2-1. Electrical Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
UE32K5500AWXXH (VA01)
1 R001A BN90-08313C ASSY COVER REAR;UK5500N 32 1 SNA
0.2 SCREW 6001-002755 SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 1 SA
0.2 R001A BN96-40253C ASSY COVER P-REAR;32K5500,PC+ABS+ED20%,V 1 SA
..3 CCM1 BN63-02183D SHEET-PROTECTION COVER;Rhcm,PE,T0.04,W68 0 SNA
..3 AS080 BN63-07556E SHEET-PROTECTION COVER;TOC,PO,T0.068,W60 2 SNA
..3 R001 BN63-15168B COVER-REAR;32K5500,PC+ABS+ED20%,MOLD,V-1 1 SNA
...4 0103-010837 RESIN PC ABS;CM20G/BK90080,Dark Gray,GY0 931 SNA
..3 AC220 BN63-15198A COVER-CAP;55KS7500,ABS+PMMA,T0.1,HB,BK00 4 SNA
..3 AC220 BN63-15933A COVER-CAP;49K6200,PC+ABS+ED20%,MOLD,V-1, 2 SNA
..3 BN64-03519A INLAY-TERMINAL SIDE;55K6200,PET,T0.125,B 1 SNA
..3 BN68-03518H LABEL-STICKER CI SLOT;WW,ALL,PET,T0.1,W1 1 SNA
..3 BN68-07835C LABEL-STICKER LICENSE;40K5500,PET,0.125, 1 SNA
1 S001A BN90-08323B ASSY STAND;UK5500N 32 1 SNA
0.2 BN96-40074A ASSY STAND P-FRONT;32K5500,PC+ABS,BK0008 1 SA
..3 6001-003168 SCREW-MACHINE;CH,+,M3,L5,ZPC(BLK),SWRCH1 2 SNA
..3 SCREW 6003-001238 SCREW-TAPTYPE;FH,+,S,M4,L8,ZPC(BLK),SWRC 1 SA
..3 BN60-00162C SPACER-FOAM;PE FOAM,ROLL,GRAY,T0.5,W15 0 SNA
..3 BN61-13414A BRACKET-STAND BOTTOM FRONT;32K5500,CR,T1 1 SNA
..3 BN61-13421A BRACKET-STAND NECK FRONT;40K5500,HGI,T4, 1 SNA
...4 BN61-13531A STUD-PEM;40K5500,SUM24L,NATURAL 1 SNA
..3 BN61-13427A GUIDE-STAND FRONT;40K5500,PC+GF20%,V-2,G 1 SNA
..3 RF01 BN61-13520B FOOT-RUBBER;40K5500,Si,GRAY,T3,W5 L5 4 SNA
..3 BN61-14105A BRACKET-STAND LINK FRONT;32K5500,EGI-SEC 1 SNA
..3
..3 BN63-15764A SHEET-PU FOAM;40K5500,PU FOAM,T0.5,W57.0 1 SNA
..3 BN95-02812A ASSY COVER STAND SMT-FRONT TOP;K5500,32, 1 SNA
...4 0203-001269 TAPE-OPP;#301,T0.06,W75,L50000,NTR 62 SNA
...4 AA69-07425T PAD-DP SHEET;CB,0 1 SNA
...4 BN63-11118F SHEET-PROTECTION COVER;K6200,PET,T0.04,W 2 SNA
...4 BN63-15237A COVER-STAND TOP FRONT;32K5500,PC+ABS,MOL 1 SNA
...4 BN69-10395Y PACKING SHEET;-,NITRON,T0.02,W800,L400,W 1 SNA
...4 BN69-13591Z PAD-DP CROSS;32K5500,CB,DW,W602,L100,YEL 1 SNA
...4 BN69-13724U MASTER BOX-DP;32K5500,CB,DW1,A1,L605,W51 1 SNA
...4 BN69-13904A PAD-DP CROSS;32K5500,CB,DW,W508,L100,YEL 1 SNA
0.2 BN96-40075A ASSY STAND P-REAR;32K5500,PC+ABS,BK0008 1 SA
..3 SCREW 6001-003041 SCREW-MACHINE;FH,+,M4,L8,ZPC(BLK),SWRCH1 1 SA
..3 SCREW 6003-001845 SCREW-TAPTYPE;FH,+,B,M4,L6,ZPC(BLK),SWRC 2 SNA
..3 SCREW 6003-001875 SCREW-TAPTYPE;BH,+,S,M4,L12,ZPC(BLK),SWR 4 SA
..3 6021-000265 NUT-HEXAGON;2C,M4,ZPC(YEL),SM20C 4 SNA
..3 6902-002660 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W120,L20 2 SNA
..3 BN61-04692A ADHESIVE-AA;SHEET,CLEAR,C043 0 SNA
..3 BN61-06871A BOSS-BOND;UC9000,Dimethacrylate ester,Re 0 SNA
..3 BN61-13417A BRACKET-STAND BOTTOM REAR;32K5500,CR,T1. 1 SNA
BN63-15240A COVER-STAND BOTTOM FRONT;K5500 32",PC+AB 1 SNA
Page 12
ANNEX-3
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
..3 BN61-13424A BRACKET-STAND NECK REAR;K5500 40" 43",HG 1 SNA
..3 BN61-13430A GUIDE-STAND REAR;40K5500,PC+GF20%,V-2,GY 1 SNA
...4 0103-010578 RESIN PC;HF-3200H/G33168,Gray,GY0296,1.5 45 SNA
..3 BN63-11118E SHEET-PROTECTION COVER;STANDARD ENCLOSUR 0 SNA
..3 BN63-15246A COVER-STAND BOTTOM REAR;32K5500,PC+ABS,M 1 SNA
...4 0103-010892 RESIN PC ABS;NH-1017SG/G33438,Blue Gray, 92 SNA
..3 BN63-15764B SHEET-PU FOAM;55K5500,PU FOAM,T0.3,W57,L 1 SNA
..3 BN68-05603A LABEL-E PASS;ART PAPER 90G,W/W 3 SNA
..3 BN95-02814A ASSY COVER STAND SMT-REAR TOP;K5500,32,S 1 SNA
...4 0204-007315 COATING;CVM92000(VOC),CLEAR,1.06 0 SNA
...4 BN01-00337A TARGET-ALUMINIUM CY;Al,99.9%,1924mm, 132 0 SNA
...4 BN01-00340A TARGET-CHROMIUM CY;Cr,99.5%,1924mm, 132d 0 SNA
...4 BN63-11118P SHEET-PROTECTION COVER;55K6200,PET,T0.04 0 SNA
...4 BN63-15243A COVER-STAND TOP REAR;32K5500,PC+ABS,MOLD 1 SNA
....5 0103-005041 RESIN PC ABS;FR3200TV,901408,BK0008,1.2m 48 SNA
....5 BN63-11118F SHEET-PROTECTION COVER;K6200,PET,T0.04,W 1 SNA
....5 BN63-11118P SHEET-PROTECTION COVER;55K6200,PET,T0.04 0 SNA
...4 BN68-03920A LABEL BOX;ALL,ART,100g,W100,L75,W/W 2 SNA
...4 BN69-10395Z PACKING SHEET;-,NITRON,T0.02,W400,L600,W 1 SNA
...4 BN69-12989A PAD-DP SHEET;CB,425 1 SNA
...4 BN69-13591T PAD-DP CROSS;32K5500,CB,DW,W546,L145,YEL 1 SNA
...4 BN69-13591U PAD-DP CROSS;32K5500,CB,DW,W423,L145,YEL 1 SNA
...4 BN69-13724R MASTER BOX-DP;32K5500,CB,DW1,A1,L550,W43 1 SNA
..3 BN96-35528C ASSY ACCESSORY-SCREW;40K5500,W/W,M4,L25, 1 SNA
...4 6001-003072 SCREW-MACHINE;BH,+,WS,M4,L25,NI PLT,SWRC 4 SA
1 BN90-08326A ASSY W/I;UK5500N
0.2 BN81-08159Z A/S PART SET-ELEC W/I;LED TV ELEC spec-C 1 SNA
0.2 BN81-12184N A/S PART SET-MECH W/I;UK5500N,U32KN* 1 SNA
1 BN91-17831X ASSY SHIELD;UK5500N 32 1 SNA
0.2 SCREW 6001-003081 SCREW-MACHINE;PWH,+,M3,L5,ZPC(WHT),SWRCH 5 SA
0.2 BN02-00102B TAPE-FILAMENT;#8917,0.15,25,50,WHITE 0 SNA
0.2 BN39-02217B LEAD CONNECTOR-POWER;32K5500,UL21016,12P 1 SA
0.2 BN39-02219C LEAD CONNECTOR-SUB ASSY;40K5500,UL21016, 1 SA
0.2 BN39-02223A LEAD CONNECTOR-SUB ASSY;40K5500,UL21016, 1 SA
0.2 BN59-01240A NETWORK-WLAN CLIENT;WCK720Q,USB 2.0,16P, 1 SA
0.2 CB18 BN61-13356A BRACKET-STAND LINK;32K5500,EGI-SECC,T1.2 1 SNA
..3 BN61-09605A STUD-PEM;LED TV F6100,SUM24L,L8 4 SNA
0.2 RB01 BN63-15932A COVER-BOTTOM;49K6200,PC+ABS+ED20%,MOLD,V 1 SA
0.2 MP01A BN94-10883A ASSY PCB POWER;32" TV PD-Board 1 SA
0.2 BN96-39802B ASSY BOARD P-FUNCTION TACT;K6200/K5500/K 1 SA
0.2 BN96-39969A ASSY SPEAKER P-FRONT;TV-SPK,K5500,6ohm,1 1 SA
0.2 BN96-40209D FFC CABLE;40K5500,Wrinkle,L250,51P 1 SA
1 M0017 BN91-17841E ASSY CHASSIS;UK5500N,32 1 SNA
0.2 M0014 BN94-10935E ASSY PCB MAIN;UK5500N,32 1 SA
..3 AH020 BN62-00821A HEAT SINK;49K6200,A1050,6.3T,W127.6,L94. 1 SNA
..3 BN63-15481A COVER-TERMINAL SIDE;40K5500,HIPS,MOLD,HB 1 SA
..3 BN97-09470B ASSY DRM;MAC, MIRACAST HDCP 1 SNA
1 SNA
Page 13
ANNEX-4
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 BN46-00109H KEY CODE-CERTIFICATION;MAC,TV/AV,General 1 SNA
...4 BN46-00110P KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2) 1 SNA
...4 BN46-00115P KEY CODE-CERTIFICATION;CI+, TV, HAWK, EU 1 SNA
..3 BN97-11007E ASSY SMD;UK5500N,32" 1 SNA
...4 0202-001899 SOLDER-CREAM;M705-GRN360-K2-VT,20-38um,S 2 SNA
...4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 SA
...4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300mW,SO 3 SNA
...4 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 4 SA
...4 0406-001200 DIODE-TVS;RClamp0504F,6V,1MAV,TP 2 SA
...4 0406-001628 DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP 1 SA
...4 0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 7 SA
...4 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 3 SC
...4 0504-000126 TR-DIGITAL;KSR1101,NPN,200mW,4.7K/4.7K,S 1 SA
...4 0505-002560 FET-SILICON;AO6415,P,20V,-3.3A,0.15ohm,1 1 SA
...4 0505-002598 FET-SILICON;AP2317GN,P,20V,-4.2A,0.052oh 1 SA
...4 0505-002893 FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 1 SA
...4 0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19ohm, 2 SA
...4 0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 4 SA
...4 0801-003330 IC-CMOS LOGIC;Octal buffer,DQFN,20P,4.5x 1 SA
...4 1001-001545 IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF 1 SA
...4 1103-001600 IC-EEPROM;24C512C,512k,SOIC,8P,6.20mmX5. 1 SA
...4 1105-002681 IC-DDR3 SDRAM;H5TQ4G63CFR,DDR3 1866,4Gbi 3 SNA
...4 1201-003690 IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL 1 SA
...4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
...4 1203-007018 IC-DC/DC CONVERTER;TPS54821RHL,QFN,14,3. 1 SA
...4 1203-007238
...4 1203-007700 IC-DC/DC CONVERTER;TPS54527DDAR,DDA,8P,5 1 SA
...4 1203-008104 IC-POSI.FIXED REG.;S-13A1D18-E800,HSOP,8 2 SNA
...4 1203-008105 IC-POSI.FIXED REG.;S-13A1D33-E800,HSOP,8 1 SNA
...4 1203-008118 IC-DC/DC CONVERTER;AOZ3013PI,SO-8,8,4.96 2 SA
...4 1203-008183 IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 1 SA
...4 1203-008392 IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 1 SA
...4 1203-008393 IC-DDR TERMINATION REG.;AP2303MTR-G1-89, 1 SA
...4 1203-008454 IC-DC/DC CONVERTER;TPS56528,HSOP8,8,4,89 1 SA
...4 1204-003586 IC-DECODER;SDP1415,PBGA,631P,23x23mm,PLA 1 SA
...4 1205-004447 IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3x1.65 1 SA
...4 1205-004983 IC-SWITCH;BD82032FVJ,TSSOP-B8J,8P,3.0x4. 2 SA
...4 1205-005537 IC-REPEATER;TCA9517,VSSOP,8P,3.00x3.00mm 3 SA
...4 1405-001271 VARISTOR;35V,20Vdc,5A,1.0x0.5mm,TP,100V, 15 SA
...4 1405-001382 VARISTOR;24.5V,16VDC,120A,2.0x1.25mm,TP, 1 SA
...4 2007-000137 R-CHIP;2Kohm,5%,1/16W,TP,1005 16 SNA
...4 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 31 SNA
...4 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 21 SNA
...4 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 25 SNA
...4 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 SNA
...4 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 26 SNA
...4 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 3 SNA
IC-PWM CONTROLLER;TPS54427,DDA,8P,4.8x3. 1 SNA
Page 14
ANNEX-5
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 2007-001116 R-CHIP;680ohm,1%,1/10W,TP,1608 1 SA
...4 2007-001125 R-CHIP;68Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-001288 R-CHIP;18ohm,5%,1/16W,TP,1005 4 SA
...4 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 6 SNA
...4 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 1 SNA
...4 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 14 SNA
...4 2007-007132 R-CHIP;15Kohm,1%,1/16W,TP,1005 3 SA
...4 2007-007133 R-CHIP;300ohm,1%,1/16W,TP,1005 1 SA
...4 2007-007134 R-CHIP;39Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007135 R-CHIP;18Kohm,1%,1/16W,TP,1005 2 SNA
...4 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 2 SNA
...4 2007-007137 R-CHIP;1.2Kohm,1%,1/16W,TP,1005 4 SA
...4 2007-007138 R-CHIP;27Kohm,1%,1/16W,TP,1005 3 SNA
...4 2007-007139 R-CHIP;47Kohm,1%,1/16W,TP,1005,T0.35 3 SA
...4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 24 SNA
...4 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 20 SNA
...4 2007-007307 R-CHIP;150ohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007309 R-CHIP;12Kohm,1%,1/16W,TP,1005,T0.35 2 SA
...4 2007-007311 R-CHIP;22Kohm,1%,1/16W,TP,1005 6 SA
...4 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007313 R-CHIP;6.8Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007317 R-CHIP;2.2Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 22 SNA
...4 2007-007431 R-CHIP;91Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-007470 R-CHIP;7.5Kohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007488 R-CHIP;75Kohm,1%,1/16W,TP,1005
...4 2007-007517 R-CHIP;240ohm,1%,1/16W,TP,1005 4 SNA
...4 2007-007528 R-CHIP;1.5Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007587 R-CHIP;3.6Kohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 5 SNA
...4 2007-007767 R-CHIP;200ohm,1%,1/16W,TP,1005 7 SA
...4 2007-007861 R-CHIP;62Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007942 R-CHIP;1Mohm,1%,1/16W,TP,1005 1 SNA
...4 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 14 SNA
...4 2007-008213 R-CHIP;4.3Kohm,1%,1/16W,TP,1005 3 SNA
...4 2007-008275 R-CHIP;30Kohm,1%,1/16W,TP,1005 3 SNA
...4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA
...4 2007-008429 R-CHIP;499ohm,1%,1/16W,TP,1005 1 SNA
...4 2007-008485 R-CHIP;22ohm,1%,1/16W,TP,1005 8 SC
...4 2007-008779 R-CHIP;0ohm,1%,1/16W,TP,1005 4 SA
...4 2007-009117 R-CHIP;49.9Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-009777 R-CHIP;4.99Kohm,1%,1/16W,TP,1005 1 SA
...4 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. 8 SA
...4 2011-001344 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,2 4 SA
...4 2011-001345 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,2 1 SA
...4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1.0x1.0 4 SA
...4 2011-001497 R-NETWORK;470ohm,5%,1/16W,L,CHIP,4P,TP,1 1 SNA
1 SNA
Page 15
ANNEX-6
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 2011-001506 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,4P,TP,1 1 SNA
...4 2011-001587 R-NETWORK;100ohm,5%,1/16W,L,CHIP,4P,TP,1 1 SNA
...4 AD480 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 5 SA
...4 AD480 2203-000278 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,TP,1005 2 SA
...4 AD480 2203-000359 C-CER,CHIP;0.15nF,5%,50V,C0G,TP,1005,0.5 3 SNA
...4 AD480 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,TP,1005 2 SA
...4 AD480 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 14 SA
...4 AD480 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 3 SA
...4 AD480 2203-000585 C-CER,CHIP;0.22nF,10%,50V,X7R,TP,1005 3 SA
...4 AD480 2203-000627 C-CER,CHIP;0.022nF,5%,50V,C0G,TP,1005 2 SNA
...4 AD480 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005 1 SA
...4 AD480 2203-000812 C-CER,CHIP;0.033nF,5%,50V,C0G,TP,1005 5 SA
...4 AD480 2203-000854 C-CER,CHIP;0.039nF,5%,50V,C0G,TP,1005 1 SA
...4 AD480 2203-000940 C-CER,CHIP;0.47nF,10%,50V,X7R,TP,1005 2 SA
...4 AD480 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,TP,1005 1 SA
...4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,TP,1005 9 SNA
...4 AD480 2203-003019 C-CER,CHIP;8.2nF,10%,50V,X7R,TP,1005 2 SNA
...4 AD480 2203-005083 C-CER,CHIP;220nF,10%,50V,X7R,TP,1608,0.8 6 SA
...4 AD480 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 4 SNA
...4 AD480 2203-005968 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1005,0.5 4 SNA
...4 AD480 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 61 SA
...4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,TP,1005
...4 AD480 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,TP,1005,T0. 116 SNA
...4 AD480 2203-006257 C-CER,CHIP;470nF,10%,6.3V,X5R,TP,1005,0. 1 SNA
...4 AD480 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,TP,1608 1 SA
...4 AD480 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,1608,0. 4 SA
...4 AD480 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 16 SNA
...4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,TP,1608 3 SNA
...4 AD480 2203-006838 C-CER,CHIP;2200nF,10%,6.3V,X5R,TP,1005 11 SA
...4 AD480 2203-006890 C-CER,CHIP;10000nF,20%,6.3V,X5R,TP,1608 49 SNA
...4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012,1 1 SNA
...4 AD480 2203-007240 C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,1608( 32 SA
...4 AD480 2203-007269 C-CER,CHIP;22000nF,20%,10V,X5R,TP,2012(2 14 SA
...4 AD480 2203-007270 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 2 SNA
...4 AD480 2203-007306 C-CER,CHIP;10000nF,10%,25V,X5R,TP,2012,1 15 SNA
...4 AD480 2203-007544 C-CER,CHIP;100nF,10%,50V,X7R,TP,1005,0.5 13 SA
...4 2703-000158 INDUCTOR-SMD;1uH,10%,0.4Ohm,50mA,45,Mult 1 SA
...4 2703-000213 INDUCTOR-SMD;470nH,10%,1.35Ohm,35mA,15,M 1 SA
...4 2703-001938 INDUCTOR-SMD;56nH,5%,1005,1.5Ohm,200mA,1 3 SA
...4 2703-003713 INDUCTOR-SMD;1.5uH,20%,7366,0.015Ohm,700 1 SA
...4 2703-003937 INDUCTOR-SMD;1uH,20%,7.0x6.47x3.0mm,0.00 1 SA
...4 2703-004724 INDUCTOR-SMD;8.2uH,20%,4T,0.072Ohm,2300m 4 SA
...4 2703-005191 INDUCTOR-SMD;1.5uH,20%,4.5,0.02Ohm,5300m 2 SA
...4 2703-005192 INDUCTOR-SMD;4.7uH,20%,4.5,0.036Ohm,4200 2 SA
...4 2703-005194 INDUCTOR-SMD;3.3uH,20%,4.5,0.03Ohm,4500m 1 SA
...4 2801-004021 CRYSTAL-SMD;24.576MHz,20ppm,28-AAN,12pF,
...4 3301-001364 BEAD-SMD;1000ohm,1608,TP,1085ohm/108MHz, 7 SNA
3 SNA
1 SA
Page 16
ANNEX-7
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 3301-002039 BEAD-SMD;26ohm,1608,TP 40 SA
...4 3407-000183 SWITCH-DIP;50V,100mA,SLIDE,STANDARD 1 SNA
...4 3601-001374 FUSE-SURFACE MOUNT;32V,5A,FAST-ACTING,PL 2 SA
...4 3701-001967 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5mm,BLK 3 SA
...4 3707-001104 CONNECTOR-OPTICAL;ANGLE,SPDIF 1 SA
...4 3708-003073 CONNECTOR-FPC/FFC/PIC;51P,0.5mm,SMD-A,AU 1 SA
...4 3710-003908 CONNECTOR-SOCKET;64P,2R,0.5mm,SMD-S,AU,B 1 SA
...4 3711-007585 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,ANGLE,S 1 SA
...4 3711-007776 CONNECTOR-HEADER;BOX,8P,1R,1.25mm,SMD-A, 1 SA
...4 EH01 3711-008859 HEADER-BOARD TO CABLE;BOX,12P,2R,2mm,ANG 1 SA
...4 3711-009090 CONNECTOR-HEADER;BOX,16P,1R,1.25mm,SMD-A 1 SA
...4 3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT 1 SA
...4 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1x1 2 SA
...4 3722-003814 JACK-PHONE;1P/7C,NI/SN,YEL,ANGLE,3.5PI,1 1 SA
...4 JACK 3722-003873 JACK-PHONE;1P/7C,AU/SN,BLU,ANGLE,3.5PI,1 1 SA
...4 6302-001376 GASKET-SMD;,,CONDUCTIVE FABRIC,T14,W43,L 8 SNA
...4 BN40-00322B TUNER-DTV AIR CABLE;GTTH-6A11,GTTH-6A11, 1 SA
...4 BN41-02534A PCB-MAIN;K5500/6200/6300,FR-4,4L,1.2T,19 1 SNA
...4 CB07 BN61-13312B BRACKET-PCB;55KS8000,SK5,0.3,13.7,11.4,S 4 SNA
...4 BN97-10911B ASSY MICOM-MAIN;T-HKMFKDEUC,UWK60,THGBMB 1 SNA
....5 1107-002341 IC-EMMC;THGBMBG5D1KBAIT,4GB,BGA,153P,11x 1 SA
...4 BN97-10913B ASSY MICOM-SUB;HMMICOM_16_FHD,UWK60,GD25 1 SNA
....5 1107-002467 IC-NOR FLASH;GD25Q41BSIGY,4Mbit,SOP,8P,5 1 SA
1 BN92-19734A ASSY LABEL POP;7K 1 SNA
0.2 BN68-07971E LABEL POP-HIGHLIGHT;K5100,PET,T0.1,W90,L 1 SNA
1 BN92-20288D ASSY BOX;UK5500N 32 1 SNA
0.2 BH68-00662A LABEL BOX;ALL,ART,90g,W60,L110,WHT,NO SI 1 SNA
0.2 BN68-05640A LABEL BOX;ALL,ART,90g,W110,L130,EUROPE,L 1 SNA
0.2 BN69-14528B BOX UNIT;32K5500,CB,DW2,F1,L877,W100,H50 1 SNA
1 BN92-20298A ASSY P/MATERIAL;UK5500N,32 1 SNA
0.2 6902-001953 BAG ROLL;HDPE/PE FOAM,HDPE T0.018mm,T0.2 2 SNA
0.2 6902-002233 BAG AIR;LDPE,-,T0.2,W900,L1850,TRP,-,-,- 1 SNA
0.2 6922-000003 BAND;PP,T0.8,W18,L1650M,TRP,DA69-90145A 0 SNA
0.2 BN02-00319B TAPE-OPP;OPP,T0.05,W75,L800m,CLEAR 2 SNA
0.2 BN68-02422B LABEL-WARNING;ALL,ART,T0.05,W240,L100,Wh 1 SNA
0.2 BN69-00257B PAD-DP SHEET;-,CB,SW4,,W1130,L820,,,,,YE 1 SNA
0.2 BN69-03982N PACKING ANGLE;EDGE,PAPER 1 SNA
0.2 BN69-05418N WRAP;T0.017,750,2000000,2000000,750 0 SNA
0.2 BN69-06640E PAD-PACKING;TRUCK PAD,CB,-,,W410,L2500,, 1 SNA
0.2 BN69-13108A CUSHION-SET;EPS,16.7g/l,WHT,0 1 SNA
..3 0103-005099 RESIN EPS;BASF303,Natural,Natural 233 SNA
0.2 BN69-14429H PALLET;32" K5500/5600,WOOD,-,1200,890,H1 1 SNA
1 BN92-20308D ASSY LABEL;UK5500N 1 SNA
0.2 0203-001598 TAPE-FILAMENT;#8915,0.15,12,55000,CLR 0 SNA
0.2 BN68-06708G LABEL-RATING;Monitor,WW,PP,T0.161,W93,L7 1 SNA
0.2 BN68-07519A LABEL-ENERGY;ALL JORDAN,WW,PP,T0.135,W60 1 SNA
0.2 BN68-07874C LEAFLET-QUICK SETUP GUIDE;K5500,EU,W/P,A 1 SNA
Page 17
ANNEX-8
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
1 ACCE1 BN92-20314F ASSY ACCESSORY;UK5500N 1 SNA
0.2 ACCE4 BN96-39489Z ASSY ACCESSORY-MANUAL;UK6P 1 SNA
..3 6902-001964 BAG PE;LDPE,BIOBASED,T0.03,W200,L300,TRP 1 SNA
..3 T0527 BN68-00513A LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W 2 SNA
..3 BN68-03548J LEAFLET-WARRANTY;comm,Samsung,17Lang,Mid 1 SNA
..3 BN68-04972E LEAFLET-REGULATORY GUIDE;ALL,SAMSUNG,W/W 1 SNA
..3 BN68-07598A LEAFLET-FICHE;ALL,W/P,0 1 SNA
..3 BN68-07870E MANUAL USERS;K5500 K5510,XH,W/P,EURO B5 1 SNA
0.2 ACCE2 BN96-39490H ASSY ACCESSORY-CABLE;UK6P 1 SNA
..3 3709-001791 CONNECTOR-CARD SLOT;64P,0.5mm,SMD-A,AU,P 1 SA
..3 T0268 3903-000950 CBF-POWER CORD;DT,CEE,LP-21L,250V,2.5A,B 1 SA
..3 4301-000121 BATTERY-MN;1.5V,R03,10.5x44.5m,7.5g,AAA 2 SNA
..3 6902-001965 BAG PE;LDPE,BIOBASED,T0.05,W200,L300,TRP 1 SNA
..3 EC03 BN39-02189A GENDER CABLE;DC to RCA Cable,3P,L100,UL2 1 SA
..3 EC03 BN39-02190A GENDER CABLE;DC to RCA Cable,2P,L100,UL2 1 SA
..3 BN59-01247A REMOCON-TV;2016 TV,Samsung,44KEY,3V,KU60 1 SA
..3 BN96-40152A ASSY HOLDER P-CABLE;65KS7500,ABS,BK0007, 1 SNA
...4 BN61-04692A ADHESIVE-AA;SHEET,CLEAR,C043 0 SNA
...4 BN61-05704A TAPE-DOUBLE FACE;T1.1,W8,Dark Gray,3M #4 0 SNA
...4 AH089 BN61-13777A HOLDER-CABLE;55KS7500,ABS,T15,BK0007,HB, 1 SNA
...4 AS080 BN63-07556W SHEET-PROTECTION COVER;F-LED,PO,W12,ROLL 0 SNA
..3 EH03A BN96-40460A ASSY HOLDER P-RING;55KS7500,ABS,BLACK,V- 1 SNA
...4 6902-001404 BAG PE;LDPE,T0.05,W80,L100,TRP,N 1 SNA
...4 BN61-13518A HOLDER-WALL RING;55KS7500,ABS,MOLD,BK000
1 PANEL BN95-02613A PRODUCT LCD-AUO;CY-KK032BGAV1V/H,K5500,B 1 SA
0.2 SCREW 6001-003075 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 2 SA
0.2 BN68-05722A LABEL-E PASS;POLYPROPYLENE,NON-COATING 1 SNA
0.2 BN74-00053E TAPE-PAPER;PAPER,3M2307,0.14T,W20,50m,WH 0 SNA
0.2 BN90-08186A ASSY MISC-BLU;Y16,LCM 1 SNA
..3 BN02-00074E TAPE PET;U7201,PET,T0.05,W10,L20,BLACK 2 SNA
..3 BN61-13746A OPTICAL SHEET-REFLECTOR;16Y_K5500_32INCH 1 SNA
..3 BN61-13747A LGP;16Y_K5500_32INCH_LGP,PMMA,Left LED,2 1 SNA
..3 BN61-13748A OPTICAL SHEET-COMPLEX;16Y_K5500_32INCH_C 1 SNA
..3 BN96-39513A ASSY LED BAR P;32 K6200(AUO),ALUMINUM,70 1 SNA
..3 BN96-40331B ASSY CHASSIS REAR P;32K5500,EGI-SECC 1 SNA
...4 BN02-00040B TAPE DOUBLE FACE;NNB 32/40/46/55",PET,T0 1 SNA
...4 BN02-00102B TAPE-FILAMENT;#8917,0.15,25,50,WHITE 0 SNA
...4 BN02-00352D TAPE-OPP;PET,T0.05,W20,L50M,BLK,ULNO.E16 0 SNA
...4 BN02-00515A TAPE THERMAL;32K5500,ACRYL,T0.2,W18.5,L3 1 SNA
...4 BN39-02177A LEAD CONNECTOR-BLU;32 K6200,UL21016,8P,4 1 SNA
...4 BN60-00554R SPACER-SILICONE;Y15 VD,Si,L10,ID3,BLACK, 2 SNA
...4 BN61-08235A HOLDER-LGP;SNB,SWRCH10A,BLACK,PRESS 1 SNA
...4 BN61-13474A FRAME-MIDDLE TOP LEFT;40K5500,TPV,HB,BK0 1 SNA
...4 BN61-13475A FRAME-MIDDLE TOP RIGHT;40K5500,TPV,HB,BK 2 SNA
...4 BN61-13476A FRAME-MIDDLE BOTTOM LEFT;40K5500,TPV,HB, 1 SNA
...4 BN61-13477A FRAME-MIDDLE BOTTOM RIGHT;40K5500,TPV,HB 1 SNA
...4 BN61-13557A BRACKET-WIRE;KS7000,SW-C,1,60,SILVER 8 SA
4 SA
Page 18
ANNEX-9
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 BN63-15792A INSULATOR-SOURCE PCB;32K5500,PET,BLACK,L 1 SNA
...4 BN63-15944A INSULATOR-SMPS;32K5500,PC,BLACK,L169.9,W 1 SNA
...4 CC04 BN64-03392B CHASSIS-REAR;32K5500,EGI-SECC,PRESS,T0.5 1 SNA
....5 BN61-13521A HOLDER-WALL RIVET;32K5500,CR-SPCC,10.5,M 4 SNA
..3 BN96-40865A ASSY FRAME P-MIDDLE LEFT;32K5500,STS304, 1 SNA
...4 BN60-01425A SPACER-PET;32K5500,PET,L400.2,GRAY,T0.06 2 SNA
...4 BN61-14144A FRAME-MIDDLE LEFT;32K5500,STS304,PRESS,N 1 SNA
0.2 BN96-30379B ASSY OPEN CELL;T320HVN05.4,16:9,32inch F 1 SNA
..3 BN81-09514A A/S-ADHESIVE ACF;T500HVN05.0,47.COF21.00 1 SNA
..3 BN81-09515A A/S-ADHESIVE ACF;T500HVN05.0,47.23T01.00 1 SNA
..3 BN81-13083A A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,46 1 SNA
..3 BN81-13084A A/S-SOURCE PCB RIGHT;SOURCE PCB RIGHT,55 1 SNA
..3 BN81-13085A A/S-POLARIZER CF;POLARIZER CF,66.C4S50.3 1 SNA
..3 BN81-13086A A/S-SOURCE PCB LEFT;SOURCE PCB LEFT,55.3 1 SNA
..3 BN81-13087A A/S-POLARIZER TFT;POLARIZER TFT,66.T4S42 1 SNA
0.2 TCON BN96-30386B ASSY T CON P;55.32T,T320HVN05.0,10,16:9, 1 SA
0.2 BN96-30782H FFC CABLE;J5000,Straight,L58,60P 2 SNA
0.2 BN96-40350C ASSY CHASSIS FRONT P;32K5500,PC+ABS+ED18 1 SNA
..3 BN60-01435A SPACER-CONDUCTIVE;32K5500,CONDUCTIVE FAB 1 SNA
..3 BN60-01435B SPACER-CONDUCTIVE;32K5500,CONDUCTIVE FAB 2 SNA
..3 BN60-01436B SPACER-CONDUCTIVE;32K5500,CONDUCTIVE FAB 1 SNA
..3 BN63-10118A GASKET-TAPE;60 FLED,Conductive Fabric,T0 2 SNA
..3 BN63-11118B SHEET-PROTECTION COVER;Y13 SNB F8.5K,PET 2 SNA
..3 BN63-11118F SHEET-PROTECTION COVER;K6200,PET,T0.04,W 1 SNA
..3 BN63-12151A GASKET-EMI;CY-MH270BGLV1V,Conductive Fab 2 SNA
..3
...4 0103-010808 RESIN PC ABS;NH-1210/K21294,BLACK,BK0007 121 SNA
...4 BN63-11118B SHEET-PROTECTION COVER;Y13 SNB F8.5K,PET 2 SNA
AC155 BN64-03384A CHASSIS-FRONT;32K5500,PC+ABS+ED18%,V-1,M 1 SNA
Page 19
ANNEX. Exploded View & Part List
ANNEX. Exploded View & Part List [UE49K5500AWXXH BA01]
1-1. Exploded View
1-1-1. Parts List
No. Code No. Description & Specication Q’ty SA/SNA Remark
1 BN95-02622A PRODUCT LCD-CSOT; CY-KK049BGHV1V/H,K5500, 1 SA
2 BN44-00872A DC VSS-PD BOARD; L55E1_KDY,AC/DC,105W,100 1 SA
3 BN94-10935H ASSY PCB MAIN; UK5500N,32 1 SA
4 BN63-15481A COVER-TERMINAL SIDE; 40K5500,HIPS,MOLD,HB 1 SA
5 BN96-39970A ASSY SPEAKER P-FRONT; TV-SPK,K5500,6ohm,1 1 SA
6 BN96-39802B ASSY BOARD P-FUNCTION TACT; K6200/K5500/K 1 SA
7 BN59-01240A NETWORK-WLAN CLIENT; WCK720Q,USB 2.0,16P, 1 SA
8 BN61-13287A BRACKET-STAND LINK; 40K5500,EGI-SECC,T1.6 1 SNA
9 BN96-40256C ASSY COVER P-REAR; 49K5500,PC+ABS+ED20%,V 1 SA
9-1 BN63-15198A COVER-CAP; 55KS7500,ABS+PMMA,T0.1,HB,BK00 4 SNA
9-2 BN63-15933A COVER-CAP; 49K6200,PC+ABS+ED20%,MOLD,V-1, 2 SNA
10 BN63-15932A COVER-BOTTOM; 49K6200,PC+ABS+ED20%,MOLD,V 1 SA
11 BN96-40078A ASSY STAND P-FRONT; 49K5500,PC+ABS,BK0008 1 SA
12 BN96-40080A ASSY STAND P-REAR; 49K5500,PC+ABS,BK0008 1 SA
ANNEX-1
Page 20
ANNEX-2
ANNEX. Exploded View & Part List
2-1. Electrical Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
UE49K5500AWXXH (BA01)
1 S001A BN90-08054C ASSY STAND;LEDTV 6K 1 SNA
0.2 BN96-40078A ASSY STAND P-FRONT;49K5500,PC+ABS,BK0008 1 SA
..3 6001-003168 SCREW-MACHINE;CH,+,M3,L5,ZPC(BLK),SWRCH1 2 SNA
..3 SCREW 6003-001238 SCREW-TAPTYPE;FH,+,S,M4,L8,ZPC(BLK),SWRC 2 SA
..3 SCREW 6003-001334 SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR 4 SA
..3 6902-002660 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W120,L20 1 SNA
..3 BN60-00162E SPACER-FOAM;PE FOAM,ROLL,GRAY,T0.5,W20 1 SNA
..3 BN61-04692A ADHESIVE-AA;SHEET,CLEAR,C043 0 SNA
..3 BN61-13416A BRACKET-STAND BOTTOM FRONT;49K5500,SM45C 1 SNA
..3 BN61-13421A BRACKET-STAND NECK FRONT;40K5500,HGI,T4, 1 SNA
...4 BN61-13531A STUD-PEM;40K5500,SUM24L,NATURAL 1 SNA
..3 BN61-13427A GUIDE-STAND FRONT;40K5500,PC+GF20%,V-2,G 1 SNA
..3 RF01 BN61-13520D FOOT-RUBBER;40K5500,RUBBER,GRAY,T3,W5 L1 2 SNA
..3 BN61-14106A BRACKET-STAND LINK FRONT;49K5500,EGI-SEC 1 SNA
..3 BN63-15242A COVER-STAND BOTTOM FRONT;49K5500,PC+ABS, 1 SNA
..3 BN63-15764A SHEET-PU FOAM;40K5500,PU FOAM,T0.5,W57.0 1 SNA
..3 BN68-05603A LABEL-E PASS;ART PAPER 90G,W/W 3 SNA
..3 BN95-02804A ASSY COVER STAND SMT-FRONT TOP;K6200,49, 1 SNA
...4 0203-001269 TAPE-OPP;#301,T0.06,W75,L50000,NTR 0 SNA
...4 AA69-07580B PAD-DP SHEET;CB,SW,W795,L490,0 1 SNA
...4 BN63-15239A COVER-STAND TOP FRONT;49K5500,PC+ABS,MOL 1 SNA
...4 BN69-10617S PACKING SHEET;48" 6500 INHOUSE,HDPE/PE F 1 SNA
...4 BN69-13591V PAD-DP CROSS;49K5500,CB,DW,W802,L135,YEL 1 SNA
...4 BN69-13591W PAD-DP CROSS;49K5500,CB,DW,W494,L135,YEL 1 SNA
...4 BN69-13724S MASTER BOX-DP;49K5500,CB,DW1,A1,L805,W50
0.2 BN96-40080A ASSY STAND P-REAR;49K5500,PC+ABS,BK0008 1 SA
..3 SCREW 6003-001845 SCREW-TAPTYPE;FH,+,B,M4,L6,ZPC(BLK),SWRC 2 SNA
..3 6021-000265 NUT-HEXAGON;2C,M4,ZPC(YEL),SM20C 4 SNA
..3 6902-002661 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W140,L20 1 SNA
..3 BN60-00162G SPACER-FOAM;PE FOAM,ROLL,GRAY,T0.5,W30 0 SNA
..3 BN61-06871A BOSS-BOND;UC9000,Dimethacrylate ester,Re 0 SNA
..3 BN61-13419A BRACKET-STAND BOTTOM REAR;K5500 49" 55", 1 SNA
..3 BN61-13424A BRACKET-STAND NECK REAR;K5500 40" 43",HG 1 SNA
..3 BN61-13430A GUIDE-STAND REAR;40K5500,PC+GF20%,V-2,GY 1 SNA
...4 0103-010578 RESIN PC;HF-3200H/G33168,Gray,GY0296,1.5 45 SNA
..3 RF01 BN61-13520B FOOT-RUBBER;40K5500,Si,GRAY,T3,W5 L5 2 SNA
..3 BN63-11118E SHEET-PROTECTION COVER;STANDARD ENCLOSUR 2 SNA
..3 BN63-15248A COVER-STAND BOTTOM REAR;49K5500,PC+ABS,M 1 SNA
...4 0103-010892 RESIN PC ABS;NH-1017SG/G33438,Blue Gray, 151 SNA
..3 BN63-15764B SHEET-PU FOAM;55K5500,PU FOAM,T0.3,W57,L 1 SNA
..3 BN95-02806A ASSY COVER STAND SMT-REAR TOP;K6200,49,S 1 SNA
...4 0204-007315 COATING;CVM92000(VOC),CLEAR,1.06 0 SNA
...4 AA69-04045N PAD-DP SHEET;CB,SW,610,520 1 SNA
1 SNA
Page 21
ANNEX-3
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 BN01-00337A TARGET-ALUMINIUM CY;Al,99.9%,1924mm, 132 0 SNA
...4 BN01-00340A TARGET-CHROMIUM CY;Cr,99.5%,1924mm, 132d 0 SNA
...4 BN63-11118P SHEET-PROTECTION COVER;55K6200,PET,T0.04 0 SNA
...4 BN63-15245A COVER-STAND TOP REAR;49K5500,PC+ABS,MOLD 1 SNA
....5 0103-005041 RESIN PC ABS;FR3200TV,901408,BK0008,1.2m 72 SNA
....5 BN63-11118F SHEET-PROTECTION COVER;K6200,PET,T0.04,W 1 SNA
....5 BN63-11118P SHEET-PROTECTION COVER;55K6200,PET,T0.04 0 SNA
...4 BN68-03920A LABEL BOX;ALL,ART,100g,W100,L75,W/W 2 SNA
...4 BN69-10617B PACKING SHEET;32" UH6300,HDPE/PE FOAM,PE 1 SNA
...4 BN69-13591P PAD-DP CROSS;49K5500,CB,DW,W608,L180,YEL 1 SNA
...4 BN69-13591Q PAD-DP CROSS;49K5500,CB,DW,W522,L180,YEL 1 SNA
...4 BN69-13724P MASTER BOX-DP;49K5500,CB,DW1,A1,L615,W52 1 SNA
..3 BN96-35528C ASSY ACCESSORY-SCREW;40K5500,W/W,M4,L25, 1 SNA
...4 6001-003072 SCREW-MACHINE;BH,+,WS,M4,L25,NI PLT,SWRC 4 SA
1 R001A BN90-08316C ASSY COVER REAR;UK5500N 49 1 SNA
0.2 R001A BN96-40256C ASSY COVER P-REAR;49K5500,PC+ABS+ED20%,V 1 SA
..3 CCM1 BN63-02183G SHEET-PROTECTION COVER;Rhcm,PE,T0.05,W11 1 SNA
..3 BN63-07556G SHEET-COVER;TOC,PO,T0.068,W70mm,100M,ST- 4 SNA
..3 R001 BN63-15170B COVER-REAR;49K5500,PC+ABS+ED20%,MOLD,V-1 1 SNA
...4 0103-010837 RESIN PC ABS;CM20G/BK90080,Dark Gray,GY0 2548 SNA
..3 AC220 BN63-15198A COVER-CAP;55KS7500,ABS+PMMA,T0.1,HB,BK00 4 SNA
..3 AC220 BN63-15933A COVER-CAP;49K6200,PC+ABS+ED20%,MOLD,V-1, 2 SNA
..3 BN64-03519A INLAY-TERMINAL SIDE;55K6200,PET,T0.125,B 1 SNA
..3 BN68-03518H LABEL-STICKER CI SLOT;WW,ALL,PET,T0.1,W1 1 SNA
..3 BN68-07835C
1 BN90-08326B ASSY W/I;UK5500N 1 SNA
0.2 BN81-08159Z A/S PART SET-ELEC W/I;LED TV ELEC spec-C 1 SNA
0.2 BN81-12184R A/S PART SET-MECH W/I;UK5500N,U49KN* 1 SNA
1 BN91-17834L ASSY SHIELD;UK5500N 49 1 SNA
0.2 SCREW 6001-003081 SCREW-MACHINE;PWH,+,M3,L5,ZPC(WHT),SWRCH 3 SA
0.2 BN02-00102B TAPE-FILAMENT;#8917,0.15,25,50,WHITE 0 SNA
0.2 BN39-02217A LEAD CONNECTOR-POWER;UN50KU6000,UL21016, 1 SA
0.2 BN39-02219C LEAD CONNECTOR-SUB ASSY;40K5500,UL21016, 1 SA
0.2 BN39-02223C LEAD CONNECTOR-SUB ASSY;55K6200,UL21016, 1 SA
0.2 BN44-00872A DC VSS-PD BOARD;L55E1_KDY,AC/DC,105W,100 1 SA
0.2 BN59-01240A NETWORK-WLAN CLIENT;WCK720Q,USB 2.0,16P, 1 SA
0.2 CB18 BN61-13287A BRACKET-STAND LINK;40K5500,EGI-SECC,T1.6 1 SNA
..3 BN61-09605A STUD-PEM;LED TV F6100,SUM24L,L8 4 SNA
0.2 RB01 BN63-15932A COVER-BOTTOM;49K6200,PC+ABS+ED20%,MOLD,V 1 SA
0.2 BN96-39802B ASSY BOARD P-FUNCTION TACT;K6200/K5500/K 1 SA
0.2 BN96-39970A ASSY SPEAKER P-FRONT;TV-SPK,K5500,6ohm,1 1 SA
0.2 BN96-40209B FFC CABLE;40K6200,Wrinkle,L300,51P 1 SA
1 M0017 BN91-17841H ASSY CHASSIS;UK5500N,32 1 SNA
0.2 M0014 BN94-10935H ASSY PCB MAIN;UK5500N,32 1 SA
..3 AH020 BN62-00821A HEAT SINK;49K6200,A1050,6.3T,W127.6,L94. 1 SNA
..3 BN63-15481A COVER-TERMINAL SIDE;40K5500,HIPS,MOLD,HB 1 SA
..3 BN97-09470B ASSY DRM;MAC, MIRACAST HDCP 1 SNA
LABEL-STICKER LICENSE;40K5500,PET,0.125, 1 SNA
Page 22
ANNEX-4
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 BN46-00109H KEY CODE-CERTIFICATION;MAC,TV/AV,General 1 SNA
...4 BN46-00110P KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2) 1 SNA
...4 BN46-00115P KEY CODE-CERTIFICATION;CI+, TV, HAWK, EU 1 SNA
..3 BN97-11007E ASSY SMD;UK5500N,32" 1 SNA
...4 0202-001899 SOLDER-CREAM;M705-GRN360-K2-VT,20-38um,S 2 SNA
...4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 SA
...4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300mW,SO 3 SNA
...4 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 4 SA
...4 0406-001200 DIODE-TVS;RClamp0504F,6V,1MAV,TP 2 SA
...4 0406-001628 DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP 1 SA
...4 0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 7 SA
...4 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 3 SC
...4 0504-000126 TR-DIGITAL;KSR1101,NPN,200mW,4.7K/4.7K,S 1 SA
...4 0505-002560 FET-SILICON;AO6415,P,20V,-3.3A,0.15ohm,1 1 SA
...4 0505-002598 FET-SILICON;AP2317GN,P,20V,-4.2A,0.052oh 1 SA
...4 0505-002893 FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 1 SA
...4 0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19ohm, 2 SA
...4 0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 4 SA
...4 0801-003330 IC-CMOS LOGIC;Octal buffer,DQFN,20P,4.5x 1 SA
...4 1001-001545 IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF 1 SA
...4 1103-001600 IC-EEPROM;24C512C,512k,SOIC,8P,6.20mmX5. 1 SA
...4 1105-002681 IC-DDR3 SDRAM;H5TQ4G63CFR,DDR3 1866,4Gbi 3 SNA
...4 1201-003690 IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL 1 SA
...4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
...4 1203-007018 IC-DC/DC CONVERTER;TPS54821RHL,QFN,14,3. 1 SA
...4 1203-007238
...4 1203-007700 IC-DC/DC CONVERTER;TPS54527DDAR,DDA,8P,5 1 SA
...4 1203-008104 IC-POSI.FIXED REG.;S-13A1D18-E800,HSOP,8 2 SNA
...4 1203-008105 IC-POSI.FIXED REG.;S-13A1D33-E800,HSOP,8 1 SNA
...4 1203-008118 IC-DC/DC CONVERTER;AOZ3013PI,SO-8,8,4.96 2 SA
...4 1203-008183 IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 1 SA
...4 1203-008392 IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 1 SA
...4 1203-008393 IC-DDR TERMINATION REG.;AP2303MTR-G1-89, 1 SA
...4 1203-008454 IC-DC/DC CONVERTER;TPS56528,HSOP8,8,4,89 1 SA
...4 1204-003586 IC-DECODER;SDP1415,PBGA,631P,23x23mm,PLA 1 SA
...4 1205-004447 IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3x1.65 1 SA
...4 1205-004983 IC-SWITCH;BD82032FVJ,TSSOP-B8J,8P,3.0x4. 2 SA
...4 1205-005537 IC-REPEATER;TCA9517,VSSOP,8P,3.00x3.00mm 3 SA
...4 1405-001271 VARISTOR;35V,20Vdc,5A,1.0x0.5mm,TP,100V, 15 SA
...4 1405-001382 VARISTOR;24.5V,16VDC,120A,2.0x1.25mm,TP, 1 SA
...4 2007-000137 R-CHIP;2Kohm,5%,1/16W,TP,1005 16 SNA
...4 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 31 SNA
...4 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 21 SNA
...4 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 25 SNA
...4 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 SNA
...4 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 26 SNA
...4 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 3 SNA
IC-PWM CONTROLLER;TPS54427,DDA,8P,4.8x3. 1 SNA
Page 23
ANNEX-5
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 2007-001116 R-CHIP;680ohm,1%,1/10W,TP,1608 1 SA
...4 2007-001125 R-CHIP;68Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-001288 R-CHIP;18ohm,5%,1/16W,TP,1005 4 SA
...4 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 6 SNA
...4 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 1 SNA
...4 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 14 SNA
...4 2007-007132 R-CHIP;15Kohm,1%,1/16W,TP,1005 3 SA
...4 2007-007133 R-CHIP;300ohm,1%,1/16W,TP,1005 1 SA
...4 2007-007134 R-CHIP;39Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007135 R-CHIP;18Kohm,1%,1/16W,TP,1005 2 SNA
...4 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 2 SNA
...4 2007-007137 R-CHIP;1.2Kohm,1%,1/16W,TP,1005 4 SA
...4 2007-007138 R-CHIP;27Kohm,1%,1/16W,TP,1005 3 SNA
...4 2007-007139 R-CHIP;47Kohm,1%,1/16W,TP,1005,T0.35 3 SA
...4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 24 SNA
...4 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 20 SNA
...4 2007-007307 R-CHIP;150ohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007309 R-CHIP;12Kohm,1%,1/16W,TP,1005,T0.35 2 SA
...4 2007-007311 R-CHIP;22Kohm,1%,1/16W,TP,1005 6 SA
...4 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007313 R-CHIP;6.8Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007317 R-CHIP;2.2Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 22 SNA
...4 2007-007431 R-CHIP;91Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-007470 R-CHIP;7.5Kohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007488 R-CHIP;75Kohm,1%,1/16W,TP,1005
...4 2007-007517 R-CHIP;240ohm,1%,1/16W,TP,1005 4 SNA
...4 2007-007528 R-CHIP;1.5Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007587 R-CHIP;3.6Kohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 5 SNA
...4 2007-007767 R-CHIP;200ohm,1%,1/16W,TP,1005 7 SA
...4 2007-007861 R-CHIP;62Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007942 R-CHIP;1Mohm,1%,1/16W,TP,1005 1 SNA
...4 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 14 SNA
...4 2007-008213 R-CHIP;4.3Kohm,1%,1/16W,TP,1005 3 SNA
...4 2007-008275 R-CHIP;30Kohm,1%,1/16W,TP,1005 3 SNA
...4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA
...4 2007-008429 R-CHIP;499ohm,1%,1/16W,TP,1005 1 SNA
...4 2007-008485 R-CHIP;22ohm,1%,1/16W,TP,1005 8 SC
...4 2007-008779 R-CHIP;0ohm,1%,1/16W,TP,1005 4 SA
...4 2007-009117 R-CHIP;49.9Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-009777 R-CHIP;4.99Kohm,1%,1/16W,TP,1005 1 SA
...4 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. 8 SA
...4 2011-001344 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,2 4 SA
...4 2011-001345 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,2 1 SA
...4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1.0x1.0 4 SA
...4 2011-001497 R-NETWORK;470ohm,5%,1/16W,L,CHIP,4P,TP,1 1 SNA
1 SNA
Page 24
ANNEX-6
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 2011-001506 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,4P,TP,1 1 SNA
...4 2011-001587 R-NETWORK;100ohm,5%,1/16W,L,CHIP,4P,TP,1 1 SNA
...4 AD480 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 5 SA
...4 AD480 2203-000278 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,TP,1005 2 SA
...4 AD480 2203-000359 C-CER,CHIP;0.15nF,5%,50V,C0G,TP,1005,0.5 3 SNA
...4 AD480 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,TP,1005 2 SA
...4 AD480 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 14 SA
...4 AD480 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 3 SA
...4 AD480 2203-000585 C-CER,CHIP;0.22nF,10%,50V,X7R,TP,1005 3 SA
...4 AD480 2203-000627 C-CER,CHIP;0.022nF,5%,50V,C0G,TP,1005 2 SNA
...4 AD480 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005 1 SA
...4 AD480 2203-000812 C-CER,CHIP;0.033nF,5%,50V,C0G,TP,1005 5 SA
...4 AD480 2203-000854 C-CER,CHIP;0.039nF,5%,50V,C0G,TP,1005 1 SA
...4 AD480 2203-000940 C-CER,CHIP;0.47nF,10%,50V,X7R,TP,1005 2 SA
...4 AD480 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,TP,1005 1 SA
...4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,TP,1005 9 SNA
...4 AD480 2203-003019 C-CER,CHIP;8.2nF,10%,50V,X7R,TP,1005 2 SNA
...4 AD480 2203-005083 C-CER,CHIP;220nF,10%,50V,X7R,TP,1608,0.8 6 SA
...4 AD480 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 4 SNA
...4 AD480 2203-005968 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1005,0.5 4 SNA
...4 AD480 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 61 SA
...4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,TP,1005
...4 AD480 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,TP,1005,T0. 116 SNA
...4 AD480 2203-006257 C-CER,CHIP;470nF,10%,6.3V,X5R,TP,1005,0. 1 SNA
...4 AD480 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,TP,1608 1 SA
...4 AD480 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,1608,0. 4 SA
...4 AD480 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 16 SNA
...4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,TP,1608 3 SNA
...4 AD480 2203-006838 C-CER,CHIP;2200nF,10%,6.3V,X5R,TP,1005 11 SA
...4 AD480 2203-006890 C-CER,CHIP;10000nF,20%,6.3V,X5R,TP,1608 49 SNA
...4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012,1 1 SNA
...4 AD480 2203-007240 C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,1608( 32 SA
...4 AD480 2203-007269 C-CER,CHIP;22000nF,20%,10V,X5R,TP,2012(2 14 SA
...4 AD480 2203-007270 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 2 SNA
...4 AD480 2203-007306 C-CER,CHIP;10000nF,10%,25V,X5R,TP,2012,1 15 SNA
...4 AD480 2203-007544 C-CER,CHIP;100nF,10%,50V,X7R,TP,1005,0.5 13 SA
...4 2703-000158 INDUCTOR-SMD;1uH,10%,0.4Ohm,50mA,45,Mult 1 SA
...4 2703-000213 INDUCTOR-SMD;470nH,10%,1.35Ohm,35mA,15,M 1 SA
...4 2703-001938 INDUCTOR-SMD;56nH,5%,1005,1.5Ohm,200mA,1 3 SA
...4 2703-003713 INDUCTOR-SMD;1.5uH,20%,7366,0.015Ohm,700 1 SA
...4 2703-003937 INDUCTOR-SMD;1uH,20%,7.0x6.47x3.0mm,0.00 1 SA
...4 2703-004724 INDUCTOR-SMD;8.2uH,20%,4T,0.072Ohm,2300m 4 SA
...4 2703-005191 INDUCTOR-SMD;1.5uH,20%,4.5,0.02Ohm,5300m 2 SA
...4 2703-005192 INDUCTOR-SMD;4.7uH,20%,4.5,0.036Ohm,4200 2 SA
...4 2703-005194 INDUCTOR-SMD;3.3uH,20%,4.5,0.03Ohm,4500m 1 SA
...4 2801-004021 CRYSTAL-SMD;24.576MHz,20ppm,28-AAN,12pF,
...4 3301-001364 BEAD-SMD;1000ohm,1608,TP,1085ohm/108MHz, 7 SNA
3 SNA
1 SA
Page 25
ANNEX-7
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 3301-002039 BEAD-SMD;26ohm,1608,TP 40 SA
...4 3407-000183 SWITCH-DIP;50V,100mA,SLIDE,STANDARD 1 SNA
...4 3601-001374 FUSE-SURFACE MOUNT;32V,5A,FAST-ACTING,PL 2 SA
...4 3701-001967 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5mm,BLK 3 SA
...4 3707-001104 CONNECTOR-OPTICAL;ANGLE,SPDIF 1 SA
...4 3708-003073 CONNECTOR-FPC/FFC/PIC;51P,0.5mm,SMD-A,AU 1 SA
...4 3710-003908 CONNECTOR-SOCKET;64P,2R,0.5mm,SMD-S,AU,B 1 SA
...4 3711-007585 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,ANGLE,S 1 SA
...4 3711-007776 CONNECTOR-HEADER;BOX,8P,1R,1.25mm,SMD-A, 1 SA
...4 EH01 3711-008859 HEADER-BOARD TO CABLE;BOX,12P,2R,2mm,ANG 1 SA
...4 3711-009090 CONNECTOR-HEADER;BOX,16P,1R,1.25mm,SMD-A 1 SA
...4 3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT 1 SA
...4 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1x1 2 SA
...4 3722-003814 JACK-PHONE;1P/7C,NI/SN,YEL,ANGLE,3.5PI,1 1 SA
...4 JACK 3722-003873 JACK-PHONE;1P/7C,AU/SN,BLU,ANGLE,3.5PI,1 1 SA
...4 6302-001376 GASKET-SMD;,,CONDUCTIVE FABRIC,T14,W43,L 8 SNA
...4 BN40-00322B TUNER-DTV AIR CABLE;GTTH-6A11,GTTH-6A11, 1 SA
...4 BN41-02534A PCB-MAIN;K5500/6200/6300,FR-4,4L,1.2T,19 1 SNA
...4 CB07 BN61-13312B BRACKET-PCB;55KS8000,SK5,0.3,13.7,11.4,S 4 SNA
...4 BN97-10911B ASSY MICOM-MAIN;T-HKMFKDEUC,UWK60,THGBMB 1 SNA
....5 1107-002341 IC-EMMC;THGBMBG5D1KBAIT,4GB,BGA,153P,11x 1 SA
...4 BN97-10913B ASSY MICOM-SUB;HMMICOM_16_FHD,UWK60,GD25 1 SNA
....5 1107-002467 IC-NOR FLASH;GD25Q41BSIGY,4Mbit,SOP,8P,5 1 SA
1 BN92-19734A ASSY LABEL POP;7K 1 SNA
0.2 BN68-07971E LABEL POP-HIGHLIGHT;K5100,PET,T0.1,W90,L 1 SNA
1 BN92-20291D ASSY BOX;UK5500N 49 1 SNA
0.2 BH68-00662A LABEL BOX;ALL,ART,90g,W60,L110,WHT,NO SI 1 SNA
0.2 BN68-05640A LABEL BOX;ALL,ART,90g,W110,L130,EUROPE,L 1 SNA
0.2 BN69-13520B BOX UNIT;49K5500,CB,DW2,F1,L1240,W115,H7 1 SNA
1 BN92-20306A ASSY P/MATERIAL;UK5300L,49 1 SNA
0.2 6902-001956 BAG ROLL;HDPE/PE FOAM,HDPE T0.018mm,T0.2 3 SNA
0.2 6902-002233 BAG AIR;LDPE,-,T0.2,W900,L1850,TRP,-,-,- 1 SNA
0.2 6922-000003 BAND;PP,T0.8,W18,L1650M,TRP,DA69-90145A 0 SNA
0.2 BN02-00319B TAPE-OPP;OPP,T0.05,W75,L800m,CLEAR 3 SNA
0.2 AS080 BN63-07229A SHEET-PROTECTION COVER;rose70",PET,T0.05 1 SNA
0.2 BN68-02422B LABEL-WARNING;ALL,ART,T0.05,W240,L100,Wh 1 SNA
0.2 BN69-03982L PACKING ANGLE;EDGE,PAPER 1 SNA
0.2 BN69-05418N WRAP;T0.017,750,2000000,2000000,750 16 SNA
0.2 BN69-06640E PAD-PACKING;TRUCK PAD,CB,-,,W410,L2500,, 1 SNA
0.2 BN69-06641A PAD-DP SHEET;PAD,CB,SW4,,W1130,L1060,,,, 1 SNA
0.2 BN69-13110A CUSHION-SET;49K5500,EPS,16.7g/l,WHT 1 SNA
0.2 BN69-13147R PALLET-WOODEN;49" K5500,WOOD,-,W1125,L12 1 SNA
0.2 BN69-13494A CUSHION-SET SIDE;49K5500,EPS,16.7g/l,WHT 1 SNA
..3 0103-005099 RESIN EPS;BASF303,Natural,Natural 574 SNA
1 BN92-20308D ASSY LABEL;UK5500N 1 SNA
0.2 0203-001598 TAPE-FILAMENT;#8915,0.15,12,55000,CLR 0 SNA
0.2 BN68-06708G LABEL-RATING;Monitor,WW,PP,T0.161,W93,L7 1 SNA
Page 26
ANNEX-8
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
0.2 BN68-07519A LABEL-ENERGY;ALL JORDAN,WW,PP,T0.135,W60 1 SNA
0.2 BN68-07874C LEAFLET-QUICK SETUP GUIDE;K5500,EU,W/P,A 1 SNA
1 ACCE1 BN92-20314F ASSY ACCESSORY;UK5500N 1 SNA
0.2 ACCE4 BN96-39489Z ASSY ACCESSORY-MANUAL;UK6P 1 SNA
..3 6902-001964 BAG PE;LDPE,BIOBASED,T0.03,W200,L300,TRP 1 SNA
..3 BN68-03548J LEAFLET-WARRANTY;comm,Samsung,17Lang,Mid 1 SNA
..3 BN68-04972E LEAFLET-REGULATORY GUIDE;ALL,SAMSUNG,W/W 1 SNA
..3 BN68-07598A LEAFLET-FICHE;ALL,W/P,0 1 SNA
..3 BN68-07870E MANUAL USERS;K5500 K5510,XH,W/P,EURO B5 1 SNA
0.2 ACCE2 BN96-39490H ASSY ACCESSORY-CABLE;UK6P 1 SNA
..3 3709-001791 CONNECTOR-CARD SLOT;64P,0.5mm,SMD-A,AU,P 1 SA
..3 T0268 3903-000950 CBF-POWER CORD;DT,CEE,LP-21L,250V,2.5A,B 1 SA
..3 4301-000121 BATTERY-MN;1.5V,R03,10.5x44.5m,7.5g,AAA 2 SNA
..3 6902-001965 BAG PE;LDPE,BIOBASED,T0.05,W200,L300,TRP 1 SNA
..3 EC03 BN39-02189A GENDER CABLE;DC to RCA Cable,3P,L100,UL2 1 SA
..3 EC03 BN39-02190A GENDER CABLE;DC to RCA Cable,2P,L100,UL2 1 SA
..3 BN59-01247A REMOCON-TV;2016 TV,Samsung,44KEY,3V,KU60 1 SA
..3 T0527 BN68-00513A LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W 2 SNA
..3 BN96-40152A ASSY HOLDER P-CABLE;65KS7500,ABS,BK0007, 1 SNA
...4 BN61-04692A ADHESIVE-AA;SHEET,CLEAR,C043 0 SNA
...4 BN61-05704A TAPE-DOUBLE FACE;T1.1,W8,Dark Gray,3M #4 0 SNA
...4 AH089 BN61-13777A HOLDER-CABLE;55KS7500,ABS,T15,BK0007,HB, 1 SNA
...4 AS080 BN63-07556W SHEET-PROTECTION COVER;F-LED,PO,W12,ROLL 0 SNA
..3 EH03A BN96-40460A ASSY HOLDER P-RING;55KS7500,ABS,BLACK,V-
...4 6902-001404 BAG PE;LDPE,T0.05,W80,L100,TRP,N 1 SNA
...4 BN61-13518A HOLDER-WALL RING;55KS7500,ABS,MOLD,BK000 4 SA
1 BN95-02622A PRODUCT LCD-CSOT;CY-KK049BGHV1V/H,K5500, 1 SA
0.2 SCREW 6001-003075 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 2 SA
0.2 BN68-05722A LABEL-E PASS;POLYPROPYLENE,NON-COATING 1 SNA
0.2 BN74-00053E TAPE-PAPER;PAPER,3M2307,0.14T,W20,50m,WH 0 SNA
0.2 BN90-08169M ASSY MISC-BLU;2016_LCM 1 SNA
..3 BN02-00074E TAPE PET;U7201,PET,T0.05,W10,L20,BLACK 2 SNA
..3 BN61-13752A LGP;16Y_K5500_49INCH_LGP,PMMA,Left LED,2 1 SNA
..3 BN61-13753A OPTICAL SHEET-REFLECTOR;16Y_K5500_49INCH 1 SNA
..3 BN61-13959A OPTICAL SHEET-DIFFUSER;16Y_K5500_49INCH_ 1 SNA
..3 BN61-13964A OPTICAL SHEET-COMPLEX;16Y_K5500_49INCH_O 1 SNA
..3 BN96-39511A ASSY LED BAR P;49 K6200(CSOT),ALUMINUM,7 1 SNA
..3 BN96-40334B ASSY CHASSIS REAR P;49K5500,EGI-SECC,CSO 1 SNA
...4 0203-006963 TAPE-DOUBLE FACE;ACRYL,40K5500,T0.15,W18 1 SNA
...4 BN02-00040B TAPE DOUBLE FACE;NNB 32/40/46/55",PET,T0 1 SNA
...4 BN02-00102B TAPE-FILAMENT;#8917,0.15,25,50,WHITE 0 SNA
...4 BN39-02182A LEAD CONNECTOR-BLU;43 K5500,UL21016,12P, 1 SNA
...4 BN60-00554R SPACER-SILICONE;Y15 VD,Si,L10,ID3,BLACK, 2 SNA
...4 BN61-08235A HOLDER-LGP;SNB,SWRCH10A,BLACK,PRESS 1 SNA
...4 BN61-13474B FRAME-MIDDLE TOP LEFT;40K5500,TPV,HB,BK0 1 SNA
...4 BN61-13475A FRAME-MIDDLE TOP RIGHT;40K5500,TPV,HB,BK 1 SNA
...4 BN61-13475B FRAME-MIDDLE TOP RIGHT;40K5500,TPV,HB,BK 1 SNA
1 SNA
Page 27
ANNEX-9
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 BN61-13476B FRAME-MIDDLE BOTTOM LEFT;40K5500,TPV,HB, 1 SNA
...4 BN61-13477B FRAME-MIDDLE BOTTOM RIGHT;40K5500,TPV,HB 1 SNA
...4 BN61-13557A BRACKET-WIRE;KS7000,SW-C,1,60,SILVER 2 SA
...4 BN61-13557D BRACKET-WIRE;KS7000,SW-C,1,390,SILVER,ZI 1 SA
...4 BN61-13557H BRACKET-WIRE;55KS7000,SW-C,T1,NATURAL,ZI 2 SA
...4 BN61-13557J BRACKET-WIRE;KS7000,SW-C,1,560,SILVER,ZI 1 SA
...4 BN63-15531A INSULATOR-SMPS;40K5500,PC,BLACK,L169.9,W 1 SNA
...4 BN63-15798A INSULATOR-SOURCE PCB LEFT;49K5500,PET,BL 1 SNA
...4 BN63-15798B INSULATOR-SOURCE PCB RIGHT;49K5500,PET,B 1 SNA
...4 CC04 BN64-03394C CHASSIS-REAR;49K5500,EGI-SECC,PRESS,T0.8 1 SNA
....5 BN61-11982B HOLDER-WALL RIVET;55KS7000,CR-SPCC,EXTRU 4 SNA
..3 BN96-40868A ASSY FRAME P-MIDDLE LEFT;49K5500,STS304, 1 SNA
...4 BN60-01425D SPACER-PET;49K5500,PET,L612.2,GRAY,T0.06 2 SNA
...4 BN61-14150A FRAME-MIDDLE LEFT;49K5500,STS304,PRESS,N 1 SNA
0.2 BN96-39268A ASSY OPEN CELL;ST4851B01-1,16:9,6 1 SNA
..3 BN81-13056A A/S-IC DRIVER SOURCE;IC DRIVER SOURCE,33 1 SNA
..3 BN81-13057A A/S-IC DRIVER GATE;IC DRIVER GATE,330110 1 SNA
..3 BN81-13058A A/S-SOURCE PCB RIGHT;SOURCE PCB RIGHT,34 1 SNA
..3 BN81-13059A A/S-SOURCE PCB LEFT;SOURCE PCB LEFT,3429 1 SNA
..3 BN81-13060A A/S-POLARIZER CF;POLARIZER CF,3130500700 1 SNA
..3 BN81-13061A A/S-POLARIZER TFT;POLARIZER TFT,31305008 1 SNA
0.2 BN96-39412A FFC CABLE;K6200,Straight,L57,68P 2 SNA
0.2 TCON BN96-39675A ASSY T CON P;34291100430511,CSOT 49 FHD, 1 SA
0.2 BN96-40353C ASSY CHASSIS FRONT P;49K5500,PC+ABS+ED18 1 SNA
..3 BN60-01366G SPACER-CONDUCTIVE;49K5500,CONDUCTIVE FAB 1 SNA
..3
..3 BN60-01436G SPACER-CONDUCTIVE;49K5500,CONDUCTIVE FAB 2 SNA
..3 BN63-10118A GASKET-TAPE;60 FLED,Conductive Fabric,T0 2 SNA
..3 BN63-11118B SHEET-PROTECTION COVER;Y13 SNB F8.5K,PET 2 SNA
..3 BN63-11118F SHEET-PROTECTION COVER;K6200,PET,T0.04,W 1 SNA
..3 BN63-12151A GASKET-EMI;CY-MH270BGLV1V,Conductive Fab 2 SNA
..3 AC155 BN64-03386A CHASSIS-FRONT;49K5500,PC+ABS+ED18%,V-1,M 1 SNA
...4 0103-010808 RESIN PC ABS;NH-1210/K21294,BLACK,BK0007 193 SNA
...4 BN63-11118B SHEET-PROTECTION COVER;Y13 SNB F8.5K,PET 2 SNA
...4 BN63-11118F SHEET-PROTECTION COVER;K6200,PET,T0.04,W 2 SNA
BN60-01436F SPACER-CONDUCTIVE;49K5500,CONDUCTIVE FAB 1 SNA
Page 28
ANNEX. Exploded View & Part List
ANNEX. Exploded View & Part List [UE55K5500AWXXH VA01]
1-1. Exploded View
1-1-1. Parts List
No. Code No. Description & Specication Q’ty SA/SNA Remark
1 BN95-02624A PRODUCT LCD-AUO; CY-KK055BGAV1V/H,K5500,B 1 SA
2 BN44-00872A DC VSS-PD BOARD; L55E1_KDY,AC/DC,105W,100 1 SA
3 BN94-10935J ASSY PCB MAIN; UK5500N,32 1 SA
4 BN63-15481A COVER-TERMINAL SIDE; 40K5500,HIPS,MOLD,HB 1 SA
5 BN96-39970B ASSY SPEAKER P-FRONT; TV-SPK,K5500,6ohm,2 1 SA
6 BN96-39802B ASSY BOARD P-FUNCTION TACT; K6200/K5500/K 1 SA
7 BN59-01240A NETWORK-WLAN CLIENT; WCK720Q,USB 2.0,16P, 1 SA
8 BN61-13287A BRACKET-STAND LINK; 40K5500,EGI-SECC,T1.6 1 SNA
9 BN96-40255C ASSY COVER P-REAR; 55K5500,PC+ABS+ED20%,V 1 SA
9-1 BN63-15198A COVER-CAP; 55KS7500,ABS+PMMA,T0.1,HB,BK00 4 SNA
9-2 BN63-15933A COVER-CAP; 49K6200,PC+ABS+ED20%,MOLD,V-1, 2 SNA
10 BN63-15932A COVER-BOTTOM; 49K6200,PC+ABS+ED20%,MOLD,V 1 SA
11 BN96-40078A ASSY STAND P-FRONT; 49K5500,PC+ABS,BK0008 1 SA
12 BN96-40080A ASSY STAND P-REAR; 49K5500,PC+ABS,BK0008 1 SA
ANNEX-1
Page 29
ANNEX-2
ANNEX. Exploded View & Part List
2-1. Electrical Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
UE55K5500AWXXH (VA01)
1 S001A BN90-08054C ASSY STAND;LEDTV 6K 1 SNA
0.2 BN96-40078A ASSY STAND P-FRONT;49K5500,PC+ABS,BK0008 1 SA
..3 6001-003168 SCREW-MACHINE;CH,+,M3,L5,ZPC(BLK),SWRCH1 2 SNA
..3 SCREW 6003-001334 SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR 4 SA
..3 6902-002660 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W120,L20 1 SNA
..3 BN60-00162E SPACER-FOAM;PE FOAM,ROLL,GRAY,T0.5,W20 1 SNA
..3 BN61-04692A ADHESIVE-AA;SHEET,CLEAR,C043 0 SNA
..3 BN61-13416A BRACKET-STAND BOTTOM FRONT;49K5500,SM45C 1 SNA
..3 BN61-13421A BRACKET-STAND NECK FRONT;40K5500,HGI,T4, 1 SNA
...4 BN61-13531A STUD-PEM;40K5500,SUM24L,NATURAL 1 SNA
..3 BN61-13427A GUIDE-STAND FRONT;40K5500,PC+GF20%,V-2,G 1 SNA
..3 RF01 BN61-13520D FOOT-RUBBER;40K5500,RUBBER,GRAY,T3,W5 L1 2 SNA
..3 BN61-14106A BRACKET-STAND LINK FRONT;49K5500,EGI-SEC 1 SNA
..3 BN63-15242A COVER-STAND BOTTOM FRONT;49K5500,PC+ABS, 1 SNA
..3 BN63-15764A SHEET-PU FOAM;40K5500,PU FOAM,T0.5,W57.0 1 SNA
..3 BN95-02804A ASSY COVER STAND SMT-FRONT TOP;K6200,49, 1 SNA
...4 0203-001269 TAPE-OPP;#301,T0.06,W75,L50000,NTR 0 SNA
...4 AA69-07580B PAD-DP SHEET;CB,SW,W795,L490,0 1 SNA
...4 BN63-11118F SHEET-PROTECTION COVER;K6200,PET,T0.04,W 2 SNA
...4 BN63-15239A COVER-STAND TOP FRONT;49K5500,PC+ABS,MOL 1 SNA
...4 BN69-10617S PACKING SHEET;48" 6500 INHOUSE,HDPE/PE F 1 SNA
...4 BN69-13591V PAD-DP CROSS;49K5500,CB,DW,W802,L135,YEL 1 SNA
...4 BN69-13591W PAD-DP CROSS;49K5500,CB,DW,W494,L135,YEL 1 SNA
...4 BN69-13724S MASTER BOX-DP;49K5500,CB,DW1,A1,L805,W50 1 SNA
0.2 BN96-40080A ASSY STAND P-REAR;49K5500,PC+ABS,BK0008 1
..3 SCREW 6003-001238 SCREW-TAPTYPE;FH,+,S,M4,L8,ZPC(BLK),SWRC 2 SA
..3 SCREW 6003-001845 SCREW-TAPTYPE;FH,+,B,M4,L6,ZPC(BLK),SWRC 2 SNA
..3 6021-000265 NUT-HEXAGON;2C,M4,ZPC(YEL),SM20C 4 SNA
..3 6902-002661 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W140,L20 1 SNA
..3 BN60-00162G SPACER-FOAM;PE FOAM,ROLL,GRAY,T0.5,W30 0 SNA
..3 BN61-06871A BOSS-BOND;UC9000,Dimethacrylate ester,Re 0 SNA
..3 BN61-13419A BRACKET-STAND BOTTOM REAR;K5500 49" 55", 1 SNA
..3 BN61-13424A BRACKET-STAND NECK REAR;K5500 40" 43",HG 1 SNA
..3 BN61-13430A GUIDE-STAND REAR;40K5500,PC+GF20%,V-2,GY 1 SNA
...4 0103-010578 RESIN PC;HF-3200H/G33168,Gray,GY0296,1.5 45 SNA
..3 RF01 BN61-13520B FOOT-RUBBER;40K5500,Si,GRAY,T3,W5 L5 2 SNA
..3 BN63-11118E SHEET-PROTECTION COVER;STANDARD ENCLOSUR 2 SNA
..3 BN63-15248A COVER-STAND BOTTOM REAR;49K5500,PC+ABS,M 1 SNA
...4 0103-010892 RESIN PC ABS;NH-1017SG/G33438,Blue Gray, 151 SNA
..3 BN63-15764B SHEET-PU FOAM;55K5500,PU FOAM,T0.3,W57,L 1 SNA
..3 BN95-02806A ASSY COVER STAND SMT-REAR TOP;K6200,49,S 1 SNA
...4 0204-007315 COATING;CVM92000(VOC),CLEAR,1.06 0 SNA
...4 AA69-04045N PAD-DP SHEET;CB,SW,610,520 1 SNA
SA
Page 30
ANNEX-3
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 BN01-00337A TARGET-ALUMINIUM CY;Al,99.9%,1924mm, 132 0 SNA
...4 BN01-00340A TARGET-CHROMIUM CY;Cr,99.5%,1924mm, 132d 0 SNA
...4 BN63-11118P SHEET-PROTECTION COVER;55K6200,PET,T0.04 0 SNA
...4 BN63-15245A COVER-STAND TOP REAR;49K5500,PC+ABS,MOLD 1 SNA
....5 0103-005041 RESIN PC ABS;FR3200TV,901408,BK0008,1.2m 72 SNA
....5 BN63-11118F SHEET-PROTECTION COVER;K6200,PET,T0.04,W 1 SNA
....5 BN63-11118P SHEET-PROTECTION COVER;55K6200,PET,T0.04 0 SNA
...4 BN68-03920A LABEL BOX;ALL,ART,100g,W100,L75,W/W 2 SNA
...4 BN69-10617B PACKING SHEET;32" UH6300,HDPE/PE FOAM,PE 1 SNA
...4 BN69-13591P PAD-DP CROSS;49K5500,CB,DW,W608,L180,YEL 1 SNA
...4 BN69-13591Q PAD-DP CROSS;49K5500,CB,DW,W522,L180,YEL 1 SNA
...4 BN69-13724P MASTER BOX-DP;49K5500,CB,DW1,A1,L615,W52 1 SNA
..3 BN96-35528C ASSY ACCESSORY-SCREW;40K5500,W/W,M4,L25, 1 SNA
...4 6001-003072 SCREW-MACHINE;BH,+,WS,M4,L25,NI PLT,SWRC 4 SA
1 R001A BN90-08317C ASSY COVER REAR;UK5500N 55 1 SNA
0.2 R001A BN96-40255C ASSY COVER P-REAR;55K5500,PC+ABS+ED20%,V 1 SA
..3 CCM1 BN63-02183D SHEET-PROTECTION COVER;Rhcm,PE,T0.04,W68 1 SNA
..3 BN63-07556G SHEET-COVER;TOC,PO,T0.068,W70mm,100M,ST- 4 SNA
..3 R001 BN63-15171B COVER-REAR;55K5500,PC+ABS+ED20%,MOLD,V-1 1 SNA
...4 0103-010837 RESIN PC ABS;CM20G/BK90080,Dark Gray,GY0 3401 SNA
..3 AC220 BN63-15198A COVER-CAP;55KS7500,ABS+PMMA,T0.1,HB,BK00 4 SNA
..3 AC220 BN63-15933A COVER-CAP;49K6200,PC+ABS+ED20%,MOLD,V-1, 2 SNA
..3 BN64-03519A INLAY-TERMINAL SIDE;55K6200,PET,T0.125,B 1 SNA
..3 BN68-03518H LABEL-STICKER CI SLOT;WW,ALL,PET,T0.1,W1 1 SNA
..3 BN68-05603A
..3 BN68-07835C LABEL-STICKER LICENSE;40K5500,PET,0.125, 1 SNA
1 BN90-08326C ASSY W/I;UK5500N 1 SNA
0.2 BN81-08159Z A/S PART SET-ELEC W/I;LED TV ELEC spec-C 1 SNA
0.2 BN81-12184S A/S PART SET-MECH W/I;UK5500N,U55KN* 1 SNA
1 BN91-17835H ASSY SHIELD;UK5500N 55 1 SNA
0.2 SCREW 6001-003081 SCREW-MACHINE;PWH,+,M3,L5,ZPC(WHT),SWRCH 3 SA
0.2 BN02-00102B TAPE-FILAMENT;#8917,0.15,25,50,WHITE 0 SNA
0.2 BN39-02217E LEAD CONNECTOR-POWER;55K6200,UL21016,12P 1 SA
0.2 BN39-02219C LEAD CONNECTOR-SUB ASSY;40K5500,UL21016, 1 SA
0.2 BN39-02223C LEAD CONNECTOR-SUB ASSY;55K6200,UL21016, 1 SA
0.2 BN44-00872A DC VSS-PD BOARD;L55E1_KDY,AC/DC,105W,100 1 SA
0.2 BN59-01240A NETWORK-WLAN CLIENT;WCK720Q,USB 2.0,16P, 1 SA
0.2 CB18 BN61-13287A BRACKET-STAND LINK;40K5500,EGI-SECC,T1.6 1 SNA
..3 BN61-09605A STUD-PEM;LED TV F6100,SUM24L,L8 4 SNA
0.2 RB01 BN63-15932A COVER-BOTTOM;49K6200,PC+ABS+ED20%,MOLD,V 1 SA
0.2 BN96-39802B ASSY BOARD P-FUNCTION TACT;K6200/K5500/K 1 SA
0.2 BN96-39970B ASSY SPEAKER P-FRONT;TV-SPK,K5500,6ohm,2 1 SA
0.2 BN96-40209E FFC CABLE;55K6200,Wrinkle,L500,51P 1 SA
1 M0017 BN91-17841J ASSY CHASSIS;UK5500N,32 1 SNA
0.2 M0014 BN94-10935J ASSY PCB MAIN;UK5500N,32 1 SA
..3 AH020 BN62-00821A HEAT SINK;49K6200,A1050,6.3T,W127.6,L94. 1 SNA
..3 BN63-15481A COVER-TERMINAL SIDE;40K5500,HIPS,MOLD,HB 1 SA
LABEL-E PASS;ART PAPER 90G,W/W 3 SNA
Page 31
ANNEX-4
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
..3 BN97-09470B ASSY DRM;MAC, MIRACAST HDCP 1 SNA
...4 BN46-00109H KEY CODE-CERTIFICATION;MAC,TV/AV,General 1 SNA
...4 BN46-00110P KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2) 1 SNA
...4 BN46-00115P KEY CODE-CERTIFICATION;CI+, TV, HAWK, EU 1 SNA
..3 BN97-11007E ASSY SMD;UK5500N,32" 1 SNA
...4 0202-001899 SOLDER-CREAM;M705-GRN360-K2-VT,20-38um,S 2 SNA
...4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 SA
...4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300mW,SO 3 SNA
...4 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 4 SA
...4 0406-001200 DIODE-TVS;RClamp0504F,6V,1MAV,TP 2 SA
...4 0406-001628 DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP 1 SA
...4 0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 7 SA
...4 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 3 SC
...4 0504-000126 TR-DIGITAL;KSR1101,NPN,200mW,4.7K/4.7K,S 1 SA
...4 0505-002560 FET-SILICON;AO6415,P,20V,-3.3A,0.15ohm,1 1 SA
...4 0505-002598 FET-SILICON;AP2317GN,P,20V,-4.2A,0.052oh 1 SA
...4 0505-002893 FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 1 SA
...4 0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19ohm, 2 SA
...4 0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 4 SA
...4 0801-003330 IC-CMOS LOGIC;Octal buffer,DQFN,20P,4.5x 1 SA
...4 1001-001545 IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF 1 SA
...4 1103-001600 IC-EEPROM;24C512C,512k,SOIC,8P,6.20mmX5. 1 SA
...4 1105-002681 IC-DDR3 SDRAM;H5TQ4G63CFR,DDR3 1866,4Gbi 3 SNA
...4 1201-003690 IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL 1 SA
...4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
...4 1203-007018
...4 1203-007238 IC-PWM CONTROLLER;TPS54427,DDA,8P,4.8x3. 1 SNA
...4 1203-007700 IC-DC/DC CONVERTER;TPS54527DDAR,DDA,8P,5 1 SA
...4 1203-008104 IC-POSI.FIXED REG.;S-13A1D18-E800,HSOP,8 2 SNA
...4 1203-008105 IC-POSI.FIXED REG.;S-13A1D33-E800,HSOP,8 1 SNA
...4 1203-008118 IC-DC/DC CONVERTER;AOZ3013PI,SO-8,8,4.96 2 SA
...4 1203-008183 IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 1 SA
...4 1203-008392 IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 1 SA
...4 1203-008393 IC-DDR TERMINATION REG.;AP2303MTR-G1-89, 1 SA
...4 1203-008454 IC-DC/DC CONVERTER;TPS56528,HSOP8,8,4,89 1 SA
...4 1204-003586 IC-DECODER;SDP1415,PBGA,631P,23x23mm,PLA 1 SA
...4 1205-004447 IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3x1.65 1 SA
...4 1205-004983 IC-SWITCH;BD82032FVJ,TSSOP-B8J,8P,3.0x4. 2 SA
...4 1205-005537 IC-REPEATER;TCA9517,VSSOP,8P,3.00x3.00mm 3 SA
...4 1405-001271 VARISTOR;35V,20Vdc,5A,1.0x0.5mm,TP,100V, 15 SA
...4 1405-001382 VARISTOR;24.5V,16VDC,120A,2.0x1.25mm,TP, 1 SA
...4 2007-000137 R-CHIP;2Kohm,5%,1/16W,TP,1005 16 SNA
...4 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 31 SNA
...4 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 21 SNA
...4 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 25 SNA
...4 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 SNA
...4 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 26 SNA
IC-DC/DC CONVERTER;TPS54821RHL,QFN,14,3. 1 SA
Page 32
ANNEX-5
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 3 SNA
...4 2007-001116 R-CHIP;680ohm,1%,1/10W,TP,1608 1 SA
...4 2007-001125 R-CHIP;68Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-001288 R-CHIP;18ohm,5%,1/16W,TP,1005 4 SA
...4 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 6 SNA
...4 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 1 SNA
...4 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 14 SNA
...4 2007-007132 R-CHIP;15Kohm,1%,1/16W,TP,1005 3 SA
...4 2007-007133 R-CHIP;300ohm,1%,1/16W,TP,1005 1 SA
...4 2007-007134 R-CHIP;39Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007135 R-CHIP;18Kohm,1%,1/16W,TP,1005 2 SNA
...4 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 2 SNA
...4 2007-007137 R-CHIP;1.2Kohm,1%,1/16W,TP,1005 4 SA
...4 2007-007138 R-CHIP;27Kohm,1%,1/16W,TP,1005 3 SNA
...4 2007-007139 R-CHIP;47Kohm,1%,1/16W,TP,1005,T0.35 3 SA
...4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 24 SNA
...4 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 20 SNA
...4 2007-007307 R-CHIP;150ohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007309 R-CHIP;12Kohm,1%,1/16W,TP,1005,T0.35 2 SA
...4 2007-007311 R-CHIP;22Kohm,1%,1/16W,TP,1005 6 SA
...4 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007313 R-CHIP;6.8Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007317 R-CHIP;2.2Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 22 SNA
...4 2007-007431 R-CHIP;91Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-007470 R-CHIP;7.5Kohm,1%,1/16W,TP,1005
...4 2007-007488 R-CHIP;75Kohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007517 R-CHIP;240ohm,1%,1/16W,TP,1005 4 SNA
...4 2007-007528 R-CHIP;1.5Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007587 R-CHIP;3.6Kohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 5 SNA
...4 2007-007767 R-CHIP;200ohm,1%,1/16W,TP,1005 7 SA
...4 2007-007861 R-CHIP;62Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007942 R-CHIP;1Mohm,1%,1/16W,TP,1005 1 SNA
...4 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 14 SNA
...4 2007-008213 R-CHIP;4.3Kohm,1%,1/16W,TP,1005 3 SNA
...4 2007-008275 R-CHIP;30Kohm,1%,1/16W,TP,1005 3 SNA
...4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA
...4 2007-008429 R-CHIP;499ohm,1%,1/16W,TP,1005 1 SNA
...4 2007-008485 R-CHIP;22ohm,1%,1/16W,TP,1005 8 SC
...4 2007-008779 R-CHIP;0ohm,1%,1/16W,TP,1005 4 SA
...4 2007-009117 R-CHIP;49.9Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-009777 R-CHIP;4.99Kohm,1%,1/16W,TP,1005 1 SA
...4 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. 8 SA
...4 2011-001344 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,2 4 SA
...4 2011-001345 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,2 1 SA
...4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1.0x1.0 4 SA
1 SNA
Page 33
ANNEX-6
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 2011-001497 R-NETWORK;470ohm,5%,1/16W,L,CHIP,4P,TP,1 1 SNA
...4 2011-001506 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,4P,TP,1 1 SNA
...4 2011-001587 R-NETWORK;100ohm,5%,1/16W,L,CHIP,4P,TP,1 1 SNA
...4 AD480 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 5 SA
...4 AD480 2203-000278 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,TP,1005 2 SA
...4 AD480 2203-000359 C-CER,CHIP;0.15nF,5%,50V,C0G,TP,1005,0.5 3 SNA
...4 AD480 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,TP,1005 2 SA
...4 AD480 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 14 SA
...4 AD480 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 3 SA
...4 AD480 2203-000585 C-CER,CHIP;0.22nF,10%,50V,X7R,TP,1005 3 SA
...4 AD480 2203-000627 C-CER,CHIP;0.022nF,5%,50V,C0G,TP,1005 2 SNA
...4 AD480 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005 1 SA
...4 AD480 2203-000812 C-CER,CHIP;0.033nF,5%,50V,C0G,TP,1005 5 SA
...4 AD480 2203-000854 C-CER,CHIP;0.039nF,5%,50V,C0G,TP,1005 1 SA
...4 AD480 2203-000940 C-CER,CHIP;0.47nF,10%,50V,X7R,TP,1005 2 SA
...4 AD480 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,TP,1005 1 SA
...4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,TP,1005 9 SNA
...4 AD480 2203-003019 C-CER,CHIP;8.2nF,10%,50V,X7R,TP,1005 2 SNA
...4 AD480 2203-005083 C-CER,CHIP;220nF,10%,50V,X7R,TP,1608,0.8 6 SA
...4 AD480 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 4 SNA
...4 AD480 2203-005968 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1005,0.5 4 SNA
...4 AD480 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 61
...4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,TP,1005 3 SNA
...4 AD480 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,TP,1005,T0. 116 SNA
...4 AD480 2203-006257 C-CER,CHIP;470nF,10%,6.3V,X5R,TP,1005,0. 1 SNA
...4 AD480 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,TP,1608 1 SA
...4 AD480 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,1608,0. 4 SA
...4 AD480 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 16 SNA
...4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,TP,1608 3 SNA
...4 AD480 2203-006838 C-CER,CHIP;2200nF,10%,6.3V,X5R,TP,1005 11 SA
...4 AD480 2203-006890 C-CER,CHIP;10000nF,20%,6.3V,X5R,TP,1608 49 SNA
...4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012,1 1 SNA
...4 AD480 2203-007240 C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,1608( 32 SA
...4 AD480 2203-007269 C-CER,CHIP;22000nF,20%,10V,X5R,TP,2012(2 14 SA
...4 AD480 2203-007270 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 2 SNA
...4 AD480 2203-007306 C-CER,CHIP;10000nF,10%,25V,X5R,TP,2012,1 15 SNA
...4 AD480 2203-007544 C-CER,CHIP;100nF,10%,50V,X7R,TP,1005,0.5 13 SA
...4 2703-000158 INDUCTOR-SMD;1uH,10%,0.4Ohm,50mA,45,Mult 1 SA
...4 2703-000213 INDUCTOR-SMD;470nH,10%,1.35Ohm,35mA,15,M 1 SA
...4 2703-001938 INDUCTOR-SMD;56nH,5%,1005,1.5Ohm,200mA,1 3 SA
...4 2703-003713 INDUCTOR-SMD;1.5uH,20%,7366,0.015Ohm,700 1 SA
...4 2703-003937 INDUCTOR-SMD;1uH,20%,7.0x6.47x3.0mm,0.00 1 SA
...4 2703-004724 INDUCTOR-SMD;8.2uH,20%,4T,0.072Ohm,2300m 4 SA
...4 2703-005191 INDUCTOR-SMD;1.5uH,20%,4.5,0.02Ohm,5300m 2 SA
...4 2703-005192 INDUCTOR-SMD;4.7uH,20%,4.5,0.036Ohm,4200 2 SA
...4 2703-005194 INDUCTOR-SMD;3.3uH,20%,4.5,0.03Ohm,4500m
...4 2801-004021 CRYSTAL-SMD;24.576MHz,20ppm,28-AAN,12pF, 1 SA
1 SA
SA
Page 34
ANNEX-7
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 3301-001364 BEAD-SMD;1000ohm,1608,TP,1085ohm/108MHz, 7 SNA
...4 3301-002039 BEAD-SMD;26ohm,1608,TP 40 SA
...4 3407-000183 SWITCH-DIP;50V,100mA,SLIDE,STANDARD 1 SNA
...4 3601-001374 FUSE-SURFACE MOUNT;32V,5A,FAST-ACTING,PL 2 SA
...4 3701-001967 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5mm,BLK 3 SA
...4 3707-001104 CONNECTOR-OPTICAL;ANGLE,SPDIF 1 SA
...4 3708-003073 CONNECTOR-FPC/FFC/PIC;51P,0.5mm,SMD-A,AU 1 SA
...4 3710-003908 CONNECTOR-SOCKET;64P,2R,0.5mm,SMD-S,AU,B 1 SA
...4 3711-007585 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,ANGLE,S 1 SA
...4 3711-007776 CONNECTOR-HEADER;BOX,8P,1R,1.25mm,SMD-A, 1 SA
...4 EH01 3711-008859 HEADER-BOARD TO CABLE;BOX,12P,2R,2mm,ANG 1 SA
...4 3711-009090 CONNECTOR-HEADER;BOX,16P,1R,1.25mm,SMD-A 1 SA
...4 3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT 1 SA
...4 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1x1 2 SA
...4 3722-003814 JACK-PHONE;1P/7C,NI/SN,YEL,ANGLE,3.5PI,1 1 SA
...4 JACK 3722-003873 JACK-PHONE;1P/7C,AU/SN,BLU,ANGLE,3.5PI,1 1 SA
...4 6302-001376 GASKET-SMD;,,CONDUCTIVE FABRIC,T14,W43,L 8 SNA
...4 BN40-00322B TUNER-DTV AIR CABLE;GTTH-6A11,GTTH-6A11, 1 SA
...4 BN41-02534A PCB-MAIN;K5500/6200/6300,FR-4,4L,1.2T,19 1 SNA
...4 CB07 BN61-13312B BRACKET-PCB;55KS8000,SK5,0.3,13.7,11.4,S 4 SNA
...4 BN97-10911B ASSY MICOM-MAIN;T-HKMFKDEUC,UWK60,THGBMB 1 SNA
....5 1107-002341 IC-EMMC;THGBMBG5D1KBAIT,4GB,BGA,153P,11x 1 SA
...4 BN97-10913B ASSY MICOM-SUB;HMMICOM_16_FHD,UWK60,GD25 1 SNA
....5 1107-002467 IC-NOR FLASH;GD25Q41BSIGY,4Mbit,SOP,8P,5 1 SA
1 BN92-19734A ASSY LABEL POP;7K 1 SNA
0.2 BN68-07971E LABEL POP-HIGHLIGHT;K5100,PET,T0.1,W90,L 1 SNA
1 BN92-20288F ASSY BOX;UK5500N 32 1 SNA
0.2 BH68-00662A LABEL BOX;ALL,ART,90g,W60,L110,WHT,NO SI 1 SNA
0.2 BN68-05640A LABEL BOX;ALL,ART,90g,W110,L130,EUROPE,L 1 SNA
0.2 BN69-13525B BOX UNIT;55K5500,CB,DW3,F1,L1385,W125,H7 1 SNA
1 BN92-20302A ASSY P/MATERIAL;UK5500N,55 1 SNA
0.2 6902-001957 BAG ROLL;HDPE/PE FOAM,HDPE T0.018mm,T0.2 3 SNA
0.2 6902-002233 BAG AIR;LDPE,-,T0.2,W900,L1850,TRP,-,-,- 1 SNA
0.2 6922-000003 BAND;PP,T0.8,W18,L1650M,TRP,DA69-90145A 0 SNA
0.2 BN02-00319B TAPE-OPP;OPP,T0.05,W75,L800m,CLEAR 3 SNA
0.2 AS080 BN63-07229A SHEET-PROTECTION COVER;rose70",PET,T0.05 1 SNA
0.2 BN68-02422B LABEL-WARNING;ALL,ART,T0.05,W240,L100,Wh 1 SNA
0.2 BN69-03982P PACKING ANGLE;EDGE,PAPER 1 SNA
0.2 BN69-05418N WRAP;T0.017,750,2000000,2000000,750 0 SNA
0.2 BN69-06640E PAD-PACKING;TRUCK PAD,CB,-,,W410,L2500,, 1 SNA
0.2 BN69-06642A PAD-SHEET;PAD,CB,SW4,,W1300,L1050,,,,,YE 1 SNA
0.2 BN69-13111A CUSHION-SET;EPS,16.7g/l,WHT,0 1 SNA
0.2 BN69-13123A CUSHION-SET SIDE;EPS,16.7g/l,WHT,0 1 SNA
..3 0103-005099 RESIN EPS;BASF303,Natural,Natural 669 SNA
0.2 BN69-13147T PALLET-WOODEN;55" K5500,WOOD,-,W1120,L14 1 SNA
0.2 BN69-13425A PAD-SHEET;55KS7000-BS,CB,DW2,W683,L1269, 1 SNA
1 BN92-20308D ASSY LABEL;UK5500N 1 SNA
Page 35
ANNEX-8
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
0.2 0203-001598 TAPE-FILAMENT;#8915,0.15,12,55000,CLR 0 SNA
0.2 BN68-06708G LABEL-RATING;Monitor,WW,PP,T0.161,W93,L7 1 SNA
0.2 BN68-07519A LABEL-ENERGY;ALL JORDAN,WW,PP,T0.135,W60 1 SNA
0.2 BN68-07874C LEAFLET-QUICK SETUP GUIDE;K5500,EU,W/P,A 1 SNA
1 ACCE1 BN92-20314F ASSY ACCESSORY;UK5500N 1 SNA
0.2 ACCE4 BN96-39489Z ASSY ACCESSORY-MANUAL;UK6P 1 SNA
..3 6902-001964 BAG PE;LDPE,BIOBASED,T0.03,W200,L300,TRP 1 SNA
..3 BN68-03548J LEAFLET-WARRANTY;comm,Samsung,17Lang,Mid 1 SNA
..3 BN68-04972E LEAFLET-REGULATORY GUIDE;ALL,SAMSUNG,W/W 1 SNA
..3 BN68-07598A LEAFLET-FICHE;ALL,W/P,0 1 SNA
..3 BN68-07870E MANUAL USERS;K5500 K5510,XH,W/P,EURO B5 1 SNA
0.2 ACCE2 BN96-39490H ASSY ACCESSORY-CABLE;UK6P 1 SNA
..3 3709-001791 CONNECTOR-CARD SLOT;64P,0.5mm,SMD-A,AU,P 1 SA
..3 T0268 3903-000950 CBF-POWER CORD;DT,CEE,LP-21L,250V,2.5A,B 1 SA
..3 4301-000121 BATTERY-MN;1.5V,R03,10.5x44.5m,7.5g,AAA 2 SNA
..3 6902-001965 BAG PE;LDPE,BIOBASED,T0.05,W200,L300,TRP 1 SNA
..3 EC03 BN39-02189A GENDER CABLE;DC to RCA Cable,3P,L100,UL2 1 SA
..3 EC03 BN39-02190A GENDER CABLE;DC to RCA Cable,2P,L100,UL2 1 SA
..3 BN59-01247A REMOCON-TV;2016 TV,Samsung,44KEY,3V,KU60 1 SA
..3 T0527 BN68-00513A LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W 2 SNA
..3 BN96-40152A ASSY HOLDER P-CABLE;65KS7500,ABS,BK0007, 1 SNA
...4 BN61-04692A ADHESIVE-AA;SHEET,CLEAR,C043 0 SNA
...4 BN61-05704A TAPE-DOUBLE FACE;T1.1,W8,Dark Gray,3M #4 0 SNA
...4 AH089 BN61-13777A HOLDER-CABLE;55KS7500,ABS,T15,BK0007,HB, 1 SNA
...4 AS080 BN63-07556W SHEET-PROTECTION COVER;F-LED,PO,W12,ROLL 0 SNA
..3 EH03A BN96-40460A ASSY HOLDER P-RING;55KS7500,ABS,BLACK,V- 1 SNA
...4 6902-001404 BAG PE;LDPE,T0.05,W80,L100,TRP,N 1 SNA
...4 BN61-13518A HOLDER-WALL RING;55KS7500,ABS,MOLD,BK000 4 SA
1 PANEL BN95-02624A PRODUCT LCD-AUO;CY-KK055BGAV1V/H,K5500,B 1 SA
0.2 SCREW 6001-003075 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 2 SA
0.2 BN68-05722A LABEL-E PASS;POLYPROPYLENE,NON-COATING 1 SNA
0.2 BN74-00053E TAPE-PAPER;PAPER,3M2307,0.14T,W20,50m,WH 0 SNA
0.2 BN90-08169P ASSY MISC-BLU;2016_LCM 1 SNA
..3 BN02-00074E TAPE PET;U7201,PET,T0.05,W10,L20,BLACK 2 SNA
..3 BN61-13755A OPTICAL SHEET-COMPLEX;16Y_K5500_55INCH_C 1 SNA
..3 BN61-13756A LGP;16Y_K5500_55INCH_LGP,PMMA,Left LED,2 1 SNA
..3 BN61-13757A OPTICAL SHEET-REFLECTOR;16Y_K5500_55INCH 1 SNA
..3 BN61-13970A OPTICAL SHEET-DIFFUSER;16Y_K5500_55INCH_ 1 SNA
..3 BN96-39508A ASSY LED BAR P;55 K6200(AUO),ALUMINUM,70 1 SNA
..3 BN96-40335B ASSY CHASSIS REAR P;55K5500,EGI-SECC,AUO 1 SNA
...4 0203-006963 TAPE-DOUBLE FACE;ACRYL,40K5500,T0.15,W18 1 SNA
...4 BN02-00040B TAPE DOUBLE FACE;NNB 32/40/46/55",PET,T0 1 SNA
...4 BN02-00102B TAPE-FILAMENT;#8917,0.15,25,50,WHITE 0 SNA
...4 BN39-02181A LEAD CONNECTOR-BLU;55 K6200,UL21016,12P, 1 SNA
...4 BN60-00554R SPACER-SILICONE;Y15 VD,Si,L10,ID3,BLACK, 2 SNA
...4 BN61-08235A HOLDER-LGP;SNB,SWRCH10A,BLACK,PRESS 1 SNA
...4 BN61-13475A FRAME-MIDDLE TOP RIGHT;40K5500,TPV,HB,BK 1 SNA
Page 36
ANNEX-9
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 BN61-13475D FRAME-MIDDLE TOP RIGHT;55K5500,TPV,HB,BK 1 SNA
...4 BN61-13477E FRAME-MIDDLE BOTTOM RIGHT;55K5500,TPV,HB 1 SNA
...4 BN61-13557A BRACKET-WIRE;KS7000,SW-C,1,60,SILVER 3 SA
...4 BN61-13557F BRACKET-WIRE;KS7000,SW-C,1,SILVER,ZINC P 2 SA
...4 BN61-13557J BRACKET-WIRE;KS7000,SW-C,1,560,SILVER,ZI 2 SA
...4 BN61-14207A FRAME-MIDDLE TOP LEFT;55K5500,ABS,HB,MOL 1 SNA
...4 BN61-14208A FRAME-MIDDLE BOTTOM LEFT;55K5500,ABS,HB, 1 SNA
...4 BN63-15531A INSULATOR-SMPS;40K5500,PC,BLACK,L169.9,W 1 SNA
...4 BN63-15799A INSULATOR-SOURCE PCB LEFT;55K5500,PET,BL 1 SNA
...4 BN63-15799B INSULATOR-SOURCE PCB RIGHT;55K5500,PET,B 1 SNA
...4 CC04 BN64-03395B CHASSIS-REAR;55K5500,EGI-SECC,PRESS,T0.8 1 SNA
....5 BN61-11982B HOLDER-WALL RIVET;55KS7000,CR-SPCC,EXTRU 4 SNA
..3 BN96-40869A ASSY FRAME P-MIDDLE LEFT;55K5500,STS304, 1 SNA
...4 BN60-01425E SPACER-PET;55K5500,PET,L687.8,GRAY,T0.06 2 SNA
...4 BN61-14151A FRAME-MIDDLE LEFT;55K5500,STS304,PRESS,T 1 SNA
0.2 BN96-30782H FFC CABLE;J5000,Straight,L58,60P 2 SNA
0.2 BN96-34503B ASSY OPEN CELL;T550HVN08.3,16:9,AUO 55F6 1 SNA
..3 BN81-09514A A/S-ADHESIVE ACF;T500HVN05.0,47.COF21.00 1 SNA
..3 BN81-09515A A/S-ADHESIVE ACF;T500HVN05.0,47.23T01.00 1 SNA
..3 BN81-12263A A/S-POLARIZER CF;T550HVN08.3,66.C4U48.30 1 SNA
..3 BN81-12264A A/S-POLARIZER TFT;T550HVN08.3,66.T4U42.3 1 SNA
..3 BN81-12267A A/S-IC DRIVER SOURCE;T550HVN08.3,46.S072 1 SNA
..3 BN81-12724A A/S-ASSY PCB SOURCE LEFT;T550HVN08.3,55. 1 SNA
..3 BN81-12725A A/S-ASSY PCB SOURCE RIGHT;T550HVN08.3,55 1 SNA
0.2 TCON BN96-35413B ASSY T CON P;T550HVN08.3,T550HVN08.3,8,1 1 SA
0.2
..3 BN60-01434A SPACER-CONDUCTIVE;55K5500,CONDUCTIVE FAB 1 SNA
..3 BN60-01436H SPACER-CONDUCTIVE;55K5500,CONDUCTIVE FAB 1 SNA
..3 BN60-01436J SPACER-CONDUCTIVE;55K5500,CONDUCTIVE FAB 2 SNA
..3 BN63-10118A GASKET-TAPE;60 FLED,Conductive Fabric,T0 2 SNA
..3 BN63-11118B SHEET-PROTECTION COVER;Y13 SNB F8.5K,PET 3 SNA
..3 BN63-11118F SHEET-PROTECTION COVER;K6200,PET,T0.04,W 1 SNA
..3 BN63-12151A GASKET-EMI;CY-MH270BGLV1V,Conductive Fab 2 SNA
..3 AC155 BN64-03387A CHASSIS-FRONT;55K5500,PC+ABS+ED18%,V-1,M 1 SNA
...4 0103-010808 RESIN PC ABS;NH-1210/K21294,BLACK,BK0007 215 SNA
...4 BN63-11118B SHEET-PROTECTION COVER;Y13 SNB F8.5K,PET 3 SNA
BN96-40354C ASSY CHASSIS FRONT P;55K5500,PC+ABS+ED18 1 SNA
Page 37
ANNEX. Exploded View & Part List
ANNEX. Exploded View & Part List [UE40K5500AWXXH FA01]
1-1. Exploded View
1-1-1. Parts List
No. Code No. Description & Specication Q’ty SA/SNA Remark
1 BN95-02617A PRODUCT LCD-SDC; CY-KK040BGLV1V/H,K5500,B 1 SA
2 BN44-00871A DC VSS-PD BOARD; L40E1_KDY,AC/DC,93W,100- 1 SA
3 BN94-10935G ASSY PCB MAIN; UK5500N,32 1 SA
4 BN63-15481A COVER-TERMINAL SIDE; 40K5500,HIPS,MOLD,HB 1 SA
5 BN96-39970A ASSY SPEAKER P-FRONT; TV-SPK,K5500,6ohm,1 1 SA
6 BN96-39802B ASSY BOARD P-FUNCTION TACT; K6200/K5500/K 1 SA
7 BN59-01240A NETWORK-WLAN CLIENT; WCK720Q,USB 2.0,16P, 1 SA
8 BN61-13287A BRACKET-STAND LINK; 40K5500,EGI-SECC,T1.6 1 SNA
9 BN96-40254B ASSY COVER P-REAR; 40K5500,PC+ABS+ED20%,V 1 SA
9-1 BN63-15198A COVER-CAP; 55KS7500,ABS+PMMA,T0.1,HB,BK00 4 SNA
9-2 BN63-15933A COVER-CAP; 49K6200,PC+ABS+ED20%,MOLD,V-1, 2 SNA
10 BN63-15932A COVER-BOTTOM; 49K6200,PC+ABS+ED20%,MOLD,V 1 SA
11 BN96-40077A ASSY STAND P-FRONT; 40K5500,PC+ABS,BK0008 1 SA
12 BN96-40079A ASSY STAND P-REAR; 40K5500,PC+ABS,BK0008 1 SA
ANNEX-1
Page 38
ANNEX-2
ANNEX. Exploded View & Part List
2-1. Electrical Parts List
Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
UE40K5500AWXXH (FA01)
1 S001A BN90-08288B ASSY STAND;LEDTV 6K 1 SNA
0.2 BN96-40077A ASSY STAND P-FRONT;40K5500,PC+ABS,BK0008 1 SA
..3 6001-003168 SCREW-MACHINE;CH,+,M3,L5,ZPC(BLK),SWRCH1 2 SNA
..3 SCREW 6003-001238 SCREW-TAPTYPE;FH,+,S,M4,L8,ZPC(BLK),SWRC 2 SA
..3 SCREW 6003-001334 SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR 2 SA
..3 SCREW 6003-001845 SCREW-TAPTYPE;FH,+,B,M4,L6,ZPC(BLK),SWRC 2 SNA
..3 6021-000265 NUT-HEXAGON;2C,M4,ZPC(YEL),SM20C 4 SNA
..3 6902-002660 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W120,L20 1 SNA
..3 BN60-00162C SPACER-FOAM;PE FOAM,ROLL,GRAY,T0.5,W15 1 SNA
..3 BN61-04692A ADHESIVE-AA;SHEET,CLEAR,C043 0 SNA
..3 BN61-06871A BOSS-BOND;UC9000,Dimethacrylate ester,Re 0 SNA
..3 BN61-13415A BRACKET-STAND BOTTOM FRONT;40K5500,SM45C 1 SNA
..3 BN61-13421A BRACKET-STAND NECK FRONT;40K5500,HGI,T4, 1 SNA
...4 BN61-13531A STUD-PEM;40K5500,SUM24L,NATURAL 1 SNA
..3 BN61-13427A GUIDE-STAND FRONT;40K5500,PC+GF20%,V-2,G 1 SNA
...4 0103-010578 RESIN PC;HF-3200H/G33168,Gray,GY0296,1.5 45 SNA
..3 RF01 BN61-13520B FOOT-RUBBER;40K5500,Si,GRAY,T3,W5 L5 4 SNA
..3 BN61-14105B BRACKET-STAND LINK FRONT;40K5500,EGI-SEC 1 SNA
..3 BN63-11118E SHEET-PROTECTION COVER;STANDARD ENCLOSUR 1 SNA
..3 BN63-15241A COVER-STAND BOTTOM FRONT;40K5500,PC+ABS, 1 SNA
...4 0103-010892 RESIN PC ABS;NH-1017SG/G33438,Blue Gray, 120 SNA
..3 BN63-15764A SHEET-PU FOAM;40K5500,PU FOAM,T0.5,W57.0 1 SNA
..3 BN68-05603A LABEL-E PASS;ART PAPER 90G,W/W 3 SNA
..3 BN95-02800A ASSY COVER STAND SMT-FRONT TOP;K6200,40, 1 SNA
...4 0203-001269
...4 AA69-03855M PAD-DP SHEET;CB,W725,L520 1 SNA
...4 BN01-00337A TARGET-ALUMINIUM CY;Al,99.9%,1924mm, 132 0 SNA
...4 BN01-00340A TARGET-CHROMIUM CY;Cr,99.5%,1924mm, 132d 0 SNA
...4 BN63-15238A COVER-STAND TOP FRONT;40K5500,PC+ABS,MOL 1 SNA
....5 0103-005041 RESIN PC ABS;FR3200TV,901408,BK0008,1.2m 59 SNA
....5 BN63-11118F SHEET-PROTECTION COVER;K6200,PET,T0.04,W 1 SNA
....5 BN63-11118P SHEET-PROTECTION COVER;55K6200,PET,T0.04 0 SNA
...4 BN69-10617S PACKING SHEET;48" 6500 INHOUSE,HDPE/PE F 1 SNA
...4 BN69-13591X PAD-DP CROSS;40K5500,CB,DW,W728,L115,YEL 1 SNA
...4 BN69-13591Y PAD-DP CROSS;40K5500,CB,DW,W524,L115,YEL 1 SNA
...4 BN69-13724T MASTER BOX-DP;40K5500,CB,DW1,A1,L735,W53 1 SNA
0.2 BN96-40079A ASSY STAND P-REAR;40K5500,PC+ABS,BK0008 1 SA
..3 SCREW 6003-001238 SCREW-TAPTYPE;FH,+,S,M4,L8,ZPC(BLK),SWRC 2 SA
..3 SCREW 6003-001355 SCREW-TAPTYPE;BH,+,S,M4,L20,ZPC(BLK),SWR 2 SNA
..3 SCREW 6003-001845 SCREW-TAPTYPE;FH,+,B,M4,L6,ZPC(BLK),SWRC 2 SNA
..3 6021-000265 NUT-HEXAGON;2C,M4,ZPC(YEL),SM20C 4 SNA
..3 6902-002661 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W140,L20 1 SNA
..3 BN61-04692A ADHESIVE-AA;SHEET,CLEAR,C043 0 SNA
TAPE-OPP;#301,T0.06,W75,L50000,NTR 0 SNA
Page 39
ANNEX-3
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
..3 BN61-06871A BOSS-BOND;UC9000,Dimethacrylate ester,Re 0 SNA
..3 BN61-13418A BRACKET-STAND BOTTOM REAR;40K5500,HGI,T1 1 SNA
..3 BN61-13424A BRACKET-STAND NECK REAR;K5500 40" 43",HG 1 SNA
..3 BN61-13430A GUIDE-STAND REAR;40K5500,PC+GF20%,V-2,GY 1 SNA
...4 0103-010578 RESIN PC;HF-3200H/G33168,Gray,GY0296,1.5 45 SNA
..3 RF01 BN61-13520B FOOT-RUBBER;40K5500,Si,GRAY,T3,W5 L5 4 SNA
..3 BN63-15247A COVER-STAND BOTTOM REAR;40K5500,PC+ABS,M 1 SNA
...4 0103-010892 RESIN PC ABS;NH-1017SG/G33438,Blue Gray, 120 SNA
..3 BN63-15764B SHEET-PU FOAM;55K5500,PU FOAM,T0.3,W57,L 1 SNA
..3 BN95-02802A ASSY COVER STAND SMT-REAR TOP;K6200,40,S 1 SNA
...4 0203-001269 TAPE-OPP;#301,T0.06,W75,L50000,NTR 0 SNA
...4 0204-007315 COATING;CVM92000(VOC),CLEAR,1.06 0 SNA
...4 AA69-04046Q PAD-DP SHEET;CB,SW,500,490 1 SNA
...4 BN01-00337A TARGET-ALUMINIUM CY;Al,99.9%,1924mm, 132 0 SNA
...4 BN01-00340A TARGET-CHROMIUM CY;Cr,99.5%,1924mm, 132d 0 SNA
...4 BN63-11118F SHEET-PROTECTION COVER;K6200,PET,T0.04,W 2 SNA
...4 BN63-11118P SHEET-PROTECTION COVER;55K6200,PET,T0.04 0 SNA
...4 BN63-15244A COVER-STAND TOP REAR;40K5500,PC+ABS,MOLD 1 SNA
....5 BN63-11118F SHEET-PROTECTION COVER;K6200,PET,T0.04,W 1 SNA
....5 BN63-11118P SHEET-PROTECTION COVER;55K6200,PET,T0.04 0 SNA
...4 BN68-03920A LABEL BOX;ALL,ART,100g,W100,L75,W/W 2 SNA
...4 BN69-10617B PACKING SHEET;32" UH6300,HDPE/PE FOAM,PE 1 SNA
...4 BN69-13591R PAD-DP CROSS;40K5500,CB,DW,W508,L170,YEL 1 SNA
...4 BN69-13591S PAD-DP CROSS;40K5500,CB,DW,W494,L170,YEL 1 SNA
...4 BN69-13724Q MASTER BOX-DP;40K5500,CB,DW1,A1,L515,W50 1 SNA
..3 BN96-35528C
...4 6001-003072 SCREW-MACHINE;BH,+,WS,M4,L25,NI PLT,SWRC 4 SA
1 R001A BN90-08314B ASSY COVER REAR;UK5500N 40 1 SNA
0.2 R001A BN96-40254B ASSY COVER P-REAR;40K5500,PC+ABS+ED20%,V 1 SA
..3 CCM1 BN63-02183F SHEET-PROTECTION COVER;Rhcm,PE,T0.05,W90 1 SNA
..3 BN63-07556G SHEET-COVER;TOC,PO,T0.068,W70mm,100M,ST- 3 SNA
..3 R001 BN63-15046B COVER-REAR;40K5500,PC+ABS+ED20%,MOLD,V-1 1 SNA
...4 0103-010837 RESIN PC ABS;CM20G/BK90080,Dark Gray,GY0 1776 SNA
..3 AC220 BN63-15198A COVER-CAP;55KS7500,ABS+PMMA,T0.1,HB,BK00 4 SNA
..3 AC220 BN63-15933A COVER-CAP;49K6200,PC+ABS+ED20%,MOLD,V-1, 2 SNA
..3 BN64-03519A INLAY-TERMINAL SIDE;55K6200,PET,T0.125,B 1 SNA
..3 BN68-03518H LABEL-STICKER CI SLOT;WW,ALL,PET,T0.1,W1 1 SNA
..3 BN68-07835C LABEL-STICKER LICENSE;40K5500,PET,0.125, 1 SNA
1 BN90-08326E ASSY W/I;UK5500N 1 SNA
0.2 BN81-08159Z A/S PART SET-ELEC W/I;LED TV ELEC spec-C 1 SNA
0.2 BN81-12184P A/S PART SET-MECH W/I;UK5500N,U40KN* 1 SNA
1 BN91-17832F ASSY SHIELD;UK5500N 40 1 SNA
0.2 SCREW 6001-003081 SCREW-MACHINE;PWH,+,M3,L5,ZPC(WHT),SWRCH 3 SA
0.2 BN02-00102B TAPE-FILAMENT;#8917,0.15,25,50,WHITE 0 SNA
0.2 BN39-02217C LEAD CONNECTOR-POWER;40K5500,UL21016,12P 1 SA
0.2 BN39-02219C LEAD CONNECTOR-SUB ASSY;40K5500,UL21016, 1 SA
0.2 BN39-02223A LEAD CONNECTOR-SUB ASSY;40K5500,UL21016, 1 SA
ASSY ACCESSORY-SCREW;40K5500,W/W,M4,L25, 1 SNA
Page 40
ANNEX-4
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
0.2 BN44-00871A DC VSS-PD BOARD;L40E1_KDY,AC/DC,93W,100- 1 SA
0.2 BN59-01240A NETWORK-WLAN CLIENT;WCK720Q,USB 2.0,16P, 1 SA
0.2 CB18 BN61-13287A BRACKET-STAND LINK;40K5500,EGI-SECC,T1.6 1 SNA
..3 BN61-09605A STUD-PEM;LED TV F6100,SUM24L,L8 4 SNA
0.2 RB01 BN63-15932A COVER-BOTTOM;49K6200,PC+ABS+ED20%,MOLD,V 1 SA
0.2 BN96-39802B ASSY BOARD P-FUNCTION TACT;K6200/K5500/K 1 SA
0.2 BN96-39970A ASSY SPEAKER P-FRONT;TV-SPK,K5500,6ohm,1 1 SA
0.2 BN96-40209D FFC CABLE;40K5500,Wrinkle,L250,51P 1 SA
1 M0017 BN91-17841G ASSY CHASSIS;UK5500N,32 1 SNA
0.2 M0014 BN94-10935G ASSY PCB MAIN;UK5500N,32 1 SA
..3 AH020 BN62-00821A HEAT SINK;49K6200,A1050,6.3T,W127.6,L94. 1 SNA
..3 BN63-15481A COVER-TERMINAL SIDE;40K5500,HIPS,MOLD,HB 1 SA
..3 BN97-09470B ASSY DRM;MAC, MIRACAST HDCP 1 SNA
...4 BN46-00109H KEY CODE-CERTIFICATION;MAC,TV/AV,General 1 SNA
...4 BN46-00110P KEY CODE-CERTIFICATION;MIRACAST(HDCP2.2) 1 SNA
...4 BN46-00115P KEY CODE-CERTIFICATION;CI+, TV, HAWK, EU 1 SNA
..3 BN97-11007E ASSY SMD;UK5500N,32" 1 SNA
...4 0202-001899 SOLDER-CREAM;M705-GRN360-K2-VT,20-38um,S 3 SNA
...4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 SA
...4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8~6.6V,300mW,SO 3 SNA
...4 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 4 SA
...4 0406-001200 DIODE-TVS;RClamp0504F,6V,1MAV,TP 2 SA
...4 0406-001628 DIODE-TVS;AOZ8804ADI,6V,1MAV,5A,TP 1 SA
...4 0406-001635 DIODE-TVS;SMF5.0A,6.4V,6.7V,7V,200MAV,20 7 SA
...4 0501-000445
...4 0504-000126 TR-DIGITAL;KSR1101,NPN,200mW,4.7K/4.7K,S 1 SA
...4 0505-002560 FET-SILICON;AO6415,P,20V,-3.3A,0.15ohm,1 1 SA
...4 0505-002598 FET-SILICON;AP2317GN,P,20V,-4.2A,0.052oh 1 SA
...4 0505-002893 FET-SILICON;AO4801AS,P,30V,-5A,2W,SOIC-8 1 SA
...4 0505-003397 FET-SILICON;2N7002K,N,60V,0.38A,1.19ohm, 2 SA
...4 0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 4 SA
...4 0801-003330 IC-CMOS LOGIC;Octal buffer,DQFN,20P,4.5x 1 SA
...4 1001-001545 IC-ANALOG MULTIPLEX;TS3USB221ERSER,R-PQF 1 SA
...4 1103-001600 IC-EEPROM;24C512C,512k,SOIC,8P,6.20mmX5. 1 SA
...4 1105-002681 IC-DDR3 SDRAM;H5TQ4G63CFR,DDR3 1866,4Gbi 3 SNA
...4 1201-003690 IC-AUDIO AMP;TAS5747PHPR,QFP,48P,DUAL,PL 1 SA
...4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA
...4 1203-007018 IC-DC/DC CONVERTER;TPS54821RHL,QFN,14,3. 1 SA
...4 1203-007238 IC-PWM CONTROLLER;TPS54427,DDA,8P,4.8x3. 1 SNA
...4 1203-007700 IC-DC/DC CONVERTER;TPS54527DDAR,DDA,8P,5 1 SA
...4 1203-008104 IC-POSI.FIXED REG.;S-13A1D18-E800,HSOP,8 2 SNA
...4 1203-008105 IC-POSI.FIXED REG.;S-13A1D33-E800,HSOP,8 1 SNA
...4 1203-008118 IC-DC/DC CONVERTER;AOZ3013PI,SO-8,8,4.96 2 SA
...4 1203-008183 IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 1 SA
...4 1203-008392 IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 1 SA
...4 1203-008393 IC-DDR TERMINATION REG.;AP2303MTR-G1-89, 1 SA
...4 1203-008454 IC-DC/DC CONVERTER;TPS56528,HSOP8,8,4,89 1 SA
TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 3 SC
Page 41
ANNEX-5
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 1204-003586 IC-DECODER;SDP1415,PBGA,631P,23x23mm,PLA 1 SA
...4 1205-004447 IC-SWITCH;TPS2051CDBVR,SOT23-5,5P,3x1.65 1 SA
...4 1205-004983 IC-SWITCH;BD82032FVJ,TSSOP-B8J,8P,3.0x4. 2 SA
...4 1205-005537 IC-REPEATER;TCA9517,VSSOP,8P,3.00x3.00mm 3 SA
...4 1405-001271 VARISTOR;35V,20VDC,5A,1.0x0.5mm,TP,100V, 15 SA
...4 1405-001382 VARISTOR;24.5V,16VDC,120A,2.0x1.25mm,TP, 2 SA
...4 2007-000137 R-CHIP;2Kohm,5%,1/16W,TP,1005 16 SNA
...4 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 34 SNA
...4 2007-000157 R-CHIP;47Kohm,5%,1/16W,TP,1005 21 SNA
...4 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 33 SNA
...4 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 1 SNA
...4 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 26 SNA
...4 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 3 SNA
...4 2007-001116 R-CHIP;680ohm,1%,1/10W,TP,1608 1 SA
...4 2007-001288 R-CHIP;18ohm,5%,1/16W,TP,1005 4 SA
...4 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 14 SNA
...4 2007-001298 R-CHIP;51ohm,5%,1/16W,TP,1005 1 SNA
...4 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 14 SNA
...4 2007-007132 R-CHIP;15Kohm,1%,1/16W,TP,1005 3 SA
...4 2007-007133 R-CHIP;300ohm,1%,1/16W,TP,1005 1 SA
...4 2007-007134 R-CHIP;39Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007135 R-CHIP;18Kohm,1%,1/16W,TP,1005 2 SNA
...4 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 2 SNA
...4 2007-007137 R-CHIP;1.2Kohm,1%,1/16W,TP,1005 4 SA
...4 2007-007138 R-CHIP;27Kohm,1%,1/16W,TP,1005 3 SNA
...4 2007-007139 R-CHIP;47Kohm,1%,1/16W,TP,1005,T0.35
...4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 24 SNA
...4 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 20 SNA
...4 2007-007307 R-CHIP;150ohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007309 R-CHIP;12Kohm,1%,1/16W,TP,1005,T0.35 2 SA
...4 2007-007311 R-CHIP;22Kohm,1%,1/16W,TP,1005 6 SA
...4 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007313 R-CHIP;6.8Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-007317 R-CHIP;2.2Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 22 SNA
...4 2007-007431 R-CHIP;91Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-007470 R-CHIP;7.5Kohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007488 R-CHIP;75Kohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007517 R-CHIP;240ohm,1%,1/16W,TP,1005 4 SNA
...4 2007-007528 R-CHIP;1.5Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007587 R-CHIP;3.6Kohm,1%,1/16W,TP,1005 1 SNA
...4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 5 SNA
...4 2007-007767 R-CHIP;200ohm,1%,1/16W,TP,1005 7 SA
...4 2007-007861 R-CHIP;62Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-007942 R-CHIP;1Mohm,1%,1/16W,TP,1005 1 SNA
...4 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 14 SNA
...4 2007-008213 R-CHIP;4.3Kohm,1%,1/16W,TP,1005 3 SNA
3 SA
Page 42
ANNEX-6
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 2007-008275 R-CHIP;30Kohm,1%,1/16W,TP,1005 3 SNA
...4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA
...4 2007-008429 R-CHIP;499ohm,1%,1/16W,TP,1005 1 SNA
...4 2007-008485 R-CHIP;22ohm,1%,1/16W,TP,1005 8 SC
...4 2007-008779 R-CHIP;0ohm,1%,1/16W,TP,1005 4 SA
...4 2007-009117 R-CHIP;49.9Kohm,1%,1/16W,TP,1005 1 SA
...4 2007-009777 R-CHIP;4.99Kohm,1%,1/16W,TP,1005 1 SA
...4 2011-001261 R-NETWORK;33ohm,5%,1/16W,L,CHIP,8P,TP,2. 8 SA
...4 2011-001344 R-NETWORK;100ohm,5%,1/16W,L,CHIP,8P,TP,2 4 SA
...4 2011-001345 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,8P,TP,2 1 SA
...4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4P,TP,1.0x1.0 4 SA
...4 2011-001497 R-NETWORK;470ohm,5%,1/16W,L,CHIP,4P,TP,1 1 SNA
...4 2011-001506 R-NETWORK;10Kohm,5%,1/16W,L,CHIP,4P,TP,1 1 SNA
...4 2011-001587 R-NETWORK;100ohm,5%,1/16W,L,CHIP,4P,TP,1 1 SNA
...4 AD480 2203-000278 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,TP,1005 2 SA
...4 AD480 2203-000359 C-CER,CHIP;0.15nF,5%,50V,C0G,TP,1005,0.5 3 SNA
...4 AD480 2203-000386 C-CER,CHIP;0.015nF,5%,50V,C0G,TP,1005 2 SA
...4 AD480 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 16 SA
...4 AD480 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 3 SA
...4 AD480 2203-000585 C-CER,CHIP;0.22nF,10%,50V,X7R,TP,1005 3 SA
...4 AD480 2203-000627 C-CER,CHIP;0.022nF,5%,50V,C0G,TP,1005 2 SNA
...4 AD480 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005 1 SA
...4 AD480 2203-000812 C-CER,CHIP;0.033nF,5%,50V,C0G,TP,1005 5 SA
...4 AD480 2203-000854 C-CER,CHIP;0.039nF,5%,50V,C0G,TP,1005
...4 AD480 2203-000940 C-CER,CHIP;0.47nF,10%,50V,X7R,TP,1005 2 SA
...4 AD480 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,TP,1005 1 SA
...4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,TP,1005 9 SNA
...4 AD480 2203-003019 C-CER,CHIP;8.2nF,10%,50V,X7R,TP,1005 2 SNA
...4 AD480 2203-005083 C-CER,CHIP;220nF,10%,50V,X7R,TP,1608,0.8 6 SA
...4 AD480 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 4 SNA
...4 AD480 2203-005968 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1005,0.5 4 SNA
...4 AD480 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 61 SA
...4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,TP,1005 3 SNA
...4 AD480 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,TP,1005,T0. 130 SNA
...4 AD480 2203-006257 C-CER,CHIP;470nF,10%,6.3V,X5R,TP,1005,0. 1 SNA
...4 AD480 2203-006324 C-CER,CHIP;2200nF,10%,10V,X5R,TP,1608 1 SA
...4 AD480 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,1608,0. 4 SA
...4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,TP,1608 5 SNA
...4 AD480 2203-006838 C-CER,CHIP;2200nF,10%,6.3V,X5R,TP,1005 11 SA
...4 AD480 2203-007240 C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,1608( 41 SA
...4 AD480 2203-007269 C-CER,CHIP;22000nF,20%,10V,X5R,TP,2012(2 14 SA
...4 AD480 2203-007270 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 2 SNA
...4 AD480 2203-007306 C-CER,CHIP;10000nF,10%,25V,X5R,TP,2012,1 32 SNA
...4 AD480 2203-007544 C-CER,CHIP;100nF,10%,50V,X7R,TP,1005,0.5 16 SA
...4 2703-000158 INDUCTOR-SMD;1uH,10%,0.4Ohm,50mA,45,Mult 1 SA
...4 2703-000213 INDUCTOR-SMD;470nH,10%,1.35Ohm,35mA,15,M 1 SA
...4 2703-001938
INDUCTOR-SMD;56nH,5%,1005,1.5Ohm,200mA,1 3 SA
1 SA
Page 43
ANNEX-7
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 2703-003713 INDUCTOR-SMD;1.5uH,20%,7366,0.015Ohm,700 1 SA
...4 2703-003937 INDUCTOR-SMD;1uH,20%,7.0x6.47x3.0mm,0.00 1 SA
...4 2703-004724 INDUCTOR-SMD;8.2uH,20%,4T,0.072Ohm,2300m 4 SA
...4 2703-005191 INDUCTOR-SMD;1.5uH,20%,4.5,0.02Ohm,5300m 2 SA
...4 2703-005192 INDUCTOR-SMD;4.7uH,20%,4.5,0.036Ohm,4200 2 SA
...4 2703-005194 INDUCTOR-SMD;3.3uH,20%,4.5,0.03Ohm,4500m 1 SA
...4 2801-004021 CRYSTAL-SMD;24.576MHz,20ppm,28-AAN,12pF, 1 SA
...4 3301-001364 BEAD-SMD;1000ohm,1608,TP,1085ohm/108MHz, 7 SNA
...4 3407-000183 SWITCH-DIP;50V,100mA,SLIDE,STANDARD 1 SNA
...4 3601-001374 FUSE-SURFACE MOUNT;32V,5A,FAST-ACTING,PL 2 SA
...4 3701-001967 CONNECTOR-HDMI;19P,A,FEMALE,AU,0.5mm,BLK 3 SA
...4 3707-001104 CONNECTOR-OPTICAL;ANGLE,SPDIF 1 SA
...4 3708-003073 CONNECTOR-FPC/FFC/PIC;51P,0.5mm,SMD-A,AU 2 SA
...4 3710-003908 CONNECTOR-SOCKET;64P,2R,0.5mm,SMD-S,AU,B 1 SA
...4 3711-007585 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,ANGLE,S 1 SA
...4 3711-007776 CONNECTOR-HEADER;BOX,8P,1R,1.25mm,SMD-A, 1 SA
...4 EH01 3711-008859 HEADER-BOARD TO CABLE;BOX,12P,2R,2mm,ANG 1 SA
...4 3711-009090 CONNECTOR-HEADER;BOX,16P,1R,1.25mm,SMD-A 1 SA
...4 3722-003199 JACK-MODULAR;8P/8C,Y,ANGLE,NONE,AU,1PORT 1 SA
...4 3722-003457 JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1x1 2 SA
...4 3722-003814 JACK-PHONE;1P/7C,NI/SN,YEL,ANGLE,3.5PI,1 1 SA
...4 JACK 3722-003873 JACK-PHONE;1P/7C,AU/SN,BLU,ANGLE,3.5PI,1 1 SA
...4 6302-001376 GASKET-SMD;,,CONDUCTIVE FABRIC,T14,W43,L 8 SNA
...4 BN40-00322B TUNER-DTV AIR CABLE;GTTH-6A11,GTTH-6A11, 1 SA
...4 BN41-02534A PCB-MAIN;K5500/6200/6300,FR-4,4L,1.2T,19 1 SNA
...4
...4 BN97-10911B ASSY MICOM-MAIN;T-HKMFKDEUC,UWK60,THGBMB 1 SNA
....5 1107-002341 IC-EMMC;THGBMBG5D1KBAIT,4GB,BGA,153P,11x 1 SA
...4 BN97-10913B ASSY MICOM-SUB;HMMICOM_16_FHD,UWK60,GD25 1 SNA
....5 1107-002467 IC-NOR FLASH;GD25Q41BSIGY,4Mbit,SOP,8P,5 1 SA
1 BN92-19734A ASSY LABEL POP;7K 1 SNA
0.2 BN68-07971E LABEL POP-HIGHLIGHT;K5100,PET,T0.1,W90,L 1 SNA
1 BN92-20288E ASSY BOX;UK5500N 32 1 SNA
0.2 BH68-00662A LABEL BOX;ALL,ART,90g,W60,L110,WHT,NO SI 1 SNA
0.2 BN68-05640A LABEL BOX;ALL,ART,90g,W110,L130,EUROPE,L 1 SNA
0.2 BN69-14530J BOX UNIT;40K5500,CB,DW2,F1,L1040,W106,H6 1 SNA
1 BN92-20299A ASSY P/MATERIAL;UK5500N,40 1 SNA
0.2 6902-001956 BAG ROLL;HDPE/PE FOAM,HDPE T0.018mm,T0.2 2 SNA
0.2 6902-002233 BAG AIR;LDPE,-,T0.2,W900,L1850,TRP,-,-,- 1 SNA
0.2 6922-000003 BAND;PP,T0.8,W18,L1650M,TRP,DA69-90145A 0 SNA
0.2 BN02-00319B TAPE-OPP;OPP,T0.05,W75,L800m,CLEAR 2 SNA
0.2 AS080 BN63-07229A SHEET-PROTECTION COVER;rose70",PET,T0.05 1 SNA
0.2 BN68-02422B LABEL-WARNING;ALL,ART,T0.05,W240,L100,Wh 1 SNA
0.2 BN69-03982N PACKING ANGLE;EDGE,PAPER 1 SNA
0.2 BN69-05418N WRAP;T0.017,750,2000000,2000000,750 10 SNA
0.2 BN69-06640A PAD-DP SHEET;PAD,CB,SW4,,W1120,L950,,,,, 1 SNA
0.2 BN69-06640E PAD-PACKING;TRUCK PAD,CB,-,,W410,L2500,, 1 SNA
CB07 BN61-13312B BRACKET-PCB;55KS8000,SK5,0.3,13.7,11.4,S 4 SNA
Page 44
ANNEX-8
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
0.2 BN69-13066B CUSHION-SET;40K5500,EPS,301,16.7g/l,WHT 1 SNA
..3 0103-005099 RESIN EPS;BASF303,Natural,Natural 347 SNA
..3 0203-001269 TAPE-OPP;#301,T0.06,W75,L50000,NTR 0 SNA
0.2 BN69-13942Q PALLET-WOODEN;40" K5500,WOOD,-,W1180,L10 1 SNA
1 BN92-20308D ASSY LABEL;UK5500N 1 SNA
0.2 0203-001598 TAPE-FILAMENT;#8915,0.15,12,55000,CLR 0 SNA
0.2 BN68-06708G LABEL-RATING;Monitor,WW,PP,T0.161,W93,L7 1 SNA
0.2 BN68-07519A LABEL-ENERGY;ALL JORDAN,WW,PP,T0.135,W60 1 SNA
0.2 BN68-07874C LEAFLET-QUICK SETUP GUIDE;K5500,EU,W/P,A 1 SNA
1 ACCE1 BN92-20314F ASSY ACCESSORY;UK5500N 1 SNA
0.2 ACCE4 BN96-39489Z ASSY ACCESSORY-MANUAL;UK6P 1 SNA
..3 6902-001964 BAG PE;LDPE,BIOBASED,T0.03,W200,L300,TRP 1 SNA
..3 BN68-03548J LEAFLET-WARRANTY;comm,Samsung,17Lang,Mid 1 SNA
..3 BN68-04972E LEAFLET-REGULATORY GUIDE;ALL,SAMSUNG,W/W 1 SNA
..3 BN68-07598A LEAFLET-FICHE;ALL,W/P,0 1 SNA
..3 BN68-07870E MANUAL USERS;K5500 K5510,XH,W/P,EURO B5 1 SNA
0.2 ACCE2 BN96-39490H ASSY ACCESSORY-CABLE;UK6P 1 SNA
..3 3709-001791 CONNECTOR-CARD SLOT;64P,0.5mm,SMD-A,AU,P 1 SA
..3 T0268 3903-000950 CBF-POWER CORD;DT,CEE,LP-21L,250V,2.5A,B 1 SA
..3 4301-000121 BATTERY-MN;1.5V,R03,10.5x44.5m,7.5g,AAA 2 SNA
..3 6902-001965 BAG PE;LDPE,BIOBASED,T0.05,W200,L300,TRP 1 SNA
..3 EC03 BN39-02189A GENDER CABLE;DC to RCA Cable,3P,L100,UL2 1 SA
..3 EC03 BN39-02190A GENDER CABLE;DC to RCA Cable,2P,L100,UL2 1 SA
..3 BN59-01247A REMOCON-TV;2016 TV,Samsung,44KEY,3V,KU60 1 SA
..3 T0527
..3 BN96-40152A ASSY HOLDER P-CABLE;65KS7500,ABS,BK0007, 1 SNA
...4 BN61-04692A ADHESIVE-AA;SHEET,CLEAR,C043 0 SNA
...4 BN61-05704A TAPE-DOUBLE FACE;T1.1,W8,Dark Gray,3M #4 0 SNA
...4 AH089 BN61-13777A HOLDER-CABLE;55KS7500,ABS,T15,BK0007,HB, 1 SNA
...4 AS080 BN63-07556W SHEET-PROTECTION COVER;F-LED,PO,W12,ROLL 0 SNA
..3 EH03A BN96-40460A ASSY HOLDER P-RING;55KS7500,ABS,BLACK,V- 1 SNA
...4 6902-001404 BAG PE;LDPE,T0.05,W80,L100,TRP,N 1 SNA
...4 BN61-13518A HOLDER-WALL RING;55KS7500,ABS,MOLD,BK000 4 SA
1 BN95-02617A PRODUCT LCD-SDC;CY-KK040BGLV1V/H,K5500,B 1 SA
0.2 SCREW 6001-003075 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 2 SA
0.2 BN68-05722A LABEL-E PASS;POLYPROPYLENE,NON-COATING 1 SNA
0.2 BN74-00053E TAPE-PAPER;PAPER,3M2307,0.14T,W20,50m,WH 0 SNA
0.2 BN90-08169G ASSY MISC-BLU;2016_LCM 1 SNA
..3 BN02-00074E TAPE PET;U7201,PET,T0.05,W10,L20,BLACK 2 SNA
..3 BN61-13749A OPTICAL SHEET-COMPLEX;16Y_K5500_40INCH_C 1 SNA
..3 BN61-13750A LGP;16Y_K5500_40INCH_LGP,PMMA,Left LED,2 1 SNA
..3 BN61-13751A OPTICAL SHEET-REFLECTOR;16Y_K5500_40INCH 1 SNA
..3 BN61-13966A OPTICAL SHEET-DIFFUSER;16Y_K5500_40INCH_ 1 SNA
..3 BN96-39504A ASSY LED BAR P;40 K6200(SDC),ALUMINUM,70 1 SNA
..3 BN96-40332A ASSY CHASSIS REAR P;40K5500,EGI-SECC 1 SNA
...4 0203-006963 TAPE-DOUBLE FACE;ACRYL,40K5500,T0.15,W18 1 SNA
...4 BN02-00040B TAPE DOUBLE FACE;NNB 32/40/46/55",PET,T0 1 SNA
BN68-00513A LABEL-E PASS;ALL MODEL,WW,YUPO,W50,L15,W 2 SNA
Page 45
ANNEX-9
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 BN02-00102B TAPE-FILAMENT;#8917,0.15,25,50,WHITE 0 SNA
...4 BN02-00352D TAPE-OPP;PET,T0.05,W20,L50M,BLK,ULNO.E16 0 SNA
...4 BN39-02180A LEAD CONNECTOR-BLU;40 K6200,UL21016,12P, 1 SNA
...4 BN60-00554R SPACER-SILICONE;Y15 VD,Si,L10,ID3,BLACK, 2 SNA
...4 BN61-08235A HOLDER-LGP;SNB,SWRCH10A,BLACK,PRESS 1 SNA
...4 BN61-13474A FRAME-MIDDLE TOP LEFT;40K5500,TPV,HB,BK0 1 SNA
...4 BN61-13475A FRAME-MIDDLE TOP RIGHT;40K5500,TPV,HB,BK 2 SNA
...4 BN61-13476A FRAME-MIDDLE BOTTOM LEFT;40K5500,TPV,HB, 1 SNA
...4 BN61-13477A FRAME-MIDDLE BOTTOM RIGHT;40K5500,TPV,HB 1 SNA
...4 BN61-13557A BRACKET-WIRE;KS7000,SW-C,1,60,SILVER 1 SA
...4 BN61-13557D BRACKET-WIRE;KS7000,SW-C,1,390,SILVER,ZI 4 SA
...4 BN63-15531A INSULATOR-SMPS;40K5500,PC,BLACK,L169.9,W 1 SNA
...4 BN63-15790A INSULATOR-SOURCE PCB;40K5500,PET,BLACK,L 1 SNA
...4 CC04 BN64-03335A CHASSIS-REAR;EGI-SECC,SECC-AG 1 SNA
....5 BN01-00412A STEEL;40K5500,EGI-SECC,0.6,570,AG 2 SNA
....5 BN61-11982B HOLDER-WALL RIVET;55KS7000,CR-SPCC,EXTRU 4 SNA
..3 BN96-40866A ASSY FRAME P-MIDDLE LEFT;40K5500,STS304, 1 SNA
...4 BN60-01425C SPACER-PET;40K5500,PET,L507.4,GRAY,T0.06 2 SNA
...4 BN61-14148A FRAME-MIDDLE LEFT;40K5500,STS304,PRESS,T 1 SNA
0.2 TCON BN95-02672A ASSY T CON;K5500 40inch,FF11B 1 SA
..3 BN97-10791A ASSY SMD;K5500,FF11B Flat 40inch,BN95-02 1 SNA
...4 0202-001608 SOLDER-WIRE FLUX;LFC7-107,D0.8,99.3Sn/0. 0 SNA
...4 0403-001831 DIODE-ZENER;KDZ12B,12~13.5V,1000mW,SOD-1 1 SA
...4 0403-002014 DIODE-ZENER;KDZ16B,16.2~18.3V,1000mW,SOD 2 SNA
...4 0404-001640 DIODE-SCHOTTKY;SS1060HEWS,60V,1000mA,SOD 1 SA
...4
...4 0406-001689 DIODE-TVS;SMH14A,15.6V,17.9V,1MAV,40A,TP 1 SA
...4 0406-001712 DIODE-TVS;P4SMAJ30A,33.3V,36.8V,1MAV,40A 1 SNA
...4 0406-001745 DIODE-TVS;P4SMAFJ18A-HAF,20V,21.5V,23.3V 1 SNA
...4 0505-002660 FET-SILICON;Si2308BDS,N,60V,2.3A,0.156oh 1 SNA
...4 0505-003224 FET-SILICON;AO6405,P,30V,-5A,0.052ohm,2W 1 SA
...4 EL02 0601-002037 LED;SMD(TOP VIEW),BLUE,1.6x0.8mm,465/470 2 SA
...4 1201-003130 IC-OP AMP;iML2811SEC,TDFN-EP,TP,8P,3x3mm 1 SA
...4 1203-007956 IC-DC/DC CONVERTER;RT6917,QFN,48P,6x6x1m 1 SNA
...4 1203-008667 IC-DC/DC CONVERTER;RT6936A,WQFN,40,6x6mm 1 SA
...4 1404-001731 THERMISTOR-NTC;33Kohm,4050K,1mW/C,TP,1.6 1 SNA
...4 1405-001381 VARISTOR;11V,8VDC,30A,1.6x0.8mm,TP,25V,5 3 SA
...4 1405-001382 VARISTOR;24.5V,16VDC,120A,2.0x1.25mm,TP, 2 SA
...4 1405-001391 VARISTOR;32V,5Vdc,5A,2.1x1.25mm,TP,80V,1 6 SA
...4 2007-000052 R-CHIP;10Kohm,1%,1/10W,TP,1608 2 SA
...4 2007-000063 R-CHIP;150Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000067 R-CHIP;15Kohm,1%,1/10W,TP,1608 4 SNA
...4 2007-000070 R-CHIP;0ohm,5%,1/10W,TP,1608 2 SA
...4 2007-000113 R-CHIP;33ohm,5%,1/10W,TP,1608 10 SA
...4 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 6 SA
...4 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 33 SNA
...4 2007-000172 R-CHIP;10ohm,5%,1/16W,TP,1005 2 SNA
0404-001643 DIODE-SCHOTTKY;B360A,60V,3000mA,SMA,TP 1 SA
Page 46
ANNEX-10
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
...4 2007-000265 R-CHIP;1.8Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000336 R-CHIP;120Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000614 R-CHIP;24Kohm,1%,1/10W,TP,1608 1 SNA
...4 2007-000651 R-CHIP;27Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-000857 R-CHIP;4.3Kohm,1%,1/10W,TP,1608 1 SNA
...4 2007-000869 R-CHIP;4.7Kohm,1%,1/10W,TP,1608 8 SA
...4 2007-000903 R-CHIP;430ohm,1%,1/10W,TP,1608 2 SNA
...4 2007-001125 R-CHIP;68Kohm,1%,1/10W,TP,1608 2 SA
...4 2007-001206 R-CHIP;82Kohm,1%,1/10W,TP,1608 1 SNA
...4 2007-001433 R-CHIP;12Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-002768 R-CHIP;6.2Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-002899 R-CHIP;10ohm,1%,1/10W,TP,1608 8 SA
...4 2007-007698 R-CHIP;5.1Kohm,1%,1/16W,TP,1005 2 SNA
...4 2007-007768 R-CHIP;13Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-007847 R-CHIP;16Kohm,1%,1/10W,TP,1608 1 SA
...4 2007-008117 R-CHIP;2.7Kohm,1%,1/16W,TP,1005 2 SA
...4 2007-008596 R-CHIP;0.1ohm,1%,1/4W,TP,3216 2 SC
...4 2011-001264 R-NETWORK;10ohm,5%,1/16W,L,CHIP,8P,TP,2. 4 SNA
...4 AD480 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 6 SA
...4 AD480 2203-002494 C-CER,CHIP;470nF,10%,16V,X7R,TP,2012 1 SNA
...4 AD480 2203-002711 C-CER,CHIP;100nF,10%,25V,X7R,TP,1608 1 SA
...4 AD480 2203-002720 C-CER,CHIP;10nF,10%,25V,X7R,TP,1005,0.5T 1 SNA
...4 AD480 2203-005344 C-CER,CHIP;22nF,10%,25V,X7R,TP,1005,0.5T 1 SNA
...4 AD480 2203-006307 C-CER,CHIP;1000nF,10%,25V,X5R,TP,2012 1 SNA
...4 AD480
...4 AD480 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 22 SNA
...4 AD480 2203-006698 C-CER,CHIP;1000nF,10%,25V,X7R,TP,1608,0. 5 SNA
...4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,TP,1608 5 SNA
...4 AD480 2203-006841 C-CER,CHIP;1000nF,10%,16V,X5R,TP,1005 1 SNA
...4 AD480 2203-006890 C-CER,CHIP;10000nF,20%,6.3V,X5R,TP,1608 54 SNA
...4 AD480 2203-006960 C-CER,CHIP;1000nF,10%,50V,X7R,TP,2012 1 SNA
...4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012,1 9 SNA
...4 AD480 2203-007240 C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,1608( 41 SA
...4 AD480 2203-008315 C-CER,CHIP;22000nF,20%,25V,X5R,TP,2012,T 21 SA
...4 2703-003747 INDUCTOR-SMD;22uH,20%,6060,0.135ohm,1300 3 SA
...4 2703-003862 INDUCTOR-SMD;10uH,20%,6060,0.065ohm,1900 1 SA
...4 2703-003913 INDUCTOR-SMD;2.2uH,20%,2520,1.2T,0.116Oh 1 SNA
...4 2703-004199 INDUCTOR-SMD;10uH,20%,6.6x7.0mm,2.2mm,0. 1 SNA
...4 2901-001362 FILTER-EMI/ESD;5.5V,0A,50pF,2.05x1.25x0. 1 SNA
...4 3301-002039 BEAD-SMD;26ohm,1608,TP 52 SA
...4 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,Hi 2 SNA
...4 3708-003073 CONNECTOR-FPC/FFC/PIC;51P,0.5mm,SMD-A,AU 2 SA
...4 3708-003176 CONNECTOR-FPC/FFC/PIC;68P,0.5mm,SMD-A,AU 2 SA
...4 EH01 3711-008098 HEADER-BOARD TO CABLE;BOX,20P,1R,1.25mm, 1 SNA
...4 BN13-00068A IC ASIC;LTF62B1,FF11B,169,3.3V,-20to+70C 1 SA
...4 BN41-02292A PCB-TCON;2016Y SDC FHD60hz,FR-4,4L,1T,15 1 SNA
...4 BN97-11026A ASSY MICOM;1103-001565,K5500_40_F,FF11B, 1 SNA
2203-006399 C-CER,CHIP;1000nF,10%,6.3V,X5R,TP,1005 12 SA
Page 47
ANNEX-11
ANNEX. Exploded View & Part List
Level Location No. Code No. Description & Specication Q’ty SA/SNARemark
....5 1103-001565 IC-EEPROM;M24C64-WMN6TPK,100pF,SO8,8Q,4. 1 SA
0.2 BN96-39412A FFC CABLE;K6200,Straight,L57,68P 2 SNA
0.2 BN96-39687A ASSY OPEN CELL;LSF400HN03-G,LSF400HN03-G 1 SNA
..3 BN81-07435A A/S-ADHESIVE ACF;LSJ320AP04-E,0201-00234 1 SNA
..3 BN81-07943A A/S-ADHESIVE ACF;LSF320AN01-A,0201-00237 1 SNA
..3 BN81-09609A A/S-IC DRIVER SOURCE;LSF400HM03-G,LJ13-0 1 SA
..3 BN81-13091A A/S-SOURCE PCB RIGHT;SOURCE PCB RIGHT,LJ 1 SNA
..3 BN81-13092A A/S-SOURCE PCB LEFT;SOURCE PCB LEFT,LJ94 1 SNA
..3 BN82-01708A A/S-POLARIZER CF;LSF400HF06-G,LJ01-10156 1 SNA
..3 BN82-01709A A/S-POLARIZER TFT;LSF400HF06-G,LJ01-1015 1 SNA
0.2 BN96-40351C ASSY CHASSIS FRONT P;40K5500,PC+ABS+ED18 1 SNA
..3 BN60-01366H SPACER-CONDUCTIVE;40K5500,CONDUCTIVE FAB 2 SNA
..3 BN60-01436A SPACER-CONDUCTIVE;40K5500,CONDUCTIVE FAB 1 SNA
..3 BN60-01436C SPACER-CONDUCTIVE;40K5500,CONDUCTIVE FAB 1 SNA
..3 BN63-10118A GASKET-TAPE;60 FLED,Conductive Fabric,T0 2 SNA
..3 BN63-11118B SHEET-PROTECTION COVER;Y13 SNB F8.5K,PET 2 SNA
..3 BN63-11118F SHEET-PROTECTION COVER;K6200,PET,T0.04,W 1 SNA
..3 BN63-12151A GASKET-EMI;CY-MH270BGLV1V,Conductive Fab 2 SNA
..3 AC155 BN64-03334A CHASSIS-FRONT;40K5500,PC+ABS+ED18%,V-1,M 1 SNA
...4 0103-010808 RESIN PC ABS;NH-1210/K21294,BLACK,BK0007 157 SNA
...4 BN63-11118B SHEET-PROTECTION COVER;Y13 SNB F8.5K,PET 2 SNA
...4 BN63-11118F SHEET-PROTECTION COVER;K6200,PET,T0.04,W 2 SNA
Page 48
1. Precautions
1. Precautions
1-1. Safety Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1-1. Warnings
For continued safety, do not attempt to modify the circuit board.
WARNING
1-1-2. Servicing the LED TV
When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.
It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this 2.
meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the monitor to the user, perform the following safety checks:
Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the
1.
chassis and other metal parts in the monitor.
2.
Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.
3.

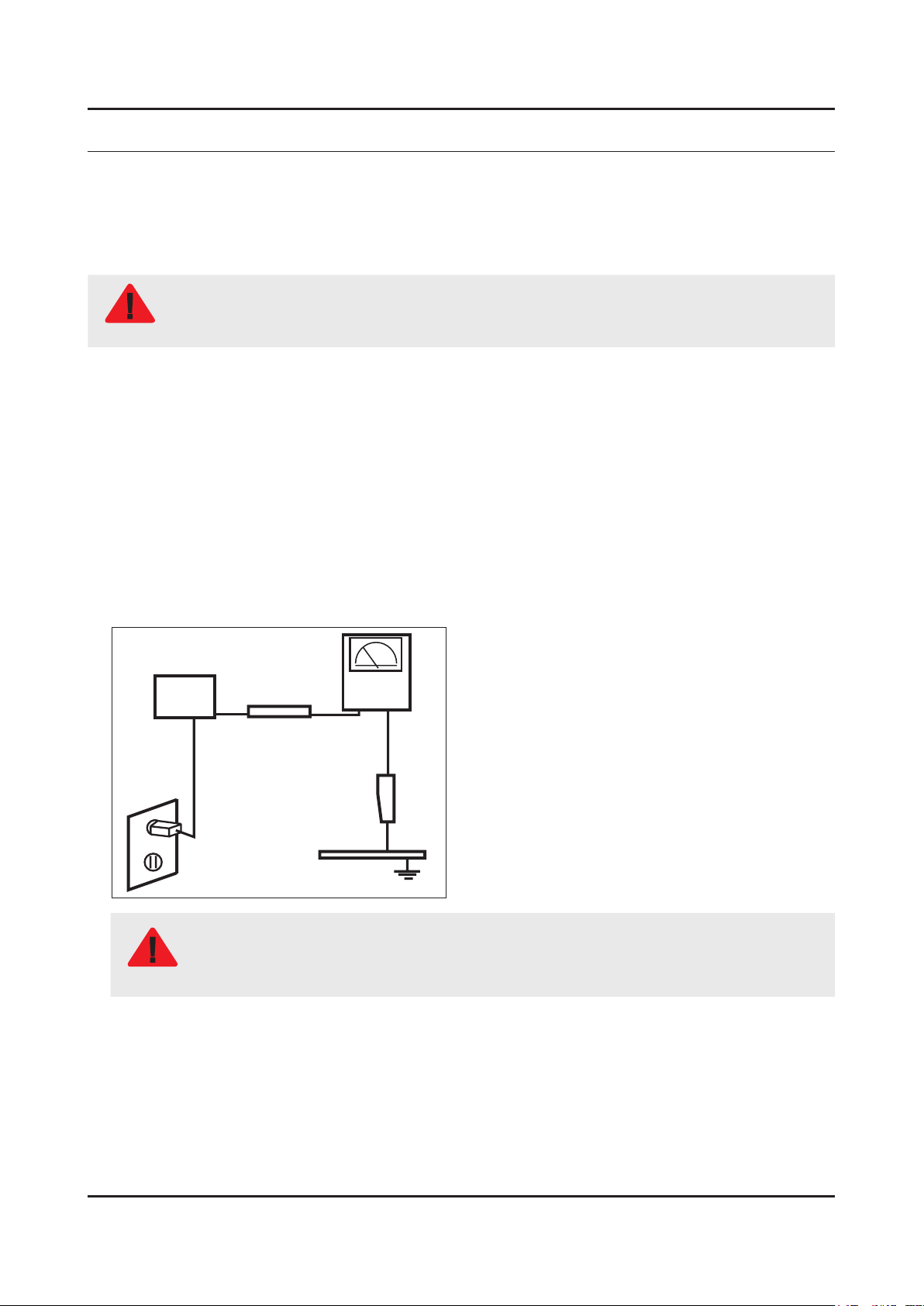

Leakage Current Hot Check:
Disconnect the AC power and DC power jack before servicing.
(READING SHOULD)
DEVICE
UNDER
TEST
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
NOT BE ABOVE 0.5mA
2-WIRE CORD
TEST ALL
EXPOSED METAL
SURFACES
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards
WARNING
Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).
With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch rst 4.
in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.)
and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1
Page 49
1-2
1. Precautions
1-1-4. Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identied by
replacement that does not have the same safety characteristics as the recommended replacement part might create
shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever
appropriate.
on schematics and parts lists. A substitute
Page 50
1-3
1. Precautions
1-2. Servicing Precautions
An electrolytic capacitor installed with the wrong polarity might explode.
WARNING
Before servicing units covered by this service manual, read and follow the Safety Precautions section of
CAUTION
NOTE
1-2-1. General Servicing Precautions
Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before 1.
attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect
a test component in parallel with an electrolytic capacitor.
2.
Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used.
The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements
to their original position.
3.
After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that
the area around the serviced part has not been damaged.
4.
Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input
terminals and earphone jacks).
5.
Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect
an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above) should be greater than 1 megohm.
6.
Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead;
always remove the instrument’s ground lead last.
this manual.
If unforeseen circumstances create conict between the following servicing precautions and any of the
safety precautions, always follow the safety precautions.
Page 51
1-4
1. Precautions
1-3. Static Electricity Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly
called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect
transistors. The following techniques will reduce the incidence of component damage caused by static electricity.
Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your
1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the monitor.
2.
After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent
accumulation of an electrostatic charge.
3.
Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.
Use only a grounded-tip soldering iron to solder or desolder ESDs.4.
Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.
6.
Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.
7.
Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material
to the chassis or circuit assembly into which the device will be installed.
Be sure no power is applied to the chassis or circuit and observe all other safety precautions.
CAUTION
Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or 8.
lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.
Page 52
1-5
1. Precautions
1-4. Installation Precautions
For safety reasons, more than a people are required for carrying the product.1.
Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.
Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature 3.
may cause re.
4.
Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed
to moisture. Otherwise, it may cause a re or electric shock.
5.
Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check
the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric
shock.
6.
Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the
antenna falling over may cause re or electric shock.
7.
When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes.
A rise in temperature within the product may cause re.
8.
If an equipment is provided with a replaceable battery, and if replacement by an incorrect type could result in an
explosion (for example, with some lithium batteries), the following applies:
Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to •
the instructions.
•
Do not dispose of batteries in a re.
Do not short circuit, disassemble or overheat the batteries.•
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent •
type.
•
Do not be exposed to excessive heat such as sunshine, re or the like.
Page 53

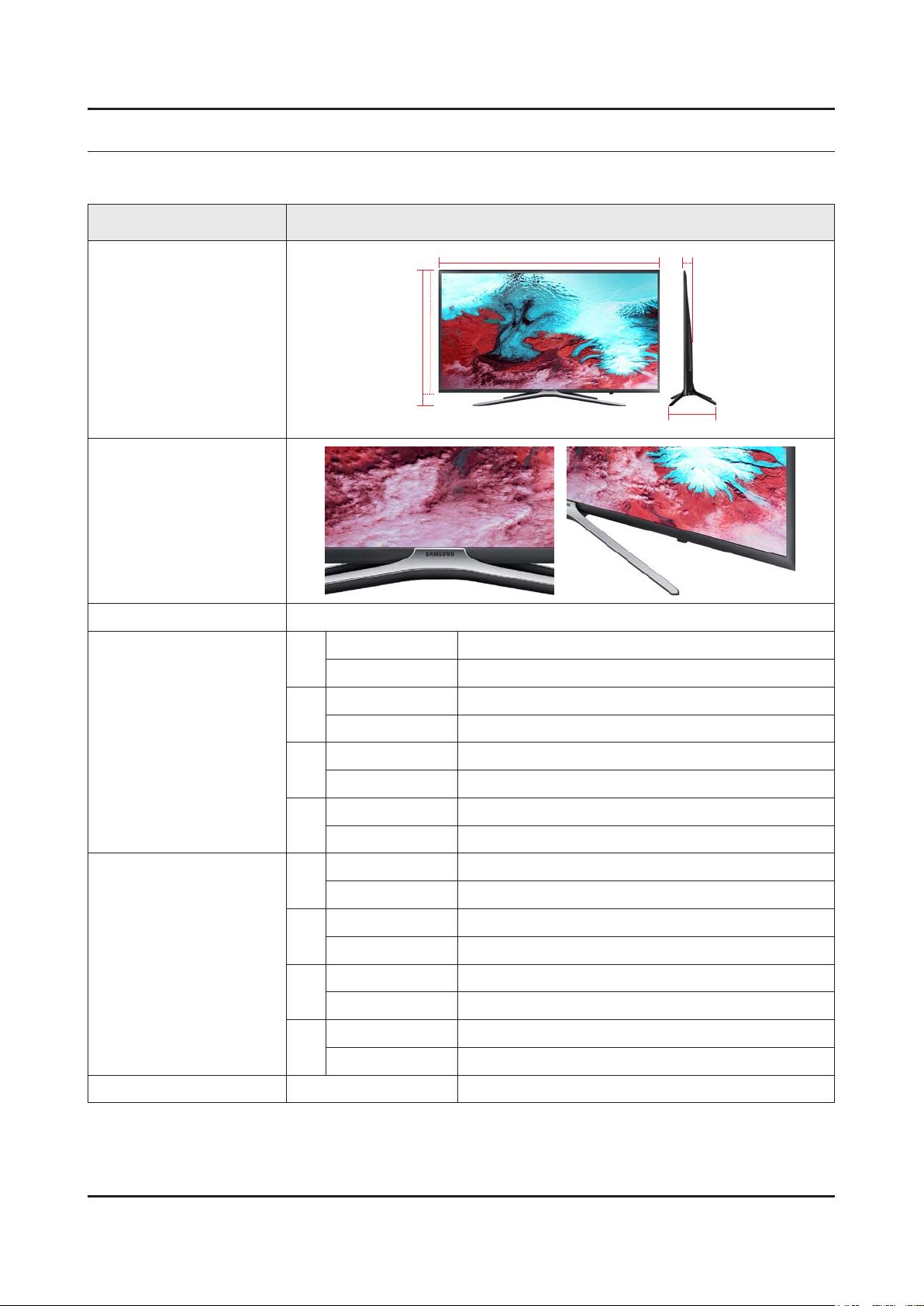

2. Product Specications
2-1. Product information
Model UE**K5500AW
2. Product specications
W
Front View
Detail View
Color Front : DARK TITAN, Stand : SILVER
32"
40"
Dimensions
(W x H x D)
49"
With Stand 730.4 x 487.7 x 207.5 mm
Without Stand 730.4 x 433.7 x 55.1 mm
With Stand 917.6 x 604.0 x 250.7 mm
Without Stand 917.6 x 539.2 x 55.1 mm
With Stand 1105.8 x 710.2 x 293.8 mm
Without Stand 1105.8 x 645.0 x 55.1 mm
H
* W : Width H : High D : Depth
D
55"
With Stand 1241.6 x 786.4 x 293.8 mm
Without Stand 1241.6 x 721.4 x 55.1 mm
With Stand 6.2 kg
32"
Without Stand 5.5 kg
With Stand 9.6 kg
40"
Without Stand 8.6 kg
Weight
With Stand 14.6 kg
49"
Without Stand 13.0 kg
With Stand 17.6 kg
55"
Without Stand 16.0 kg
Panel Type All Slim LED
2-1
Page 54
2-2
2. Product specications
2-2. Product specication
2-2-1. Detailed Specications
NOTE
Design and specications are subject to change without prior notice.
Item UE32K5500AWXXH
General Information
Display Screen Size 32"
Video
Product LED
Series 5
Country HUNGARY
Resolution 1920 x 1080
Ultra Black N/A
Quantum Dot Display N/A
Screen Curvature N/A
10 bit Support N/A
Picture Engine HyperReal
Motion Rate 50
PQI (Picture Quality Index) 400
HDR (High Dynamic Range) N/A
Dynamic Contrast Ratio Mega Contrast
Micro Dimming M/D Pro
Precision Black (Local Dimming) N/A
Audio
Quantum Dot Color N/A
Active Crystal Color N/A
Wide Color Enhancer (Plus) Yes
PurColor N/A
Auto Depth Enhancer N/A
Contrast Enhancer Yes
Auto Motion Plus N/A
Film Mode Yes
Peak Illuminator N/A
Dolby Digital Plus Yes
DTS Codec Yes
Sound Output (RMS) 20W
Speaker Type 2CH(Down Firing w/Bass Reex)
Woofer N/A
Wallmount Sound Mode Yes
Page 55
2-3
2. Product specications
Item UE32K5500AWXXH
Audio
Smart TV
Smart Interaction
Convergence
Multiroom Link Yes
TV SoundConnect Yes
BT Headset Support Yes
Samsung SMART TV Yes
Apps Yes
Games N/A
Cloud Game Yes(NL,BE,LU,PL)
Billing Yes(NL,BE,LU,PL,HU,GR,RO,BG)
Automated Content Recognition (ACR) N/A
Web Browser Yes
Voice Recognition N/A
TV to Mobile - Mirroring Yes
Mobile to TV - Mirroring, DLNA Yes
Samsung SMART View Yes
Bluetooth Low Energy Yes
RVU N/A
IoT Service
Tuner/Broadcasting
Connectivity
WiFi Direct Yes
TV as Hub Support N/A
TV as Things Support N/A
IoT Client Application N/A
Digital Broadcasting DVB-TC
Analog Tuner Yes
2 Tuner N/A
CI (Common Interface) CI+(1.3)
Data Broadcasting
HDMI 3
USB 2
Component In (Y/Pb/Pr) 1
Composite In (AV) 1 (Common Use for Component Y)
Ethernet (LAN) 1
Headphone N/A
Audio Out (Mini Jack) N/A
HbbTV 1.5(FR,ES,EE,HU) / HbbTV1.0(CZ,SK,PT,
DE,AT,SZ,PL,BE,NL,LU)
Digital Audio Out (Optical) 1
RF In (Terrestrial / Cable input / Satellite
input)
Ex-Link ( RS-232C ) N/A
1/1(Common Use for Terrestrial)/0
Page 56
2-4
2. Product specications
Item UE32K5500AWXXH
Connectivity
Design
Additional Feature
CI Slot 1
Scart N/A
HDMI A / Return Ch. Support Yes
HDMI Quick Switch N/A
Wireless LAN Adapter Support N/A
Wireless LAN Built-in Yes
Anynet+ (HDMI-CEC) Yes
Design FHD Slim
Bezel Type VNB
Slim Type Step-Up Slim
Front Color Dark Titan
Light Effect (Deco) N/A
Stand Type Quad
Swivel (Left/Right) N/A
Instant On Yes
Processor Quad-Core
Accessibility Enlarge/ High contrast
Digital Clean View Yes
One Connect (Jack) N/A
Auto Channel Search Yes
Auto Power Off Yes
BD Wise Plus N/A
Caption (Subtitle) Yes
Channel List USB-Clone Yes
Connect Share™ (HDD) Yes
ConnectShare™ (USB 2.0) Yes
Embeded POP Yes
EPG Yes
Extended PVR Yes
Game Mode Yes
OSD Language 27 European Languages
Picture-In-Picture Yes
BT HID Built-in Yes
USB HID Support Yes
Time Shift Yes
MBR Support N/A
Page 57
2-5
2. Product specications
Item UE32K5500AWXXH
Additional Feature
Eco Feature
General Information
Display Screen Size 40"
Video
Ultra Clean View Yes
Eco Sensor Yes
Energy Efciency Class A
Item UE40K5500AWXXH
Product LED
Series 5
Country HUNGARY
Resolution 1920 x 1080
Ultra Black N/A
Quantum Dot Display N/A
Screen Curvature N/A
10 bit Support N/A
Picture Engine HyperReal
Motion Rate 50
PQI (Picture Quality Index) 400
Audio
HDR (High Dynamic Range) N/A
Dynamic Contrast Ratio Mega Contrast
Micro Dimming M/D Pro
Precision Black (Local Dimming) N/A
Quantum Dot Color N/A
Active Crystal Color N/A
Wide Color Enhancer (Plus) Yes
PurColor N/A
Auto Depth Enhancer N/A
Contrast Enhancer Yes
Auto Motion Plus N/A
Film Mode Yes
Peak Illuminator N/A
Dolby Digital Plus Yes
DTS Codec Yes
Sound Output (RMS) 20W
Speaker Type 2CH(Down Firing w/Bass Reex)
Woofer N/A
Wallmount Sound Mode Yes
Page 58
2-6
2. Product specications
Item UE40K5500AWXXH
Audio
Smart TV
Smart Interaction
Convergence
Multiroom Link Yes
TV SoundConnect Yes
BT Headset Support Yes
Samsung SMART TV Yes
Apps Yes
Games N/A
Cloud Game Yes(NL,BE,LU,PL)
Billing Yes(NL,BE,LU,PL,HU,GR,RO,BG)
Automated Content Recognition (ACR) N/A
Web Browser Yes
Voice Recognition N/A
TV to Mobile - Mirroring Yes
Mobile to TV - Mirroring, DLNA Yes
Samsung SMART View Yes
Bluetooth Low Energy Yes
RVU N/A
IoT Service
Tuner/Broadcasting
Connectivity
WiFi Direct Yes
TV as Hub Support N/A
TV as Things Support N/A
IoT Client Application N/A
Digital Broadcasting DVB-TC
Analog Tuner Yes
2 Tuner N/A
CI (Common Interface) CI+(1.3)
Data Broadcasting
HDMI 3
USB 2
Component In (Y/Pb/Pr) 1
Composite In (AV) 1 (Common Use for Component Y)
Ethernet (LAN) 1
Headphone N/A
Audio Out (Mini Jack) N/A
HbbTV 1.5(FR,ES,EE,HU) / HbbTV1.0(CZ,SK,PT,
DE,AT,SZ,PL,BE,NL,LU)
Digital Audio Out (Optical) 1
RF In (Terrestrial / Cable input / Satellite
input)
Ex-Link ( RS-232C ) N/A
1/1(Common Use for Terrestrial)/0
Page 59
2-7
2. Product specications
Item UE40K5500AWXXH
Connectivity
Design
Additional Feature
CI Slot 1
Scart N/A
HDMI A / Return Ch. Support Yes
HDMI Quick Switch N/A
Wireless LAN Adapter Support N/A
Wireless LAN Built-in Yes
Anynet+ (HDMI-CEC) Yes
Design FHD Slim
Bezel Type VNB
Slim Type Step-Up Slim
Front Color Dark Titan
Light Effect (Deco) N/A
Stand Type Quad
Swivel (Left/Right) N/A
Instant On Yes
Processor Quad-Core
Accessibility Enlarge/ High contrast
Digital Clean View Yes
One Connect (Jack) N/A
Auto Channel Search Yes
Auto Power Off Yes
BD Wise Plus N/A
Caption (Subtitle) Yes
Channel List USB-Clone Yes
Connect Share™ (HDD) Yes
ConnectShare™ (USB 2.0) Yes
Embeded POP Yes
EPG Yes
Extended PVR Yes
Game Mode Yes
OSD Language 27 European Languages
Picture-In-Picture Yes
BT HID Built-in Yes
USB HID Support Yes
Time Shift Yes
MBR Support N/A
Page 60
2-8
2. Product specications
Item UE40K5500AWXXH
Additional Feature
Eco Feature
General Information
Display Screen Size 49"
Video
Ultra Clean View Yes
Eco Sensor Yes
Energy Efciency Class A
Item UE49K5500AWXXH
Product LED
Series 5
Country HUNGARY
Resolution 1920 x 1080
Ultra Black N/A
Quantum Dot Display N/A
Screen Curvature N/A
10 bit Support N/A
Picture Engine HyperReal
Motion Rate 50
PQI (Picture Quality Index) 400
Audio
HDR (High Dynamic Range) N/A
Dynamic Contrast Ratio Mega Contrast
Micro Dimming M/D Pro
Precision Black (Local Dimming) N/A
Quantum Dot Color N/A
Active Crystal Color N/A
Wide Color Enhancer (Plus) Yes
PurColor N/A
Auto Depth Enhancer N/A
Contrast Enhancer Yes
Auto Motion Plus N/A
Film Mode Yes
Peak Illuminator N/A
Dolby Digital Plus Yes
DTS Codec Yes
Sound Output (RMS) 20W
Speaker Type 2CH(Down Firing w/Bass Reex)
Woofer N/A
Wallmount Sound Mode Yes
Page 61
2-9
2. Product specications
Item UE49K5500AWXXH
Audio
Smart TV
Smart Interaction
Convergence
Multiroom Link Yes
TV SoundConnect Yes
BT Headset Support Yes
Samsung SMART TV Yes
Apps Yes
Games N/A
Cloud Game Yes(NL,BE,LU,PL)
Billing Yes(NL,BE,LU,PL,HU,GR,RO,BG)
Automated Content Recognition (ACR) N/A
Web Browser Yes
Voice Recognition N/A
TV to Mobile - Mirroring Yes
Mobile to TV - Mirroring, DLNA Yes
Samsung SMART View Yes
Bluetooth Low Energy Yes
RVU N/A
IoT Service
Tuner/Broadcasting
Connectivity
WiFi Direct Yes
TV as Hub Support N/A
TV as Things Support N/A
IoT Client Application N/A
Digital Broadcasting DVB-TC
Analog Tuner Yes
2 Tuner N/A
CI (Common Interface) CI+(1.3)
Data Broadcasting
HDMI 3
USB 2
Component In (Y/Pb/Pr) 1
Composite In (AV) 1 (Common Use for Component Y)
Ethernet (LAN) 1
Headphone N/A
Audio Out (Mini Jack) N/A
HbbTV 1.5(FR,ES,EE,HU) / HbbTV1.0(CZ,SK,PT,
DE,AT,SZ,PL,BE,NL,LU)
Digital Audio Out (Optical) 1
RF In (Terrestrial / Cable input / Satellite
input)
Ex-Link ( RS-232C ) N/A
1/1(Common Use for Terrestrial)/0
Page 62
2-10
2. Product specications
Item UE49K5500AWXXH
Connectivity
Design
Additional Feature
CI Slot 1
Scart N/A
HDMI A / Return Ch. Support Yes
HDMI Quick Switch N/A
Wireless LAN Adapter Support N/A
Wireless LAN Built-in Yes
Anynet+ (HDMI-CEC) Yes
Design FHD Slim
Bezel Type VNB
Slim Type Step-Up Slim
Front Color Dark Titan
Light Effect (Deco) N/A
Stand Type Quad
Swivel (Left/Right) N/A
Instant On Yes
Processor Quad-Core
Accessibility Enlarge/ High contrast
Digital Clean View Yes
One Connect (Jack) N/A
Auto Channel Search Yes
Auto Power Off Yes
BD Wise Plus N/A
Caption (Subtitle) Yes
Channel List USB-Clone Yes
Connect Share™ (HDD) Yes
ConnectShare™ (USB 2.0) Yes
Embeded POP Yes
EPG Yes
Extended PVR Yes
Game Mode Yes
OSD Language 27 European Languages
Picture-In-Picture Yes
BT HID Built-in Yes
USB HID Support Yes
Time Shift Yes
Page 63
2-11
2. Product specications
Item UE49K5500AWXXH
Additional Feature
Eco Feature
General Information
Display Screen Size 55"
Video
MBR Support N/A
Ultra Clean View Yes
Eco Sensor Yes
Energy Efciency Class A+
Item UE55K5500AWXXH
Product LED
Series 5
Country HUNGARY
Resolution 1920 x 1080
Ultra Black N/A
Quantum Dot Display N/A
Screen Curvature N/A
10 bit Support N/A
Picture Engine HyperReal
Motion Rate 50
Audio
PQI (Picture Quality Index) 400
HDR (High Dynamic Range) N/A
Dynamic Contrast Ratio Mega Contrast
Micro Dimming M/D Pro
Precision Black (Local Dimming) N/A
Quantum Dot Color N/A
Active Crystal Color N/A
Wide Color Enhancer (Plus) Yes
PurColor N/A
Auto Depth Enhancer N/A
Contrast Enhancer Yes
Auto Motion Plus N/A
Film Mode Yes
Peak Illuminator N/A
Dolby Digital Plus Yes
DTS Codec Yes
Sound Output (RMS) 20W
Speaker Type 2CH(Down Firing w/Bass Reex)
Woofer N/A
Page 64
2-12
2. Product specications
Item UE55K5500AWXXH
Audio
Smart TV
Smart Interaction
Convergence
Wallmount Sound Mode Yes
Multiroom Link Yes
TV SoundConnect Yes
BT Headset Support Yes
Samsung SMART TV Yes
Apps Yes
Games N/A
Cloud Game Yes(NL,BE,LU,PL,HU)
Billing Yes(NL,BE,LU,PL,HU,GR,RO,BG)
Automated Content Recognition (ACR) N/A
Web Browser Yes
Voice Recognition N/A
TV to Mobile - Mirroring Yes
Mobile to TV - Mirroring, DLNA Yes
Samsung SMART View Yes
Bluetooth Low Energy Yes
IoT Service
Tuner/Broadcasting
Connectivity
RVU N/A
WiFi Direct Yes
TV as Hub Support N/A
TV as Things Support N/A
IoT Client Application N/A
Digital Broadcasting DVB-TC
Analog Tuner Yes
2 Tuner N/A
CI (Common Interface) CI+(1.3)
Data Broadcasting
HDMI 3
USB 2
Component In (Y/Pb/Pr) 1
Composite In (AV) 1 (Common Use for Component Y)
Ethernet (LAN) 1
Headphone N/A
HbbTV 1.5(FR,ES,EE,HU) / HbbTV1.0(CZ,SK,PT,
DE,AT,SZ,PL,BE,NL,LU)
Audio Out (Mini Jack) N/A
Digital Audio Out (Optical) 1
RF In (Terrestrial / Cable input / Satellite
input)
1/1(Common Use for Terrestrial)/0
Page 65
2-13
2. Product specications
Item UE55K5500AWXXH
Connectivity
Design
Additional Feature
Ex-Link ( RS-232C ) N/A
CI Slot 1
Scart N/A
HDMI A / Return Ch. Support Yes
HDMI Quick Switch N/A
Wireless LAN Adapter Support N/A
Wireless LAN Built-in Yes
Anynet+ (HDMI-CEC) Yes
Design FHD Slim
Bezel Type VNB
Slim Type Step-Up Slim
Front Color Dark Titan
Light Effect (Deco) N/A
Stand Type Quad
Swivel (Left/Right) N/A
Instant On Yes
Processor Quad-Core
Accessibility Enlarge/ High contrast
Digital Clean View Yes
One Connect (Jack) N/A
Auto Channel Search Yes
Auto Power Off Yes
BD Wise Plus N/A
Caption (Subtitle) Yes
Channel List USB-Clone Yes
Connect Share™ (HDD) Yes
ConnectShare™ (USB 2.0) Yes
Embeded POP Yes
EPG Yes
Extended PVR Yes
Game Mode Yes
OSD Language 27 European Languages
Picture-In-Picture Yes
BT HID Built-in Yes
USB HID Support Yes
Page 66
2-14
2. Product specications
Item UE55K5500AWXXH
Additional Feature
Eco Feature
Time Shift Yes
MBR Support N/A
Ultra Clean View Yes
Eco Sensor Yes
Energy Efciency Class A+
Page 67
2-15
2. Product specications
2-2-2. Specications
Specications
Model UE**K5500AW
Item Description
Screen Size (Diagonal) 32 inches 40 inches 49 inches 55 inches
LCD Panel FHD 60Hz
Display Colors 16.7M color
Display Resolution 1920 x 1080
Input Signal
Input Sync Signal H/V Separate, TTL, P. or N.
Environmental Considerations Operating Temperature: 50˚F ~ 104˚F (10˚C ~ 40˚C)
AC Power Voltage &
Frequency
Sound (Output)
Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Operating Humidity: 10% ~ 80%, non-condensing
Storage Temperature: -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity: 5% ~ 95%, non-condensing
AC220-240V 50/60Hz
20W (L:10W, R:10W)
Page 68
2. Product specications
2-3. Accessories
NOTE
The items’ colors and shapes may vary depending on the model.•
Cables not included in the package contents can be purchased separately.•
The part code for some accessories may differ depending on your region.•
Product Description Code. No Remark
BN59-01247A
Remote Control & Batteries
(AAA x 2)
4301-000121
Power Cord 3903-000950
Manual Users BN68-07870D
-
2-16
Page 69
4. Troubleshooting
4-1. Troubleshooting
Previous Check
Check the various cable connections rst.1.
Check to see if there is a burnt or damaged cable. -
-
Check to see if there is a disconnected or loose cable connection.
-
Check to see if the cables are connected according to the connection diagram.
Check the power input to the ASSY PCB MAIN.
2.
4. Troubleshooting

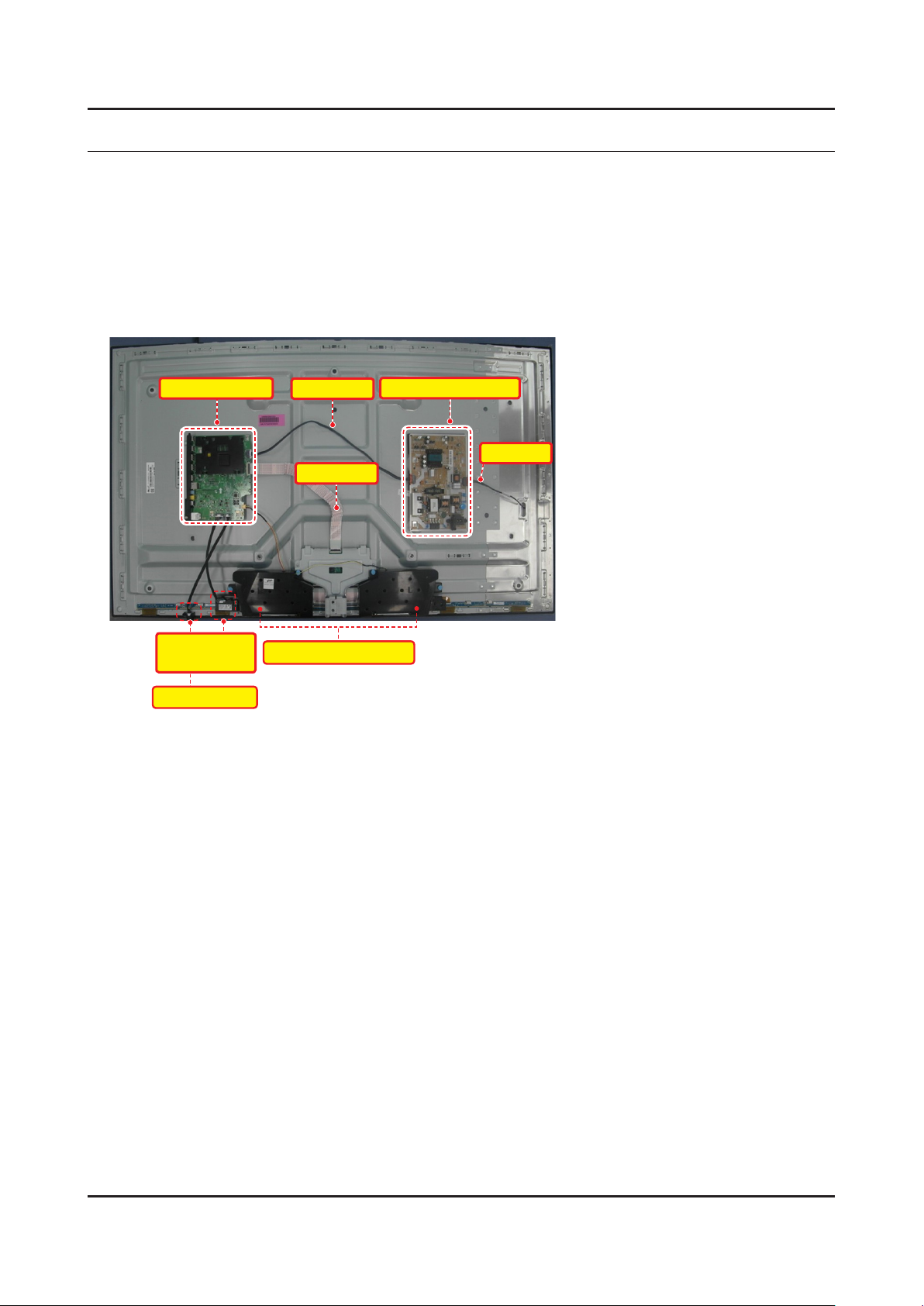

ASSY PCB MAIN
Wi/BT Combo
Module
IR & FUNCTION
Check the power in & output between SMPS & Main Board, Main Board & Panel, IP & Panel3.
SMPS Cable
LVDS Cable
ASSY SPEAKER P (R/L)
DC VSS-LED PD BD
BLU Cable
4-1
Page 70
4-2
4. Troubleshooting
4-2. How to Check Fault Symptom
4-2-1. Power
TV POWER STANDBY
TV in Standby1.
Standby LED Indicator √
2.
If Not Lit:
AC 120Vac Line √
3.
If missing:
120Vac Source and Power Cord √
4.
If OK:
Resistance on SMPS √ Fuse after rst removing AC power cord.
5.
If fusses are open replace SMPS.
If fuses are OK:6.
√ Standby: A13V (Always On) to Main Board. Should all be approx. 9 VDC
7.
If any missing remove the SMPS connector to Main Board .
Standby A13V again for 9VDC. √
If OK replace
- Main Board.
- SMPS.
If still missing replace
Page 71
4-3
4. Troubleshooting

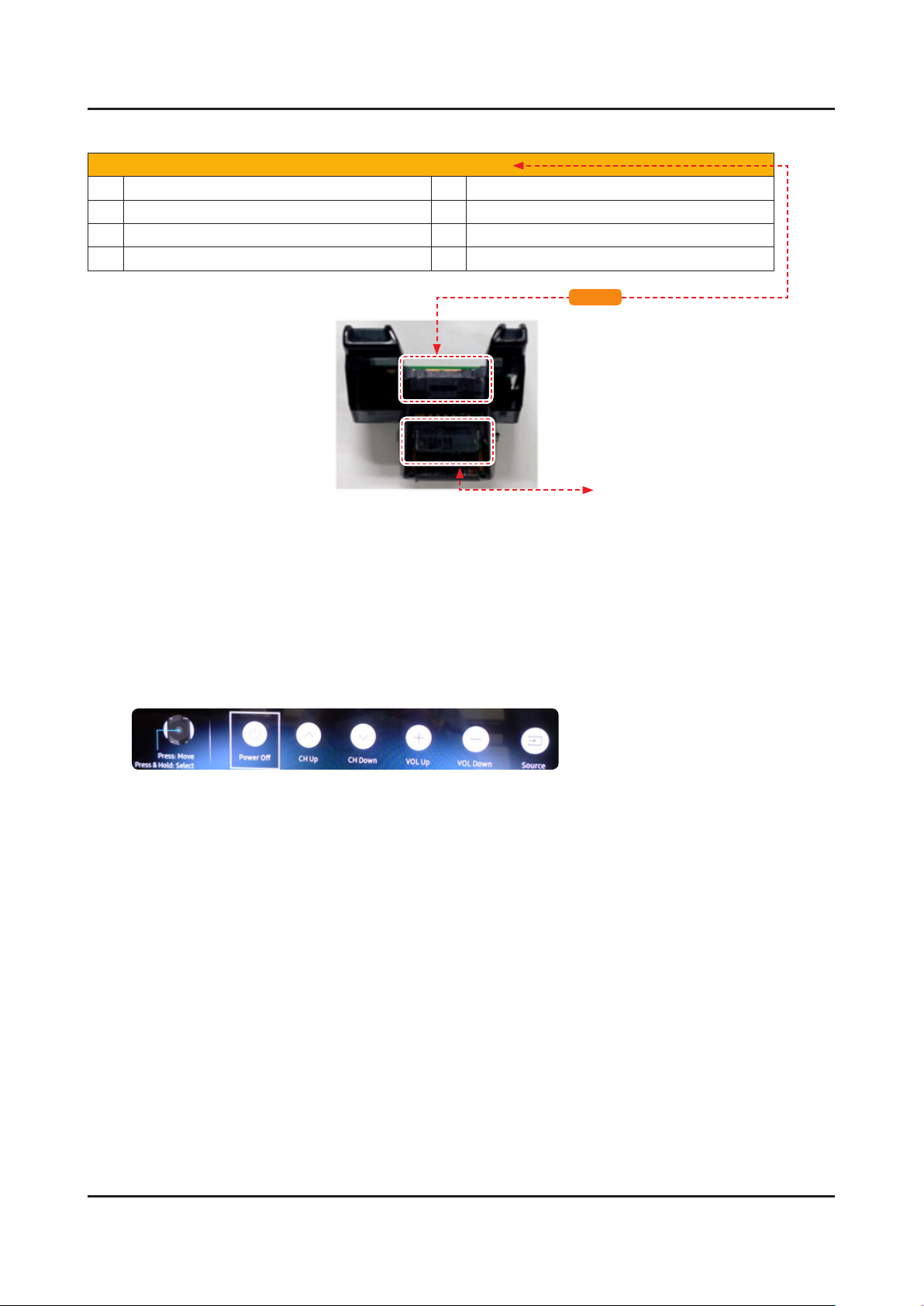

FUNCTION/IR Control
CN1 (FUNCTION/IR)
1 IR 3.3Vdc to 2.5Vdc (Effective DC) 2 GND
3 A3.3V_PW 4 AMP_SCL_I2C 3.3Vdc (effective DC)
5 AMP_SDA_I2C 3.3 Vdc (effective DC) 6 KEY_INPUT1 1.8dc to 0V with command
7 KEY_INPUT2 0V (no operation change) 8 LED_STB_OUT 1.7Vdc STBY
CN1
LED Status / Function Switch
<Function/IR>
TV in Standby 1.
LED Status √
2. LED is OFF
If
√
LED 1.7Vdc (pin 8) and VCC for 3.3Vdc (pin 3)
If missing suspect
• Function Assy/Cable Assy/Main Assy.
If
3. LED is ON
√
Switch Operation activates on screen display.
<On Screen Selections with Function Control>
If missing: -
Key _Input1 Pin 6
√ change to 0V with a command.
If wrong voltage or no change:
-
Switch for stuck or miss-operation.
√
4. IR operation with Standard Remote command changes. (3.3V to 2.5V effective DC)
Check
5. , SCL for effective 3.3Vdc (after power on)
SDA
If missing suspect
- Function Assy/Cable Assy/Main Assy.
Page 72
4-4
4. Troubleshooting
SMPS POWER
SMPS_Front
1 CNM803
2 CNL802
Detail
To Main Board
1
Testing
A13V1. Standby to Main Board : Approx 9Vdc.
2. : 3.3Vdc Power ON/OFF.
Power_On/Off
3. : to steady 12.7 Vdc.
A13V
4. Over & Under Drive.
OD/UD : 3.3Vdc
5. also labeled “BLU On/Off” Backlight On/Off & Backlight (PWM signal) Level Control.
BLU_PWM : .9V~3.3Vdc
2
To Panel LEDS CNL802
Page 73
BACKLIGHTS
4-5
4. Troubleshooting
Activate Backlights Test1. :
Disconnect Lead Cable from Main Board to Power Supply. (CNM803)
-
TV Screen for active backlight LEDs.
√
2.
If NO BACKLIGHTS
Minus (Control) & Plus pins (Supply) on the Panel Connector voltages to the Panel. √
If no pin voltages replace SMPS.
-
If BACKLIGHTS ON BUT PANEL SECTION(S) OFF
3.
The Supply Drive √ + pins. All should measure same.
If a
- + pin measures higher voltage, a string(s) of LEDs are likely open.
- Replace Panel.
Remove Panel connector and verify same open backlight voltage condition.
If a
4. + pin measures low voltage disconnect connector to panel
√
The Low Plus Pin Voltage again.
If it stays low the
- SMPS is defective, if it goes high, defective Panel.
For BACKLIGHT DIMMING PROBLEMS:
Go to
• Menu > Picture > Backlight and vary level (0 – 20)
•
If no backlight changes observed:
Panel Connector pin voltages and BLU_PWM voltages (CNL802) while changing backlight level. √
If Panel voltages don’t change, and BLU_PWM changes, replace
• SMPS.
• Main/T-CON Board.
If BLU_PWM doesn’t change replace
Page 74
4-6
4. Troubleshooting
4-2-2. Main
No power & No picture
Diagnostics
Check the LED of function.
Yes
Open the BACK-COVER and check the
10P power cable.
Yes
Check the A13V of BD211/208/214/209.
Yes
Check the Q203 base, voltage must be
no larger than 0.5V.
Yes
Check the A5V of L310, B13V of Q201,
B5V of L203.
Yes
Check the A3.3V/B3.3V of Main IC.
Check B1.8V of DDR IC
IC201#1, IC204, IC208#1.
Yes
No
No
No
No
No
No
Check link of AC voltage.
Connect the 10p power cable.
Change the SMPS.
Change the Main Assy.
Change the Main Assy.
Change the Main Assy.
Check the 13V of LVDS
Q204#1/2/5/6.
Yes
Change the LVDS.
No
No
Change the Panel.
Page 75
4-7
4. Troubleshooting

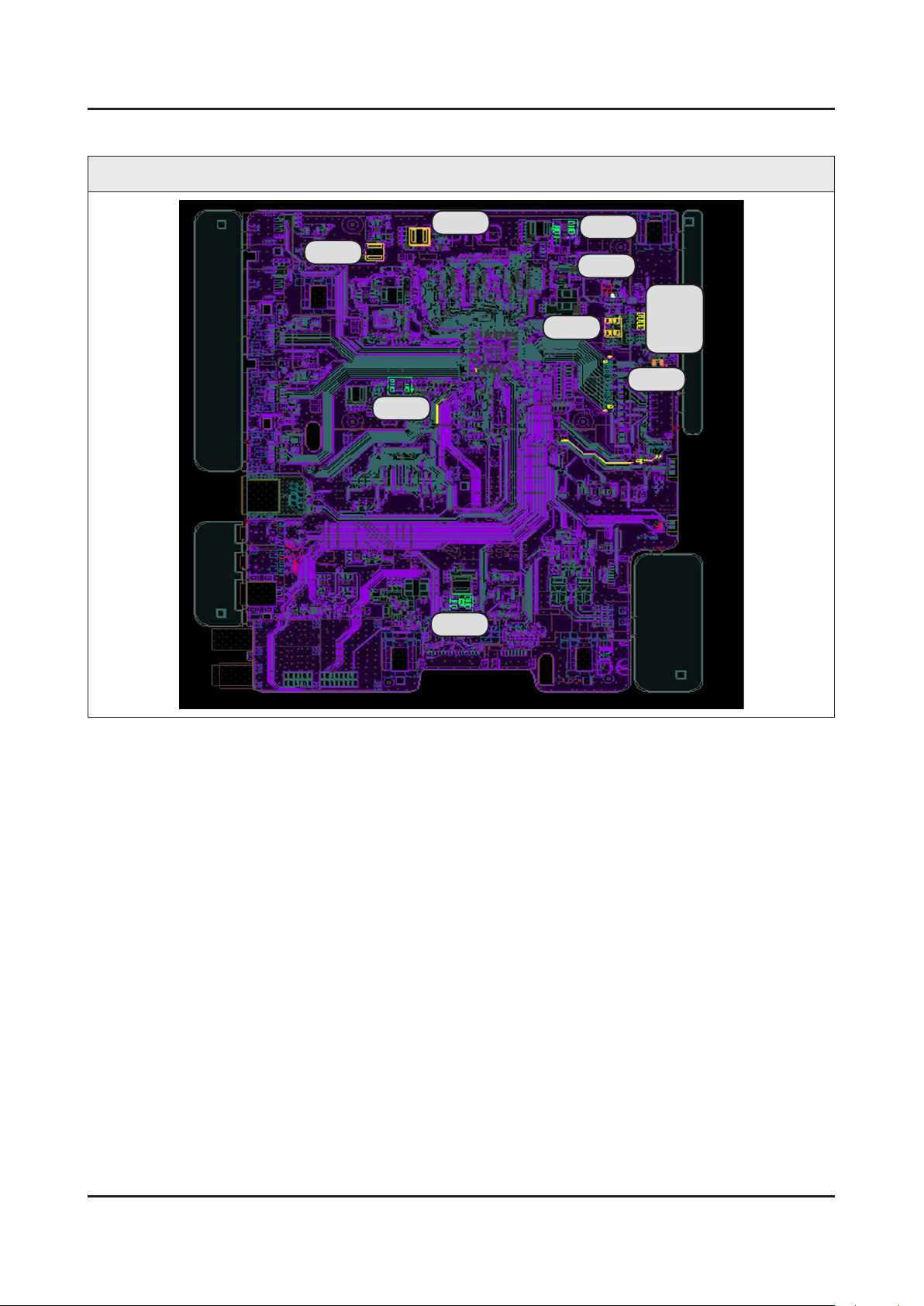

Location of Parts
Main Board_Front
L203
IC208
L310
IC204
Q201
IC201
Q203
BD211
/208
/214
/209
Q204
Page 76
4-8
4. Troubleshooting
No picture (COMPONENT)
Diagnostics
If the LED of POWER is off,
check Back Light is turn on.
Yes
Check a video source & cable
Yes
Check the SelfTest.
(Support > Self Diagnosis > Picture Test)
Remain other Problem?
Yes
Check
R534(COMP1_Y/CVBS)
R501(COMP1_PR)
R502(COMP1_PB).
Yes
Check the assembling state of LVDS /
Change the Panel.
No
No
No
No
Check what is status ‘Stand-by’ or not.
Check Video signal.
Check for connecting external device.
Check the CN501.
Change the Main Assy.
Page 77
4-9
4. Troubleshooting

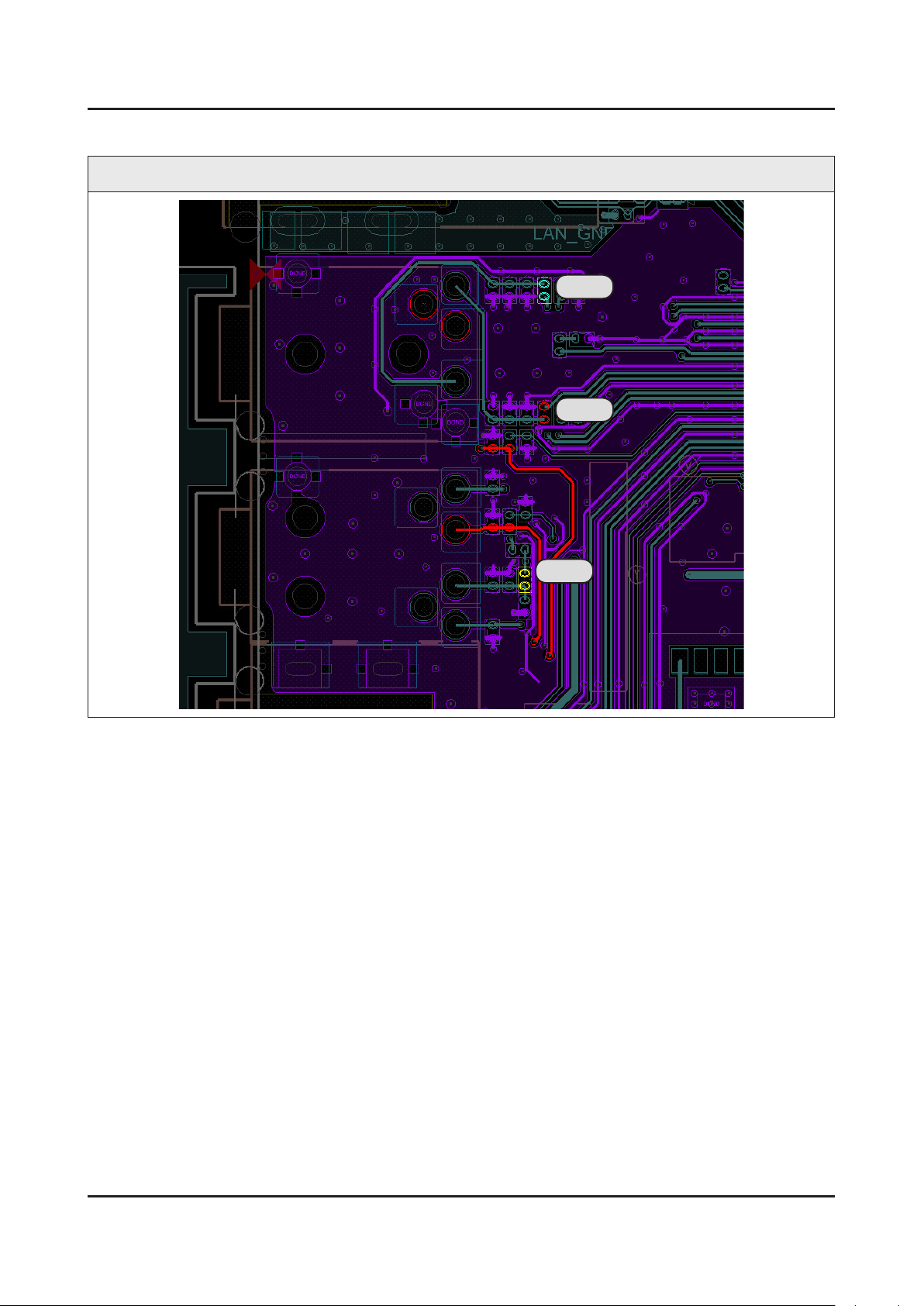

Location of Parts
Main Board_Front
R502
R501
R534
Page 78
4-10
4. Troubleshooting

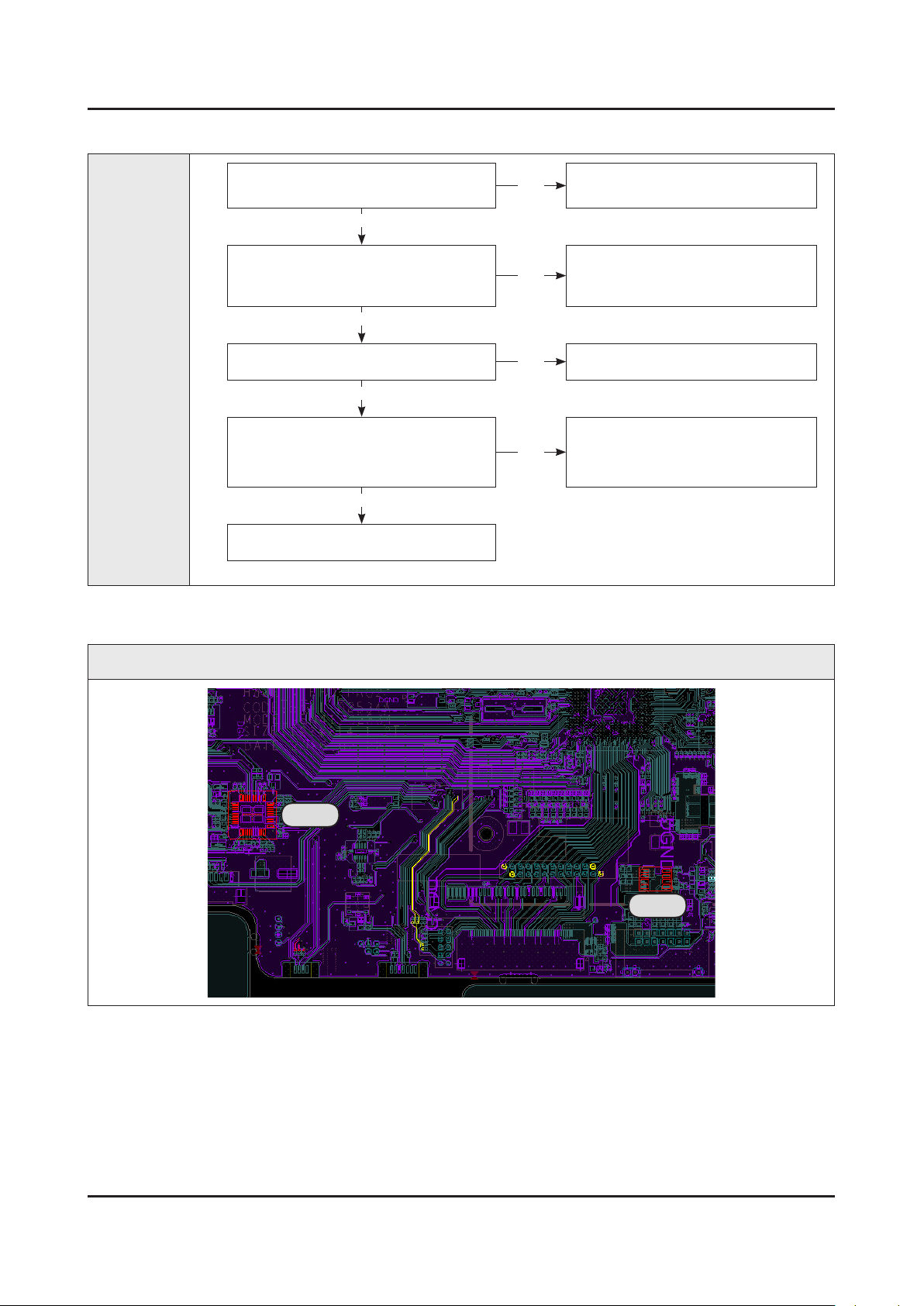

No sound
Diagnostics
Location of Parts
Check the source & sound cable.
(Comp/PC/DVI to HDMI)
Yes
Check Selftest
(Support > Self Diagnosis > Picture Test)
Remain other Problem?
Yes
Check the DC B13V to Q201.
Yes
Check the sound data.
- L-, L+, R-, R+
Yes
Change the speaker
No
No
No
No
Input a Sound source.
Check for connecting external device.
Change the Main Assy.
Check the IC902 (HAWK_MF)
/ IC401 (Sound AMP).
Change the Main Assy.
IC401
Main Board_Front
Q201
Page 79
4-2-3. Video
4-11
4. Troubleshooting

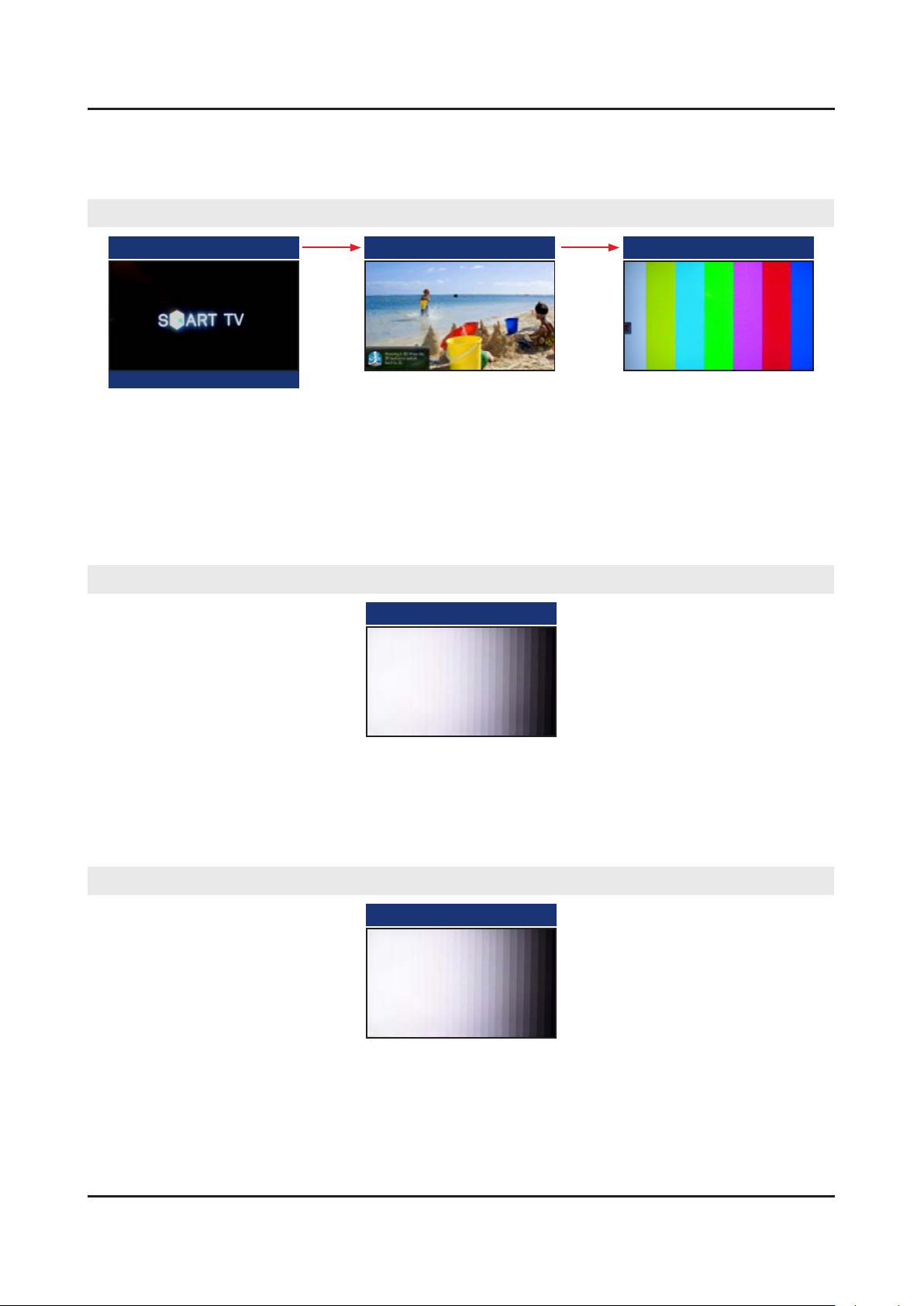

MAIN / T-CON Board
Main Board Section1.
1 Start Up Logo
(Not all models)
Video Operation : Generated on Main Section.
If OK:
1.
Source & Input Cables. √
√
Other inputs.
√
One Connect Cable/Box.
2.
If Noisy:
T-CON Section Test Patterns. √
PRE FRC of T-CON Section2.
2 Customer Picture Test 1 3 Mute - 147 - Mute
Customer Picture Test 2
Video Operation : Generated at Pre FRC, of T-CON Section.
If OK:
1.
Main Section. √
2.
If Noisy:
Post FRC Pattern. √
POST FRC of T-CON Section3.
Customer Picture Test 3
Video Operation : Generated at Post FRC of T-CON Section.
If OK:
1.
Main / T-CON Board (defective). √
2.
If Noisy:
Mute - 369 - Mute. √
Page 80
4-12
4. Troubleshooting

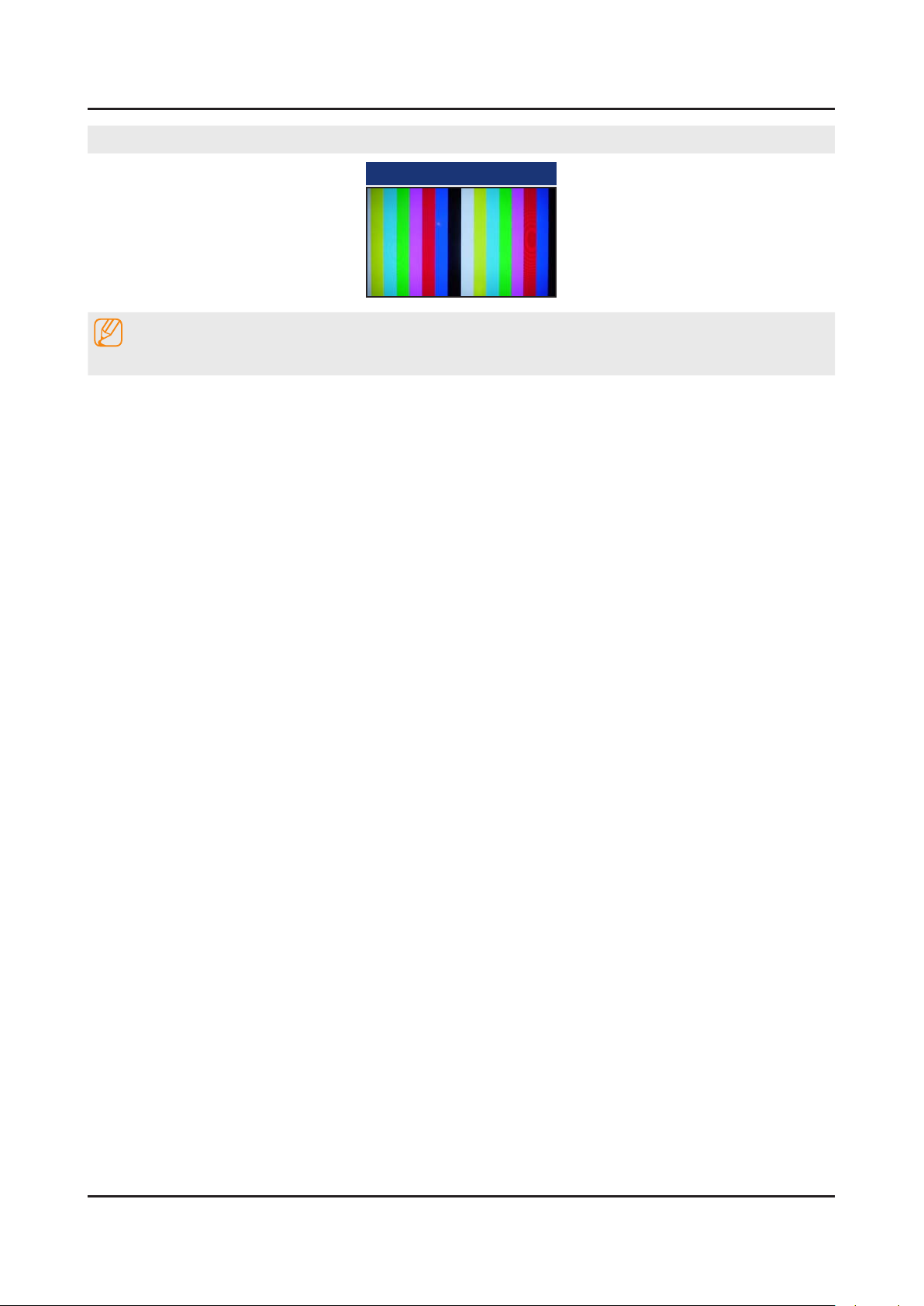

T-CON Section1.
Mute - 369 - Mute
NOTE
May not be available for Larger models over 70 inches.
Video Operation : Generated at T-CON Section.
If OK:
1.
Main / T-CON Board (defective). √
2.
If Noisy:
Main / T-CON Board. √
Page 81
4-13
4. Troubleshooting
PANEL
If Noisy:1.
Panel (defective). √
Page 82
4-14
4. Troubleshooting
4-2-4. Audio
AUDIO
Source
•
No TV Sound
Menu → Audio → Speaker Settings set to √ TV Speaker
•
Noisy / Distorted TV Audio
Customer Menu → Support → √ Sound Test
• Sound Test FAILS : (Missing / Noisy Audio)
If
Speakers (compare resistance/quality)
√
√
Main Board
Compare audio level out to speakers with multi meter.
•
Replace defective Speakers or Main Board or Cable. √
• Sound Test OK :
IF
Audio Source & External Cables.
√
√
Other Inputs.
√
With external Audio Generator (device or App).
•
Optical Digital Out Errors
Red light from Optical Digital Out. √
→
Main board
→
Speakers
•
No HDMI Audio
Source / HDMI Cable √
Swap with other HDMI Inputs/Sources.
•
Perform • EDID Write in Factory Mode (Can restore missing HDMI Audio).
Bulletins and Latest rmware on TV.
√
If not restored replace One Connect Box.
•
Check Audio Format PCM/Dolby based on external Receiver.•
ARC Issues•
HDMI Cable is input to the ARC Designated HDMI port. √
√
ARC (HDMI Control) is enabled on the external Receiver.
• Sound Share" Connection Issues
Bluetooth Audio "
Sound Bar is in TV Mode.
√
To Connect, Press & Hold Play Button until Sound Bar pairing mode begins.
•
Page 83
4-2-5. Network
4-15
4. Troubleshooting

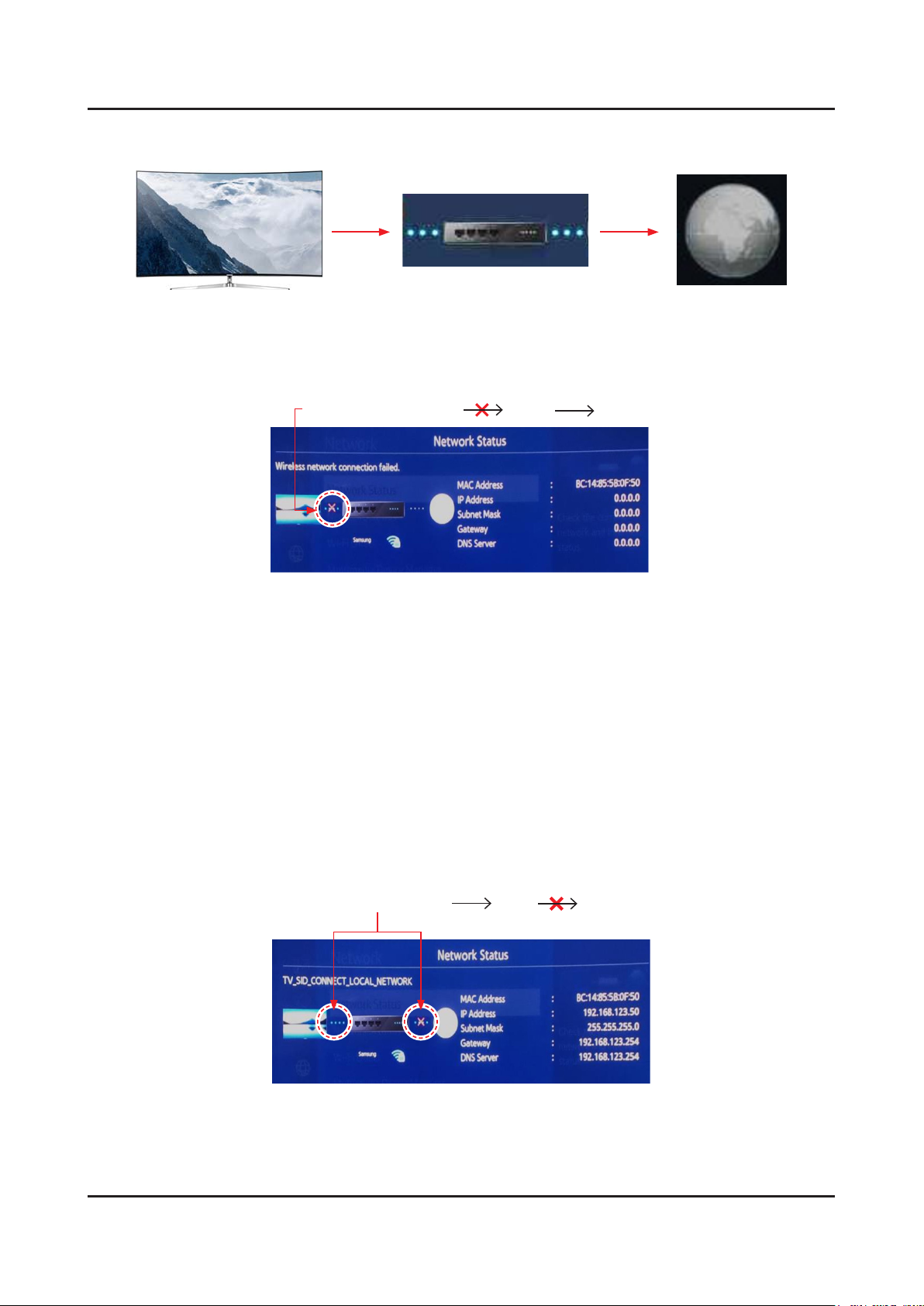

<TV> <Router> <Internet>
TV to Router "Failure"
Check Network Status (TV Router Internet)
Wired & Wireless MAC Address• in Customer Support Menu.
No Wired MAC Address
√ : Replace Main Board.
√ : Module cabling & voltages from Main Board.
No Wireless MAC Address
√
If operating voltages are OK but signal missing.
Replace WiFi Module (WiFi/Bluetooth Module).
•
Proper • security passcode
Check Wi-Fi signal strength at TV (use WiFi Analyzer or similar App).
√
Try another source (Hot spot or Test Router).
•
Check related Bulletins. √
√ Factory Mode → SVC → Info → WiFi Error Count (replace module for high error counts).
Check
Router to Network "Failure"
Check Network Status (TV Router Internet)
Instruct the customer the TV has proper connection to the router and is likely OK.•
Check other devices using network are OK. If they test OK this does not mean the TV should be working. √
Try another source (Hotspot) to test/show TV Network operation.
•
Page 84
4-16
4. Troubleshooting

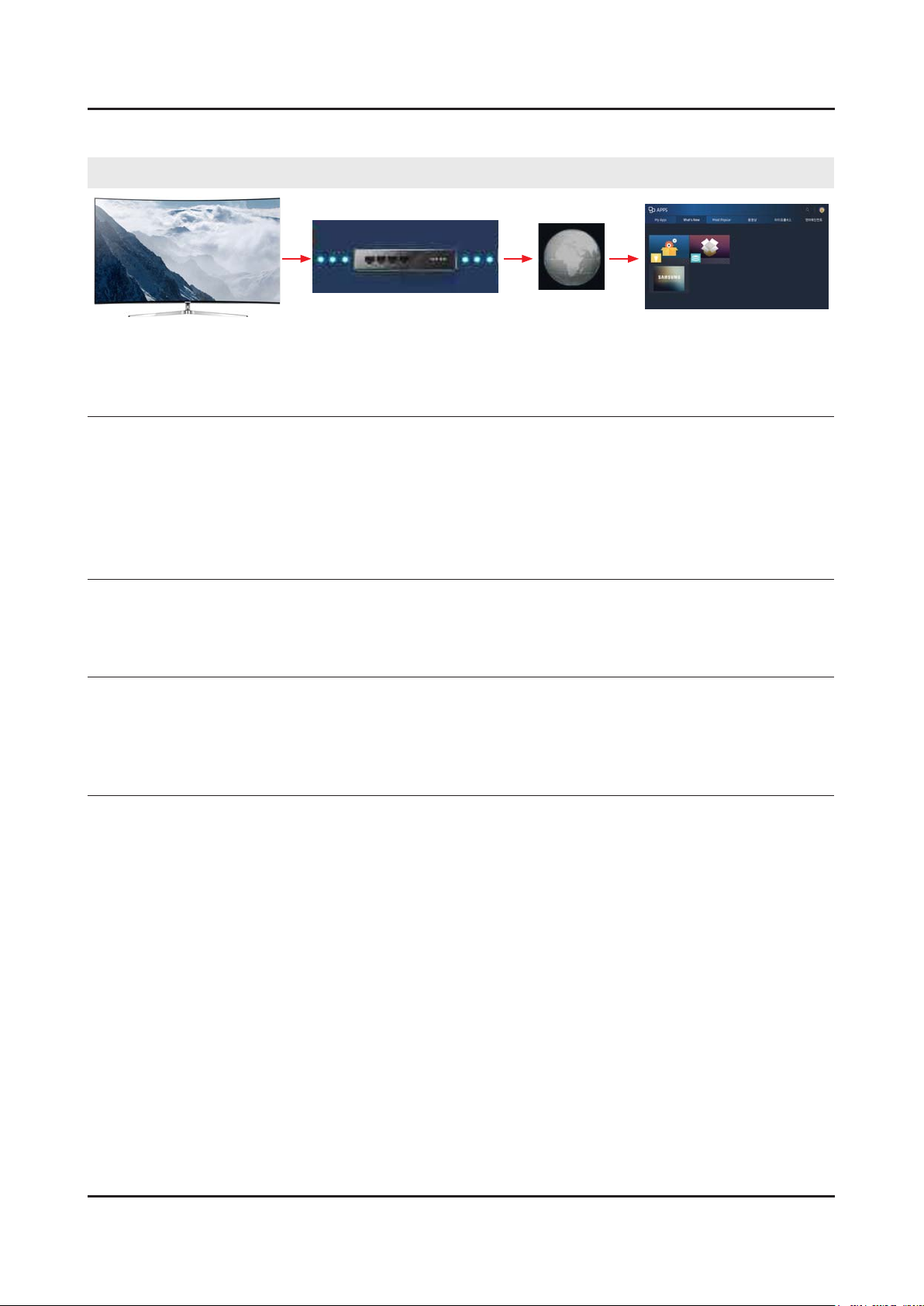

4-2-6. Smart Hub
Go to Menu → Support → Self Diagnosis → Smart Hub Connection Test
<TV> <Samsung Server><Router> <Internet>
Network / Gateway 1. If it Fails:•
TV to Router Connection Test in " √ Network Trouble shooting"
2. If it Fails:•
DNS Test
DNS setting in " √ Network Settings"
If DNS is set manually:
•
Settings are correct (may be set to 8.8.8.8 to prevent Netix issues) √
If it still fails:
•
DNS Test with setting to Auto Mode √
If it fails both Manual & Auto problem is ISP or Router.
•
ISP Blocking3. If it Fails:•
4. If it Fails:•
Samsung Server Test
5. If it Fails:•
Samsung Apps
Internet Service Provider is Active. √
√
With DNS setting at 8888.
√
With Hot Spot.
Network Status. √
If OK:
•
Reset Smart Hub. √
√
Terms of Agreement are accepted.
Reset Smart Hub. √
√
Samsung Apps load correctly.
√ Apps Reset" in Factory Mode.
Perform "
√
Go to Smart Hub and complete Terms of Agreement and set up information.
√
Samsung Apps load correctly.
√
Before selecting an App, allow Apps to load or failure wilre-occur.
Page 85
For Netix Operation/Connection Issues:
4-17
4. Troubleshooting
Check Certicate & Netix ESN Status in Factory Mode.•
If Certicate and ESN exists, " - CO", "NfO", change the DNS to 8.8.8.8
- C/" replace the TV’s Main Board.
If Certicate is missing, "
- NF/ do not replace the Main Board.
If ESN number is missing:
•
Reset TV Clock and check for correct Time & Date. Netix relies on correct settings.
Reset Smart Hub. / Reset Apps In Factory Mode.•
For Streaming Issues:
Go to TV Web Browser / Go to speedof.me / testmy.net
•
Check Speed √ for at least 5 Mbps(HD streaming) / 25 Mbps (4K Streaming).
√ for less than 50ms.
Check Latency
Page 86
4-18
4. Troubleshooting

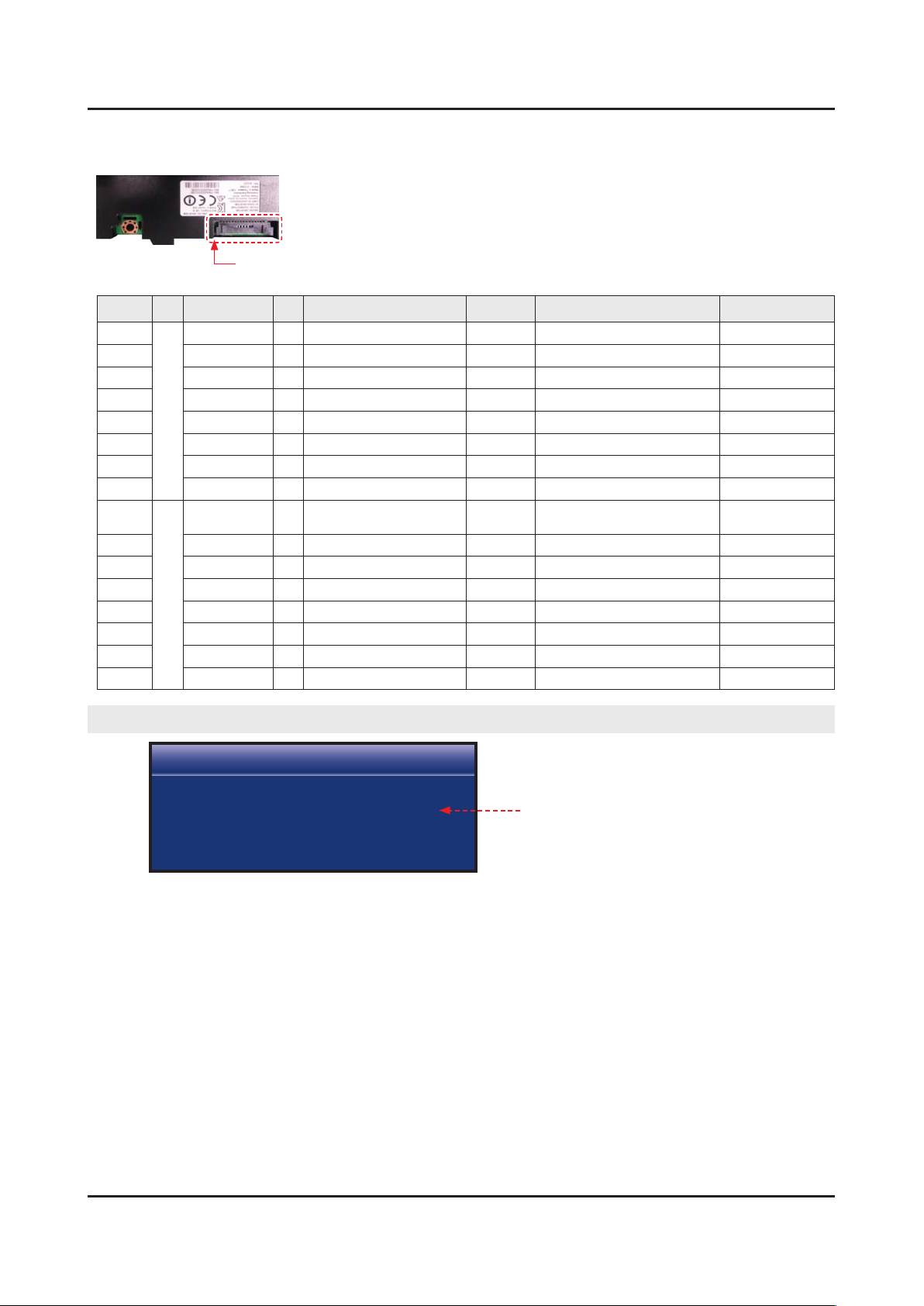

4-2-7. Bluetooth / WiFi Module
Pin1
Pins # Signal I/O Description Voltage Active High/Low Pull up/down
BT_Reset I BT Block Reset 3.3 Active Low Module Pull up
Power DET I Power detect 3.3 TV On : High, TV Off : Low -
BT_Wake up O BT Wake up 3.3 Pulse (wake up reason pulse) Module Pull up
BT
GND GND Ground GND - USB DM I/O BT USB interface USB - USB DP I/O BT USB interface USB - -
GND GND Ground GND - -
3D_sync_in I 3D sync input 3.3 Pulse (Panel V sync)
WiFi_USB_
suspend
GND GND Ground GND - USB DP I/O WiFi USB interface USB - USB DM I/O WiFi USB interface USB - -
GND GND Ground GND - -
VCC I 5V Power 5 - Wake up O WiFi Wake up 3.3 Pulse (wake up reason pulse) Module Pull up
Reset I WiFi Block Reset 3.3 Active Low Module Pull up
I WiFi USB PHY On/Off Ctrl 3.3
USB PHY On : High, USB PHY Off
: Low
NC (Pull up)
10
11
12
13
14
15
16
1
2
3
4
5
6
7
8
9
WiFi
Go to Menu £ Support £ Contact Samsung
Contact Samsung
<
- Wired MAC Address : xx:xx:xx:xx:xx:xx
Missing or Error : Replace Main Board.
- Wireless MAC Address : xx:xx:xx:xx:xx:xx
- Bluetooth Address : xx:xx:xx:xx:xx:xx
If • Bluetooth Address or Wireless MAC Address are missing or errors exist.
•
BT & Wi-Fi Connector Voltages.
If Voltages are OK but no BT or Wi-Fi Signals voltage(s), replace defective Module. -
Page 87
4-19
4. Troubleshooting

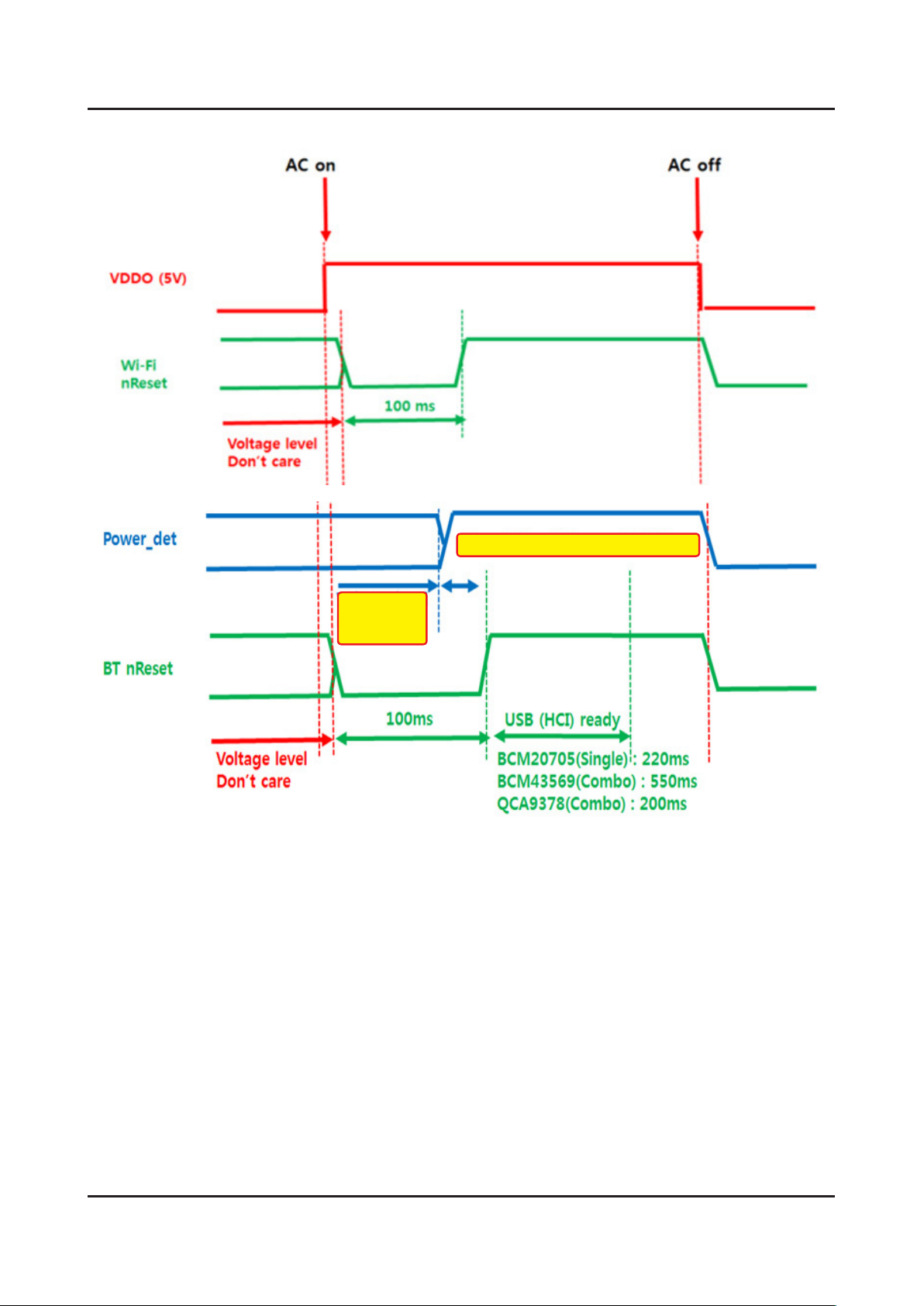

Voltage level
Don’t care
Before nReset completion, Power_det high
Page 88
4-20
4. Troubleshooting
4-3. Factory Mode Adjustments
4-3-1. Detail Factory Option
NOTE
If you replace the main board with new one, please change the factory option as well.
The options you must change are "Type".
UE32K5500AWXXH
Inches
Vendor AUO
Panel
SMPS
(DC VSS-PD
Board)
MAIN ASSY
Byte Item
0 Factory Reset 1 Type 32L6AF0KK
2 SW Model UK5500
3 BOM Model 5500
4 Local Set EU
5 Tuner Auto
Code BN95-02613A
Spec. CY-KK032BGAV1V/H
Vendor SEC
Code BN94-10883A
Spec. 32" TV PD-Board
Chassis Ass'y BN91-17841E
PBA Ass'y code BN94-10935E
32"
VA01
Page 89
4-21
4. Troubleshooting
UE40K5500AWXXH
Inches
Vendor SDC SHARP
Panel
SMPS
(DC VSS-PD
Board)
MAIN ASSY
Byte Item
0 Factory Reset 1 Type 40A6AF0KK 40H6AF0KK
2 SW Model UK5500
3 BOM Model 5500
4 Local Set EU
5 Tuner Auto
Code BN95-02617A BN95-03479A
Spec. CY-KK040BGLV1V/H CY-KK040BGSV1V/H
Vendor DYREL DYREL
Code BN44-00871A BN44-00871A
Spec. L40E1_KDY L40E1_KDY
Chassis Ass'y BN91-17841G BN91-18399C
PBA Ass'y code BN94-10935G BN94-11366C
FA01 EA02
40"
Page 90
4-22
4. Troubleshooting
UE49K5500AWXXH
Inches
Vendor CSOT CSOT SDC SDC
Panel
SMPS
(DC VSS-PD
Board)
MAIN ASSY
Byte Item
0 Factory Reset 1 Type 49S6AF0KK 49S6AF0KK 49A6AF0KK 49A6AF0KK
2 SW Model UK5500
3 BOM Model 5500
Code BN95-02622A BN95-02622A BN95-02623A BN95-02623A
Spec.
Vendor DYREL SOLUM DYREL SOLUM
Code BN44-00872A BN44-00872C BN44-00872A BN44-00872C
Spec. L55E1_KDY L55E1_KSM L55E1_KDY L55E1_KSM
Chassis Ass'y BN91-17841H BN91-17841H BN91-18384L BN91-18384L
PBA Ass'y
code
BA01 BB02 FA03 FB04
CY-
KK049BGHV1V/H
BN94-10935H BN94-10944K BN94-11356L BN94-11356L
CY-
KK049BGHV1V/H
49"
CY-
KK049BGLV1V/H
KK049BGLV1V/H
CY-
4 Local Set EU
5 Tuner Auto
Page 91
4-23
4. Troubleshooting
UE55K5500AWXXH
Inches
Vendor AUO CSOT
Panel
SMPS
(DC VSS-PD
Board)
MAIN ASSY
Byte Item
0 Factory Reset 1 Type 55L6AF0KK 55S6AF0KK
2 SW Model UK5500
3 BOM Model 5500
4 Local Set EU
5 Tuner Auto
Code BN95-02624A BN95-03510A
Spec. CY-KK055BGAV1V/H CY-KK055BGHV1V/H
Vendor DYREL SOLUM
Code BN44-00872A BN44-00872C
Spec. L55E1_KDY L55E1_KSM
Chassis Ass'y BN91-17841J BN91-18457E
PBA Ass'y code BN94-10935J BN94-11417E
VA01 CB04
55"
Page 92
4-24
4. Troubleshooting
4-3-2. Entering Factory Mode
To enter ‘Service Mode’ Press the remote -control keys in this sequence :
•
If you do not have Factory remote control
Power OFF Info Menu Mute Power ON
If you have Factory remote control•
INFO Factory
If you don’t have Factory remote control, can’t control some menus. •
Option
Control
Debug
SVC
ADC/WB
Advanced
T-HKMFKAKUC_-xxxx
T-HKMFKAKUS_-xxxx
tztv-2.4-main2016-hawk-m-fhd_2016*****
BT Version : xxxx
E-Manual : ---Camera Version : Not Support
Blaster Version :Not Support
E-POP Version :HAWKMFD-****.**
EDID SUCCESS
HDCP SUCCESS
CALIB : AV/COMP/PC/HDMI/
Option : xxxx,xxxx,6250,NONE
DTCP Not Support
TCON Version : ------
Model : *********
Wired MAC SUCCESS
Wireless MAC SUCCESS
WIFI : *******(3.0.7.107)
CO Nf/W/M/D/HO P / AO O S / M RO SC SiX
Factory Data Ver : 126 EERC Version :
CPLD/HD :N/A
SmartControl : ****
Date of purchase : mm/dd/yyyy
Page 93
4-3-3. Factory Data
4-25
4. Troubleshooting
Option
Factory Menu Name Data Range
Factory Reset
Type
Local Set
SW Model
BOM Model
-
32L6AF0KK 40A6AF0KK / 49S6AF0KK / 55L6AF0KK /...
EU
UK5500
5500
TUNER
Ch Table
NONE
MRT Option
Front Color - U-S-K55-32 / U-S-K55-40 / U-S-K55-49 / U-S-
LVDS FORMAT JEIDA
Language_Arabic US
Region USA
PnP Language ENG_US
WIFI REGION S Differ each local
OTN Support ON
OTA Support OFF
K55-55
TTX OFF
China HD OFF
NT Conversion OFF
OPTION_NUM
BD Wise Support OFF
PVR Support
LEDMotionPlus Support
Natural Mode Support ON
HDMI/DVI SEL 4
HV Flip HV Flip / H Filp / OFF
Light Effect OFF
e-Pop Default ON
CAMERA Support OFF
NETWORK Support Int-Wi
EcoSensor Support ON
Frameless Support
3D Support OFF
BT Support ON
Page 94
4-26
4. Troubleshooting
Factory Menu Name Data Range
BT ADDRESS Not support
HP LINE LineOut
Resolution Sel FHD
Multiview Support OFF
Local Dimming Panel OFF
Wi Vendor QCA
FAN Vendor OFF
Voice Recog OFF
Motion Recog OFF
TTV Support (21_9) OFF
PC Mode Dimming Support OFF
PX Support OFF
No Glass 3D support OFF
MLS Support OFF
MBR Support OFF
SmartView Support ON
Provider Setup Support OFF
Bezel Light Support OFF
Smart control Supoort OFF
Bendable Suppport OFF
Engineer option
Type Of PANEL KEY None
5 Way Function Key R BACK
Power Panelkey Only
Contents Bar 0
Cable Modulation …
Standby led on/off ON
Recognition Support OFF
IF AGC 7
D AGC 0
PH BW
3
FQ BW 3
PH RATE 4
PD EN 1
WF Scale
WF Type 0
Number of Network Stream 1
BT_AUDIO_ON_OFF OFF
Page 95
Factory Menu Name Data Range
4-27
4. Troubleshooting
Cong_AV_PATH
USING_PSI_UPDATE -
Fast Logo Delay 0
JP Tuner Reset Delay
Num of PANEL KEY 7
Panel lnit Time
Tcon lnit Time
Write MAC Address
data sync lnit
Common Source Support ON
OVD Support 0
EcoSensor Location 0
BENDABLE PEQ Inx 0
Control
Factory Menu Name Data Range
EDID
EDID ON/OFF OFF
EDID WRITE ALL …
EDID WRITE HDMI …
EDID Ver …
EDID Port
Sub Option
RS-232 Jack UART Debug/UART
EXT Link Support OFF
Serial Log On/Off ON
Watchdog OFF
FRC Monitoring
Checksum 0x0000
Fast Boot in Production OFF
UART Enable OFF
Eeprom Reset
ECO IC TYPE MC8121
Info Link Server Type development
Info Link Country None
TTX Group UserOSD
Visual Test -
Page 96
4-28
4. Troubleshooting
Factory Menu Name Data Range
OPTION_SWU
OTN Server Type operating
OTN Test Server OFF
SWU Reset
SWU Duration OFF
SWU Fail Test OFF
RF Remocon Support OFF
CDD mode DPMS Support OFF
T-CON Device
RM
Server Type Operating
RTS Mode OFF
LMN 1ST THRESHOLD 80
LMN 2ST THRESHOLD 60
LMN 3ST THRESHOLD 40
EOS Click OFF
BP PMS Reset 1
Fanet Thread 2
User InstantOn Default Value ON
CI CPLD Version
ACM_MC ON
HotkeyList
UNIQUE TRIPLET ON
FS_FAV OFF
Pricate Range USE ON
SCSA Support OFF
OCM Reboot ON
SPI Protection
HOTEL Option
Hospitality Mode OFF
Power On …
Menu OSD …
Operation …
Music Mode …
External Source …
Eco Solution …
Cloning …
Page 97
Factory Menu Name Data Range
4-29
4. Troubleshooting
Shop Option
Shop Mode OFF
Exhibition Mode OFF
3D Cube OFF
Asia Option
Unbalance OFF
AF Level adjust 3
TX Power Level 0
Mono Last Memory OFF
H Shaking OFF
SOUND
High Devi OFF
Carrier_Mute OFF
Pilot Level High Thld 0x70h
Pilot Level Low Thld 0x20h
Carrier2 Amp High THID 6
Carrier2 Amp Low THID 4
Amp Volume 0xc5h
Amp Scale
Amp EQ Check Sum
Subwoofer Support
Woofer Type
Woofer Volume 0xcbh
Woofer Scale 0x8ah
Woofer Check Sum NONE
Woofer Local EQ Checksum 0
PEQ lnx
PEQ Test
Amp Model NTP7415
Speaker EQ ON
Bottom CheckSum NONE
0
Wall Filter Type 2
SRS Tuning Parm 0
SPDIF PCM Gain -9dB
AudioDock BT Delay
3D_Glass BT Delay
Mic Scale
India Sound
Page 98
4-30
4. Troubleshooting
Factory Menu Name Data Range
Specker Delay Normal
NTV CU Delay
Lipsync Inx
Lipsync CheckSum OK:0x9631
Lipsync USB Test Ready
LipSync BT CheckSum OK:0x696A
Debug
Factory Menu Name Data Range
Spread Spectrum
LVDS Spread ON
DDR Spread 1.0% Spectrum
Period 30K
Amplitude 1
HD SSC ON/Off ON
HD SSC Value 1
FHD SSC ON/Off ON
FHD SSC Value 0
UHD SSC ON/Off ON
UHD SSC Value 0
US DDR SSC ON/Off ON
US DDR SSC Value 1
US Ebus SSC ON/OFF ON
US Ebus Value 0
P ebus SSC ON/OFF ON
P ebus SSC Value 0
LVDS SSC ON/OFF ON
LVDS SSC Value 3
US LVDS SSC ON/OFF ON
US LVDS Value 5
FRC Vx1 SSC ON/OFF OFF
FRC Vx1 SSC Period 0
FRC Vx1 SSC Modulation 1
FRC LVDS SSC ON/OFF OFF
FRC LVDS SSC MRR 3
FRC LVDS SSC MFR 2
FRC DDR SSC ON/OFF ON
Page 99
Factory Menu Name Data Range
4-31
4. Troubleshooting
FRC DDR SSC MRR 3
FRC DDR SSC MFR 4
FRC DDR SSC Period 0
FRC DDR SSC Modulation 2
DDR Margin
A CTRL_OFFSET_0_3 0x0
A CTRL_OFFSET_D 0x0
B CTRL_OFFSET_0_3 0x0
B CTRL_OFFSET_D 0x0
BT_ON_OFF ON
RF Mute Time 600ms
FRC
FRC FDISPLAY ON/OFF 0
3D FDISPLAY ON/OFF OFF
PC Mode ON/OFF OFF
Home Panel FRC OFF
DDR Test 0
FRC VX1 RX EQ SETTING OFF
Netlix OSD Threshold 1
Tuner Margin 3
MPEG Margin 20
H.264 Margin 15
CAM Wait Time 0
TCON_TEMP READ 0
TEMP LAST 6000
DCC VERSION 0x0
DCC CHK SEL 0
DCC CHECK LOCAL 0x0
DCC CHECK TOTAL 0x0
Voice Debug OFF
Power Management
Cert Option Wating
RM_BIST_DTV 5
RM_BIST_ATV 0
RM_BIST_CABLE 29
SerDES_Check
EU_CIS 0
Stress Mode OFF
Page 100
4-32
4. Troubleshooting
Factory Menu Name Data Range
Log Analyzer ON
Error Popup On/off ON
DeadLock KILL OFF
CES mode on/off NONE
CES Option OFF
CES convergence Option OFF
TCON Demura Bypass OFF
SVC
Factory Menu Name Data Range
Self Test(for HW)
Loop Back
LAN Test
AV Audio Test
AV2 Audio Test
CVBS Test
CVBS2 Test
COMP Test
USB HUB Test
SPDIF Test
HDMI Test
SCART Audio
SCART Video
CPU
DDR
FLASH
EEPROM
Tuner X-TAL
Tuner 1
HDMI Switch IC
USB HUB IC
…
WIFI
LVDS
LVDS2
T-CON/FRC
PCB Test
MOIP
…
…
Loading...
