SAMSUNG UE40JU6740S, UE48JU6740S, UE55JU6740S, UN40JU6500F, UN40JU650DF Service manual & schematics

UHD TV

Chassis : UWJ51
Model : UN75JU641DF

SERVICE

UHD TV Contents

1. Precautions

2. Product specications

3. Disassembly and Reassembly

4. Troubleshooting

5. Wiring Diagram

Manual

UN75JU641DF

Contents

1. Precautions ...................................................................................................................1-1

1-1. Safety Precautions ..............................................................................................................1-1

1-1-1. Warnings ...................................................................................................................1-1

1-1-2. Servicing the LED TV ...............................................................................................1-1

1-1-3. Fire and Shock Hazard .............................................................................................1-1

1-1-4. Product Safety Notices .............................................................................................1-2

1-2. Servicing Precautions ..........................................................................................................1-3

1-2-1. General Servicing Precautions ................................................................................. 1-3

1-3. Static Electricity Precautions ...............................................................................................1-4

1-4. Installation Precautions .......................................................................................................1-5

2. Product Specications.................................................................................................2-1

2-1. Product information .............................................................................................................2-1

2-2. Product specication ..........................................................................................................2-2

2-2-1. Feature & Specications ........................................................................................... 2-2

2-2-2. Detailed Specications ............................................................................................. 2-3

2-3. Accessories .........................................................................................................................2-7

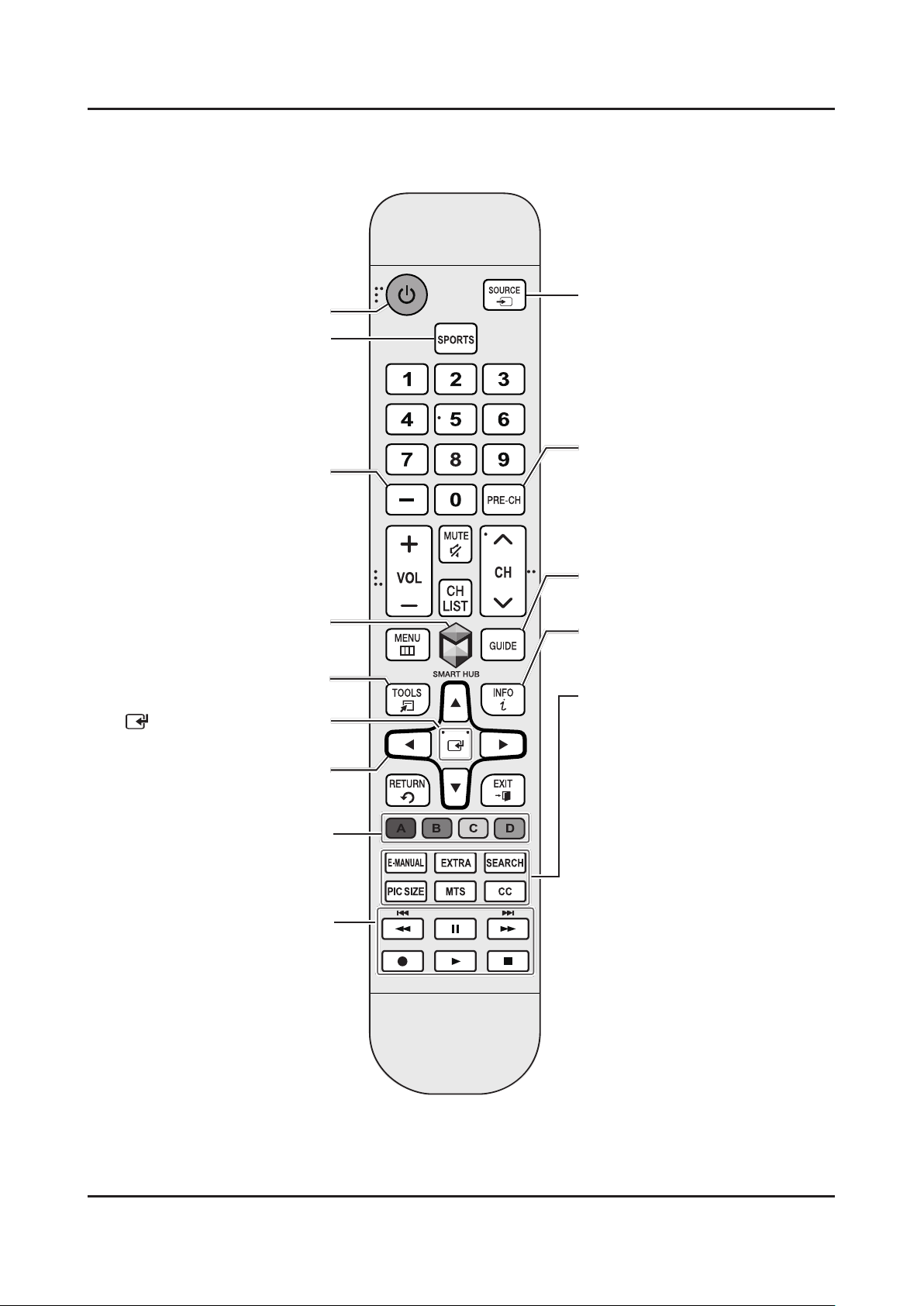

2-4. Viewing the Functions .........................................................................................................2-8

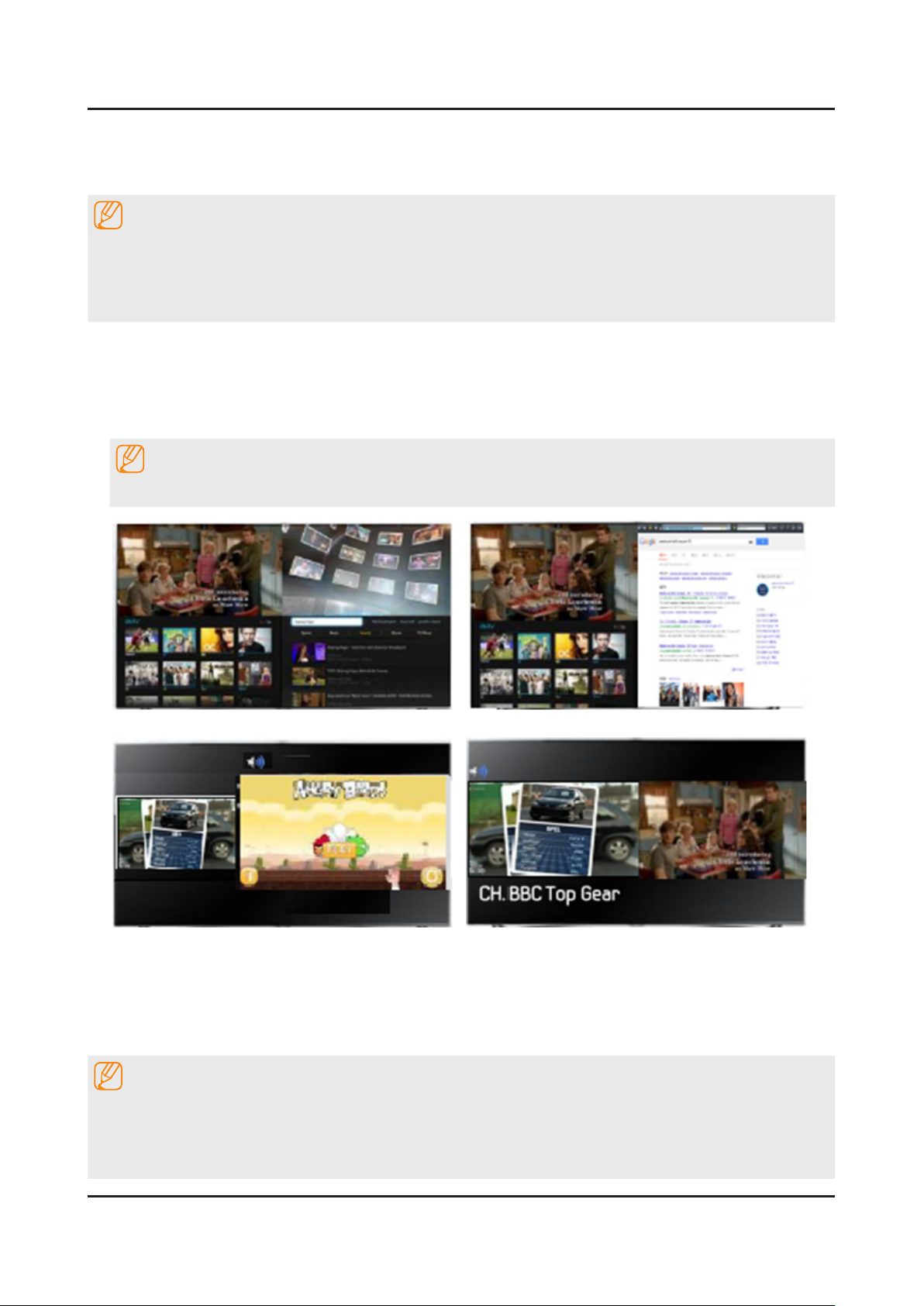

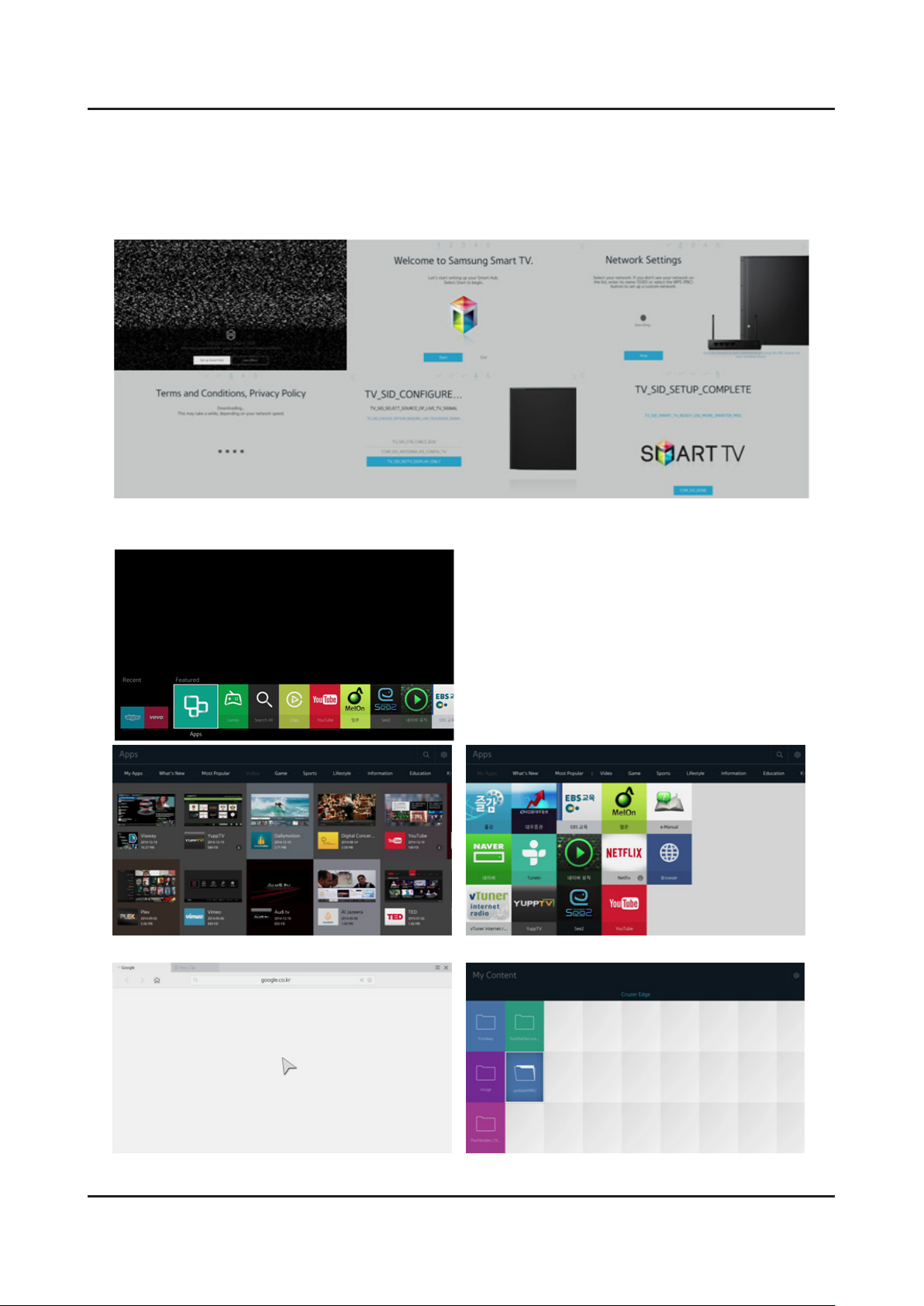

2-5. NEW Key Features ..............................................................................................................2-9

2-5-1. 15" New UI ................................................................................................................2-9

2-5-2. Multi Screen ............................................................................................................ 2-10

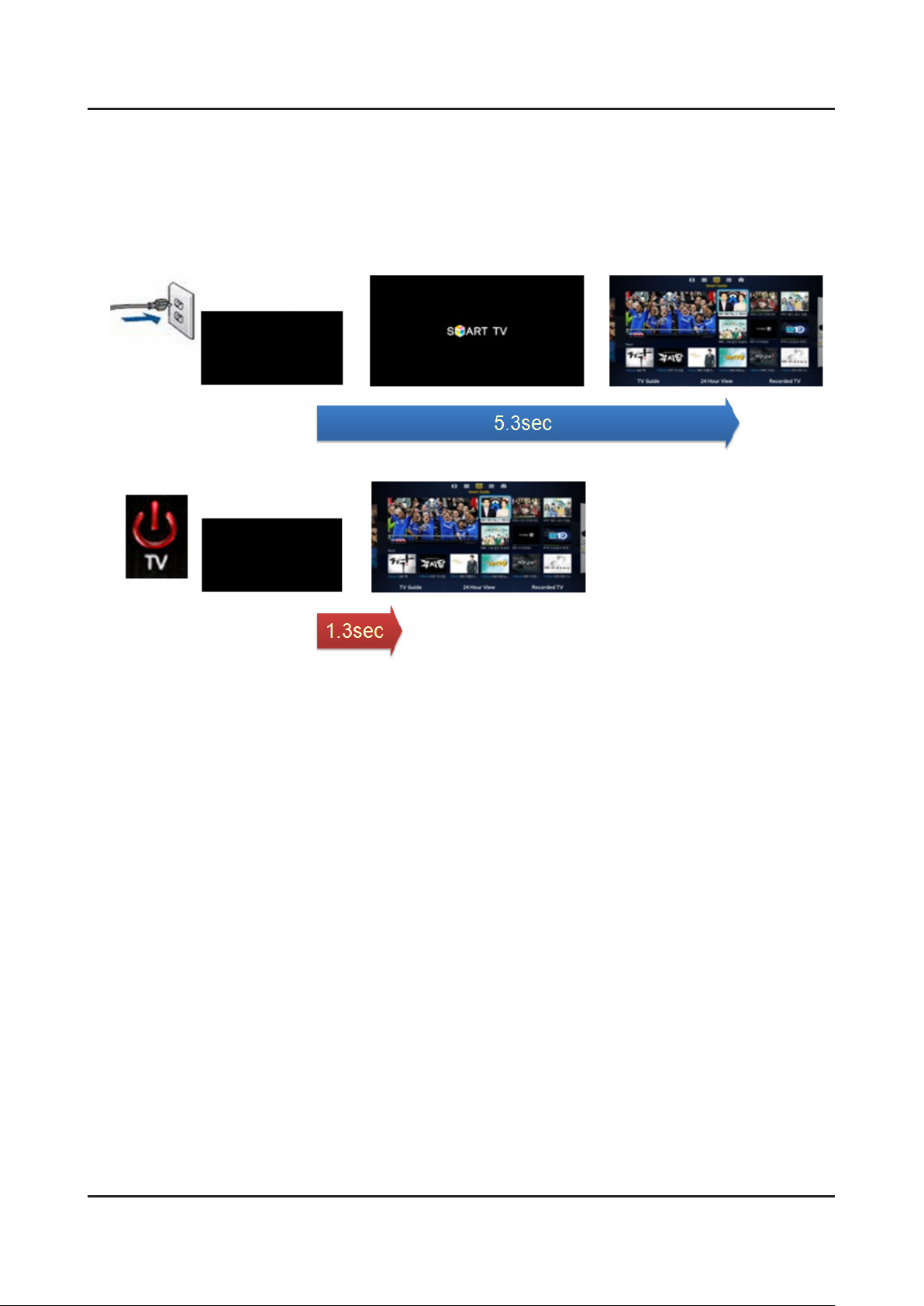

2-5-3. Instant On ............................................................................................................... 2-11

2-6. HDMI 60P Mode ................................................................................................................2-12

2-7. Supported Formats ............................................................................................................2-13

3. Disassembly and Reassembly ....................................................................................3-1

3-1. Disassembly and Reassembly ............................................................................................3-1

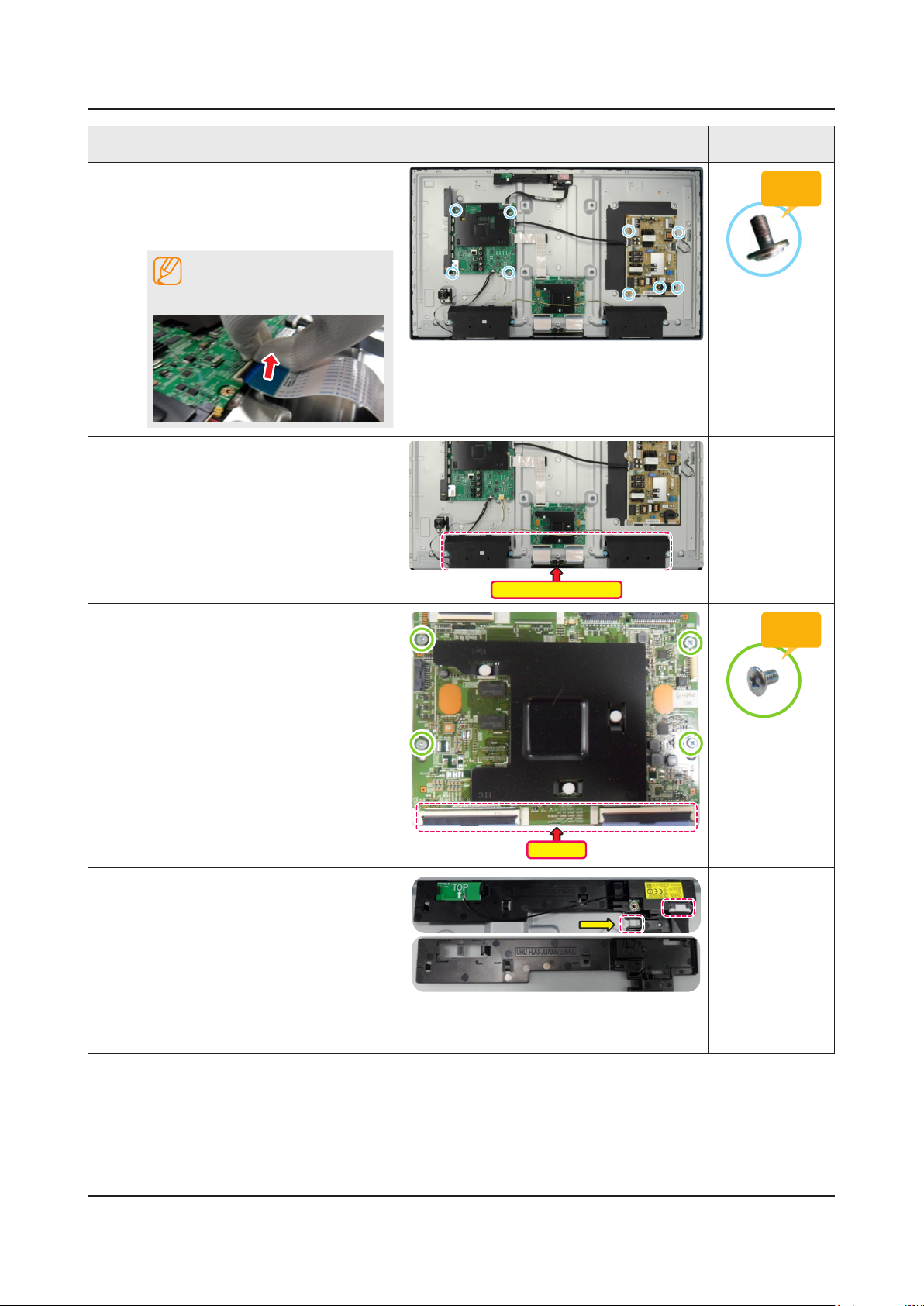

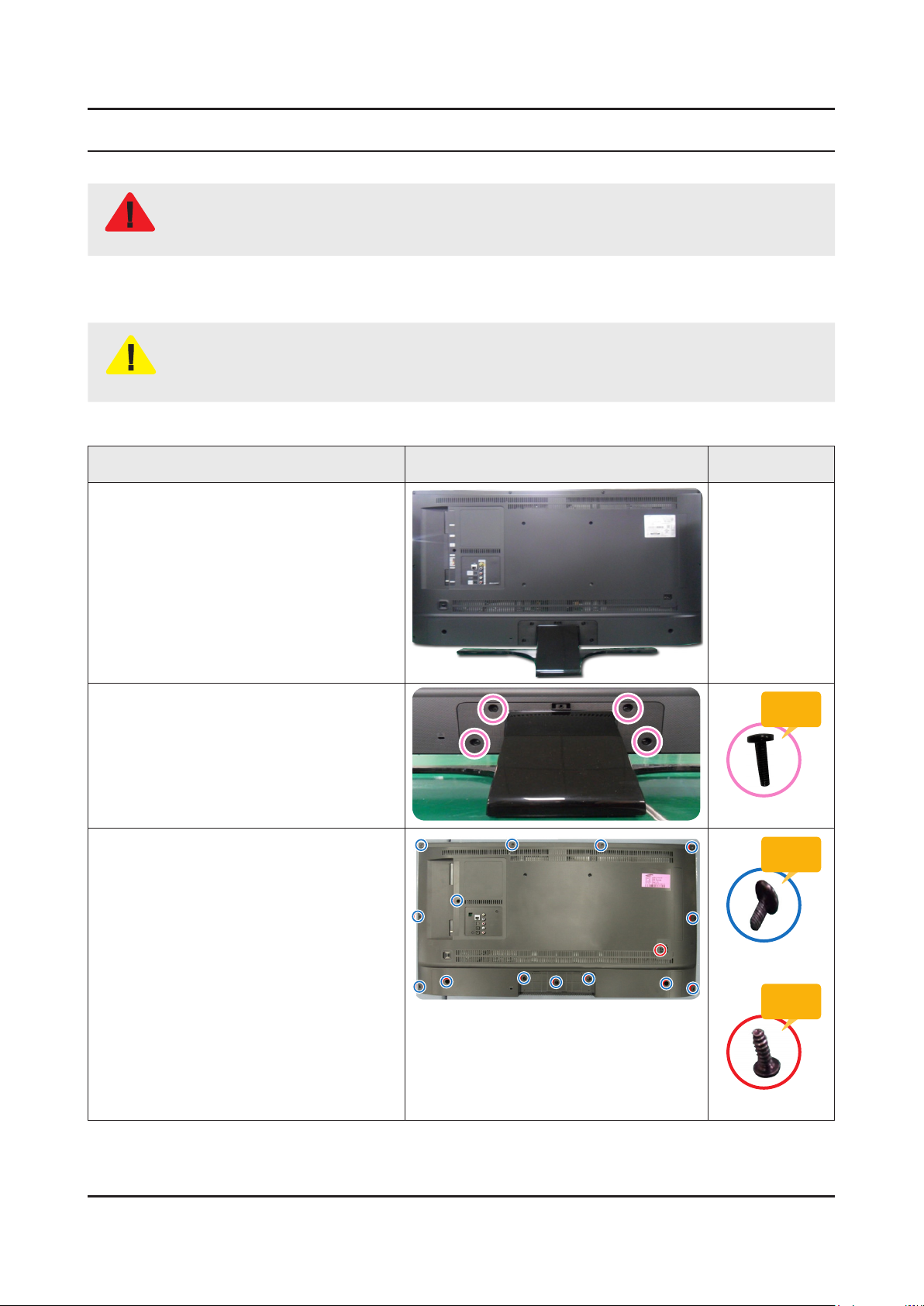

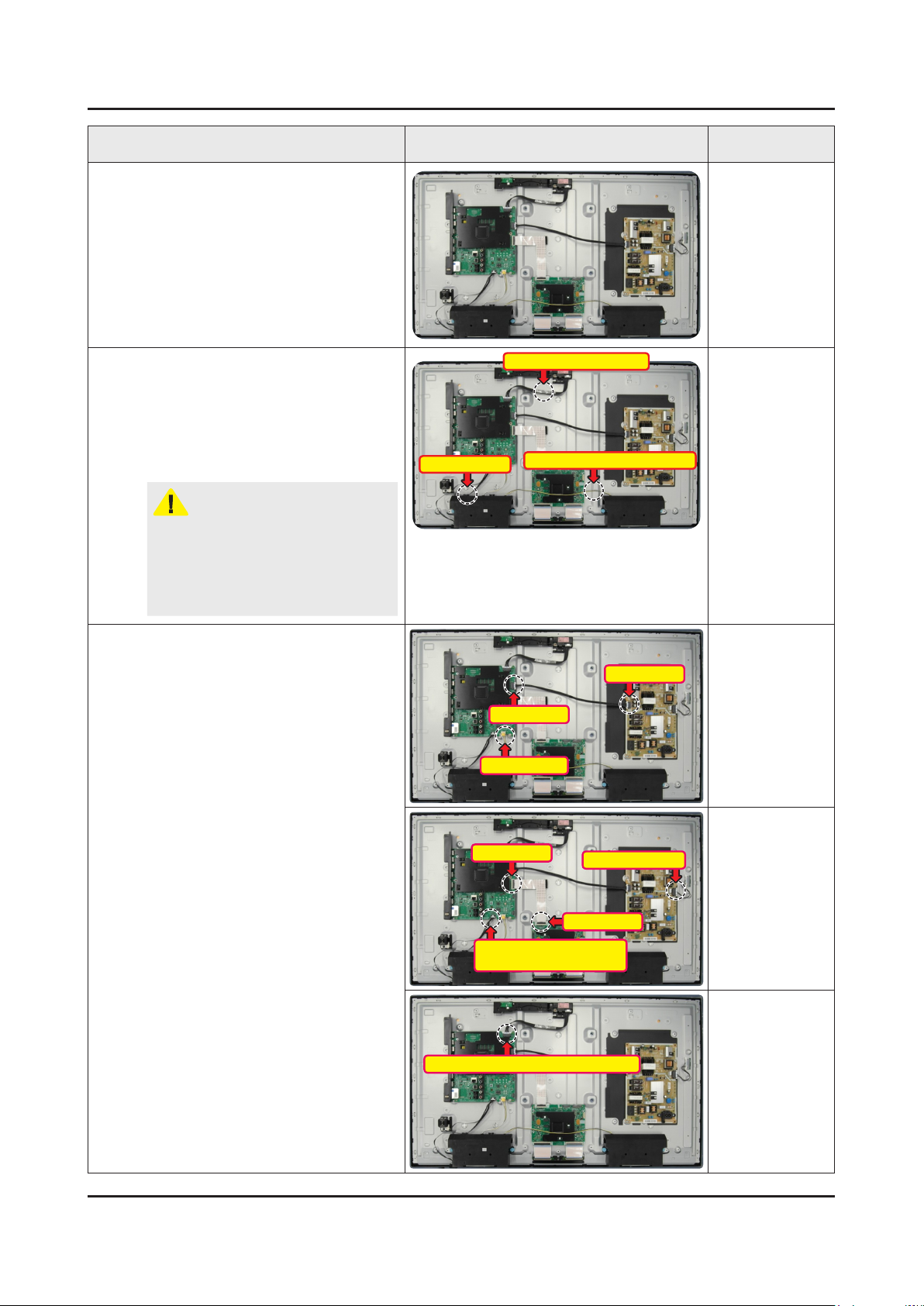

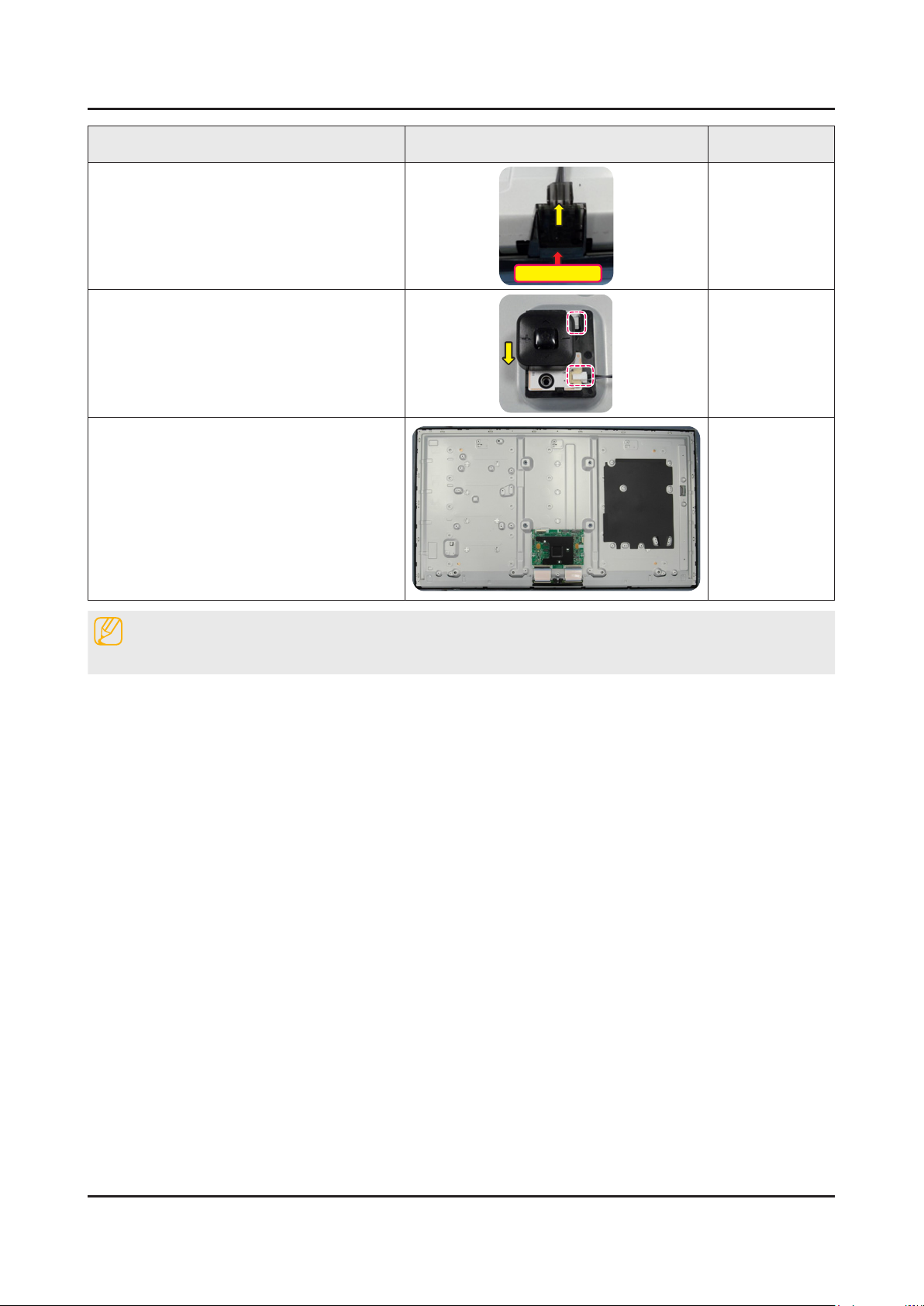

3-1-1. TV Disassembly ........................................................................................................ 3-1

4. Troubleshooting ...........................................................................................................4-1

4-1. Troubleshooting ...................................................................................................................4-1

4-1-1. Previous Check ........................................................................................................4-1

4-2. How to Check Fault Symptom .............................................................................................4-2

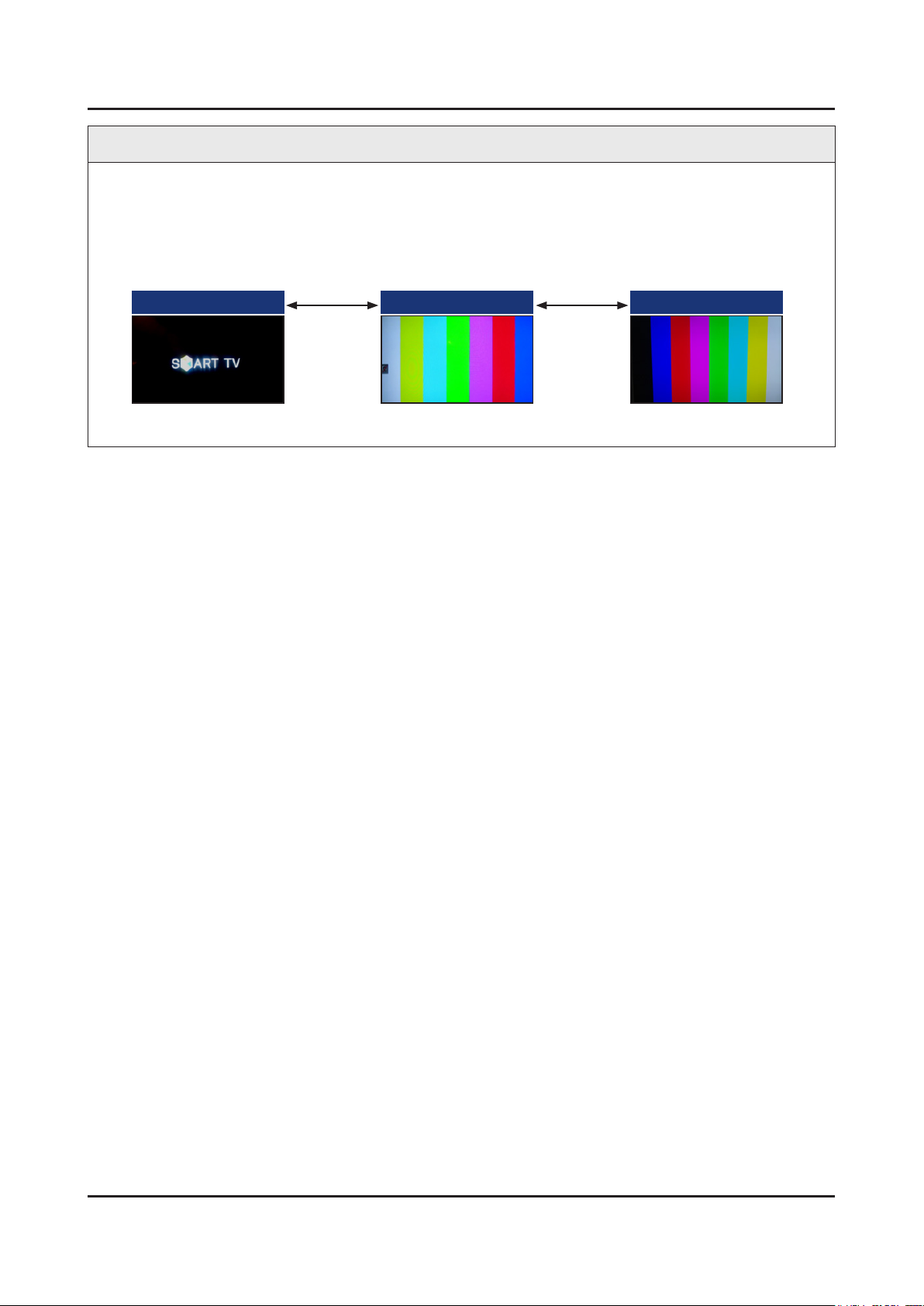

4-2-1. Video .........................................................................................................................4-2

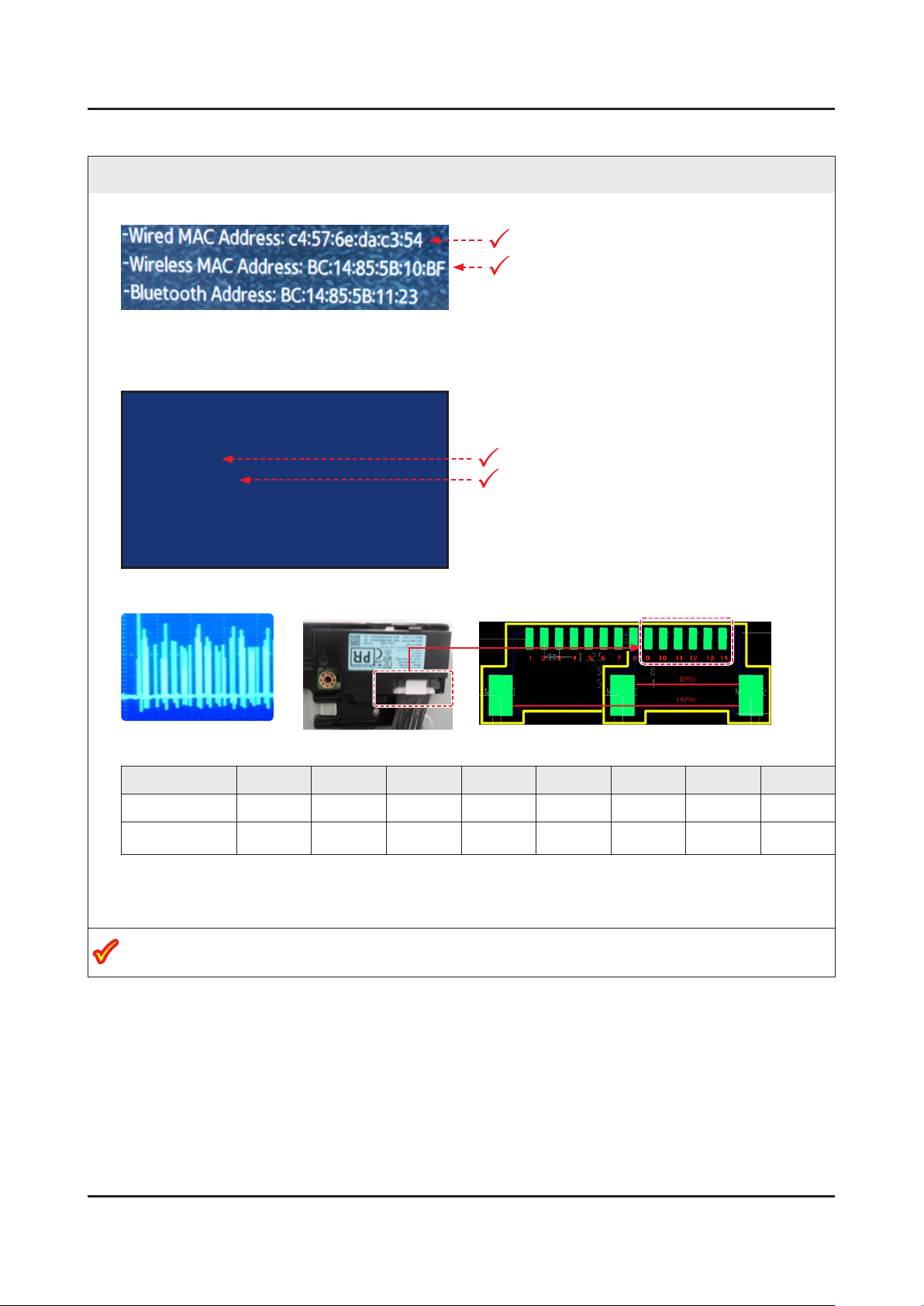

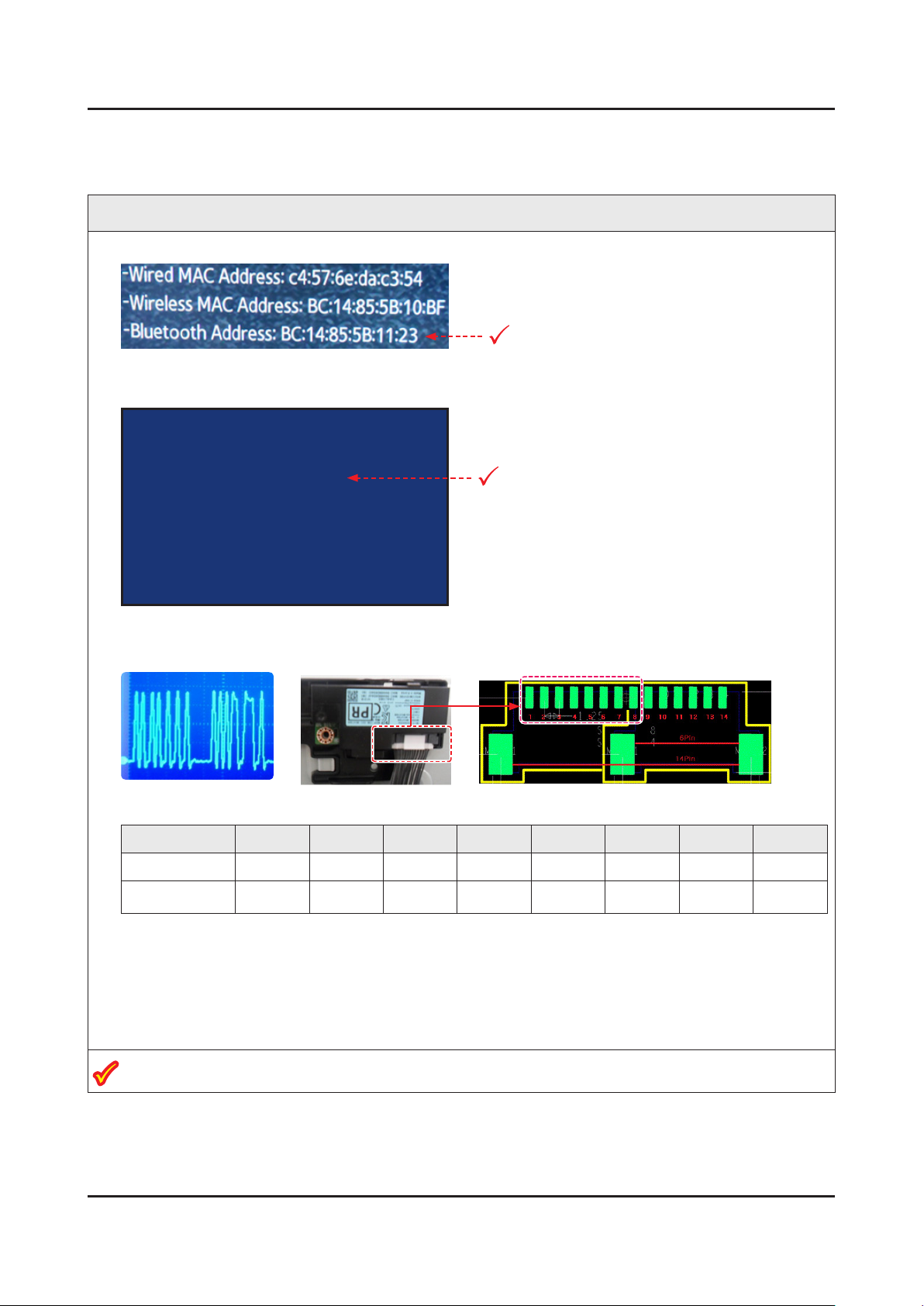

4-2-2. Bluetooth / WIFI Module ........................................................................................... 4-4

4-2-3. Apps / Photos, Videos & Music .................................................................................4-8

4-3. Factory Mode Adjustments ..................................................................................................4-9

4-3-1. Detail Factory Option ................................................................................................4-9

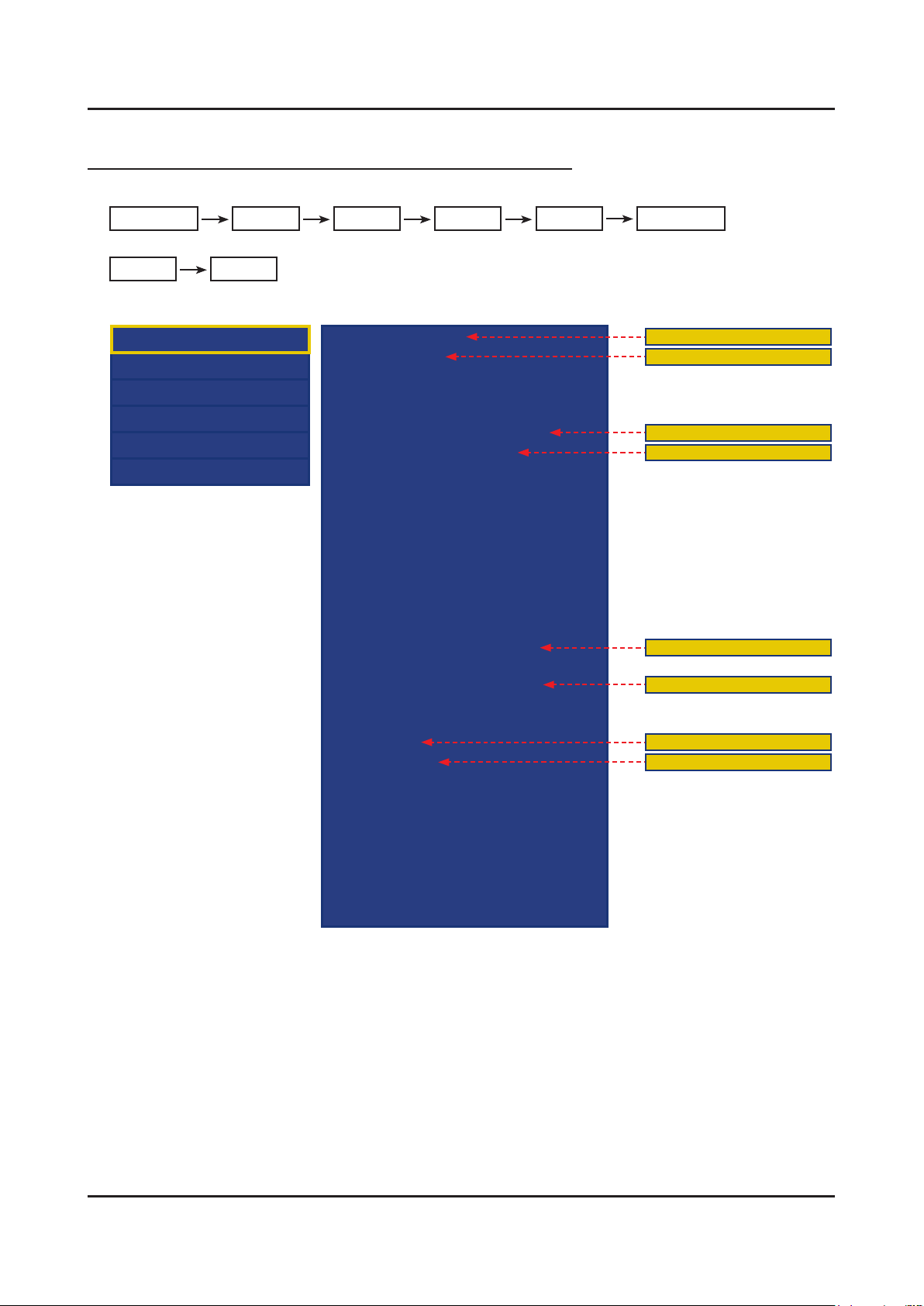

4-3-2. Entering Factory Mode ........................................................................................... 4-10

4-3-3. Factory Data ........................................................................................................... 4-11

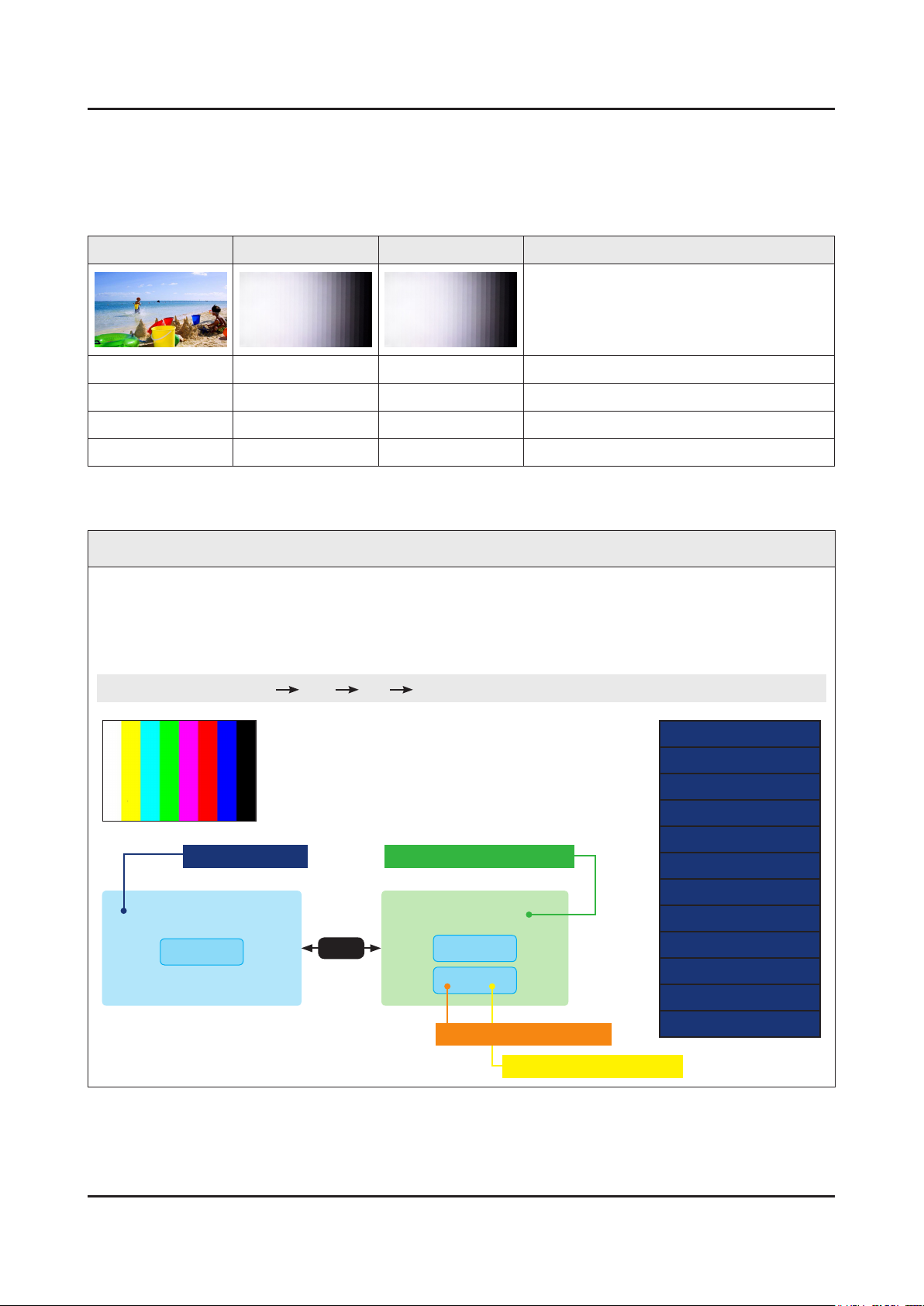

4-4. White Balance ...................................................................................................................4-19

4-4-1. Calibration ..............................................................................................................4-19

4-4-2. Service Adjustment ................................................................................................. 4-19

4-4-3. Adjustment .............................................................................................................. 4-21

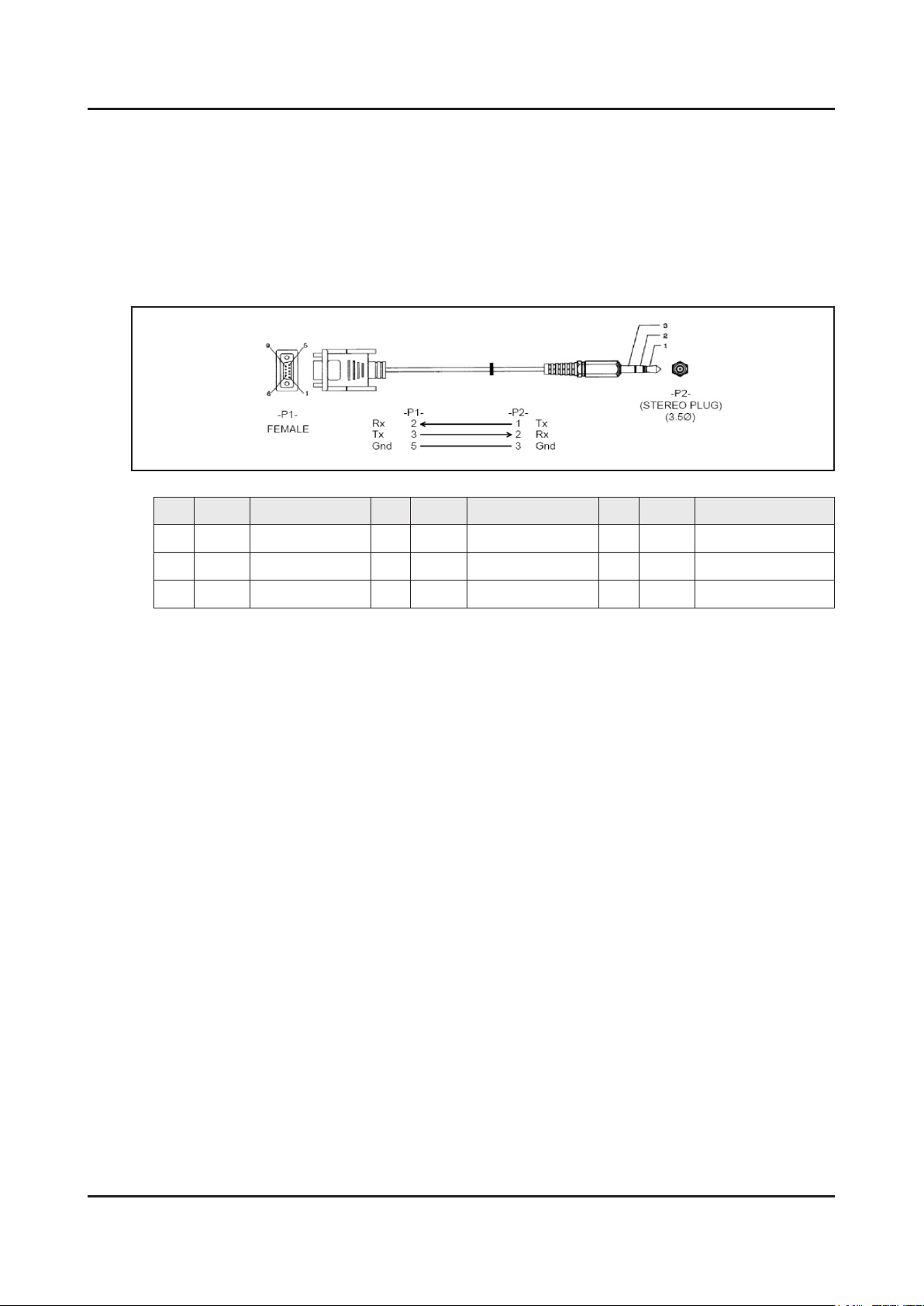

4-5. RS-232C ............................................................................................................................4-22

4-6. AV Control Tabe ................................................................................................................. 4-23

4-7. Updating the TV’s Software ...............................................................................................4-29

5. Wiring Diagram .............................................................................................................5-1

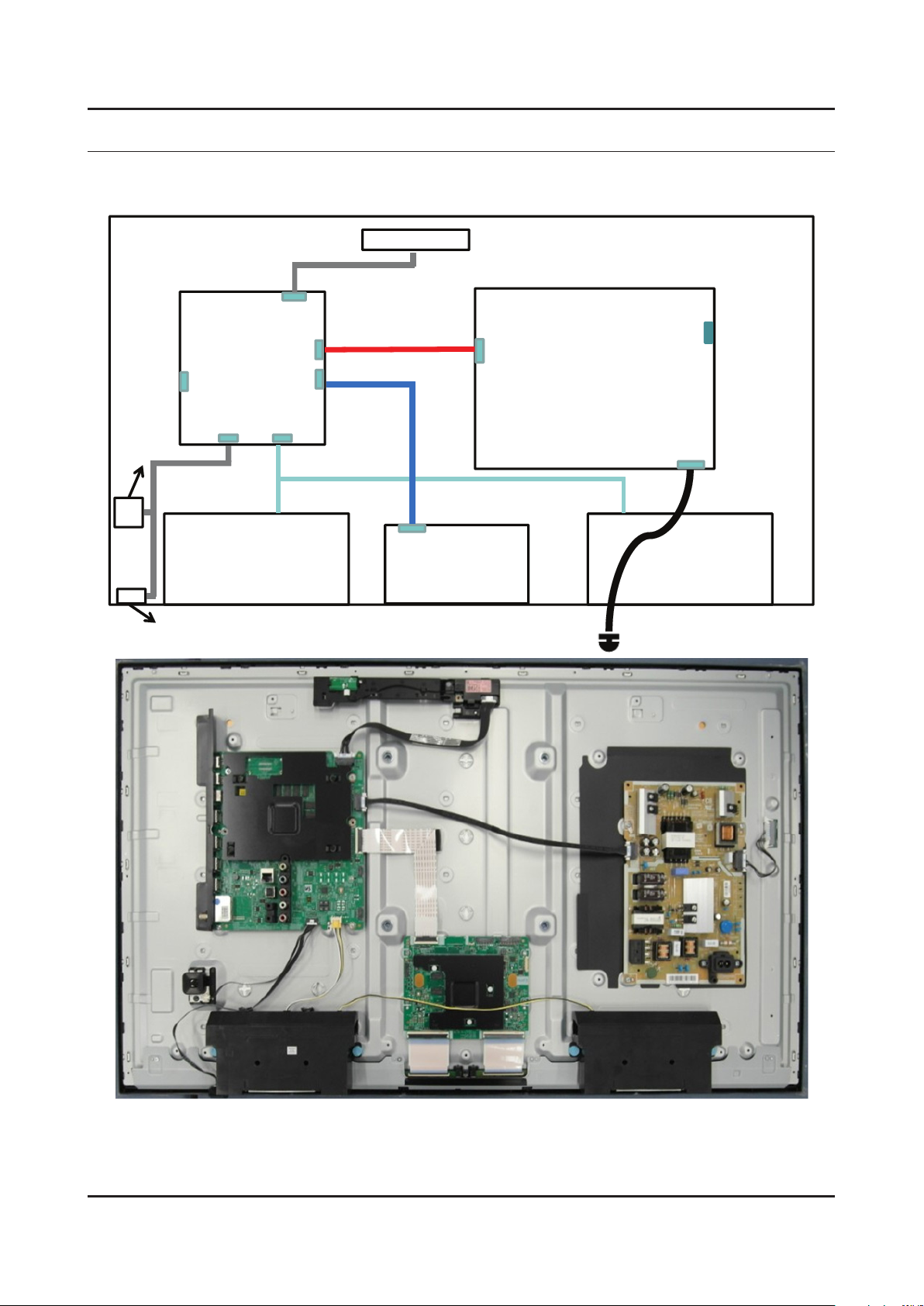

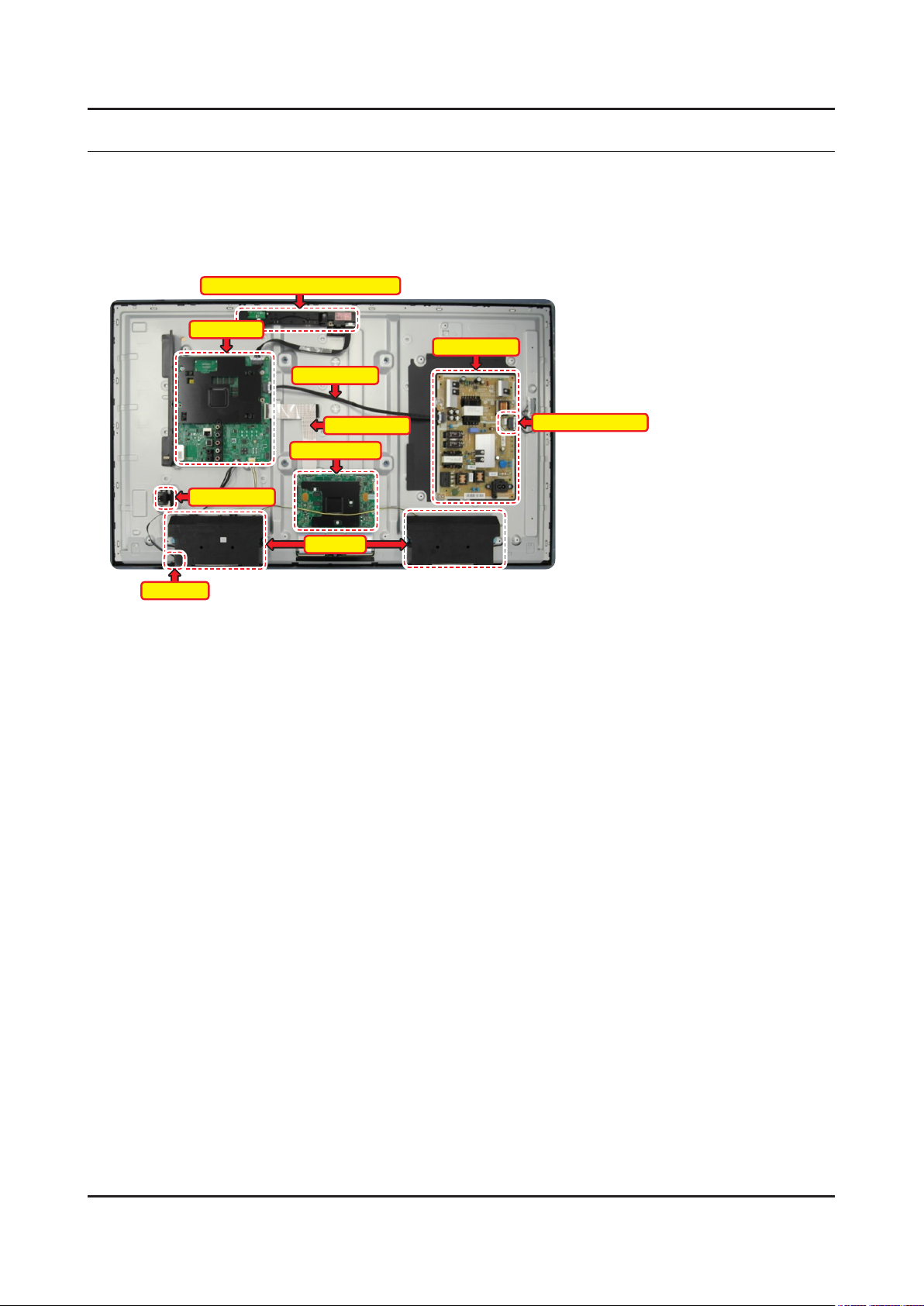

5-1. Wiring Diagram ....................................................................................................................5-1

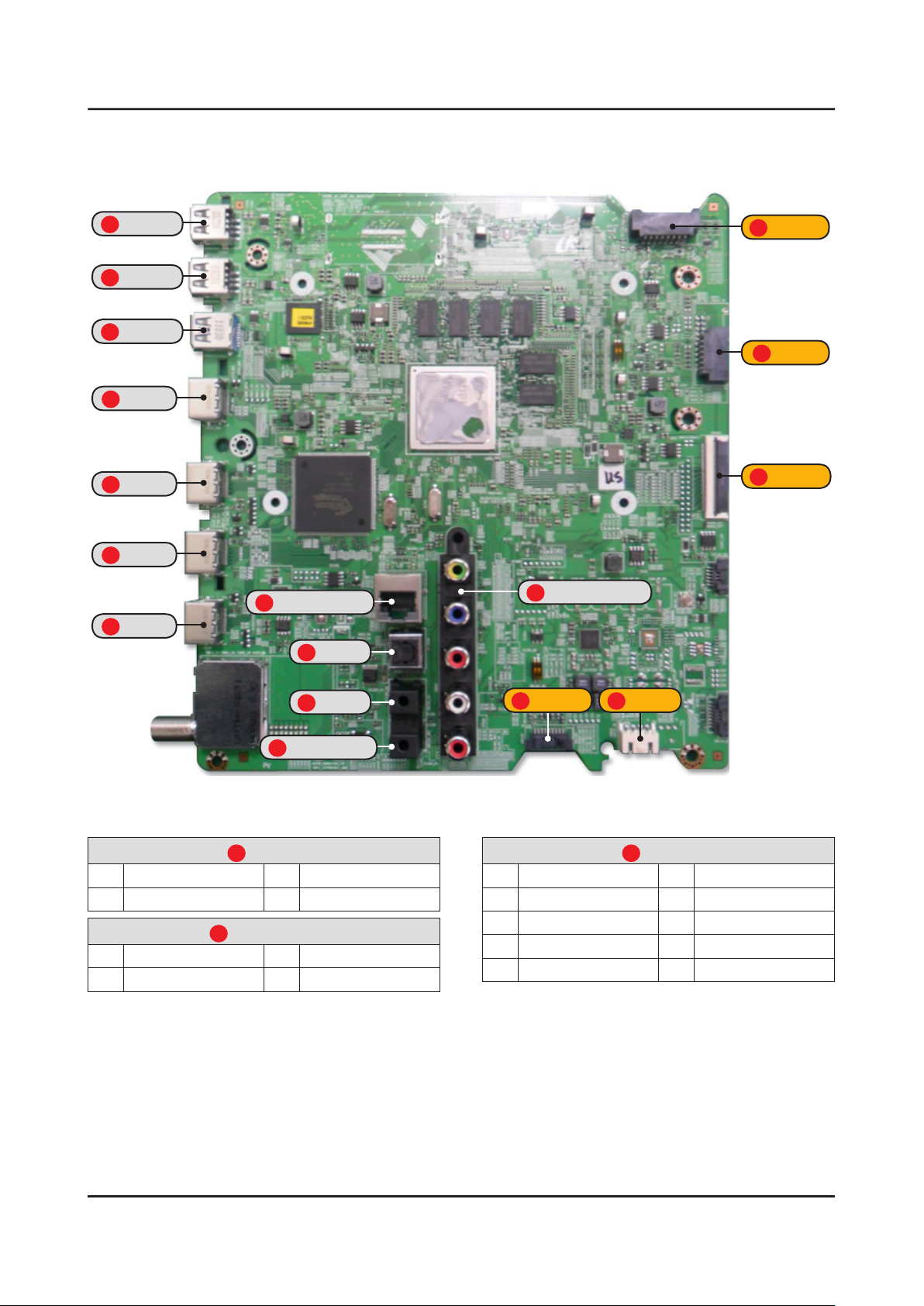

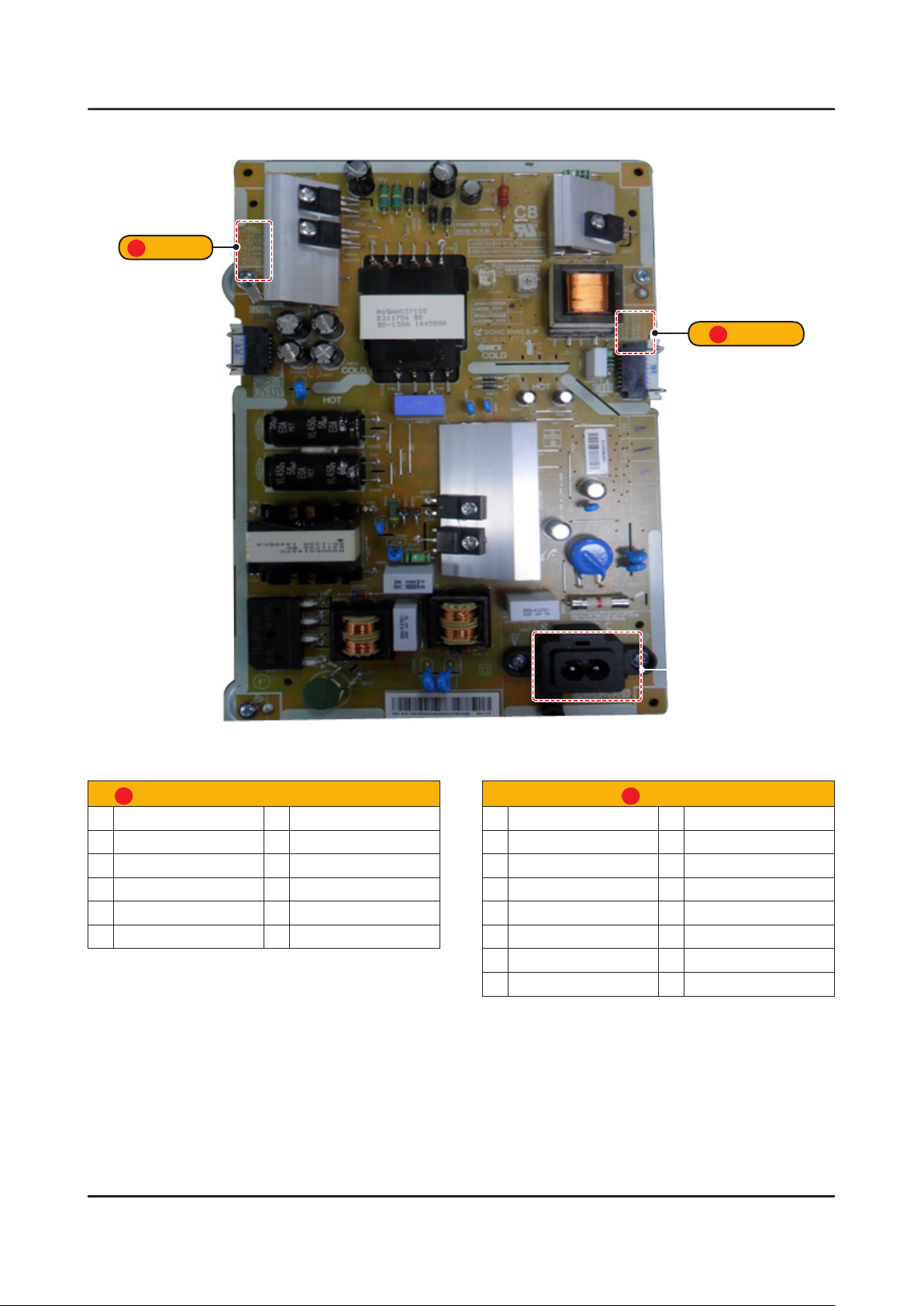

5-2. Connector ............................................................................................................................5-2

ANNEX. Exploded View & Part List [UN75JU641DFXZA TD03] ......................... ANNEX-1

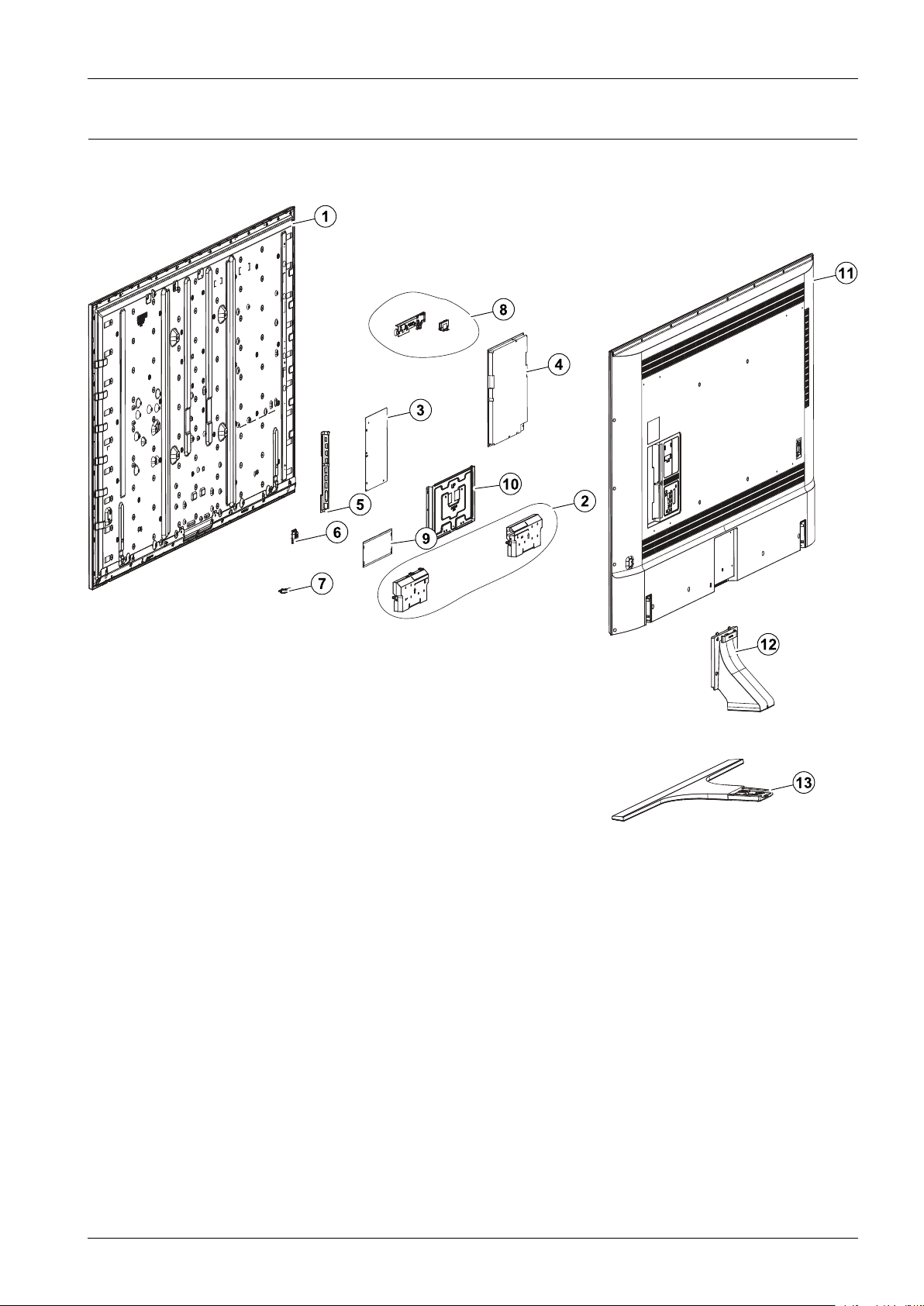

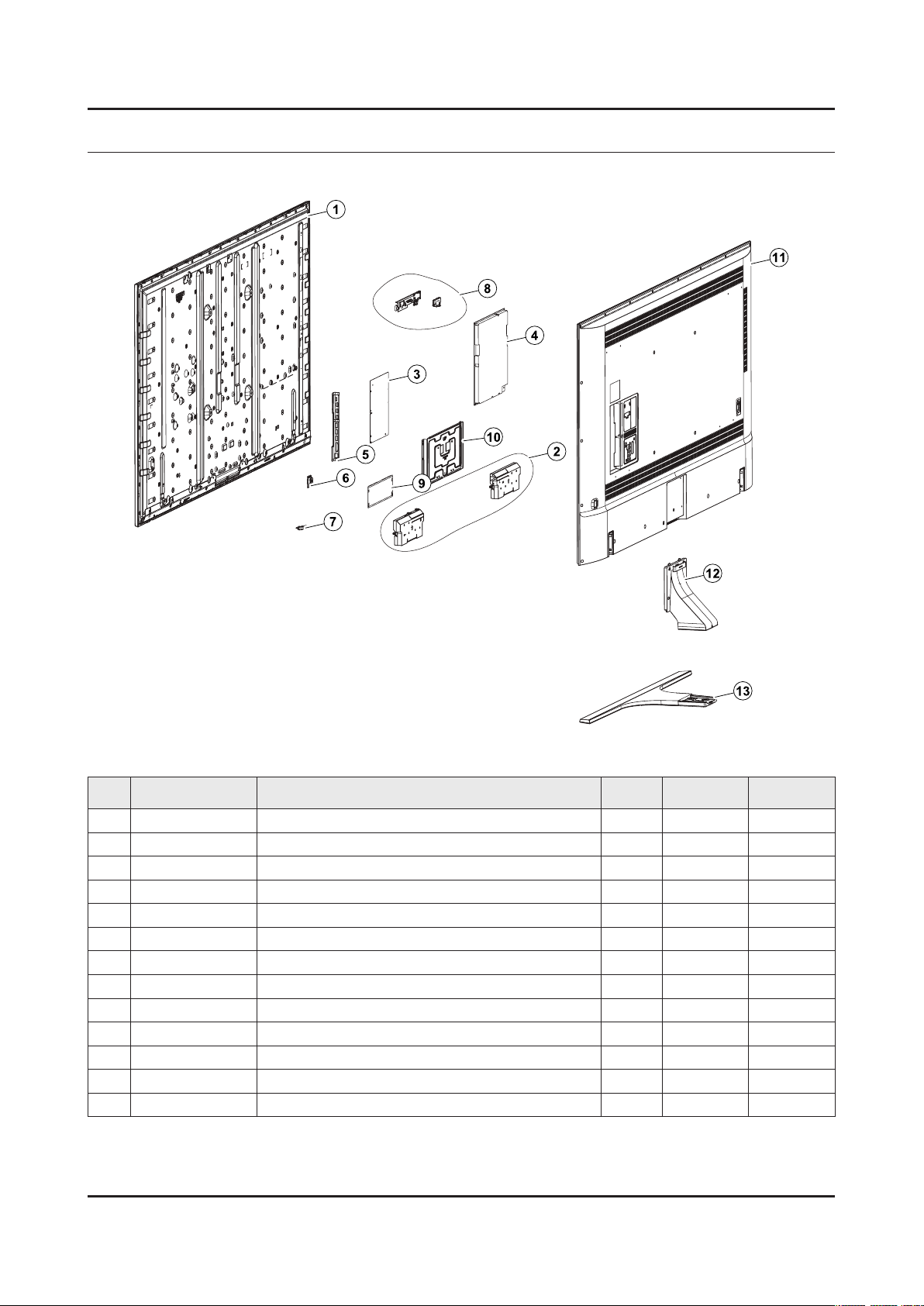

1-1. Exploded View .......................................................................................................... ANNEX-1

1-1-1. Parts List ........................................................................................................ ANNEX-1

2-1. Electrical Parts List ................................................................................................... ANNEX-2

This Service Manual is a property of Samsung Electronics Co.,Ltd.

Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.

© 2015 Samsung Electronics Co.,Ltd.

All rights reserved.

Printed in Korea

1. Precautions

1. Precautions

1-1. Safety Precautions

Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.

1-1-1. Warnings

For continued safety, do not attempt to modify the circuit board.

WARNING

1-1-2. Servicing the LED TV

When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.

It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this 2.
meter periodically.

1-1-3. Fire and Shock Hazard

Before returning the monitor to the user, perform the following safety checks:

Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the 1.
chassis and other metal parts in the monitor.

Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and 2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.

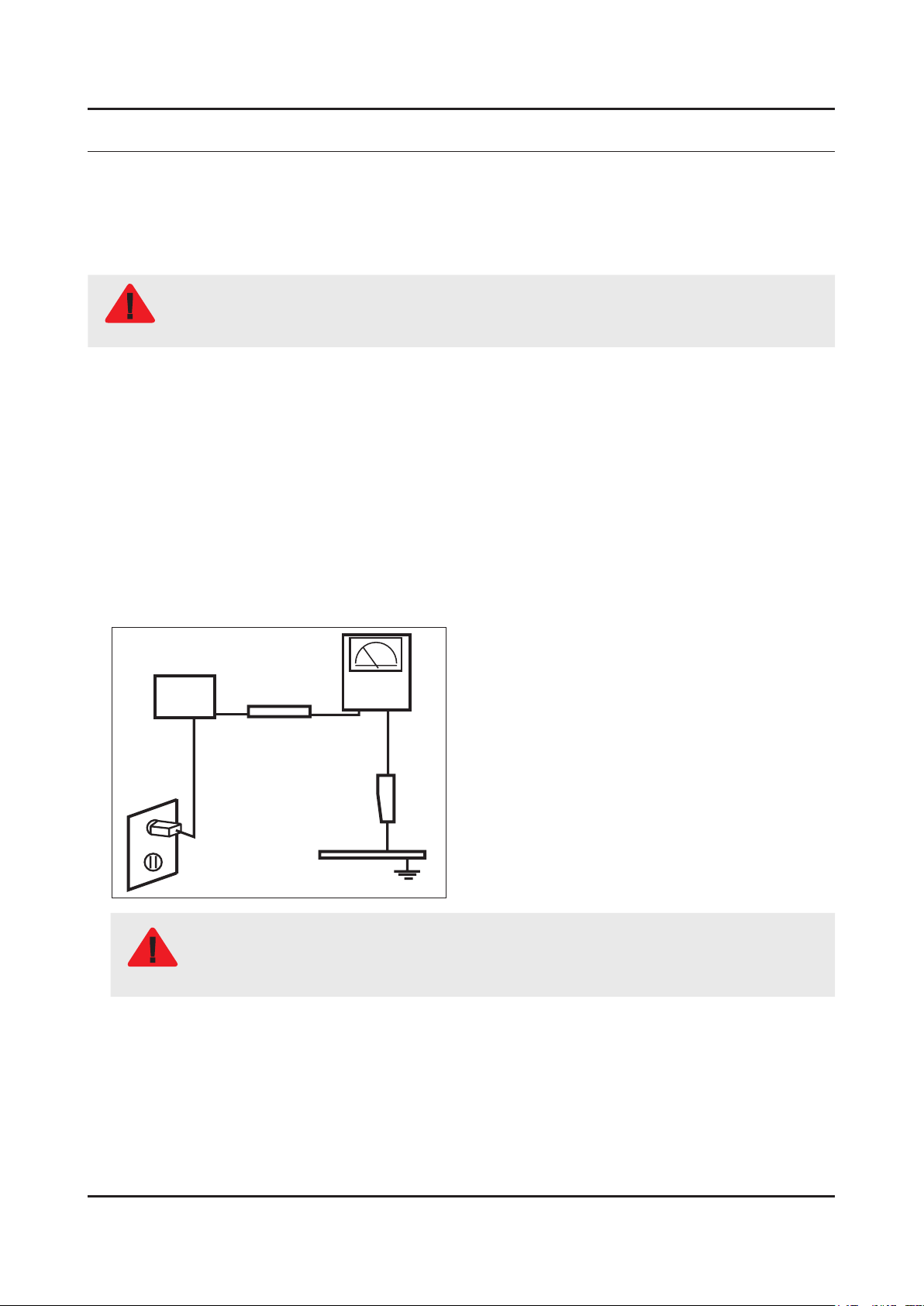

Leakage Current Hot Check:3.

Disconnect the AC power and DC power jack before servicing.

(READING SHOULD)

DEVICE
UNDER

TEST

ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)

NOT BE ABOVE 0.5mA

2-WIRE CORD

TEST ALL

EXPOSED METAL

SURFACES

LEAKAGE
CURRENT

TESTER

EARTH

GROUND

Do not use an isolation transformer during this test.

Use a leakage current tester or a metering system that complies with American National Standards

WARNING

Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).

With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch rst 4.

in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.)
and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.

1-1

1-2

1. Precautions

1-1-4. Product Safety Notices

Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identied by on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics as the recommended replacement part might create

shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever

appropriate.

1-3

1. Precautions

1-2. Servicing Precautions

An electrolytic capacitor installed with the wrong polarity might explode.

WARNING

Before servicing units covered by this service manual, read and follow the Safety Precautions section of

CAUTION

NOTE

1-2-1. General Servicing Precautions

Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before 1.
attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect
a test component in parallel with an electrolytic capacitor.

Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. 2.
The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements
to their original position.

After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that 3.
the area around the serviced part has not been damaged.

Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input 4.
terminals and earphone jacks).

Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect 5.
an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above) should be greater than 1 megohm.

Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; 6.
always remove the instrument’s ground lead last.

this manual.

If unforeseen circumstances create conict between the following servicing precautions and any of the

safety precautions, always follow the safety precautions.

1-4

1. Precautions

1-3. Static Electricity Precautions

Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly

called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect

transistors. The following techniques will reduce the incidence of component damage caused by static electricity.

Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your 1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the monitor.

After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent 2.
accumulation of an electrostatic charge.

Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.

Use only a grounded-tip soldering iron to solder or desolder ESDs.4.

Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.

Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs 6.
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.

Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material 7.
to the chassis or circuit assembly into which the device will be installed.

Be sure no power is applied to the chassis or circuit and observe all other safety precautions.

CAUTION

Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or 8.

lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.

1-5

1. Precautions

1-4. Installation Precautions

For safety reasons, more than a people are required for carrying the product.1.

Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.

Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature 3.

may cause re.

Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed 4.

to moisture. Otherwise, it may cause a re or electric shock.

Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check 5.

the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric

shock.

Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6.
antenna falling over may cause re or electric shock.

When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes. 7.

A rise in temperature within the product may cause re.

If an equipment is provided with a replaceable battery, and if replacement by an incorrect type could result in an 8.
explosion (for example, with some lithium batteries), the following applies:

Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to •
the instructions.

Do not dispose of batteries in a re.•

Do not short circuit, disassemble or overheat the batteries.•

CAUTION

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent •
type.

Do not be exposed to excessive heat such as sunshine, re or the like.•

2. Product Specications

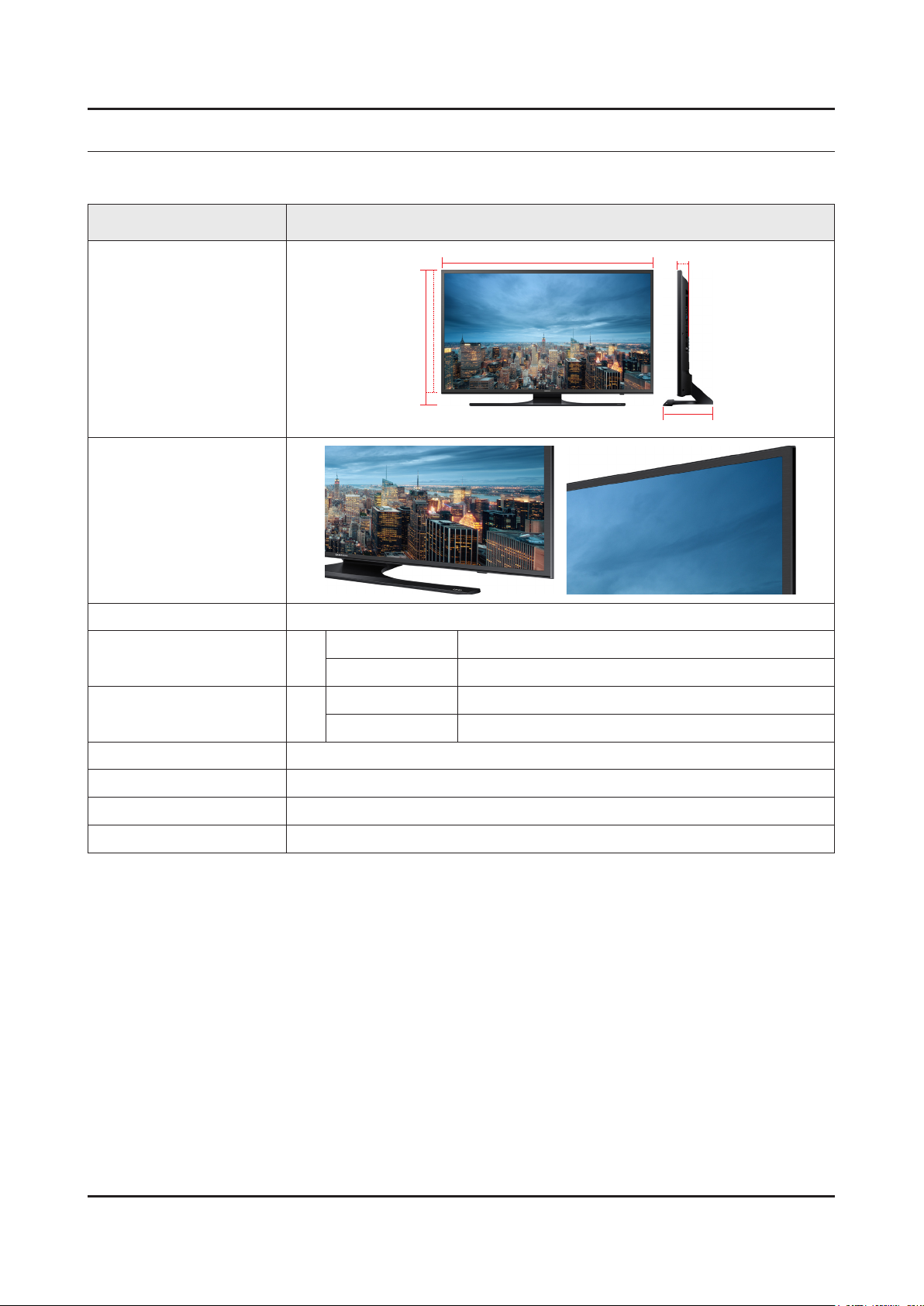

2-1. Product information

Model UN**JU641DF

2. Product specications

W

Front View

Detail View

Front Color Black

Dimensions

(W x H x D)

Weight 75"

Panel Type Ultra Clear Pro

Internal Memory 8GB

75"

With stand 1688.9 X 1034.4 X 355.3 mm

With stand 42.5 Kg

H

* W : Width H : High D : Depth

Body 1688.9 X 972.2 X 66.0 mm

Body 36.5 Kg

D

DDR DDR3 2.5GB

Feature Media Play (Movie, Photo, Music)

2-1

2-2

2. Product specications

2-2. Product specication

2-2-1. Feature & Specications

Feature 

UHD TV, RF, 4-HDMI, 1-COMPONENT, 1-A/B(COMMON USE FOR COMPONENTY), 2-USB2.0, 1-USB3.0, •
HEADPHONE

Specications 

Model UN75JU641DF

Item Description

Screen Size (Diagonal) 75 inches

LCD Panel UHD 60Hz

Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)

Vertical : 47 Hz ~ 63 Hz (Automatic)

Display Colors 16.7M color

Display Resolution 3840 X 2160

Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated

Input Sync Signal H/V Separate, TTL, P. or N.

Maximum Pixel Clock Rate 74.25MHz

AC Power Voltage & Frequency AC110-120V 50/60Hz

Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)

Operating Humidity : 10% ~ 80%, non-condensing

Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)

Storage Humidity : 5% ~ 95%, non-condensing

Sound (Output) 20 W (10 W X 2)

Note : Dolby Digital Plus/Pulse, USB2.0/3.0, Film mode, Energy Saving

2-3

2. Product specications

2-2-2. Detailed Specications

NOTE

Design and specications are subject to change without prior notice.

Item UN75JU641DFXZA

General Information

Display

Video

Product UHD

Series 6

Country UNITED STATES

Inch 75"

Resolution 3,840 x 2,160

Ultra Clear Panel Ultra Clear Pro

Motion Refresh Rate 120Hz

Dynamic Contrast Ratio Mega Contrast

Micro Dimming UHD Dimmng

Precision Black (Local Dimming) N/A

Nano Crystal Color N/A

Wide Color Enhancer (Plus) N/A

PurColor Yes

Auto Depth Enhancer N/A

Contrast Enhancer Yes

Auto Motion Plus Yes

Film Mode Yes

Audio

Smart TV

Peak Illuminator N/A

Dolby Digital Plus Yes

Virtual Surround DTS Studio Sound

DTS Codec DTS Premium Sound 5.1

3D Sound N/A

Sound Customizer N/A

Sound Output (RMS) 20W(L:10W, R:10W)

Speaker Type 2CH(Down Firing + Bass Reex)

Woofer N/A

HD Audio Yes

Wallmount Sound Mode Yes

Multiroom Link Yes

Samsung SMART TV Yes

Apps Yes

Game Yes

Multi-Link Screen Yes

ACR (Advertisement) Yes

2-4

2. Product specications

Item UN75JU641DFXZA

Smart TV

Smart Interaction

Convergence

Tuner/Broadcasting

Info Widget N/A

Vertical Enhancement Yes

Voice Interaction N/A

Voice Control N/A

Face recognition Ready

Motion control Ready

TV to Mobile - Mirroring Yes

Mobile to TV - Mirroring, DLNA Yes

RVU Wired

Samsung SMART View Yes

Wireless TV On - Samsung WOL Yes

Notication - BLE Yes

Brieng On TV Yes

WiDi N/A

WiFi Direct Yes

Digital Broadcasting ASTC/Clear QAM

2 Tuner N/A

Connectivity

CI/CI+/2CI+ N/A

Analog Tuner Yes

MHP / MHEG / HbbTV / ACAP / GINGA / OHTV N/A

HDMI 4

USB 3

Component In (Y/Pb/Pr) 1

Composite In (AV) 1 (Common Use for Component Y)

Ethernet (LAN) 1

Headphone N/A

Audio Out (Mini Jack) 1

Digital Audio Out (Optical) 1

RF In (Terrestrial / Cable input / Satellite input) 1/1(Common Use for Terrestrial)/0

Ex-Link ( RS-232C ) 1

IR Out N/A

CI Slot N/A

Scart N/A

MHL Yes

Dongle Ready (3G / LTE) N/A

HDMI 3D Auto Setting N/A

HDMI A / Return Ch. Support Yes

HDMI Quick Switch N/A

2-5

2. Product specications

Item UN75JU641DFXZA

Connectivity

Design

Additional Feature

Wireless LAN Adapter Support N/A

Wireless LAN Built-in Yes

Anynet+ (HDMI-CEC) Yes

Design Metal Line

Bezel Type VNB

Slim Type Slim

Front Color Dark Titan

Light Effect (Deco) N/A

Stand Type Plate T-Shape

Swivel (Left/Right) N/A

Samsung 3D N/A

3D Converter N/A

Instant On Yes

Camera Built-in N/A

Wireless Copy N/A

Processor Quad-Core

PX Ready N/A

21:9 Immersive Picture Mode N/A

SCSA Support Yes

Accessibility Voice guide/ Enlarge/ High contrast

Digital Clean View Yes

One Connect (Jack) N/A

Auto Channel Search Yes

Auto Power Off Yes

BD Wise Plus Yes

Caption (Subtitle) Yes

Channel List USB-Clone N/A

Connect Share™ (HDD) Yes

Connect Share™ Transfer N/A

ConnectShare™ (USB 2.0) Yes

AC/DC TV N/A

Sports Mode Basic

Embeded POP Yes

EPG Yes

Extended PVR N/A

Game Mode Yes

IP Video Closed Caption Yes

OSD Language English, Spanish, French

2-6

2. Product specications

Item UN75JU641DFXZA

Additional Feature

Eco Feature

Accessory

Picture-In-Picture Yes

BT HID Built-in Yes

USB HID Support Yes

Feature Upgrade (Evolution Kit Ready) N/A

ATSC 3.0 Ready Yes

Teletext (TTXT) N/A

Time Shift N/A

Analog Clean View N/A

Ultra Clean View Yes

Energy Star TBD

Eco Sensor Yes

3D Active Glasses (Included) N/A

Remote Controller Model TM1260C

Batteries (for Remote Control) Yes

Samsung Smart Touch Control (Included) N/A

PX (Included) N/A

Ultra Slim Wall Mount Supported N/A

Mini Wall Mount Supported N/A

Vesa Wall Mount Supported Yes

Floor Stand Support N/A

TV Camera (Included) N/A

IR Extender Cable (Included) N/A

Wireless Keyboard (Included) N/A

Wireless PC Mirroring Adaptor (Included) N/A

Composite to Scart Gender (Included) N/A

User Manual Yes

E-Manual Yes

ANT-Cable N/A

Power Cable Yes

Slim Gender Cable N/A

2-7

2. Product specications

2-3. Accessories

NOTE

The items’ colors and shapes may vary depending on the model.•

Cables not included in the package contents can be purchased separately.•

The part code for some accessories may differ depending on your region.•

Product Code. No Product Code. No

Remote Control• BN59-01198X Power Cord• 3903-000467

Batteries (AAA x 2)• 4301-000121 User Manual• BN68-06965H

2-8

2. Product specications



2-4. Viewing the Functions

The Remote Control 

Turns the TV on or off.

SPORTS: Enables/Disables Sports

Mode.

Selects additional digital channels

being broadcast by the same digital

station. For example, to select

channel ‘54-3’, press ‘54’, then press

‘-’ and ‘3’.

Brings up Smart Hub applications.

(See the e-Manual chapter, Smart

Features > Smart Hub.)

Displays frequently used functions.

(Enter): Press this button to

select or run a focused item.

Moves the cursor, selects the

onscreen menu items, and changes

the values seen on the TV's menu.

Use these buttons according to the

directions on the TV's screen.

Displays and selects the available video

sources.

Returns to the previous channel.

Displays the Electronic Program Guide
(EPG).

Displays information on the TV screen.

E-MANUAL: Displays the e-Manual.
EXTRA: Provides easy access to

information services.
SEARCH: Launches the Search
function.

PIC SIZE: Changes the picture size.
MTS: Changes a program's audio

to stereo, mono, or Separate Audio
Program (SAP broadcast).
CC: Controls the caption decoder and
displays captions on the screen.

Use these buttons with a specic

feature, according to the directions

on the TV's screen.

2-9

2. Product specications

2-5. NEW Key Features

2-5-1. 15" New UI

SMART HUB START 

After Smart HUB setup 

<Videos contents> <My Apps>

<Web browser> <My contents>

2-10

2. Product specications

2-5-2. Multi Screen

Using Multi-Link Screen 

NOTE

UHD and FHD contents and channels cannot be viewed simultaneously.•

Launching Smart Hub while using Multi-Link Screen automatically terminates Multi-Link Screen.•

Certain TV features and apps may not be supported by Multi-Link Screen. If this is the case, exit from Multi-Link •
Screen and than use the feature.

Selecting a Feature

Press the Samsung Smart Control's M.SCREEN button while Multi-Link Screen is running. 1.
The Options menu appears.

Select a feature from the Options menu. This initializes the selected feature.2.

NOTE

Features supported by Multi-Link Screen very depending on the country.

<TV + Video clip> <TV + Web search>

<TV + App> <TV +TV (dual tuner only)>

Using Multiple Functions in a Single Screen(Multi-Link Screen) 

Menu > Picture > Open Multi-Link Screen

This function may not be available depending on the country or region.
This allows you to search the Web, use apps, and much more simultaneously while watching TV.

NOTE

Before using Multi-Link Screen, make sure the TV is connected to the lnternet. Using Multi-Link Screen requires •
an lnternet connection.

Before using Smart Hub with Multi-Link Screen, go to the On TV Settings (• Smart Hub > On TV Settings > On TV
Setup) and nish conguring Smart Hub.

2-11

2. Product specications

2-5-3. Instant On

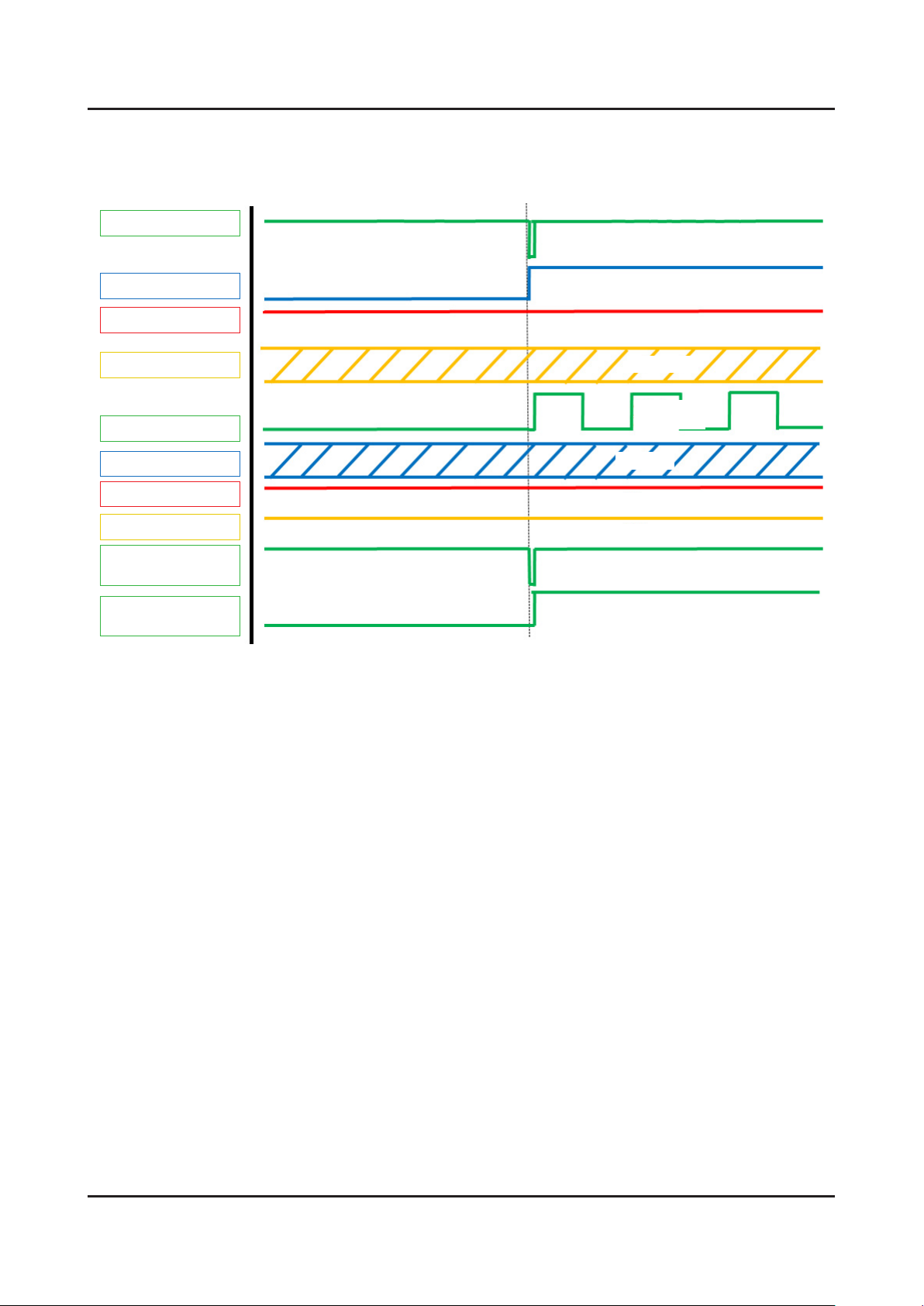

Enabling the TV to Boot Faster 

MENU > System > General > Samsung Instant On

Set Fast Boot on to have the TV boot up faster.

<Cold Boot>

Detachable power

<Instant On>

Remocon on

2-12

2. Product specications

2-6. HDMI 60P Mode

HDMI UHD 60P MODE 

If an external UHD player is connected to the TV, follow these steps to convert the TV's HDMI connector optimized to the
UHD signals.

NOTE

Each HDMI connector can be individually optimized for HDMI UHD 60P MODE.

Turn off the external UHD player that is connected to the TV.1.

Navigate to 2. Picture > Picture Options > HDMI UHD 60P MODE, and set the UHD-connected HDMI connector to On.

When done, turn on the external UHD player.3.

NOTE

After setting the HDMI connector to • On, It takes some time to complete the conversion.

HDMI UHD 60P MODE• is specic to a UHD source, and does not operate properly for any other source. If you

want to play a non-UHD source in HDMI UHD 60P MODE, set the converted HDMI connector to Off.

2-13

2. Product specications

2-7. Supported Formats

Supported Image resolution 

File Extension Type Resolution



*.png PNG 4096x4096

*.bmp BMP 4096x4096

*.mpo MPO 15360x8640

JPEG 15360x8640

Supported Music File Formats 

File Extension Type Codec Comments

*.mp3 MPEG MPEG1 Audio Layer 3 -

*.m4a
*.mpa

*.aac

*.ac FLAC FLAC Supports up to two channels.

*.ogg OGG Vorbis Supports up to two channels.

*.wma WMA WMA

MPEG4 AAC -

WMA 10 Pro supports up to 5.1 channels.

WMA lossless audio is not supported.

Supports up to M2 prole.

*.wav wav wav -

*.mid

*.midi

*.ape ape ape -

Sound or video may not work if they have standard bit rates/frame rates above the TV’s compatibility.•

If the Index Table is wrong, the Seek (Jump) function does not work.•

When playing video over a network connection, the video may not play smoothly because of data•

Some USB/digital camera devices may not be compatible with the player.•

midi midi Type 0, type 1 and supported.

2. Product specications

Supported Video Code 

File

Formats

*.avi

*.mkv

*.asf

*.wmv

*.mp4

*.mov

*.3gp

*.vro

*.mpg

*.mpeg

*.ts
*.tp

*.trp

*.mov

*.v

*.vob

*.svi

*.m2ts

*.mts

*.divx

Container Video Codecs Resolution

H.264 BP/MP/HP

4096x2160

1920x1080

AVI

MKV

ASF

MP4
3GP

MOV

FLV
VRO
VOB

PS
TS

SVAF

Motion JPEG

HEVC(H.265)

DivX 3.11/4/5/6

MPEG4 SP/ASP

Microsoft MPEG-

4 v1 , v2 , v3

Window Media

Video v7(WMV1),

v8(WMV2)

Window Media
Video v9(VC1)

MPEG2

MPEG1

VP6

Frame rate

(fps)

UHD: MAX 30
FHD: MAX 30

HD : MAX 60

UHD: 60

FHD: 30

HD : 60

Bit rate

(Mbps)

60

30

Audio Codec

AC3

LPCM

ADPCM

(IMA, MS)

AAC

HE-AAC

WMA

Dolby Digital

Plus

MPEG(MP3)

DTS

(Core, LBR)

G.711(A-Law,

μ-Law

H.263 Sorrenson

MVC 60

*.webm WebM VP8 1920x1080 6~30 20 Vorbis

Other Restrictions 

NOTE

Codecs may not function properly if there is a problem with the content data.•

Video content does not play or does not correctly if there is an error in the content or container.•

Sound or video may not work if they have standard bit rates/frame rates above the TV's compatibility.ratings•

If the Index Table is wrong, the Seek(Jump) function does not work.•

When playing video over a network connection, the video may not play smoothly because of datatransmission •

speeds.

Some USB/digital camera devices may not be compatible with the player.•

2-14

3. Disassembly and Reassemble

3. Disassembly and Reassembly

This section of the service manual describes the disassembly and reassembly procedures for the LED TV.

This LED TV contains electrostatically sensitive devices. Use caution when handling these components.

WARNING

3-1. Disassembly and Reassembly

Disconnect the LED TV from the power source before disassembly.1.

Follow these directions carefully; never use metal instruments to pry apart the cabinet.2.

CAUTION

3-1-1. TV Disassembly

Place TV face down on cushioned table.

If there is no additional coment, it is same for all inches.3.

Description Picture Description Screws

1

Remove 4 screws from the ASSY

2

STAND P-BAS.

Remove the screws of ASSY COVER

3

P-REAR.

75": 22 EA/1 EA•

Torque :

7~ 8Kgf.cm.

6003-001334

Torque :

7~ 8Kgf.cm.

6001-002755

Torque :

9~ 10Kgf.cm.

6003-000003

3-1

3-2

3. Disassembly and Reassemble

Description Picture Description Screws

Remove the ASSY COVER P-REAR.

4

Remove the Electric tapes shown on the

5

image.

EMI Point• : After removing release
paper from the LVDS Cable bottom,
attach the LVDS Cable to the C/
Chassis and rub the attatched
surface.

CAUTION

When assembling the TV, the electric
tapes must be applied on the same
locations.

Please remember to take a picture of

wherethetapeswererstapplied.

Remove the Power Cables and Speaker

6

Cables.

Cable Dressing

Power Cable

Speaker Cable

Filament Tape: EMI Point

Filament Tape: Dressing Point

Power Cable

Remove the LVDS Cable, Panel Wire
Cable and ASSY BOARD P-FUNCTION
ASSY Cable.

Remove the NETWORK (BT/WIFI
COMBO) Cable.

LVDS Cable

ASSY BOARD

P-FUNCTION ASSYCable

NETWORK (BT/WIFI COMBO) Cable

Panel Wire Cable

LVDS Cable

3-3

3. Disassembly and Reassemble

Description Picture Description Screws

Remove the screws of ASSY PCB MAIN

7

and DC VSS-LED TV PD BD.

ASSY PCB MAIN : 4 EA•

DC VSS-LED TV PD BD : 6 EA•

NOTE

LVDS Cable

Remove the ASSY SPEAKER (L/R).

8

Remove the cables and 4 screws from

9

the ASSY T CON.

Finally carefully remove the ASSY T
CON.

ASSY SPEAKER (L/R)

Torque :

7~ 8Kgf.cm.

6001-003016

Torque :

7~8Kgf.cm

10

6001-003075

Cables

Remove the NETWORK (BT/WIFI
COMBO).

Remove the NETWORK (BT/WIFI •
COMBO) unit by moving it from left
to right.

3. Disassembly and Reassemble

Description Picture Description Screws

11

12

13

Remove the IR unit.

Remove the IR unit by moving it from •
up to down.

IR Assy

Remove the JOG unit.

Remove the JOG unit by moving it •
from bottom to top.

Completed disassembly.

Panel•

NOTE

Reassembly procedures are in the reverse order of disassembly procedures.

3-4

4. Troubleshooting

4-1. Troubleshooting

4-1-1. Previous Check

Check list for initial operation 

Bluetooth/WIFI Combo Module

Main Board

Power Cable

4. Troubleshooting

Power Board

Jog Function

IR Sensor

LVDS Cable

T-CON Board

Speaker

Panel Connectors

4-1

4-2

4. Troubleshooting

4-2. How to Check Fault Symptom

4-2-1. Video

Customer Picture Test 

Main Board Pre FRC Post FRC Problem

Pass Pass Pass Check Signal Source and other inputs

Fail Pass Pass Main Board or LVDS Cable

Fail Fail Pass T-Con or Board

Fail Fail Fail T-Con or Panel

MAIN / FRC / T-CON 

Troubleshooting

CHECK TEST PATTERNS

1 Verify "Pattern Sel".
2 Verify "FRC Pre Test Pattern".
3 Verify "FRC Post Test Pattern".

ENTER• : Factory mode SVC Info Test Pattern

1 Scaler Pattern

Main Board

HAWK-M

LVDS

4 SoC TCON Test Pattern

(Not available for UHD Models)

UFT BOARD

T-CON

FRC

FRC Pre Test Pattern

FRC Post Test Pattern

FRC2 Pre Test Pattern

FRC2 Post Test Pattern

FRC OSD Pre Test Pattern

FRC OSD Post Test Pattern

SOC TCON Test Pattern

SOC TCON Pattern Level

SOC TCON FRC Pattern

SOC TCON2 Test Pattern

SOC TCON2 Pattern Level

2 FRC Post Test Pattern

3 FRC Post Test Pattern

SOC TCON2 FRC Pattern

Troubleshooting

4-3

4. Troubleshooting

Video Test

1 Power TV ON.
2 Verify initial Start Up Screens with Power On.
3 Press Mute 147 Mute to view Test Pattern from the MAIN Board.
4 Press Mute 369 Mute to view Test Pattern from T-CON Board.

12 Start Up Screens 3 Mute 147 Mute 4 Mute 369 Mute

MAIN Board

T-CON Board

4-4

4. Troubleshooting

4-2-2. Bluetooth / WIFI Module

Bluetooth Module 

Troubleshooting

1 Check Bluetooth Address at Contact Samsung.

2 Check BT Version at Factory Mode screen.

Might require upgrade. Check GSPN. -

T-HKMAKUC-XXXX.XX

T-HKMAKUS-XXXX

BT Address

BT Version : BLUETOOTH-VER-00XX

E-MANUAL : HMUATSCJ-X.XXX

CAMERA VERSION : Not Support

BLASTER VERSION : Not Support

.

.

3 Check the BT Connector voltage.

If the DC voltage supply is missing, check the - cable and the Main Board.

BT Signal

(4V P-P)

Pins 1 2 3 4 5 6 7 8

Standby

Power ON

0 3.3Vdc 0 5Vdc 0V 0 0 0

3.3Vdc 3.3Vdc 0 5Vdc

BT Version

2V BT Sig.

4V P-P

2V BT Sig.

4V P-P

0

Sync 3.3V

P-P

All Measurements in the Chart are DC Volts with Multi Meter.•

Bluetooth Sig. & Sync Pulse are effective DC Readings.•

Voltage is normal, but BT Sig. pins (DC Ref.) If you do not measure, BT Module can possibly defective.

WIFI Module 

4-5

4. Troubleshooting

Troubleshooting

1 Check Wired MAC Address and Wireless MAC Address at Contact Samsung.

Wired MAC Address

Wireless MAC Address

2 Check Wired MAC and Wireless MAC at Factory Mode screen. (Success/Failure)

Wired MAC errors : - Main Board is defective.

Wireless MAC errors : -

.

.

Model : UN75JU641D

Wired MAC ----

Wireless MAC ----

WIFI : 0000

.

.

Wired (SUCCESS)

Wireless (SUCCESS)

3 Check the Wi-Fi Module Connector voltage.

Wi-Fi Signal

(500mv P-P)

Pins 9 10 11 12 13 14 15 16

Standby

Power ON

0 3.3Vdc 0 0 0 5Vdc 0 0

Sync 3.3V

P-P

3.3Vdc 0

.04Vdc

Wi-Fi Sig.

.04Vdc

Wi-Fi Sig.

5Vdc 5Vdc 3.3Vdc

All Measurements in the Chart are DC Volts with Multi Meter.•

Voltage is normal, but Wi-Fi Sig. pins (DC Ref.) If you do not measure, Wi-Fi Module can possibly
defective.

4-6

4. Troubleshooting

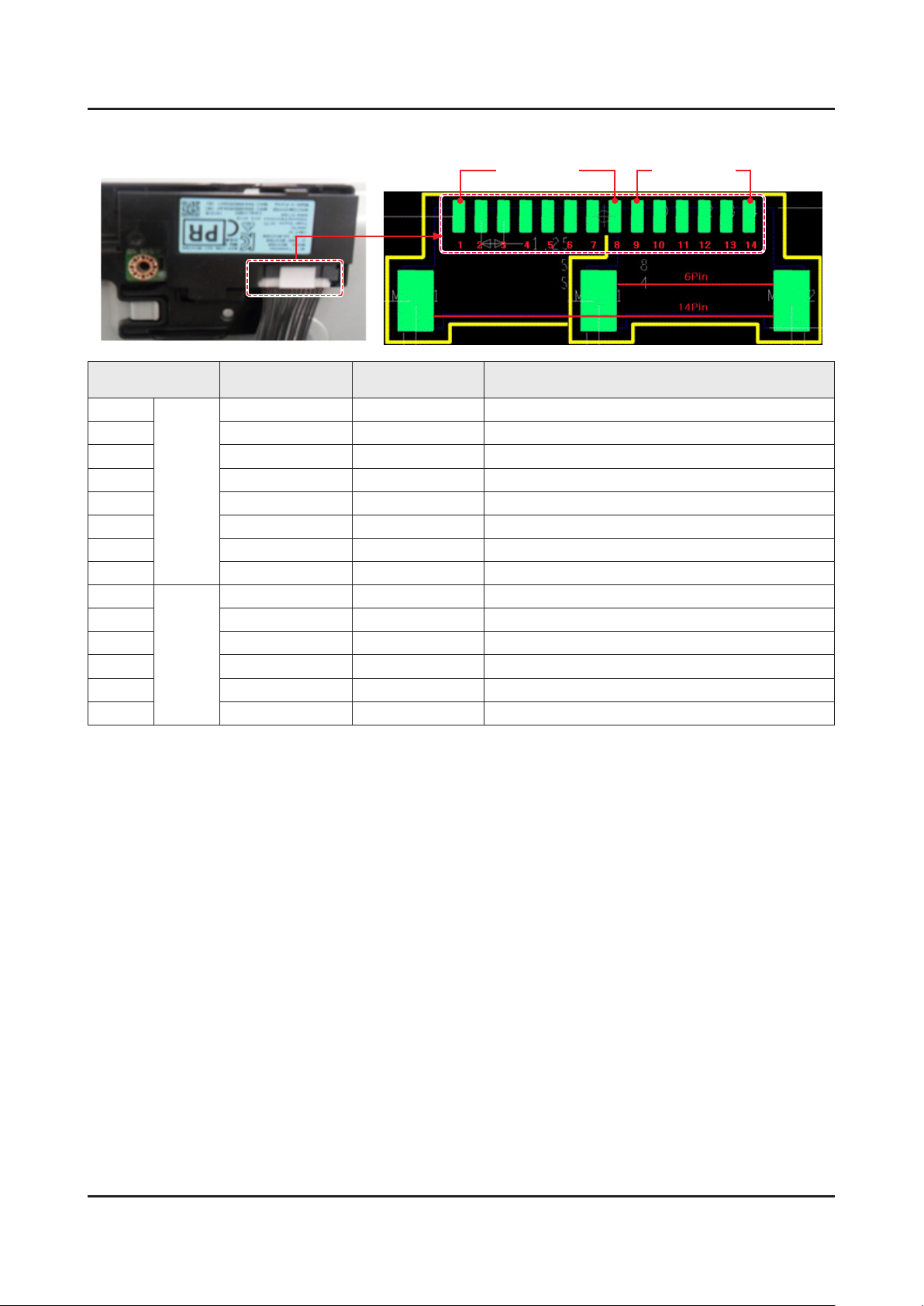

BT/WIFI Combo Pin Map 

Pin # Signal I/O Description

BT modul Wi-Fi modul

1

2 Power DET I Power detect(Active Low)

3 BT_Wake up O BT Wake up

4 USB DM I/O BT USB interface

5 USB DP I/O BT USB interface

6 GND GND Ground

7 3D_sync_in I 3D sync input

8 3D_sync_out O 3D sync output

9

10 USB DP I/O WiFi USB interface

11 USB DM I/O WiFi USB interface

12 Vcc I 5V Power

13 Wake up I WiFi Wake up

14 Reset O WiFi Block Reset

BT

Wi-Fi

BT_Reset I BT Block Reset

GND GND Ground

15' BT / WIFI Combo 

4-7

4. Troubleshooting

Waveforms of combo Module Pins (3.3V except VCC 5V)•

BT nReset

BT Power_det

Stand by On state

BT wake up

BT USB DP & DM

3D sync in & out

Wi-Fi USB DP & DM

VCC (5V)

Wi-Fi wake up

Wi-Fi nReset

(WoW ON)

Wi-Fi nReset

(WoW OFF)

High

Don't care

60HZ signal swing

(3D mode only)

Don't care

High

High

4-8

4. Troubleshooting

4-2-3. Apps / Photos, Videos & Music

Read Before Playing Photo, Video, or Music Files 

Limitations on use of photo, video, and music les

The TV supports MSC (Mass Storage Class) USB devices only. MSC is a class designation for mass storage •
devices.TypesofMSCdevicesincludeexternalharddrives,ashcardreaders,anddigitalcameras.(USBhubsare

not supported.) These kinds of devices must be connected directly to the TV’s USB port. The TV may not be able to

recognizetheUSBdeviceorreadthelesonthedeviceifitisconnectedtotheTVviaaUSBextensioncable.Do
notdisconnecttheUSBdevicewhiletransferringles.PowertheTV"ON".

When connecting an external hard drive, use the USB (HDD) port. We recommend that you use an external hard •
drive with its own power adapter.

Certain digital cameras and audio devices may not be compatible with the TV.•

If there are multiple USB devices connected to the TV, the TV might not be able to recognize some or all the devices. •
USB devices that use high-power input should be connect to the USB [5V, 1A] port.

TheTVsupportstheFAT,exFAT,andNTFSlesystems.•

AftersortinglesintheFolderviewmode,theTVcandisplayupto1000lesperfolder.IftheUSBdevicecontains•
morethan8,000lesandfolders,however,somelesandfoldersmightnotbeaccessible.

The PTP (pier to pier) connection mode is available only for digital cameras. If you connect a smartphone or tablet to •
the TV using PTP mode, the TV will not recognize it.

Web Browser 

Select Web Browser. The browsing screen may differ from the one on your computer.•

The web browser is not compatible with Java applications.•

Youcandownloadthesupportedtypesofles,suchasvideos,mp3les,andimages,butyoucannotdownloadles•
thatarenotsupportedbytheTV.Ifyouattempttodownloadanunsupportedle,youwillreceiveanerrormessage

instead.

The web browser may not be able to access certain websites.•

TheTVdoesnotsupportplaybackofashvideos.•

E-commerce for online purchases is not supported.•

With websites that have scrollable windows, scrolling a window can result in corrupted characters.•

ActiveX is not supported.•

Certain options are not accessible in Link Browsing mode. (Switch to Pointer Browsing to activate those options.)•

Only a limited number of fonts are supported. Certain symbols and characters may not be displayed properly.•

The response to remote commands and the resulting on-screen display may be delayed while a webpage is loading.•

Loading a webpage may be delayed or suspended completely with certain operating systems.•

The copy and paste operations are not supported.•

When composing an email or a simple message, certain functions such as the font size and color selection may not •
be available.

Thereisalimittothenumberofbookmarksandthesizeoftheloglethatcanbesaved.•

The number of windows that can be opened concurrently differs with the search conditions and the TV model.•

The web browsing speed will differ with the network environment.•

Embedded videos can play at the same time the PIP (picture-in-picture) function is operating.•

Thewebbrowsersupports.mp3audiolesonly.•

If the Clock (MENU > System > Time > Clock) has not been set, the browsing history will not be saved.•

Thebrowsinghistoryissavedfromlatesttooldest,withtheoldestentriesbeingoverwrittenrst.•

Dependingonthetypesofvideo/audiocodecssupported,itmightnotbepossibletoplaycertainvideoandaudioles•

while playing Flash content.

Video sources from PC-optimized streaming service providers may not play properly on our proprietary web browser.•

Using the on-screen QWERTY keyboard automatically disables PIP (except when you are entering a URL).•

4-3. Factory Mode Adjustments

4-9

4. Troubleshooting

4-3-1. Detail Factory Option

NOTE

If you replace the main board with new one, please change the factory option as well.
The options you must change are "Type".

UN75JU641DFXZA 

75"

Inches

TD03 UD04

Vendor SDC SDC

PANEL

SMPS BOARD

MAIN BOARD

Byte Item

0 Factory Reset -

1 Type 75A1AU1VJ 75A1AU1VJ

2 Local set US

3 SW Model UJU6400

4 BOM Model 641D

5 Tuner ASTC

6 Ch table NONE

Code BN95-02001F BN95-02001R

Spec. CY-GJ075HGLV4V CY-GJ075HGLVBV/H

Vendor DYREL DYREL

Code BN44-00809A BN44-00809A

Spec. L75S6TN_FDY L75S6TN_FDY

Chassis Ass'y BN91-14203G BN91-14203H

PBA Ass'y BN94-10483E BN94-08637B

4-10

4. Troubleshooting

4-3-2. Entering Factory Mode

To enter ‘Service Mode’ Press the remote -control keys in this sequence :

If you do not have Factory remote control•

Power OFF MUTE 1 8 2 Power On

If you have Factory remote control•

INFO Factory

Some items are not available without a factory remote.•

Option

Control

Debug

SVC

ADC/WB

Advanced

T-HKMAKUC-XXXX.XX

T-HKMAKUS-XXXX

tztv-X.X.X-hawk-m-uhd_XXXXXXXX.X

BT Version : BLUETOOTH-VER-00XX

E-MANUAL : HMUATSCJ-X.XXX

CAMERA VERSION : Not Support

BLASTER VERSION : Not Support

E-POP Version : HAWKMUD-XXXX.X

EDID SUCCESS

HDCP SUCCESS

CALIB : AV/COMP/PC/HDMI/

OPTION : 75A1AU0VJ, US, 641D, NONE

DTCP Not Support

FRC[HAWK-UFT] Panel[SDC-60Hz]

FW[XXXX] Data[0303] LD[NODEF][00]

TCON[HawkUFT]Flash[J40A6U0C5]

Model : UN75JU641D

Wired MAC ----

Wireless MAC ----

WIFI : 0000

Main SW Version

Sub Version (Main, Jak)

Bluetooth Version

E-Manual Version

FRC SW Version

TCON Version

Condition of Wired Mac

Condition of Wireless Mac

CO Nf/ W/ M/ D/ HX P/ AO O S/ N/ RO SC/ Six/

Factory Data Ver : XXX / EERC Version : XX

CPLD/LD : N/A

SmartControl : ****

Date of purchase : --/--/----

4-3-3. Factory Data

4-11

4. Troubleshooting

Option 

Factory Menu Name Data Range

Factory Reset

Type

Local Set

SW Model

BOM Model

TUNER

Ch Table

-

75A1AU1VJ

US

UJU6400

641D

ASTC

NONE

MRT Option

Engineer Option

Control 

Factory Menu Name Data Range

EDID

EDID ON/OFF Off

EDID WRITE ALL …

EDID WRITE HDMI …

EDID WRITE PC …

HDMI EDID Ver …

HDMI EDID Port …

Sub Option

RS-232 Jack UART RS-232 mode setting

EXT Link Support ON

Serial Log On/Off ON

Watchdog ON

FRC Monitoring OFF

Checksum 0x0000

Fast Boot In Production ON

Uart Enable OFF

EEPROM RESET

ECO IC TYPE CT908FN

Info Link Server Type development

Info Link Country None

TTX Group User OSD

Visual Test Disable

4-12

4. Troubleshooting

Factory Menu Name Data Range

OPTION_SWU

OPTION_NUM

RF Remocon Support OFF

CDD mode …

DPMS Support OFF

Num of CI 0

T-CON Device Status OK

RM

LMN 1ST THRESHOLD 150

LMN 2ND THRESHOLD 120

LMN 3RD THRESHOLD 40

EOS Click OFF

BP PMS Reset 1

FAnet Thread 2

User InstantOn Default Value ON

CI COLD Version -1

ACM_MC ON

HotkeyList 7k_SC

UNIQUE TRIPLET ON

FS_FAV OFF

Private Range USE ON

SCSA Support ON

OCM Reboot ON

SPI Protection ON

Hotel Option

Hospitality Mode OFF

Power On

Menu OSD

Operation

Music Mode

External Source

Eco Solution

Cloning

Shop Option

Exhibition Mode OFF

3D CUBE OFF

Peak Mode OFF

Factory Menu Name Data Range

4-13

4. Troubleshooting

Asia Option

Unbalance OFF

AF Level adjust 0

TX Power Level 0

Mono Last Memory OFF

H Shaking 0

SOUND

High Devi OFF

Carrier_Mute ON * If the broadcast signal is not good, TV will

Pilot Level High Thld 0x20h * If the noise comes from weakness-

Pilot Level Low THLD 0x10h

Carrier2 Amp High ThLD 9

Carrier2 Amp Low THLD 6

Amp Volume 0xc4h

Amp Scale 0x9ah * The High threshold value of stereo signal(If

Amp EQ Check Sum 0x03514F0C * The Low threshold value of stereo signal(If

Amp Local Check Sum 0x00000000

Subwoofer Support 0

Woofer Type 0

Woofer Volume 0xc6h

complement the characteristics of the signal
(most use when weak signal comes from the
growing area countries)

electromagneticeld,TVwillbesetMute

automatically (Only default on in North
America)

Pilot level is greather than High threshold
value, recognize Stereo signal)

Pilot level is less than Low threshold value,
recognize Mono signal)

Woofer Scale 0x56h

Woofer Check sum NONE

PEQ Inx 51

PEQ Test Ready

Amp Model TAS5747

Speaker EQ ON

Bottom CheckSum NONE

Wall Filter Type 0

SRS Tuning Parm 0

SPDIF PCM Gain -9

AudioDock BT Delay 90

Mic Scale OFF

4-14

4. Troubleshooting

Factory Menu Name Data Range

India Sound 0

Speaker Delay Normal 0

NTV CU Delay 0

Lipsync lnx 0

Lipsync CheckSum 0x5581

Lipsync USB Test Ready

Lipsync BT CheckSum 0x0000

TP VOLUME 0xc9h

TP Scale 0x64h

TP EQ CheckSum NONE

Debug 

Factory Menu Name Data Range

Spread Spectrum

DDR Margin

BT_ON_OFF

RF Mute Time

FRC

Tuner Margin

MPEG Margin

H.264 Margin

CAM Wait Time

TCON_TEMP READ

TEMP LAST

DCC VERSION

DCC CHK SEL

DCC CHECK LOCAL

DCC CHECK TOTAL

Voice Debug

Power Mnangement

Cert Option

ON

600ms

3

20

15

0 Europeanspecications

29.38

60

0x744A

0

0x0

0x0

OFF

Waiting

RM_BIST_DTV

RM_BIST_ATV

RM_BIST_CABLE

SerDES Check

EU_CIS

Stress Mode

0

0

0

0

OFF

Factory Menu Name Data Range

4-15

4. Troubleshooting

Log Analyzer

Error Popup On/Off

Deadlock KILL

CES Mode ON/Off

CES Option

CES Convergence Option

TCON Demura Bypass

ON

ON

ON

NONE

OFF

OFF

OFF

SVC 

Factory Menu Name Data Range

Self Test(for HW)

Info

Upgrade

T-CON Usb Download Failure * UpgradeT-CON eeprom

T-CON CheckSum N/A * virsion of T-CON eeprom

T-CON2 Usb Download Failure

T-CON2 CheckSum

PANEL EEPROM UPGRADE Failure

PANEL FLASH UPGRADE Failure

Logic Usb D/L …

SUBMICOM UPGRADE Ready * Upgrade Sub-Micom Program

SUBMICOM JP USB UPGRADE Ready

BT UPGRADE * Upgarde BT(There is upgrade program in

BT FREEPAIRING ON

Function Upgrade Failure

FRC3D FW UPGRADE

FRC3D LD UPGRADE

FRC2 3D FW UPGRADE

Camera Upgade * Upgarde Camera module(There is upgrade

Mic Upgrade * Upgarde MIC in Camera module(There is

Jump UPGRADE Failure

IR Blaster Upgrade Failure

Main-Image)

program in Main-Image)

upgrade program in Main-Image)

IR Blaster delay time 50

NTV Cu Update Failure

UD LDC PROFILE UPGRADE Failure

4-16

4. Troubleshooting

Factory Menu Name Data Range

Pic Data USB Update VER:0x0032

Audio Data USB Update

Eco Data USB Update VER:0x0043

CI CPLD Upgrade Failure

SC ADK Upgrade Failure

SC MBR Upgrade Failure

SC MCU Upgrade Failure

TCON DEMURA FW UPGRADE NG

Reset

OPTION_HDMI

DVB CI

Test Pattern

Europeanspecications

* the Output of test pattern from each IC

Other setting

SVC Panel

ORIGINAL

Tizen

S/N

ADC/WB 

Factory Menu Name Data Range

ADC

AV Calibaration NA

Comp Calibration NA

PC Calibration NA

HDMI Calibration NA

ADC Result

1st_Y_GH 0

1st_Y_GL 0

1st_Cb_BH …

1st_Cb_BL …

1st_Cr_RH …

1st_Cr_RL ..

2nd_R_L 130

2nd_G_L 130

2nd_B_L 130

2nd_R_H 69

2nd_G_H 69

2nd_B_H 69

Factory Menu Name Data Range

4-17

4. Troubleshooting

White Balance

R-Offset 128

G-Offset 128

B-Offset 128

R-Gain 143

G-Gain 128

B-Gain 138

WB-W2_R_Offset 128

WB_W2_B_Offset 128

WB_W2_R_Gain 152

WB_W2_B_Gain 78

WB_N_R_Offset 128

WB_N_B_Offset 128

WB_N_R_Gain 142

WB_N_B_Gain 121

MGA

MGA On/Off OFF

R1_Gain 512

G1_Gain 512

B1_Gain 512

R2_Gain 512

G2_Gain 512

B2_Gain 512

R3_Gain 512

G3_Gain 512

B3_Gain 512

R4_Gain 512

G4_Gain 512

B4_Gain 512

R5_Gain 512

G5_Gain 512

B5_Gain 512

R6_Gain 512

G6_Gain 512

B6_Gain 512

R7_Gain 512

G7_Gain 512

4-18

4. Troubleshooting

Factory Menu Name Data Range

B7_Gain 512

R8_Gain 512

G8_Gain 512

B8_Gain 512

R9_Gain 512

G9_Gain 512

B9_Gain 512

R10_Gain 512

G10_Gain 512

B10_Gain 512

SPI White Balance

SPI MGA

WB Data to SPI

Advanced 

0

4-4. White Balance

4-19

4. Troubleshooting

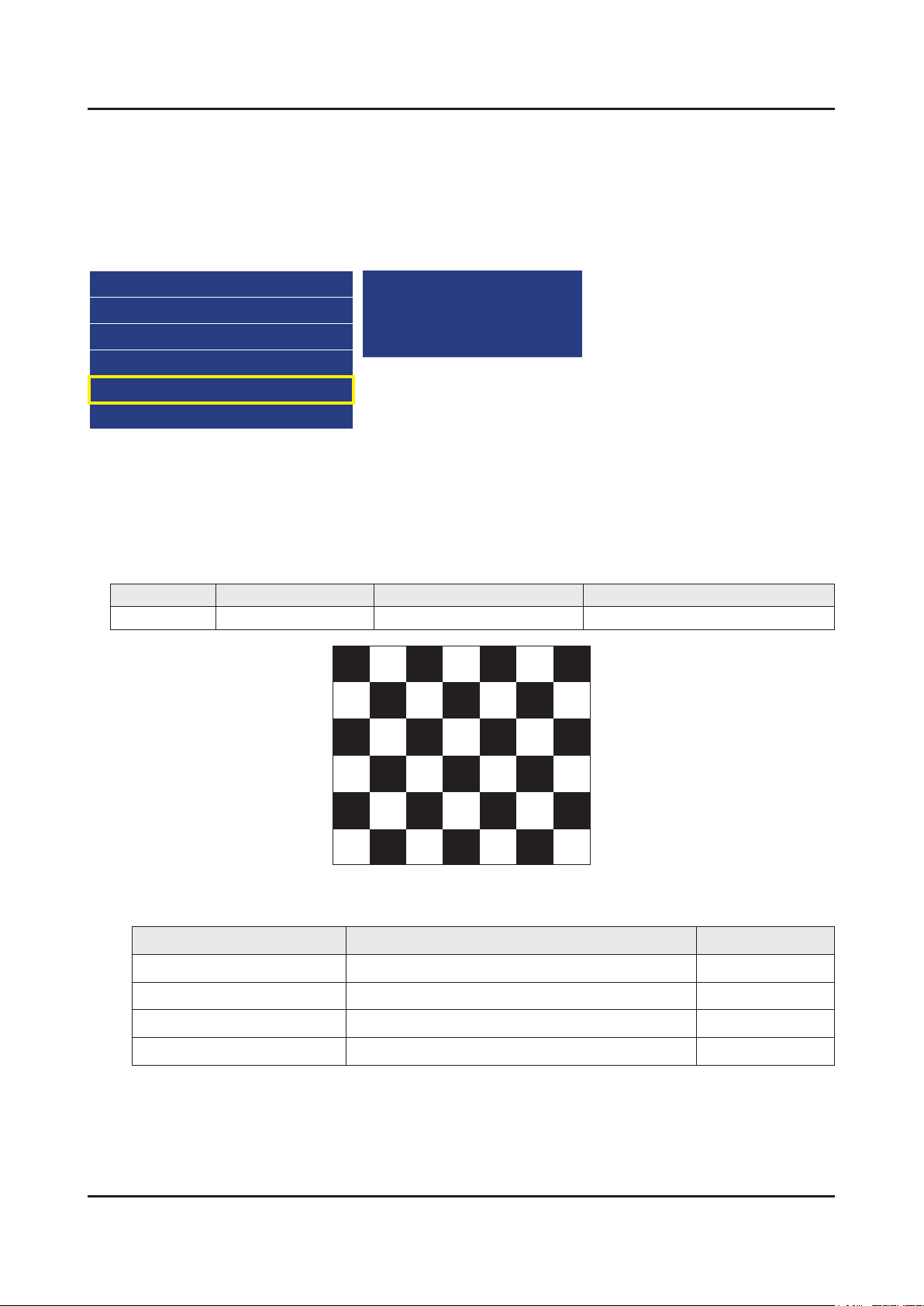

4-4-1. Calibration

Into the Factory Mode.1.

Select 2. ADC/WB menu.

Select 3. ADC menu.

Option

Control

Debug

SVC

ADC/WB

Advanced

AV Calibration

Comp Calibration

PC Calibration

HDMI Calibration

4-4-2. Service Adjustment

You must perform Calibration in the Lattice Pattern before adjusting the White Balance.

Color Calibration 

AdjustSpecication•

Source Setting Mode Pattern Use Equipment

HDMI 1280 x 720@60 Hz Pattern #24 (Chess Pattern) CA210 & Master MSPG925 Generator

(Chess Pattern)

Use other equipment only after comparing the result with that of the Master equipment. -

Input mode Calibration Pattern

CVBS IN (Model_#1) Perform in NTSC B&W Pattern #24 Lattice

Component IN (Model_#6) Perform in 720p B&W Pattern #24 Lattice

PC Analog IN (Model_#21) Perform in VESA XGA (1024x768) B&W Pattern #24 Lattice

HDMI IN Perform in 720p B&W Pattern #24 Lattice

4-20

4. Troubleshooting

Method of Color Calibration (AV)

Apply the NTSC Lattice (N0. 3) pattern signal to the AV IN 1 port.1.

Press the Source key to switch to “AV1” mode.2.

Enter Service mode.3.

Select the “ADC” menu.4.

Select the “AV Calibration” menu.5.

In“AVCalibrationOff”status,pressthe“►”keytoperformCalibration.6.

When Calibration is complete, it returns to the high-level menu.7.

You can see the change of the “AV Calibration” status from Failure to Success. 8.

Method of Color Calibration (Component)

Apply the 720p Lattice (N0. 6) pattern signal to the Component IN 1 port.1.

Press the Source key to switch to “Component1” mode.2.

Enter Service mode.3.

Select the “ADC” menu.4.

Select the “Comp Calibration” menu.5.

In“CompCalibrationOff”status,pressthe“►”keytoperformCalibration.6.

When Calibration is complete, it returns to the high-level menu.7.

You can see the change of the “Comp Calibration” status from Failure to Success.8.

Method of Color Calibration (PC)

Apply the VESA XGA Lattice (N0. 21) pattern signal to the PC IN port.1.

Press the Source key to switch to “PC” mode.2.

Enter Service mode.3.

Select the “ADC” menu.4.

Select the “PC Calibration” menu.5.

In“PCCalibrationOff”status,pressthe“►”keytoperformCalibration.6.

When Calibration is complete, it returns to the high-level menu.7.

You can see the change of the “PC Calibration” status from Failure to Success.8.

Method of Color Calibration (HDMI)

Apply the 720p Lattice (N0. 6) pattern signal to the HDMI1/DVI IN port.1.

Press the Source key to switch to “HDMI1” mode.2.

Enter Service mode.3.

Select the “ADC” menu.4.

Select the “HDMI Calibration” menu.5.

In“HDMICalibrationOff”status,pressthe“►”keytoperformCalibration.6.

When Calibration is complete, it returns to the high-level menu.7.

You can see the change of the “HDMI Calibration” status from Failure to Success.8.

4-4-3. Adjustment

4-21

4. Troubleshooting

Into the Factory Mode.1.

Select 2. ADC/WB menu.

Select 3. White Balance menu.

Option

Control

Debug

SVC

ADC/WB

Advanced

White Balance

(Low Light)

Sub Brightness

R offset

G offset

B offset

(Hight Light)

Sub Contrast

R gain

G gain

B gain

4-22

4. Troubleshooting

4-5. RS-232C

RS232C Control•

Port : COM#(Serial) -

Baud rate : 9600 -

Data Bit : 8 bit -

Parity : None -

Stop Bits : 1 -

Flow Control : None -

Description of RS232C•

Pin# Name Full Name Pin# Name Full Name Pin# Name Full Name

CD Carrier Detect

1

RxD Received Data

2

TxD Transmitted Data

3

DTR Data Terminal Ready

4

GND Signal Ground

5

DSR Data Set Ready

6

RTS Request To Send

7

CTS Clear To Send

8

RI Ring Indicator

9

4-6. AV Control Tabe

4-23

4. Troubleshooting

Control Item Cmd1 Cmd2 Cmd3 Value

General

Input

Power Power 0x00 0x00 0x00 0x00

Off 0x01

On 0x02

Volume Direct 0x01 0x00 0x00 (0~100)

Up 0x01 0x00

Down 0x02 0x00

Mute 0x02 0x00 0x00 0x00

Ch. Direct 0x04 -

Continuous Up

0x03 0x00

Down 0x02 0x00

0x01 0x00

Control Item Cmd1 Cmd2 Cmd3 Value

Source List TV TV 0x0a 0x00 0x00 0x00

AV AV1 0x01 0x00

AV2 0x01

AV3 0x02

S-Video S-Video1 0x02 0x00

S-Video2 0x01


S-Video3 0x02

Component Component1 0x03 0x00

Component2 0x01

Component3 0x02

PC PC1 0x04 0x00

PC2 0x01

PC3 0x02

HDMI HDMI1 0x05 0x00

HDMI2 0x01

HDMI3 0x02

HDMI4 0x03

DVI DVI1 0x06 0x00

DVI2 0x01

DVI3 0x02

RVU RVU 0x07 0x00

Control Item Cmd1 Cmd2 Cmd3 Value

Mode Dynamic(Entertain) 0x0b 0x00 0x00 0x00

Standard 0x01

Movie 0x02

4-24

4. Troubleshooting

Control Item Cmd1 Cmd2 Cmd3 Value


Mode Natural 0x03

CAL-NIGHT 0x04

CAL-DAY 0x05

BD Wise 0x06

Relax

BackLight
(CellLight)

Contrast 0~100 0x02 0x00 (0~100)

Brightness 0~100 0x03 0x00 (0~100)

Sharpness 0~100 0x04 0x00 (0~100)

Color 0~10 0x05 0x00 (0~100)

Tint G/R 0x06 0x00 (0~100)

Advanced
Settings

Black Tone

0~20 0x01 0x00 (0~20)

Off 0x07 0x00 0x00

Dark 0x01

Darker 0x02

Darkest 0x03

0x07

New function of 12"

(only PDP TV)

Dynamic Contrast Off 0x01 0x00

Low 0x01

Medium 0x02

HIgh 0x03

Shadow Detail -2 ~ 2 0x02 (-2~2)

Gamma -3 ~ 3 0x03 (-3~3)

RGB Only Mode Off 0x05 0x00

Red 0x01

Green 0x02

Blue 0x03

Color Space Auto 0x06 0x00

Native 0x01

Custom 0x02

White Balance R-Offset(LCD) 0x07 (0~50)

White Balance G-Offset(LCD) 0x08 (0~50)

White Balance B-Offset(LCD) 0x09 (0~50)

White Balance R-Gain(LCD) 0x0a (0~50)

White Balance G-Gain(LCD) 0x0b (0~50)

White Balance B-Gain(LCD) 0x0c (0~50)

White Balance Reset(LCD) 0x0d 0x00

Flesh Tone -15 ~ 15 0x0e (-15~15)

Control Item Cmd1 Cmd2 Cmd3 Value

4-25

4. Troubleshooting


Advanced
Settings

Edge Enhancement

Off 0x0f 0x00

On 0x01

xvYCC Off 0x10 0x00

On 0x01

Motion Lighting Off 0x11 0x00

On 0x01

Color Space Custom
Color

Red 0x12 0x00

Green 0x01

Blue 0x02

Yellow 0x03

Cyan 0x04

Magenta 0x05

Color Space Custom
Color Red Value

Color Space Custom
Color Green Value

Color Space Custom
Color Blue Value

0~100 0x13 0~100

0~100 0x14 0~100

0~100 0x15 0~100

Only for active Color

Space Custom

Only for active Color

Space Custom

Only for active Color

Space Custom

Only for active Color

Space Custom

Option

LED Motion Plus Off 0x0a 0x07 0x00

On(Normal) 0x01

Cinema 0x02

Ticker 0x03

Color Tone

Cool 0x0a 0x00 0x00

Standard 0x01

Warm1 0x02

Warm2 0x03

Digital Noise Filter

Off 0x02 0x00

Low 0x01

Medium 0x02

High 0x03

Auto 0x04

MPEG Noise Filter

Auto
Visualization

Off 0x03 0x00

0x05

Low 0x01

Change Normal→

Standard mode

Medium 0x02

High 0x03

Auto 0x04

4-26

4. Troubleshooting

Control Item Cmd1 Cmd2 Cmd3 Value


Option

Screen
Adjustment

HDMI Black Level

Film Mode

Auto Motion Plus

Picture Size

Normal 0x04 0x00

Low 0x01

Off 0x05 0x00

Auto1 0x01

Auto2 0x02

Cinema
Smooth

0x03

Off 0x06 0x00

Clear 0x01

Standard 0x02

Smooth 0x03

Custom 0x04

Demo 0x05

16:9 0x0b 0x0a 0x01 0x00

Zoom1 0x01

Zoom2 0x02

Wide Fit 0x03

New function of 12"

(only PDP TV)

4:3 0x04

Screen Fit 0x05

Smart View I 0x06

Smart View II 0x07

Auto Wide 0x08

Wide Zoom 0x09

Zoom 0x0a

Reset

Reset Picture

0x0b 0x0b 0x00 0x00

3D 3D Mode Off 0x0b 0x0c 0x00 0x00

2D ⇢ 3D

0x01

Side By Side 0x02

Top Bottom 0x03

Line By Line 0x04

Vertical Line 0x05

Checker BD 0x06

Frame
Sequence

0x07

New function of 12"

(only DVB TV)

3D ⇢ 2D

Off 0x01 0x00

On 0x01

Control Item Cmd1 Cmd2 Cmd3 Value

4-27

4. Troubleshooting


Sound

3D 3D View Point

Depth

3D Auto View

Off 0x05 0x00

Message
Notice

On 0x02

0x02 (-5~5)

0x03 (1~10)

0x01

Control Item Cmd1 Cmd2 Cmd3 Value

Sound Mode Standard

Music 0x01

Movie 0x02

Clear Voice 0x03

Amplify 0x04

Equalizer Balance 0x01 0x00 (0~20)

100hz 0x01 (0~20)

300hz 0x02 (0~20)

1khz 0x03 (0~20)

3khz 0x04 (0~20)

0x0c 0x00 0x00 0x00

SRS
TruSurround
HD (echo)

Virtual
Surrond
(echo)

SRS
TruDialog
(echo)

Dialog
Clarify (X9)

Preferred
Language

Multi-Track
Sound

10khz 0x05 (0~20)

Reset 0x06 0x00

Off

On

Off

On

English

Spanish 0x01

French 0x02

Korean 0x03

Japanese 0x04

Mono

0x02 0x00 0x00

0x01

0x03 0x00 0x00

0x01

0x04 0x00 0x00

0x05 0x00 0x00

Stereo 0x01

SAP 0x02

Auto Volume Off 0x06 0x00 0x00

ON 0x01

4-28

4. Troubleshooting

Control Item Cmd1 Cmd2 Cmd3 Value

Sound

KEY

OSD

Auto Volume Night

Speaker
Select

Sound
Select

Sound
Reset

3D Audio Off 0x0a 0x00 0x00

Auto Stereo Manual 0x0b 0x00 0x00

TV Speaker

External Speaker 0x01

Main

Sub 0x01

Sound Reset

Low 0x01

Medium

High 0x03

Auto 0x01

0x07 0x00 0x00

0x08 0x00 0x00

0x09 0x00 0x00

0x02

0x02

Control Item Cmd1 Cmd2 Cmd3 Value

Key Generation

Show/Hide
Control

Show

0x0d 0x00 0x00

0x0e 0x00 0x00 0x00

refer to

table

Only for korea model

Get
Status

Hide 0x01

Power (On/Off) 0xf0 0x00 0x00 0x00

Volume(0~100) 0xf0 0x01 0x00 0x00

Mute (On/Off) 0xf0 0x02 0x00 0x00

Channel Number 0xf0 0x03 0x00 0x00

Source (TV/AV/…/HDMI/…) 0xf0 0x04 0x00 0x00

Picture Size 0xf0 0x05 0x00 0x00

3D (On/Off) 0xf0 0x06 0x00 0x00

Picture Mode 0xf0 0x07 0x00 0x00

Sound Mode 0xf0 0x08 0x00 0x00

4-29

4. Troubleshooting

4-7. Updating the TV’s Software

MENU/123• MENU Support Software Update

You can view your TV’s software version and update it if necessary.

Updating the TV’s software to the latest version 

MENU/123• MENU Support Software Update Update now

You can update your TV’s software by downloading the update from the Internet directly to your TV or copying the update
from a USB device that contains it to your TV.

This function requires an Internet connection.•

Save the update package in the USB device's top-level folder. Otherwise, the TV will not be able to locate the update •
package.

DO NOT turn off the TV’s power until the update is complete. The TV will turn off and on automatically
after completing the software update. All video and audio settings return to the default settings after a

CAUTION

Updating the TV automatically 

software update.

MENU/123• MENU Support Software Update Auto Update

If the TV is connected to the Internet, you can have the TV's software update itself automatically while you are watching
the TV. When the background update is completed, it is applied the next time the TV is turned on.

This function may take a longer time if a different networking function is running concurrently.•

This function requires an Internet connection.•

If you agree to the Smart Hub terms and conditions, Auto Update is set to On automatically. If you do not want the •
TV's software to update itself automatically, set Auto Update to Off.

5. Wiring Diagram

SMPS

CN801S

CNM803

TV Board

CN1101

T- Con

SPEAKER SPEAKER

IR receiver

CNL802

CN201

CN2001

CN1102

CN2201

BL LED

CN501

WIFI / BT

CN501

Function

5-1. Wiring Diagram

5. Wiring Diagram

5-1

5-2

5. Wiring Diagram

5-2. Connector

Main Board 

CN1803

1

CN1802

2

CN1801

3

CN807

4

CN702

5

CN1101

17

CN201

16

CN2001

15

CN701

6

CN1001_LAN

8

CN704

7

OP501

9

CN603

10

CN1301_RS

11

Main Board Pin Map 

CN1803

1

1 A5V_USB3_PW 3 MOIP+_USB

2 MOIP-_USB 4 GND

CN1802_N6K

2

1 B5V_USB2_PW 3 USB2+_USB

2 USB2-_USB 4 GND

CN601(COMP)

12

CN1102

13

1 B5V_USB1_PW 6 USB1RX+_USB30

2 USB1-_USB 7 GND

3 USB1+_USB 8 USB1TX-_USB30

4 GND 9 USB1TX+_USB30

5 USB1RX-_USB30

CN501

14

3

CN1801

5-3

5. Wiring Diagram

CN807_N6K

4

HDMI1_RX2+_

1

2 GND 12

3 HDMI1_RX2-_HDMI 13 CEC

4

5 GND 15

6 HDMI1_RX1-_HDMI 16

7

8 GND 18 HDMI1_5V_PW

9 HDMI1_RX0-_HDMI 19 HDMI1_HOT_PLUG

10

1 HDM2_RX2+_HDMI 11 GND

2 GND 12

3 HDMI2_RX2-_HDMI 13 CEC

4

5 GND 15

6 HDMI2_RX1-_HDMI 16

7

8 GND 18 HDMI2_5V_PW

9 HDMI2_RX0-_HDMI 19 HDMI2_HOT_PLUG

10

HDMI

HDMI1_RX1+_

HDMI

HDMI1_RX0+_

HDMI

HDMI1_RX_CLK+_

HDMI

5

HDMI2_RX1+_

HDMI

HDMI2_RX0+_

HDMI

HDMI2_RX_CLK+_

HDMI

11 GND

HDMI1_RX_CLK-_

HDMI

14 N.C

HDMI1_SCL_DDC_

I2C

HDMI1_SDA_DDC_

I2C

17 GND

CN702(ARC)

HDMI2_RX_CLK-_

HDMI

14 ARC1_SINGLE

HDMI2_SCL_DDC_

I2C

HDMI2_SDA_DDC_

I2C

17 GND

CN701(MHL)

6

1 HDM3_RX2+_HDMI 11 GND

2 GND 12

3 HDMI3_RX2-_HDMI 13 CEC

HDMI3_RX1+_

4

5 GND 15

6 HDMI3_RX1-_HDMI 16

7

8 GND 18 HDMI3_5V_PW

9 HDMI3_RX0-_HDMI 19 HDMI3_HOT_PLUG

10

1 HDM4_RX2+_HDMI 11 GND

2 GND 12

3 HDMI4_RX2-_HDMI 13 CEC

4

5 GND 15

6 HDMI4_RX1-_HDMI 16

7

8 GND 18 HDMI4_5V_PW

9 HDMI4_RX0-_HDMI 19 HDMI4_HOT_PLUG

10

1 LAN_TXD+_LAN 5 B1.8V_PW

2 B1.8V_PW 6 LAN_RXD-_LAN

3 LAN_TXD-_LAN 7 N.C

4 LAN_RXD+_LAN 8 GND

HDMI

HDMI3_RX0+_

HDMI

HDMI3_RX_CLK+_

HDMI

CN704(STB/DVI)

7

HDMI4_RX1+_

HDMI

HDMI4_RX0+_

HDMI

HDMI4_RX_CLK+_

HDMI

CN1001_LAN(LAN)

8

HDMI3_RX_CLK-_

HDMI

14 N.C

HDMI3_SCL_DDC_

I2C

HDMI3_SDA_DDC_

I2C

17 GND

HDMI4_RX_CLK-_

HDMI

14 N.C

HDMI4_SCL_DDC_

I2C

HDMI4_SDA_DDC_

I2C

17 GND

OP501(Optical)

9

1 SPDIF_OUT 3 DGND

2 B5V_PW

5-4

5. Wiring Diagram

CN603(AV)

10

1 GND 5 TEST_SR

2 AV1_CVBS_IN 6 TEST_SL

3 COMP_AV2_SR_IN 7 COMP_AV2_SL_IN

4 IDENT_VIDEO

CN1301_RS(Serial)

11

1 DGND 5 N.C

2 EXLINK_TX 6 N.C

3 EXLINK_RX 7 DGND

4 N.C

CN601(COMP)

12

1 COMP_YN 9 TEST_PR

COMP_Y_CVBS

2

(AV1_CVBS_IN)

3 IDENT_VIDEO 11 COMP_AV1_SL_IN

4 COMP_PBN 12 TEST_SL

5 COMP_PB 13 COMP_PB

6 IDENT_COMP 14 COMP_AV1_SR_IN

7 COMP_PRN 15 TEST_SR

8 COMP_PR 16 BT_RESET

1 IR 6 KEY_INPUT1

2 GND 7 KEY_INPUT2

3 A3.3V_PW 8 LED_STB

SCL_AMP_ECO_

4

5

I2C

SDA_AMP_ECO_

I2C

10 COMP_PR

CN1102

13

9 GND

CN2001(Vx1)

15

1 DGND 27 M_C_RX-_VBY1

2 SDA_FRC_I2C 28 VBY1_GND

3 AGING_ENABLE 29 M_B_RX+_VBY1

4 SCL_FRC_I2C 30 M_B_RX-_VBY1

BT_SYNC/PWM_

5

6 SDA_TCON_I2C 32 M_A_RX+_VBY1

7 TCON_I2C_EN 33 M_A_RX-_VBY1

8 SCL_TCON_I2C 34 VBY1_GND

9 DGND 35 LOCKN_TX_VBY1

10 VBY1_GND 36 N.C

11 M_H_RX+_VBY1 37 VBY1_GND

12 M_H_RX-_VBY1 38 VBY1_GND

13 VBY1_GND 39 VBY1_GND

14 M_G_RX+_VBY1 40 VBY1_GND

15 M_G_RX-_VBY1 41 N.C

16 VBY1_GND 42 PANEL_13V_PW

17 M_F_RX+_VBY1 43 PANEL_13V_PW

18 M_F_RX-_VBY1 44 PANEL_13V_PW

19 VBY1_GND 45 PANEL_13V_PW

20 M_E_RX+_VBY1 46 PANEL_13V_PW

21 M_E_RX-_VBY1 47 PANEL_13V_PW

22 VBY1_GND 48 PANEL_13V_PW

23 M_D_RX+_VBY1 49 PANEL_13V_PW

24 M_D_RX-_VBY1 50 PANEL_13V_PW

25 VBY1_GND 51 PANEL_13V_PW

26 M_C_RX+_VBY1

UFT

31 VBY1_GND

1

2

14

TOP_R+_-13V_

+13V_AO

TOP_R-_-13V_

+13V_AO

CN501

3

4

TOP_L+_-13V_

+13V_AO

TOP_L-_-13V_

+13V_AO

5-5

5. Wiring Diagram

CN201

16

1 GND 9 A13V_PW

2 GND 10 OVD_ON_OFF

3 A13V_PW 11

4 GND 12 ANA_DIMMING

5 A13V_PW 13 A5V_PW

6 SW_POWER_OUT 14 BT_WAKE

7 A13V_PW 15 POWER_DET

8 B5V_PW 16 BT_RESET

SMPS_FET_FAIL_

DETECT

CN1101(BT/WIFI)

17

1 WIFI_NRESET 9 N.C

2 WIFI_WOL 10 GND

3 A5V_PW 11 BT+_USB

4 WIFI-_USB 12 BT-_USB

5 WIFI+_USB 13 A5V_PW

6 GND 14 BT_WAKE

7 GND 15 POWER_DET

8 N.C 16 BT_RESET

5. Wiring Diagram

SMPS Board 

CNM803

1

CNL802

2

SMPS Board Pin Map 

CNM803 (P-Dim Control from Main Board)

1

1 FAIL_COUNT 7 A13V

2 ANA_DIM 8 POWER_ON/OFF

3 A13V 9 A13V

4 OD_ON/OFF 10 GND

5 A13V 11 GND

6 BLU_PWM 12 GND

AC Line Fuse &
Power Connector

CNL802

2

1 2+ 9 1+

2 N.C 10 N.C

3 N.C 11 N.C

4 2- 12 1-

5 N.C 13 N.C

6 N.C 14 N.C

7 N.C 15 IF2

8 N.C 16 IF1

5-6

ANNEX. Exploded View & Part List

ANNEX. Exploded View & Part List [UN75JU641DFXZA TD03]

1-1. Exploded View

1-1-1. Parts List

No. Code No. Description & Specication Q’ty SA/SNA Remark

1 BN95-02001S PRODUCT LCD-AMLCD; CY-GJ075HGLVCV/H,JU640 1 SA

2 BN96-35006D ASSY SPEAKER P; 6ohm,4pin,10W,JU6400 65" 1 SA

3 BN94-10483F ASSY PCB MAIN; LED TV 1 SA

4 BN44-00809A DC VSS-LED TV PD BD; L75S6TN_FDY,L75S6TN_ 1 SA

5 BN61-11587A HOLDER-SIDE AV; JU6400,HIPS,BLK,HB, 1 TUN 1 SNA

6 BN96-35345B ASSY BOARD P-FUNCTION_SW; JU7500,Function 1 SA

7 BN96-35346D ASSY BOARD P-FUNCTION ASSY; JU6400,Functi 1 SA

8 BN59-01194F NETWORK; 11ac Combo,Internal WiFi,USB 2.0 1 SA

9 BN96-35079A ASSY T CON P; LMF750FJ01-K,PCB-CONTROL,8b 1 SA

10 BN96-37262B ASSY BRACKET P-STAND LINK; JU7K 75",HGI-S 1 SNA

11 BN96-35661H ASSY COVER P-REAR; 75JU6400,USA,PC+ABS GF 1 SA

12 BN96-35976A ASSY GUIDE P-STAND; JU6400,75" 1 SA

13 BN96-35981A ASSY STAND P-BASE; JU6400,75" 1 SA

ANNEX-1

ANNEX-2

ANNEX. Exploded View & Part List

2-1. Electrical Parts List

Service Bom (SA: SERVICE AVAILABLE, SNA: SERVICE NOT AVAILABLE)

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

UN75JU641DFXZA (TD03)

1 BN90-06530E ASSY W/I;LED_J6K 1 SNA

0.2 BN81-08159Z PART SET-ELEC W/I;UF**,UH**,UG**,ELEC 1 SNA

0.2 BN81-11261A A/S PART SET-MECH W/I;UJ6P,U75JP* 1 SNA

1 S001A BN90-06690A ASSY STAND;LED_J6K,UJP6 48 6500 1 SNA

0.2 SG01A BN96-35976A ASSY GUIDE P-STAND;JU6400,75" 1 SA

..3 SCREW 6003-001010 SCREW-TAPTYPE;FH,+,B,M3,L6,ZPC(WHT),SWRC 1 SA

..3 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 2 SA

..3 6902-002472 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W300,L45 1 SNA

..3 BN61-11545A BRACKET-STAND NECK;JU7000_75,ALDC,AL DIE 1 SNA

..3 AH089 BN61-11933A HOLDER-CABLE;JU6300, 6400,ABS,BLK,HB 1 SNA

..3 BN63-13702A COVER-NECK;JU6300_75,ABS,BK 1 SNA

..3 BN63-13704A COVER-NECK SUB;JU6300_75,ABS,BK 1 SNA

..3 BN96-36733C ASSY ACCESSORY-SCREW;JU6400,W/W 1 SNA

...4 SCREW 6003-001334 SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR 9 SA

...4 6902-002512 BAG SCREW;LDPE,T0.05,W70,TRP,RECYCLE,NO, 1 SNA

0.2 SB04A BN96-35981A ASSY STAND P-BASE;JU6400,75" 1 SA

..3 SCREW 6002-000126 SCREW-TAPPING;FH,+,-,2S,M3,L10,ZPC(BLK), 10 SA

..3 SCREW 6003-001848 SCREW-TAPTYPE;FH,+,B,M4,L35,ZPC(BLK),SWR 3 SNA

..3 BN60-00162C SPACER-FOAM;FOAM,50000mm,DARK GRAY,0.5T, 2 SNA

..3 BN61-11873A BRACKET-STAND BAR;JU6400_75,HGI,T1.8,21. 1 SNA

..3 AS080 BN63-04755L SHEET-COVER;22LC350,PE,T0.05,W130mm,200M 1 SNA

..3 AS080 BN63-07229A SHEET-COVER;rose70",SI,T0.052,W50mm,100M 1 SNA

..3 BN63-13303A COVER-STAND BASE;JU6300_75,ABS,BLK 1 SNA

..3 BN64-02814A BADGE-INLET;HU7200,Ni,0.08,20,silver chr 1 SNA

..3 BN67-00327J RUBBER-FOOT;RUBBER-FOOT,SILICONE,SQUARE, 7 SNA

..3 BN68-05381A LABEL-BASE;Art Paper 100G,T0.08,20mmX50m 1 SNA

..3 CB06A BN96-35987A ASSY BRACKET P;JU6300_48/50/55,,BN61-115 1 SNA

...4 SCREW 6003-001321 SCREW-TAPTYPE;BH,+,B,M4,L8,ZPC(BLK),SWRC 3 SA

...4 BN61-11503A BRACKET-STAND BASE;JU6400_75,HGI,T4.0 1 SNA

...4 CB18 BN61-11715A BRACKET-STAND LINK;JU6400_75,HGI,T4.0 1 SNA

1 R001A BN90-07063A ASSY COVER REAR;LED_UJ6K,75 6500 1 SNA

0.2 SCREW 6001-002755 SCREW-MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH1 22 SA

0.2 SCREW 6003-001782 SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR 1 SA

0.2 R001A BN96-35661H ASSY COVER P-REAR;75JU6400,USA,PC+ABS GF 1 SA

..3 R001 BN63-13237D COVER-REAR;JU6400_75",PC+ABS+GF15%,BLK, 1 SNA

..3 T0071 BN64-02929B INLAY-TERMINAL;JU6400,PC,T0.25,W114.7,L9 1 SNA

..3 BN68-06900B LABEL-TERMINAL SIDE;JU6400,PET,T0.125,15 1 SNA

..3 BN68-07079B LABEL-TERMINAL LICENSE;JU7500,PET,T0.125 1 SNA

1 BN91-13783S ASSY LCM-SDC;CY-GJ075HGLVCV,BN95-02001S 1 SNA

0.2 PANEL BN95-02001S PRODUCT LCD-AMLCD;CY-GJ075HGLVCV/H,JU640 1 SA

..3 SCREW 6001-002757 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 10 SA

..3 6001-003010 SCREW-MACHINE;CH,+,M3,L6,ZPC(BLK),SWRCH1 8 SNA

ANNEX-3

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

..3 BN02-00114A TAPE ETC-COF;NNB 55",PET,0.07T,20,12,GRE 8 SNA

..3 M0131 BN63-00520A GASKET;APPOLO_PAL,Conductive Fabric,0.13 5 SNA

..3 BN63-14681A GASKET-ESD, TAPE;Single Side Tape,FABRIC 2 SNA

..3 BN68-05595A LABEL-STICKER;Art Paper 100G,T0.2,80mmX2 1 SNA

..3 BN90-07320A ASSY MISC-BLU;. 1 SNA

...4 BN61-11754A LGP-DIFFUSESR PLATE;75inch Flat, Diffuse 1 SNA

...4 BN61-12993A SUPPORT-PLATE;Y15 LED(SAMEX ONLY),PC,V2, 30 SNA

...4 BN63-13520A SHEET-REFLECTOR;SY95S,PET,0.188,823.06,9 1 SNA

...4 BN63-14904A SHEET-COMPLEX;TPOP6,PET,0.455,1661.8,941 1 SNA

...4 BN63-14910A SHEET-MLS;UTE23F-10Q,PET,0.290,1661.8,94 1 SNA

...4 BN96-35035A ASSY FRAME P-MOLD MIDDLE LR;Y15 FLAT, 75 2 SNA

....5 BN60-00735Y SPACER-MIDDLE;Y14 VNB 65,PET,L910,NTR,T0 2 SNA

....5 BN60-01120K SPACER-PANEL(LR);Y15 UHD Flat 75" SDC,SI 2 SNA

....5 BN61-11412A FRAME-MOLD MIDDLE LR;Y15 JU7K 75",PC+GF1 2 SNA

...4 BN96-35042A ASSY FRAME P-MOLD MIDDLE D;Y15 FLAT, 75, 1 SNA

....5 BN61-11411A FRAME-MOLD MIDDLE D;Y15 JU7K 75",PC+GF10 1 SNA

...4 BN96-35049A ASSY FRAME P-MOLD MIDDLE U;Y15 FLAT, 75, 1 SNA

....5 BN60-00744A SPACER-RUBBER;Y13 F-LED SLIM,SH-0140U+AT 1 SNA

....5 BN60-01120J SPACER-PANEL(UD);Y15 UHD Flat 75" SDC,SI 2 SNA

....5 BN60-01280J SPACER-MIDDLE;Y15 7K 75,PET,L825,NTR,T0. 2 SNA

....5 BN61-11410A FRAME-MOLD MIDDLE U;Y15 JU7K 75",PC+GF10 1 SNA

...4 BN96-38059A ASSY CHASSIS BOTTOM P;Y15 JU64K 75",EGI- 1 SNA

....5 BN02-00102B TAPE-FILAMENT;#8917,0.15,25,50,WHITE 0 SNA

....5 BN61-11982A HOLDER-WALL RIVET;Y15 F-LED,CR-SPCC,L15. 4 SNA

....5 BN63-14371A GASKET;CTGF10-07-025-08,Conductive Fabri 4 SNA

....5 BN63-14372A GASKET;CTGF10-07-035-08,Conductive Fabri 1 SNA

....5 BN96-34763A ASSY LED BAR P-LED BAR;75" UHD_L_SDC,6ea 9 SNA

....5 BN96-34764A ASSY LED BAR P-LED BAR;75" UHD_M_SDC,6ea 9 SNA

....5 BN96-34765A ASSY LED BAR P-LED BAR;75" UHD_R_SDC,6ea 9 SNA

....5 BN96-35402A ASSY CHASSIS BOTTOM P;JU6300 75 1 SNA

.....6 0203-006897 TAPE-DOUBLE FACE;SI,T1.0,W10,L50,WHT 2 SNA

.....6 SCREW 6001-002757 SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH1 2 SA

.....6 BN02-00040C TAPE DOUBLE FACE-D-PLATE;F-LED ALL,MKT50 6 SNA

.....6 BN02-00173C TAPE OPP;PET,0.05,40,BLK 0 SNA

.....6 BN02-00352E TAPE OPP;PET,T0.05,W15,L50M,BLK,ULNO.E16 0 SNA

.....6 BN61-11413A HOLDER-MIDDLE U;Y15 JU7K 75",PC+GF10%,LI 1 SNA

.....6 BN61-11414A HOLDER-MIDDLE D;Y15 JU7K 75",PC+GF10%,LI 1 SNA

.....6 BN61-11415A HOLDER-MIDDLE LR;Y15 JU7K 75",PC+GF10%,L 2 SNA

.....6 BN61-11477A HOLDER-SOURCE PCB;Y15 JU7K SDC,ABS,BLK,H 8 SNA

.....6 BN61-11982A HOLDER-WALL RIVET;Y15 F-LED,CR-SPCC,L15. 4 SNA

.....6 BN62-00690D INSULATION-PD-BOARD;JU7500,PC,0.43,340.0 1 SNA

.....6 BN63-14961A GASKET-ESD, SPONGE;GASKET,FABRIC,7,15,25 4 SNA

.....6 CC02 BN64-02868A CHASSIS-BOTTOM;Y15 JU7K 75",EGI-SECC AG, 1 SNA

.....6 BN67-00338E RUBBER-BOTTOM;Y15 ALL MODEL,SILICON,T3.0 2 SNA

.....6 BN96-34713A ASSY BOARD P-LED INTERFACE BOARD;8pin 75 1 SNA

.....6 BN96-34714A ASSY BOARD P-LED INTERFACE BOARD;8pin 75 1 SNA

ANNEX-4

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...4 BN97-09469A ASSY SHEET-REFLECTOR;SY95S,833.06 X 926. 1 SNA

..3 FL06 BN96-34971A ASSY CABLE P-FFC;UHD,FFC,NH,57mm짹1.0,68 4 SNA

..3 BN96-35021A ASSY COVER P-SOURCE PCB;Y15 FLAT, 75,BN6 1 SNA

...4 BN62-00537V INSULATION-S-COVER-L;Y15 JU7K 75",PET,0. 1 SNA

...4 BN63-13208A COVER-SOURCE PCB L;Y15 JU7K 75",EGI-SECC 1 SNA

..3 BN96-35063A ASSY OPEN CELL;LSF750FJ01-K,8bit,75INCH, 1 SNA

...4 BN81-07435A A/S-ADHESIVE-A.C.F;ADHESIVE-A.C.F,CP-127 1 SNA

...4 BN81-07943A CKD-ADHESIVE-A.C.F(TP500B);ADHESIVE-A.C. 1 SNA

...4 BN81-10628A A/S-POLARIZER-C/F;POLARIZER-C/F,LJ01-098 1 SNA

...4 BN81-10629A A/S-POLARIZER-TFT;POLARIZER-TFT,LJ01-098 1 SNA

...4 BN82-01558A A/S ASSY-ASSY PCB-SOURCE(F-L);ASSY PCB-S 1 SNA

...4 BN82-01559A A/S ASSY-ASSY PCB-SOURCE(F-R);ASSY PCB-S 1 SNA

...4 BN82-01560A A/S ASSY-ASSY PCB-SOURCE(B-L);ASSY PCB-S 1 SNA

...4 BN82-01561A A/S ASSY-ASSY PCB-SOURCE(B-R);ASSY PCB-S 1 SNA

...4 BN82-01562A A/S ASSY-IC DRIVER GATE;IC DRIVER GATE,L 1 SNA

...4 BN82-01563A A/S ASSY-IC DRIVER SOURCE;IC DRIVER SOUR 1 SNA

..3 TCON BN96-35079A ASSY T CON P;LMF750FJ01-K,PCB-CONTROL,8b 1 SA

..3 TC01A BN96-35599E ASSY CHASSIS TOP P;Y15 JU641D 75",PC+ABS 1 SNA

...4 BN02-00102B TAPE-FILAMENT;#8917,0.15,25,50,WHITE 0 SNA

...4 BN02-00381L TAPE CONDUCTIVE-PTC(UD);Y15 UHD Flat 75" 2 SNA

...4 BN02-00381M TAPE CONDUCTIVE-PTC(LR);Y15 UHD Flat 75" 2 SNA

...4 BN60-00715A SPACER-TOP,CORNER;Y13 Slim F-LED,GASKET* 2 SNA

...4 BN60-01115A SPACER-TOP LINK;Y15 JU7K,CONDUCTIVE FABR 7 SNA

...4 BN60-01254G SPACER-TOP (D);JU6.4K 75",PUR FOAM,L1620 1 SNA

...4 FD01 BN63-13310E COVER-DECORATION;JU6400_75,ABS+PC+MF17%, 1 SNA

...4 BN63-14373E SHEET-COVER;PE+PP,0.068,33mm,ST-671HP,CL 6 SNA

...4 AC157 BN64-02899C CHASSIS-TOP;JU641D 75IN,ABS+PC+MF15%,BK0 1 SNA

..3 BN96-35637A ASSY COVER P-SOURCE R;Y15 JU7000 75",EGI 1 SNA

...4 BN60-00554R SPACER-SOURCE;Y15 VD,SI RUBBER,10,BLACK, 2 SNA

...4 BN62-00537U INSULATION-S-COVER-R;Y15 JU7K 75",PET,0. 1 SNA

...4 BN63-13209A COVER-SOURCE PCB R;Y15 JU7K 75",EGI-SECC 1 SNA

1 M0017 BN91-14203H ASSY CHASSIS;LED TV 1 SNA

0.2 BN94-08637B ASSY PCB MAIN SUBCON;75 ZA 1 SA

..3 AH020 BN62-00718A HEAT SINK;Hawk_UFP Heat Sink,A1050,1.5mm 1 SNA

..3 BN97-10060N ASSY SMD;UHD 6K,BN41 1 SNA

...4 0403-001164 DIODE-ZENER;MMSZ5232B,5.32-5.88V,500MW,S 1 SA

...4 0406-001317 DIODE-TVS;SMAJ14A,15.6/-/17.2V,400W,SMA 1 SNA

...4 0406-001556 DIODE-TVS;NUP4114UCW1,6/-/-V,180W,SC-88 4 SA

...4 0406-001691 DIODE-TVS;5.5V,7.0V,8.5V,0.5MAV,TP 6 SA

...4 0501-000465 TR-SMALL SIGNAL;MMBT3904,NPN,350mW,SOT-2 1 SA

...4 EL02 0601-002037 LED;SMD(TOP VIEW),BLUE,1.6x0.8mm,465/470 1 SA

...4 1105-002274 IC-DDR3 SDRAM;K4B1G1646G-BCMA,DDR3 1866, 4 SNA

...4 1203-004363 IC-VOL. DETECTOR;SOT-23,3Z30,2.9x1.6mm,P 1 SA

...4 1203-007707 IC-POSI.ADJUST REG.;AP7362ADJ,SO-8EP,8Z3 1 SA

...4 1203-008118 IC-DC/DC CONVERTER;AOZ3013PI,SO-8,8P,4.9 3 SA

...4 1203-008391 IC-DC/DC CONVERTER;AOZ1269QI-02,QFN-23L, 1 SA

ANNEX-5

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...4 1204-003609 IC-VIDEO PROCESS;SDP1403,FCPBGAH,1000P,2 1 SA

...4 IS01 1209-002183 IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9x1 1 SA

...4 2007-000109 R-CHIP;1Mohm,5%,1/10W,TP,1608 1 SA

...4 2007-000137 R-CHIP;2Kohm,5%,1/16W,TP,1005 6 SNA

...4 2007-000138 R-CHIP;100ohm,5%,1/16W,TP,1005 24 SA

...4 2007-000140 R-CHIP;1Kohm,5%,1/16W,TP,1005 1 SA

...4 2007-000239 R-CHIP;1.5Kohm,1%,1/10W,TP,1608 1 SNA

...4 2007-000614 R-CHIP;24Kohm,1%,1/10W,TP,1608 1 SNA

...4 2007-007135 R-CHIP;18Kohm,1%,1/16W,TP,1005 1 SNA

...4 2007-007309 R-CHIP;12Kohm,1%,1/16W,TP,1005,0.35T 1 SA

...4 2007-007315 R-CHIP;3.9Kohm,1%,1/16W,TP,1005 1 SNA

...4 2007-007334 R-CHIP;200Kohm,1%,1/16W,TP,1005 4 SA

...4 2007-007590 R-CHIP;82Kohm,1%,1/16W,TP,1005 1 SNA

...4 2007-007627 R-CHIP;16Kohm,1%,1/16W,TP,1005 3 SA

...4 2007-007842 R-CHIP;21.5Kohm,1%,1/10W,TP,1608 1 SA

...4 2007-008332 R-CHIP;11.5Kohm,1%,1/16W,TP,1005 1 SA

...4 2007-010387 R-CHIP;10Kohm,1%,1/16W,TP,1005 1 SA

...4 AD480 2203-000332 C-CER,CHIP;0.012nF,5%,50V,C0G,TP,1608 2 SA

...4 AD480 2203-000975 C-CER,CHIP;47nF,10%,25V,X7R,TP,1608 1 SNA

...4 AD480 2203-005344 C-CER,CHIP;22nF,10%,25V,X7R,TP,1005,0.5T 2 SNA

...4 AD480 2203-006158 C-CER,CHIP;100nF,10%,16V,X7R,TP,1005,0.5 207 SA

...4 AD480 2203-006698 C-CER,CHIP;1000nF,10%,25V,X7R,TP,1608,0. 2 SA

...4 2703-003937 INDUCTOR-SMD;1uH,20%,7.0x6.47x3.0mm,0.00 1 SA

...4 2703-004589 INDUCTOR-SMD;2.2uH,20%,5050,2T,0.048Ohm, 2 SA

...4 2703-004847 INDUCTOR-SMD;4.7uH,20%,3838,1.8T,0.075Oh 1 SA

...4 2801-005324 CRYSTAL-SMD;27MHz,30ppm,Ceramic SMD(4pin 1 SA

...4 3601-001376 FUSE-SURFACE MOUNT;32V,3A,FAST-ACTING,Hi 1 SNA

...4 3708-003183 CONNECTOR-FPC/FFC/PIC;41P,0.5mm,SMD-A,AU 1 SA

...4 EH01 3711-008098 HEADER-BOARD TO CABLE;BOX,20P,1R,1.25mm, 1 SNA

...4 6302-001290 GASKET;SMR-TS-4-4.5-3,4.0mm,Ni+Au+SUS+Mg 6 SNA

...4 BN41-02319A PCB MAIN;hawk_ufp(4k),FR-4,4,1.2,123*160 1 SNA

...4 BN97-09534A ASSY MICOM-SPI;HAWK_UFP_XXXX,UJ6K,UWJ51, 1 SNA

....5 IC 1107-002265 IC-NOR FLASH;W25Q32FVSSIG,32Mbit,SOP,8P, 1 SA

0.2 M0014 BN94-10483F ASSY PCB MAIN;LED TV 1 SA

..3 BN61-11587A HOLDER-SIDE AV;JU6400,HIPS,BLK,HB, 1 TUN 1 SNA

..3 AH020 BN62-00726B HEAT SINK;Y15 UHD 6K (Main),A1050,BLACK 1 SNA

..3 T0527 BN68-00513A LABEL-E,PASS;ALL MODEL,YUPO(110G),BLACK, 1 SNA

..3 BN97-09484A ASSY DRM-KEY;JU7000,7500,HDCP, MAC 1 SNA

...4 BN46-00109H KEY CODE-CERTIFI;MAC,TV/AV,General 1 SNA

...4 BN46-00110P KEY CODE-CERTIFI;MIRACAST(HDCP2.2), TV 1 SNA

..3 BN97-10062K ASSY SMD;UHD 6K,BN41 1 SNA

...4 0202-001976 SOLDER-CREAM;LST-309M-K21,20~38um,96.5Sn 4 SNA

...4 DS01A 0401-001056 DIODE-SWITCHING;MMBD4148SE,100V,200mA,SO 1 SA

...4 0403-001783 DIODE-ZENER;BZB84-C6V2,5.8/6.6V,300mW,SO 4 SNA

...4 0404-001404 DIODE-SCHOTTKY;BAT721C,40V,200mA,SOT-23, 8 SA

...4 0406-001200 DIODE-TVS;RCLAMP0504F,6/-/-V,150W,SC-70 2 SA

ANNEX-6

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...4 0406-001573 DIODE-TVS;AOZ8806DI-05,6V,1uA/V,0.85V/A 1 SA

...4 0406-001628 DIODE-TVS;AOZ8804ADI,6/-/-V,150W,SLP2510 1 SA

...4 0406-001635 DIODE-TVS;SMF5.0A,6.4V, 6.7V, 7V,200W,SM 6 SA

...4 0501-000445 TR-SMALL SIGNAL;KTC3875S-Y,NPN,150mW,SOT 3 SC

...4 0504-000126 TR-DIGITAL;KSR1101,NPN,200mW,4.7K/4.7Koh 1 SA

...4 0505-001844 FET-SILICON;SI4435DDY-T1-GE3,P,-30V,-11. 1 SA

...4 0505-002598 FET-SILICON;AP2317GN,P,-20V,-4.2A,0.052o 1 SA

...4 0505-002893 FET-SILICON;AO4801AS,P,-30V,-5A,2W,SOIC- 1 SA

...4 0505-003397 FET-SILICON;2N7002K,N,60V,380mA,1.19ohm, 2 SA

...4 0505-003507 FET-SILICON;AO3424,N,30V,3.8A,1.4W,SOT-2 4 SA

...4 1001-001860 IC-ANALOG SWITCH;NX5L2750CGU,QFN,10P,1.4 1 SNA

...4 1006-001576 IC-DRIVER/RECEIVER;MAX3221ECPWR,TSSOP,16 1 SA

...4 1103-001564 IC-EEPROM;S-24C512CI-J800,512Kbit,64Kx8, 1 SA

...4 1105-002528 IC-DDR3 SDRAM;K4B4G1646D-BCMA,DDR3 1866, 4 SA

...4 1105-002534 IC-DDR3 SDRAM;K4B2G1646Q-BCMA,DDR3 SDRAM 2 SA

...4 1201-000166 IC-OP AMP;LM358,SOP,ST,8P,150MIL,DUAL,10 1 SA

...4 1201-003891 IC-AUDIO AMP;NTP7415,MLF,48P,7x7mm,DUAL, 1 SA

...4 1203-004364 IC-VOL. DETECTOR;RT9818C-42PV,SOT-23,3P, 1 SA

...4 1203-007018 IC-DC/DC CONVERTER;TPS54821RHL,QFN,14P,3 1 SA

...4 1203-007238 IC-PWM CONTROLLER;TPS54427,DDA,8P,4.8x3. 2 SNA

...4 1203-007694 IC-DC/DC CONVERTER;SN1106041DDAR,DDA,8Z3 1 SA

...4 1203-008023 IC-POSI.ADJUST REG.;AOZ2003PI,SO-8,8P,4. 1 SA

...4 1203-008082 IC-DC/DC CONVERTER;TPS54627DDAR,SOP 8P,8 1 SA

...4 1203-008104 IC-POSI.FIXED REG.;S-13A1D18-E800,HSOP,8 2 SNA

...4 1203-008105 IC-POSI.FIXED REG.;S-13A1D33-E800,HSOP,8 1 SNA

...4 1203-008112 IC-POSI.ADJUST REG.;AOZ2002PI,SO-8,8P,4. 1 SA

...4 1203-008183 IC-DC/DC CONVERTER;AOZ3015PI-1,EPAD SO-8 1 SA

...4 1203-008392 IC-VOL. DETECTOR;S-6414AAB-L800X,TSOT-23 1 SA

...4 1203-008393 IC-DDR TERMINATION REG.;AP2303MTR-G1-89, 1 SA

...4 1203-008454 IC-DC/DC CONVERTER;TPS56528,HSOP8,8P,4,8 1 SA

...4 1204-003660 IC-DECODER;SDP1406,PBGA,1053P,31*31mm,PL 1 SA

...4 1205-004983 IC-SWITCH;BD82032FVJ,TSSOP-B8J,8P,3.0x4. 3 SA

...4 1205-005264 IC-SWITCH;SOT-23,5P,2.9X1.6mm,PLASTIC,6V 2 SNA

...4 1205-005325 IC-REPEATER;PS8409QFN48GTR2-A1,QFN,48P,6 1 SNA

...4 1405-001271 VARISTOR;35V,20Vdc,5A,1.0x0.5mm,TP,100V, 14 SA

...4 2007-000143 R-CHIP;4.7Kohm,5%,1/16W,TP,1005 55 SA

...4 2007-000146 R-CHIP;6.8Kohm,5%,1/16W,TP,1005 2 SNA

...4 2007-000166 R-CHIP;300Kohm,5%,1/16W,TP,1005 1 SA

...4 2007-000171 R-CHIP;0ohm,5%,1/16W,TP,1005 73 SA

...4 2007-000173 R-CHIP;22ohm,5%,1/16W,TP,1005 10 SA

...4 2007-000174 R-CHIP;47ohm,5%,1/16W,TP,1005 50 SA

...4 2007-000772 R-CHIP;33Kohm,1%,1/10W,TP,1608 1 SA

...4 2007-000932 R-CHIP;470ohm,5%,1/16W,TP,1005 5 SA

...4 2007-000999 R-CHIP;510ohm,1%,1/10W,TP,1608 1 SA

...4 2007-001125 R-CHIP;68Kohm,1%,1/10W,TP,1608 4 SA

...4 2007-001292 R-CHIP;33ohm,5%,1/16W,TP,1005 10 SA

ANNEX-7

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...4 2007-007107 R-CHIP;100Kohm,1%,1/16W,TP,1005 11 SNA

...4 2007-007132 R-CHIP;15Kohm,1%,1/16W,TP,1005 3 SA

...4 2007-007134 R-CHIP;39Kohm,1%,1/16W,TP,1005 1 SA

...4 2007-007136 R-CHIP;4.7Kohm,1%,1/16W,TP,1005 1 SNA

...4 2007-007137 R-CHIP;1.2Kohm,1%,1/16W,TP,1005 1 SA

...4 2007-007138 R-CHIP;27Kohm,1%,1/16W,TP,1005 2 SA

...4 2007-007139 R-CHIP;47Kohm,1%,1/16W,TP,1005,0.35T 20 SA

...4 2007-007142 R-CHIP;10Kohm,1%,1/16W,TP,1005 26 SA

...4 2007-007197 R-CHIP;3.3ohm,5%,1/16W,TP,1005 4 SNA

...4 2007-007306 R-CHIP;100ohm,1%,1/16W,TP,1005 15 SNA

...4 2007-007307 R-CHIP;150ohm,1%,1/16W,TP,1005 1 SA

...4 2007-007308 R-CHIP;33Kohm,1%,1/16W,TP,1005 2 SA

...4 2007-007310 R-CHIP;8.2Kohm,1%,1/16W,TP,1005 2 SA

...4 2007-007311 R-CHIP;22Kohm,1%,1/16W,TP,1005 5 SA

...4 2007-007312 R-CHIP;20Kohm,1%,1/16W,TP,1005 3 SA

...4 2007-007314 R-CHIP;5.6Kohm,1%,1/16W,TP,1005 2 SA

...4 2007-007316 R-CHIP;3.3Kohm,1%,1/16W,TP,1005 2 SNA

...4 2007-007317 R-CHIP;2.2Kohm,1%,1/16W,TP,1005 1 SA

...4 2007-007318 R-CHIP;1Kohm,1%,1/16W,TP,1005 27 SA

...4 2007-007470 R-CHIP;7.5Kohm,1%,1/16W,TP,1005 2 SNA

...4 2007-007488 R-CHIP;75Kohm,1%,1/16W,TP,1005 1 SNA

...4 2007-007517 R-CHIP;240ohm,1%,1/16W,TP,1005 9 SNA

...4 2007-007528 R-CHIP;1.5Kohm,1%,1/16W,TP,1005 2 SA

...4 2007-007538 R-CHIP;56Kohm,1%,1/16W,TP,1005 1 SA

...4 2007-007766 R-CHIP;2Kohm,1%,1/16W,TP,1005 16 SA

...4 2007-007767 R-CHIP;200ohm,1%,1/16W,TP,1005 6 SA

...4 2007-007861 R-CHIP;62Kohm,1%,1/16W,TP,1005 1 SA

...4 2007-007942 R-CHIP;1Mohm,1%,1/16W,TP,1005 1 SNA

...4 2007-008015 R-CHIP;75ohm,1%,1/16W,TP,1005 12 SA

...4 2007-008137 R-CHIP;24Kohm,1%,1/16W,TP,1005 3 SNA

...4 2007-008213 R-CHIP;4.3Kohm,1%,1/16W,TP,1005 1 SA

...4 2007-008298 R-CHIP;49.9ohm,1%,1/16W,TP,1005 4 SA

...4 2007-009117 R-CHIP;49.9Kohm,1%,1/16W,TP,1005 1 SA

...4 2007-009777 R-CHIP;4.99Kohm,1%,1/16W,TP,1005 5 SA

...4 2011-001449 R-NETWORK;22ohm,5%,1/16W,L,4Points,TP,10 5 SA

...4 2011-001587 R-NETWORK;100ohm,5%,1/16W,L,CHIP-V,4P,TP 4 SA

...4 AD480 2203-000233 C-CER,CHIP;0.1nF,5%,50V,C0G,TP,1005 6 SA

...4 AD480 2203-000254 C-CER,CHIP;10nF,10%,16V,X7R,TP,1005 5 SA

...4 AD480 2203-000278 C-CER,CHIP;0.01nF,0.5pF,50V,C0G,TP,1005 4 SA

...4 AD480 2203-000359 C-CER,CHIP;0.15nF,5%,50V,C0G,TP,1005,0.5 3 SA

...4 AD480 2203-000438 C-CER,CHIP;1nF,10%,50V,X7R,TP,1005 18 SA

...4 AD480 2203-000489 C-CER,CHIP;2.2nF,10%,50V,X7R,TP,1005 1 SA

...4 AD480 2203-000585 C-CER,CHIP;0.22nF,10%,50V,X7R,TP,1005 3 SA

...4 AD480 2203-000627 C-CER,CHIP;0.022nF,5%,50V,C0G,TP,1005 3 SNA

...4 AD480 2203-000679 C-CER,CHIP;0.027nF,5%,50V,C0G,TP,1005 2 SA

...4 AD480 2203-000714 C-CER,CHIP;3.3nF,10%,50V,X7R,TP,1005 6 SA

ANNEX-8

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...4 AD480 2203-000812 C-CER,CHIP;0.033nF,5%,50V,C0G,TP,1005 5 SA

...4 AD480 2203-000854 C-CER,CHIP;0.039nF,5%,50V,C0G,TP,1005 1 SA

...4 AD480 2203-000940 C-CER,CHIP;0.47nF,10%,50V,X7R,TP,1005 1 SA

...4 AD480 2203-000995 C-CER,CHIP;0.047nF,5%,50V,C0G,TP,1005 1 SA

...4 AD480 2203-002285 C-CER,CHIP;10nF,10%,50V,X7R,TP,1005 10 SNA

...4 AD480 2203-002443 C-CER,CHIP;0.33nF,10%,50V,X7R,TP,1005 1 SNA

...4 AD480 2203-003019 C-CER,CHIP;8.2nF,10%,50V,X7R,TP,1005 3 SNA

...4 AD480 2203-005249 C-CER,CHIP;100nF,10%,50V,X7R,TP,1608 1 SA

...4 AD480 2203-005968 C-CER,CHIP;4.7nF,10%,50V,X7R,TP,1005,0.5 1 SNA

...4 AD480 2203-006048 C-CER,CHIP;100nF,10%,10V,X7R,TP,1005 325 SA

...4 AD480 2203-006126 C-CER,CHIP;47nF,10%,16V,X7R,TP,1005 2 SNA

...4 AD480 2203-006257 C-CER,CHIP;470nF,10%,6.3V,X5R,TP,1005,0. 2 SNA

...4 AD480 2203-006348 C-CER,CHIP;1000nF,10%,25V,X5R,TP,1608,0. 8 SA

...4 AD480 2203-006361 C-CER,CHIP;10000nF,10%,10V,X5R,TP,2012 6 SC

...4 AD480 2203-006562 C-CER,CHIP;1000nF,10%,10V,X5R,TP,1005 52 SNA

...4 AD480 2203-006636 C-CER,CHIP;220nF,10%,25V,X7R,TP,1608 2 SA

...4 AD480 2203-006824 C-CER,CHIP;4700nF,10%,10V,X5R,TP,1608 8 SNA

...4 AD480 2203-006838 C-CER,CHIP;2200nF,10%,6.3V,X5R,TP,1005 4 SA

...4 AD480 2203-006890 C-CER,CHIP;10000nF,20%,6.3V,X5R,TP,1608 56 SNA

...4 AD480 2203-007176 C-CER,CHIP;10000nF,10%,16V,X5R,TP,2012,1 4 SNA

...4 AD480 2203-007240 C-CER,CHIP;22000nF,20%,6.3V,X5R,TP,1608( 33 SA

...4 AD480 2203-007269 C-CER,CHIP;22000nF,20%,10V,X5R,TP,2012(2 15 SA

...4 AD480 2203-007486 C-CER,CHIP;1000nF,10%,50V,X5R,TP,1608 2 SA

...4 AD480 2203-007513 C-CER,CHIP;10000nF,10%,10V,X5R,TP,1608,0 42 SA

...4 AD480 2203-007544 C-CER,CHIP;100nF,10%,50V,X7R,TP,1005,0.5 16 SA

...4 2409-001338 C-POLYMER ,CHIP;47uF,20%,6.3V,TP,3.2x1.6 1 SA

...4 2503-001051 C-NETWORK;100nFx4,20%,16V,2012 1 SA

...4 2703-000158 INDUCTOR-SMD;1uH,10%,2012,.4Ohm,50mA,45, 1 SA

...4 2703-000213 INDUCTOR-SMD;470nH,10%,1608,1.35Ohm,35mA 1 SA

...4 2703-001938 INDUCTOR-SMD;56nH,5%,1005,1.5Ohm,200mA,1 3 SA

...4 2703-003135 INDUCTOR-SMD;4.7uH,20%,6965,0.04Ohm,7000 1 SNA

...4 2703-003713 INDUCTOR-SMD;1.5uH,20%,7366,0.015ohm,700 4 SA

...4 2703-004724 INDUCTOR-SMD;8.2uH,20%,5050,4mm,0.072Ohm 4 SA

...4 2703-005193 INDUCTOR-SMD;2.2uH,20%,6060,4.5,0.024ohm 1 SA

...4 2703-005194 INDUCTOR-SMD;3.3uH,20%,6060,4.5,0.03ohm, 1 SA

...4 2801-004477 CRYSTAL-SMD;24.576MHz,20ppm,SMD,18pF,15o 1 SA

...4 3301-000314 BEAD-SMD;120ohm,1608,TP,120ohm/100MHz 6 SNA

...4 3301-002039 BEAD-SMD;26ohm,1608,TP 47 SA

...4 3601-001374 FUSE-SURFACE MOUNT;32V,5A,FAST-ACTING,PL 2 SA

...4 3701-001861 CONNECTOR-HDMI;19P,FEMALE,AU,0.5mm,BLK,S 4 SA

...4 3707-001106 CONNECTOR-OPTICAL;STRAIGHT W/L,SPDIF 1 SA

...4 3708-003073 CONNECTOR-FPC/FFC/PIC;51P,0.5mm,SMD,AU,N 1 SA

...4 EH01 3711-008131 HEADER-BOARD TO CABLE;BOX,4P,1R,2.5mm,AN 1 SA

...4 EH01 3711-008422 HEADER-BOARD TO CABLE;BOX,9P,1R,1.25mm,S 1 SA

...4 EH01 3711-008659 HEADER-BOARD TO CABLE;BOX,16P,2R,2mm,ANG 1 SA

...4 EH01 3711-008859 HEADER-BOARD TO CABLE;BOX,12P,2R,2.0mm,A 1 SA

ANNEX-9

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

...4 3722-003229 JACK-MODULAR;8P/8C W/L,Y,STRAIGHT,N,Au,1 1 SA

...4 3722-003457 JACK-USB;4P/1C,NI,BLK,A 2 SA

...4 JACK PIN 3722-003546 JACK-PIN;5P+Screw hole,NI+SN,G,Y/BLU/RED 1 SA

...4 3722-003617 JACK-PHONE;14P/2C,SN,BLK,STRAIGHT,3.6PI, 1 SA

...4 JACK 3722-003837 JACK-USB;9P/1C,AU/SN/NI,BLU,SMD-A,A,3.0, 1 SA

...4 6302-001376 GASKET;D-Q43-14-180,6mm,SI 4 SNA

...4 ET01 BN40-00312B TUNER;GVTH-5B31,GVTH-5B31,VSB-half,75ohm 1 SA

...4 BN41-02344D PCB MAIN;JU6400_RETIMER,Hawk-MU,FR-4,4,D 1 SNA

...4 BN68-04746A LABEL-SMD;all model,POLY*,25.4mm x 9.53m 1 SNA

...4 BN97-09407B ASSY MICOM;T-HKMAKUC,UWJ51,ZX.KOR,1107-0 1 SNA

....5 1107-002357 IC-EMMC;H26M41103HPR,8Gbyte,BGA,153P,11. 1 SA

...4 BN97-09410A ASSY MICOM-SPI;T-HAWAUSS3,UWJ51,W25Q40CL 1 SNA

....5 1107-002226 IC-NOR FLASH;W25Q40CLSSIP,4Mbit,SOIC,8P, 1 SA

..3 M0131 MD63-00103A GASKET;GRANDSLAM,Conductive Fabric,1,10, 3 SNA

1 BN91-14356V ASSY SHIELD;LED_J6K 1 SNA

0.2 SCREW 6001-002789 SCREW-MACHINE;BH,+,M4,L6,ZPC(WHT),SWRCH1 1 SA

0.2 SCREW 6001-003016 SCREW-MACHINE;PWH,+,M3.0,L5.0,ZPC(WHT),S 19 SA

0.2 BN02-00102K TAPE FILAMENT;PE,0.15,25,55,WHITE 1 SNA

0.2 BN02-00352A TAPE PET;Y12 F-LED,PET,T0.05,30,40,BLK,8 1 SNA

0.2 M-F BN39-01990D LEAD CONNECTOR-FUNCTION;JU7K,FLAT Connec 1 SA

0.2 EC13 BN39-02017E LEAD CONNECTOR;FLAT CONNECTOR ASS'Y,Lead 1 SA

0.2 BN39-02030F LEAD CONNECTOR-BLU;BLU(75JU6400),LEAD CO 1 SA

0.2 BN39-02030H LEAD CONNECTOR-BLU;BLU(75JU6400),LEAD CO 1 SA

0.2 BN39-02058A LEAD CONNECTOR-POWER;UN75JU6400FXZA,Flat 1 SA

0.2 BN39-02059A LEAD CONNECTOR-TCON;Flat Connector,LEAD 1 SA

0.2 P001A BN44-00809A DC VSS-LED TV PD BD;L75S6TN_FDY,L75S6TN_ 1 SA

0.2 NW01 BN59-01194F NETWORK;11ac Combo,Internal WiFi,USB 2.0 1 SA

0.2 BN62-00730A PAD GAP;Silicone Thermal Pad,14T,20,20,3 1 SNA

0.2 BN62-00731A PAD GAP;HS01-13040-SST-3535,Silicone The 1 SNA

0.2 SP01A BN96-35006D ASSY SPEAKER P;6ohm,4pin,10W,JU6400 65" 1 SA

0.2 BN96-35345B ASSY BOARD P-FUNCTION_SW;JU7500,Function 1 SA

0.2 FB01A BN96-35346D ASSY BOARD P-FUNCTION ASSY;JU6400,Functi 1 SA

0.2 FL06 BN96-35462R ASSY CABLE P;UN75JU7000,FFC,NH,293mm,51P 1 SA

0.2 FL06 BN96-35462T ASSY CABLE P;UN75JU7000,FFC,NH,215mm,51P 1 SA

0.2 FL06 BN96-35850B ASSY CABLE P;UN75JU7000,FFC,NH,215mm,41P 1 SA

0.2 SB05A BN96-37262B ASSY BRACKET P-STAND LINK;JU7K 75",HGI-S 1 SNA

..3 CB18 BN61-11518B BRACKET-STAND LINK;JU7000 75",HGI-SGHC,2 1 SNA

...4 BN61-09605A BRACKET-STOPPER NUT;LED TV F6100,Others 4 SNA

..3 BN68-07662A LABEL-STICKER;JU7000-75",Brkt-Stand Link 1 SNA

..3 M0131 BP63-00223A GASKET;HLN507W1X/XAA,Conductive Fabric,2 2 SNA

0.2 M0131 MD63-00103A GASKET;GRANDSLAM,Conductive Fabric,1,10, 1 SNA

1 BN92-17088W ASSY LABEL;UHD 6K 1 SNA

0.2 BN68-05050A LABEL RATING;ALL,SS,PET,T0.05,93,73,Dark 1 SNA

0.2 BN68-07054F LEAFLET-02,QSG;JU6500,Samsung,United Sta 1 SNA

0.2 BN68-07705J LABEL-ENERGY;UN75JU641DFXZA,PET,T0.1,38, 1 SNA

0.2 BN74-00053G TAPE-PAPER;PAPER,3M2307,0.14T,W10,60M,WH 0 SNA

ANNEX. Exploded View & Part List

Level Location No. Code No. Description & Specication Q’ty SA/SNA Remark

1 BN92-17199A ASSY P/MATERIAL;LED_J6K,75 6500 1 SNA

0.2 6902-001492 BAG PE;HDPE/PE FOAM,T0.015/T0.5,W1900,L1 1 SNA

0.2 6902-002252 PACKING SHEET;HDPE/PE FOAM,T0.03/T0.5,W7 1 SNA

0.2 6922-000013 BAND;PP,W18,L2300/L2900,TRP 1 SNA

0.2 T0214 AA61-20285C HOLDER-BOX;CORAL,PP,BLACK,HB,17.5g 4 SNA

0.2 BN02-00319B TAPE OPP;OPP,T0.05,W75,L800m,CLEAR 2 SNA

0.2 AS080 BN63-07229A SHEET-COVER;rose70",SI,T0.052,W50mm,100M 1 SNA

0.2 BN69-11284A CUSHION-SET;JU6300_75,EPS,W/W 1 SNA

0.2 BN69-11296A CUSHION-SIDE;JU6300_75,EPS 2 SNA

0.2 BN69-12806A PAD-ANGLE;40J6400,PAPER,5 mm,100,1500,YE 1 SNA

1 ACCE1 BN92-18404K ASSY ACCESSORY;UJ6P 1 SNA

0.2 BN96-35713Q ASSY ACCESSORY MANUAL/CABLE;LED_J6K,UHD 1 SNA

..3 T0268 3903-000467 CBF-POWER CORD;DT,US,EP3,IEC320 C13-RA,1 1 SA

..3 4301-000121 BATTERY-MN;1.5V,R03,10.5x44.5m,7.5g,AAA 2 SNA

..3 REMO2 BN59-01198X REMOCON;TM1250A,49,3.0V,TM1250A_North Am 1 SA

..3 BN68-04972E LEAFLET-06,REGULATORY GUIDE;ALL,SAMSUNG, 1 SNA

..3 BN68-05723A LABEL-ACCESSORY;ALL MODELS,YUPO,0.2,20,7 1 SNA

..3 BN68-06965H MANUAL USERS;JU641D-75",United States,W/ 1 SNA

..3 BN68-07429B LEAFLET-RMH GUIDE;Common,ZA,W/P* 1 SNA

..3 BN69-08751A WRAP VINYL-SHRINK;STAND,PLASTIC OTHERS,P 0 SNA

..3 BN69-10158A BOX ACCESSORY;H8000_ACCESSORY,CB,SERP Re 1 SNA

..3 BN69-10179A PAD-TYPE;H8000_ACCESSORY_US,CB,SERP Recy 1 SNA

1 BN92-18473J ASSY BOX;UHD 6K 1 SNA

0.2 BH68-00697A LABEL BOX-00;ALL MODEL,ART PAPER 90G,60, 1 SNA

0.2 BN69-11645A BOX UNIT-SET,IN;75HU7000-TS,CB,C-01,DW1, 1 SNA

0.2 BN69-12538N PAD TOP;75JU64/7000-TS,CB,DW,W1800,D234 1 SNA

0.2 BN69-12550Z BOX UNIT;75JU641D-TS,CB,C-03,DW4,W1802,D 1 SNA

ANNEX-10

1.ExplodedView&PartList

ExplodedView

ExplodedViewsandPartsList

Copyright©1995-2016SAMSUNG.Allrightsreserved.1

ExplodedViewsandPartsList

PartsList

No.Lvl.Loc.MaterialCodeDescription&SpecicationSNAQty.

12PANELBN95-02001FPRODUCTLCD-AMLCD;

CY-GJ075HGLV4V ,JU6400,

22SP01ABN96-35006DASSYSPEAKERP-FRONT;6ohm,10SA1

32M0014BN94-10483EASSYPCBMAIN;LEDTVSA1

42P001ABN44-00809ADCVSS-PDBOARD;

L75S6TN_FDY ,AC/DC,364W ,1

53BN61-11587ACOVER-TERMINALSIDE;

HIPS,HIPS,BLACK,HB,B

62JOGBN96-35345BASSYBOARDP-FUNCTIONJOG;

JU7500,CT15SE8

72IRBN96-35346DASSYBOARDP-FUNCTIONIR;

JU6400,CT20SE39

82WIFIBN59-01194ANETWORK-WLANCLIENT;

WCH730B,58x31.45x8.5

93TCONBN96-35079AASSYTCONP;

LMF750FJ01-K,LMF750FJ01-K,8

102SB05ABN96-37262BASSYBRACKETP-ST ANDLINK;JU7K

75",HGI-S

112R001ABN96-35661HASSYCOVERP-REAR;

75JU6400,PC+ABS-GF15%,

SA1

SA1

SA1

SA1

SA1

SA1

SA1

SNA1

SA1

122SG01ABN96-35976AASSYGUIDEP-STAND;JU6400,75"SA1

132SB04ABN96-35981AASSYST ANDP-BOTTOM;JU6400,75"SA1

2Copyright©1995-2016SAMSUNG.Allrightsreserved.

ExplodedViewsandPartsList

2.ElectricalPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

UN75JU641DFXZA(TD01)

1BN90-06530EASSYW/I;LED_J6K1SNA

.2BN81-08159ZA/SPARTSET-ELECW/I;LEDTVELECspec-C1SNA

.2BN81-11261AA/SP AR TSET-MECHW/I;UJ6P ,U75JP*1SNA

1S001ABN90-06690AASSYSTAND;LED_J6K,UJP64865001SNA

.2SG01ABN96-35976AASSYGUIDEP-STAND;JU6400,75"1SA

..3SCREW6003-001010SCREW-TAPTYPE;FH,+,B,M3,L6,ZPC(WHT),SWRC1SA

..3SCREW6003-001782SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR2SA

..36902-002472BAGPE;HDPE/PEFOAM,T0.015/T0.5,W300,L451SNA

..3BN61-11545ABRACKET -ST ANDNECK;ALDC,NATURAL,ALDIEC1SNA

..3AH089BN61-11933AHOLDER-STANDCABLE;JU6300,6400,ABS,BLAC1SNA

..3BN63-13702ACOVER-ST ANDNECK;JU6300_75,ABS,HB,BLACK1SNA

..3BN63-13704ACOVER-ST ANDNECK;JU6300_75,ABS,HB,BLACK1SNA

..3BN96-36733CASSYACCESSORY -SCREW;JU6400,W/W1SNA

...4SCREW6003-001334SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR9SA

...46902-002512BAGSCREW;LDPE,T0.05,W70,TRP,RECYCLE,NO,1SNA

.2SB04ABN96-35981AASSYSTANDP-BOTTOM;JU6400,75"1SA

..3SCREW6002-000126SCREW-TAPPING;FH,+,-,2S,M3,L10,ZPC(BLK),10SA

..3SCREW6003-001848SCREW-TAPTYPE;FH,+,B,M4,L35,ZPC(BLK),SWR3SNA

..3BN60-00162CSPACER-FOAM;PEFOAM,ROLL,GRA Y ,T0.5,W152SNA

..3BN61-11873ABRACKET -ST ANDBODY;HGI,T1.8,NATURAL1SNA

..3AS080BN63-04755LSHEET-PROTECTIONCOVER;22LC350,PE,T0.05,1SNA

..3AS080BN63-07229ASHEET -PROTECTIONCOVER;rose70",PET,T0.051SNA

..3BN63-13303ACOVER-ST ANDTOP;JU6300_75,ABS,HB,BLACK1SNA

..3RF01BN67-00327JFOOT-RUBBER;SILICONE,GRAY ,T2.57SNA

..3BN68-05381ALABEL-STICKER;ART100G,T0.08,W20x50,WHIT1SNA

..3CB06ABN96-35987AASSYBRACKETP;JU6300_48/50/55,,HGI,NA TU1SNA

...4SCREW6003-001321SCREW-TAPTYPE;BH,+,B,M4,L8,ZPC(BLK),SWRC3SA

...4BN61-11503ABRACKET-STANDBOTTOM;HGI,T4,NATURAL1SNA

...4CB18BN61-11715ABRACKET-STANDLINK;HGI,T4,NATURAL1SNA

1R001ABN90-07063AASSYCOVERREAR;LED_UJ6K,7565001SNA

.2SCREW6001-002755SCREW -MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH122SA

.2SCREW6003-001782SCREW -T APTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR1SA

.2R001ABN96-35661HASSYCOVERP-REAR;75JU6400,PC+ABS-GF15%,1SA

..3R001BN63-13237DCOVER-REAR;75JU6400,PC+ABS+GF15%,V-1,BK01SNA

..3T0071BN64-02929BINLA Y -TERMINAL;JU6400,PC,T0.25,BLACK,AME1SNA

..3BN68-06900BINLAY-TERMINALSIDE;JU6400,PET,T0.125,W11SNA

..3BN68-07079BLABEL-STICKERLICENSE;JU7500,PET ,T0.125,1SNA

Copyright©1995-2016SAMSUNG.Allrightsreserved.3

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

1BN91-13783FASSYLCM-SDC;CY -GJ075HGL V4V ,BN95-02001F1SNA

.2PANELBN95-02001FPRODUCTLCD-AMLCD;CY-GJ075HGL V4V ,JU6400,1SA

..3SCREW6001-002757SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH110SA

..36001-003010SCREW-MACHINE;CH,+,M3,L6,ZPC(BLK),SWRCH18SNA

..3BN02-00114AT APEPET;NNB56",PET,T0.07,W12,L20,GREEN8SNA

..3M0131BN63-00520AGASKET -EMI;APPOLO_P AL,ConductiveFabric,5SNA

..3BN68-05595ALABEL-STICKER;ART100G,T0.2,W80X23,WHITE1SNA

..3BN90-06341AASSYMISC-BLU;CY-GJ075HGLV1V1SNA

...4BN61-11508ASUPPORT-PLATE;Y15LED,PC,V-2,CLEAR,OD-1930SNA

...4BN61-11754ADIFFUSERPLATE;15Y_J6.3K75INCH_DIFFUSER1SNA

...4BN63-13511AOPTICALSHEET-DBEF;15YJU7.0K75inchDBE1SNA

...4BN63-13514AOPTICALSHEET-PRISM;15Y7.0K75inchUTE31SNA

...4BN63-13520AOPTICALSHEET-REFLECTOR;15YJU7.0K75inc1SNA

...4BN96-34763AASSYLEDBARP;75"UHD_L_SDC,CEM3,view9SNA

...4BN96-34764AASSYLEDBARP;75"UHD_M_SDC,CEM3,view9SNA

...4BN96-34765AASSYLEDBARP;75"UHD_R_SDC,CEM3,view9SNA

...4BN96-35035AASSYFRAMEP-MIDDLELEFTRIGHT ;Y15FLAT,2SNA

....5BN60-00735YSP ACER-PET;Y14VNB65,PET ,L910,CLEAR,T0.2SNA

....5BN60-01120KSP ACER-SILICONE;Y15UHDFlat75"SDC,Si,2SNA

....5BN61-11412AFRAME-MIDDLELEFTRIGHT;Y15JU7K75",PC+2SNA

...4BN96-35042AASSYFRAMEP-MIDDLEBOTTOM;Y15FLAT ,75,1SNA

....5BN61-11411AFRAME-MIDDLEBOTTOM;Y15JU7K75",PC+GF101SNA

...4BN96-35049AASSYFRAMEP-MIDDLETOP;Y15FLAT ,75,PC+1SNA

....5BN60-00744ASP ACER-SILICONE;Y14F-LEDSLIM,Si,L29,CL1SNA

....5BN60-01120JSP ACER-SILICONE;Y15UHDFlat75"SDC,Si,2SNA

....5BN60-01280JSP ACER-PET;Y157K75,PET,L825,CLEAR,T0.12SNA

....5BN61-11410AFRAME-MIDDLETOP;Y15JU7K75",PC+GF10%,V1SNA

...4BN96-38059AASSYCHASSISREARP;Y15JU64K75",EGI-SE1SNA

....5BN02-00102BTAPE-FILAMENT;#8917,0.15,25,50,WHITE0SNA

....5BN61-11982AHOLDER-W ALLRIVET;Y15F-LED,CR-SPCC,L15.4SNA

....5BN63-14371AGASKET -EMI;CTGF10-07-025-08,ConductiveF4SNA

....5BN63-14372AGASKET -EMI;CTGF10-07-035-08,ConductiveF1SNA

....5BN96-34763AASSYLEDBARP;75"UHD_L_SDC,CEM3,view9SNA

....5BN96-34764AASSYLEDBARP;75"UHD_M_SDC,CEM3,view9SNA

....5BN96-34765AASSYLEDBARP;75"UHD_R_SDC,CEM3,view9SNA

....5BN96-35402AASSYCHASSISREARP;JU630075,EGI-SECC1SNA

.....60203-006897TAPE-DOUBLEF ACE;SI,T1,W10,L50,WHT2SNA

.....6SCREW6001-002757SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH12SA

.....6BN02-00040CT APEDOUBLEF ACE;F-LEDALL,PET,T0.3,W3,L6SNA

.....6BN02-00173CT APE-OPP;PET,0.05,40,BLK0SNA

4Copyright©1995-2016SAMSUNG.Allrightsreserved.

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

.....6BN02-00352ET APE-OPP;PET ,T0.05,W15,L50M,BLK,ULNO.E160SNA

.....6BN61-11413AFRAME-CHASSISREARTOP;Y15JU7K75",PC+G1SNA

.....6BN61-11414AFRAME-CHASSISREARBOTTOM;Y15JU7K75",P1SNA

.....6BN61-11415AFRAME-CHASSISREARLEFTRIGHT;Y15JU7K72SNA

.....6BN61-11477AHOLDER-SOURCEPCB;Y15JU7KSDC,ABS,BLACK8SNA

.....6BN61-11982AHOLDER-W ALLRIVET;Y15F-LED,CR-SPCC,L15.4SNA

.....6BN62-00690DINSULA TOR-SMPS;JU7500,PC,BLACK,L405,W3401SNA

.....6BN63-14961AGASKET-EMI;GASKET,FABRIC,T7,W15,L25,BLAC4SNA

.....6CC02BN64-02868ACHASSIS-REAR;Y15JU7K75",EGI-SECC,T1,NA1SNA

.....6BN67-00338ESUPPOR T -SOURCEPCB;SILICON,GRAY ,T3,W10,L2SNA

.....6BN96-34713AASSYPCBP-LEDINTERFACEBOARD;75JU6400,1SNA

.....6BN96-34714AASSYPCBP-LEDINTERFACEBOARD;75JU6400,1SNA

...4BN97-09469AASSYSHEET-REFLECTOR;SY95S,833.06X926.1SNA

..3FL06BN96-34971AFFCCABLE;UHD,Straight,L57,68P4SNA

..3BN96-35021AASSYCOVERP-SOURCEPCB;Y15FLAT,75,EGI1SNA

...4BN62-00537VINSULA TOR-SOURCEPCBCOVERLEFT;Y15JU7K1SNA

...4BN63-13208ACOVER-SOURCEPCBLEFT;Y15JU7K75",EGI-S1SNA

..3BN96-35063AASSYOPENCELL;LSF750FJ01-K,16:9,FlatUH1SNA

...4BN81-07435AA/S-ADHESIVEACF;LSJ320AP04-E,0201-002341SNA

...4BN81-07943AA/S-ADHESIVEACF;LSF320AN01-A,0201-002371SNA

...4BN81-10628AA/S-POLARIZERCF;LSF750FF01-G,LJ01-098761SNA

...4BN81-10629AA/S-POLARIZERTFT;LSF750FF01-G,LJ01-09871SNA

...4BN82-01558AA/S-ASSYPCBSOURCEFRONTLEFT ;LSF750FJ01SNA

...4BN82-01559AA/S-ASSYPCBSOURCEFRONTRIGHT ;LSF750FJ1SNA

...4BN82-01560AA/S-ASSYPCBSOURCEBACKLEFT ;LSF750FJ011SNA

...4BN82-01561AA/S-ASSYPCBSOURCEBACKRIGHT ;LSF750FJ01SNA

...4BN82-01562AA/S-ICDRIVERGA TE;LSF750FJ01-K,LJ13-0341SNA

...4BN82-01563AA/S-ICDRIVERSOURCE;LSF750FJ01-K,LJ13-01SNA

..3TCONBN96-35079AASSYTCONP;LMF750FJ01-K,LMF750FJ01-K,81SA

..3TC01ABN96-35599EASSYCHASSISFRONTP;PC+ABSMF15%,BN64-01SNA

...4BN02-00102BT APE-FILAMENT;#8917,0.15,25,50,WHITE0SNA

...4BN02-00381LT APECONDUCTIVE;Y15UHDFlat75",CONDUCT2SNA

...4BN02-00381MT APECONDUCTIVE;Y15UHDFlat75",CONDUCT2SNA

...4BN60-00715ASPACER-CONDUCTIVE;Y13SlimF-LED,CONDUCT2SNA

...4BN60-01115ASPACER-CONDUCTIVE;Y15JU8K,CONDUCTIVEFA7SNA

...4BN60-01254GSPACER-CONDUCTIVE;JU6.4K75",PUFOAM,L161SNA

...4FD01BN63-13310ECOVER-DECORATION;ABS+PC+MF17%,Nohotsta1SNA

...4BN63-14373ESHEET -PROTECTIONCOVER;AL,T0.068,W33,ROL6SNA

...4AC157BN64-02899CCHASSIS-FRONT;ABS+PC+MF15%,DARKTITAN,CL1SNA

..3BN96-35637AASSYCOVERP-SOURCEPCBRIGHT;Y15JU70001SNA

Copyright©1995-2016SAMSUNG.Allrightsreserved.5

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...4BN60-00554RSP ACER-SILICONE;Y15VD,Si,L10,ID3,BLACK,2SNA

...4BN62-00537UINSULA TOR-SOURCEPCBCOVERRIGHT;Y15JU71SNA

...4BN63-13209ACOVER-SOURCEPCBRIGHT;Y15JU7K75",EGI-1SNA

1M0017BN91-14203GASSYCHASSIS;LEDTV1SNA

.2FRCBN94-08637BASSYPCBMAINSUBCON;75ZA1SA

..3AH020BN62-00718AHEA TSINK-PS;Hawk_UFPHeatSink,A1050,W11SNA

..3BN97-10060NASSYSMD;UHD6K,BN411SNA

...40403-001164DIODE-ZENER;MMSZ5232B,5.32~5.88V ,500mW ,S1SA

...40406-001317DIODE-TVS;SMAJ14A,15.6V ,17.2V ,1MA V ,6.5VP1SNA

...40406-001556DIODE-TVS;NUP4114UCW1,6V ,1MA V ,TP4SA

...40406-001691DIODE-TVS;SESD8008MUTAG,5.5V ,7V ,8.5V ,0.56SA

...40501-000465TR-SMALLSIGNAL;MMBT3904,NPN,350mW,SOT -21SA

...4EL020601-002037LED;SMD(TOPVIEW),BLUE,1.6x0.8mm,465/4701SA

...41105-002274IC-DDR3SDRAM;K4B1G1646G-BCMA,DDR31866,4SNA

...41203-004363IC-VOL.DETECTOR;SOT-23,3Z30,2.9x1.6mm,P1SA

...41203-007707IC-POSI.ADJUSTREG.;AP7362ADJ,SO-8EP,8,31SA

...41203-008118IC-DC/DCCONVERTER;AOZ3013PI,SO-8,8,4.963SA

...41203-008391IC-DC/DCCONVERTER;AOZ1269QI-02,QFN-23L,1SA

...41204-003609IC-VIDEOPROCESS;SDP1403,FCPBGAH,1000P,21SA

...4IS011209-002183IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9x11SA

...42007-000109R-CHIP;1Mohm,5%,1/10W,TP ,16081SA

...42007-000137R-CHIP;2Kohm,5%,1/16W,TP ,10056SNA

...42007-000138R-CHIP;100ohm,5%,1/16W,TP ,100524SA

...42007-000140R-CHIP;1Kohm,5%,1/16W,TP ,10051SA

...42007-000239R-CHIP;1.5Kohm,1%,1/10W,TP ,16081SNA

...42007-000614R-CHIP;24Kohm,1%,1/10W,TP ,16081SNA

...42007-007135R-CHIP;18Kohm,1%,1/16W,TP ,10051SNA

...42007-007309R-CHIP;12Kohm,1%,1/16W,TP ,1005,T0.351SA

...42007-007315R-CHIP;3.9Kohm,1%,1/16W,TP ,10051SNA

...42007-007334R-CHIP;200Kohm,1%,1/16W,TP ,10054SA

...42007-007590R-CHIP;82Kohm,1%,1/16W,TP ,10051SNA

...42007-007627R-CHIP;16Kohm,1%,1/16W,TP ,10053SA

...42007-007842R-CHIP;21.5Kohm,1%,1/10W,TP ,16081SA

...42007-008332R-CHIP;11.5Kohm,1%,1/16W ,TP ,10051SA

...42007-010387R-CHIP;10Kohm,1%,1/16W,TP ,10051SA

...4AD4802203-000332C-CER,CHIP;0.012nF,5%,50V ,C0G,TP ,16082SA

...4AD4802203-000975C-CER,CHIP;47nF,10%,25V ,X7R,TP ,16081SNA

...4AD4802203-005344C-CER,CHIP;22nF,10%,25V ,X7R,TP ,1005,0.5T2SNA

...4AD4802203-006158C-CER,CHIP;100nF,10%,16V ,X7R,TP ,1005,T0.207SA

...4AD4802203-006698C-CER,CHIP;1000nF,10%,25V ,X7R,TP ,1608,0.2SA

6Copyright©1995-2016SAMSUNG.Allrightsreserved.

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...42703-003937INDUCTOR-SMD;1uH,20%,7.0x6.47x3.0mm,0.001SA

...42703-004589INDUCTOR-SMD;2.2uH,20%,5050,2T,0.048Ohm,2SA

...42703-004847INDUCTOR-SMD;4.7uH,20%,3838,1.8T,0.075Oh1SA

...42801-005324CRYST AL-SMD;27MHz,30ppm,CeramicSMD(4pin1SA

...43601-001376FUSE-SURFACEMOUNT ;32V ,3A,FAST-ACTING,Hi1SNA

...43708-003183CONNECTOR-FPC/FFC/PIC;41P ,0.5mm,SMD-A,AU1SA

...4EH013711-008098HEADER-BOARDTOCABLE;BOX,20P ,1R,1.25mm,1SNA

...46302-001290GASKET;SMR-TS-4-4.5-3,4.0mm,Ni+Au+SUS+Mg6SNA

...4BN41-02319APCB-MAIN;HAWK_UFP4K,FR-4,4L,1.2T,123x1601SNA

...4BN97-09534AASSYMICOM-SPI;HAWK_UFP_XXXX,UJ6K,UWJ51,1SNA

....5IC1107-002265IC-NORFLASH;W25Q32FVSSIG,32Mbit,SOP,8P,1SA

.2M0014BN94-10483EASSYPCBMAIN;LEDTV1SA

..3BN61-11587ACOVER-TERMINALSIDE;HIPS,HIPS,BLACK,HB,B1SA

..3AH020BN62-00726BHEA TSINK-PS;Y15UHD6K(Main),A1050,W161SNA

..3T0527BN68-00513ALABEL-EPASS;ALLMODEL,WW,YUPO,W50,L15,W1SNA

..3BN97-09484AASSYDRM-KEY;JU7000,7500,HDCP,MAC1SNA

...4BN46-00109HKEYCODE-CERTIFICA TION;MAC,TV/A V ,General1SNA

...4BN46-00110PKEYCODE-CERTIFICA TION;MIRACAST(HDCP2.2)1SNA

..3BN97-10841AASSYSMD;JU6*,BN97-10062K1SNA

...40202-001976SOLDER-CREAM;LST-309M-K21,20~38um,96.5Sn4SNA

...4DS01A0401-001056DIODE-SWITCHING;MMBD4148SE,100V ,200mA,SO1SA

...40403-001783DIODE-ZENER;BZB84-C6V2,5.8~6.6V ,300mW ,SO4SNA

...40404-001404DIODE-SCHOTTKY;BA T721C,40V ,200mA,SOT-23,8SA

...40406-001200DIODE-TVS;RClamp0504F,6V ,1MA V ,TP2SA

...40406-001573DIODE-TVS;AOZ8806DI-05,6V ,1MA V ,0.85VP A,T1SA

...40406-001628DIODE-TVS;AOZ8804ADI,6V ,1MA V ,5A,TP1SA

...40406-001635DIODE-TVS;SMF5.0A,6.4V ,6.7V ,7V ,200MA V ,206SA

...40501-000445TR-SMALLSIGNAL;KTC3875S-Y,NPN,150mW,SOT3SC

...40504-000126TR-DIGITAL;KSR1101,NPN,200mW ,4.7K/4.7K,S1SA

...40505-001844FET-SILICON;SI4435DDY -T1-GE3,P ,30V ,-11.41SA

...40505-002598FET-SILICON;AP2317GN,P ,20V ,-4.2A,0.052oh1SA

...40505-002893FET-SILICON;AO4801AS,P ,30V ,-5A,2W,SOIC-81SA

...40505-003397FET-SILICON;2N7002K,N,60V ,0.38A,1.19ohm,2SA

...40505-003507FET-SILICON;AO3424,N,30V ,3.8A,1.4W ,SOT -24SA

...41001-001860IC-ANALOGSWITCH;NX5L2750CGU,QFN,10P,1.41SNA

...41006-001576IC-DRIVER/RECEIVER;MAX3221ECPWR,TSSOP ,161SA

...41103-001564IC-EEPROM;S-24C512CI-J800,512Kbit,64Kx8,1SA

...41105-002528IC-DDR3SDRAM;K4B4G1646D-BCMA,DDR31866,4SA

...41105-002534IC-DDR3SDRAM;K4B2G1646Q-BCMA,DDR3SDRAM2SA

...41201-000166IC-OPAMP;LM358,SOP,ST,8P ,150MIL,DUAL,101SA

Copyright©1995-2016SAMSUNG.Allrightsreserved.7

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...41201-003891IC-AUDIOAMP;NTP7415,MLF,48P ,7x7mm,DUAL,1SA

...41203-004364IC-VOL.DETECTOR;RT9818C-42PV ,SOT-23,3P,1SA

...41203-007018IC-DC/DCCONVERTER;TPS54821RHL,QFN,14,3.1SA

...41203-007238IC-PWMCONTROLLER;TPS54427,DDA,8P,4.8x3.2SNA

...41203-007694IC-DC/DCCONVERTER;SN1106041DDAR,DDA,8,51SA

...41203-008023IC-POSI.ADJUSTREG.;AOZ2003PI,SO-8,8,4.91SA

...41203-008082IC-DC/DCCONVERTER;TPS54627DDAR,SOP8P,81SA

...41203-008104IC-POSI.FIXEDREG.;S-13A1D18-E800,HSOP,82SNA

...41203-008105IC-POSI.FIXEDREG.;S-13A1D33-E800,HSOP,81SNA

...41203-008112IC-POSI.ADJUSTREG.;AOZ2002PI,SO-8,8,4.91SA

...41203-008183IC-DC/DCCONVERTER;AOZ3015PI-1,EPADSO-81SA

...41203-008392IC-VOL.DETECTOR;S-6414AAB-L800X,TSOT-231SA

...41203-008393IC-DDRTERMINATIONREG.;AP2303MTR-G1-89,1SA

...41203-008454IC-DC/DCCONVERTER;TPS56528,HSOP8,8,4,891SA

...41204-003660IC-DECODER;SDP1406,PBGA,1053P ,31*31mm,PL1SA

...41205-004983IC-SWITCH;BD82032FVJ,TSSOP-B8J,8P ,3.0x4.3SA

...41205-005264IC-SWITCH;SOT-23,5P ,2.9X1.6mm,PLASTIC,6V2SNA

...41205-005325IC-REPEA TER;PS8409QFN48GTR2-A1,QFN,48P ,61SNA

...41405-001271V ARISTOR;35V ,20Vdc,5A,1.0x0.5mm,TP ,100V ,14SA

...42007-000143R-CHIP;4.7Kohm,5%,1/16W,TP ,100551SA

...42007-000146R-CHIP;6.8Kohm,5%,1/16W,TP ,10052SNA

...42007-000166R-CHIP;300Kohm,5%,1/16W,TP ,10051SA

...42007-000171R-CHIP;0ohm,5%,1/16W,TP ,100573SA

...42007-000173R-CHIP;22ohm,5%,1/16W,TP ,100510SA

...42007-000174R-CHIP;47ohm,5%,1/16W,TP ,100550SA

...42007-000772R-CHIP;33Kohm,1%,1/10W,TP ,16081SA

...42007-000932R-CHIP;470ohm,5%,1/16W,TP ,10055SA

...42007-000999R-CHIP;510ohm,1%,1/10W,TP ,16081SA

...42007-001125R-CHIP;68Kohm,1%,1/10W,TP ,16084SA

...42007-001292R-CHIP;33ohm,5%,1/16W,TP ,100510SA

...42007-007107R-CHIP;100Kohm,1%,1/16W,TP ,100511SNA

...42007-007132R-CHIP;15Kohm,1%,1/16W,TP ,10053SA

...42007-007134R-CHIP;39Kohm,1%,1/16W,TP ,10051SA

...42007-007136R-CHIP;4.7Kohm,1%,1/16W,TP ,10051SNA

...42007-007137R-CHIP;1.2Kohm,1%,1/16W,TP ,10051SA

...42007-007138R-CHIP;27Kohm,1%,1/16W,TP ,10052SA

...42007-007139R-CHIP;47Kohm,1%,1/16W,TP ,1005,T0.3524SA

...42007-007142R-CHIP;10Kohm,1%,1/16W,TP ,100526SA

...42007-007197R-CHIP;3.3ohm,5%,1/16W,TP ,10054SNA

...42007-007306R-CHIP;100ohm,1%,1/16W,TP ,100515SNA

8Copyright©1995-2016SAMSUNG.Allrightsreserved.

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...42007-007307R-CHIP;150ohm,1%,1/16W,TP ,10051SA

...42007-007308R-CHIP;33Kohm,1%,1/16W,TP ,10052SA

...42007-007310R-CHIP;8.2Kohm,1%,1/16W,TP ,10052SA

...42007-007311R-CHIP;22Kohm,1%,1/16W,TP ,10055SA

...42007-007312R-CHIP;20Kohm,1%,1/16W,TP ,10053SA

...42007-007314R-CHIP;5.6Kohm,1%,1/16W,TP ,10052SA

...42007-007316R-CHIP;3.3Kohm,1%,1/16W,TP ,10052SNA

...42007-007317R-CHIP;2.2Kohm,1%,1/16W,TP ,10051SA

...42007-007318R-CHIP;1Kohm,1%,1/16W,TP ,100527SA

...42007-007470R-CHIP;7.5Kohm,1%,1/16W,TP ,10052SNA

...42007-007488R-CHIP;75Kohm,1%,1/16W,TP ,10051SNA

...42007-007517R-CHIP;240ohm,1%,1/16W,TP ,10059SNA

...42007-007528R-CHIP;1.5Kohm,1%,1/16W,TP ,10052SA

...42007-007538R-CHIP;56Kohm,1%,1/16W,TP ,10051SA

...42007-007766R-CHIP;2Kohm,1%,1/16W,TP ,100516SA

...42007-007767R-CHIP;200ohm,1%,1/16W,TP ,10056SA

...42007-007861R-CHIP;62Kohm,1%,1/16W,TP ,10051SA

...42007-007942R-CHIP;1Mohm,1%,1/16W,TP ,10051SNA

...42007-008015R-CHIP;75ohm,1%,1/16W,TP ,100512SA

...42007-008137R-CHIP;24Kohm,1%,1/16W,TP ,10053SNA

...42007-008213R-CHIP;4.3Kohm,1%,1/16W,TP ,10051SA

...42007-008298R-CHIP;49.9ohm,1%,1/16W,TP ,10054SA

...42007-009117R-CHIP;49.9Kohm,1%,1/16W,TP ,10051SA

...42007-009777R-CHIP;4.99Kohm,1%,1/16W,TP ,10055SA

...42011-001449R-NETWORK;22ohm,5%,1/16W,L,4P ,TP ,1.0x1.05SA

...42011-001587R-NETWORK;100ohm,5%,1/16W,L,CHIP ,4P ,TP ,14SA

...4AD4802203-000233C-CER,CHIP;0.1nF,5%,50V ,C0G,TP ,100510SA

...4AD4802203-000254C-CER,CHIP;10nF,10%,16V ,X7R,TP ,10055SA

...4AD4802203-000278C-CER,CHIP;0.01nF,0.5pF,50V,C0G,TP ,10054SA

...4AD4802203-000359C-CER,CHIP;0.15nF,5%,50V ,C0G,TP ,1005,0.53SA

...4AD4802203-000438C-CER,CHIP;1nF,10%,50V ,X7R,TP ,100518SA

...4AD4802203-000489C-CER,CHIP;2.2nF,10%,50V ,X7R,TP ,10051SA

...4AD4802203-000585C-CER,CHIP;0.22nF,10%,50V ,X7R,TP ,10053SA

...4AD4802203-000627C-CER,CHIP;0.022nF,5%,50V ,C0G,TP ,10053SNA

...4AD4802203-000679C-CER,CHIP;0.027nF,5%,50V ,C0G,TP ,10052SA

...4AD4802203-000714C-CER,CHIP;3.3nF,10%,50V ,X7R,TP ,10056SA

...4AD4802203-000812C-CER,CHIP;0.033nF,5%,50V ,C0G,TP ,10055SA

...4AD4802203-000854C-CER,CHIP;0.039nF,5%,50V ,C0G,TP ,10051SA

...4AD4802203-000940C-CER,CHIP;0.47nF,10%,50V ,X7R,TP ,10051SA

...4AD4802203-000995C-CER,CHIP;0.047nF,5%,50V ,C0G,TP ,10051SA

Copyright©1995-2016SAMSUNG.Allrightsreserved.9

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...4AD4802203-002285C-CER,CHIP;10nF,10%,50V ,X7R,TP ,100510SNA

...4AD4802203-002443C-CER,CHIP;0.33nF,10%,50V ,X7R,TP ,10051SNA

...4AD4802203-003019C-CER,CHIP;8.2nF,10%,50V ,X7R,TP ,10053SNA

...4AD4802203-005249C-CER,CHIP;100nF,10%,50V ,X7R,TP ,16081SA

...4AD4802203-005968C-CER,CHIP;4.7nF,10%,50V ,X7R,TP ,1005,0.51SNA

...4AD4802203-006048C-CER,CHIP;100nF,10%,10V ,X7R,TP ,1005324SA

...4AD4802203-006126C-CER,CHIP;47nF,10%,16V ,X7R,TP ,10052SNA

...4AD4802203-006257C-CER,CHIP;470nF,10%,6.3V ,X5R,TP ,1005,0.2SNA

...4AD4802203-006348C-CER,CHIP;1000nF,10%,25V ,X5R,TP ,1608,0.8SA

...4AD4802203-006361C-CER,CHIP;10000nF,10%,10V ,X5R,TP ,20126SC

...4AD4802203-006562C-CER,CHIP;1000nF,10%,10V ,X5R,TP ,100552SNA

...4AD4802203-006636C-CER,CHIP;220nF,10%,25V ,X7R,TP ,16082SA

...4AD4802203-006824C-CER,CHIP;4700nF,10%,10V ,X5R,TP ,16088SNA

...4AD4802203-006838C-CER,CHIP;2200nF,10%,6.3V ,X5R,TP ,10054SA

...4AD4802203-006890C-CER,CHIP;10000nF,20%,6.3V ,X5R,TP ,160855SNA

...4AD4802203-007176C-CER,CHIP;10000nF,10%,16V ,X5R,TP ,2012,14SNA

...4AD4802203-007240C-CER,CHIP;22000nF,20%,6.3V ,X5R,TP ,1608(33SA

...4AD4802203-007269C-CER,CHIP;22000nF,20%,10V ,X5R,TP ,2012(215SA

...4AD4802203-007486C-CER,CHIP;1000nF,10%,50V ,X5R,TP ,16082SA

...4AD4802203-007513C-CER,CHIP;10000nF,10%,10V ,X5R,TP ,1608,042SA

...4AD4802203-007544C-CER,CHIP;100nF,10%,50V ,X7R,TP ,1005,0.515SA

...42409-001338C-POLYMER,CHIP;47uF,20%,6.3V ,TP ,3.2x1.61SA

...42503-001051C-NETWORK;100nFx4,20%,16V ,20121SA

...42703-000158INDUCTOR-SMD;1uH,10%,0.4Ohm,50mA,45,Mult1SA

...42703-000213INDUCTOR-SMD;470nH,10%,1.35Ohm,35mA,15,M1SA

...42703-001938INDUCTOR-SMD;56nH,5%,1005,1.5Ohm,200mA,13SA

...42703-003135INDUCTOR-SMD;4.7uH,20%,6965,0.04Ohm,70001SNA

...42703-003713INDUCTOR-SMD;1.5uH,20%,7366,0.015Ohm,7004SA

...42703-004724INDUCTOR-SMD;8.2uH,20%,4T,0.072Ohm,2300m4SA

...42703-005193INDUCTOR-SMD;2.2uH,20%,4.5,0.024Ohm,51001SA

...42703-005194INDUCTOR-SMD;3.3uH,20%,4.5,0.03Ohm,4500m1SA

...42801-004477CRYST AL-SMD;24.576MHz,20ppm,SMD,18pF ,15o1SA

...43301-000314BEAD-SMD;120ohm,1608,TP ,120ohm/100MHz6SNA

...43301-002039BEAD-SMD;26ohm,1608,TP46SA

...43601-001374FUSE-SURFACEMOUNT ;32V ,5A,FAST-ACTING,PL2SA

...43701-001861CONNECTOR-HDMI;19P ,A,FEMALE,AU,0.5mm,BLK4SA

...43707-001106CONNECTOR-OPTICAL;STRAIGHT,SPDIF1SA

...43708-003073CONNECTOR-FPC/FFC/PIC;51P ,0.5mm,SMD-A,AU1SA

...4EH013711-008131HEADER-BOARDTOCABLE;BOX,4P ,1R,2.5mm,AN1SA

...4EH013711-008422HEADER-BOARDTOCABLE;BOX,9P ,1R,1.25mm,S1SA

10Copyright©1995-2016SAMSUNG.Allrightsreserved.

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...4EH013711-008659HEADER-BOARDTOCABLE;BOX,16P ,2R,2mm,ANG1SA

...4EH013711-008859HEADER-BOARDTOCABLE;BOX,12P ,2R,2.0mm,A1SA

...43722-003229JACK-MODULAR;8P/8C,Y ,STRAIGHT ,NONE,AU,1P1SA

...43722-003457JACK-USB;4P/1C,NI,BLK,ANGLE,A,2.0,13.1x12SA

...4JACK

3722-003546JACK-PIN;5P+Screwhole,NI+SN,BLU/GRN/RED1SA

PIN

...43722-003617JACK-PHONE;2P/14C,SN,BLK,STRAIGHT,3.6PI,1SA

...4JACK3722-003837JACK-USB;9P/1C,AU+NI+SN,BLU,SMD-A,A,3.0,1SA

...46302-001376GASKET-SMD;,,CONDUCTIVEFABRIC,T14,W43,L4SNA

...4ET01BN40-00311ATUNER-DTVAIRCABLE;DTVS20EH5A,VSBHalf,1SA

...4BN41-02344DPCB-MAIN;JU6400_RETIMER,FR-4,4L,1.2T,1921SNA

...4BN68-04746ALABEL-SMD;allmodel,POLY*,polyester,comm1SNA

...4BN97-09407BASSYMICOM;T-HKMAKUC,UWJ51,ZX.KOR,1107-01SNA

....51107-002357IC-EMMC;H26M41103HPR,8Gbyte,BGA,153P ,11.1SA

...4BN97-09410AASSYMICOM-SPI;T-HA W AUSS3,UWJ51,W25Q40CL1SNA

....51107-002226IC-NORFLASH;W25Q40CLSSIP ,4Mbit,SOIC,8P,1SA

..3M0131MD63-00103AGASKET-T APE;GRANDSLAM,ConductiveFabric,3SNA

1BN91-15243UASSYSHIELD;UHD6K1SNA

.2SCREW6001-002789SCREW -MACHINE;BH,+,M4,L6,ZPC(WHT),SWRCH11SA

.2SCREW6001-003016SCREW -MACHINE;PWH,+,M3.0,L5.0,ZPC(WHT),S19SA

.2BN02-00102KTAPE-FILAMENT;FILAMENT ,T0.15,W25,ROLL,WH1SNA

.2BN02-00352ATAPEPET ;Y12F-LED,PET,T0.05,W30,L40,BLA1SNA

.2M-FBN39-01990DLEADCONNECTOR-SUBASSY ;JU7K,UL21016,9P ,1SA

.2BN39-02017RLEADCONNECTOR-SUBASSY;FLA TCONNECTORA1SA

.216PBN39-02030FLEADCONNECTOR-BLU;BLU(75JU6400),UL210161SNA

.216PBN39-02030HLEADCONNECTOR-BLU;BLU(75JU6400),UL210161SA

.216P12PBN39-02058ALEADCONNECTOR-DIMMING;UN75JU6400FXZA,UL1SA

.214P15PBN39-02059ALEADCONNECTOR-DIMMING;FlatConnector,UL1SA

.2P001ABN44-00809ADCVSS-PDBOARD;L75S6TN_FDY ,AC/DC,364W ,11SA

.2WIFIBN59-01194ANETWORK-WLANCLIENT;WCH730B,58x31.45x8.51SA

.2HDP01BN61-12043AHOLDER-PCB;Y15_JU6400,ABS,BK0007,HB1SNA

.2BN62-00730APADGAP-THERMAL;SI,T14,L20,H20,301SNA

.2BN62-00731APADGAP-THERMAL;HS01-13040-SST-3535,SI,T1SNA

.2SP01ABN96-35006DASSYSPEAKERP-FRONT;6ohm,101SA

.2JOGBN96-35345BASSYBOARDP-FUNCTIONJOG;JU7500,CT15SE81SA

.2IRBN96-35346DASSYBOARDP-FUNCTIONIR;JU6400,CT20SE391SA

.2FL06BN96-35462RFFCCABLE;UN75JU7000,Straight,L293,51P1SA

.2FL06BN96-35462TFFCCABLE;UN75JU7000,Straight,L215,51P1SA

.2FL06BN96-35850BFFCCABLE;UN75JU7000,Straight,L215,41P1SA

.2SB05ABN96-37262BASSYBRACKETP-STANDLINK;JU7K75",HGI-S1SNA

..3CB18BN61-11518BBRACKET -ST ANDLINK;HGI-SGHC,T2,NATURAL1SNA

Copyright©1995-2016SAMSUNG.Allrightsreserved.11

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...4BN61-09605ASTUD-PEM;LEDTVF6100,SUM24L,L84SNA

..3BN68-07662ALABEL-STICKER;ART,RED1SNA

..3M0131BP63-00223AGASKET -EMI;HLN507W1X,XAA,ConductiveFabr2SNA

.2BP63-00028ASPACER-CONDUCTIVE;CONDUCTIVEFABRIC,COND2SNA

.2M0131MD63-00103AGASKET-T APE;GRANDSLAM,ConductiveFabric,1SNA

1BN92-17088WASSYLABEL;UHD6K1SNA

.2BN68-05050ALABEL-RA TING;ALLMODEL,SS,PE,T0.05,W93,L1SNA

.2BN68-07054FLEAFLET-QUICKSETUPGUIDE;JU6500,Samsung1SNA

.2BN68-07705JLABEL-ENERGY ;UN75JU641DFXZA,PET,T0.1,38,1SNA

.2BN74-00053GTAPE-PAPER;PAPER,3M2307,0.14T,W10,60M,WH0SNA

1BN92-17199AASSYP/MATERIAL;LED_J6K,7565001SNA

.26902-001492BAGPE;HDPE/PEFOAM,T0.015/T0.5,W1900,L11SNA

.26902-002252PACKINGSHEET;HDPE/PEFOAM,T0.03/0.5,W701SNA

.26922-000013BAND;PP ,W18,L2300/L2900,TRP1SNA

.2T0214AA61-20285CHOLDER-BOX;ALL,PP ,BLACK,HB,HB,17.5g4SNA

.2BN02-00319BTAPE-OPP;OPP ,T0.05,W75,L800m,CLEAR2SNA

.2AS080BN63-07229ASHEET -PROTECTIONCOVER;rose70",PET,T0.051SNA

.2BN69-11284ACUSHION-SET;JU6300_75,EPS,16.7g/l,WHT ,W/1SNA

.2BN69-11296ACUSHION-SETSIDE;JU6300_75,EPS,16.7g/l,W2SNA

.2BN69-12806APACKINGANGLE;40J6400,P APER1SNA

1ACCE1BN92-18404KASSYACCESSORY ;UJ6P1SNA

.2BN96-35713QASSYACCESSORY -MANUALCABLE;LED_J6K,UHD1SNA

..3T02683903-000467CBF-POWERCORD;DT,US,EP3,IEC320C13-RA,11SA

..34301-000121BA TTER Y -MN;1.5V ,R03,10.5x44.5m,7.5g,AAA2SNA

..3REMO2BN59-01198XREMOCON-TV;2015TV ,Samsung,49KEY ,3V ,Nort1SA

..3BN68-04972ELEAFLET-REGULA TORYGUIDE;ALL,SAMSUNG,W/W1SNA

..3BN68-05723ALABEL-ACCESSORY;ALLMODELS,YUPO,T0.2,W201SNA

..3BN68-06965HMANUALUSERS;JU641D-75",UnitedStates,W/1SNA

..3BN68-07429BLEAFLET-REMOTEMANAGEMENTHELPERGUIDE;C1SNA

..3BN69-08751AP ACKINGSHRINKAGE;STAND,PLASTICOTHERS,P0SNA

..3BN69-10158ABOXACCESSORY ;H8000_ACCESSORY ,CB,SW -E,NO1SNA

..3BN69-10179AP AD-ACCESSORY;H8000_ACCESSORY_US,CB,SERP1SNA

1BN92-18473JASSYBOX;UHD6K1SNA

.2BH68-00697ALABELBOX;ALL,ART,90g,W60,L100,WHT,NOSI1SNA

.2BN69-11645ABOXUNIT -IN;75HU7000-TS,CB,DW1,C1,L2242,1SNA

.2BN69-12538NPAD-SHEET;75JU64/7000-TS,CB,DW1,W1800,L21SNA

.2BN69-12550ZBOXUNIT;CB,CLUB1SNA

12Copyright©1995-2016SAMSUNG.Allrightsreserved.

1.ExplodedView&PartList

ExplodedView

ExplodedViewsandPartsList

Copyright©1995-2013SAMSUNG.Allrightsreserved.1

ExplodedViewsandPartsList

PartsList

No.Lvl.Loc.MaterialCodeDescription&SpecicationSNAQty.

12PANELBN95-02001SPRODUCTLCD-AMLCD;

CY-GJ075HGLVCV/H,JU640

22SP01ABN96-35006DASSYSPEAKERP;6ohm,4pin,10W ,JU640065"SA1

32M0014BN94-10483FASSYPCBMAIN;LEDTVSA1

42P001ABN44-00809ADCVSS-LEDTVPDBD;

L75S6TN_FDY ,L75S6TN_

53BN61-11587AHOLDER-SIDEAV;JU6400,HIPS,BLK,HB,1

TUN

62BN96-35345BASSYBOARDP-FUNCTION_SW;

JU7500,Function

72FB01ABN96-35346DASSYBOARDP-FUNCTIONASSY ;

JU6400,Functi

82NW01BN59-01194FNETWORK;11acCombo,InternalWiFi,USB2.0SA1

93TCONBN96-35079AASSYTCONP;

LMF750FJ01-K,PCB-CONTROL,8b

102SB05ABN96-37262BASSYBRACKETP-ST ANDLINK;JU7K

75",HGI-S

112R001ABN96-35661HASSYCOVERP-REAR;75JU6400,USA,PC+ABS

GF

122SG01ABN96-35976AASSYGUIDEP-STAND;JU6400,75"SA1

SA1

SA1

SNA1

SA1

SA1

SA1

SNA1

SA1

132SB04ABN96-35981AASSYST ANDP-BASE;JU6400,75"SA1

2Copyright©1995-2013SAMSUNG.Allrightsreserved.

ExplodedViewsandPartsList

2.ElectricalPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

UN75JU641DFXZA(TD03)

1BN90-06530EASSYW/I;LED_J6K1SNA

.2BN81-08159ZP AR TSET-ELECW/I;UF**,UH**,UG**,ELEC1SNA

.2BN81-11261AA/SP AR TSET-MECHW/I;UJ6P ,U75JP*1SNA

1S001ABN90-06690AASSYSTAND;LED_J6K,UJP64865001SNA

.2SG01ABN96-35976AASSYGUIDEP-STAND;JU6400,75"1SA

..3SCREW6003-001010SCREW-TAPTYPE;FH,+,B,M3,L6,ZPC(WHT),SWRC1SA

..3SCREW6003-001782SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR2SA

..36902-002472BAGPE;HDPE/PEFOAM,T0.015/T0.5,W300,L451SNA

..3BN61-11545ABRACKET -ST ANDNECK;JU7000_75,ALDC,ALDIE1SNA

..3AH089BN61-11933AHOLDER-CABLE;JU6300,6400,ABS,BLK,HB1SNA

..3BN63-13702ACOVER-NECK;JU6300_75,ABS,BK1SNA

..3BN63-13704ACOVER-NECKSUB;JU6300_75,ABS,BK1SNA

..3BN96-36733CASSYACCESSORY -SCREW;JU6400,W/W1SNA

...4SCREW6003-001334SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR9SA

...46902-002512BAGSCREW;LDPE,T0.05,W70,TRP,RECYCLE,NO,1SNA

.2SB04ABN96-35981AASSYSTANDP-BASE;JU6400,75"1SA

..3SCREW6002-000126SCREW-TAPPING;FH,+,-,2S,M3,L10,ZPC(BLK),10SA

..3SCREW6003-001848SCREW-TAPTYPE;FH,+,B,M4,L35,ZPC(BLK),SWR3SNA

..3BN60-00162CSPACER-FOAM;FOAM,50000mm,DARKGRA Y ,0.5T,2SNA

..3BN61-11873ABRACKET -ST ANDBAR;JU6400_75,HGI,T1.8,21.1SNA

..3AS080BN63-04755LSHEET-COVER;22LC350,PE,T0.05,W130mm,200M1SNA

..3AS080BN63-07229ASHEET -COVER;rose70",SI,T0.052,W50mm,100M1SNA

..3BN63-13303ACOVER-ST ANDBASE;JU6300_75,ABS,BLK1SNA

..3BN64-02814ABADGE-INLET;HU7200,Ni,0.08,20,silverchr1SNA

..3BN67-00327JRUBBER-FOOT;RUBBER-FOOT,SILICONE,SQUARE,7SNA

..3BN68-05381ALABEL-BASE;ArtPaper100G,T0.08,20mmX50m1SNA

..3CB06ABN96-35987AASSYBRACKETP;JU6300_48/50/55,,BN61-1151SNA

...4SCREW6003-001321SCREW-TAPTYPE;BH,+,B,M4,L8,ZPC(BLK),SWRC3SA

...4BN61-11503ABRACKET-STANDBASE;JU6400_75,HGI,T4.01SNA

...4CB18BN61-11715ABRACKET-STANDLINK;JU6400_75,HGI,T4.01SNA

1R001ABN90-07063AASSYCOVERREAR;LED_UJ6K,7565001SNA

.2SCREW6001-002755SCREW -MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH122SA

.2SCREW6003-001782SCREW -T APTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR1SA

.2R001ABN96-35661HASSYCOVERP-REAR;75JU6400,USA,PC+ABSGF1SA

..3R001BN63-13237DCOVER-REAR;JU6400_75",PC+ABS+GF15%,BLK,1SNA

..3T0071BN64-02929BINLA Y -TERMINAL;JU6400,PC,T0.25,W114.7,L91SNA

..3BN68-06900BLABEL-TERMINALSIDE;JU6400,PET ,T0.125,151SNA

Copyright©1995-2013SAMSUNG.Allrightsreserved.3

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

..3BN68-07079BLABEL-TERMINALLICENSE;JU7500,PET ,T0.1251SNA

1BN91-13783SASSYLCM-SDC;CY -GJ075HGL VCV ,BN95-02001S1SNA

.2PANELBN95-02001SPRODUCTLCD-AMLCD;CY-GJ075HGL VCV/H,JU6401SA

..3SCREW6001-002757SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH110SA

..36001-003010SCREW-MACHINE;CH,+,M3,L6,ZPC(BLK),SWRCH18SNA

..3BN02-00114AT APEETC-COF;NNB55",PET ,0.07T,20,12,GRE8SNA

..3M0131BN63-00520AGASKET ;APPOLO_P AL,ConductiveFabric,0.135SNA

..3BN63-14681AGASKET -ESD,TAPE;SingleSideTape,F ABRIC2SNA

..3BN68-05595ALABEL-STICKER;ArtPaper100G,T0.2,80mmX21SNA

..3BN90-07320AASSYMISC-BLU;.1SNA

...4BN61-11754ALGP-DIFFUSESRPLATE;75inchFlat,Diffuse1SNA

...4BN61-12993ASUPPORT-PLATE;Y15LED(SAMEXONL Y),PC,V2,30SNA

...4BN63-13520ASHEET-REFLECTOR;SY95S,PET,0.188,823.06,91SNA

...4BN63-14904ASHEET-COMPLEX;TPOP6,PET,0.455,1661.8,9411SNA

...4BN63-14910ASHEET-MLS;UTE23F-10Q,PET,0.290,1661.8,941SNA

...4BN96-35035AASSYFRAMEP-MOLDMIDDLELR;Y15FLA T,752SNA

....5BN60-00735YSP ACER-MIDDLE;Y14VNB65,PET,L910,NTR,T02SNA

....5BN60-01120KSP ACER-PANEL(LR);Y15UHDFlat75"SDC,SI2SNA

....5BN61-11412AFRAME-MOLDMIDDLELR;Y15JU7K75",PC+GF12SNA

...4BN96-35042AASSYFRAMEP-MOLDMIDDLED;Y15FLA T,75,1SNA

....5BN61-11411AFRAME-MOLDMIDDLED;Y15JU7K75",PC+GF101SNA

...4BN96-35049AASSYFRAMEP-MOLDMIDDLEU;Y15FLA T,75,1SNA

....5BN60-00744ASP ACER-RUBBER;Y13F-LEDSLIM,SH-0140U+A T1SNA

....5BN60-01120JSP ACER-P ANEL(UD);Y15UHDFlat75"SDC,SI2SNA

....5BN60-01280JSP ACER-MIDDLE;Y157K75,PET ,L825,NTR,T0.2SNA

....5BN61-11410AFRAME-MOLDMIDDLEU;Y15JU7K75",PC+GF101SNA

...4BN96-38059AASSYCHASSISBOTTOMP;Y15JU64K75",EGI-1SNA

....5BN02-00102BTAPE-FILAMENT;#8917,0.15,25,50,WHITE0SNA

....5BN61-11982AHOLDER-W ALLRIVET;Y15F-LED,CR-SPCC,L15.4SNA

....5BN63-14371AGASKET ;CTGF10-07-025-08,ConductiveFabri4SNA

....5BN63-14372AGASKET ;CTGF10-07-035-08,ConductiveFabri1SNA

....5BN96-34763AASSYLEDBARP-LEDBAR;75"UHD_L_SDC,6ea9SNA

....5BN96-34764AASSYLEDBARP-LEDBAR;75"UHD_M_SDC,6ea9SNA

....5BN96-34765AASSYLEDBARP-LEDBAR;75"UHD_R_SDC,6ea9SNA

....5BN96-35402AASSYCHASSISBOTTOMP;JU6300751SNA

.....60203-006897TAPE-DOUBLEF ACE;SI,T1.0,W10,L50,WHT2SNA

.....6SCREW6001-002757SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH12SA

.....6BN02-00040CT APEDOUBLEF ACE-D-PLA TE;F-LEDALL,MKT506SNA

.....6BN02-00173CT APEOPP;PET,0.05,40,BLK0SNA

.....6BN02-00352ET APEOPP;PET,T0.05,W15,L50M,BLK,ULNO.E160SNA

4Copyright©1995-2013SAMSUNG.Allrightsreserved.

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

.....6BN61-11413AHOLDER-MIDDLEU;Y15JU7K75",PC+GF10%,LI1SNA

.....6BN61-11414AHOLDER-MIDDLED;Y15JU7K75",PC+GF10%,LI1SNA

.....6BN61-11415AHOLDER-MIDDLELR;Y15JU7K75",PC+GF10%,L2SNA

.....6BN61-11477AHOLDER-SOURCEPCB;Y15JU7KSDC,ABS,BLK,H8SNA

.....6BN61-11982AHOLDER-W ALLRIVET;Y15F-LED,CR-SPCC,L15.4SNA

.....6BN62-00690DINSULA TION-PD-BOARD;JU7500,PC,0.43,340.01SNA

.....6BN63-14961AGASKET-ESD,SPONGE;GASKET,F ABRIC,7,15,254SNA

.....6CC02BN64-02868ACHASSIS-BOTTOM;Y15JU7K75",EGI-SECCAG,1SNA

.....6BN67-00338ERUBBER-BOTTOM;Y15ALLMODEL,SILICON,T3.02SNA

.....6BN96-34713AASSYBOARDP-LEDINTERFACEBOARD;8pin751SNA

.....6BN96-34714AASSYBOARDP-LEDINTERFACEBOARD;8pin751SNA

...4BN97-09469AASSYSHEET-REFLECTOR;SY95S,833.06X926.1SNA

..3FL06BN96-34971AASSYCABLEP-FFC;UHD,FFC,NH,57mm1.0,684SNA

..3BN96-35021AASSYCOVERP-SOURCEPCB;Y15FLAT,75,BN61SNA

...4BN62-00537VINSULA TION-S-COVER-L;Y15JU7K75",PET ,0.1SNA

...4BN63-13208ACOVER-SOURCEPCBL;Y15JU7K75",EGI-SECC1SNA

..3BN96-35063AASSYOPENCELL;LSF750FJ01-K,8bit,75INCH,1SNA

...4BN81-07435AA/S-ADHESIVE-A.C.F;ADHESIVE-A.C.F,CP-1271SNA

...4BN81-07943ACKD-ADHESIVE-A.C.F(TP500B);ADHESIVE-A.C.1SNA

...4BN81-10628AA/S-POLARIZER-C/F;POLARIZER-C/F,LJ01-0981SNA

...4BN81-10629AA/S-POLARIZER-TFT;POLARIZER-TFT,LJ01-0981SNA

...4BN82-01558AA/SASSY-ASSYPCB-SOURCE(F-L);ASSYPCB-S1SNA

...4BN82-01559AA/SASSY-ASSYPCB-SOURCE(F-R);ASSYPCB-S1SNA

...4BN82-01560AA/SASSY-ASSYPCB-SOURCE(B-L);ASSYPCB-S1SNA

...4BN82-01561AA/SASSY-ASSYPCB-SOURCE(B-R);ASSYPCB-S1SNA

...4BN82-01562AA/SASSY-ICDRIVERGA TE;ICDRIVERGA TE,L1SNA

...4BN82-01563AA/SASSY-ICDRIVERSOURCE;ICDRIVERSOUR1SNA

..3TCONBN96-35079AASSYTCONP;LMF750FJ01-K,PCB-CONTROL,8b1SA

..3TC01ABN96-35599EASSYCHASSISTOPP;Y15JU641D75",PC+ABS1SNA

...4BN02-00102BT APE-FILAMENT;#8917,0.15,25,50,WHITE0SNA

...4BN02-00381LT APECONDUCTIVE-PTC(UD);Y15UHDFlat75"2SNA

...4BN02-00381MT APECONDUCTIVE-PTC(LR);Y15UHDFlat75"2SNA

...4BN60-00715ASPACER-TOP ,CORNER;Y13SlimF-LED,GASKET*2SNA

...4BN60-01115ASPACER-TOPLINK;Y15JU7K,CONDUCTIVEFABR7SNA

...4BN60-01254GSPACER-TOP(D);JU6.4K75",PURFOAM,L16201SNA

...4FD01BN63-13310ECOVER-DECORATION;JU6400_75,ABS+PC+MF17%,1SNA

...4BN63-14373ESHEET -COVER;PE+PP ,0.068,33mm,ST-671HP ,CL6SNA

...4AC157BN64-02899CCHASSIS-TOP;JU641D75IN,ABS+PC+MF15%,BK01SNA

..3BN96-35637AASSYCOVERP-SOURCER;Y15JU700075",EGI1SNA

...4BN60-00554RSP ACER-SOURCE;Y15VD,SIRUBBER,10,BLACK,2SNA

Copyright©1995-2013SAMSUNG.Allrightsreserved.5

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...4BN62-00537UINSULA TION-S-COVER-R;Y15JU7K75",PET ,0.1SNA

...4BN63-13209ACOVER-SOURCEPCBR;Y15JU7K75",EGI-SECC1SNA

1M0017BN91-14203HASSYCHASSIS;LEDTV1SNA

.2BN94-08637BASSYPCBMAINSUBCON;75ZA1SA

..3AH020BN62-00718AHEA TSINK;Hawk_UFPHeatSink,A1050,1.5mm1SNA

..3BN97-10060NASSYSMD;UHD6K,BN411SNA

...40403-001164DIODE-ZENER;MMSZ5232B,5.32-5.88V ,500MW ,S1SA

...40406-001317DIODE-TVS;SMAJ14A,15.6/-/17.2V ,400W ,SMA1SNA

...40406-001556DIODE-TVS;NUP4114UCW1,6/-/-V ,180W,SC-884SA

...40406-001691DIODE-TVS;5.5V ,7.0V ,8.5V ,0.5MA V ,TP6SA

...40501-000465TR-SMALLSIGNAL;MMBT3904,NPN,350mW,SOT -21SA

...4EL020601-002037LED;SMD(TOPVIEW),BLUE,1.6x0.8mm,465/4701SA

...41105-002274IC-DDR3SDRAM;K4B1G1646G-BCMA,DDR31866,4SNA

...41203-004363IC-VOL.DETECTOR;SOT-23,3Z30,2.9x1.6mm,P1SA

...41203-007707IC-POSI.ADJUSTREG.;AP7362ADJ,SO-8EP,8Z31SA

...41203-008118IC-DC/DCCONVERTER;AOZ3013PI,SO-8,8P ,4.93SA

...41203-008391IC-DC/DCCONVERTER;AOZ1269QI-02,QFN-23L,1SA

...41204-003609IC-VIDEOPROCESS;SDP1403,FCPBGAH,1000P,21SA

...4IS011209-002183IC-SENSOR;S-5851AAA-M6T1U,SOT,6Z30,2.9x11SA

...42007-000109R-CHIP;1Mohm,5%,1/10W,TP ,16081SA

...42007-000137R-CHIP;2Kohm,5%,1/16W,TP ,10056SNA

...42007-000138R-CHIP;100ohm,5%,1/16W,TP ,100524SA

...42007-000140R-CHIP;1Kohm,5%,1/16W,TP ,10051SA

...42007-000239R-CHIP;1.5Kohm,1%,1/10W,TP ,16081SNA

...42007-000614R-CHIP;24Kohm,1%,1/10W,TP ,16081SNA

...42007-007135R-CHIP;18Kohm,1%,1/16W,TP ,10051SNA

...42007-007309R-CHIP;12Kohm,1%,1/16W,TP ,1005,0.35T1SA

...42007-007315R-CHIP;3.9Kohm,1%,1/16W,TP ,10051SNA

...42007-007334R-CHIP;200Kohm,1%,1/16W,TP ,10054SA

...42007-007590R-CHIP;82Kohm,1%,1/16W,TP ,10051SNA

...42007-007627R-CHIP;16Kohm,1%,1/16W,TP ,10053SA

...42007-007842R-CHIP;21.5Kohm,1%,1/10W,TP ,16081SA

...42007-008332R-CHIP;11.5Kohm,1%,1/16W ,TP ,10051SA

...42007-010387R-CHIP;10Kohm,1%,1/16W,TP ,10051SA

...4AD4802203-000332C-CER,CHIP;0.012nF,5%,50V ,C0G,TP ,16082SA

...4AD4802203-000975C-CER,CHIP;47nF,10%,25V ,X7R,TP ,16081SNA

...4AD4802203-005344C-CER,CHIP;22nF,10%,25V ,X7R,TP ,1005,0.5T2SNA

...4AD4802203-006158C-CER,CHIP;100nF,10%,16V ,X7R,TP ,1005,0.5207SA

...4AD4802203-006698C-CER,CHIP;1000nF,10%,25V ,X7R,TP ,1608,0.2SA

...42703-003937INDUCTOR-SMD;1uH,20%,7.0x6.47x3.0mm,0.001SA

6Copyright©1995-2013SAMSUNG.Allrightsreserved.

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...42703-004589INDUCTOR-SMD;2.2uH,20%,5050,2T,0.048Ohm,2SA

...42703-004847INDUCTOR-SMD;4.7uH,20%,3838,1.8T,0.075Oh1SA

...42801-005324CRYST AL-SMD;27MHz,30ppm,CeramicSMD(4pin1SA

...43601-001376FUSE-SURFACEMOUNT ;32V ,3A,FAST-ACTING,Hi1SNA

...43708-003183CONNECTOR-FPC/FFC/PIC;41P ,0.5mm,SMD-A,AU1SA

...4EH013711-008098HEADER-BOARDTOCABLE;BOX,20P ,1R,1.25mm,1SNA

...46302-001290GASKET;SMR-TS-4-4.5-3,4.0mm,Ni+Au+SUS+Mg6SNA

...4BN41-02319APCBMAIN;hawk_ufp(4k),FR-4,4,1.2,123*1601SNA

...4BN97-09534AASSYMICOM-SPI;HAWK_UFP_XXXX,UJ6K,UWJ51,1SNA

....5IC1107-002265IC-NORFLASH;W25Q32FVSSIG,32Mbit,SOP,8P,1SA

.2M0014BN94-10483FASSYPCBMAIN;LEDTV1SA

..3BN61-11587AHOLDER-SIDEA V;JU6400,HIPS,BLK,HB,1TUN1SNA

..3AH020BN62-00726BHEA TSINK;Y15UHD6K(Main),A1050,BLACK1SNA

..3T0527BN68-00513ALABEL-E,PASS;ALLMODEL,YUPO(110G),BLACK,1SNA

..3BN97-09484AASSYDRM-KEY;JU7000,7500,HDCP,MAC1SNA

...4BN46-00109HKEYCODE-CERTIFI;MAC,TV/A V ,General1SNA

...4BN46-00110PKEYCODE-CERTIFI;MIRACAST(HDCP2.2),TV1SNA

..3BN97-10062KASSYSMD;UHD6K,BN411SNA

...40202-001976SOLDER-CREAM;LST-309M-K21,20~38um,96.5Sn4SNA

...4DS01A0401-001056DIODE-SWITCHING;MMBD4148SE,100V ,200mA,SO1SA

...40403-001783DIODE-ZENER;BZB84-C6V2,5.8/6.6V ,300mW ,SO4SNA

...40404-001404DIODE-SCHOTTKY;BA T721C,40V ,200mA,SOT-23,8SA

...40406-001200DIODE-TVS;RCLAMP0504F,6/-/-V ,150W ,SC-702SA

...40406-001573DIODE-TVS;AOZ8806DI-05,6V ,1uA/V ,0.85V/A1SA

...40406-001628DIODE-TVS;AOZ8804ADI,6/-/-V ,150W ,SLP25101SA

...40406-001635DIODE-TVS;SMF5.0A,6.4V ,6.7V ,7V,200W ,SM6SA

...40501-000445TR-SMALLSIGNAL;KTC3875S-Y,NPN,150mW,SOT3SC

...40504-000126TR-DIGITAL;KSR1101,NPN,200mW ,4.7K/4.7Koh1SA

...40505-001844FET-SILICON;SI4435DDY -T1-GE3,P ,-30V ,-11.1SA

...40505-002598FET-SILICON;AP2317GN,P ,-20V ,-4.2A,0.052o1SA

...40505-002893FET-SILICON;AO4801AS,P ,-30V ,-5A,2W,SOIC-1SA

...40505-003397FET-SILICON;2N7002K,N,60V ,380mA,1.19ohm,2SA

...40505-003507FET-SILICON;AO3424,N,30V ,3.8A,1.4W ,SOT -24SA

...41001-001860IC-ANALOGSWITCH;NX5L2750CGU,QFN,10P,1.41SNA

...41006-001576IC-DRIVER/RECEIVER;MAX3221ECPWR,TSSOP ,161SA

...41103-001564IC-EEPROM;S-24C512CI-J800,512Kbit,64Kx8,1SA

...41105-002528IC-DDR3SDRAM;K4B4G1646D-BCMA,DDR31866,4SA

...41105-002534IC-DDR3SDRAM;K4B2G1646Q-BCMA,DDR3SDRAM2SA

...41201-000166IC-OPAMP;LM358,SOP,ST,8P ,150MIL,DUAL,101SA

...41201-003891IC-AUDIOAMP;NTP7415,MLF,48P ,7x7mm,DUAL,1SA

Copyright©1995-2013SAMSUNG.Allrightsreserved.7

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...41203-004364IC-VOL.DETECTOR;RT9818C-42PV ,SOT-23,3P,1SA

...41203-007018IC-DC/DCCONVERTER;TPS54821RHL,QFN,14P ,31SA

...41203-007238IC-PWMCONTROLLER;TPS54427,DDA,8P,4.8x3.2SNA

...41203-007694IC-DC/DCCONVERTER;SN1106041DDAR,DDA,8Z31SA

...41203-008023IC-POSI.ADJUSTREG.;AOZ2003PI,SO-8,8P,4.1SA

...41203-008082IC-DC/DCCONVERTER;TPS54627DDAR,SOP8P,81SA

...41203-008104IC-POSI.FIXEDREG.;S-13A1D18-E800,HSOP,82SNA

...41203-008105IC-POSI.FIXEDREG.;S-13A1D33-E800,HSOP,81SNA

...41203-008112IC-POSI.ADJUSTREG.;AOZ2002PI,SO-8,8P,4.1SA

...41203-008183IC-DC/DCCONVERTER;AOZ3015PI-1,EPADSO-81SA

...41203-008392IC-VOL.DETECTOR;S-6414AAB-L800X,TSOT-231SA

...41203-008393IC-DDRTERMINATIONREG.;AP2303MTR-G1-89,1SA

...41203-008454IC-DC/DCCONVERTER;TPS56528,HSOP8,8P ,4,81SA

...41204-003660IC-DECODER;SDP1406,PBGA,1053P ,31*31mm,PL1SA

...41205-004983IC-SWITCH;BD82032FVJ,TSSOP-B8J,8P ,3.0x4.3SA

...41205-005264IC-SWITCH;SOT-23,5P ,2.9X1.6mm,PLASTIC,6V2SNA

...41205-005325IC-REPEA TER;PS8409QFN48GTR2-A1,QFN,48P ,61SNA

...41405-001271V ARISTOR;35V ,20Vdc,5A,1.0x0.5mm,TP ,100V ,14SA

...42007-000143R-CHIP;4.7Kohm,5%,1/16W,TP ,100555SA

...42007-000146R-CHIP;6.8Kohm,5%,1/16W,TP ,10052SNA

...42007-000166R-CHIP;300Kohm,5%,1/16W,TP ,10051SA

...42007-000171R-CHIP;0ohm,5%,1/16W,TP ,100573SA

...42007-000173R-CHIP;22ohm,5%,1/16W,TP ,100510SA

...42007-000174R-CHIP;47ohm,5%,1/16W,TP ,100550SA

...42007-000772R-CHIP;33Kohm,1%,1/10W,TP ,16081SA

...42007-000932R-CHIP;470ohm,5%,1/16W,TP ,10055SA

...42007-000999R-CHIP;510ohm,1%,1/10W,TP ,16081SA

...42007-001125R-CHIP;68Kohm,1%,1/10W,TP ,16084SA

...42007-001292R-CHIP;33ohm,5%,1/16W,TP ,100510SA

...42007-007107R-CHIP;100Kohm,1%,1/16W,TP ,100511SNA

...42007-007132R-CHIP;15Kohm,1%,1/16W,TP ,10053SA

...42007-007134R-CHIP;39Kohm,1%,1/16W,TP ,10051SA

...42007-007136R-CHIP;4.7Kohm,1%,1/16W,TP ,10051SNA

...42007-007137R-CHIP;1.2Kohm,1%,1/16W,TP ,10051SA

...42007-007138R-CHIP;27Kohm,1%,1/16W,TP ,10052SA

...42007-007139R-CHIP;47Kohm,1%,1/16W,TP ,1005,0.35T20SA

...42007-007142R-CHIP;10Kohm,1%,1/16W,TP ,100526SA

...42007-007197R-CHIP;3.3ohm,5%,1/16W,TP ,10054SNA

...42007-007306R-CHIP;100ohm,1%,1/16W,TP ,100515SNA

...42007-007307R-CHIP;150ohm,1%,1/16W,TP ,10051SA

8Copyright©1995-2013SAMSUNG.Allrightsreserved.

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...42007-007308R-CHIP;33Kohm,1%,1/16W,TP ,10052SA

...42007-007310R-CHIP;8.2Kohm,1%,1/16W,TP ,10052SA

...42007-007311R-CHIP;22Kohm,1%,1/16W,TP ,10055SA

...42007-007312R-CHIP;20Kohm,1%,1/16W,TP ,10053SA

...42007-007314R-CHIP;5.6Kohm,1%,1/16W,TP ,10052SA

...42007-007316R-CHIP;3.3Kohm,1%,1/16W,TP ,10052SNA

...42007-007317R-CHIP;2.2Kohm,1%,1/16W,TP ,10051SA

...42007-007318R-CHIP;1Kohm,1%,1/16W,TP ,100527SA

...42007-007470R-CHIP;7.5Kohm,1%,1/16W,TP ,10052SNA

...42007-007488R-CHIP;75Kohm,1%,1/16W,TP ,10051SNA

...42007-007517R-CHIP;240ohm,1%,1/16W,TP ,10059SNA

...42007-007528R-CHIP;1.5Kohm,1%,1/16W,TP ,10052SA

...42007-007538R-CHIP;56Kohm,1%,1/16W,TP ,10051SA

...42007-007766R-CHIP;2Kohm,1%,1/16W,TP ,100516SA

...42007-007767R-CHIP;200ohm,1%,1/16W,TP ,10056SA

...42007-007861R-CHIP;62Kohm,1%,1/16W,TP ,10051SA

...42007-007942R-CHIP;1Mohm,1%,1/16W,TP ,10051SNA

...42007-008015R-CHIP;75ohm,1%,1/16W,TP ,100512SA

...42007-008137R-CHIP;24Kohm,1%,1/16W,TP ,10053SNA

...42007-008213R-CHIP;4.3Kohm,1%,1/16W,TP ,10051SA

...42007-008298R-CHIP;49.9ohm,1%,1/16W,TP ,10054SA

...42007-009117R-CHIP;49.9Kohm,1%,1/16W,TP ,10051SA

...42007-009777R-CHIP;4.99Kohm,1%,1/16W,TP ,10055SA

...42011-001449R-NETWORK;22ohm,5%,1/16W,L,4Points,TP ,105SA

...42011-001587R-NETWORK;100ohm,5%,1/16W,L,CHIP-V ,4P ,TP4SA

...4AD4802203-000233C-CER,CHIP;0.1nF,5%,50V ,C0G,TP ,10056SA

...4AD4802203-000254C-CER,CHIP;10nF,10%,16V ,X7R,TP ,10055SA

...4AD4802203-000278C-CER,CHIP;0.01nF,0.5pF,50V,C0G,TP ,10054SA

...4AD4802203-000359C-CER,CHIP;0.15nF,5%,50V ,C0G,TP ,1005,0.53SA

...4AD4802203-000438C-CER,CHIP;1nF,10%,50V ,X7R,TP ,100518SA

...4AD4802203-000489C-CER,CHIP;2.2nF,10%,50V ,X7R,TP ,10051SA

...4AD4802203-000585C-CER,CHIP;0.22nF,10%,50V ,X7R,TP ,10053SA

...4AD4802203-000627C-CER,CHIP;0.022nF,5%,50V ,C0G,TP ,10053SNA

...4AD4802203-000679C-CER,CHIP;0.027nF,5%,50V ,C0G,TP ,10052SA

...4AD4802203-000714C-CER,CHIP;3.3nF,10%,50V ,X7R,TP ,10056SA

...4AD4802203-000812C-CER,CHIP;0.033nF,5%,50V ,C0G,TP ,10055SA

...4AD4802203-000854C-CER,CHIP;0.039nF,5%,50V ,C0G,TP ,10051SA

...4AD4802203-000940C-CER,CHIP;0.47nF,10%,50V ,X7R,TP ,10051SA

...4AD4802203-000995C-CER,CHIP;0.047nF,5%,50V ,C0G,TP ,10051SA

...4AD4802203-002285C-CER,CHIP;10nF,10%,50V ,X7R,TP ,100510SNA

Copyright©1995-2013SAMSUNG.Allrightsreserved.9

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...4AD4802203-002443C-CER,CHIP;0.33nF,10%,50V ,X7R,TP ,10051SNA

...4AD4802203-003019C-CER,CHIP;8.2nF,10%,50V ,X7R,TP ,10053SNA

...4AD4802203-005249C-CER,CHIP;100nF,10%,50V ,X7R,TP ,16081SA

...4AD4802203-005968C-CER,CHIP;4.7nF,10%,50V ,X7R,TP ,1005,0.51SNA

...4AD4802203-006048C-CER,CHIP;100nF,10%,10V ,X7R,TP ,1005325SA

...4AD4802203-006126C-CER,CHIP;47nF,10%,16V ,X7R,TP ,10052SNA

...4AD4802203-006257C-CER,CHIP;470nF,10%,6.3V ,X5R,TP ,1005,0.2SNA

...4AD4802203-006348C-CER,CHIP;1000nF,10%,25V ,X5R,TP ,1608,0.8SA

...4AD4802203-006361C-CER,CHIP;10000nF,10%,10V ,X5R,TP ,20126SC

...4AD4802203-006562C-CER,CHIP;1000nF,10%,10V ,X5R,TP ,100552SNA

...4AD4802203-006636C-CER,CHIP;220nF,10%,25V ,X7R,TP ,16082SA

...4AD4802203-006824C-CER,CHIP;4700nF,10%,10V ,X5R,TP ,16088SNA

...4AD4802203-006838C-CER,CHIP;2200nF,10%,6.3V ,X5R,TP ,10054SA

...4AD4802203-006890C-CER,CHIP;10000nF,20%,6.3V ,X5R,TP ,160856SNA

...4AD4802203-007176C-CER,CHIP;10000nF,10%,16V ,X5R,TP ,2012,14SNA

...4AD4802203-007240C-CER,CHIP;22000nF,20%,6.3V ,X5R,TP ,1608(33SA

...4AD4802203-007269C-CER,CHIP;22000nF,20%,10V ,X5R,TP ,2012(215SA

...4AD4802203-007486C-CER,CHIP;1000nF,10%,50V ,X5R,TP ,16082SA

...4AD4802203-007513C-CER,CHIP;10000nF,10%,10V ,X5R,TP ,1608,042SA

...4AD4802203-007544C-CER,CHIP;100nF,10%,50V ,X7R,TP ,1005,0.516SA

...42409-001338C-POLYMER,CHIP;47uF,20%,6.3V ,TP ,3.2x1.61SA

...42503-001051C-NETWORK;100nFx4,20%,16V ,20121SA

...42703-000158INDUCTOR-SMD;1uH,10%,2012,.4Ohm,50mA,45,1SA

...42703-000213INDUCTOR-SMD;470nH,10%,1608,1.35Ohm,35mA1SA

...42703-001938INDUCTOR-SMD;56nH,5%,1005,1.5Ohm,200mA,13SA

...42703-003135INDUCTOR-SMD;4.7uH,20%,6965,0.04Ohm,70001SNA

...42703-003713INDUCTOR-SMD;1.5uH,20%,7366,0.015ohm,7004SA

...42703-004724INDUCTOR-SMD;8.2uH,20%,5050,4mm,0.072Ohm4SA

...42703-005193INDUCTOR-SMD;2.2uH,20%,6060,4.5,0.024ohm1SA

...42703-005194INDUCTOR-SMD;3.3uH,20%,6060,4.5,0.03ohm,1SA

...42801-004477CRYST AL-SMD;24.576MHz,20ppm,SMD,18pF ,15o1SA

...43301-000314BEAD-SMD;120ohm,1608,TP ,120ohm/100MHz6SNA

...43301-002039BEAD-SMD;26ohm,1608,TP47SA

...43601-001374FUSE-SURFACEMOUNT ;32V ,5A,FAST-ACTING,PL2SA

...43701-001861CONNECTOR-HDMI;19P ,FEMALE,AU,0.5mm,BLK,S4SA

...43707-001106CONNECTOR-OPTICAL;STRAIGHTW/L,SPDIF1SA

...43708-003073CONNECTOR-FPC/FFC/PIC;51P ,0.5mm,SMD,AU,N1SA

...4EH013711-008131HEADER-BOARDTOCABLE;BOX,4P ,1R,2.5mm,AN1SA

...4EH013711-008422HEADER-BOARDTOCABLE;BOX,9P ,1R,1.25mm,S1SA

...4EH013711-008659HEADER-BOARDTOCABLE;BOX,16P ,2R,2mm,ANG1SA

10Copyright©1995-2013SAMSUNG.Allrightsreserved.

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

...4EH013711-008859HEADER-BOARDTOCABLE;BOX,12P ,2R,2.0mm,A1SA

...43722-003229JACK-MODULAR;8P/8CW/L,Y,STRAIGHT,N,Au,11SA

...43722-003457JACK-USB;4P/1C,NI,BLK,A2SA

...4JACK

3722-003546JACK-PIN;5P+Screwhole,NI+SN,G,Y/BLU/RED1SA

PIN

...43722-003617JACK-PHONE;14P/2C,SN,BLK,STRAIGHT,3.6PI,1SA

...4JACK3722-003837JACK-USB;9P/1C,AU/SN/NI,BLU,SMD-A,A,3.0,1SA

...46302-001376GASKET;D-Q43-14-180,6mm,SI4SNA

...4ET01BN40-00312BTUNER;GVTH-5B31,GVTH-5B31,VSB-half,75ohm1SA

...4BN41-02344DPCBMAIN;JU6400_RETIMER,Hawk-MU,FR-4,4,D1SNA

...4BN68-04746ALABEL-SMD;allmodel,POLY*,25.4mmx9.53m1SNA

...4BN97-09407BASSYMICOM;T-HKMAKUC,UWJ51,ZX.KOR,1107-01SNA

....51107-002357IC-EMMC;H26M41103HPR,8Gbyte,BGA,153P ,11.1SA

...4BN97-09410AASSYMICOM-SPI;T-HA W AUSS3,UWJ51,W25Q40CL1SNA

....51107-002226IC-NORFLASH;W25Q40CLSSIP ,4Mbit,SOIC,8P,1SA

..3M0131MD63-00103AGASKET;GRANDSLAM,ConductiveFabric,1,10,3SNA

1BN91-14356VASSYSHIELD;LED_J6K1SNA

.2SCREW6001-002789SCREW -MACHINE;BH,+,M4,L6,ZPC(WHT),SWRCH11SA

.2SCREW6001-003016SCREW -MACHINE;PWH,+,M3.0,L5.0,ZPC(WHT),S19SA

.2BN02-00102KTAPEFILAMENT;PE,0.15,25,55,WHITE1SNA

.2BN02-00352ATAPEPET ;Y12F-LED,PET,T0.05,30,40,BLK,81SNA

.2M-FBN39-01990DLEADCONNECTOR-FUNCTION;JU7K,FLATConnec1SA

.2EC13BN39-02017ELEADCONNECTOR;FLATCONNECTORASS'Y ,Lead1SA

.2BN39-02030FLEADCONNECTOR-BLU;BLU(75JU6400),LEADCO1SA

.2BN39-02030HLEADCONNECTOR-BLU;BLU(75JU6400),LEADCO1SA

.2BN39-02058ALEADCONNECTOR-POWER;UN75JU6400FXZA,Flat1SA

.2BN39-02059ALEADCONNECTOR-TCON;FlatConnector,LEAD1SA

.2P001ABN44-00809ADCVSS-LEDTVPDBD;L75S6TN_FDY,L75S6TN_1SA

.2NW01BN59-01194FNETWORK;11acCombo,InternalWiFi,USB2.01SA

.2BN62-00730APADGAP;SiliconeThermalPad,14T,20,20,31SNA

.2BN62-00731APADGAP;HS01-13040-SST-3535,SiliconeThe1SNA

.2SP01ABN96-35006DASSYSPEAKERP;6ohm,4pin,10W ,JU640065"1SA

.2BN96-35345BASSYBOARDP-FUNCTION_SW;JU7500,Function1SA

.2FB01ABN96-35346DASSYBOARDP-FUNCTIONASSY;JU6400,Functi1SA

.2FL06BN96-35462RASSYCABLEP;UN75JU7000,FFC,NH,293mm,51P1SA

.2FL06BN96-35462TASSYCABLEP;UN75JU7000,FFC,NH,215mm,51P1SA

.2FL06BN96-35850BASSYCABLEP;UN75JU7000,FFC,NH,215mm,41P1SA

.2SB05ABN96-37262BASSYBRACKETP-STANDLINK;JU7K75",HGI-S1SNA

..3CB18BN61-11518BBRACKET -ST ANDLINK;JU700075",HGI-SGHC,21SNA

...4BN61-09605ABRACKET-STOPPERNUT;LEDTVF6100,Others4SNA

..3BN68-07662ALABEL-STICKER;JU7000-75",Brkt-StandLink1SNA

Copyright©1995-2013SAMSUNG.Allrightsreserved.11

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

..3M0131BP63-00223AGASKET;HLN507W1X/XAA,ConductiveFabric,22SNA

.2M0131MD63-00103AGASKET;GRANDSLAM,ConductiveFabric,1,10,1SNA

1BN92-17088WASSYLABEL;UHD6K1SNA

.2BN68-05050ALABELRATING;ALL,SS,PET ,T0.05,93,73,Dark1SNA

.2BN68-07054FLEAFLET-02,QSG;JU6500,Samsung,UnitedSta1SNA

.2BN68-07705JLABEL-ENERGY ;UN75JU641DFXZA,PET,T0.1,38,1SNA

.2BN74-00053GTAPE-PAPER;PAPER,3M2307,0.14T,W10,60M,WH0SNA

1BN92-17199AASSYP/MATERIAL;LED_J6K,7565001SNA

.26902-001492BAGPE;HDPE/PEFOAM,T0.015/T0.5,W1900,L11SNA

.26902-002252PACKINGSHEET;HDPE/PEFOAM,T0.03/T0.5,W71SNA

.26922-000013BAND;PP ,W18,L2300/L2900,TRP1SNA

.2T0214AA61-20285CHOLDER-BOX;CORAL,PP ,BLACK,HB,17.5g4SNA

.2BN02-00319BTAPEOPP;OPP,T0.05,W75,L800m,CLEAR2SNA

.2AS080BN63-07229ASHEET -COVER;rose70",SI,T0.052,W50mm,100M1SNA

.2BN69-11284ACUSHION-SET;JU6300_75,EPS,W/W1SNA

.2BN69-11296ACUSHION-SIDE;JU6300_75,EPS2SNA

.2BN69-12806APAD-ANGLE;40J6400,PAPER,5mm,100,1500,YE1SNA

1ACCE1BN92-18404KASSYACCESSORY ;UJ6P1SNA

.2BN96-35713QASSYACCESSORYMANUAL/CABLE;LED_J6K,UHD1SNA

..3T02683903-000467CBF-POWERCORD;DT,US,EP3,IEC320C13-RA,11SA

..34301-000121BA TTER Y -MN;1.5V ,R03,10.5x44.5m,7.5g,AAA2SNA

..3REMO2BN59-01198XREMOCON;TM1250A,49,3.0V ,TM1250A_NorthAm1SA

..3BN68-04972ELEAFLET-06,REGULA TORYGUIDE;ALL,SAMSUNG,1SNA

..3BN68-05723ALABEL-ACCESSORY;ALLMODELS,YUPO,0.2,20,71SNA

..3BN68-06965HMANUALUSERS;JU641D-75",UnitedStates,W/1SNA

..3BN68-07429BLEAFLET-RMHGUIDE;Common,ZA,W/P*1SNA

..3BN69-08751AWRAPVINYL-SHRINK;STAND,PLASTICOTHERS,P0SNA

..3BN69-10158ABOXACCESSORY ;H8000_ACCESSORY ,CB,SERPRe1SNA

..3BN69-10179AP AD-TYPE;H8000_ACCESSORY_US,CB,SERPRecy1SNA

1BN92-18473JASSYBOX;UHD6K1SNA

.2BH68-00697ALABELBOX-00;ALLMODEL,ARTP APER90G,60,1SNA

.2BN69-11645ABOXUNIT -SET,IN;75HU7000-TS,CB,C-01,DW1,1SNA

.2BN69-12538NPADTOP;75JU64/7000-TS,CB,DW,W1800,D2341SNA

.2BN69-12550ZBOXUNIT;75JU641D-TS,CB,C-03,DW4,W1802,D1SNA

12Copyright©1995-2013SAMSUNG.Allrightsreserved.

1.ExplodedView&PartList

ExplodedView

ExplodedViewsandPartsList

Copyright©1995-2016SAMSUNG.Allrightsreserved.1

ExplodedViewsandPartsList

PartsList

No.Lvl.Loc.MaterialCodeDescription&SpecicationSNAQty.

12PANELBN95-02001EPRODUCTLCD-AMLCD;

CY-GJ075HGLV3V ,JU6400,

22SP01ABN96-35006DASSYSPEAKERP-FRONT;6ohm,20WSA1

32M0014BN94-10483EASSYPCBMAIN;LEDTVSA1

42P001ABN44-00809ADCVSS-PDBOARD;

L75S6TN_FDY ,AC/DC,364W ,1

53BN61-11587ACOVER-TERMINALSIDE;

HIPS,HIPS,BLACK,HB,B

62JOGBN96-35345BASSYBOARDP-FUNCTIONJOG;

JU7500,CT15SE8

72IRBN96-35346DASSYBOARDP-FUNCTIONIR;

JU6400,CT20SE39

82WIFIBN59-01194ANETWORK-WLANCLIENT;

WCH730B,58.0,31.45,8

93TCONBN96-35079BASSYTCONP;

LMF750FJ02-K,LMF750FJ02-K,8

102SB05ABN96-37262BASSYBRACKETP-ST ANDLINK;JU7K

75",HGI-S

112R001ABN96-35661HASSYCOVERP-REAR;

75JU6400,PC+ABS-GF15%,

SA1

SA1

SNA1

SA1

SA1

SA1

SA1

SNA1

SA1

122SG01ABN96-35976AASSYGUIDEP-STAND;JU6400,75"SA1

132SB04ABN96-35981AASSYST ANDP-BOTTOM;JU6400,75"SA1

2Copyright©1995-2016SAMSUNG.Allrightsreserved.

ExplodedViewsandPartsList

2.ElectricalPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

UN75JU641DFXZA(UD02)

1BN90-06530EASSYW/I;LED_J6K1SNA

.2BN81-08159ZA/SPARTSET-ELECW/I;LEDTVELECspec-C1SNA

.2BN81-11261AA/SP AR TSET-MECHW/I;UJ6P ,U75JP*1SNA

1S001ABN90-06690AASSYSTAND;LED_J6K,UJP64865001SNA

.2SG01ABN96-35976AASSYGUIDEP-STAND;JU6400,75"1SA

..3SCREW6003-001010SCREW-TAPTYPE;FH,+,B,M3,L6,ZPC(WHT),SWRC1SA

..3SCREW6003-001782SCREW-TAPTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR2SA

..36902-002472BAGPE;HDPE/PEFOAM,T0.015/T0.5,W300,L451SNA

..3BN61-11545ABRACKET -ST ANDNECK;ALDC,NATURAL,ALDIEC1SNA

..3AH089BN61-11933AHOLDER-STANDCABLE;JU6300,6400,ABS,BLAC1SNA

..3BN63-13702ACOVER-ST ANDNECK;JU6300_75,ABS,HB,BLACK1SNA

..3BN63-13704ACOVER-ST ANDNECK;JU6300_75,ABS,HB,BLACK1SNA

..3BN96-36733CASSYACCESSORY -SCREW;JU6400,W/W1SNA

...4SCREW6003-001334SCREW-TAPTYPE;BH,+,S,M4,L14,ZPC(BLK),SWR9SA

...46902-002512BAGSCREW;LDPE,T0.05,W70,TRP,RECYCLE,NO,1SNA

.2SB04ABN96-35981AASSYSTANDP-BOTTOM;JU6400,75"1SA

..3SCREW6002-000126SCREW-TAPPING;FH,+,-,2S,M3,L10,ZPC(BLK),10SA

..3SCREW6003-001848SCREW-TAPTYPE;FH,+,B,M4,L35,ZPC(BLK),SWR3SNA

..3BN60-00162CSPACER-FOAM;PEFOAM,ROLL,DARKGRAY ,T0.5,2SNA

..3BN61-11873ABRACKET -ST ANDBODY;HGI,T1.8,NATURAL1SNA

..3AS080BN63-04755LSHEET-PROTECTIONCOVER;22LC350,PE,T0.05,1SNA

..3AS080BN63-07229ASHEET -PROTECTIONCOVER;rose70",PET,T0.051SNA

..3BN63-13303ACOVER-ST ANDTOP;JU6300_75,ABS,HB,BLACK1SNA

..3RF01BN67-00327JFOOT-RUBBER;SILICONE,GRAY ,T2.57SNA

..3BN68-05381ALABEL-STICKER;ART100G,T0.08,W20x50,WHIT1SNA

..3CB06ABN96-35987AASSYBRACKETP;JU6300_48/50/55,,HGI,NA TU1SNA

...4SCREW6003-001321SCREW-TAPTYPE;BH,+,B,M4,L8,ZPC(BLK),SWRC3SA

...4BN61-11503ABRACKET-STANDBOTTOM;HGI,T4,NATURAL1SNA

...4CB18BN61-11715ABRACKET-STANDLINK;HGI,T4,NATURAL1SNA

1R001ABN90-07063AASSYCOVERREAR;LED_UJ6K,7565001SNA

.2SCREW6001-002755SCREW -MACHINE;BH,+,M3,L6,ZPC(BLK),SWRCH122SA

.2SCREW6003-001782SCREW -T APTYPE;BH,+,B,M4,L12,ZPC(BLK),SWR1SA

.2R001ABN96-35661HASSYCOVERP-REAR;75JU6400,PC+ABS-GF15%,1SA

..3R001BN63-13237DCOVER-REAR;75JU6400,PC+ABS-GF15%,V-1,BK01SNA

..3T0071BN64-02929BINLA Y -TERMINAL;JU6400,PC,T0.25,BLACK,AME1SNA

..3BN68-06900BINLAY-TERMINALSIDE;JU6400,PET,T0.125,W11SNA

..3BN68-07079BLABEL-STICKERLICENSE;JU7500,PET ,T0.125,1SNA

Copyright©1995-2016SAMSUNG.Allrightsreserved.3

ExplodedViewsandPartsList

LevelLoc.PartCodeDescription&SpecicationQty.SA/SNA

1BN91-13783EASSYLCM-SDC;CY -GJ075HGLV3V ,BN95-02001E1SNA

.2PANELBN95-02001EPRODUCTLCD-AMLCD;CY -GJ075HGL V3V ,JU6400,1SA

..3SCREW6001-002757SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH110SA

..36001-003010SCREW-MACHINE;CH,+,M3,L6,ZPC(BLK),SWRCH18SNA

..3BN02-00114AT APEPET;NNB56",PET,T0.07,W12,L20,GREEN8SNA

..3M0131BN63-00520AGASKET -EMI;APPOLO_P AL,ConductiveFabric,5SNA

..3BN68-05595ALABEL-STICKER;ART100G,T0.2,W80X23,WHITE1SNA

..3BN90-07314AASSYMISC-BLU;.1SNA

...4BN61-11754ADIFFUSERPLATE;15Y_J6.3K75INCH_DIFFUSER1SNA

...4BN61-12993ASUPPORT-PLATE;Y15LED(SAMEXONL Y),PC,V -230SNA

...4BN63-13511AOPTICALSHEET-DBEF;15YJU7.0K75inchDBE1SNA

...4BN63-13514AOPTICALSHEET-PRISM;15Y7.0K75inchUTE31SNA

...4BN63-13520AOPTICALSHEET-REFLECTOR;15YJU7.0K75inc1SNA

...4BN96-35035BASSYFRAMEP-MIDDLELEFTRIGHT;Y15FLAT,2SNA

....5BN60-00735YSP ACER-PET;Y14VNB65,PET ,L910,CLEAR,T0.2SNA

....5BN60-01163HSP ACER-SILICONE;Y15JU7K75"INX,SILICON2SNA

....5BN61-11412AFRAME-MIDDLELEFTRIGHT;Y15JU7K75",PC+2SNA

...4BN96-35042BASSYFRAMEP-MIDDLEBOTTOM;Y15FLAT,75,1SNA

....5BN61-11411AFRAME-MIDDLEBOTTOM;Y15JU7K75",PC+GF101SNA

...4BN96-38059AASSYCHASSISREARP;Y15JU64K75",EGI-SE1SNA

....5BN02-00102BTAPE-FILAMENT;#8917,0.15,25,50,WHITE0SNA

....5BN61-11982AHOLDER-W ALLRIVET;Y15F-LED,CR-SPCC,L15.4SNA

....5BN63-14371AGASKET -EMI;CTGF10-07-025-08,ConductiveF4SNA

....5BN63-14372AGASKET -EMI;CTGF10-07-035-08,ConductiveF1SNA

....5BN96-34763AASSYLEDBARP;75"UHD_L_SDC,CEM3,view9SNA

....5BN96-34764AASSYLEDBARP;75"UHD_M_SDC,CEM3,view9SNA

....5BN96-34765AASSYLEDBARP;75"UHD_R_SDC,CEM3,view9SNA

....5BN96-35402AASSYCHASSISREARP;JU630075,EGI-SECC1SNA

.....60203-006897TAPE-DOUBLEF ACE;SI,T1,W10,L50,WHT2SNA

.....6SCREW6001-002757SCREW-MACHINE;BH,+,M3,L4,ZPC(WHT),SWRCH12SA

.....6BN02-00040CT APEDOUBLEF ACE;F-LEDALL,PET,T0.3,W3,L6SNA

.....6BN02-00173CT APE-OPP;PET,0.05,40,BLK0SNA

.....6BN02-00352ET APE-OPP;PET ,T0.05,W15,L50M,BLK,ULNO.E160SNA

.....6BN61-11413AFRAME-CHASSISREARTOP;Y15JU7K75",PC+G1SNA

.....6BN61-11414AFRAME-CHASSISREARBOTTOM;Y15JU7K75",P1SNA

.....6BN61-11415AFRAME-CHASSISREARLEFTRIGHT;Y15JU7K72SNA

.....6BN61-11477AHOLDER-SOURCEPCB;Y15JU7KSDC,ABS,BLACK8SNA

.....6BN61-11982AHOLDER-W ALLRIVET;Y15F-LED,CR-SPCC,L15.4SNA

.....6BN62-00690DINSULA TOR-SMPS;JU7500,PC,BLACK,L405,W3401SNA

.....6BN63-14961AGASKET-EMI;GASKET,FABRIC,T7,W15,L25,BLAC4SNA

4Copyright©1995-2016SAMSUNG.Allrightsreserved.
