LED TV
Chassis : U8AA U8AB
Model : UE32H5000AW UE22H5000AW
UE40H5000AW
UE48H5000AW
UE50H5000AW
SERVICE
LED TV Contents
1. Precautions
2. Product specications
3. Disassembly and Reassembly
4. Troubleshooting
5. Wiring Diagram
Manual
UE**H5000AW
Page 2
Contents
1. Precautions ...................................................................................................................1-1
1-1. Safety Precautions ..............................................................................................................1-1
1-1-1. Warnings ...................................................................................................................1-1
1-1-2. Servicing the LED TV ...............................................................................................1-1
1-1-3. Fire and Shock Hazard .............................................................................................1-1
1-1-4. Product Safety Notices .............................................................................................1-2
1-2. Servicing Precautions ..........................................................................................................1-3
1-2-1. General Servicing Precautions ................................................................................. 1-3
1-3. Static Electricity Precautions ...............................................................................................1-4
1-4. Installation Precautions .......................................................................................................1-5
2. Product Specications.................................................................................................2-1
2-1. Product information .............................................................................................................2-1
2-2. Product specication ...........................................................................................................2-3
2-2-1. Detailed Specications ............................................................................................. 2-3
2-2-2. Specications ...........................................................................................................2-7
2-3. Accessories ........................................................................................................................2-8
3. Disassembly and Reassembly ....................................................................................3-1
3-1. Disassembly and Reassembly ............................................................................................3-1
3-2. Assy Board P-Jog Switch & Ir ..............................................................................................3-4
3-3. Disassembly(PTC) ...............................................................................................................3-6
4. Troubleshooting ...........................................................................................................4-1
4-1. Troubleshooting ...................................................................................................................4-1
4-2. How to Check Fault Symptom .............................................................................................4-3
4-3. Factory Mode Adjustments ..................................................................................................4-5
4-3-1. Detail Factory Option ................................................................................................4-5
4-3-2. Entering Factory Mode ............................................................................................. 4-7
4-3-3. Factory Data .............................................................................................................4-8
4-4. White Balance ...................................................................................................................4-23
4-4-1. Calibration ..............................................................................................................4-23
4-4-2. Service Adjustment ................................................................................................. 4-23
4-4-3. Adjustment .............................................................................................................. 4-25
4-5. White Ratio (Balance) Adjustment .....................................................................................4-26
4-6. Software Upgrade ..............................................................................................................4-28
4-6-1. How to Check the Software Version .......................................................................4-28
4-6-2. How to Upgade Software and Micom ..................................................................... 4-30
4-7. Rear Cover Dimension ......................................................................................................4-32
5. Wiring Diagram .............................................................................................................5-1
5-1. Wiring Diagram ....................................................................................................................5-1
5-2. Connector ...........................................................................................................................5-2
5-3. Connector Functions ...........................................................................................................5-5
Page 3
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
© 2014 Samsung Electronics Co.,Ltd.
All rights reserved.
Printed in Korea
Page 4
1. Precautions
1. Precautions
1-1. Safety Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1-1. Warnings
For continued safety, do not attempt to modify the circuit board.
WARNING
1-1-2. Servicing the LED TV
When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.
It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this 2.
meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the monitor to the user, perform the following safety checks:
Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the 1.
chassis and other metal parts in the monitor.
Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and 2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.

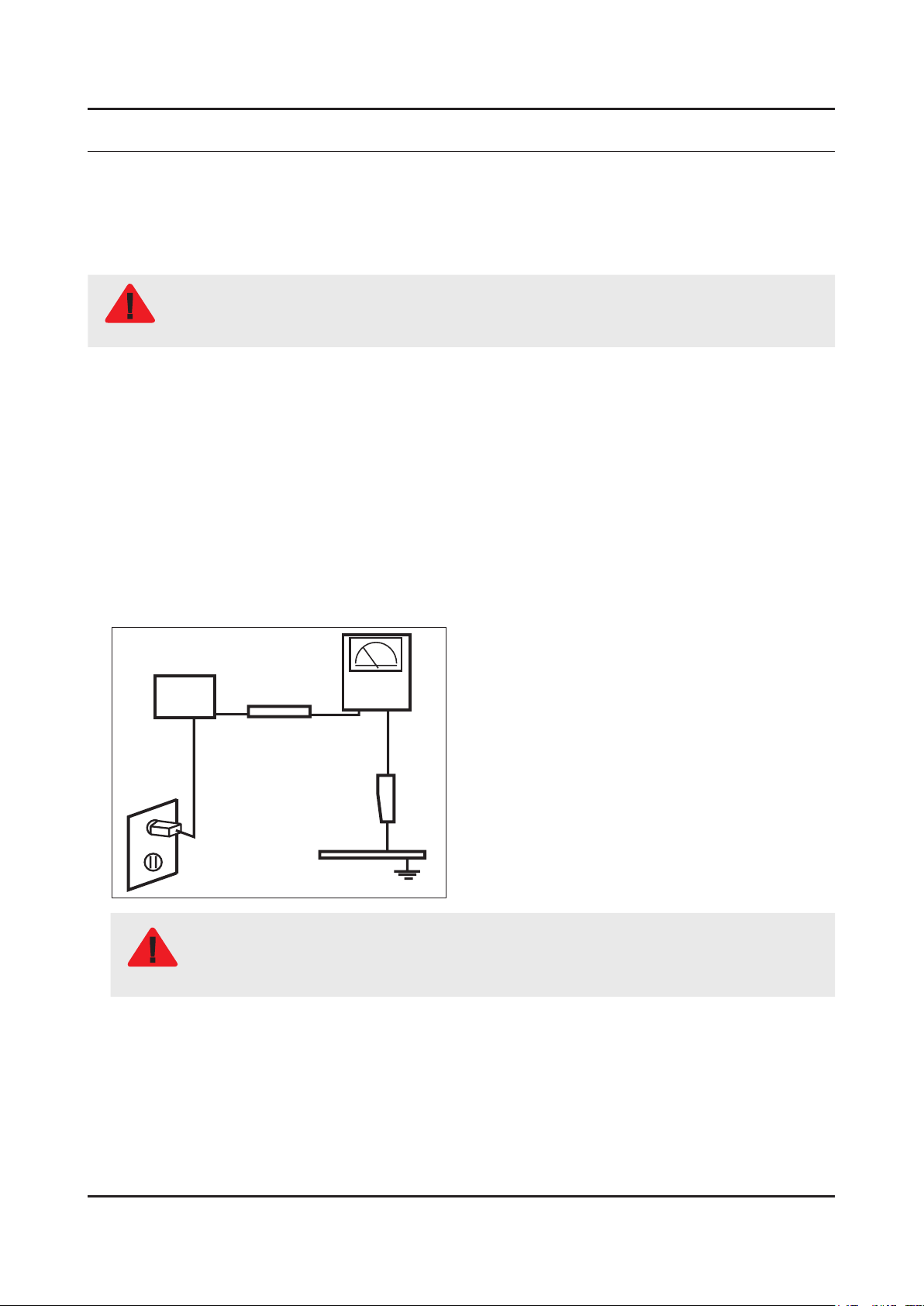

Leakage Current Hot Check:3.
Disconnect the AC power and DC power jack before servicing.
(READING SHOULD)
DEVICE
UNDER
TEST
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
NOT BE ABOVE 0.5mA
2-WIRE CORD
TEST ALL
EXPOSED METAL
SURFACES
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards
WARNING
Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).
With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch rst 4.
in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.)
and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1
Page 5
1-2
1. Precautions
1-1-4. Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identied by on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics as the recommended replacement part might create
shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever
appropriate.
Page 6
1-3
1. Precautions
1-2. Servicing Precautions
An electrolytic capacitor installed with the wrong polarity might explode.
WARNING
Before servicing units covered by this service manual, read and follow the Safety Precautions section of
CAUTION
NOTE
1-2-1. General Servicing Precautions
Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before 1.
attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect
a test component in parallel with an electrolytic capacitor.
Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. 2.
The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements
to their original position.
After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that 3.
the area around the serviced part has not been damaged.
Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input 4.
terminals and earphone jacks).
Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect 5.
an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above) should be greater than 1 megohm.
Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; 6.
always remove the instrument’s ground lead last.
this manual.
If unforeseen circumstances create conict between the following servicing precautions and any of the
safety precautions, always follow the safety precautions.
Page 7
1-4
1. Precautions
1-3. Static Electricity Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly
called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect
transistors. The following techniques will reduce the incidence of component damage caused by static electricity.
Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your 1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the monitor.
After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent 2.
accumulation of an electrostatic charge.
Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.
Use only a grounded-tip soldering iron to solder or desolder ESDs.4.
Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.
Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs 6.
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.
Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material 7.
to the chassis or circuit assembly into which the device will be installed.
Be sure no power is applied to the chassis or circuit and observe all other safety precautions.
CAUTION
Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or 8.
lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.
Page 8
1-5
1. Precautions
1-4. Installation Precautions
For safety reasons, more than a people are required for carrying the product.1.
Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.
Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature 3.
may cause re.
Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed 4.
to moisture. Otherwise, it may cause a re or electric shock.
Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check 5.
the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric
shock.
Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6.
antenna falling over may cause re or electric shock.
When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes. 7.
A rise in temperature within the product may cause re.
If an equipment is provided with a replaceable battery, and if replacement by an incorrect type could result in an 8.
explosion (for example, with some lithium batteries), the following applies:
Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to •
the instructions.
Do not dispose of batteries in a re.•
Do not short circuit, disassemble or overheat the batteries.•
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent •
type.
Do not be exposed to excessive heat such as sunshine, re or the like.•
Page 9
2. Product Specications
2-1. Product information

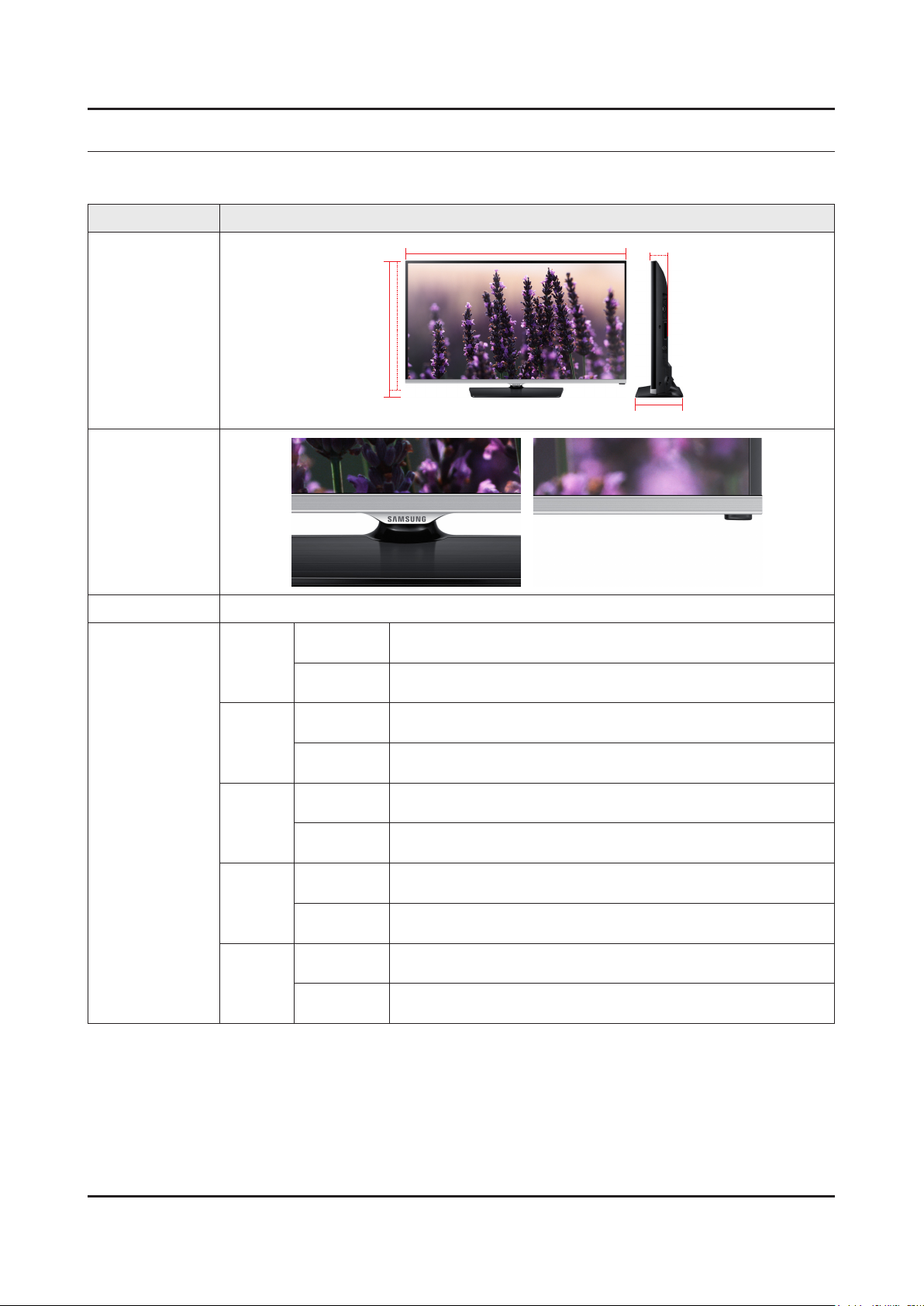

Model UE**H5000AW
2. Product specications
W
Front View
Detail View
Front Color Black (Panel)
Set with
Stand
Set without
Stand
Set with
Stand
Set without
Stand
Set with
Stand
Set without
Stand
Set with
Stand
Set without
Stand
Set with
Stand
Set without
Stand
Dimensions
W x H x D
22H5
32H5
40H5
48H5
50H5
H
* W : Width H : High D : Depth
506.9 x 355.2 x 151.8 mm / 20.0 x 14.0 x 6.0 inches
506.9 x 317.0 x 46.8 mm / 20.0 x 12.5 x 1.8 inches
723.0 x 465.1 x 163.4 mm / 28.5 x 18.3 x 6.4 inches
723.0 x 427.5 x 64.6 mm / 28.5 x 16.8 x 2.5 inches
908.2 x 578.2 x 196.4 mm / 35.8 x 22.8 x 7.7 inches
908.2 x 532.9 x 64.8 mm / 35.8 x 21.0 x 2.6 inches
1076.7 x 674.4 x 203.7 mm / 42.4 x 26.6 x 8.0 inches
1076.7 x 626.5 x 65.2 mm / 42.4 x 24.7 x 2.6 inches
1118.4 x 696.4 x 203.9 mm / 44.0 x 27.4 x 8.0 inches
1118.4 x 650.1 x 65.4 mm / 44.0 x 25.6 x 2.6 inches
D
2-1
Page 10
2-2
2. Product specications
Model UE**H5000AW
Set with
22H5
32H5
Weight
Panel Type Slim LED
40H5
48H5
50H5
Stand
Set without
Stand
Set with
Stand
Set without
Stand
Set with
Stand
Set without
Stand
Set with
Stand
Set without
Stand
Set with
Stand
Set without
Stand
3.3 kg / 7.2 lbs
3.1 kg / 6.8 lbs
5.3 kg / 11.6 lbs
4.9 kg / 10.8 lbs
8.5 kg / 18.7 lbs
7.6 kg / 16.8 lbs
12.0 kg / 26.5 lbs
10.9 kg / 24.0 lbs
13.7 kg / 30.1 lbs
12.6 kg / 27.8 lbs
Flash Memory 128 Mbyte
DDR 256 Mbyte
Feature Media Play(Movie)
Page 11
2-3
2. Product specications
2-2. Product specication
2-2-1. Detailed Specications
NOTE
Design and specications are subject to change without prior notice.
Item UE**H5000AWXZF
General Information
Display
Video
Audio
Product LED
Series 5
Country FRANCE
Screen Size 22"/32'/40"/48'/50"
Resolution 1,920 x 1,080
Ultra Clear Panel N/A
Picture Engine HyperReal Engine
Clear Motion Rate 100
Micro Dimming N/A
Precision Black (Local Dimming) N/A
Wide Color Enhancer (Plus) Yes
Wide Color Gamut N/A
Color Accuracy N/A
Auto Depth Enhancer N/A
Film Mode Yes
Dolby MS10 / MS110 Dolby Digital Plus / Dolby Pulse
Smart TV
DTS Studio Sound / DNSe+ DTS Studio Sound
DTS Premium Sound / DTS Premium
Sound 5.1
3D Sound N/A
Auto Volume Leveler Yes
Sound Customizer N/A
Sound Output (RMS) 22" : 3W x2 10W x2
Speaker Type Down Firing + Full Range
Woofer N/A
Smart Hub N/A
Samsung SMART TV N/A
On TV N/A
Movies & TV Shows N/A
Multimedia N/A
Apps N/A
DTS Premium Sound 5.1
Page 12
2-4
2. Product specications
Item UE**H5000AWXZF
Smart TV
Smart Interaction
Smart Convergence
Tuner/Broadcasting
Game N/A
Fitness N/A
Kids N/A
Multi-Screen (Dual / Quad Screen) N/A
Skype™ on Samsung TV N/A
Web Browser N/A
Voice Interaction N/A
Voice Control N/A
Camera Built-in N/A
Face recognition N/A
Motion control N/A
Contents Streaming N/A
Screen Mirroring N/A
Samsung SMART View N/A
Smart Home N/A
Twin Tuner N/A
Connectivity
CI/CI+/2CI+ CI+ (1.3)
DTV Tuner DVB-TC
Analog Tuner Yes
MHP / MHEG / HbbTV / ACAP / GINGA /
OHTV
HDMI 2
USB 1
Component In (Y/Pb/Pr) 1
Composite In (AV) 1 (Common Use for Component Y)
Ethernet (LAN) No
Headphone Yes
Digital Audio Out (Optical) 1
RF In (Terrestrial / Cable input) 1
Ex-Link ( RS-232C ) No
IR Out N/A
CI Slot 1
Scart 1
No
MHL CE 3.0 N/A
One Connect (Jack) N/A
WiFi Direct N/A
Page 13
2-5
2. Product specications
Item UE**H5000AWXZF
Connectivity
Design
Additional Feature
HDMI 1.4 3D Auto Setting N/A
HDMI 1.4 A/Return Ch. Support N/A
InstaPort S (HDMI quick switch) N/A
Wireless LAN Adapter Support N/A
Wireless LAN Built-in N/A
Anynet+ (HDMI-CEC) N/A
Design Luxe Line
Bezel Type VNB (46mm)
Front Color Black
Light Effect (Deco) N/A
Stand Type Square
Swivel (Left/Right) N/A
Samsung 3D N/A
3D Converter N/A
Instant On N/A
Quad Core+ N/A
Accessibility N/A
Auto Power Off Yes
Clock&On/Off Timer Yes
Sleep Timer Yes
BD Wise Plus N/A
Caption (Subtitle) Yes
Channel List USB-Clone Yes
ConnectShare™ (USB 2.0) Movie
Football Mode Basic
Embeded POP Yes
EPG Yes
PVR Ready N/A
Game Mode Yes
Multiroom Compatible N/A
OSD Language 27 European Languages
Picture-In-Picture Yes
BT HID Built-in N/A
USB HID Support N/A
Smart Evolution Support N/A
Page 14
2-6
2. Product specications
Item UE**H5000AWXZF
Additional Feature
Eco Feature
Accessory
TV SoundConnect N/A
Teletext (TTXT) Yes
Time Shift N/A
Eco Sensor No
Energy Efciency Class 22" : A A+
Mercury Content 0.0mg
Lead Presence Yes
3D Active Glasses (Included) N/A
Remote Controller Model TM1240A
Batteries (for Remote Control) Yes
Samsung Smart Touch Control (Included) N/A
Ultra Slim Wall Mount Supported No
Mini Wall Mount Supported No
Vesa Wall Mount Supported Yes
Floor Stand Support No
TV Camera (Included) N/A
IR Extender Cable (Included) N/A
Wireless Keyboard (Included) N/A
Wireless LAN Adaptor (Included) N/A
User Manual Yes
E-Manual Yes
Power Cable Yes
Slim Gender Cable N/A
Page 15
2-7
2. Product specications
2-2-2. Specications
Feature
Digital-TV, RF, 2-HDMI, 1-Component, 1-A/V, 1-USB2.0, Digital Sound Out(Optical),1-Headphone•
Brightness : 250 cd/m•
Dynamic Contrast Ratio : Mega DCR •
CMR : 100•
2
(22"), 350 cd/m
Specications
Model UE**H5000AW
Item Description
Screen Size (Diagonal) 21.5 inches 31.5 inches 40 inches 47.5 inches 49.5 inches
LCD Panel FHD 60 Hz
Display Colors 16.7 M color
Display Resolution 1,920 x 1,080
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
2
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 75 MHz 148.5 MHz 148.5 MHz 148.5 MHz 74.25 MHz
AC Power Voltage & Frequency AC220-240V 50/60Hz
Sound (Output) 6 W (3 W X 2) 20 W (10 W X 2)
Page 16
2. Product specications

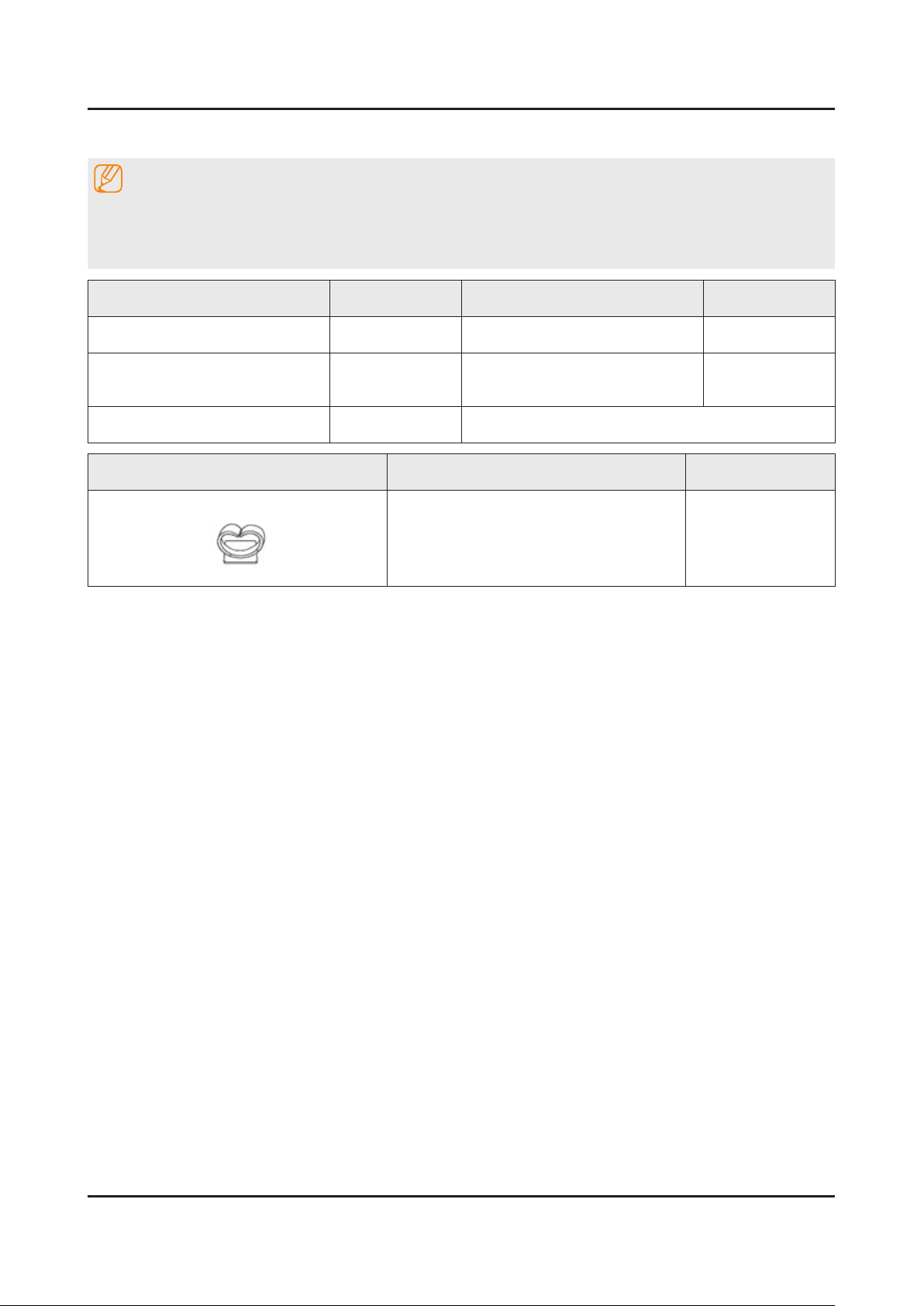

2-3. Accessories
NOTE
The items’ colors and shapes may vary depending on the model.•
Cables not included in the package contents can be purchased separately.•
The part code for some accessories may differ depending on your region.•
Product Code. No Product Code. No
Remote Control• BN59-00741A User Manual• BN68-06489A
Batteries (AAA x 2)• 4301-000121
Power Cord• 3903-000849
Image Product Code. No
Holder-Wire Stand• BN61-08370A
Warranty Card (Not available •
in some locations)
BN68-00514K
2-8
Page 17
3. Disassembly and Reassemble
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LED TV.
This LED TV contains electrostatically sensitive devices. Use caution when handling these components.
WARNING
3-1. Disassembly and Reassembly
Disconnect the LED TV from the power source before disassembly.1.
Follow these directions carefully; never use metal instruments to pry apart the cabinet.2.
CAUTION
(For 40H5000 model)

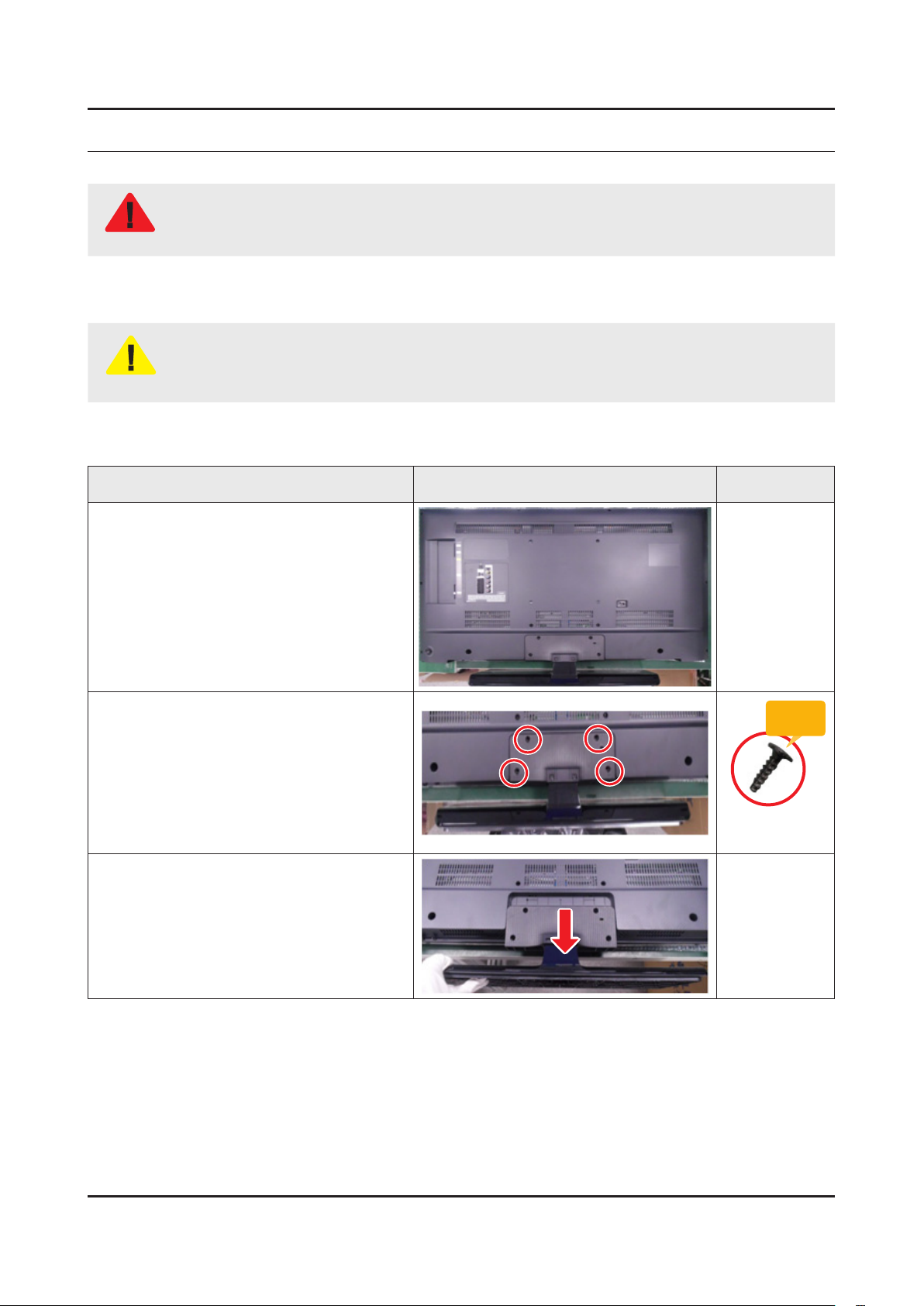

Place TV face down on cushioned table.
If there is no additional coment, it is same for all inches.3.

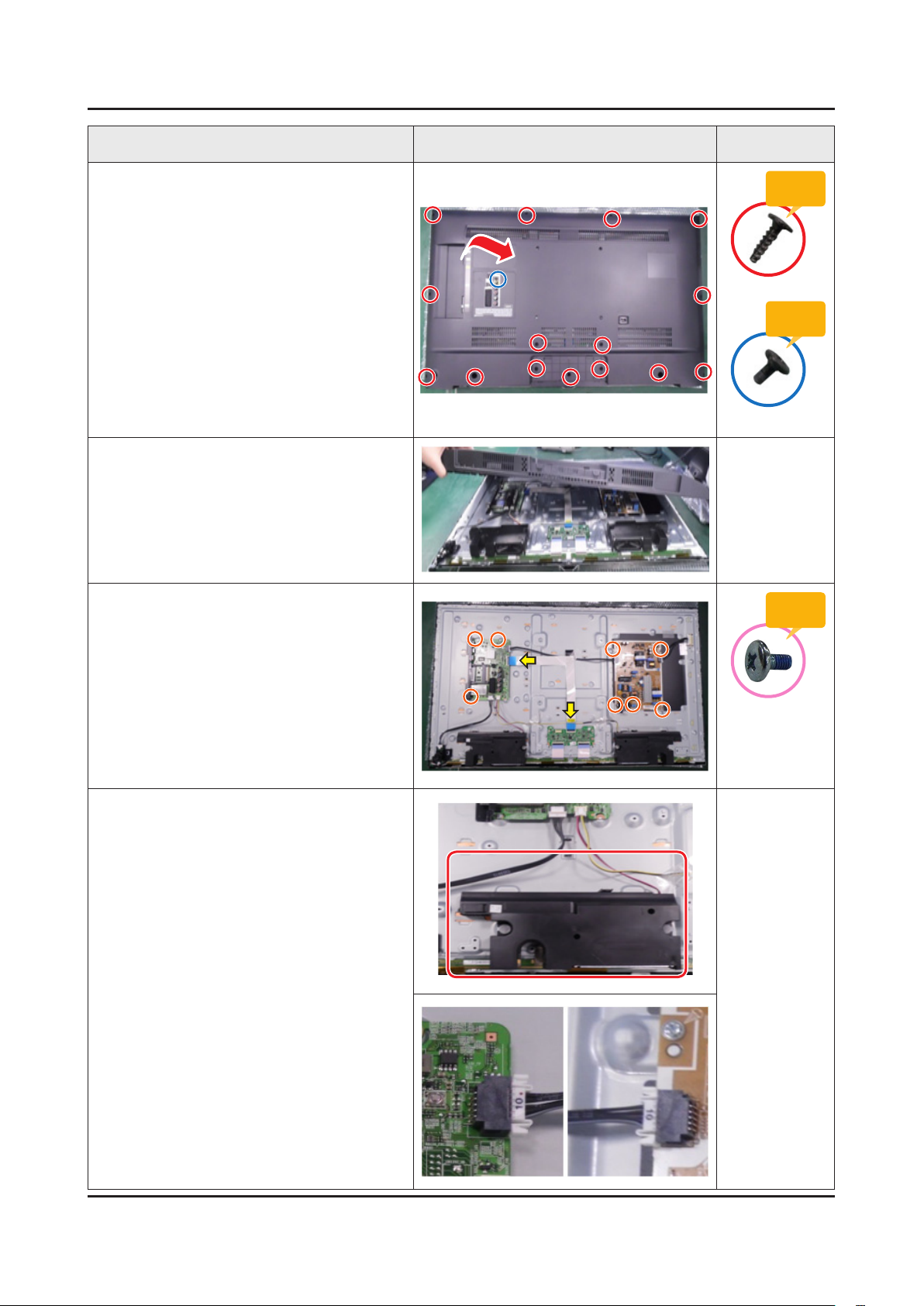

Description Picture Description Screws
1
Remove 4 screws from the stand.
2
Remove stand.
3
Torque :
9~ 10Kgf.cm
6003-001782
3-1
Page 18
3-2
3. Disassembly and Reassemble
Description Picture Description Screws
Remove the screws of rear-cover.
4
Remove the rear-cover.
5
Remove the screws.
6
Torque :
9~ 10Kgf.cm
6003-001782
Torque :
7~ 8Kgf.cm
6003-002755
Torque :
7~ 8Kgf.cm
Remove the speakers and power cables.
7
6001-003016
Page 19
3-3
3. Disassembly and Reassemble
Description Picture Description Screws

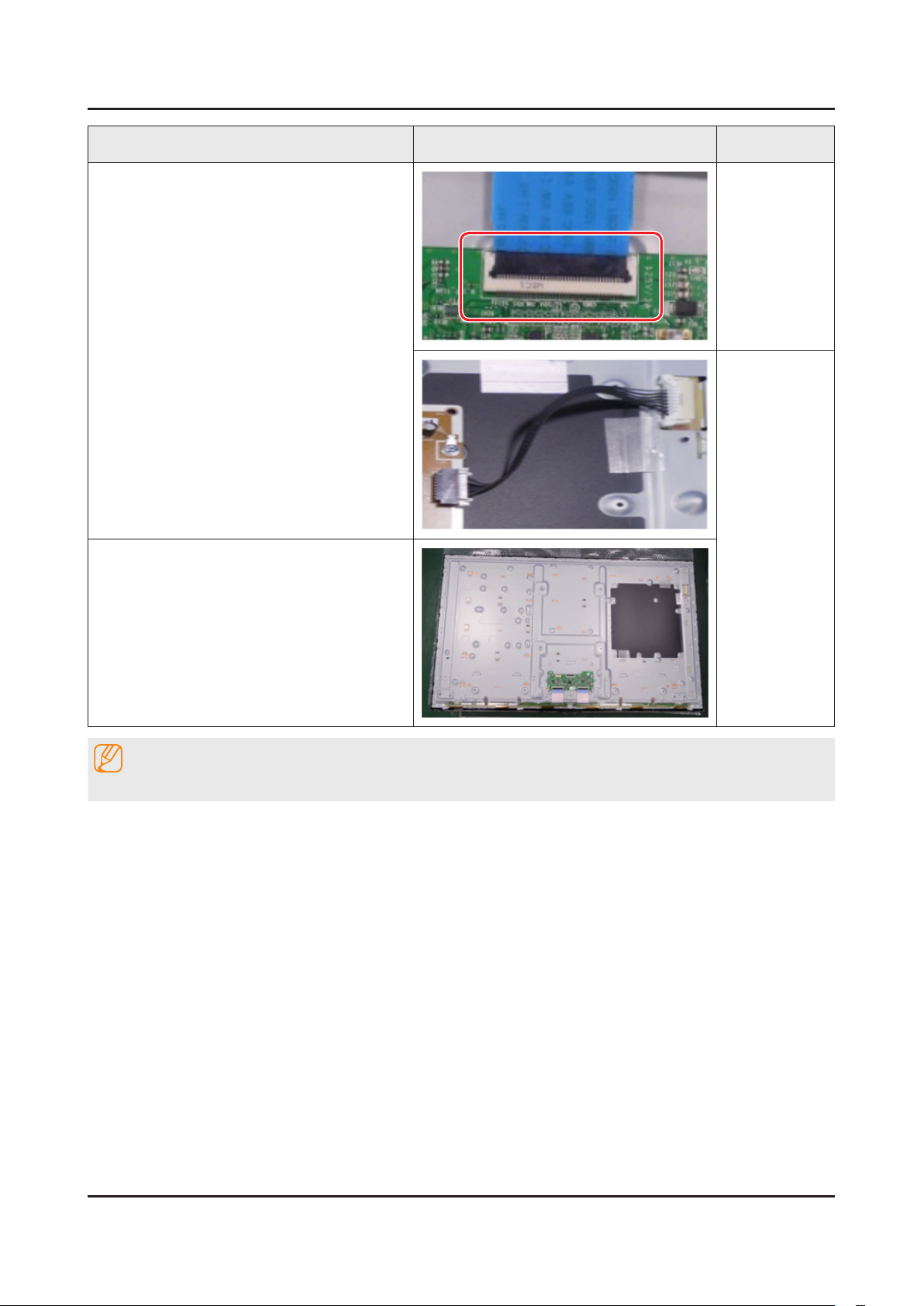

Remove the LVDS Cable and Panel Drive
8
Cable.
Completed disassembly.
9
NOTE
Reassembly procedures are in the reverse order of disassembly procedures.
Page 20
3-4
3. Disassembly and Reassemble

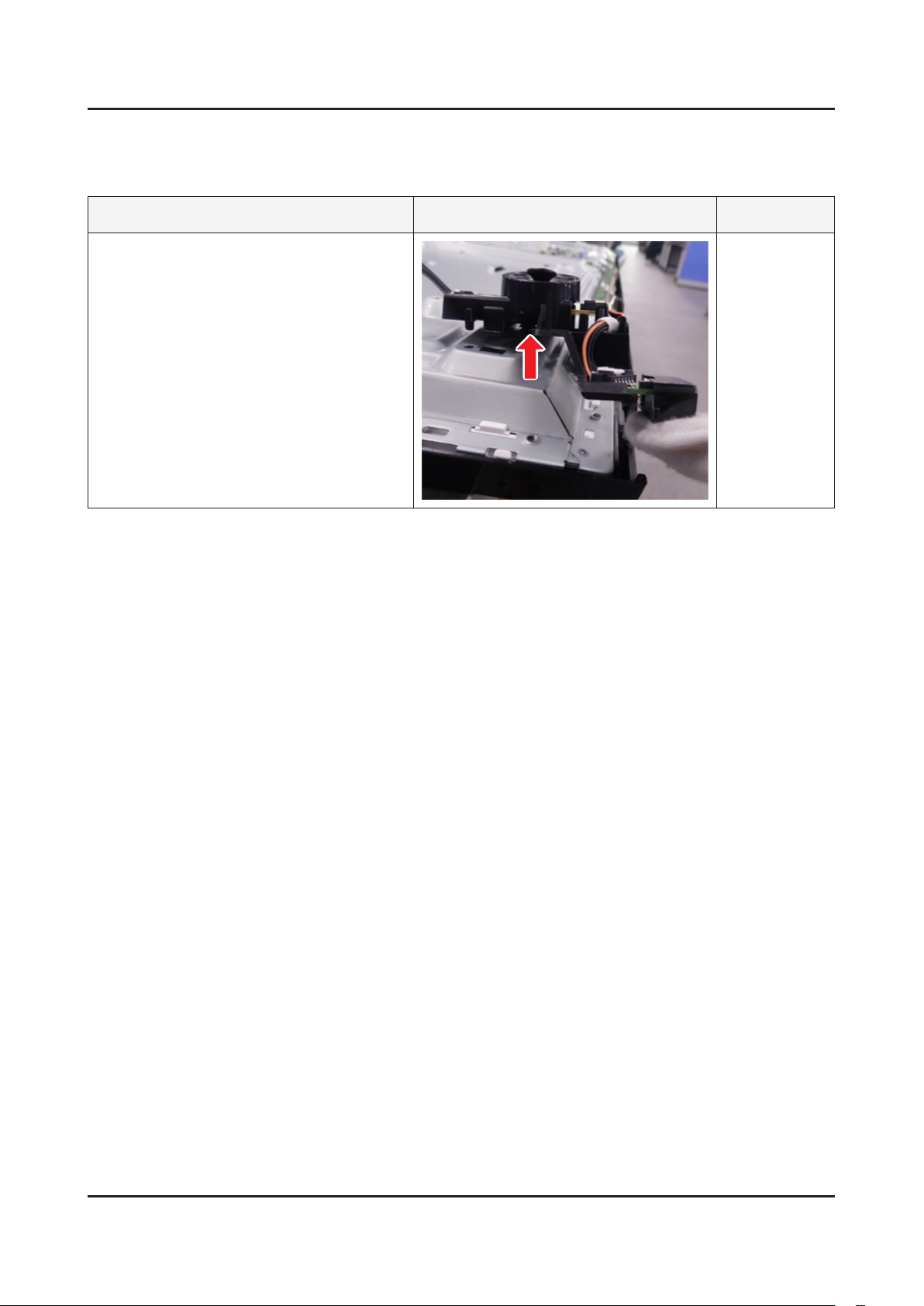

3-2. Assy Board P-Jog Switch & Ir

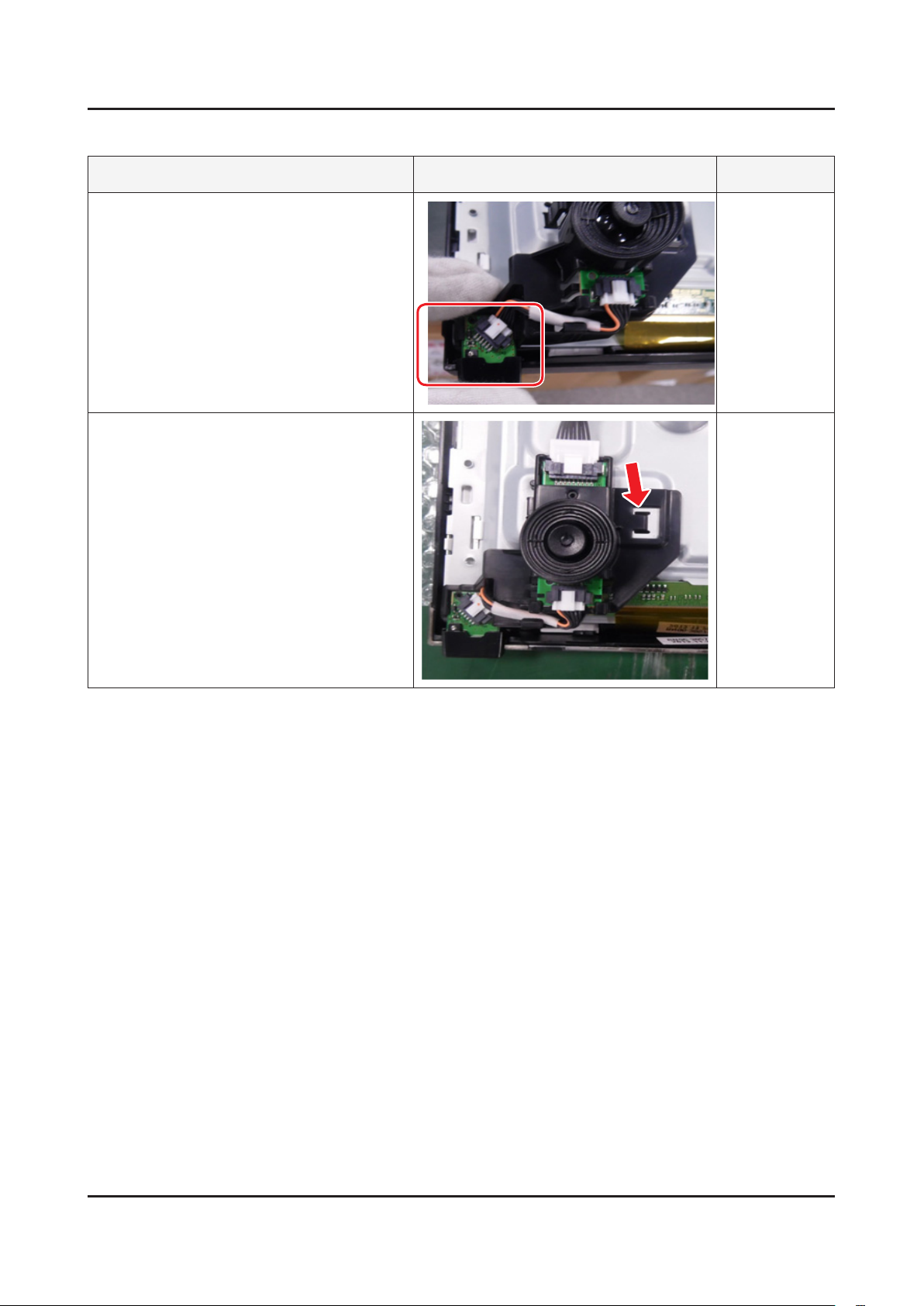

How to disassembly (For 40H5000)
Description Picture Description Refer
Pull out a jog function.
1
Page 21
3-5
3. Disassembly and Reassemble
How to assembly (For 40H5000)
Insert a jog function.
1
Put 2 screws.
2
Description Picture Description Refer
Page 22
3-6
3. Disassembly and Reassemble
3-3. Disassembly(PTC)
How to disassembly
Description Picture Description Refer

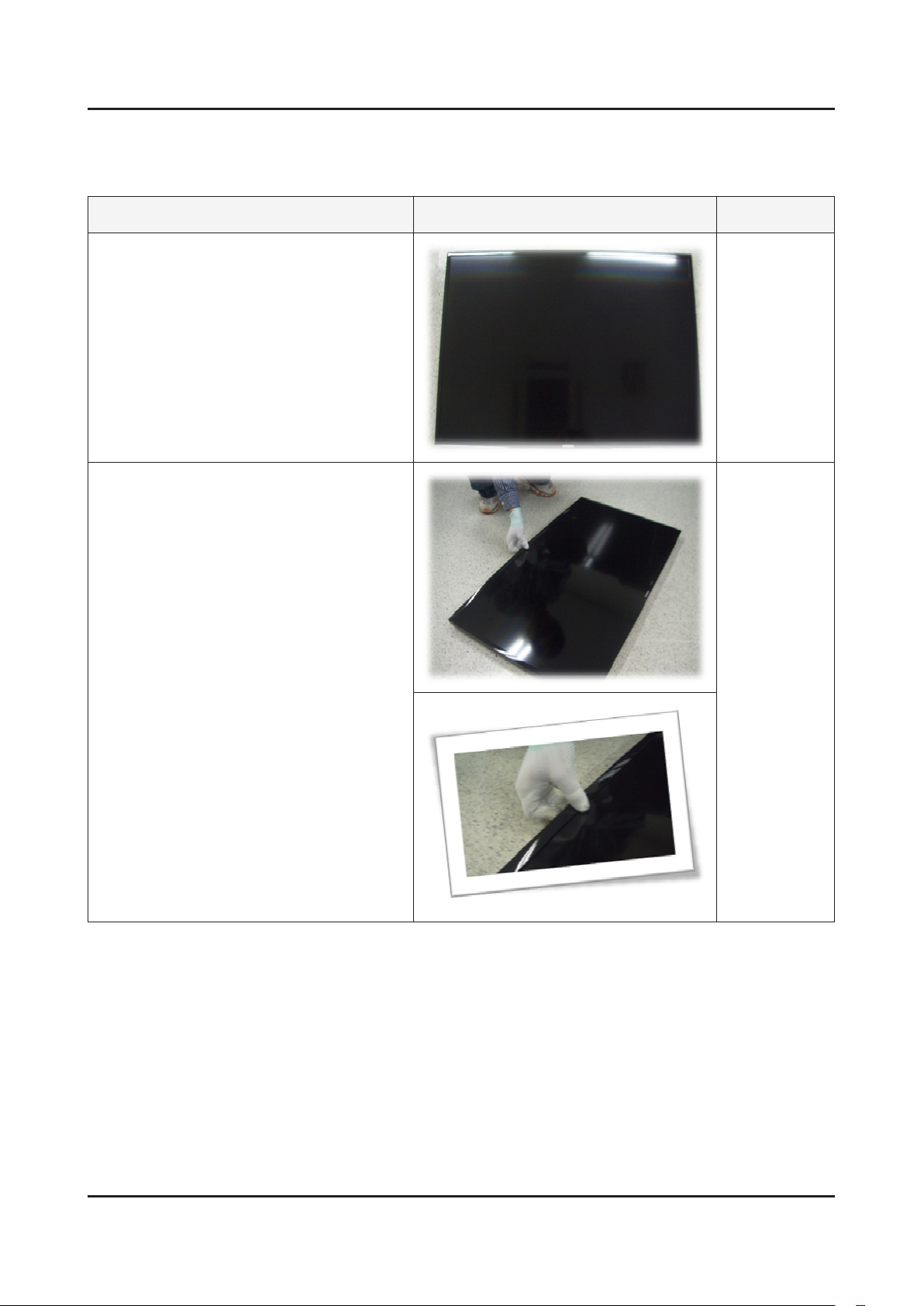

Place TV face up on cushioned table.
1
Products at the top of the central TOP-
2
CHASSIS is rotated by 45 degrees outward
and pulls.
Page 23
3-7
3. Disassembly and Reassemble
Description Picture Description Refer
Pull in the same way from the center of the
3
top.

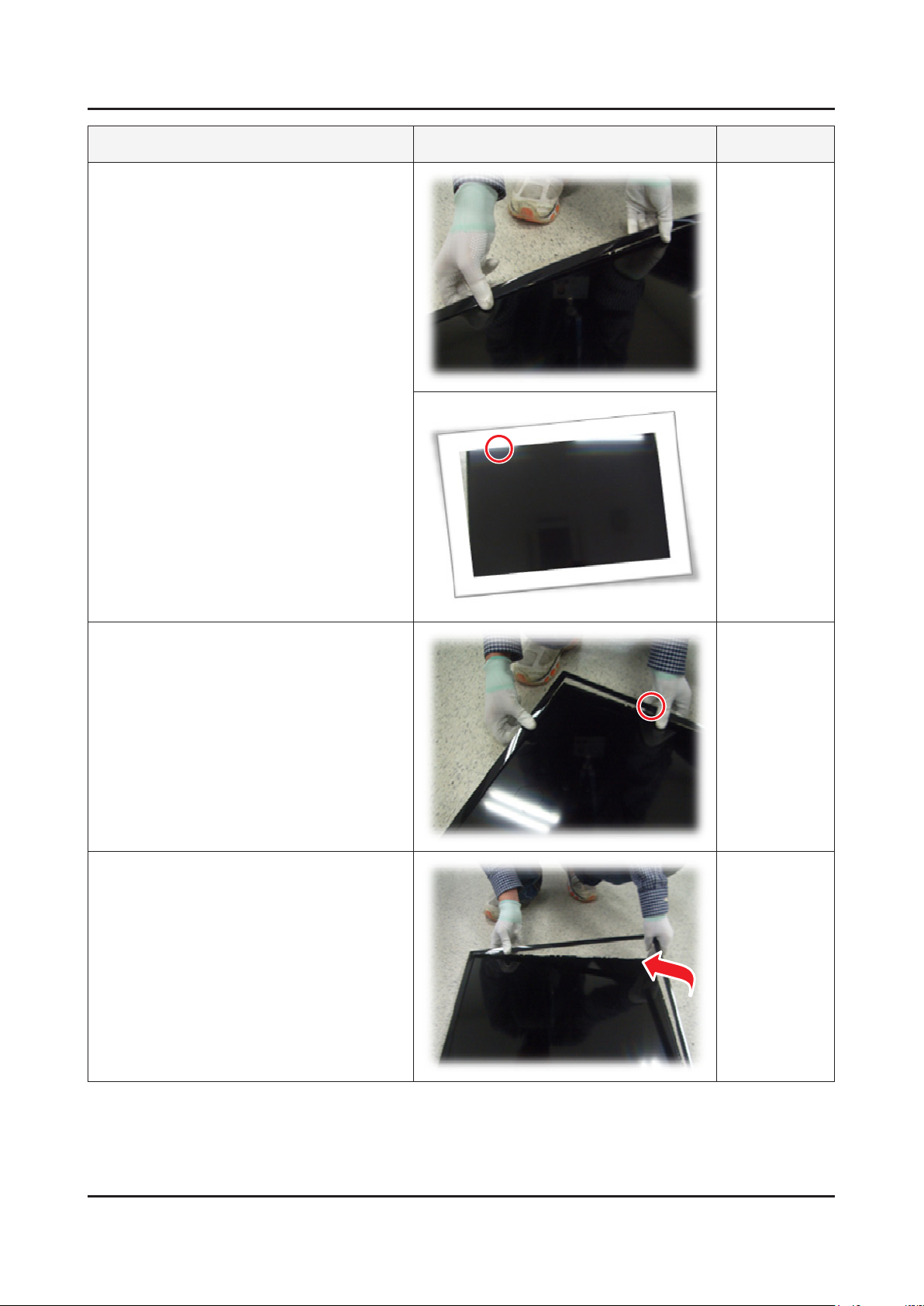

Pull the left part of the product as shown
4
while holding the raised portion on gure 3.
Pull the bottom part of the product as
5
gure 2 while holding the raised portion on
gure 4.
Page 24
3-8
3. Disassembly and Reassemble
Description Picture Description Refer

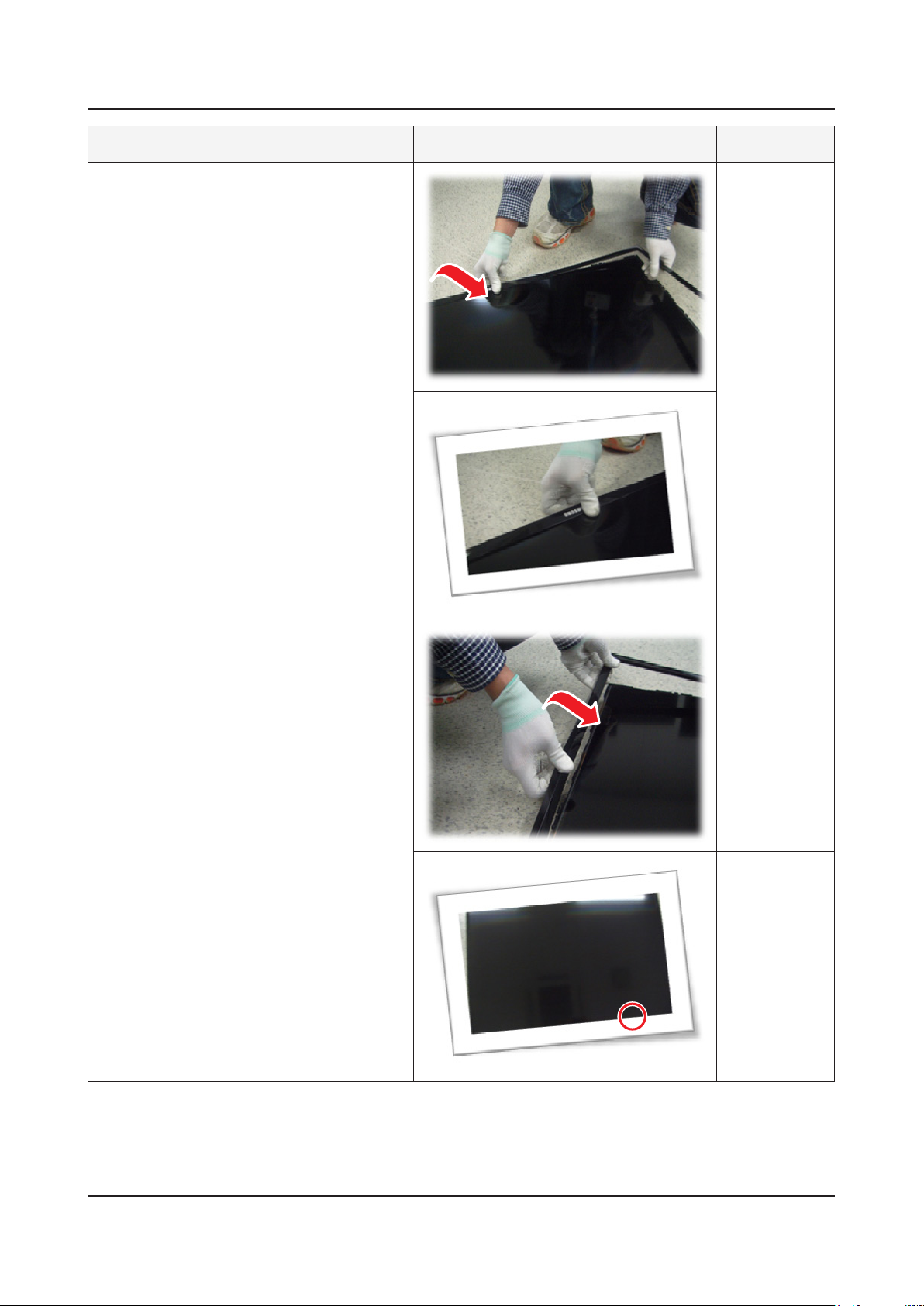

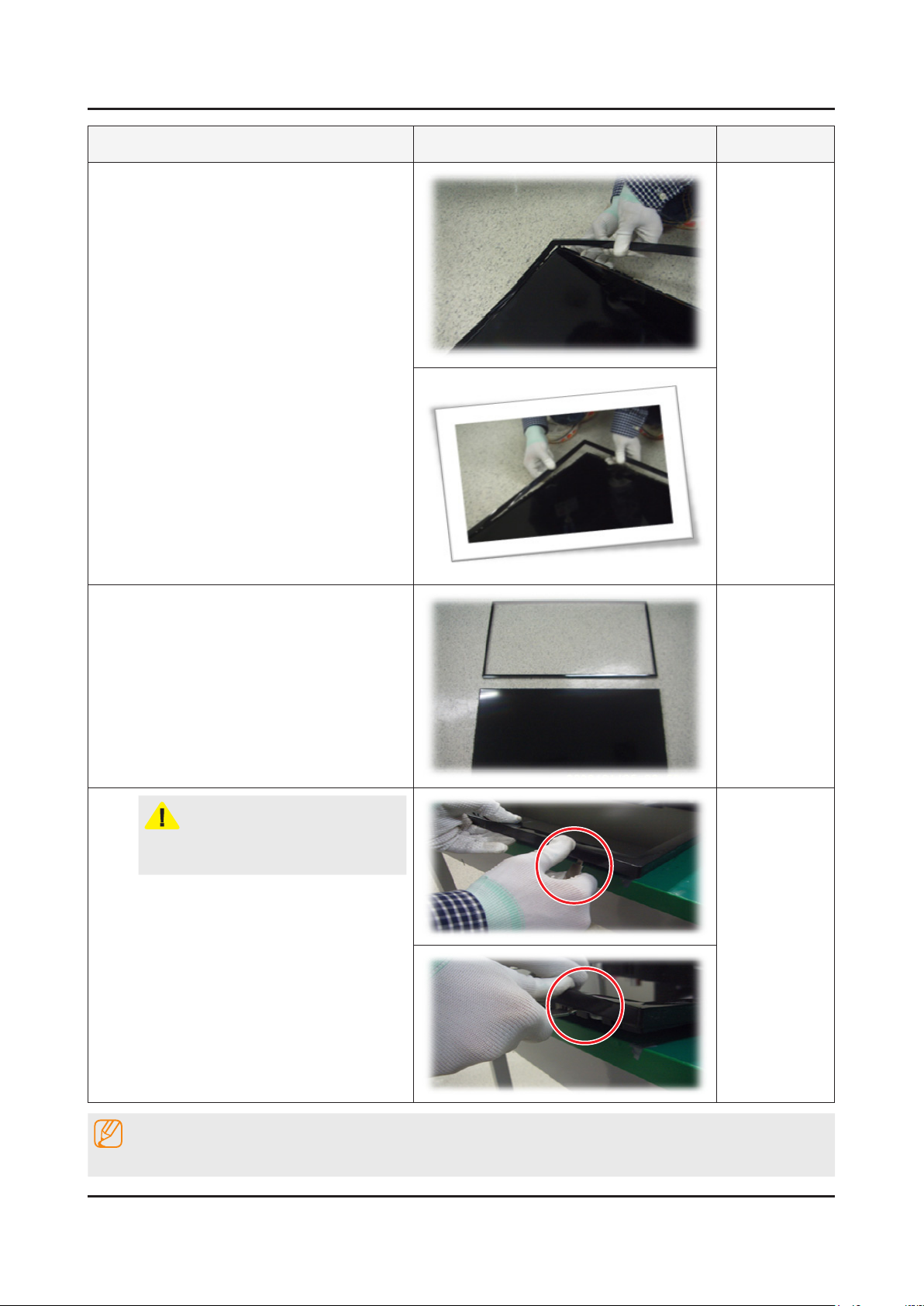

As shown in the picture, Lift the bottom of
6
the TOP-CHASSIS.
Pull the products at the bottom of the right
7
side of the chassis.
Page 25
3-9
3. Disassembly and Reassemble
Description Picture Description Refer
Lift the bottom of the chassis with one
8
hand and holding the bottom of the product
after you pull the right side of the product
chassis.
Disassembly is complete.
9
CAUTION
To use JIG : Does not lift the chassis by
hand, JIG using the lift.
NOTE
Reassembly procedures are in the reverse order of disassembly procedures.
Page 26
4. Troubleshooting
4-1. Troubleshooting
Previous Check
Check the various cable connections rst.1.
Check to see if there is a burnt or damaged cable. -
Check to see if there is a disconnected or loose cable connection. -
Check to see if the cables are connected according to the connection diagram. -
Check the power input to the Main Board.2.
4. Troubleshooting
Main Ass’y
Power Cable
LVDS Cable
Speaker
Main Board Assy (CN202)
9 A13V 10 UNDER_DRIVER
7 A13V 8 PWM_DIM
5 A13V 6 SW_POWER_TO _SMPS
3 A13V 4 GND
1 GND 2 GND
Power Ass’y
Check the power in & output between SMPS & Main Board, Main Board & Panel, IP & Panel.3.
4-1
Page 27
4-2
4. Troubleshooting
How to know it is from Main Board or T-Con when some problems happen
No Picture : Backlight is on, but there is no picture and LED indicator in front of TV is blinking.1.
Check the LVDS Cable connection. If still problems, change the T-Con Board and then Main Board step by step. -
Picture distortion : Enter the service mode 2. ⇢ Choose ‘SVC’ ⇢ Check the ‘internal pattern.’
Enter ‘Service Mode.’ -
If you do not have Factory remote control•
Power OFF Info MENU Mute Power On
If you have Factory remote control•
INFO Factory
Choose ‘SVC.’3.
Choose ‘Test pattern.’4.
Select the each pattern and then check all pattern is ok or not.5.
Option
Control
Debug
SVC
ADC/WB
Advanced
Pattern Status is Change the Test Pattern is made by the NOVATEK IC
OK Main Board We guess front of NOVATEK IC has problem.
NG Panel and T-Con Board We guess back of NOVATEK IC has problem.
Test Pattern Pattern Sel
Page 28
4-2. How to Check Fault Symptom
4-3
4. Troubleshooting
Power cord on.
Yes
Diagnostics
Check ‘Stand-By A5.3V’
5.3V appear at BD210?
0V to A13V (CN202 #3)
Yes
Set On.
Yes
Check ‘SW_POWER’ more than 3.3V
appear at CN202(#6)
0V to 3.3V↑ (CN202 #6)
Yes
Check ‘Power of main IC(B1.15V)’ appear
at BD917
Check ‘Power of DDR IC(B1.5V)’ appear
at BD911
Yes
Check ‘Power of LVDS (13V)’
appear at TP-PANEL_VCC?
0V to 13V (TP-PANEL_VCC)
No
No
No
No
Cause : There did not supply the
power from SMPS.
Measure : Change 10p power cable
and SMPS.
Cause : Main IC(NT14L) did not
control the SW_Power.
Measure : Change the Main Assy.
Cause : There is problem at
DCDC(IC201)/LDO(IC204).
Measure : Change the Main Assy.
Cause : There is proble at FET(Q202_
NFRC) or Main IC(NT14L) did
not control the SW_PVCC.
Measure : Change the Main Assy.
Yes
Change the LVDS cable ?
No
Change the Panel.
Page 29
4-4
4. Troubleshooting

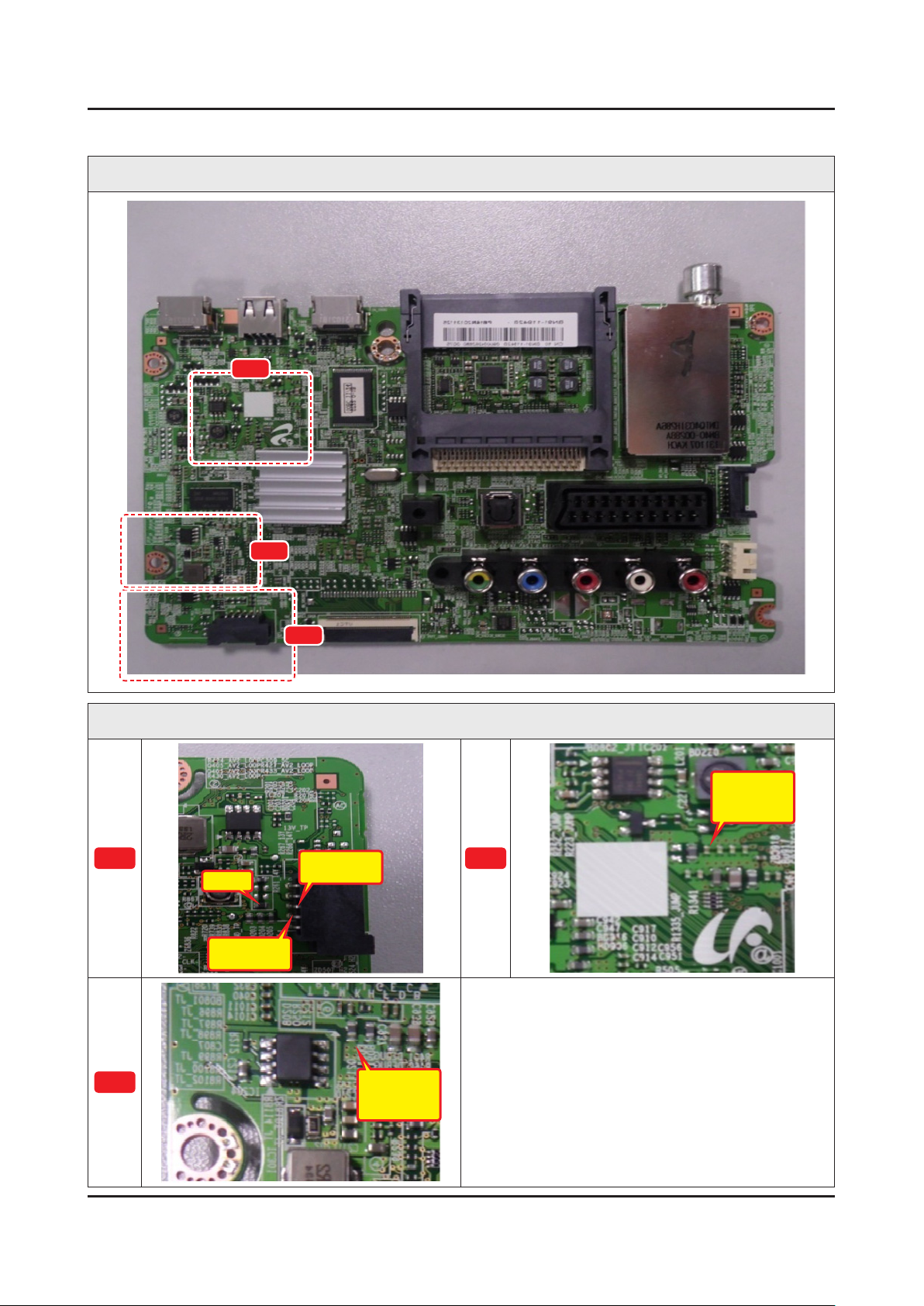

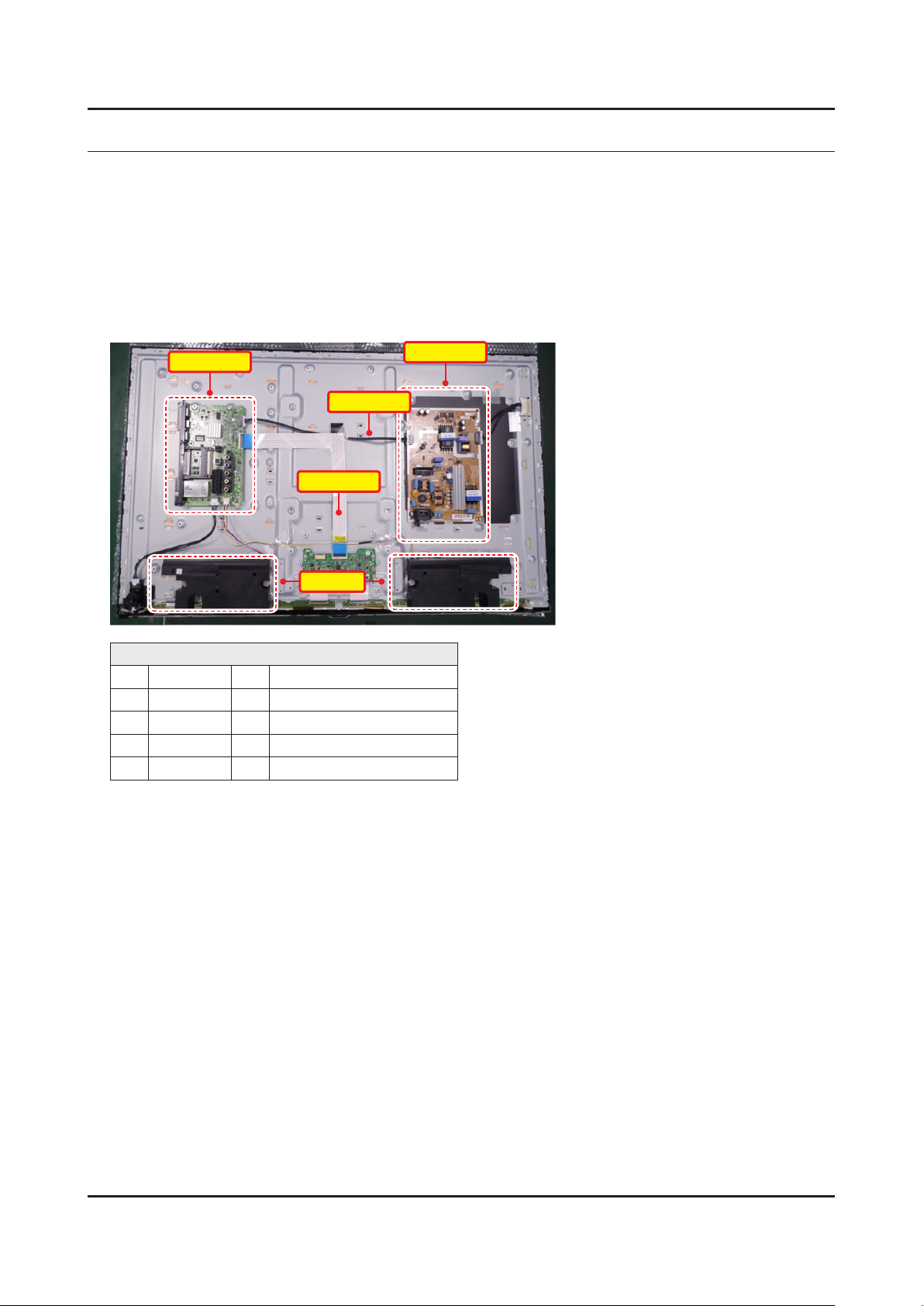

Location of Parts
Main Board_Front
B
C
A
Detail
BD917
(B1.15V)
A
BD210
CN202 #3
CN202 #6
B
C
BD911
(B1.5V)
Page 30
4-3. Factory Mode Adjustments
4-5
4. Troubleshooting
4-3-1. Detail Factory Option
NOTE
If you replace the main board with new one, please change the factory option as well.
The options you must change are "Type".
UE**H5000AWXZF
Model Name 22" 32" 40"
Vendor AUO SDC SDC
Panel
SMPS
MAIN ASSY
Byte Item
0 Factory Reset -
1 Type 22L6TF0E 32A6AF0V 40A6AF0V
2 Basic Model UH5000
3 SVC Model 5000
4 Local Set depending on the country (EU)
5 Tuner DVB-TC
6 Ch Table NONE
Code BN07-01061A BN95-01325A BN95-01316A
Spec. M215HW03 V1 LSF320HN03-G LSF400HM03-G
Vendor POWER SEM SEM
Code BN44-00692A BN44-00697A BN44-00698A
Spec. L22S0Q_EPN L32SF_ESM L42SF_ESM
Chassis
Ass'y
PBA Ass'y
code
BN91-11942D BN91-11942A BN91-11942K
BN94-07136D BN94-07136A BN94-07136K
Page 31
4-6
4. Troubleshooting
UE**H5000AWXXN
Model Name 48" 50"
Vendor SDC AUO
Panel
SMPS
MAIN ASSY
Byte Item
0 Factory Reset -
1 Type 48A6AF0V 50R6AF0V
2 Basic Model UH5000
3 SVC Model 5000
4 Local Set depending on the country (EU)
5 Tuner DVB-TC
6 Ch Table NONE
Code BN95-01317A BN07-01359A
Spec. LSF480HN01-G GH050BGA-B1
Vendor SEM HANSOE
Code BN44-00699A BN44-00704A
Spec. L48SF_ESM L55S1_EHS
Chassis Ass'y BN91-11946N BN91-11942L
PBA Ass'y code BN94-07140N BN94-07136L
Page 32

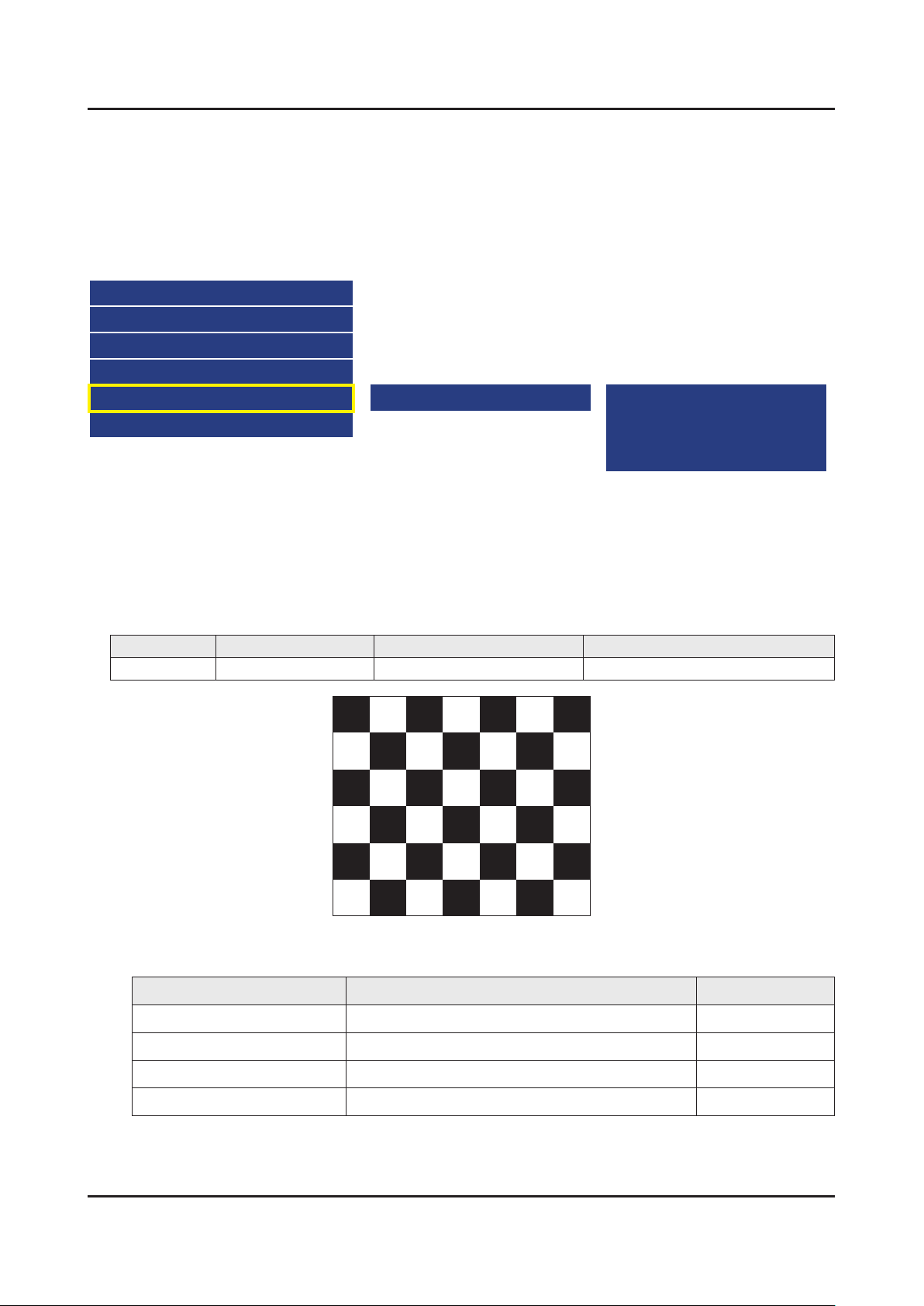

4-3-2. Entering Factory Mode
4-7
4. Troubleshooting
To enter ‘Service Mode’ Press the remote -control keys in this sequence :
If you do not have Factory remote control•
Power OFF INFO MENU MUTE Power On
If you have Factory remote control•
INFO Factory
If you don’t have Factory remote control, can’t control some menus•
Initial SERVICE MODE DISPLAY State
Option
Control
Debug
SVC
ADC/WB
Advanced
T-NT14LDEUC-xxxx.x
T-NT14LDEUS-xxxx
E-Manual : NLDVBEUxH-xxxx
EDID SUCCESS
CALIB : AV/COMP/PC/HDMI/
Option : 40A6AF0V,EU_UK,5000,NONE
DTP-SDAL-NT14L-MAIN-xxxx-xxxx
RFS:"NT14L xxxx" K/20xx-xx-xx
KERNEL:xxxx.xxxx,/Onboot: xxxx
TCON Version:----
NSP-DTVTD-xxxx
Model: UE40H5000
Wireless MAC ----
CIP FAIL
Factory Data Ver:xxx
EERC Version: xxx
NSP-BP-HAL-xxxx
NSP-AP-CNC-xxxx
NSP-AP-MM-xxxx
NSP-BP-MW-xxxx
NSP-BP-APP-xxxx
NSP-PNG-xx-xxxx
Date of purchase:-/-/----
Page 33
4-8
4. Troubleshooting
4-3-3. Factory Data
Note
Version of the software is written in 0002.•
Black• : I should not be possible to adjust or change that does not require a change item
Blue : Adjustment Services for the corresponding
Red : Items that are secured
Option
Factory Menu
Data Range Remark Key
Name
Factory Reset - -
Type 40A6AF0V 19B6TH0E/19L6TH0E/22D6TH0E/22
Local Set Local Set Select Local
SW Model UF5000 UH4000/UH5000/UH5070
BOM Model 5000 4000/5000/5070
TUNER S-T2C Not Detected/S_TC/S-T2C/S_TCS2/S_
Ch Table NONE
L6TF0E
28S6AH0S/28T6AH0S/28B6AH0S
32S6AH0S/32T6AH0S/32A6AH0S/32
H6AH0S/
32R6AF0V/32A6AF0V
40A6AF0V/48A6AF0V
50D6AF0V/50R6AF0V
T2CS2
MRT Option
Front Color U-S-C-5K
Lvds Format JEIDA
Language_Arabic EU EU/AUSTRAILIA
Region PANEURO
PnP Language ENG
WIFI REGION E A~Z/AA/AB
OTN Support OFF ON/OFF
MediaPlay DLNA ...
TTX ON ON/OFF
China HD OFF ON/OFF
NT Conversion OFF ON/OFF
Num of DTV 1 0~2
Num of AV 1 0~3
Num of COMP 1 0~3
Num of HDMI 2 0~4
Page 34
4-9
4. Troubleshooting
Factory Menu
Data Range Remark Key
Name
Num of SCART 1 0~2
Num of USB Port 1 0~2
Num of RVU 0 0~1
Num Of Display 2 1~2
Num of IPTV 0 0~1
Num of RUI 0 0~1
TOOLS Support 1849
LNA Support 0 0~1
24Px4 Support OFF ON/OFF
BD Wise Support OFF ON/OFF
Data Service
Support
PVR Support OFF ON/OFF
CI Support ON ON/OFF
OTA Support General General/OFF
LEDMotionPlus
Support
OFF ON/OFF
ON ON/OFF
Natural Mode
Support
Relax Mode Support OFF ON/OFF
HDMI/DVI SEL 2 1~4
Select LCD/PDP LCD LCD/PDP
Wall Mount 0 0~1
HV Flip HV Flip OFF/HV Flip/V Flip/H Flip
PVR RECORD NUM 0 0~2
Light Effect OFF ON/OFF
e-POP Default ON ON/OFF
CAMERA Support OFF ON/OFF
NETWORK Support ExtOnly-Wi Not Support/Cable/Ext-Wi/Int-Wi/
EcoSensor Support ON ON/OFF
3D Support OFF ON/OFF
BT Support OFF ON/OFF
BT ADDRESS Not Support Not Support
HP LINE Headphone Headphone/LineOut/NONE
ON ON/OFF
ExtOnly-Wi/Error
Capture Recording
Support
OFF ON/OFF
Page 35
4-10
4. Troubleshooting
Factory Menu
Data Range Remark Key
Name
Engineer Option
Type Of PANEL KEY Horizontal Horizontal/Vertical/PDPVertical/
5 Way Function Key R_BOTTOM L_BOTTOM/R_BOTTOM/L_BACK/R_
Contents Bar 0 0~1
Cable Modulation …
Standby led on/off OFF ON/OFF
Recognition Support OFF ON/OFF
IF AGC 0 0~10
D AGC 0 0~10
PH BW 3 0~10
FQ BW 3 0~10
PH RATE 4 0~10
PD EN 1 0~10
PEQ Inx 43
PDPHorizon/None
BACK/4
WF Scale
Num of Network
Stream
DP V Size 1 0~1
Backend Device ECHO_FS NONE/ECHO_FP/ECHO_FS/PARMA
BT_AUDIO_ON_
OFF
Cong_AV_PATH
V_HDMI IDENT
TYPE
V_HDMI PATH
TYPE
V_EDID TYPE LCD_FHD LCD_FHD/LCD_HD
V_ATV CVBS_PORT_2
V_AV1 AV_COMP_G1
V_AV2 CVBS_PORT_3
V_COMP1 ADC_PORT_1
V_COMP2 None
V_PC ADC_PORT_0
0 0~1
OFF ON/OFF
2134
BACD
V_SCART1_CVBS CVBS_PORT_3
V_SCART1_RGB ADC_PORT_2
V_SCART2_CVBS None
V_SCART2_RGB None
A_ATV SIF
Page 36
4-11
4. Troubleshooting
Factory Menu
Data Range Remark Key
Name
A_DTV DECODER
A_AV1 AUIN1
A_AV2 AUIN0
A_COMP1 AUIN1
A_COMP2 None
A_PC AUIN0
A_SCART1 AUIN0
A_SCART2 None
A_DVI None
A_HDMI None
A_Media DECODER
USING_PSI_
UPDATE
Fast Logo Delay 0 0~20
Num Of PANEL KEY 6 0~20
…
Control
Factory Menu Name Data Range Remark Key
EDID
EDID ON/OFF ON ON/OFF
EDID WRITE ALL Success
EDID WRITE PC …
EDID WRITE HDMI Success
EDID WRITE HDMI1 …
EDID WRITE HDMI2 …
EDID WRITE HDMI3 …
EDID WRITE HDMI4 …
EDID Ver HDMI 1.3
EDID Port NONE
EDID WRITE DVI …
Sub Option
RS-232 Jack Debug Debug/UART
Serial Log On/Off ON ON/OFF
Watchdog OFF ON/OFF
Checksum 0x0000
Fast Boot in Production ON ON/OFF
USB Serial OFF ON/OFF
Page 37
4-12
4. Troubleshooting
Factory Menu Name Data Range Remark Key
Eeprom Reset
EER Reset 0
NVR All Clear OFF ON/OFF
ECO IC TYPE MC8121 NONE/CT802FN/NLS1106/
Info Link Server Type operating operating/development/
Info Link Country None
TTX Group UserOSD WestEurope/EastEurope/
Visual Test …
MediaPlay DB …
OPTION_SWU
OTN Server Type operating operating/development
OTN Test Server OFF ON/OFF
SWU Reset
SWU Duration OFF ON/OFF
SWU Fail Test OFF ON/OFF
SWU_Diag_Code
OPTION_NUM
Num of ATV 1 0~2
MC8121/MC8121_REV
developing
Russian/Greek/Turkey/Arabic/
Farsian/Arab/Hbrw/UserOSD
Num of SVIDEO 0 0~3
Num of PC 0 0~1
Num of DVI 0 0~1
Num of OPTICAL Link 1 0~1
Num of MEDIA 1 0~1
Num of Tuner 1 0~1
Num of PVR RECORD 0 0~1
RF Remocon Support OFF ON/OFF
CDD mode …
DPMS Support OFF ON/OFF
Num of IPTV CIP 0 0~1
Num of CI 1 0~1
Num of DECODER 0 0~1
T-CON Device
BOARD CONTROL OFF ON/OFF
RM
Server Type Operating operating/development
Page 38
4-13
4. Troubleshooting
Factory Menu Name Data Range Remark Key
RTS Mode 0 0~1
PSA
FKP Download1
FKP Download2
LMK threshold 0
Low threshold 0
High threshold 0
CSB ON ON/OFF
CLB ON ON/OFF
EEPG Enable OFF ON/OFF
PDP Option
Hotel Option
Hotel Mode OFF ON/OFF
Hospitality Mode 1
Power On
Menu OSD
Music Mode
External Source
Eco Solution
Cloning
Shop Option
Shop Mode OFF ON/OFF
Exhibition Mode OFF ON/OFF
3D Cube OFF ON/OFF
Asia Option
Sepco 120Hz OFF ON/OFF
Unbalance OFF ON/OFF
FMTransmitter Support OFF ON/OFF
FMTransmitter Carrier OFF ON/OFF
AF Level adjust 3 0~7
TX Power Level 0 0~3
Mono Last Memory OFF ON/OFF
H Shaking OFF ON/OFF
SOUND
High Devi OFF ON/OFF
Carrier_Mute OFF ON/OFF
Speaker Delay Normal 0
Page 39
4-14
4. Troubleshooting
Factory Menu Name Data Range Remark Key
Wiselink Delay Menu 0
Pilot Level High Thld 0x13h
Pilot Level Low Thld 0x09h
Pilot_Phase_diff_on_THR OFF ON/OFF
FM Prescale 0x2Eh
AM Prescale 0x1Ah
NICAM Prescale 0x1Dh
Amp Model NTP7414
Amp Volume 0xc5h
Amp Scale 0x9ah
Amp Check Sum 0x01575E95
SubWoofer Support 0 0~7
Woofer Type 0 0~7
Woofer Volume 0xcbh
Woofer Scale 0x8ah
Woofer Check Sum NONE
Woofer Local Check Sum NONE
Amp local Check Sum NONE
Speaker EQ ON ON/OFF
PEQ Test Ready Ready/Set1~Set5
Speaker cut-off Freq 5
SPDIF PCM Gain -9dB
FM M Prescale 0
BTSC Mono Prescale 0
BTSC stereo Prescale 0
SAP Prescale 0
A2 Ident High Thld 15
A2 Ident Low Thld 4
Carrier2 Amp High Thld 16
Carrier2 Amp Low Thld 14
Carrier2 SNR High THR 32
Carrier2 SNR Low THR 17
Audio-IP Test Ready Ready/Set1~Set9
SRS Tuning Parm 0
TruBass-CheckSum 0
Mic Scale 0
India Sound OFF ON/OFF
Wall Filter Type 0
Page 40
4-15
4. Troubleshooting
Factory Menu Name Data Range Remark Key
SAP High Thld 9
SAP Low Thld 7
Bottom Checksum 0
Bottom Local CHeckSum 0
Debug
Factory Menu Name Data Range Remark Key
Spread spectrum
LVDS Spread ON ON/OFF
LVDS Period 40K 20K/30K/40K
LVDS Amplitude 2.0 0.0/0.5/1.0/1.5/2.0/2.5/3.0
DDR Spread ON ON/OFF
DDR Period 20K 20K/30K/40K
DDR Amplitude 1.5 0.0/0.5/1.0/1.5/2.0
FRC LVDS SSC ON/OFF ON ON/OFF
FRC LVDS SSC MFR 1
FRC LVDS SSC MRR 10
FRC LVDS SSC Period 0
FRC LVDS SSC Modulation 1
FRC DDR SSC ON/OFF ON ON/OFF
FRC DDR SSC MFR 1
FRC DDR SSC MRR 10
FRC DDR SSC Period 1
FRC DDR SSC Modulation 1
DDR Margin
A CTRL_OFFSET_0_3 0 0~1
A CTRL_OFFSET_D 0 0~1
B CTRL_OFFSET_0_3 0 0~1
B CTRL_OFFSET_D 0 0~1
ND ADJ Support 0 0~1
MICOM POWER OFF 0 0~1
RF Mute Time 6ms 0ms~10ms
CI+1.3 0 0~1
FRC
FRC FDISPLAY ON/OFF OFF ON/OFF
PC Mode ON/OFF OFF ON/OFF
Home Panel FRC OFF ON/OFF
Page 41
4-16
4. Troubleshooting
Factory Menu Name Data Range Remark Key
Tuner Margin 0 0~1
MPEG Margin 1000
H.264 Margin 8
CAM Wait Time 0
TS Clock delay 0
TCON_TEMP READ 0.00
TEMP LAST 60.00
DCC VERSION 0x0
DCC CHK SEL 0
DCC CHECK LOCAL 0x0
DCC CHECK TOTAL 0x0
MultiACC Checksum 0
IIC Bus Stop OFF ON/OFF
Tuner Status
DVB
SNR 0 0
BER 0 0
Signal Strength 0 0
Bandwidth 0 0
Frequency 0 0
LNA Status 0 0
FFT 0 0
Modulation 0 0
Code Rate 0 0
GI 0 0
Hier Modulation 0 0
Frequency Offset 0 0
Timing Offset 0 0
AGC 0 0
UCB 0 0
PLL Type 0 0
DEMOD Type 0 0
TPS Lock 0 0
RS Lock 0 0
SSI 0 0
SQI 0 0
Firmware Version 0 0
ISDB-T
Page 42
4-17
4. Troubleshooting
Factory Menu Name Data Range Remark Key
FFT Size_1
Guard Interval_1
Freq.Offset_1
SNR_1
IF AGC_1
TMCC Lock_1
TS Packet_1
Master Lock_1
A_Modulation_1
A_Code Rate_1
A_Timer InterLeave_1
A_Segments Num_1
A_BER_1
B_Modulation_1
B_Code Rate_1
B_Timer InterLeave_1
B_Segments Num_1
B_BER_1
C_Modulation_1
C_Code Rate_1
C_Timer InterLeave_1
C_Segments Num_1
C_BER_1
SVC
Factory Menu Name Data Range Remark Key
Self Diagnosis
Loop Back
LAN Test
AV Audio Test Failure Failure/Success
DVIN Audio Test Failure Failure/Success
CVBS Test Failure Failure/Success
COMP Test Failure Failure/Success
Factory Menu Name Data Range Remark Key
USB HUB Test
HDMI Test NG/NG/NG/NG
Page 43
4-18
4. Troubleshooting
Factory Menu Name Data Range Remark Key
SCART Audio Test Failure Failure/Success
SCART CVBS Test Failure Failure/Success
SCART RGB Test Failure Failure/Success
PC Audio Test Failure
PC Self Test Failure
CPU Failure Failure/Success
DDR
FLASH
EEPROM
X-TAL Failure Failure/Success
Tuner1 Failure Failure/Success
Sound AMP Failure Failure/Success
HDMI Switch IC Failure Failure/Success
USB HUB IC Failure Failure/Success
WIFI Failure
LVDS
T-CON/FRC
PCB Test Failure Failure/Success
MOIP 0
BT
EcoSensor
Voltage 0
Device Self Test 0
App Self Test
EXT Sound Inspection
Woofer Sound Inspection NONE
ATV CH Inspection Failure Failure/Success
DTV CH Inspection
Satellite CH Inspection
PDP Discharge Voltage
Info
SVC Info 0
LOG
Select Log Type MICOM
Log View 0
Delete Log
Debug Log Down
Page 44
4-19
4. Troubleshooting
Factory Menu Name Data Range Remark Key
ER Count
WD Count 0
AR Count 0
WIFI ER Count 0
BT ER Count 1
HDMI Stable Cnt 1
Camera ER Count 0
Panel Display Time 0Hr
Upgrade
T-CON Usb Download Failure Failure/Success
T-CON CheckSum N/A
Logic Usb D/L …
SUBMICOM UPGRADE Ready
BT UPGRADE
BT FREEPAIRING ON ON/OFF
Function Upgrade Failure Failure/Success
FRC3D FW Upgrade
Camera Upgrade 0 0~1
Mic Upgrade 0 0~1
CPLD USB Download 0 0~1
JP MICOM UPGRADE Failure Failure/Success
DP MICOM UPGRADE Failure Failure/Success
Jump Upgrade Failure Failure/Success
MIC PROGRAM UPGRADE Failure Failure/Success
Reset
Smart Hub Reset 0
EEPROM_Reset
Factory_Reset
OPTION_HDMI
DVI/HDMI SOUND Auto Auto/DVI
HDMI HOT PLUG Disable Disable/Enable
HOT PLUG SWITCHING Boot Boot/Source
HOT PLUG DURATION 200ms
CLK TERM DURATION 200ms
HDMI FLT CNT SIG 100ms
HDMI FLT CNT LOS 100ms
UNSTABLE BAN CNT 3500ms
Page 45
4-20
4. Troubleshooting
Factory Menu Name Data Range Remark Key
HDMI ROBIN 1 0~1
HDMI Callback 0 0~1
HDMI CTS Thld 8 0~15
HDMI CTS Cnt1 1 0~15
HDMI EQ AUTO AUTO/Low/Middle/High/Strong
HDMi Write Type Combine Combine/Separate
HDMI Switch NONE NONE/SIL9287/TMDS461
DVI SET TIME 300ms
HDMI Sync DE DE/HV
HDMI 3D DET 0 0~1
HOT PLUG OFF HOLD
TIME
0 0~1
DVB CI
TS Clock delay TC 0
TS Clock delay S 0
CI Control Buf ON ON ON/OFF
TS Clock delay CPU -1 -15~15
Test Pattern
Pattern Sel OFF OFF/CHESS/VISON1/
Logic Pattern Sel …
Logic Level Sel …
FRC Pre Test Pattern 0
FRC Post Test Pattern 0
SOC TCON Test Pattern 0 0~1
SOC TCON Pattern Level 0 0~1
VISON2/8COLOR_BAR/RGB_
RAMP/WHITE/RED/GREEN/
BLUE/16GRAY/32GRAY/
BLACK/RGB_COMP
SOC TCON FRC Pattern 0 0~1
HDMI WB Pattern 0 0~1
HDMI Pattern Sel 0 0~1
Others
Delete S/N Failure Failure/Success
IREPF Stopped Stopped/running
Expert
N/D ADJ …
Source …
CAL Data Backup_Copy …
Page 46
4-21
4. Troubleshooting
Factory Menu Name Data Range Remark Key
CAL Data Restore_Copy …
ATV IF AGC SPEED 0 0~16
Auto Power MEMORY MEMORY/ALWAYS ON/
ALWAYS OFF
ADC/WB
Factory Menu Name Data Range Remark Key
ADC
AV Calibration ----
Comp Calibration ----
PC Calibration ----
HDMI Calibration ----
ADC Result
1st_Y_GH 0
1st_Y_GL 0
1st_Cb_BH 0
1st_Cb_BL 0
1st_Cr_RH 0
1st_Cr_RL 0
2nd_R_L 134
2nd_G_L 134
2nd_B_L 134
2nd_R_H 49
2nd_G_H 49
2nd_B_H 49
White Balance
R-Offset 128
G-Offset 128
B-Offset 128
R-Gain 128
G-Gain 128
B-Gain 128
WB_W2_R_Offset 128
WB_W2_B_Offset 128
WB_W2_R_Gain 162
WB_W2_B_Gain 69
WB_N_R_Offset 128
Page 47
4-22
4. Troubleshooting
Factory Menu Name Data Range Remark Key
WB_N_B_Offset 128
WB_N_R_Gain 151
WB_N_B_Gain 109
MGA
MAG On/Off OFF ON/OFF
R1_Gain 512
G1_Gain 512
B1_Gain 512
R2_Gain 512
G2_Gain 512
B2_Gain 512
R3_Gain 512
G3_Gain 512
B3_Gain 512
R4_Gain 512
G4_Gain 512
B4_Gain 512
R5_Gain 512
G5_Gain 512
B5_Gain 512
R6_Gain 512
G6_Gain 512
B6_Gain 512
R7_Gain 512
G7_Gain 512
B7_Gain 512
R8_Gain 512
G8_Gain 512
B8_Gain 512
R9_Gain 512
G9_Gain 512
B9_Gain 512
R10_Gain 512
G10_Gain 512
B10_Gain 512
Advanced
Page 48
4-4. White Balance
4-23
4. Troubleshooting
4-4-1. Calibration
Into the Factory Mode.1.
Select 2. SVC Menu.
Select 3. ADC/WB menu.
Select 4. ADC menu.
Option
Control
Debug
SVC
ADC/WB
Advanced
4-4-2. Service Adjustment
ADC
AV Calibration
Comp Calibration
PC Calibration
HDMI Calibration
You must perform Calibration in the Lattice Pattern before adjusting the White Balance.
Color Calibration
Adjust Specication•
Source Setting Mode Pattern Use Equipment
HDMI 1280 x 720@60 Hz Pattern #24 (Chess Pattern) CA210 & Master MSPG925 Generator
(Chess Pattern)
Use other equipment only after comparing the result with that of the Master equipment. -
Input mode Calibration Pattern
CVBS IN (Model_#1) Perform in NTSC B&W Pattern #24 Lattice
Component IN (Model_#6) Perform in 720p B&W Pattern #24 Lattice
PC Analog IN (Model_#21) Perform in VESA XGA (1024x768) B&W Pattern #24 Lattice
HDMI IN Perform in 720p B&W Pattern #24 Lattice
Page 49
4-24
4. Troubleshooting
Method of Color Calibration (AV)
Apply the NTSC Lattice (N0. 3) pattern signal to the AV IN 1 port.1.
Press the Source key to switch to “AV1” mode.2.
Enter Service mode.3.
Select the “ADC” menu.4.
Select the “AV Calibration” menu.5.
In “AV Calibration Off” status, press the “► ” key to perform Calibration.6.
When Calibration is complete, it returns to the high-level menu.7.
You can see the change of the “AV Calibration” status from Failure to Success. 8.
Method of Color Calibration (Component)
Apply the 720p Lattice (N0. 6) pattern signal to the Component IN 1 port.1.
Press the Source key to switch to “Component1” mode.2.
Enter Service mode.3.
Select the “ADC” menu.4.
Select the “Comp Calibration” menu.5.
In “Comp Calibration Off” status, press the “ ►” key to perform Calibration.6.
When Calibration is complete, it returns to the high-level menu.7.
You can see the change of the “Comp Calibration” status from Failure to Success.8.
Method of Color Calibration (PC)
Apply the VESA XGA Lattice (N0. 21) pattern signal to the PC IN port.1.
Press the Source key to switch to “PC” mode.2.
Enter Service mode.3.
Select the “ADC” menu.4.
Select the “PC Calibration” menu.5.
In “PC Calibration Off” status, press the “ ►” key to perform Calibration.6.
When Calibration is complete, it returns to the high-level menu.7.
You can see the change of the “PC Calibration” status from Failure to Success.8.
Method of Color Calibration (HDMI)
Apply the 720p Lattice (N0. 6) pattern signal to the HDMI1/DVI IN port.1.
Press the Source key to switch to “HDMI1” mode.2.
Enter Service mode.3.
Select the “ADC” menu.4.
Select the “HDMI Calibration” menu.5.
In “HDMI Calibration Off” status, press the “►” key to perform Calibration.6.
When Calibration is complete, it returns to the high-level menu.7.
You can see the change of the “HDMI Calibration” status from Failure to Success.8.
Page 50
4-4-3. Adjustment
4-25
4. Troubleshooting
Into the Factory Mode.1.
Select 2. SVC Menu.
Select 3. ADC/WB menu.
Select 4. WB menu.
Option
Control
Debug
SVC
ADC/WB
Advanced
White Balance
(Low light)
Sub Bright
R offset
G offset
B offset
(High light)
Sub Contrast
R gain
G gain
B gain
Page 51
4-26
4. Troubleshooting

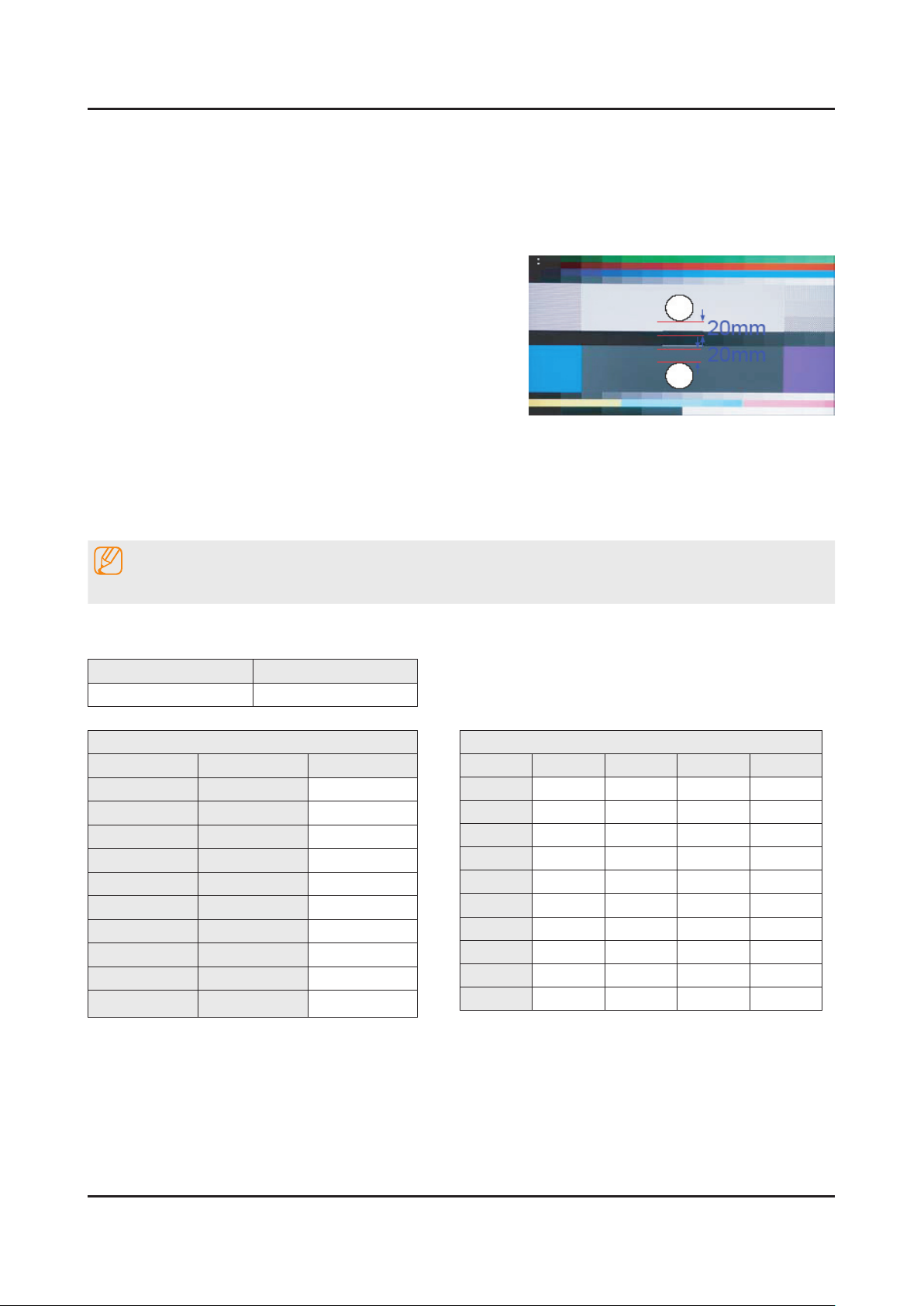

4-5. White Ratio (Balance) Adjustment
You can adjust the white ratio in factory mode (1:Calibration, 3:White-Balance).1.
Since the adjustment value and the data value vary depending on the input source, you have to adjust these in CVBS, 2.
Component 1 and HDMI 1 modes.
The optimal values for each mode are congured by default. It varies with Panel’s size and Specication.3.
Equipment : CS-210•
Pattern: MIK K-7256 #92 “Flat W/B Pattern" as standard•
Altenate Equipmet : CA200& anyone Master supported •
pattern#92(refer to right photo)
Use other Equipment only after comparing the result •
with that of the Master equipment.
Set Aging time : 60 min•
Calibration and Manual setting for WB adjustment
HDMI : Calibration at #24 Chessboard Pattern Manual adjustment at #92 pattern (720p)•
COMP: Calibration at #24 Chessboard Pattern Manual adjustment at #92 pattern (720p)•
CVBS: Calibration at #24 Chessboard Pattern Manual adjustment at #92 pattern (NTSC)•
Note
If nishing in HDMI mode, adjustment coordinate is almost same in AV/COMP mode.
White Balance Manual adjustment
DEVICES PANEL-TYPE
CA-210 40A6AF0V
RGB Measurement
Levels
10 IRE 0x01 O
20 IRE 0x02 O
30 IRE 0x03 X
40 IRE 0x04 O
50 IRE 0x05 X
60 IRE 0x06 X
70 IRE 0x07 O
80 IRE 0x08 X
90 IRE 0x09 X
100 IRE 0x0A O
Code Check
Levels
10 IRE O 0.020 0.020 0.40
20 IRE O 0.020 0.020 0.40
30 IRE O 0.020 0.020 0.40
40 IRE O 0.020 0.020 0.40
50 IRE O 0.020 0.020 0.40
60 IRE O 0.020 0.020 NA
70 IRE O 0.020 0.020 NA
80 IRE O 0.020 0.020 NA
90 IRE O 0.020 0.020 NA
100 IRE O NA NA NA
Panel Inspection Spec.
Check x(±) y(±) Gamma(±)
Page 52
4-27
4. Troubleshooting
Gray Check Adjust Spec(xyL) Adjust Target offset(xyL)
Levels
10 IRE 0x01 X 0.007 0.007 0.11 0.000 0.000 0.000
20 IRE 0x02 O 0.007 0.007 0.08 0.000 0.000 0.000
30 IRE 0x03 X 0.007 0.007 0.06 0.000 0.000 0.000
40 IRE 0x04 O 0.005 0.005 0.05 0.000 0.000 0.000
50 IRE 0x05 X 0.005 0.005 0.04 0.000 0.000 0.000
60 IRE 0x06 X 0.005 0.005 0.03 0.000 0.000 0.000
70 IRE 0x07 O 0.004 0.004 0.02 0.000 0.000 0.000
80 IRE 0x08 X 0.004 0.004 0.01 0.000 0.000 0.000
90 IRE 0x09 X 0.004 0.004 0.01 0.000 0.000 0.000
100 IRE 0x0A X NA NA NA NA NA NA
Code Check x(±) y(±) L(±) x(±) y(±) L(±)
Target Gamma 2.20
Black
Target xy
x y
0.231 0.208
Option x
Auto 0.282
Contrast
300000
Color Tone Target Spec.
High x y
COOL
0.262 0.276
x(±) y(±)
0.004 0.004NORMAL 0.281 0.295
WARM2
Low x y x(±) y(±)
COOL NA NA
WARM2 NA NA
0.313 0.340
NA NANORMAL NA NA
y
0.299
Panel Spec. ±
Gamma 2.2 0.35
x
0.281 0.030
y 0.288 0.030
ACC x
ACC y x,y value 0.015
255 white 0.015
10IRE Gamma target
RetryCount
20~128
255
26~255
2.20
6
Page 53
4-28
4. Troubleshooting

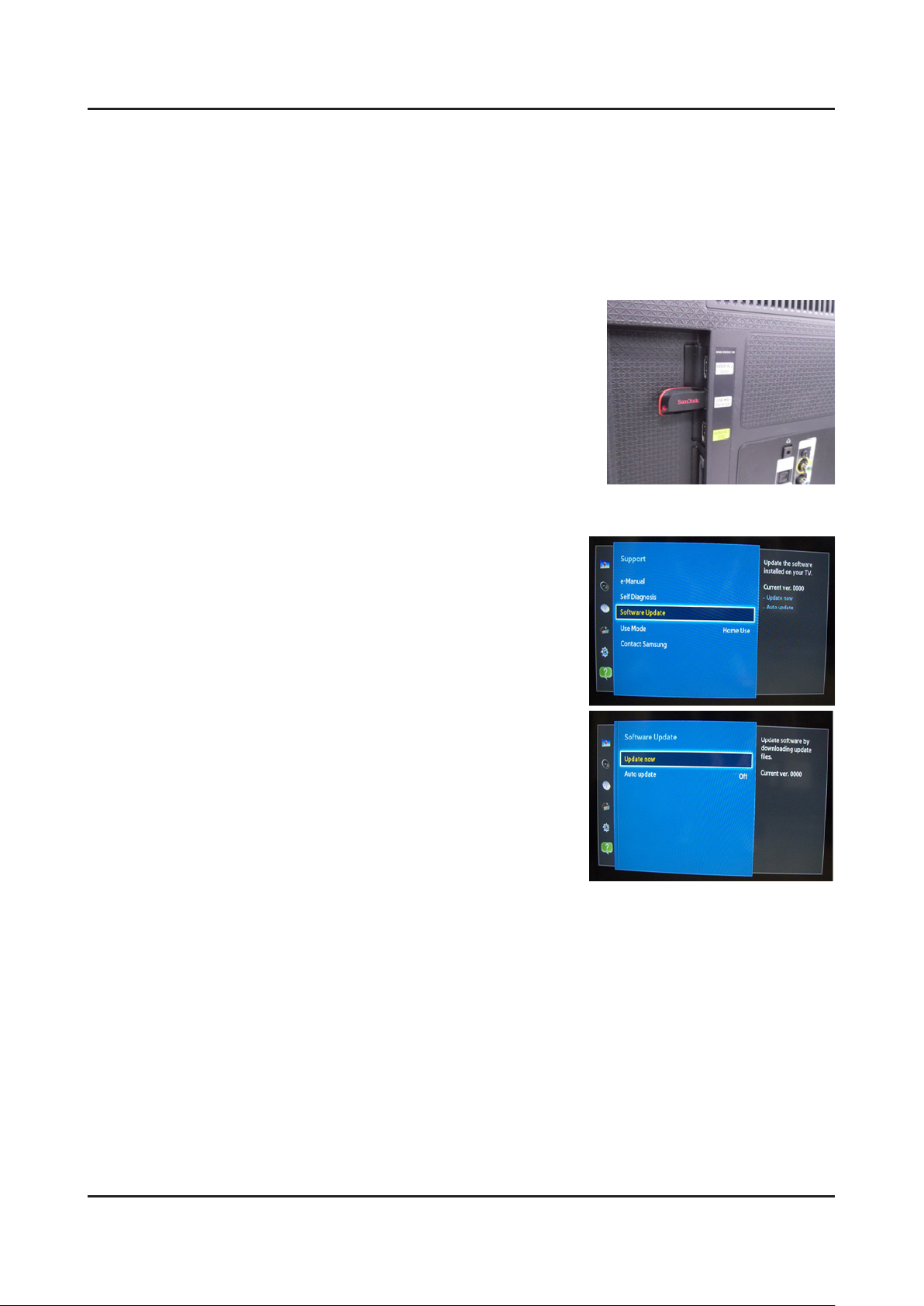

4-6. Software Upgrade
Software Upgrade can be performed by downloading the. latest rmware from samsung.com to a USB memory device.
Current Version - The software already installed in the TV.•
Software is represented as ‘Year/Month/Day_Version’.
4-6-1. How to Check the Software Version

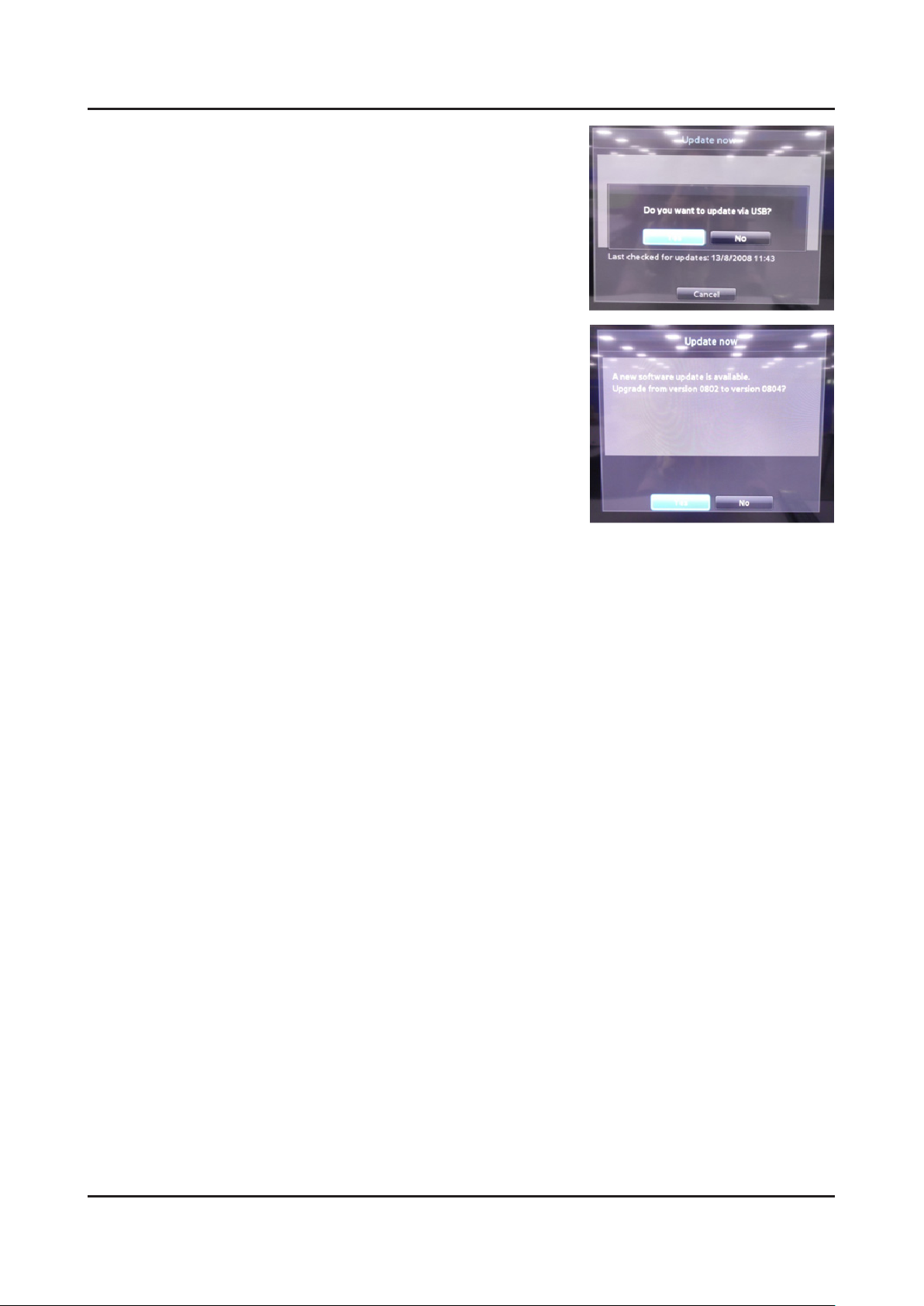

Use the Main Menu
Click the "MENU" key in remote controller.1.
Select "Support" menu.2.
Locate the menu cursor "Software Upgrade" menu.3.
Click the "INFO" key.4.
Check the Main SW and Micom version. -
Page 54
4-29
4. Troubleshooting
Use the Factory Mode
Option
Control
Debug
SVC
ADC/WB
Advanced
T-NT14LDEUC-xxxx.x
T-NT14LDEUS-xxxx
E-Manual : NLDVBEUxH-xxxx
EDID SUCCESS
CALIB : AV/COMP/PC/HDMI/
Option : 40A6AF0V,EU_UK,5000,NONE
DTP-SDAL-NT14L-MAIN-xxxx-xxxx
RFS:"NT14L xxxx" K/20xx-xx-xx
KERNEL:xxxx.xxxx,/Onboot: xxxx
TCON Version:----
NSP-DTVTD-xxxx
Model: UE40H5000
Wireless MAC ----
CIP FAIL
Factory Data Ver:xxx
EERC Version: xxx
NSP-BP-HAL-xxxx
NSP-AP-CNC-xxxx
NSP-AP-MM-xxxx
NSP-BP-MW-xxxx
NSP-BP-APP-xxxx
NSP-PNG-xx-xxxx
Date of purchase:-/-/----
Page 55
4-30
4. Troubleshooting
4-6-2. How to Upgade Software and Micom
Insert a USB drive containing the rmware upgrade downloaded from samsung.com into the TV. Please be careful not
to disconnect the power or remove the USB drive while upgrades are being applied. The TV will turn off and turn on
automatically after completing the rmware upgrade. Please check the rmware version after the upgrades are complete
(the new version will have a higher number than the older version). When software is upgraded, video and audio
settings you have made will return to their default (factory) settings. We recommend you write down your settings before
beginning rmware update. After update is completed, restore your previous settings.
Main Software Upgrade
Store the sw program named "T-NT14LDEUC" in USB memory stick.1.
Connect the USB. -
Click the "MENU" key in Remote Controler.2.
Select "Support" menu.3.
Locate the menu cursor "Software Update" menu.
Locate the menu cursor "Update now" menu.4.
Page 56
4-31
4. Troubleshooting
Click the "ENTER" key.5.
Click the "ENTER" key.6.
Wait for upgrade complete. -
Check the Software Version. -
Page 57
4. Troubleshooting

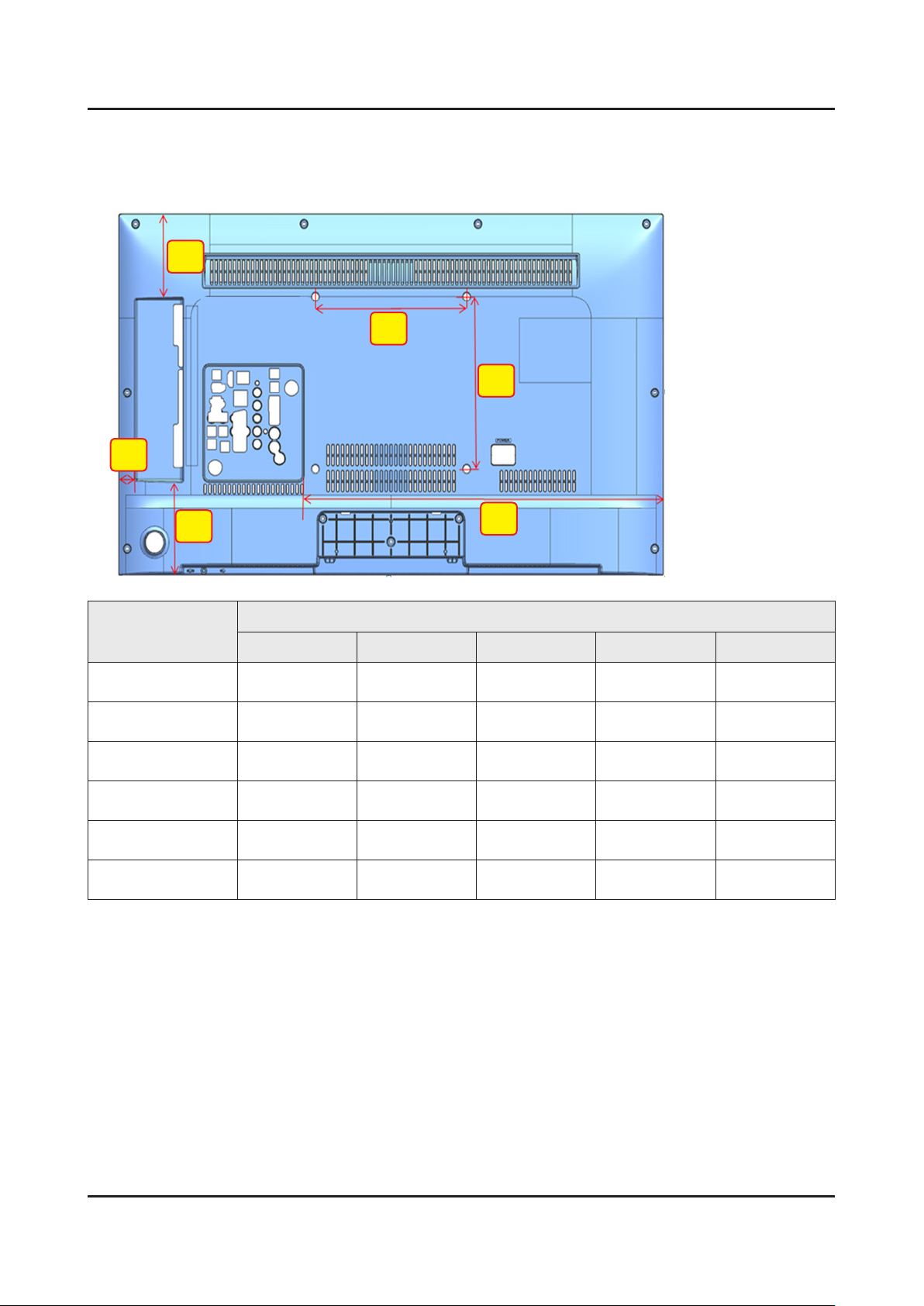

4-7. Rear Cover Dimension
UE**H50*0
F
D
A
B
E
Rear Cover
Dimension
A
B
C
D
E
F
C
H5000
22" 32" 40" 48" 50"
75 200
75 200
218 477.8
8.6 23.8
80 110
80 98.5
200 400
200 400
620.9 768.07
32 41.45
194.5 222.06
115.8 184.83
400
400
821.2
32.1
206.7
221.9
4-32
Page 58

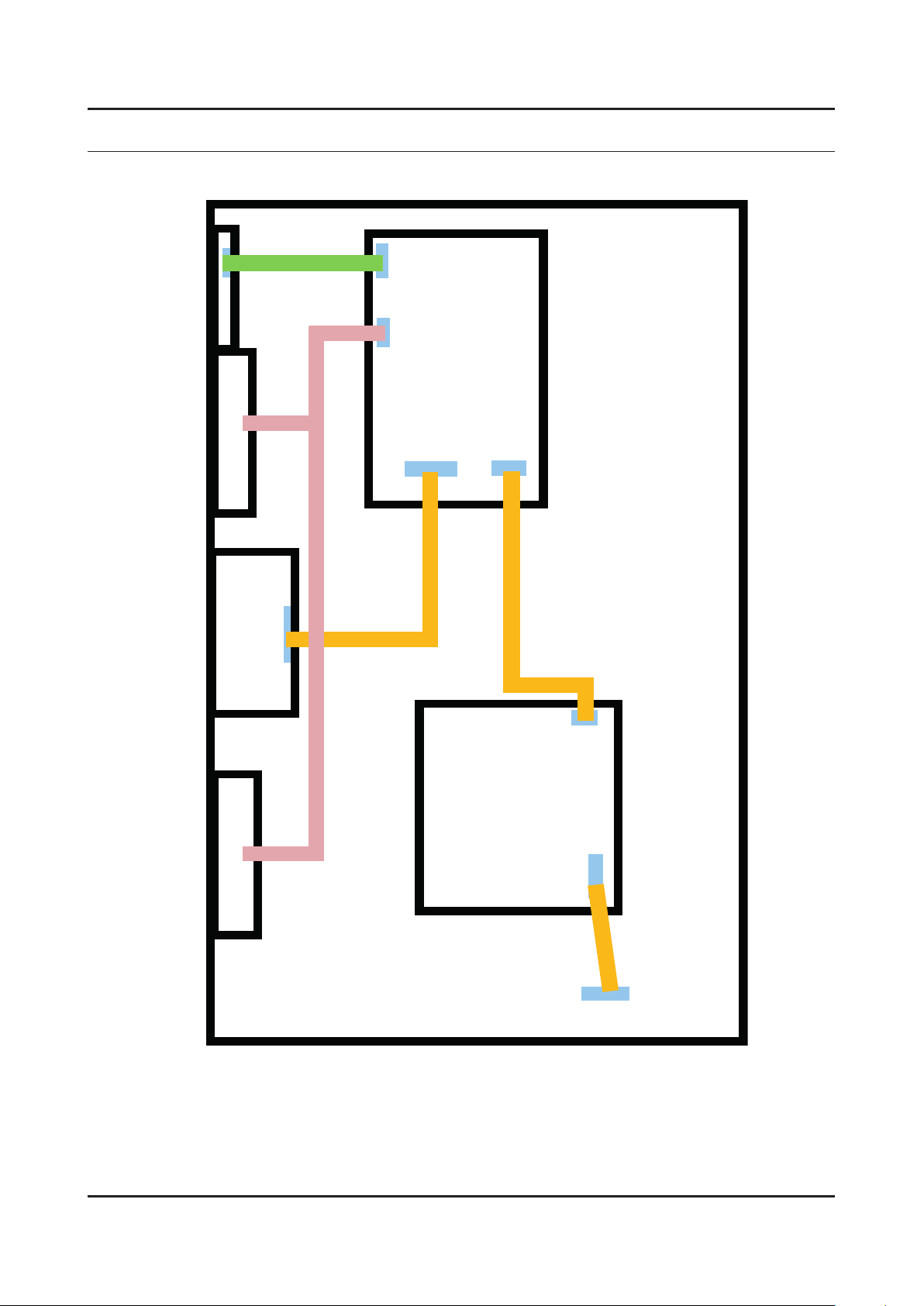

5. Wiring Diagram
Main Board
SMPS
PANEL
Speaker
CNL802
CNM803
Speaker
FUNCTION& IR
CN1
CN202
%0
CN302
%0A*&
%0A(*&
T-CON
0
0
0
5-1. Wiring Diagram
5. Wiring Diagram
5-1
Page 59
5-2
5. Wiring Diagram

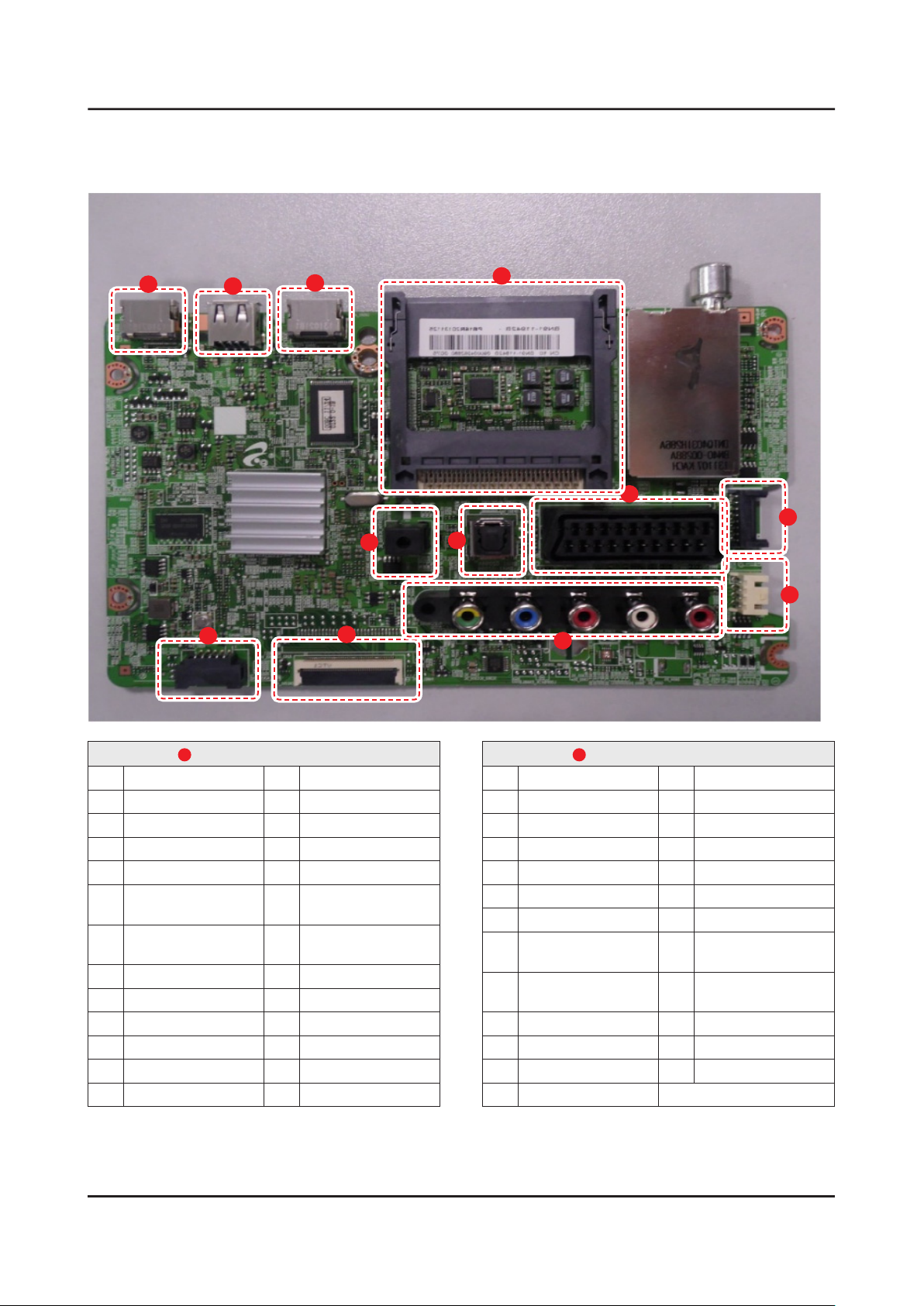

5-2. Connector
Main Board
7
8
2
6
9
1
12
11
3
10
4
5
1
CN1201_FHD (to Panel)
1 NC 14 EVEN_TX4+_LVDS
2 GND 15 EVEN_TX4-_LVDS
3 FRC_SDA 16 EVEN_TX3+_LVDS
4 PWM_DIM1_FRC 17 EVEN_TX3-_LVDS
5 FRC_SCL 18 GND
6 FRC_NRESET 19
7 LVDS_FORMAT 20
8 TCON_SDA 21 GND
9 TCON_WP 22 EVEN_TX2+_LVDS
10 NC 23 EVEN_TX2-_LVDS
11 UPDATE_CHECK 24 EVEN_TX1+_LVDS
12 TCON_SCL 25 EVEN_TX1-_LVDS
13 GND 26 EVEN_TX0+_LVDS
EVEN_TXCLK+_
LVDS
EVEN_TXCLK-_
LVDS
1
CN1201_FHD (to Panel)
27 EVEN_TX0-_LVDS 40 ODD_TX1-_LVDS
28 GND 41 ODD_TX0+_LVDS
29 ODD_TX4+_LVDS 42 ODD_TX0-_LVDS
30 ODD_TX4-_LVDS 43 GND
31 ODD_TX3+_LVDS 44 GND
32 ODD_TX3-_LVDS 45 GND
33 GND 46 NC
ODD_TXCLK+_
34
35
36 GND 49 Panel_13V_PW
37 ODD_TX2+_LVDS 50 Panel_13V_PW
38 ODD_TX2-_LVDS 51 Panel_13V_PW
39 ODD_TX1+_LVDS
LVDS
ODD_TXCLK-_
LVDS
47 Panel_13V_PW
48 Panel_13V_PW
Page 60
5-3
5. Wiring Diagram
2
CN202 (to Power board)
1 GND 6
2 GND 7 A13V
3 A13V 8 PWM_DIM
4 GND 9 A13V
5 A13V 10 UNDER_DRIVER
3
CN402 (FUNCTION)
1 IR 5 MSDA
2 GND 6 KEY_INPUT1
3 A3.3V 7 KEY_INPUT2
4 MSCL 8 LED_STB
4
CN302 (SPEAKER)
1 R+ 3 L+
2 R- 4 L-
5
CN404_COMP(COMPONENT)
1 GND 9 TEST_PR
2 COMP1_Y_CVBS 10 GND
3 IDENT_VIDEO1 11
4 GND 12 TEST_SL
5 COMP1_PB 13 GND
6 IDENT_COMP1 14
7 GND 15 TEST_SR
8 COMP1_PR
6
CN501_H1 (HDMI1)
1 HDMI1_RX2+ 11 GND
2 GND 12 HDMI1_RXCLK-
3 HDMI1_RX2- 13 CEC
4 HDMI1_RX1+ 14 NC
5 GND 15 HDMI1_SCL
6 HDMI1_RX1- 16 HDMI1_SDA
7 HDMI1_RX0+ 17 GND
8 GND 18 HDMI1_5V
9 HDMI1_RX0- 19 STB_CHECK
10 HDMI1_RXCLK+
SW_POWER_TO
_SMPS
COMP1_AV1_SL_
IN
COMP1_AV1_SR_
IN
7
CN502_H2 (HDMI2)
1 HDMI2_RX2+ 11 GND
2 GND 12 HDMI2_RXCLK-
3 HDMI2_RX2- 13 CEC
4 HDMI2_RX1+ 14 NC
5 GND 15 HDMI_SCL
6 HDMI2_RX1- 16 HDMI_SDA
7 HDMI2_RX0+ 17 GND
8 GND 18 5V
9 HDMI2_RX0- 19 STB_CHECK
10 HDMI2_RXCLK+
8
CN1101 (USB1)
1 B5V_USB1 3 USB_DP
2 USB_DM 4 GND
9
CN301(Headphone)
1 GND 5 TEST_SR
2 SL_OUT 6 IDENT_HP
3 SR_OUT 7 GND
4 TEST_SL
10
OP301_OP (OPTICAL)
1 SPDIF_OUT 3 GND
2 B5V
11
CN401_SC (SCART)
1 SC_SR_OUT 12 NC
2 SC_AV2_SR_IN 13 GND
3 SC_SL_OUT 14 GND
4 GND 15 SC_R
5 GND 16 SC_FB
6 SC_AV2_SL_IN 17 GND
7 SC_B 18 GND
8 IDENT_SC 19 SC_CVBS_OUT
9 GND 20 SC_AV2_CVBS_IN
10 NC 21 GND
11 SC_G
Page 61
5-4
5. Wiring Diagram
12
CN1301_CI (PCMCIA)
1 GND 35 GND
2 PCM_DATA[3] 36 PCM_CD1
3 PCM_DATA[4] 37 TSO_DATA[3]
4 PCM_DATA[5] 38 TSO_DATA[4]
5 PCM_DATA[6] 39 TSO_DATA[5]
6 PCM_DATA[7] 40 TSO_DATA[6]
7 PCM_CE1 41 TSO_DATA[7]
8 PCM_ADDR[10] 42 NC
9 PCM_OE 43 NC
10 PCM_ADDR[11] 44 PCM_IORD
11 PCM_ADDR[9] 45 PCM_IOWR
12 PCM_ADDR[8] 46 CH_START
13 PCM_ADDR[13] 47 CH_DATA[0]
14 PCM_ADDR[14] 48 CH_DATA[1]
15 PCM_WE 49 CH_DATA[2]
16 PCM_IRQA 50 CH_DATA[3]
17 VCC_CI_5V 51 VCC_CI_5V
18 VCC_CI_5V 52 VCC_CI_5V
19 CH_VALID 53 CH_DATA[4]
20 CH_CLK 54 CH_DATA[5]
21 PCM_ADDR[12] 55 CH_DATA[6]
22 PCM_ADDR[7] 56 CH_DATA[7]
23 PCM_ADDR[6] 57 TSO_CLK
24 PCM_ADDR[5] 58 PCM_RESET
25 PCM_ADDR[4] 59 PCM_WAIT
26 PCM_ADDR[3] 60 NC
27 PCM_ADDR[2] 61 PCM_REG
28 PCM_ADDR[1] 62 TSO_VALID
29 PCM_ADDR[0] 63 TSO_START
30 PCM_DATA[0] 64 TSO_DATA[0]
31 PCM_DATA[1] 65 TSO_DATA[1]
32 PCM_DATA[2] 66 TSO_DATA[2]
33 VCC_CI_5V 67 PCM_CD1
34 GND 68 GND
Page 62
5-5
5. Wiring Diagram
5-3. Connector Functions
Connector Function
CN202 IP CN
CN1201_FHD T-CON CNF1
Supply main power and dimming signal from SMPS to Main Board.
The LVDS signal transfered from Main Board to Panel.
Loading...
