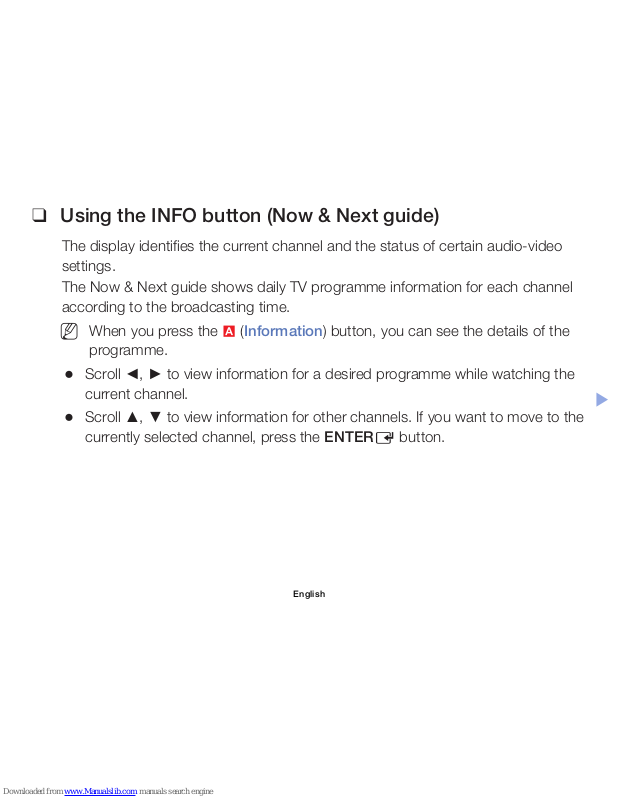

❑ Using the INFO button (Now & Next guide)

The display identifies the current channel and the status of certain audio-video
settings.

The Now & Next guide shows daily TV programme information for each channel
according to the broadcasting time.

N

When you press the a (Information) button, you can see the details of the
programme.

●

Scroll ◄, ► to view information for a desired programme while watching the
current channel.

●

Scroll ▲, ▼ to view information for other channels. If you want to move to the
currently selected channel, press the ENTER

E

button.

Channel Setting

◀ ▶

❑Using Channel menu

O

MENUm → Support → Contents Home → ENTER

E

Press the CONTENT button to select the desired menu. Each screen will be
displayed.

■Channel List

You can view channel information, All,

TV, Radio, Data/Other, Analogue or
Favourites 1-5.

N

When you press the CH LIST
button on the remote control,

Channel List screen will be

displayed at once.

Channel List Guide AllShare Play Schedule Manager

Explore 3D

Contents Home

R

Return

*

The displayed image may differ depending on the

model.

English

◀ ▶

●

All: Shows all currently available channels.

●

TV: Shows all currently available TV channels.

●

Radio: Shows all currently radio channels.

●

Data/Other: Shows all currently available MHP or other channels.

●

Analogue: Shows all currently available analogue channels.

●

Favourites 1-5: Shows all favourite channels.

N

If you want to view favourite channels you added, press the CH LIST
button and use L (Ch. Mode) button to move Favourites 1-5.

English

◀ ▶

N

Using the control buttons with the Channel List.

●

T

(Tools): Displays the option menu.

●

L

(Ch. Mode / Channel): Move to the All, TV, Radio, Data/Other,

Analogue or Favourites 1-5.

N

When you select the Programme View in T (Tools) menu, you can
move to other channels using L (Channel) button.

●

E

(Watch / Information): Watches the channel you selected. / Displays

details of the selected programme.

●

k

(Page): Move to next or previous page.

●

R

(Return): Move to the previous step.

English

◀ ▶

How to use Schedule Viewing in Channel List

(digital channels only)
When you set the Schedule Viewing in Channel List, you can only set the

programme in Programme View.

1. Press the CH LIST button, then select a desired digital channel.

2. Press TOOLS button, and then select the Programme View. The programme

list for that channel appears.

3. Press the ▲ / ▼ buttons to select the desired programme, then press the
ENTER

E

(Information) or INFO button.

4. Select Schedule Viewing, then press the ENTER

E

button when done.

N

If you want to cancel Schedule Viewing, follow steps 1 through 3. Select

Cancel schedule.

English

◀ ▶

Using Option Menu

t

Set each channel using the Channel List menu options (Programme View, Edit

Favourites, Lock/Unlock, Edit Channel Name, Edit Channel Number, Delete,
Information, Sort, Change Aerial, Edit Mode).

Option menu items may differ depending on the channel status.

1. Select a channel and press the TOOLS button.

2. Select a function and change its settings.

English

◀ ▶

●

Programme View: Displays the programme when digital channel is selected.

●

Edit Favourites: Set channels you watch frequently as favourites. Add or

delete the selected channel in Favourites 1-5.

1. Select the Edit Favourites, then press the ENTER

E

button.

2. Press the ENTER

E

button to select Favourites 1-5, then press the OK

button.

N

One favourite channel can be added in several of favourites among

Favourites 1-5.

English

◀ ▶

●

Lock/Unlock: Lock a channel so that the channel cannot be selected and

viewed.

N

This function is available only when the Channel Lock is set to On.

N

The PIN input screen appears. Enter your 4-digit PIN. Change the PIN
using the Change PIN option.

●

Edit Channel Name (analogue channels only): Assign your own channel

name.

English

◀ ▶

●

Edit Channel Number: Edit the number by pressing the number buttons

desired.

N

Some area may not be able to support Edit Channel Name and Edit

Channel Number function.

●

Delete: You can delete a channel to display the channels you want.

●

Information: Displays details of the selected programme.

●

Sort (digital channels only): Changes the list ordered by channel number or

channel name.

●

Change Aerial: Switches to Air or Cable.

English

◀ ▶

●

Edit Mode: You can select desired channels and edit it.

Using Option Menu

t

Set each channel using the menu options (Edit Favourites, Lock/Unlock,

Delete, Information, Deselect, Select All).

1. Press the TOOLS button in Channel List screen, then select the Edit

Mode. A check box appears to the left of the channel.

2. Press the

▲/▼

buttons to select the desired channel, then press the

ENTER

E

button. The (c) mark indicates the channel you’ve selected.

N

You can select more than one channel.

N

Press the ENTER

E

again to deselect the channel.

3. Press the TOOLS button, then select a function and change its settings.

English

◀ ▶

●

Edit Favourites: Set the selected channels you watch frequently as

favourites.

N

The Edit Favourites screen has five groups (Favourites 1,

Favourites 2, etc.). You can add a favourite channel to any one of

the groups. Press the

▲/▼

buttons to select a group.

●

Lock/Unlock: Lock a channel so that the channel cannot be selected

and viewed.

N

This function is available only when the Channel Lock is set to On.

N

The PIN input screen appears. Enter your 4-digit PIN. Change the
PIN using the Change PIN option.

●

Delete: You can delete a channel to display the channels you want.

●

Information: Displays details of the selected programme.

●

Deselect: Deselect the selected channels.

●

Select All: Select all the channels in the channel list.

English

◀ ▶

■Guide

The EPG (Electronic Programme
Guide) information is provided
by broadcasters. Using
programme schedules provided
by broadcasters, you can
specify programmes you want
to watch in advance so that the
channel automatically changes
to the selected programme
channel at the specified time.
Programme entries may appear
blank or out of date depending
on a channel status.

Die Musik-Show

DTV Air 825 NDR FERNSEHEN

19:15 - 20:40

Dani is devastated when scot makes clear his views ...

825 NDR FERNSEHEN

18:15 Sat 1 May

Channel View - All

Today

▲

821 Kanal 5

822 M6

823 MDR FERNSEHEN

824 Mediashopping

825 NDR FERNSEHEN

▼

826 NT1

20:00 21:0020:30 21:30

No Information

No Information

No Information

Musik fur Sie MD... Ein Schloss am ...

No Information

a

Sche. Mgr

b

-24 Hours

{

+24 Hours} Ch. Mode`Information k Page

E

Schedule

1 2 3 4

5

6 7

Guide

Die Musik-Show Die NDR Quizshow Sportclub live

*

The displayed image may differ depending on the model.

English

◀ ▶

1

a

Red (Sche. Mgr): Moves to the reserved programmes in Sche. Mgr.

2

b

Green (-24 Hours): Viewing the list of programmes to be broadcasted before

24 hours.

3

{

Yellow (+24 Hours): Viewing the list of programmes to be broadcasted after 24

hours.

4

}

Blue (Ch. Mode): Select the type of channels you want to display on the

Channel List window. (All, TV, Radio, Data/Other, Favourites 1-5)

English

◀ ▶

5

`

(Information): Displays details of the selected programme.

6

k

(Page): Move to previous or next page.

7

E

(Watch / Schedule)

●

When selecting the current programme, you can watch the selected
programme.

●

When selecting the future programme, you can reserve to watch the selected
programme. To cancel the schedule, press the ENTER

E

button again and

select Cancel schedule.

English

◀ ▶

■Schedule Manager

You can set a desired channel to be displayed automatically at the intended time.
In addition, you can view, modify or delete a channel you have reserved to watch.
Set the current time first to use this function.

Using Option Menu

t

Set each channel using the menu options (Cancel schedule, Edit Schedule,

Schedule manually, View Guide).

1. Press the TOOLS button to select the Schedule manually.

N

You can press the a (Schedule manually) directly on the Schedule

Manager screen.

2. Press the ◄/►/▲/▼ or number buttons to set the Aerial, Channel, Repeat,

Date, Start Time.

●

Aerial: Select the desired broadcasting signal.

●

Channel: Select the desired channel.

English

◀ ▶

●

Repeat: Select Once, Manual, Sat~Sun, Mon~Fri or Everyday to set at

your convenience. If you select Manual, you can set the day you want.

N

The (c) mark indicates the day you’ve selected.

●

Date: You can set the desired date.

N

It is available when you select Once in Repeat.

●

Start Time: You can set the start time you want.

N

If you want to edit or cancel the schedule, select the reserved schedule on
the Reserved Programmes. Press the TOOLS button, then select the Edit

Schedule or Cancel schedule.

N

If you select the View Guide, you can see the Guide screen.

English

◀ ▶

❑Retuning Channels

■Aerial (Air / Cable)

t

O

MENUm → Channel → Aerial → ENTER

E

Before your television can begin memorising the available channels, you must
specify the type of signal source that is connected to the TV (i.e. an Air or Cable
system).

English

◀ ▶

■Country

(depending on the country)

O

MENUm → Channel → Country → ENTER

E

The PIN input screen appears. Enter your 4 digit PIN number.

●

Digital Channel: Change the country for digital channels.

●

Analogue Channel: Change the country for analogue channels.

English

◀ ▶

■Auto Tuning

(depending on the country)

O

MENUm → Channel → Auto Tuning → ENTER

E

Scans for a channel automatically and stores in the TV.

N

Automatically allocated programme numbers may not correspond to actual
or desired programme numbers. If a channel is locked, the PIN input window

appears.

●

Auto Tuning

Air / Cable: Select the aerial source to memorise.

Digital & Analogue / Digital / Analogue: Select the channel source to

memorise.

English

◀ ▶

When Aerial Source is set to Air or Cable:

When selecting Cable → Digital & Analogue or Digital: Provide a value to
scan for cable channels.

–

Operator Selection (depending on the country): Selects a provider of

cable services.

–

Search Mode (Full / Network / Quick): Scans for all channels with active

broadcast stations and stores them in the TV.

N

If you select Quick, you can set up the Network, Network ID,

Frequency, Modulation and Symbol Rate manually by pressing the

button on the remote control.

–

Network (Auto / Manual): Selects the Network ID setting mode among
Auto or Manual.

–

Network ID: When Network is Manual, you can set up Network ID using

the numeric buttons.

English

◀ ▶

–

Frequency: Displays the frequency for the channel. (differs in each

country)

–

Modulation: Displays available modulation values.

–

Symbol Rate: Displays available symbol rates.

●

Cable Search Option

(depending on the country & cable channels only)

Sets additional search options such as the frequency and symbol rate for a
cable network search.

Start Frequency / Stop Frequency: Set the start or stop frequency (differs in

each country).

Symbol Rate: Displays available symbol rates.

Modulation: Displays available modulation values.

English

◀ ▶

■Manual Tuning

O

MENUm → Channel → Manual Tuning → ENTER

E

Scans for a channel manually and stores in the TV.

N

If a channel is locked, the PIN input window appears.

N

According to the channel source, Manual Tuning may be supported.

When Aerial Source is set to Air or Cable:

●

Digital Channel Tuning: Scans for a digital channel manually and stores in

the TV. Press the New button to search the digital channels. When scanning
has finished, a channel is updated in the channel list.

–

When selecting Aerial → Air: Channel, Frequency, Bandwidth

–

When selecting Aerial → Cable: Frequency, Modulation, Symbol Rate

English

◀ ▶

●

Analogue Channel Tuning: Scans for an analogue channel. Press the New

button to search the channels by adjusting the Programme, Colour System,

Sound System, Channel, Search.

N

Channel mode

–

P (programme mode): When tuning is complete, the broadcasting stations

in your area have been assigned to the position numbers from P0 to P99.
You can select a channel by entering the position number in this mode.

–

C (aerial channel mode) / S (cable channel mode): These two modes allow

you to select a channel by entering the assigned number for each aerial
broadcasting station or cable channel.

English

◀ ▶

■Transfer Channel List

(depending on the country)

O

MENUm → Channel → Transfer Channel List → ENTER

E

Imports or exports the channel map. You should connect a USB storage to use
this function.

N

The PIN number input screen appears. Enter your 4 digit PIN number.

N

The file system supports NTFS (Read Only), FAT16 and FAT32.

●

Import from USB: Import channel list from USB.

●

Export to USB: Export channel list to USB.

English

◀ ▶

■Fine Tune

(analogue channels only)

O

MENUm → Channel → Fine Tune → ENTER

E

If the signal is weak or distorted, fine tune the channel manually.

N

Fine tuned channels are marked with an asterisk “*”.

N

To reset the fine-tuning, select Reset.

English

◀ ▶

■Edit Channel Number (Disable / Enable)

(depending on the country)

O

MENUm → Channel → Edit Channel Number → ENTER

E

Use this to change channel number. When channel number is changed, channel
information is not updated automatically.

English

◀ ▶

❑Changing the Preset Picture Mode

O

MENUm → Picture → Picture Mode → ENTER

E

■Picture Mode

t

Select your preferred picture type.

N

When connecting a PC, you can only make changes to the Entertain and

Standard.

●

Dynamic: Suitable for a bright room.

●

Standard: Suitable for a normal environment.

●

Natural

for LED 6 series

: Suitable for reducing eye strain.

●

Movie: Suitable for watching movies in a dark room.

●

Entertain: Suitable for watching movies and games.

N

It is only available when connecting a PC.

Basic Features

English

◀ ▶

❑Adjusting Picture Settings

■Samsung MagicAngle

for LED 4 series 22"

O

MENUm → Picture → Samsung MagicAngle → ENTER

E

Adjust screen viewing Angle to optimize screen quality according to your viewing
position.

●

Samsung MagicAngle: When viewing the screen at an angle from below or

above by setting the appropriate mode for each position, you can obtain a
similar picture quality as viewing the screen directly from the front.

Off: Select when viewing from the front position.

Lean Back Mode: Select when viewing from a slightly lower position.

Standing Mode: Select when viewing from the upper position.

●

Mode: Adjust screen viewing angle.

N

When Samsung MagicAngle is set to Lean Back Mode or Standing Mode,

Gamma is not available.

English

◀ ▶

■Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

Your television has several setting options for picture quality control.

N

NOTE

●

In analogue TV, Ext., AV modes of the PAL system, the Tint (G/R)
function is not available.

LED 4 series do not support AV, Component mode

●

When connecting a PC, you can only make changes to Backlight,

Contrast, Brightness and Sharpness.

●

Settings can be adjusted and stored for each external device connected
to the TV.

●

Lowering picture brightness reduces power consumption.

English

◀ ▶

■Screen Adjustment

O

MENUm → Picture → Screen Adjustment → ENTER

E

Set the various picture options such as picture size and aspect ratio.

●

Picture Size: Your cable box/satellite receiver may have its own set of screen

sizes as well. However, we highly recommend you use 16:9 mode most of the
time.

Auto Wide: Automatically adjusts the picture size to the 16:9 aspect ratio.

16:9: Sets the picture to 16:9 wide mode.

Wide Zoom: Magnifies the picture size more than 4:3.

N

Adjusts the Position by using ▲, ▼ buttons.

English

◀ ▶

Zoom: Magnifies the 16:9 wide pictures vertically to fit the screen size.

N

Adjusts the Zoom or Position by using ▲, ▼ button.

4:3: Sets the picture to basic (4:3) mode.

N

Do not watch in 4:3 format for a long time. Traces of borders displayed
on the left, right and centre of the screen may cause image retention

(screen burn) which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off when HDMI

(720p / 1080i / 1080p) or Component (1080i / 1080p) signals are
inputted.

LED 4 series do not support AV, Component mode

English

◀ ▶

Smart View 1

for LED 6 series

: Reduces original screen by 50%.

Smart View 2

for LED 6 series

: Reduces original screen by 25%.

N

NOTE

●

Smart View 1 is enabled only in HDMI mode.

●

Smart View 2 is enabled only in DTV and HDMI modes.

●

The picture size can vary depending on the input resolution when
content is played using Videos under AllShare Play.

●

Position: Adjust the picture position. It is only available in Screen Fit or Wide
Zoom.

English

◀ ▶

●

Zoom/Position: Adjust the picture size and position. It is only available in
Zoom.

N

NOTE

●

After selecting Screen Fit in HDMI (1080i / 1080p) or
Component (1080i / 1080p) mode, you may need to centre the

LED 4 series do not support AV, Component mode

:

1. Press the ▲ or ▼ button to select Position.

2. Press the ENTER

E

button.

3. Press the ▲, ▼, ◄ or ► button to move the picture.

●

Depending on the input source, the picture size options may vary.

●

If you want to reset the position you adjusted, select Reset in the

Position screen. The picture will be set to its default position.

English

◀ ▶

●

The available items may differ depending on the selected mode.

●

When connecting a PC, only 16:9 and 4:3 modes can be adjusted.

●

Settings can be adjusted and stored for each external device connected
to an input on the TV.

●

If you use the Screen Fit function with HDMI 720p input, 1 line will be cut
at the top, bottom, left and right as in the overscan function.

●

4:3 Screen Size (16:9 / Wide Zoom / Zoom / 4:3): Available only when

picture size is set to Auto Wide. You can determine the desired picture size
at the 4:3 WSS (Wide Screen Service) size or the original size. Each European
country requires different picture size.

English

◀ ▶

❑Changing the Picture Options

■Advanced Settings

O

MENUm → Picture → Advanced Settings → ENTER

E

(available in Standard / Movie mode)
You can adjust the detailed setting for the screen including colour and contrast.

N

When connecting a PC, you can only make changes to Gamma and White

Balance.

English

◀ ▶

●

Dynamic Contrast (Off / Low /
Medium / High): Adjust the screen

contrast.

●

Black Tone (Off / Dark / Darker /
Darkest): Select the black level to

adjust the screen depth.

●

Flesh Tone: Adjust the flesh tone

colour.

Advanced Settings

Dynamic Contrast Medium

Black Tone Off

Flesh Tone 0

RGB Only Mode Off

Colour Space Native

White Balance

Gamma 0

●

RGB Only Mode (Off / Red / Green / Blue): Displays the Red, Green and

Blue colour for making fine adjustments to the hue and saturation.

●

Colour Space (Auto / Native): Adjust the range of colours available to create

the image.

English

◀ ▶

●

White Balance: Adjust the colour temperature for a more natural picture.

R-Offset / G-Offset / B-Offset: Adjust each colour’s (red, green, blue)

darkness.

R-Gain / G-Gain / B-Gain: Adjust each colour’s (red, green, blue) brightness.

Reset: Resets the White Balance to its default settings.

●

Gamma: Adjust the primary colour intensity.

●

Motion Lighting (Off / On): Reduce power consumption by brightness

control adapted motion.

N

This function is not supported in 3D mode.

for LED 6 series

N

Only available in Standard mode.

N

When changing a setting value of Backlight, Brightness or Contrast,

Motion Lighting will be set to Off.

English

◀ ▶

■Picture Options

O

MENUm → Picture → Picture Options → ENTER

E

N

When connecting a PC, you can only make changes to the Colour Tone.

●

Colour Tone (Cool / Standard / Warm1 / Warm2)

N

Warm1 or Warm2 will be deactivated when the picture mode is
Dynamic.

N

Settings can be adjusted and stored for each external device connected
to an input on the TV.

English

◀ ▶

●

Digital Noise Filter (Off / Low / Medium / High / Auto / Auto Visualisation):

If the broadcast signal received by your TV is weak, you can activate the

Digital Noise Filter feature to reduce any static and ghosting that may appear

on the screen.

N

When the signal is weak, try other options until the best picture is
displayed.

Auto Visualisation: When changing analogue channels, displays signal

strength.

N

Only available for analogue channels.

N

When the INFO button is pressed, the signal strength bar is displayed.

N

When bar is green, you are receiving the best possible signal.

●

MPEG Noise Filter (Off / Low / Medium / High / Auto): Reduces MPEG

noise to provide improved picture quality.

English

◀ ▶

●

HDMI Black Level (Low / Normal): Selects the black level on the screen to

adjust the screen depth.

N

Available only in HDMI mode (RGB signals).

●

Film Mode (Off / Auto1 / Auto2): Sets the TV to automatically sense and

process film signals from all sources and adjust the picture for optimum
quality.

N

Available in TV mode, AV, Component (480i / 1080i) and HDMI
(1080i).

LED 4 series do not support AV, Component mode

N

If the screen does not seem natural, change its option to Off / Auto1 /

Auto2 in Film Mode.

English

◀ ▶

●

Motion Plus (Off / Clear / Standard / Smooth / Custom / Demo)

for LED 6 series

: Removes drag from fast scenes with a lot of movement to

provide a clearer picture.

N

The Info screen on your TV displays the resolution and frequency of the
incoming signal (60Hz), but not the frequency the TV is generating for the

image it is displaying by using Motion Plus function.

N

If noise occurs on the screen, please set up the Motion Plus to Off. If

Motion Plus is Custom, you can set up the Blur Reduction, Judder
Reduction or Reset manually.

N

If Motion Plus is Demo, you can compare the difference of on and off
modes.

English

◀ ▶

Blur Reduction: Adjusts the blur reduction level from video sources.

Judder Reduction: Adjusts the judder reduction level from video sources

when playing films.

Reset: Reset the custom settings.

●

LED Motion Plus (Off / On)

for LED 6 series

: Removes drag from fast scenes

with a lot of movement to provide a clear picture.

N

It will be deactivated when the picture mode is set to Natural.

N

The screen may become slightly darker when you play LED Motion Plus.

English

◀ ▶

■Reset Picture (Yes / No)

O

MENUm → Picture → Reset Picture → ENTER

E

Resets your current picture mode to its default settings.

English

◀ ▶

❑Changing the Preset Sound Mode

■Sound Mode

t

O

MENUm → Sound → Sound Mode → ENTER

E

●

Standard: Selects the normal sound mode.

●

Music: Emphasizes music over voices.

●

Movie: Provides the best sound for movies.

●

Clear Voice: Emphasizes voices over other sounds.

●

Amplify: Increase the intensity of high-frequency sound to allow a better

listening experience for the hearing impaired.

N

If Speaker Select is set to External Speaker, Sound Mode is
disabled.

for LED 6 series

English

◀ ▶

❑Adjusting Sound Settings

■Sound Effect

O

MENUm → Sound → Sound Effect → ENTER

E

Use the up and down arrow keys to select an option, and then press ENTER

E

.

●

SRS TruSurround HD (Off / On)

t

(standard sound mode only)

This function provides a virtual 5.1 channel surround sound experience
through a pair of speakers using HRTF (Head Related Transfer Function)
technology.

English

◀ ▶

●

SRS TruDialog (Off / On)

(standard sound mode only)

This function allows you to increase the intensity of a voice over background
music or sound effects so that dialogue can be heard more clearly.

●

Equaliser

(standard sound mode only)

Use Equaliser to customize sound setting for each speaker.

Balance: Adjusts the balance between the right and left speaker.

100Hz / 300Hz / 1kHz / 3kHz / 10kHz (Bandwidth Adjustment): Adjusts the

level of specific bandwidth frequencies.

Reset: Resets the equaliser to its default settings.

N

If Speaker Select is set to External Speaker, Sound Effect is
disabled.

for LED 6 series

English

◀ ▶

■Broadcast Audio Options

O

MENUm → Sound → Broadcast Audio Options → ENTER

E

●

Audio Language

t

(digital channels only)

Change the default value for audio languages.

N

The available language may differ depending on the broadcast.

●

Audio Format

(digital channels only)

When sound is emitted from both the main speaker and the audio receiver,
a sound echo may occur due to the decoding speed difference between
the main speaker and the audio receiver. In this case, use the TV Speaker
function.

N

Audio Format option may differ depending on the broadcast. 5.1ch

Dolby digital sound is only available when connecting an external speaker
through an optical cable.

LED 4 series do not support

English

◀ ▶

●

Audio Description

(not available in all locations) (digital channels only)

This function handles the Audio Stream for the AD (Audio Description) which
is sent along with the Main audio from the broadcaster.

Audio Description (Off / On): Turn the audio description function on or off.

Volume: Adjust the audio description volume.

English

◀ ▶

■Additional Settings

O

MENUm → Sound → Additional Settings → ENTER

E

●

DTV Audio Level (MPEG / HE-AAC) (digital channels only): This function

allows you to reduce the disparity of a voice signal (which is one of the signals
received during a digital TV broadcast) to a desired level.

N

According to the type of broadcast signal, MPEG / HE-AAC can be
adjusted between -10dB and 0dB.

N

To increase or decrease the volume, adjust between the range 0 and -10
respectively.

English

◀ ▶

●

SPDIF Output

for LED 6 series

: SPDIF (Sony Philips Digital InterFace) is used
to provide digital sound, reducing interference going to speakers and various
digital devices such as a DVD player.

Audio Format: You can select the Digital Audio output (SPDIF) format. The

available Digital Audio output (SPDIF) format may differ depending on the
input source.

N

By connecting to 5.1ch speakers in a Dolby Digital setup, maximize your
interactive 3D sound experience.

Audio Delay: Correct audio-video sync problems, when watching TV or

video, and when listening to digital audio output using an external device such
as an AV receiver (0ms ~ 250ms).

English

◀ ▶

●

Dolby Digital Comp (Line / RF): This function minimizes signal disparity

between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC,
ATV Sound).

N

Select Line to obtain dynamic sound, and RF to reduce the difference
between loud and soft sounds at night time.

Line: Set the output level for signals greater or less than -31dB (reference) to

either -20dB or -31dB.

RF: Set the output level for signals greater or less than -20dB (reference) to

either -10dB or -20dB.

English

◀ ▶

■Speaker Settings

O

MENUm → Sound → Speaker Settings → ENTER

E

●

Speaker Select (External Speaker / TV Speaker)

for LED 6 series

A sound echo may occur due to a difference in decoding speed between
the main speaker and the audio receiver. In this case, set the TV to External

Speaker.

N

When Speaker Select is set to External Speaker, the volume and
MUTE buttons will not operate and the sound settings will be limited.

N

When Speaker Select is set to External Speaker.

●

TV Speaker: Off, External Speaker: On

N

When Speaker Select is set to TV Speaker.

●

TV Speaker: On, External Speaker: On

N

If there is no video signal, both speakers will be mute.

English

◀ ▶

●

Auto Volume (Off / Normal / Night)

To equalize the volume level on each channel, set to Normal.

Night: This mode provides an improved sound experience compared to
Normal mode, making almost no noise. It is useful at night.

N

To use the volume control on the source device connected to the TV,
set Auto Volume to Off on the TV. Otherwise, a change to the volume

control of the source device may not be applied.

English

◀ ▶

■Reset Sound (Yes / No)

O

MENUm → Sound → Reset Sound → ENTER

E

Reset all sound settings to the factory defaults.

English

◀ ▶

❑Selecting the Sound Mode

t

When you set to Dual I-II, the current sound mode is displayed on the screen.

Audio Type Dual I-II Default

A2 Stereo Mono Mono Automatic change

Stereo

Stereo ↔ Mono

Dual

Dual I ↔ Dual II

Dual I

NICAM Stereo Mono Mono Automatic change

Stereo

Mono ↔ Stereo

Dual

Mono → Dual I



Dual II



Dual I

N

If the stereo signal is weak and an automatic switching, occurs, then switch
to the mono.

N

Only activated in stereo sound signal.

N

Only available when the Source is set to TV.

English

◀ ▶

Preference Features

❑Connecting to the Network

for LED 6 series

■Wired Network Connection

You can attach your TV to your LAN using cable in three ways:

English

◀ ▶

●

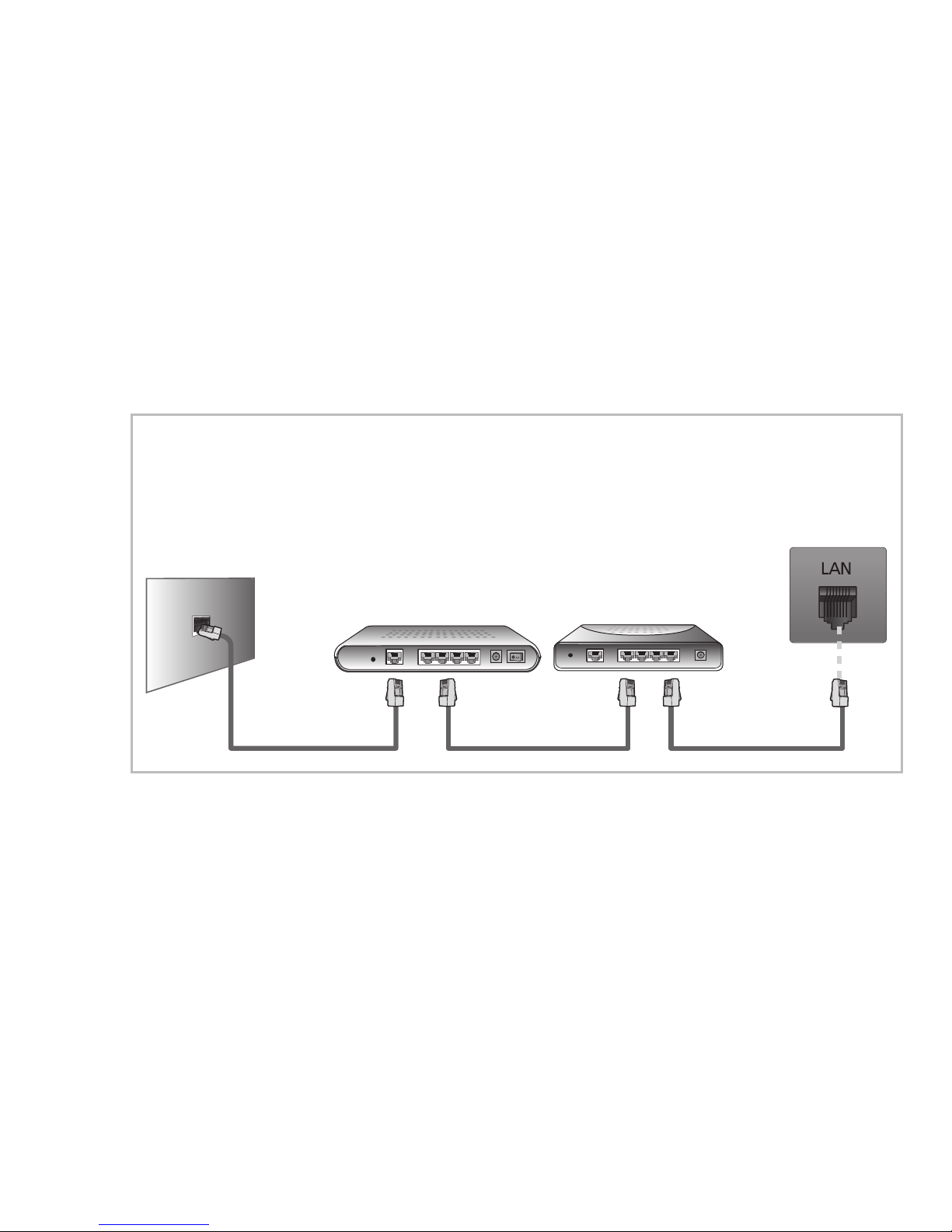

You can attach your TV to your LAN by connecting the LAN port on the back
of your TV to an external modem using a LAN cable. See the diagram below.

* It may differ depending

on the model.

The Modem Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

TV Rear Panel

LAN Cable

Modem Cable

English

◀ ▶

●

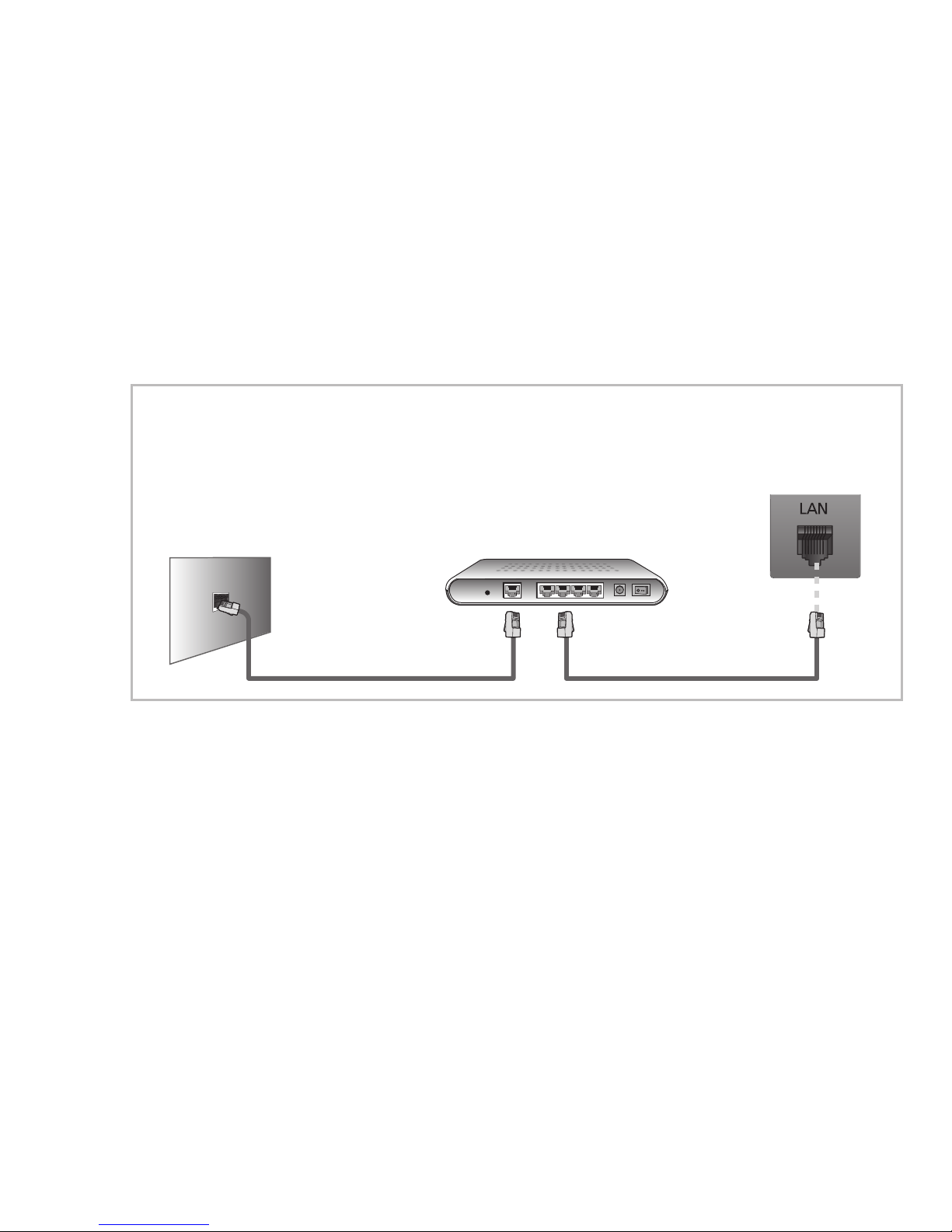

You can attach your TV to your LAN by connecting the LAN port on the back
of your TV to a IP Sharer which is connected to an external modem. Use LAN
cable for the connection. See the diagram below.

* It may differ depending

on the model.

The Modem Port on the Wall

External Modem

(ADSL / VDSL / Cable TV)

IP Sharer

(having DHCP server)

TV Rear Panel

LAN Cable

LAN Cable

Modem Cable

English

◀ ▶

●

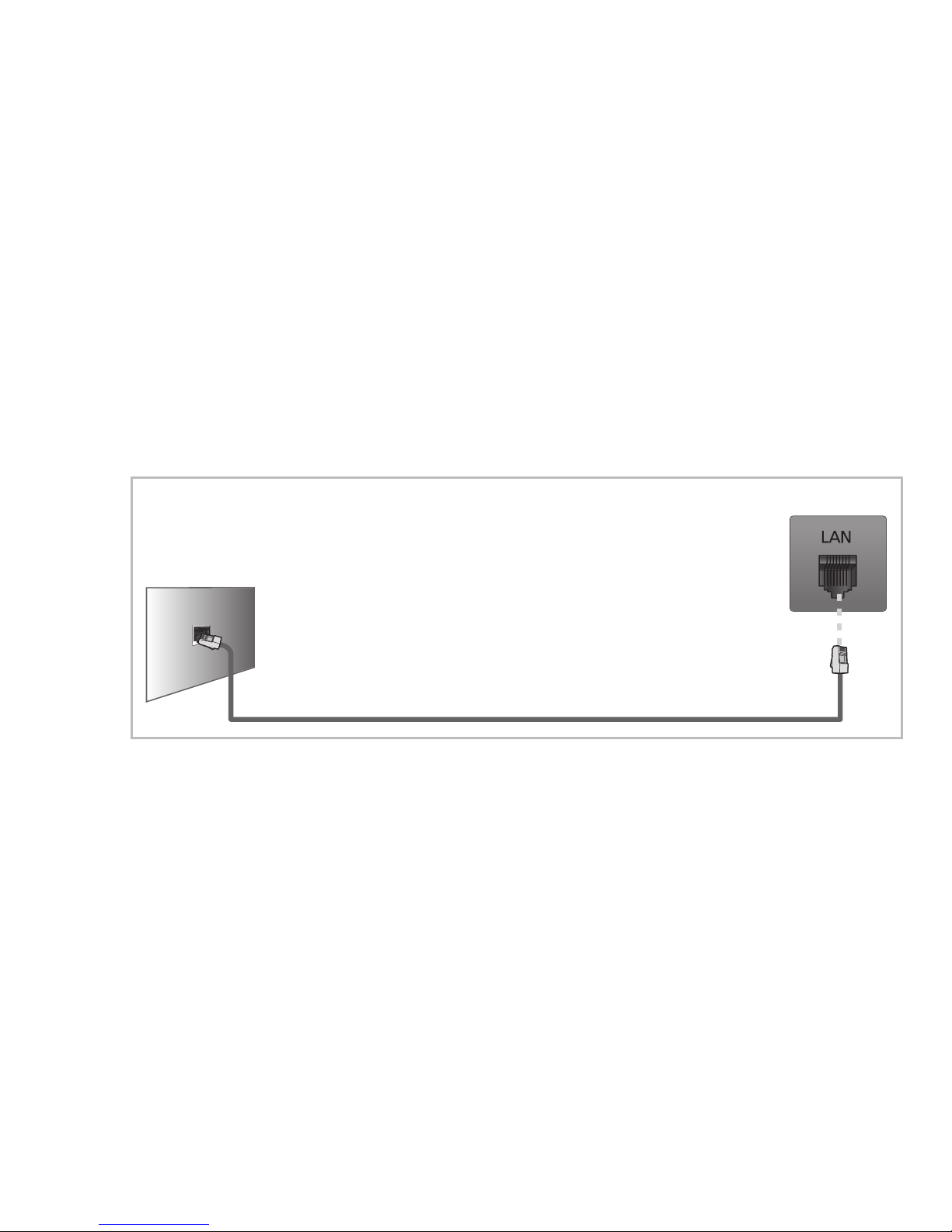

Depending on how your network is configured, you may be able to attach
your TV to your LAN by connecting the LAN port on the back of your TV
directly to a network wall outlet using a LAN cable. See the diagram below.
Note that the wall outlet is attached to a modem or router elsewhere in your
house.

* It may differ

depending on the

model.

The LAN Port on the Wall

TV Rear Panel

LAN Cable

●

If your network requires a Dynamic IP address, you should use an ADSL
modem or router that supports Dynamic Host Configuration Protocol (DHCP).

English

◀ ▶

Modems and routers that support DHCP automatically provide the IP
address, subnet mask, gateway, and DNS values your TV needs to access
the Internet so you do not have to enter them manually. Most home networks
use a Dynamic IP address. Some networks require a Static IP address. If your
network requires a Static IP address, you must enter the IP address, subnet
mask, gateway, and DNS values manually on your TV’s Cable Setup Screen
when you set up the network connection. To get the IP address, subnet
mask, gateway, and DNS values, contact your Internet Service Provider (ISP).
If you have a Windows computer, you can also get these values through your
computer.

N

You can use ADSL modems that support DHCP if your network requires
a Static IP address. ADSL modems that support DHCP also let you use

Static IP addresses.

N

It is not supported when the network speed is below or equal to 10Mbps.

English

◀ ▶

■Wireless Network Connection

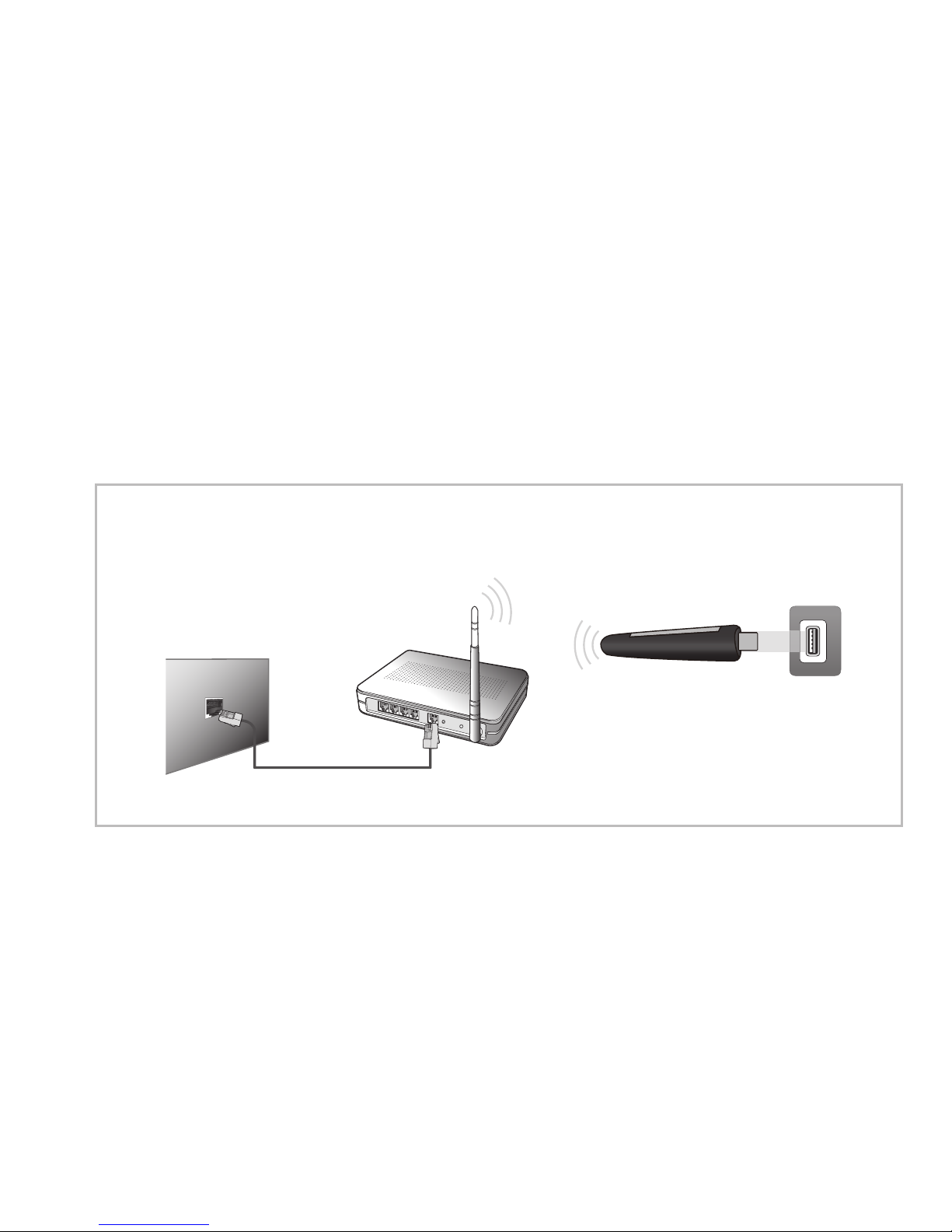

To connect your TV to your network wireless, you need a wireless router or
modem and a Samsung Wireless LAN Adapter (WIS12ABGNX, WIS09ABGNX),
which you connect to your TV’s back or side panel USB port. See the illustration
below.

LAN Cable

Wireless IP sharer

(Wireless router having DHCP Server)

Samsung Wireless LAN

Adapter

TV Side Panel

The LAN Port on the Wall

English

◀ ▶

Samsung’s Wireless LAN adapter is sold separately and is offered by select
retailers and Ecommerce sites. Samsung’s Wireless LAN adapter supports the
IEEE 802.11a/b/g and n communication protocols. Samsung recommends using
IEEE 802.11n. When you play video over a network connection, the video may
not be played smoothly.

N

NOTE

●

You must use the “Samsung Wireless LAN Adapter” (WIS12ABGNX,
WIS09ABGNX) to use a wireless network.

●

Samsung Wireless LAN Adapter and the USB extension Cable are sold
separately and are offered by select retailers and Ecommerce sites.

English

◀ ▶

●

To use a wireless network, your TV must be connected to a wireless IP
sharer (either a router or a modem). If the wireless IP sharer supports
DHCP, your TV can use a DHCP or static IP address to connect to the
wireless network.

●

Select a channel for the wireless IP sharer that is not currently being used.
If the channel set for the wireless IP sharer is currently being used by
another device nearby, this will result in interference and communication
failure.

●

If you apply a security system other than the systems listed below, it will
not work with the TV.

English

◀ ▶

●

If HIGH PURE THROUGHPUT (Greenfield) 802.11n mode is selected
and the Encryption type is set to WEP or TKIP for your wireless router,
Samsung TVs will not support a connection in compliance with new Wi-Fi
certification specifications.

●

If your wireless router supports WPS (Wi-Fi Protected Setup), you can
connect to the network via PBC (Push Button Configuration) or PIN
(Personal Identification Number). WPS will automatically configure the
SSID and WPA key in either mode.

●

If your router, modem, or device is not certified, it may not connect to the
TV via the “Samsung Wireless LAN Adapter”.

●

Ensure the TV is turned off before you connect the Samsung Wireless
LAN Adapter.

English

◀ ▶

●

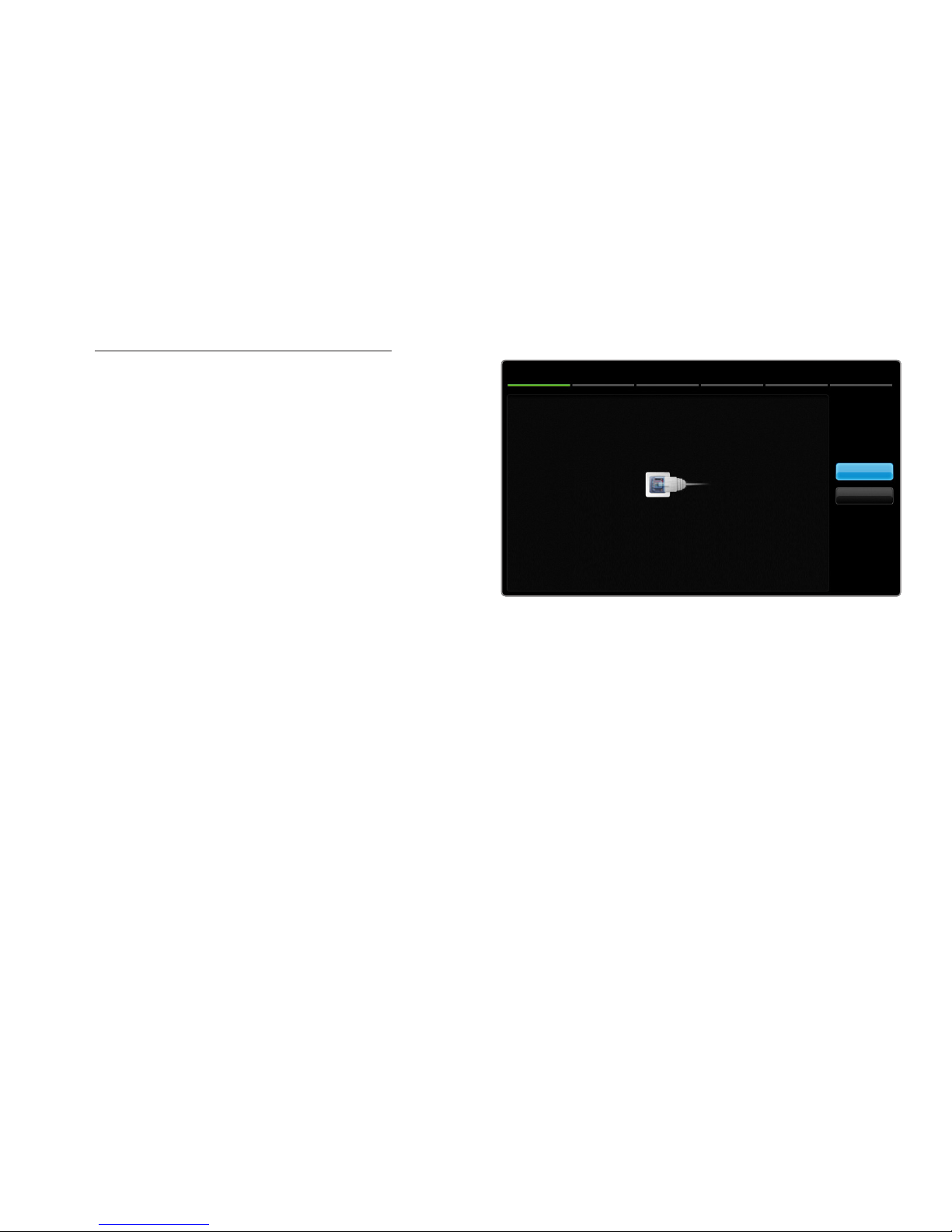

Connection Methods: You can setup the wireless network connection like
below.

–

Auto Setup (Using the Auto Network Search function)

–

Manual Setup

–

WPS(PBC)

●

The Samsung Wireless LAN Adapter may not be recognized when using
a connection via a USB hub or via a USB extension cable other than the
cable supplied.

English

◀ ▶

Notice

The picture may appear corrupted or have static for some channels when the TV
is connected to the Samsung Wireless LAN Adapter. In such a case, establish
a connection using one of the following methods or connect the Samsung
Wireless LAN Adapter using a USB cable in a place that is not affected by radio
interference.

Method 1

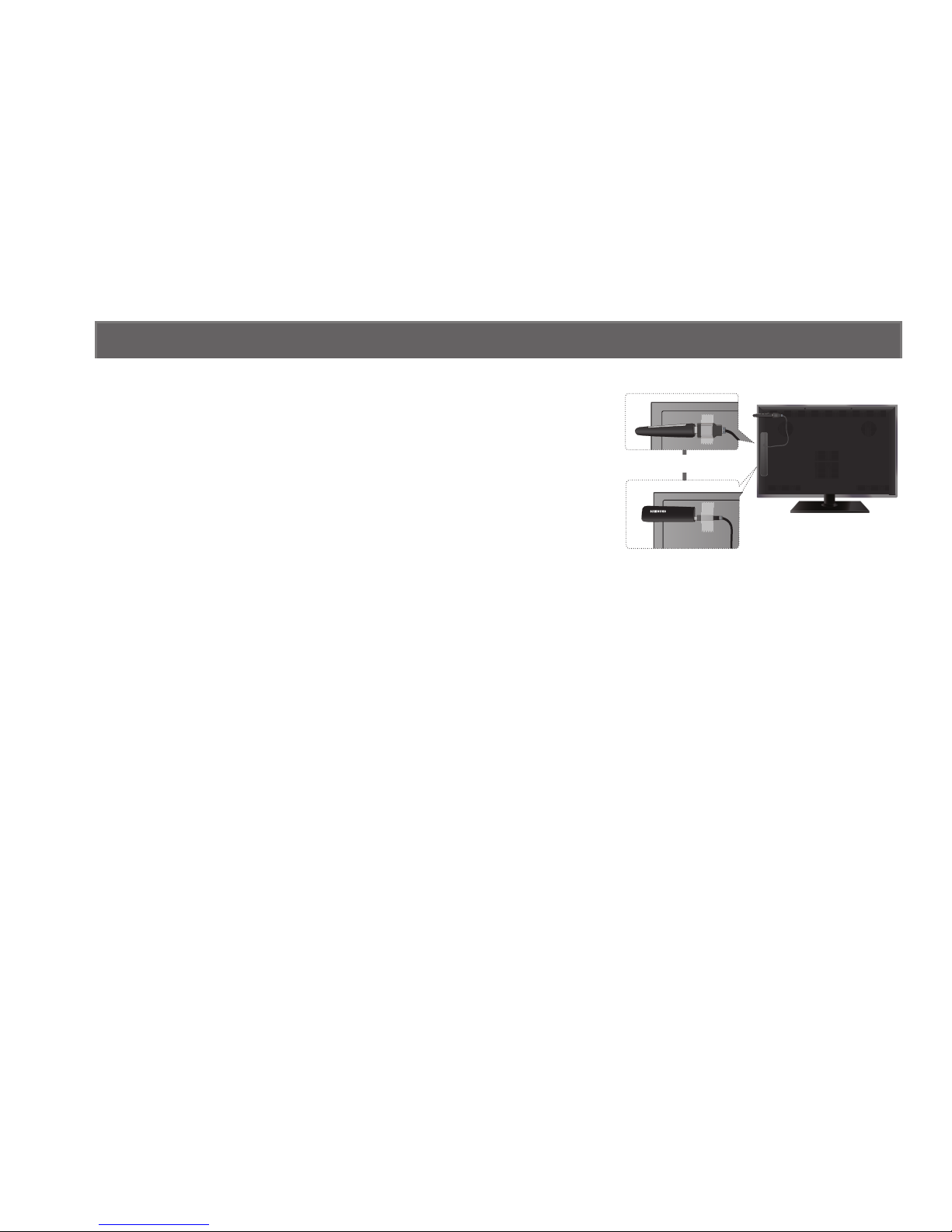

Connect using the USB right angle adapter. To
connect the Samsung Wireless LAN Adapter using
the USB right angle adapter, follow these steps:

1. Connect the USB right angle adapter to the

Samsung Wireless LAN Adapter.

2. Connect the other end of the right angle

adapter to the USB port.

* The position of port may differ

depending on the model.

English

◀ ▶

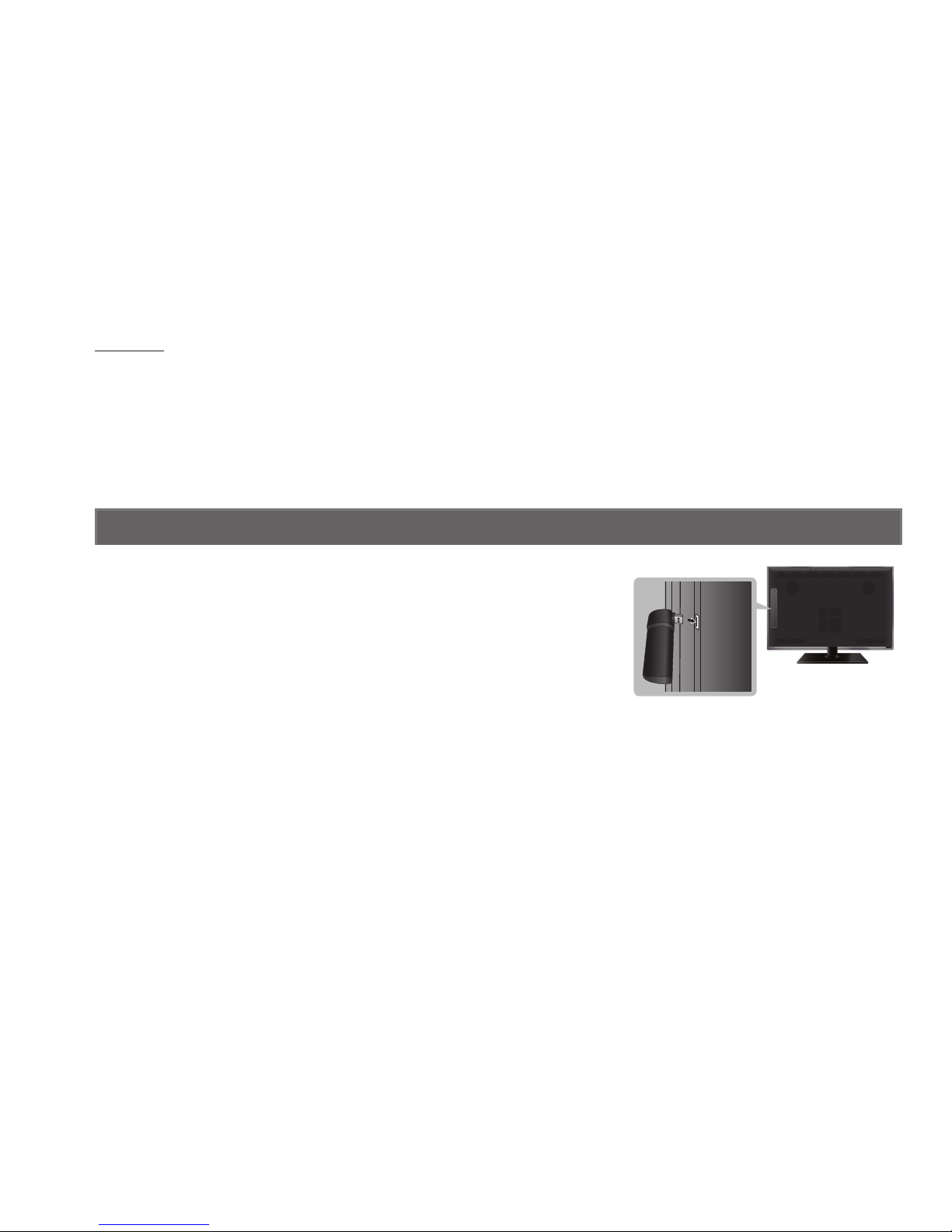

Method 2

Connect via an extension cable
To reconnect the Samsung Wireless LAN Adapter

using the extension cable, follow these steps:

1. Connect the extension cable to the USB port.

2. Connect the extension cable and Samsung

Wireless LAN Adapter.

3. Attach the Samsung Wireless LAN Adapter to

the back of the TV near the top, using double­sided adhesive tape.

N

The Samsung Wireless LAN Adapter should be installed in an
interference-free area in order to avoid interference between the adapter

and tuner.

or

* The position of port may differ

depending on the model.

English

◀ ▶

■Network Settings

O

MENUm → Network → Network Settings → ENTER

E

You can set the wired or wireless network connection.

N

For detailed settings for wired network, refer to the "Setting the Wired
Network", and for detailed settings for wireless network, refer to the "Setting

the Wireless Network" in this manual.

English

◀ ▶

■Network Status

O

MENUm → Network → Network Status → ENTER

E

You can check the current network and Internet status.

English

◀ ▶

❑Setting the Wired Network

for LED 6 series

■Wired Network Setup (Auto)

N

When connecting the LAN Cable, the screen pop-up appears directly to set
wired network.

Use the Automatic Network Setup when connecting your TV to a network that
supports DHCP. To set up your TV’s cable network connection automatically,
follow these steps:

English

◀ ▶

How to set up automatically

1. Go to Network Settings screen.

2. Select Start.

3. The network connection screen

appears, and network setting is
done.

Network Settings

Network cable connected.

Press Start to configure your wired network settings.

If you want to connect to your wireless network, plug in

a Samsung Wireless LAN Adapter.

Start

Cancel

N

If it fails to set automatically, check the connection of LAN port.

N

If you cannot find network connection values or if you want to set connection
manually, set it to Manual. Refer to following “How to set up manually”.

English

◀ ▶

■Wired Network Setup (Manual)

Use the Manual Network Setup when connecting your TV to a network that
requires a Static IP address.

Getting the Network Connection Values

To get the Network connection values on most Windows computers, follow these
steps:

1. Right click the Network icon on the bottom right of the screen.

2. In the pop-up menu that appears, click Status.

3. On the dialogue that appears, click the Support tab.

4. On the Support Tab, click the Details button. The Network connection values

are displayed.

English

◀ ▶

How to set up manually

To set up your TV’s cable network connection manually, follow these steps:

1. Follow Steps 1 through 2 in the “How to

set up automatically” procedure.

2. Select the IP Settings on network

connection screen.

3. Set IP setting to Enter manually.

4. Press the ▼ button to go to the first entry

field.

IP Settings

R

Return

OK

IP setting

Enter manually

IP Address

0 . 0 . 0 . 0

Subnet Mask

0 . 0 . 0 . 0

Gateway

0 . 0 . 0 . 0

DNS setting Enter manually

DNS Server

0 . 0 . 0 . 0

5. Enter the IP Address, Subnet Mask, Gateway, and DNS Server values. Use

the number buttons to enter numbers and the arrow buttons to move from
one entry field to another.

6. When done, select the OK.

7. The network connection screen appears, and network setting is done.

English

◀ ▶

The check list for wired network connection failure

When wired network connection failed, try to apply the following information to
each issue.

Issues Solutions and Explanations

No network cable found. • Check that your network cable is plugged in.

• If it is connected, make sure that the router is turned on; if it is on, try

turning it off and on again.

IP auto setting failed. Try the following to set your IP address automatically or set your IP

address manually by selecting IP Settings.

• Ensure DHCP server is enabled on router and unplug and re-plug-in
the router.

• Contact your Internet Service Provider for more information.

English

◀ ▶

Issues Solutions and Explanations

Unable to connect to the
network.

• Check if your IP address is set correctly in IP Settings.

• Contact your Internet Service Provider for more information.

Connected to your local
network, but cannot
connect to the Internet.

• Check your Internet LAN cable is connected correctly to LAN port of
router.

• Check the DNS settings in IP Settings.

• If the problem persists, contact your Internet Service Provider to

access the Internet.

Network setup complete,
but cannot connect to the
Internet.

• Confirm that your router is connected to the Internet.

• If the problem persists, contact your Internet Service Provider to

access the Internet.

English

◀ ▶

❑Setting the Wireless Network

for LED 6 series

■Wireless Network Setup (Auto)

Most wireless networks have an optional security system that requires devices
that access the network to transmit an encrypted security code called an Access
or Security Key. The Security Key is based on a Pass Phrase, typically a word or a
series of letters and numbers of a specified length you were asked to enter when
you set up wireless security for your wireless network. If you use this method of
setting up the network connection, and have a Security Key for your wireless
network, you will have to enter the Pass Phrase during the setup process.

N

When connecting Samsung Wireless LAN Adapter, the screen pop-up
appears directly to set wireless network.

English

◀ ▶

How to set up automatically

1. Go to Network Settings screen.

2. Select Start.

3. The Network function searches

for available wireless networks.
When done, it displays a list of the
available networks.

Network Settings

Samsung Wireless LAN Adapter connected.

Press Start to configure your wireless network settings.

If you want to connect to your wired network, plug in a

network cable.

Start

Cancel

4. In the list of networks, press the ▲ or ▼ button to select a network, and then
press ENTER

E

button.

N

If the wireless router is set to Hidden (Invisible), you have to select Add

Network and enter the correct network name and Security key to

establish the connection.

English

◀ ▶

5. If the Security screen pop-up appears, go to step 6. If you select the wireless
router which does not have wireless security, go to step 7.

6. To set wireless security for the router, enter the Security key(Security or PIN).

N

When you enter the Security key (Security or PIN), use ▲/▼/◄ /►
buttons to select number/characters. Press ENTER

E

to enter the

characters.

N

You should be able to find the Pass Phrase on one of the set up screens
you used to set up your router or modem.

7. The network connection screen appears, and network setting is done.

N

If it fails to set Security key (Security or PIN), select Retry or IP Settings.

N

If you want to set connection manually, select the IP Settings. Refer to
following “How to set up manually”.

English

◀ ▶

■Wireless Network Setup (Manual)

Use the Manual Network Setup when connecting your TV to a network that
requires a Static IP address.

Getting the Network Connection Values

To get the Network connection values on most Windows computers, follow these
steps:

1. Right click the Network icon on the bottom right of the screen.

2. In the pop-up menu that appears, click Status.

3. On the dialogue that appears, click the Support tab.

4. On the Support Tab, click the Details button. The Network connection values

are displayed.

English

◀ ▶

How to set up manually

To set up your TV’s cable network connection manually, follow these steps:

1. Follow Steps 1 through 7 in the “How to set up automatically” procedure.

2. Select the IP Settings on network connection screen.

3. Set IP setting to Enter manually.

4. Press the ▼ button to go to the first entry field.

5. Enter the IP Address, Subnet Mask, Gateway, and DNS Server values. Use

the number buttons to enter numbers and the arrow buttons to move from
one entry field to another.

6. When done, select the OK.

7. The network connection screen appears, and network setting is done.

English

◀ ▶

■Wireless Network Setup (WPS(PBC))

If your router has a WPS(PBC) button, follow these steps:

1. Go to Network Settings screen.

2. Select Start.

3. The Network function searches for available wireless networks. When done, it

displays a list of the available networks.

4. Select the WPS(PBC).

5. Press the WPS(PBC) button on your router within 2 minutes. Your TV

automatically acquires all the network setting values it needs and connects to
your network.

6. The network connection screen appears, and network setting is done.

English

◀ ▶

The check list for wireless network connection failure

When wireless network connection failed, try to apply the following information to
each issue.

Issues Solutions and Explanations

Wireless network
connection failed.

• No wireless router selected. Go to Network Settings to select your

router.

• Samsung Wireless LAN adapter is required to use a wireless network.

• Make sure the TV is connected to a wireless IP sharer (Router).

IP auto setting failed. • Try the following to set your IP address automatically or set your IP

address manually by selecting IP Settings.

• Ensure DHCP server is enabled on router and unplug and re-plug-in the
router.

• Check if you need to enter a security key to use the router.

• Contact your Internet Service Provider for more information.

English

◀ ▶

Issues Solutions and Explanations

Unable to connect to
wireless router.

• Check that the router is turned on, and if it is on, try turning it off and
on again.

• Check if you need to enter a security key to use the router.

Unable to connect to the
network.

• Check if your IP address is set correctly in IP Settings.

• Check if you need to enter a security key to use the router.

• Contact your Internet Service Provider for more information.

Connected to your local
network, but cannot
connect to the Internet.

• Check your Internet LAN cable is connected correctly to LAN port of
router.

• Check the DNS settings in IP Settings.

• If the problem persists, contact your Internet Service Provider to

access the Internet.

Network setup complete,
but cannot connect to the
Internet.

• Confirm that your router is connected to the Internet.

• If the problem persists, contact your Internet Service Provider to

access the Internet.

English

◀ ▶

If Your TV Fails to Connect to the Internet

Your TV may not be able to connect to the Internet because your ISP has permanently
registered the MAC address (a unique identifying number) of your PC or modem, which
it then authenticates each time you connect to the Internet as a way of preventing
unauthorized access. As your TV has a different MAC address, your ISP can not
authenticate its MAC address, and your TV can not connect.

To resolve this problem, ask your ISP about the procedures required to connect devices
other than a PC (such as your TV) to the Internet.

If your Internet service provider requires an ID or password to connect to the Internet,
your TV may not be able to connect to the Internet. If this is the case, you must enter
your ID or password when connecting to the Internet.

The internet connection may fail because of a firewall problem. If this is the case, contact
your Internet service provider.

If you cannot connect to the Internet even after you have followed the procedures of your
Internet service provider, please contact Samsung Electronics.

English

◀ ▶

❑ Managing the Network Connected Devices

for LED 6 series

■AllShare Settings

O

MENUm → Network → AllShare Settings → ENTER

E

Set whether to allow a network connected device like a smartphone or tablet
to share content or control TV using an application downloaded on your mobile
device. For details on set up options, refer to the "Using the DLNA Functions".

English

◀ ▶

■Device Name

O

MENUm → Network → Device Name → ENTER

E

Change the TV’s name by keying in a name manually.

N

A keyboard appears on the screen and you can key in a name for your TV
manually using your remote control. For example, if you want to change the

name to Samsung TV, press each character using the

▲/▼/◄/►

buttons,

and then select Done.

English

◀ ▶

❑Executing initial setup

■Setup

O

MENUm → System → Setup → ENTER

E

Configure the channels and the time when setting up the TV for the first time or
when resetting the unit.

N

For the detailed information about setting Setup, refer to “Initial Setup” in
User Manual.

English

◀ ▶

❑Setting the Time

■Time

O

MENUm → System → Time → ENTER

E

The current time will appear every time you press the INFO button.

●

Clock: Setting the clock is for using various timer features of the TV.

N

If you disconnect the power cord, you have to set the clock again.

Clock Mode: Set up the current time manually or automatically.

–

Auto: Set the current time automatically using the time from a digital

channel.

N

The aerial must be connected in order to set the time automatically.

English

◀ ▶

–

Manual: Set the current time manually.

N

Depending on the broadcast station and signal, the auto time set up may
not be correct. In this case, set the time manually.

Clock Set: Set the Date and Time.

N

Available only when Clock Mode is set to Manual.

N

You can set the Date and Time directly by pressing the number buttons
on the remote control.

Time Zone (depending on the country): Select your time zone.

N

This function is only available when the Clock Mode is set to Auto.

N

When selecting Manual in Time Zone, GMT and DST will be activated.

English

◀ ▶

❑Using the Sleep Timer

O

MENUm → System → Time → Sleep Timer → ENTER

E

●

Sleep Timer

t

: Automatically shuts off the TV after a preset period of

time. (30, 60, 90, 120, 150 and 180 minutes).

N

To cancel Sleep Timer, select Off.

English

◀ ▶

❑Setting the On / Off Timer

O

MENUm → System → Time → On Timer <or> Off Timer → ENTER

E

●

On Timer 1 / On Timer 2 / On Timer 3: Three different on timer settings can

be made. You must set the clock first.

–

Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or
Manual to set at your convenience. If you select Manual, you can set up

the day you want to activate the timer.

N

The c mark indicates the day you’ve selected.

–

Time: Set the hour and minute.

–

Volume: Set the desired volume level.

English

◀ ▶

–

Source: To select the source of the content that will play when the TV

turns on. You can:

●

Select TV and have the TV display a specific air or cable channel.

●

Select USB and have the TV play back photo or audio files from a
USB device.

●

Select a source on your TV that you have connected a set-top box to,
and have the TV display a channel from the set-top box.

N

The USB device must be connected to your TV before you can select

USB.

English

◀ ▶

N

If you select a source other than TV or USB, you must:

●

Have a cable or satellite set-top box attached to that source

●

Set the set-top box to the channel you want to watch when the
TV goes on

●

Leave the set-top box turned on.

N

When you select a source other than TV or USB, the Aerial and
Channel options will disappear.

–

Aerial (when the Source is set to TV): Select ATV or DTV.

–

Channel (when the Source is set to TV): Select the desired channel.

English

◀ ▶

–

Music / Photo (when the Source is set to USB): Select a folder in the

USB device containing music or photo files to be played when the TV is
turned on automatically.

N

NOTE

●

If there is no music file on the USB device or the folder containing
a music file is not selected, the timer function does not operate
correctly.

●

When there is only one photo file in the USB device, the slide
show will not play.

●

If a folder name is too long, the folder cannot be selected.

English

◀ ▶

●

Each USB you use is assigned its own folder. When using
more than one of the same type of USB, make sure the folders
assigned to each USB have different names.

●

It is recommended that you use a USB memory stick and a multi
card reader when using On Timer.

●

The On Timer function may not work with USB devices with
a built-in battery, MP3 players, or PMPs made by some
manufacturers because these devices take a long time to be
recognized.

English

◀ ▶

●

Off Timer 1 / Off Timer 2 / Off Timer 3: Three different off timer settings can

be made. You must set the clock first.

Setup: Select Off, Once, Everyday, Mon~Fri, Mon~Sat, Sat~Sun or
Manual to set at your convenience. If you select Manual, you can set up the

day you want to activate the timer.

N

The c mark indicates the day you’ve selected.

Time: Set the hour and minute.

English

◀ ▶

❑Locking Programme

■Security

O

MENUm → System → Security → ENTER

E

N

The PIN input screen appears before the setup screen.

N

Enter your 4-digit PIN. Change the PIN using the Change PIN option.

●

Channel Lock (Off / On): Lock channels in Channel menu to prevent

unauthorized users, such as children, from watching unsuitable programme.

N

Available only when the Source is set to TV.

English

◀ ▶

●

Programme Rating Lock (depending on the country): Prevent unauthorized

users, such as children, from watching unsuitable programme with a user­defined 4-digit PIN code. If the selected channel is locked, the “\” symbol will
be displayed.

N

The items of Programme Rating Lock differs depending on the country.

●

Change PIN: Change your password required to set up the TV.

English

◀ ▶

❑Economical Solutions

■Eco Solution

O

MENUm → System → Eco Solution → ENTER

E

●

Energy Saving (Off / Low / Medium / High / Picture Off)

t

: This

adjusts the brightness of the TV in order to reduce power consumption. If you
select Picture Off, the screen is turned off, but the sound remains on. Press
any button except volume button to turn on the screen.

English

◀ ▶

●

Eco Sensor (Off / On)

for LED 6 series

: To enhance your power savings; the

picture settings will automatically adapt to the light in the room.

N

If you adjust the Backlight, the Eco Sensor will be set to Off.

Min. Backlight: When Eco Sensor is On, the minimum screen brightness

can be adjusted manually.

N

If Eco Sensor is On, the display brightness may change (become slightly
darker or brighter) depending on the surrounding light intensity.

●

No Signal Power Off (Off / 15 min / 30 min / 60 min): To avoid unnecessary

energy consumption, set how long you want the TV to remain on if it’s not
receiving a signal.

N

Disabled when the PC is in power saving mode.

●

Auto Power Off (Off / On): The TV will be automatically turned off when no

user operation is received for 4 hours.

N

If the Auto Power Off option is set to Off, the TV will stay on even if no
operations are performed on the TV.

English
