Samsung UE32EH53 series, UE32ES57 series, UE26EH45 series, UE22ES54 series, UE37EH53 series Service Manual
...Page 1
LED TV
SERVICE
Manual
LED TV Contents
1. Precautions
2. Product specications
3. Disassembly and Reassembly
4. Troubleshooting
5. Wiring Diagram
UE**ES55***
Chassis
:
U78A U78B
Model
:
UE32EH53*** UE32ES57*** UE26EH45*** UE22ES54***
UE37EH53*** UE37ES57*** UE32EH5450W
UE40EH53*** UE40ES57*** UE40EH5450W
UE46EH53*** UE46ES57*** UE46EH5450W
UE50EH53*** UE50ES57***
UE32ES55*** UE32ES58***
UE37ES55*** UE40ES58***
UE40ES55*** UE46ES58***
UE46ES55***
UE50ES55***
Page 2
Contents
1. Precautions ...................................................................................................................1-1
1-1. Safety Precautions ..............................................................................................................1-1
1-2. Servicing Precautions ..........................................................................................................1-3
1-3. Static Electricity Precautions ...............................................................................................1-4
1-4. Installation Precautions .......................................................................................................1-5
2. Product Specications.................................................................................................2-1
2-1. Product Information .............................................................................................................2-1
2-2. Detail Factory Option .........................................................................................................2-44
2-3. Accessories .......................................................................................................................2-51
3. Disassembly and Reassembly ....................................................................................3-1
3-1. Disassembly and Reassembly ............................................................................................3-1
3-2. Assy Board P-Jog Switch & Ir ............................................................................................3-25
3-3. Disassembly(PTC) .............................................................................................................3-28
4. Troubleshooting ...........................................................................................................4-1
4-1. Troubleshooting ................................................................................................................... 4-1
4-2. How to Check Fault Symptom .............................................................................................4-4
4-3. Factory Mode Adjustments ................................................................................................ 4-19
4-4. White Balance ...................................................................................................................4-30
4-5. White Ratio (Balance) Adjustment .....................................................................................4-34
4-6. RS-232C ............................................................................................................................ 4-39
4-7. Software Upgrade ..............................................................................................................4-40
4-8. Cover-Middle Rear Dimension ..........................................................................................4-44
4-9. Service Item Code .............................................................................................................4-52
5. Wiring Diagram .............................................................................................................5-1
5-1. Wiring Diagram .................................................................................................................... 5-1
5-2. Connector ............................................................................................................................5-4
5-3. Connector Functions .........................................................................................................5-11
5-4. Cables ...............................................................................................................................5-12
Page 3
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
© 2012 Samsung Electronics Co.,Ltd.
All rights reserved.
Printed in Korea
Page 4
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1-1. Warnings
WARNING
For continued safety, do not attempt to modify the circuit board.
Disconnect the AC power and DC power jack before servicing.
1-1-2. Servicing the LED TV
When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.
It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this 2.
meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the monitor to the user, perform the following safety checks:
Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the 1.
chassis and other metal parts in the monitor.
Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and 2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.
Leakage Current Hot Check:3.
DEVICE
UNDER
TEST
(READING SHOULD)
NOT BE ABOVE 0.5mA
LEAKAGE
CURRENT
TESTER
TEST ALL
EXPOSED METAL
SURFACES
2-WIRE CORD
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
EARTH
GROUND
WARNING
Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards
Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).
With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch rst 4.
in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.)
and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1
1. Precautions
1. Precautions
1-1. Safety Precautions
Page 5
1-2
1. Precautions
1-1-4. Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identied by on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics as the recommended replacement part might create
shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever
appropriate.
Page 6
WARNING
An electrolytic capacitor installed with the wrong polarity might explode.
CAUTION
Before servicing units covered by this service manual, read and follow the Safety Precautions section of
this manual.
NOTE
If unforeseen circumstances create conict between the following servicing precautions and any of the
safety precautions, always follow the safety precautions.
1-2-1. General Servicing Precautions
Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before 1.
attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect
a test component in parallel with an electrolytic capacitor.
Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. 2.
The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements
to their original position.
After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that 3.
the area around the serviced part has not been damaged.
Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input 4.
terminals and earphone jacks).
Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect 5.
an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above) should be greater than 1 megohm.
Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; 6.
always remove the instrument’s ground lead last.
1-3
1. Precautions
1-2. Servicing Precautions
Page 7
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly
called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect
transistors. The following techniques will reduce the incidence of component damage caused by static electricity.
Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your 1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the monitor.
After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent 2.
accumulation of an electrostatic charge.
Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.
Use only a grounded-tip soldering iron to solder or desolder ESDs.4.
Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.
Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs 6.
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.
Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material 7.
to the chassis or circuit assembly into which the device will be installed.
CAUTION
Be sure no power is applied to the chassis or circuit and observe all other safety precautions.
Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or 8.
lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.
1-4
1. Precautions
1-3. Static Electricity Precautions
Page 8
For safety reasons, more than a people are required for carrying the product.1.
Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.
Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature 3.
may cause re.
Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed 4.
to moisture. Otherwise, it may cause a re or electric shock.
Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check 5.
the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric
shock.
Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6.
antenna falling over may cause re or electric shock.
When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes. 7.
A rise in temperature within the product may cause re.
1-5
1. Precautions
1-4. Installation Precautions
Page 9
2-1
2. Product specications
2. Product Specications
2-1. Product Information

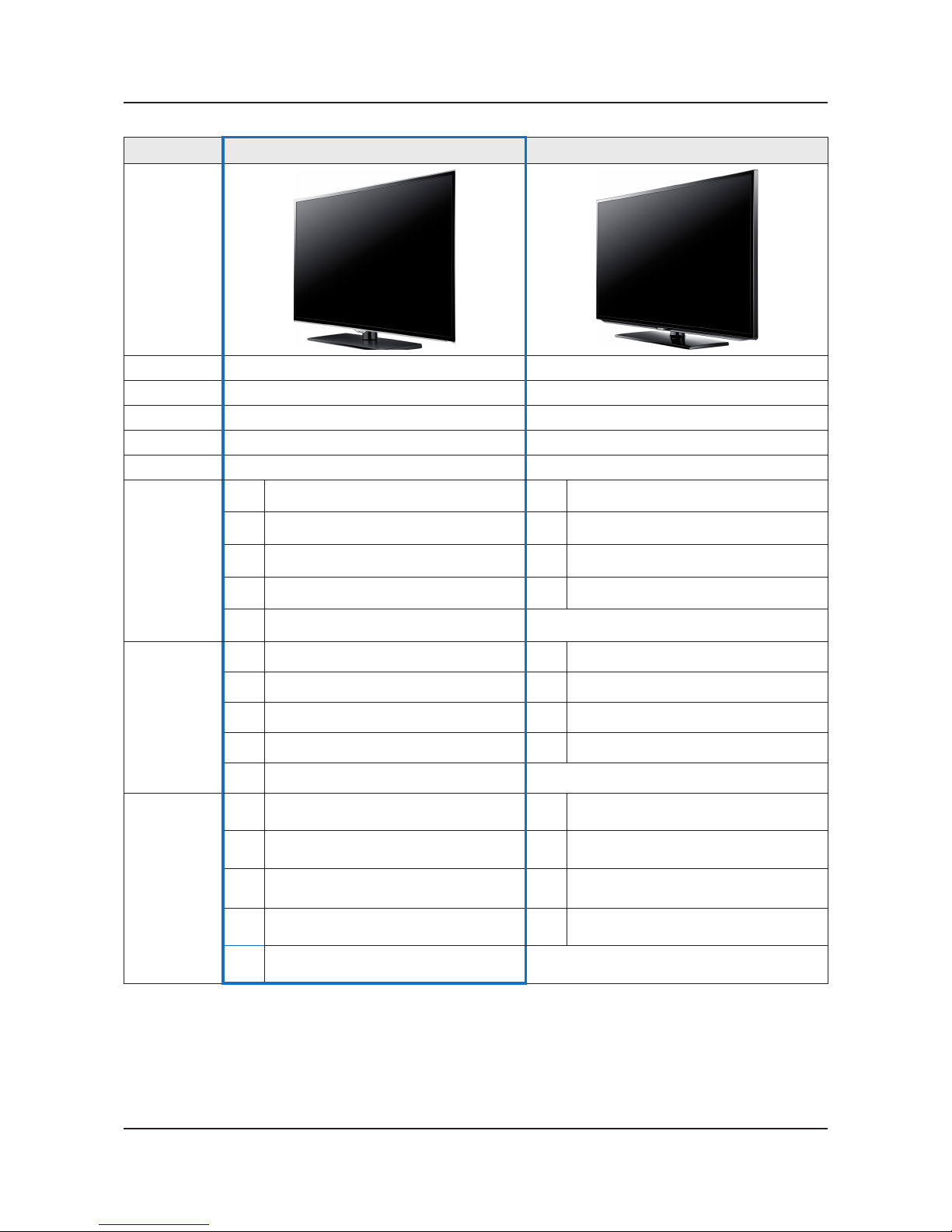

2-1-1. Model Comparison
Model UE**ES55*** / UE**ES57*** / UE**ES58***
Front View
W
* W : Width H : High D : Depth
H
D
Detail View
Front Color Black (Panel)
Dimensions
(W x H x D)
32"
Set with Stand 740.2 x 489.5 x 180.7 mm / 29.1 x 19.3 x 7.1 inches
Set without Stand 740.2 x 449.3 x 46.9 mm / 29.1 x 17.7 x 1.8 inches
Set with Stand
(58**)
740.2 x 516.1 x 241.3 mm / 29.1 x 20.3 x 9.5 inches
37"
Set with Stand 862.0 x 569.1 x 184.1 mm / 33.9 x 22.4 x 7.2 inches
Set without Stand 862.0 x 518.3 x 46.9 mm / 33.9 x 20.4 x 1.8 inches
40"
Set with Stand 927.4 x 605.5 x 184.1 mm / 36.5 x 23.8 x 7.2 inches
Set without Stand 927.4 x 554.7 x 46.9 mm / 36.5 x 21.8 x 1.8 inches
Set with Stand
(58**)
927.4 x 620.4 x 241.3 mm / 36.5 x 24.4 x 9.5 inches
46"
Set with Stand 1062.8 x 682.4 x 228.1 mm / 41.8 x 26.9 x 9.0 inches
Set without Stand 1062.8 x 631.1 x 46.9 mm / 41.8 x 24.8 x 1.8 inches
Set with Stand
(58**)
1062.8 x 702.1 x 276.6 mm / 41.8 x 27.6 x 10.9 inches
50"
Set with Stand 1139.6 x 725.2 x 228.1 mm / 44.9 x 28.6 x 9.0 inches
Set without Stand 1139.6 x 674.0 x 46.9 mm / 44.9 x 26.5 x 1.8 inches
Page 10
2-2
2. Product specications
Model UE**ES55*** / UE**ES57*** / UE**ES58***
Weight
32"
Set with Stand 6.7 kg / 14.8 lbs
Set without Stand 6.2 kg / 13.7 lbs
Set with Stand
(58**)
7.4 kg / 16.3 lbs
37"
Set with Stand 10.9 kg / 24.0 lbs
Set without Stand 8.8 kg / 19.4 lbs
40"
Set with Stand 12.5 kg / 27.6 lbs
Set without Stand 10.3 kg / 22.7 lbs
Set with Stand
(58**)
12.5 kg / 27.6 lbs
46"
Set with Stand 15.3 kg / 33.7 lbs
Set without Stand 13.2 kg / 29.1 lbs
Set with Stand
(58**)
15.0 kg / 33.1 lbs
50"
Set with Stand 16.7 kg / 36.8 lbs
Set without Stand 14.6 kg / 32.2 lbs
Panel Type Anti Glare
Internal Memory 2 G
DDR 256 Mbyte x 3 (768 Mbyte)
Feature Samsung SMART TV, AllShare (Powerd By DLNA), Anynet+ (HDMI-CEC)
Page 11
2-3
2. Product specications
Model UE**EH53***
Front View
W
* W : Width H : High D : Depth
H
D
Detail View
Front Color Black (Panel)
Dimensions
(W x H x D)
32"
Set with Stand 738.3 x 498.2 x 191.7 mm / 29.1 x 19.6 x 7.5 inches
Set without Stand 738.3 x 444.9 x 93.2 mm / 29.1 x 17.5 x 3.7 inches
37"
Set with Stand 866.5 x 575.5 x 227.6 mm / 34.1 x 22.7 x 9.0 inches
Set without Stand 866.5 x 519.2 x 93.0 mm / 34.1 x 20.4 x 3.7 inches
40"
Set with Stand 927.6 x 606.5 x 227.6 mm / 36.5 x 23.9 x 9.0 inches
Set without Stand 927.6 x 551.0 x 93.0 mm / 36.5 x 20.1 x 3.7 inches
46"
Set with Stand 1059.8 x 680.7 x 227.6 mm / 41.7 x 26.8 x 9.0 inches
Set without Stand 1059.8 x 625.6 x 94.3 mm / 41.7 x 24.6 x 3.7 inches
50"
Set with Stand 1137.6 x 725.0 x 227.6 mm / 44.8 x 28.5 x 9.0 inches
Set without Stand 1137.6 x 669.4 x 94.5 mm / 44.8 x 26.4 x 3.7 inches
Page 12
2-4
2. Product specications
Model UE**EH53***
Weight
32"
Set with Stand 6.6 kg / 14.6 lbs
Set without Stand 5.9 kg / 13.0 lbs
37"
Set with Stand 10.2 kg / 22.5 lbs
Set without Stand 8.0 kg / 17.6 lbs
40"
Set with Stand 11.0 kg / 24.3 lbs
Set without Stand 9.0 kg / 19.8 lbs
46"
Set with Stand 14.5 kg / 32.0 lbs
Set without Stand 12.5 kg / 27.6 lbs
50"
Set with Stand 18.3 kg / 40.3 lbs
Set without Stand 15.7 kg / 34.6 lbs
Panel Type Anti Glare
Internal Memory 2 G
DDR 256 Mbyte x 3 (768 Mbyte)
Feature Samsung SMART TV, AllShare (Powerd By DLNA), Anynet+ (HDMI-CEC)
Page 13
2-5
2. Product specications
Model UE**EH5450W
Front View
W
* W : Width H : High D : Depth
H
D
Detail View
Front Color Black (Panel)
Dimensions
(W x H x D)
32"
Set with Stand 738.3 x 498.2 x 191.7 mm / 29.1 x 19.6 x 7.5 inches
Set without Stand 738.3 x 444.9 x 93.2 mm / 29.1 x 17.5 x 3.7 inches
40"
Set with Stand 927.6 x 606.5 x 227.6 mm / 36.5 x 23.9 x 9.0 inches
Set without Stand 927.6 x 551.0 x 93.0 mm / 36.5 x 20.1 x 3.7 inches
46"
Set with Stand 1059.8 x 680.7 x 227.6 mm / 41.7 x 26.8 x 9.0 inches
Set without Stand 1059.8 x 625.6 x 94.3 mm / 41.7 x 24.6 x 3.7 inches
Weight
32"
Set with Stand 6.6 kg / 14.6 lbs
Set without Stand 5.9 kg / 13.0 lbs
40"
Set with Stand 11.0 kg / 24.3 lbs
Set without Stand 9.0 kg / 19.8 lbs
46"
Set with Stand 14.5 kg / 32.0 lbs
Set without Stand 12.5 kg / 27.6 lbs
Panel Type Anti Glare
Internal Memory 2 G
DDR 256 Mbyte x 3 (768 Mbyte)
Feature Samsung SMART TV, AllShare (Powerd By DLNA), Anynet+ (HDMI-CEC)
Page 14
2-6
2. Product specications
Model UE26EH45***
Front View
W
* W : Width H : High D : Depth
H
D
Detail View
Front Color Black (Panel)
Dimensions
(W x H x D)
26"
Set with Stand 632.1 x 445.6 x 180.7 mm / 24.9 x 17.5 x 7.1 inches
Set without Stand 632.1 x 392.7 x 97.4 mm / 24.9 x 15.5 x 3.8 inches
Set with Stand
(E4510)
632.1 x 448.6 x 176.3 mm / 24.9 x 17.7 x 6.9 inches
Weight 26"
Set with Stand 4.9 kg / 10.8 lbs
Set without Stand 4.4 kg / 9.7 lbs
Set with Stand
(E4510)
5.1 kg / 11.2 lbs
Panel Type Anti Glare
Internal Memory 2 G
DDR 256 Mbyte x 3 (768 Mbyte)
Feature Samsung SMART TV, AllShare (Powerd By DLNA), Anynet+ (HDMI-CEC)
Page 15
2-7
2. Product specications
Model UE22ES54***
Front View
W
* W : Width H : High D : Depth
H
D
Detail View
Front Color Black (Panel)
Dimensions
(W x H x D)
22"
Set with Stand 522.9 x 377.5 x 169.7 mm / 20.6 x 14.9 x 6.7 inches
Set without Stand 522.9 x 323.6 x 49.9 mm / 20.6 x 12.7 x 6.7 inches
Set with Stand
(5410)
522.9 x 376 x 144.8 mm / 20.6 x 14.8 x 2.0 inches
Weight 22"
Set with Stand 3.7 kg / 8.2 lbs
Set without Stand 3.4 kg / 7.5 lbs
Set with Stand
(5410)
3.8 kg / 8.4 lbs
Panel Type Anti Glare
Internal Memory 2 G
DDR 256 Mbyte x 3 (768 Mbyte)
Feature Samsung SMART TV, AllShare (Powerd By DLNA), Anynet+ (HDMI-CEC)
Page 16
2-8
2. Product specications
2-1-2. Feature & Specications
Model UE32ES55***
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 32 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
698.4(H) X 392.9(V) (mm) / 27.5(H) X 15.47(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz
Power Consumption 75 W (Under 0.3 W, Stand by) Europe area
78 W (Under 0.3 W, Stand by) CIS area
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C
*UK, Nordic, Russia, UKR Area : DVB-T2/DVB-C
*Russia, UKR Area Model Code: UE32ES55*7KXRU(UA)
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Page 17
2-9
2. Product specications
Specications
Item Description
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving, Ultra slim
Page 18
2-10
2. Product specications
Model UE37ES55***
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP(in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 37 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
819.4(H) X 460.9(V) (mm) / 32.26(H) X 18.15(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz
Power Consumption 94 W (Under 0.3 W, Stand by)
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C *UK, Nordic Area : DVB-T2/DVB-C
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving, Ultra slim
Page 19
2-11
2. Product specications
Model UE40ES55***
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 40 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
885.6(H) X 498.2(V) (mm) / 34.87(H) X 19.61(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz (Europe area)
AC 100 V ~ 240 V, 50 / 60 Hz (CIS area)
Power Consumption 92 W (Under 0.3 W, Stand by) Europe area
99 W (Under 0.3 W, Stand by) CIS area
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C
*UK, Nordic, Russia, UKR Area : DVB-T2/DVB-C
*Russia, UKR Area Model Code: UE40ES55*7KXRU(UA)
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Page 20
2-12
2. Product specications
Specications
Item Description
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving, Ultra slim
Page 21
2-13
2. Product specications
Model UE46ES55***
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 46 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
1018.1(H) X 572.7(V) (mm) / 40.08(H) X 22.55(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz (Europe area)
AC 100 V ~ 240 V, 50 / 60 Hz (CIS area)
Power Consumption 98 W (Under 0.3 W, Stand by) Europe area
100 W (Under 0.3 W, Stand by) CIS area
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C
*UK, Nordic, Russia, UKR Area : DVB-T2/DVB-C
*Russia, UKR Area Model Code: UE46ES55*7KXRU(UA)
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Page 22
2-14
2. Product specications
Specications
Item Description
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving, Ultra slim
Page 23
2-15
2. Product specications
Model UE50ES55***
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 50 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
1095.8(H) X 616.4(V) (mm) / 43.14(H) X 24.27(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz (Europe area)
AC 100 V ~ 240 V, 50 / 60 Hz (CIS area)
Power Consumption 117 W (Under 0.3 W, Stand by) Europe area
121 W (Under 0.3 W, Stand by) CIS area
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C
*UK, Nordic, Russia, UKR Area : DVB-T2/DVB-C
*Russia, UKR Area Model Code: UE46ES55*7KXRU(UA)
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Page 24
2-16
2. Product specications
Specications
Item Description
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving, Ultra slim
Page 25
2-17
2. Product specications
Model UE32ES57*** / UE32ES58***
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 32 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
698.4(H) X 392.9(V) (mm) / 27.5(H) X 15.47(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz
Power Consumption 75 W (Under 0.3 W, Stand by)
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C/DVB-S2
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving, Ultra slim
Page 26
2-18
2. Product specications
Model UE37ES57***
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 37inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
819.4(H) X 460.9(V) (mm) / 32.26(H) X 18.15(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz
Power Consumption 94 W (Under 0.3 W, Stand by)
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C/DVB-S2
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving, Ultra slim
Page 27
2-19
2. Product specications
Model UE40ES57*** / UE40ES58***
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 40 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
885.6(H) X 498.9(V) (mm) / 34.87(H) X 19.61(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz
Power Consumption 92 W (Under 0.3 W, Stand by)
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C/DVB-S2
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving, Ultra slim
Page 28
2-20
2. Product specications
Model UE46ES57*** / UE46ES58***
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 46 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
1018.1(H) X 572.7(V) (mm) / 40.08(H) X 22.55(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz
Power Consumption 98 W (Under 0.3 W, Stand by)
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C/DVB-S2
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving, Ultra slim
Page 29
2-21
2. Product specications
Model UE50ES57***
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 50 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
1095.8(H) X 616.4(V) (mm) / 43.14(H) X 24.27(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz
Power Consumption 117 W (Under 0.3 W, Stand by)
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C/DVB-S2
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving, Ultra slim
Page 30
2-22
2. Product specications
Model UE32EH53***
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 32 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
698.4(H) X 392.9(V) (mm) / 27.5(H) X 15.47(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz (Europe area)
AC 100 V ~ 240 V, 50 / 60 Hz (CIS area)
Power Consumption 67 W (Under 0.3 W, Stand by) Europe area
69 W (Under 0.3 W, Stand by) CIS area
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C
*UK, Nordic, Russia, UKR Area : DVB-T2/DVB-C
*Russia, UKR Area Model Code: UE32EH5307KXRU(UA)
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Page 31
2-23
2. Product specications
Specications
Item Description
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving
Page 32
2-24
2. Product specications
Model UE37EH53***
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 37 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
819.4(H) X 460.9(V) (mm) / 32.26(H) X 18.15(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz (Europe area)
AC 100 V ~ 240 V, 50 / 60 Hz (CIS area)
Power Consumption TBD W (Under 0.3 W, Stand by)
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C
*UK Area : DVB-T2/DVB-C
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Page 33
2-25
2. Product specications
Specications
Item Description
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving
Page 34
2-26
2. Product specications
Model UE40EH53***
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 40 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
885.6(H) X 498.2(V) (mm) / 34.87(H) X 19.61(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz (Europe area)
AC 100 V ~ 240 V, 50 / 60 Hz (CIS area)
Power Consumption 87 W (Under 0.3 W, Stand by) Europe area
89 W (Under 0.3 W, Stand by) CIS area
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C
* UK, Nordic, Russia, UKR Area : DVB-T2/DVB-C
* Russia, UKR Area Model Code: UE40EH5307KXRU(UA)
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Page 35
2-27
2. Product specications
Specications
Item Description
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving
Page 36
2-28
2. Product specications
Model UE46EH53***
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 46 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
1018.1(H) X 572.7(V) (mm) / 40.08(H) X 22.55(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz (Europe area)
AC 100 V ~ 240 V, 50 / 60 Hz (CIS area)
Power Consumption 96 W (Under 0.3 W, Stand by) Europe area
99 W (Under 0.3 W, Stand by) CIS area
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C
*UK, Nordic, Russia, UKR Area : DVB-T2/DVB-C
*Russia, UKR Area Model Code: UE46EH5307KXRU(UA)
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Page 37
2-29
2. Product specications
Specications
Item Description
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving
Page 38
2-30
2. Product specications
Model UE50EH53***
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 50 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
1095.8(H) X 616.4(V) (mm) / 43.14(H) X 24.27(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz
Power Consumption 116 W (Under 0.3 W, Stand by)
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C *UK, Nordic Area : DVB-T2/DVB-C
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving
Page 39
2-31
2. Product specications
Model UE32EH5450W
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 32 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
698.4(H) X 392.9(V) (mm) / 27.5(H) X 15.47(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz
Power Consumption 67 W (Under 0.3 W, Stand by)
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C *UK, Nordic Area : DVB-T2/DVB-C
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving
Page 40
2-32
2. Product specications
Model UE40EH5450W
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 40 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
885.6(H) X 498.2(V) (mm) / 34.87(H) X 19.61(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz
Power Consumption 87 W (Under 0.3 W, Stand by)
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C *UK, Nordic Area : DVB-T2/DVB-C
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving
Page 41
2-33
2. Product specications
Model UE46EH5450W
Feature
Digital-TV, RF, 3-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2, 3 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 46 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
1018.1(H) X 572.7(V) (mm) / 40.08(H) X 22.55(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz
Power Consumption 96 W (Under 0.3 W, Stand by)
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C *UK, Nordic Area : DVB-T2/DVB-C
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 10 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub, Energy Saving
Page 42
2-34
2. Product specications
Model UE26EH45***
Feature
Digital-TV, RF, 2-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1, 2 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 26 inch FHD 60Hz
Scanning Frequency Horizontal : 45 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1366 Pixels
Vertical : 768 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
575.8(H) X 323.7(V) (mm) / 22.67(H) X 12.74(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz
Power Consumption 40 W (Under 0.3 W, Stand by)
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 5 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub
Page 43
2-35
2. Product specications
Model UE22EH54***
Feature
Digital-TV, RF, 1-HDMI, 1-SCART, 1-Component, 1-A/V, 2-USB2.0(AllShare Play), LAN•
High Contrast Ratio : Mega Contrast•
Dynamic contrast, Super-PVA•
Response Time : 8 ms•
CMR : 100•
PIP (in HDMI 1 Component and Sub picture is available only in TV mode(DTV/ATV))•
Dolby Digital Plus/ DolbyPulse, SRS TheaterSound HD•
Specications
Item Description
LCD Panel 22 inch FHD 60Hz
Scanning Frequency Horizontal : 50 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M colors
Maximum Resolution Horizontal : 1920 Pixels
Vertical : 1080 Pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock Rate 74.25 MHz
Active Display (H x V)*
* Horizontal x Vertical
476.6(H) X 268.1(V) (mm) / 18.77(H) X 10.56(V) (inches)
AC Power Voltage & Frequency AC 220 V ~ 240 V, 50 / 60 Hz
Power Consumption 30 W (Under 0.3 W, Stand by)
System
TV
Analogue :B/G, D/K, L, I(Depending on your country selection)
Digital: DVB-T/DVB-C
Colour Video
Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60
Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3
Sound BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC
Environmental Considerations Operating Temperature : 50˚F ~ 104˚F (10˚C ~ 40˚C)
Operating Humidity : 10% ~ 80%
Storage Temperature : -4˚F ~ 113˚F (-20˚C ~ 45˚C)
Storage Humidity : 5% ~ 95%
Audio Specications MAX Internal Audio Output Power : Each 3 W(Left/Right)
Equalizer : 5 Band
Output Frequency :
RF : 20 Hz ~ 15.4 kHz•
AV/Componet/HDMI : 20 Hz ~ 20 kHz•
Note : Game Mode, smart hub
Page 44
2-36
2. Product specications
2-1-3. Specication Comparison to Old Models_57**, 58** : Satellite Model
Model UE5N(UE**ES55*** / 57*** / 58***) Slim LED UD5R(UE**D5500R*) LED
Design
Diplay Type LED TV 2D LED TV 2D
Built-in Tuner O O
Resolution 1920 x 1080 1920 x 1080
LCD Panel TFT LCD Panel 60 Hz TFT LCD Panel 60 Hz
Picture ratio 16 : 9 16 : 9
Power
Consumption
32" 75 W / 78 W (Under 0.3W, Standby) 32" 68 W (Under 0.3W, Standby)
37" 94 W (Under 0.3W, Standby)
37" 90 W (Under 0.3W, Standby)
40" 92 W / 99 W (Under 0.3W, Standby) 40" 103 W (Under 0.3W, Standby)
46" 98 W / 100 W (Under 0.3W, Standby) 46" 134 W (Under 0.3W, Standby)
50" 117 W / 121 W (Under 0.3W, Standby)
Brightness
32" 319 cd / m
2
32" 286 cd / m
2
37" 325 cd / m
2
37" 324 cd / m
2
40" 328 cd / m
2
40" 318 cd / m
2
46" 324 cd / m
2
46" 383 cd / m
2
50" 333 cd / m
2
Dimensions
(W x H x D)
32"
29.1 x 19.3 x 7.1 inches_with stand
29.1 x 17.7 x 1.8 inches_without stand
32"
30.2 x 20.9 x 9.4 inches_with stand
30.2 x 18.4 x 1.2 inches_without stand
37"
33.9 x 22.4 x 7.2 inches_with stand
33.9 x 20.4 x 1.8 inches_without stand
37"
35.1 x 23.7 x10.0 inches_with stand
35.1 x 21.2 x1.2 inches_without stand
40"
36.5 x 23.8 x 7.2 inches_with stand
36.5 x 21.8 x 1.8 inches_without stand
40"
37.6 x 25.1 x10.2 inches_with stand
37.6 x 22.6 x1.2 inches_without stand
46"
41.8 x 26.9 x 9.0 inches_with stand
41.8 x 24.8 x 1.8 inches_without stand
46"
43.0 x 28.1 x10.8 inches_with stand
43.0 x 25.6 x1.2 inches_without stand
50"
44.9 x 28.6 x 9.0 inches_with stand
44.9 x 26.5 x 1.8 inches_without stand
Page 45
2-37
2. Product specications
Model UE5N(UE**ES55*** / 57*** / 58***) Slim LED UD5R(UE**D5500R*) LED
Weight
32"
15.6 lbs_with stand
14.3 lbs_without stand
32"
22.0 lbs_with stand
15.9 lbs_without stand
37"
24.1 lbs_with stand
19.2 lbs_without stand
37"
27.6 lbs_with stand
20.3 lbs_without stand
40"
27.2 lbs_with stand
22.8 lbs_without stand
40"
31. 7 lbs_with stand
24.4 lbs_without stand
46"
33.5 lbs_with stand
29.1 lbs_without stand
46"
38.1 lbs_with stand
30.3 lbs_without stand
50"
36.8 lbs_with stand
32.2 lbs_without stand
Contrast
Ratio
MEGA MEGA
Enhancer
HyperReal Engine (X10+) HyperReal Engine (X6)
Equalizer 5 Band 5 Band
Auto Volume
Control
O O
Surround
Sound
Dolby Digital Plus / Dolby Pulse Dolby Digital plus
Speaker
Output
10 W x 10 W 10 W x 10 W
PIP
O
(originally, inclueded function)
O
Function Jog Function Touch Function
Antenna DTV1 (Cable/Air), DTV2 (Satellite) DTV1 (Cable/Air), DTV2 (Satellite)
Page 46
2-38
2. Product specications
Model UE5M(UE**EH53***) Direct LED UD5R(UE**D5500R*) LED
Design
Diplay Type LED TV 2D LED TV 2D
Built-in Tuner O O
Resolution 1920 x 1080 1920 x 1080
LCD Panel TFT LCD Panel 60 Hz TFT LCD Panel 60 Hz
Picture ratio 16 : 9 16 : 9
Power
Consumption
32" 67 W / 69 W (Under 0.3W, Standby) 32" 68 W (Under 0.3W, Standby)
37" 93 W (Under 0.3W, Standby) 37" 90 W (Under 0.3W, Standby)
40" 87 W / 89 W (Under 0.3W, Standby) 40" 103 W (Under 0.3W, Standby)
46" 96 W / 99 W (Under 0.3W, Standby) 46" 134 W (Under 0.3W, Standby)
50" 116 W (Under 0.3W, Standby)
Brightness
32" 320 cd / m
2
32" 286 cd / m
2
37" 297 cd / m
2
37" 324 cd / m
2
40" 286 cd / m
2
40" 318 cd / m
2
46" 313 cd / m
2
46" 383 cd / m
2
50" 368 cd / m
2
Dimensions
(W x H x D)
32"
29.1 x 19.6 x 7.5 inches_with stand
29.1 x 17.5 x 3.7 inches_without stand
32"
30.2 x 20.9 x 9.4 inches_with stand
30.2 x 18.4 x 1.2 inches_without stand
37"
34.1 x 22.7 x 9.0 inches_with stand
34.1 x 20.4 x 3.7 inches_without stand
37"
35.1 x 23.7 x10.0 inches_with stand
35.1 x 21.2 x1.2 inches_without stand
40"
36.5 x 23.9 x 9.0 inches_with stand
36.5 x 20.1 x 3.7 inches_without stand
40"
37.6 x 25.1 x10.2 inches_with stand
37.6 x 22.6 x1.2 inches_without stand
46"
41.7 x 26.8 x 9.0 inches_with stand
41.7 x 24.6 x 3.7 inches_without stand
46"
43.0 x 28.1 x10.8 inches_with stand
43.0 x 25.6 x1.2 inches_without stand
50"
44.8 x 28.5 x 9.0 inches_with stand
44.8 x 26.4 x 3.7 inches_without stand
Weight
32"
14.6 lbs_with stand
13.0 lbs_without stand
32"
22.0 lbs_with stand
15.9 lbs_without stand
37"
22.5 lbs_with stand
17.6 lbs_without stand
37"
27.6 lbs_with stand
20.3 lbs_without stand
40"
24.3 lbs_with stand
19.8 lbs_without stand
40"
31. 7 lbs_with stand
24.4 lbs_without stand
46"
32.0 lbs_with stand
27.6 lbs_without stand
46"
38.1 lbs_with stand
30.3 lbs_without stand
50"
40.3 lbs_with stand
34.6 lbs_without stand
Contrast
Ratio
MEGA MEGA
Page 47
2-39
2. Product specications
Model UE5M(UE**EH53***) Direct LED UD5R(UE**D5500R*) LED
Enhancer
HyperReal Engine (X10+) HyperReal Engine (X6)
Equalizer 5 Band 5 Band
Auto Volume
Control
O O
Surround
Sound
Dolby Digital plus / Dolby Pulse Dolby Digital plus
Speaker
Output
10 W x 10 W 10 W x 10 W
PIP
O
(originally, inclueded function)
O
Function Jog Function Touch Function
Antenna DTV1 (Cable/Air) DTV1 (Cable/Air), DTV2 (Satellite)
Page 48
2-40
2. Product specications
Model UE**EH5450W Direct LED UD5R(UE**D5500R*) LED
Design
Diplay Type LED TV 2D LED TV 2D
Built-in Tuner O O
Resolution 1920 x 1080 1920 x 1080
LCD Panel TFT LCD Panel 60 Hz TFT LCD Panel 60 Hz
Picture ratio 16 : 9 16 : 9
Power
Consumption
32" 67 W / 69 W (Under 0.3W, Standby) 32" 68 W (Under 0.3W, Standby)
40" 87 W / 89 W (Under 0.3W, Standby) 40" 103 W (Under 0.3W, Standby)
46" 96 W / 99 W (Under 0.3W, Standby) 46" 134 W (Under 0.3W, Standby)
Brightness
32" 320 cd / m
2
32" 286 cd / m
2
40" 286 cd / m
2
40" 318 cd / m
2
46" 313 cd / m
2
46" 383 cd / m
2
Dimensions
(W x H x D)
32"
29.1 x 19.6 x 7.5 inches_with stand
29.1 x 17.5 x 3.7 inches_without stand
32"
30.2 x 20.9 x 9.4 inches_with stand
30.2 x 18.4 x 1.2 inches_without stand
40"
36.5 x 23.9 x 9.0 inches_with stand
36.5 x 20.1 x 3.7 inches_without stand
40"
37.6 x 25.1 x10.2 inches_with stand
37.6 x 22.6 x1.2 inches_without stand
46"
41.7 x 26.8 x 9.0 inches_with stand
41.7 x 24.6 x 3.7 inches_without stand
46"
43.0 x 28.1 x10.8 inches_with stand
43.0 x 25.6 x1.2 inches_without stand
Weight
32"
14.6 lbs_with stand
13.0 lbs_without stand
32"
22.0 lbs_with stand
15.9 lbs_without stand
40"
24.3 lbs_with stand
19.8 lbs_without stand
40"
31. 7 lbs_with stand
24.4 lbs_without stand
46"
32.0 lbs_with stand
27.6 lbs_without stand
46"
38.1 lbs_with stand
30.3 lbs_without stand
Contrast
Ratio
MEGA MEGA
Enhancer
HyperReal Engine (X10+) HyperReal Engine (X6)
Equalizer 5 Band 5 Band
Auto Volume
Control
O O
Surround
Sound
Dolby Digital plus / Dolby Pulse Dolby Digital plus
Page 49
2-41
2. Product specications
Model UE**EH5450W Direct LED UD5R(UE**D5500R*) LED
Speaker
Output
10 W x 10 W 10 W x 10 W
PIP
O
(originally, inclueded function)
O
Function Jog Function Touch Function
Antenna DTV1 (Cable/Air) DTV1 (Cable/Air), DTV2 (Satellite)
Page 50
2-42
2. Product specications

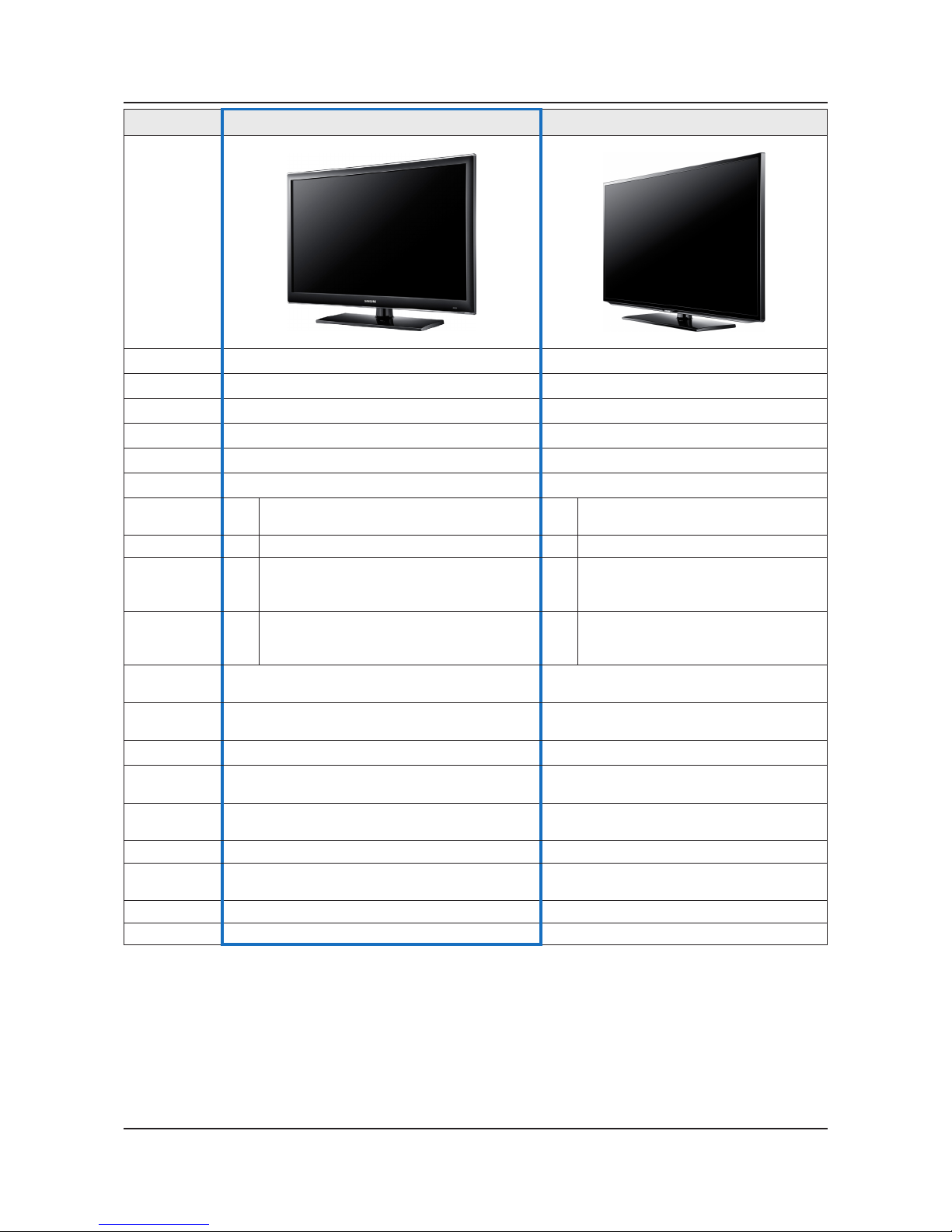

Model UE4K(UE26EH45***) Direct LED UD5P(UE27D50***) LED
Design
Diplay Type LED TV 2D LED TV 2D
Built-in Tuner O O
Resolution 1366 x 768 1920 x 1080
LCD Panel TFT LCD Panel 60 Hz TFT LCD Panel 60 Hz
Screen Size 26" 27"
Picture ratio 16 : 9 16 : 9
Power
Consumption
26" 40 W (Under 0.3W, Standby) 27" 65 W (Under 0.3W, Standby)
Brightness 26" 257 cd / m
2
27" 288 cd / m
2
Dimensions
(W x H x D)
26"
24.9 x 17.5 x 7.1 inches_with stand
24.9 x 15.5 x 3.8 inches_without stand
24.9 x 17.7 x 6.9 inches_with stand (E4510)
27"
23.7 x 17.8 x6.9 inches_with stand
23.7 x 15.5 x1.4 inches_without stand
Weight 26"
10.8 lbs_with stand
9.7 lbs_without stand
11.2 lbs_with stand (E4510)
27"
16.7 lbs_with stand
12.9 lbs_without stand
Contrast
Ratio
MEGA MEGA
Enhancer
HyperReal Engine (X10+) HyperReal Engine (X5)
Equalizer 5 Band 5 Band
Auto Volume
Control
O O
Surround
Sound
Dolby Digital Plus / Dolby Pulse Dolby Digital plus
Function Jog Function Touch Function
Speaker
Output
5 W x 5 W 5 W x 5 W
PIP O (originally, inclueded function) O (originally, inclueded function)
Antena DTV 1 (Cable/Air) DTV 1 (Cable/Air)
Page 51

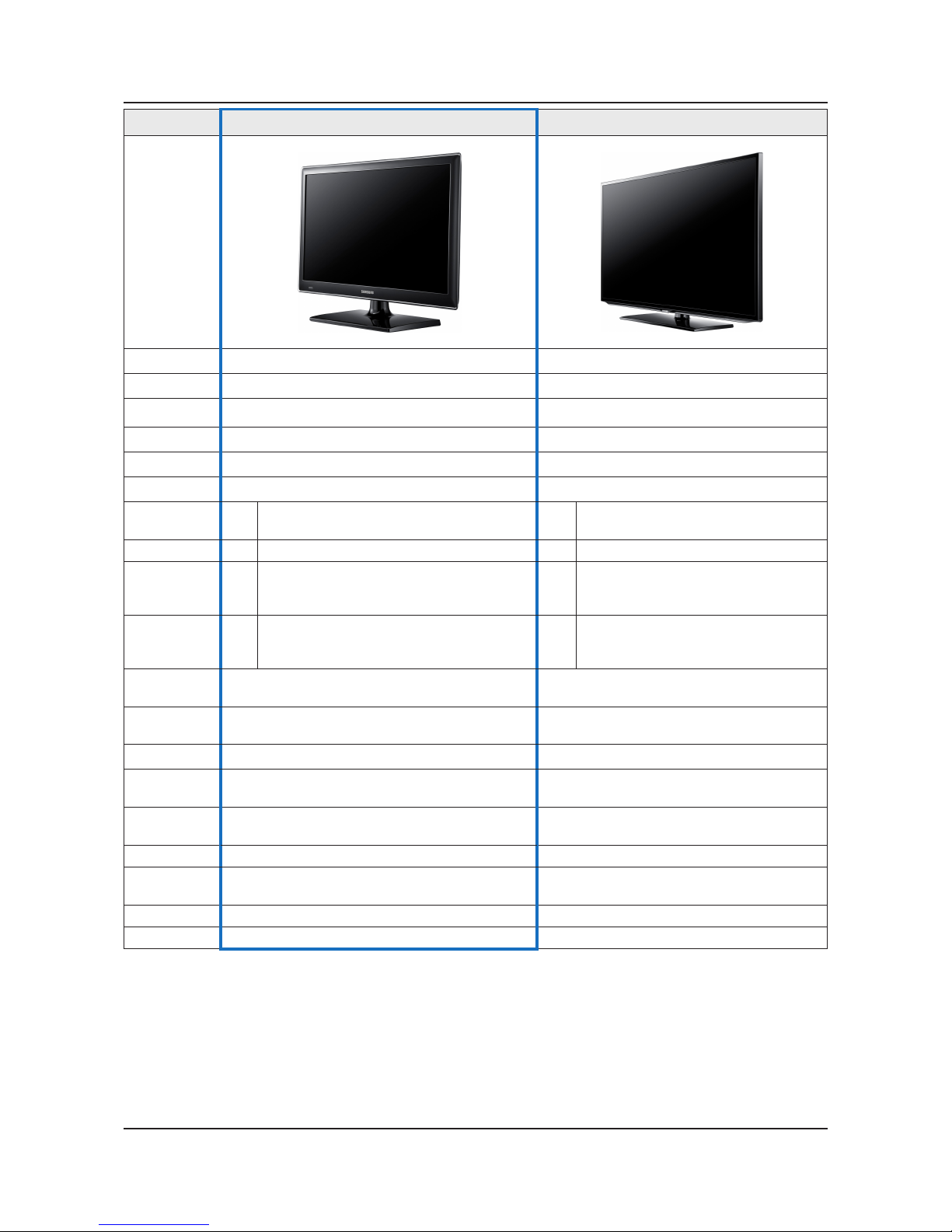

2-43
2. Product specications
Model UE5M(UE22EH54***) Slim LED_small UD5P(UE22D50***) LED
Design
Diplay Type LED TV 2D LED TV 2D
Built-in Tuner O O
Resolution 1920 x 1080 1920 x 1080
LCD Panel TFT LCD Panel 60 Hz TFT LCD Panel 60 Hz
Screen Size 22" 22"
Picture ratio 16 : 9 16 : 9
Power
Consumption
22" 30 W (Under 0.3W, Standby) 22" 36 W (Under 0.3W, Standby)
Brightness 22" 270 cd / m
2
22" 257 cd / m
2
Dimensions
(W x H x D)
22"
20.6 x 14.9 x 6.7 inches_with stand
20.6 x 12.7 x 6.7 inches_without stand
20.6 x 14.8 x 2.0 inches_with stand (E5410)
22"
20.2 x 14.3 x6.3 inches_with stand
20.2 x 12.4 x2.0 inches_without stand
Weight 22"
8.2 lbs_with stand
7.5 lbs_without stand
8.4 lbs_with stand (E5410)
22"
7.7 lbs_with stand
7.3 lbs_without stand
Contrast
Ratio
MEGA MEGA
Enhancer
HyperReal Engine (X10+) HyperReal Engine (X5)
Equalizer 5 Band 5 Band
Auto Volume
Control
O O
Surround
Sound
Dolby Digital Plus / Dolby Pulse Dolby Digital plus
Function Jog Function Touch Function
Speaker
Output
3 W x 3 W 3 W x 3 W
PIP O (originally, inclueded function) O (originally, inclueded function)
Antena DTV 1 (Cable/Air) DTV 1 (Cable/Air)
Page 52
2-44
2. Product specications
2-2. Detail Factory Option
NOTE
If you replace the main board with new one, please change the factory option as well.
The options you must change are "Type".
5500 (DVB - T / C)
Model Name UE32ES55*** UE37ES55*** UE40ES55*** UE46ES55*** UE50ES55***
Panel
Vendor
CMI
AUO
AUO
AUO
SHARP
AML
AUO
AML
AUO
AUO
Code
BN07-01097A
BN07-01114A
BN07-01144A
BN07-01117A
BN95-00714A
BN95-00603A
BN07-01121A
BN95-00605A
BN07-01183A
BN07-01183B
Spec.
DE320BGM-C1
LE320BGA-B1
LE370BGA-C1
LE400BGA-B1
LE400BGS-V1
LTJ400HM09-V
LE460BGA-B1
LTJ460HN06-V
LE500BGA-B1
SMPS
Vendor SEM SEM SEM SEM SEM
Code BN44-00501A BN44-00527A BN44-00502A BN44-00502A BN44-00503A
Spec. PD32A1_CSM PD37A1_CPN PD46A1_CSM PD46A1_CSM PD55A1_CSM
Byte Item
Chassis
Ass'y
BN91-08829X BN91-08830R BN91-08829Y BN91-08829Z BN91-09279E
0
Factory
Reset
PBA
Ass'y
code
BN94-05561X BN94-05562R BN94-05561Y BN94-05561Z BN94-05841H
1 Type
32P6AF0E
32R6AF0E
37P6AF0E
40R6AF0E
40H6AF0E
40A6AF0E
46R6AF0E
46A6AF0E
50R6AF0E
2 Model UE5500 UE5500 UE5500 UE5500 UE5500
3 SVC Model 5500 5500 5500 5500 5500
4 Local Set
EU_ITALY (Italy area models)
EU_GER (Germany area models)
EU_FRANCE (France area models)
EU_BENELUX (Benelux area models)
EU_SPAIN (Spain area models)
CIS_RUSSIA (Russia area models)_Except 37"
CIS_UKR (Ukraina area models)_Except 37",50"
CIS_CA_MS (Azerbaijan area models)_Except 37"
EU_TURKEY (Turkey area models)_Except 37"
EU (other models)
5 Tuner SI_ATC2 SI_ATC2 SI_ATC2 SI_ATC2 SI_ATC2
6 Ch Table NONE NONE NONE NONE NONE
7 Front Color U-T-CL-M67 U-T-CL-M67 U-T-CL-M67 U-T-CL-M67 U-T-CL-M67
Page 53
2-45
2. Product specications
5500 (DVB - T2 / C)
Model Name UE32ES55*** UE37ES55*** UE40ES55*** UE46ES55*** UE50ES55***
Panel
Vendor
CMI
AUO
AUO
AUO
SHARP
AML
AUO
AML
AUO
AUO
Code
BN07-01097A
BN07-01114A
BN07-01144A
BN07-01117A
BN95-00714A
BN95-00603A
BN07-01121A
BN95-00605A
BN07-01183A
BN07-01183B
Spec.
DE320BGM-C1
LE320BGA-B1
LE370BGA-C1
LE400BGA-B1
LE400BGS-V1
LTJ400HM09-V
LE460BGA-B1
LTJ460HN06-V
LE500BGA-B1
SMPS
Vendor SEM SEM SEM SEM SEM
Code BN44-00501A BN44-00527A BN44-00502A BN44-00502A BN44-00503A
Spec. PD32A1_CSM PD37A1_CPN PD46A1_CSM PD46A1_CSM PD55A1_CSM
Byte Item
Chassis
Ass'y
BN91-08830D BN91-09279B BN91-08830F BN91-08830G BN91-09279H
0
Factory
Reset
PBA
Ass'y
code
BN94-05562D BN94-05841B BN94-05562F BN94-05562G BN94-05841L
1 Type
32P6AF0E
32R6AF0E
37P6AF0E
40R6AF0E
40H6AF0E
40A6AF0E
46R6AF0E
46A6AF0E
50R6AF0E
2 Model UE5500 UE5500 UE5500 UE5500 UE5500
3 SVC Model 5500 5500 5500 5500 5500
4 Local Set
EU_UK (UK area models)
NORDIC (Nordic area models)
CIS_RUSSIA (Russia area models)_Except 37"
CIS_UKR (Ukraina area models)_Except 37"
5 Tuner DVB_T2C DVB_T2C DVB_T2C DVB_T2C DVB_T2C
6 Ch Table NONE NONE NONE NONE NONE
7 Front Color U-T-CL-M67 U-T-CL-M67 U-T-CL-M67 U-T-CL-M67 U-T-CL-M67
Page 54
2-46
2. Product specications
5700 (DVB - T / C / S2)
Model Name UE32ES57*** UE37ES57*** UE40ES57*** UE46ES57*** UE50ES57***
Panel
Vendor
CMI
AUO
AUO
AUO
SHARP
AML
AUO
AML
AUO
Code
BN07-01097A
BN07-01114A
BN07-01144A
BN07-01117A
BN95-00714A
BN95-00603A
BN07-01121A
BN95-00605A
BN07-01183A
Spec.
DE320BGM-C1
LE320BGA-B1
LE370BGA-C1
LE400BGA-B1
LE400BGS-V1
LTJ400HM09-V
LE460BGA-B1
LTJ460HN06-V
LE500BGA-B1
SMPS
Vendor SEM SEM SEM SEM SEM
Code BN44-00501A BN44-00527A BN44-00502A BN44-00502A BN44-00503A
Spec. PD32A1_CSM PD37A1_CPN PD46A1_CSM PD46A1_CSM PD55A1_CSM
Byte Item
Chassis
Ass'y
BN91-08830H BN91-08830J BN91-08830K BN91-08830P BN91-09279J
0
Factory
Reset
PBA
Ass'y
code
BN94-05562H BN94-05562J BN94-05562K BN94-05562P BN94-05841M
1 Type
32P6AF0E
32R6AF0E
37P6AF0E
40R6AF0E
40H6AF0E
40A6AF0E
46R6AF0E
46A6AF0E
50R6AF0E
2 Model UE5700 UE5700 UE5700 UE5700 UE5700
3 SVC Model 5700 5700 5700 5700 5700
4 Local Set
EU_ITALY (Italy area models)
EU_GER (Germany area models)
EU_FRANCE (France area models)
EU_BENELUX (Benelux area models)
EU_SPAIN (Spain area models)
EU_TURKEY (Turkey area models)_Except 37"
NORDIC (Nordic area models)
EU (other models)
5 Tuner DVB_TCS2 DVB_TCS2 DVB_TCS2 DVB_TCS2 DVB_TCS2
6 Ch Table NONE NONE NONE NONE NONE
7 Front Color U-T-CL-M67 U-T-CL-M67 U-T-CL-M67 U-T-CL-M67 U-T-CL-M67
Page 55
2-47
2. Product specications
5800 (DVB - T / C / S2)
Model Name UE32ES58*** UE40ES58*** UE46ES58***
Panel
Vendor
CMI
AUO
AUO
SHARP
AML
AUO
AML
Code
BN07-01097A
BN07-01114A
BN07-01117A
BN95-00714A
BN95-00603A
BN07-01121A
BN95-00605A
Spec.
DE320BGM-C1
LE320BGA-B1
LE400BGA-B1
LE400BGS-V1
LTJ400HM09-V
LE460BGA-B1
LTJ460HN06-V
SMPS
Vendor SEM SEM SEM
Code BN44-00501A BN44-00502A BN44-00502A
Spec. PD32A1_CSM PD46A1_CSM PD46A1_CSM
Byte Item Chassis Ass'y BN91-09654M BN91-09654N BN91-09654P
0
Factory
Reset
PBA Ass'y
code
BN94-05851Q BN94-05851R BN94-05851S
1 Type
32P6AF0E
32R6AF0E
40R6AF0E
40H6AF0E
40A6AF0E
46R6AF0E
46A6AF0E
2 Model UE5800 UE5800 UE5800
3 SVC Model 5800 5800 5800
4 Local Set
EU_ITALY (Italy area models)
EU_GER (Germany area models)
EU_SPAIN (Spain area models)
5 Tuner DVB_TCS2 DVB_TCS2 DVB_TCS2
6 Ch Table NONE NONE NONE
7 Front Color U-T-CL-M67 U-T-CL-M67 U-T-CL-M67
Page 56
2-48
2. Product specications
5300 / 5450 (DVB - T / C)
Model Name
UE32EH53*** /
UE32EH5450W
UE37EH53***
UE40EH53*** /
UE40EH5450W
UE46EH53*** /
UE46EH5450W
UE50EH53***
Panel
Vendor
CMI
AML
AUO
AML
SHARP
AML
CMI
AUO
Code
BN07-01096A
BN95-00586A
BN07-01194A
BN95-00587A
BN95-00713A
BN95-00589A
BN07-01140A
BN07-01163A
Spec.
DE320BGM-C1
LTJ320HN07-V
DE370BGA-C1
LTJ400HM08-V
DE400BGS-V1
LTJ460HN05-V DE500BGM-C1
SMPS
Vendor
HANSOE
SEM
SEM SEM SEM HANSOE
Code
BN44-00493B
BN44-00493A
BN44-00498A BN44-00498A BN44-00498A BN44-00499A
Spec.
PD32AVF_CHS
PD32AVF_CSM
PD46AV1_CSM PD46AV1_CSM PD46AV1_CSM PD55AV1_CHS
Byte Item
Chassis
Ass'y
BN91-08828E BN91-09234K BN91-08828F BN91-08828G BN91-09234F
0
Factory
Reset
PBA
Ass'y
code
BN94-05559E BN94-05731K BN94-05559F BN94-05559G BN94-05731F
1 Type
32P6AF0E
32A6AF0D
37P6AF0D
40R6AF0D
40H6AF0D
46R6AF0E
50P6AF0D
50R6AF0D
2 Model
UE5300 UE5300 UE5300 UE5300 UE5300
3 SVC Model
5300 5300 5300 5300 5300
4 Local Set
EU_ITALY (Italy area models)
EU_GER (Germany area models)_Except 37"
EU_FRANCE (France area models)
EU_BENELUX (Benelux area models)
EU_SPAIN (Spain area models)
CIS_RUSSIA (Russia area models)_Except 37", 50"
CIS_UKR (Ukraina area models)_Except 37", 50"
CIS_CA_MS (Azerbaijan area models)_Except 37", 50"
EU_TURKEY (Turkey area models)_Except 37"
EU (other models)_Except 37"
5 Tuner
SI_ATC2 SI_ATC2 SI_ATC2 SI_ATC2 SI_ATC2
6 Ch Table
NONE NONE NONE NONE NONE
7 Front Color
U-S-C-5K U-S-C-5K U-S-C-5K U-S-C-5K U-S-C-5K
Page 57
2-49
2. Product specications
5300 / 5450 (DVB - T2 / C)
Model Name
UE32EH53*** /
UE32EH5450W
UE37EH53***
UE40EH53*** /
UE40EH5450W
UE46EH53*** /
UE46EH5450W
UE50EH53**
Panel
Vendor
CMI
AML
AUO
AML
SHARP
AML
CMI
AUO
Code
BN07-01096A
BN95-00586A
BN07-01194A
BN95-00587A
BN95-00713A
BN95-00589A
BN07-01140A
BN07-01163A
Spec.
DE320BGM-C1
LTJ320HN07-V
DE370BGA-C1
LTJ400HM08-V
DE400BGS-V1
LTJ460HN05-V DE500BGM-C1
SMPS
Vendor
HANSOE
SEM
SEM SEM SEM HANSOE
Code
BN44-00493B
BN44-00493A
BN44-00498A BN44-00498A BN44-00498A BN44-00499A
Spec.
PD32AVF_CHS
PD32AVF_CSM
PD46AV1_CSM PD46AV1_CSM PD46AV1_CSM PD55AV1_CHS
Byte Item
Chassis
Ass'y
BN91-09234C BN91-09234L BN91-09234D BN91-09234E BN91-09234G
0
Factory
Reset
PBA
Ass'y
code
BN94-05731C BN94-05731L BN94-05731D BN94-05731E BN94-05731G
1 Type
32P6AF0E
32A6AF0D
37P6AF0D
40R6AF0D
40H6AF0D
46R6AF0E
50P6AF0D
50R6AF0D
2 Model
UE5300 UE5300 UE5300 UE5300 UE5300
3 SVC Model
5300 5300 5300 5300 5300
4 Local Set
EU_UK (UK area models)
NORDIC (Nordic area models)_Except 37"
CIS_RUSSIA (Russia area models)_Except 50"
CIS_UKR (Ukraina area models)_Except 37", 50"
5 Tuner
DVB_T2C DVB_T2C DVB_T2C DVB_T2C DVB_T2C
6 Ch Table
NONE NONE NONE NONE NONE
7 Front Color
U-S-C-5K U-S-C-5K U-S-C-5K U-S-C-5K U-S-C-5K
Page 58
2-50
2. Product specications
4500 / 5400 (DVB- T / C)
Model Name UE26EH45*** UE22EH54***
Panel
Vendor
AUO
CMI
AML
CMI
Code
BN07-01111A
BN07-01094A
BN07-01044A
BN07-01076A
Spec.
DE260AGA-B
DE260AGM-C1
LTM215HT04-V
M215HGE-L21
SMPS
Vendor SEM Power
Code BN44-00491A BN44-00504A
Spec. PD26AV0_CSM PD23A0T_CPN
Byte Item
Chassis
Ass'y
BN91-09161Q BN91-09155T
0
Factory
Reset
PBA
Ass'y
code
BN94-05684Q BN94-05679T
1 Type
26R6AF0D
26P6AH0D
22A6AF1E
22D6TF0E
2 Model UE4500 UE5400
3 SVC Model 4500 5400
4 Local Set
EU_ITALY (Italy area models)
EU_GER (Germany area models)
EU_FRANCE (France area models)
EU_BENELUX (Benelux area models)
EU_SPAIN (Spain area models)
EU_UK (UK area models)
NORDIC (Nordic area models)
EU (other models)
EU_ITALY (Italy area models)
EU_GER (Germany area models)
EU_FRANCE (France area models)
EU_BENELUX (Benelux area models)
EU_SPAIN (Spain area models)
EU_TURKEY (Turkey area models)
EU_UK (UK area models)
NORDIC (Nordic area models)
EU (other models)
5 Tuner SI_ATC2 SI_ATC2
6 Ch Table NONE NONE
7 Front Color NONE NONE
Page 59
2-51
2. Product specications

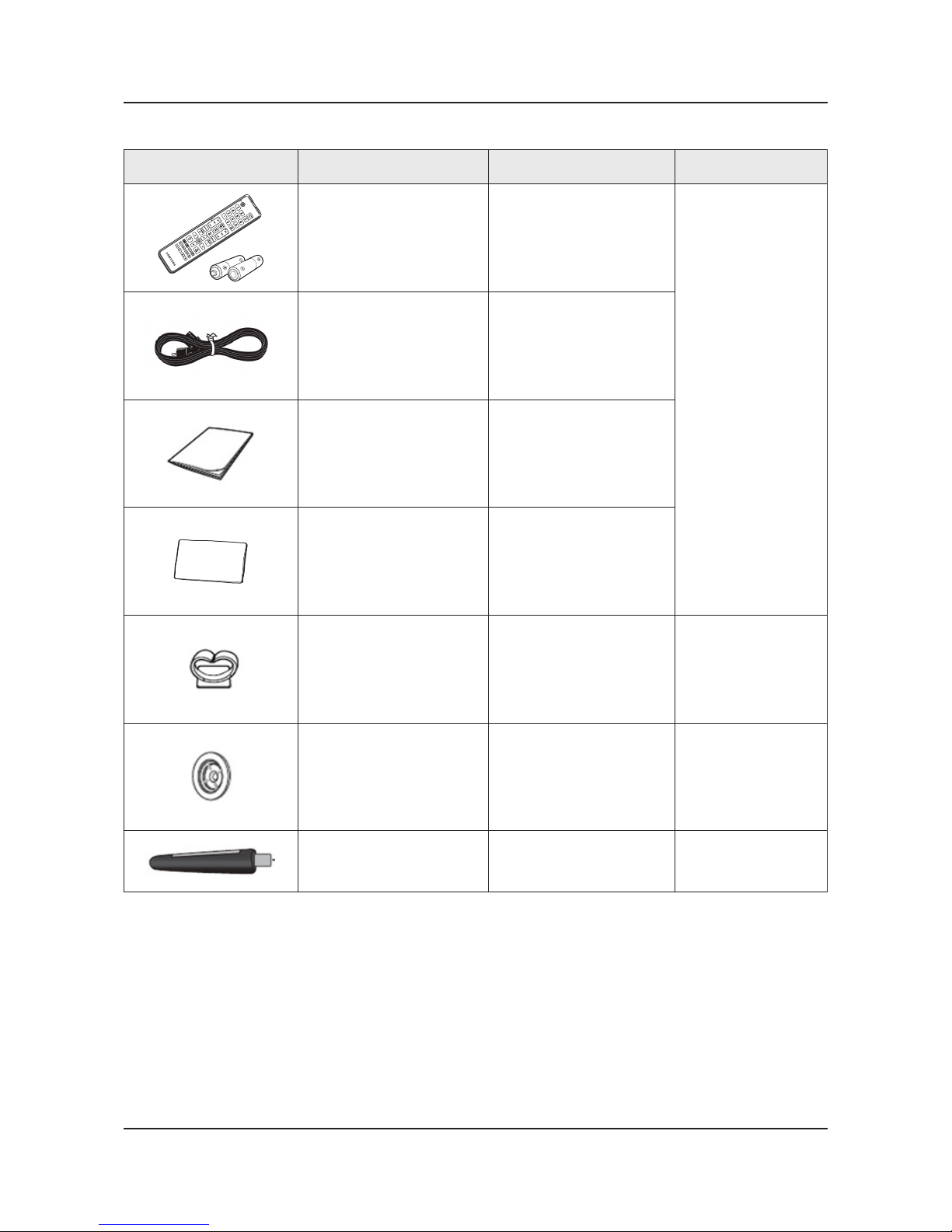

2-3. Accessories
Product Description Code. No Remark
Remote Control
Batteries (AAA x 2)
AA59-00582A
AA59-00585A(Italy_MHP)
Samsung Electronics
Service center
Power Cord
3903-000603
3903-000619(UK Only)
Warranty Card /
Manual Users /
Safety Guide Manual
BN68-00514K
BN68-04055A
BN68-03019A
Cleaning Cloth BN63-01798B
Holder-Wire stand BN61-05491A
E5500, E5700, E5800
E5300, E4500 Models
Supplied
Holder-Ring x 4 BN61-07295A
E5500, E5700, E5800
Models Supplied
Samsung Wireless
LAN Adapter
AK40-00051A
E5800
Models Supplied
Page 60
3-1
3. Disassembly and Reassemble
3. Disassembly and Reassembly
This section of the service manual describes the disassembly and reassembly procedures for the LED TV.
WARNING
This LED TV contains electrostatically sensitive devices. Use caution when handling these components.
3-1. Disassembly and Reassembly
CAUTION
Disconnect the LED TV from the power source before disassembly.1.
Follow these directions carefully; never use metal instruments to pry apart the cabinet.2.
If there is no additional coment, it is same for all inches.3.
55** / 57** / 58**
Description Picture Description Screws

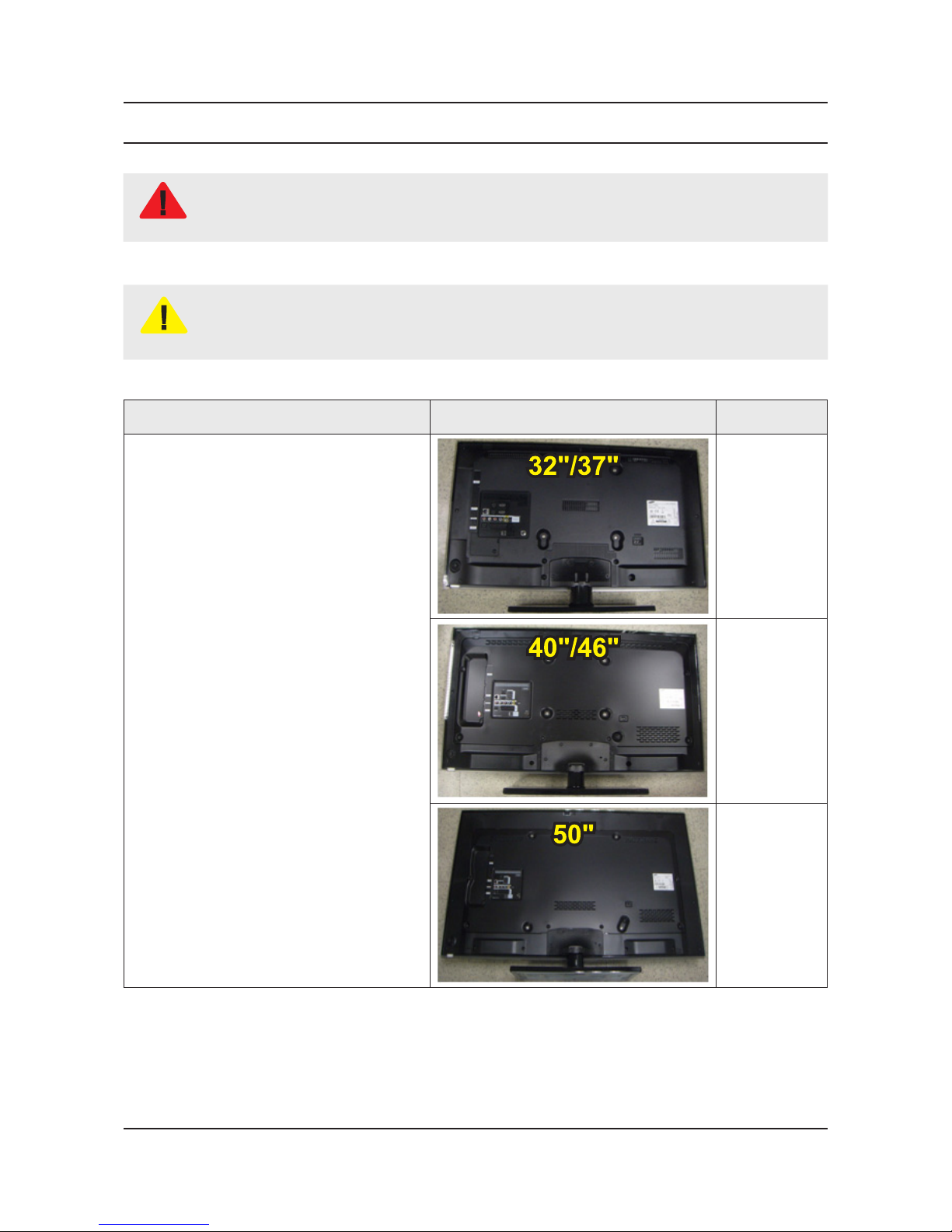

1
Place TV face down on cushioned table.
Page 61
3-2
3. Disassembly and Reassemble
Description Picture Description Screws

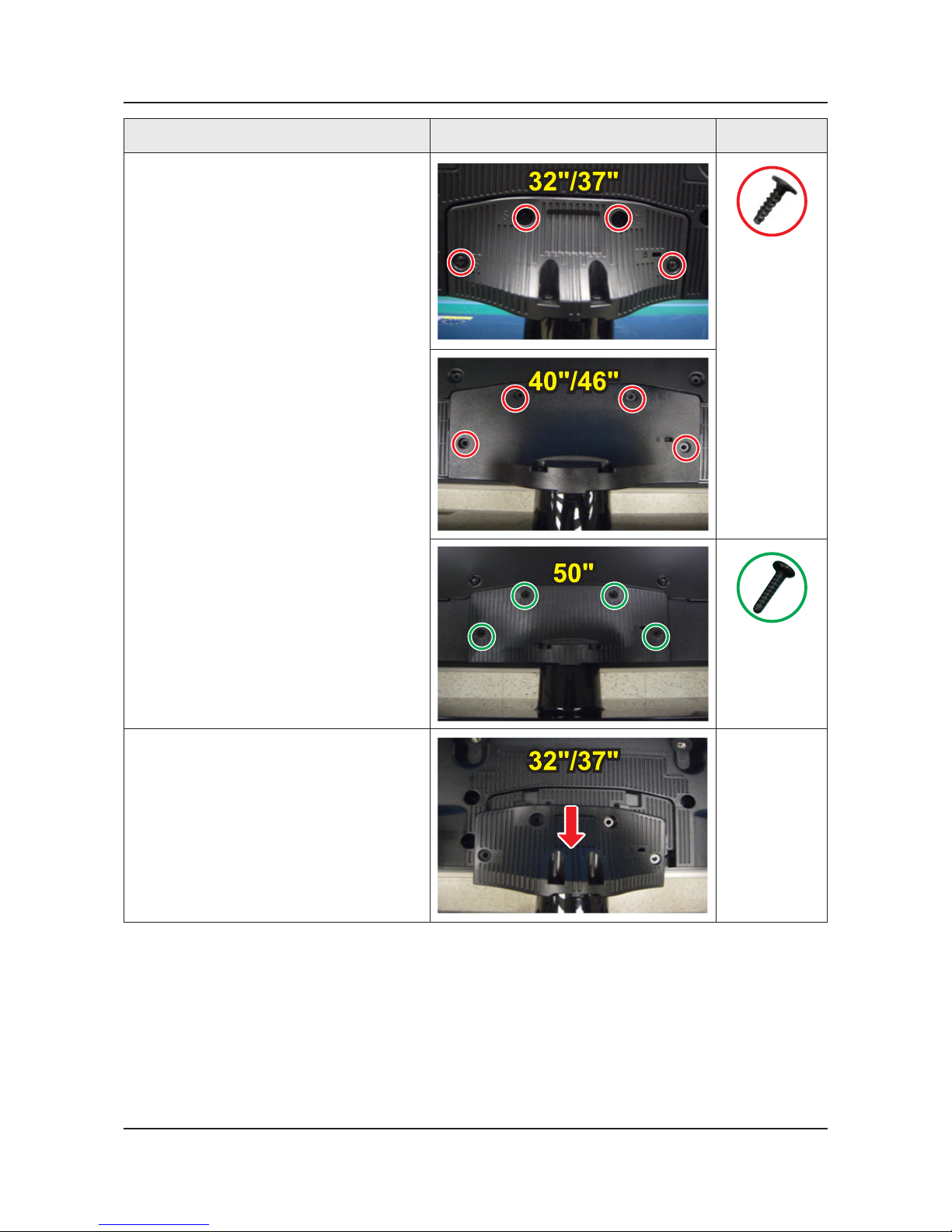

2
Remove 4 screws from the Stand.
6003-001782
6003-001807
3
Remove Stand.
Page 62
3-3
3. Disassembly and Reassemble

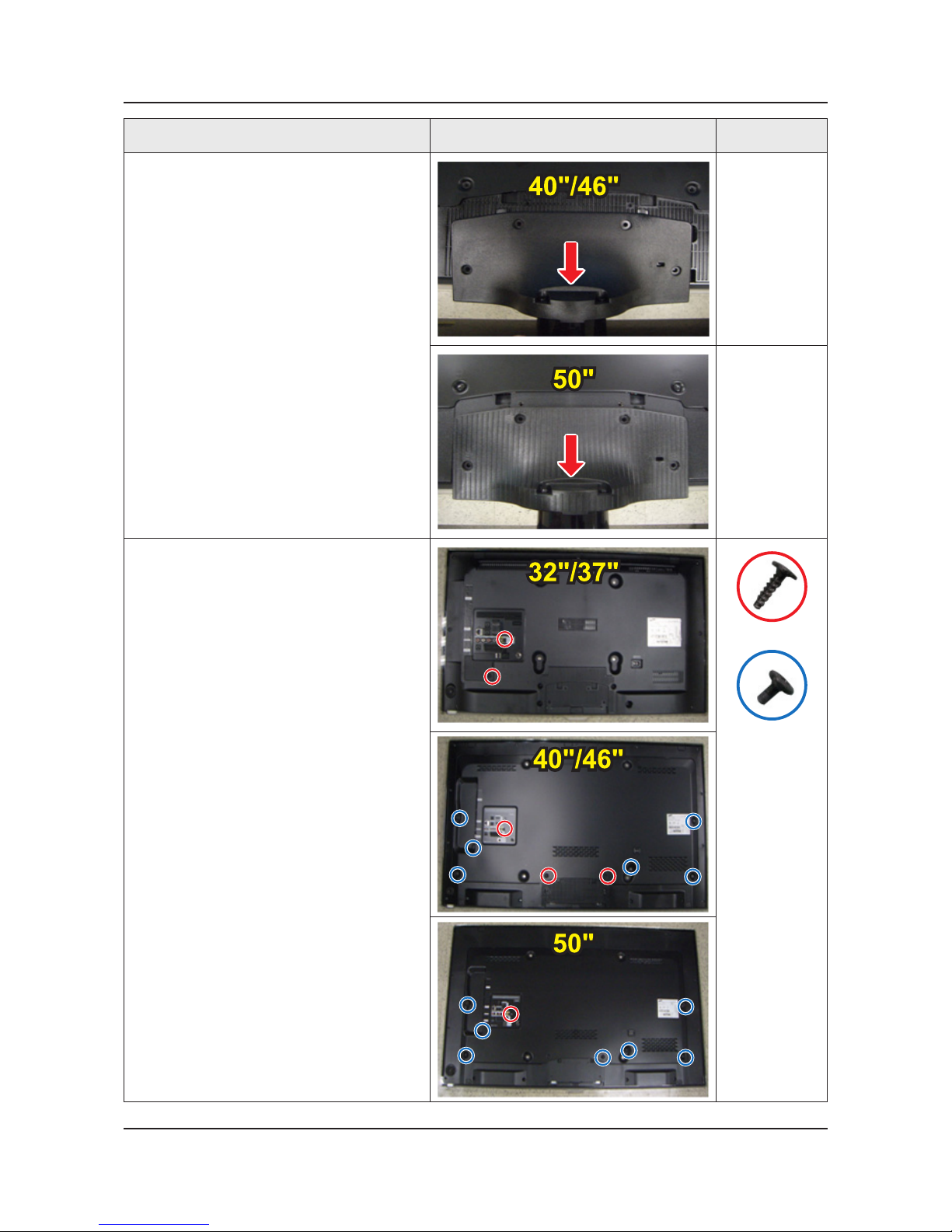

Description Picture Description Screws
4
Remove 1 screw of Middle Cover and 1
screw of Cover-Jack.
6003-001782
6003-002755
Remove 9 screws of Rear Cover.
Page 63
3-4
3. Disassembly and Reassemble
Description Picture Description Screws

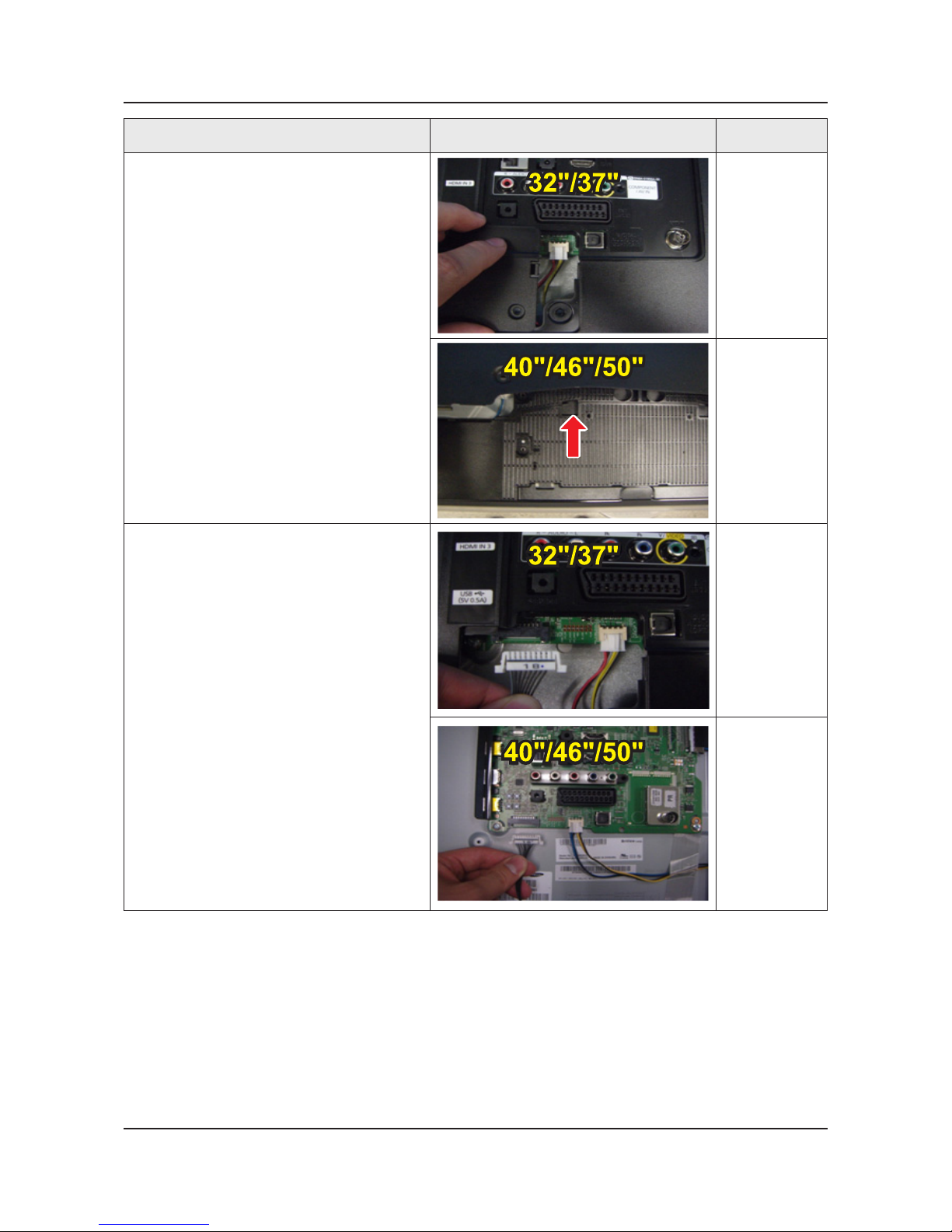

5
Remove the Cover-Jack.
Remove the Rear-Cover.
6
Disconnect the Function Ass'y Cable.
Page 64
3-5
3. Disassembly and Reassemble
Description Picture Description Screws

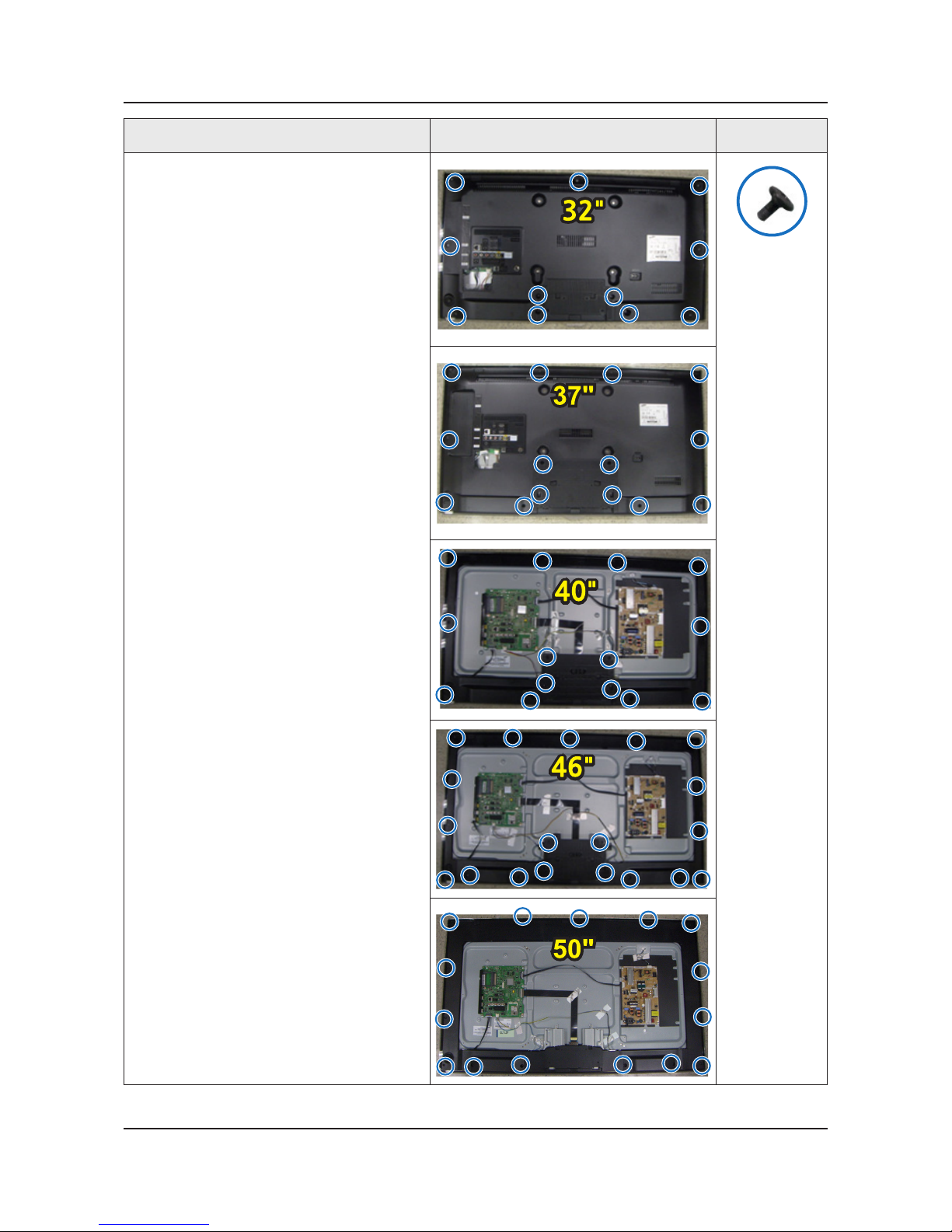

7
Remove the screws of Rear-Cover.
32" : 11 EA•
6003-002755
37" : 14 EA•
40" : 14 EA•
46" : 19 EA•
50" : 15 EA•
Page 65
3-6
3. Disassembly and Reassemble
Description Picture Description Screws

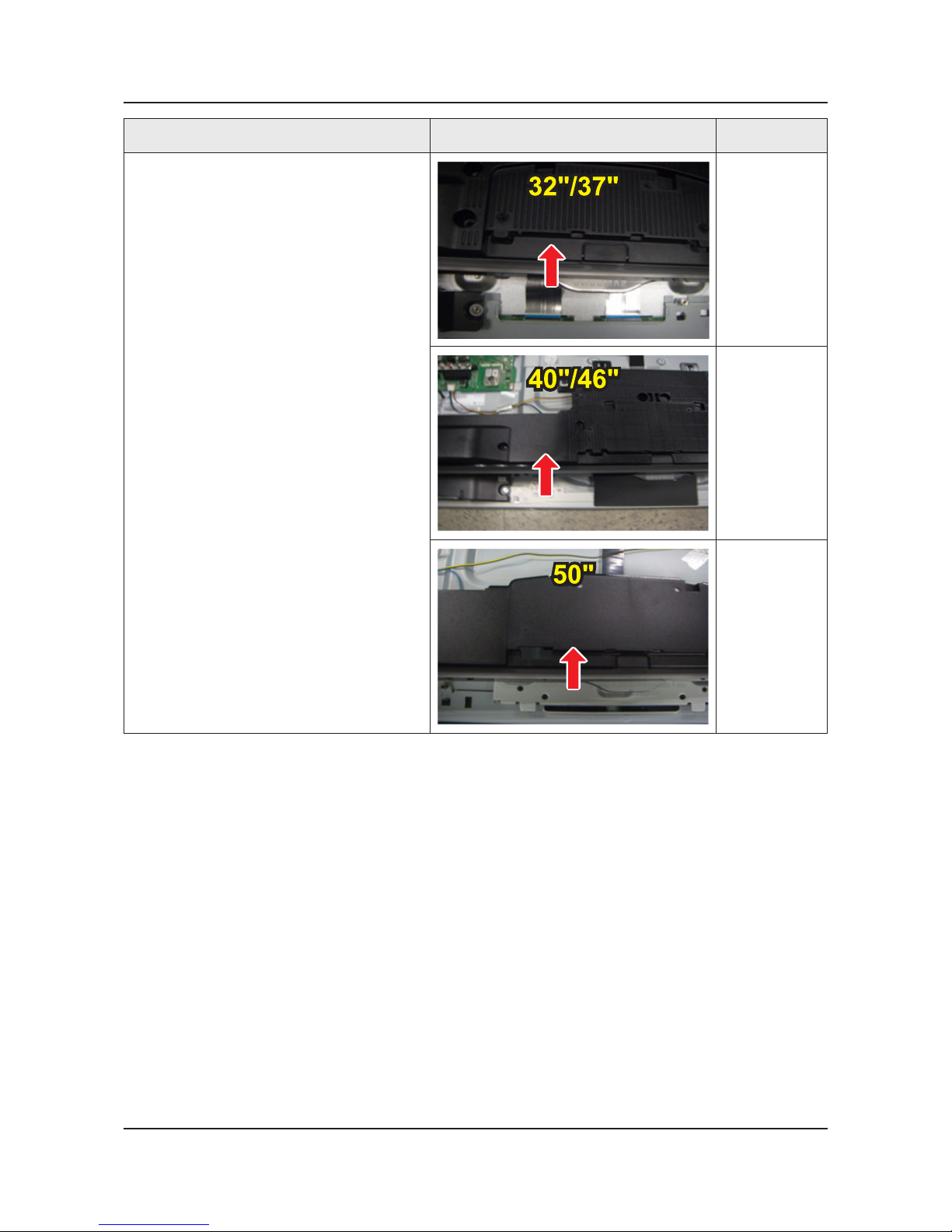

8
Remove the Middle Cover.
Page 66
3-7
3. Disassembly and Reassemble

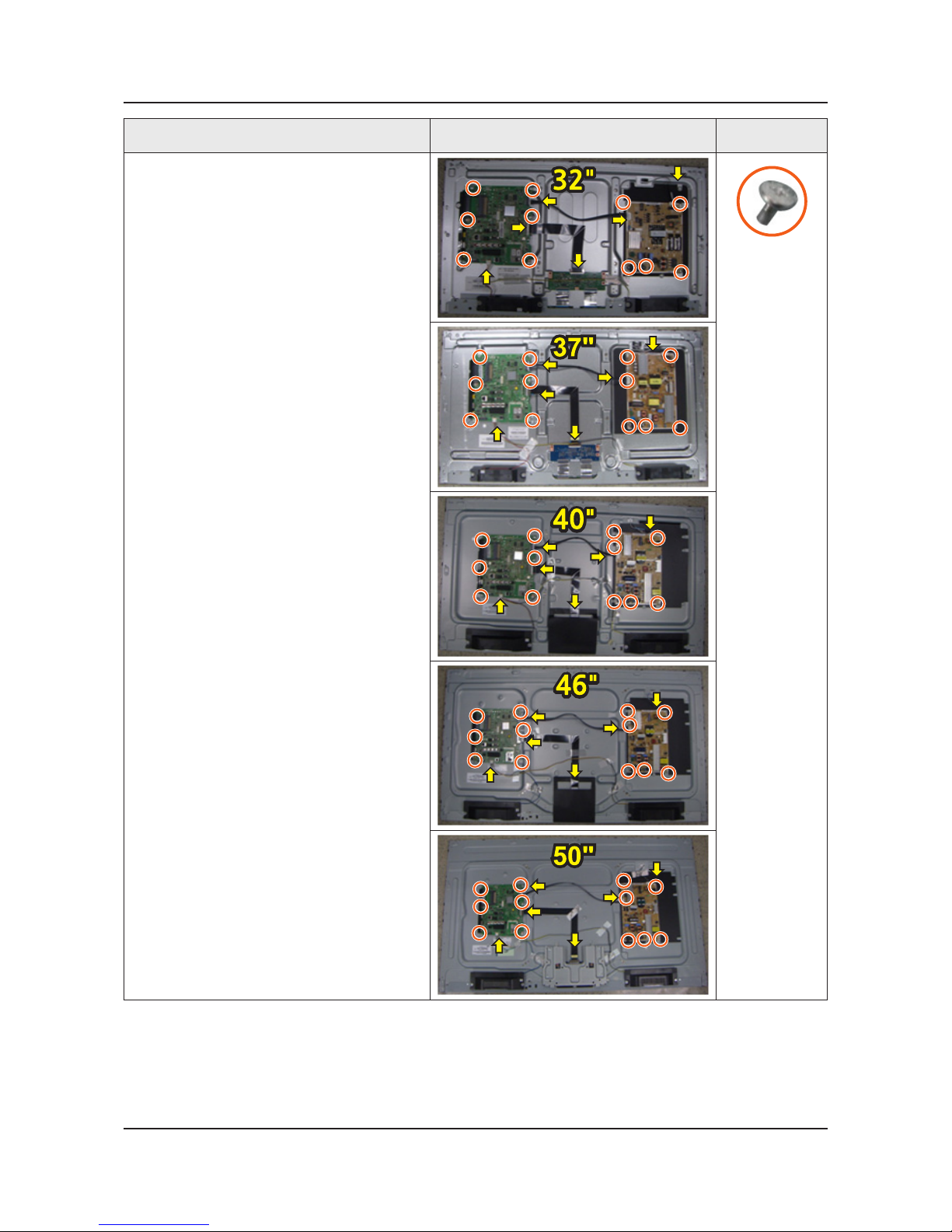

Description Picture Description Screws
9
Remove the screws of main board and
Power board.
32" : 11ea•
6001-002756
37" : 12ea•
40" : 12ea•
46" : 12ea•
50" : 12ea•
Page 67
3-8
3. Disassembly and Reassemble
Description Picture Description Screws

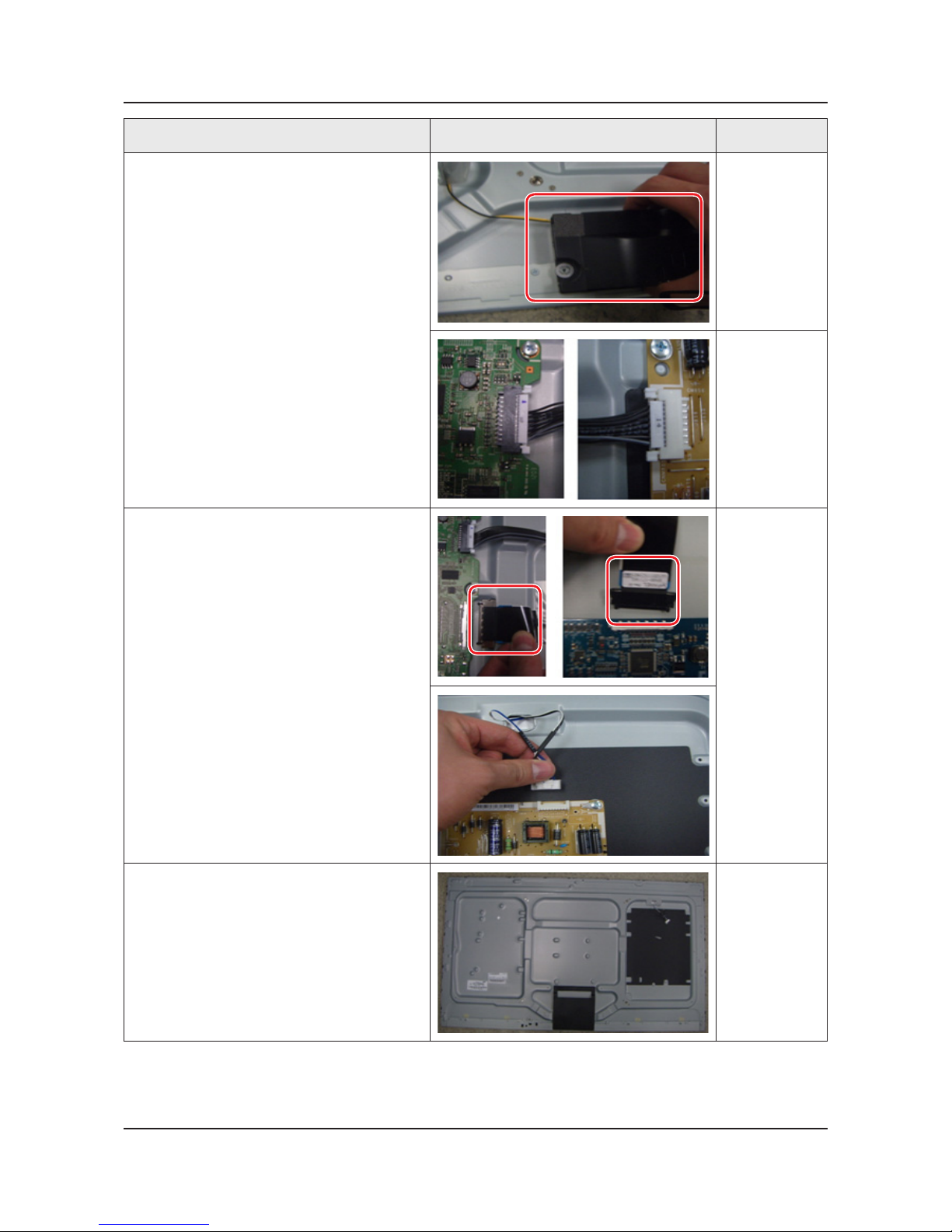

10
Remove the Speakers and Power Cables.
11
Remove the LVDS Cable and Panel Drive
Cable.
12
Completed disassembly.
Page 68
3-9
3. Disassembly and Reassemble

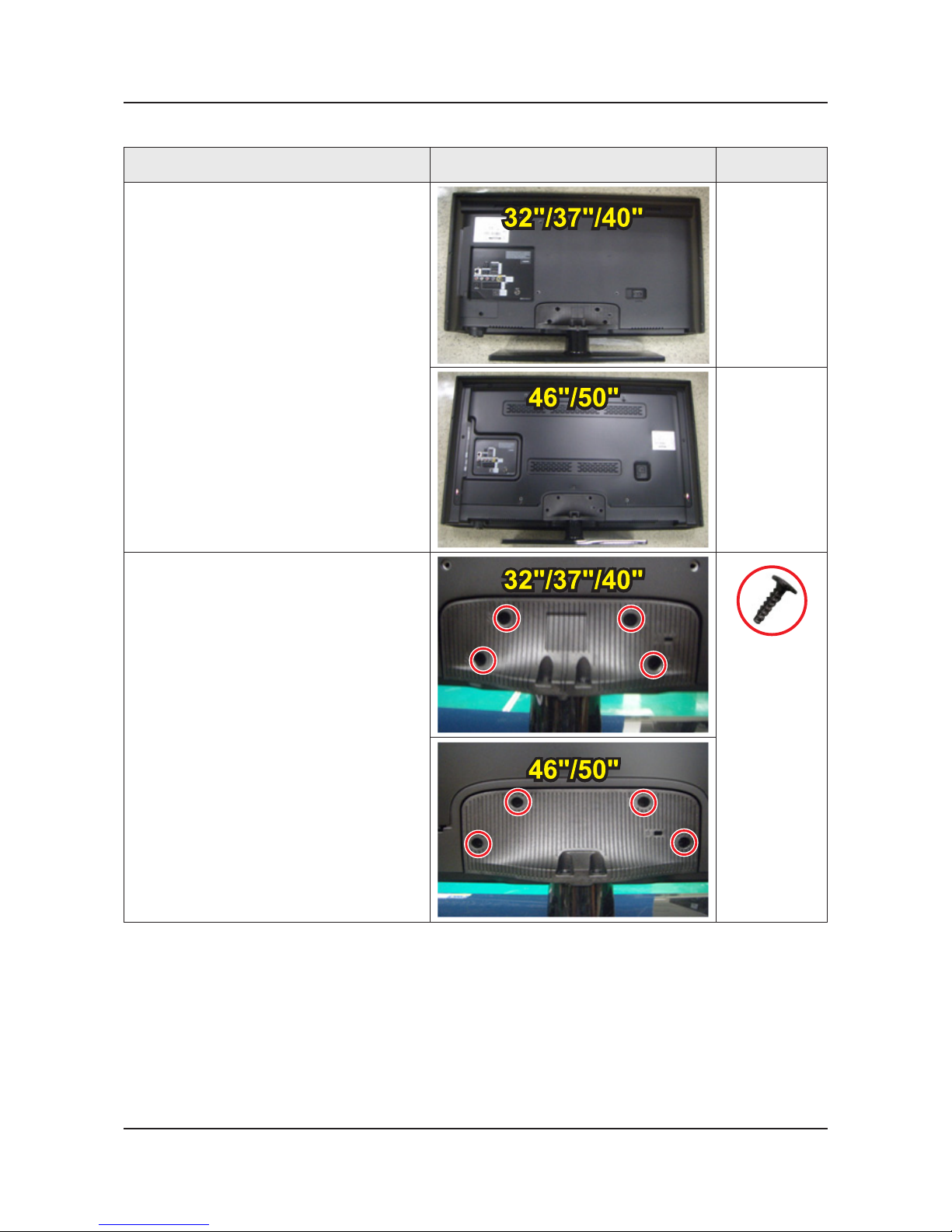

53** / 5450
Description Picture Description Screws
1
Place TV face down on cushioned table.
2
Remove 4 screws from the Stand.
6003-001782
Page 69
3-10

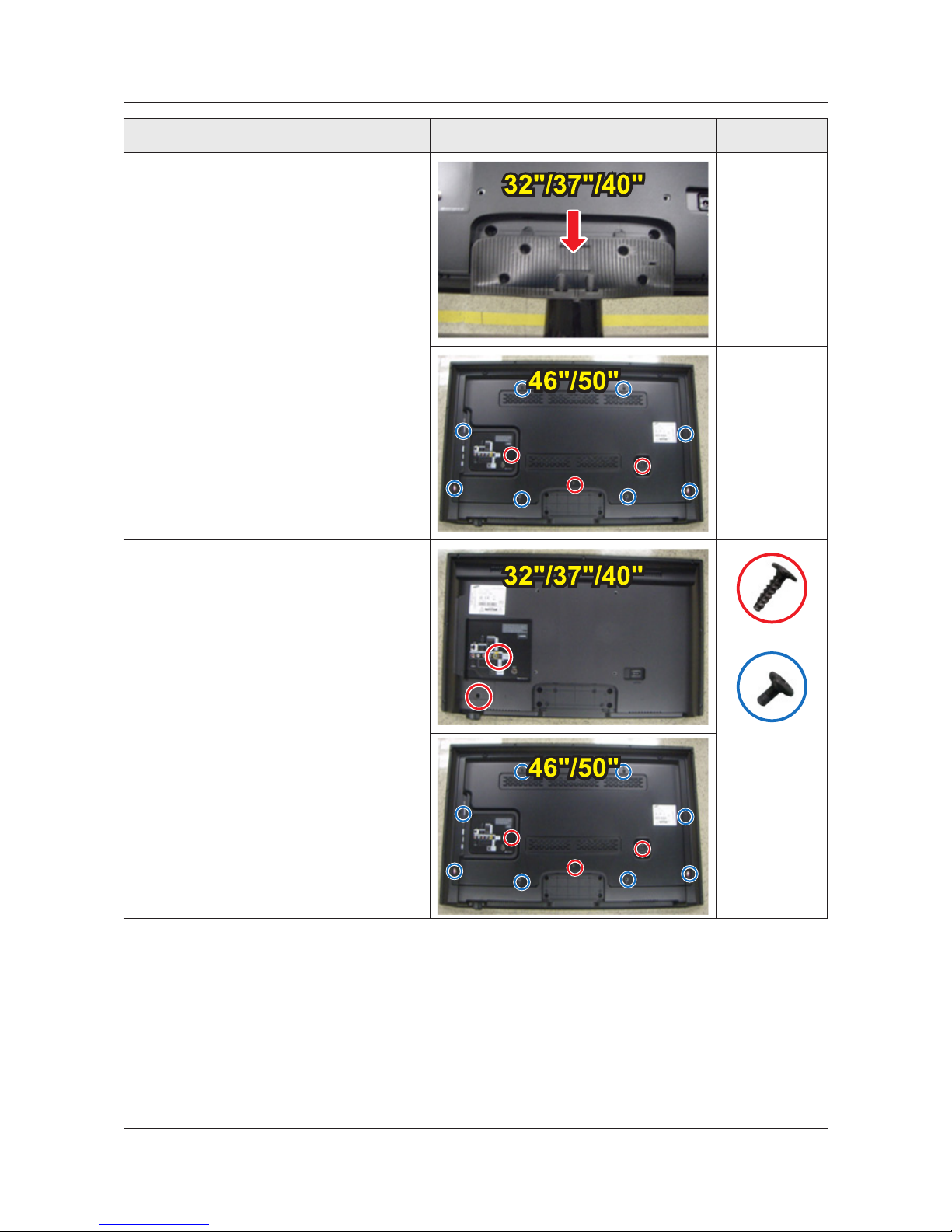

3. Disassembly and Reassemble
Description Picture Description Screws
3
Remove Stand.
4
Remove 1 screw of Middle Cover and 1
screw of Cover-Jack.
6003-001782
6003-002755
Remove 11 screws of Rear-Cover.
Page 70
3-11
3. Disassembly and Reassemble
Description Picture Description Screws

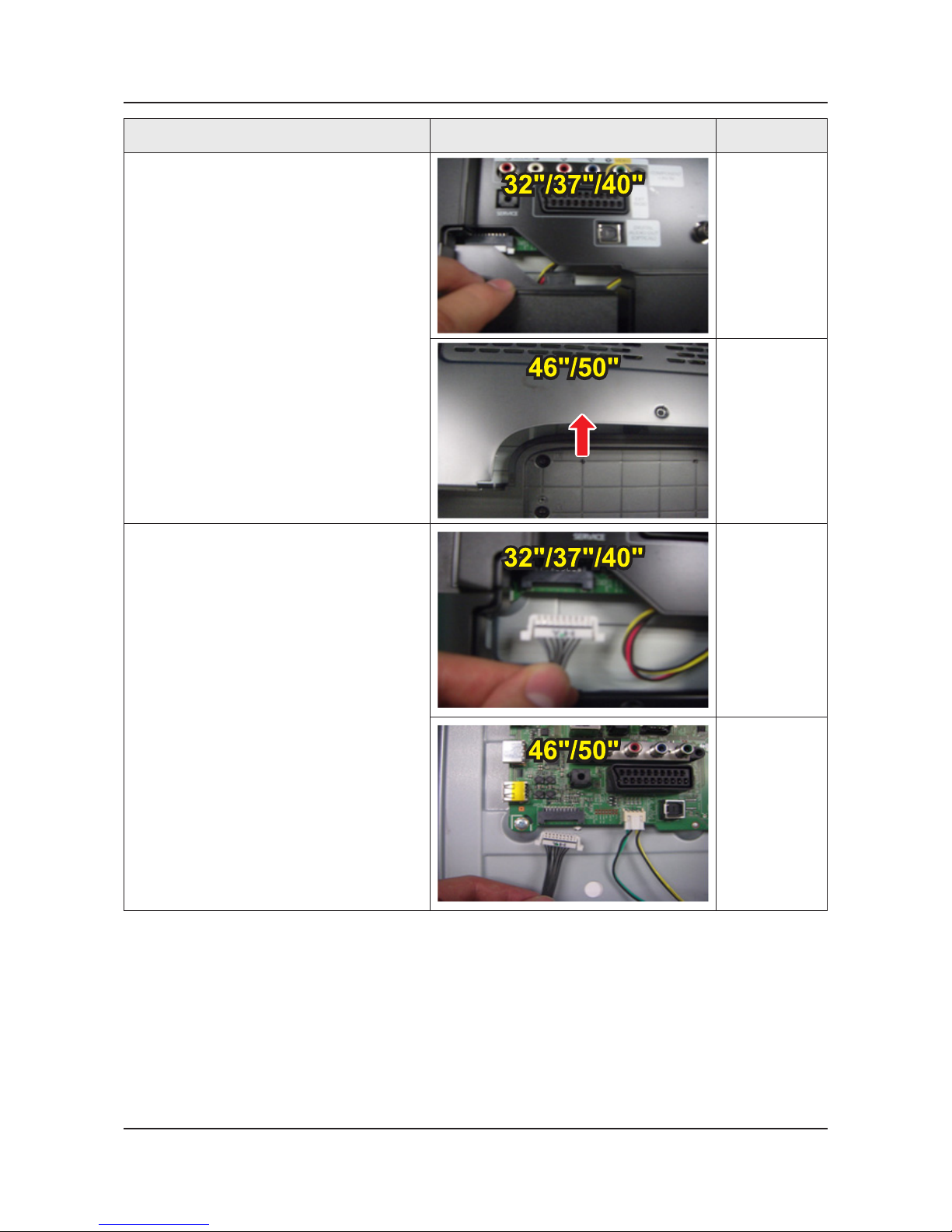

5
Remove the Cover-Jack.
Remove the Rear-Cover.
6
Disconnect the Function Ass'y Cable.
Page 71
3-12
3. Disassembly and Reassemble
Description Picture Description Screws

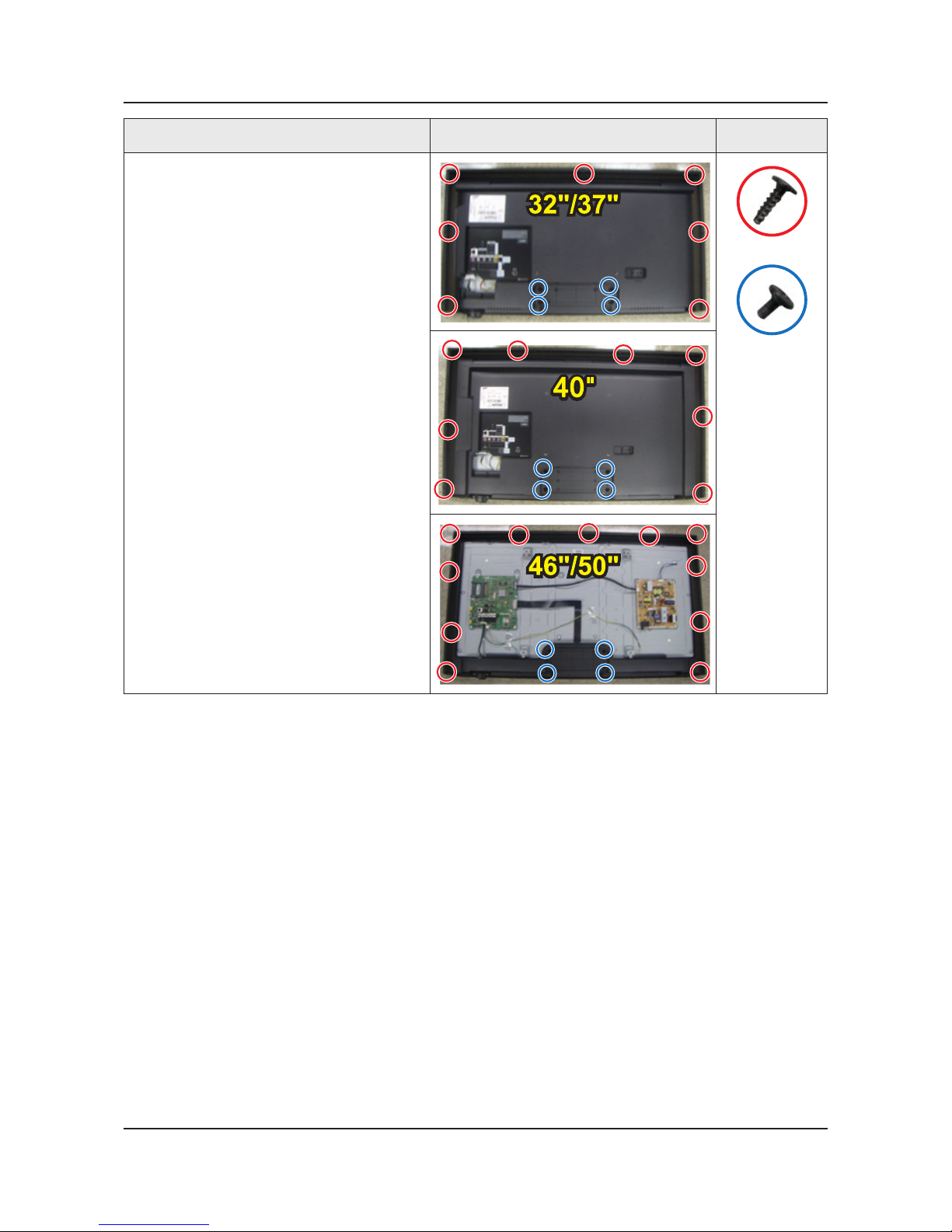

7
Remove the screws of Middle Cover.
32" / 37" : 11 EA•
6003-001782
6003-002755
40" : 12 EA•
46" / 50" : 15 EA•
Page 72
3-13
3. Disassembly and Reassemble
Description Picture Description Screws

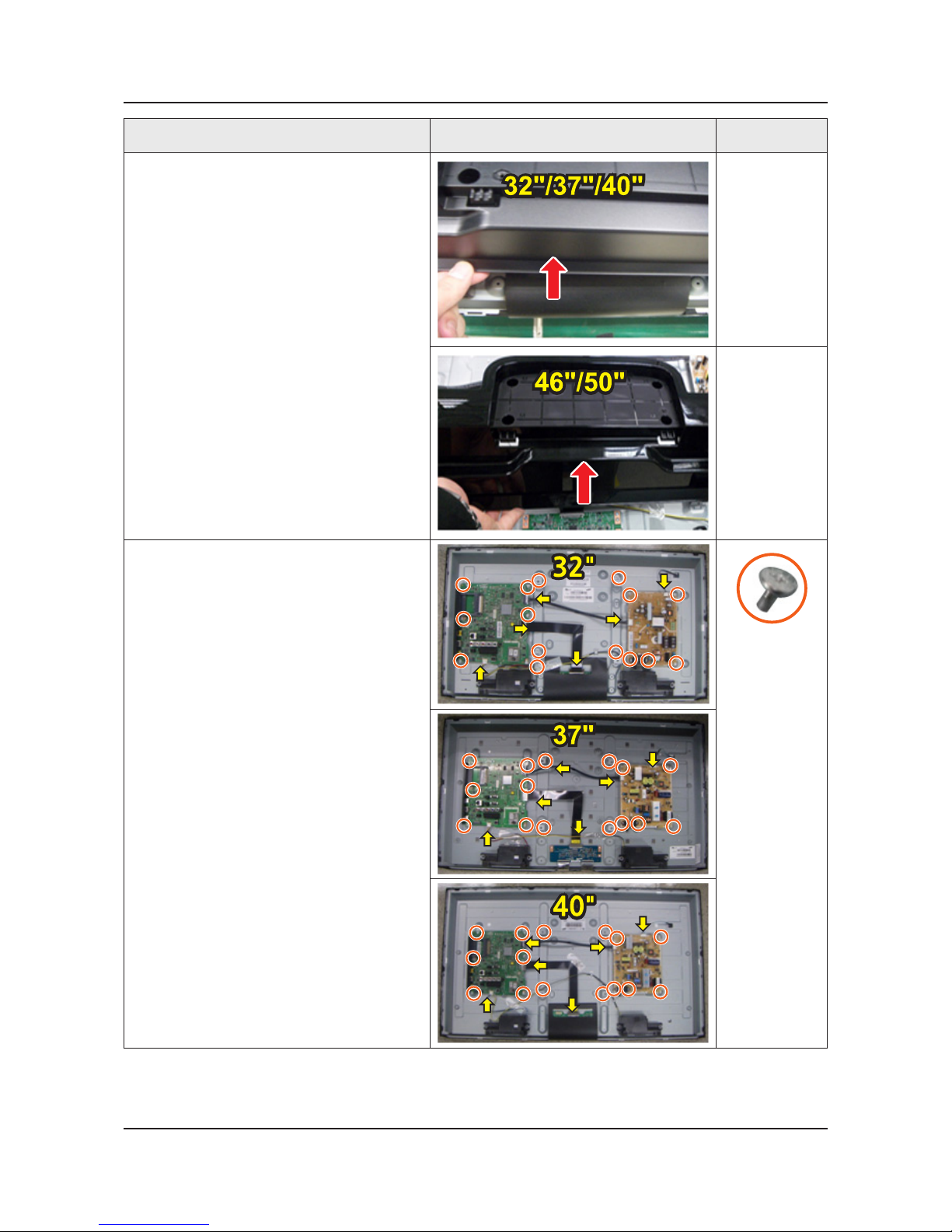

8
Remove the Rear-Cover.

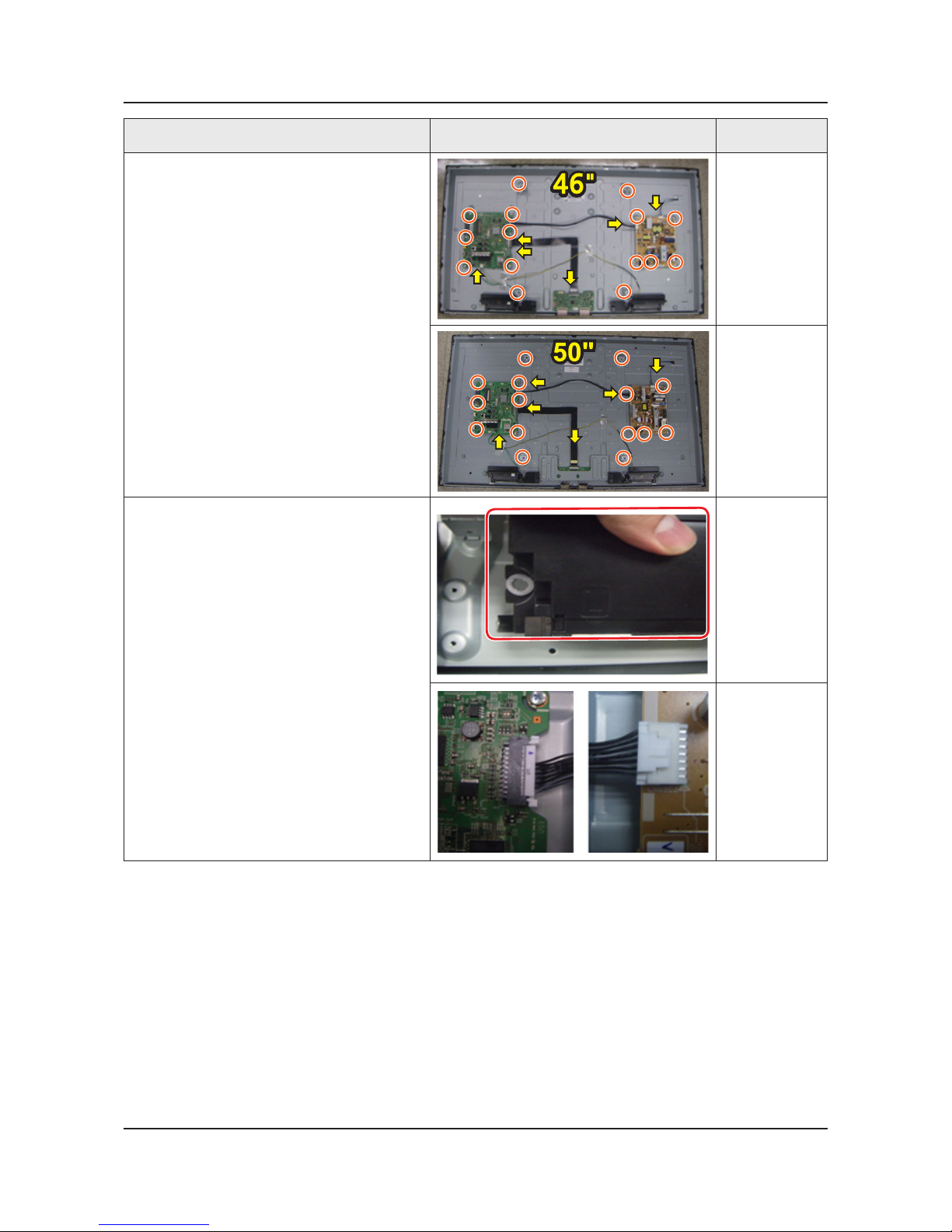

9
Remove the 15 screws of Main Board,
Power Board, Bracket-Wall.
6001-002756
Page 73
3-14
3. Disassembly and Reassemble
Description Picture Description Screws
10
Remove the Speakers and Power Cables.
Page 74
3-15
3. Disassembly and Reassemble

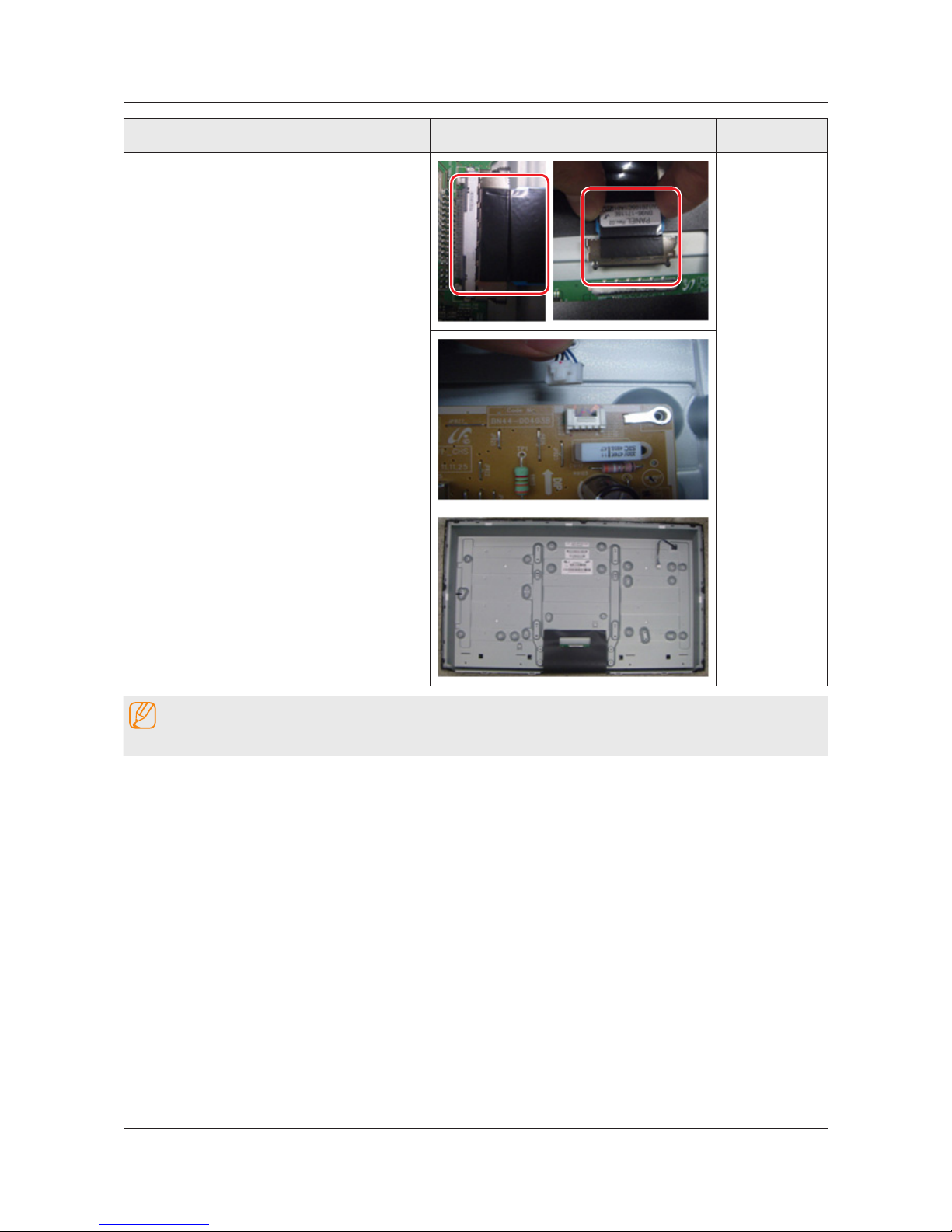

Description Picture Description Screws
11
Remove the LVDS Cable and Panel Drive
Cable.
12
Completed disassembly.
NOTE
Reassembly procedures are in the reverse order of disassembly procedures.
Page 75
3-16
3. Disassembly and Reassemble

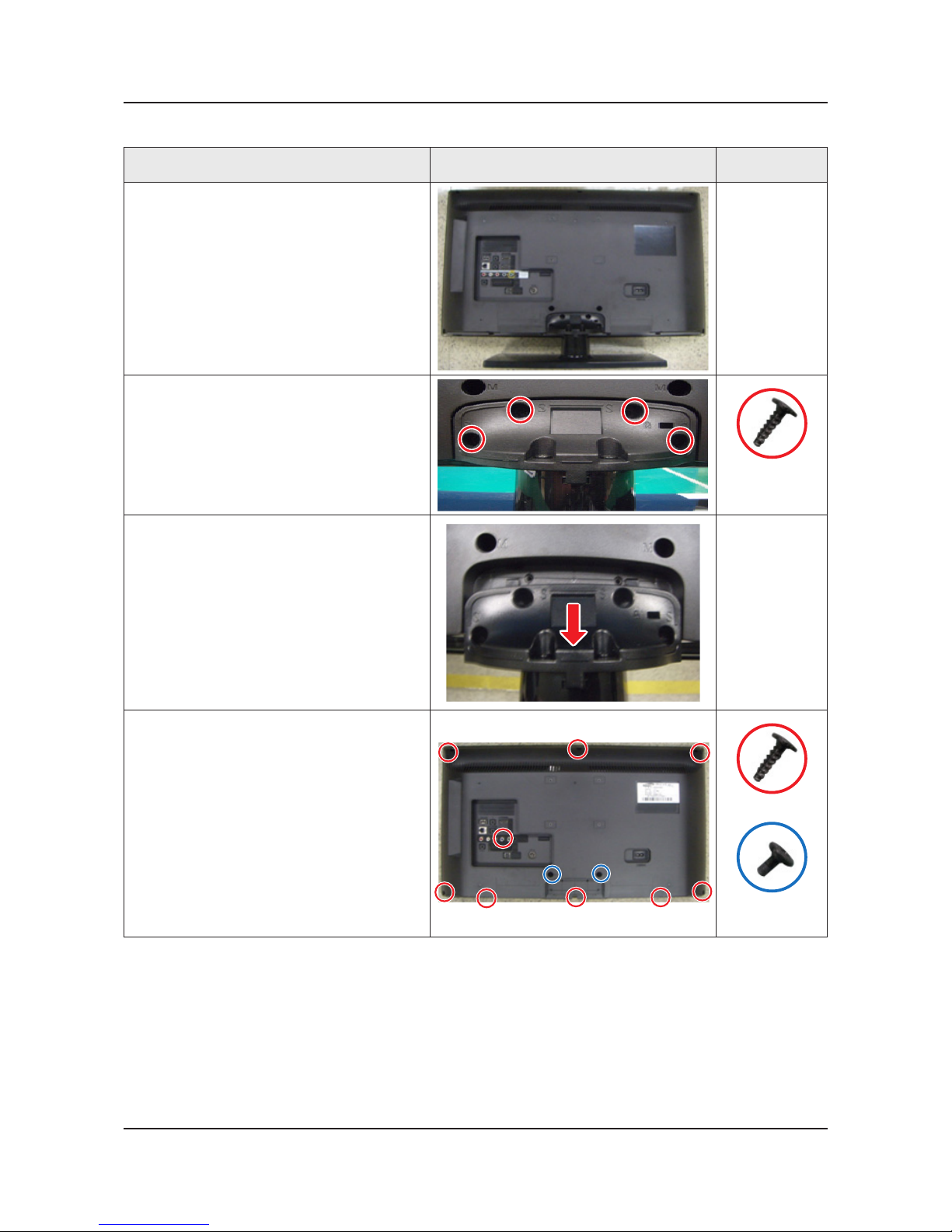

45**
Description Picture Description Screws
1
Place TV face down on cushioned table.
2
Remove 4 screws from the Stand.
6003-001782
3
Remove Stand.
4
Remove 11 screw of Cover-Jack.
6003-001782
6003-002755
Page 76
3-17
3. Disassembly and Reassemble
Description Picture Description Screws

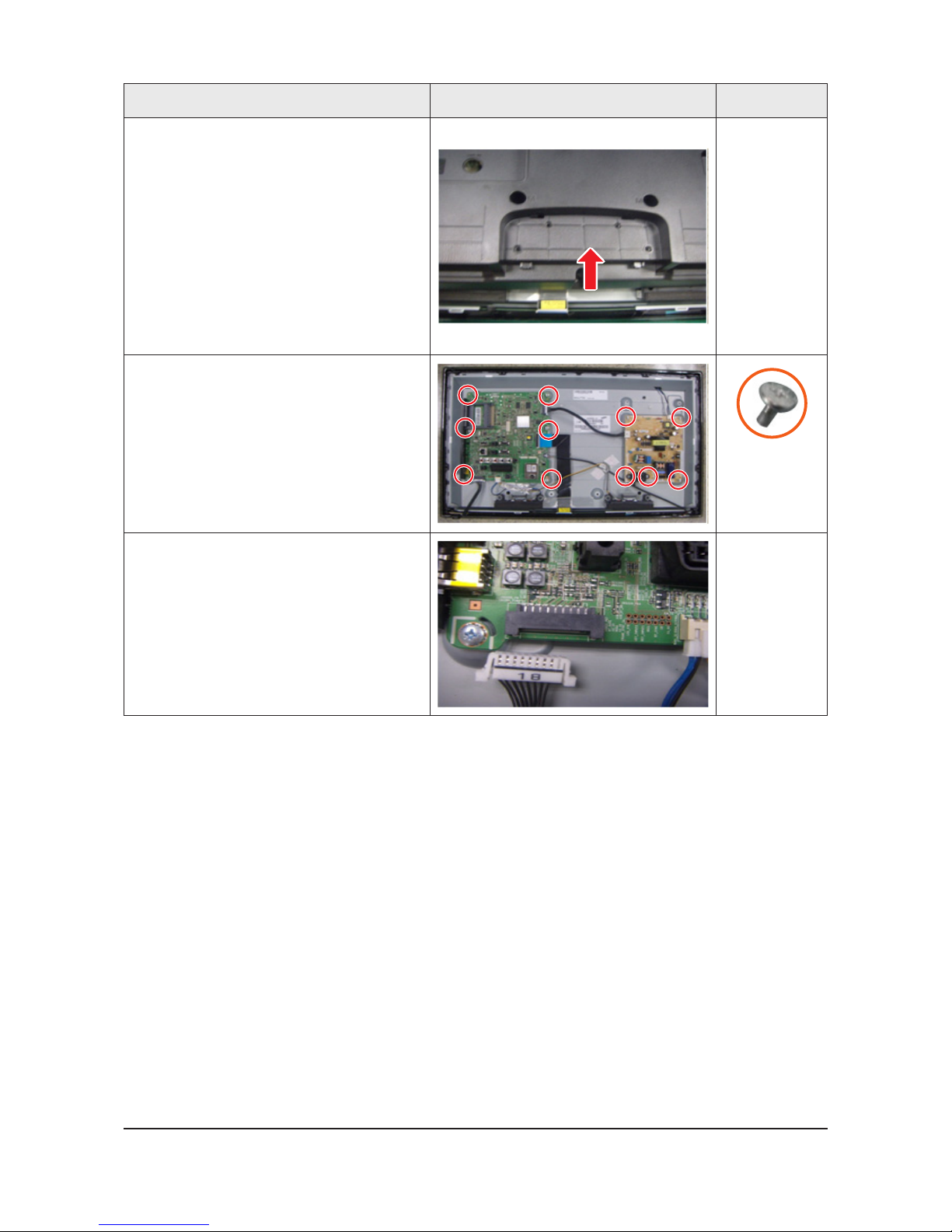

5
Remove the Middle Cover.
6
Remove 11 screws of Main board, Power
board.
6001-002756
7
Disconnect the function assy cable.
Page 77
3-18
3. Disassembly and Reassemble
Description Picture Description Screws
8
RemovetheSpeakers,PowerCable,Wi
Cable.
9
Remove the LVDS cable and Panel •
Drive Cable.
Page 78
3-19
3. Disassembly and Reassemble
Description Picture Description Screws

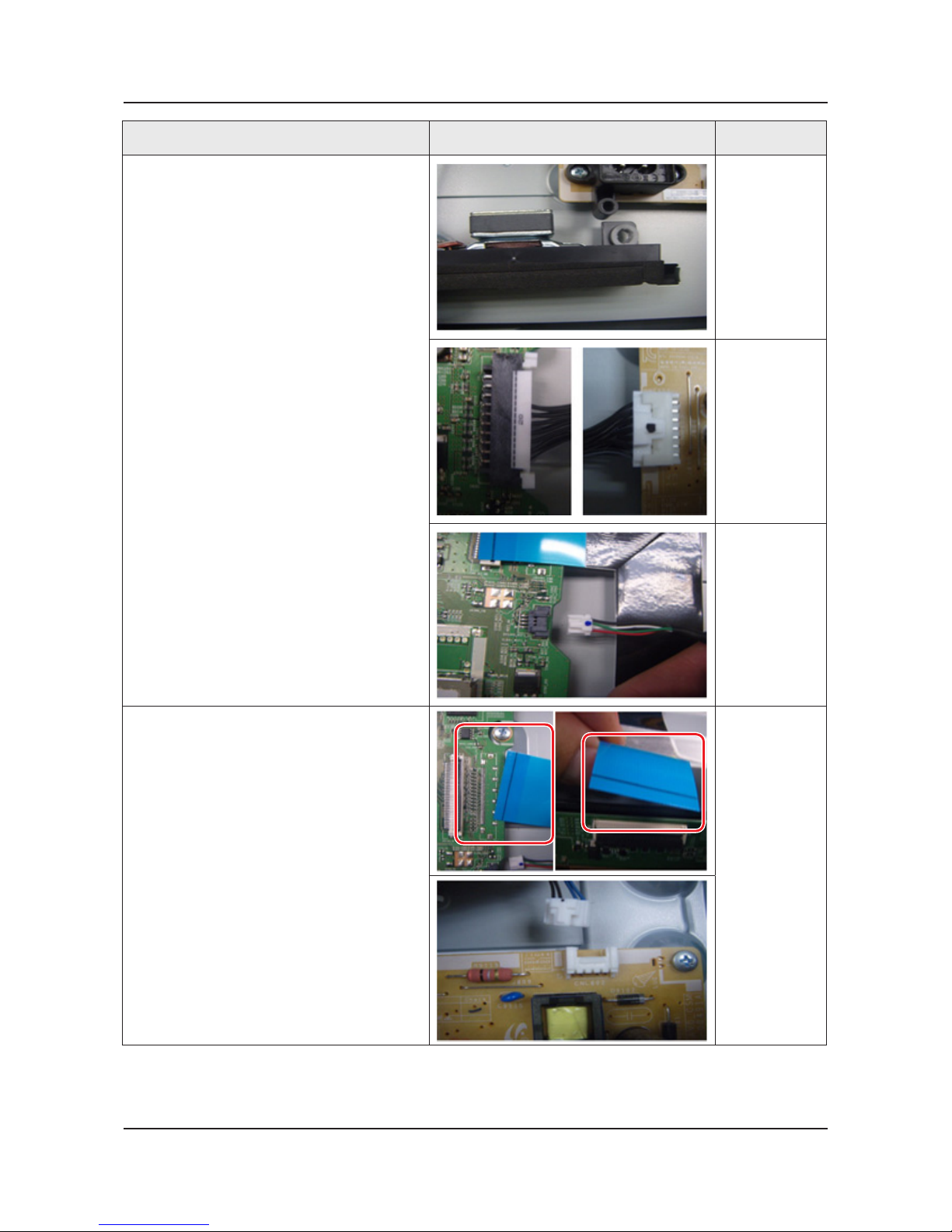

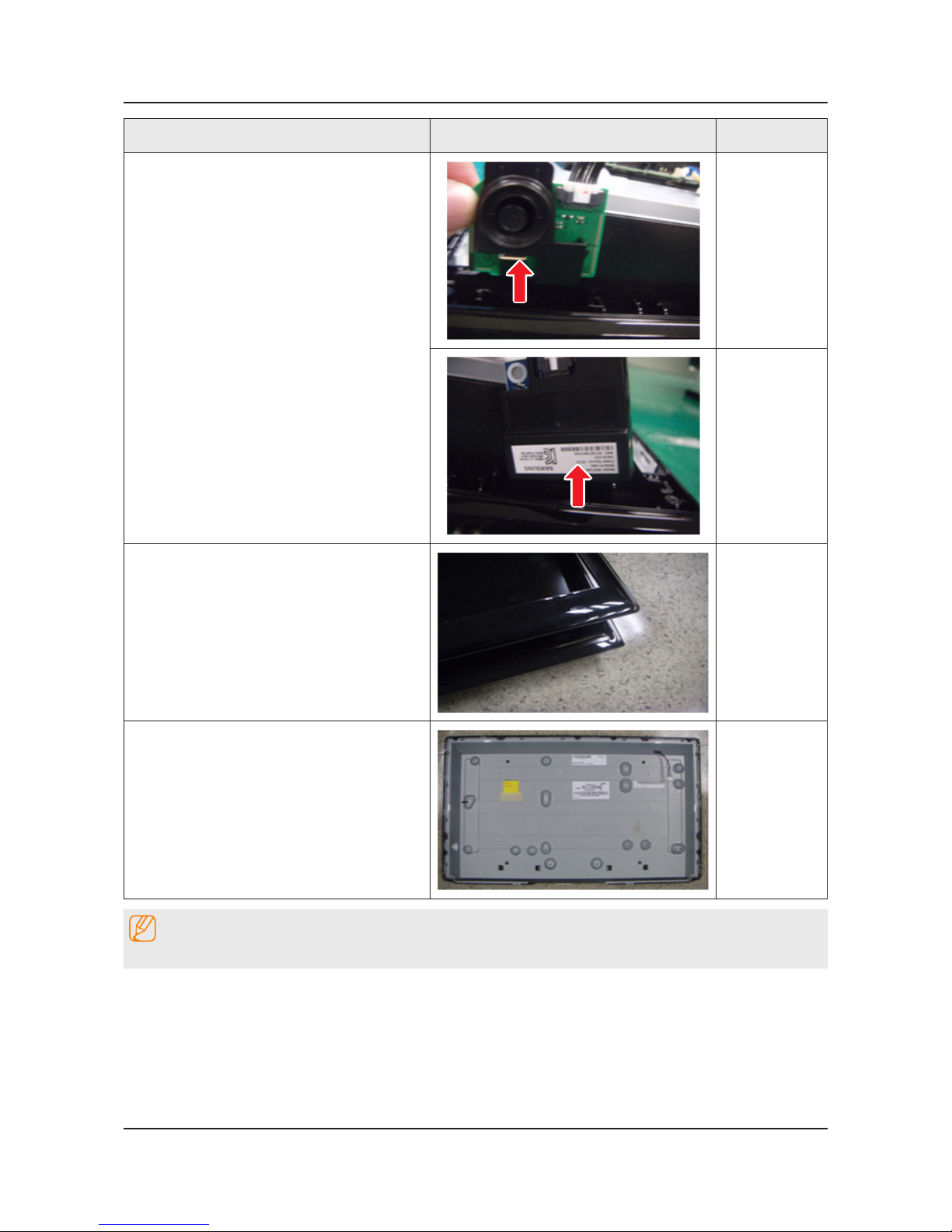

10
RemovetheWiModule,FuncionAssy.
11
Remove the LVDS Cable and Panel Drive
Cable.
12
Completed disassembly.
NOTE
Reassembly procedures are in the reverse order of disassembly procedures.
Page 79
3-20
3. Disassembly and Reassemble

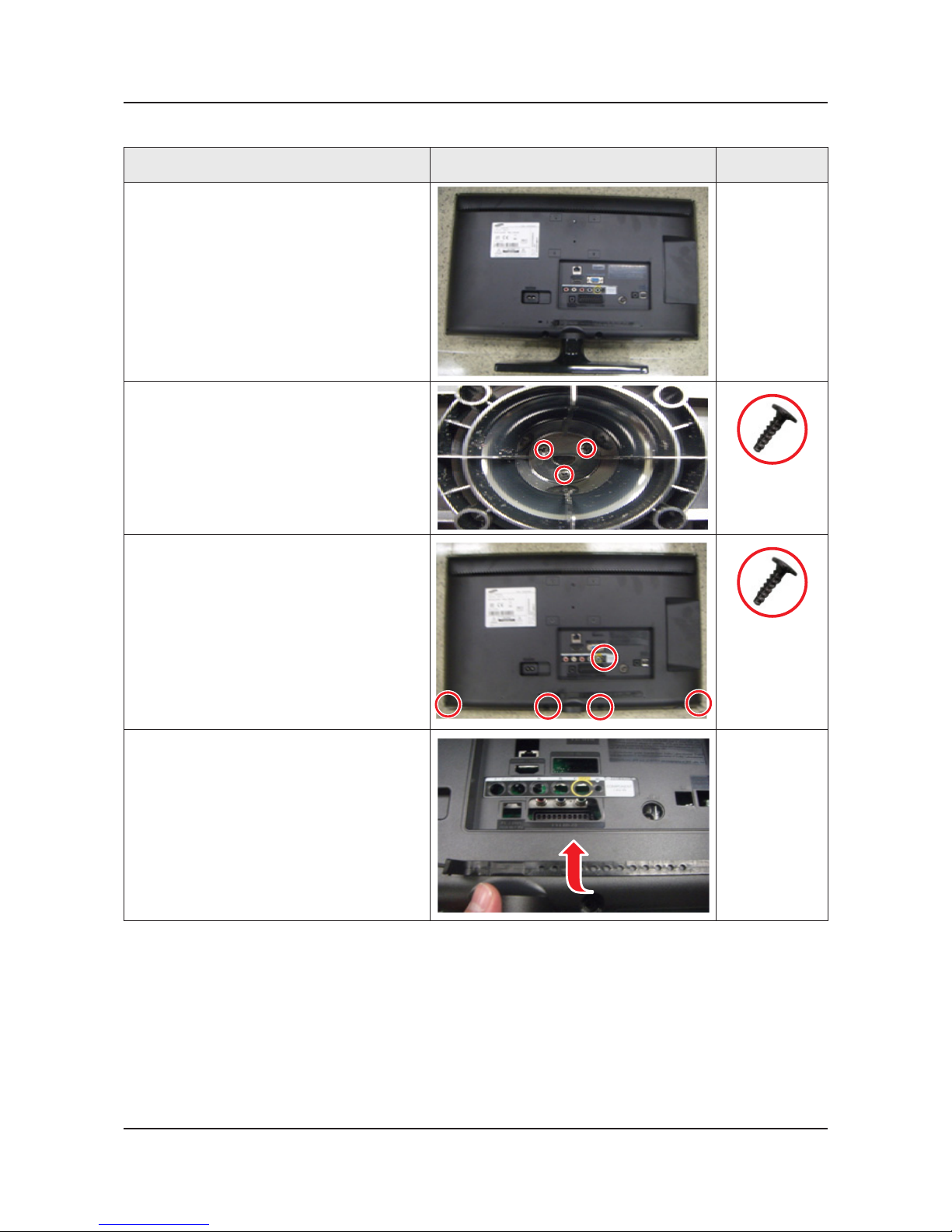

54**
Description Picture Description Screws
1
Place TV face down on cushioned table.
2
Remove 3 screws from the stand bottom
and Remove stand.
6003-001782
3
Remove 5 screws of Rear-Cover.
6003-001782
4
Remove the Middle Cover.
Page 80
3-21
3. Disassembly and Reassemble
Description Picture Description Screws

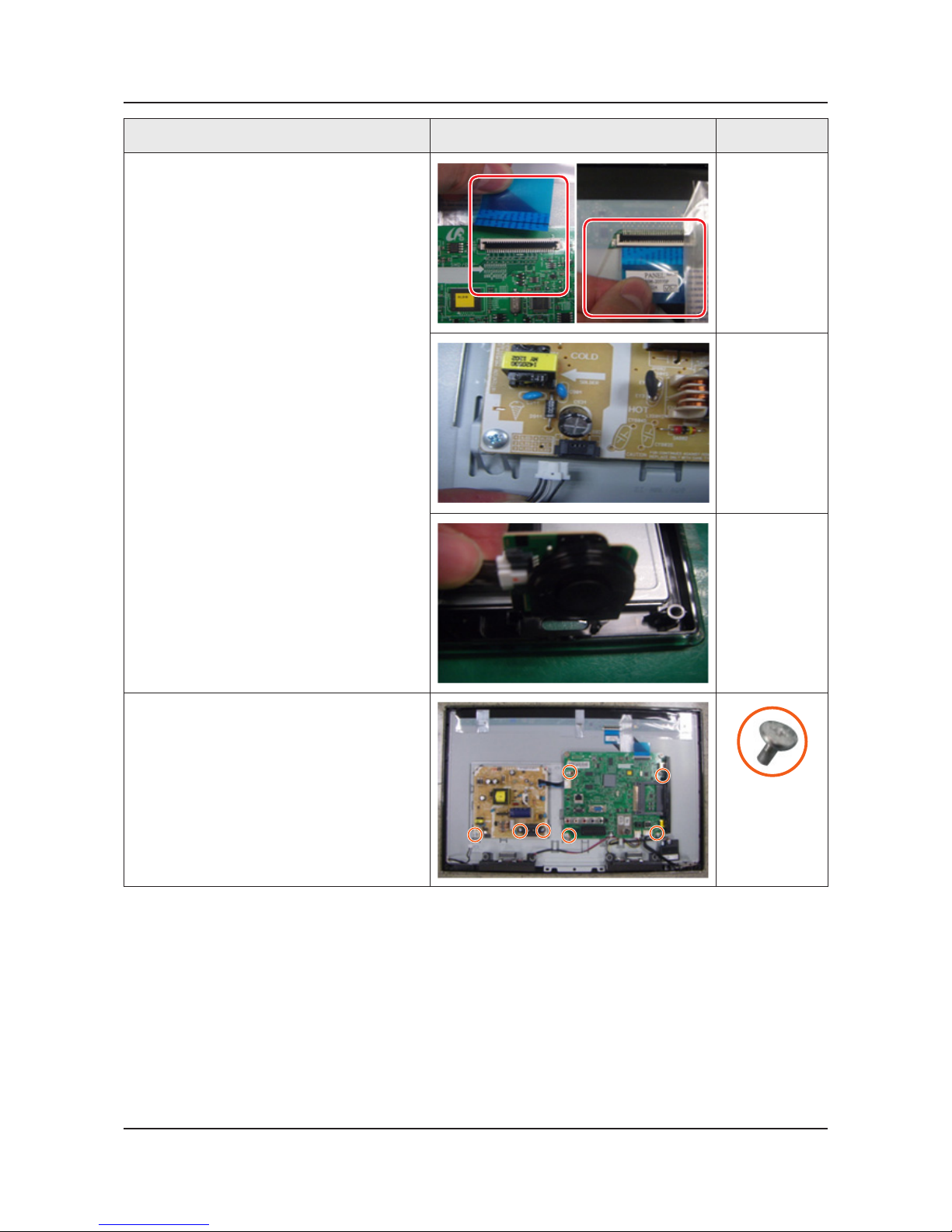

5
Disconnect the LVDS Cable, Panel Drive
Cable, Function Assy.
6
Remove 7 screws of Main Board and
Power Board.
6001-002756
Page 81
3-22
3. Disassembly and Reassemble
Description Picture Description Screws

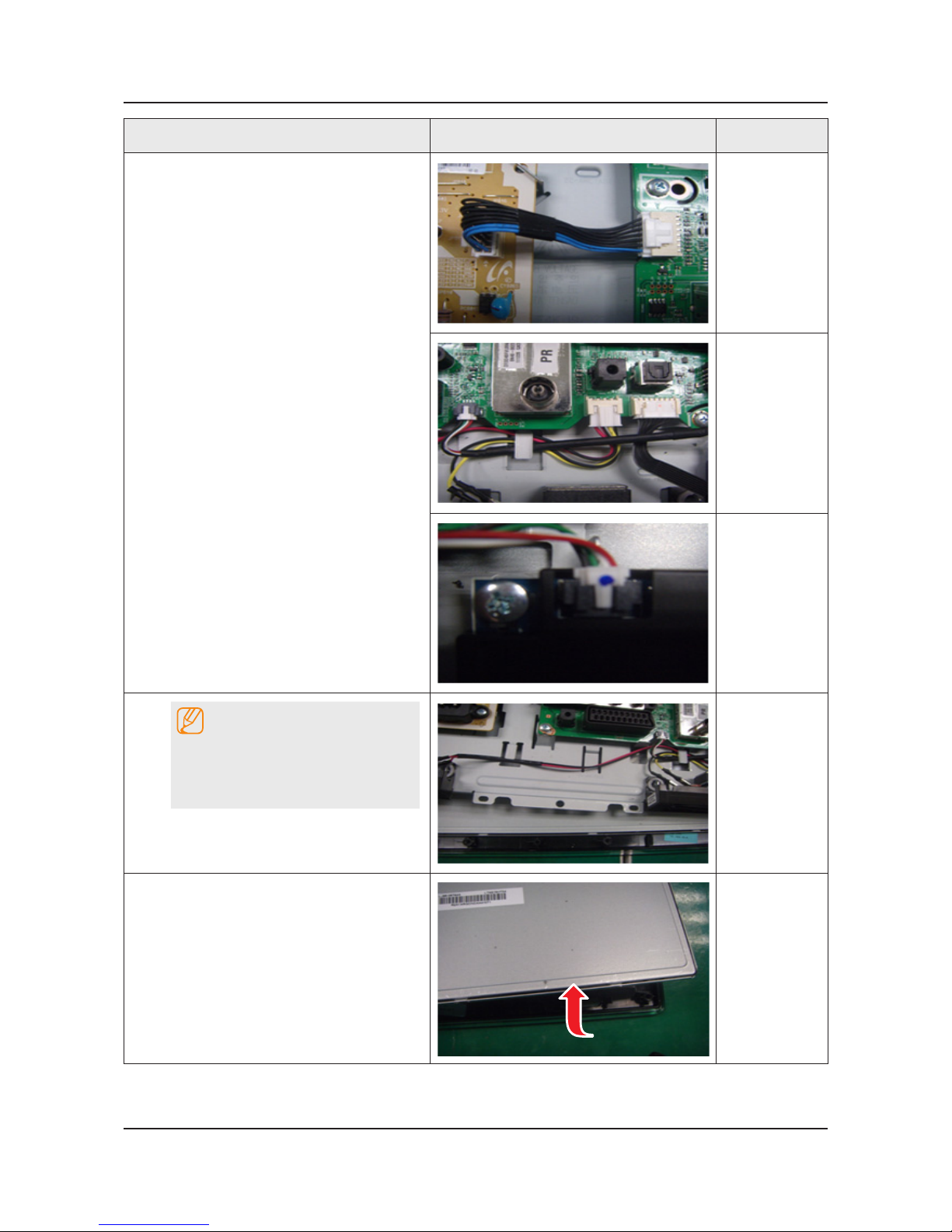

7
DisconnectCables(Power,Speaker,Wi).
NOTE
If you want to change the only panel,
you don’t need to seperate Boards and
Cables. (Except LVDS cable and Panel
drivecable.)
8
Lift up the Panel.
Page 82
3-23
3. Disassembly and Reassemble
Description Picture Description Screws

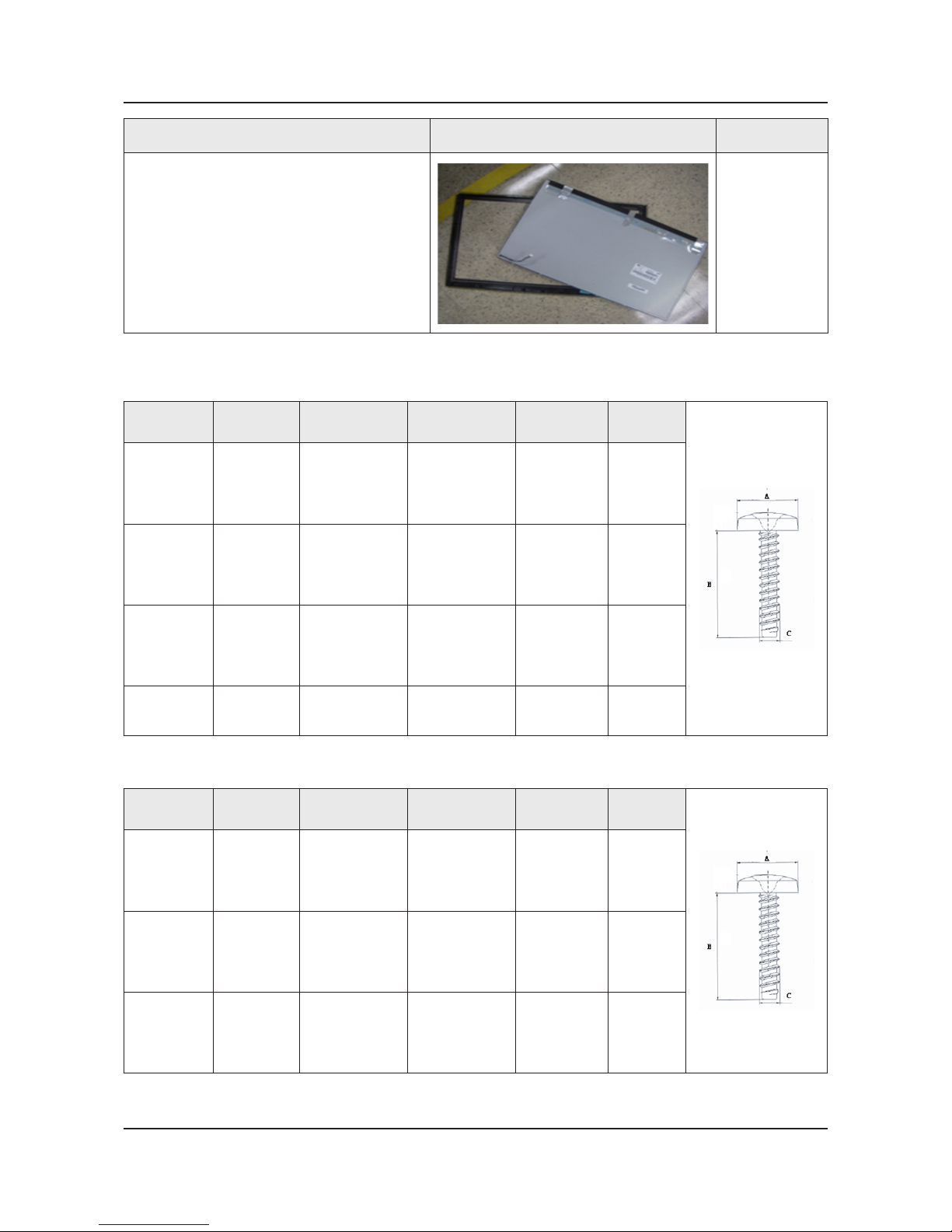

9
Completed disassembly
Screw Size
E55**/57**/58**
Code No. COLOR A (mm) B (mm) C (mm) Q'ty
6003-001782 BLACK 7.80~8.30 11.20~12.00 3.81~3.91
32" : 6EA
37" : 6EA
40" : 7EA
46" : 7EA
50" : 1EA
6001-002755 BLACK 7.1~7.5 5.7~6.0 2.98~3.02
32" : 11EA
37" : 14EA
40" : 20EA
46" : 25EA
50" : 23EA
6001-002756 WHITE 7.1~7.5 5.7~6.0 2.98~3.02
32" : 11EA
37" : 12EA
40" : 12EA
46" : 12EA
50" : 12EA
6003-001807 BLACK 8.0~8.4 9.6~10.4 3.70~3.83 50" : 4EA
E53**/E5450
Code No. COLOR A (mm) B (mm) C (mm) Q'ty
6003-001782 BLACK 7.80~8.30 11.20~12.00 3.81~3.91
32" : 13EA
37" : 13EA
40" : 14EA
46" : 18EA
50" : 18EA
6001-002755 BLACK 7.1~7.5 5.7~6.0 2.98~3.02
32" : 4EA
37" : 4EA
40" : 4EA
46" : 12EA
50" : 12EA
6001-002756 WHITE 7.1~7.5 5.7~6.0 2.98~3.02
32" : 15EA
37" : 15EA
40" : 15EA
46" : 15EA
50" : 15EA
Page 83
3-24
3. Disassembly and Reassemble

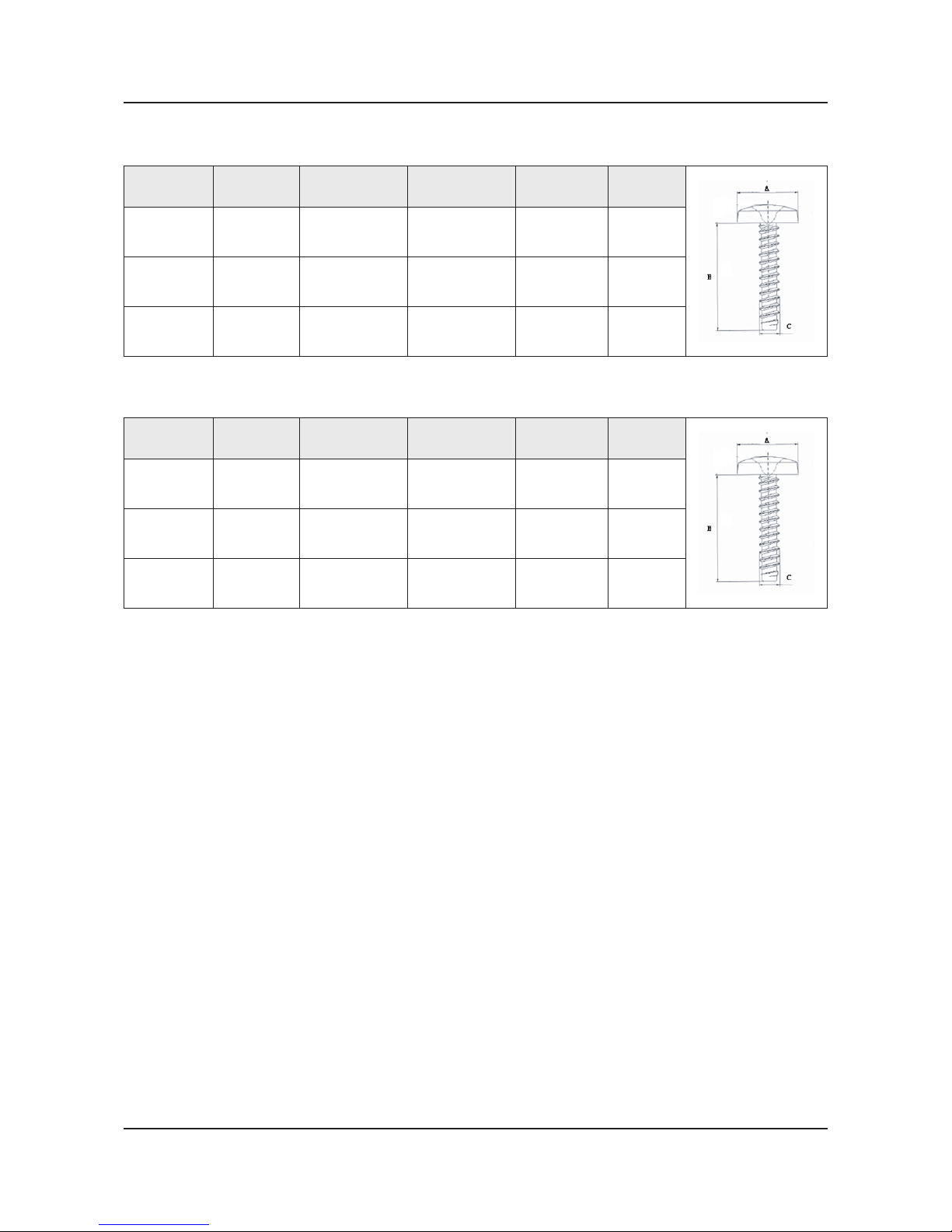

E45**
Code No. COLOR A (mm) B (mm) C (mm) Q'ty
6003-001782 BLACK 7.80~8.30 11.20~12.00 3.81~3.91 26" : 13EA
6001-002755 BLACK 7.1~7.5 5.7~6.0 2.98~3.02 26" : 2EA
6001-002756 WHITE 7.1~7.5 5.7~6.0 2.98~3.02 26" : 11EA
E54**
Code No. COLOR A (mm) B (mm) C (mm) Q'ty
6003-001782 BLACK 7.80~8.30 11.20~12.00 3.81~3.91 22" : 8EA
6001-002755 BLACK 7.1~7.5 5.7~6.0 2.98~3.02 -
6001-002756 WHITE 7.1~7.5 5.7~6.0 2.98~3.02 22" : 7EA
Page 84
3-25
3. Disassembly and Reassemble

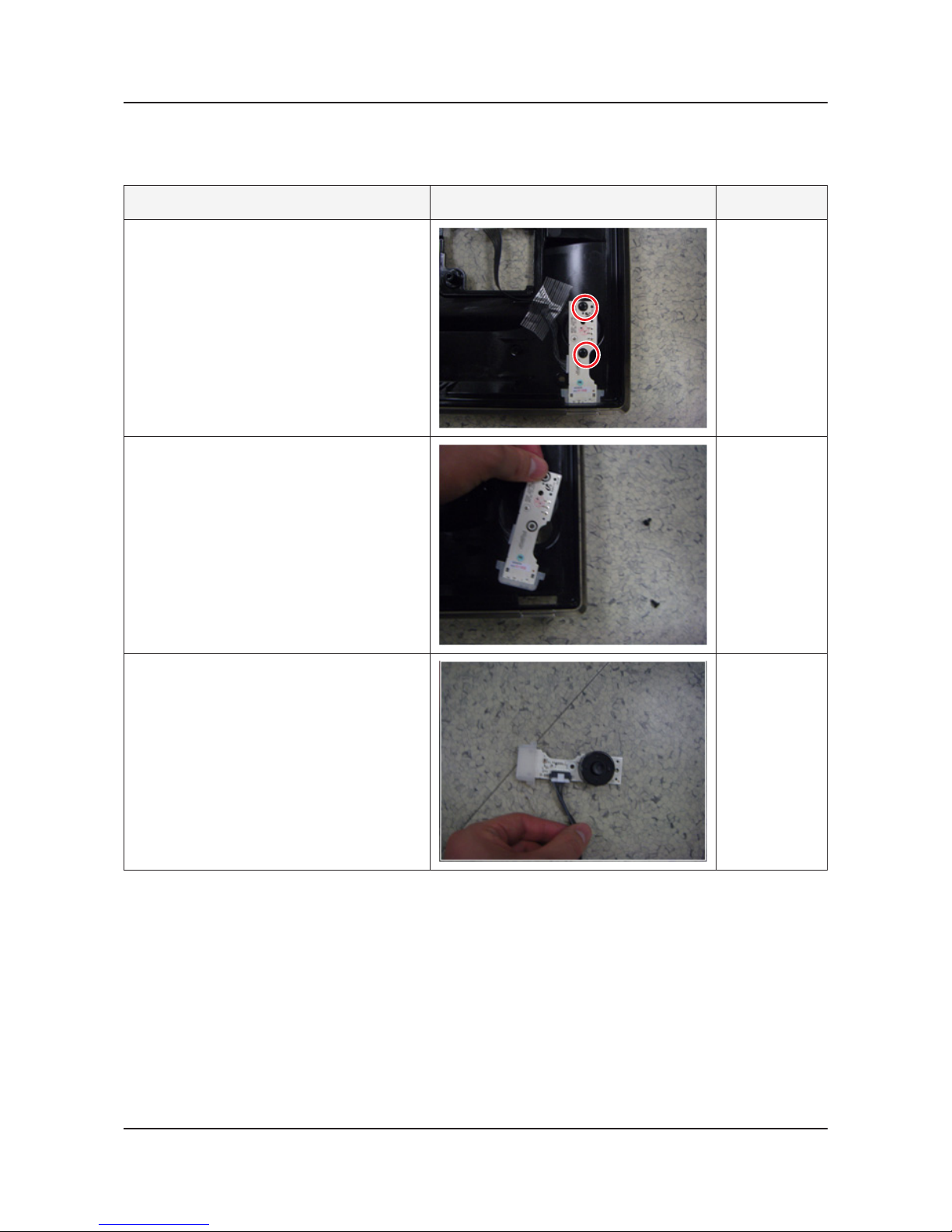

3-2. Assy Board P-Jog Switch & Ir
Jog Function (Slim LED)_ UE55**/57**/58**
Description Picture Description Refer
1
Check the 2 locking screws and remove
the screws.
2
Lift the Function asssy.
3
Disconnect the function cable.
Page 85
3-26
3. Disassembly and Reassemble

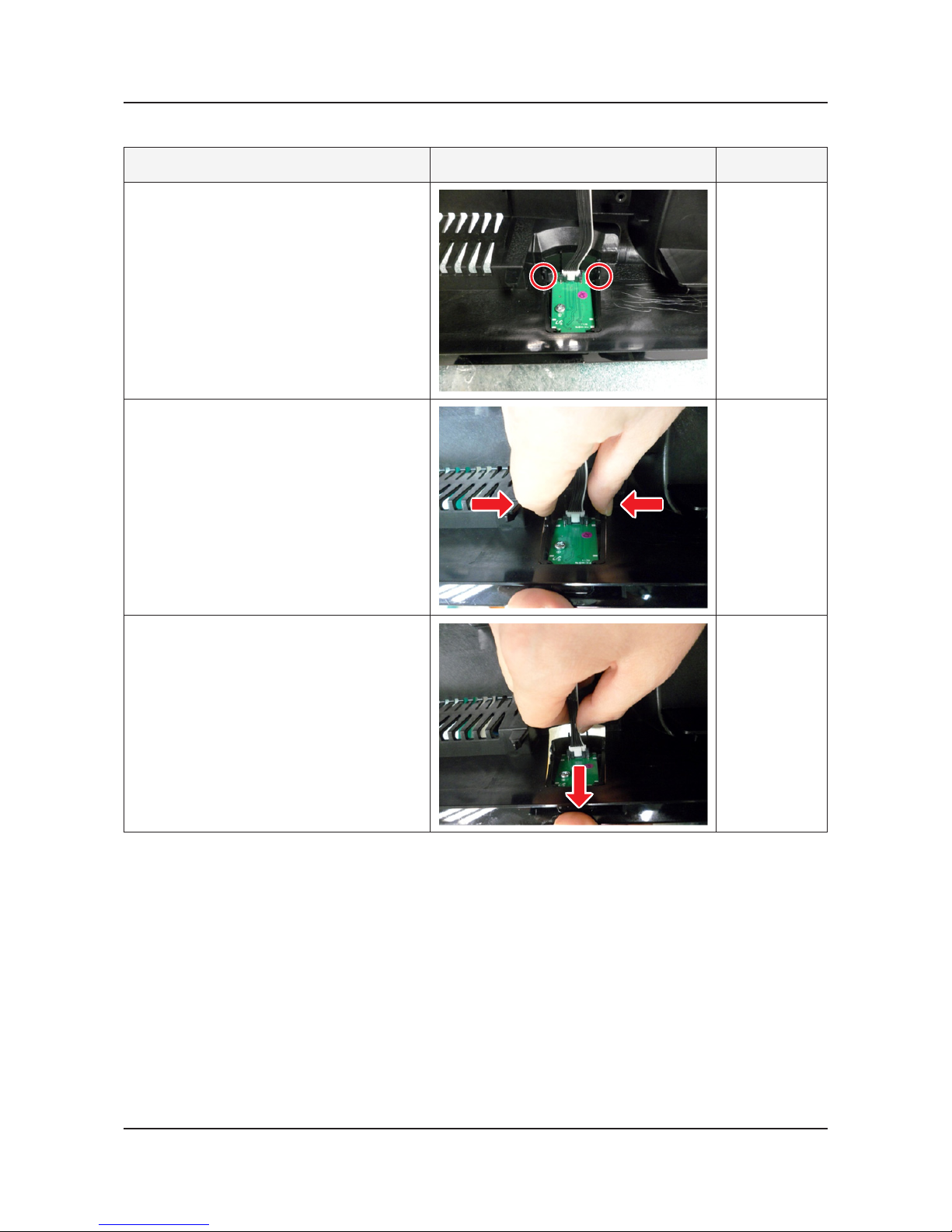

How to disassembly (UE53**/5450)
Description Picture Description Refer
1
Check the 2 Locking Holders.
2
Press both holders.
3
Remove the Function Assy.
Page 86
3-27
3. Disassembly and Reassemble

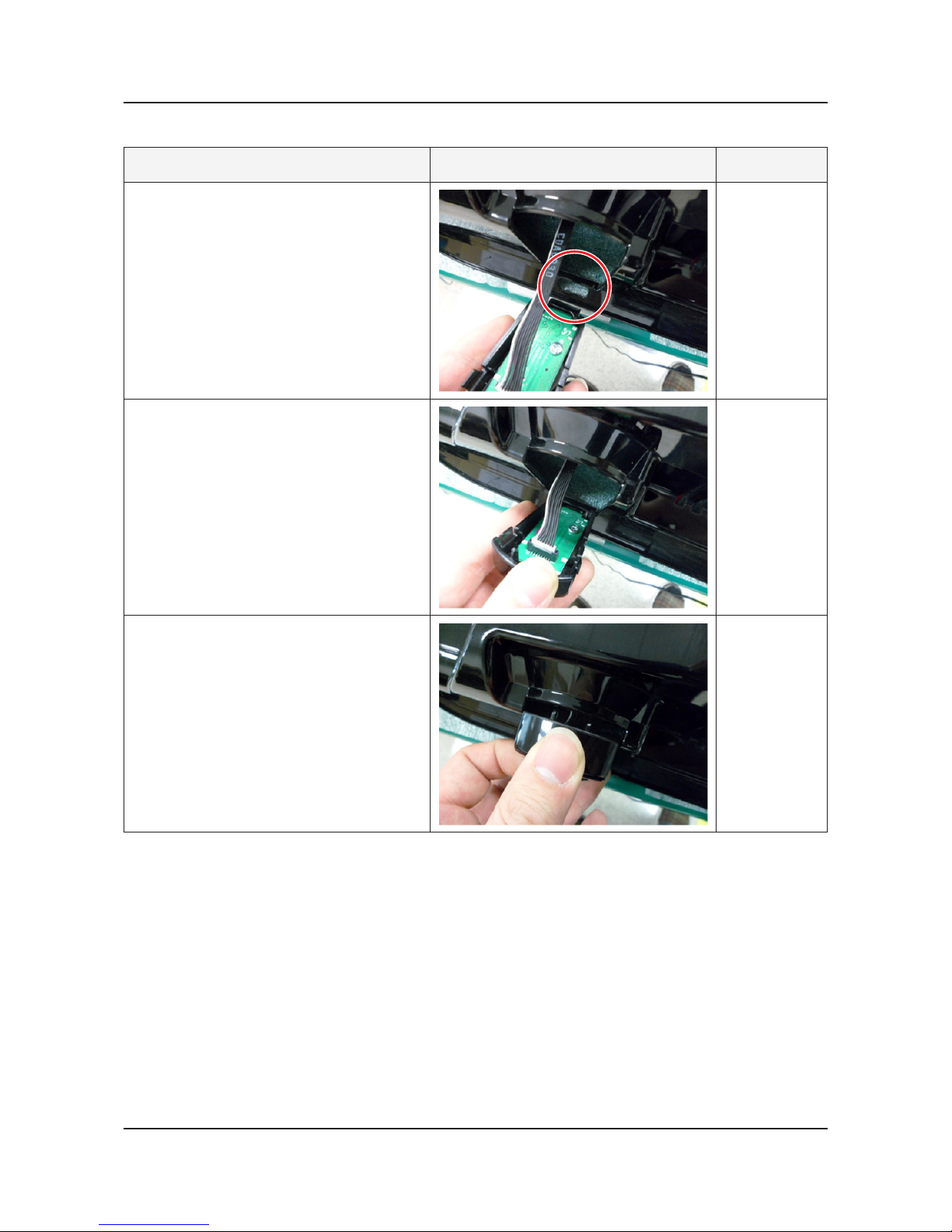

How to assembly
Description Picture Description Refer
1
Check the locking hole.
2
Combine the function assy to locking hole.
3
Press the function assy to TV.
Page 87
3-28
3. Disassembly and Reassemble

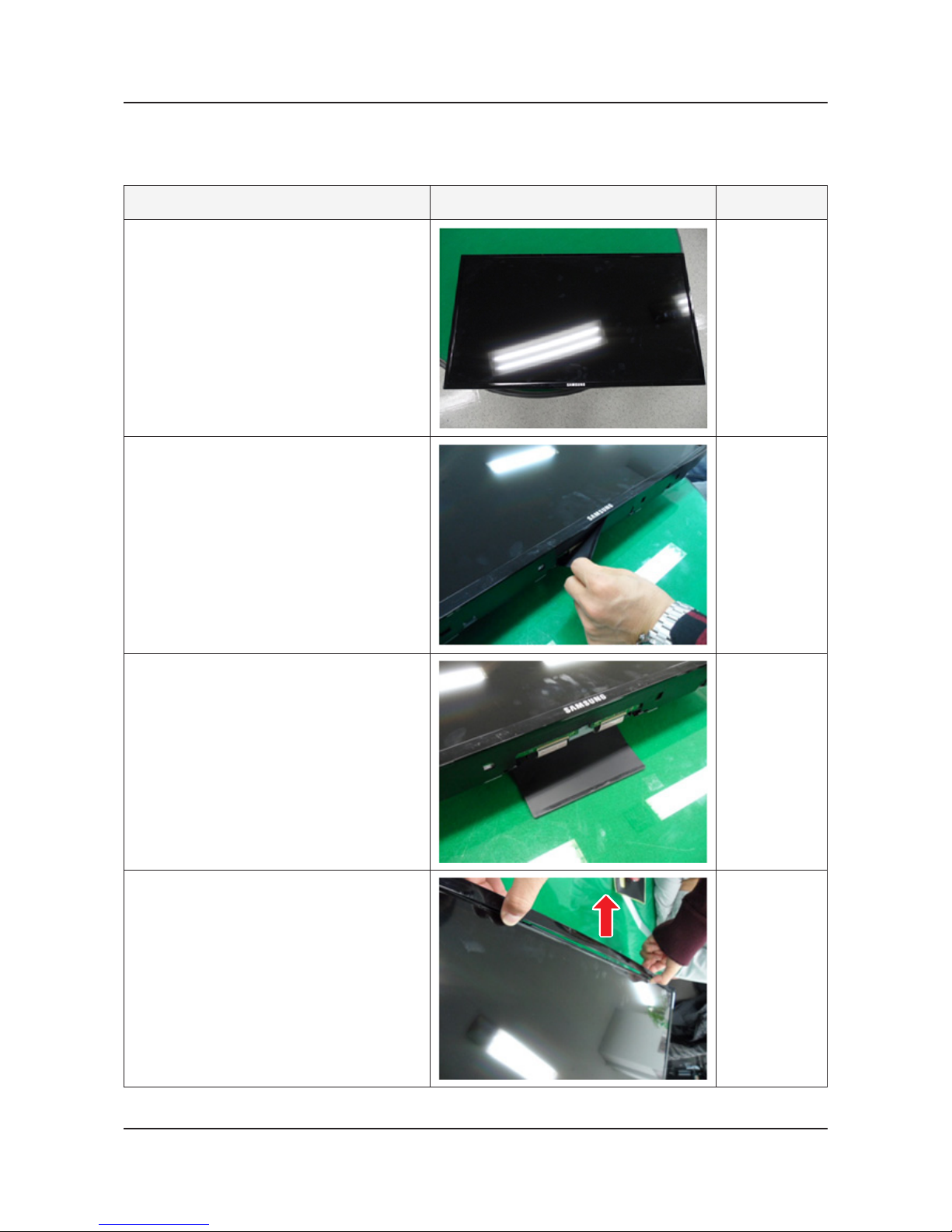

3-3. Disassembly(PTC)
How to disassembly_Direct LED Only (UE45**, UE53**, UE5450 Models)
Description Picture Description Refer
1
Place TV face up on cushioned table.
2
Remove the T-CON Cover.
3
First spread the PTC Upper
Page 88
3-29
3. Disassembly and Reassemble
Description Picture Description Refer

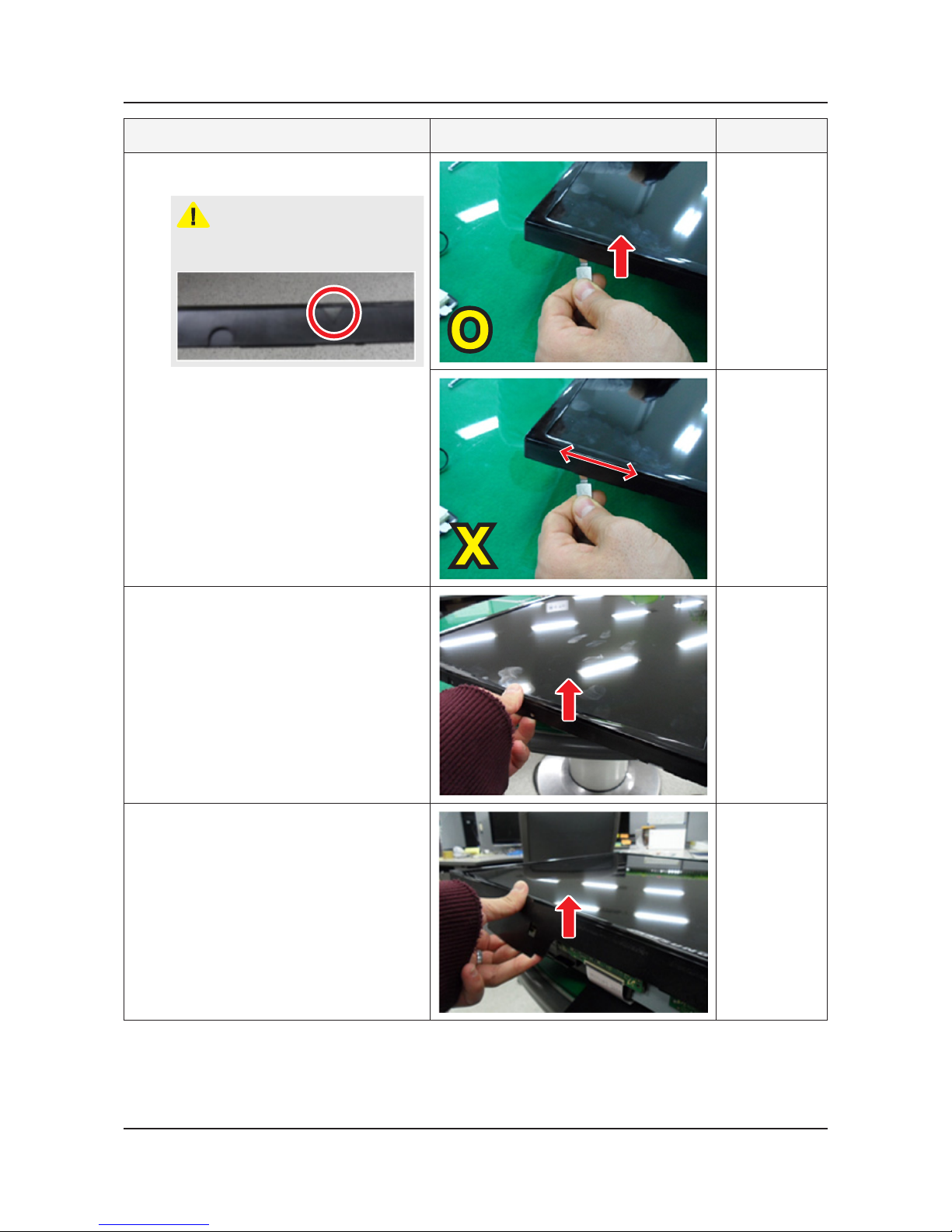

4
Spread the both sides of PTC upper
(marked"▼")byusethetool.
CAUTION
Do not scratch on both side by use tool.
Gate Cof will be damaged.
5
Apart left and right sides of PTC.
6
Raise up the PTC bottom.
Page 89
3-30
3. Disassembly and Reassemble
Description Picture Description Refer

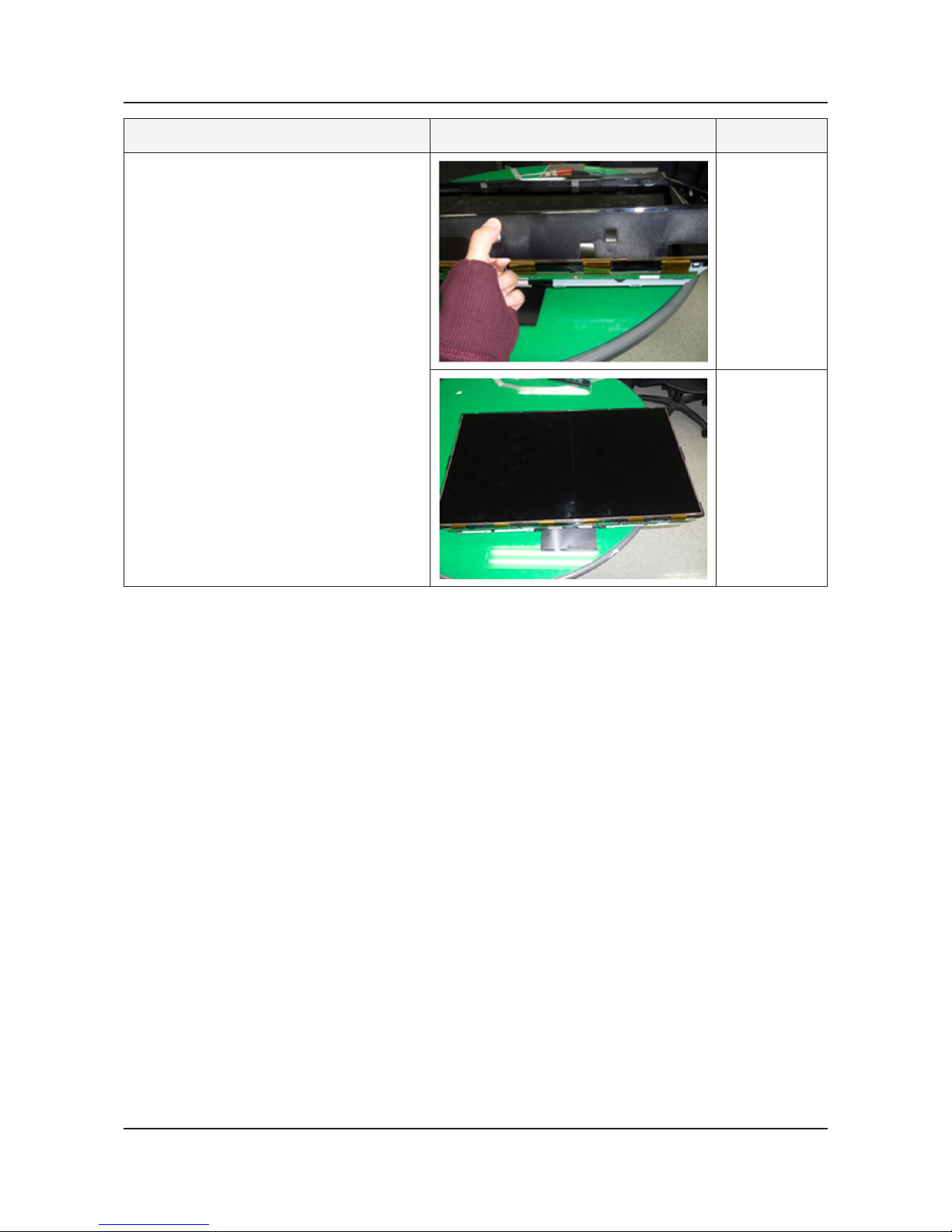

7
Disassembly is complete.
Page 90
3-31
3. Disassembly and Reassemble

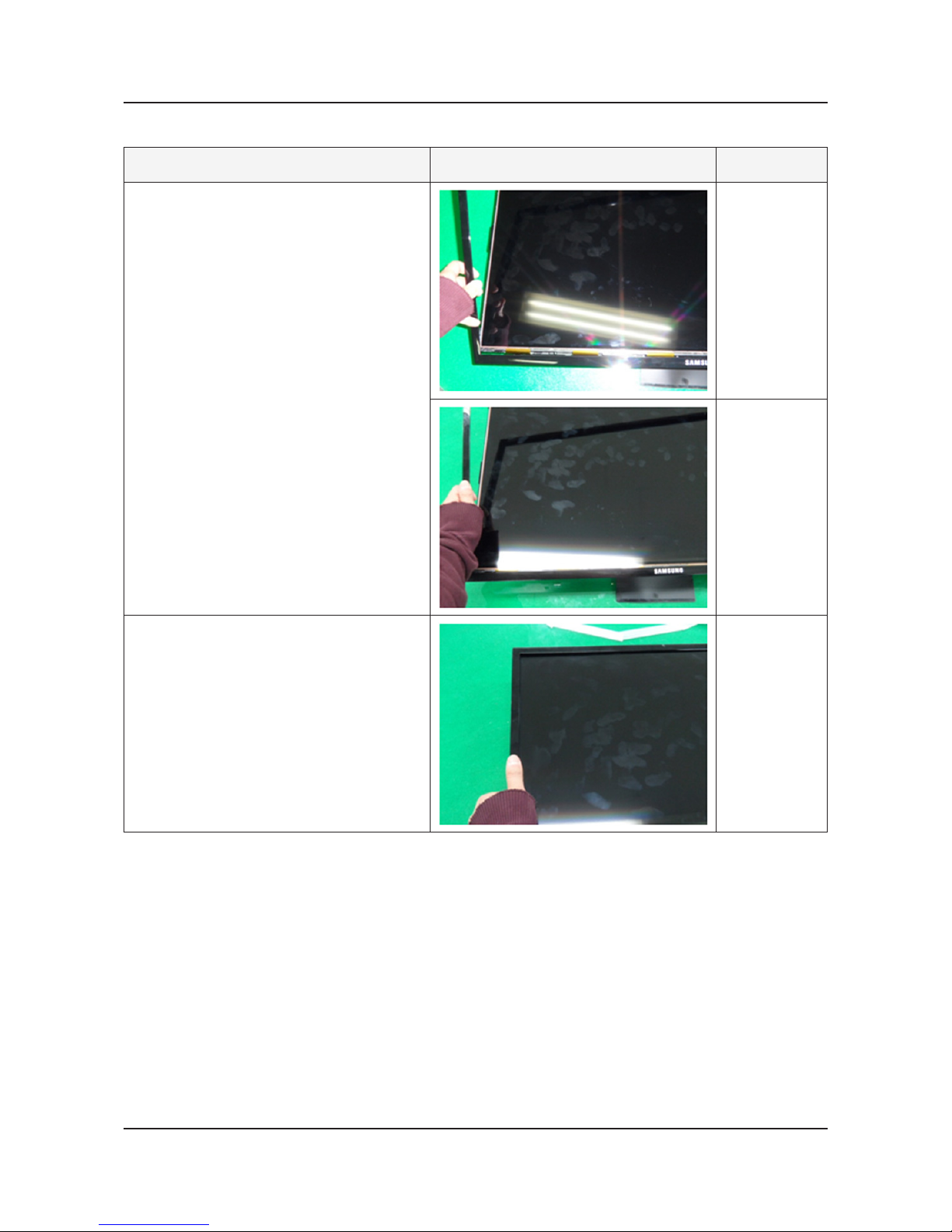

How to reassembly
Description Picture Description Refer
1
Cover the PTC bottom.
2
Combine the hook of left and right side.
Page 91
3-32
3. Disassembly and Reassemble
Description Picture Description Refer

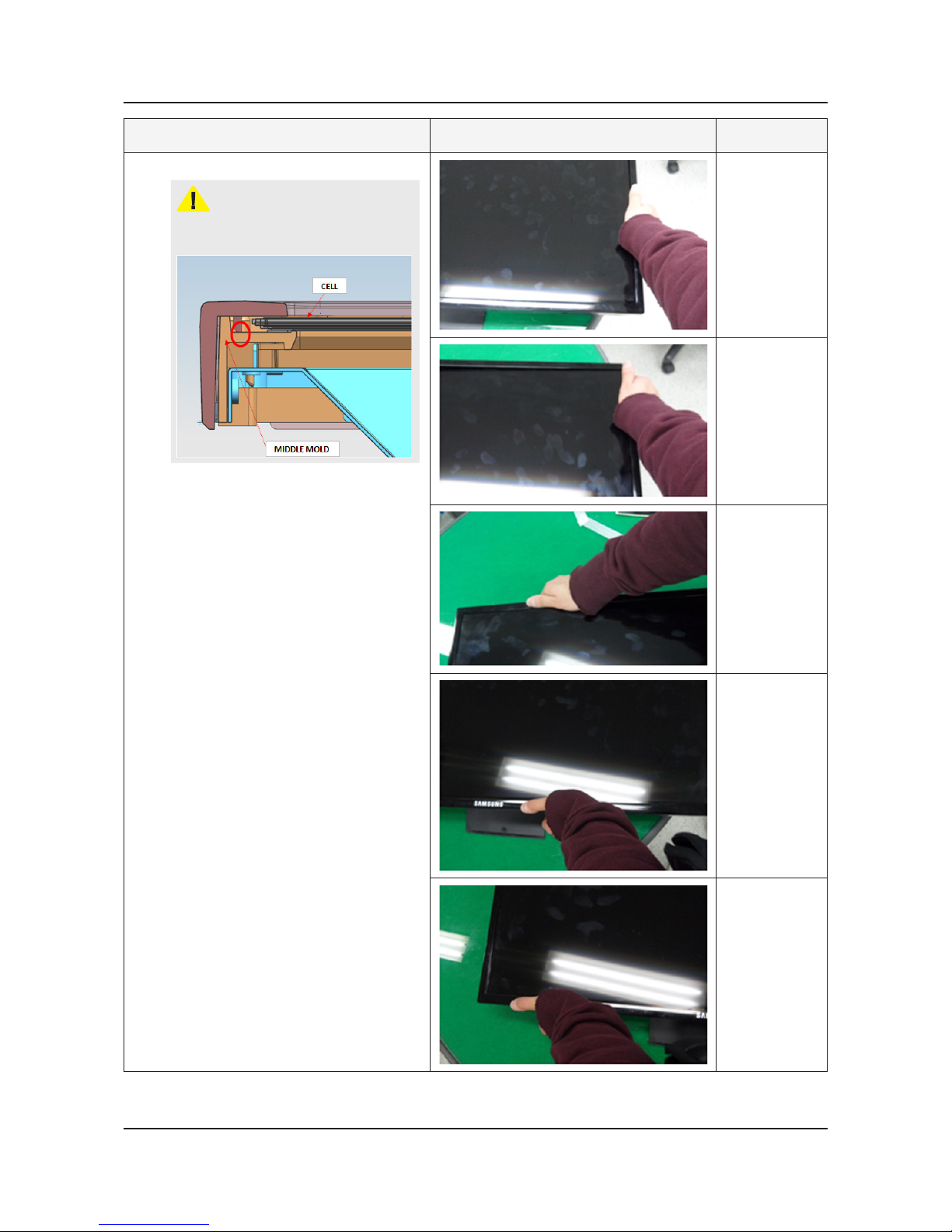

3
Check to combine the top and bottom.
CAUTION
Combine to stick the PTC Rib into the
middle mold.
Page 92
3-33
3. Disassembly and Reassemble
Description Picture Description Refer
4
Assembly is complete.
Page 93

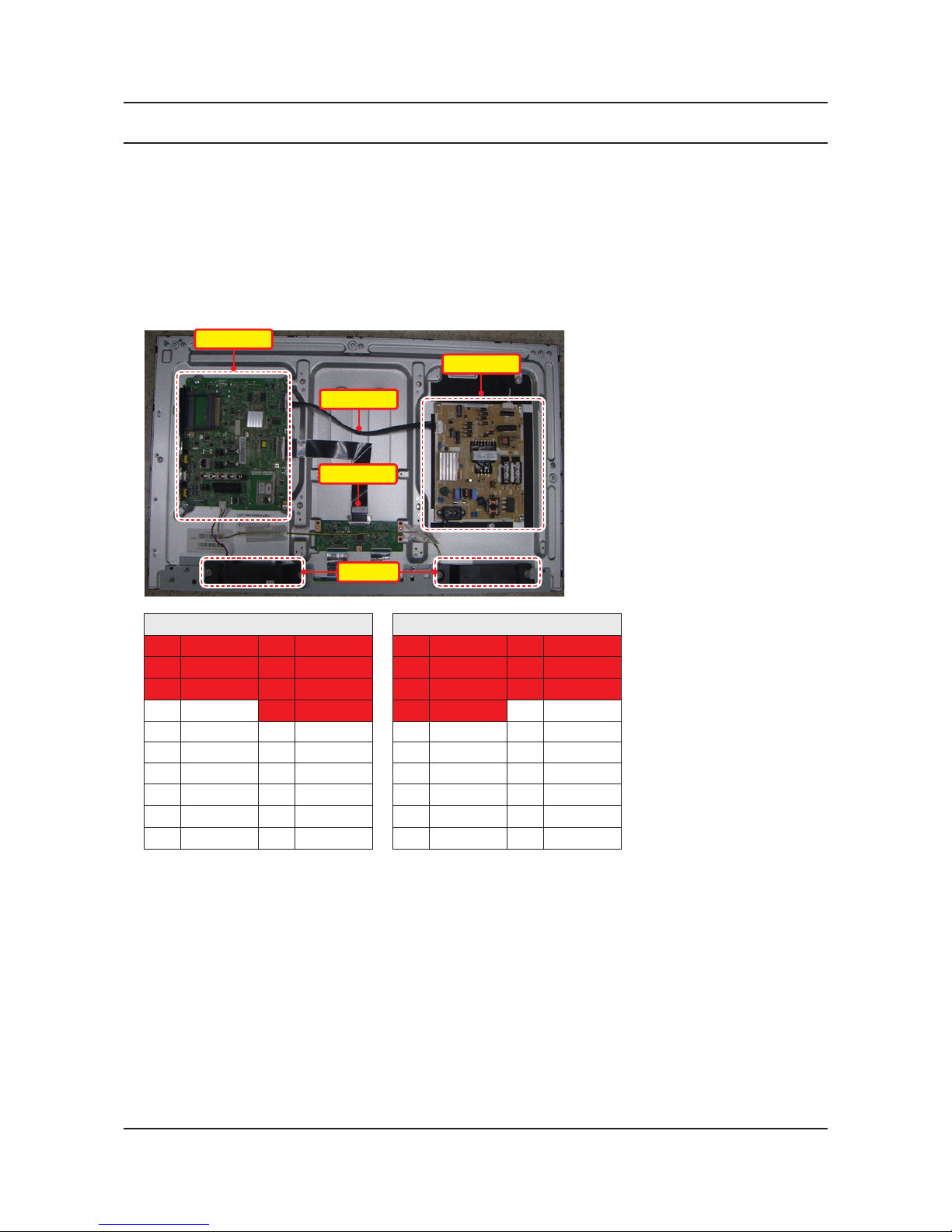

Previous Check
Check the various cable connections rst.1.
Check to see if there is a burnt or damaged cable. -
Check to see if there is a disconnected or loose cable connection. -
Check to see if the cables are connected according to the connection diagram. -
Check the power input to the Main Board.2.
14P Cable
LVDS Cable
Speaker
Power Ass’y
Main Ass’y
Main Board Assy (CN201)
19 N.C 20 N.C
17 N.C 18 N.C
15 N.C 16 N.C
13 B13V
14 N.C
11 B13V 12 B13V
9 B12VS 10 B5.3V
7 B12VS 8 GND
5 GND 6 GND
3 B5.3V 4 A5.3V
1 B5.3V 2 A3.3V
Power Board Assy (CNM803)
20 N.C 19 N.C
18 N.C 17 N.C
16 N.C 15 N.C
14 N.C
13 B13V
12 B13V 11 B13V
10 B5.3V 9 B12VS
8
GND
7
B12VS
6 GND 5 GND
4 A5.3V 3 B5.3V
2 A3.3V 1 B5.3V
* Pin Map (Series5 use the 14P / Series6 use the 20P)
Check the power in & output between IP & Main Board, Main Board & Panel, IP & Panel.3.
4. Troubleshooting
4-1. Troubleshooting
4-1
4. Troubleshooting
Page 94
How to know it is from Main Board or T-Con when some problems happen
No Picture : Backlight is on, but there is no picture and LED indicator in front of TV is blinking.1.
Check the LVDS Cable connection. If still problems, change the T-Con Board and then Main Board step by step. -
Picture distortion : Enter the service mode 2. ⇢ Choose ‘SVC’ ⇢ Check the ‘internal pattern.’
Enter ‘Service Mode.’ -
If you do not have Factory remote control•
Power OFF Info MENU Mute Power On
If you have Factory remote control•
INFO Factory
Choose ‘SVC.’3.
Choose ‘Test pattern.’4.
Select the each pattern and then check all pattern is ok or not.5.
Option
Control
SVC
Expert
ADC/WB
Advanced
Test Pattern Mstar Test Pattern
Pattern Status is Change the Test Pattern is made by the MSTAR IC
OK Main Board We guess front of MSTAR IC has problem.
NG Panel and T-Con Board We guess back of MSATR IC has problem.
4-2
4. Troubleshooting
Page 95

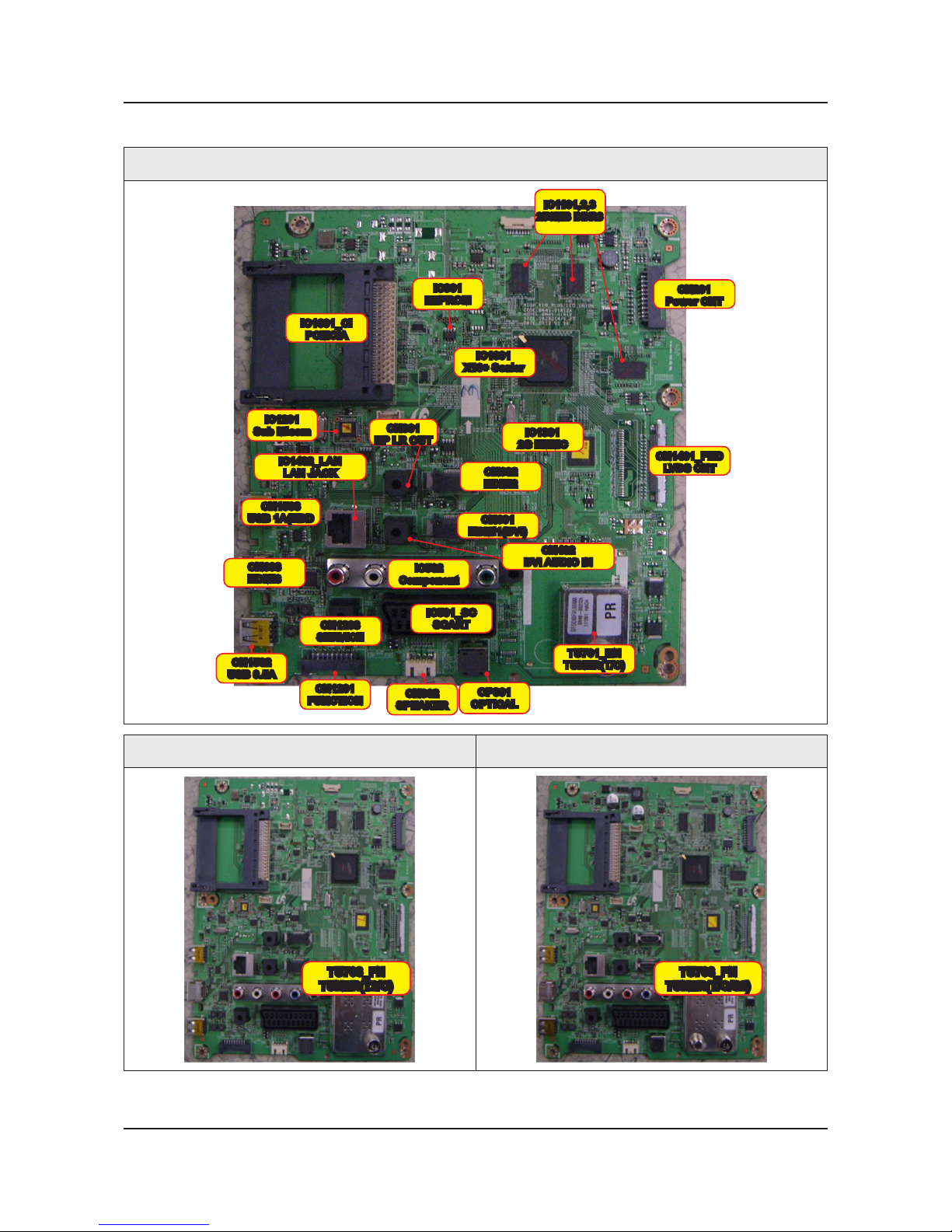

Location of Parts
Main Board_Front
TU701_HN
TUNER(T/C)
IC501_SC
SCART
CN1203
SERVICE
CN602
HDMI2
IC1301
2G EMMC
CN601
HDMI1(DVI)
IC502
Component
IC1001
X10+ Scaler
IC1601_CI
PCMCIA
CN1401_FHD
LVDS CNT
CN201
Power CNT
CN603
HDMI3
CN1503
USB 1A(HDD
OP301
OPTICAL
CN302
SPEAKER
CN1201
FUNCTION
CN1502
USB 0.5A
IC1402_LAN
LAN JACK
CN301
HP LR OUT
CN402
DVI AUDIO IN
IC1201
Sub Micom
IC901
EEPROM
IC1101,2,3
256MB DDR3
DVB-T2/C Main Board DVB-T/C/S2 Main Board
TU703_FN
TUNER(T2/C)
TU703_FN
TUNER(T/C/S2)
* SMPS and Power Board are used to same mearning
4-3
4. Troubleshooting
Page 96
4-2. How to Check Fault Symptom
NO Power
*Refer to the next page to check the location such a CN201 or IC1001 SVC Manual mentioned.
Symptom
The LEDs on The front panel do not work when connecting The power cord.•
The SMPS relay does not work when connecting The power cord.•
The units appears to be dead.•
Major
checkpoints
The SMPS relay or the LEDs on the front panel does not work when connecting the power cord if the cables are
improperly connected or the Main Board or SMPS is not functioning. In this case, check the following:
Check the internal cable connection status inside the unit.•
Check the fuses of each part.•
Check the output voltage of SMPS.•
Replace the Main Board.•
Diagnostics
Power indicator LED is on?
No
Check a connetion power code.
Yes
Check ‘Stand-By A5.3V’ 5.3V appear at
BD207?
0V to 5.3V (CN201 #4)
No
Change the Power cable.
Change SMPS.
Yes
Set On.
Yes
Check ‘SW_POWER’ more than 3.3V
appear at CN201(#2) ?
0V to 3.3V↑ (CN201 #2)
No
Cause : Main IC(X10+) did not control
the SW_Power.
Measure : Change the Main Assy.
Yes
Check ‘Power input of Main Ass’y’ ?
DC B13V, B5.3V appear at CN201
#11,12,13(B13V) CN201 #1,3 (B5.3V)?
0V to 13V (CN201 #11,12,13)0V to 5.3V
(CN201 #1,3)
No
Cause : There did not supply the
power from SMPS.
Measure : Change 20p/14p power
cable and SMPS.
Yes
Check ‘Power IC output of Main Ass’y’ ?
L202 : B3.3V / L203 : B1.15V
L201 : B5V / IC208 : 3.3V
No
Cause : There is problem at DCDC/
LDO.
Measure : Change the Main Board.
Yes
Check ‘Power of LVDS (13V)’ appear at
TP-PANEL_VCC?
0V to 13V (TP-PANEL_VCC)
No
Cause : There is proble at FET(Q201)
or Main IC(X9) did not control
the SW_PVCC.
Measure : Change the Main Board..
4-4
4. Troubleshooting
Page 97
Yes
Please, Contact tech support.
Caution Make sure to disconnect the power before working on the IP board.
4-5
4. Troubleshooting
Page 98

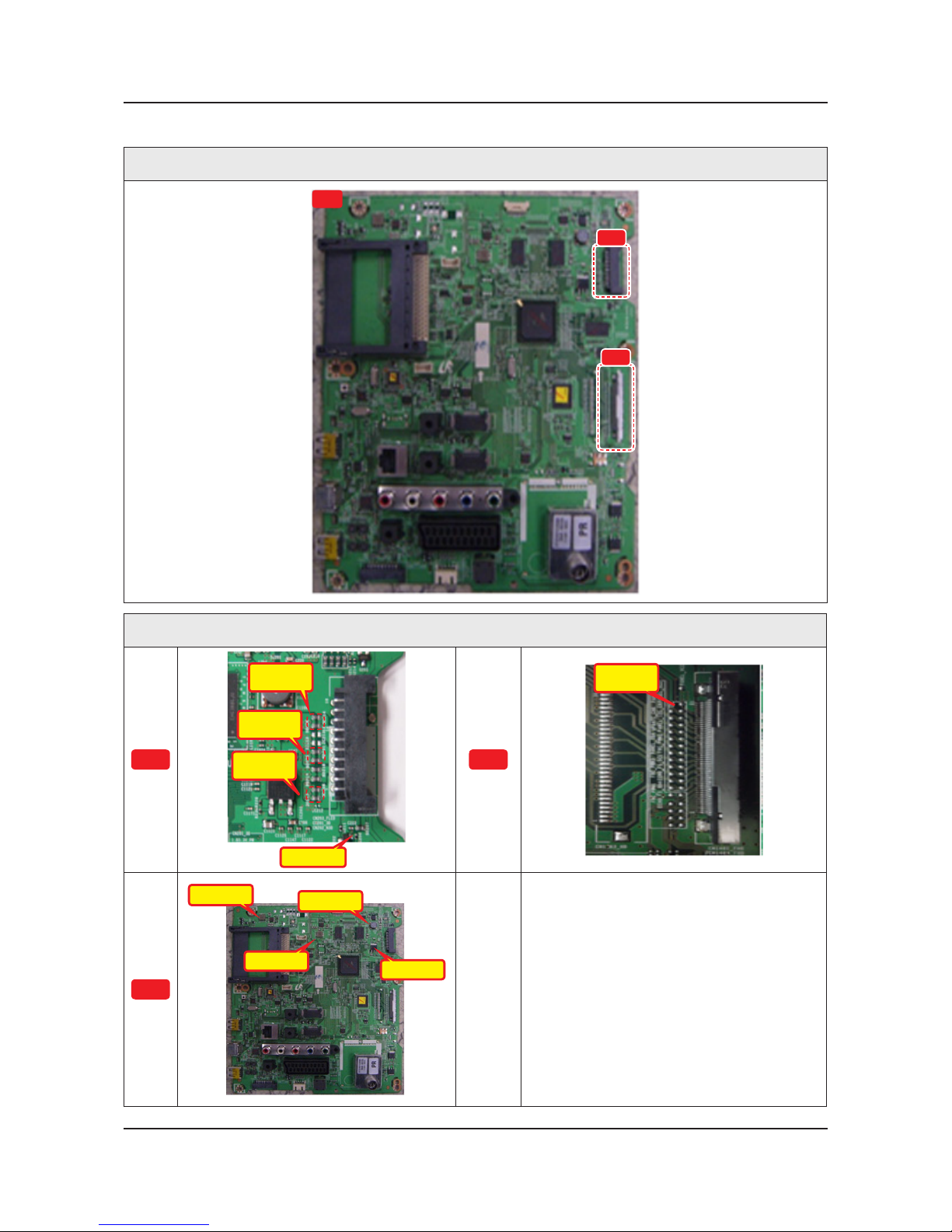

Location of Parts
Main Board_Front
A
C
B
Detail
A
BD214 : B13V
BD209
BD206 : B12V
BD201
BD213 : B5.3V
BD208
BD207 : A5.3V
c
PANEL_VCC
Pin #51
B
L201 : B5V
L203 : B3.3V
L202 : B1.15V
BD211 : B1.5V
4-6
4. Troubleshooting
Page 99
No Video (HDMI 1, 2, 3 - Digital Signal)
*Refer to the next page to check the lacation such a CN201 or IC1001 SVC Manual mentioned.
Symptom Audio is normal but no picture is displayed on the screen.•
Major
checkpoints
Check the HDMI source.•
Check the HDMI switch.•
This may happen when the LVDS cable connecting the Main Board and the Panel is •
disconnected.
Diagnostics
Power indicator LED is off.
Lamp(Backlight) on, no video ?
No
Check a set in the ‘Stand-by mode’.
Yes
Check the HDMI source and check the
connection of HDMI cable ?
No
Input the HDMI signal properly.
Yes
1
Check the signal at Input of Main board ?
No
Check CN601~3.
Check HDMI cable.
Change the Main Board.
Yes
2
Check the LVDS clk signal at output of
Main board.(TX)
ODD_TXCLK- / ODD_TXCLK+
EVEN_TXCLK- / EVEN_TXCLK+
No
Check IC1001(X10+).
Change the Main Board.
Yes
Check the LVDS cable?
Replace the T-con / LCD panel?
No
Please, Contact Tech support.
Caution Make sure to disconnect the power before working on the Power board.
4-7
4. Troubleshooting
Page 100

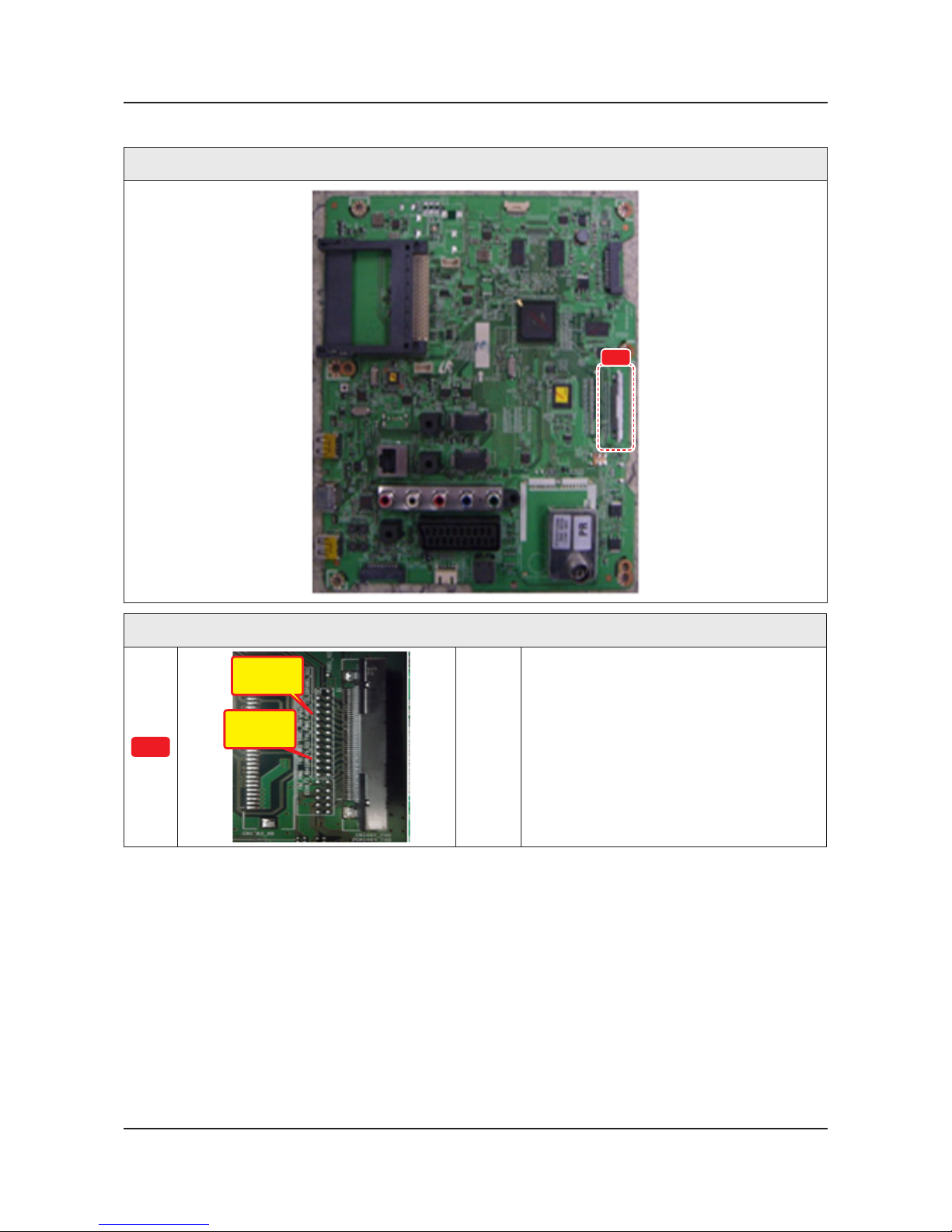

Location of Parts
Main Board_Front
A
Detail
A
ODD_TXCLK-
ODD_TXCLK+Pin
#34, 35
EVEN_TXCLKEVEN_TXCLK+
PIn #19, 20
4-8
4. Troubleshooting
Loading...
