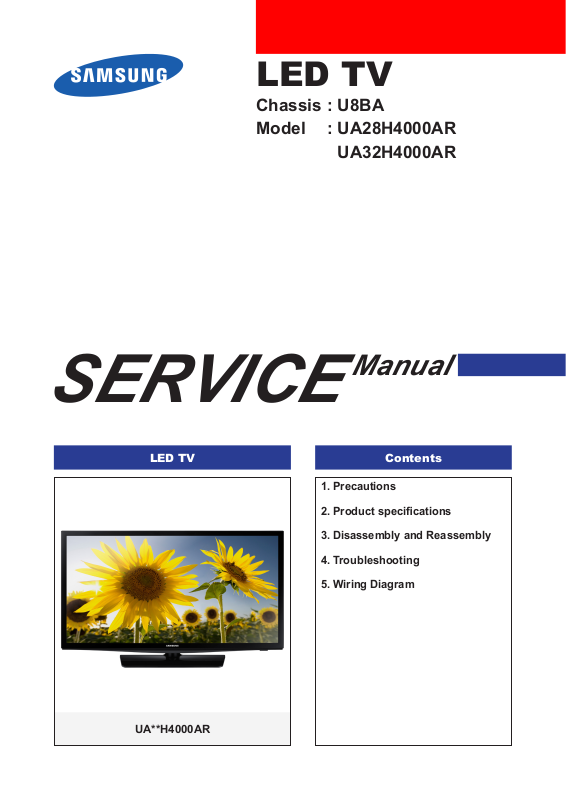

Samsung UA28H4000AR, UA32H4000AR Schematic
LED TV
Chassis : U8BA
Model : UA28H4000AR
UA32H4000AR
SERVICE
LED TV Contents
1. Precautions
2. Product specications
3. Disassembly and Reassembly
4. Troubleshooting
5. Wiring Diagram
Manual
UA**H4000AR
Contents
1. Precautions ...................................................................................................................1-1
1-1. Safety Precautions ..............................................................................................................1-1
1-1-1. Warnings ...................................................................................................................1-1
1-1-2. Servicing the LED TV ...............................................................................................1-1
1-1-3. Fire and Shock Hazard .............................................................................................1-1
1-1-4. Product Safety Notices .............................................................................................1-2
1-2. Servicing Precautions ..........................................................................................................1-3
1-2-1. General Servicing Precautions ................................................................................. 1-3
1-3. Static Electricity Precautions ...............................................................................................1-4
1-4. Installation Precautions .......................................................................................................1-5
2. Product Specications.................................................................................................2-1
2-1. Product information .............................................................................................................2-1
2-2. Product specication ...........................................................................................................2-2
2-2-1. Detailed Specications ............................................................................................. 2-2
2-2-2. Feature & Specications ........................................................................................... 2-4
2-3. Accessories ........................................................................................................................2-5
3. Disassembly and Reassembly ....................................................................................3-1
3-1. Disassembly and Reassembly ............................................................................................3-1
3-2. Assy Board P-Jog Switch & Ir ..............................................................................................3-4
3-3. Disassembly(PTC) ...............................................................................................................3-5
4. Troubleshooting ...........................................................................................................4-1
4-1. Troubleshooting ...................................................................................................................4-1
4-2. How to Check Fault Symptom .............................................................................................4-4
4-2-1.No Power and No Video ............................................................................................ 4-4
4-3. Factory Mode Adjustments ..................................................................................................4-8
4-3-1. Detail Factory Option ................................................................................................4-8
4-3-2. Entering Factory Mode ............................................................................................. 4-9
4-4. White Balance ...................................................................................................................4-11
4-4-1. Adjustment .............................................................................................................. 4-11
4-5. White Ratio (Balance) Adjustment .....................................................................................4-12
4-6. Software Upgrade ..............................................................................................................4-14
4-6-1. How to Check the Software Version .......................................................................4-14
4-6-2. How to Upgade Software and Micom ..................................................................... 4-15
5. Wiring Diagram .............................................................................................................5-1
5-1. Wiring Diagram ....................................................................................................................5-1
5-2. Connector ............................................................................................................................5-2
5-3. Connector Functions ...........................................................................................................5-4
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
© 2014 Samsung Electronics Co.,Ltd.
All rights reserved.
Printed in Korea
1. Precautions
1. Precautions
1-1. Safety Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1-1. Warnings
For continued safety, do not attempt to modify the circuit board.
WARNING
1-1-2. Servicing the LED TV
When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.
It is essential that service technicians have an accurate voltage meter available at all times. Check the calibration of this 2.
meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the monitor to the user, perform the following safety checks:
Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the 1.
chassis and other metal parts in the monitor.
Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and 2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.
Leakage Current Hot Check:3.
Disconnect the AC power and DC power jack before servicing.
(READING SHOULD)
DEVICE
UNDER
TEST
ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
NOT BE ABOVE 0.5mA
2-WIRE CORD
TEST ALL
EXPOSED METAL
SURFACES
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards
WARNING
Institute (ANSI C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL
Publication UL1410, 59.7).
With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch rst 4.
in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit, etc.)
and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1
1-2
1. Precautions
1-1-4. Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identied by on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics as the recommended replacement part might create
shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever
appropriate.
1-3
1. Precautions
1-2. Servicing Precautions
An electrolytic capacitor installed with the wrong polarity might explode.
WARNING
Before servicing units covered by this service manual, read and follow the Safety Precautions section of
CAUTION
NOTE
1-2-1. General Servicing Precautions
Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before 1.
attempting to: (a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect
a test component in parallel with an electrolytic capacitor.
Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes used. 2.
The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such elements
to their original position.
After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that 3.
the area around the serviced part has not been damaged.
Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, input 4.
terminals and earphone jacks).
Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. Connect 5.
an insulation resistance meter (500 V) to theblades of the AC plug. The insulation resistance between each blade of the
AC plug and accessible conductive parts (see above) should be greater than 1 megohm.
Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; 6.
always remove the instrument’s ground lead last.
this manual.
If unforeseen circumstances create conict between the following servicing precautions and any of the
safety precautions, always follow the safety precautions.
1-4
1. Precautions
1-3. Static Electricity Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly
called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect
transistors. The following techniques will reduce the incidence of component damage caused by static electricity.
Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your 1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the monitor.
After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent 2.
accumulation of an electrostatic charge.
Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.
Use only a grounded-tip soldering iron to solder or desolder ESDs.4.
Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.
Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs 6.
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.
Immediately before removing the protective material from the leads of a replacement ESD, touch the protective material 7.
to the chassis or circuit assembly into which the device will be installed.
Be sure no power is applied to the chassis or circuit and observe all other safety precautions.
CAUTION
Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, or 8.
lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.
1-5
1. Precautions
1-4. Installation Precautions
For safety reasons, more than a people are required for carrying the product.1.
Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.
Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal temperature 3.
may cause re.
Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed 4.
to moisture. Otherwise, it may cause a re or electric shock.
Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check 5.
the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric
shock.
Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6.
antenna falling over may cause re or electric shock.
When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes. 7.
A rise in temperature within the product may cause re.
If an equipment is provided with a replaceable battery, and if replacement by an incorrect type could result in an 8.
explosion (for example, with some lithium batteries), the following applies:
Risk of explosion if battery is replaced by an incorrect type dispose of used batteries according to •
the instructions.
Do not dispose of batteries in a re.•
Do not short circuit, disassemble or overheat the batteries.•
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent •
type.
Do not be exposed to excessive heat such as sunshine, re or the like.•
2. Product Specications
2-1. Product information
Model UA**H4000AR
2. Product specications
W
Front View
Detail View
Front Color Black
28"
Dimensions
(W x H x D)
32"
28"
Weight
32"
With Stand 643.4 x 435.0 x 203.2 mm / 25.3 x 17.1 x 8.0 inches
Without Stand 643.4 x 396.5 x 62.9 mm / 25.3 x 15.6 x 2.5 inches
With Stand 736.1 x 485.5 x 203.2 mm / 29.0 x 19.1 x 8.0 inches
Without Stand 736.1 x 447.4 x 62.9 mm / 29.0 x 17.6 x 2.5 inches
With Stand 4.0 kg / 8.8 lbs
Without Stand 3.7 kg / 8.2 lbs
With Stand 5.3 kg / 11.7 lbs
Without Stand 4.8 kg / 10.6 lbs
H
* W : Width H : High D : Depth
D
Panel Type Anti Glare
Internal Memory 64Mbtye
DDR None
Feature Media Play(Movie) / Sports mode
2-1
2-2
2. Product specications
2-2. Product specication
2-2-1. Detailed Specications
NOTE
Design and specications are subject to change without prior notice.
Item UA**H4000ARMXL
General Information
Display
Video
Audio
Tuner/Broadcasting
Product LED
Series 4
Country INDIA
Screen Size 28" 32"
Resolution 1,366 x 768
Ultra Clear Panel Yes
Picture Engine HyperReal Engine
Clear Motion Rate 100
Wide Color Enhancer (Plus) N/A Yes
Film Mode Yes
Dolby MS10 / MS110
DTS Studio Sound / DNSe+ DTS Studio Sound
DTS Premium Sound / DTS Premium
Sound 5.1
Auto Volume Leveler Yes
Sound Output (RMS) 10W x 2
Speaker Type Down Firing + Full Range
DTV Tuner Ready
Dolby Digital Plus /
Dolby AAC
32" : -
DTS 2.0
Connectivity
Design
Additional Feature
Analog Tuner Yes
HDMI 2
USB 1
Component In (Y/Pb/Pr) 1
Composite In (AV) 1 (Common Use for Component Y)
Audio Out (Mini Jack) Yes
RF In (Terrestrial / Cable input) 1
Bezel Type NNB
Front Color BLACK
Stand Type Round
Digital Clean View Yes
Auto Channel Search Yes 32" : -
ConnectShare™ (USB 2.0) Movie
2-3
2. Product specications
Item UA**H4000ARMXL
Additional Feature
Accessory
Sports Mode Basic
Embeded POP Yes
OSD Language English
Teletext (TTXT) Yes
Triple Protector Yes
Remote Controller Model TM1240A
Batteries (for Remote Control) Yes
Mini Wall Mount Supported Yes 32" : -
Vesa Wall Mount Supported Yes 32" : -
User Manual Yes
Power Cable Yes
2-4
2. Product specications
2-2-2. Feature & Specications
Feature
RF, 2-HDMI, 1-Component, 1-A/V(Africa model:2-A/V), 2-USB2.0 (1-USB2.0 : H4000 model), 1 Audio Out•
Brightness : 250 cd/m•
Response Time : 8 ms•
Specications
Screen Size (Diagonal) 32 inches
LCD Panel HD 60Hz
Display Colors 16.7M color
Display Resolution 1,366 x 768
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
2
Model UA32H4000AR
Item Description
Maximum Pixel Clock Rate 78MHz
AC Power Voltage & Frequency AC220-240V 50/60Hz
Sound (Output) 20W (10W X 2)
Loading...
