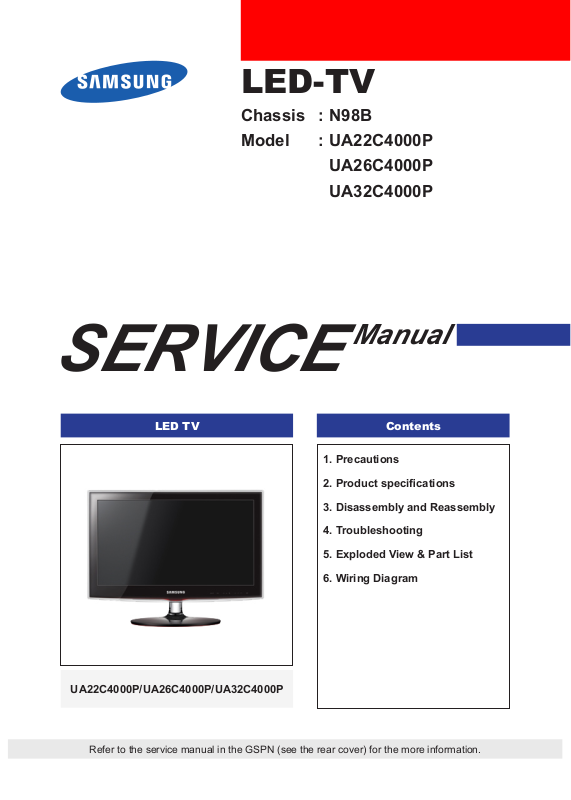

Samsung UA22C4000P Schematic
LED-TV
Chassis : N98B
Model : UA22C4000P
UA26C4000P
UA32C4000P
Manual
SERVICE
LED TV Contents
1. Precautions
2. Product specications
3. Disassembly and Reassembly
4. Troubleshooting
5. Exploded View & Part List
6. Wiring Diagram
UA22C4000P/UA26C4000P/UA32C4000P
Refer to the service manual in the GSPN (see the rear cover) for the more information.
Contents
1. Precautions .............................................................................................................. 1-1
1-1. Safety Precautions ......................................................................................................... 1-1
1-2. Servicing Precautions ..................................................................................................... 1-2
1-3. Electrostatically Sensitive Devices (ESD) Precautions .................................................. 1-2
1-4. Installation Precautions .................................................................................................. 1-3
2. Product specications ............................................................................................ 2-1
2-1. Feature & Specications ................................................................................................. 2-1
2-2. Specication Comparison to Old Models ........................................................................2-4
2-3. Detail Factory Option ...................................................................................................... 2-5
2-4. Accessories .................................................................................................................. 2-13
2-5. Media Play .................................................................................................................... 2-14
3. Disassembly and Reassembly ............................................................................... 3-1
3-1. Disassembly and Reassembly ....................................................................................... 3-1
4. Troubleshooting ...................................................................................................... 4-1
4-1. Troubleshooting .............................................................................................................. 4-1
4-2. Alignments and Adjustments ........................................................................................ 4-22
4-3. Factory Mode Adjustments ........................................................................................... 4-23
4-4. White Balance - Calibration .......................................................................................... 4-31
4-5. White Ratio (Balance) Adjustment ................................................................................4-31
4-6. Servicing Information .................................................................................................... 4-32
5. Exploded View & Part List ...................................................................................... 5-1
5-1. UA22C4000P Exploded View ......................................................................................... 5-1
5-2. UA22C4000P Parts List .................................................................................................. 5-3
5-3. UA26C4000P Exploded View ......................................................................................... 5-5
5-4. UA26C4000P Parts List .................................................................................................. 5-7
5-5. UA32C4000P Exploded View ......................................................................................... 5-9
5-6. UA32C4000P Parts List ................................................................................................ 5-11
6. Wiring Diagram ........................................................................................................ 6-1
6-1. Wiring Diagram ............................................................................................................... 6-1
6-2. Connector ....................................................................................................................... 6-3
6-3. Connector Functions ...................................................................................................... 6-4
6-4. Cables ............................................................................................................................ 6-4
GSPN (Global Service Partner Network)
Area Web Site
North America http://service.samsungportal.com
Latin America http://latin.samsungportal.com
CIS http://cis.samsungportal.com
Europe http://europe.samsungportal.com
China http://china.samsungportal.com
Asia http://asia.samsungportal.com
Mideast & Africa http://mea.samsungportal.com
This Service Manual is a property of Samsung Electronics Co.,Ltd.
Any unauthorized use of Manual can be punished under applicable
International and/or domestic law.
© 2010 Samsung Electronics Co.,Ltd.
All rights reserved.
Printed in Korea
P/N: BN82-00858A-00
1. Precautions
1. Precautions
1-1. Safety Precautions
Follow these safety, servicing and ESD precautions to prevent damage and to protect against potential hazards such as
electrical shock.
1-1-1. Warnings
For continued safety, do not attempt to modify the circuit board.1.
Disconnect the AC power and DC power jack before servicing.2.
1-1-2. Servicing the LED TV
When servicing the LED TV, Disconnect the AC line cord from the AC outlet.1.
It is essential that service technicians have an accurate voltage meter available at all times. 2.
Check the calibration of this meter periodically.
1-1-3. Fire and Shock Hazard
Before returning the LED TV to the user, perform the following safety checks:
Inspect each lead dress to make certain that the leads are not pinched or that hardware is not lodged between the 1.
chassis and other metal parts in the LED TV.
Inspect all protective devices such as nonmetallic control knobs, insulating materials, cabinet backs, adjustment and 2.
compartment covers or shields, isolation resistorcapacitor networks, mechanical insulators, etc.
Leakage Current Hot Check (Figure 1-1): 3.
WARNING : Do not use an isolation transformer during this test.
Use a leakage current tester or a metering system that complies with American National Standards Institute (ANSI
C101.1, Leakage Current for Appliances), and Underwriters Laboratories (UL Publication UL1410, 59.7).
(READING SHOULD)
NOT BE ABOVE 0.5mA
DEVICE
UNDER
TEST
2-WIRE CORD
*ALSO TEST WITH
PLUG REVERSED
(USING AC ADAPTER
PLUG AS REQUIRED)
TEST ALL
EXPOSED METAL
SURFACES
LEAKAGE
CURRENT
TESTER
EARTH
GROUND
Figure 1-1. Leakage Current Test Circuit
With the unit completely reassembled, plug the AC line cord directly into a 120V AC outlet. With the unit’s AC switch 4.
rst in the ON position and then OFF, measure the current between a known earth ground (metal water pipe, conduit,
etc.) and all exposed metal parts, including: metal cabinets, screwheads and control shafts.
The current measured should not exceed 0.5 milliamp.
Reverse the power-plug prongs in the AC outlet and repeat the test.
1-1-4. Product Safety Notices
Some electrical and mechanical parts have special safetyrelated characteristics which are often not evident from visual
inspection. The protection they give may not be obtained by replacing them with components rated for higher voltage,
wattage, etc. Parts that have special safety characteristics are identied by on schematics and parts lists. A substitute
replacement that does not have the same safety characteristics as the recommended replacement part might create
shock, re and/or other hazards. Product safety is under review continuously and new instructions are issued whenever
appropriate.
1-1
1-2
1. Precautions
1-2. Servicing Precautions
WARNING: An electrolytic capacitor installed with the wrong polarity might explode.
Caution: Before servicing units covered by this service manual, read and follow the Safety Precautions section of
this manual.
Note: If unforeseen circumstances create conict between the following servicing precautions and any of the
safety precautions, always follow the safety precautions.
1-2-1 General Servicing Precautions
Always unplug the unit’s AC power cord from the AC power source and disconnect the DC Power Jack before 1.
attempting to:
(a) remove or reinstall any component or assembly, (b) disconnect PCB plugs or connectors, (c) connect a test
component in parallel with an electrolytic capacitor.
Some components are raised above the printed circuit board for safety. An insulation tube or tape is sometimes 2.
used. The internal wiring is sometimes clamped to prevent contact with thermally hot components. Reinstall all such
elements to their original position.
After servicing, always check that the screws, components and wiring have been correctly reinstalled. Make sure that 3.
the area around the serviced part has not been damaged.
Check the insulation between the blades of the AC plug and accessible conductive parts (examples: metal panels, 4.
input terminals and earphone jacks).
Insulation Checking Procedure: Disconnect the power cord from the AC source and turn the power switch ON. 5.
Connect an insulation resistance meter (500 V) to theblades of the AC plug.
The insulation resistance between each blade of the AC plug and accessible conductive parts (see above) should be
greater than 1 megohm.
Always connect a test instrument’s ground lead to the instrument chassis ground before connecting the positive lead; 6.
always remove the instrument’s ground lead last.
1-3. Electrostatically Sensitive Devices (ESD) Precautions
Some semiconductor (solid state) devices can be easily damaged by static electricity. Such components are commonly
called Electrostatically Sensitive Devices (ESD). Examples of typical ESD are integrated circuits and some eld-effect
transistors. The following techniques will reduce the incidence of component damage caused by static electricity.
Immediately before handling any semiconductor components or assemblies, drain the electrostatic charge from your 1.
body by touching a known earth ground. Alternatively, wear a discharging wrist-strap device. To avoid a shock hazard,
be sure to remove the wrist strap before applying power to the LED TV.
After removing an ESD-equipped assembly, place it on a conductive surface such as aluminum foil to prevent 2.
accumulation of an electrostatic charge.
Do not use freon-propelled chemicals. These can generate electrical charges sufcient to damage ESDs.3.
Use only a grounded-tip soldering iron to solder or desolder ESDs.4.
Use only an anti-static solder removal device. Some solder removal devices not classied as “anti-static” can generate 5.
electrical charges sufcient to damage ESDs.
Do not remove a replacement ESD from its protective package until you are ready to install it. Most replacement ESDs 6.
are packaged with leads that are electrically shorted together by conductive foam, aluminum foil or other conductive
materials.
Immediately before removing the protective material from the leads of a replacement ESD, touch the protective 7.
material to the chassis or circuit assembly into which the device will be installed.
Caution: Be sure no power is applied to the chassis or circuit and observe all other safety precautions.
Minimize body motions when handling unpackaged replacement ESDs. Motions such as brushing clothes together, 8.
or lifting your foot from a carpeted oor can generate enough static electricity to damage an ESD.
1-3
1. Precautions
1-4. Installation Precautions
For safety reasons, more than a people are required for carrying the product.1.
Keep the power cord away from any heat emitting devices, as a melted covering may cause re or electric shock.2.
Do not place the product in areas with poor ventilation such as a bookshelf or closet. The increased internal 3.
temperature may cause re.
Bend the external antenna cable when connecting it to the product. This is a measure to protect it from being exposed 4.
to moisture. Otherwise, it may cause a re or electric shock.
Make sure to turn the power off and unplug the power cord from the outlet before repositioning the product. Also check 5.
the antenna cable or the external connectors if they are fully unplugged. Damage to the cord may cause re or electric
shock.
Keep the antenna far away from any high-voltage cables and install it rmly. Contact with the highvoltage cable or the 6.
antenna falling over may cause re or electric shock.
When installing the product, leave enough space (0.4m) between the product and the wall for ventilation purposes. 7.
A rise in temperature within the product may cause re.
2. Product specications
2-1. Feature & Specications
Model UA22C4000P
Feature
RF, 1-HDMI, 1-Component, 1-A/V , 1-USB2.0, D-SUB, Optical, Headphone ሪ
Brightness : 400cd/m ሪ
Response Time : 4.5ms ሪ
Item Description
LCD Panel 22inch HD 50/60Hz
Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)
Display Colors 16.7M color
Maximum resolution Horizontal : 1366 Pixels
2
Specications
Vertical : 47 Hz ~ 63 Hz (Automatic)
Vertical : 768 pixels
2. Product specications
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate 74.25MHz
Active Display
Horizontal/Vertical
AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz
Power Consumption Under 60W (Under 0.3W, Stand by)
Dimensions
Set (W x D x H)
Weight 12.6 lbs(5.7kg)_with stand
TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)
Environmental Considerations Operating Temperature : 32˚F ~ 122˚F (0˚C ~ 50˚C)
18.80 x 10.57 inches(477.417(H) x 268.416(V) mm)
21.5 x 7.5 x 16.2 inches (545.2 x 189.5 x 411.1 mm)_with stand
21.5 x 1.2 x 14.1 inches (545.2 x 29.9 x 359.0 mm)_without stand
9.0 lbs(4.1kg)_without stand
System PAL, SECAM, NT4.43,NT3.58
Sound BG, DK, M, I
Operating Humidity : 10% ~ 90%
Storage temperature : -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity: 10% ~ 90%
Audio Spec. - MAX Internal Audio Output Power : Each 3W(Left/Right)
- Equalizer : 5band
- Output Frequency : RF : 20 Hz ~ 15.4 kHz
AV/Componet/HDMI : 20 Hz ~ 20 kHz
Note: Dolby Digital Plus/Pluse, Game Mode, Film Mode, Energy Saving, Anynet
+
2-1
2-2
2. Product specications
Model UA26C4000P
Feature
RF, 3-HDMI, 1-Component, 1-A/V , 1-USB2.0, D-SUB, Optical, Headphone ሪ
Brightness : 400 cd/m ሪ
2
Response Time : 4.5ms ሪ
Specications
Item Description
LCD Panel 26inch HD 50/60Hz
Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M color
Maximum resolution Horizontal : 1366 Pixels
Vertical : 768 pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate 74.25MHz
Active Display
Horizontal/Vertical
22.67 x 12.74 inches(575.769(H) x 323.712(V) mm)
AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz
Power Consumption Under 65W (Under 0.3W, Stand by)
Dimensions
Set (W x D x H)
25.7 x 8.7 x 18.9 inches (652.8 x 222.0 x 479.8 mm)_with stand
25.7 x 1.2 x 16.6 inches (652.8 x 29.9 x 422.8 mm)_without stand
Weight 21.4 lbs (9.7kg)_with stand
13.7 lbs (6.2kg)_without stand
TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)
System PAL, SECAM, NT4.43,NT3.58
Sound BG, DK, M, I
Environmental Considerations Operating Temperature : 32˚F ~ 122˚F (0˚C ~ 50˚C)
Operating Humidity : 10% ~ 90%
Storage temperature : -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity: 10% ~ 90%
Audio Spec. - MAX Internal Audio Output Power : Each 5W(Left/Right)
- Equalizer : 5band
- Output Frequency : RF : 20 Hz ~ 15.4 kHz
AV/Componet/HDMI : 20 Hz ~ 20 kHz
Note: Dolby Digital Plus/Pluse, Game Mode, Film Mode, Energy Saving, Anynet
+
2-3
2. Product specications
Model UA32C4000P
Feature
RF, 3-HDMI, 1-Component, 1-A/V , 1-USB2.0, D-SUB ሪ
Brightness : 400cd/m ሪ
2
Response Time : 4.5ms ሪ
Specications
Item Description
LCD Panel 32inch HD 50/60Hz
Scanning Frequency Horizontal : 60 kHz ~ 73 kHz (Automatic)
Vertical : 47 Hz ~ 63 Hz (Automatic)
Display Colors 16.7M color
Maximum resolution Horizontal : 1366 Pixels
Vertical : 768 pixels
Input Signal Analog 0.7 Vp-p ± 5% positive at 75Ω, internally terminated
Input Sync Signal H/V Separate, TTL, P. or N.
Maximum Pixel Clock rate 76MHz
Active Display
Horizontal/Vertical
28.91 x 16.94 inches (734.4 (H) x 430.3 (V) mm)
AC power voltage & Frequency AC 110V ~ 240V, 50/60Hz
Power Consumption Under 100W (Under 0.3W, Stand by)
Dimensions
Set (W x D x H)
774.6 x 549.1 x 255.0 mm _with stand
774.6 x 491.8 x 29.9 mm _without stand
Weight 9.2kg _with stand
8.4kg _without stand
TV System Tuning Frequency Synthesize (Refer to detailed Frequency Table)
System PAL, SECAM, NT4.43,NT3.58
Sound BG, DK, M, I
Environmental Considerations Operating Temperature : 32˚F ~ 122˚F (0˚C ~ 50˚C)
Operating Humidity : 10% ~ 90%
Storage temperature : -4˚F ~ 140˚F (-20˚C ~ 60˚C)
Storage Humidity: 10% ~ 90%
Audio Spec. - MAX Internal Audio Output Power : Each 10W(Left/Right)
- Equalizer : 5band
- Output Frequency : RF : 20 Hz ~ 15.4 kHz
AV/Componet/HDMI : 20 Hz ~ 20 kHz
Note: Dolby Digital Plus/Pluse, Game Mode, Film Mode, Energy Saving, Anynet
+
2-4
2. Product specications
2-2. Specication Comparison to Old Models
O : application, X : non-application ※
Model UC4Q(UA**C4000P) LB4B(LA**B450B1)
Design
Display Type LED TV LCD TV
Built-in Tuner O O
Resolution 1366 x 768 1366 x 768
LCD Panel TFT LED Panel 50/60Hz TFT LCD Panel 50/60Hz
Screen Size 22"/26"/32" 26"/32"/37"/40"
Picture ratio 16 : 9 16 : 9
22" 21.5 x 7.5 x 16.2 inches _with stand
Dimensions (W x H x D)
26" 25.7 x 8.7 x 18.9 inches _with stand
32" 30.5 x 10.0 x 21.6 inches _with stand
22" 4.1kg_with stand
Weight
26" 6.2kg_with stand
32" 9.2kg_with stand
Brightness 400 cd/m
2
26" 26.0 x 8.5 x 19.4 inches _with stand
32" 31.4 x 9.4 x 22.8 inches _with stand
26" 6.5kg_with stand
32" 11.4kg_with stand
500 cd/m
2
Picture Enhacer DNIe (SX1) DNIe (Lola3)
Equalizer 5 Band 5 Band
Auto Volume Control O O
Surround Sound Dolby Digital Plus/Pluse SRS TruSurround HD & Dolby Digital
Speaker Output 22" 3W / 26" 5W / 32" 10W 10W + 10W
PIP O O
Caption O O
Entertainment Mode X X
Game Mode O O
Energy Saving O O
+
Anynet
O O
Antenna 1 1
2-5
2. Product specications
2-3. Detail Factory Option
If you replace the main board with new one, please change the factory option as well. ※
The options you must change are “Type, "Local set" and "Front Color".
LC4000
Model Name UA22C4000P UA26C4000P UA32C4000P
Vendor CMO CMO CMO
Panel
SMPS IP Board (SEC) BN44-00347A BN44-00349A BN44-00349A
Byte Item
0 Factory Reset - - - -
1 Type 22A6AH0C 22P6TH0E 32P6AG0E
2 Local Set Depending on country Depending on country Depending on country
3 Model UC4000 UC4000 UC4000
4 Tuner DRXKSEMCO DRXKSEMCO DRXKSEMCO
5 DDR 0 0 0
6 Light Effect OFF OFF OFF
7 Ch Table Depending on country Depending on country Depending on country
8 Country … … …
9 Front Color T-R-BLK T-R-BLK T-R-BLK
CODE BN07-00865A BN07-00847A BN07-00848A
SPEC 22P6TH0E 26P6AH0E 32P6AG0E
CHASSIS ASS'Y - - -
PBA ASSY CODE - - -
2-6
2. Product specications
CHANNEL FREQUENCY TABLE
OUTPUT FREQUENCY : ANALOG fv:45.75MHz, fs:41.25MHz DIGITAL Fc:44MHz1.
TUNING STEP SIZE : FIRST PLL 250KHz SECOND PLL 62.5KHz2.
CH
Number
C00
C01
C02
C03
C04
C05
C06
C07
C08
C09
C10
C11
C12
C13
C14
C15
C16
C17
C18
C19
C20
C21
C22
C23
C24
C25
C26
C27
C28
C29
C30
C31
C32
C33
C34
C35
C36
C37
C38
C39
C40
C41
C42
C43
C44
C45
C46
C47
C48
C49
C50
C51
C52
C53
C54
C55
C56
C57
C58
C59
C60
ASIA
W/EUROPE
-
46.25
48.25
55.25
62.25
175.25
182.25
189.25
196.25
203.25
210.25
217.25
224.25
53.75
-
82.25
-
183.75
192.25
201.25
-
471.25
479.25
487.25
495.25
503.25
511.25
519.25
527.25
535.25
543.25
551.25
559.25
567.25
575.25
583.25
591.25
599.25
607.25
615.25
623.25
631.25
639.25
647.25
655.25
663.25
671.25
679.25
687.25
695.25
703.25
711.25
719.25
727.25
735.25
743.25
751.25
759.25
767.25
775.25
783.25
BAND
-
VHF
VHF
V-L
V-L
V-H
V-H
V-H
V-H
V-H
V-H
VHF
VHF
VHF
-
V-L
-
V-H
V-H
V-H
-
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
CIS
E/EUROPE
-
49.75
59.25
77.25
85.25
93.25
175.25
183.25
191.25
199.25
207.25
215.25
223.25
53.75
62.25
82.25
-
183.75
192.25
-
210.25
471.25
479.25
487.25
495.25
503.25
511.25
519.25
527.25
535.25
543.25
551.25
559.25
567.25
575.25
583.25
591.25
599.25
607.25
615.25
623.25
631.25
639.25
647.25
655.25
663.25
671.25
679.25
687.25
695.25
703.25
711.25
719.25
727.25
735.25
743.25
751.25
759.25
767.25
775.25
783.25
BAND
-
VHF
V-L
V-L
V-L
VHF
V-H
V-H
V-H
V-H
V-H
V-H
VHF
VHF
V-L
V-L
-
V-H
V-H
-
V-H
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
AREA
HONG
KONG U/K
-
49.75
59.25
77.25
85.25
93.25
175.25
183.25
191.25
199.25
207.25
215.25
223.25
45.75
53.75
61.75
-
95.75
-
201.25
-
471.25
479.25
487.25
495.25
503.25
511.25
519.25
527.25
535.25
543.25
551.25
559.25
567.25
575.25
583.25
591.25
599.25
607.25
615.25
623.25
631.25
639.25
647.25
655.25
663.25
671.25
679.25
687.25
695.25
703.25
711.25
719.25
727.25
735.25
743.25
751.25
759.25
767.25
775.25
783.25
BAND
-
VHF
V-L
V-L
V-L
VHF
V-H
V-H
V-H
V-H
V-H
V-H
VHF
VHF
VHF
V-L
-
VHF
-
V-H
-
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
NZ/
INDONESIA
-
44.25
55.25
62.25
175.25
182.25
189.25
196.25
203.25
210.25
217.25
224.25
45.25
-
-
-
69.75
-
-
-
-
471.25
479.25
487.25
495.25
503.25
511.25
519.25
527.25
535.25
543.25
551.25
559.25
567.25
575.25
583.25
591.25
599.25
607.25
615.25
623.25
631.25
639.25
647.25
655.25
663.25
671.25
679.25
687.25
695.25
703.25
711.25
719.25
727.25
735.25
743.25
751.25
759.25
767.25
775.25
783.25
BAND
-
VHF
V-L
V-L
V-H
V-H
V-H
V-H
V-H
V-H
VHF
VHF
VHF
-
-
-
V-L
-
-
-
-
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
(Unit : MHz)
SOUTH
AFRICA
-
-
-
-
175.25
183.25
191.25
199.25
207.25
215.25
223.25
231.25
239.25
247.25
-
-
-
-
-
-
-
471.25
479.25
487.25
495.25
503.25
511.25
519.25
527.25
535.25
543.25
551.25
559.25
567.25
575.25
583.25
591.25
599.25
607.25
615.25
623.25
631.25
639.25
647.25
655.25
663.25
671.25
679.25
687.25
695.25
703.25
711.25
719.25
727.25
735.25
743.25
751.25
759.25
767.25
775.25
783.25
BAND
-
-
-
-
V-H
V-H
V-H
V-H
V-H
V-H
VHF
VHF
VHF
VHF
-
-
-
-
-
-
-
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
2-7
2. Product specications
(Unit : MHz)
CH
Number
C61
C62
C63
C64
C65
C66
C67
C68
C69
C70
C71
C72
C73
C74
C75
C76
C77
C78
C79
C80
C81
C82
C83
C84
C85
C86
C86
C86
C86
C86
C86
C86
ASIA
W/EUROPE
791.25
799.25
807.25
815.25
823.25
831.25
839.25
847.25
855.25
-
-
-
-
69.75
76.25
83.25
90.25
97.25
59.25
-
49.75
-
77.25
85.25
-
-
183.25
191.25
199.25
207.25
215.25
223.25
BAND
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
-
-
-
V-L
V-L
V-L
VHF
VHF
V-L
-
VHF
-
V-L
V-L
-
-
V-H
V-H
V-H
V-H
VHF
VHF
CIS
E/EUROPE
791.25
799.25
807.25
815.25
823.25
831.25
839.25
847.25
855.25
-
-
-
-
-
-
-
-
217.25
224.25
93.25
-
-
-
-
-
-
-
-
-
-
-
-
BAND
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
-
-
-
-
-
-
-
VHF
VHF
VHF
-
-
-
-
-
-
-
-
-
-
-
-
AREA
HONG
KONG U/K
791.25
799.25
807.25
815.25
823.25
831.25
839.25
847.25
855.25
-
62.25
82.25
-
-
192.25
201.25
210.25
217.25
224.25
-
-
-
77.25
85.25
93.25
-
-
-
199.25
207.25
-
-
BAND
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
VHF
V-L
-
-
V-H
V-H
V-H
VHF
VHF
-
-
-
V-L
V-L
VHF
-
-
-
V-H
V-H
-
-
NZ/
INDONESIA
791.25
799.25
807.25
815.25
823.25
831.25
839.25
847.25
855.25
53.75
-
82.25
-
183.25
192.25
201.25
-
-
-
-
49.75
59.25
77.25
85.25
93.25
-
-
191.25
199.25
207.25
215.25
223.25
BAND
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
V-L
V-H
V-H
V-H
VHF
V-L
V-L
V-L
VHF
V-H
V-H
V-H
VHF
VHF
SOUTH
AFRICA
791.25
799.25
807.25
815.25
823.25
831.25
839.25
847.25
855.25
-
-
-
-
-
-
-
-
-
53.75
62.25
82.25
192.25
201.25
210.25
217.25
224.25
49.75
59.25
77.25
85.25
93.25
215.25
223.25
BAND
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
VHF
V-L
-
-
V-H
V-H
V-H
VHF
VHF
-
VHF
V-L
V-L
V-L
VHF
-
-
-
-
-
VHF
VHF
-
-
-
-
-
-
-
-
-
2-8
2. Product specications
CH
Number
(Unit : MHz)
AREA
AUSTRALIA BAND CHINA BAND AMERICA BAND
C00
C01
C02
C03
C04
C05
C06
C07
C08
C09
C10
C11
C12
C13
C14
C15
C16
C17
C18
C19
C20
C21
C22
C23
C24
C25
C26
C27
C28
C29
C30
C31
C32
C33
C34
C35
C36
C37
C38
C39
C40
C41
C42
C43
C44
C45
C46
C47
C48
C49
C50
C51
46.25
57.25
64.25
86.25
95.25
102.25
175.25
182.25
189.25
196.25
209.25
216.25
224.25
138.25
203.25
-
-
-
-
-
-
x
x
x
x
x
x
x
527.25
534.25
541.25
548.25
555.25
562.25
569.25
576.25
583.25
590.25
597.25
604.25
611.25
618.25
625.25
632.25
639.25
646.25
653.25
660.25
667.25
674.25
681.25
688.25
VHF
V-L
V-L
V-L
VHF
VHF
V-H
V-H
V-H
V-H
V-H
VHF
VHF
V-H
V-H
-
-
-
-
-
-
-
-
-
-
-
-
-
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
49.75
57.75
65.75
77.25
85.25
168.25
176.25
184.25
192.25
200.25
208.25
216.25
471.25
479.25
487.25
495.25
503.25
511.25
519.25
527.25
535.25
543.25
551.25
559.25
607.25
615.25
623.25
631.25
639.25
647.25
655.25
663.25
671.25
679.25
687.25
695.25
703.25
711.25
719.25
727.25
735.25
743.25
751.25
759.25
767.25
775.25
783.25
791.25
799.25
807.25
815.25
-
VHF
V-L
V-L
V-L
V-L
VHF
V-H
V-H
V-H
V-H
VHF
VHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
-
55.25
61.25
67.25
77.25
83.25
175.25
181.25
187.25
193.25
199.25
205.25
211.25
471.25
477.25
483.25
489.25
495.25
501.25
507.25
513.25
519.25
525.25
531.25
537.25
543.25
549.25
555.25
561.25
567.25
573.25
579.25
585.25
591.25
597.25
603.25
609.25
615.25
621.25
627.25
633.25
639.25
645.25
651.25
657.25
663.25
669.25
675.25
681.25
687.25
693.25
-
-
V-L
V-L
V-L
V-L
V-L
V-H
V-H
V-H
V-H
VHF
VHF
VHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
2-9
2. Product specications
CH
Number
(Unit : MHz)
AREA
AUSTRALIA BAND CHINA BAND AMERICA BAND
C52
C53
C54
C55
C56
C57
C58
C59
C60
C61
C62
C63
C64
C65
C66
C67
C68
C69
C70
C71
C72
C73
C74
C75
C76
C77
C78
C79
C80
C81
C82
C83
C84
C85
C86
C86
C86
C86
C86
C86
C86
695.25
702.25
709.25
716.25
723.25
730.25
737.25
744.25
751.25
758.25
765.25
772.25
779.25
786.25
793.25
800.25
807.25
814.25
53.75
62.25
82.25
-
183.25
192.25
201.25
-
-
-
-
49.75
59.25
77.25
85.25
93.25
-
-
191.25
199.25
207.25
215.25
223.25
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
VHF
V-L
-
-
V-H
V-H
V-H
VHF
VHF
-
VHF
V-L
V-L
V-L
VHF
-
-
-
-
-
VHF
VHF
823.25
831.25
839.25
847.25
855.25
863.25
-
-
-
-
-
-
-
567.25
575.25
583.25
591.25
599.25
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
UHF
UHF
UHF
UHF
UHF
UHF
-
-
-
-
-
-
-
UHF
UHF
UHF
UHF
UHF
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
-
699.25
705.25
711.25
717.25
723.25
729.25
735.25
741.25
747.25
753.25
759.25
765.25
771.25
777.25
783.25
789.25
795.25
801.25
807.25
813.25
819.25
825.25
831.25
837.25
843.25
849.25
855.25
861.25
867.25
873.25
879.25
885.25
-
-
-
-
-
-
-
-
-
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
-
-
-
-
-
-
-
-
-
2-10
2. Product specications
Cable CHANNEL
CH
Number
S01
S02
S03
S04
S05
S06
S07
S08
S09
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
S22
S23
S24
S25
S26
S27
S28
S29
S30
S31
S32
S33
S34
S35
S36
S37
S38
S39
S40
S41
ASIA
W/EUROPE
105.25
112.25
119.25
126.25
133.25
140.25
147.25
154.25
161.25
168.25
231.25
238.25
245.25
252.25
259.25
266.25
273.25
280.25
287.25
294.25
303.25
311.25
319.25
327.25
335.25
343.25
351.25
359.25
367.25
375.25
383.25
391.25
399.25
407.25
415.25
423.25
431.25
439.25
447.25
455.25
463.25
BAND
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
CIS
E/EUROPE
103.25
111.25
119.25
127.25
135.25
143.25
151.25
159.25
167.25
231.25
239.25
247.25
253.25
263.25
271.25
279.25
287.25
295.25
303.25
-
-
311.25
319.25
327.25
335.25
343.25
351.25
359.25
367.25
375.25
383.25
391.25
399.25
407.25
415.25
423.25
431.25
439.25
447.25
455.25
463.25
BAND
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
UHF
-
-
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
AREA
HONG
KONG U/K
103.25
111.25
119.25
127.25
135.25
143.25
151.25
159.25
167.25
231.25
239.25
247.25
253.25
263.25
271.25
279.25
287.25
295.25
303.25
-
-
311.25
319.25
327.25
335.25
343.25
351.25
359.25
367.25
375.25
383.25
391.25
399.25
407.25
415.25
423.25
431.25
439.25
447.25
455.25
463.25
BAND
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
UHF
-
-
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
NZ/
INDONESIA
105.25
112.25
119.25
126.25
133.25
140.25
147.25
154.25
161.25
168.25
231.25
238.25
245.25
252.25
259.25
266.25
273.25
280.25
287.25
294.25
303.25
311.25
319.25
327.25
335.25
343.25
351.25
359.25
367.25
375.25
383.25
391.25
399.25
407.25
415.25
423.25
431.25
439.25
447.25
455.25
463.25
BAND
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
(Unit : MHz)
SOUTH
AFRICA
105.25
112.25
119.25
126.25
133.25
140.25
147.25
154.25
161.25
168.25
231.25
238.25
245.25
252.25
259.25
266.25
273.25
280.25
287.25
294.25
303.25
311.25
319.25
327.25
335.25
343.25
351.25
359.25
367.25
375.25
383.25
391.25
399.25
407.25
415.25
423.25
431.25
439.25
447.25
455.25
463.25
BAND
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
2-11
2. Product specications
CH
Number
(Unit : MHz)
AREA
AUSTRALIA BAND CHINA BAND AMERICA BAND
S01
S02
S03
S04
S05
S06
S07
S08
S09
S10
S11
S12
S13
S14
S15
S16
S17
S18
S19
S20
S21
S22
S23
S24
S25
S26
S27
S28
S29
S30
S31
S32
S33
S34
S35
S36
S37
S38
S39
S40
S41
S42
S43
S44
S45
S46
S47
S48
S49
S50
S51
S52
S53
S54
S55
S56
S57
S58
S59
S60
S61
S62
S63
S64
S65
105.25
112.25
119.25
126.25
133.25
140.25
147.25
154.25
161.25
168.25
231.25
238.25
245.25
252.25
259.25
266.25
273.25
280.25
287.25
294.25
303.25
311.25
319.25
327.25
335.25
343.25
351.25
359.25
367.25
375.25
383.25
391.25
399.25
407.25
415.25
423.25
431.25
439.25
447.25
455.25
463.25
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
112.25
120.25
128.25
136.25
144.25
152.25
160.25
224.25
232.25
240.25
248.25
256.25
264.25
272.25
280.25
288.25
296.25
304.25
312.25
320.25
328.25
336.25
344.25
352.25
360.25
368.25
376.25
384.25
392.25
400.25
408.25
416.25
424.25
432.25
440.25
448.25
456.25
x
x
x
x
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
x
x
x
x
73.25
55.25
61.25
67.25
77.25
83.25
175.25
181.25
187.25
193.25
199.25
205.25
211.25
121.25
127.25
133.25
139.25
145.25
151.25
157.25
163.25
169.25
217.25
223.25
229.25
235.25
241.25
247.25
253.25
259.25
265.25
271.25
277.25
283.25
289.25
295.25
301.25
307.25
313.25
319.25
325.25
331.25
337.25
343.25
349.25
355.25
361.25
367.25
373.25
379.25
385.25
391.25
397.25
403.25
409.25
415.25
421.25
427.25
433.25
439.25
445.25
451.25
457.25
463.25
469.25
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
VHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
2-12
2. Product specications
CH
Number
(Unit : MHz)
AREA
AUSTRALIA BAND CHINA BAND AMERICA BAND
S66
S67
S68
S69
S70
S71
S72
S73
S74
S75
S76
S77
S78
S79
S80
S81
S82
S83
S84
S85
S86
S87
S88
S99
S90
S91
S92
S93
S94
S95
S96
S97
S98
S99
475.25
481.25
487.25
493.25
499.25
505.25
511.25
517.25
523.25
529.25
535.25
541.25
547.25
553.25
559.25
565.25
571.25
577.25
583.25
589.25
595.25
601.25
607.25
613.25
619.25
625.25
631.25
637.25
643.25
91.25
97.25
103.25
109.25
115.25
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
UHF
VHF
VHF
VHF
VHF
VHF
CATV CH mark (A row) : China area : attach ‘Z’
besides area : attach ‘S’
For example) China : Z10
besides area : S10
2-13
2. Product specications
2-4. Accessories
Product Description Code. No Remark
Remote Control & Batteries
(AAA x 2)
Power Cord 3903-000525
Stand
Screw
(for the stand - M4, L6)
Owner’s Instructions
Warranty Card / Registration
Card / Safety Guide Manual
(Not available in all locations)
BN59-01019A
26", 32" :
BN96-13156A
22" : BN96-10168C
6003-000133
BN68-02767A
Samsung Electronics
Service center
Loading...
