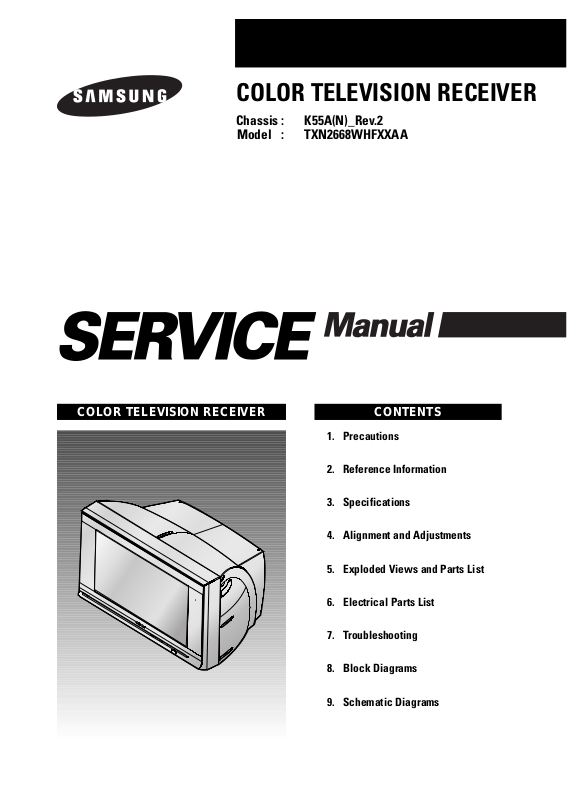

Samsung TXN2668WH Schematic

COLOR TELEVISION RECEIVER

Chassis : K55A(N)_Rev.2

Model : TXN2668WHFXXAA

COLOR TELEVISION RECEIVER CONTENTS

Precautions

Reference Information

Specifications

Alignment and Adjustments

Exploded Views and Parts List

Electrical Parts List

Troubleshooting

Block Diagrams

Schematic Diagrams

1.

2.

3.

4.

5.

6.

7.

8.

9.

ELECTRONICS

Printed in Korea

AA82-01070A

This Service Manual is a property of Samsung Electronics Co.,Ltd. Any unauthorized use of Manual can be punished under applicable International and/or domestic law.

5. Exploded View & Parts List

5-1 TXN2668WHFXXAA

Exploded View & Parts List

Samsung Electronics 5-1

1 AA96-01717A ASSY COVER P-FRONT;28A11,HIPS,V0,G4309,S 1 M0003 1-1 AA64-03583A CABINET FRONT;28A11(SAMEX),HIPS 1 CIS3 S.N.A 1-2 AA64-70117B BADGE-BRAND;-,AL,-,-,L65,R2000,SILVER,SS 1 T0057 S.N.A 1-3 AA63-00690A COVER-CONTROL;28A11(SAMEX),HIPS 1 CIS1 S.N.A 1-4 AA61-60003J SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-, 1 CIS7 S.N.A 1-5 AA64-03345A KNOB-POWER;32A11,ABS,HB,G4309,SVM3012 1 T0023 1-6 AA64-03585A KNOB CONTROL;28A11(SAMEX),ABS 1 T0022 S.N.A 1-7 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 1 T0081 1-8 AA64-03338A WINDOW-RMC,LED;32A11,PC,CLR 1 T0299 1-9 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 1 T0081 1-10 AA65-30105A CLAMP-WIRE;NYLON 66N,VO,NTR,15MM 1 T0614 S.N.A 2 AA96-01509A ASSY PCB P-CONTROL;TXN2670WHF,K55A 1 T0612 S.N.A 2-1 AA41-00914A PCB CONTROL;CT-29A11,FR-1,1-layer,A,1.6T 1 M0119 S.N.A 2-2 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR 2 T0081 3 AA96-01502A ASSY PCB P-SIDE A/V;TXM2771HFX,K55A 1 APAV S.N.A 3-1 AA64-03346D DOOR-AV;29A11,ABS HB,G4309,SVM3012 1 T0150 3-2 AA41-00891A PCB-A/V SIDE;CT-29A10,,,A,,,K55A,10,, 1 00VER S.N.A 4 AA03-00397A CRT COLOR;W66QDE893X200,380mG,0.34,0.53, 1 T0063 5 AA96-01461B ASSY SPEAKER P;8ohm,28A11,10W,Semidome S 1 T0175 S.N.A 6 6006-001095 SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL) 4 SPK+CF S.N.A 7 AA65-00019A CLAMP CORE-D,COIL;25-34,NYLON 66,V2,NTR 4 C/DCOI S.N.A 8 AA60-10050V SCREW-ASSY;WC,HH,+,M6,L30,SWRCH18A,ZPC(S 4 SC016 9 AA96-01590A ASSY PCB P-CRT;29A11,K55A 1 A/CRT S.N.A 10 AA64-03584A CABINET BACK;28A11(SAMEX),HIPS 1 T0015 11 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR 7 T0081 S.N.A 12 AA96-00156F ASSY POWER CORD;EP2/YES(US),H/S 300mm,KJ 1 T0066 13 AA61-01235A HOLDER-CHASSIS;DP Z7,AA61-01190A 1 T0070 S.N.A 14 AA94-13573A ASSY PCB MAIN;K55A,TXN2668WHFXXAA 1 T0073 15 AA65-00028A TERMINAL-BOARD,ANT;,DP Z7,AA65-00025A VO 1 TBA S.N.A

No Code No Description;Specification Q’ty Remark S.N.A

You can search for the updated part code through ITSELF web site. URL : http://itself.sec.samsung.co.kr

1-10

Electrical Parts List

Samsung Electronics 6-1

ASSY CHASSIS

1 M0017 AA91-07088A ASSY CHASSIS;K55A,28,SEA/SECA S.N.A

..2 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A ..2 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A ..2 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A ..2 TBA+HC 6006-001095 SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL) S.N.A ..2 T0070 AA61-01235A HOLDER-CHASSIS;DP Z7,AA61-01190A S.N.A ..2 T0614 AA65-30105A CLAMP-WIRE;NYLON 66N,VO,NTR,15MM S.N.A ..2 T0614 AA65-30018A CLAMP-WIRE;-,NYLON6.6,-,-,DATL S.N.A ..2 T0616 AA26-00069A TRANS FBT;FUJ-29C002C(S),DREAM3,4,-,-,-, ..2 A/CRT AA96-01590A ASSY PCB P-CRT;29A11,K55A S.N.A ...3 D501 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING ...3 DF01 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING ...3 DF02 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING ...3 DF05 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING ...3 DF06 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING ...3 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1. ...3 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1. ...3 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1. ...3 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1. ...3 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1. ...3 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1. ...3 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1. ...3 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1. ...3 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1. ...3 DZ016 0403-000508 DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO ...3 DZ016 0403-000508 DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO ...3 DZ016 0403-000698 DIODE-ZENER;TZP12A,5%,1000MW,DO-41,TP ...3 DZ016 0403-000708 DIODE-ZENER;MTZJ13B,12.59-13.16V,500MW,D ...3 DZ016 0403-000708 DIODE-ZENER;MTZJ13B,12.59-13.16V,500MW,D ...3 DZ016 0403-000734 DIODE-ZENER;TZP15B,14.7-16.5V,1000MW,DO...3 DZ016 0403-001039 DIODE-ZENER;MA2560,52-60V,1000MW,DO-41,T ...3 DZ016 0403-001039 DIODE-ZENER;MA2560,52-60V,1000MW,DO-41,T ...3 Q501 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM ...3 Q502 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM ...3 Q503 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM ...3 Q504 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM ...3 QF04 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM ...3 QF02 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM ...3 QF03 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM ...3 QF05 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM ...3 R125 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP, ...3 R075 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4x6.4m ...3 R075 2001-000052 R-CARBON(S);3.3KOHM,5%,1/2W,AA ...3 R125 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP ...3 R125 2001-000221 R-CARBON;1.2KOHM,5%,1/8W,AA,TP ...3 R125 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP ...3 R125 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP ...3 R125 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP ...3 R125 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP ...3 R125 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP ...3 R125 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP ...3 R125 2001-000258 R-CARBON;1.8Kohm,5%,1/8W,AA,TP,1.8x3.2m ...3 R125 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP ...3 R125 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP ...3 R125 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP ...3 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP, ...3 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP, ...3 R125 2001-000331 R-CARBON;12KOHM,5%,1/8W,AA,TP, ...3 R125 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm ...3 R125 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm ...3 R125 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm ...3 R125 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

...3 R125 2001-000472 R-CARBON;2.7KOHM,5%,1/8W,AA,TP ...3 R125 2001-000554 R-CARBON;270OHM,5%,1/8W,AA,TP, ...3 R125 2001-000563 R-CARBON;27KOHM,5%,1/8W,AA,TP,1.8X3.2MM ...3 R125 2001-000890 R-CARBON;6.8KOHM,5%,1/8W,AA,TP ...3 R125 2001-000995 R-CARBON;820OHM,5%,1/8W,AA,TP, ...3 R075 2001-001040 R-CARBON(S);0.68OHM,5%,1/2W,AA ...3 R075 2001-001045 R-CARBON(S);1.2KOHM,5%,1/2W,AB ...3 R075 2001-001045 R-CARBON(S);1.2KOHM,5%,1/2W,AB ...3 R075 2001-001053 R-CARBON(S);1.5OHM,5%,1/2W,AA, ...3 R075 2001-001071 R-CARBON(S);12KOHM,5%,1/2W,AA, ...3 R075 2001-001071 R-CARBON(S);12KOHM,5%,1/2W,AA, ...3 R075 2001-001079 R-CARBON(S);15OHM,5%,1/2W,AB,T ...3 R075 2001-001079 R-CARBON(S);15OHM,5%,1/2W,AB,T ...3 R075 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4 ...3 R075 2001-001095 R-CARBON(S);2.2MOHM,5%,1/2W,AA,TP,2.4X6. ...3 R075 2001-001100 R-CARBON(S);2.7OHM,5%,1/2W,AA, ...3 R075 2001-001126 R-CARBON(S);300OHM,5%,1/2W,AB,TP,2.4X6.4 ...3 R075 2001-001153 R-CARBON(S);47OHM,5%,1/2W,AA,T ...3 R075 2001-001179 R-CARBON(S);68KOHM,5%,1/2W,AA, ...3 R075 2001-001179 R-CARBON(S);68KOHM,5%,1/2W,AA, ...3 R525 2002-001006 R-COMPOSITION;4.7KOhm,5%,1/2W,AA,TP,3.7X ...3 R513 2002-001017 R-COMPOSITION;1K,10%,1/2W,AA,TP,3.7x9.0m ...3 R514 2002-001017 R-COMPOSITION;1K,10%,1/2W,AA,TP,3.7x9.0m ...3 R515 2002-001017 R-COMPOSITION;1K,10%,1/2W,AA,TP,3.7x9.0m ...3 R524 2002-001012 R-COMPOSITION;8.2MOhm,5%,1/2W,AA,TP,3.7X ...3 R528 2003-000458 R-METALOXIDE(S);100OHM,5%,2W,A ...3 RF36 2003-000652 R-METAL OXIDE(S);330ohm,5%,2W,AF,TP,4x12 ...3 RF32 2003-000746 R-METALOXIDE(S);56OHM,5%,2W,AD ...3 RF35 2003-000746 R-METALOXIDE(S);56OHM,5%,2W,AD ...3 RF24 2003-001018 R-METALOXIDE;220OHM,2W ...3 RF14 2003-002276 R-METAL OXIDE(S);2.2KOHM,5%,2W,AG,TP,12X ...3 RF15 2003-002276 R-METAL OXIDE(S);2.2KOHM,5%,2W,AG,TP,12X ...3 RF16 2003-002276 R-METAL OXIDE(S);2.2KOHM,5%,2W,AG,TP,12X ...3 R024 2004-001369 R-METAL(S);1.2Kohm,1%,1/2W,AA,TP,2.4x6.4 ...3 RF13 2008-001014 R-FUSIBLE(S);22ohm,5%,1W,AF,TP,3.2x10mm ...3 R529 2008-001129 R-FUSIBLE(S),1.5OHM,5%1/2W,AF,TP,2.5 ...3 R541 2008-001053 R-FUSIBLE;22OHM,5%,1/2W,AF,TP, ...3 C598 2201-000192 C-CERAMIC,DISC;10PF,0.25PF,500V,NPO,-,5M ...3 C598 2201-000192 C-CERAMIC,DISC;10PF,0.25PF,500V,NPO,-,5M ...3 C598 2201-000193 C-CERAMIC,DISC;10PF,0.25PF,50V ...3 C598 2201-000291 C-CERAMIC,DISC;1NF,10%,500V,Y5 ...3 CF02 2201-000017 C-CERAMIC,DISK;1NF,10%,50V,Y5P,4X3.5MM,5 ...3 C598 2201-000516 C-CERAMIC,DISC;4.7NF,+100-0%,5 ...3 C598 2201-000599 C-CERAMIC,DISC;560PF,10%,500V, ...3 C598 2201-000599 C-CERAMIC,DISC;560PF,10%,500V, ...3 C598 2201-000600 C-CERAMIC,DISC;560PF,10%,50V,Y5P,4X3.5MM ...3 C598 2201-000604 C-CERAMIC,DISC;56PF,+100-0%,50 ...3 C504 2301-000016 C-FILMPEF;22NF,5%,100V,TP,7.2X ...3 C505 2301-000016 C-FILMPEF;22NF,5%,100V,TP,7.2X ...3 C506 2301-000016 C-FILMPEF;22NF,5%,100V,TP,7.2X ...3 C507 2301-000016 C-FILMPEF;22NF,5%,100V,TP,7.2X ...3 C509 2301-000016 C-FILMPEF;22NF,5%,100V,TP,7.2X ...3 CF05 2301-000261 C-FILM,PEF;4.7NF,5%,100V,10.5X ...3 C508 2301-001211 C-FILM,PPF;22nF,5%,400V,TP,20x7x14,7.5mm ...3 C511 2301-001211 C-FILM,PPF;22nF,5%,400V,TP,20x7x14,7.5mm ...3 C512 2301-001211 C-FILM,PPF;22nF,5%,400V,TP,20x7x14,7.5mm ...3 C526 2301-001211 C-FILM,PPF;22nF,5%,400V,TP,20x7x14,7.5mm ...3 C533 2305-000665 C-FILM;104J, 60V,5MM TAPING ...3 C701 2401-000045 C-AL;10uF,20%,160V,GP,TP,10x16,5 ...3 C701 2401-000360 C-AL;100UF,20%,50V,GP,8X11MM,5 ...3 C520 2401-000703 C-ELEC;CE04-40/8525VT222-MWSD ...3 C701 2401-000832 C-AL;220UF,20%,25V,GP,8X11MM,5 ...3 C701 2401-000832 C-AL;220UF,20%,25V,GP,8X11MM,5 ...3 C701 2401-000832 C-AL;220UF,20%,25V,GP,8X11MM,5 ...3 C701 2401-000913 C-AL;22uF,20%,16V,GP,TP,5x11,5 ...3 C701 2401-000927 C-AL;22UF,20%,250V,GP,13X20MM,

6-1 TXN2668WHFXXAA

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

6. Electrical Parts List

You can search for the updated part code through ITSELF web site. URL : http://itself.sec.samsung.co.kr

...3 C701 2401-001563 C-AL;47uF,20%,400V,GP,TP,16x25mm,7.5 ...3 CF74 2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5 ...3 C701 2401-002264 C-AL;10UF,20%,350V,GP,TP,10X20 ...3 LF03 2701-000112 INDUCTOR-AXIAL;100UH,10%,2.8X7 ...3 L502 2701-000178 INDUCTOR-AXIAL;33UH,10%,2.8X7MM ...3 LF11 2702-001092 INDUCTOR-RADIAL;2.2uH,10%,6x4mm ...3 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,...3 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,...3 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,...3 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,...3 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,...3 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,...3 01VER AA41-00890B PCB CRT;K55A,1L,B,1.6T,4 S.N.A ...3 EL100 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL80 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL81 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL82 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL83 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL84 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL85 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL86 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL87 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL88 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL89 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL92 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL94 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL95 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL96 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL97 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL98 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL99 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 EL90 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A ...3 GT501 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A ...3 GT502 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A ...3 GT503 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A ...3 GT504 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A ...3 GT505 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A ...3 R509 2008-000205 R-FUSIBLE(S);10OHM,5%,1/2W,AF, ...3 R125 2001-000356 R-CARBON;150KOHM,5%,1/8W,AA,TP ...3 C689 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP ...3 C689 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP ...3 C689 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP ...3 C689 2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20 ...3 R075 2001-001194 R-CARBON(S);82KOHM,5%,1/2W,AA, ...3 R075 2001-001194 R-CARBON(S);82KOHM,5%,1/2W,AA, ...3 R075 2001-001194 R-CARBON(S);82KOHM,5%,1/2W,AA, ...3 C598 2201-002117 C-CERAMIC,DISC;4.7nF,20%,3kV,Y5U,TP,16x6 ...3 T1294 2306-000272 C-FILM,MPPF;820nF,5%,400V,BK,29x25.5x18. ...3 V999S 3704-000114 SOCKET CRT;14P,29.1,35.5SN,1SH09S/BK ...3 CN906 3711-003974 CONNECTOR-HEADER;BOX,12P,1R,2.5mm,STRAIG ...3 SC01 3722-001503 JACK-PIN;1P,1PI,NI,RED,SCR-JACK ...3 T0245 AA39-00088A LEAD CONNECTOR-ASSY;HERCULES,UL1007/1185 ...3 T0245 AA39-20068B LEAD CONNECTOR-ASSY;,8P,YBNH025-08,67096 ...3 IC057 1203-000165 IC-POSI.ADJUSTREG.;78R12,TO-22 ...3 QF10 AA96-00243L ASSY H/S;-,CRT,AA62-00045A,2SC2344,HERC S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0090 0502-000153 TR-POWER;2SC2344-D,NPN,180V,16

....4 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-, S.N.A

...3 QF09 AA96-00243M ASSY H/S;-,AMP,AA62-00045A,2SA1011,HERC S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0090 0502-000131 TR-POWER;2SA1011-D,PNP,-180V,-

....4 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-, S.N.A

...3 IC501 AA96-50311L ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE S.N.A ...3 IC502 AA96-50311L ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE S.N.A ...3 IC503 AA96-50311L ASSY H/S;-,AMP,AA62-30175D ,TDA6111Q,HE S.N.A

....4 T0074 1201-001131 IC-VIDEO AMP;6111,SIP,9P,-,SINGLE,-,PLAS

....4 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZP

....4 AA62-30175D HEATSINK-PS;-,SECC,T1.0,-,33X15X30FT-2 S.N.A

...3 IC504 BH99-00038E ASSY HEAT/SINK;TDA2030,AMP,HERCULES,BH62 S.N.A

....4 0205-001027 OIL-SILICON;G746 S.N.A

....4 DU410 1201-000010 IC-OP AMP;2030,PENTAWATT,5P,-,SINGLE,-,C

....4 BH61-00004A SPRING TR;SUS304,W1/2H,T0.4,W3.5 S.N.A

....4 BH62-00041A HEAT SINK-TR; S.N.A

...3 FV1 3711-002642 POST-HEADER;67094-003(AUTO)

...3 FN1 3711-002643 POST-HEADER;YW025-04(AUTO) ...3 BAND AA63-10002B BAND-TIE;-,NYLON66V2,-,-,L140,NTR,-,- S.N.A ...3 SPG01 4715-000106 SURGEABSORBER;300V,-,-,-,CHIP S.N.A ..2 T0614 AA65-30110A CLAMP-WIRE;NYLON 66,V2,BLK,PAL TVI,ALL M S.N.A ..2 T0073 AA94-13573A ASSY PCB MAIN;K55A,TXN2668WHFXXAA ...3 Q409 0505-001116 FET-SILICON;BUZ73A,N,200V,22A,0.6ohm,40W ...3 PC801S 0604-001038 PHOTOCOUPLER;TR,130-260%,200MW ...3 IC902 1103-001177 IC-EEPROM24WC16,2048x8bit,DIP,8P,2.5V ...3 IC401 1202-000103 IC-VOLTAGECOMP.393,DIP,8P,300MIL,DUAL, ...3 IC055 1203-001225 IC-POSI.FIXEDREG.;78R09,TO-220,4P,-,PLA ...3 IC601 1204-001967 IC-SOUND PROCESSOR;MSP3420G-P0-B8,DIP,52 ...3 P803T 1404-001154 THERMISTOR-PTC;4.5OHM,+30%/-20%,220V,270 ...3 NT802S 1404-001045 THERMISTOR NTC;4.7OHM,15%,2900K,35.0MW,T ...3 C598 2201-002002 C-CERAMIC,DISC;4700PF,20%,400V ...3 T1294 2306-001017 C-FILM,MPPF;680NF,5%,400V,26X1 ...3 T1294 2306-000324 C-FILM,MPPF;3.3nf,5%,1.6KV,TP,28.5x13.5x ...3 T1294 2306-000324 C-FILM,MPPF;3.3nf,5%,1.6KV,TP,28.5x13.5x ...3 T1294 2301-001398 C-FILM,MPPF;3.3nF,5%,2kV,TP,29x8.5x1.5mm ...3 T1294 2306-000112 C-FILM,MPPF;100NF,20%,250V,-,1 ...3 T1294 2306-000188 C-FILM,MPPF;330nF,5%,400V,TP,26x19.5x11, ...3 T1294 2306-000318 C-FILM,MPPF;220NF,20%,250V,-,2 ...3 T1294 2306-000318 C-FILM,MPPF;220NF,20%,250V,-,2 ...3 C701 2401-001676 C-AL;820uF,20%,250V,GP,-,35x40mm,10 ...3 C815 2401-000822 C-ELECTROLYTIC;CE04W200V220U-H ...3 C701 2401-003419 C-AL;2200uF,20%,50V,WT,TP,16X35.5mm ...3 RL801S 3501-001053 RELAY-POWER;5Vdc,530mW,10A,1FormA,15mS,5 ...3 FP801S 3601-000414 FUSE-CARTRIDGE;250V,5A,SLOW-BLOW,GLASS,5 ...3 CN906 3711-003043 CONNECTOR-HEADER;BOX,4P,1R,2.5mm,STRAIGH ...3 JA701 3722-001765 JACK-PIN;9P(9P),-,NI,YEL/GRN/WHT/BLU/RED ...3 JA702 3722-001766 JACK-PIN;7P(9P),-,NI,GN/WH/WH/BL/RD/RD/R ...3 CN906 3711-003641 CONNECTOR-HEADER;BOX,12P,1R,2. ...3 T0119 AA09-00395A IC MICOM;A036,_YST2NUS_1001,52,3.3V,10Mh ...3 IC063 AA13-00094A IC HYBRID;-,DDRI001A,SIP,5P,-,TP ...3 T801S AA26-00010A TRANS-SWITCHING;EER5345,HERCULES,90~264V ...3 T0616 AA26-00206A TRANS FBT;FUJ34H005F,CPTTV,2.3mH,FERRITE ...3 T401 AA26-50001S TRANS-HORIZ.DRIVE;-,-,-,6.0mH,-,-,44uH,...3 T0296 AA27-00251A COIL LINEARITY;10UH,10UH,YL81 DR1518,11M ...3 LR405S AA27-00308A COIL CHOKE;3mH,CS29A11,3mH,10%,1.8ohm,0. ...3 L808 AA27-00098A COIL CHOKE;-,-,24uH,10%,-,0.1,3.0A,DR10X ...3 LR402S AA27-10004F COIL-CHOKE;-,56uH,K,-,2.5A,BK,-,DR12x15, ...3 LR404S AA27-40003P COIL-HORIZ.WIDTH;-,120uH/180uH,Th8x20,US ...3 LX801S AA29-00011A FILTER LINE NOISE;CZ32W8,-,0.20MAX,1.5KV ...3 LX802S AA29-00012A FILTER LINE NOISE;CS29A6PF8X/HAC,-,0.1MA ...3 T0254 AA39-20010B LEAD-CONNECTOR,ASSY;-,YFH800-01,500MM,1P ...3 TU01S AA40-00048A TUNER;TCLN3181PA19A(S),TCLN3181PA19A(S), ...3 H/COVE AA61-00707B HOLDER-COVER;ALL MODEL,NYLON-66 T1.0 V2, S.N.A ...3 T0256 AA95-03224M ASSY SUB PCB-NTSC F/BOX;DP,,AA95-03224L, ...3 IC805 AA96-00243K ASSY H/S;-,REGULATOR,AA62-00045A,KA78R0 S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 IC309 1203-001006 IC-VOLTAGEREGULATOR78R05,TO-220F,4P

....4 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 AA62-00045A HEAT SINK-PS;-,-,T1.0,-,-,DREAM,-,-,-,-, S.N.A

...3 HC401 BP96-00159A ASSY HEAT SINK P;H/S,SCREW,FJL6920,FMP-3 S.N.A

....4 0205-001027 OIL-SILICON;G746 S.N.A

....4 T0083 0402-001296 DIODE-RECTIFIER;FMP-3FU,1.5KV,5A,DO-201A

....4 T0090 0502-001230 TR-POWER;FJL6920YDTU,N,200000MW,TO-264 F

....4 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA60-30001A WASHER-PLATE;-,M3,ID3.5,15X8.5,T1.0,-,SB S.N.A

....4 BH73-00028B SILICON/RUBBER-HS;TV ALL,SILICON,26*30*T S.N.A

....4 BP62-00015A HEAT SINK-PS;WT-36Z4HR,A1050S,T2.0,86,80 S.N.A

...3 D801S AA96-00276C ASSY H/S;-,BRIDGE ,AA62-00052A,GSIB660, S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0083 0402-001399 DIODE-BRIDGE;GSIB660,600V,6A,SIP-4,BK

....4 T0081 6003-000335 SCREW-TAPTITE;RH,+,2S,M3,L8,ZPC(YEL),SWR S.N.A

....4 AA60-30003A WASHER;-,-,-,-,T1.5,-,SBHG-1 S.N.A

....4 AA62-00052A HEAT SINK-PS;-,-,-,SILVER,HOLE 18.5mm, 2 S.N.A

...3 HC801 BP96-00231A ASSY HEAT SINK P;HS TR,SCREW,FML-G12S(3) S.N.A

....4 0205-001027 OIL-SILICON;G746 S.N.A

....4 T0083 0402-000233 DIODE-RECTIFIER;FML-G12S,200V,5A,-,-

....4 T0083 0402-001230 DIODE-RECTIFIER;FMG-G2CS,1000V,3A,DO-41,

....4 T0087 1203-002587 IC-POSI.FIXED REG.;KA278R05TU,TO-220,4P,

....4 T0081 6003-000334 SCREW-TAPTITE;RH,+,2S,M3,L6,ZP

....4 BP62-00029A HEAT SINK-PS;CT-29A10,A1050S,T2.0,40,89, S.N.A

...3 IC602 AA96-50369D ASSY H/S;-,SOUND,AA62-30181F,TDA7269,HER S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0124 1201-001385 IC-POWER AMP;7269A,ZIP,11,19.6,DUAL,13,P

Electrical Parts List

6-2 Samsung Electronics

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

Electrical Parts List

Samsung Electronics 6-3

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

....4 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA62-30181F HEAT-SINK,ES;-,AL6063 EXTR.,2,WHT,50MM,- S.N.A

...3 IC801S AA96-50371H ASSY H/S;-,SMPS,AA62-30181H,5Q1565RF,HER S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 T0086 1203-002512 IC-PWM CONTROLLER;KA5Q1565RF-YDTU,TO-3PF

....4 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA61-11028A BRACKET-IC;SECC,T1.0,-, S.N.A

....4 AA62-30181H HEATSINK-ES;-,AL6063EXTR.,2,WHT,50MM,- S.N.A

...3 IC301 AA96-50381A ASSY-H/S;-,-,AA62-30180B,LA7845,- S.N.A

....4 0205-000129 GREASE-SILICON;SC102,JAPAN S.N.A

....4 IC603 1204-000517 IC-LINEAR;LA7845SIPVERTICALAMP

....4 T0081 6003-000333 SCREW-TAPTITE;RH,+,2S,M3,L10,ZPC(YEL),SW S.N.A

....4 AA62-30180B HEAT-SINK,ES;-,A6063 EXTR.,2,WHT,70MM,-, S.N.A

...3 Q804 BH99-00007S ASSY HEAT/SINK;KSC2073,MICOM,HERCULES,BH S.N.A

....4 CIS 0205-001027 OIL-SILICON;G746 S.N.A

....4 T0090 0502-001007 TR-POWER;KSC2073-H2,NPN,150V,1

....4 CIS BH61-00004A SPRING TR;SUS304,W1/2H,T0.4,W3.5 S.N.A

....4 CIS BH62-00007A HEAT SINK TR T1.0,L20*H30 CDA S.N.A

...3 Q409 0505-001723 FET-SILICON;FQP630TSTU,N,200V,9A,0.4OHM, ...3 IC055 1203-000243 IC-POSI.FIXEDREG.;7812,TO-220, ...3 IC903 1203-001944 IC-POSI.FIXEDREG.78RM33,TO-220,3P,PLAST ...3 IC202 1203-001944 IC-POSI.FIXEDREG.78RM33,TO-220,3P,PLAST ...3 CN601 3711-002644 POST-HEADER;67094-005(AUTO) ...3 CN901 3711-002645 POST-HEADER;67094-006(AUTO) ...3 CN502 3711-002647 POST-HEADER;67094-008(AUTO) ...3 T0066 AA96-00156F ASSY POWER CORD;EP2/YES(US),H/S 300mm,KJ

....4 WPVC 3811-000401 WIRE-VINYLU/C;1007-10#22(S)-BLK S.N.A

....4 T0077 AA39-10007Y POWER-CORD;-,EP2/YES,SPT-2 18AWGx2C,2.4m

....4 HOLD AA61-20284A HOLDER P CORD;PP,VO,BLK,KE-002 S.N.A

....4 B-T AA63-10002B BAND-TIE;-,NYLON66V2,-,-,L140,NTR,-,- S.N.A

....4 T0121 3301-001201 CORE-FERRITE;AE,230.5x10.25x36mm,1500,28

...3 0202-000187 SOLDER-WIREFLUX;-,RS60S,D1.2,6 S.N.A ...3 C408 2301-001143 C-FILM,PPF;56nF,5%,400V,TP,20x10x17,7.5 ...3 X601 2801-004020 CRYSTAL-UNIT;18.432MHz,30ppm,28-AAM,12pF ...3 GT301 AA60-40012D PIN-GT,ASSY;4P,T1.6,6-12.5-14MM,NYLON66 S.N.A ...3 A/AUTO AA97-14425A ASSY AUTO-MAIN;K55A,28,SEA,SECA S.N.A

....4 D201 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

....4 D202 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

....4 D207 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

....4 D405 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

....4 D410 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

....4 D603 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

....4 D604 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

....4 D805 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

....4 DZ402 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING

....4 T0083 0402-000132 DIODE-RECTIFIER;1N4004,400V,1A,DO-41,TP

....4 T0083 0402-000493 DIODE-RECTIFIER;1R5GU41,400V,1.5A,DO-15L

....4 T0083 0402-000534 DIODE-RECTIFIER;RG10V,400V,1.5

....4 T0083 0402-000540 DIODE-RECTIFIER;RU20A,600V,1.5

....4 T0083 0402-000546 DIODE-RECTIFIER;TVR10G,400V,1.

....4 DZ016 0403-000508 DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO

....4 DZ016 0403-000510 DIODE-ZENER;MTZJ6.2B,5.96-6.27V,500MW,DO

....4 DZ016 0403-000700 DIODE-ZENER;TZP33A,5%,1000MW,DO-41,TP

....4 DZ016 0403-000716 DIODE-ZENER;MTZJ4.7B,4.59-4.77V,500MW,DO

....4 DZ016 0403-001330 DIODE-ZENER;MTZJ30A,26.99-28.39V,500MW,D

....4 DZ016 0403-001221 DIODE-ZENER;UZ39BSB,35.36-37.19V,500MW,D

....4 DZ016 0403-001317 DIODE-ZENER;MTZJ3.0B,3.01-3.22V,500MW,DO

....4 DZ016 0403-001322 DIODE-ZENER;MTZJ8.2B,7.78-8.19V,500MW,DO

....4 DZ016 0403-001325 DIODE-ZENER;MTZJ15C,14.42-15.02V,500MW,D

....4 DZ016 0403-001327 DIODE-ZENER;MTZJ18A,16.22-17.06V,500MW,D

....4 DZ016 0403-001329 DIODE-ZENER;MTZJ24B,22.75-23.73V,500MW,D

....4 DZ016 0403-001330 DIODE-ZENER;MTZJ30A,26.99-28.39V,500MW,D

....4 C1Z 0404-000156 DIODE-SCHOTTKY;RB441Q,40V,350MA,DO-34,TP

....4 Q802 0501-000369 TRANSISTOR;KSC2331-Y(TAPG)

....4 Q601 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

....4 Q603 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

....4 Q801 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

....4 Q803 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

....4 Q901 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

....4 Q906 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

....4 Q907 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

....4 Q908 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

....4 Q911 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

....4 Q912 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

....4 Q913 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

....4 Q914 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

....4 QR02S 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

....4 Q915 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

....4 Q805 0501-000389 TRANSISTOR;KSC815-Y(TAPG)/YTAM

....4 Q409 0505-000109 FET-SILICON;2N7000,N,60V,200mA,5ohm,400

....4 IC804 1203-001217 IC-POST,ADJUSTREG;431,T0-92,3P,4.58MIL,P

....4 IC904 1203-001943 IC-VOL.DETECTOR;7025,T0-92,3P,PLASTIC

....4 VP801S 1405-000187 VARISTOR;750V,1250A,12.5x7mm,TP

....4 VX801S 1405-000187 VARISTOR;750V,1250A,12.5x7mm,TP

....4 R075 2001-000016 R-CARBON(S);1OHM,5%,1/2W,AA,TP

....4 R075 2001-000019 R-CARBON(S);10ohm,5%,1/2W,AA,TP,2.4x6.4m

....4 R075 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AB,

....4 R075 2001-000066 R-CARBON(S);10KOHM,5%,1/2W,AA,

....4 R075 2001-000109 R-CARBON(S);470OHM,5%,1/2W,AA,

....4 R125 2001-000241 R-CARBON;1.5KOHM,5%,1/8W,AA,TP

....4 R125 2001-000273 R-CARBON;100KOHM,5%,1/8W,AA,TP

....4 R125 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP,

....4 R125 2001-000319 R-CARBON;120KOHM,5%,1/8W,AA,TP,1.8X3.2M

....4 R125 2001-000290 R-CARBON;10KOHM,5%,1/8W,AA,TP,

....4 R125 2001-000429 R-CARBON;1Kohm,5%,1/8W,AA,TP,1.8x3.2mm

....4 R125 2001-000449 R-CARBON;2.2KOHM,5%,1/8W,AA,TP

....4 R125 2001-000515 R-CARBON;220OHM,5%,1/8W,AA,TP,

....4 R125 2001-000522 R-CARBON;22KOHM,5%,1/8W,AA,TP,

....4 R125 2001-000613 R-CARBON;3.9KOHM,5%,1/8W,AA,TP

....4 R125 2001-000628 R-CARBON;300OHM,5%,1/8W,AA,TP,

....4 R125 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP,

....4 R125 2001-000702 R-CARBON;39KOHM,5%,1/8W,AA,TP,

....4 R125 2001-000734 R-CARBON;4.7KOHM,5%,1/8W,AA,TP

....4 R125 2001-000780 R-CARBON;470ohm,5%,1/8W,AA,TP,1.8x3.2mm

....4 R125 2001-000786 R-CARBON;47KOHM,5%,1/8W,AA,TP,

....4 R125 2001-000793 R-CARBON;47OHM,5%,1/8W,AA,TP,1

....4 R125 2001-000812 R-CARBON;5.6Kohm,5%,1/8W,AA,TP,1.8x3.2mm

....4 R125 2001-000864 R-CARBON;56Kohm,5%,1/8W,AA,TP,1.8x3.2mm

....4 R125 2001-000869 R-CARBON;56OHM,5%,1/8W,AA,TP,1

....4 R125 2001-000924 R-CARBON;680ohm,5%,1/8W,AA,TP,1.8x3.2mm

....4 R125 2001-001015 R-CARBON;9.1Kohm,5%,1/8W,AA,TP,1.8x3.2m

....4 R125 2001-000995 R-CARBON;820OHM,5%,1/8W,AA,TP,

....4 R075 2001-001050 R-CARBON(S);1.5KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001088 R-CARBON(S);1KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001093 R-CARBON(S);2.2KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001096 R-CARBON(S);2.2OHM,5%,1/2W,AA,

....4 R819 2004-001983 R-METAL;2.49KOHM,1%,1/2W,AA,TP,2.4X6.4

....4 R024 2004-004045 R-METAL(S);390OHM,1%,1/2W,AA,TP,2.5X6.5M

....4 R075 2001-001129 R-CARBON(S);330KOHM, 5%, 1/2W

....4 R075 2001-001131 R-CARBON(S);33KOHM,5%,1/2W,AA,

....4 R075 2001-001146 R-CARBON(S);4.7OHM,5%,1/2W,AA,

....4 R075 2001-001150 R-CARBON(S);470KOHM,5%,1/2W,AA

....4 R075 2001-001163 R-CARBON(S);560OHM,5%,1/2W,AA,

....4 R075 2001-001164 R-CARBON(S);56KOHM,5%,1/2W,AA,

....4 R075 2001-001188 R-CARBON(S);8.2KOHM,5%,1/2W,AA,TP,2.4X6.

....4 R075 2001-001197 R-CARBON(S);910OHM,5%,1/2W,AB,TP,2.4X6.4

....4 RP802S 2002-001010 R-COMPOSITION;1.8MOHM,5%,1/2W,AA,TP,3.7X

....4 RY801S 2002-001012 R-COMPOSITION;8.2MOhm,5%,1/2W,AA,TP,3.7X

....4 R426 2003-000540 R-METALOXIDE(S);1KOHM,5%,2W,AD

....4 R433 2003-000540 R-METALOXIDE(S);1KOHM,5%,2W,AD

....4 R802 2003-000586 R-METALOXIDE(S);22KOHM,5%,2W,A

....4 R803 2003-000586 R-METALOXIDE(S);22KOHM,5%,2W,A

....4 R804 2003-000586 R-METALOXIDE(S);22KOHM,5%,2W,A

....4 R412 2003-000592 R-METALOXIDE(S);22OHM,5%,2W,AD

....4 R409 2003-000998 R-METALOXIDE;300OHM,5%,2W,AF,T

....4 R410 2003-000998 R-METALOXIDE;300OHM,5%,2W,AF,T

....4 R401 2003-001025 R-METALOXIDE(S);15KOHM,5%,2W,A

....4 R402 2003-001025 R-METALOXIDE(S);15KOHM,5%,2W,A

....4 R416 2003-001025 R-METALOXIDE(S);15KOHM,5%,2W,A

....4 R435 2003-001042 R-METALOXIDE(S);5.6KOHM,5%,2W,AF,TP,3.9X

....4 R403 2003-002064 R-METALOXIDE;7.5OHM,5%,2W,AF,T

....4 R434 2003-002064 R-METALOXIDE;7.5OHM,5%,2W,AF,T

....4 R830 2003-002157 R-METAL OXIDE;220OHM,5%,2W,AG,TP,6X16MM

....4 R835 2003-002181 R-METAL OXIDE(S);68Kohm,5%,2W,AG,TP,3.9x

....4 R428 2004-000698 R-METAL;3.3KOHM,1%,1/4W,AA,TP,

....4 R024 2004-001369 R-METAL(S);1.2Kohm,1%,1/2W,AA,TP,2.4x6.4

....4 R024 2004-001390 R-METAL(S);1KOHM,2%,1/2W,AA,TP

....4 R821 2004-002015 R-METAL,FILM;RM1/2T140K-F

....4 R024 2004-001893 R-METAL(S);22KOHM,1%,1/2W,AA,T

....4 R024 2004-001397 R-METAL(S);4.7KOHM,1%,1/2W,AA,

....4 R5867 2004-002016 R-METALFILM;RM1/2T(S)153-F15K

....4 R415 2004-004097 R-METAL;1.6Kohm,2%,1/2W,AA,TP,6.5x2.5m

....4 R422 2008-000251 R-FUSIBLE(S);0.27OHM,10%,2W,AF

....4 R414 2008-000253 R-FUSIBLE(S);0.47OHM,5%,1W,AF,

....4 R815 2008-000284 R-FUSIBLE(S);0.1OHM,10%,2W,AF,TP,3.9X10M

....4 R827 2008-000284 R-FUSIBLE(S);0.1OHM,10%,2W,AF,TP,3.9X10M

....4 R405 2008-001011 R-FUSIBLE(S);0.18OHM,10%,2W,AF

....4 R413 2008-001018 R-FUSIBLE(S);0.47OHM,10%,2W,AF

....4 R828 2008-001088 R-FUSIBLE(S);1ohm,5%,2W,AG,TP,3.9x12mm

....4 R424 2008-001109 R-FUSIBLE(S);0.18ohm,10%,2W,AG,TP,3.9x12

....4 R425 2008-001109 R-FUSIBLE(S);0.18ohm,10%,2W,AG,TP,3.9x12

....4 R304 2008-001108 R-FUSIBLE(S);1.2ohm,5%,2W,AG,TP,3.9x12mm

....4 R307 2008-001108 R-FUSIBLE(S);1.2ohm,5%,2W,AG,TP,3.9x12mm

....4 R829 2008-001148 R-FUSIBLE;3.3OHM,5%,1W,AG,TP,3.9X12MM

....4 C598 2201-000132 C-CERAMIC,DISC;100PF,10%,500V,Y5P,6X3MM,

....4 C656 2201-000304 C-CERAMIC,DISC0.001nF,0.25pF,50V,NP0,TP

....4 C657 2201-000304 C-CERAMIC,DISC0.001nF,0.25pF,50V,NP0,TP

....4 C804 2201-000332 C-CERAMIC,AC;CK45PTAPGE250V222

....4 C805 2201-000332 C-CERAMIC,AC;CK45PTAPGE250V222

....4 C598 2201-000370 C-CERAMIC,DISC;220PF,10%,50V,Y5P,TP

....4 C598 2201-000374 C-CERAMIC,DISC;220pF,5%,50V,CH,TP,12.5x3

....4 C598 2201-000556 C-CERAMIC,DISC;470PF,10%,500V,

....4 C598 2201-000558 C-CERAMIC,DISC;470PF,10%,50V,Y

....4 C598 2201-000599 C-CERAMIC,DISC;560PF,10%,500V,

....4 C598 2201-000611 C-CERAMIC,DISC;56PF,5%,50V,NPO

....4 C598 2201-000980 C-CERAMIC,DISC;30PF,5%,50V,NPO,5.0X3.0,5

....4 C598 2201-000984 C-CERAMIC,DISC;680PF,10%,2KV,Y

Electrical Parts List

6-4 Samsung Electronics

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

Electrical Parts List

Samsung Electronics 6-5

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

....4 C598 2201-000984 C-CERAMIC,DISC;680PF,10%,2KV,Y

....4 C598 2201-002028 C-CERAMIC,DISC;0.47nF,10%,2kV,Y5P,TP,7.5

....4 C689 2202-000127 C-CERAMIC,MLC-AXIAL;10NF,+80-2

....4 C689 2202-000216 C-CERAMIC,MLC-AXIAL;.027NF,5%,50V,SL,TP,

....4 C689 2202-000231 C-CERAMIC,MLC-AXIAL;330PF,10%,50V,Y5P,3.

....4 C689 2202-000243 C-CERAMIC,MLC-AXIAL;33PF,5%,50

....4 C689 2202-000286 C-CERAMIC,MLC-AXIAL;56PF,5%,50

....4 C689 2202-000632 C-CERAMIC,MLC-AXIAL;100nF,20%,50V,Z5U,TP

....4 C689 2202-000719 C-CERAMIC,MLC-AXIAL;6.8nF,20%,16V,Y5R,TP

....4 C689 2202-000796 C-CERAMIC,MLC-AXIAL;1NF,10%,50

....4 C689 2202-002037 C-CERAMIC,MLC-AXIAL;100NF,+80-20

....4 C649 2301-000108 C-FILM,PEF;1.5NF,5%,50V,6.5X3.0X5.5MM,5M

....4 C306 2301-000160 C-FILM,PEF;12NF,5%,50V,11.0X6.

....4 C432 2301-000192 C-FILM,PEF;1NF,5%,50V,5.3X10MM

....4 C610 2301-000192 C-FILM,PEF;1NF,5%,50V,5.3X10MM

....4 C611 2301-000192 C-FILM,PEF;1NF,5%,50V,5.3X10MM

....4 C902 2301-000192 C-FILM,PEF;1NF,5%,50V,5.3X10MM

....4 C411 2301-000192 C-FILM,PEF;1NF,5%,50V,5.3X10MM

....4 C802 2301-000204 C-FILM,PEF;2.7NF,5%,50V,7.4X3.

....4 C420 2301-000213 C-FILM,PEF;220NF,5%,250V,21.5X

....4 C809 2301-000224 C-FILM,PEF;22NF,5%,50V,7.4X3.9

....4 C821 2301-000224 C-FILM,PEF;22NF,5%,50V,7.4X3.9

....4 C415 2301-000261 C-FILM,PEF;4.7NF,5%,100V,10.5X

....4 C909 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

....4 C412 2301-000383 C-FILM,PEF;10nF,5%,50V,TP,6x7x3.2mm,5mm

....4 T1294 2301-001259 C-FILM,MPPF;100nF,5%,400V,TP,19x8x16,7.5

....4 C409 2301-001385 C-FILM,PPF;30nF,5%,630V,TP,20x15.5x10.5,

....4 C807 2303-000163 C-FILM,PPF;2.2NF,5%,800V,-,-,T

....4 C305 2305-000149 C-FILM;CF922N100VT104-J-40/105

....4 C304 2305-000285 C-FILM,MPEF;220NF,5%,100V,-,5M

....4 C308 2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

....4 C907 2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

....4 C101 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C103 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C105 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C201 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C206 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C240 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C416 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C417 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C605 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C635 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C646 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C651 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C658 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C659 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C812 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C825 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C831 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C836 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C837 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C843 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C844 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C914 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C916 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C922 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C923 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C925 2305-000665 C-FILM;104J, 60V,5MM TAPING

....4 C701 2401-002075 C-AL;4.7uF,20%,50V,GP,TP,5x11,5mm

....4 C644 2401-000192 C-ELEC;CE04-40/8550VT102-MW1SG

....4 C648 2401-000192 C-ELEC;CE04-40/8550VT102-MW1SG

....4 C701 2401-000262 C-AL;100UF,20%,160V,GP,16X25MM,5MM,

....4 C701 2401-000287 C-AL;100UF,20%,16V,WT,6X11MM,5

....4 C701 2401-000302 C-AL;100UF,20%,25V,GP,6X11MM,5

....4 C701 2401-000365 C-AL;100uF,20%,50V,WT,TP,10x12.5mm,

....4 C701 2401-000480 C-AL;10UF,20%,50V,GP,5X11MM,5M

....4 C701 2401-000493 C-AL;10UF,20%,50V,WT,5X11MM,5M

....4 C701 2401-000603 C-AL;1UF,20%,50V,GP,5X11MM,5MM

....4 C701 2401-000611 C-AL;1UF,20%,50V,WT,5X11MM,5MM

....4 C701 2401-000722 C-AL;2200uF,20%,25V,WT,TP,16x25,7.5

....4 C701 2401-000962 C-AL;22uF,20%,50V,GP,TP,5x11,5

....4 C701 2401-001026 C-AL;3.3UF,20%,50V,GP,5X11MM,5

....4 C701 2401-001397 C-AL;470UF,20%,25V,GP,10X16MM,

....4 C701 2401-001513 C-AL;47UF,20%,16V,WT,5X11MM,5M

....4 C701 2401-001527 C-AL;47UF,20%,250V,HR,13X25MM,

....4 C102 2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

....4 C913 2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

....4 C915 2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

....4 C917 2401-000025 C-ALUMINUM;100uF,20%,16V,GP,TP.6.3x11,5

....4 C823 2401-000318 C-AL(105C);100UF,20%,25V,WT,8X

....4 C701 2401-002216 C-AL;2200UF,20%,35V,-,16X25,7.

....4 C701 2401-000050 C-AL;10UF,20%,16V,GP,TP,5X11,2.5

....4 C404 2401-002288 C-ELEC;CE04-55/10525VT471-MWRG

....4 C202 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

....4 C810 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

....4 C811 2401-002463 C-ELECTROLYTIC;CE04WTAPG16V470M-M(SG)-VE

....4 C701 2401-002597 C-AL;220uF,20%,35V,GP,TP,10x12.5,5

....4 C701 2401-002619 C-AL;47uF,20%,25V,GP,TP,5x11,5

....4 C701 2401-003034 C-AL;220UF,20%,16V,WT,TP,8X11.

....4 C701 2401-003046 C-AL;47uF,20%,50V,WT,TP,6.3x11,2.5

....4 C701 2401-003578 C-AL;1000uF,20%,10V,GP,TP,8x20mm,5

....4 CW901 2503-000156 C-NETWORK;100pFx4,20&,50V

....4 L301 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

....4 L907 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

....4 L906 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3.

....4 L101 2701-000115 INDUCTOR-AXIAL;10UH,10%,2.8X7M

....4 L103 2701-000115 INDUCTOR-AXIAL;10UH,10%,2.8X7M

....4 L102 2701-000159 INDUCTORAXIAL;22uH,10%,4.2x9.8mm

....4 L602 2701-000169 INDUCTORAXIAL;3.9uH,10%,2.5x3.4mm

....4 L603 2701-000177 INDUCTOR-AXIAL;33UH,10%,2.5X3.4MM

....4 L604 2701-000177 INDUCTOR-AXIAL;33UH,10%,2.5X3.4MM

....4 L605 2701-000177 INDUCTOR-AXIAL;33UH,10%,2.5X3.4MM

....4 L606 2701-000177 INDUCTOR-AXIAL;33UH,10%,2.5X3.4MM

....4 L607 2701-000177 INDUCTOR-AXIAL;33UH,10%,2.5X3.4MM

....4 L608 2701-000177 INDUCTOR-AXIAL;33UH,10%,2.5X3.4MM

....4 L705 2701-000177 INDUCTOR-AXIAL;33UH,10%,2.5X3.4MM

....4 L706 2701-000177 INDUCTOR-AXIAL;33UH,10%,2.5X3.4MM

....4 L902 2701-000184 INDUCTOR-AXIAL;4.7UH,10%,2.5X3.4MM

....4 L908 2701-000191 INDUCTOR-AXIAL;47UH,10%,2.5X3.4MM

....4 L201 2701-000200 INDUCTOR-AXIAL;5.6uH,10%,4.2x9.8mm

....4 L811 2701-001030 INDUCTOR-AXIAL;43uH,10%,14x4.5mm

....4 L403 2701-001040 COIL INDUCTOR; COIL,10uH,ALO5

....4 L601 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm

....4 L609 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm

....4 L901 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm

....4 L903 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm

....4 L904 2702-001094 INDUCTOR-RADIAL;10uH,10%,6x4mm

....4 X901 2801-003728 CRYSTAL-UNIT;6MHz,30ppm,28AAM,20pf,40oh

....4 F101 2901-000297 FILTER-EMI ON BOARD;-,3A,-,-,3.5x5,TP,-

....4 L402 2901-000299 FILTER-EMIBEAD;BL02RN2-R65T2DB

....4 L410 2901-000299 FILTER-EMIBEAD;BL02RN2-R65T2DB

....4 L807 2901-000299 FILTER-EMIBEAD;BL02RN2-R65T2DB

....4 L404 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

....4 L610 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

....4 L614 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

....4 L615 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

....4 L805 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

....4 L809 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

....4 J432 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6.

....4 G101 3301-001223 CORE-FERRITE BEAD;AB,-,3.5X5X0.8MM,-,TP,

....4 FA801S 3601-000120 FUSE-FERRULE;125V,2.5A,FA,GLASS,2.4x7.5m

....4 FA802S 3601-001086 FUSE-AXIAL LEAD;125V,5A,FAST-ACTING,GLAS

....4 FA803S 3601-001228 FUSE-AXIAL LEAD;125V,10A,FAST-ACTING,EPO

....4 F801A 3602-000114 FUSE-HOLDER;-,-,30MOHM

....4 F801B 3602-000114 FUSE-HOLDER;-,-,30MOHM

....4 03VER AA41-00859D PCB MAIN;1ea,D,1.6T,245x330,K55A S.N.A

....4 EY302 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY303 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY403 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY404 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY405 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY406 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY407 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY408 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY409 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY410 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY411 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY412 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY413 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY414 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY415 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY418 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY419 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY420 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY421 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY422 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY423 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY424 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY426 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY429 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY430 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY431 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY432 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY433 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY434 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY435 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY436 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY437 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY439 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY441 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY446 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY447 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY603 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY604 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY701 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY702 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY703 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY704 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY705 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY706 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY801 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY802 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY803 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY804 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY805 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY806 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY809 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY810 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY812 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY813 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY814 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY815 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY816 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY817 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY820 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY824 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY828 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY829 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY830 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY831 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY832 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY835 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY836 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY837 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY839 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY840 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY841 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY842 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY844 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY845 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY846 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY848 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY850 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY851 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY853 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY854 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY855 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY856 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY857 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY858 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY859 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY864 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY865 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY871 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EY872 6042-000002 EYELET;IDI.5,OD2,L3.1,SN,BSS3-E/EH S.N.A

....4 EL401 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

....4 EL402 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

....4 EL407 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

....4 EL408 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

....4 EL801 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

....4 EL802 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

....4 EL805 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

....4 EL807 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

....4 EL808 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

....4 EL806 6042-000001 EYELET;ID2.2,OD2.7,L3.1,SN,BSS3-E/EH S.N.A

....4 GT102 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT404 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT405 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT406 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT410 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT411 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT412 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT801 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT802 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT803 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT804 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT805 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT806 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 GT201 AA60-40014A PIN-GT,ASSY;1P,-,-,AUTO S.N.A

....4 DZ016 0403-001321 DIODE-ZENER;MTZJ6.8C,6.7-6.97V,500MW,DO-

....4 QR01S 0501-000283 TRANSISTOR;KSA539-Y(TAPG)/YTAM

....4 R125 2001-000908 R-CARBON ;62Kohm,5%,1/8W,AA,TP,1.8x3.2mm

....4 R125 2001-000977 R-CARBON;8.2Kohm,5%,1/8W,AA,TP,1.8x3.2m

Electrical Parts List

6-6 Samsung Electronics

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

Electrical Parts List

Samsung Electronics 6-7

Level Loc. No. Code No. Description ; Specification Remark Level Loc. No. Code No. Description ; Specification Remark

....4 R075 2001-001103 R-CARBON(S);20KOHM,5%,1/2W,AA,TP,2.4X6.4

....4 R075 2001-001149 R-CARBON(S);43KOHM,5%,1/2W,AA,

....4 R024 2004-001897 R-METAL(S);43.2KOHM,1%,1/2W,AA

....4 R024 2004-004029 R-METAL(S);10Kohm,1%,1/2W,AA,TP,2.5x6.5m

....4 RR01S 2008-000264 R-FUSIBLE(S);1OHM,5%,1W,AF,TP,

....4 CR04S 2305-000412 C-FILM,MPEF;470NF,5%,63V,-,5MM

....4 C701 2401-001192 C-AL;33UF,20%,50V,GP,6X11MM,5MM,TP

....4 C701 2401-003028 C-AL;100UF,20%,25V,WT,TP,6.3X1

....4 C701 2401-000471 C-AL;10UF,20%,50V,BP,6X11MM,5M

....4 R305 2003-002205 R-METAL OXIDE(S);330ohm,5%,2W,AG,TP,3.9X

....4 R306 2003-002205 R-METAL OXIDE(S);330ohm,5%,2W,AG,TP,3.9X

....4 R430 2004-000412 R-METAL;18Kohm,1%,1/4W,AA,TP,2.4x6.4mm

ASSY COVER FRONT

1 M0001 AA90-04748A ASSY COVER FRONT;K55A,28A11,HIPS,V0,G430 S.N.A

..2 T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR ..2 PCB+HA 6003-001023 SCREW-TAPTITERWH,+,B,M3,L10,ZPC(YEL) S.N.A ..2 SPK+CF 6006-001095 SCREW-ASS’Y TAPT;WP,BH,+,M4,L12,ZPC(YEL) S.N.A ..2 SC016 AA60-10050V SCREW-ASSY;WC,HH,+,M6,L30,SWRCH18A,ZPC(S ..2 T0175 AA96-01461B ASSY SPEAKER P;8ohm,28A11,10W,Semidome S S.N.A ..2 T0102 AA73-00005B RUBBER-CAP;FLAT,PRJ,SILICONE RUBBER,WHIT ..2 T0102 AA73-00020A RUBBER-CAP;32A10,RUBBER S.N.A ..2 T0614 AA65-30018A CLAMP-WIRE;-,NYLON6.6,-,-,DATL S.N.A ..2 T0614 AA65-30018A CLAMP-WIRE;-,NYLON6.6,-,-,DATL S.N.A ..2 T0057 AA64-70117B BADGE-BRAND;-,AL,-,-,L65,R2000,SILVER,SS S.N.A ..2 T0614 AA65-00011C CLAMP-WIRE;ALL MODEL,NYLON 66,V2,NTR,25M S.N.A ..2 T0614 AA65-30105A CLAMP-WIRE;NYLON 66N,VO,NTR,15MM S.N.A ..2 M0003 AA96-01717A ASSY COVER P-FRONT;28A11,HIPS,V0,G4309,S ...3 T0081 6003-001019 SCREW-TAPTITE;RH,+,B,M4,L12,ZPC(BLK),SWR ...3 T0069 AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,- S.N.A ...3 CIS7 AA61-60003J SPRING ETC-CS;-,SUS304,-,-,OD6,N7,OD6,-, S.N.A ...3 CIS1 AA63-00690A COVER-CONTROL;28A11(SAMEX),HIPS S.N.A ...3 T0299 AA64-03338A WINDOW-RMC,LED;32A11,PC,CLR ...3 CIS3 AA64-03583A CABINET FRONT;28A11(SAMEX),HIPS S.N.A ...3 T0022 AA64-03585A KNOB CONTROL;28A11(SAMEX),ABS S.N.A ...3 T0023 AA64-03345A KNOB-POWER;32A11,ABS,HB,G4309,SVM3012 ..2 M0452 AA96-01365Q ASSY COVER P-HOLDER AV;A10,ABS HB,G4309, S.N.A ...3 S/BUMP AA60-00162A SPACER-BUMPON;A10,A11,PU,10,CLEAR,T0.8,5 S.N.A ...3 T0010 AA61-01286C HOLDER-AV;29A11,ABS HB,G4309,SVM3012 S.N.A ...3 CIS8 AA61-30001A LATCH-DOOR;-,-,-,KIFUCOLA701,...3 T0578 AA64-00246P INLAY AV;29A11,SHEET PS,T0.3,K55A DO SIL S.N.A ...3 T0150 AA64-03346D DOOR-AV;29A11,ABS HB,G4309,SVM3012 ...3 INPC AA64-60446C INLAY-PC,JACK;29A6,L/GRAY,PS SHEET,T0.5, S.N.A ..2 APAV AA96-01502A ASSY PCB P-SIDE A/V;TXM2771HFX,K55A S.N.A ...3 DZ016 0403-000720 DIODE-ZENER;MTZJ9.1B,8.57-9.01V,500MW,DO ...3 DZ016 0403-000708 DIODE-ZENER;MTZJ13B,12.59-13.16V,500MW,D ...3 DZ016 0403-000708 DIODE-ZENER;MTZJ13B,12.59-13.16V,500MW,D ...3 R075 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AB, ...3 R075 2001-000028 R-CARBON(S);100OHM,5%,1/2W,AB, ...3 C689 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP ...3 C689 2202-000121 C-CERAMIC,MLC-AXIAL;100pF,10%,50V,Y5P,TP ...3 C689 2202-000231 C-CERAMIC,MLC-AXIAL;330PF,10%,50V,Y5P,3. ...3 C689 2202-000231 C-CERAMIC,MLC-AXIAL;330PF,10%,50V,Y5P,3. ...3 L701 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3. ...3 L702 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3. ...3 L705 2701-000168 INDUCTORAXIAL;3.3uH,5%,2.5x3.4mm ...3 L706 2701-000168 INDUCTORAXIAL;3.3uH,5%,2.5x3.4mm ...3 L707 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6. ...3 L708 3301-000287 CORE-FERRITEBEAD;AA,3.5X1.0X6. ...3 00VER AA41-00891A PCB-A/V SIDE;CT-29A10,,,A,,,K55A,10,, S.N.A ...3 JK04 3722-000544 JACK-VHS;4P,11.5mm,AG,BLK,N ...3 JKH01 3722-001061 JACK-PHONE;1P,3.6MM,AG,BLK,N ...3 JA701 3722-001164 JACK-PIN;3P,3.4mm,SN,WH:YE:RE,#16-22 ...3 T0245 AA39-00070B LEAD CONNECTOR-ASSY;,4P,YBNH250-04,35184 ...3 T0254 AA39-20069A LEAD-CONNECTOR,ASSY;-,YBNH025...3 M2893 AA39-20071H LEAD CONNECTOR;K55A/CT-29A10HR,UL1007#26 ...3 T0121 3301-001201 CORE-FERRITE;AE,230.5x10.25x36mm,1500,28 ..2 T0612 AA96-01509A ASSY PCB P-CONTROL;TXN2670WHF,K55A S.N.A ...3 SW01 3404-000176 SWITCH-TACT;12V,50MA,90-150GF, ...3 SW02 3404-000176 SWITCH-TACT;12V,50MA,90-150GF, ...3 SW03 3404-000176 SWITCH-TACT;12V,50MA,90-150GF, ...3 SW04 3404-000176 SWITCH-TACT;12V,50MA,90-150GF, ...3 SW05 3404-000176 SWITCH-TACT;12V,50MA,90-150GF,

...3 SW06 3404-000176 SWITCH-TACT;12V,50MA,90-150GF, ...3 SW07 3404-000176 SWITCH-TACT;12V,50MA,90-150GF, ...3 DY01 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING ...3 DY02 0401-000005 DIODE;1N4148,100V,300mA,1V,8nS,TAPING ...3 DZ016 0403-000508 DIODE-ZENER;MTZJ5.6B,5.45-5.73V,500MW,DO ...3 R125 2001-000007 R-CARBON;3KOHM,5%,1/8W,AA,TP,1 ...3 R125 2001-000009 R-CARBON;20KOHM,5%,1/8W,AA,TP, ...3 R075 2001-000020 R-CARBON(S);22OHM,5%,1/2W,AA,T ...3 R125 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, ...3 R125 2001-000281 R-CARBON;100OHM,5%,1/8W,AA,TP, ...3 R125 2001-000577 R-CARBON;2KOHM,5%,1/8W,AA,TP,1 ...3 R125 2001-000878 R-CARBON;6.2KOHM,5%,1/8W,AA,TP ...3 CY01 2401-002291 C-ELECTROLYTIC;CE04WTAPG16V47M ...3 IY01 2701-000114 INDUCTOR-AXIAL;10UH,10%,2.5X3. ...3 M0119 AA41-00914A PCB CONTROL;CT-29A11,FR-1,1-layer,A,1.6T S.N.A ...3 LDY02 0601-000262 LED;ROUND,RED,5mm,700nm ...3 RMY01 AA32-00012A MODULE REMOCON;ORC-50HF2,38KHZ,940NM,MES ...3 T0245 AA39-00100B LEAD CONNECTOR-ASSY;4P,400MM,YBNH250-04, ...3 T0077 AA39-20055C LEAD CONNECTOR ASSY;YBNH025-06,67096-006

ASSY COVER REAR

1 M0002 AA90-04749A ASSY COVER REAR;K55A,28A11,HIPS,V0 S.N.A

..2 T0015 AA64-03584A CABINET BACK;28A11(SAMEX),HIPS ..2 T0069 AA60-00091J SPACER-FELT;-,FELT,330X10,-,-,BLK,T0.5,- S.N.A ..2 AC+BC AA65-30008A CLAMP-CORD;-,PE,HB,BLK,-,- S.N.A ..2 T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A ..2 T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A ..2 T0081 6003-001026 SCREW-TAPTITE;RH,+,B,M4,L15,ZPC(BLK),SWR S.N.A ..2 T0614 AA65-30018A CLAMP-WIRE;-,NYLON6.6,-,-,DATL S.N.A ..2 T0614 AA65-30018A CLAMP-WIRE;-,NYLON6.6,-,-,DATL S.N.A ..2 TBA AA65-00028A TERMINAL-BOARD,ANT;,DP Z7,AA65-00025A VO S.N.A ..2 INL/TB AA64-02822K INLAY-BACK;PS SHEET,T0.5 S.N.A

ASSY CPT

1 A/CPT AA91-05992C ASSY CPT;TXN2670WFXXAA,K55A,(+400MG+230M S.N.A

..2 T0089 AA27-00303A COIL DEGAUSSING;28inch,28inch,5.45mH°æ20 ..2 T0063 AA03-00397A CRT COLOR;W66QDE893X200,380mG,0.34,0.53, ..2 A/TBC AA98-70008C ASSY-TBC,WIRE(P);-,TVI 29’,NTSC,2P-WH,- S.N.A ..2 T0609 AA63-60004Y SPACER-GUM,CRT;NTR RUBBER,T2.0,RED,-,ALL S.N.A ..2 C/DCOI AA65-00019A CLAMP CORE-D,COIL;25-34,NYLON 66,V2,NTR S.N.A

ASSY P/MATERIAL

1 A/PMAT AA92-07697A ASSY P/MATERIAL;TXN2670WHFXXAA S.N.A

..2 STAPLE AA60-40006A PIN-STAPLE;-,-,-,H18,33X17.8X2 S.N.A ..2 PE-BAG AA69-01210A BAG;SHEET,32-36,W65,L63,FOAM,OEM. S.N.A

ASSY ACCESSORY

1 M0245 AA92-07700A ASSY ACCESSORY;K55A,,SEA S.N.A

..2 T0074 AA59-00322B REMOCON;TM76A,YONGSTAR,47,G6148,NT,EX,NT ..2 T0152 AA68-00371B CARD WARRANTY;,W/P100(G),1 YEAR ..2 T0152 AA68-01561A CARD WARRANTY;BLOCK,STATEMENT ONLY,SEA/S S.N.A ..2 C/REG AA68-01969A CARD;REGISTRATION PRODUCT,W/P120(G),SEA S.N.A ..2 BAG-PE AA69-01195A BAG PE;CL29A6W8X,HDPET0.012,93/4X151 S.N.A ..2 T0116 AA39-40001B CABLE RCA;3P-3P1500MMRED,WHT,YEL,500 ..2 T0511 AA68-03209A MANUAL USERS;K55A,ENG,W/P100(G),B5 S.N.A

6-8 Samsung Electronics

MEMO

Troubleshooting

Samsung Electronics 8-1

8. Block Diagram

8-1 Voltage / Current Block Diagram

S

M

P

136V/ 845mA

7.9V/8 35mA

7.7V/217mA 78R05

(IC8 02 )

7.8V/621mA 78R05

(IC805)

6.24V/ 625mA(AC)

F

214V/ 41mA

B

16.35V/697mA

T

- 13.5V/434mA

5V/210mA

5V/183mA

5V/431mA

5mA 37mA

103mA

14.9V/123mA

16.2V/455mA

404mA 19mA

78RM33 (IC20 2 )

(IC402)

5V/172mA

CPT He ater

33V Tuner

IC501,2,3

7812

HDT LA7845

CPT So c k et

Main Tuner

Sound Control IC

Modu le Board

3.3V/423mA

Modu le Board

LM393

26.7V/17mA

12.36V/346mA

S

TDA7269

11.2V/ 212mA 78R09

12.2V/ 135mA

C2073

12.2V/ 10mA

DDR1001A

(HIC401)

No Sound

9V/30mA

9V/212mA

9V/86mA

6V/130mA

78RM33

(IC903)

Main Tuner Sound Control IC Modu le Board

Micom (IC901)

MEMO

8-2 Samsung Electronics

8-3 PCB Layout

Samsung Electronics

Block Diagrams

8-3

Block Diagrams

8-4 Samsung Electronics

8-4 System Block Diagram

MAIN Tmblock

Tuner/ LAN/IF

Sound Process

MSP34**

MAIN SPEAKER

MAIN S-AMP

TDA7269

Woofer AMP

PIP Tmblock

Tuner/LAN/IF

RCA Jack

Array

CVBS

YPbPr

YC

MICOM

SDA555*

EEPROM

24W16

Feature Box

SDA9407905) / CXA2151 / CXA2165

BA7657F / UPD64083 / TEA6425

(SRC, D/A, A/D, Def, PIP, Matrix)

H-Out TR

TDA7269

RGB DRIVE

TDA6111Q*3

V/M

CRT

FJL6920

78R09 78R05 78R33

12V

33V

Vertical AMP

LA7845

200V

AC INPUT

8V

POWER

SPS 250W

TRANS

5Q1565F

24V

135V

E/W AMP

LM393

Double

Focus

FBT

8-5 Power Block Diagram

Samsung Electronics

Block Diagrams

8-5

8-6 Video Signal Block Diagram

Block Diagrams

8-6 Samsung Electronics

PIP

Main

Feature Box

Decoder*2

H/V Scaler

DRAM / SRAM

UPD64083

3D Comb

VS9407

TEA6425

S/W

BA7657F

S/W

CXA2151 Sync Counter Comp. & SW

DVD DTV

CX2165

RGB Matrix Deflection

H-OUT V-OUT

CRT-DRIVE

Ik

R.G.B

REF.

VM

29", 34"

TDA6111Q

32"

TDA6120Q

CATHODE

AMP

VM-COIL

AFT

Main TM Block

Micom

Jack Array

- Rear Jack

- Side Jack

- Super Jack

Sub TM Block

ANT

8-7 Sound signal Block Diagram

Samsung Electronics

Block Diagrams

8-7

TM-BLOCK

SIF

16

47

ANA-IN

AV-RO

27

AV-LO

28

AUDIO PROCESSOR

MSP34XX

AV-L3

37

AV-R3

38

AV-L2 AV-R2

39

40

AV-L1

41

L-O

R-O

AV-R1

42

25

24

7

11

L-I

R-I

AUDIO AMP

TDA7269

39

L-O

R-O

4

2

R

AUDIO

OUT

L

AUDIO

IN3

R

L

AUDIO

IN2

AUDIO

IN2

R

L

Mute Timming

Control

SIDE-A/V

RL

24V

49

MUTE

MICOM SDA555

CN702

Block Diagrams

8-8 Samsung Electronics

8-8 Deflection Block Diagram

Deflection & Metrix

CXA2165

EW-OUT

H-Blank

H-Drive

47

39

40

COMPARATOR

3

H-DRIVE

DDR1001A

KA393

2

HDT

1

G

H-OUT,TR

FET

S

D

MICOM

H-SYNC

H-PULSESAW-TOOTH

COL 16.5V FOCUS

19

10

ABL

FBT

FUJ29***

V-SYNC

20

DIODE

MOD

V-Blank

35

V P Drive V N Drive

53

52

4 INPUT

5

INPUT

PUMP UP

7

V-AMP

LA7845

V-OUT

2

1 2

DOUBLE FOCUS

V1

V2

MODULE

DY

H1

H2

16.5VAC

OUT

1

3

8 12

EW

CORECTION

TP01

TP02

TP09

TP10

TP11

TP03

TP04

TP05

TP07

TP08

TP06

9. Schematic Diagrams

Samsung Electronics

Schematic Diagrams

9-1

9-1 MAIN 1

TP07

TP08

TP09

TP10

TP11

TP01

TP02

TP03

TP04

TP05

TP06
