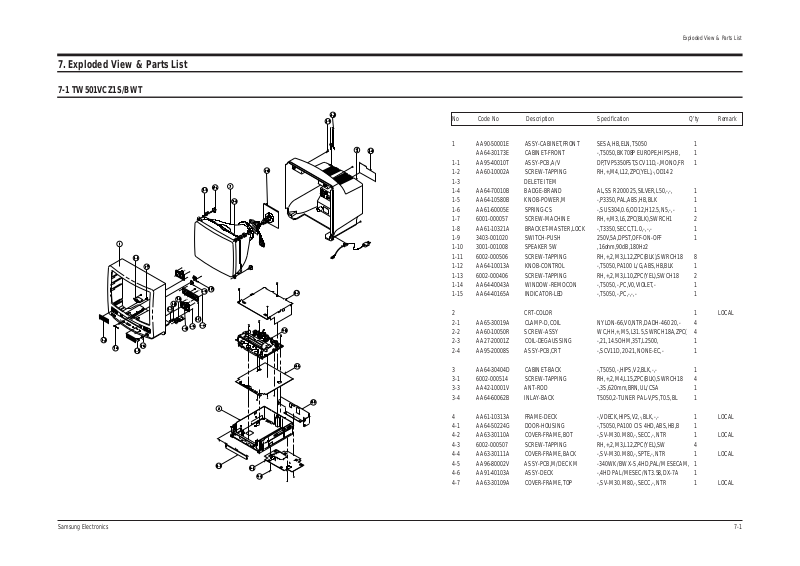

7. Exploded View & Parts List
7-1 TW501VCZ1S/BWT
Exploded View & Parts List
Samsung Electronics 7-1
No Code No Description Specification Q’ty Remark
1 AA90-50001E ASSY-CABINET,FRONT SESA,HB,ELN,T5050 1
AA64-30173E CABINET-FRONT -,T5050,BK708P EUROPE,HIPS,HB, 1
1-1 AA95-40010T ASSY-PCB,A/V DP,TVP5350FST,SCV11D,-,MONO,FR 1
1-2 AA60-10002A SCREW-TAPPING RH,+,M4,L12,ZPC(YEL),-,OD142
1-3 DELETE ITEM
1-4 AA64-70010B BADGE-BRAND AL,SS R2000 25,SILVER,L50,-,-, 1
1-5 AA64-10580B KNOB-POWER,M -,P3350,PAL,ABS,HB,BLK 1
1-6 AA61-60005E SPRING-CS -,SUS304,0.6,OD12,H12.5,N5,-,- 1
1-7 6001-000057 SCREW-MACHINE RH,+,M3,L6,ZPC(BLK),SWRCH1 2
1-8 AA61-10321A BRACKET-MASTER,LOCK -,T3350,SECC,T1.0,-,-,- 1
1-9 3403-001020 SWITCH-PUSH 250V,5A,DPST,OFF-ON-OFF 1
1-10 3001-001008 SPEAKER5W ,16ohm,90dB,180Hz2
1-11 6002-000506 SCREW-TAPPING RH,+,2,M3,L12,ZPC(BLK),SWRCH18 8
1-12 AA64-10013A KNOB-CONTROL -,T5050,PA100 L/G,ABS,HB,BLK 1
1-13 6002-000406 SCREW-TAPPING RH,+,2,M3,L10,ZPC(YEL),SWCH18 2
1-14 AA64-40043A WINDOW-REMOCON -,T5050,-,PC,V0,VIOLET,- 1
1-15 AA64-40165A INDICATOR-LED -,T5050,-,PC,-,-,- 1
2 CRT-COLOR 1 LOCAL
2-1 AA65-30019A CLAMP-D,COIL NYLON-66,V0,NTR,DADH-460 20,- 4
2-2 AA60-10050R SCREW-ASSY WC,HH,+,M5,L31.5,SWRCH18A,ZPC( 4
2-3 AA27-20001Z COIL-DEGAUSSING -,21,14.5OHM,35T,L2500, 1
2-4 AA95-20008S ASSY-PCB,CRT -,SCV11D,20-21,NONE-EC,- 1
3 AA64-30404D CABINET-BACK -,T5050,-,HIPS,V2,BLK,-,- 1
3-1 6002-000514 SCREW-TAPPING RH,+,2,M4,L15,ZPC(BLK),SWRCH18 4
3-3 AA42-10001V ANT-ROD -,3S,620mm,BRN,UL/CSA 1
3-4 AA64-60062B INLAY-BACK T5050,2-TUNER PAL-V,PS,T0.5,BL 1
4 AA61-10313A FRAME-DECK -,VDECK,HIPS,V2,-,BLK,-,- 1 LOCAL
4-1 AA64-50224G DOOR-HOUSING -,T5050,PA100 CIS 4HD,ABS,HB,B 1
4-2 AA63-30110A COVER-FRAME,BOT -,SV-M30.M80,-,SECC,-,NTR 1 LOCAL
4-3 6002-000507 SCREW-TAPPING RH,+,2,M3,L12,ZPC(YEL),SW 4
4-4 AA63-30111A COVER-FRAME,BACK -,SV-M30.M80,-,SPTE,-,NTR 1 LOCAL
4-5 AA96-80002V ASSY-PCB,M/DECKM -340WK/BWX-S,4HD,PAL/MESECAM, 1
4-6 AA91-40103A ASSY-DECK -,4HD PAL/MESEC/NT3.58,DX-7A 1
4-7 AA63-30109A COVER-FRAME,TOP -,SV-M30.M80,-,SECC,-,NTR 1 LOCAL
Exploded View & Parts List
7-2 Samsung Electronics
No Code No Description Specification Q’ty Remark
1 AA90-50002F ASSY-CABINET,FRONT SESA HB EUROPE,T3350 1
AA64-30093F CABINET-FRONT -,T3350,BK708P PAL,HIPS,HB,BLK 1
1-1 3001-001015 SPEAKER 2.5W,16ohm,88dB,150Hz 1
1-2 AA61-40015A BOSS-CABINET -,HIPS,HB,NTR,-,- 2
1-3 AA64-70009B BADGE-BRAND AL,SS R2000 22,SILVER,L40,-,-, 1
1-4 AA64-40160A INDICATOR-LED -,T3350,-,PC,-,-,- 1
1-5 AA64-40027A WINDOW-REMOCON -,T3350,1:20,PC,-,VIOLET,- 1
1-6 AA64-10366A KNOB-CONTROL -,T3350,PA100,ABS,HB,BLK 1
2 AA03-10001D CRT-COLOR -,A34KQV42X,+380MG,14,90DEG,5 1
2-1 AA65-30016A CLAMP-D,COIL NYLON-66,V0,NTR,DADH-360 14 2
2-2 AA60-10050D SCREW-ASSY WC,HH,+,M5,L33,SWRCH18,ZPC(YE 4
2-3 AA95-20008U ASSY-PCB,CRT -,SCV11D,14,NONE-EC,- 1
3 AA64-30650D CABINET-BACK -,T3350,-,HIPS,V2,BLK,-,- 1
3-1 AA42-10001V ANT-ROD -,3S,620mm,BRN,UL/CSA 1
3-2 AA64-60062H INLAY-BACK T5050,1-TUNER PAL-V,PS,T0.5,B 1
3-3 DELETE ITEM
3-4 AA61-20045A HOLDER-CORD 1 LOCAL
4 AA61-10313A FRAME-DECK -,VDECK,HIPS,V2,-,BLK,-,- 1 LOCAL
4-1 AA64-50224F DOOR-HOUSING -,T3350,PA100 CIS 2HD,ABS,HB,B 1
4-2 AA63-30110A COVER-FRAME,BOT -,SV-M30.M80,-,SECC,-,NTR 1 LOCAL
4-3 6002-000507 SCREW-TAPPING RH,+,2,M3,L12,ZPC(YEL),SW 4
4-4 AA63-30111A COVER-FRAME,BACK -,SV-M30.M80,-,SPTE,-,NTR 1 LOCAL
4-5 AA96-80002U ASSY-PCB,M/DECKM -320WK/BWX-S,2HD,PAL/MESECAM, 1
4-6 AA91-40102A ASSY-DECK -,2HD PAL/MESEC/NT3.58,DX-7A 1
4-7 AA63-30109A COVER-FRAME,TOP -,SV-M30.M80,-,SECC,-,NTR 1 LOCAL
7-2 TW331VDZ1S/BWT
Exploded View & Parts List
Samsung Electronics 7-3
7-3 Mechanical Parts (Top Side)
T216
T201
T207
T300
901
920
901
T203
T209
T240
900
T239
T210
956
956
956
T208
T227
T233
957
T234
T228
T230
T229
T231
901
T233
T204
T238
T232
T225
T226
952
G
T236
T211
T223
T217
T219
952
T218
T220 T221
T237
G
G
O
G
919
T224
T212
Loc. No Part No Description and Specification Remark
901 AC60-10012A SCREW-MACHINE;BH,+,M3,L8,-,FE,-,-,919 AC60-10004A SCREW-MACHINE;BH,+,M3,L8,ZPC,SWRCH18A,-,
920 AC60-10007A SCREW-TAPPING;BH,+,M2.6,L12,-,SWRCH18A,952 AC60-30018A WASHER-PLAIN;PLAIN,M3.2,D6,T0.5,POLYSLID
956 AC60-30007A WASHER-SLIT;PLAIN,ID2.5,OD7,T0.5,SPC1,-,
957 AC60-30008A WASHER-SLIT;-,ID3.5,OD9,T0.5,SPC1,-,T201 AC66-10023A REEL-DISK L ASSY;POM,-,PACKAGE,X-5,T202 AC66-10022A REEL-DISK R (ASSY);POM,-,PACKAGE,X-5,T203 AC66-30474A BRAKE-SUB L;-,PBT,-,-,-,X-5/IS
T204 AC66-30148A BRAKE SUB R;-,-,-,-,X5,T207 AC66-30475A BRAKE-MAIN L ASS’Y;-,POM+PELT,-,-,-,X-5/
T208 AC66-30476A BRAKE-MAIN R ASS’Y;-,POM+PELT,-,-,-,X-5/
T209 AC61-60112A SPRING- BRAKE MAIN;ES,SUS304WPB,PI0.35,I
T210 AC66-20073A GEAR RELAY S-ASSY;-,-,-,-,-,X5,T211 AC66-20037A GEAR- RELAY T;PEBAX7033,X-5,Z39,GEAR-SPU
T212 AC66-30073A ARM-TENSION ASSY;-,DX5-R,-,-,-,T216 AC61-60119A SPRING TENSION;ES,SWPB,PI0.4,D3,L33(OD3.
T217 AC66-30470A LEVER-REC S/W;-,PBT #3300,T4.0,L32,-,(XT218 AC61-62017A SPRING-SUB BRAKE L;ES,SUS304,PI0.23,D3.5
T219 AC33-10003P HEAD- MAGNET F/E;MH131S,-,-,-,L51.05XW7.
T220 AC66-82050A SLIDER-G/R ASSY(S);-,-,-,-,X-5
T221 AC66-82054A SLIDER-G/R ASSY(T);-,-,-,-,X-5
T223 AC66-20065A RACK-HOUSING;L74.29,POM M90-44,BLK,M1,3.
T224 AC33-10216K HEAD-ACE ALL ASSY;-,-,-,-,X-7A
T225 AC66-80005A SLIDER-PINCH;POM(M90-44),T10.5,L54.35,NA
T226 AC66-30014A LEVER-REVIEW;ZYTEL(70G-43L),T5,-,PCD25.6
T227 AC66-30099A ARM-REVIEW ASSY;-,-,-,-,DX5-R,T228 AC66-30013A LEVER- CAM;PBT 6300T,-,L45,W9,X-5,T229 AC66-30003A LEVER-PINCH COMP;PBT 3300,T7.5,L45.25,-,
T230 AC61-60116A SPRING- PINCH COMP;TS,SWPB,PI1.0,D6,L38(
T231 AC67-32001A PRISM-LED;PMMA,D5,IF-850,-,-,T232 AC66-82049A SLIDER-PUSH;LUPOX 2150,T2,-,NTR,T233 AC61-62016A SPRING-SLIDE PUSH;ES,SUS304WPB,PI0.55,D3
T234 AC59-90402A UNIT-PINCH ROLLER;X-7A,RESIN BEARING
T236 AC66-10010A IDLER-ASSY;PACKAGE,-,X-5,T238 AC61-60132A SPRING ARM PINCH;CS,SUS304WPB,PI0.4,D7.1
T240 AC61-60505A SPRING-REC S/W;-,ES,SUS304 WPB,PI0.29,PI
T300 AC96-10475D ASSY-CYLINDER;-,CX8A-S2P (2HEAD)
T300 AC96-10475E ASSY-CYLINDER;-,CX8A-S2P/DLC (2HEAD)
T300 AC96-10480F ASSY-CYLINDER;-,CX8A-S2P(LP)
T300 AC96-10475F ASSY-CYLINDER;-,CX8A-D4P
T300 AC96-10475G ASSY-CYLINDER;-,CX8A-D4P/DLC
Exploded View & Parts List
7-4 Samsung Electronics
7-4 Mechanical Parts (Bottom Side)
B257
G
G
O
B256
B254
951
951
952
918
B258
B261
B255
B260
B267
B266
B265
956
902
922
B259
B262
B253
B263
B268
B251
958
B252
G
B264
902 AC60-10051A SCREW-TAPPING;BH,-,-,M3,L8,FZY
918 AC60-10041A SCREW-TAPPING;BH,+,-,M2.6XL7.5,ZPC3
922 AC60-10504A SCREW-MACHINE;-,PH,+,-,M3,L3,FE,FZY,YEL
951 AC60-30025A WASHER-SLIT;-,ID2.5,OD5.0,T0.5,POLY SLID
952 AC60-30018A WASHER-PLAIN;PLAIN,M3.2,D6,T0.5,POLYSLID
956 AC60-30007A WASHER-SLIT;PLAIN,ID2.5,OD7,T0.5,SPC1,-,
958 AC60-30028A WASHER-SLIT;-,D2.5,D9.0,T0.5,NUMIRROR,-,
B251 AC66-82043A SLIDER-MAIN;TOPEX 4010S,-,-,-,B252 AC66-20019A GEAR-LOADING L ASSY;-,-,-,PACKAGE,-,X-5,
B253 AC66-20069A GEAR-LOADING R ASSY;-,-,-,-,-,X5,B254 AC61-60115A SPRING-BRAKE CAPSTAN;ES,SUS304WPB,PI0.4,
B255 AC66-20004A GEAR-MASTER;POM (M90-44),M 1,Z 60,SP,-,X
B256 AC31-12006A MOTOR-D/D CAPSTAN;DMVCMC07A,-,B257 AC66-62008A BELT-CAPSTAN;-,DLB-601,T2,8,L134.9,BLK,X
B258 AC66-20066A GEAR-CLUTCH ASSY;X-5,-,-,-,-,-,B259 AC66-32185A LEVER-SLIDER PINCH;PBT,T4,NAT,-,-,B260 AC66-20016A GEAR- WORM WHEEL;POM SW-01,M0.55/M1,Z57/
B261 AC66-30011A LEVER- SHIFT;PBT2002K,T10.9,L35,-,-,B262 AC66-30012A LEVER- IDELR CHANGE;PBT330,T33,L50,-,W6.
B263 AC61-60111A SPRING-LEVER SHIFT;TS,SWPB,PI0.7,D5.5,L1
B264 AC59-90001A UNIT-LOADING ASSY;X-5,-,B265 AC31-12015A MOTOR-LOADING ASSY;POM+RF370C X-5
B266 AC66-20039A GEAR- WORM LO;PBT 2002K,-,-,-,D4.5,3,B267 AC61-20224A HOLDER SHAFT;POM M90-44,T1.25,NTR,PI5XH5
B268 AC66-30149A BRAKE CAPSTAN;-,-,-,-,X5,-
Loc. No Part No Description and Specification Remark
Exploded View & Parts List
Samsung Electronics 7-5
7-5 Housing Assembly
914
902
H510
H550
H500
H520
H522
H524
H526
902
H521
H533
H532
H531
H535
H530
H540
H545
H544
H541
H543
H542
914
914
902 AC60-10051A SCREW-TAPPING;BH,-,-,M3,L8,FZY
914 AC60-10067A SCREW-TAPTITE;PWH,+,-,M3,L8,MFZN2-C,SWCH
H500 AC61-82014D HOUSING-ASSY;-,X7FL26280B,230X130X60,-,X
H510 AC61-10006A CHASSIS- UPPER;SECC 20/20,-,T1.0,BLK,-,X
H520 AC61-20932B HOLDER-CASSETTE ASSY;-,X5FL06080A,-,-,-,
H521 AC61-20922B HOLDER-CASSETTE;-,SECC T1.2,-,NAT,-,X-7(
H522 AC66-30018A LEVER-LOCK R;SECC 20/20,T1.2,L44,W32,-,H524 AC61-60121A SPRING-LEVER LOCK;ES,SUS304 WPB,PI0.2,D2
H526 AC66-30019A LEVER-KEY CASSETTE;LUCEL N109-LD,T2.5,L2
H530 AC61-11033A CHASSIS-SIDE L ASSY;-,-,-,-,-,X5FL0505A,
H531 AC61-10004A CHASSIS- SIDE L;ABS HF-380,-,T10,BLK,-,X
H532 AC66-30004A LEVER- LIGHT SHUTTER;LUCEL N109-LD,T2.5,
H533 AC61-60142A SPRING- LIGHT;ES,SUS304WPB,PI0.2,L11.4(O
H535 AC66-30017A LEVER- DOOR;LUCELN109-LD,T3.5,L74.3,W21.
H540 AC61-11032A CHASSIS-SIDE R ASSY;-,-,-,-,-,X5FL0505A,
H541 AC61-10003A CHASSIS- SIDE R;ABS HF-380,-,T10,BLK,-,X
H542 AC66-80008A SLIDER DAMPER;LUCEL N109-LD,T4,L87,-,-,H543 AC61-60120A SPRING-SLIDER;ES,SUS 304WPB,PI0.4,D3.8,L
H544 AC66-30016A LEVER- LID OPENER;LUCEL N109-LD,T4.0,L34
H545 AC61-60123A SPRING-LID OPENER;TS,SWPB,PI0.55,D8.9,L1
H550 AC61-50654A SHAFT-ARM ASSY;-,SUM24L,-,-,-,-,X-5
Loc. No Part No Description and Specification Remark
