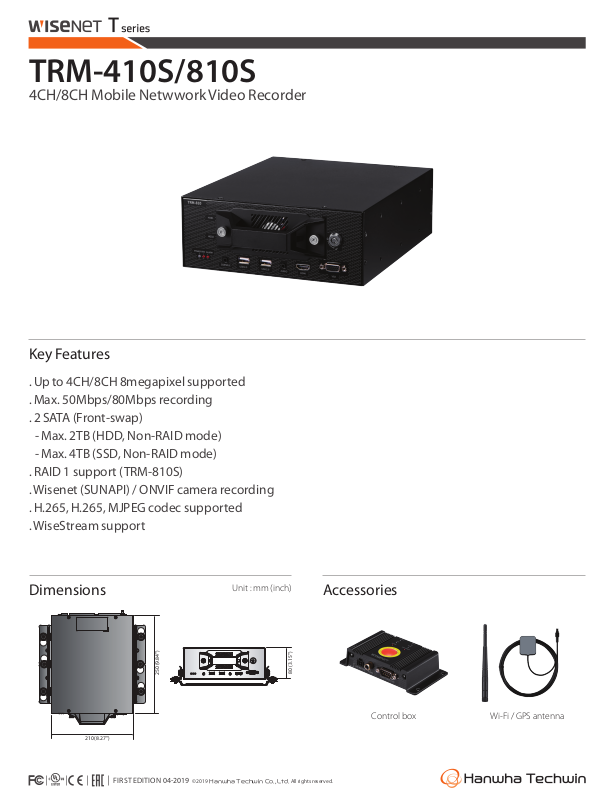

Samsung TRM-810S, TRM-410S Specsheet

TRM-410S/810S

25080

25080

210

4CH/8CH Mobile Netwwork Video Recorder

Key Features

. Up to 4CH/8CH 8megapixel supported
. Max. 50Mbps/80Mbps recording
. 2 SATA (Front-swap)

- Max. 2TB (HDD, Non-RAID mode)

- Max. 4TB (SSD, Non-RAID mode)
. RAID 1 support (TRM-810S)
. Wisenet (SUNAPI) / ONVIF camera recording
. H.265, H.265, MJPEG codec supported
. WiseStream support

Dimensions Accessories

250 (9.84")

Unit : mm (inch)

80 (3.15")

210

210 (8.27")

FIRST EDITION 04-2019 © 2019 Hanwha Techwin Co., Ltd. All rights reserved.

Wi-Fi / GPS antennaControl box

TRM-410S TRM-810S

DISPLAY

Inputs Max. 4ch (4 PoE, RJ-45) Max. 8ch (8 PoE, RJ-45)

Network Camera

Live

PERFORMANCE

Operating System Embedded Linux

Record

Search & Play

Storage

Backup

Sensor I/O 6/4

Audio

NETWORK

Interface RJ-45 (Gigabit ethernet x1)

Protocol

DDNS Hanwha DDNS
Transmission

Bandwidth
Max Remote Users Search (3), Live Unicast (10), Multicast (20)
IP Version IPv4/v6

Resolution CIF ~ 8MP
Protocols Wisenet (SUNAPI), ONVIF
Local Display HDMI / VGA

Multi-Channel
Display

Performance

Compression H.265, H.264, MJPEG, WiseStream (H.265, H.264)
Recording Bandwidth Max. 50Mbps
Resolution CIF ~ 8MP
Type Manual, Schedule (Continuous / Event), Event (Pre / Post), Emergency
Retention Retention per channel (1~400 days)

Event Trigger

Event Action
Playback Bandwidth 32Mbps (4ch simultaneously)
User Max. 4 Users (Local 1, Remote 3)
Mode Date & Time(Calendar) / Event Log list / Smart Search
Simultaneous

Playback
Resolution CIF ~ 8MP
Fisheye Dewarping Web / CMS
Playback Control Fast / Slow Forward / Backward, Move one step Up / Down
Built-In 0TB ~ 4TB

Internal HDD

RAID N/A RAID-1
File Backup Exe (GUI), JPG/AVI (excluding GPS information)(Network)

Function

Type Auto (Wi-Fi), Manual (HDD/SSD)
Wi Backup

Performance

Input 4ch (Network)
Compression G.711, G.726, AAC (16/48KHz)
Audio

Communication

Wired (LAN) Max. 50Mbps

[Local Monitor] 1 / 2H / 2V / 3V / 4 / Auto
sequence
[Web] 1 / 4 / Auto sequence

[Local Monitor]
8MP (60fps), 5MP (90fps), 3MP (120fps),
2MP (120fps), 720p (120fps), D1 (120fps)

Alarm Input (6), Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus)
G-Sensor (3 Axis)

e-Mail, Alarm Out, Buzzer, Monitor Out

Max. 4ch (Local Monitor, CMS)

2 SATA(Front-Swap)

- Max. 2TB (HDD, Non-RAID Mode)

- Max. 4TB (SSD, Non-RAID Mode)

Multi channel (Up to 4ch) play, Date-time /
Title / GPS display

Max. 50Mbps

2-Way

TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP,
ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Prole-S), SUNAPI (Server, Client)

[Local monitor] 1 / 2H / 2V / 3V / 4 / 6 / 8 / 9 /
Auto sequence,
[Web] 1 / 4 / 9 / Auto sequence

[Local Monitor]
8MP(60fps), 5MP(90fps), 3MP(120fps),
2MP(240fps), 720p(240fps), D1(240fps)

Max. 80Mbps

32Mbps (8ch simultaneously)

Max. 8ch (Local Monitor, CMS)

Multi channel (Up to 8ch) play, Date­time / Title / GPS display

Max. 80Mbps

8ch (Network)

Max. 80Mbps

FIRST EDITION 04-2019 © 2019 Hanwha Techwin Co., Ltd. All rights reserved.

TRM-410S TRM-810S

Security IP address ltering, User access log, 802.1x, Encryption

Wireless

Language

OS Windows 7, 8, 10, Mac OS X (10.8 or above)
Web Browser MS IE, Google Chrome, Mac Safari

Viewer Software

FUNCTIONS

Camera Setup

Camera Control
Max. Framerate

PTZ

System Control Mouse, Web

INDICATOR/INTERFACE

Front

Connections

SYSTEM

Power
Management

Log Log List Max. 20,000 (System log, Event log each)

ENVIRONMENTAL

Operating Temperature / Humidity -25 to +55 °C(-13 to +131 °F) : HDD installed
Humidity 20% ~ 85% RH

WiFi Internal (802.11 ac(5G)), 1T1R
3G / LTE Support external 3G/LTE router (Ethernet)

English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech,
Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish,
Korean, Chinese, Japanese, Thai

Type SSM Transportation, Webviewer
CMS Support Support SDK/CGI( SUNAPI) for integration to 3'rd party VMS

Register Auto, Manual

IP address, Prole add/edit, Bitrate, Compression, Camera MD setup

Setup Items

PoE/PoE+ Power
Control

Time Sync.

Control Via GUI, Webviewer
Preset 300 Presets

Indicator

Power Switch N/A
Audio Out (1ea, Line)

HDMI / VGA

USB 3ea (Front x2, Rear x1)
HDD Key Lock 1ea (Power switch)

Ethernet

Control I/O

Alarm

Serial 1 RS-232C (Reserved)
WiFi 1ea (RP-SMA, F)
GNSS 1ea (4pin Micro-Fit), Support GPS/Glonass
3G/LTE N/A
Reset Switch (1ea, PW clear)
Power Cord 6pin connector 1ea

Shutdown Delay Max. 72Hrs (User selectable)shutdown / Support CGI shutdown
Startup Delay 0 (Default) sec ~ 10 Min (User selectable)

Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, Iris, WDR, D&N, SSNR,
Shutter, SSDR, DIS), Fisheye dewarping mode, Hallway view Setup, Camera webpage,
Wisestream On/O

Monitor PoE/PoE+ power consumption, On/O control for each PoE/PoE+ camera,
Remote reset for each PoE/PoE+ camera

NVR time protocol for PoE/PoE+ camera (Time sync based on NVR time)
GPS time sync

LED (Status indicator) : 3ea

- Power 1, Alarm 1, Record 1

2ea (Support live monitor screen up to 9div. mode, Clone)
HDMI : Up to 4K (3840 x 2160), VGA : Max. 1080p

Viewer : 1ea (100Mbps, RJ-45)
PoE Camera Input : 4ea (100Mbps, RJ-45)

RJ-45 1ea (External Control Box)
(1) Status LED
(2) G-Sensor(3 Axis)
(3) Emergency Recording button
(4) Power Switch
(5) Audio Out

(1) In (6ea)
(2) Out (4ea)

Viewer : 1ea (1000Mbps, RJ-45)
PoE Camera Input : 8ea (100Mbps, RJ-45)

FIRST EDITION 04-2019 © 2019 Hanwha Techwin Co., Ltd. All rights reserved.

TRM-410S TRM-810S

ELECTRICAL

Power

Power Consumption Max. 83W
PoE Budget Max. 32W

9 ~ 36V DC
Battery power detection & Low power limit setup

Max. 122W
Max. 64W

MECHANICAL

Color / Material Black / Steel
Dimension (WxHxD) 210mm x 80mm x 250mm (8.27" x 3.15" x 9.84")
Weight Approx. 3.4Kg (7.5lb, without HDD)

STANDARD APPROVAL

Certication EN-50155, EN-50121-3, EN-61373

Control Box

INDICATOR/INTERFACE

Top

Indicator

Emergency Button
Audio Out

Connections

EXT. Switch 1ea (4pin Micro-Fit)

Main I/O 1ea (DB9)

MECHANICAL

Color / Material Black / Aluminium
Dimension (WxHxD) 118 x 29.2 x 70mm (4.64" x 1.15" x 2.75")
Weight Approx. 0.2Kg (0.4lb)

LED (Status indicator) : 6ea

- Power 1, Alarm 1, Record 1, GPS 1, RAID 1, HDD Error 1
1ea
1ea (RCA, Line)

* The lastest product information / specication can be found at hanwha-security.com
* Design and specications are subject to change without notice.
* Wisenet is the proprietary brand of Hanwha Techwin.
