Page 1

LED TV MONITOR

(MFM TV)

user manual

Thank you for purchasing this Samsung product. To receive more complete service, please register your product at

www.samsung.com/register

TC300

Page 2

English

Figures and illustrations in this User Manual are provided for reference only and may differ from actual product appearance. Product design and speciﬁcations may be changed without notice.

Digital LED display notice

1. Functionalities related to Digital TV (DVB) are only available in countries/areas where DVB-T (MPEG2 and MPEG4 AVC) digital terrestrial signals are

broadcasted or where you are able to access to a compatible DVB-C (MPEG2 and MPEG4 AAC) cable-TV service. Please check with your local dealer the possibility to receive DVB-T or DVB-C signal.

2. DVB-T is the DVB European consortium standard for the broadcast transmission of digital terrestrial television and DVB-C is that for the broadcast

transmission of digital LED display over cable.

3. Although this LED display set meets the latest DVB-T and DVB-C standards, as of [August, 2008], the compatibility with future DVB-T digital

terrestrial and DVB-C digital cable broadcasts cannot be guaranteed.

4. Depending on the countries/areas where this LED display set is used some cable-TV providers may charge an additional fee for such a service and

you may be required to agree to terms and conditions of their business.

5. Some Digital LED display functions might be unavailable in some countries or regions and DVB-C might not work correctly with some cable service

providers.

6. For more information, please contact your local Samsung customer care centre.

✎

The reception quality of LED display may be affected due to differences in broadcasting method between the countries. Please check the LED display performance in the local SAMSUNG Authorized Dealer, or the Samsung Call Centre whether it can be improved by reconﬁguring LED display setting or not.

Still image warning

Avoid displaying still images (like jpeg picture ﬁles) or still image element (like LED display programme logo, panorama or 4:3 image format, stock or news bar at screen bottom etc.) on the screen. Constant displaying of still picture can cause ghosting of screen, which will affect image quality. To reduce risk of this effect, please follow below recommendations:

Avoid displaying the same LED display channel for long periods.

Always try do display any image on full screen, use LED display set picture format menu for best possible match.

Reduce brightness and contrast values to minimum required to achieve desired picture quality, exceeded values may speed up the burnout process.

Frequently use all LED display features designed to reduce image retention and screen burnout, refer to proper user manual section for details.

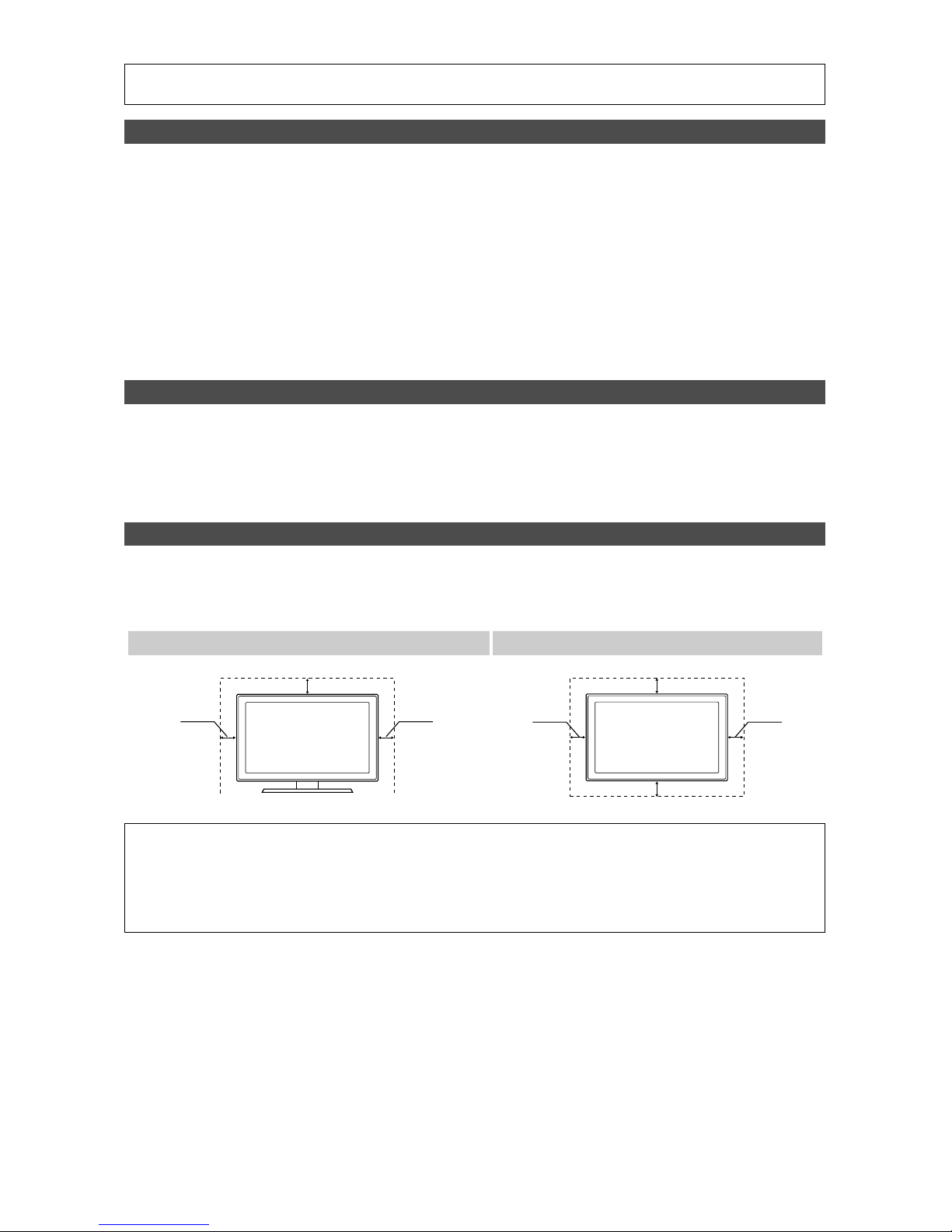

Securing the Installation Space

Keep the required distances between the product and other objects (e.g. walls) to ensure proper ventilation. Failing to do so may result in ﬁre or a problem with the product due to an increase in the internal temperature of the product.

✎

The actual appearance of the LED display may differ from the images in this manual, depending on the model.

✎

Be careful when you touch the LED display. Some parts can be somewhat hot.

Installation with a stand. Installation with a wall-mount.

An administration fee may be charged if either

– (a) an engineer is called out at your request and there is no defect in the product  (i.e. where you have failed to read this user manual). – (b) you bring the unit to a repair centre and there is no defect in the product  (i.e. where you have failed to read this user manual).

The amount of such administration charge will be advised to you before any work or home visit is carried out.

10 cm

Page 3

ENGLISH

English

Check the Symbol!

This function can be used by pressing the TOOLST

button on the remote control.

Note

Indicates additional information.

Contents

Getting Started

4 Safety Precautions 11 Accessories 12 Viewing the Control Panel 13 Viewing the Remote Control

Connections

14 Connecting to an Antenna 14 Setup (Initial Setup) 15 Connecting to an AV Device 16 Connecting to a COMMON INTERFACE slot 17 Connecting to a Audio device and PC 19 Changing the Input Source

Basic Features

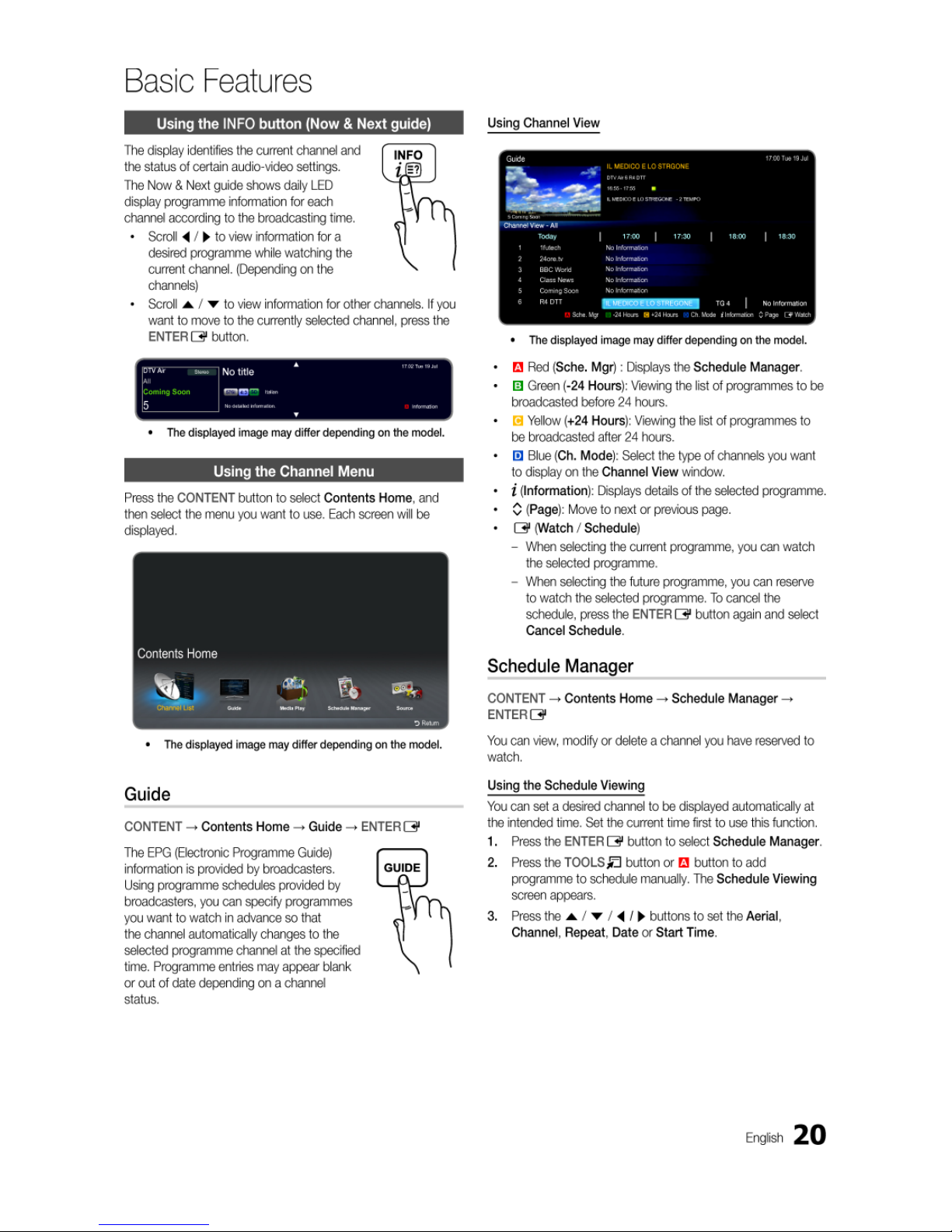

19 How to Navigate Menus 20 Using the

INFO button (Now & Next guide)

20 Using the Channel Menu 22 Channel Menu 23 Picture Menu 25 Sound Menu 27 System Menu 30 Support Menu

Advanced Features

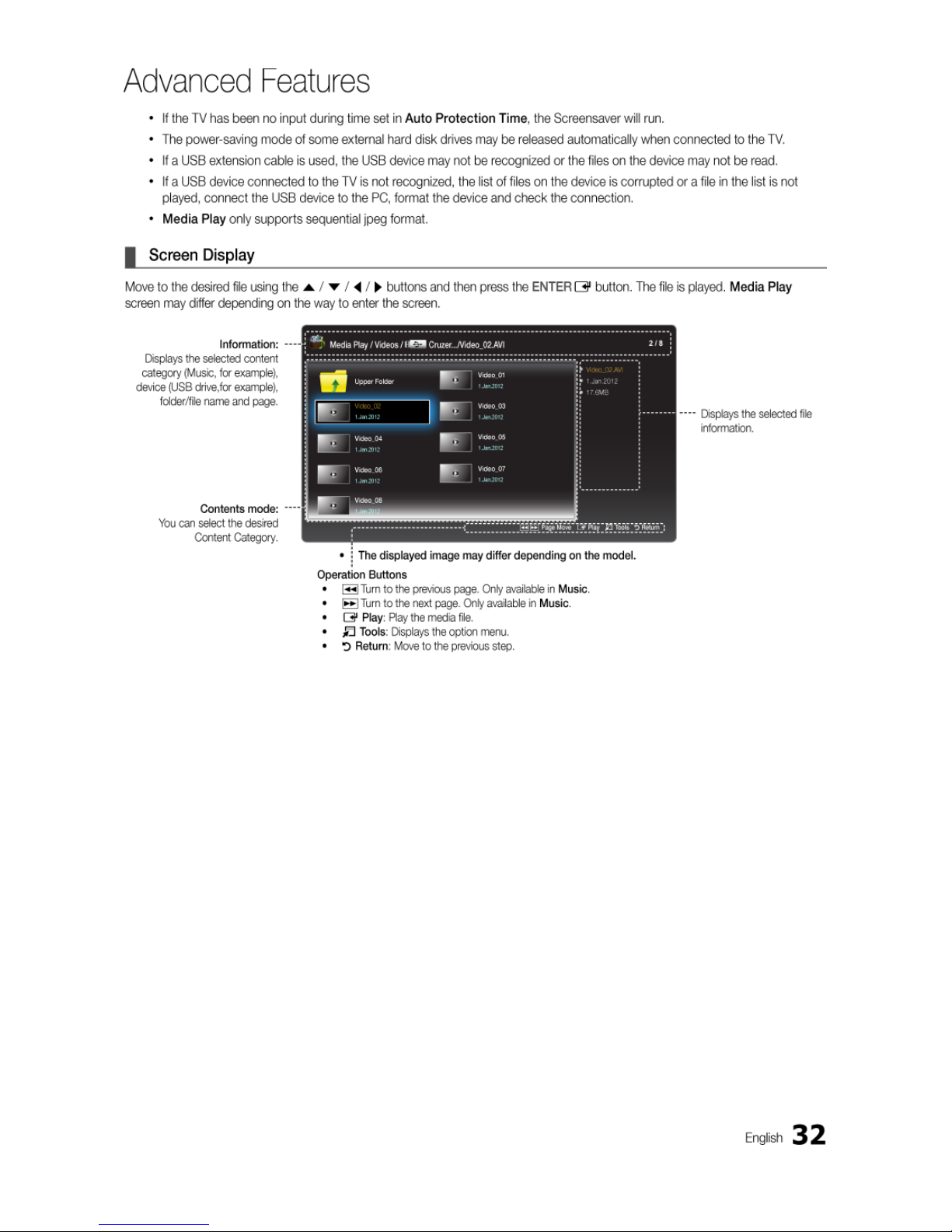

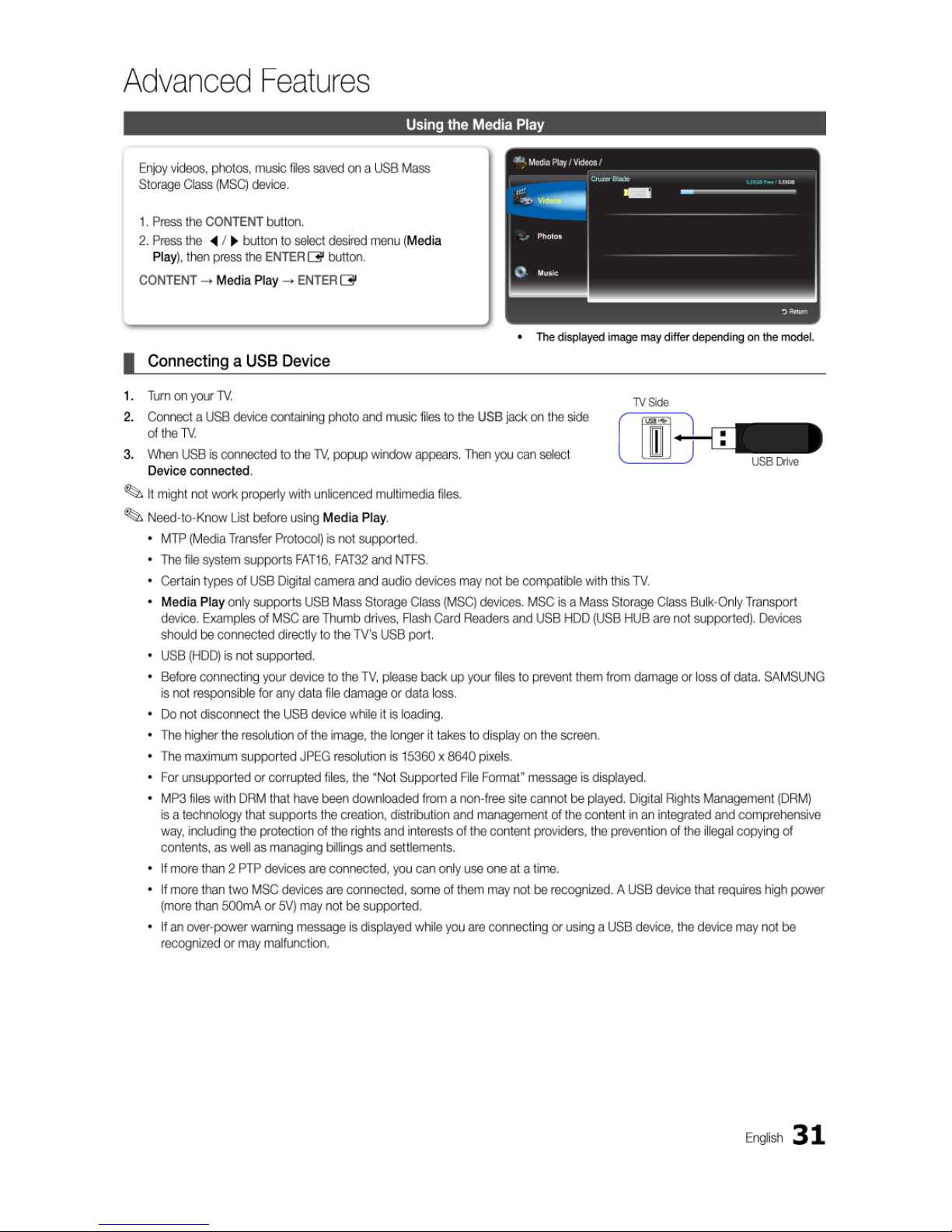

31 Using the Media Play

Other Information

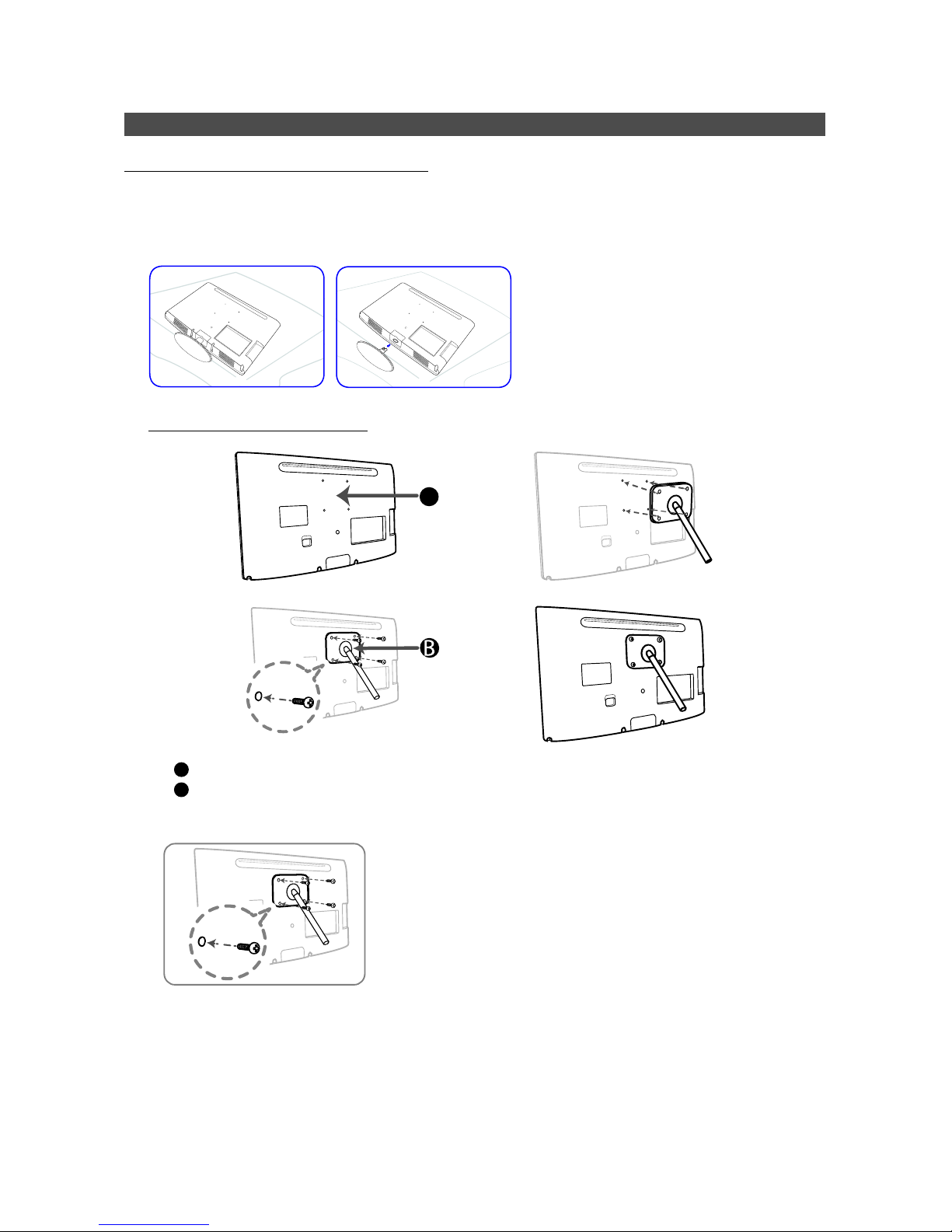

38 Analogue Channel Teletext Feature 39 Attaching a Wall Mount/Desktop Stand 40 Anti-theft Kensington Lock 41 Troubleshooting 45 Speciﬁcations

Page 4

Getting Started

English

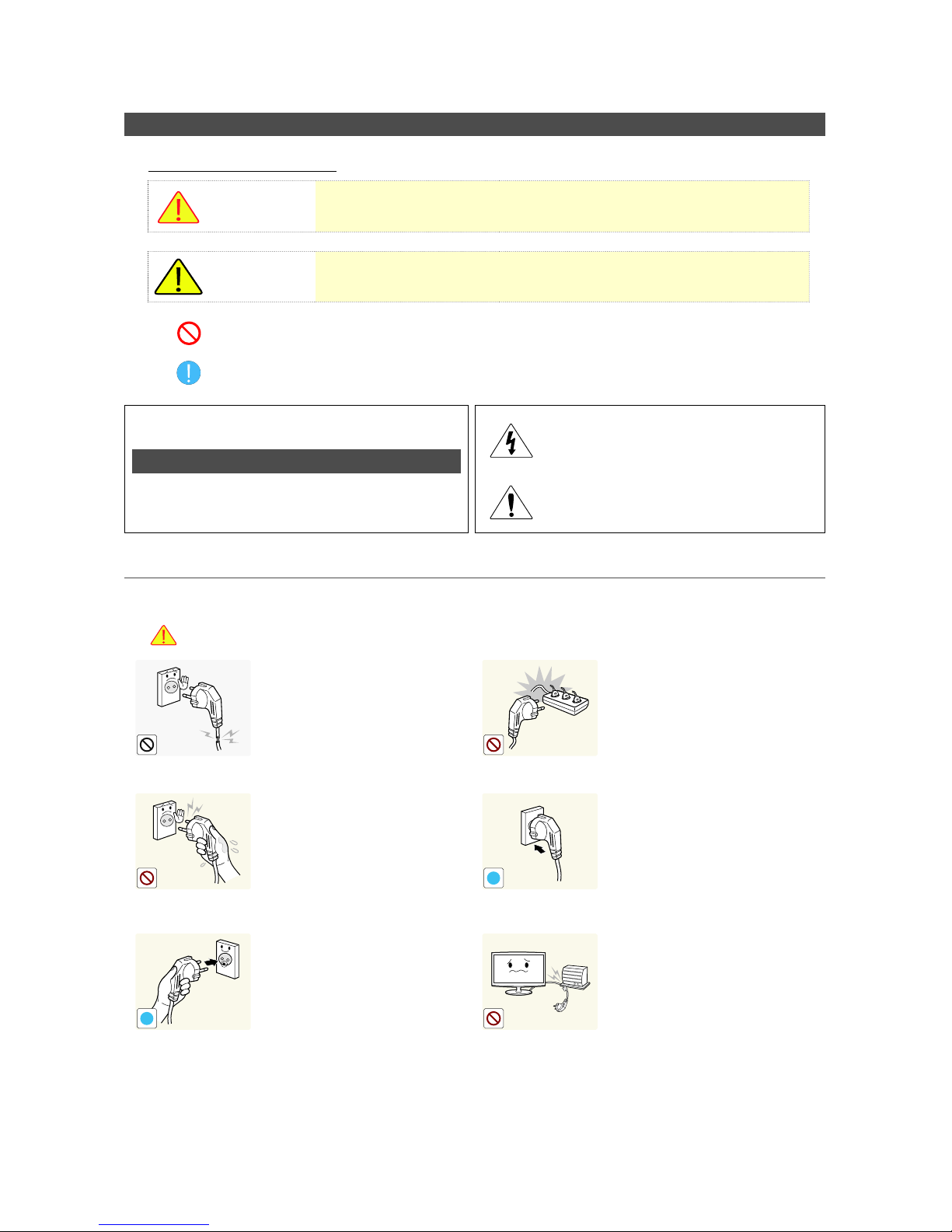

Safety Precautions

Icons used for safety precautions

WARNING

Failing to follow the precautions marked with this sign may result in a serious injury or even a fatality.

CAUTION

Failing to follow the precautions marked with this sign may result in a personal injury or property damage.

Do not perform.

Must be followed.

CAUTION

RISK OF ELECTRIC SHOCK DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE

COVER (OR BACK). THERE ARE NO USER SERVICEABLE PARTS INSIDE.

REFER ALL SERVICING TO QUALIFIED PERSONNEL.

This symbol indicates that high voltage is present inside. It is dangerous to make any kind of contact with any internal part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

¦ Power Related

✎

The following images are for your reference and may differ depending on models and countries.

Warning

Avoid using a damaged power cord or plug or a loose power outlet.

Otherwise, it may result in electric shock or ﬁre.

Avoid connecting multiple electric appliances to a single wall outlet.

Otherwise, it may result in ﬁre due to overheating of the wall outlet.

Avoid plugging in or unplugging the power supply with wet hands.

Otherwise, it may result in electric shock.

Plug the power plug in ﬁrmly.

Otherwise, it may result in ﬁre.

Make sure to connect the power cord to a grounded wall outlet (for insulation class 1 equipment only).

Otherwise, it may result in electric shock or injury.

Avoid bending or twisting the power cord excessively and avoid placing heavy objects on the cord.

Otherwise, it may result in electric shock or ﬁre due to a damaged power cord.

Getting Started

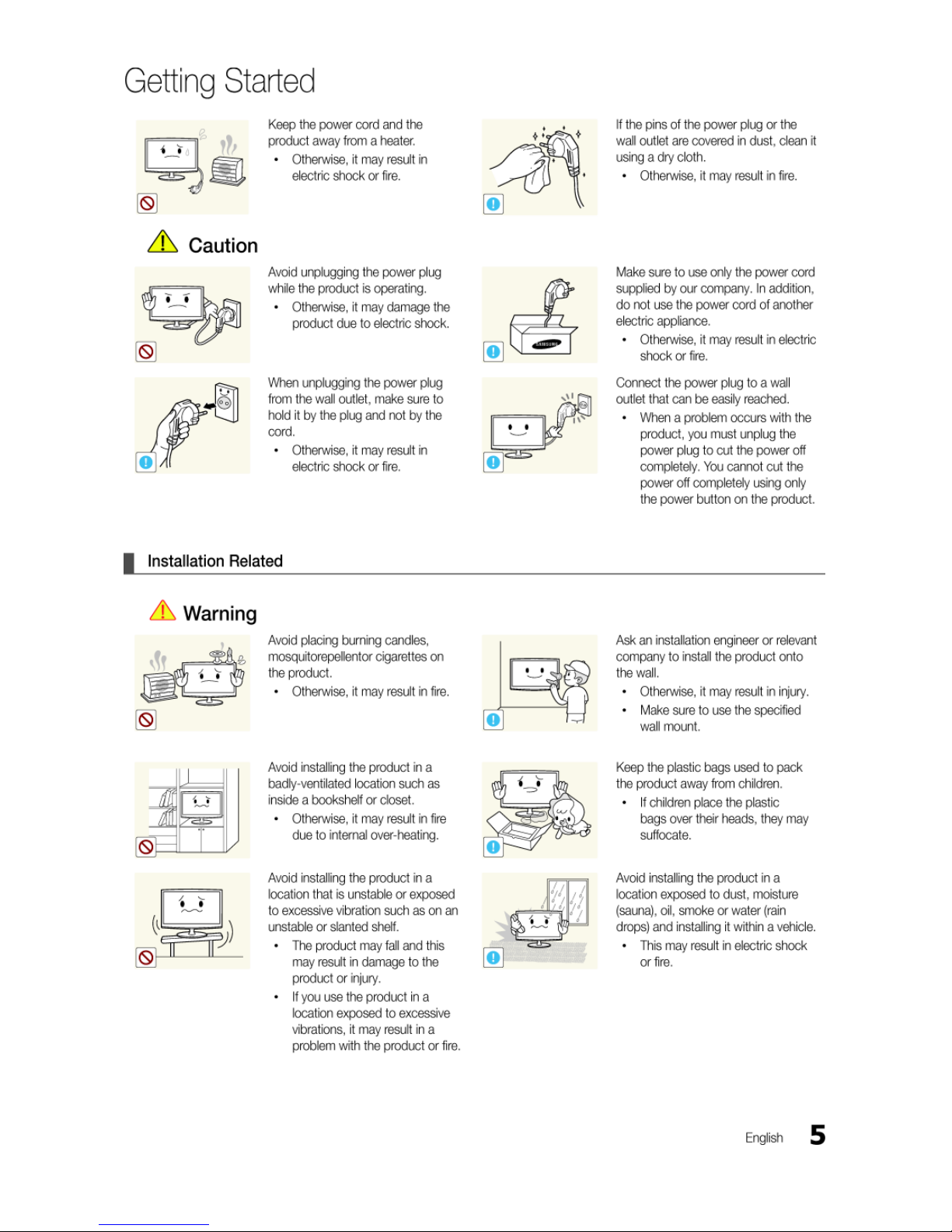

Page 5

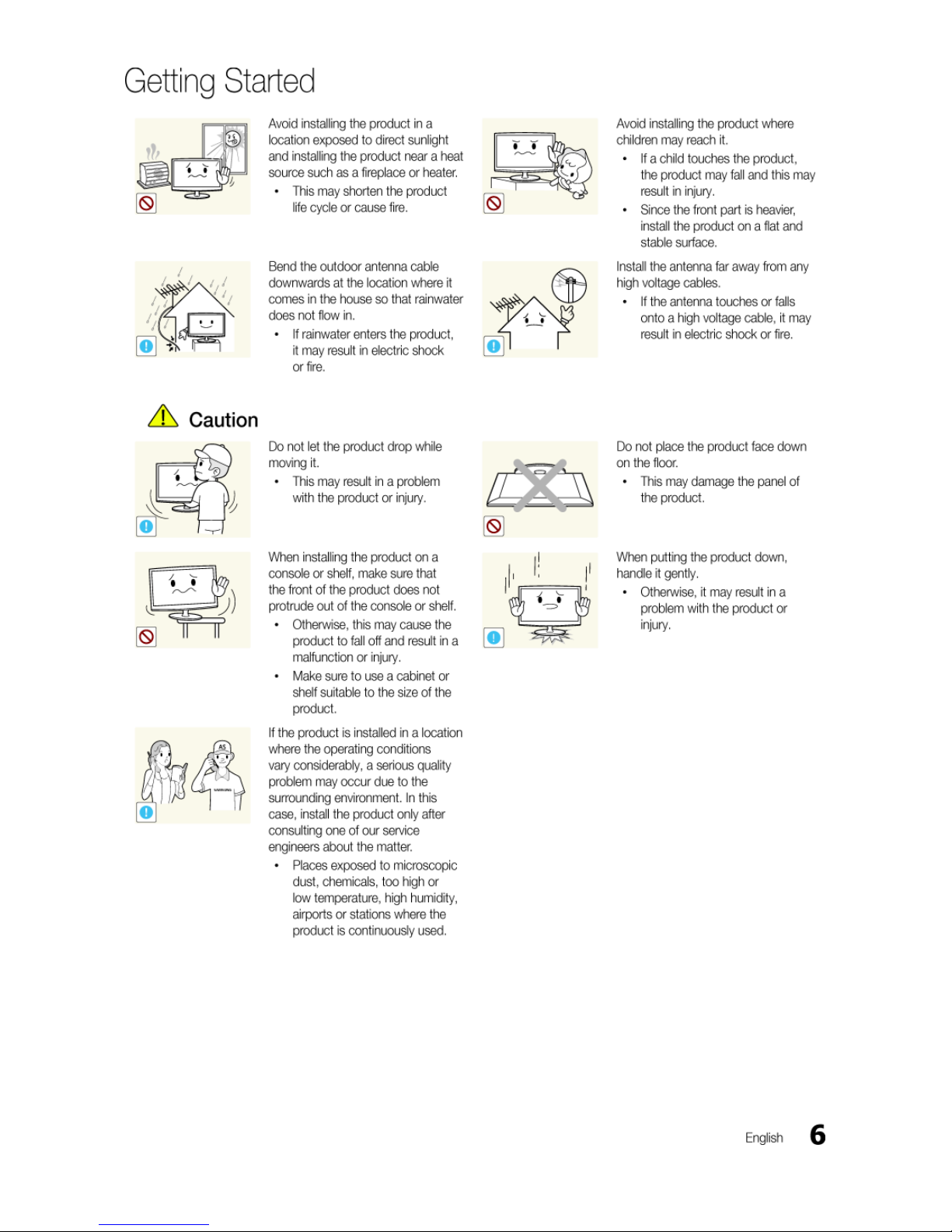

Page 6

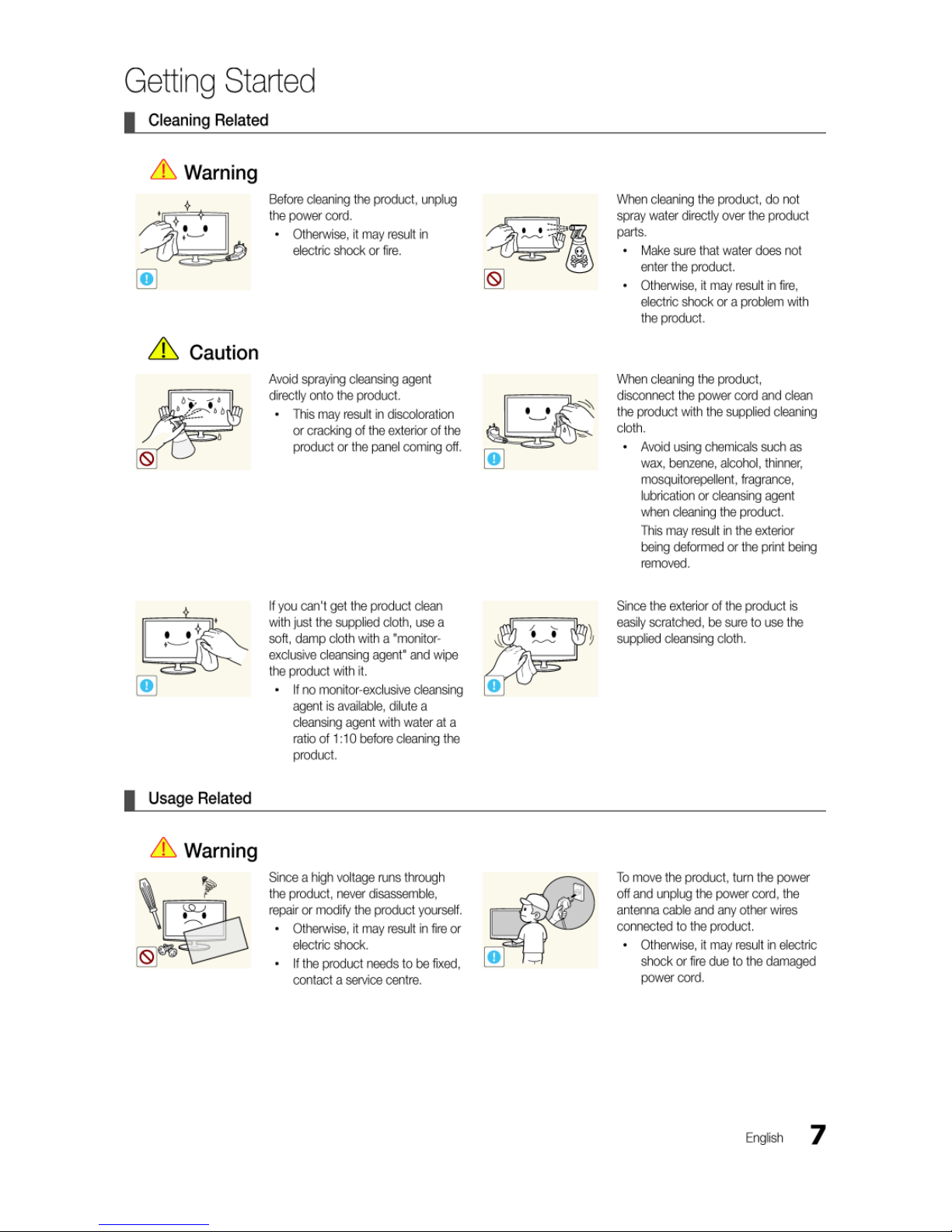

Page 7

Page 8

Getting Started

English

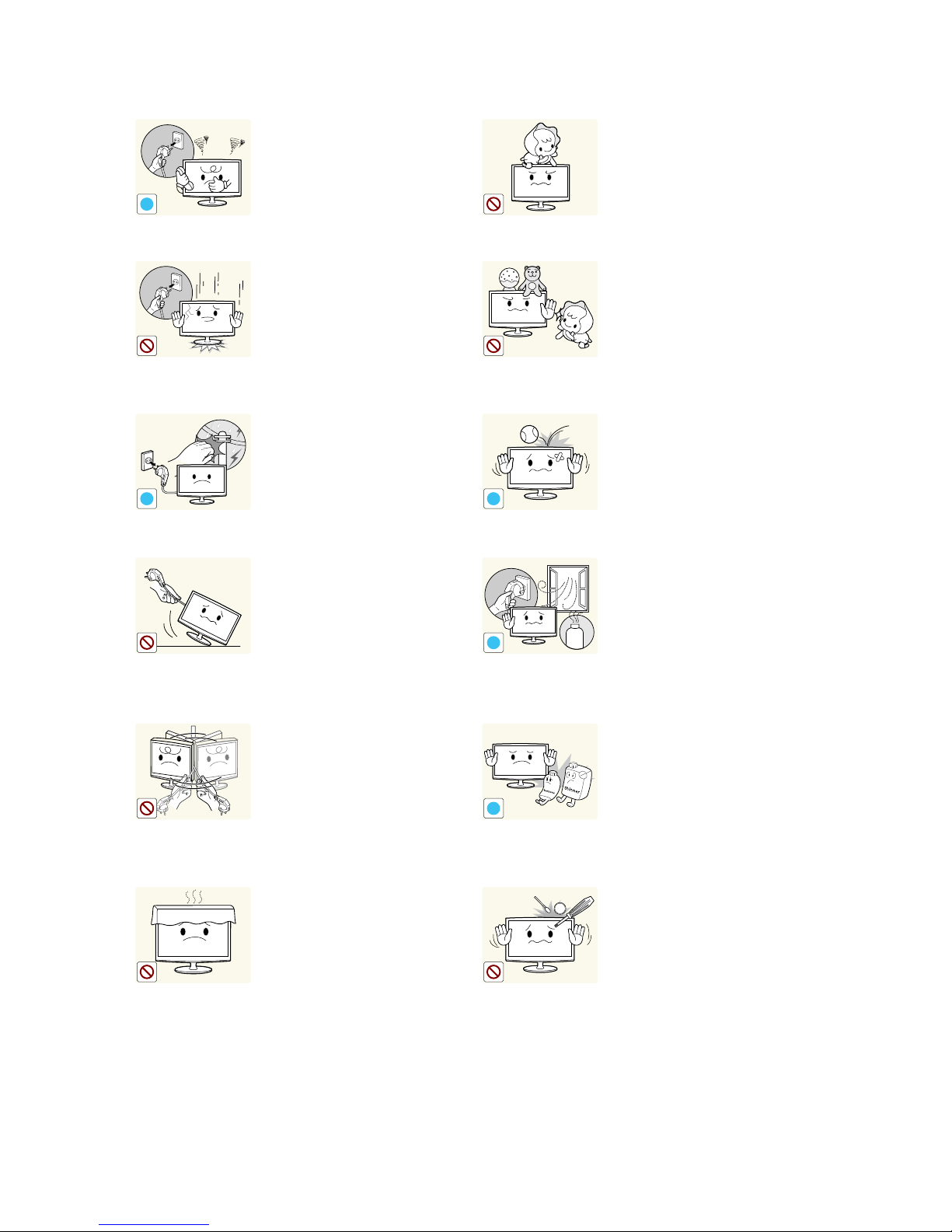

If the product generates a strange noise, a burning smell, or smoke, unplug the power plug immediately and contact a service centre.

Otherwise, it may result in electric shock or ﬁre.

Avoid letting children hang or climb onto the product.

Otherwise, it may result in the product falling and this may result in injury or death.

If you drop the product or the case is damaged, turn the power off and unplug the power cord. Contact a service centre.

Otherwise, it may result in ﬁre or electric shock.

Avoid placing objects such as toys and cookies on top of the product.

If a child hangs over the product to grab an object, the object or the product may fall and this may result in injury or even death.

When thunder or lighting occurs, unplug the power cord and under no circumstance touch the antenna cable as this is dangerous.

Otherwise, it may result in electric shock or ﬁre.

Avoid dropping an object over the product or cause impact to the product.

Otherwise, it may result in electric shock or ﬁre.

Avoid moving the product by pulling the power cord or antenna cable.

Otherwise, it may result in electric shock, ﬁre or a problem with the product due to damage to the cable.

GAS

When a gas leak occurs, do not touch the product or the power plug and ventilate immediately.

A spark may result in an explosion or ﬁre.

During a thunder or lighting storm, do not touch the power cord or antenna cable.

Avoid lifting up or moving the product by holding only the power cord or signal cable.

Otherwise, it may result in electric shock, ﬁre or a problem with the product due to damage to the cable.

Avoid using or placing inﬂammable spray or objects near the product.

This may result in an explosion or ﬁre.

Take care not to block the vent by a table cloth or curtain.

Otherwise, it may result in ﬁre due to internal overheating.

100

Avoid inserting metal objects such as a chopsticks, coins or hairpins, or inﬂammable objects into the product (the vents, ports, etc).

If water or substances enters the product, turn the power off, unplug the power cord and contact a service centre.

Otherwise, it may result in a problem with the product, electric shock or ﬁre.

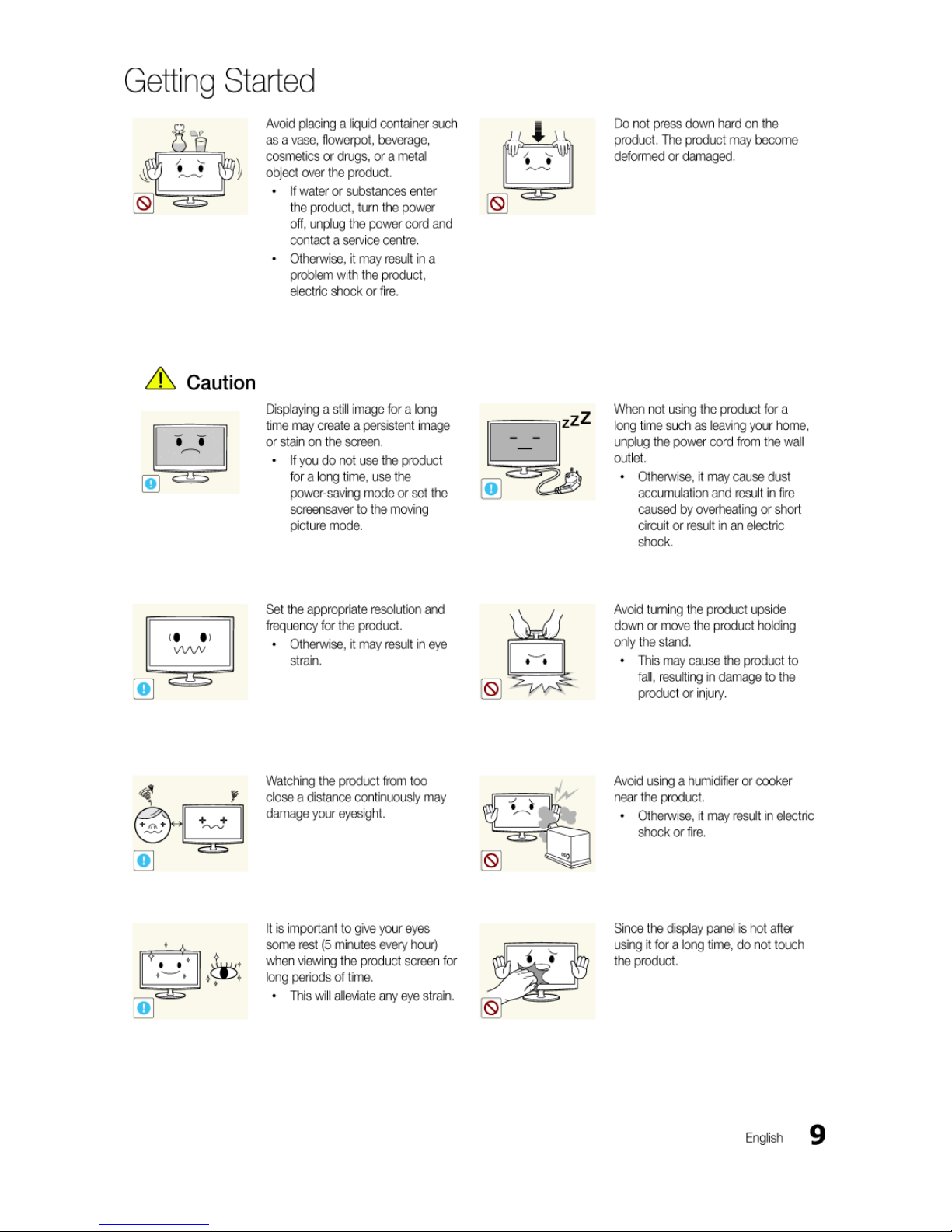

Page 9

Page 10

Getting Started

English

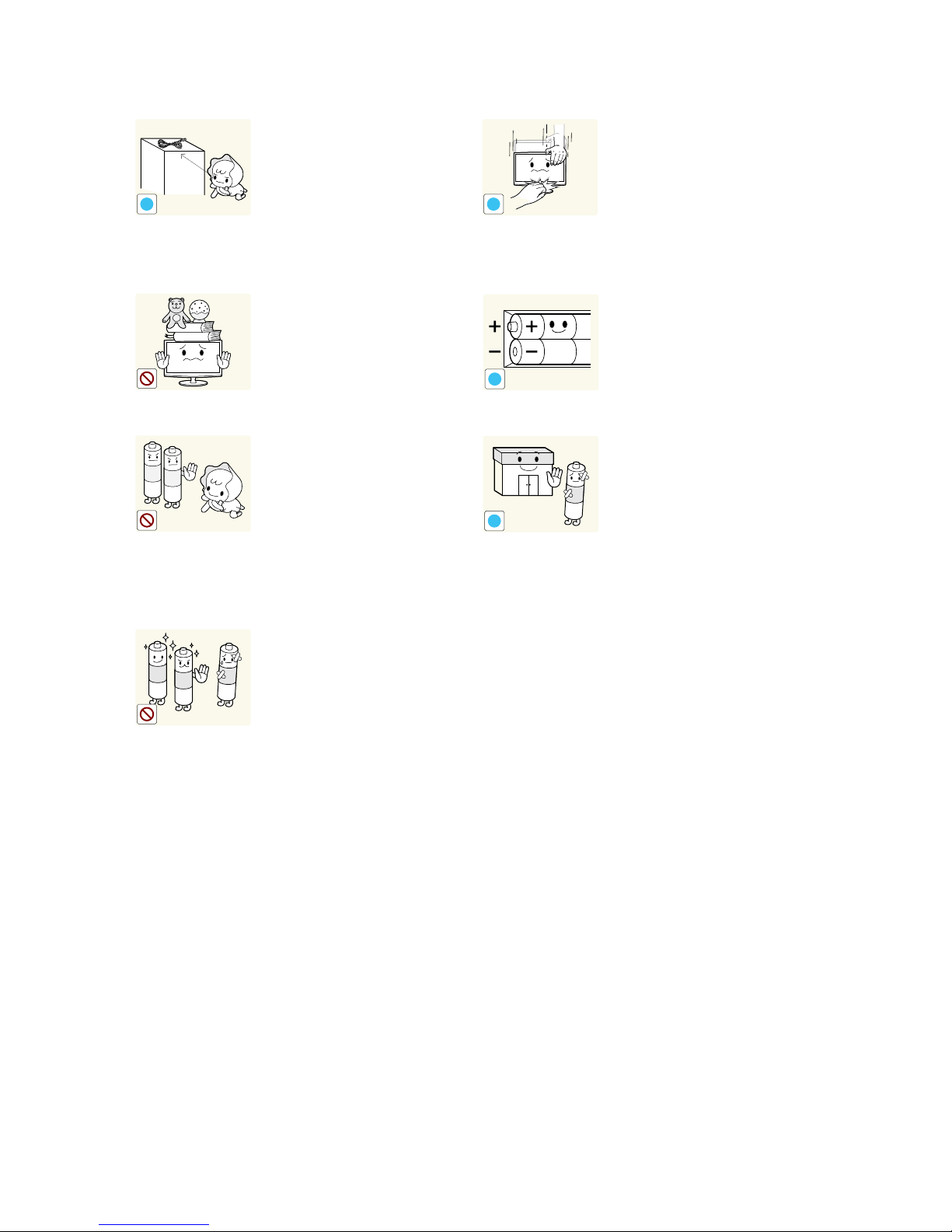

Keep the small accessories in a location out of the reach of children.

Take care when adjusting the angle of the product or the height of the stand.

If your hand or ﬁnger is caught, you may be injured.

If the product is tilted excessively, the product may fall and this may result in injury.

Avoid placing a heavy object over the product.

Otherwise, it may result in a problem with the product or injury.

Be careful that children do not place the batteries in their mouths when removed from the remote control. Place the battery in a location that children or infants cannot reach.

If children have had the battery in their mouths, consult your doctor immediately.

When replacing the batteries, insert them with right polarity (+, -).

Otherwise, the battery may become damaged or it may cause ﬁre, personal injury or damage due to leakage of the internal liquid.

Use only speciﬁed standard batteries. Do not use new and used batteries together.

This may cause a battery to break or leak and may cause ﬁre, injury, or contamination (damage).

The batteries (and rechargeable batteries) are not ordinary refuse and must be returned for recycling purposes. The customer is responsible for returning the used or rechargeable batteries for recycling.

The customer can return used or rechargeable batteries to a nearby public recycling centre or to a store selling the same type of the battery or rechargeable battery.

Page 11

Getting Started

English

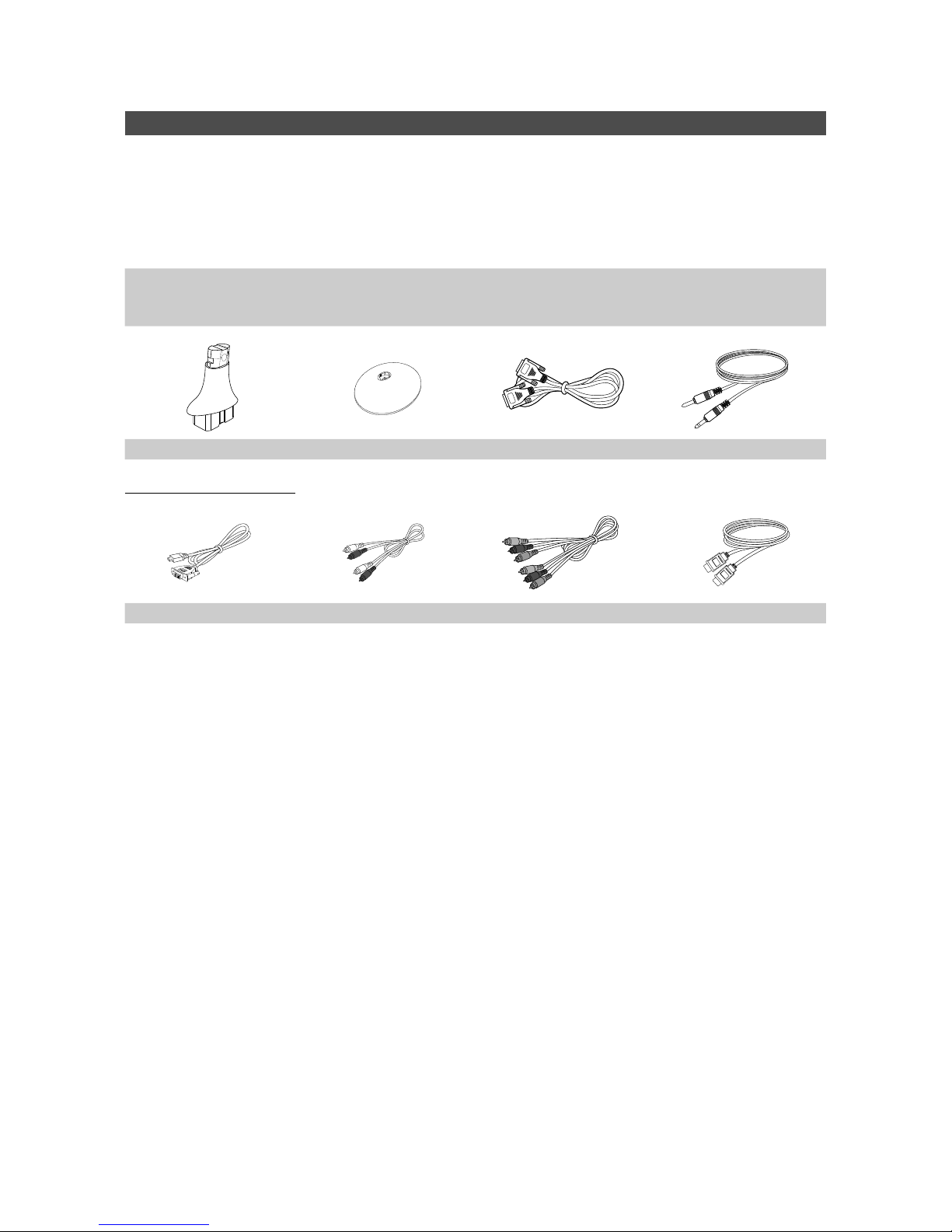

Accessories

✎

Please make sure the following items are included with your LED display. If any items are missing, contact your dealer.

✎

The items’ colours and shapes may vary depending on the models.

✎

Cables not included in the package contents can be purchased separately.

✎

Check that there is no accessory hidden behind packing materials when you open the box.

[

CAUTION: INSERT SECURELY LEST SHOULD BE DETACHED IN SET

User Manual

Quick Setup Guide

Remote Control & Batteries (AAA x 2)

Cleaning Cloth

Warranty Card / Safety Guide (Not available in some locations)

Power Cord

xStand Connector xStand Base xD-Sub Cable xStereo Cable

Input Cables (Sold Separately)

xHDMI to DVI Cable xAudio Cable xComponent Cable xHDMI Cable

Page 12

Getting Started

English

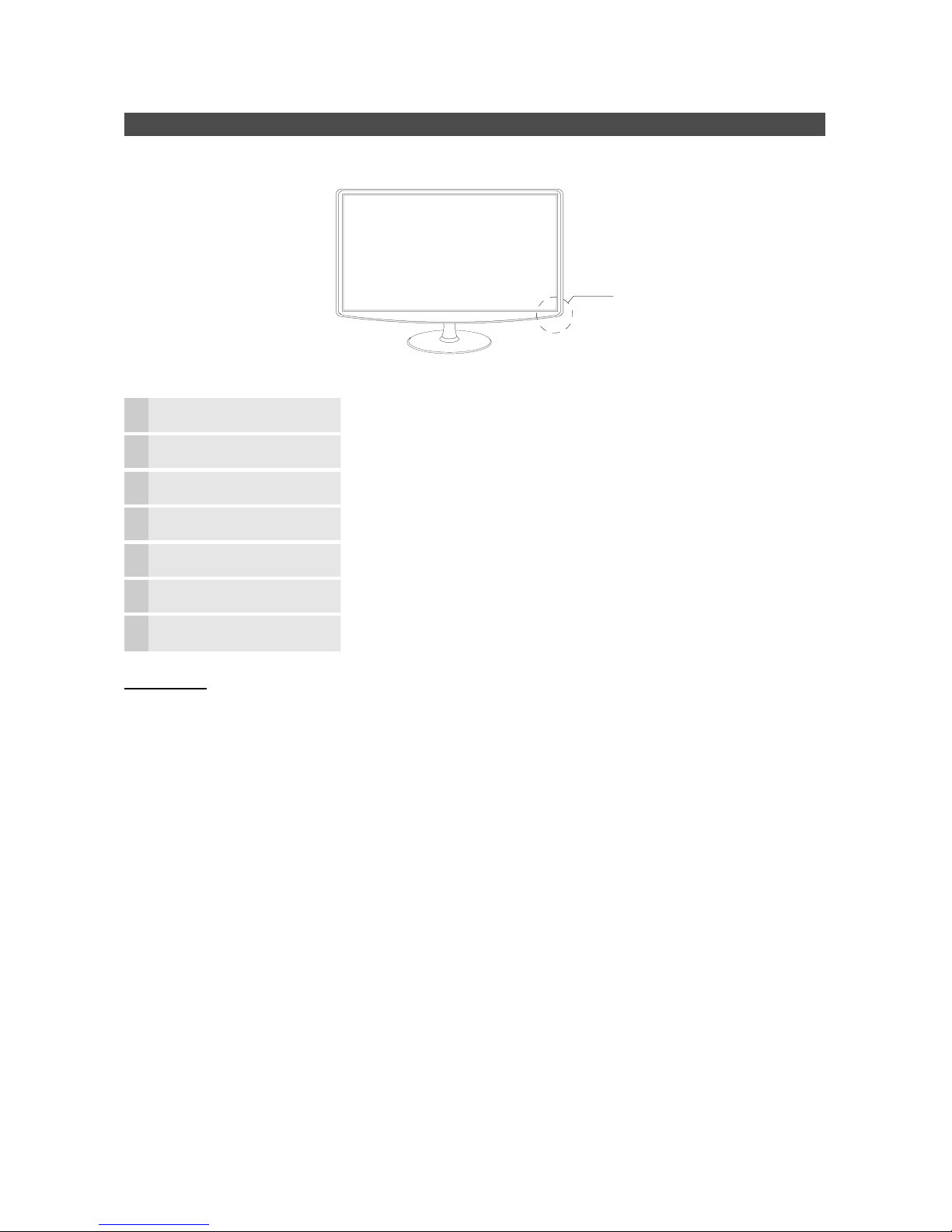

Viewing the Control Panel

✎

The product colour and shape may vary depending on the model.

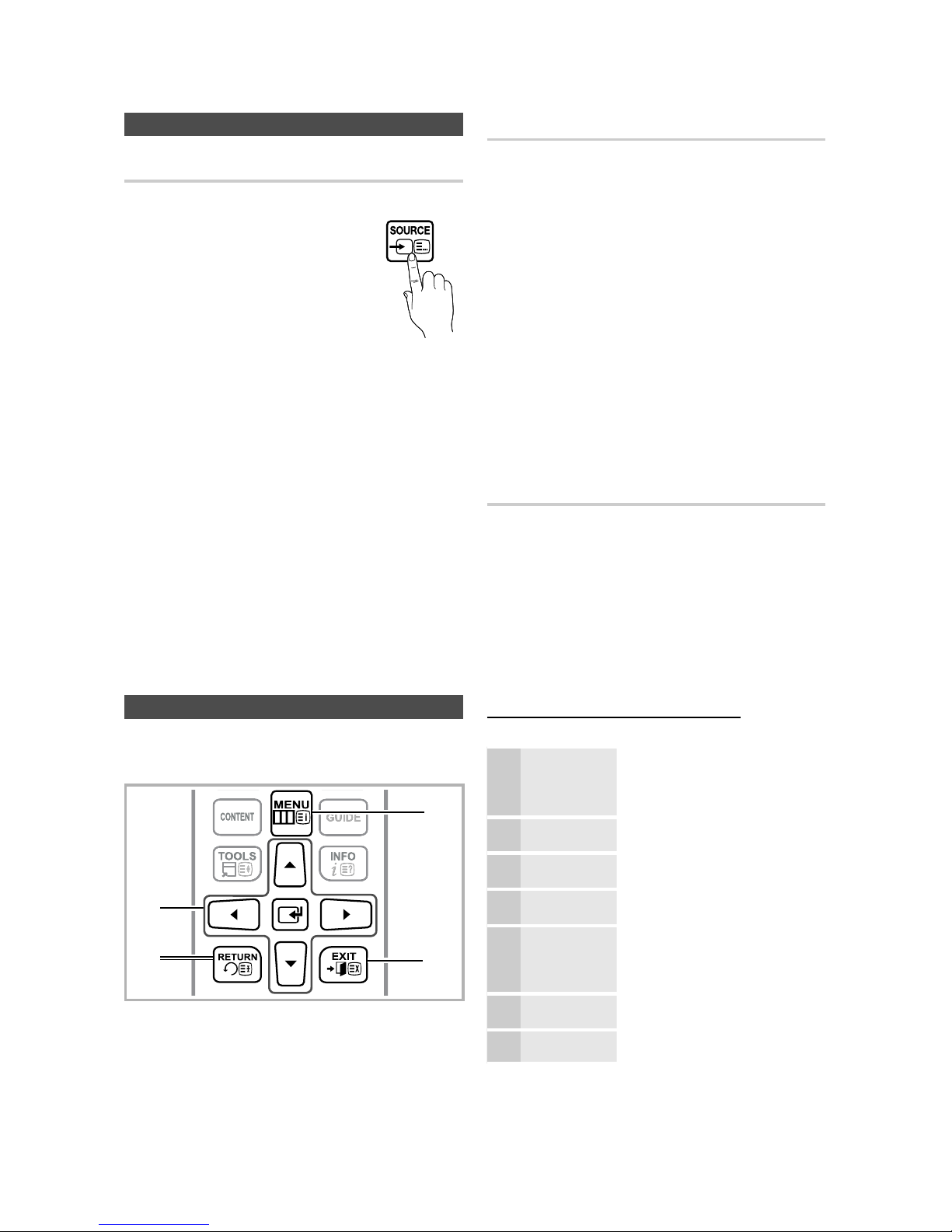

SOURCE

Toggles between all the available input sources. In the on-screen menu, use this button as you would use the ENTERE button on the remote control.

MENU Displays an on-screen menu, the OSD (on screen display) of your LED display's features.

Adjusts the volume. In the OSD, use the

buttons as you would use the l and r

buttons on the remote control.

Changes the channels. In the OSD, use the

buttons as you would use the u

and d buttons on the remote control.

(Power)

Turns the LED display on or off.

Power Indicator Blinks and turns off when the power is on and lights up in standby mode.

Remote control sensor Aim the remote control towards this spot on the LED display.

Standby mode

Do not leave your LED display in standby mode for long periods of time (when you are away on a holiday, for example). A small amount of electric power is still consumed even when the power button is turned off. It is best to unplug the power cord.

Control Panel

Page 13

Getting Started

English

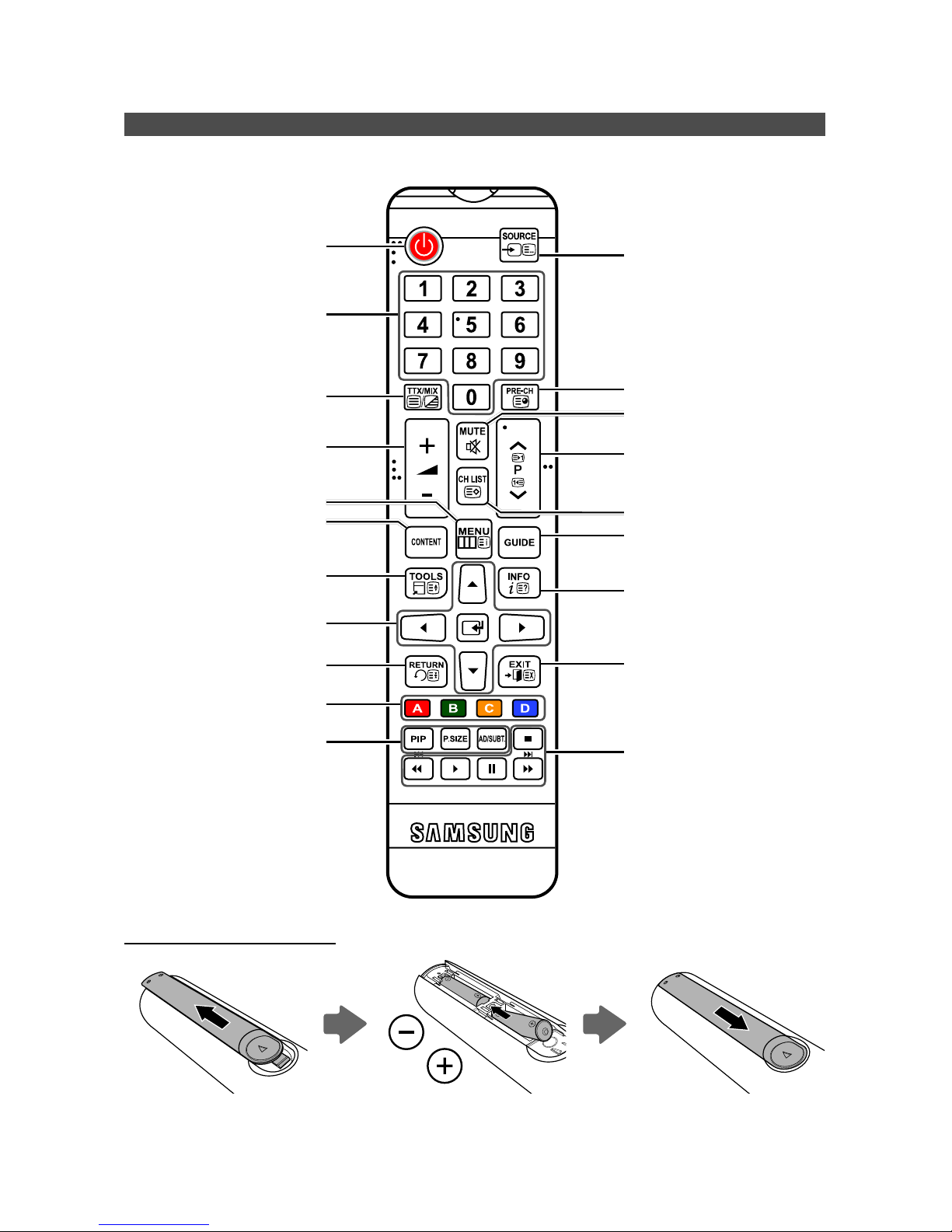

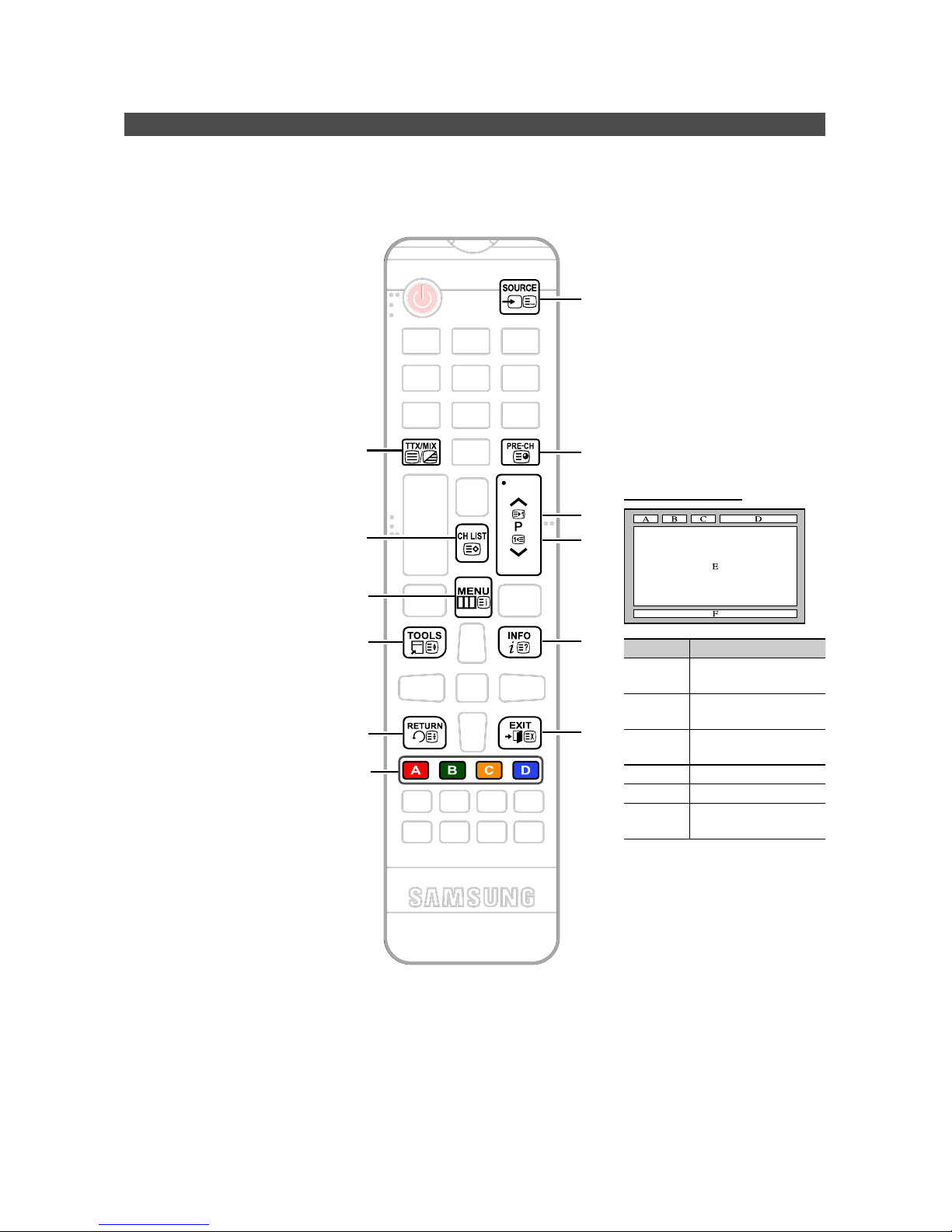

Viewing the Remote Control

✎

This is a special remote control for the visually impaired and has Braille points on the Channel and Number buttons.

Installing batteries (Battery size: AAA)

Turns the TV on and off.

Have direct access to channels.

Alternately select Teletext ON, Double,

Mix or OFF.

Displays the Contents Home, which

includes Channel List, Guide, Media

Play, Schedule Manager, and Source.

Quickly select frequently used functions.

Displays the main on-screen menu.

Returns to the previous menu.

PIP: Turns the PIP on or off.

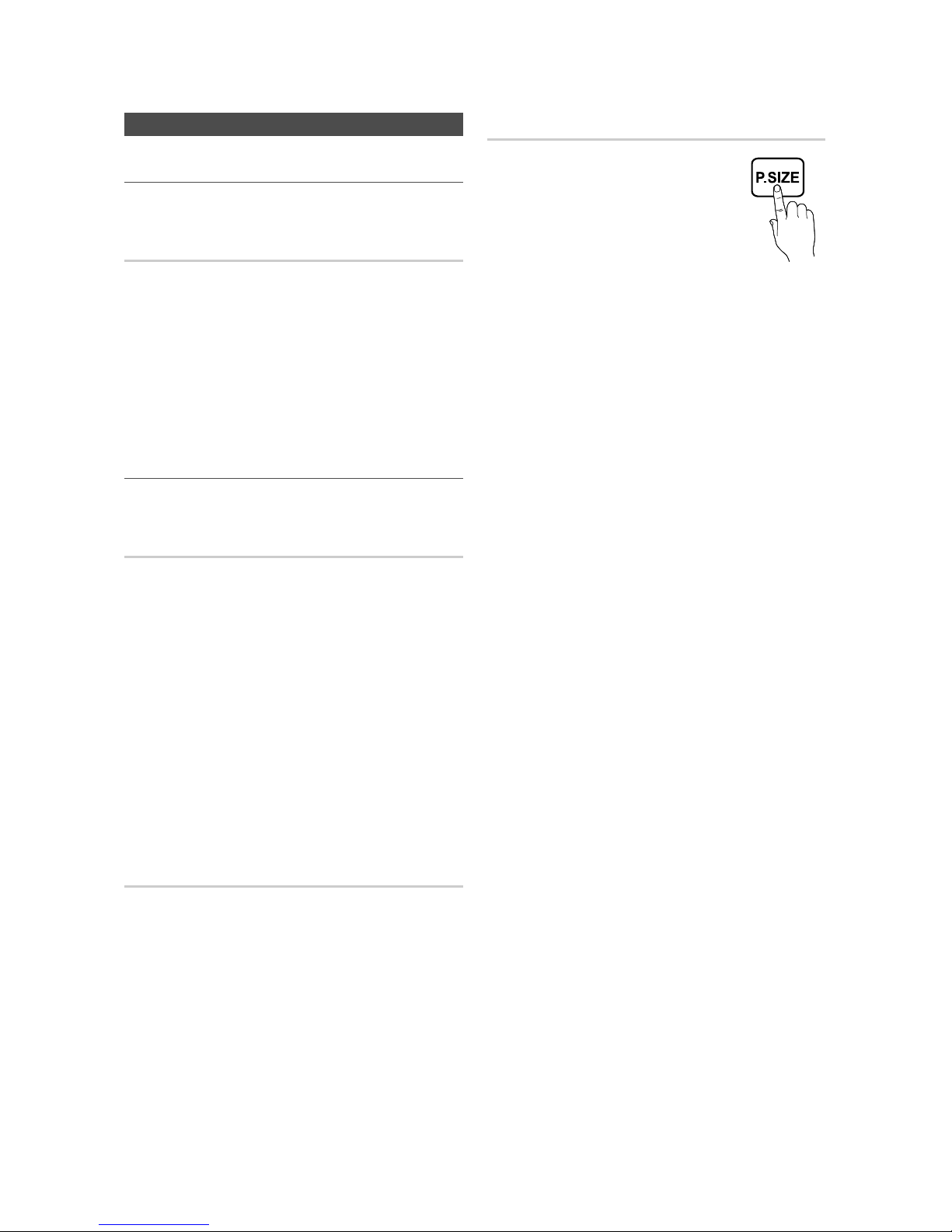

P.SIZE: Selects the Picture Size.

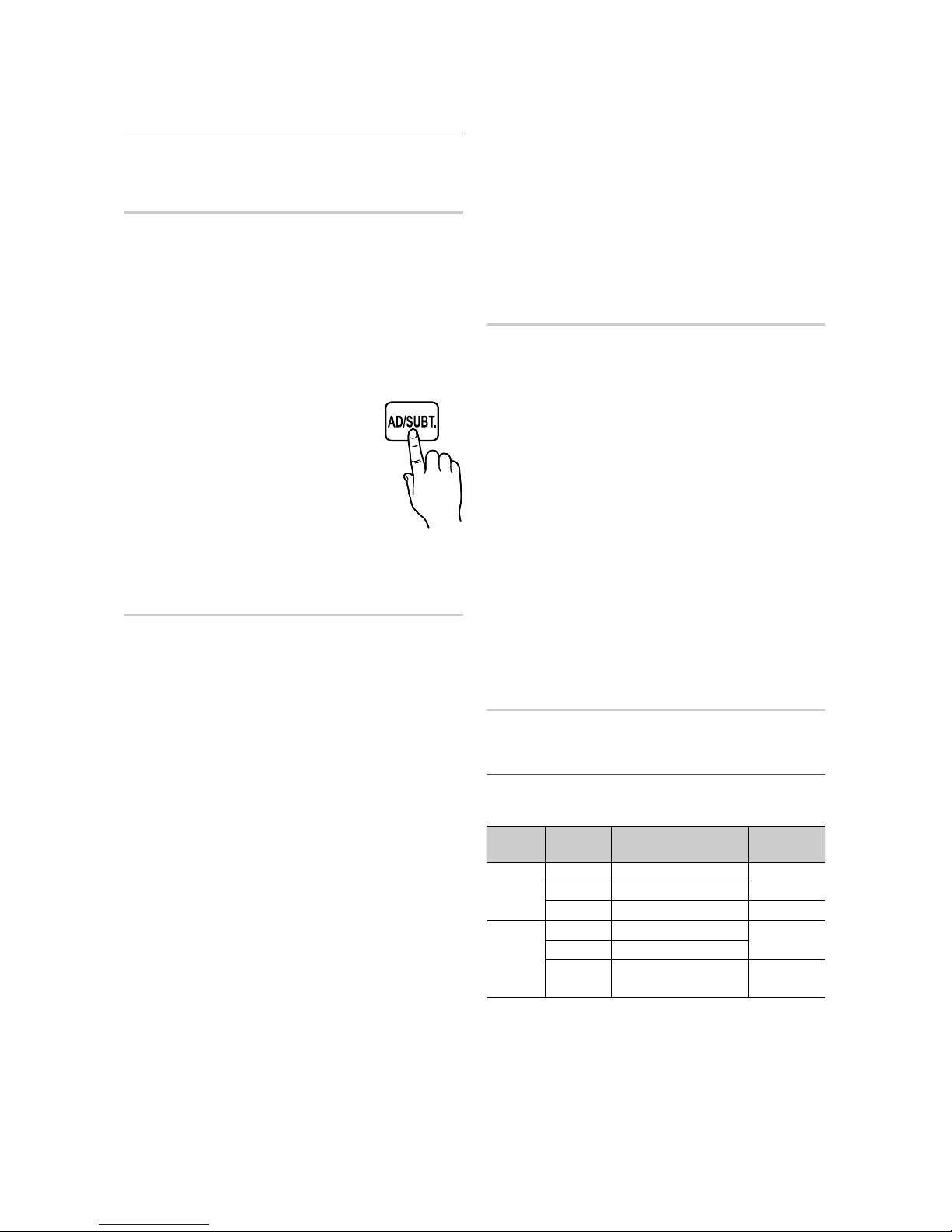

AD/SUBT.: Turns the audio description

on and off (not available in some

locations). / Displays digital subtitles.

Move the cursor and select an item.

Conﬁrm the setting.

Use these buttons according to the

direction on screen.

Adjusts the volume.

Displays and selects the available video sources.

Returns to the previous channel.

Cuts off the sound temporarily.

Displays channel lists on the screen.

Displays the EPG (Electronic Programme Guide).

Displays information on the TV screen.

Exits the menu.

Using these buttons in Media Play mode.

Changes channels.

Page 14

Connections

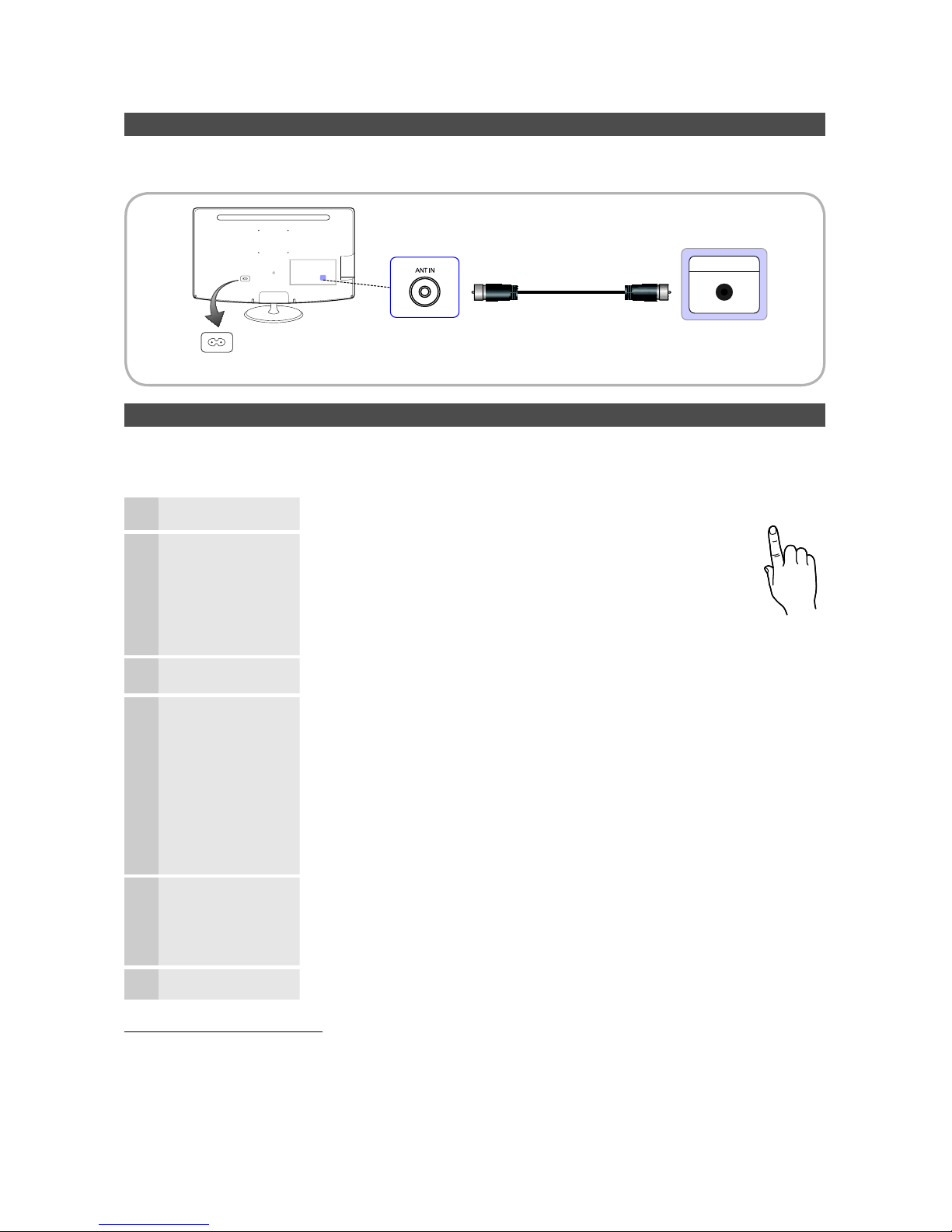

Connecting to an Antenna

When the LED display is initially powered on, basic settings proceed automatically.

✎

Preset: Connecting the mains and antenna.

ANT OUT

Power Input

Setup (Initial Setup)

English

When the LED display is initially powered on, a sequence of on-screen prompts will assist in conﬁguring basic settings. Press the

POWERP button. Setup is available only when the Input Source is set to TV.

✎

Before turning on the LED display, make sure the antenna cable is connected.

Selecting a menu language

Press the

or d button to select a menu language. Press ENTERE button

twice when done.

Selecting Store Demo or Home Use

Press the

or d button, then press the ENTERE button.

Select the Home Use mode. Store Demo Mode is for retail environments.

To return the unit’s settings from Store Demo to Home Use (standard): Press the volume button on the LED display. When you see the volume OSD, press and hold MENU for 5 sec.

Store Demo is only for shop display. If you select it, several functions are not able to use. Please select Home Use when you watch at home.

Selecting an area

Press the

ENTERE button. Select the appropriate area by pressing the u or d button.

Press the ENTER

button to conﬁrm your choice.

Auto Tuning

Press the

or d button to select correct option, and then press ENTERE button twice. Let’s

ﬁnd and store channels on your TV. Do you need to search for channels?

Yes, I need to. All the channels available will be found and stored on your TV. (Auto Tuning necessary)

No, I don’t need to. My set-top box provides all the channels that are available, so I don't need to search for channels.

✎

You can complete Setup by selecting it.

Air / Cable: Select the antenna source to memorise. Digital & Analogue / Digital / Analogue: Select the channel source to memorise.

✎

You can check more details on page22.

Setting the Clock Mode Set the Clock Mode automatically or manually.

Auto: Select the time zone (depending on the country) where you are located.

Manual: Allows you to manually set the current date and time.

✎

If the customer chooses "No, I dont need to." in step 4, the clock just

can be set manually.

Complete

Press the

ENTERE button.

If You Want to Reset This Feature...

Select System - Setup (Initial Setup). Enter your 4 digit PIN number. The default PIN number is “0-0-0-0”. If you want to change the PIN number, use the Change PIN function. You should do Setup (

MENU  System) again at home although you did in shop.

✎

If you forget the PIN code, press the remote control buttons in the following sequence in Standby mode, which resets the PIN to “0-0-0-0”: POWER (off)  MUTE  8  2  4  POWER (on).

Page 15

English

Connections

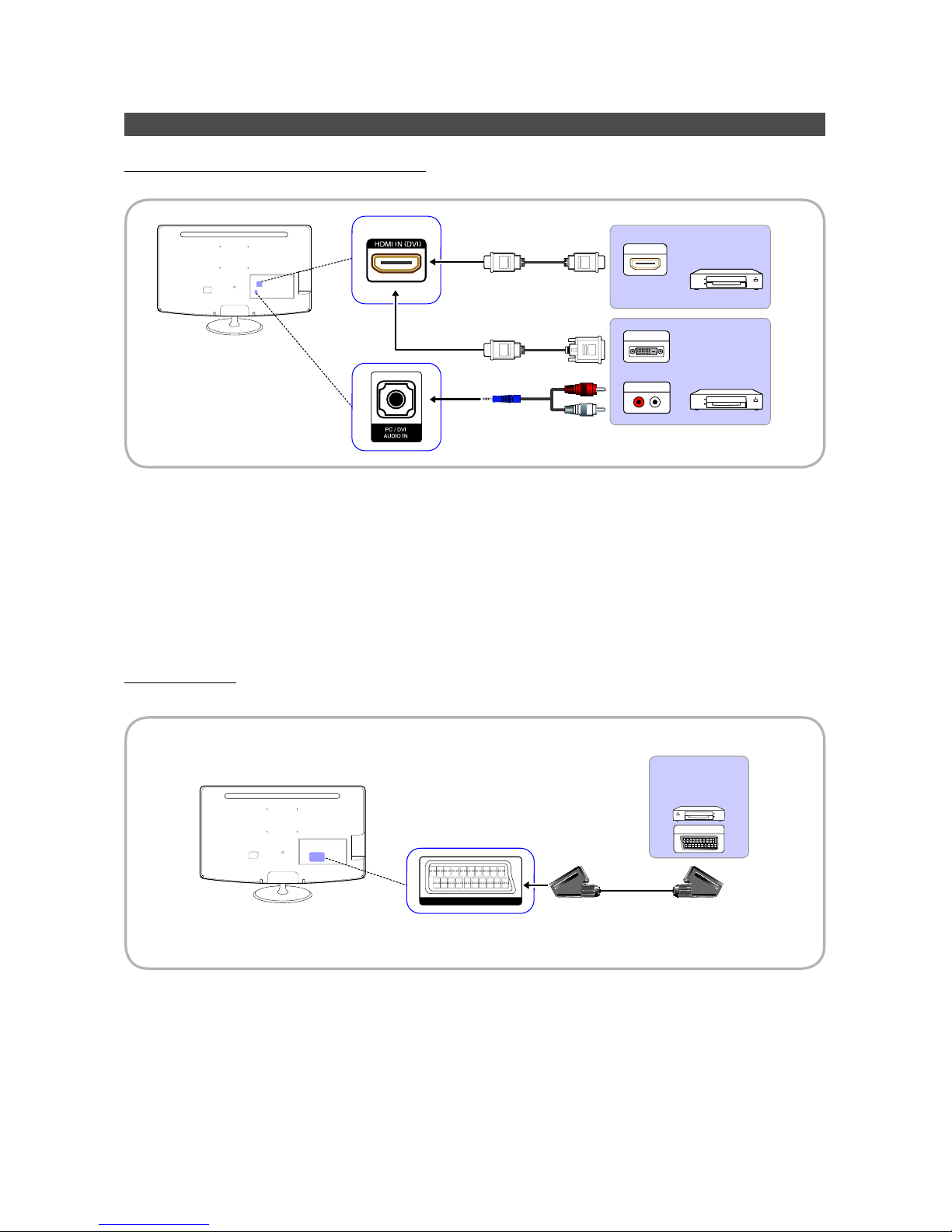

Connecting to an AV Device

Using an HDMI or an HDMI to DVI cable (up to 1080p)

Available devices: DVD, Blu-ray player, HD cable box, HD STB (Set-Top-Box) satellite receiver, VCR

✎

HDMI IN(DVI) / PC/DVI AUDIO IN

If an HDMI to DVI cable is connected to the HDMI IN(DVI) port, the audio does not work.

The picture may not display normally (if at all) or the audio may not work if an external device that uses an older version of HDMI mode is connected to the LED display. If such a problem occurs, ask the manufacturer of the external device about the HDMI version and, if out of date, request an upgrade.

Be sure to purchase a certified HDMI cable. Otherwise, the picture may not display or a connection error may occur.

A basic high-speed HDMI cable or one with ethernet is recommended. This product does not support the ethernet function via HDMI.

Using a Scart Cable

Available devices: DVD, VCR

✎

In Ext. mode, DTV Out supports MPEG SD Video and Audio only.

DVI OUT

HDMI OUT

AUDIO OUT

DVD /

Blu-ray player

DVD /

Blu-ray player

EXT (RGB)

EXT

VCR / DVD

Page 16

English

Connections

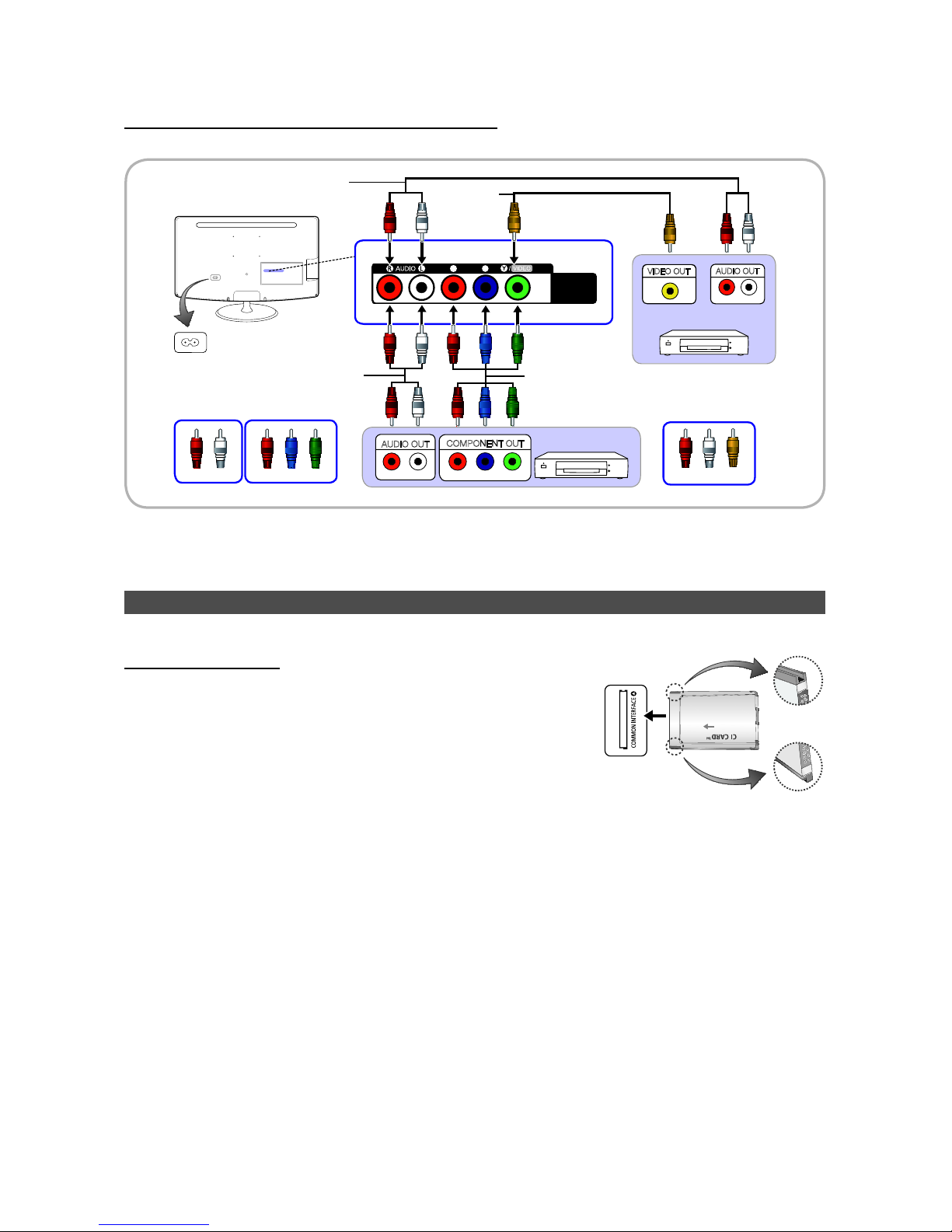

Using a Component (up to 1080p) or Audio/Video (480i only) Cable

Available devices: DVD, Blu-ray player, cable box, STB satellite receiver, VCR

COMPONENT

/ AV IN

AUDIO OUT

R-AUDIO-L

VIDEO OUT

R W BR G

AUDIO OUT

R-AUDIO-L

COMPONENT OUT

PR PB Y

R W

✎

When connecting to AV IN, the colour of the AV IN [ Y/VIDEO] jack (green) will not match the video cable (yellow).

✎

For better picture quality, the Component connection is recommended over the A/V connection.

Connecting to a COMMON INTERFACE slot

(Just for Europe, Turkey,Algeria,South Africa, and CIS area)

Using the “CI or CI+ CARD”

To watch paid channels, the “CI or CI+ CARD” must be inserted.

If you don’t insert the “CI or CI+ CARD,” some channels will display the message “Scrambled Signal”.

The pairing information containing a telephone number, the “CI or CI+ CARD” ID the Host ID and other information will be displayed in about 2~3 minutes. If an error message is displayed, please contact your service provider.

When the conﬁguration of channel information has ﬁnished, the message “Updating Completed” is displayed, indicating the channel list is updated.

✎

NOTE

You must obtain a “CI or CI+ CARD” from a local cable service provider.

When removing the “CI or CI+ CARD”, carefully pull it out with your hands since dropping the “CI or CI+ CARD” may cause damage to it.

Insert the “CI or CI+ CARD” in the direction marked on the card.

The location of the COMMON INTERFACE slot may be different depending on the model.

“CI or CI+ CARD” is not supported in some countries and regions; check with your authorized dealer.

If you have any problems, please contact a service provider.

Insert the “CI or CI+ CARD” that supports the current antenna settings. The screen will be distorted or will not be seen.

Audio Cable

(Not Supplied)

Video Cable

(Not Supplied)

Audio Cable

(Not Supplied)

Red

Red Yellow

White

Red

Bule

Green

Device

Component Cable

(Not Supplied)

Page 17

English

Connections

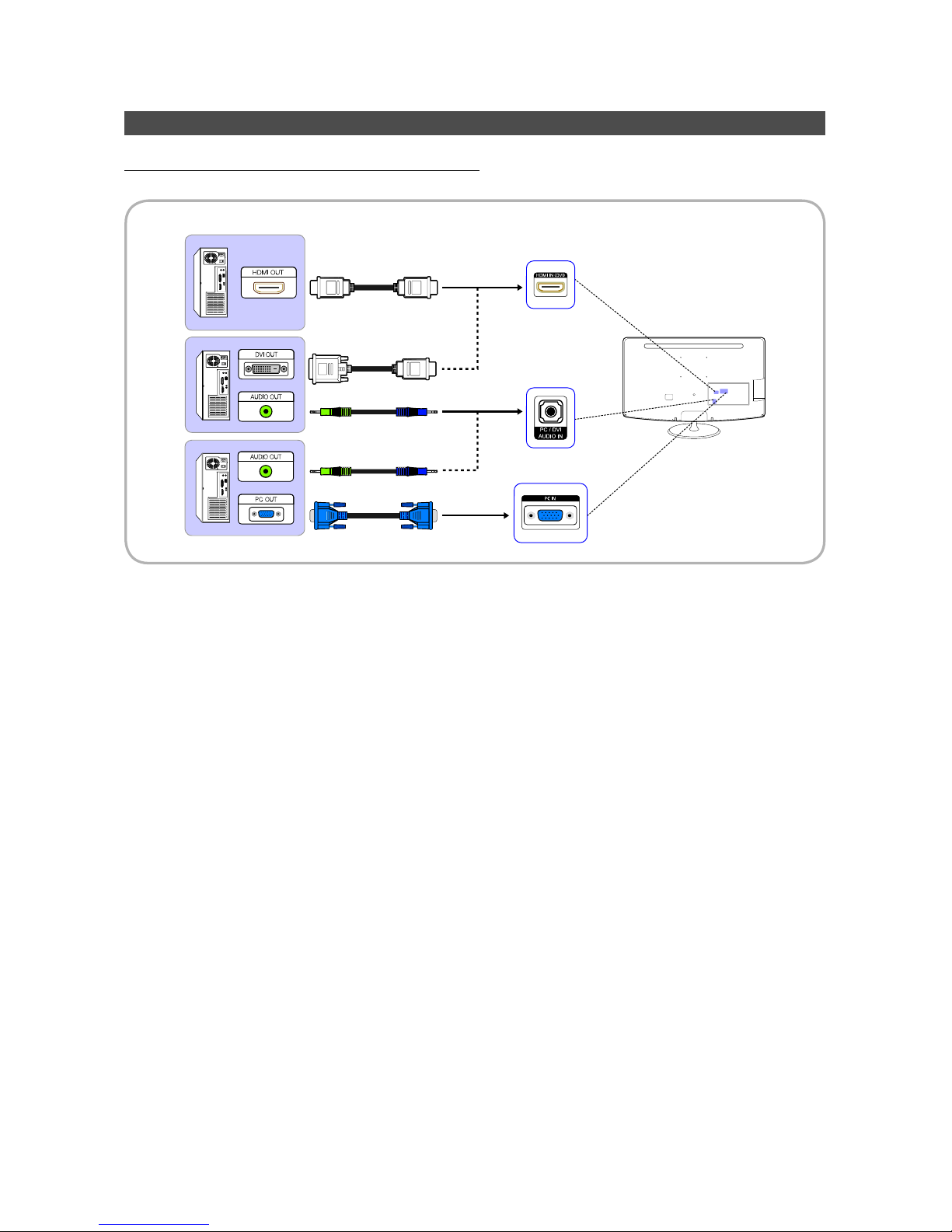

Connecting to a Audio device and PC

Using an HDMI cable or an HDMI to DVI cable or a D-sub cable

✎

Connecting through the HDMI cable may not be supported depending on the PC.

HDMI Cable

(Not Supplied)

HDMI to DVI

(Not Supplied)

Stereo Cable

D-Sub Cable

Page 18

English

Connections

Display Modes (D-Sub and HDMI/DVI Input)

Optimal resolution : 1366 x 768 pixels (T19C300 model only)

Display Mode Horizontal

Frequency (kHz)

Vertical

Frequency (Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

Mode Resolution

IBM

720 x 400 70Hz 31.469 70.087 28.322 -/+

VESA DMT

640 x 480 60Hz 31.469 59.940 25.175 -/-

MAC

640 x 480 67Hz 35.000 66.667 30.240 -/-

VESA DMT

640 x 480 72Hz 37.861 72.809 31.500 -/-

VESA DMT

640 x 480 75Hz 37.500 75.000 31.500 -/-

VESA DMT

800 x 600 60Hz 37.879 60.317 40.000 +/+

VESA DMT

800 x 600 72Hz 48.077 72.188 50.000 +/+

VESA DMT

800 x 600 75Hz 46.875 75.000 49.500 +/+

MAC

832 x 624 75Hz 49.726 74.551 57.284 -/-

VESA DMT

1024 x 768 60Hz 48.363 60.004 65.000 -/-

VESA DMT

1024 x 768 70Hz 56.476 70.069 75.000 -/-

VESA DMT

1024 x 768 75Hz 60.023 75.029 78.750 +/+

VESA DMT

1280 x 720 60Hz 45.000 60.000 74.250 +/+

VESA DMT

1366 x 768 60Hz 47.712 59.790 85.500 +/+

Optimal resolution : 1920 x 1080 pixels

Display Mode Horizontal

Frequency (kHz)

Vertical

Frequency(Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

Mode Resolution

IBM

720 x 400 70Hz 31.469 70.087 28.322 -/+

VESA DMT

640 x 480 60Hz 31.469 59.940 25.175 -/-

MAC

640 x 480 67Hz 35.000 66.667 30.240 -/-

VESA DMT

640 x 480 72Hz 37.861 72.809 31.500 -/-

VESA DMT

640 x 480 75Hz 37.500 75.000 31.500 -/-

VESA DMT

800 x 600 60Hz 37.879 60.317 40.000 +/+

VESA DMT

800 x 600 72Hz 48.077 72.188 50.000 +/+

VESA DMT

800 x 600 75Hz 46.875 75.000 49.500 +/+

MAC

832 x 624 75Hz 49.726 74.551 57.284 -/-

VESA DMT

1024 x 768 60Hz 48.363 60.004 65.000 -/-

VESA DMT

1024 x 768 70Hz 56.476 70.069 75.000 -/-

VESA DMT

1024 x 768 75Hz 60.023 75.029 78.750 +/+

VESA DMT

1152 x 864 75Hz 67.500 75.000 108.000 +/+

MAC

1152 x 870 75Hz 68.681 75.062 100.000 -/-

VESA DMT

1280 x 720 60Hz 45.000 60.000 74.250 +/+

VESA DMT

1280 x 800 60Hz 49.702 59.810 83.500 -/+

VESA DMT

1280 x 1024 60Hz 63.981 60.020 108.000 +/+

VESA DMT

1280 x 1024 75Hz 79.976 75.025 135.000 +/+

VESA DMT

1366 x 768 60Hz 47.712 59.790 85.500 +/+

VESA DMT

1440 x 900 60Hz 55.935 59.887 106.500 -/+

VESA DMT

1600 x 900RB 60Hz 60.000 60.000 108.000 +/+

VESA DMT

1680 x 1050 60Hz 65.290 59.954 146.250 -/+

VESA DMT

1920 x 1080 60Hz 67.500 60.000 148.500 +/+

✎

NOTE

The interlace mode is not supported.

The set might operate abnormally if a non-standard video format is selected.

Separate and Composite modes are supported. SOG(Sync On Green) is not supported.

Page 19

English

Connections

Basic Features

How to Navigate Menus

Before using the LED display, follow the steps below to learn how to navigate the menu and select and adjust different functions.

1 ENTERE / Direction button: Move the cursor and select

an item. Conﬁrm the setting.

RETURN button: Returns to the previous menu.

3 MENU button: Displays the main on-screen menu. 4 EXIT button: Exits the on-screen menu.

How to Operate the OSD (On Screen Display)

The access step may differ depending on the selected menu.

The main menu options appear on the screen:

Picture, Sound, Channel, System, Support.

 /  Select an icon with the  or 

button.

ENTER

Press ENTERE to access the sub-menu.

 / 

Select the desired submenu with the  or  button.

 / 

Adjust the value of an item with the  or  button. The adjustment in the OSD may differ depending on the selected menu.

ENTER

Press ENTERE to complete the conﬁguration.

EXIT

Press EXIT.

Changing the Input Source

Source

SOURCE s Source

Use to select LED display or an external input sources such as a DVD / Blu-ray player / cable box / STB satellite receiver.

■ TV / Ext. / PC / HDMI/DVI / AV / USB /

Component

✎

In the Source, connected inputs will be highlighted.

✎

TV, PC and Ext. always stay activated.

Edit Name

SOURCEs TOOLST  Edit Name  ENTER

In the Source, press the TOOLST button, and then you can set an external input sources name you want.

■ VCR / DVD / Cable STB / Satellite STB / PVR STB /

AV Receiver / Game / Camcorder / PC / DVI PC / DVI Devices / TV / IPTV / Blu-ray / HD DVD / DMA: Name

the device connected to the input jacks to make your input source selection easier.

✎

When connecting a PC to the HDMI IN (DVI) port with HDMI cable, you should set the LED display to PC mode under Edit Name.

✎

When connecting a PC to the HDMI IN (DVI) port with HDMI to DVI cable, you should set the LED display to DVI PC mode under Edit Name.

✎

When connecting an AV devices to the HDMI IN (DVI) port with HDMI to DVI cable, you should set the LED display to

DVI Devices mode under Edit Name.

Information

SOURCEs  TOOLST Information  ENTER

You can see detailed information about the selected external device.

Page 20

Page 21

English

Basic Features

Aerial: Select the desired antenna source.

Channel: Select the desired channel.

Repeat: Select Once, Manual, Sat~Sun, Mon~Fri or Everyday to set at your convenience. If you select Manual,

you can set the day you want.

✎

The c mark indicates the date is selected.

Date: you can set desired date.

✎

It is available when you select Once in Repeat.

Start Time: You can set start time you want.

✎

On the Information screen, you can change or cancel a reserved information.

Cancel Schedule: Cancel a show you have reserved to watch.

Edit: Change a show you have reserved to watch.

Return: Return to the previous screen.

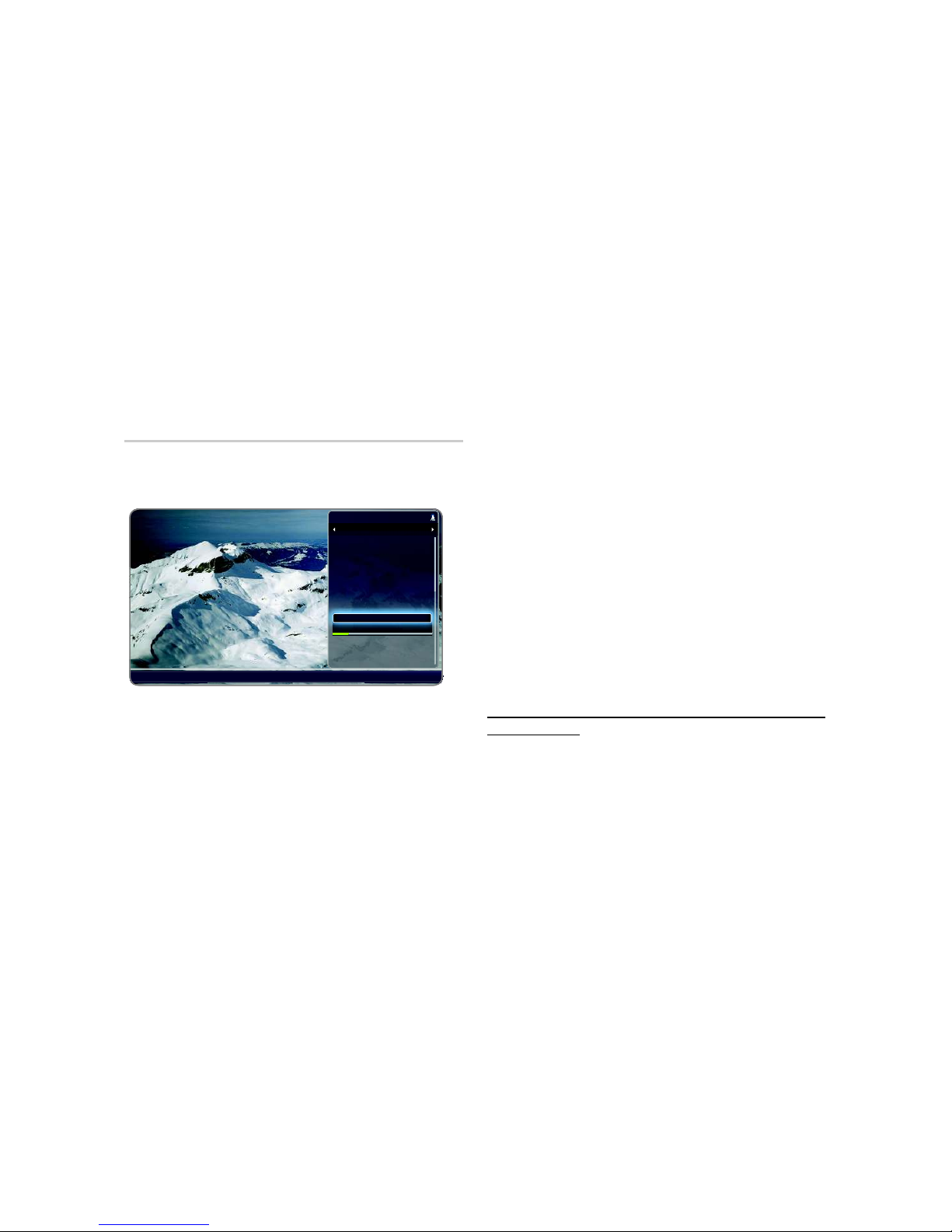

Channel List

CONTENT  Channel List  ENTER

You can view all the channel searched.

The displayed image may differ depending on the model.

Channel List

All

1 1futech

2 24ore.tv

3 BBC World

4 Class News

5 Coming Soon

6 R4 DTT

IL MEDICO E LO STREGONE

T Tools L Ch. Mode E Watch k Page

✎

When you press the CH LIST button on the remote control, Channel List screen will be displayed at once.

Using the operation buttons with the Channel List.

■

(Tools): Press Tools button to check the following

functions.

Programme View:Press the u/d buttons to select the desired programme, then press the ENTERE button. (Only for DIGITAL Channel)

Edit Favourites: Set channels you watch frequently as favourites.

✎

Select the Edit Favourites, then press the

ENTERE button.

– If the channel is already added to favourite

channel, Edit Favourites will be shown.

Lock / Unlock: Lock a channel so that the channel cannot be selected and viewed.

✎

This function is available only when the Channel Lock is set to On.

✎

The PIN input screen appears. Enter your 4-digit PIN, the default of which is “0-0-0-0”. Change the PIN using the Change PIN option.

Edit Channel Name (Only for Analogue channels): Assign your own channel name.

✎

This function may not support depending on the region.

Edit Channel Number: Edit the number by pressing the number buttons desired.

✎

This function may not support depending on the region.

Delete: You can delete a channel to display the channels you want.

Information: Display the channel name, resolution, picture mode, language and so on.(Some just available for DTV)

Sort: Change the list ordered by channel name or channel number. (Only for DIGITAL Channel)

Change antenna: Switches to Air or Cable.

Edit Mode: You can select desired channels and edit it.

■

l r

(Ch. Mode): Move to the type of channels you want to

display on the Channel List screen.

✎

The option may differ depending on country.

■

(Watch / Information): Watches the channel you

select. / Displays details of the selected programme.

■

(Page): Move to next or previous page.

How to use Schedule Viewing in Channel List (Depending on the channels)

When you set the Schedule Viewing in Channel List, you can only set the programme in Programme View.

1. Press the

CH LIST button, then select a desired digital

channel.

2. Press the TOOLS

button and select Programme View.

3. Press the

u / d

buttons to select the desired programme,

then press the E (Information) button.

4. Select Schedule Viewing, then press the ENTER

button when done.

✎

If you want to cancel Schedule Viewing, follow steps 1 through 3. Select Cancel Schedule.

Page 22

English

Basic Features

Channel Menu

¦ Retuning Channels

MENUm  Channel  ENTER

Aerial (Air / Cable)

Before your television can begin memorizing the available channels, you must specify the type of signal source that is connected to the LED display.

Country

(depending on the country) The PIN input screen appears. Enter your 4 digit PIN number.

✎

Select your countr y so that the LED display can correctly auto-tune the broadcasting channels.

■ Digital Channel: Change the country for digital channels.

■ Analogue Channel: Change the country for analogue

channels.

Auto Tuning

(depending on the country)

✎

Automatically allocated programme numbers may not correspond to actual or desired programme numbers. If a channel is locked using the Channel Lock function, the PIN input window appears.

■ Auto Tuning

– Air / Cable: Select the antenna source to memorise.

Digital & Analogue / Digital / Analogue: Select the channel source to memorise.

✎

When selecting Cable  Digital & Analogue or Digital: Provide a value to scan for cable channels.

Search Mode(Full / Network / Quick): Selects the Search Mode settings among Full / Network / Quick.

Network (Auto / Manual): Selects the Network ID setting mode among Auto or Manual.

Network ID: When Network is Manual, you can set up Network ID using the numeric buttons.

Frequency: Displays the frequency for the channel. (differs in each country)

Modulation: Displays available modulation values.

Symbol Rate: Displays available symbol rates.

■ Cable Search Option

(depending on the country) Sets additional search options such as the frequency and

symbol rate for a cable network search.

– Start Frequency / Stop Frequency: Set the start or

stop frequency (differs in each country).

– Symbol Rate: Displays available symbol rates. – Modulation: Displays available modulation values.

Manual Tuning

Scans for a channel manually and stores in the LED display.

✎

If a channel is locked using the Channel Lock function, the PIN input window appears.

■ Digital Channel Tuning: Scans for a digital channel.

1. Press the ENTER

button to select New.

✎

When selecting Aerial  Air: Channel, Frequency, Bandwidth

✎

When selecting Aerial  Cable: Frequency,

Modulation, Symbol Rate

2. Press the

button to select Search. When scanning

has ﬁnnished, a channel is updated in the channel list.

■ Analogue Channel Tuning: Scans for a analogue channel.

1. Press the ENTER

button to select New.

2. Set the Programme, Colour System, Sound System, Channel and Search.

3. Press the

button to select Store. When scanning

has ﬁnnished, a channel is updated in the channel list.

Transfer Channel List

The PIN input screen appears. Enter your 4 digit PIN number. Imports or exports the channel map. You should connect a USB storage to use this function.

■ Import from USB: Import channel list from USB.

■ Export to USB: Export channel list to USB. This function is

available when USB is connected.

✎

USB format should be FAT32.

Fine Tune

(analogue channels only) If the reception is clear, you do not have to ﬁne tune the channel,

as this is done automatically during the search and store operation. If the signal is weak or distorted, ﬁne tune the channel manually. Scroll to the left or right until the image is clear.

✎

Settings are applied to the channel you’re currently watching.

✎

Fine tuned channels that have been saved are marked with an asterisk “*” on the right-hand side of the channel number in the channel banner

✎

To reset the fine-tuning, select Reset.

Page 23

English

Basic Features

Picture Menu

¦ Changing the Preset Picture Mode

MENUm  Picture  Picture Mode  ENTER

Picture Mode

Select your preferred picture type.

✎

When connecting a PC, the Picture Mode is only available the Standard and Entertain.

■ Dynamic: Suitable for a bright room.

■ Standard: Suitable for a normal environment.

■ Movie: Suitable for watching movies in a dark room.

■ Entertain: Suitable for watching movies and games.

✎

It is only available when connecting a PC.

¦ Adjusting Picture Settings

MENUm  Picture  ENTER

Samsung MagicAngle

Adjust screen viewing Angle to optimize screen quality according to your viewing position.

■ Samsung MagicAngle: When viewing the screen at an

angle from below or above by setting the appropriate mode for each position you can obtain a similar picture quality as viewing the screen directly from the front.

Off: Select when viewing from the front position.

Lean back mode: Select when viewing from a slightly lower position.

Standing Mode: Select when viewing from the upper position.

■ Mode: Adjust screen viewing angle.

✎

When Samsung MagicAngle is set to Lean back mode or Standing Mode, Gamma is not available.

Backlight / Contrast / Brightness / Sharpness / Colour / Tint (G/R)

Your television has several setting options for picture quality control.

✎

NOTE

In analogue TV, PC, AV modes of the PAL system, the Tint (G/R) function is not available.

When connecting a PC, you can only make changes to Backlight, Contrast, Brightness and Sharpness.

Settings can be adjusted and stored for each external device connected to the LED display.

Lowering picture brightness reduces power consumption.

Screen Adjustment

■ Picture Size: Your cable box / satellite

receiver may have its own set of screen sizes as well. However, we highly recommend you use 16:9 mode most of the time.

Auto Wide: Automatically adjusts the picture size to the 16:9 aspect ratio.

16:9: Sets the picture to 16:9 wide mode. Wide Zoom: Magniﬁes the picture size more than 4:3.

✎

Adjusts the Position by using u / d buttons.

Zoom: Magniﬁes the 16:9 wide pictures vertically to ﬁt the screen size.

✎

Adjusts the Zoom or Position by using u / d button.

4:3: Sets the picture to basic (4:3) mode.

✎

Do not watch in 4:3 format for a long time. Traces of borders displayed on the left, right and centre of the screen may cause image retention (screen burn) which are not covered by the warranty.

Screen Fit: Displays the full image without any cut-off when HDMI (720p / 1080i / 1080p) or Component (720p / 1080i / 1080p) signals are inputted.

✎

Adjusts the Position by using u / d / l / r button.

✎

NOTE

Depending on the input source, the picture size options may vary.

The available items may differ depending on the selected mode.

When connecting a PC, only 16:9 and 4:3 modes can be adjusted.

Settings can be adjusted and stored for each external device connected to an input on the LED display.

If you use the Screen Fit function with HDMI 720p input, 1 line will be cut at the top, bottom, left and right as in the overscan function.

■ Zoom / Position:You can adjust picture size and position

/ d / l / r button.

✎

It's only available when picture size is set as Zoom and Wide Zoom.

✎

In Wide Zoom mode, you can only use Position adjustment.

✎

Reset: Reset the Zoom and Position to the default settings.

■ 4:3 Screen Size (16:9 / Wide Zoom / Zoom / 4:3): Available only when picture size is set to Auto Wide. You can determine the desired picture size at the 4:3 WSS (Wide Screen Service) size or the original size. Each European country requires different picture size.

✎

Not available in HDMI , Component, and HDMI/DVI mode.

Page 24

English

Basic Features

■ PC Screen Adjustment

✎

Available only PC mode.

Coarse / Fine: Removes or reduces picture noise. If the noise is not removed by Fine-tuning alone, then adjust the frequency as best as possible (Coarse) and Finetune again. After the noise has been reduced, readjust the picture so that it is aligned to the centre of screen.

Position: Adjusts the PC screen position with direction button (u / d / l / r).

Image Reset: Resets the image to default settings.

Auto Adjustment

Frequency values / position and ﬁne tune are adjusted automatically.

✎

It's only available in PC mode.

Using Your TV as a Computer (PC) Display

Setting Up Your PC Software (Based on Windows XP) Depending on the version of Windows and the video card, the actual screens on your PC may differ in which case the same basic set-up information will almost always be applied. (If not, contact your computer manufacturer or Samsung Dealer.)

1. Click on “Control Panel” on the Windows start menu.

2. Click on “Appearance and Themes” in the “Control Panel”

window and a display dialog-box will appear.

3. Click on “Display” and a display dialog box will appear.

4. Navigate to the “Settings” tab on the display dialog-box.

The correct size setting (resolution) [Optimum: 1920 x 1080 pixels]. (T19C300: 1366 x 768 pixels)

If a vertical-frequency option exists on your display settings dialog box, the correct value is “60” or “60 Hz”. Otherwise, just click “OK” and exit the dialog box.

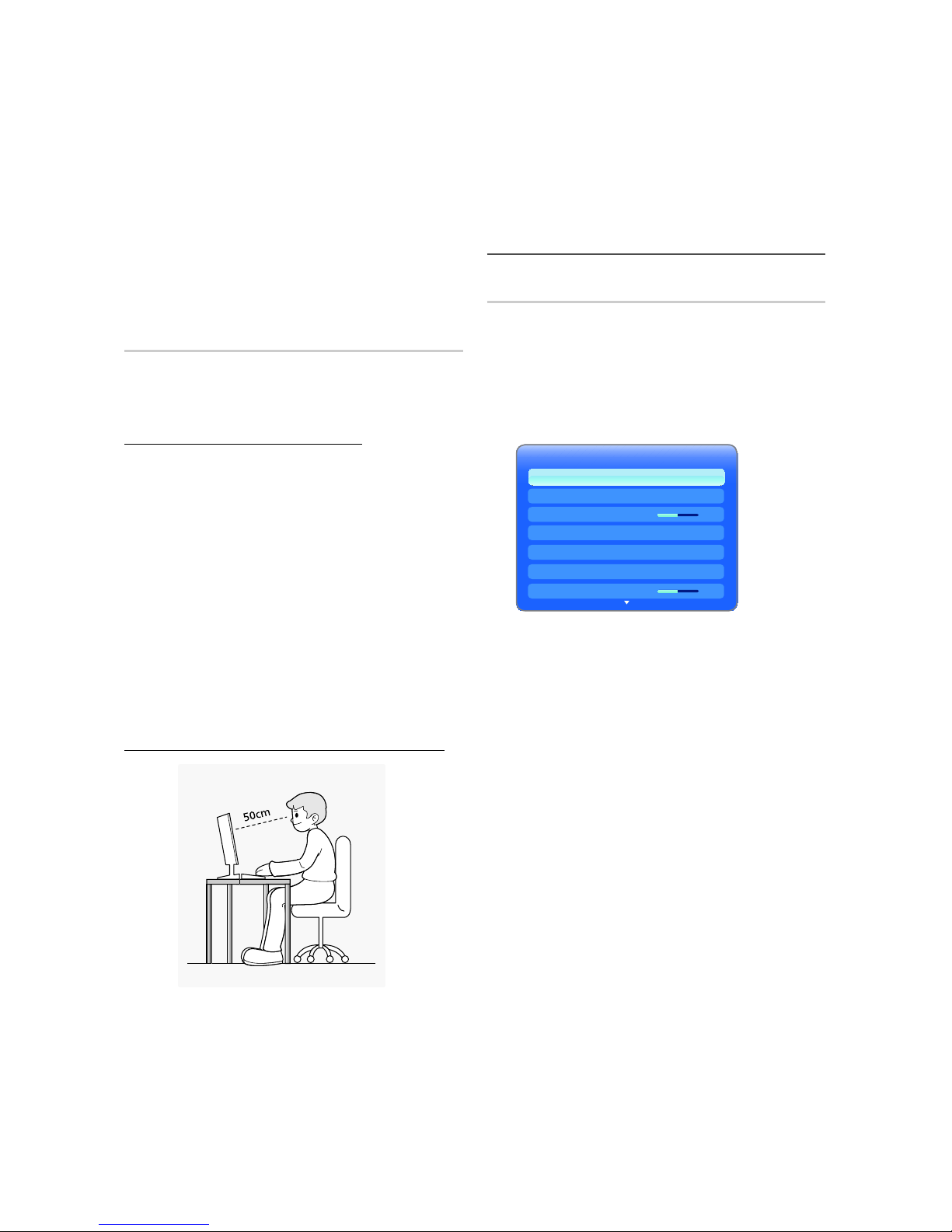

Maintaining the Correct Posture when Using this Product

Maintain the correct posture when using this product.

Straighten your back.

Keep a distance of 45~50 cm (15~19 inches) from your eyes to the screen. Look down at the screen and face the screen forwards.

Adjust the angle of the product so that light is not reﬂected onto the screen.

Keep your elbow at a right angle and keep your arm level with the back of your hand.

Keep your elbow at a right angle.

Place your heels ﬂat on the ground while keeping your knees at an angle of 90 degrees or higher and maintain the position of your arm so that your arm is below your heart.

¦ Changing the Picture Options

Advanced Settings

MENUm  Picture  Advanced Settings  ENTER

(Advanced Settings are available in Standard / Movie mode) Compared to previous models, new Samsung LED display have

a more precise picture.

✎

When connecting a PC, you can only make changes to White Balance.

Advanced Settings

RGB Only Mode Off

Colour Space Native

White Balance

Gamma 0

Dynamic Contrast High

Black Tone Off

Flesh Tone 0

■ Dynamic Contrast (Off / Low / Medium / High): Adjust the screen contrast.

■ Black Tone (Off / Dark / Darker / Darkest): Select the black level to adjust the screen depth.

■ Flesh Tone: Emphasize pink “Flesh Tone.”

■ RGB Only Mode (Off / Red / Green / Blue): Displays the Red, Green and Blue colour for making ﬁne adjustments to the hue and saturation.

■ Colour Space (Auto / Native): Adjust the range of colours available to create the image.

■ White Balance: Adjust the colour temperature for a more natural picture.

R-Offset / G-Offset / B-Offset: Adjust each colour’s (red, green, blue) darkness.

R-Gain / G-Gain / B-Gain: Adjust each colour’s (red, green, blue) brightness.

Reset: Resets the White Balance to it’s default settings.

■ Gamma: Adjust the primary colour intensity.

■ Motion Lighting (Off / On): Reduce power consumption by brightness control.

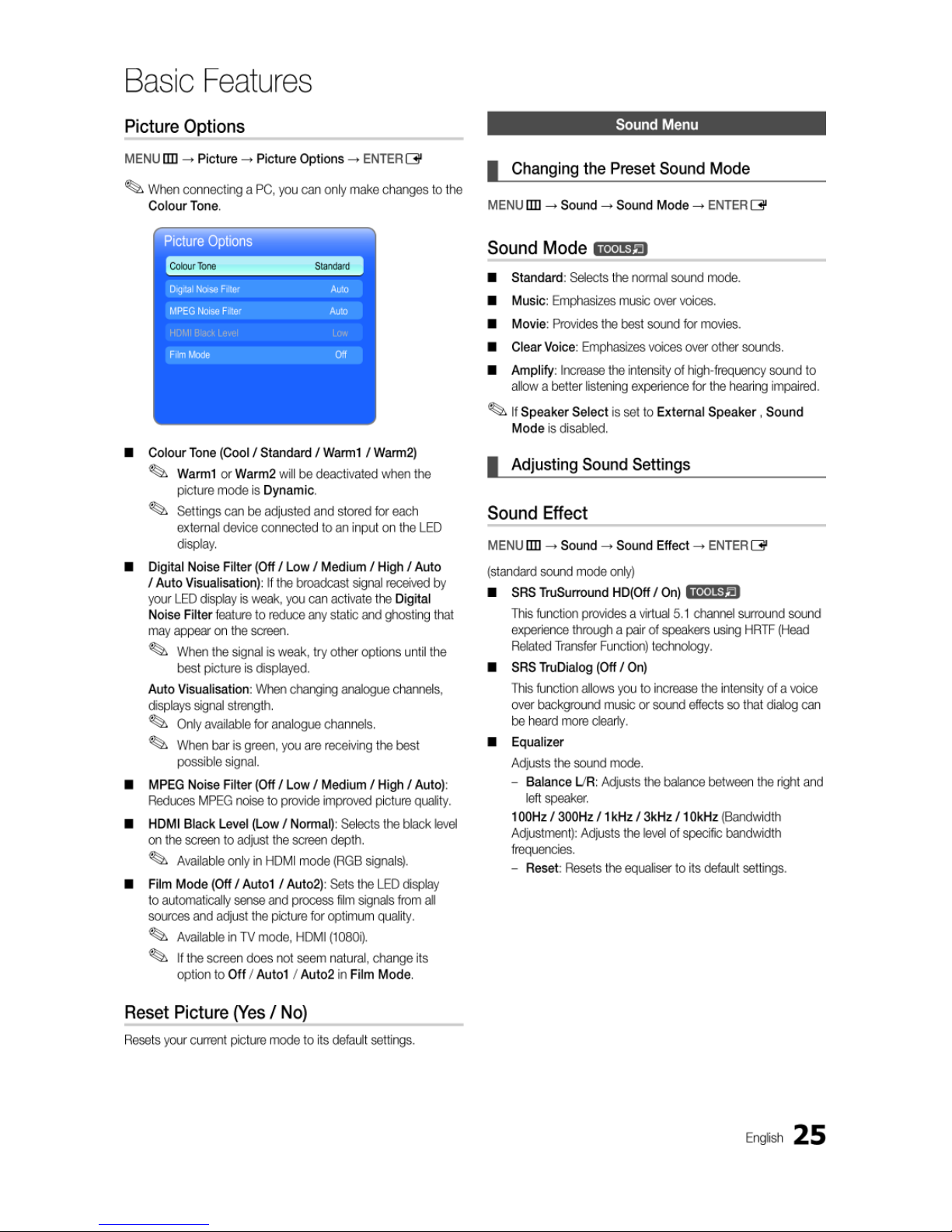

Page 25

Page 26

English

Basic Features

¦ Sound Systems, Etc.

MENUm  Sound  ENTER

Broadcast Audio Options

■ Audio Language

 (digital channels only)  Change the default value for audio languages.

✎

The available language may differ depending on the broadcast.

■ Audio Format

 (digital channels only)  Select the audio format.

■ Audio Description

 (not available in all locations) (digital

channels only)

 This function handles the Audio Stream

for the

AD (Audio Description) which is

sent along with the Main audio from the broadcaster.

✎

Audio Description (Off / On): Turn the audio description function on or off.

✎

Volume: Adjust the audio description volume.

Additional Settings

(digital channels only)

■ DTV Audio Level (MPEG / HE-AAC): This function allows

you to reduce the disparity of a voice signal (which is one of the signals received during a digital TV broadcast) to a desired level.

✎

According to the type of broadcast signal, MPEG / HE-AAC can be adjusted between -10dB and 0dB.

✎

To increase or decrease the volume, adjust between the range 0 and -10 respectively.

■ Dolby Digital Comp (Line / RF): This function minimizes signal disparity between a dolby digital signal and a voice signal (i.e. MPEG Audio, HE-AAC, ATV Sound).

✎

Select Line to obtain dynamic sound, and RF to reduce the difference between loud and soft sounds at night time.

Line: Set the output level for signals greater or less than

-31dB (reference) to either -20dB or -31dB. RF: Set the output level for signals greater or less than

-20dB (reference) to either -10dB or -20dB.

Speaker Settings

■ Speaker Select (External Speaker / TV Speaker):A sound echo may occur due to a difference indecoding speed between the main speaker and theaudio receiver. In this case, set the TV to External Speaker.

✎

When Speaker Select is set to External Speaker, the volume and MUTE buttons will not operate and the sound settings will be limited.

✎

When Speaker Select is set to External Speaker.

TV Speaker: Off, External Speaker: On

✎

When Speaker Select is set to TV Speaker.

TV Speaker: On, External Speaker: On

✎

If there is no video signal, both speakers will be mute.

✎

It's not available for TC300 series.

■ Auto Volume (Off / Normal / Night): To equalize the volume level on each channel, set to Normal.

Night: This mode provides an improved sound experience compared to Normal mode, making almost no noise. It is useful at night.

Reset Sound (Yes / No)

Reset all sound settings to the factory defaults.

¦ Selecting the Sound Mode

When you set to Dual fg, the current sound mode is displayed on the screen.

Audio

Type

Dual

f-g

Default

Stereo

Mono Mono

Automatic

change

Stereo

Stereo  Mono

Dual

 Dual

Dual

NICAM

Stereo

Mono Mono

Automatic

change

Stereo

Mono  Stereo

Dual

Mono  Dual

 Dual g 

Dual

✎

If the Stereo signal is weak and an automatic switching, occurs, then switch to the Mono.

✎

Only activated in stereo sound signal.

✎

Only available when the input Source is set to TV.

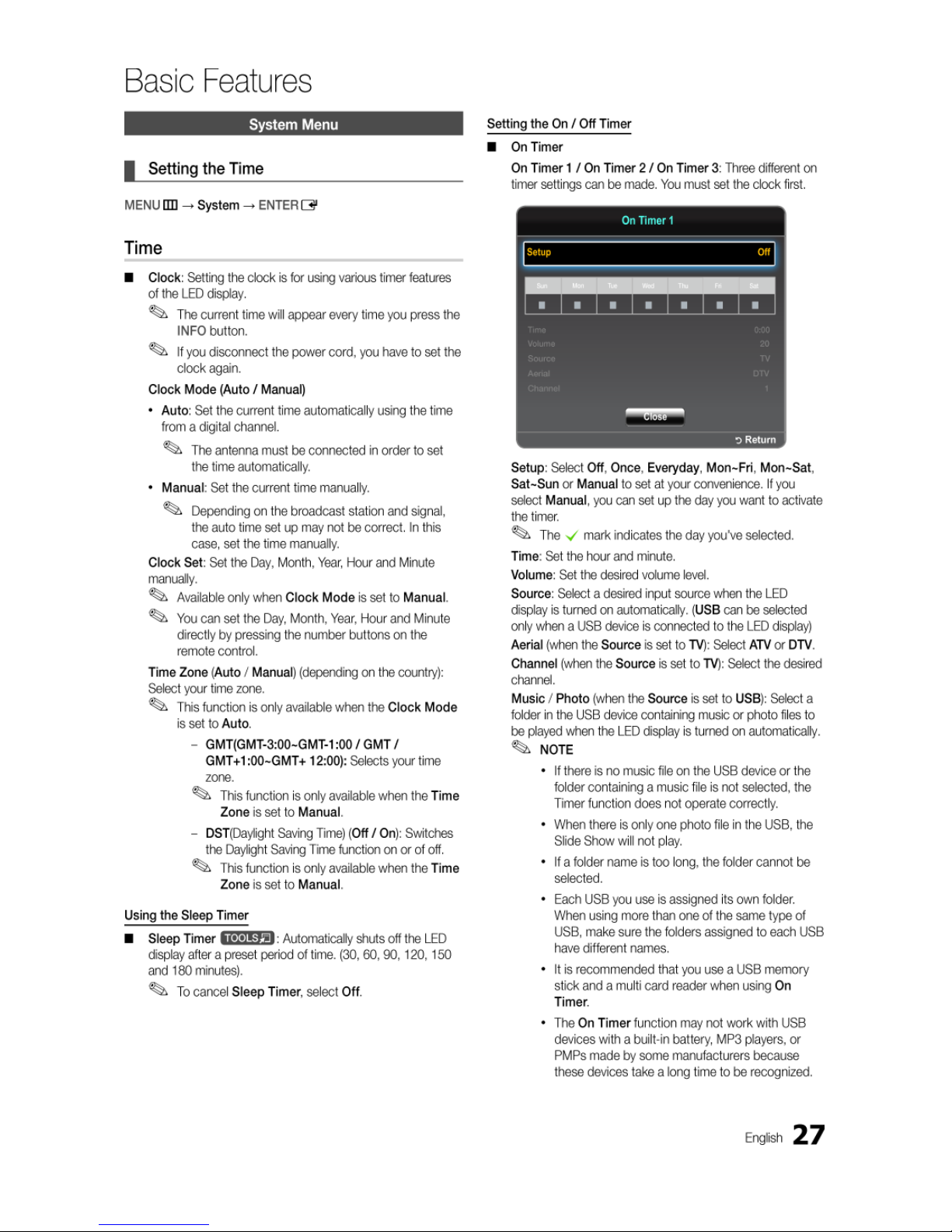

Page 27

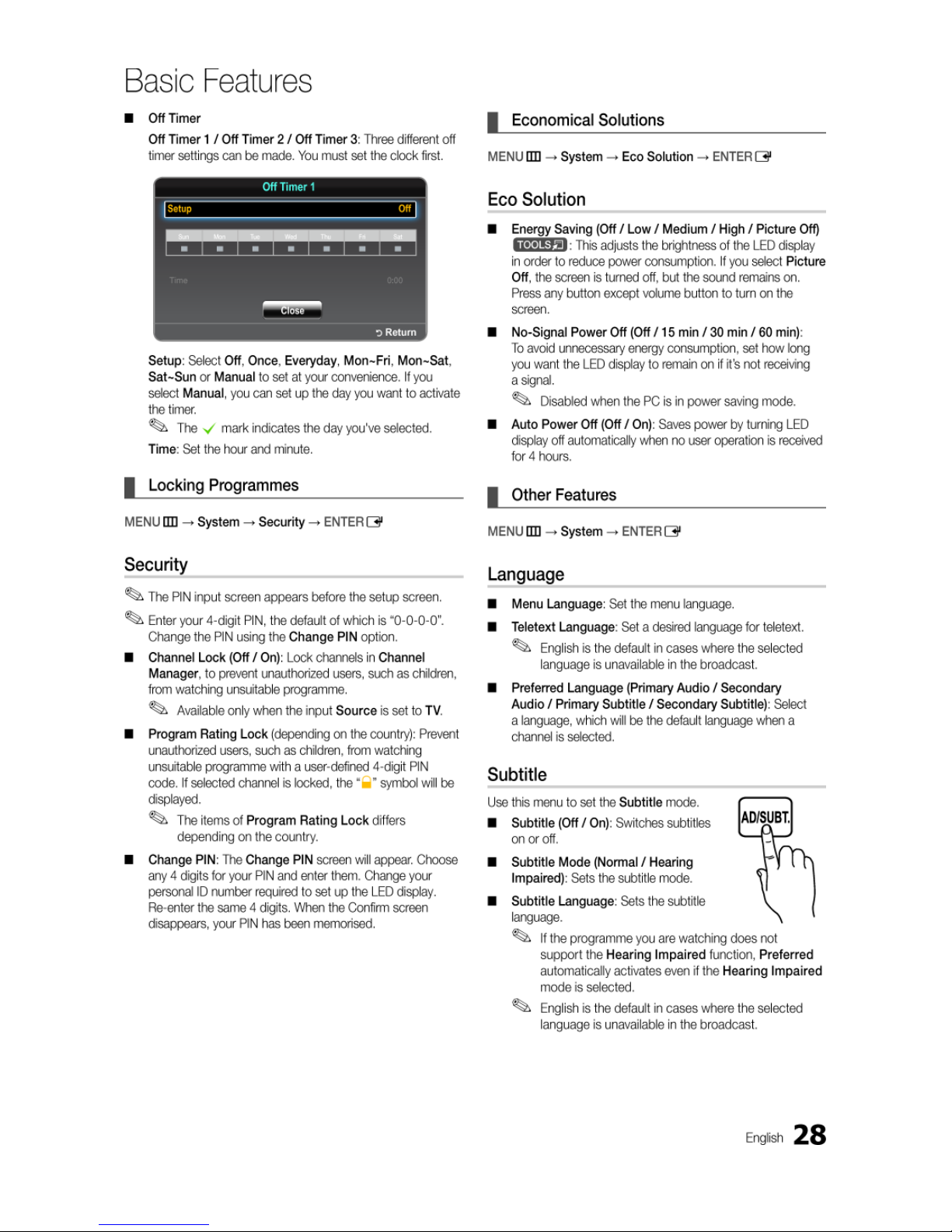

Page 28

Page 29

English

Basic Features

Digital Text (Disable / Enable)

(UK only) If the programme broadcasts with digital text, this feature is

enabled.

Auto Protection Time

■ Off / 2 hours / 4 hours / 8 hours / 10 hours: If the

screen remains idle with a still image for a certain period of time deﬁned by the user, the screen saver is activated to prevent the formation of ghost images on the screen.

General

■ Max. Power Saving (Off / On): Turn off PC monitor

when PC is not used for certain length of time to reduce power consumption.

■ Game Mode (Off / On): When connecting to a game

console such as PlayStation™ or Xbox™, you can enjoy a more realistic gaming experience by selecting game mode.

✎

NOTE

y Precautions and limitations for game mode

– To disconnect the game console and connect another

external device, set Game Mode to Off in the setup menu.

– If you display the LED display menu in Game Mode,

the screen shakes slightly.

y Game Mode is not available when the input source is

set to TV or PC.

y After connecting the game console, set Game Mode

to On. Unfortunately, you may notice reduced picture quality.

y If Game Mode is On:

– Picture mode is set to Standard and Sound mode is

set to Movie.

■ Panel Lock (Off / On): Lock or unlock all the keys on

the front panel at once. When Panel Lock is on, none of the keys on the front panel operate.

■ Boot Logo (Off / On): Display Samsung logo when the

LED display is turned on.

Common Interface

■ CI Menu: This enables the user to select from the

CAMprovided menu. Select the CI Menu based on the menu PC Card.

■ CAM video transcoding: Switch CAM video

transcoding auto or off.

■ Application Info: View information on the CAM inserted

into the CI slot and on the “CI or CI+ CARD” which is inserted into the CAM. You can install the CAM anytime whether the LED display is on or off.

1. Purchase a CI CAM module at your nearest dealer or by

phone.

2. Firmly insert the “CI or CI+ CARD” into the CAM in the

direction of the arrow.

3. Insert the CAM with the “CI or CI+ CARD” into the

common interface slot, in the direction of the arrow so that it aligns parallel with the slot.

4. Check if you can see a picture on a scrambled signal

channel.

¦ Picture In Picture (PIP)

MENUm  System  PIP  ENTER

PIP

You can watch the LED display tuner and one external video source simultaneously. PIP (Picture-in-Picture) does not function in the same mode.

✎

NOTE

y For PIP sound, refer to the Sound Select instructions. y If you turn the LED display off while watching in PIP

mode, the PIP window will disappear.

y You may notice that the picture in the PIP window

becomes slightly unnatural when you use the main

y screen to view a game or karaoke. y While Program Rating Lock is in operation, the PIP

function cannot be used.

y PIP settings

Main picture Sub picture

HDMI, HDMI(PC), Component, PC

■ PIP (Off / On): Activate or deactivate the PIP function.

■ Channel: Select the channel for the sub-screen.

■ Size (

/ Ã): Select a size for the sub-picture.

■ Position (

/ – / — / œ): Select a position for the

sub-picture.

■ Sound Select (Main / Sub): You can choose the desired sound (Main / Sub) in PIP mode.

¦ DivX® Video On Demand

Shows the registration code authorized for the TV. If you connect to the DivX web site and register, you can download the VOD registration ﬁle. If you play the VOD registration using Media contents, the registration is completed.

✎

For more information on DivX® VOD, visit “http://vod. divx.com”.

Page 30

English

Basic Features

Support Menu

MENUm  Support  ENTER

Self Diagnosis

✎

Self Diagnosis might take few seconds, this is part of the normal operation of the LED display

■ Picture Test (Yes / No): Use to check for picture problems.

Yes: If the test pattern does not appear or there is noise in the test pattern, select Yes. There may be a problem with the LED display. Contact Samsung’s Call Centre for assistance.

No: If the test pattern is properly displayed, select No. There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual.

■ Sound Test (Yes / No): Use the built-in melody sound to

check for sound problems.

Yes: If you can hear sound only from one speaker or not at all during the sound test, select Yes. There may be a problem with the LED display. Contact Samsung’s Call Centre for assistance.

No: If you can hear sound from the speakers, select No. There may be a problem with your external equipment. Please check your connections. If the problem persists, refer to the external device’s user manual.

■ Signal Information: (digital channels only) An HD channel’s

reception quality is either perfect or the channels are unavailable. Adjust your antenna to increase signal strength.

■ Reset: Restores all settings to factory defaults except

network settings.

Software Upgrade

Software Upgrade can be performed via a broadcasting signal

or downloading the latest ﬁrmware from “www.samsung.com,” to a USB memory device.

Current Version the software already installed in the LED display.

✎

Software is represented as “Year/Month/Day_Version”.

Software Upgrade

By USB

By Channel

Alternative Software

Standby Mode Upgrade 2 hours later

Installing the Latest Version

■ By USB: Insert a USB drive containing the ﬁrmware upgrade ﬁle, downloaded from “www.samsung.com,” into the TV. Please be careful not to disconnect the power or remove the USB drive until upgrades are complete. The TV will be turned off and on automatically after completing the ﬁrmware upgrade. When software is upgraded, video and audio settings you have made will return to their default settings. We advise you to write down your settings so that you can easily reset them after the upgrade.

■ By Channel: Upgrade the software using the broadcasting signal.

✎

If the function is selected during the software transmission period, software will be automatically searched and downloaded.

✎

The time required to download the software is determined by the signal status.

■ Alternative Software: Replace the current software with the alternative.

■ Standby Mode Upgrade (Off / 1 hour later / 2 hours later / 00:00 / 02:00 / 12:00 / 14:00): A manual upgrade will be automatically performed at selected time. Since the power of the unit is turned on internally, the screen may be turned on slightly for the LED product. This phenomenon may continue for more than 1 hour until the software upgrade is complete.

Contact Samsung

View this information when your LED display does not work properly or when you want to upgrade the software. You can ﬁnd information regarding our call centres, and how to download products and software.

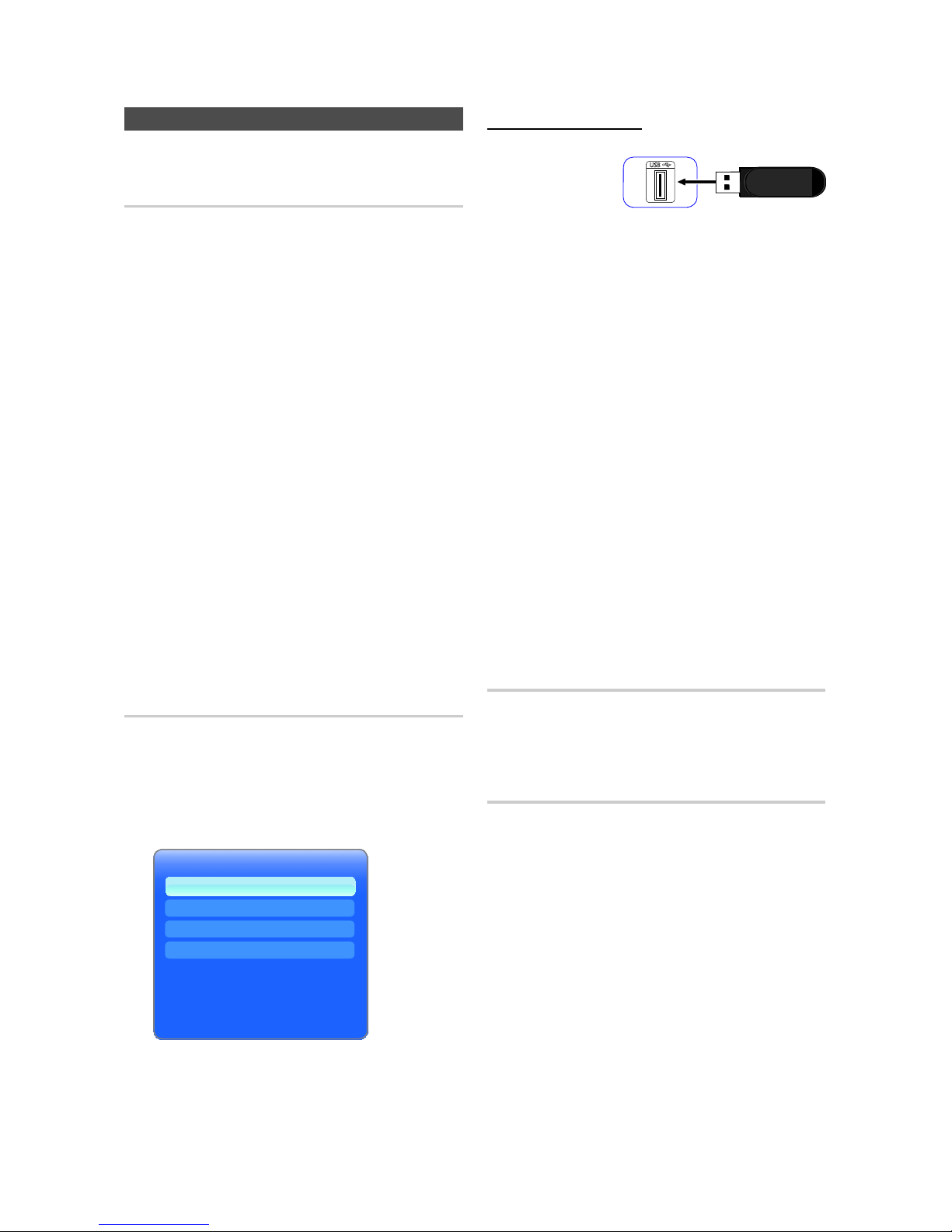

Contents Home

You can enjoy useful and various contents.

TV Side

USB Drive

Page 31

Page 32

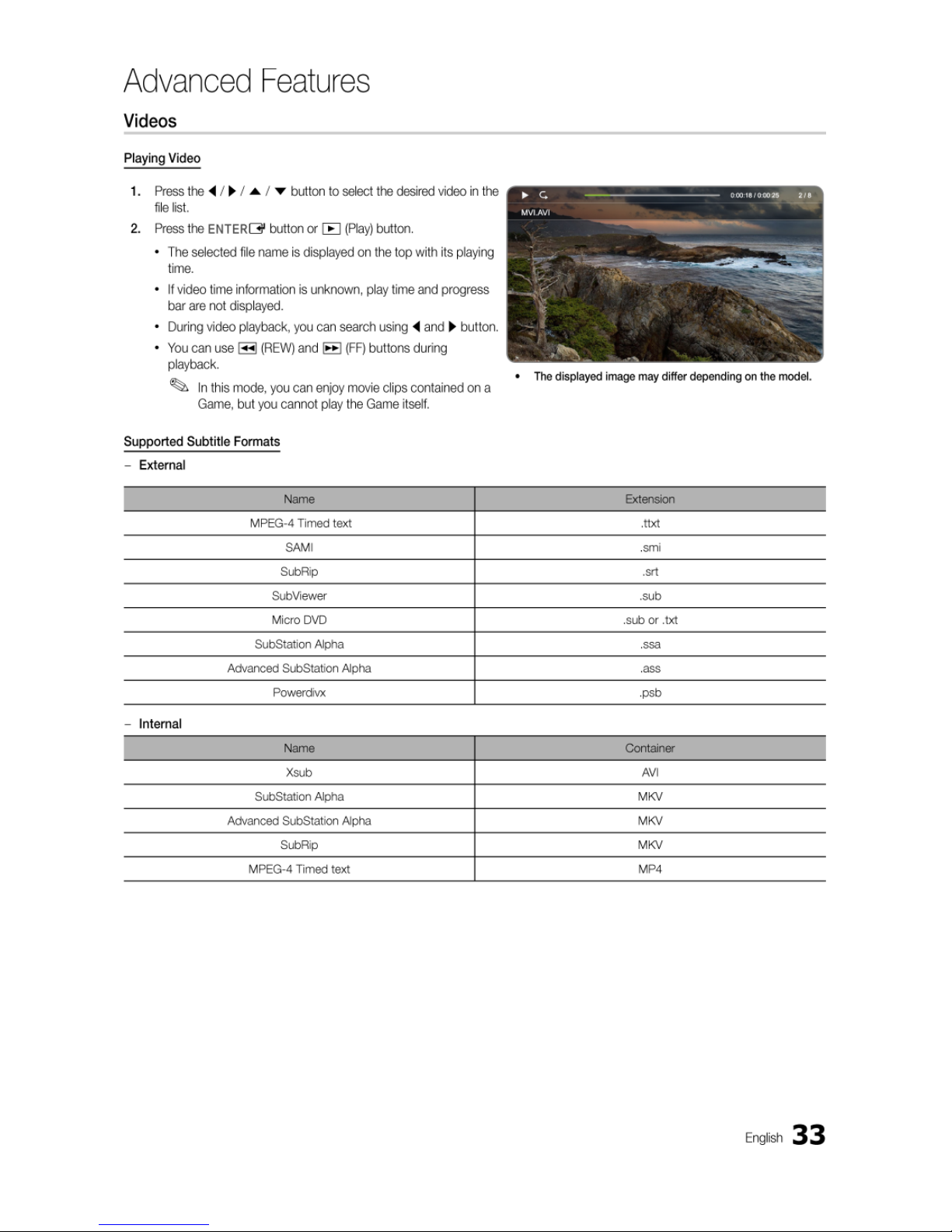

Page 33

Page 34

English

Advanced Features

Supported Video Formats

File

Extension

Container Video Codec Resolution

Frame rate

(fps)

Bit rate

(Mbps)

Comments Audio Codec

*.avi

*.mkv

*.asf *.wmv *.mp4

*.3gp

*.vro *.mpg

*.mpeg

*.ts *.tp

*.trp

*.m2ts

*.mts *.divx

AVI

MKV

ASF MP4 3GP VRO VOB

PS TS

DivX 3.11 / 4.x

/ 5.1 / 6.0

1920 x 1080

20 [40]

GMC Not Support

AC3

LPCM

ADMPCM(IMA, MS)

AAC

HE-AAC

WMA

DD+

MPEG(MP3)

DTS Core

Vorbis

MPEG4 SP /

ASP

H.264 BP / MP

/ HP

Not Include FMO / ASO / RS

Support BP / MP / HP Level 4.1

H.263

Proﬁle3, restricted up to SD

resolution

Motion JPEG 640 x 480 10

Window Media

Video v9

1920 x 1080 20 [40]

VC1 SP / MP / A P L3 Support,

L4 Not Support

Simple Proﬁle Medium Level

Main Proﬁle High Level

Advanced Proﬁle Level 3

WMV9 support

MPEG2 Hight Proﬁle High Level

MPEG1 MPEG-1 except D-picture

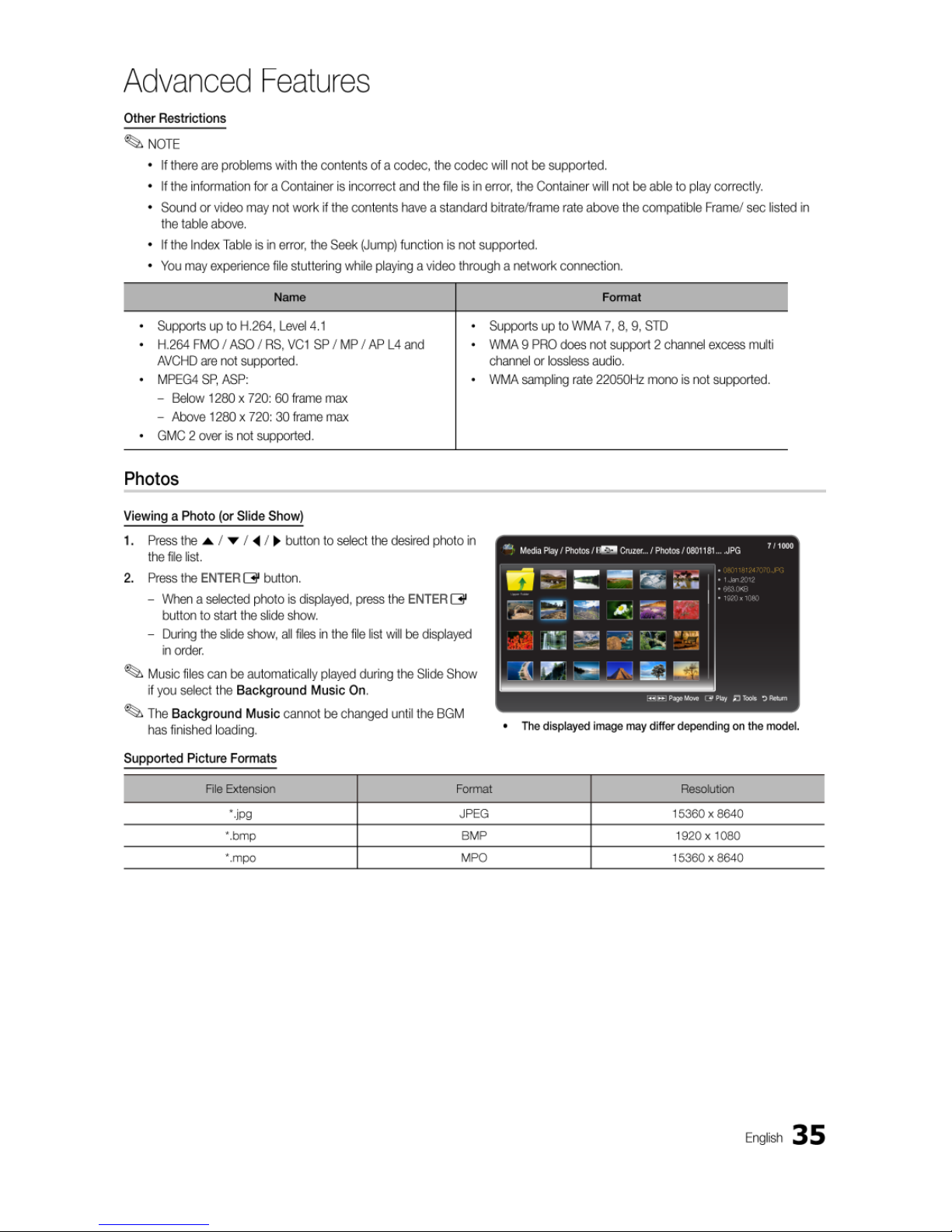

Page 35

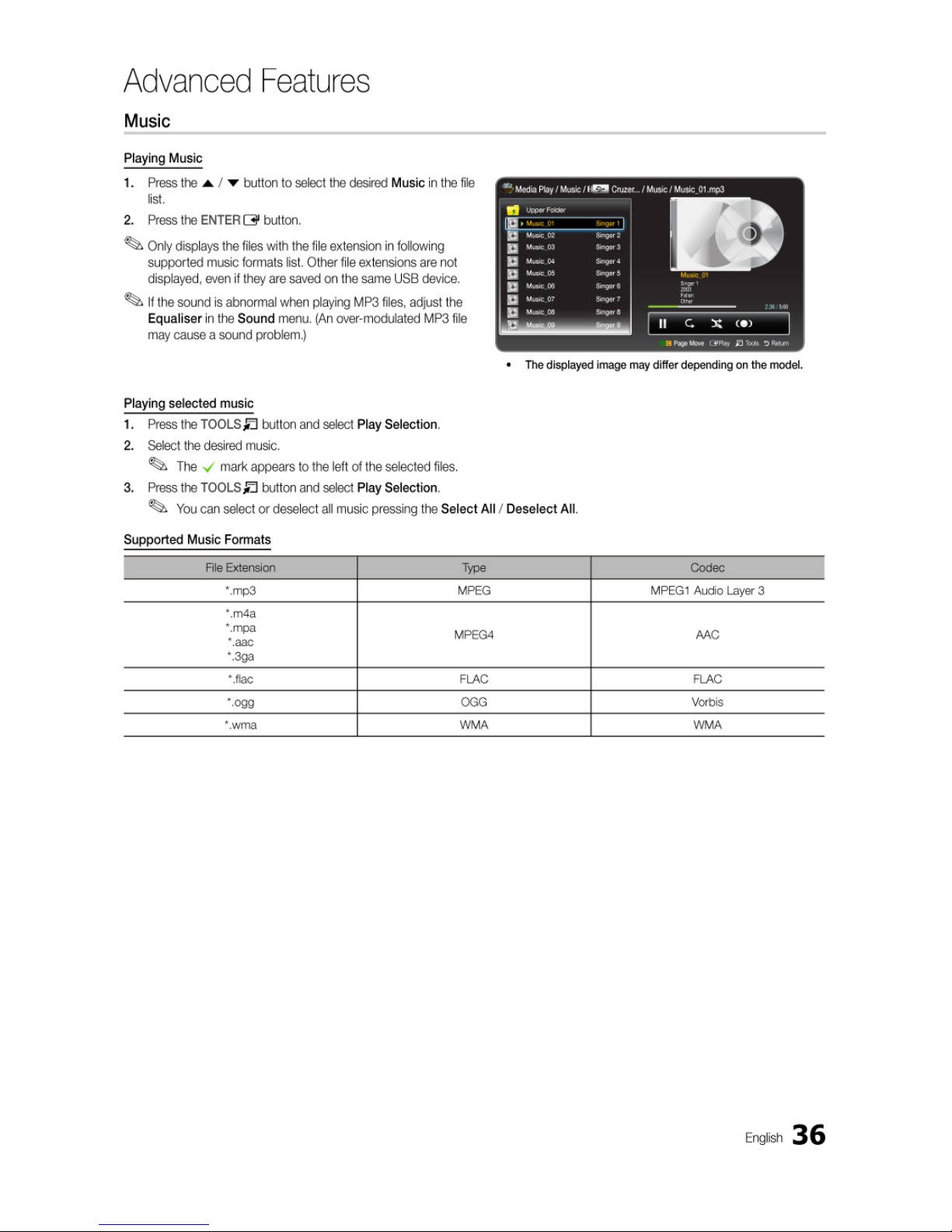

Page 36

Page 37

English

Advanced Features

¦ Media Play - Additional Functions

Videos/Photos/Music Play Option menu

Press the

TOOLS

button and you can make the following operations.

Category Operations Videos Photos Music

Shufﬂe Mode You can play the music randomly.

Repeat Mode You can play media ﬁles repeatedly.

> >

Picture Mode You can adjust the picture setting.

> >

Sound Mode You can adjust the sound setting.

>>>

Start Slide Show / STOP Slide Show

You can start or pause a Slide Show.

Slide Show Speed You can select the slide show speed during the slide show.

Background Music On You can on/off background music when watching a Slide Show.

Background Music Setting You can select background music when watching a Slide Show.

Zoom You can zoom into images in full screen mode.

Rotate You can rotate images in full screen mode.

Information You can see detailed information about the played ﬁle.

>>>

Play Selection You can play the items what you selected.

>>>

Title Search You can move directly to another Title.

Time Search

You can search the movie using

and r buttons at intervals of

1 minute.

Picture Size You can adjust the picture size to your preference.

Subtitle You can set the subtitle On / Off.

Subtitle Settings Play a video ﬁle with captions displayed. This option is available only

when the caption ﬁle name matches the video ﬁle name.

Audio language View a video in a supported language of your choice. The option is

available only when a stream-type ﬁle that supports multiple audio formats is played.

Page 38

English

Other Information

Analogue Channel Teletext Feature

The index page of the Teletext service gives you information on how to use the service. For Teletext information to be displayed correctly, channel reception must be stable. Otherwise, information may be missing or some pages may not be displayed.

✎

You can change Teletext pages by pressing the numeric buttons on the remote control.

(Teletext on/mix/off): Activates the Teletext mode for the current channel. Press the button twice to overlap the Teletext mode with the current broadcasting screen. Press it one more time to exit teletext.

(store): Stores the Teletext

pages.

(index): Displays the index (contents) page at any time while you are viewing Teletext.

(size): Displays the teletext on the upper half of the screen in double-size. To move the text to the lower half of the screen, press it again. For normal display, press it once again.

(hold): Holds the display at the current page, in the case that there are several secondary pages that follow automaticially. To undo, press it again.

Colour buttons (red, green, yellow, blue): If the FASTEXT system is used by the broadcasting company, the different topics on a Teletext page are colour-coded and can be selected by pressing the coloured buttons. Press the colour corresponding to the topic of your choice. A new colour-coded page is displayed. Items can be selected in the same way. To display the previous or next page, press the corresponding coloured button.

(mode): Selects the Teletext mode (LIST/ FLOF).

If pressed during LIST mode, switches the mode to List save mode. In List save mode, you can save a Teletext page into a list using the

(store) button.

(sub-page): Displays the

available sub-page.

(page up): Displays the next

Teletext page.

(page down): Displays the

previous Teletext page.

(reveal): Displays the hidden text (answers to quiz games, for example). To display the normal screen, press it again.

(cancel): Shrinks the Teletext display to overlap with the current broadcast.

Typical Teletext page

Part Contents

A Selected page number.

B Broadcasting channel

identity.

C Current page number

or search indications.

D Date and time.

E Text. F Status information.

FASTEXT information.

Page 39

English

Other Information

Attaching a Wall Mount/Desktop Stand

Preparing before installing Wall-Mount/Desktop Stand

1. Turn the product off and unplug the power cord from the wall outlet.

2. Place a soft cloth or cushion on a ﬂat surface to protect the panel and place the product face down.

3. Hold the main body of the product with your hand. Pull the stand in the direction of the arrow as shown in the ﬁgure to separate

it.

Attaching a Wall Mount/Desktop Stand

3 4

Wall mount kit/desktop stand (not supplied)

Wall/Desktop Stand Mount

[

Caution

Important

For the installation of Wall-mount, please don’t use screws longer than 14mm(L14) of longitude.

4. Align wall mount/desktop stand to the Monitor/LED display and ﬁrmly ﬁx the wall mount/desktop stand by fastening the screw.

5. Align the groove of the part of the product that is to be connected to the stand with the groove in the stand (desk-top stand, wall

mount stand or another stand) and ﬁrmly ﬁx the stand by fastening the screw.

Page 40

English

Other Information

✎

NOTE

If you use screws that are longer than the standard specifications, the inside of the product may be damaged.

For wall mounts that are not compatible with the standard VESA specifications, the length of the screw may differ depending on the corresponding specifications.

Avoid using screws that are incompatible with the standard VESA specifications and avoid assembling them using excessive force. This may result in damage to the product or injury due to the product falling. Samsung shall not be held liable for any damage or injury.

Samsung shall not be held liable for any damage to the product or injury caused by using a wall mount/desktop stand that is not compatible with the specifications or due to an installation not performed by an authorized installation engineer.

When installing the product using a wall mount, purchase a wall mount that provides at least 10 cm (3.93 inches) of space from the wall.

Use the wall mount according to the international specifications.

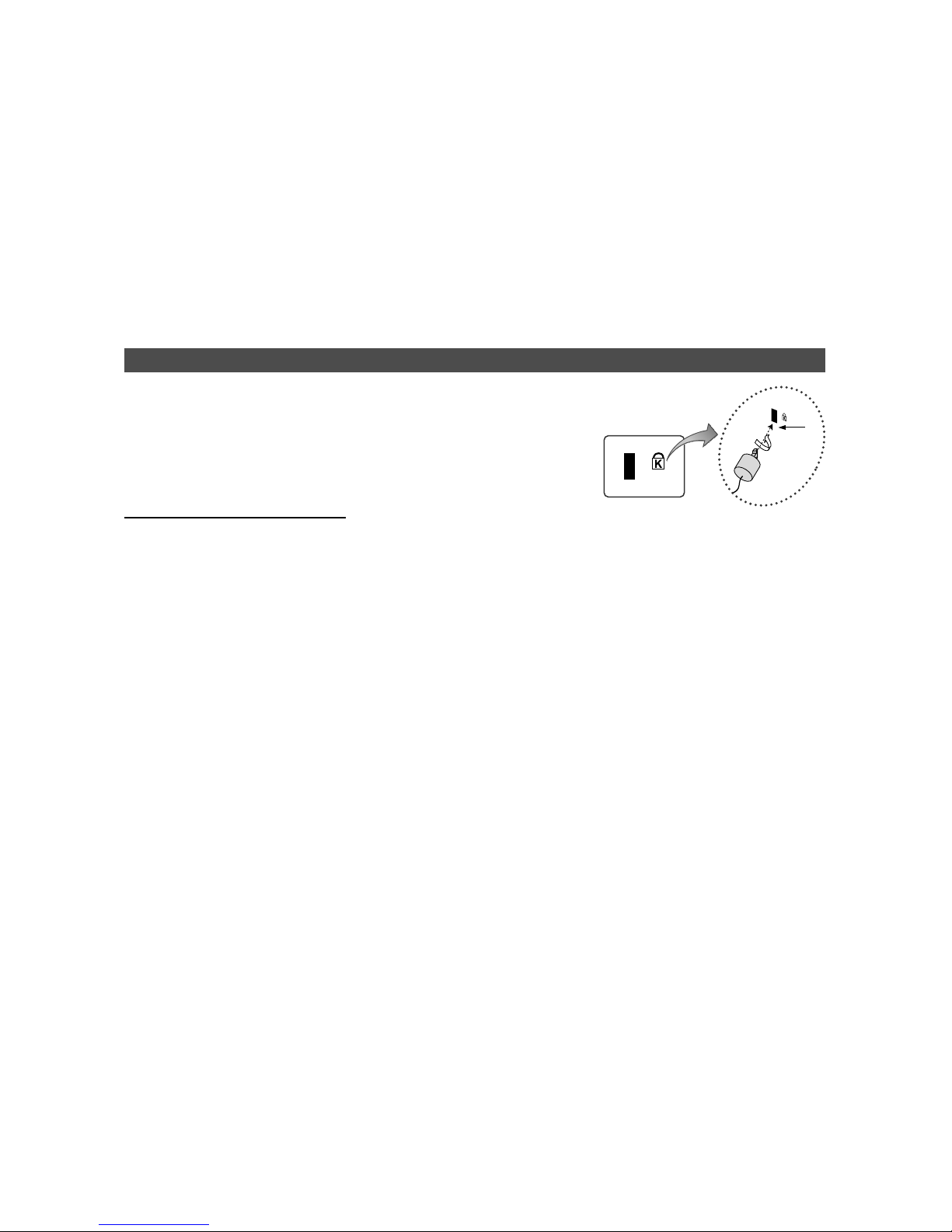

Anti-theft Kensington Lock

The Kensington Lock is not supplied by Samsung. It is a device used to physically ﬁx the system when using it in a public place. The appearance and locking method may differ from the illustration depending on the manufacturer. Refer to the manual provided with the Kensington Lock for additional information on proper use.

✎

Please find a “K” icon on the rear of the LED display. A kensington slot is beside the “K” icon.

To lock the product, follow these steps:

1. Wrap the Kensington lock cable around a large, stationary object such as desk or

chair.

2. Slide the end of the cable with the lock attached through the looped end of the

Kensington lock cable.

3. Insert the locking device into the Kensington slot on the product (1).

4. Lock the lock.

✎

These are general instructions. For exact instructions, see the User manual supplied with the locking device.

✎

The locking device has to be purchased separately.

✎

The location of the Kensington slot may be different depending on the LED display model.

Page 41

English

Other Information

Troubleshooting

If you have any questions about the LED display, ﬁrst refer to this list. If none of these troubleshooting tips apply, please visit “www. samsung.com,” then click on Support, or contact the call centre listed on the back-cover of this manual.

Issues Solutions and Explanations

Picture Quality First of all, please perform the Picture Test and conﬁrm that your LED display is properly displaying test

image. (go to

MENU - Support - Self Diagnosis - Picture Test) If the test image is properly displayed, the

poor picture may caused by the source or signal.

The LED display image does not look as good as it did in the store.

If you have an analogue cable/set top box, upgrade to a digital set top box. Use HDMI to deliver HD

(high deﬁnition) picture quality.

Cable/Satellite subscribers: Try HD stations from the channel line up.

Antenna connection: Try HD stations after performing Auto tuning.

✎

Many HD channels are up scaled from SD(Standard Deﬁnition) contents.

Adjust the Cable/Set top box video output resolution to 1080i or 720p.

Make sure you are watching the LED display at the minimum recommended distance based on the

size and deﬁnition of the signal.

The picture is distorted: macroblock error, small block, dots, pixelization

Compression of video contents may cause picture distortion especially in fast moving pictures such

as sports and action movies.

Low signal level or bad quality can cause picture distortion. This is not a LED display issue.

Mobile phones used close to the LED display (cca up to 1m) may cause noise in picture on analogue

and digital LED display.

There is poor colour or brightness. Adjust the Picture options in the LED display menu. (go to Picture Mode / Colour / Brightness /

Sharpness)

Adjust Energy Saving option in the LED display menu. (go to

MENU - System - Eco Solution -

Energy Saving)

Try resetting the picture to view the default picture settings. (go to MENU - Picture - Reset Picture)

There is a dotted line on the edge of the screen.

If the picture size is set to Screen Fit, change it to 16:9.

Change cable/satellite box resolution.

When changing channels, the picture freezes or is distorted or delayed.

If connected with a cable box, please try to reset the cable box. Reconnect the AC cord and wait until

the cable box reboots. It may take up to 20 minutes.

Set the output resolution of the cable box to 1080i or 720p.

Sound Quality First of all, please perform the Sound Test to conﬁrm that your LED display audio is properly operating. (go

MENU - Support - Self Diagnosis - Sound Test)

If the audio is OK, the sound problem may caused by the source or signal.

There is no sound or the sound is too low at maximum volume.

Please check the volume of the device (Cable/Sat Box, DVD, Blu-ray etc) connected to your LED

display.

The picture is good but there is no sound. If you are using a DVI to HDMI cable, LED display set does not support audio.

Reboot the connected device by reconnecting the device’s power cable.

If your LED display has a headphone jack, make sure there is nothing plugged into it.

The speakers are making an inappropriate noise.

For antenna or cable connections, check the signal strength. Low signal level may cause sound

distortion.

No Picture, No Video

The LED display will not turn on. Make sure the AC power cord is securely plugged in to the wall outlet and the LED display.

Make sure the wall outlet is working.

Try pressing the

POWER button on the LED display to make sure the problem is not the remote. If the

LED display turns on, refer to “The remote control does not work” below.

The LED display turns off automatically. Ensure the Sleep Timer is set to Off in the Time menu.

If your PC is connected to the LED display, check your PC power settings.

Make sure the AC power cord is plugged in securely to the wall outlet and the LED display.

When watching LED display from an antenna or cable connection, the LED display will turn off after

10 ~ 15 minutes if there is no signal.

Page 42

English

Other Information

Issues Solutions and Explanations

There is no picture/video. Check cable connections (remove and reconnect all cables connected to the LED display and

external devices).

Set your external devices’ (Cable/Set top Box, DVD, Blu-ray etc) video outputs to match the

connections to the LED display input. For example, if an external device’s output is HDMI, it should be connected to an HDMI input on the LED display.

Make sure your connected devices are powered on.

Be sure to select the LED display correct source by pressing the

SOURCE button on the LED display

remote.

Reboot the connected device by reconnecting the device’s power cable.

RF(Cable/Antenna) Connection

The LED display is not receiving all channels.

Make sure the Antenna cable is connected securely.

Please try Setup (Initial setup) to add available channels to the channel list. Go to

MENU - System -

Setup (Initial setup) and wait for all available channels to be stored.

Verify the Antenna is positioned correctly.

The picture is distorted: macro block error small block, dots, pixelization.

Compression of video contents may cause picture distortion, especially on fast moving pictures such

as sports and action movies.

A low signal can cause picture distortion. This is not a LED display issue.

Others

The picture will not display in full screen. HD channels will have black bars on either side of the screen when displaying up scaled SD (4:3)

contents.

Black bars on the top and bottom will appear during movies that have aspect ratios different from

your LED display.

Adjust the picture size options on your external device or LED display to full screen.

The remote control does not work. Replace the remote control batteries with the poles (+/–) in the right direction.

Clean the sensor’s transmission window on the remote.

Try pointing the remote directly at the LED display from 5~6 feet away.

The cable/set top box remote control doesn’t turn the LED display on or off, or adjust the volume.

Programme the Cable/Set top box remote control to operate the LED display. Refer to the Cable/Set

user manual for the SAMSUNG LED display code.

A “Mode Not Supported” message appears.

Check the supported resolution of the LED display, and adjust the external device’s output resolution

accordingly.

There is a plastic smell from the LED display.

This smell is normal and will dissipate over time.

The LED display Signal Information is unavailable in the Self Diagnosis Test menu.

This function is only available with digital channels from an Antenna / RF / Coax connection.

LED display is tilted to the right or left side. Remove the stand base from the LED display and reassemble it.

There are difﬁculties assembling the stand base.

Make sure the LED display is placed on a ﬂat surface. If you can not remove the screws from the LED

display, please use a magnetized screw driver.

The Channel menu is grey out (unavailable).

The Channel menu is only available when the LED display source is selected.

Your settings are lost after 30 minutes or every time the LED display is turned off.

If the LED display is in the Store Demo mode, it will reset audio and picture settings every 30

minutes. Change the settings from Store Demo mode to Home Use mode in the Setup (Initial setup) procedure. Press the

SOURCE button to select TV mode, and go to MENU  System  Setup

(Initial setup)  ENTER

You have intermittent loss of audio or video.

Check the cable connections and reconnect them.

Loss of audio or video can be caused by using overly rigid or thick cables. Make sure the cables

are ﬂexible enough for long term use. If mounting the LED display to the wall, we recommend using cables with 90 degree connectors.

You see small particles when you look closely at the edge of the frame of the LED display.

This is part of the product’s design and is not a defect.

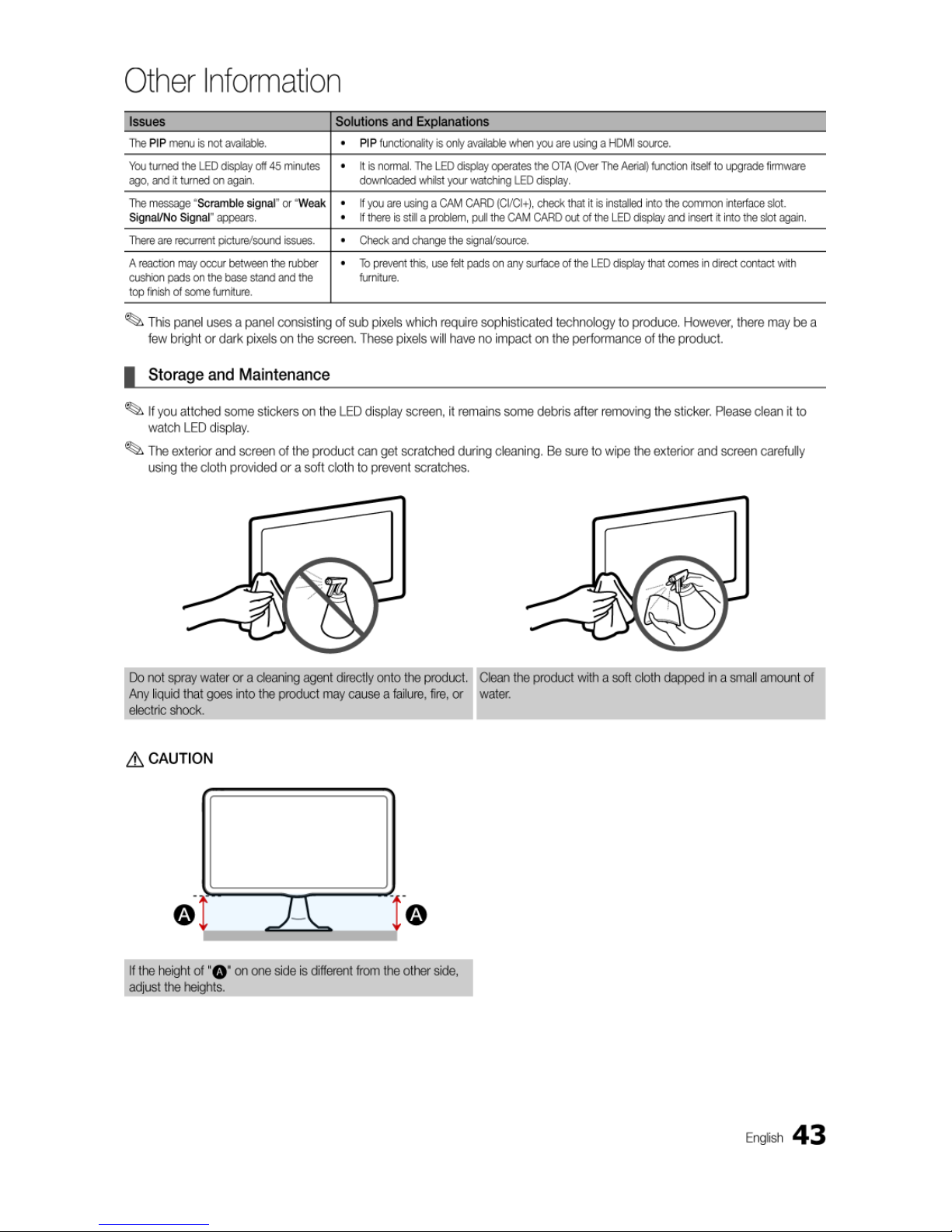

Page 43

Page 44

English 44

Other Information

Licence

TheaterSound HD, SRS and the symbol are trademarks of SRS Labs, Inc.TheaterSound HD technology is incorporated under licence from SRS Labs, Inc.

Manufactured under licence from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

2.0 Channel

Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol together are registered trademarks & DTS 2.0 Channel is a trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

The terms HDMI and HDMI High-Deﬁnition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

DivX Certiﬁed® to play DivX® video up to HD 1080p, including premium content. DivX®, DivX Certiﬁed® and associated logos are trademarks of Rovi Corporation or its

subsidiaries and are used under license. ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an ofﬁcial DivX Certiﬁed® device that plays DivX video. Visit divx.com for more information and software tools to convert your ﬁles into DivX videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certiﬁed® device must be registered in order to play purchased DivX Videoon-Demand (VOD) movies. To obtain your registration code, locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on how to complete your registration.

Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668; 7,515,710; 7,519,274

Open source licence notice

In the case of using open source software, Open Source licence are available on the product menu.

Open Source Licence Notice is written only English.

WEEE

Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government ofﬁce, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product (Applicable in countries with separate collection systems)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

Page 45

Speciﬁcations

Environmental considerations

Operating

Temperature : 50°F ~ 104°F (10°C ~ 40°C)

Humidity : 10 % ~ 80 %, non-condensing

Storage

Temperature : -4°F ~ 113°F (-20°C ~ 45°C)

Humidity : 5 % ~ 95 %, non-condensing

Tilt -1°(±2°) ~ 20°(±2°)

LED display System

Analogue: B/G, D/K, L, I (Depending on your country selection)

Digital: DVB-T/DVB-C

Colour/Video System

Analogue: PAL, SECAM, NTSC-4.43, NTSC-3.58, PAL60

Digital: MPEG-2 MP@ML, MPEG-4, H.264/AVC MP@L3, [email protected], [email protected]

Sound System BG, DK, L, NICAM, MPEG1, DD, DD+, HEAAC

HDMI IN

Video: 1080 24p, 1080p, 1080i, 720p, 576p, 480p

Audio: 2Ch Linear PCM 32/44.1/48kHz, 16/20/24bits.

Model Name T19C300 T22C300 T24C300

Screen Size (Diagonal) 18.5 inches (47 cm) 21.5 inches (54 cm) 24 inches (61 cm)

Display Resolution 1366 x 768 @ 60Hz 1920 x 1080 @ 60Hz

Sound (Output) 5W x 2

Dimensions (WxDxH)

(Without Stand)

444.7 x 48.5 x 278.2 mm (17.5 x 1.9 x 11.0 inches)

509.7 x 47 x 318.2 mm

(20.1 x 1.9 x 12.5 inches)

569.2 x 49 x 349.4 mm

(22.4 x 1.9 x 13.8 inches)

(With Stand)

444.7 x 187 x 356.4 mm

(17.5 x 7.4 x 14.0 inches)

509.7 x 195 x 396.6 mm

(20.1 x 7.7 x 15.6 inches)

569.2 x 195 x 428 mm

(22.4 x 7.7 x 16.9 inches)

Weight

(Without Stand) 3.05 kg (6.7 Ibs) 3.7 kg (8.2 Ibs) 4.15 kg (9.1 lbs)

(With Stand) 3.3 kg (7.3 Ibs) 3.95 kg (8.7 Ibs) 4.45 kg (9.8 lbs)

✎

NOTE

Design and speciﬁcations are subject to change without prior notice.

For information about power supply, and more about power consumption, refer to the label attached to the product.

Some models may not be available for purchase depending on the region.

If there is no power cut-off switch, the power consumption is "0" only when the power cord is disconnected.

DPM(Display Power Management) Function does not work if you used in conjunction with the HDMI IN (DVI) port of

this product.

English 45

Other InformationOther Information

Page 46

Contact SAMSUNG WORLD WIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care center.

Country

Customer Care Centre

Web Site

EUROPE

AUSTRIA 0810 - SAMSUNG (7267864, € 0.07/min) www.samsung.com

BELGIUM 02-201-24-18 www.samsung.com/be (Dutch)

www.samsung.com/be_fr (French)

BOSNIA 05 133 1999 www.samsung.com

BULGARIA 07001 33 11 , normal tariff www.samsung.com

CROATIA 062 SAMSUNG (062 726 7864) www.samsung.com

CZECH 800 - SAMSUNG (800-726786) www.samsung.com

Samsung Electronics Czech and Slovak, s.r.o.,Oasis Florenc, Sokolovská 394/17, 180 00, Praha 8

DENMARK 70 70 19 70 www.samsung.com

FINLAND 09 85635050 www.samsung.com

FRANCE 01 48 63 00 00 www.samsung.com

GERMANY 0180 5 SAMSUNG bzw.

0180 5 7267864* (*0,14 €/Min. aus dem dt. Festnetz, aus dem Mobilfunk max. 0,42 €/Min.)

www.samsung.com

CYPRUS 8009 4000 only from landline

(+30) 210 6897691 from mobile and land line

www.samsung.com

GREECE 80111-SAMSUNG (80111 726 7864) only from land line

(+30) 210 6897691 from mobile and land line

www.samsung.com

HUNGARY 06-80-SAMSUNG (726-7864) www.samsung.com

ITALIA 800-SAMSUNG (726-7864) www.samsung.com

LUXEMBURG 261 03 710 www.samsung.com

MACEDONIA 023 207 777 www.samsung.com

MONTENEGRO 020 405 888 www.samsung.com

NETHERLANDS 0900-SAMSUNG (0900-7267864) ( € 0,10/Min) www.samsung.com

NORWAY 815 56480 www.samsung.com

POLAND 0 801-1SAMSUNG (172-678)

+48 22 607-93-33

www.samsung.com

PORTUGAL 80820-SAMSUNG (808 20 7267) www.samsung.com

ROMANIA 08008 SAMSUNG (08008 726 7864)

TOLL FREE No.

www.samsung.com

SERBIA 0700 SAMSUNG (0700 726 7864) www.samsung.com

SLOVAKIA 0800 - SAMSUNG (0800-726 786) www.samsung.com/sk

SPAIN 902 - 1 - SAMSUNG (902 172 678) www.samsung.com

SWEDEN 0771 726 7864 (SAMSUNG) www.samsung.com

SWITZERLAND 0848 - SAMSUNG (7267864, CHF 0.08/min) www.samsung.com/ch (German)

www.samsung.com/ch_fr (French)

U.K 0330 SAMSUNG (7267864) www.samsung.com

EIRE 0818 717100 www.samsung.com

LITHUANIA 8-800-77777 www.samsung.com

LATVIA 8000-7267 www.samsung.com

ESTONIA 800-7267 www.samsung.com

CIS

RUSSIA 8-800-555-55-55 www.samsung.com

GEORGIA 0-800-555-555 www.samsung.com

ARMENIA 0-800-05-555 www.samsung.com

AZERBAIJAN 088-55-55-555 www.samsung.com

KAZAKHSTAN 8-10-800-500-55-500(GSM: 7799) www.samsung.com

UZBEKISTAN 8-10-800-500-55-500 www.samsung.com

KYRGYZSTAN 00-800-500-55-500 www.samsung.com

TADJIKISTAN 8-10-800-500-55-500 www.samsung.com

Page 47

Country

Customer Care Centre

Web Site

MONGOLIA +7-800-555-55-55 www.samsung.com

UKRAINE 0-800-502-000 www.samsung.com/ua (Ukrainian)

www.samsung.com/ua_ru (Russian)

BELARUS 810-800-500-55-500 www.samsung.com

MOLDOVA 0-800-614-40 www.samsung.com

ASIA PACIFIC

AUSTRALIA 1300 362 603 www.samsung.com

NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com

CHINA 400-810-5858 www.samsung.com

HONG KONG (852) 3698 - 4698 www.samsung.com/hk (Chinese)

www.samsung.com/hk_en (English)

INDIA 1800 1100 11

3030 8282

1800 3000 8282

1800 266 8282

www.samsung.com

INDONESIA 0800-112-8888 021-5699-7777 www.samsung.com

JAPAN 0120-327-527 www.samsung.com

MALAYSIA 1800-88-9999 www.samsung.com

PHILIPPINES 1-800-10-SAMSUNG (726-7864) for PLDT

1-800-3-SAMSUNG(726-7864) for Digitel

1-800-8-SAMSUNG(726-7864) for Globe02-5805777

www.samsung.com

SINGAPORE 1800-SAMSUNG (726-7864) www.samsung.com

THAILAND 1800-29-3232

02-689-3232

www.samsung.com

TAIWAN 0800-329-999

0266-026-066

www.samsung.com

VIETNAM 1 800 588 889 www.samsung.com

MIDDLE EAST

U.A.E 800-SAMSUNG (726-7864) www.samsung.com

OMAN 800-SAMSUNG(726-7864) www.samsung.com/ae (English)

www.samsung.com/ae_ar (Arabic)

KUWAIT 183-2255 www.samsung.com/ae (English)

www.samsung.com/ae_ar (Arabic)

BAHRAIN 8000-4726 www.samsung.com/ae (English)

www.samsung.com/ae_ar (Arabic)

EGYPT 08000-726786 www.samsung.com

JORDAN 800-22273

065777444

www.samsung.com

MOROCCO 080 100 2255 www.samsung.com

SAUDI ARABIA 9200-21230 www.samsung.com/ae (English)

www.samsung.com/ae_ar (Arabic)

TURKEY 444 77 11 www.samsung.com

AFRICA

NIGERIA 0800-726-7864 www.samsung.com

GHANA 0800-10077 www.samsung.com

0302-200077

COTE D' LVOIRE 8000 0077 www.samsung.com

SENEGAL 800-00-0077 www.samsung.com

CAMEROON 7095- 0077 www.samsung.com

KENYA 0800 724 000 www.samsung.com

UGANDA 0800 300 300 www.samsung.com

TANZANIA 0685 88 99 00 www.samsung.com

SOUTH AFRICA 0860-SAMSUNG(726-7864 ) www.samsung.com

BOTSWANA 0800-726-000 www.samsung.com

NAMIBIA 8197267864 www.samsung.com

ANGOLA 91-726-7864 www.samsung.com

ZAMBIA 211350370 www.samsung.com

BN46-00319A-01
