Samsung SYNCMASTER 305T PLUS, SYNCMASTER 305T+, SM 305T User Manual

SyncMaster305T/305TPLUS

Notational

Failure to follow directions noted by this symbol could result in bodily harm or damage to
the equipment.

Prohibited Important to read and understand at all times

Do not disassemble Disconnect the plug from the outlet

Do not touch Ground to prevent an electric shock

Power

When not used for extended period of time, set your computer to DPM.
If using a screen saver, set it to active screen mode.

The images here are for reference only, and are not applicable in all cases (or countries).

Do not use a damaged or loose plug.

z This may cause electric shock or fire.

Do not pull the plug out by the wire nor touch the plug with wet hands.

z This may cause electric shock or fire.

Use only a properly grounded plug and receptacle.

z An improper ground may cause electric shock or equipment damage.

(Class l Equipment only.)

Insert the power plug firmly so that it does not come loose.

z A bad connection may cause fire.

Do not excessively bend the plug and wire nor place heavy objects upon
them, which could cause damage.

z This may cause electric shock or fire.

Do not connect too many extension cords or plugs to one outlet.

z This may cause fire.

Do not disconnect the power cord while using the monitor.

z A surge may be caused by the separation and may damage the monitor.

Do not use the power cord when the connector or plug is dusty.

z If the connector or plug of the power cord is dusty, clean it with a dry

cloth.

z Using the power cord with a dusty plug or connector may cause an

electric shock or fire.

To disconnect the apparatus from the mains, the plug must be pulled out
from the mains socket, therefore the mains plug shall be readily

Installation

operable.

z This may cause electric shock or fire.

Be sure to contact an authorized Service Center when installing your set in a

location with heavy dust, high or low temperatures, high humidity, and
exposed to chemical substances and where it operates for 24 hours such as
at airports, train stations etc.

Failure to do so may cause serious damage to your monitor.

Place your monitor in a location with low humidity and a minimum of
dust.

z Failure to do so may cause electric shock or fire inside the monitor.

Do not drop the monitor when moving it.

This may cause damage to the product or the person carrying it.

z

Install the monitor base in a showcase or shelf so that the end of the
base does not protrude from the showcase or shelf.

Dropping the product may cause damage to the product or the person

z

carrying it.

Do not place the product on an unstable or small surface area.

z Place the product on an even and stable surface, as the product may fall

and cause harm to someone walking by, specifically children.

Do not place the product on the floor.

z Take care, as someone, specifically children may trip over it.

TO PREVENT THE SPREAD OF FIRE, KEEP CANDLES OR OTHER OPEN
FLAMES AWAY FROM THIS PRODUCT AT ALL TIMES.

z Otherwise, this may cause fire.

Keep any heating devices away from the power cable.

z A melted coating may cause electric shock or fire.

Do not install the product in places with poor ventilation, for instance, a
bookshelf, closet, etc.

z Any increase in internal temperature may cause fire.

Put down the monitor carefully.

z Failing to do so may damage the monitor.

Do not place the monitor face down.

This may damage the TFT-LCD surface.

z

The installation of the bracket must be done by a qualified professional.

z Installing the bracket by unqualified personnel may result in injury.

Always use the mounting device specified in the owner's manual.

z

When installing the product, make sure to keep it away from the wall
(more than 10 cm / 4 inches) for ventilation purposes.

z Poor ventilation may cause an increase in the internal temperature of

the product, resulting in a shortened component life and degraded
performance.

Keep the plastic packaging (bag) out of children's reach.

z The plastic packaging (bag) may cause suffocation if children play with

it.

Clean

When cleaning the monitor case or the surface of the TFT-LCD screen, wipe with
a slightly moistened, soft fabric.

Do not spray water or detergent directly onto the monitor.

z This may cause damage, electric shock or fire.

Use the recommended detergent with a smooth cloth.

If the connector between the plug and the pin is dusty or dirty, clean it
properly using a dry cloth.

A dirty connector may cause electric shock or fire.

z

Make sure to unplug the power cord before cleaning the product.

z Otherwise, this may cause electric shock or fire.

Others

Unplug the power cord from the power outlet and wipe the product using
a soft, dry cloth.

z Do not use any chemicals such as wax, benzene, alcohol, thinners,

insecticide, air freshener, lubricant or detergent.

Contact the SAMSUNG customer care center or Customer Center for
interior cleaning once a year.

z Keep the product's interior clean. Dust which has accumulated in the

interior over an extended period of time may cause a malfunction or fire.

Do not remove the cover (or back).

z This may cause electric shock or fire.
z Refer to a qualified servicing company.

If your monitor does not operate normally - in particular, if there is any

unusual sound or smell coming from the monitor - unplug it immediately
and contact an authorized dealer or Service Center.

z This may cause electric shock or fire.

Keep the product away from places exposed to oil, smoke or moisture;
do not install inside a vehicle.

This may cause a malfunction, electric shock or fire.

z
z In particular, avoid operating the monitor near water or outdoors where

the monitor could be exposed to snow or rain.

If the monitor is dropped or the casing is damaged, turn the monitor off
and unplug the power cord. Then contact a Service Center.

z The monitor may cause a malfunction, electric shock or fire.

Disconnect the plug from the outlet during storms or lightning or if it is
not used for a long period of time.

z Failure to do so may cause electric shock or fire.

Do not try to move the monitor by pulling only the wire or the signal
cable.

z This may cause a breakdown, electric shock or fire due to damage to

the cable.

Do not move the monitor right or left by pulling only the wire or the
signal cable.

z This may cause a breakdown, electric shock or fire due to damage to

the cable.

Do not cover the vents on the monitor cabinet.

z Bad ventilation may cause a breakdown or fire.

Do not place water containers, chemical products or small metal objects
on the monitor.

z This may cause a malfunction, electric shock or fire.
z If a foreign substance enters the monitor, unplug the power cord and

contact a Service Center .

Keep the product away from combustible chemical sprays or
inflammable substances.

z This may cause an explosion or fire.

Never insert anything metallic into the monitor openings.

z This may cause electric shock, fire or injury.

wire and tools or inflammable objects such as paper or matches into the
vent, headphone port or AV ports or etc.

z This may cause electric shock or fire. If an alien substances or water

enters the product, turn the product off, unplug the power connector
from the wall outlet and contact a Service Center.

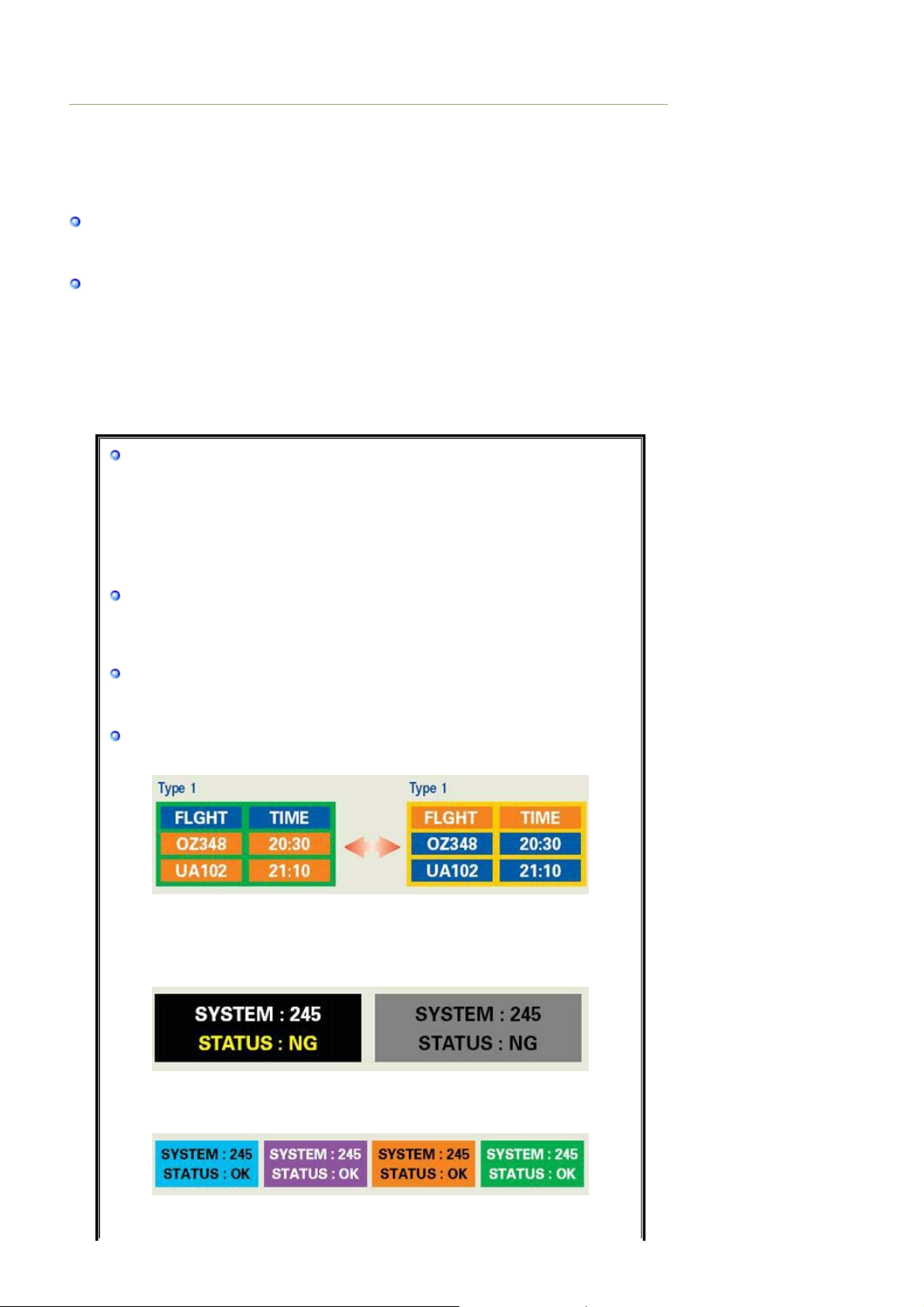

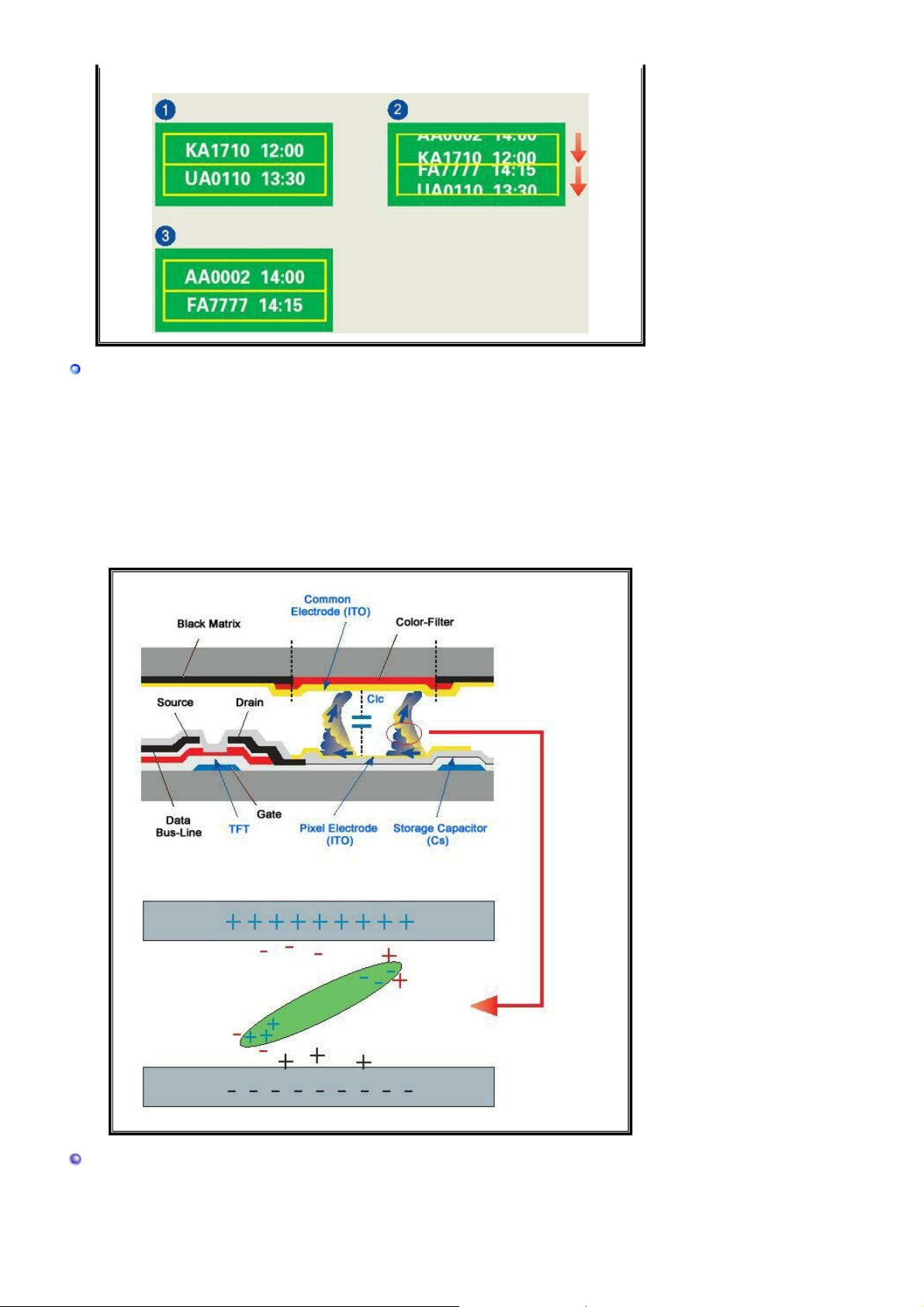

When viewing a fixed screen for an extended period of time, residual
image or blurriness may appear.

z Change the mode to energy saving mode or set a screensaver to a

changing picture when away from the monitor for an extended period of
time.

Adjust the resolution and frequency to the level appropriate for the
model.

z An inappropriate resolution may cause undesirable picture quality.

30 inch Wide (75 cm) - 2560 x 1600

Viewing the monitor continuously at a too close angle may result in
damage to your eyesight.

To ease eye strain, take at least a five-minute break after every hour of
using the monitor.

Do not install the product on an unstable, uneven surface or a location
prone to vibrations.

z Dropping the product may cause damage to the product or the person

carrying it.

z Using the product in a location prone to vibrations may shorten the

lifetime of the product or may cause the product to catch fire.

When moving the monitor, turn off and unplug the power cord.
Make sure that all cables, including the antenna cable and cables
connected to other devices, are disconnected before moving the
monitor.

z Failure to disconnect cables may damage it and cause fire or an electric

shock.

Make sure there are more than two people when moving the product.

z Dropping the product may cause a malfunction or injury to the person

carrying it.

Place the product out of children's reach, as they could damage by
hanging onto it.

z A falling product may cause injury to the person or even fatality.

When not using the product for an extended period of time, keep the
product unplugged.

z Otherwise, this may cause heat emission from the accumulated dirt or

degraded insulation, causing electric shock or fire.

Do not place your children's favorite toys or any other objects of interest
on the product.

z Children may try to climb on the product to retrieve an object. The

product could fall, causing injury or even fatality.

When lifting up or moving the monitor, do not lift the monitor upside
down while holding only the stand.

z This may cause your monitor to fall, and become damaged or cause

personal injury.

Good Postures When Using the Monitor

Try to maintain a good posture when using the monitor.

z Keep your back straight.
z Keep a distance of about 45 ~ 50 cm between your eyes and

the monitor screen. Look at the screen from slightly above it,
and have the monitor directly in front of you.
Tilt the monitor upwards by 10 ~20 degrees. Adjust the monitor

z

height so that the top of the monitor is slightly below eye level.

z Adjust the monitor angle so that there is no reflected light on

the screen.Try to maintain your arms perpendicular to your
armpits.
Keep your arms level with the back of your hands.

z
z Keep the angle of the elbow perpendicular.
z Keep the angle of the knees at more than 90 degree. Do not let

your feet fall up from the floor. Adjust the arm position so that it
is below the heart.

r

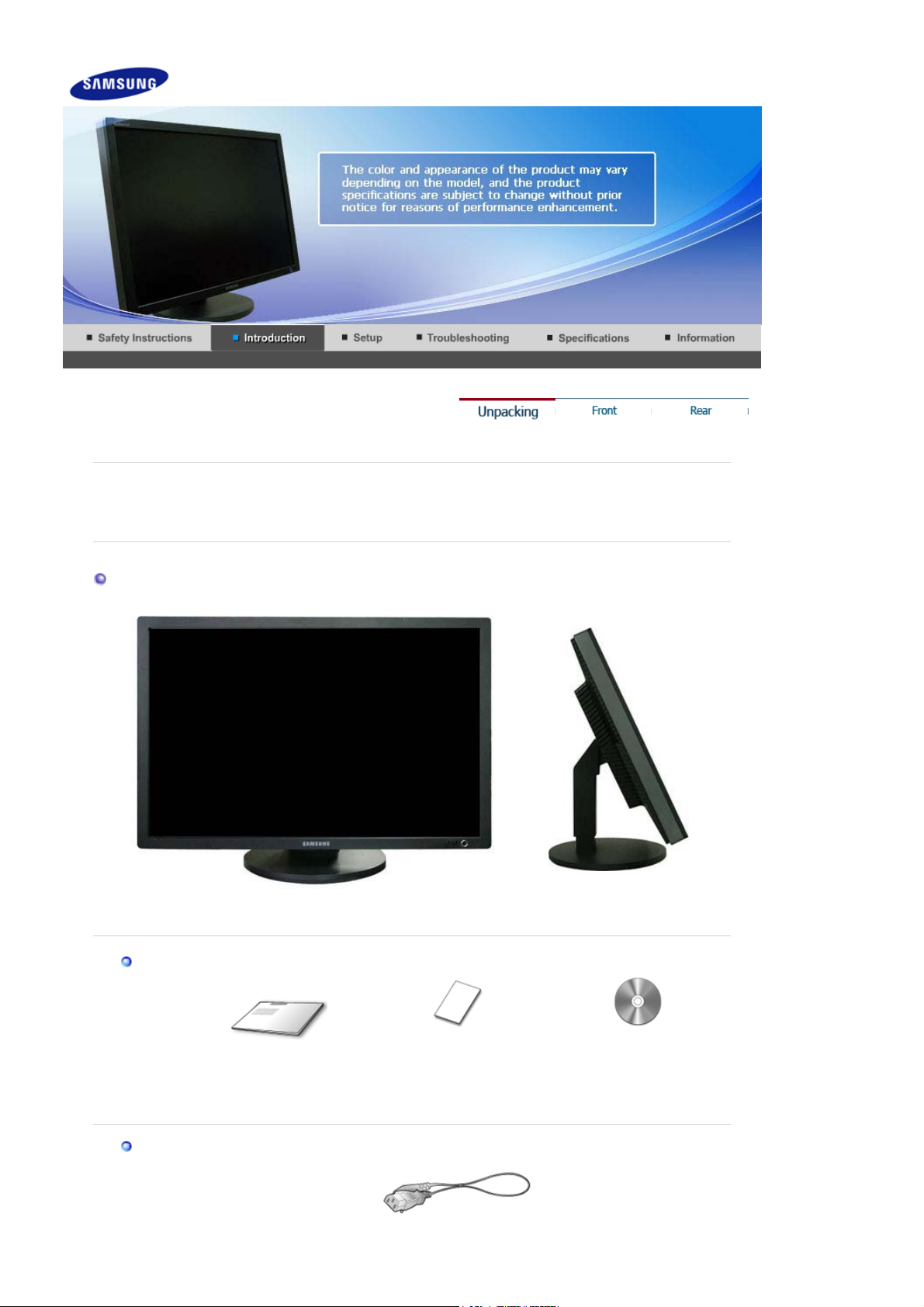

Unpacking

Please make sure the following items are included with your monitor.

If any items are missing, contact your dealer.

Contact a local deale

to buy optional items.

Manual

Cable

Quick Setup Guide

Warranty Card

(Not available in all

locations)

User's Guide

y

(

)

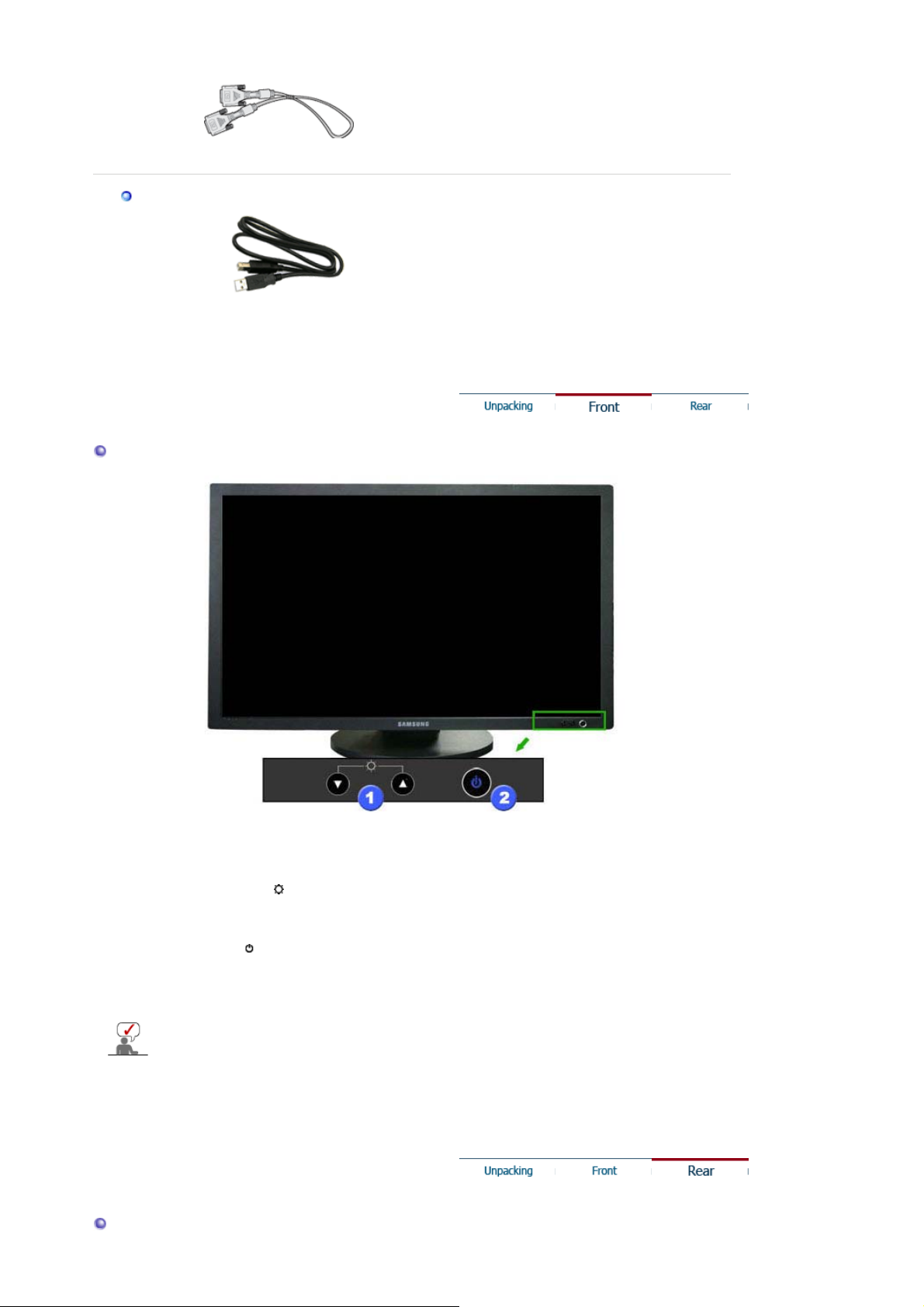

Front

DVI-D (Dual link) Cable

Sold separatel

USB Cable

A-B Type cable

Power Cord

1. Brightness button []

2. Power button []
/ Power indicator

See PowerSaver described in the manual for further information regarding power saving
functions. For energy conservation, turn your monitor off when it is not needed, or when
leaving it unattended for long periods.

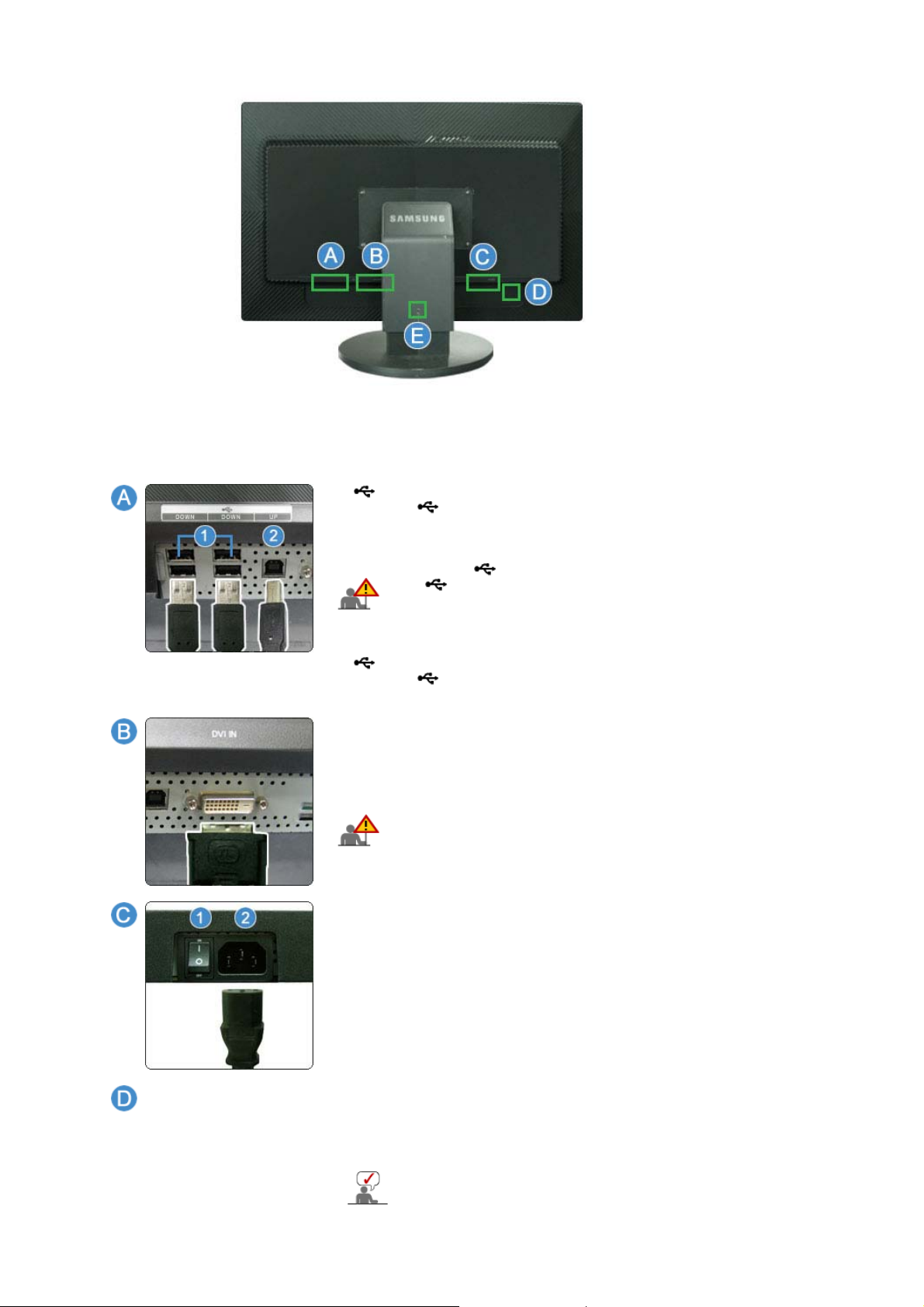

Rear

Push the button to adjust brightness.

: The screen is getting dark.

▼

: The screen is getting bright.

▲

Turns the monitor on/off.
/ The blue light is on in its normal working condition and blinks
when setting the adjustments of the monitor.

y

(The configuration at the back of the monitor may vary from product to product.)

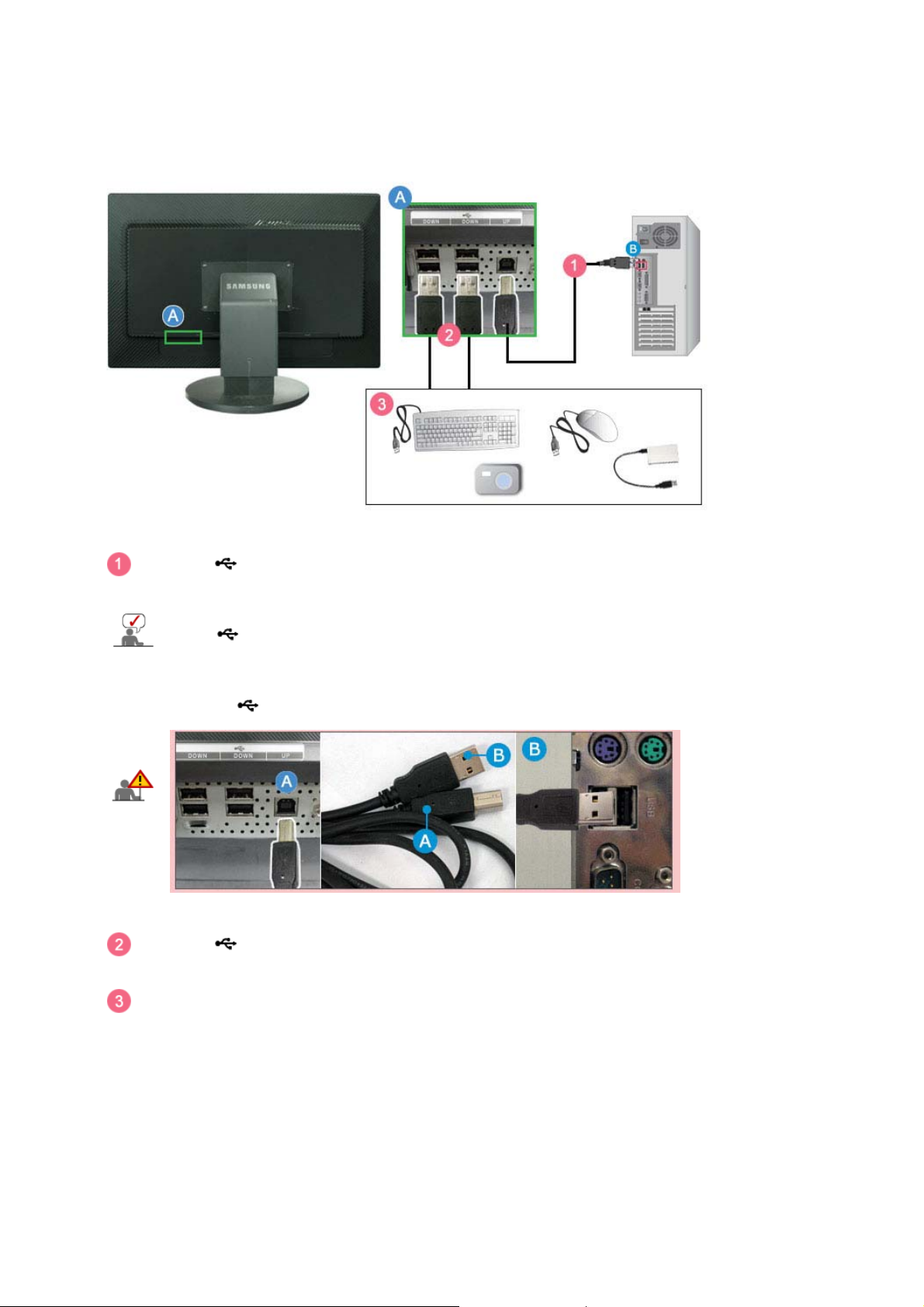

1. DOWN :

Connect the

DOWN

port of the USB monitor and a USB

device with the USB cable.

z

To use DOWN, you have to connect the

UP to the PC.

z

Make sure to use the USB cable supplied with
this monitor to connect the monitor's UP port
and

2. UP :

Connect the

our computer's USB port.

port of the monitor and the USB port of the

UP

computer with the USB cable.

DVI IN

Connect the DVI-D (Dual link) Cable to the

DVI IN

port on the

back of your monitor.

z

By using DVI-D (Dual link), you can expect
twice faster speed and improved signal
quality than those of DVI-D (single link).

z

1. ON [ | ] / OFF [O]

It is strongly recommended using DVI-D (Dual
link) Cable for the best quality and speed.

Switch the monitor on and off.

2. POWER

Connect the power cord for your monitor to the

POWER

port

on the back of the monitor.

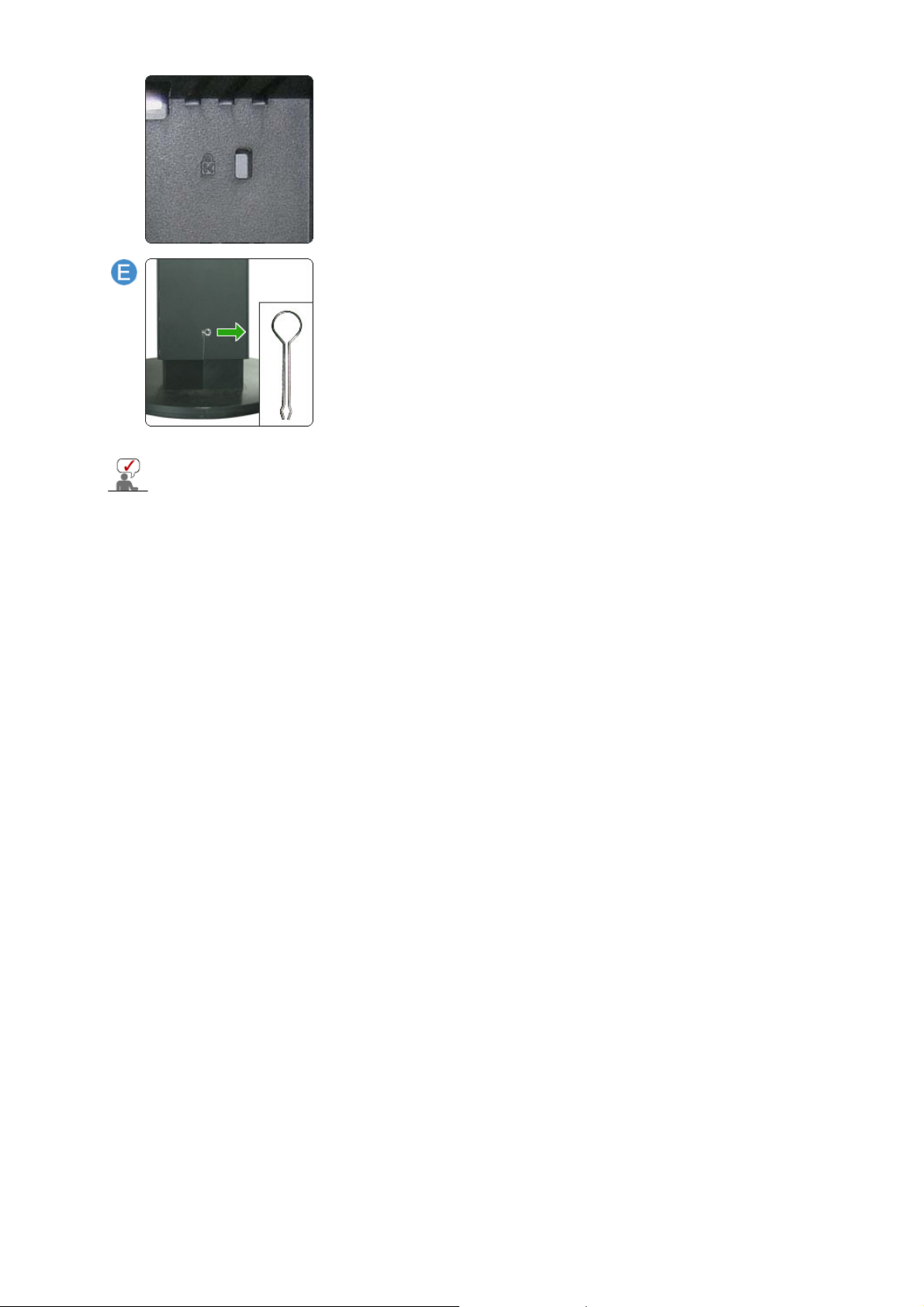

Kensington Lock

The Kensington lock is a device used to physically fix the
system when using it in a public place.
(The locking device has to be purchased separately.)

For using a locking device, contact where you
purchase it.

See Connecting the Monitor for further information regarding cable connections.

Stand Stopper

Remove the fixing pin on the stand to lift the monitor up and
down.

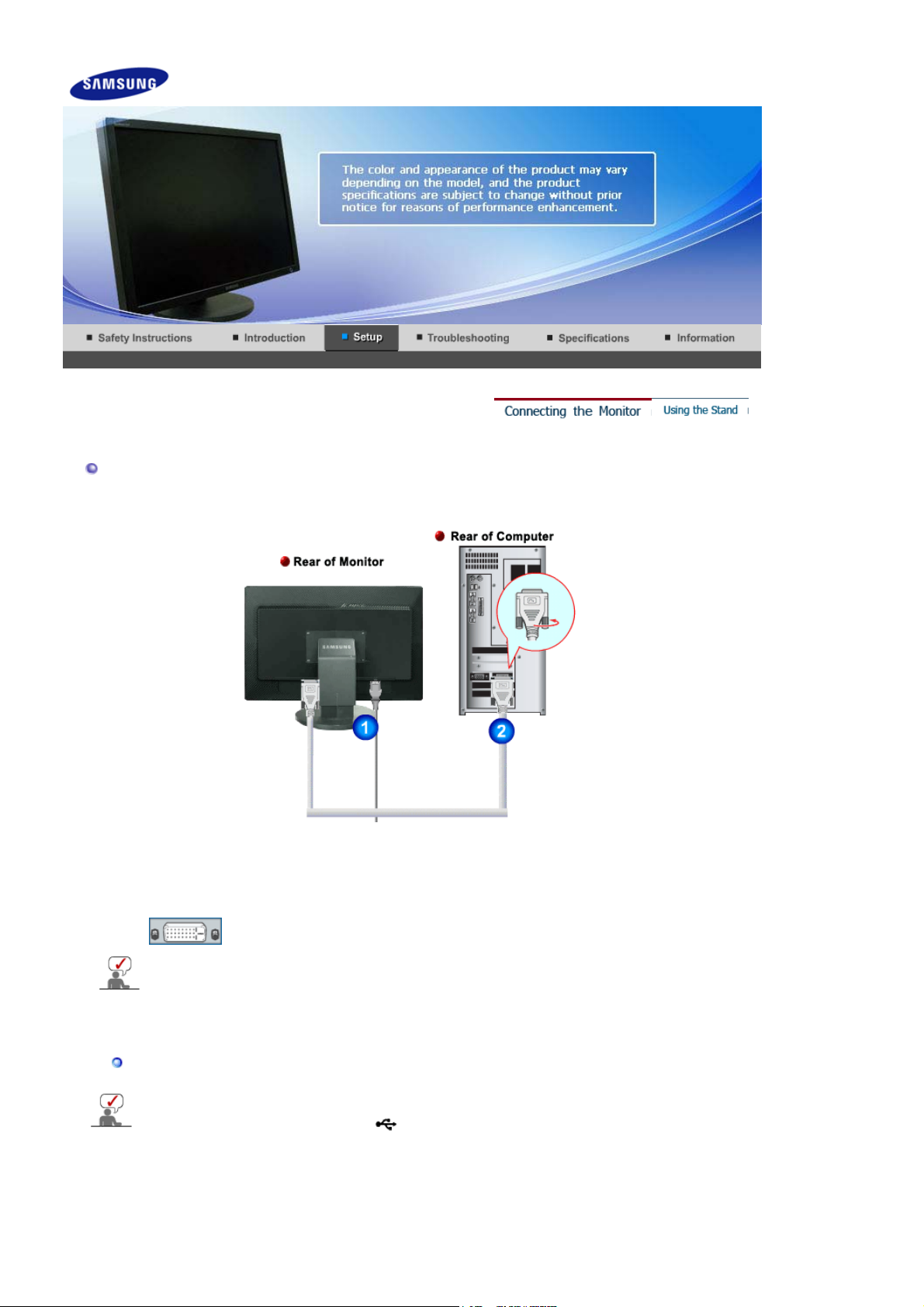

Connecting the Monitor

g

1.

2.

The USB port of the monitor supports High-Speed Certified USB 2.0.

High speed Full speed Low speed

Connect the power cord for your monitor to the
Plug the power cord for the monitor into a nearby outlet.

Using the DVI (Digital) connector on the video card.
Connect the DVI-D (Dual link) Cable to the

[ DVI IN]

Turn on your computer and monitor. If your monitor displays an image, installation is
completed.

Connectin

You can use a USB device such as a mouse, keyboard, Memory Stick, or external hard
disk drive by connecting them to the
them to the PC.

USB

DVI IN

DOWN

POWER

port of the monitor without connecting

port on the back of the monitor.

Port on the back of your Monitor.

Data Rate 480 Mbps 12 Mbps 1.5 Mbps

Power Consumption

Connect the

2.5W

(Max., each port)

2.5W

(Max., each port)

2.5W

(Max., each port)

port of the monitor and the USB port of the computer with the USB cable.

UP

To use

DOWN

port, you have to connect the UP (Upstream Cable) to the PC.

Make sure to use the USB cable supplied with this monitor to connect the
monitor's UP port and your computer's USB port.

Connect the

DOWN

port of the USB monitor and a USB device with the USB cable.

The use procedures are as the same as those for using an external device connecting to the

PC.

z You can connect and use a keyboard and mouse.
z You can play a file from a media device.

(Examples of media devices: MP3, digital camera, etc.)

z You can run, move, copy or delete the files on the storage device.

(Examples of storage devices: external memory, memory card, memory reader, HDD-type
MP3 player, etc.)

z You can use other USB devices that can be connected to a computer.

z

A

r

When connecting a device to the DOWN port of the monitor, connect the
device using a cable appropriate to the device.
(For the purchase of the cable and external devices, ask the service center of
the corresponding product.)

z

The company is not liable for problems or damages to an external device
caused by using an unauthorized cable for the connection.

z

Some products do not follow the USB standard, and it may cause a
malfunction of the device.

z

If the device malfunctions even if it is connected to the computer, contact the
service center of the device/computer.

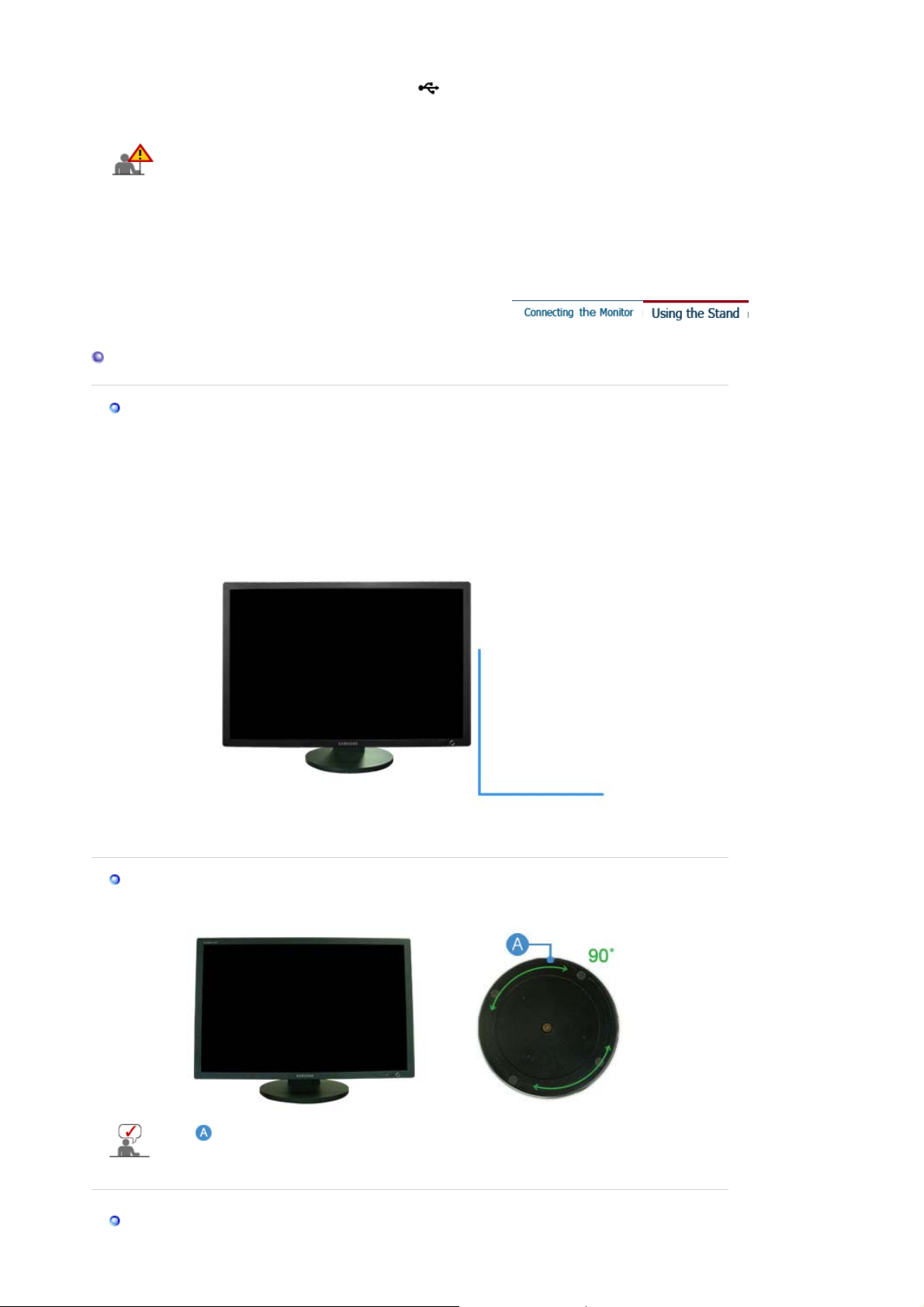

Using the Stand

Sliding stand

Swivel stand

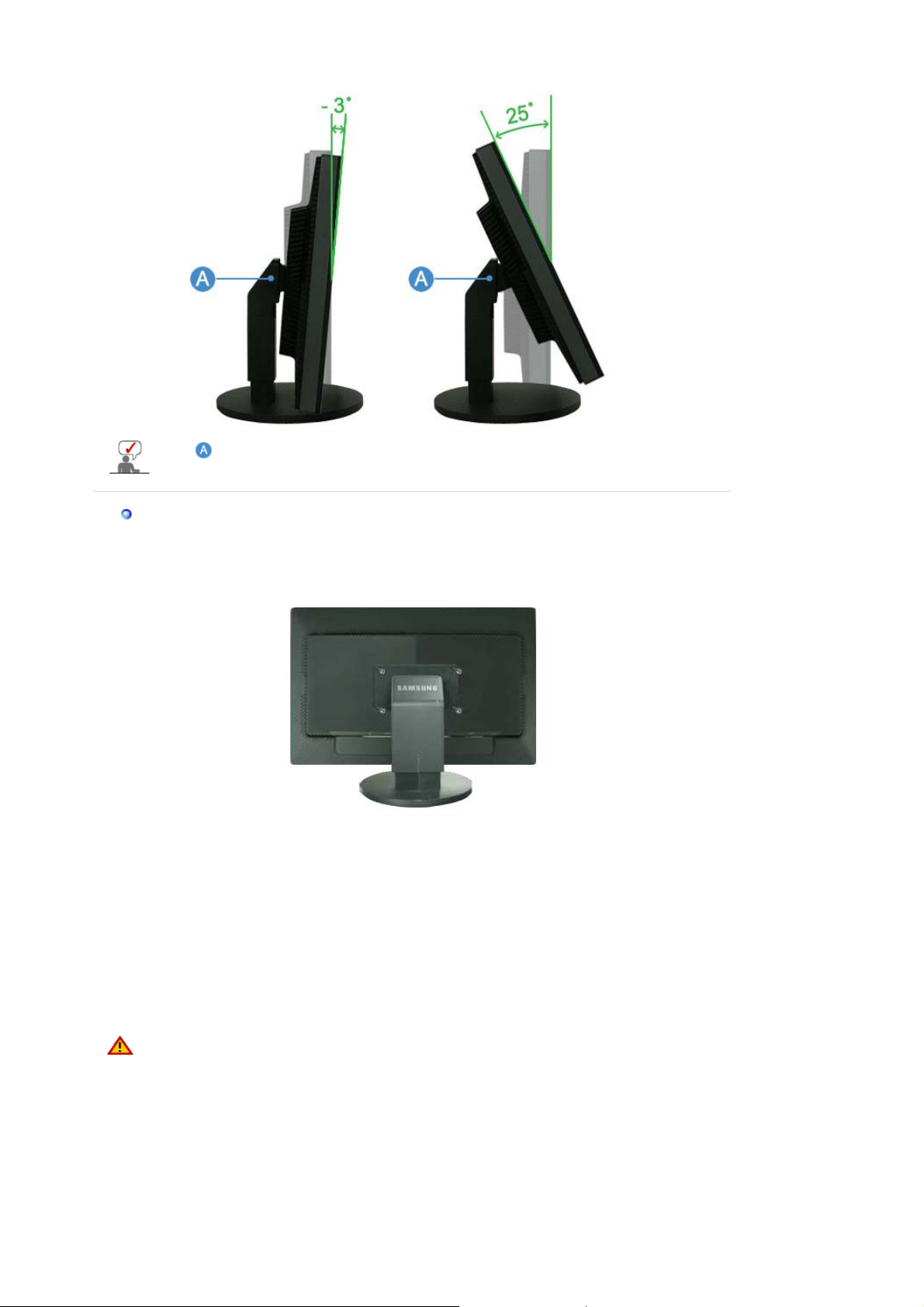

Tilt angle

Stand Stoppe

.

Using ( ),You can swivel the monitor left and right at an angle of 90° to set the monitor
lengthwise. The rubber under the stand is to avoid the monitor slide.

Using ( ), You can adjust the tilt anlgle within a range of 3° forward to 25° backward for the
most comfortable viewing angle.

Attaching a Base

This monitor accepts a 200 mm x 100 mm / 100 mm x 100 mm VESA-compliant Mounting

interface pad.

Monitor

A.

Mounting interface pad (Sold separately)

B.

1. Turn off your monitor and unplug its power cord.

2. Lay the LCD monitor face-down on a flat surface with a cushion beneath it to protect the
screen.

3. Remove four screws and then remove the stand from the LCD monitor.

4. Align the Mounting interface pad with the holes in the rear cover mounting pad and secure it
with four screws that came with the arm-type base, wall mount hanger or other base.

z Do not use screws longer than the standard dimension, as they may damage the inside

of the Monitor.

z For wall mounts that do not comply with VESA standard screw specifications, the length

of the screws may differ depending on their specifications.

z Do not use screws that do not comply with the VESA standard screw specifications.

Do not fasten the screws too tightly, as this may damage the product or cause the
product to fall, leading to personal injury.
Samsung is not liable for these kinds of accidents.
Samsung is not liable for product damage or personal injury when a non-VESA or non-

z

specified wall mount is used or the consumer fails to follow the product installation
instructions.

z To mount the monitor on a wall, you should purchase the wall mounting kit that allows

you to mount the monitor at least 10 cm away from the wall surface.
Contact the nearest Samsung Service Center for more information. Samsung

z

Electronics will not be responsible for damages caused by using a base other than
those specified.

z

Please use Wall Mount according to the International standards.

Check List

Before calling for service, check the information in this section to see if you can remedy any
problems yourself. If you do need assistance, please call the phone number on the

Information section or contact your dealer.

Symptom Check List Solutions

No images on the
screen. I cannot turn
on the monitor.

The screen shows
strange colors or just
black and white.

Is the power cord connected
properly?

If the power is on, reboot the
computer to see the initial
screen(the login screen),
which can be seen.

There is no image on the
screen.
Is the power indicator on the
monitor blinking at 1 second
intervals?

Is the screen displaying only
one color as if looking at the
screen through a cellophane
paper?

Have the screen colors
become strange after
running a program or due to
a crash between
applications?

Check the power cord connection
and supply.

If the initial screen (the login screen)
appears, boot the computer in the
applicable mode (the safe mode for
Windows ME/XP/2000) and then
change the frequency of the video
card.
(Refer to Preset Timing Modes)

Note : If the initial screen (the login
screen) does not appear, contact

the Service Center or your dealer.

The monitor is in PowerSaver mode.

press any key on the keyboard to
activate the monitor and restore the
image on the screen.

Check the signal cable connection.
Make sure the video card is fully
inserted in it's slot.

Reboot the computer.

The screen suddenly
has become
unbalanced.

Has the video card been set
properly?

Have you adjusted the
resolution or frequency to the
monitor?

Set the video card by referring to the
video card manual.

Adjust the resolution and frequency
at the video card.
(Refer to Preset Timing Modes).

LED is blinking but no
images on the screen.

Is the frequency properly
adjusted when checking the
Display Timing on the menu?

Adjust the frequency properly by
referring to the video card manual
and Preset Timing Modes.

(The maximum frequency per
resolution may differ from product to
product.)

There are only 16
colors shown on the
screen.
The screen colors
have changed after
changing the video
card.

I cannot use the
2560x1600 resolution
with the monitor.

Check the following items if there is trouble with the monitor.

1. Check if the power cord and the video cables are properly connected to the computer.

2. Check if the computer beeps more than 3 times when booting.
(If it does, ask the service center to check the main board of the computer.)

3. If you installed a new video card or if you assembled the PC, check if the installed the adapter
(video) driver.

4. Check if the scanning ratio of the video screen is set at 60Hz +/- 2Hz.
(Do not exceed 60 Hz when using the maximum resolution.)

5. If you have problems in installing the adapter (video) driver, boot the computer in Safe Mode,
remove the Display Adapter at the "
reboot the computer to reinstall the adapter (video) driver.

If problems repeatedly occur, contact an authorized Service Center.

Have the Windows colors
been set properly?

Has the video card been set
properly?

Does the graphics card on
your computer support the
2560x1600 resolution?

Control Panel→System→Device Administrator

Windows ME/2000/XP :
Set the colors properly at the

Control Panel → Display →
Settings

Set the video card by referring to the
video card manual.

If your graphics card does not support the
2560x1600 resolution, then you can only
use the 1280x800 resolution with your
monitor.

To use the 2560x1600 resolution, replace
your graphics card with one that supports
that resolution.

.

" and then

Q & A

Question

How can I change the
frequency?

How can I adjust the resolution? Windows ME/XP/2000 : Set the resolution at the Control

How can I set the Power Saving
function?

How can I clean the outer
case/LCD Panel?

The frequency can be changed by reconfiguring the video card.

Note that video card support can vary, depending on the version
of the driver used. (Refer to the computer or the video card
manual for details.)

Panel→Display→Settings.

* Contact the video card manufacturer for details.

Windows ME/XP/2000 : Set the function at BIOS-SETUP of the
computer or the screen saver. (Refer to Windows/Computer
Manual).

Disconnect the power cord and then clean the monitor with a soft
cloth, using either a cleaning solution or plain water.

Do not leave any detergent or scratches on the case. Do not let
any water enter the monitor.

Answer

General

General

Model Name SyncMaster 305T/305TPLUS

LCD Panel

Size 30" inch Wide (75 cm)

Display area 641.28(H) x 400.8(V)

Pixel Pitch 0.2505(H) x 0.2505(V)

Synchronization

Horizontal 49.3 kHz, 98.7 kHz +/- 2 kHz

Vertical 60 Hz +/- 2 Hz

Display Color

8 bit color (16.7 M)

Resolution

Optimum resolution 2560x1600@60 Hz ,1280x800@60 Hz

Maximum resolution 2560x1600@60 Hz ,1280x800@60 Hz

Input Signal, Terminated

DVI Compliant Digital RGB

0.7 Vp-p ± 5 %
TMDS(Transition Minimized Differential Signaling)

Maximum Pixel Clock

268.5 MHz

Power Supply

AC 100-240 ~ VAC ( ± 10%),60 / 50 Hz ± 3 Hz

Signal Cable

DVI-D to DVI-D connector(Dual link), Detachable

Dimensions (WxHxD)/ Weight

690.2 x 449.6 x 83.0 mm / 27.1 x 17.7 x 3.2 inch (Without Stand)

690.2 x 502.2 x 280.0 mm / 27.1 x 19.7 x 11.0 inch (With Stand) / 11.6 kg / 25.6 lbs

VESA Mounting Interface

200 x 100 mm, 100 x 100 mm

Environmental considerations

Operating Operating Temperature : 50°F~ 104°F ( 10°C ~ 40°C)

Humidity : 10 % ~ 80 %, non-condensing

Storage Storage Temperature : -4°F~ 113°F ( -20°C ~ 45°C)

Humidity : 5 % ~ 95 %, non-condensing

Plug and Play Capability

This monitor can be installed on any Plug & Play compatible system. The interaction of the monitor
and the computer systems will provide the best operating conditions and monitor settings. In most
cases, the monitor installation will proceed automatically, unless the user wishes to select alternate
settings.

Dot Acceptable

TFT LCD panels manufactured by using advanced semiconductor technology with precision of 1ppm
(one millionth) above are used for this product. But the pixels of RED, GREEN, BLUE and WHITE
color appear to be bright sometimes or some black pixels may be seen. This is not from bad quality
and you can use it without any problelms.

z For example, the number of TFT LCD sub pixels contained in this product are12,288,000.

Note : Design and specifications are subject to change without prior notice.

Class B Equipment (Information Communication equipment for residential use)

This product complies with the Electromagnetic Compatibility Directives for residential use and can
be used in all areas including common residential areas.

(Class B equipment emits less electromagnetic waves than Class A equipment.)

PowerSaver

This monitor has a built-in power management system called PowerSaver. This system saves energy
by switching your monitor into a low-power mode when it has not been used for a certain amount of
time. The monitor automatically returns to normal operation when you press a key on the keyboard. For
energy conservation, turn your monitor OFF when it is not needed, or when leaving it unattended for
long periods. The PowerSaver system operates with a VESA DPM compliant video card installed in
your computer. Use the software utility installed on your computer to set up this feature.

Power off

(Power Switch)

State

Power off

Normal

Operation

Power saving

mode

EPA/ENERGY

2000

(Power button)

Power Indicator Blue Blue, Blinking Black Black

Power

Consumption

Less than 130

watts

Less than 2

watts

Less than 1 watts 0 watts

This monitor is EPA ENERGY STAR® compliant and ENERGY2000
compliant when used with a computer equipped with VESA DPM
functionality.

As an ENERGY STAR

®

Partner, SAMSUNG has determined that this

product meets the ENERGY STAR

®

guidelines for energy efficiency.

Preset Timing Modes

If the signal transferred from the computer is the same as the following Preset Timing Modes, the
screen will be adjusted automatically. However, if the signal differs, the screen may go blank while
the power LED is on. Refer to the video card manual and adjust the screen as follows.

Horizontal

Display Mode

VESA, 1280 x 800 49.306 59.91 71 +/-

VESA, 2560 x 1600 98.713 59.972 268.5 +/-

Frequency

(kHz)

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of
the screen horizontally is called the Horizontal Cycle and the inverse
number of the Horizontal Cycle is called the Horizontal Frequency.
Unit : kHz

Vertical Frequency

Like a fluorescent lamp, the screen has to repeat the same image
many times per second to display an image to the user. The
frequency of this repetition is called the Vertical Frequency or Refresh
Rate. Unit: Hz

Vertical

Frequency

(Hz)

Pixel Clock

(MHz)

Sync Polarity

(H/V)

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please
contact the SAMSUNG customer care center.

North America

U.S.A 1-800-SAMSUNG (726-7864) http://www.samsung.com/us

CANADA 1-800-SAMSUNG (726-7864) http://www.samsung.com/ca

MEXICO 01-800-SAMSUNG (726-7864) http://www.samsung.com/mx

Latin America

ARGENTINE 0800-333-3733 http://www.samsung.com/ar

BRAZIL

CHILE 800-SAMSUNG(726-7864) http://www.samsung.com/cl

COLOMBIA 01-8000112112 http://www.samsung.com.co

COSTA RICA 0-800-507-7267 http://www.samsung.com/latin

ECUADOR 1-800-10-7267 http://www.samsung.com/latin

EL SALVADOR 800-6225 http://www.samsung.com/latin

0800-124-421
4004-0000

http://www.samsung.com/br

GUATEMALA 1-800-299-0013 http://www.samsung.com/latin

JAMAICA 1-800-234-7267 http://www.samsung.com/latin

PANAMA 800-7267 http://www.samsung.com/latin

PUERTO RICO 1-800-682-3180 http://www.samsung.com/latin

REP. DOMINICA 1-800-751-2676 http://www.samsung.com/latin

TRINIDAD & TOBAGO 1-800-SAMSUNG(726-7864) http://www.samsung.com/latin

VENEZUELA 0-800-100-5303 http://www.samsung.com/latin

Europe

AUSTRIA 0800-SAMSUNG(726-7864) http://www.samsung.com/at

BELGIUM 0032 (0)2 201 24 18 http://www.samsung.com/be

CZECH REPUBLIC 844 000 844 http://www.samsung.com/cz

DENMARK 70 70 19 70 http://www.samsung.com/dk

FINLAND 030-6227 515 http://www.samsung.com/fi

FRANCE

GERMANY 01805 - 121213 (€ 0,14/Min) http://www.samsung.com/de

HUNGARY 06-80-SAMSUNG (726-7864) http://www.samsung.com/hu

ITALIA 800-SAMSUNG (726-7864) http://www.samsung.com/it

LUXEMBURG 0035 (0)2 261 03 710 http://www.samsung.com/be

NETHERLANDS 0900 20 200 88 (€ 0,10/Min) http://www.samsung.com/nl

NORWAY 815-56 480 http://www.samsung.com/no

POLAND

PORTUGAL 80 8 200 128 http://www.samsung.com/pt

REPUBLIC OF IRELAND 0818 717 100 http://www.samsung.com/ie

SLOVAKIA 0800-SAMSUNG (726-7864) http://www.samsung.com/sk

SPAIN 902 10 11 30 http://www.samsung.com/es

SWEDEN 0771-400 200 http://www.samsung.com/se

SWITZERLAND 0800-SAMSUNG(726-7864) http://www.samsung.com/ch

U.K 0870-SAMSUNG (726-7864) http://www.samsung.com/uk

3260 SAMSUNG(726-7864)
08 25 08 65 65(€ 0,15/Min)

0 801 801 881
022-607-93-33

CIS

http://www.samsung.com/fr

http://www.samsung.com/pl

ESTONIA 800-7267 http://www.samsung.ee

LATVIA 800-7267 http://www.samsung.com/lv

LITHUANIA 8-800-77777 http://www.samsung.lt

KAZAKHSTAN 8-10-800-500-55-500 http://www.samsung.kz

KYRGYZSTAN 00-800-500-55-500

RUSSIA 8-800-555-55-55 http://www.samsung.ru

UKRAINE 8-800-502-0000 http://www.samsung.ua

UZBEKISTAN 8-800-120-0-400 http://www.samsung.uz

Asia Pacific

AUSTRALIA 1300 362 603 http://www.samsung.com/au

CHINA

y

HONG KONG 3698-4698 http://www.samsung.com/hk

800-810-5858
010-6475 1880

http://www.samsung.com.cn

INDIA

INDONESIA 0800-112-8888 http://www.samsung.com/id

JAPAN 0120-327-527 http://www.samsung.com/jp

MALAYSIA 1800-88-9999 http://www.samsung.com/my

NEW ZEALAND 0800SAMSUNG (726-7864) http://www.samsung.com/nz

PHILIPPINES 1800-10-SAMSUNG (726-7864) http://www.samsung.com/ph

SINGAPORE 1800-SAMSUNG (726-7864) http://www.samsung.com/sg

THAILAND

TAIWAN 0800-329-999 http://www.samsung.com/tw

VIETNAM 1 800 588 889 http://www.samsung.com/vn

SOUTH AFRICA 0860-SAMSUNG (726-7864) http://www.samsung.com/za

TURKEY 444 77 11 http://www.samsung.com/tr

U.A.E

3030 8282
1800 110011

1800-29-3232
02-689-3232

Middle East & Africa

800-SAMSUNG (726-7864)
8000-4726

http://www.samsung.com/in

http://www.samsung.com/th

http://www.samsung.com/mea

Terms

Dot Pitch

The image on a monitor is composed of red, green and blue dots. The closer the dots, the
higher the resolution. The distance between two dots of the same color is called the 'Dot
Pitch'. Unit : mm

Vertical Frequency

The screen must be redrawn several times per second in order to create and display an image
for the user. The frequency of this repetition per second is called the Vertical Frequency or
Refresh Rate. Unit : Hz

Example : If the same light repeats itself 60 times per second, this is regarded as 60 Hz.

Horizontal Frequency

The time to scan one line connecting the right edge to the left edge of the screen horizontally
is called the Horizontal Cycle. The inverse number of the Horizontal Cycle is called Horizontal
Frequency. Unit : kHz

Interlace and Non-Interlace Methods

Showing the horizontal lines of the screen from the top to the bottom sequentially is called the
Non-Interlace method while showing odd lines and then even lines in turn is called the
Interlace method. The Non-Interlace method is used for the majority of monitors to ensure a
clear image. The Interlace method is the same as that used in TVs.

Plug & Pla

This is a function that provides the best quality screen for the user by allowing the computer
and the monitor to exchange information automatically. This monitor follows the international
standard VESA DDC for the Plug & Play function.

Resolution

The number of horizontal and vertical dots used to compose the screen image is called the
'resolution'. This number shows the accuracy of the display. A high resolution is good for
performing multiple tasks as more image information can be shown on the screen.

Example : If the resolution is 2560 x 1600 , this means the screen is composed of 2560

horizontal dots (horizontal resolution) and 1600 vertical lines (vertical resolution).

For Better Display

1. Adjust computer resolution and screen injection rate (refresh rate) oncomputer as described
below to enjoy the best quality of picture. You can have an uneven quality of picture in the
screen if the best quality of picture is not provided in TFT-LCD.

{ Resolution: 2560 x 1600
{ Vertical frequency (refresh rate) : 60 Hz

2. TFT LCD panels manufactured by using advanced semiconductor technology with precision
of 1ppm (one millionth) above are used for this product. But the pixels of RED, GREEN,
BLUE and WHITE color appear to be bright sometimes or some black pixels may be seen.
This is not from bad quality and you can use it without any problelms.

{ For example, the number of TFT LCD sub pixels contained in this product are

12,288,000.

3. When cleaning the monitor and the panel outside, please apply the recommended small
amount of cleaner by using a soft cloth to polish. Do not force the LCD area but rub softly.
If excessive force is applied, you can have a stain on it.

4. When viewing a fixed screen for an extended period of time, residual image or blurriness
may appear.
Change the mode to energy saving mode or set a screensaver to a changing picture when
away from the monitor for an extended period of time.

Authority

Information in this document is subject to change without notice.
© 2007 Samsung Electronics Co., Ltd. All rights reserved.

Reproduction in any manner whatsoever without the written permission of Samsung Electronics
Co., Ltd. is strictly forbidden.

Samsung Electronics Co., Ltd. shall not be liable for errors contained herein or for incidental or
consequential damages in connection with the furnishing, performance, or use of this material.

Samsung is the registered trademark of Samsung Electronics Co., Ltd.; Microsoft, Windows and
Windows NT are registered trademarks of Microsoft Corporation; VESA, DPM and DDC are

registered trademarks of Video Electronics Standard Association; the ENERGY STAR® name and
logo are registered trademarks of the U.S. Environmental Protection Agency (EPA). As an
ENERGY STAR® Partner, Samsung Electronics Co., Ltd. has determined that this product meets
the ENERGY STAR® guidelines for energy efficiency. All other product names mentioned herein
may be the trademarks or registered trademarks of their respective owners.

PRODUCT INFORMATION (Image Retention Free)

y

A

A

LCD Monitors and TVs may have image retention when switching from one image to another
especially after displaying a stationary image for a long time.
This guide is to demonstrate correct usage of LCD products in order to protect them from Image
retention.

Warrant

Warranty does not cover any damage caused by image retention.
Burn-in is not covered by the warranty.

What is Image retention ?

During normal operation of a LCD panel, pixel image retention doesn 't occur. However,
if the same image is displayed for a long time, a slight difference in electric charge
accumulates between the two electrodes which encase the liquid crystal. Th is may
cause the liquid crystal to build up in a certain areas of the display. Thus, the previous
image is retained when switching to a new video image. All display products, including
LCD,are subject to image retention. This is not a product defect.

Please follow the suggestions below to protect your LCD from image retention

Power Off, Screen Saver, or Power Save Mode

Ex)

z Turn the power off when using a stationary pattern.

- Turn the power off for 4 hours after 20 hours in use

- Turn the power off for 2 hours after 12 hours in use

z Use a Screen saver if possible

- Screen saver in one color or a moving image is recommended.

z Set the Monitor to power off with the PC Display Properties Power Scheme.

Suggestions for specific applications

Ex) Airports, Transit Stations, Stock Markets, Banks, and Controlling Systems
We recommend that you follow set up of your display system program as below:

Display Information together with Logo or Moving image cycle.

Ex) Cycle : Display Information for 1 hour followed by a
Display Logo or moving image for 1 minute.

Change the Color Information periodically (Use 2 different colors).

Ex) Rotate the Color Information with 2 colors every 30 minutes.

void using a combination of characters and background color with large

difference in luminance.

void using Grey colors, which can cause Image retention easily.

z Avoid: Colors with big difference in luminance (Black & White, Grey)

Ex)

z Recommended settings: Bright colors with little difference in luminance

- Change the characters color and background color every 30 minutes
Ex)

- Every 30 minutes, change the characters with movement.

Ex)

The best way to protect your monitor from Image retention is to set your PC or
System to operate a Screen Saver program when you are not using it.

Image retention may not occur when a LCD panel is operated unde r normal c onditions.
Normal conditions are defined as continuously changing video patterns. When the LCD

panel is operated for a long time with a fixed pattern (-over 12 hours-), there may be
slight difference in voltage between electrodes that work the liquid crystal (LC) in a
pixel. The voltage difference between electrodes increases with time, forcing the liquid
crystal to lean. When this occurs, the previous image may be seen when the pattern is
changed.
To prevent this, the accumulated voltage difference must be decreased.

Our LCD Monitor satisfies ISO13406-2 Pixel fault Class II

Correct Disposal of This Product
(Waste Electrical & Electronic Equipment) - Europe only

(Applicable in the European Union and other European countries with
separate collection systems)

This marking shown on the product or its literature, indicates that it should not
be disposed with other household wastes at the end of its working life. To
prevent possible harm to the environment or human health from uncontrolled
waste disposal, please separate this from other types of wastes and recycle it
responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this
product, or their local government office, for details of where and how they
can take this item for environmentally safe recycling.

Business users should contact their supplier and check the terms and
conditions of the purchase contract. This product should not be mixed with
other commercial wastes for disposal.
