Owner’s Instructions
Before operating the unit, please read this manual
throughly, and retain for future reference.
BEFORE USING THE WASHER 1
CAUTIONS 1
PRECAUTIONS WHEN OPERATING 1
DESCRIPTION OF PARTS 2
CONTROL PANEL 2
WASHING PROCEDURE 3
To wash 3
Spin dry 3
Rinsing 4
Over flow rinse 4
Additional rinse 4
INSTALLATION 5
Environment 5
Changing the position of the drain hose 5
How to clean the filter 5
CLEANING THE MACHINE 5
LAUNDRY GUIDE 6
MAINTENANCE 6
TROUBLESHOOTING 6
SPECIFICATIONS
Page 2
BEFORE USING THE WASHER
● Remove the cap-hose from the drain
hose.
CAUTIONS
● Be sure that the washer is grounded.
To avoid electrical shock,use
a metal pipe for the ground
connection. But, don't ground
the washer with gas pipes or
telephone lines to avoid to
dangers of explosion or lightning strike.
● In case of pump drained washer,
remove the cap-hose from
the drain hole.
● Disconnect the power cord from the
power supply when not in use.
● Ventilation opnning must not be obstructed
by carpeting when the washing machine is
installed on a carpeted floor.
● Do not put your hands into the spin
● If the supply cord of this appliance is damaged,
dryer basket when it is spinning.
Your fingers can be caught
by spinning laundry and
damaged.
● Warning to avoid overfilling and damages
● Never allow children to operate
or play with the washer.
Children playing with the washer
may accidentally fall into the
●
washing tub.
PRECAUTIONS WHEN OPERATING
● Don't use excessively hot water.
(50˚C or more)
Plastic parts may be deformed or damaged.
Also, clothing may be deformed or decolored.
● Before washing,check all pockets.
If nails or pins remain in pockets,they may
damage the washer or clothes.
● Close the water tap a little if the
water pressure is too high.
● Be sure to cover with the inner
● To avoid water splashes,
● Never splash water on the control panel.
it must only be replaced by a repair shop
appointed by the manufacturer,because
special purpose tools are required.
this appliance must be filled with the
operator present using a moderate water
supply pressure only.
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this
or any other appliance.
cover on laundry before spinning.
This prevents laundry from
being tossed out and damaged.
close the wash tub lid.
1
Page 3
SPIN DRYER LID
When you open this lid while
the spin basket is spinning,
the spinning will be stopped
by breake system.
DESCRIPTION OF PARTS
INNER LID
WASH TUB LID
Be sure to keep the lid
closed during washing
and spinning.
WASH TUB
STRAINER
1.
WASH TIMMER
This is used to set the wash time, 1-15 minutes.
WASH SELECTOR
2.
Refer to the washing time and washing selection.
(FILTER)
PULSATOR
3.CYCLE SELECTOR
This is used to set the Washing/Rinsing or draining.
SPIN DRYER BASKET
SPIN DRYER HATCH
EARTH WIRE
POWER CORD
The plug’s shape may not
correspond with this drawing.
WATER DRAIN HOSE
(WITHOUT PUMP)
CONTROL PANEL
4.
SPIN DRY TIMER
This is used to set the spin time, 1-5 minutes.
WATER INTAKE
5.
Connect water inlet to a tap with a suitable hose.
2
Page 4
WASHING PROCEDURE

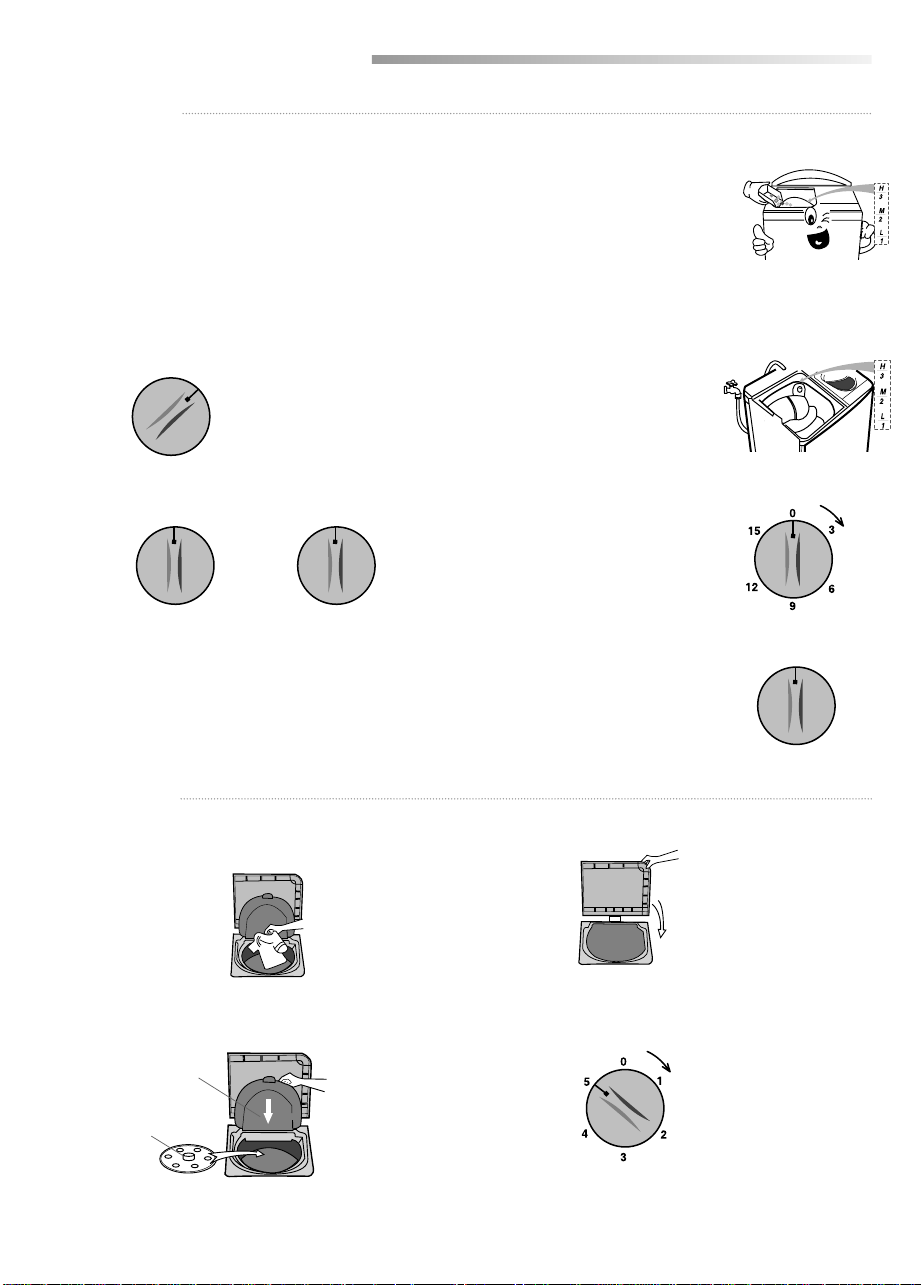

TO WASH
1. Before starting washing, check following;
Connect the water supply hose.
- Lay the drain hose down toward a sinkhole.
(In case no drain pump)
- Place the drain hose in sink or bath.
(In case drain pump)
-Connect the power cord to the power supply outlet .
2. Set the WASH SELECTOR KNOB
to the desired mode.
SOFT HEAVY
3. Set the CYCLE SELECTOR KNOB to
‘WASH.URINSE’.
WASH . RINSE
CYCLE SELECTOR
WASH
RINSEDRAIN
CYCLE SELECTOR
(in case drain pump ‘WASH’)
DRAIN
4. Fill water in the wash tub
to the ‘L’lower water
level by carefully and
add the detergent.
5. Load laundry in the
wash tub and fill
water to proper
water level.
6. Set the WASH TIMER
1-15minutes.
7. After washing,set the
CYCLE SELECTOR KNOB
to ‘DRAIN’ for drain.
WASH TIMER
DRAIN
SPIN DRY
1. Transfer the clothes into the spin basket
and arrange the clothes evenly.
close the inner lid.
inner lid
safty cover
CYCLE SELECTOR
3. Close the spin dryer lid.
4. Set the SPIN DRY TIMER 1-5minutes.2. Be sure to attach the safety cover and
SPIN DRY TIMER
3
Page 5

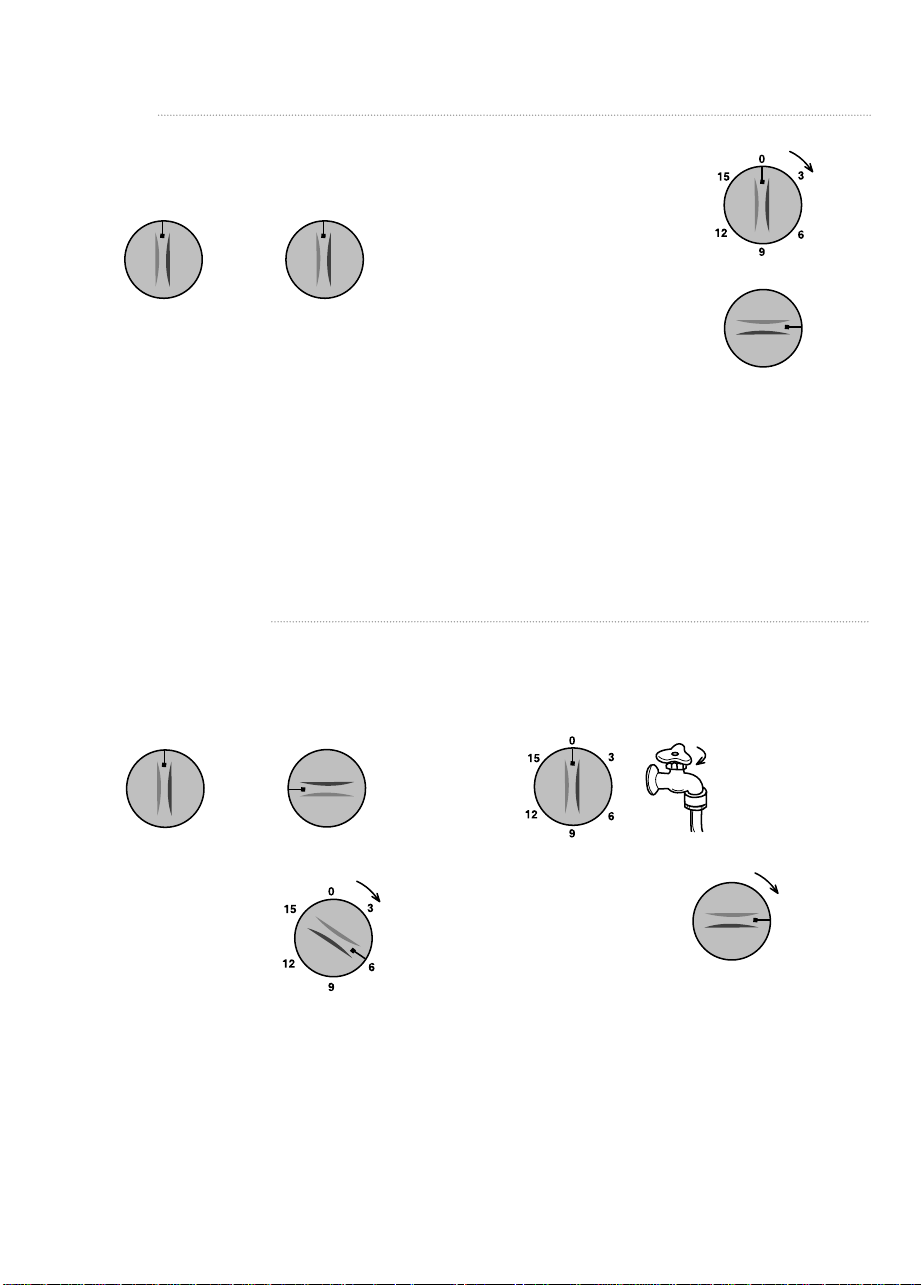

RINSING
1. Set the CYCLE SELECTOR KNOB to
‘WASH.RINSE’
WASH . RINSE
CYCLE SELECTOR
WASH
RINSEDRAIN
CYCLE SELECTOR
(in case drain pump “WASH)
2. Supply the proper amount of water
as not to overflow the top of the
washing tub.
OVER FLOW RINSE
1.Keep suppling water
to ensure that the amount of water supplied
does not exceed that water drained.)
WASH . RINSE
(adjust water pressure
WASH
DRAIN
3. Set the WASH TIMER
2~3minutes.
WASH TIMER
4. Drain the water.
Set the CYCLE
SELECTOR KNOB to
‘DRAIN’.
CYCLE SELECTOR
5.Repeat this cycle until drain water
is clean. (2~3 cycle)
3.As soon as the WASH TIMER
shuts off, turn off the water tap.
DRAIN
CYCLE SELECTOR
2.Set the WASH
TIMER 6~8minutes.
RINSEDRAIN
CYCLE SELECTOR
(in case drain pump “WASH)
WASH TIMER
DRAIN
WASH TIMER
4. Set the CYCLE
SELECTOR KNOB
to ‘DRAIN’.
4
DRAIN
CYCLE SELECTOR
Page 6
INSTALLATION
2
1
70~80cm
ENVIRONMENT
Leave some space
Space at least 15cm between the washer
and the wall.
Place the washer on a sturdy flat surface.
If the washer is placed on an uneven or weak
surface, noise or vibration may be occured.
(Allowable is 2˚)
Never install the washer near water.
Do not place the washer in steamy rooms or
where the washer is directly exposed to rain.
Moisture may destroy the electrical insulation
and cause an electrical shock hazard.
Avoid direct sunlight or heating devices.
As plastic and electrical components are
affected by direct heat, never place the
washer near heaters, boilers,etc.
Do not place under direct sunlight.
Install the drain hose about
70~80cm above the ground
for pump model.
CLEANING THE MACHINE

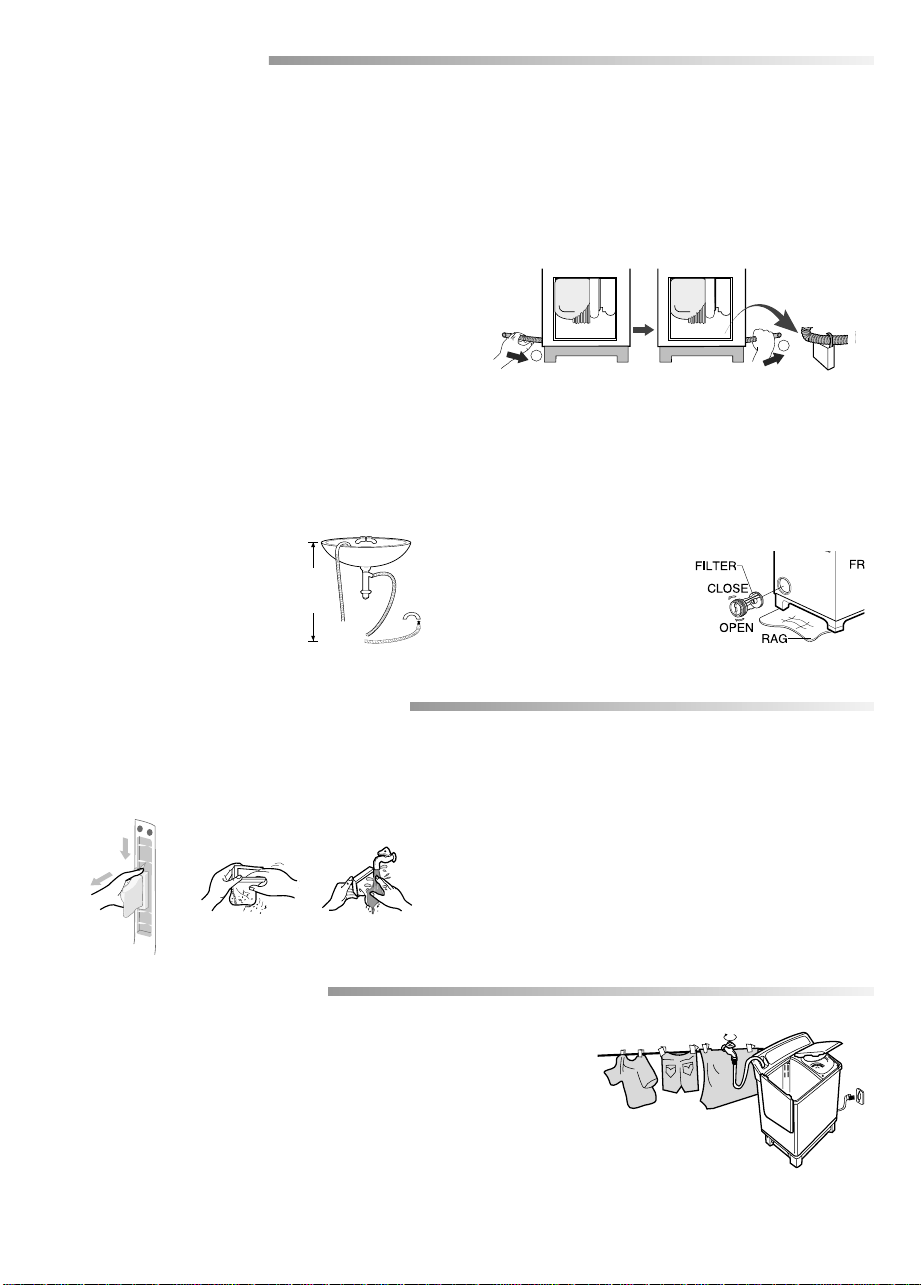

CHANGING THE POSITION OF THE DRAIN HOSE
Before attempting to change the position of the drain hose,
disconnect the plug from the outlet.
1. Route the drain hose inside the machine.
2.Take out the drain hose from the opposite hole and
insert the drain hose into the hose holder.
Hose holder
HOW TO CLEAN THE FIL TER (In case drain pump)
1.
Place a rag under the washer filter
not to wet the floor.
2.
Rotate the filter counterclockwise
and pull out the filter.
3. Remove dirts and rotate
the filter clockwise until it
locks in position.
CLENING THE LINT FILTER
-If the dregs are piled up in the lint filter after finishing
the wash, push down and pull it out as shown in figure.
-Wash the filter net in water.
AFTER OPERATION
1. Remove the power cord from the outlet.
2. Take out the laundry.
3. Close the water tap and disconnect the water supply hose.
4. Clean the washing machine.
-Periodical cleaning will extend the life of your washing machine.
-Do not spray the unit water or use tinner, benzene, alcohol etc, for cleaning it.
CLEANING THE WASH TUB
Wipe off strains on the cabinet and operation panel
with soft cloth.
Do not use benzene, thinners, cleanser, or wax,
nor scrub the washer with a brush.
Painted surfaces or plastic parts will be damaged.
5
Page 7

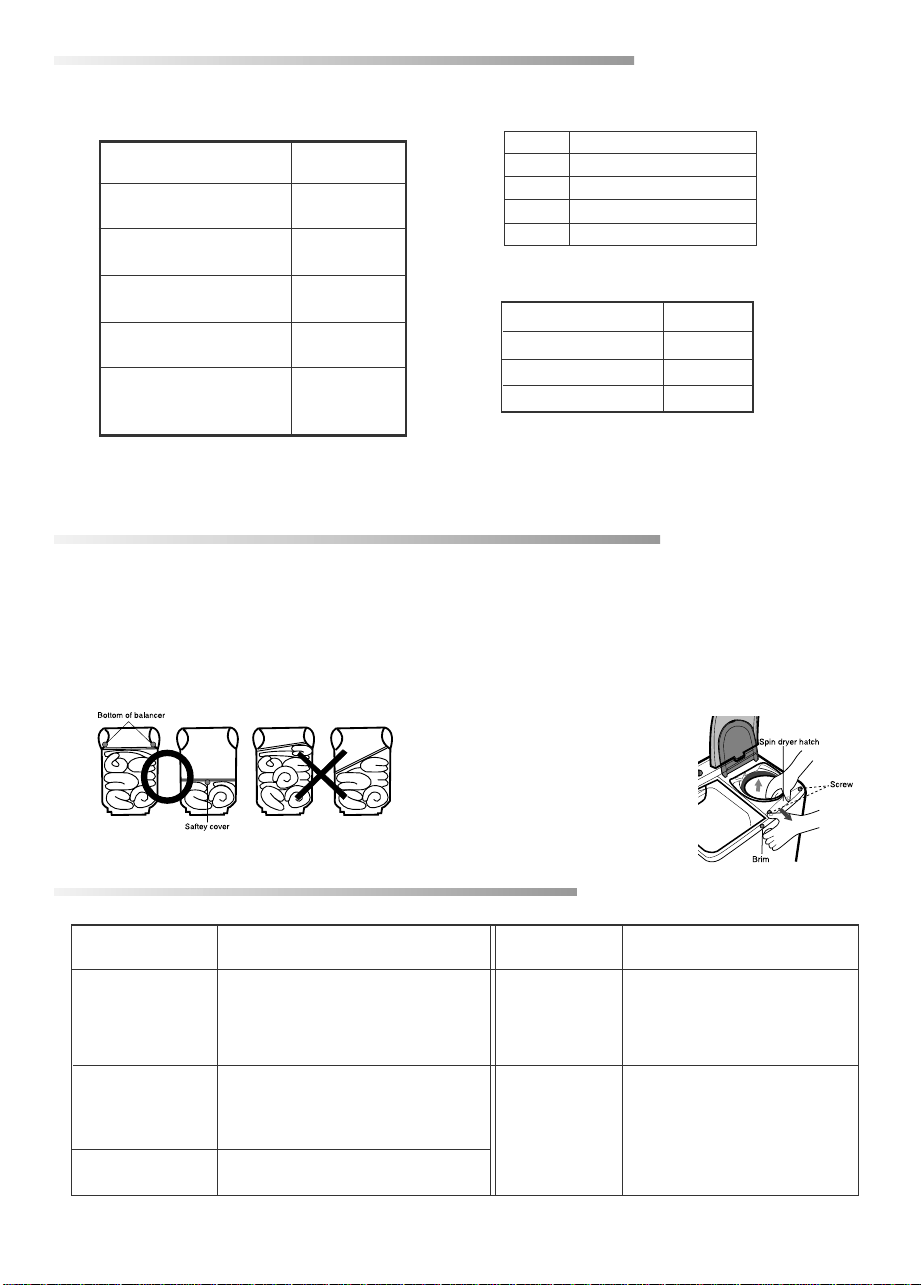

LAUNDRY GUIDE
WASHING TIME
KINDS OF CLOTHING
Extremely solid heavy fabric
Linen,cotton,etc.
Ordinary clothes
(underwear,etc)
Slightly solied synthetic
fiber
100%wool,mixed wool knitting,
thin synthetic fiber with tags
indicating hand washing
WHEN YOU LOAD THE LAUNDRY INTO
THE SPIN BASKET.
Press the laundry evenly and put the safety
cover into the spin basket drum as shown in
the figure.
WASHING TIME
10 to15minutes
8 to10minutes
7minutes
2 to 5minutes
2 to 5minutes
SPIN DRY TIME
TIME
1min.
1~2min.
3~5min.
5min.
TYPE OF LAUNDRY
Thin(synthetic fiber)
wool
cotton
thick(cotton)
DETERGENT
AMOUNT OF
DETERGENT
32 g
40 g
50 g
The amount of detergent is average.
Follow the instruction detergent printed
on the package for amount of detergent.
Choose the amount of detergent
depending on the fabric type.
WATER
LEVEL
Low (32l)
Mid (40l)
High (50l)
MAINTENANCE
TO PICK OUT THE CLOTHING WHICH HAS
FALLEN BETWEEN THE BASKET AND TUB.
For safty,pull the power supply plug out of the socket.
1.Disassemble two screws from the spin dryer hatch.
2.The spin dryer hatch is fixed to the brim by the concave and
convex parts at two places. Expand the concave and
convex parts, and pull up the spin dryer hatch to remove it.
3. Remove the clothing
4. Close the spin dryer hatch.
Push in hatch firmly until
the catch at the front is
engaged securely.
TROUBLE
The washer
does not work.
Clothes will
not move freely.
Incomplete
spinning
CHECK POINT
Check that the power cord is
connected to a power outlet well.
Power stoppage?
Is the laundry overloaded?
Are the laundry arranged evenly?
Incomplete
draining
The spin dryer
basket will not
run.
6
TROUBLE SHOOTING
TROUBLE
CHECK POINT
Is the filter clogged
with lint?
● See “Cleaning the
machine” on page 5.
Is the spin dryer lid closed
completely?
Are laundry(socks,etc.) falling
out of the spin dryer basket and
clinging to the axle?
● See “To pick out...”on page 6.
Page 8
IF YOU NEED HELP.
Do not hesitate to call your local service center.
They will be willing to help you.
Be sure to give them your name,address,telephone number and the purpose of the call.
DIMENSIONS (W x D x H)mm
WATER PRESSURE
WEIGHT
With out pump
With pump
EXTRACTION EFFICIENCY
STANDARD QUANTITY OF WATER
RATING TIME
SPECIFICATION
812 x 448 x 957
0.05~0.78 MPa
0.5 ~ 8.0 kg.f/cm
29 kg
31 kg
50 %
50 l
Washing 1Hour / Spinning 15minutes
2
