4. SPIN DRY TIMER
This is used to set the spin time, 1-5 minutes.
5. WATER SELECTOR
During washing,WATER GUIDE KNOB
should be selected to wash.
During spin rinsing,WATER GUIDE KNOB
should be selected to spin.
1. WASH SELECTOR
This is used to select wash action.
2. WASH TIMMER
This is used to set the wash time, 1-15 minutes.
3. CYCLE SELECTOR
This is used to set the Washing/Rinsing or Draining.
1 2
FEATURES
CAUTIONS
PRECAUTIONS WHEN OPERATING
DESCRIPTION OF PARTS
POWERFUL WASHING BY LARGE PULSATOR
This washing machine has a big pulsator so that it
can wash a lot of laundry evenly.
TWO WAY LINT FILTER
Two way lint fiter strains off the lint during washing.
So you can wash laundry cleanly.
NORMAL OR SOFT SELECTOR
You can wash laundry effetively by
two types,Normal or Soft.
Be sure that the washer is grounded.
To avoid electrical shock,use
a metal pipe for the ground
connection. But, don't ground
the washer with gas pipes or
telephone lines to avoid to
dangers of explosion or lightning strike.
Do not put your hands into the spin
dryer basket when it is spinning.
Your fingers can be caught
by spinning laundry and
damaged.
Ventilation
opening must not be obstructed
by carpeting when the washing machine is
installed on a carpeted floor.
If the supply
cord of this appliance is damaged,
it must only be replaced by a repair shop
appointed by the manufacturer,because
special purpose tools are required.
Warning
to
avoid overfilling and damages
this appliance must be filled with the
operator present using a moderate water
supply pressure only.
Use the new hose-sets and old hose-sets
should not be reused.
Be sure to cover with the inner
cover on laundry before spinning.
This prevents laundry from
being tossed out and damaged.
Before washing,check all pockets.
If nails or pins remain in pockets,they may
damage the washer or clothes.
Close the water tap a little if the
water pressure is too high.
To avoid water splashes,
close the wash tub lid.
Never splash water on the control panel.
Disconnect the power cord from the
power supply when not in use.
Don't use excessively hot water.
(50
or more)
Plastic parts may be deformed or damaged.
Also, clothing may be deformed or decolored.
When you open this lid while
the spin basket is spinning,
the spinning will be stopped
by breake system.
(with pump)
POWER CORD
EARTH WIRE
WATER DRAIN HOSE
(WITHOUT PUMP)
SPIN DRYER BASKET
SPIN DRYER HATCH
WASH TUB LID
Be sure to keep the lid
closed during washing
and spinning.
WASH TUB
PULSATOR
The plug’s shape may not
correspond with this drawing.
CONTROL PANEL
SPIN DRYER LID
INNER LID
WATER DRAIN
HOSE
OVERFLOW
FILTER
LINT FILTER
DRAIN FILTER
DELICATE
WASH/RINSE
DRAIN
NORMAL
SOFT
WASH SPIN
W
A
S
H
S
E
L
E
C
T
O
R
W
A
S
H
T
I
M
E
R
C
Y
C
L
E
S
E
L
E
C
T
O
R
W
A
T
E
R
S
E
L
E
C
T
O
R
S
P
I
N
D
R
Y
T
I
M
E
R
DELICATE
WASH/RINSE
DRAIN
NORMAL
SOFT
W
A
S
H
S
E
L
E
C
T
O
R
W
A
S
H
T
I
M
E
R
C
Y
C
L
E
S
E
L
E
C
T
O
R
S
P
I
N
D
R
Y
T
I
M
E
R
Never allow children to operate
or play with the washer.
Children playing with the washer
may accidentally fall into the
washing tub.
SW-T65B1, SWT65C1
SW-T65A1
ADDITIONAL RINSE
(SHOWER RINSE)(FOR SW-T65B1, SWT65C1-Option)
W ASHING PROCEDURE
3 4
SPIN DRY
1. Before starting washing, check following;
Connect the water supply hose.
- Lay the drain hose down toward a sinkhole.
(In case no drain pump)
- Place the drain hose in sink or bath.
(In case drain pump)
- Connect the power cord to the power supply outlet .
Set the WA TER SELECTOR
KNOB to
SPIN and CYCLE
SELECTOR KNOB to
‘DRAIN’.
4. Set the CYCLE SELECTOR KNOB to
WASH RINSE .
(in case drain pump WASH )
5. Fill water in the wash tub
to the L lower water
level by carefully and
add the detergent.
6. Load laundry in the
wash tub and fill
water to proper
water level.
7. Set the WASH TIMER
1-15minutes.
8. After washing,set the
CYCLE SELECTOR KNOB
to ‘DRAIN
for drain.
1. Transfer the clothes into the spin basket
and arrange the clothes evenly.
RINSING
OVER FLOW RINSE
1. Set the CYCLE SELECTOR KNOB to
WASH RINSE . (In case drain pump WASH )
2. Supply the proper amount of water
as not to overflow the top of the
washing tub.
3. Set the WASH TIMER
2~3minutes.
3.As soon as the WASH TIMER
shuts off, turn off the water tap.
1.Keep suppling water(adjust water pressure
to ensure that the amount of water supplied
does not exceed that water drained.)
4. Drain the water.
Set the CYCLE
SELECTOR
KNOB to DRAIN
5.Repeat this cycle until drain water
is clean. (2~3 cycle)
2.Set the WASH
TIMER 6~8minutes.
4. Set the CYCLE
SELECTOR KNOB
to
DRAIN .
3. Close the spin dryer lid.
4. Set the SPIN DRY TIMER 1-5minutes.2. Be sure to attach the safety cover and
close the inner lid.
inner lid
safty cover
1
2
3
4
5
6
inner lid
safety cover
NORMAL
SOFT
2. Set the WASH SELECTOR KNOB
to the desired mode.
WASH SELECTOR
WASH SPIN
WASH SPIN
3. Set the WATER SELECTOR KNOB
to the desired mode.
(FOR SW-T65B1, SWT65C1)
TO WASH
After rinsing you can select this
course for more effective rinse
(Don't select only this course
for rinse.) Load the laundry
evenly into the spin basket.
Supply water for about 1minute.
Adjust the water flow to prevent
overflow from the wash tub.
After stopping water
supply, cover the
laundry with safety cover
and close the inner lid.
Close the spin dryer
lid.
Set the SPIN DRY
TIMER 2~3 minutes.
TYPE OF LAUNDRY
Thin(synthetic fiber)
wool
cotton
thick(cotton)
WASHING
SELECTION
NORMAL
SOFT
WASHING TIME
10 to15minutes
8 to10minutes
7minutes
2 to 5minutes
2 to 5minutes
KINDS OF CLOTHING
Extremely solid heavy fabric
Linen,cotton,etc.
Ordinary clothes
(underwear,etc)
Slightly solied synthetic
fiber
100%wool,mixed wool knitting,
thin synthetic fiber with tags
indicating hand washing
TROUBLE
The washer
does not work.
Clothes will
not move freely.
Incomplete
spinning
TROUBLE
Incomplete
draining
The spin dryer
basket will not
run.
CHECK POINT
Check that the power cord is
connected to a power outlet well.
Power stoppage?
Is the laundry overloaded?
Are the laundry arranged evenly?
WASHING TIME
INSTALLATION
Leave some space
Space at least 15cm between the washer
and the wall.
Place the washer on a sturdy flat surface.
If the washer is placed on an uneven or weak
surface, noise or vibration may be occured.
(Allowable is 2 )
Never install the washer near water.
Do not place the washer in steamy rooms or
where the washer is directly exposed to rain.
Moisture may destroy the electrical insulation
and cause an electrical shock hazard.
Avoid direct sunlight or heating devices.
As plastic and electrical components are
affected by direct heat, never place the
washer near heaters, boilers,etc.
Do not place under direct sunlight.
CONNECTING THE DRAIN HOSE
1. Before connecting the drain hose, remove the
cover (a) from the drain hole.
2. After pressing the joint ring (b), insert the drain
hose(c) to drain direction.
(In case of pump drained washer)
LAUNDRY GUIDE
MAINTENANCE
TROUBLE SHOOTING
CLEANING THE MACHINE
5 6
ENVIRONMENT
SPIN DRY TIME
DETERGENT
CLENING THE LINT FILTER
If the dregs are filled up in the lint filter after
finishing the wash, push down and pull it
out as shown in figure.
Remove the collected lint and rinse the filter net.
OVERFLOW FILTER
Pull the upper side of the overflow filter
with two fingers into the hole ‘A’
in the direction of arrow as
shown in the figure.
CLEANING THE WASH TUB
First,fill water in the wash tub to ‘L’ level, then drain
water from the wash tub simultaneously with
operating wash cycle for 1~2 minutes.
Close the wash tub lid.
WHEN YOU LOAD THE LAUNDRY INTO
THE SPIN BASKET.
Press the laundry evenly and put the safety
cover into the spin basket drum as shown in
the figure.
TO PICK OUT THE CLOTHING WHICH HAS
FALLEN BETWEEN THE BASKET AND TUB.
For safty,pull the power supply plug out of the socket.
DRAIN FILTER
In case of incomplete drain,disassemble
the drain filter with screw driver(+), and
remove lints from the filter as shown
in the filter as shown in the figure.
TIME
1min.
1~2min.
3~5min.
5min.
AMOUNT OF
DETERGENT
30g
40g
50g
WATER
LEVEL
Low (30 )
Middle(40 )
High (50 )
The amount of detergent is average.
Follow the instruction detergent printed
on the package for amount of detergent.
Choose the amount of detergent
depending on the fabric type.
CHECK POINT
Is the filter clogged
with lint?
See “Cleaning the
machine” on page 5.
Is the spin dryer lid closed
completely?
Are laundry(socks,etc.) falling
out of the spin dryer basket and
clinging to the axle?
See To pick out... on page 6.
70~80cm
Lay down the washer with its back facing downward.
Insert four legs into the leg mounting sections of the
base corners of the main body.
Insert the claw of the leg with the
square hole of the leg
mounting section, and
push the leg in the arrow
direction as shown in the
figure until it clicks.
Claw
Square hole
Bottom face of main body
LEG
A
MOUNTING THE LEGS
1.Disassemble a screw from the spin dryer hatch.
2.The spin dryer hatch is fixed to the brim by the concave and convex
parts at two places.
Expand the concave and
convex parts, and pull up
the spin dryer hatch to remove it.
3. Remove the clothing
4. Close the spin dryer hatch.
Push in hatch firmly until
the catch at the front is
engaged securely.
Install the drain hose about
70~80cm above the ground
for pump model.
1
2
CLEANING THE WASHER BODY
Wipe off strains on the cabinet and operation panel
with soft cloth.Do not use benzene, thinners, cleanser,
or wax, nor scrub the washer with a brush.
Painted surfaces or piastic parts wii be damaged.
(C)
(b)
(C)
(b)
(a)
1
2
SW-T65A1P W 776mm D 434mm H 844mm
SW-T65B1P W 776mm
D 444mm H 953mm
SWT65C1P W 776mm
D 436mm H 941mm
0.05~0.78 MPa
0.5 ~ 8.0 f/
50 %
50
Washing 1Hour Spinning 15minutes
SW-T65A1 24kg SW-T65A1P 26kg
SW-T65B1 26kg SW-T65B1P 28kg
SWT65C1 26kg SWT65C1P 28kg
IF YOU NEED HELP.
Do not hesitate to call your local samsung service center.
They will be willing to help you.
Be sure to give them your name,address,telephone number and the purpose of the call.
SPECIFICATION
DIMENSIONS (mm)
WATER PRESSURE
WEIGHT
EXTRACTION EFFICIENCY
STANDARD QUANTITY OF WA TER
RATING TIME
DC68-00274A
Owner’s Instructions

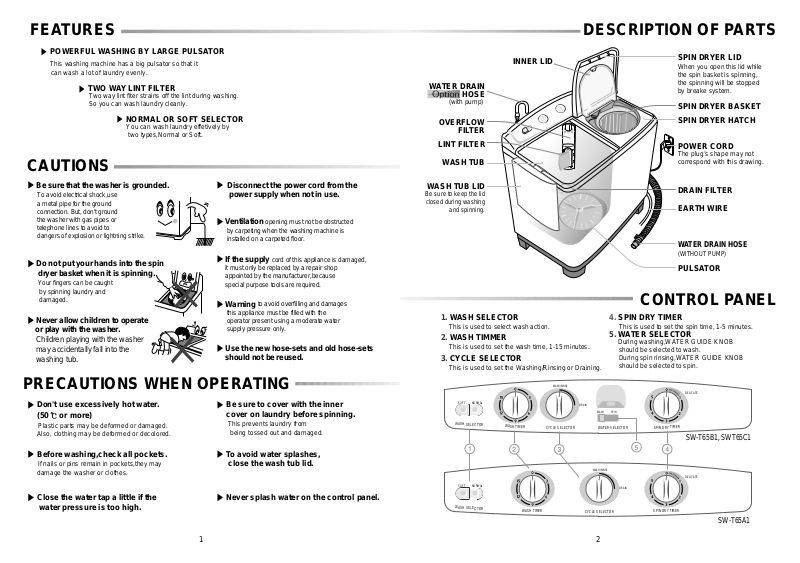

FEATURES 1
CAUTIONS 1
PRECAUTIONS WHEN OPERATING 1
DESCRIPTION OF PARTS 2
CONTROL PANEL 2
WASHING PROCEDURE 3
TO WASH 3
SPIN DRY 3
RINSING 4
OVER FLOW RINSE 4
ADDITIONAL RINSE 4
INSTALLATION 5
ENVIRONMENT 5
CONNECTING THE DRAIN HOSE 5
MOUNTING THE LEGS 5
CLEANING THE MACHINE 5
LAUNDRY GUIDE 6
MAINTENANCE 6
TROUBLE SHOOTING 6
SPECIFICATIONS
Before operating the unit, please read this manual
throughly, and retain for future reference.
SW-T65A1(P)/SW-T65B1(P)/
SWT65C1(P)
Loading...
