Samsung SWD-M100ZKECLW User Manual

Samsung Mondi™

WiMAX/Wi-Fi

Mobile Internet Tablet

User Guide

Please read this guide before operating your

device, and keep it for future reference.

Intellectual Property

All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Device, including but not limited to, accessories, parts, or software relating there to (the “Device System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers.

Samsung Telecommunications America (STA), LLC

Headquarters: Customer Care Center: 1301 E. Lookout Drive 1000 Klein Rd. Richardson, TX 75082 Plano, TX 75074 Toll Free Tel: 1.888.987.HELP (4357) Internet Address:

2010 Samsung Telecommunications America, LLC is a registered trademark of Samsung Electronics America, Inc. and its related

entities. Do you have questions about your Samsung Device? For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at:

www.samsungtelecom.com/support

http://www.samsungusa.com

SWD-M100_TWC_UG_CL24_PS_030510_F5

The Bluetooth® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth SIG.

microSD™ and the microSD logo are Trademarks of the SD Card Association.

Open Source Software

Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit:

http://www.samsungnetwork.com/Home/opensource

Disclaimer of Warranties; Exclusion of Liability

EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS.

Table of Contents

Section 1: Introduction ...................................................4

Accessing the Online User Guide . . . . . . . . . . . . . . . . . . . . . . . 4

Powering the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Initial Device Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Charger and Battery Replacement . . . . . . . . . . . . . . . . . . . . . . 6

Using the Kickstand . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

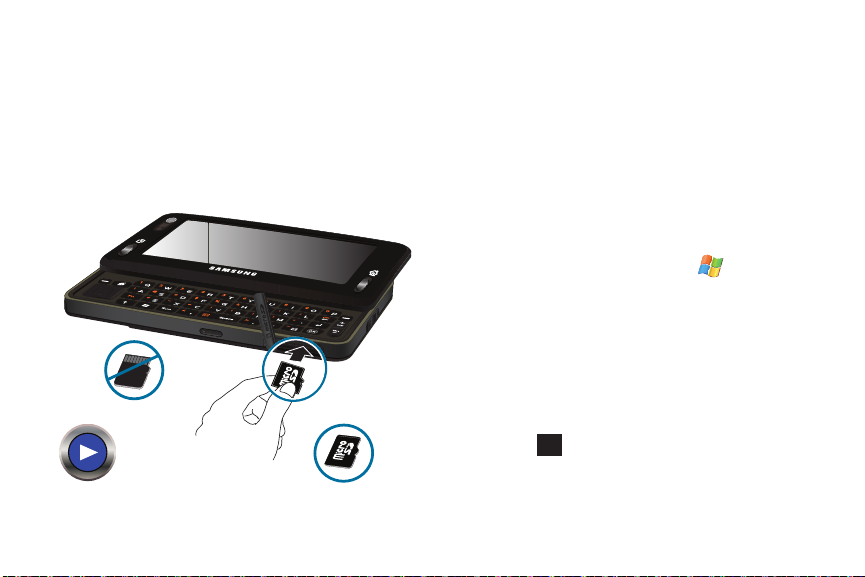

microSD Card Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Rebooting the Device After a Lockup . . . . . . . . . . . . . . . . . . . 11

Installing the Mondi into the Navigation Car Kit . . . . . . . . . . . . 12

Section 2: Basics .........................................................14

Features of Your Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14

Your Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

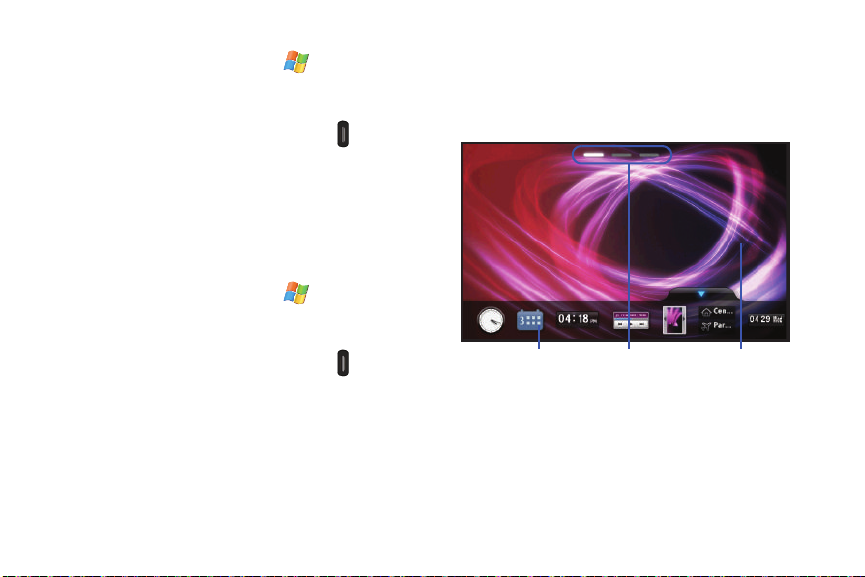

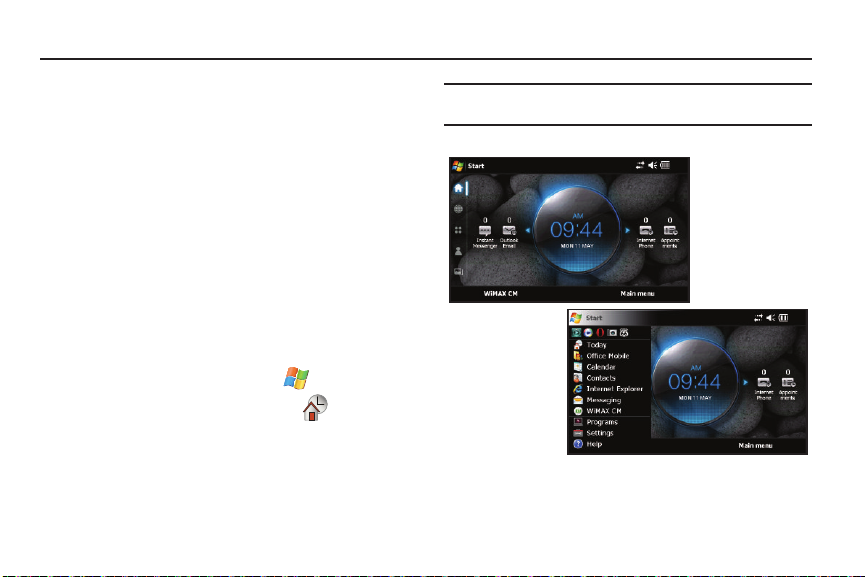

Navigating the Today Screen . . . . . . . . . . . . . . . . . . . . . . . . .19

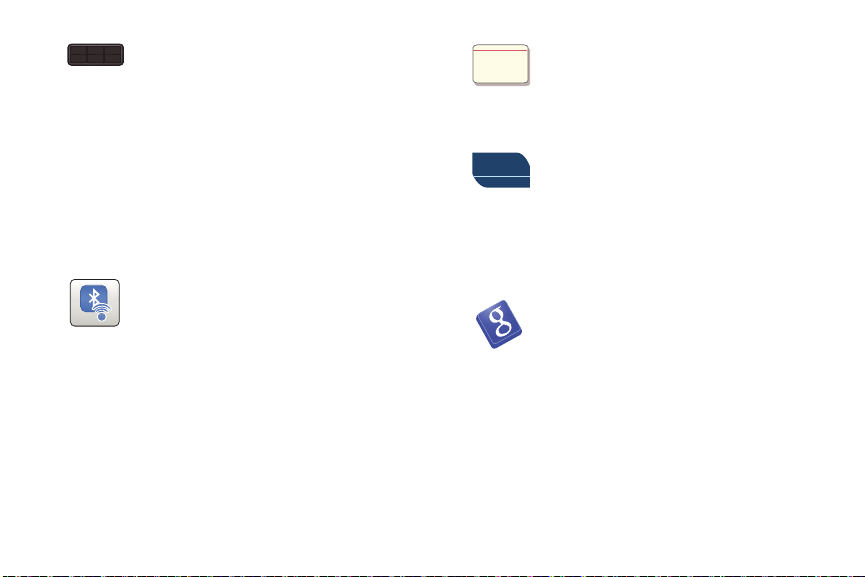

Title Bar Icon Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Locking Your Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Calibrating your Touchscreen . . . . . . . . . . . . . . . . . . . . . . . . . 25

Menu Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

Adjusting Your Volume Levels . . . . . . . . . . . . . . . . . . . . . . . . . 28

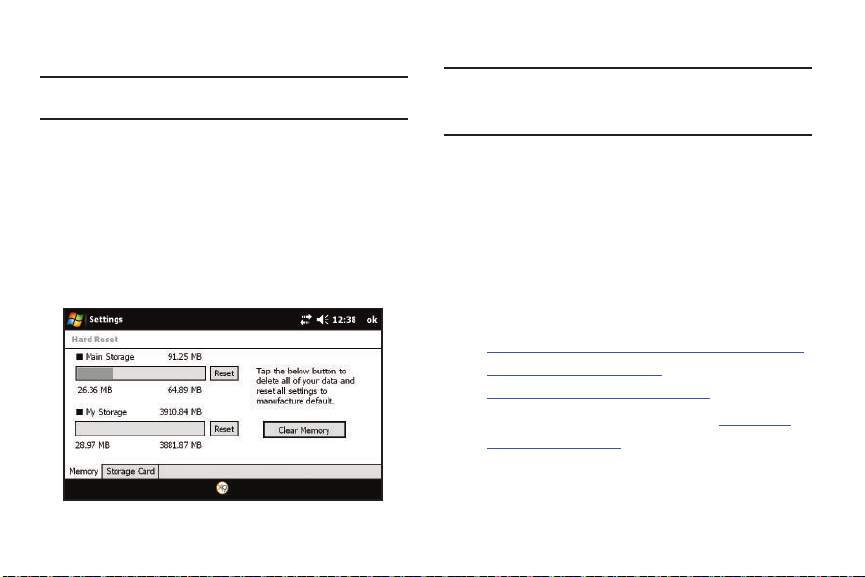

Formatting the Device’s Memory (Hard Reset) . . . . . . . . . . . . 29

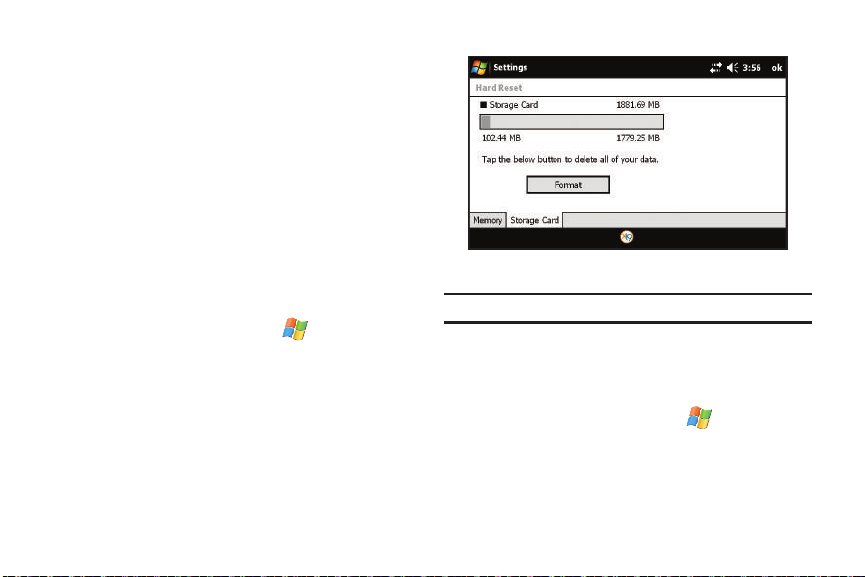

Formatting the microSD Card . . . . . . . . . . . . . . . . . . . . . . . . . 31

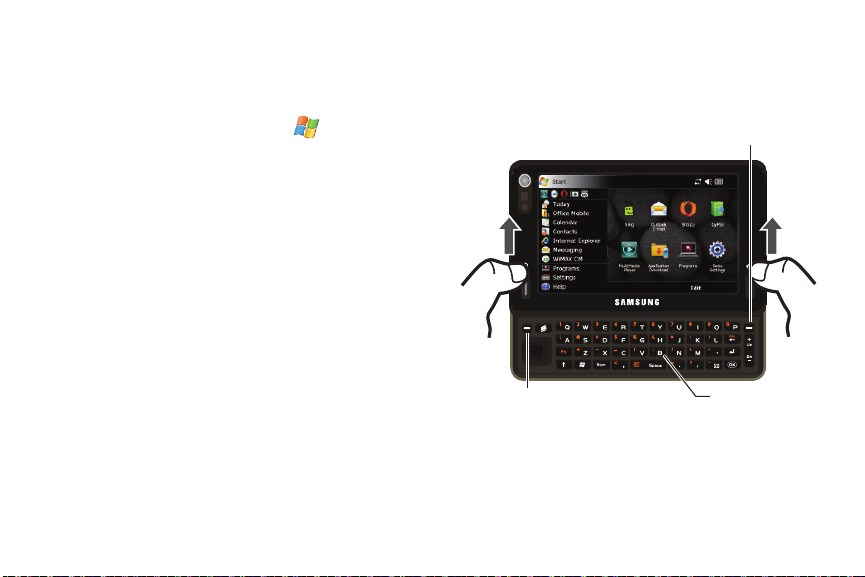

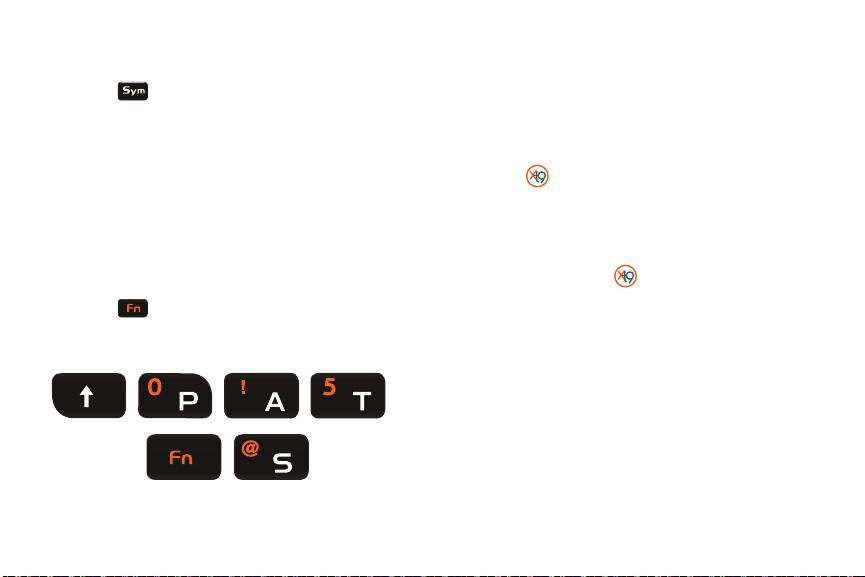

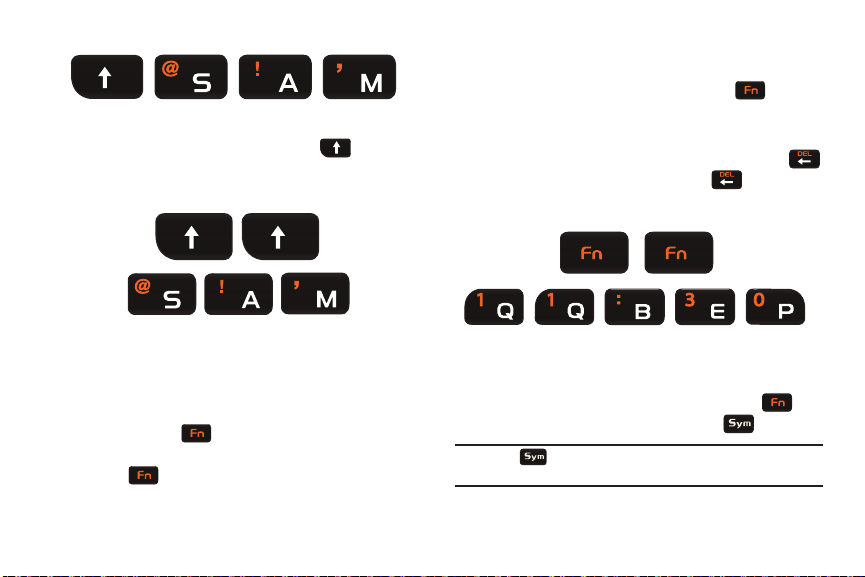

Entering Text Using the QWERTY Keyboard . . . . . . . . . . . . . . . 31

Entering Text using the Onscreen Keyboard . . . . . . . . . . . . . . 34

Adjusting Text Input Settings . . . . . . . . . . . . . . . . . . . . . . . . . 34

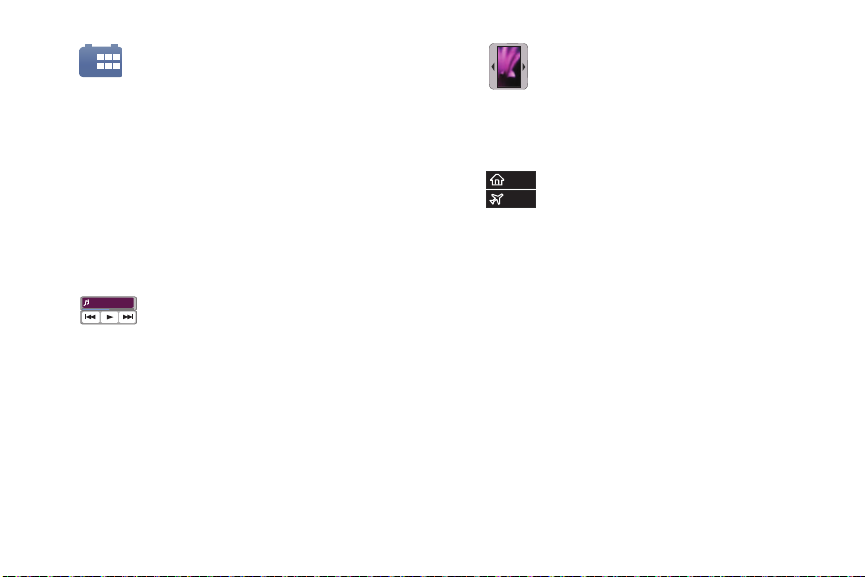

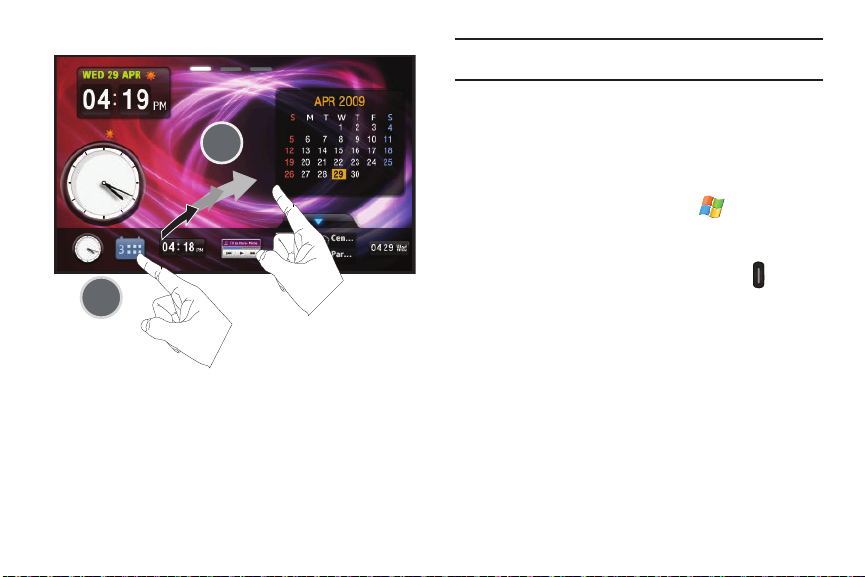

Widgets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Widget Bar Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Section 3: Communication and Connection ................ 42

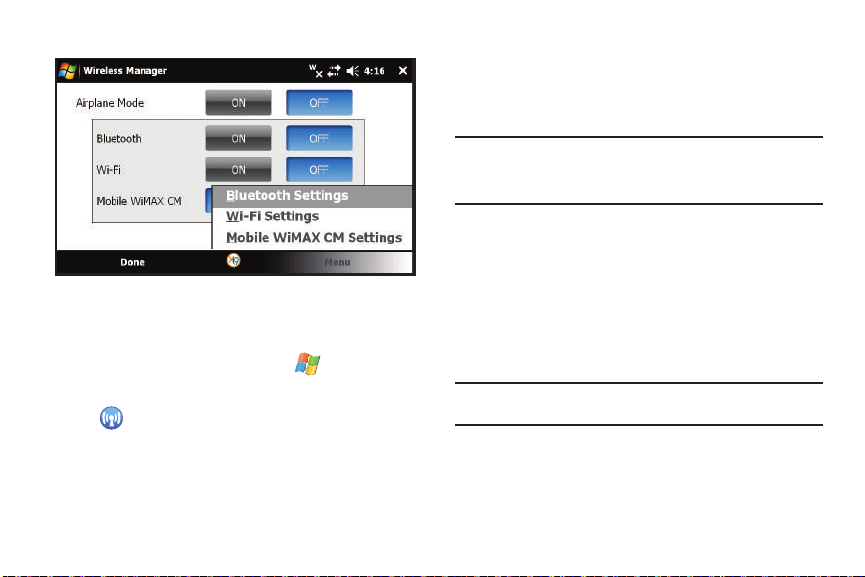

Communication Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

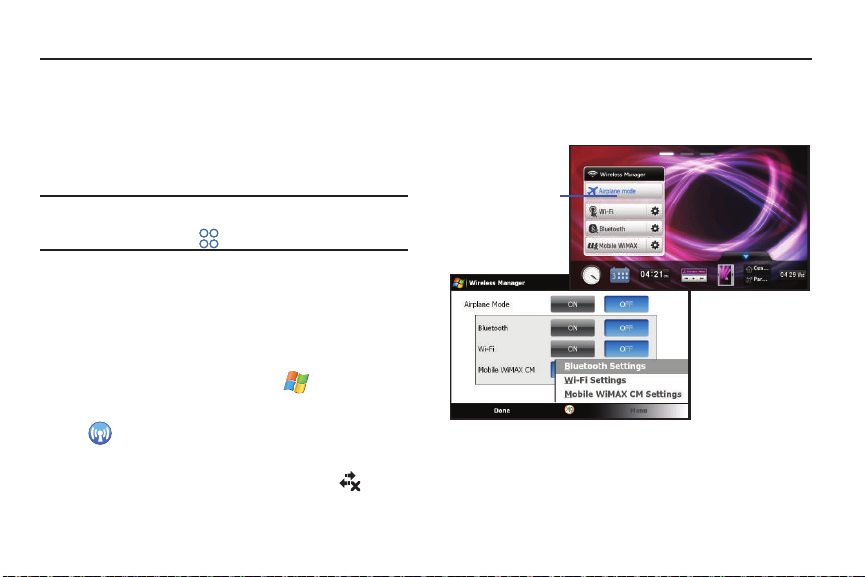

Airplane Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Activating Wi-Fi Communication . . . . . . . . . . . . . . . . . . . . . . . 44

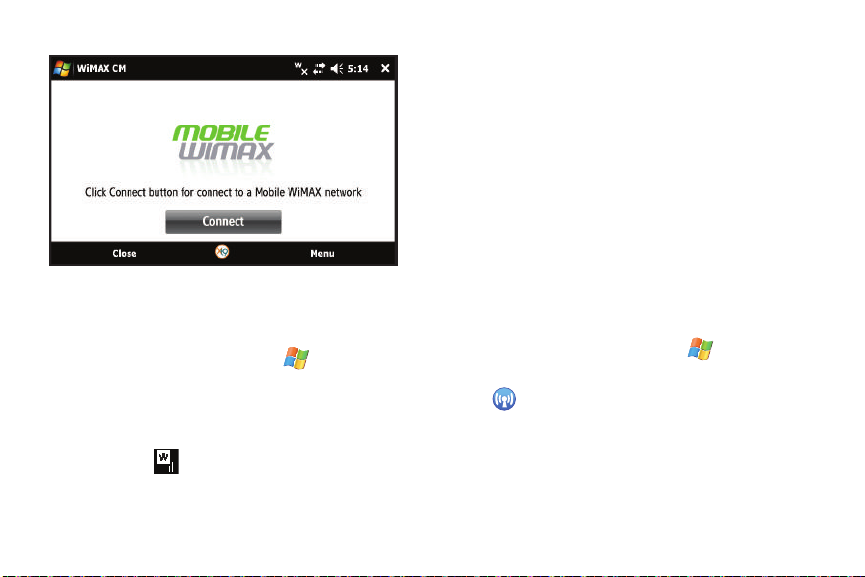

Connecting to a Mobile WiMAX Network . . . . . . . . . . . . . . . . . 45

Bluetooth Communication . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Section 4: Customizations ........................................... 50

Customizing the Today Screen . . . . . . . . . . . . . . . . . . . . . . . . 50

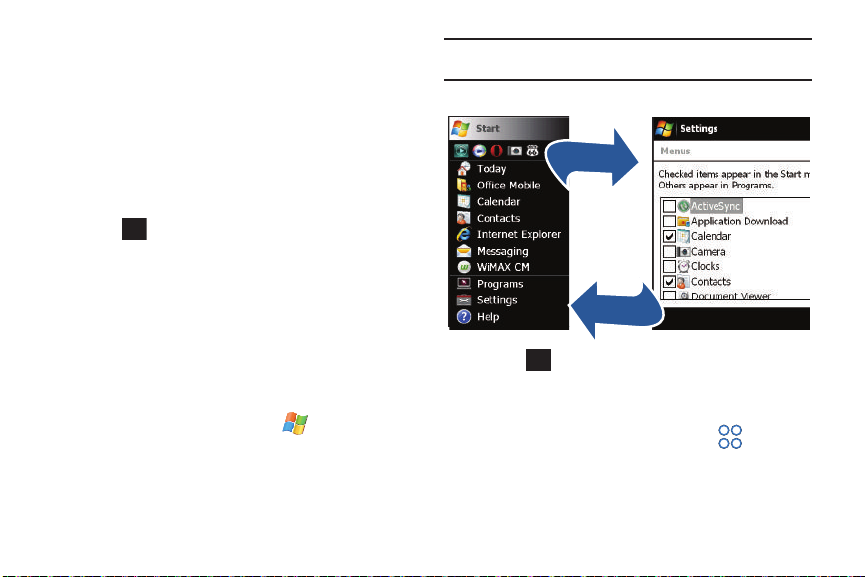

Customizing the Start Menu . . . . . . . . . . . . . . . . . . . . . . . . . . 52

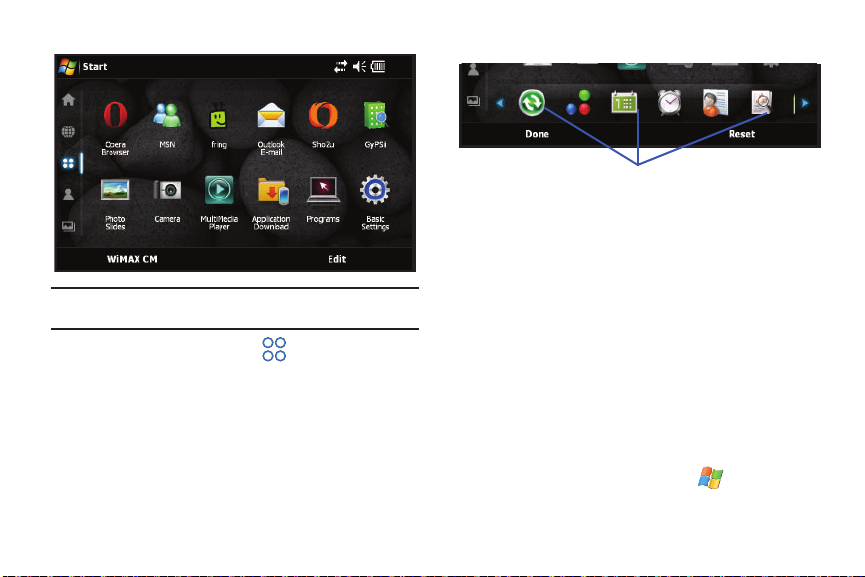

Customizing the Applications Panel . . . . . . . . . . . . . . . . . . . . 52

Customizing Your Backlight Display . . . . . . . . . . . . . . . . . . . . 53

Customizing Your Power Settings Page . . . . . . . . . . . . . . . . . 54

Customizing the Size of the Onscreen Type . . . . . . . . . . . . . . 56

Section 5: Synchronization .......................................... 57

Computer Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Installation of ActiveSync on Your Computer . . . . . . . . . . . . . . 57

Connection of ActiveSync . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

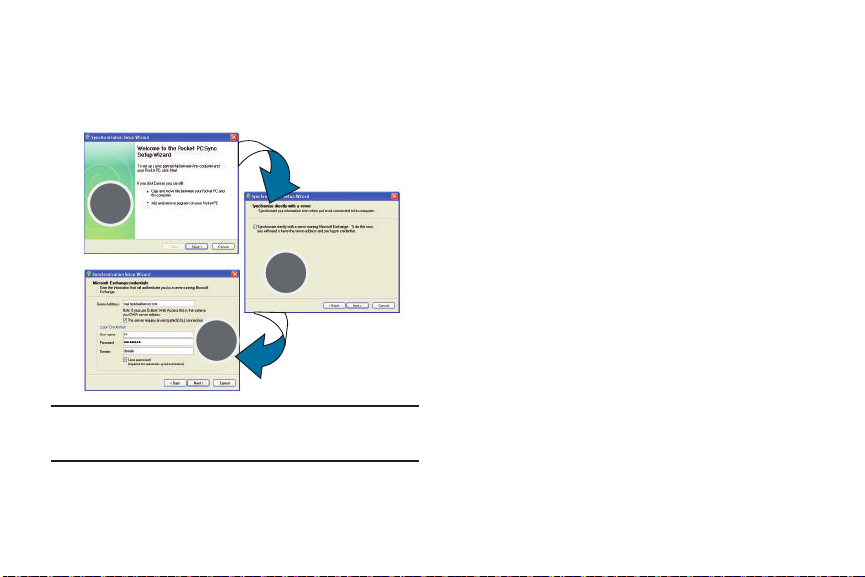

Configuring ActiveSync . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

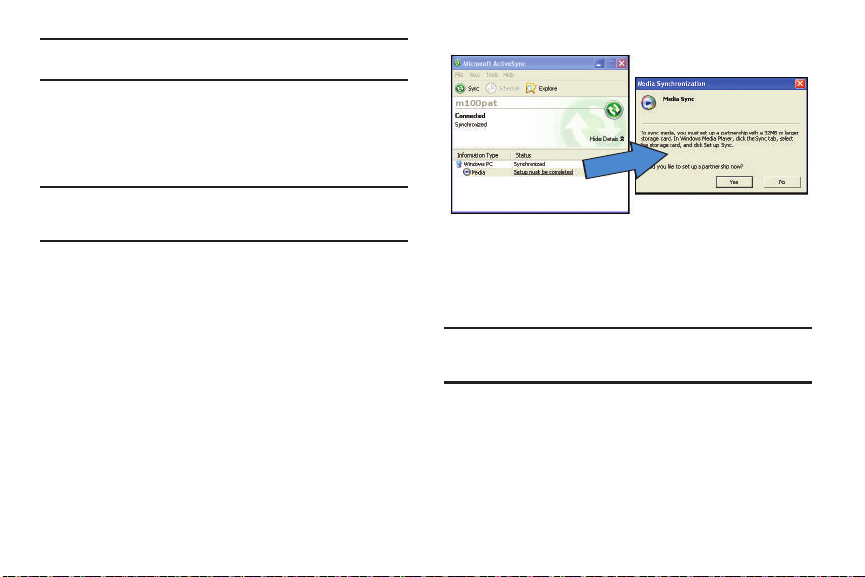

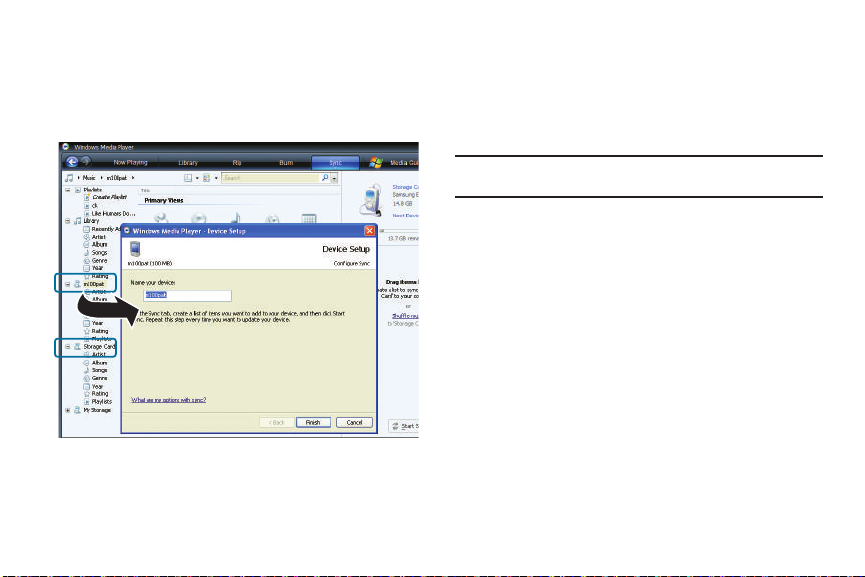

Setting Up Windows Media Player Sync Options . . . . . . . . . . . 60

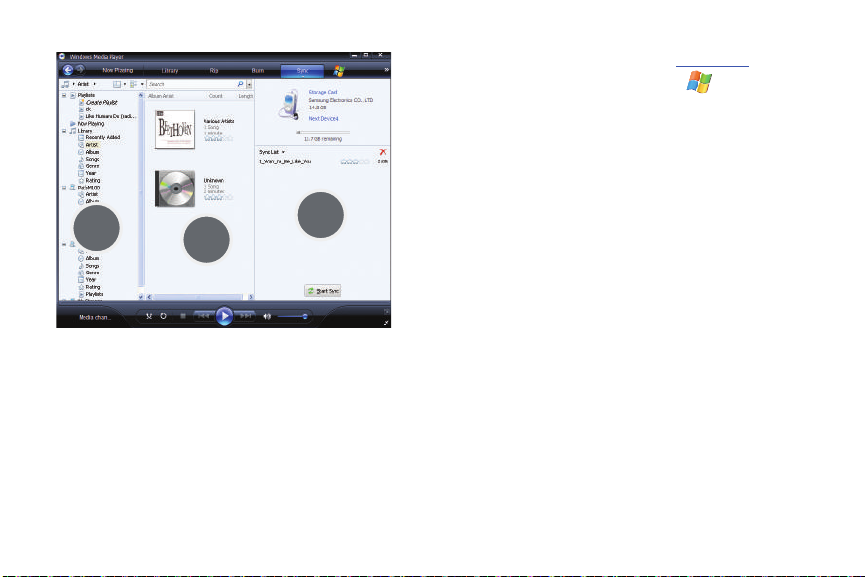

Synchronizing Music with Windows Media Player . . . . . . . . . . 61

Connecting to the Device via ActiveSync . . . . . . . . . . . . . . . . 62

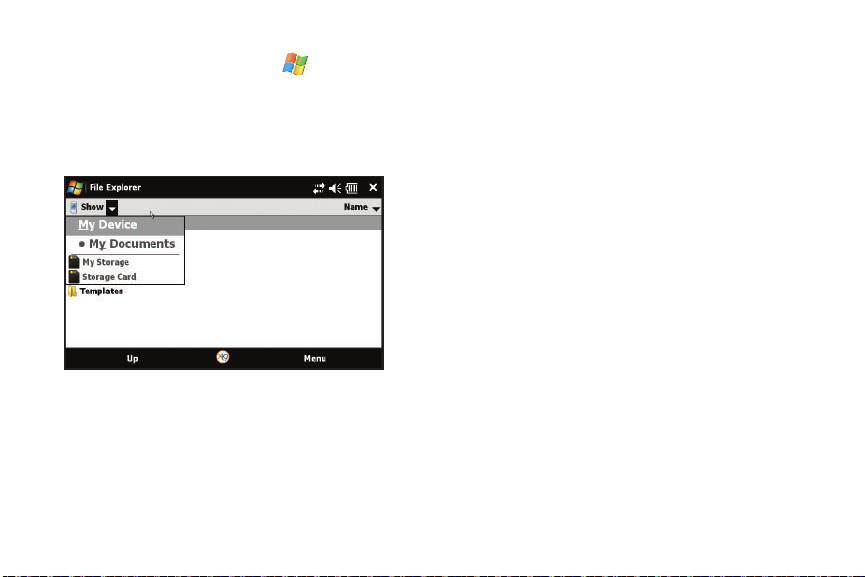

Loading Files to Your microSD Card . . . . . . . . . . . . . . . . . . . . 63

Section 6: Email Setup ................................................. 67

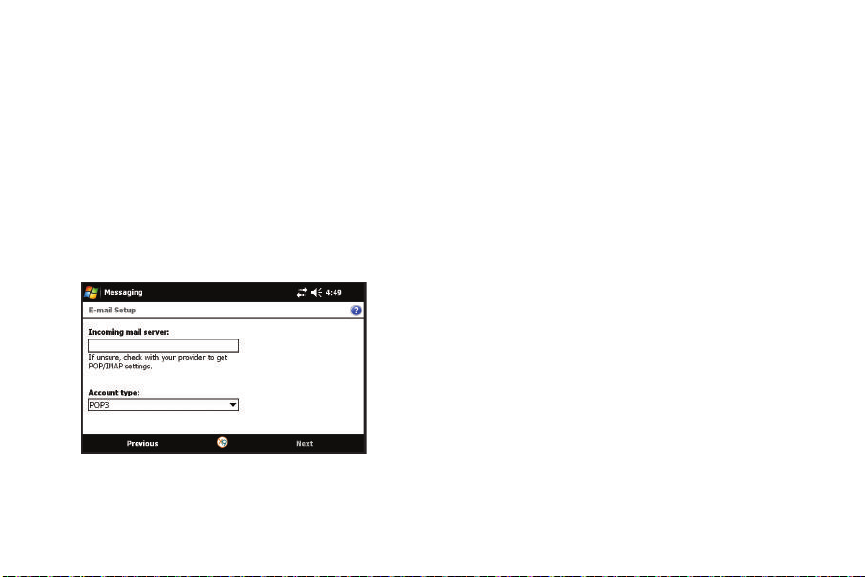

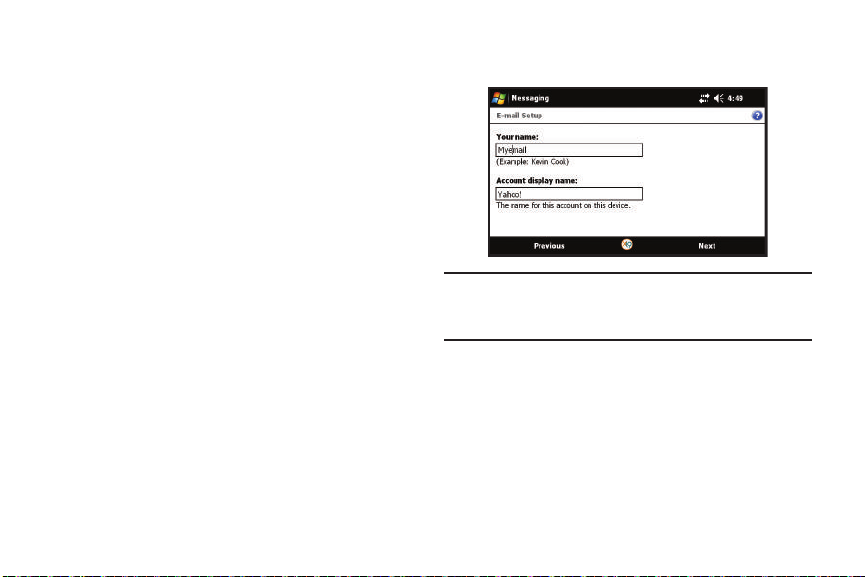

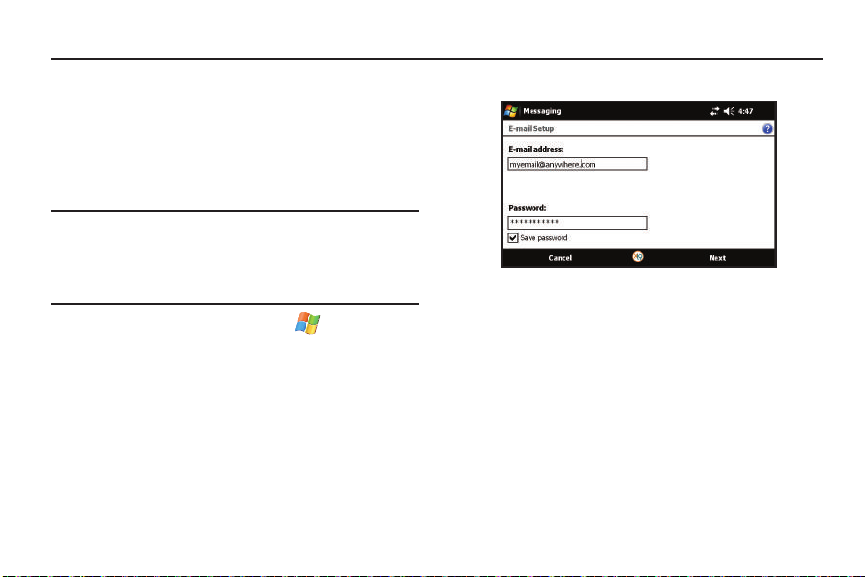

Setting Up an IMAP or POP3 Account . . . . . . . . . . . . . . . . . . . 67

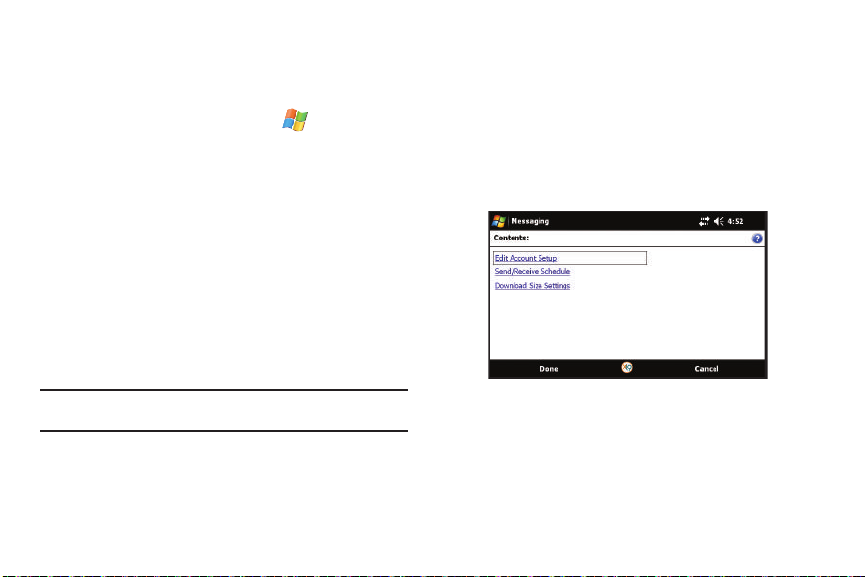

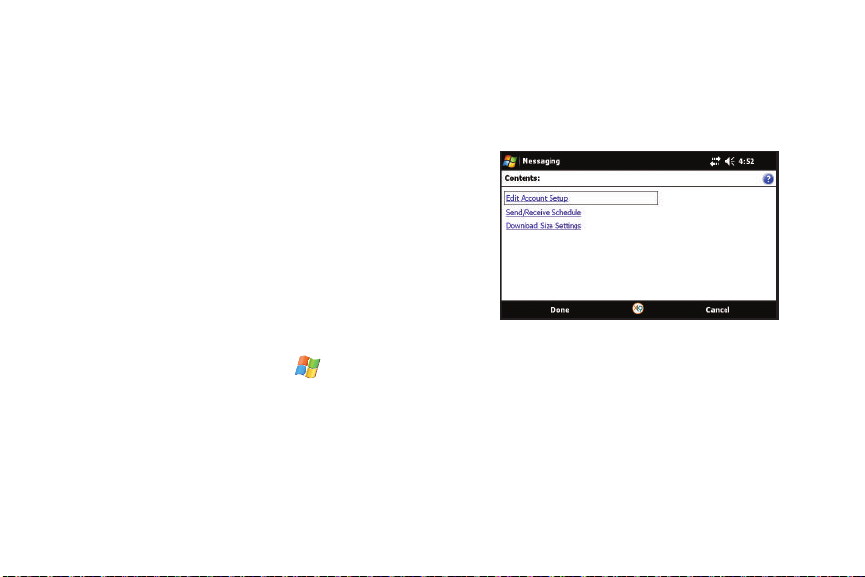

Editing an Email Account . . . . . . . . . . . . . . . . . . . . . . . . . . . . 71

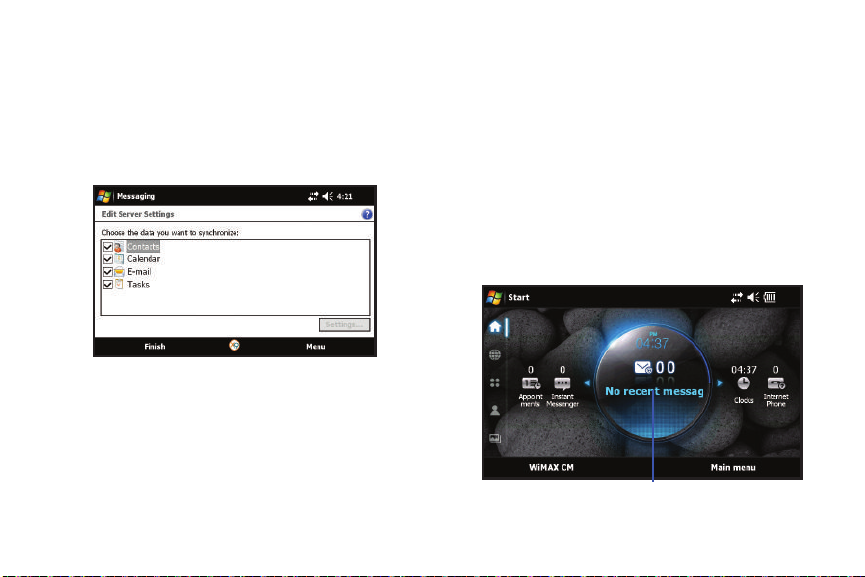

Using ActiveSync to Configure Your Outlook

Exchange Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Checking Your Outlook Email from the Today Screen . . . . . . . 75

Section 7: Calendar and Contacts ...............................77

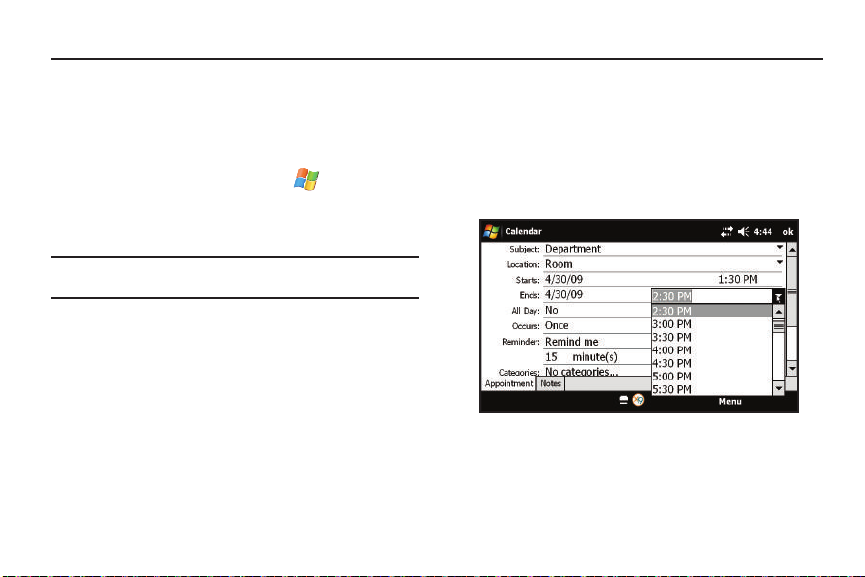

Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77

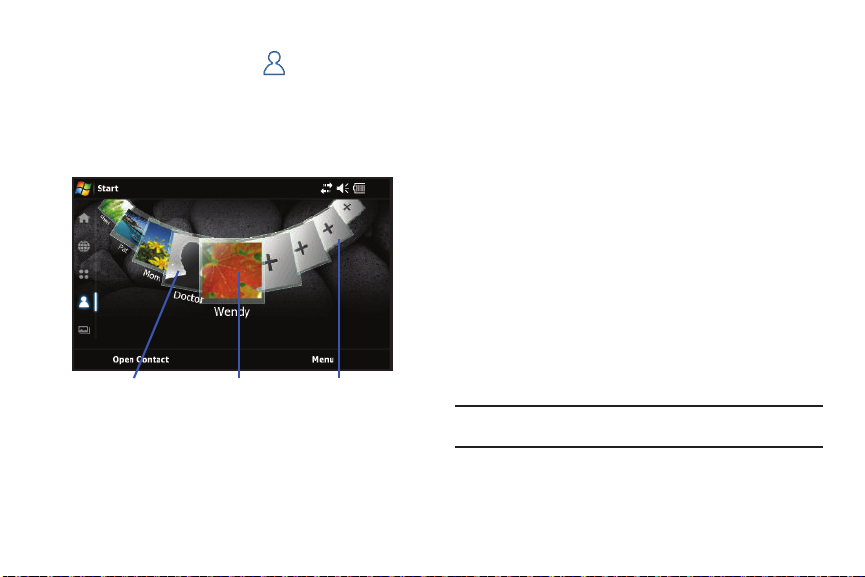

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

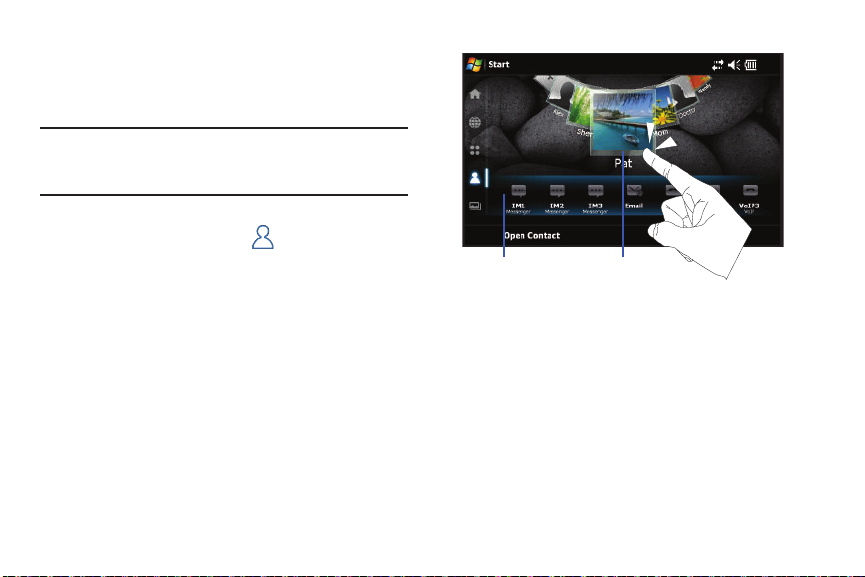

Utilizing the Communication Bar . . . . . . . . . . . . . . . . . . . . . . 83

Section 8: Applications ................................................84

Microsoft Mobile Applications - Internet Explorer . . . . . . . . . . 84

Microsoft Mobile Applications - Office Mobile . . . . . . . . . . . . . 85

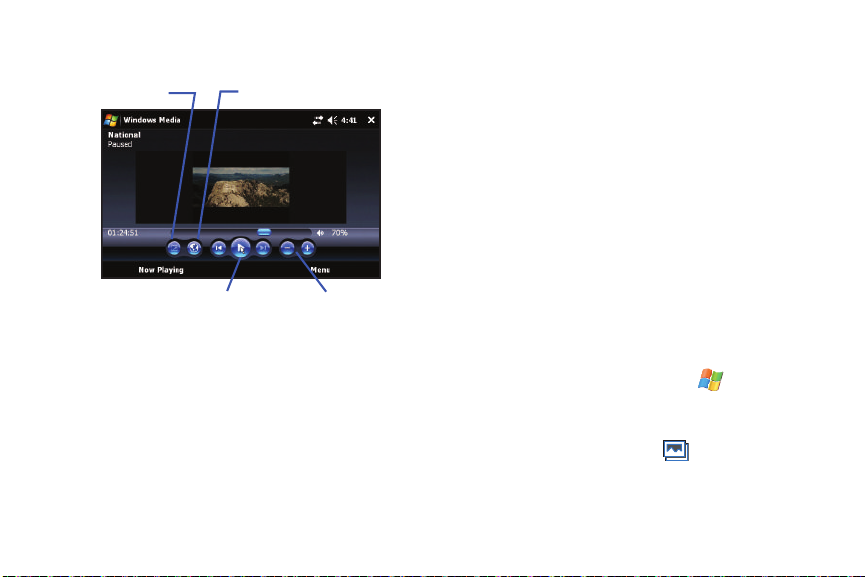

Windows Media Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

MultiMedia Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89

Instant Messenger . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

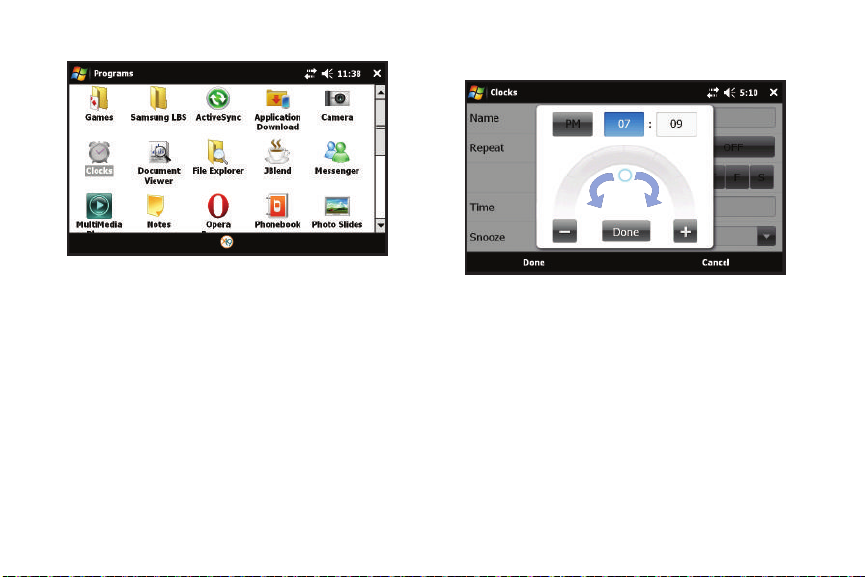

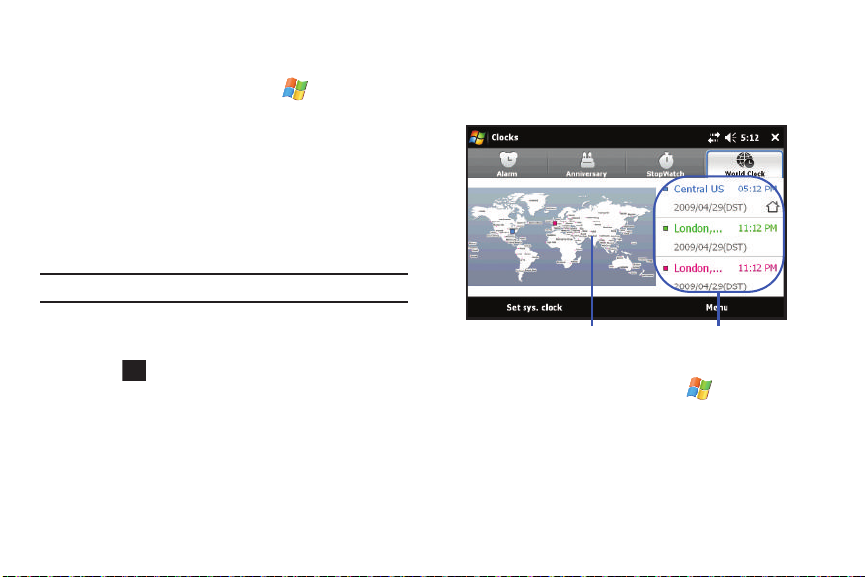

Clocks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91

Using TaskSwitcher to Close Applications . . . . . . . . . . . . . . . 98

ROUTE 66 Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99

WiMAX Connection Manager . . . . . . . . . . . . . . . . . . . . . . . . 104

Section 9: Camera and Camcorder ............................ 114

Taking a Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114

Camera Page Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Shooting Video . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Camcorder Page Overview . . . . . . . . . . . . . . . . . . . . . . . . . . 119

Navigating the Multimedia Page . . . . . . . . . . . . . . . . . . . . . 122

Deleting an Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Using Photo Slides . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Beaming an Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 124

Attaching an Image to an Outgoing Email . . . . . . . . . . . . . . 124

Assigning an Image to a Contacts Entry . . . . . . . . . . . . . . . . 125

Assigning an Image to the Today Background . . . . . . . . . . . 125

Section 10: Health and Safety Information ............... 127

Health and Safety Information . . . . . . . . . . . . . . . . . . . . . . . 127

Please Note the Following Information When Using

Your Handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Samsung Mobile Products and Recycling . . . . . . . . . . . . . . . 127

UL Certified Travel Adapter . . . . . . . . . . . . . . . . . . . . . . . . . 127

Consumer Information on Wireless Devices . . . . . . . . . . . . . 128

Road Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Responsible Listening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 134

Operating Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Using Your Device Near Other Electronic Devices . . . . . . . . . 137

Potentially Explosive Environments . . . . . . . . . . . . . . . . . . . 138

FCC Notice and Cautions . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

Other Important Safety Information . . . . . . . . . . . . . . . . . . . 139

Product Performance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

Availability of Various Features/Ring Tones . . . . . . . . . . . . . 140

WiMAX Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Battery Standby and Talk Time . . . . . . . . . . . . . . . . . . . . . . 140

Battery Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 140

Window Mounted Accessory Precautions . . . . . . . . . . . . . . . 142

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 142

Section 11: Warranty Information .............................144

Standard Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . 144

End User License Agreement for Software . . . . . . . . . . . . . . 147

Index ............................................................................152

Section 1: Introduction

RESET

Power Button

The Mondi™ (WiMAX Wireless Internet Tablet) now lets you enhance your on-the-go experience. You can now take your computer with you and enjoy all of its functionality on a tablet powered by Microsoft’s Windows Mobile™ 6.1 technology.

Mondi™ offers a 4.3-inch diagonal screen which easily displays your favorite documents, data, Web sites, and expands your online experiences with applications such as Microsoft Office Suite, Route 66®, Widget application shortcuts, Camera/Camcorder, and Windows Media Player®. All this access is accomplished far easier with the availability of a full QWERTY keyboard.

Accessing the Online User Guide

1. Launch your Internet browser.

2. Enter the following address into the Address field.

•

www.samsung.com/us/mondi/userguide

Powering the Device

Starting up on your new device is quick and easy. This section walks you through the procedures to turn on your device, use the charger, install an optional microSD card, and reset the device.

Powering On your Device

䊳

Press and hold , until it vibrates and then shows the

powering up animation.

Powering Off your Device

䊳

Press and hold until you see and hear the powering

down sequence (Samsung information with sound) on the

display screen.

Introduction 4

Initial Device Setup

Left Action key

Stylus

If your device has never been powered on before and is initializing for the first time, you will need to follow these procedures. These same steps are necessary if the device is ever Hard Reset (to factory default parameters - page 29).

1. Touch the main Windows Mobile 6.1 screen to begin the

initialization process.

2. Remove the Stylus from the side compartment (adjacent to

the Left Action key) (seen below).

3. Use your stylus to calibrate the touch accuracy of the

screen by both accurately and firmly touching the center of

each onscreen crosshair. Repeat this process for every

crosshair that appears until this step has successfully completed.

Warning!:

If your device has a touch-screen display, please note that a touch-screen responds best to a light touch from the pad of your finger or a non-metallic stylus. Using excessive force or a metallic object when pressing on the touch-screen may damage the tempered glass surface and void the warranty. For more information, refer to “Warranty Information” on page 144.

Note:

This process may need to be repeated to accurately calibrate the device. Once successfully calibrated, you are directed onto the Time and Date screen.

4. Use the drop down lists to adjust the fields within the date

and time page. Options include Time zone, Date, and Time.

•

The

Date

field launches an onscreen calendar. Touch a date from

the calendar to make your update.

•

The

Time

field requires that you first touch an onscreen number,

then use your QWERTY keyboard to update the time value.

5. Touch

to complete the Data and Time updates.

Charger and Battery Replacement

Note:

Use only Samsung-approved batteries and chargers with your device. Failure to use a Samsung-approved battery and charger may increase the risk that your device will overheat, catch fire, or explode, resulting in serious bodily injury, death, or property damage.

Note:

Long backlight settings, searching for service, vibrate mode, browser use, and other variables can reduce the battery’s usage times.

Charging the Battery

Charge the device’s battery as soon as possible so you can begin using your device. Even though the battery has been charged prior to packaging, it is important to keep track of your battery’s charge.

If the battery level becomes too low, your device automatically turns off, and you will lose any current information. For a quick check of your battery level, glance at the battery charge indicator located in the upper-right corner of your device’s display screen. If the battery charge is getting too low, the battery icon ( ) blinks and the device sounds a warning tone.

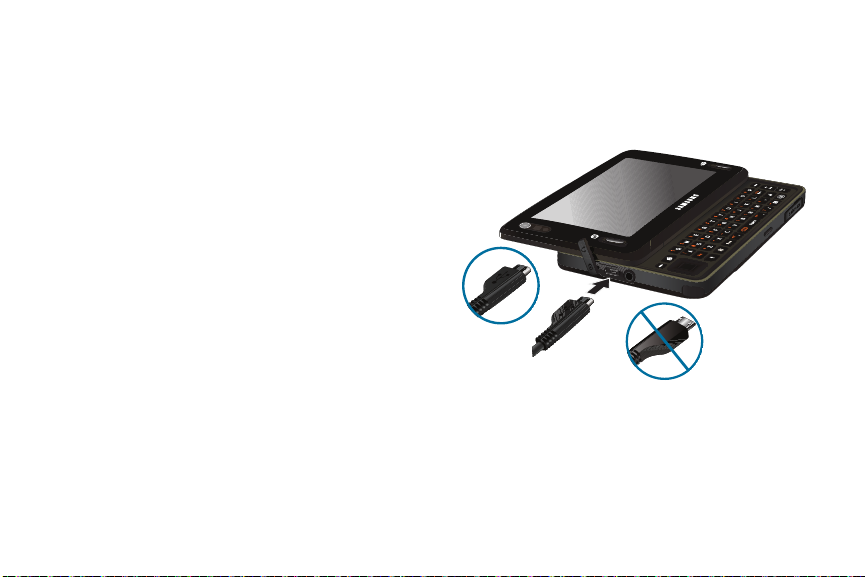

Using the Travel Adapter

Your device is powered by a rechargeable Li-ion battery. The included Travel Adapter charges your device’s internal battery. Use only Samsung-approved batteries and chargers.

1. Locate the Power/USB Data jack (page 8).

2. Flip open the protective cover and plug the flat end of the

charger into the device’s Power/USB Data jack located on the side of the device.

3. Plug the other end into a compatible electrical outlet.

Introduction 6

Installing the Battery

Incorrect

Correct

MIC MIC

Warning!:

Do not handle a damaged or leaking Li-Ion battery as this action can result in being burned.

1. In a single motion, press down on the cover, slide it away

from the lens (1), and then carefully lift the battery cover

(2) away from the device.

2. Insert the battery into the opening (3), making sure to line

up the gold contacts on the inside of the battery to those

on the device. Gently press down to secure the battery (4).





3. Replace the cover by lining up the tabs and then firmly

sliding the cover away from the lens until it snaps into

place.

Replacing the Batter y

If there is a need to replace the pre-installed battery, follow these instructions.

Warning!:

Do not handle a damaged or leaking Li-Ion battery as this action can result in being burned.

1. Make sure the device is powered off. For more

information, refer to “Powering Off your Device” on

page 4.

2. In a single motion, press down on the cover and slide it

away from the lens and then carefully lift the battery cover

away from the device.

3. Slide your finger into the removal grooves (1) and carefully

remove the previous battery from the battery compartment (2).

Introduction 8





Using the Kickstand

The Mondi comes with a kickstand that is built into the rear battery cover and can be pulled out to support the device when rested upon a flat surface.

1. Turn the unit over to reveal the back battery cover.

2. Insert your finger into the groove at the end of the stand

and carefully pull outwards. When fully extended, the

stand rests at a 45-degree angle from the battery cover.

3. Lay the device on a flat surface.

Note:

Be careful not to extend the kickstand past the 45-degree angle as this will damage the stand.

microSD Card Overview

Although your device comes with 4GB of built-in memory, you can supplement this storage capacity by adding an optional microSD™ (Secure Digital) memory card. This added card is used to provide a larger capacity storage medium to your device. It allows you to store data, documents, images, videos, and music onto your microSD card vs within device’s internal memory.

Note:

The device has been tested to support cards of up to 32GB. This microSD card is an optional accessory, a card greater than 2GB is recommended.

Warning!:

DO NOT remove a microSD card while files are being accessed or transferred, as this can result in loss or damage of data.

Caution!:

Make sure your battery is fully charged before accessing/using the microSD card. Accessed data may become damaged or unusable if the battery runs out while using the microSD card.

MIC

Caution!:

Ejection of the card is spring-loaded. As the microSD card is being discharged from the slot, be prepared to catch it and keep it from falling onto the floor.

Installation of the microSD Card

1. Locate the microSD card slot.

2. Flip open the microSD card slot cover.

3. With the gold contact pins facing downward, carefully

insert the card into the opening and firmly push it in until

you hear a click (indicating the card is securely installed).

Incorrect

4. Once you are notified, touch

Correct

Hide

(from the bottom left of

the screen) to acknowledge the card is properly inserted

and ready to use.

Important!:

It is recommended you only use an optional microSD card of at least 2GB (up to 16GB). Using non-recommended microSD cards could cause data loss and damage your device.

Introduction 10

Removal of the microSD Card

RESET

Reset Slot

1. Locate the microSD card slot on the underside of the

device and flip open the microSD card slot cover.

2. Firmly press the card into the slot and release it. The card

should pop partially out of the slot.

Note:

You may need to use the tip of the included Stylus to push the card into the slot.

3. Remove the card from the slot.

4. Place the microSD card cover back over the slot.

Rebooting the Device After a Lockup

The Reset button allows you to quickly turn off the device in the event of a program or application error. In this case your Mondi™ would appear to “freeze” and become unresponsive.

1. Turn the device over and locate the Reset button positioned

adjacent to the Power button (seen below).

RESET RESET

2. Firmly insert the soft plastic tip of the included Stylus into

this slot or until the device exits the current screen and cycles power to the device (turns off then back on)

(page 5).

Note:

This reset action retains all of your device’s default parameters and settings. This action is similar to that of a soft reset function on your computer which only restarts the machine while maintaining all current data intact.

Installing the Mondi into the Navigation Car Kit

Suction Cup

Cradle Connector

Suction Cup Release









Suction Holder

Cradle

Mondi

Clasp

Mondi comes with a Car Kit that allows you to mount the device onto a car’s windshield. This is useful when using the Mondi’s Route66™ application to receive (call out/display) driving directions. The kit consists of a Car Cradle and Suction Holder.

Important!:

The cradle and suction holder must first be installed onto your windshield prior to mounting the Mondi onto it. The Mondi must rest in the cradle in the proper orientation to prevent it from falling out during different driving conditions.

) to adjust it for proper

1. The Suction Holder can be bent (

mounting to a windshield and the correct angle for support

of the Mondi.

2. In a single motion, insert the bottom of the Car Cradle into

the base of the cradle connector (2).

3. Push the top towards the cradle connector and snap it into

place (3). This secures the Cradle to the Suction Holder.

Introduction 12

Note:

It is recommended that you clean the windshield area prior to affixing the suction cup. This clean surface helps to better adhere the Car Kit and establish a secure bond.

4. Firmly clasp both pieces (now joined) and secure the

suction cup to the windshield (4).

•

If you must remove and reposition the suction cup, pull on the plastic release located at the top of the suction cup.

5. With the Car Kit secured to the windshield, carefully insert

the bottom of the Mondi into the cradle (5) and then snap it

back (6). This action secures the clasp at the top of the

cradle onto the top of the Mondi unit to hold in place during driving.

Note:

The Mondi is supported at the base of the unit and secured to the cradle by the clasp at the top. Make sure the Mondi snaps into the base and is secure prior to starting any car motion.

Removing the Mondi from the Car Kit

1. Gently pull up on the cradle’s clasp to release its grip on

the Mondi.

2. Carefully slide the Mondi up at an angle away from the

cradle.

Removing the Car Kit from the Windshield

1. Remove the Mondi from the Car Cradle.

Important!:

You must FIRST remove the Mondi from the kit before continuing. If you do not, the Mondi can fall out of the cradle and damage upon impact with the floor.

2. Locate the suction cup release (plastic tab atop the suction

cup).

3. Firmly pull it out (away from the suction cup) until the

Suction Holder releases its grip from the windshield.

Warning!:

Do not affix the Car Kit to either side windows as this can block your view and hinder driving visibility.

Section 2: Basics

Your Mondi™ Internet Tablet is packed with features that simplify your life and expand your ability to keep you both connected to your office and stay in touch with the people that are important to you. This section will guide you through the basic functions features of your device.

Your device provides many of the features associated with a personal computer with exceptional portability, mobile applications, and integration of a portable device. The device is powered by Windows Mobile 6.1®, providing the power and familiarity of Microsoft Windows.

Features of Your Device

Your tablet is an easy-to-use and offers many significant features. The following list outlines a few of the features included in your device.

•

Touchscreen provides quick response to a variety of menus and options

•

Windows Mobile 6.1 Classic

•

Windows ActiveSync® synchronization software

•

Large 4.3 inch (800 x 480 pixel) screen displaying up to 16M (million) onscreen colors

•

4GB of internal memory

•

3MP (megapixel) digital camera

•

Full slide out QWERTY keyboard

•

Customizable Widget application shortcuts

•

Downloadable applications (via online purchase)

•

Built-in Bluetooth technology

•

Mobile WiMAX high-speed Internet access capable

•

Built-in Wi-Fi support

•

Full HTML Browser

•

GPS Navigation (via embedded GPS chip)

•

User friendly, menu driven access to features and options

•

Microsoft Office Mobile® Suite applications (Excel Mobile, OneNote Mobile, PowerPoint Mobile, and Word Mobile)

•

Outlook email client

•

Internet email support (Google™ Mail, Yahoo® Mail, etc.)

•

Support for playback of both streaming audio and video via sites, as well as local media (within microSD card).

•

Video Output (via optional mini-USB to HDMI cable)

•

Phone as Modem (PAM) feature allows your computer to connect to the Internet by using the WiMAX functionality of your Mondi device (page 107).

Basics 14

Your Device

131514

1. Display shows the information needed to operate your

device, such as the signal strength, battery level, time, active application, etc.

Webcam lens

is used to shoot a streaming video of the user

during a video conference.

3. Light sensor uses the ambient light level to adjust both

screen brightness/contrast.

•

In a bright light condition (outdoors), the sensor causes the device to increase the brightness and contrast for better viewing.

•

In a dark light condition, the sensor adjusts the device’s brightness and contrast for better viewing.

LED

displays the current charging and network status.

•

Green LED (solid) indicates the battery has been completely charged.

•

Red LED (solid) indicates the battery is charging.

•

Green LED (blinking) indicates the device is attempting to connect to a Mobile WiMAX network.

•

Yellow LED (blinking) indicates a charging error.

•

Cyan LED (blinking) indicates the device is attempting a connection to a Wi-Fi network.

•

Magenta LED (blinking) indicates an error message or an outstanding notification the user has not yet read (accompanied by on onscreen ).

Left Action key ( ) is used to launch either the

MobileWidget screen or the TaskSwitcher application.

•

Single press (quick) toggles between the MobileWidget screen where you can use available Widgets (page 35) and the Today screen.

•

Press and hold to activate the TaskSwitcher application that allows to display which applications are currently running on the device and then choose which is displayed full screen and active.

Internet Explorer key

short press to launch Internet Explorer

and long press to launch the Opera mobile browser.

7. Left Softkey ( ) is used to navigate through menus and

applications by selecting the choice indicated on the lower

left area of the display screen. Softkeys are touchsensitive keys, that appear in your display, and change

function according to the current feature being used.

Navigation touch pad

lets you access the device’s menus

and selects the highlighted choice when navigating

through a menu. Pressing the center button activates an onscreen function (similar to pressing Enter) and selects

the highlighted choice when navigating through a menu.

Fn key

(Function) key, toggle to access the numbers/ symbols shown at the top left of selected keys on the

QWERTY keyboard. This feature is activated by pressing

and holding the Fn key in conjunction with other specified keys.

10.

Windows key

provides ready-access to the Start menu that

contains links to all the device’s applications, settings, and

Navigating the Today Screen

Mondi™ is powered by Windows Mobile 6.1® Classic, providing the power and familiarity of Microsoft Windows. Mobile versions of popular Microsoft applications such as Word, Excel®, Windows Media Player® and Outlook® eliminating the need to learn new software.

The main screen is called the

Tod ay

screen. The items listed on this screen provide quick access to several user selectable applications (via Start menu or Shortcuts), Contacts, options, and settings. The Today screen displays important information, such as upcoming appointments, status indicators, the current date, and time.

You can also launch a program directly by first activating the

Start

menu drop-down list and then selecting the related tab and

the program’s associated icon.

䊳

Single press the ( ) (right action key) to launch the Today Screen (Home).

Recently Used Applications

Start Menu

located at the top left of the screen, opens a drop down menu that serves as the central launching point

for Quick application links, access to device programs,

settings and Help topics.

•

The top row displays the six mostly recently used applications. As further applications are launched, this row updates accordingly.

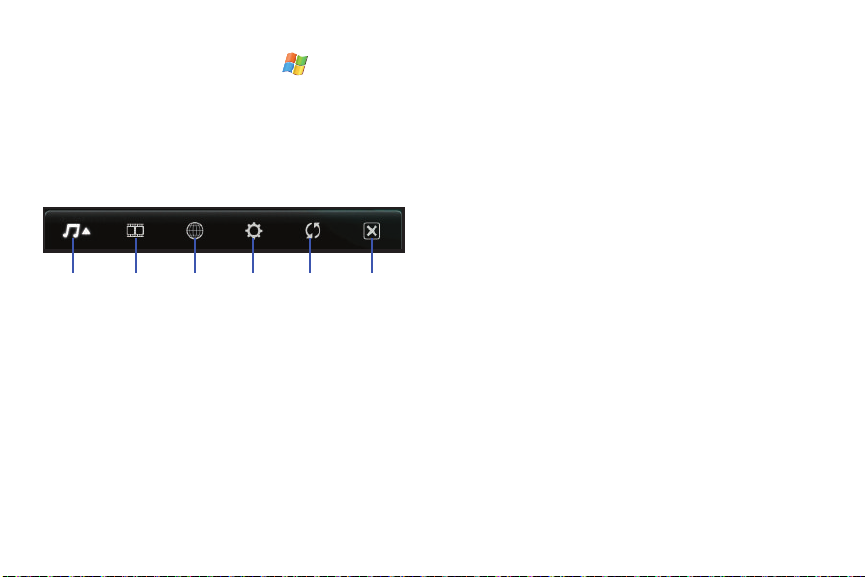

Today Screen Functions

Title Bar

currently active program, wireless status, and allows you

to close currently active screens. Click on the status icons

to access abbreviated Connectivity, Volume, and Battery settings menus.

located at the top of the screen, displays the

Position Bar

currently active menu.

located alongside the shortcuts, indicates the

Basics 20

Home Shortcut

( ) displays the Today screen that contains quick links to IM, Outlook email, Date/Time

information, Internet Phone, and any Upcoming

Appointments.

Web Pages Shortcut Perspective

( ) displays either a

view of currently stored Favorite Web

Bookmarks or Browsing History.

•

Tou ch

(right softkey)

> Display as > Thumbnail View

display the Bookmark (History) page images in a grid view (2 rows by 4 columns).

•

Tou ch

(right softkey)

> Display as > Perspective View

display the Bookmarks (History) as a scrollable set of icons (one behind another).

•

Tou ch

(right softkey)

> View >Favorite Bookmark

your favorite bookmarks. (These can be displayed in either a Thumbnail or Perspective view.)

•

Tou ch

(right softkey)

> View > History

browsing history. (These can be displayed in either a Thumbnail or Perspective view.)

•

Tou ch

Edit Favorite Bookmark

(left softkey) to edit your favorite

bookmarks.

Thumbnail

to display the

to display

Applications (Main menu) Shortcut

( ) displays a grid view of 12 preferred Main menu application shortcuts

(Favorites). These entries can be modified by

which shortcuts appear onscreen.

Note:

This listing of applications are different than those by the Windows Mobile 6.1® operating system (

Favorite Contacts Shortcut

( ) displays a scrollable list

Start > Programs

of currently available Favorite Contacts. Scroll though the

entries and tap an icon/card (image) to access the

information for that particular Contacts entry. For more information, refer to “Contacts” on page 80.

Multimedia Shortcut

available My Photos and Videos (

Title Bar Icon Overview

The following table lists the onscreen icons, shown within the

Title Bar, and their descriptions.

Indicates the battery is fully charged. Tap this icon to display the Battery power tab.

Indicates the battery is fully discharged. Tap this icon to display the Battery power tab.

Indicates the device is connected to a power cable and is currently being charged.

Indicates the speaker is turned on. Tap this icon to access the onscreen Volume slider and adjust the volume level.

Indicates the speaker is set to vibrate only. Tap this icon to access the onscreen Volume slider and adjust the volume level.

Indicates the speaker is turned off and vibrate is disabled. Tap this icon to access the onscreen Volume slider and adjust the volume level.

Indicates the device is working to establish a wireless connection.

Basics 22

Indicates the device failed to establish a wireless connection.

Indicates an inactive Mobile WiMAX connection.

Indicates an active Mobile WiMAX connection has been established and you are currently using an active WiMAX broadband connection.

Indicates an active Wi-Fi connection.

Indicates the Phone as Modem (PAM) feature is active (page 104).

Indicates an inactive Wi-Fi connection.

Indicates an error or issue with the device and its functionality. Touch the icon to reveal the notification.

Locking Your Device

The device can be locked either manually or automatically via the Settings menu.

Manually Locking the Device

This manual process temporarily locks the device without the need to utilize a password.

1. Single press the Power button ( ) to turn off the

screen but keep the device on in the background.

– or –

Press and hold the ( ) (right action key) to lock the screen from accidental usage, but keep the screen on.

Manually Unlocking the Device

1. Single press the Power button ( ) to turn the screen

back on.

– or –

Touch

Unlock

(left softkey) and tap the onscreen grey

Unlock

button.

– or –

Press and hold the ( ) (right action key) to unlock the screen.

Setting Up an Automatic Lock State

When you setup an automatic lock on your device, it requires a password be entered prior to returning to normal operation. When a password is set up, the device can be locked immediately upon command, configured to lock after a specified period of inactivity, or after the LCD blanks out.

1. From the

2. Touch the

3. Set up a timeout value by touching the

Tod ay

screen, touch

Personal

tab and tap

unused for

field then use the drop-down list to select a

Start > Settings.

Lock

().

Prompt if device

value (amount of unused time required before you are prompted for a password if the device becomes idle).

Enabling this option activates the remaining fields.

4. Touch the

Password type

field and enter the desired

information:

•Simple PIN

: must be at least four characters in length and cannot

contain a simple sequence such as 0000, 1111, or 1234.

• Strong alphanumeric

: must be at least seven characters in length and must contain at least one character from each of the following categories: uppercase/lowercase letters, numerals, and symbols. Examples of strong alphanumeric passwords are

%$VH5hW

sb?8A!3

and

5. Touch the

Password

field then use the QWERTY keyboard

to enter the desired password.

6. Touch the

Confirm password

field then use the QWERTY

keyboard to re-enter the same password.

7. Touch to save your password.

8. Touch

Yes

to confirm your selection.

Creating a Password Hint

One method of making sure you don’t accidentally forget your new password is to use the Hint feature.

1. From the

2. Touch the

Note:

If you have previously created your password, you are prompted to touch the onscreen password filed, use the QWERTY keyboard to enter your password, then touch changes.

3. Touch the onscreen

Tod ay

screen, touch

Personal

Start > Settings

tab and tap

Hint

Lock

().

Unlock

before you can make any updates or

tab and use your QWERTY

keyboard to enter a hint for your password into the dialog box.

Basics 24

Note:

This hint may be visible to others, so do not enter your password into this field. The hint you set will only appear after five consecutive incorrect passwords have been entered.

4. Touch to save your new password hint.

Unlocking the Device after a Timeout

1. From the

2. Use your QWERTY keyboard to enter your Lock password.

3. Touch

Password

screen, touch the password field.

Unlock

(left softkey) to unlock the device.

Calibrating your Touchscreen

It is important to calibrate your monitor properly so that your touches are read accurately by the device.

1. From the

2. Touch the

3. Use your Stylus pen to touch the

4. Firmly and carefully touch the center of each crosshair and

Tod ay

System

screen, touch

tab and tap

Start

Screen

repeat this process until the calibration session has

completed (this could take 2 - 3 repetitions).

5. Touch to complete the process and return to the

previous screen.

()

> Settings

().

Align Screen

button.

Menu Navigation

You can tailor the device’s range of functions to fit your needs using both menus and widgets. Menus, sub-menus, and features can be accessed by scrolling through the available onscreen menus.

Opening an Application

䊳

Tap the associated onscreen icon.

•

Touch or to exit from the current menu and return to the previous screen.

•

Press (right action key) to exit from the current location or function, and return to the Main Menu.

Note:

These actions only exit from (close) the current application while still

maintaining them active in the background.

Closing an Application

Applications are only closed (no longer active) when they are exited via the application’s own Menu options. Simply touching

or will only minimize the current application and

keep it running actively in the background. These, still running, applications can utilize your device resources, slow down your device and drain your battery faster.

To close your applications:

1. Touch the application’s softkey option

Menu > Exit

– or –

Press and hold (left action key) to launch the

TaskSwitcher

•

application.

This application visually displays any applications currently running in the background.

•

It also provides the option to either bring a selected application forward or End (close) it.

2. Flip through and center the desired application. The name

will appear above it.

3. Touch either

End

(to terminate the current app) or

End All

(to close all background applications). For more information, refer to “Using TaskSwitcher to Close

Applications” on page 98.

Navigating Through Menus

As you navigate through a menu, options display on the screen as scrollable lists. Menu tabs (located at the bottom of most screens, provide access to additional screen options).

To navigate a scrollable list:

1. From the

2. Touch and gently press an onscreen option.

3. From the available list of options you can either:

Tod ay

screen, touch

•

Touch an onscreen entry to activate it.

•

Firmly press and slide your finger up or down the screen to scroll

Start

().

through lists of menu items.

•

Navigate through a long list by pressing either volume key up or down.

Note:

Tapping or touching individual entries on the list opens the list entry.

Basics 26





Touch or Tap

Scrolling Through

Options/Selections

onscreen options

Quick Navigation Among the Device Panels

Each of the available shortcuts (seen below) opens an associated panel that can be activated by flipping across the page as seen below.

䊳

In a single motion, touch and drag up or down along either side (left or right) of the current panel. This actions creates a

cube-like effect as you flip among the different panels.

Note:

Scrolling requires that you press firmly on the screen then drag. When scrolling through a list (see adjacent image) make sure not to touch or press individual entries on the list as this will open the list entry.

+ 128 hidden pages
