Samsung SW75V9W, SW65V9W User Manual

Washing Machine

user manual

imagine the possibilities

Thank you for purchasing a Samsung product.

To receive a more complete service, please register your product at

www.samsung.com/register

SW75V9W SW65V9W

2_ features

features

1. Water Saving course

Designed to address concerns on water consumption. Less water is used per wash, while continuing to deliver a clean and effective washing performance. It has been certified from WELS(Water Efficiency Labelling and Standards) of Australia.

2. Air Turbo Drying System

Air Turbo technology spins hard and fast so you can spend less time drying.

Time Saving AIR TURBO saves your time, ensuring your clothes are dried 30%-40% faster than line drying alone. Especially during the rainy season and in high-humid weather, laundry that once took days to drip-dry, such as heavy jeans, bulky sweaters, and thick blankets are dried more rapidly.

Easy-to-iron AIR TURBO is perfect for delicates and clothes made of synthetic fabrics. No more hanging and waiting. Simply iron straight-out-of-the washer, since AIR TURBO eliminates just enough moisture to keep clothes adequately damp for ironing.

3. Diamond Drum

The diamond shaped drum creates a high water pressure, removing dirt from the laundry effectively. The diamond drum minimizes fabric damage extending the lifetime of the fabric. The glittering inner tube is both beautiful and powerful in the wash effect it creates.

4. Fuzzy Control

Fuzzy control operates with best washing program by sensing the washload like artiﬁcial intelligence.

5. Tempered Transparent Door

Tempered Transparent Door lets you observe while the washer is operating. Check on your laundry’s progress at any time.

6. Double Storm Pulsator- Less Tangle, Better Washing Performance

Tangle Free - Multi-dimensional water currents help clothes stay tangle free. Water current technology designed speciﬁcally to enhance washing performance. The power

of tornado-like multi-dimensional water currents guarantee excellent washing performance.

7. Magic Filter

This unique magic Filter ensures that all the lint inside the tub is captured for top quality ﬁltering results to deliver consistently effective cleaning results.

8. CHILD-LOCK Function

This is a device to protect children from being accidentally hurt while playing with the washer.(For more information, see page 11,14.)

safety instructions _3

safety information

Throughout this manual, you’ll see Warning

and Caution

notes. These warnings, cautions, and the important safety instructions that follow do not cover all possible conditions and situations that may occur. It’s your responsibility to use common sense, caution, and care when installing, maintaining, and operating your washer. Samsung is not liable for damages resulting from improper use.

IMPORTANT SAFETY SYMBOLS AND PRECAUTIONS

What the icons and signs in this user manual means:

WARNING

Hazards or unsafe practices that may result in severe personal injury or death.

CAUTION

Hazards or unsafe practices that may result in minor personal injury or property damage

CAUTION

To reduce the risk of ﬁre, explosion, electric shock, or personal injury when using your washer, follow these basic safety precautions:

Do NOT attempt.

Do NOT disassemble.

Do NOT touch.

Follow directions explicitly.

Unplug the power plug from the wall socket.

Make sure the machine is grounded to prevent electric shock.

Call the service center for help.

Notice

These warning signs are here to prevent injury to you and others. Please follow them explicitly. After reading this section, keep it in a safe place for future reference.

Read all instructions before using the appliance.

As with all any equipment using electricity and moving parts, potential hazards exist. To safely operate this appliance, become familiar with its operation and exercise care when using it.

Install and store your washer inside, away from exposure to weather.

Install and level your washer on a ﬂoor that can support its weight.

Your washer must be properly grounded. Never plug it into an ungrounded outlet.

Position the washer so that a wall plug is accessible after the installation is completed.

4_ safety instructions

To reduce the risk of ﬁre or explosion:

• Do not wash items that have been washed, soaked, or treated with gasoline, dry cleaning solvents, or other ﬂammable or explosive substances. They give off vapors that could ignite or explode. Rinse by hand any material that has been exposed to cleaning solvent or other ﬂammable liquids or solids before putting in your washer. Be sure that all traces of such liquids, solids, and fumes have been removed. Dangerous substances include acetone, denatured alcohol, gasoline, kerosene, certain liquid household cleaners and spot removers, turpentine, waxes, and wax removers.

• Do not put gasoline, dry cleaning solvents, or other ﬂammable or explosive substances into the washer.

• Under certain conditions, hydrogen gas may be produced in a hot water system – such as your hot water heater - that has not been used for two weeks or more. HYDROGEN GAS IS EXPLOSIVE. If your hot water system has not been used for two weeks or more, turn on all hot water faucets in your home, and let the water ﬂow for several minutes before using your washer. This will release any hydrogen gas build–up. Since hydrogen gas is ﬂammable, do not smoke or light an open ﬂame during this time.

Ventilate immediately without touching the power plug if there is a gas leak.

Unplug the power cord before servicing your washer.

Do not reach into the appliance when the tumbler is moving.

Do not reach under the appliance with your hands or with an object as you may be injured by the spinning board beneath the washer.

Do not let children play on or in your washer. The washer door does not open easily from the inside, and children may be seriously injured if trapped inside.

Do not let children attempt to look into the washer as falling into the washer is extremely dangerous and may be fatal.

This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

Do not repair, replace, or service any part of your washer yourself unless you fully understand the recommended user–repair instructions and have the skills to carry them out. Work done by an unauthorized person may void your warranty.

Store laundry detergents and other laundry supplies in a cool, dry place out of children’s reach.

Disconnect the hoses and turn off the water when not using the washer.

If the power cord is damaged, it must be replaced by the manufacturer, a service agent or similarly qualiﬁed person in order to avoid a hazard.

Do not forcefully bend the power cable or place any heavy objects on the cable.

Do not touch the power cord with wet hands.

Do not overload the power outlet with too many appliances.

safety information

CAUTION

WARNING

safety instructions _5

Do not install the washer nearby electrical implements and do not place any candles or cigarettes on the washer.

Do not go near the washer if it is ﬂooded or under water, as there is a risk of electric shock. Unplug the washer and drain the water completely.

Do not combine chlorine bleach, ammonia, or acids (such as vinegar or rust remover) in the same wash. The fumes that can form when any of these items are combined are hazardous.

Do not machine wash ﬁberglass materials. Small particles can stick to fabrics washed in subsequent loads and cause skin irritation.

If this appliance is supplied from a cord extension set or electrical portable outlet device, the cord extension set or electrical portable outlet device must be positioned so that it is notsubject to splashing or ingress of moisture.

Before disposing of your washer, remove the door so that children or small animals cannot get trapped inside.

Connect the washer to the main water supply using a new set of hoses. Do not reuse an old set of hoses.

Water inlet hoses deteriorate over time. Check the hoses periodically for bulges, kinks, cuts, wear, and leaks, and replace them as needed and at least every ﬁve years.

Before each wash, empty the pockets of your laundry. Small, irregularly shaped hard objects, such as coins, knives, pins, and paperclips could damage your washer. Do not wash clothing with large buckles, buttons, or other heavy metal objects.

If the washer does not stop within 15 seconds after you open the lid, call a service agent immediately.

Connect the grounding wire to the shell plate, and bury it under at least 10 in (25 cm) of earth: Alternatively, connect the ground wire to the appropriate pin on a properly grounded power receptacle. Never connect the wire to a telephone line, lightning rod, or gas pipe.

For washers with ventilation openings in the base, that a carpet must not obstruct the openings.

WARNING

CAUTION

6_ contents

contents

SETTING UP YOUR WASHER

7 Description of part 10 How to wash automatically depends on the

laundry

11 Control Panel

MANUAL FUNCTIONS

15 Manual functions

INSTALLATION & MAINTENANCE

16 Environment 16 Levelling 16 Connecting the water supply hose 18 How to connect the drain hose 19 Assembling the rat protection panel 19 How to put the detergent in 19 How to add the fabric softener 19 Water supply connector ﬁlter 20 Cleaning the ﬁlter 20 Cleaning the pump ﬁlter 20 Precautions

TROUBLESHOOTING

21 Troubleshooting

WASHING MACHINE WON’T WORK?

22 Washing machine won’t work?

SPECIFICATION

23 Speciﬁcation

setting up your washer _7

setting up your washer

DESCRIPTION OF PART

The User’s Manual is for common use. Make use of the User’s Manual depending upon your washing machine model.

01 SETTING UP YOUR WASHER

Water supply hose (Hot)

Water supply hose (Cold)

Drain hose (Pump)

Detergent box

Spin basket

Power cord

Water drain hose

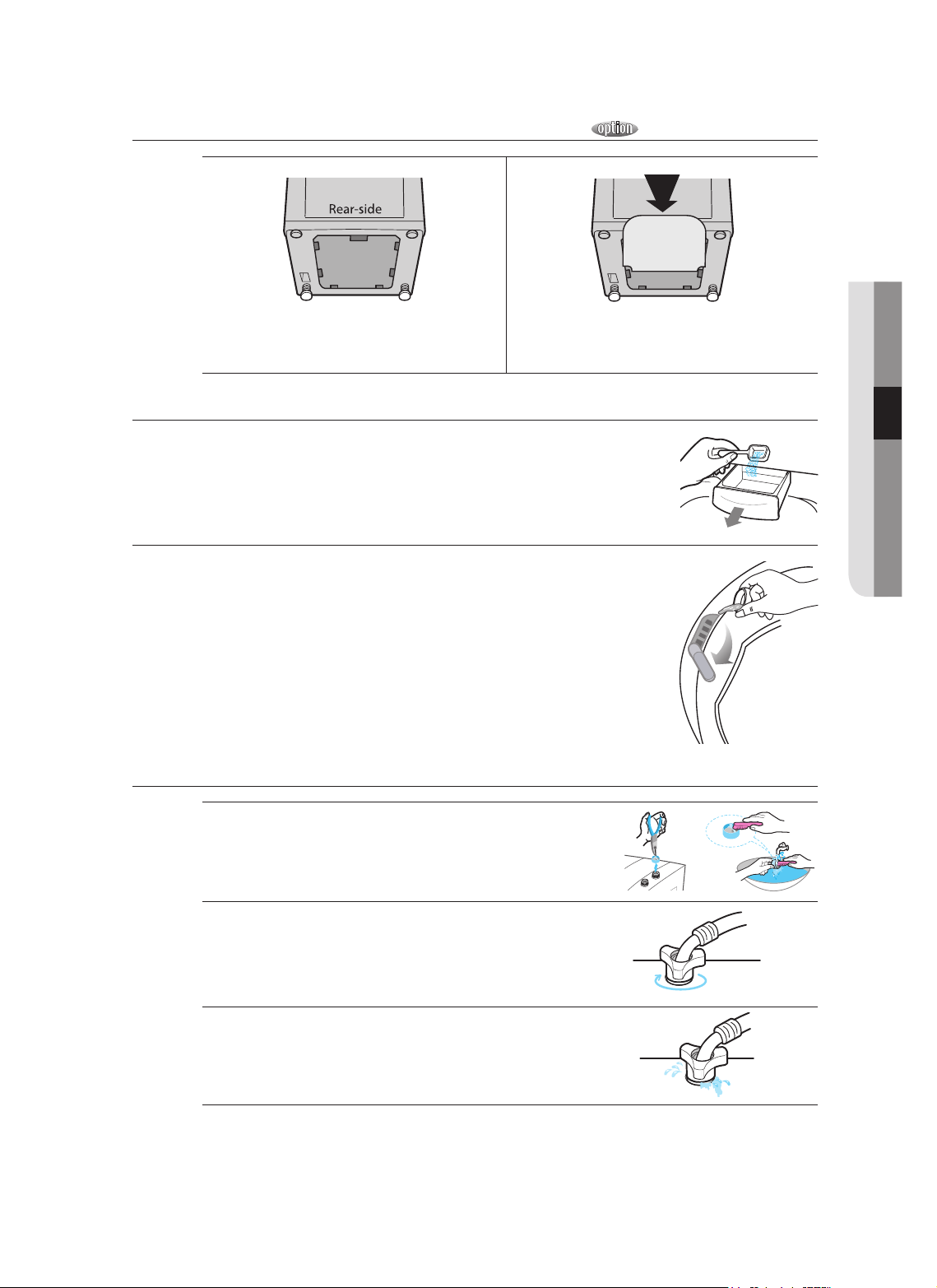

Rat protection panel

Front control panel

Pulsator

Adjustable legs

Adjust the length

of the legs when

installing the washer.

Fabric softener

dispenser

Lid

Be sure to keep the lid closed

during washing and spinning.

Lint will be collected in the ﬁlter

during washing.

Filter

8_ setting up your washer

setting up your washer

CHECKING BEFORE WASHING AND CARING FOR GARMENTS

Must follow the checkpoints in order to avoid machine problems or damages on garments.

• If the below problems are caused by customer’s faults, separate service fee will be charged.

Checkpoints Before Starting Washing

Check if the clothes are bleaching or not.

• Add liquid detergent to a white towel and the garment where you can’t notice well. Then, rub together strongly. Check if the color transferred to the towel.

• Be careful for scarves and imported clothes since they are easily discoloring.

• Check for stains or partial dirt.

• If stains are found, use the towel wet with detergents to rub on in a single direction.

• Before washing, the sleeves, collar, dress hem and pockets are pre-treated by brushing with

detergents.

The wrinkle-processed clothes made of wool are specially treated by ﬁxing them with threads before washing. The threads shall be removed after the clothes are dried.

Not washable laundry

Clothes those are easily transformable even by soaking in water.

• Even by soaking in water, neckties, brassieres, jackets, suits and coats can be easily transformed like shrinking and discoloring on the garment surfaces because they are mostly made of rayon, polynosic, cuff and their blend fabrics.

• The wrinkle-processed, embossed, or resin processed products are easy to transform even by soaking in water.

• Easily discoloring products made of cotton and wool, wrinkled silk, leather products, leather accessory, leather ornamented clothes and its accessory.

• Don’t wash those clothes without handling guideline or material indication tag.

About Detergent

• When detergents are not dissolving well, use warm water (about 40°C) to dissolve the

detergent.

• Use an appropriate amount.

• Even if excess amount of detergent is used, there is not much difference in washing

result. It may cause damages to the garments because rinsing is not enough.

• The bleaching agent may cause damages to garments since it is strong alkali.

• Do sufﬁcient rinsing because the powder detergent is easily remained on the garments

causing bad odors.

• If too much detergent is used or cold water is used, it doesn’t dissolve completely and remain on the garments, hose or spin basket, causing contamination on clothes.

• In case of reserved washing, detergents must be put in the detergent box. If the powder detergents are spread on laundry directly, it may cause discoloration.

CAUTION
