2_Features

Safety instructions_3

features

 Water Saving course

Designed to address concerns on water consumption. Less water is used per wash, while continuing to deliver a clean and effective washing performance. It has been certified from WELS(Water Efficiency Labelling and Standards) of Australia.

 The Silver Wash System

This is a wash control system that enables to kill bacteria hidden in the cloth during the wash or rinse, to protect human skin from harmful bacteria through the antibiotic coating by SILVER Wash, and to realize a pleasant, healthy sanitization. This system also prevents propagation of bacteria through antibiotic coating on the washed cloth.

 The Mist Shower

- Effective residue removal - The mist dissolves laundry detergents more effectively to leave behind less residue.

- A fine mist of water spray over the laundry reduces the amount of water necessary.

 Air Turbo Drying System

- Air Turbo technology spins hard and fast so you can spend less time drying.

- Time Saving AIR TURBO saves your time, ensuring your clothes are dried 30%-40%

faster than line drying alone. Especially during the rainy season and in high-humid weather, laundry that once took days to drip-dry, such as heavy jeans, bulky sweaters, and thick blankets are dried more rapidly.

- Easy-to-iron AIR TURBO is perfect for delicates and clothes made of synthetic fabrics. No more hanging and waiting. Simply iron straight-out-of-the washer, since AIR TURBO eliminates just enough moisture to keep clothes adequately damp for ironing.

 Fuzzy Control

Fuzzy control operates with best washing course by sensing the washload like artificial intelligence.

 Transparent Window

This Transparent Window is the new concept to solve the curiosity of users to see inside of washing machine while operation. While operation, the laundry progress inside of washing machine can be checked by looking through the transparent window.

 Double Storm Pulsator- Less Tangle, Better Washing

Performance

- Tangle Free - Multi-dimensional water currents help clothes stay tangle free.

- Water current technology designed specifically to enhance washing performance. The

power of tornado-like multi-dimensional water currents guarantee excellent washing performance.

 Magic Filter

This unique magic Filter ensures that all the lint inside the tub is captured for top quality filtering results to deliver consistently effective cleaning results.

 CHILD-LOCK Function

This is a device to protect children from being accidentally hurt while playing with the washer.(For more information, see page 11.)

SW80USPIW-02444N_EN(ÀÓ½Ã).indd 2 2009-05-28 ¿ÀÈÄ 5:01:44

Safety instructions_3

safety instructions

Please note that the following precautions for safety intend to prevent unpredictable danger and damage by helping the proper use in safety.

When using hot water in washing, please make sure that the water should not exceed 50°C.

• Plastic parts may be deformed or damaged, and an electric shock or a fire may take place.

WARNING

There might be serious injury or fatal accident when you violate this instruction.

• If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

• Do not pull the cord off or touch it with moist hands.

− An electric shock or a fire may take place.

• Do not bend the power supply cord by force or press it with heavy things.

− An electric shock or a fire may take place.

• Do not install the washer nearby electric implement or don’t put a candle light or cigarette light on the washer.

− A fire may take place.

• During operation, do not put your hands or metal materials under the washer.

− You may be hurt by spinning board beneath the washer.

• Stay away from the washer when the bottom of the washer sinks into the water.

− There might be an electric shock. Please wait until the water drains out completely.

• Do not put laundry stained with gasoline, benzene, or alcohol in the washer, and keep the materials away from the washer.

− An explosion or a fire may take place.

• During spinning, don’t put your hand in the spinning tub.

− It may hurt your hands. If it does not stop within 15 seconds after you open the lid, call

service agent immediately.

• This appliance has to be connected to the plug endurable to proper power consumption.

• This appliance has to be positioned so that the plug is accessible after installation.

• No user-serviceable parts inside. Refer any servicing to qualified service personnel.

− Otherwise this may cause a mechanical error, electric shock, fire or physical damage.

− The product warranty does not cover problems resulting from disassembling the product.

• Do not use this product for business purposes.

• For washing machines with ventilation openings in the base, that a carpet must not obstruct

the openings.

SW80USPIW-02444N_EN(ÀÓ½Ã).indd 3 2009-05-28 ¿ÀÈÄ 5:01:44

4_Safety instructions

Contents_5

safety instructions

CAUTIONS

There might be a slight injury or damage when you violate this instruction.

• Don’t install it in the area with moisture or outdoor where it has rain or snow.

− An electric shock or a fire may take place.

• Please unplug the power supply cord when you do not use it.

− An electric shock or a fire may take place.

• If there is dust or water on the power supply plug and its connected part, please remove it completely.

− An electric shock or a fire may take place.

• Do not make your children look into the inside of the washer.

− If your child falls into the washer, their life could be in danger.

• Ventilate immediately without touching the power plug if gas is leaking.

− An electric shock or a fire may take place if it catches flame.

• If the washer makes strange noise, smell or smoke, unplug it promptly and call service agent.

− An electric shock or a fire may take place.

• When cleaning, don’t spray water to the parts of the washer directly.

− It may make its life span shorten.

Also an electric shock or fire may take place.

• Don’t use several appliances together with an outlet.

− A fire may take place due to unusual heat.

• Don’t press the button with an awl or pin.

− An electric shock or a fire may take place.

• Use the new hose-sets and old hose-sets should not be reused.

• If the damage is found on the current cord in use, it should be replaced by manufacturer,

service center or authorized person in order to avoid the risk.

• Connect the grounding wire to the shell plate, and bury it under at least 25cm of earth: alternatively, connect the ground wire to the appropriate pin on a properly grounded power receptacle. Never connect the w ire to a telephone line, lightning rod, or gas pipe.

• If this appliance is supplied from a cord extension set or electrical portable outlet device, the cord extension set or electrical portable outlet device must be positioned so that it is not subject to splashing or ingress of moisture.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

SW80USPIW-02444N_EN(ÀÓ½Ã).indd 4 2009-05-28 ¿ÀÈÄ 5:01:44

Contents_5

contents

SETTING UP YOUR WASHER

6 Description of part 7 Checking before washing and caring for

garments

9 How to wash automatically depends on the

laundry

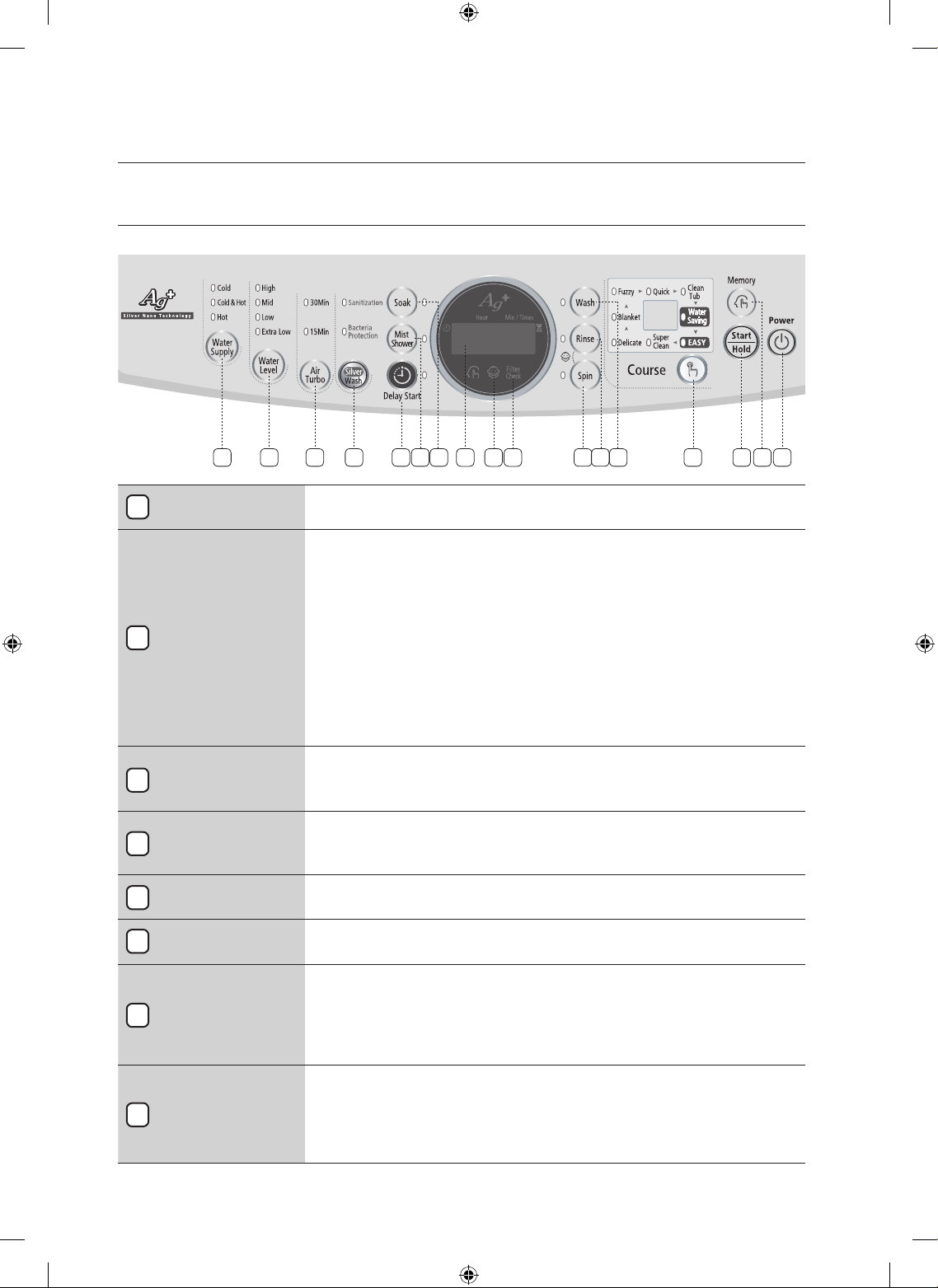

10 Control Panel

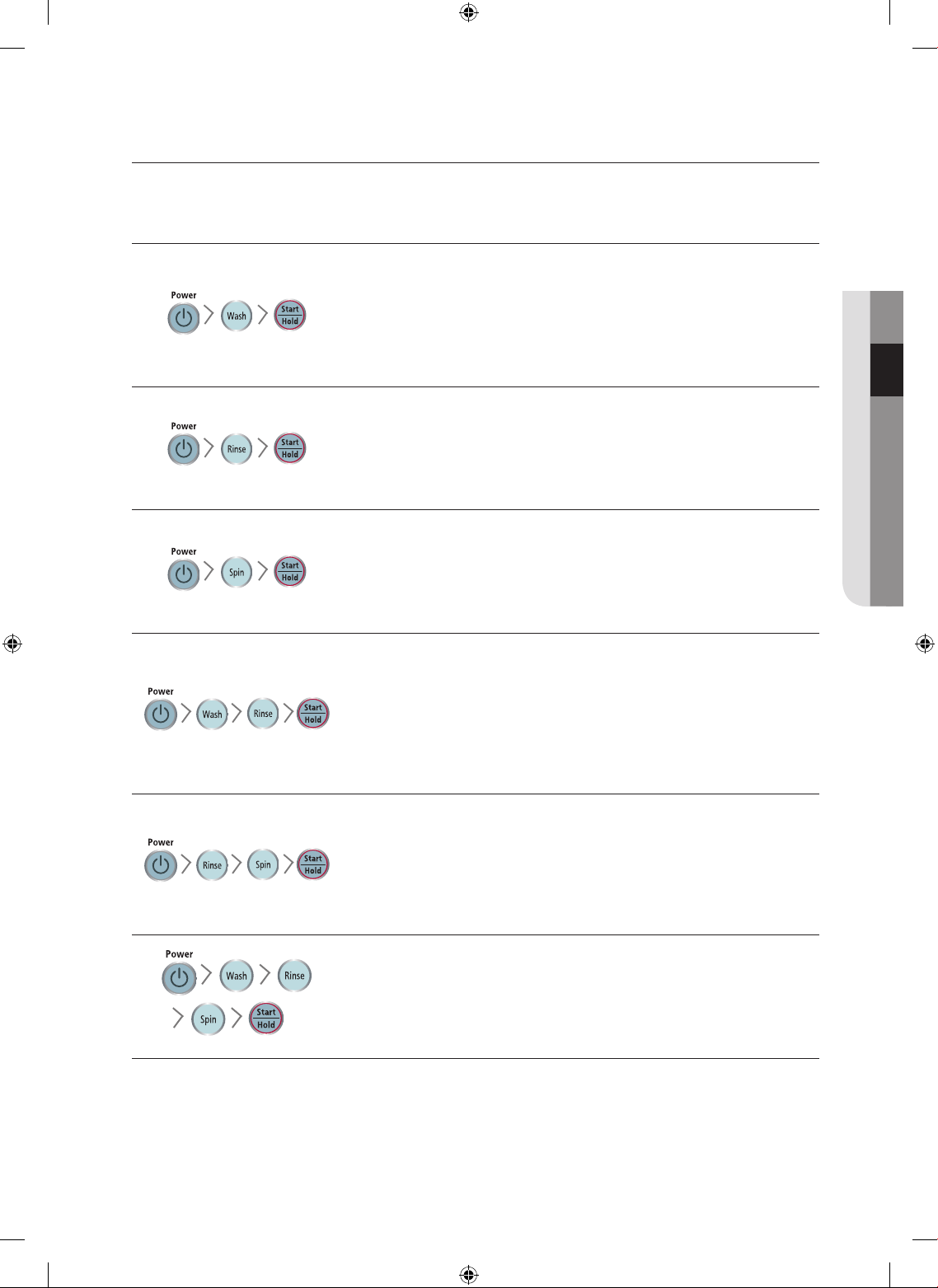

MANUAL FUNCTIONS

15 Manual functions

INSTALLATION & MAINTENANCE

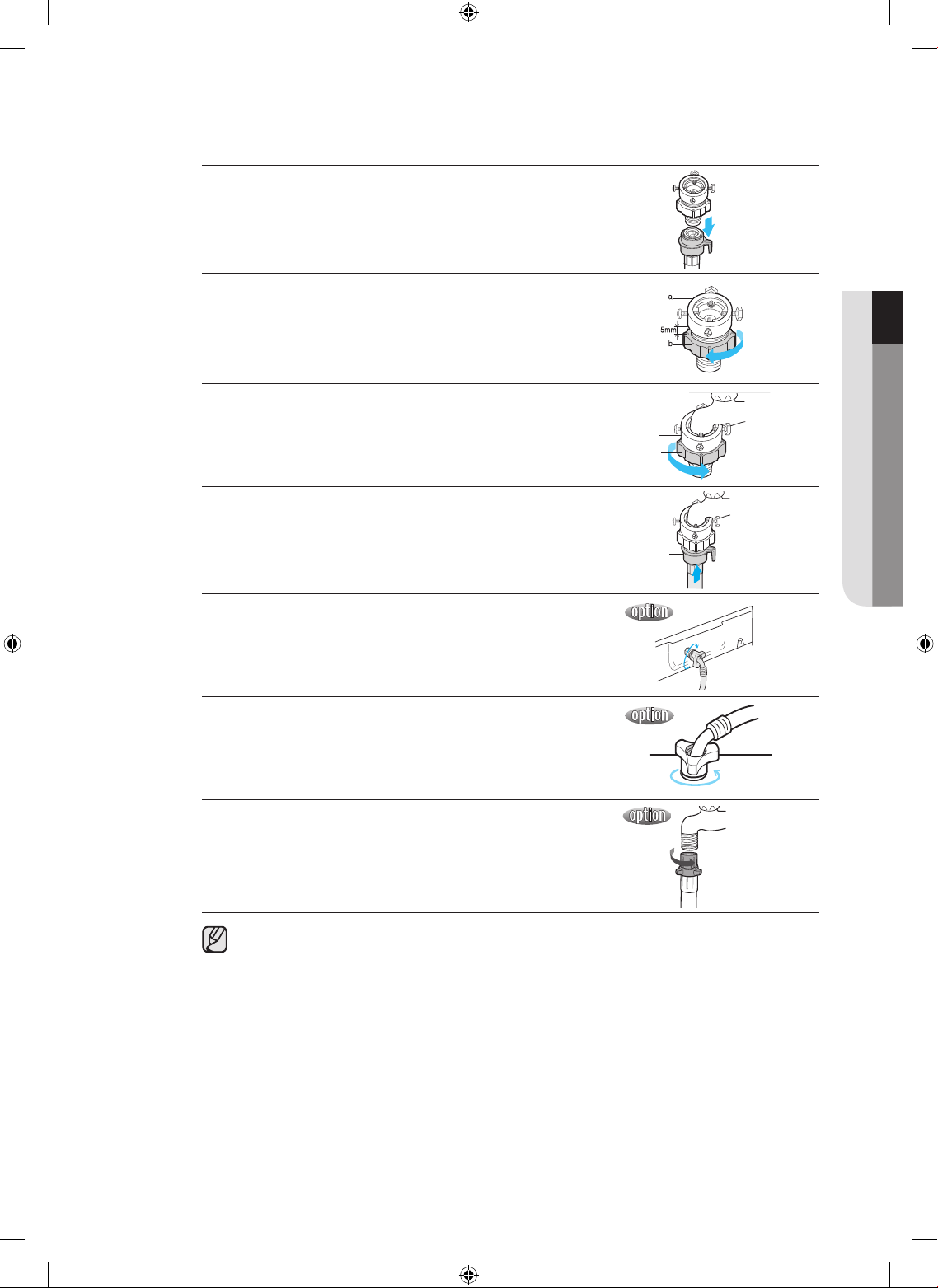

16 Environment 16 Levelling 16 Connecting the water supply hose 18 Assembling the rat protection panel 18 How to connect the drain hose 19 How to put the detergent in 19 How to add the fabric softener 19 Water supply connector filter 20 Cleaning the filter 20 How to clean the pump filter 20 Precautions

TROUBLESHOOTING

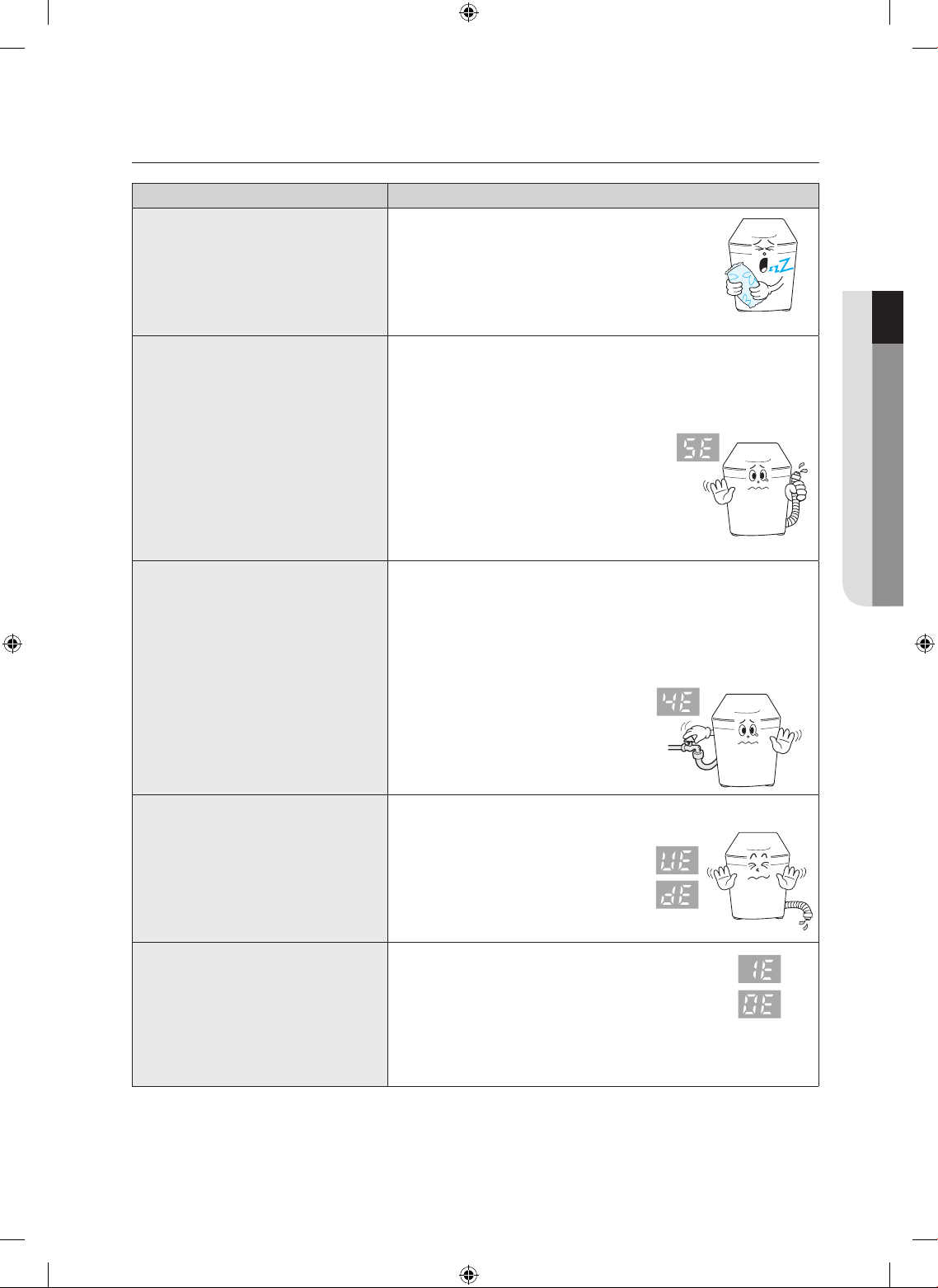

21 Troubleshooting

WASHING MACHINE WON’T WORK?

22 Washing machine won’t work?

SPECIFICATION

23 Specification

SW80USPIW-02444N_EN(ÀÓ½Ã).indd 5 2009-05-28 ¿ÀÈÄ 5:01:44

6_Setting up your washer

Setting up your washer_7

setting up your washer

DESCRIPTION OF PART

The User’s Manual is for common use. Make use of the User’s Manual depending upon your washing machine model.

Water supply hose (Hot)

Water supply hose (Cold)

Drain hose (Pump)

Detergent box

Spin basket

Power cord

Ground lead

When the water pipe is metal, make sure to cover the end of the ground wire.

Rat protection panel

Front control

panel

Pulsator

Adjustable legs

Adjust the length

of the legs when

installing the

washer.

Fabric softener

dispenser

Lid

Be sure to keep the lid

closed during washing and

spinning.

Silver wash

Lint will be collected in the

filter during washing.

Filter

SW80USPIW-02444N_EN(ÀÓ½Ã).indd 6 2009-05-28 ¿ÀÈÄ 5:01:44

Setting up your washer_7

CHECKING BEFORE WASHING AND CARING FOR GARMENTS

Must follow the checkpoints in order to avoid machine problems or damages on garments.

• If the below problems are caused by customer’s faults, separate service fee will be charged.

Checkpoints Before Starting Washing

Check if the clothes are bleaching or not.

• Add liquid detergent to a white towel and the garment where you can’t notice well. Then, rub together strongly. Check if the color transferred to the towel.

• Be careful for scarves and imported clothes since they are easily discoloring.

• Check for stains or partial dirt.

• If stains are found, use the towel wet with detergents to rub on in a single direction.

• Before washing, the sleeves, collar, dress hem and pockets are pre-treated by brushing with

detergents.

The wrinkle-processed clothes made of wool are specially treated by fixing them with threads before washing. The threads shall be removed after the clothes are dried.

Not washable laundry Clothes those are easily transformable even by soaking in water.

• Even by soaking in water, neckties, brassieres, jackets, suits and coats can be easily transformed like shrinking and discoloring on the garment surfaces because they are mostly made of rayon, polynosic, cuff and their blend fabrics.

• The wrinkle-processed, embossed, or resin processed products are easy to transform even by soaking in water.

• Easily discoloring products made of cotton and wool, wrinkled silk, leather products, leather accessory, leather ornamented clothes and its accessory.

• Don’t wash those clothes without handling guideline or material indication tag.

About Detergent

• When detergents are not dissolving well, use warm water (about 40°C) to dissolve the detergent.

• Use an appropriate amount.

• Even if excess amount of detergent is used, there is not much difference in washing

result. It may cause damages to the garments because rinsing is not enough.

• The bleaching agent may cause damages to garments since it is strong alkali.

• Do sufficient rinsing because the powder detergent is easily remained on the

garments causing bad odors.

• If too much detergent is used or cold water is used, it doesn’t dissolve completely and remain on the garments, hose or spin basket, causing contamination on clothes.

• In case of reserved washing, detergents must be put in the detergent box. If the powder detergents are spread on laundry directly, it may cause discoloration.

01 Setting up your washer

CAUTION

SW80USPIW-02444N_EN(ÀÓ½Ã).indd 7 2009-05-28 ¿ÀÈÄ 5:01:44

8_Setting up your washer

Setting up your washer_9

setting up your washer

CARING FOR CLOTHES BEFORE WASHING

Take out personal belongings from pockets.

• Caution, Check the pockets! Hairpins and coins cause damages to clothes and washing machine. They make noise and problems to the machine. Must check the pocket.

If pants zippers are open while washing, the spin basket may be damaged. The zipper should be closed and fixed with a string before washing.

• Metal on the clothing may cause damage to the clothes and the tub.

• Turn clothing with buttons and embroidered clothes inside out the

before washing them.

• Clothing with long strings may become entangled with other clothes, and may cause damage to the clothing. Be sure to fix the strings before washing.

Waterproof clothes (Ski Wear, Diaper Covers, Footboards) are not allowed for washing.

• This may cause the laundry to be ejected or cause the washing machine to vibrate abnormally, which may result in personal injury or damage the washing machine, the floor or the clothing. (Diapers, waterproof clothing, raincoats, umbrella covers, skiwear, car cover sheets, and sleeping bags, etc.).

• When the tub rotates, water may become trapped in the waterproof clothing or fabric and can collect in a corner, causing abnormal vibrations. In addition, the laundry rises and may be ejected and cause personal injury.

Shake the dirt or soils from clothes.

• Soil and sands may rub delicate garments to cause damages and the washing result may be unsatisfactory.

Do pre-washing for white socks, sleeves, and collars before the main washing.

• For stains and dirt on collars, sleeves, hems, and pockets, apply some detergent to them and apply it lightly with a brush before washing.

• Use powdered or liquid detergent. Do not use soap as the tub may become dirty from the dirt on it.

Turn inside out for those nappy clothes before washing.

• If clothes have too much foreign matter, separate them for washing. Other clothes may pick up those dirty matters (dirt, thread).

• Wash black colored clothes and cotton towels separately. If they are washed together, towels may pick up dirty matters. Check before washing.

Cashmilon and those garments having big volume and lightweight (eg. Lasedecorated clothes, lingerie, nylon stocking, synthetic fabrics etc.) may rise and cause damages to the clothes and problems to the machine. Use the laundry net or wash them separately.

• Must put those long stringed clothes, lase-worked clothes, bed cover sheet, wool clothes into a laundry net before washing.

• Put delicate clothes in the laundry net.

• Use only those commercial laundry net for washing.

Curtains, floating garments or blue jeans shall be pressed not to float on the water.

• If they are floated on the water, press Start/Hold button to stop and press them to sock in the water. If the washing goes on with clothes floating on the water, it may cause damages to the clothes and the washing machine as well as unsatisfactory washing result.

SW80USPIW-02444N_EN(ÀÓ½Ã).indd 8 2009-05-28 ¿ÀÈÄ 5:01:45
