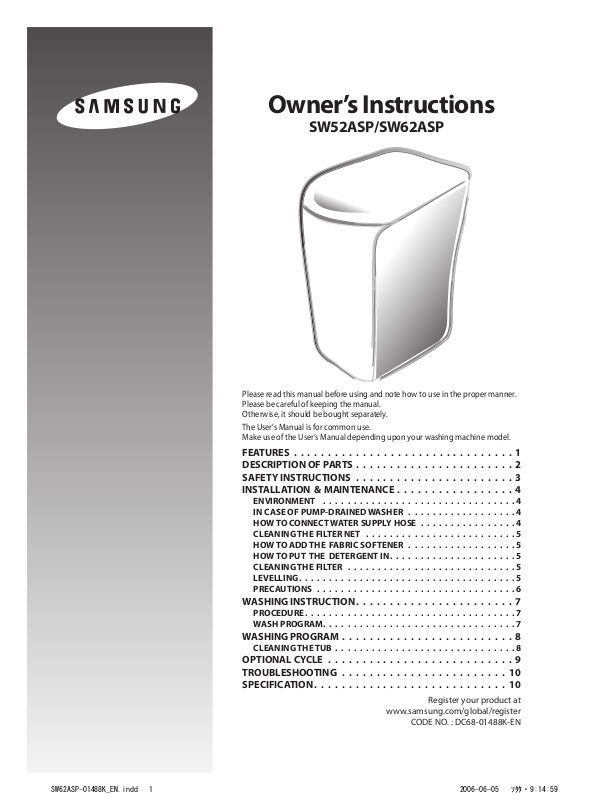

Samsung SW52ASP, SW62ASP User Manual

Owner’s Instructions

www.samsung.com/global/register

CODE NO. : DC68-01488K-EN

Please read this manual before using and note how to use in the proper manner. Please be careful of keeping the manual. Otherwise, it should be bought separately.

The User’s Manual is for common use. Make use of the User’s Manual depending upon your washing machine model.

FEATURES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1

DESCRIPTION OF PARTS . . . . . . . . . . . . . . . . . . . . . . . 2

SAFETY INSTRUCTIONS . . . . . . . . . . . . . . . . . . . . . . . 3

INSTALLATION & MAINTENANCE . . . . . . . . . . . . . . . . . 4

ENVIRONMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

IN CASE OF PUMP-DRAINED WASHER . . . . . . . . . . . . . . . . . . 4

HOW TO CONNECT WATER SUPPLY HOSE . . . . . . . . . . . . . . . . 4

CLEANING THE FILTER NET . . . . . . . . . . . . . . . . . . . . . . . . . 5

HOW TO ADD THE FABRIC SOFTENER . . . . . . . . . . . . . . . . . . 5

HOW TO PUT THE DETERGENT IN . . . . . . . . . . . . . . . . . . . . .5

CLEANING THE FILTER . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

LEVELLING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

WASHING INSTRUCTION. . . . . . . . . . . . . . . . . . . . . . . 7

PROCEDURE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

WASH PROGRAM. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

WASHING PROGRAM . . . . . . . . . . . . . . . . . . . . . . . . . 8

CLEANING THE TUB . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

OPTIONAL CYCLE . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . 10

SPECIFICATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

SW52ASP/SW62ASP

FEATURES

MAGIC FILTER

 This unique magic Filter ensures that

all the lint inside the tub is captured for top quality ﬁltering results to deliver consistently eﬀective cleaning results.

SOFTENER DISPENSER

 The Softener Dispenser releases the

fabric softener at the appropriate time when the last rinsing proceeds.

WATERFALL FLOW

 The Waterfall Flow injected from

under the pulsator cascades with full force back into the tub, pushing down any clothes that ﬂoat right under the water surface. It is this Waterfall Flow that enables this washing machine to eﬀectively wash large and heavy items, such as bluejeans and blankets.

ECONO WASH COURSE

 Designed to address concerns on water

consumption. Less water is used per wash, while continuing to deliver a clean and eﬀective washing performance. It has been certiﬁed from WELS(Water Eﬃciency Labelling and Standards) of Australia.

DESCRIPTION OF PARTS

FILTER

Lint will be collected in

the ﬁlter during

washing.

WATERFALL FLOW

FABRIC SOFTENER

DISPENSER

BLEACH INLET

SPIN BASKET

PULSATOR

WATER SUPPLY HOSE(HOT)

DRAIN-HOSE (PUMP)

DETERGENT BOX

POWER CORD

GROUND LEAD

When the water pipe is metal, make sure to cover the end of the ground wire.

CONTROL PANEL

FRONT CONTROL

PANEL

ADJUSTABLE LEGS

Adjust the length

of the legs when

installing the washer.

WATER SUPPLY HOSE (COLD)

RAT PROTECTION PANEL

LID

Be sure to keep the lid closed during washing and spinning.

SAFETY INSTRUCTIONS

Please note that the following precautions for safety intend to prevent unpredictable danger and damage by helping the proper use in safety. When using hot water in washing, please make sure that the water should not exceed 50˚C.

• Plastic parts may be deformed or damaged, and an electric shock or a ﬁre may take place.

WARNING

There might be serious injury or fatal accident when you violate this instruction.

CAUTIONS

There might be a slight injury or damage when you violate this instruction.

• If the plug (power supply cord) is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualiﬁed person in order to avoid a hazard.

• Do not pull the cord oﬀ or touch it with moist hands.

- An electric shock or a ﬁre may take place.

• Do not bend the power supply cord by force or press it with heavy things.

- An electric shock or a ﬁre may take place.

• Do not install the washer nearby electric implement or don’t put a candle light or cigarette light on the washer.

- A ﬁre may take place.

• During operation, do not put your hands or metal materials under the washer.

- You may be hurt by spinning board beneath the

washer.

• Stay away from the washer when the bottom of the washer sinks into the water.

- There might be an electric shock. Please wait until the

water drains out completely.

• Do not put laundry stained with gasoline, benzene, or alcohol in the washer, and keep the materials away from the washer.

- An explosion or a ﬁre may take place.

• During spinning, don’t put your hand in the spinning tub.

- It may hurt your hands. If it does not stop within 15

seconds after you open the lid, call service agent immediately.

• This appliance is not intended for use by young children or inﬁrm persons unless they have been adequately supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do not play with the appliance.

• This appliance has to be connected to the plug endurable to proper power consumption.

• This appliance has to be positioned so that the plug is accessible after installation.

• No user-serviceable parts inside. Refer any servicing to qualiﬁed service personnel.

- Otherwise this may cause a mechanical error, electric shock, ﬁre or physical damage.

- The product warranty does not cover problems resulting from disassembling the product.

• Do not use this product for business purposes.

• For washing machines with ventilation openings in the base, that a carpet must not obstruct the openings.

• Don’t install it in the area with moisture or outdoor where it has rain or snow

- An electric shock or a ﬁre may take place.

• Please unplug the power supply cord when you do not use it.

- An electric shock or a ﬁre may take place.

• If there is dust or water on the power supply plug and its connected part, please remove it completely.

- An electric shock or a ﬁre may take place.

• Do not make your kids look into the inside of the washer.

- If your kid falls into the washer, his life could be in

danger.

• Ventilate immediately without touching the power plug if gas is leaking.

- An electric shock or a ﬁre may take place if it catches

ﬂame.

• If the washer makes strange noise, smell or smoke, unplug it promptly and call service agent.

- An electric shock or a ﬁre may take place.

• When cleaning, don’t spray water to the parts of the washer directly.

- It may make it’s life span shorten. Also an electric

shock or ﬁre may take place

• Don’t use several appliances together with an outlet.

- A ﬁre may take place due to unusual heat.

• Don’t press the button with an awl or pin.

- An electric shock or a ﬁre may take place.

• Use the new hose-sets and old hose-sets should not be reused.

• If the damage is found on the current cord in use, it should be replaced by manufacturer, service cener or authorized person in order to avoid the risk.

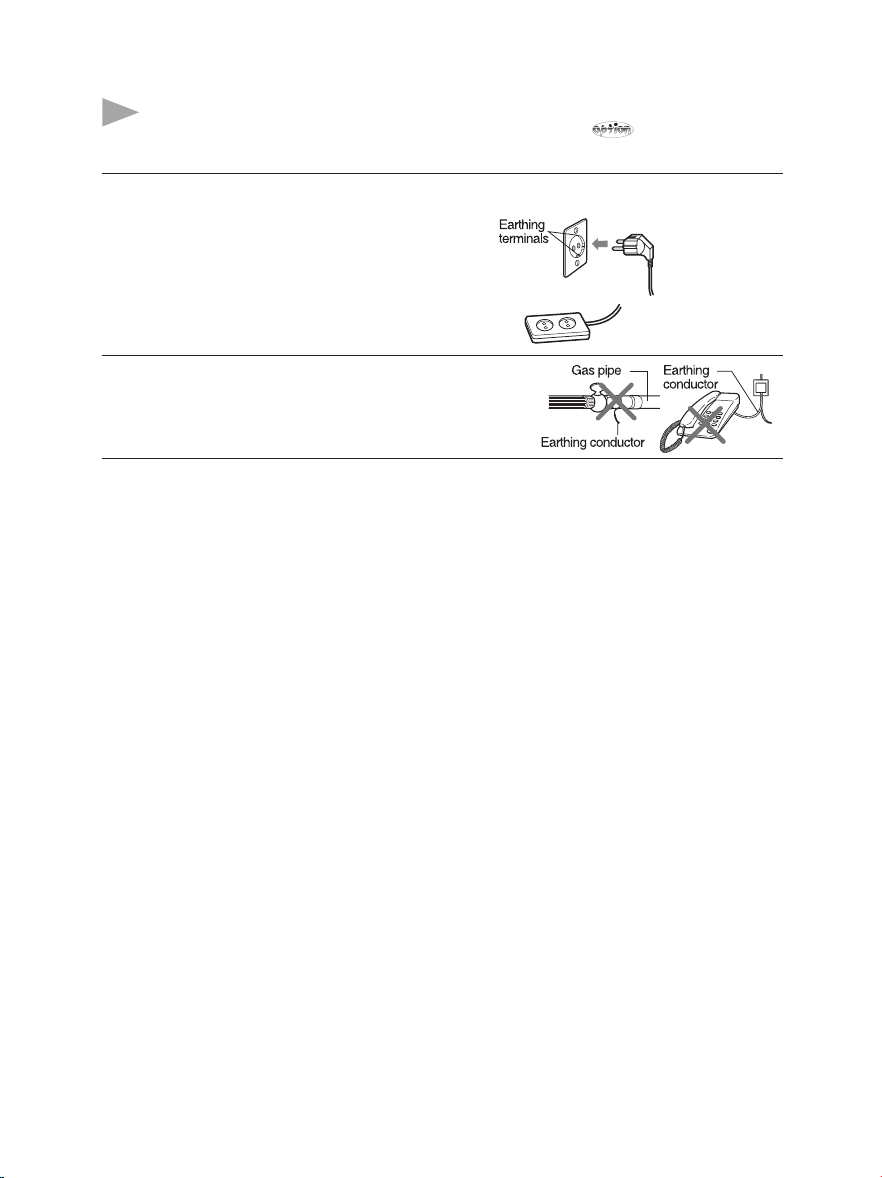

• Connect the grounding wire to the shell plate, and bury it under at least 25cm of earth:elternatively, connect the ground wire to the appropriate pin on a properly grounded power receptacle. Never connect the wire to a telephone line, lightning rod, or gas pipe.
