Samsung SV-645B/XEU User Manual

01299A SV-643B/XEU-GB1 9/3/56 7:15 AM Page 1

Instruction Manual

VIDEO
CASSETTE RECORDER

SV-645B
SV-643B
SV-640B

www.samsungvcr.com

01299A SV-643B/XEU-GB1 9/3/56 7:15 AM Page 2

Safety Precautions

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION. TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE REAR COVER. NO
USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.

IMPORTANT NOTE

The mains lead on this equipment is supplied with a
moulded plug incorporating a fuse. The value of the fuse is
indicated on the pin face of the plug. If it requires
replacing, a fuse approved to BS1362 of the same rating
must be used.

Never use the plug with the fuse cover omitted if the cover
is detachable. If a replacement fuse cover is required, it
must be of the same colour as the pin face of the plug.
Replacement covers are available from your dealer.

If the fitted plug is not suitable for the power points in your
house or the cable is not long enough to reach a power
point, you should obtain a suitable safety approved
extension lead or consult your dealer for assistance.

However, if there is no alternative to cutting off the plug,
remove the fuse and then safely dispose of the plug. Do
not connect the plug to a mains socket, as there is a risk of
shock hazard from the bared flexible cord.

The wires in the mains lead are coloured in accordance
with the following code: -

BLUE = NEUTRAL BROWN = LIVE

As these colours may not correspond with the coloured
markings identifying the terminals in your plug, proceed as
follows: -

The wire coloured BLUE must be connected to the
terminal marked with the letter N or coloured BLUE or
BLACK. The wire coloured BROWN must be connected to
the terminal marked with the letter L or coloured BROWN
or RED.

WARNING: DO NOT CONNECT EITHER WIRE TO THE
EARTH TERMINAL WHICH IS MARKED WITH THE
LETTER E OR BY THE EARTH SYMBOL , OR
COLOURED GREEN OR GREEN AND YELLOW.

IMPORTANT

DANGER

This symbol is intended to alert you to the
presence of dangerous voltage within the
product.

CAUTION

This symbol is intended to alert you to the
presence of important instructions
accompanying the product.

About this manual

Thank you for purchasing a Samsung Video Cassette Recorder (VCR).
Your Owner’s Instructions contain much valuable information on setting up and
using your VCR. Please take the time to read them as they will help you take full
advantage of your VCR’s features.

The instructions in this manual are for models, SV-645B, SV-643B and SV-640B.
Before you start reading this manual please check your model number.
It is displayed on the rear of the VCR.

- ★(SV-645B): Exceptions only for a certain model, for example SV-645B.

- Gray shaded areas marked with a star indicate instructions that are

only relevant to one model.

Features Chart

Feature

VIDEOPLUS+ Recording
AV2 IN socket

Format 16:9
Child Door Lock

IPC (Intelligent Picture Control)
Timer Programming

Auto Clock Setting
PDC (Programme Delivery Control)

Changing recording speed (SP/LP)
Hi-Fi & NICAM
Connecting an RCA Audio/Video cable

Model

SV-645B SV-643B SV-640B

● ●

● ● ●

● ● ●

● ●

● ● ●

● ● ●

● ● ●

● ● ●

● ● ●

● ● ●

●

GB

2

3

01299A SV-643B/XEU-GB1 9/3/56 7:15 AM Page 4

GB

Contents

◆ FOREWORD

■ Safety Instructions......................................................................................... 6

◆ VCR O

◆ CONNECTING YOUR VIDEO CASSETTE RECORDER

◆ S

◆ R

◆ P

VERVIEWS

■ Front View of the VCR................................................................................... 7

■ Rear View of the VCR................................................................................... 7

■ Infrared Remote Control................................................................................ 8

■ Display Indicators.......................................................................................... 9

■ Accessories................................................................................................... 9

■ Deciding How to Connect Your VCR............................................................. 10

■

Connecting Your VCR to the TV using the Coaxial Cable and SCART cable

■ Connecting Your VCR to the Satellite receiver or Other Equipment............. 12

■ Connecting the Audio Output Cable.............................................................. 13

■ Plug &Auto Set Up........................................................................................ 13

■ Tuning Your Television for the VCR.............................................................. 14

ETTING UP YOUR VIDEO CASSETTE RECORDER

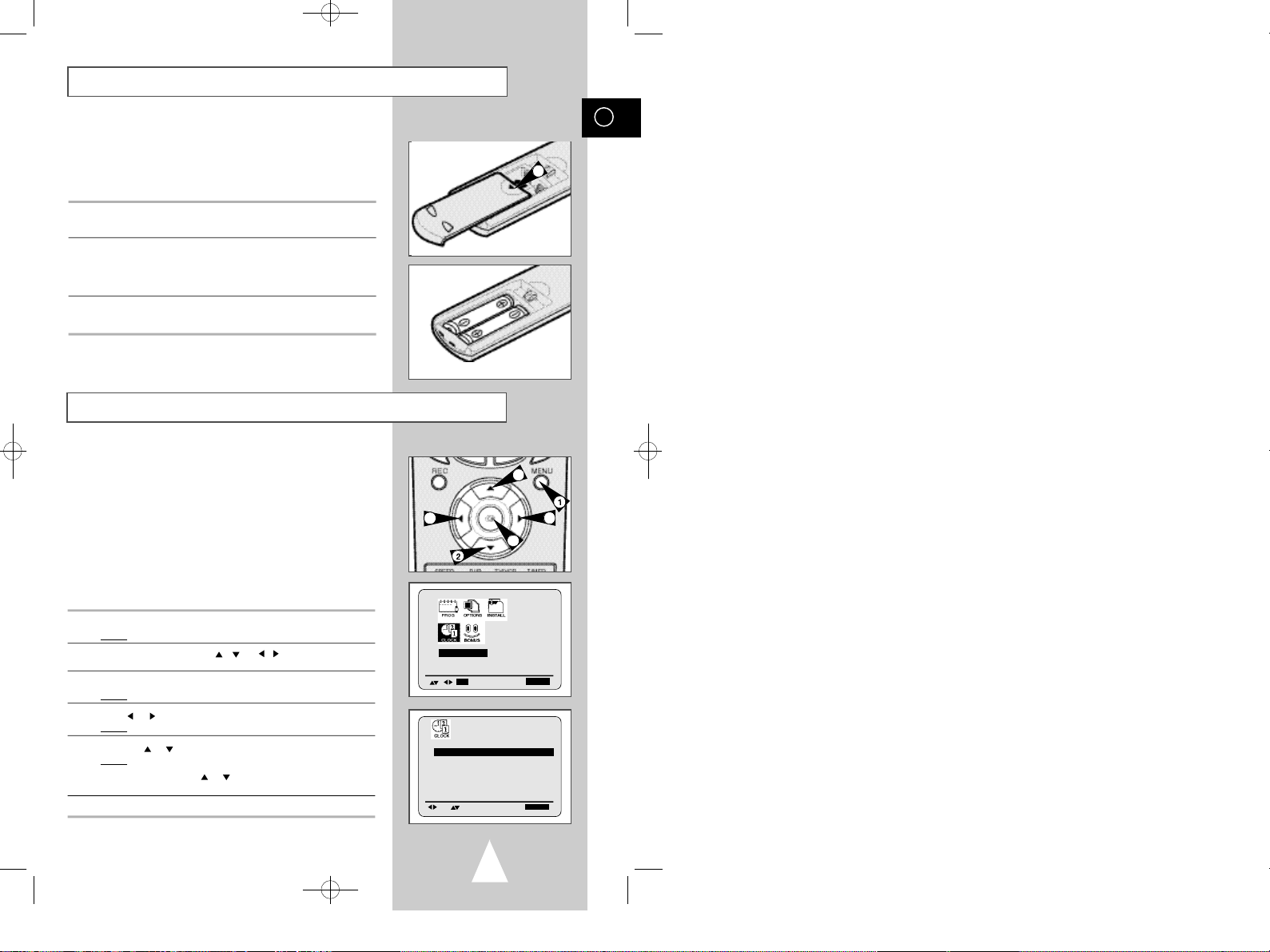

■ Inserting Batteries in the Remote Control...................................................... 15

■ Setting the Date and Time............................................................................. 15

■ Displaying/Hiding On-Screen Information..................................................... 16

■ Setting the VCR Output Channel................................................................... 16

■ Presetting the Stations Automatically............................................................ 17

■ Presetting the Stations Manually................................................................... 18

■ Clearing a Preset Station............................................................................... 19

■ Changing the Preset Station Table................................................................ 20

ECORDING TELEVISION BROADCASTS

■ Selecting the Cassette Type.......................................................................... 21

■ Selecting the Recording Speed..................................................................... 21

■ NICAM........................................................................................................... 22

■ Protecting a Recorded Cassette.................................................................... 23

■ Recording a Programme Immediately........................................................... 23

■ Recording a Programme with Automatic Stop............................................... 24

■ Using the VIDEOPLUS+ Feature (SV-645B/SV-643B Only)......................... 25

■ Modifying VIDEOPLUS+ Programming (SV-645B/SV-643B Only)............... 26

■ Using the Timer Programming Feature......................................................... 27

■ Checking a Preset Recording........................................................................ 28

■ Cancelling a Preset Recording...................................................................... 28

LAYING BACK

■ Playing a Cassette......................................................................................... 29

■ Adjusting Picture Alignment Automatically.................................................... 29

■ Adjusting Picture Alignment Manually........................................................... 29

■ Intelligent Picture Control.............................................................................. 30

■ Format 16:9 (Wide Screen)........................................................................... 31

■ Selecting the Colour Mode............................................................................ 31

■ Selecting the Audio Output Mode.................................................................. 32

..... 11

Contents (cont.)

◆ SEARCHINGFORA SEQUENCE

■ Playing a Cassette in Slow Motion................................................................ 33

■ Playing a Sequence Frame by Frame........................................................... 34

■ Picture Search, Fast Forward/Rewind........................................................... 34

■ Searching for a Specific Sequence............................................................... 35

■ Auto Repeat Play........................................................................................... 36

■ Interval Repeat Play...................................................................................... 36

◆ E

ASYOPERATION

■ VPS/PDC Default.......................................................................................... 37

■ VIDEOPLUS+ EXTEND (SV-645B/SV-643B Only)....................................... 38

■ Using the Tape Counter................................................................................ 38

◆ A

DVANCED RECORDING FEATURES

■ Connecting an RCA Audio/Video Input cable (SV-645B Only)...................... 39

■ Using the Assemble Edit Function................................................................. 40

■ Recording from Another VCR or Camcorder................................................. 40

◆ OTHER FUNCTIONS AND USEFUL RECOMMENDATIONS

■ Auto Power Off.............................................................................................. 41

■ Child Door Lock System (SV-643B/SV-640B Only)...................................... 41

■ ECO Mode-Reducing Standby power consumption...................................... 41

■ Technical Specifications................................................................................ 42

◆ SOLVING PROBLEMS

■ Problems and Solutions................................................................................. 43

■ Service Centers List...................................................................................... 44

Symbols

1 1

= Step number

1

☛

➢

NoteImportantHold downPress/push

GB

★

Option

4

5

01299A SV-643B/XEU-GB1 9/3/56 7:15 AM Page 6

GB

Safety Instructions

The following illustrations represent precautions.

The lightning bolt is a warning sign alerting you to dangerous voltage inside the product.

DO NOT OPEN THE VCR. Refer to service personnel.

Do NOT expose the VCR to
extreme temperature condi­tions (below 5°C and above
40°C) or to extreme humidity
conditions (less than 10% and
more than 75%).

Do NOT expose the VCR to
direct sunlight.

Do NOT expose the VCR to
any liquids.

Front View of the VCR

(SV-645B)

INFRARED REMOTE

SENSOR

STANDBY/ON
BUTTON

AUX VIDEO INPUT

SOCKET

(SV-643B/SV-640B)

EJECT
BUTTON

EJECT
BUTTON

AUX AUDIO L, R
INPUT SOCKETS

STANDBY/ON

BUTTON

VIDEO CASSETTE
COMPARTMENT

PROGRAM SELECTION

VIDEO CASSETTE

COMPARTMENT

BUTTONS

RECORD
BUTTON

RECORD
BUTTON

PAUSE/STILL
BUTTON

REW

BUTTON

REW

BUTTON

BUTTON

PLAY
BUTTON

F.F

BUTTON

GB

F.F

STOP
BUTTON

Do NOT place any objects on
the VCR or remote control.

THIS DEVICE IS NOT FOR USE IN INDUSTRIAL

6

During a storm and/or light­ning, unplug the VCR from the
mains socket and aerial.

ENVIRONMENTS

If the remote control is not
used for a long period of time,
remove the batteries and store
it in a cool, dry place.

PROGRAMME SELECTION

Rear View of the VCR

AERIAL IN
CONNECTOR

OUT TO TV
CONNECTOR

AV2 (SATELLITE) IN SCART
(EURO-21) SOCKET

AV1 (EURO AV) IN/OUT

SCART (EURO-21) SOCKET

BUTTONS

RCA AUDIO L, R OUTPUT
SOCKETS

STOP

BUTTON

PLAY

BUTTON

7

01299A SV-643B/XEU-GB1 9/3/56 7:15 AM Page 8

GB

Infrared Remote Control

STANDBY/ON BUTTON

SLOW BUTTON

SHUTTLE BUTTON

V-LOCK BUTTON

CLEAR AND RESET BUTTON

AUTO TRACKING BUTTON

IPC BUTTON

TRACKING BUTTONS

AUDIO MODE SELECTION BUTTON

STOP BUTTON

REWIND/REVERSE PICTURE

SEARCH BUTTON
RECORD BUTTON

MENU SELECTION BUTTON

MENU SELECTION DOWN BUTTON

RECORDING SPEED SELECTION BUTTON

EJECT BUTTON

INDEX BUTTON
FRAME ADVANCE BUTTON
TUNER, AV1, AV2, AUX ★(SV-645B ONLY)

SELECTION / REPEAT SELECTION BUTTON
PROGRAMME SELECTION BUTTON
DISPLAY BUTTON

PLAY/PAUSE/STILL BUTTON
FAST-FORWARD/FORWARD

SEARCH BUTTON
MENU BUTTON
MENU SELECTION UP BUTTON
MENU SELECTION BUTTON

OK BUTTON

TIMER BUTTON

Display Indicators

(SV-645B)

1 2 3 4

(SV-643B/SV-640B)

1 2 3 4

Hi-Fi

Hi-Fi

5 6

GB

1 Cassette loaded indicator
2 ECO Mode display
3 Multi-function display
4 Timer indicator
5 Hi-Fi indicator
6 Rec indicator

1 Cassette loaded indicator
2 ECO Mode display
3 Multi-function display
4 Timer indicator
5 Hi-Fi indicator
6 Rec indicator

5 6

Accessories

You have just purchased a SAMSUNG Video Cassette Recorder (VCR).
Together with your VCR, you will find the following accessories in the box.

REMOTE CONTROL &

BATTERIES “AA”

8

AUDIO CABLE

OWNER’S

INSTRUCTIONS

COAXIAL CABLE

9

01299A SV-643B/XEU-GB1 9/3/56 7:15 AM Page 10

GB

Deciding How to Connect Your VCR

You must take into account various factors when connecting audio or video systems:

◆ Types of connectors available on your systems

◆ Systems connected permanently to the VCR (satellite receiver for example) or temporarily

(camcorder for example)

Your VCR is equipped with the following connectors.

Connector Location Type Direction Recommended Use

AV1 (EURO AV)

AV2 Rear SCART In ◆ Satellite receiver

(DEC./EXT.) ◆ Other VCR

Audio output Rear Audio RCA Out ◆ Audio Hi-Fi system

OUT TO TV Rear 75 Ω Out ◆ Television

IN FROM ANT. Rear 75 Ω In ◆ Aerial

AUX Front Audio/Video RCA In ◆ Audio Hi-Fi system

★

(SV-645B Only)

Rear SCART In/Out ◆ Television

coaxial

coaxial ◆ Cable television network

◆ Satellite receiver

◆ Other VCR

◆ Satellite receiver

◆ Camcorder

Connecting Your VCR to the TV using the Coaxial
Cable and SCART cable

To receive television programmes a signal must be received from
one of the following sources:

◆ An outdoor aerial

◆ An indoor aerial

◆ A cable television network

◆ A satellite receiver

☛ Make sure that both the television and the VCR are

switched

off before connecting the cables.

1 Remove the aerial or network input cable from the television.
2 Connect this cable to the 75Ω coaxial socket marked on the

rear of your VCR.

3 Plug the coaxial cable supplied into the socket on your VCR.
4 Plug the other end of the coaxial cable into the connector

previously used for the aerial on the television.

5 Connect one end of the scart cable to the AV1 (EURO AV) socket

on the rear of the VCR. You must connect your VCR to the
television via the scart cable.

6 Plug the other end into the appropriate connector on the

television.

2

5

GB

TV

3

4

☛ Whenever you connect an audio or video system to your VCR, ensure that allelements are

switched off.
Refer to the documentation supplied with your equipment for detailed connection instructions

and associated safety precautions.

10

11

01299A SV-643B/XEU-GB1 9/3/56 7:15 AM Page 12

Connecting Your VCR to the Satellite receiver or Other
Equipment

GB

You can connect your VCR to a Satellite receiver or other VCR using the SCART cable if the appropriate
outputs are available on the equipment chosen. The following illustrations give a few examples of the
connection possibilities.

1. AV2(DEC./EXT.): By means of 21-pin Scart Cable

Plug the SCART Cable with satellite receiver or other equipment into the AV2(DEC./EXT.) socket on the rear of
the VCR.
After making this connection, select the source by pressing the INPUTbutton for the AV2 input sources.

2. By means of RF Coaxial Cable

After making this connection, you must preset the station received through the satellite tuner.
RF output channel of the satellite receiver should be adjusted away from channel 60, which is used by the VCR,
e.g. re-adjust to channel 65.

Aerial

Satellite Receiver or other Equipment

Aerial Connector

2

T V

1

SCART Cable

SCART Cable

Connecting the Audio Output Cable

You can connect your VCR to a Hi-Fi system.
Example: You wish to take advantage of the quality of your Hi-Fi

☛ ◆ Regardless of the type of connection chosen, you

stereo system when watching a programme or recording
via your VCR.

must always connect the coaxial cable supplied.
Otherwise, no picture will be visible on the screen
when the VCR is switched off.

◆ Make sure that both the television and the VCR are
switched

off before connecting the cables.

1 Connect the coaxial cable or SCART as indicated on page 11.
2 Plug the audio output cable into the audio connectors on the rear

of your VCR.

➢ Respect the colour coding of the left and right channels.

3 Plug the other end of the audio cable into the appropriate input

connectors on your Hi-Fi stereo system.

Plug & Auto Set Up

Your VCR will automatically set itself up when it is plugged into the
mains for the first time. TV stations will be stored in memory. The
process takes a few minutes. Your VCR will then be ready for use.

1 Connect the coaxial cable as indicated on page 11.

(Connecting Your VCR to the TV Using the Coaxial Cable)

2 Plug the VCR into the mains.

Result: A message appears.

3 Press OK button to start the auto scanning

◆

The number of stations automatically stored by the VCR
depends on the number of stations that it has found.

◆

The process will finish after a few minutes.

4 The current time and date are displayed automatically.

Check the date and time.

if it is :

◆

Correct, Press MENUbutton twice to exit the menu.

◆

incorrect, see page 15.

GB

1

2

2

TV

2

➢ Now, you only have to switch the VCR on and it is ready

for use.

☛ Function for “Plug & Auto Set Up” is fixed already.

So if you want to change this fixed one, you can change
it by Presetting the Stations Automatically in OSD “ Auto
Set Up” menu. (see page 17)

12

13

01299A SV-643B/XEU-GB1 9/3/56 7:15 AM Page 14

Tuning Your Television for the VCR

GB

2

4

You must tune your television for the VCR only if you are not using
a Scart cable

➢ To view pictures from your VCR when a Scart cable is

used, the television must be set to the audio/video mode
(AV).

1 Switch on the television.
2 Switch on the VCR by pressing STANDBY/ON on the front of the

VCR or STANDBY/ON on the remote control.

3 Select a programme position on the television to be reserved for

use with your VCR.

4 Insert the video cassette in the VCR. Check that the VCR starts

reading the cassette; if not, press

II

button

.

5 Start a scan on your television or set the television to UHF

channel 60.

6 Fine tune the television until the pictures and sound are obtained

clearly.

7 If you cannot find the pictures and sound, or there is interference

from nearby channels, it may be necessary to change the setting
of the VCR output channel (see Setting the VCR Output Channel
on page 16 and Problems and Solutions on page 43).

8 When the picture and sound are perfectly clear, store this channel

at the desired programme position on the television.
Result:

That programme is now reserved for use with your VCR.

14

01299A SV-643B/XEU-GB2 9/3/56 7:16 AM Page 15

Inserting Batteries in the Remote Control

You must insert or replace the batteries in the remote control when
you:

◆ Purchase the video cassette recorder

◆ Find that the remote control is no longer working

correctly

1 Push the tab in the direction of the arrow to release the battery

compartment cover on the rear of the remote control.

2 Insert two AA, R6 or equivalent batteries, taking care to respect

the polarities:

◆ + on the battery with + on the remote control

◆ – on the battery with – on the remote control

3 Replace the cover by aligning it with the base of the remote

control and pushing it back into place.

➢ Do not mix different battery types (manganese and

alkaline for example).

Setting the Date and Time

Your VCR contains a 24-hour clock and calendar used to:

◆ Automatically stop programme recording

◆ Preset your VCR to record a programme automatically

You must set the date and time when:

◆ You purchase the video cassette recorder

☛ ◆ The time and date are set automatically from the

1 Press MENU on the remote control.

2 Press the corresponding

3 Press the OK button to select this option.

4 Press or to select the hour, minutes, day, month and year.

5 Press the or buttons to increase or decrease the value.

6 On completion, press MENU twice to exit the menu.

broadcast signal. If the signal is weak or ghosting
occurs, the time and date may not be set automati­cally. In this case, they should be set manually.

◆ Do not forget to reset the time when you change
clocks from winter to summer time and vice versa.

Result: The programming menu is displayed.

,

CLOCK SET option.

Result: The CLOCK SET menu is displayed.

Result: The option selected flashes.

Result: The day of the week is displayed automatically.

➢ You can hold the or buttons down to scroll more

quickly through the values.

or , buttons to select the

2

CLOCK SET

O K E N D:M E N U

12:00 1/JAN/2001

AUTO CLOCK : ON

GB

1

2

2

3

M O N

E N D:M E N U

15

01299A SV-643B/XEU-GB2 9/3/56 7:16 AM Page 16

GB

Displaying/Hiding On-Screen Information

USER SET

O K E N D: M E N U

O S D : O N

TAPE SELECT : E 1 8 0
COLOUR SYSTEM :AUTO
FORMAT 16:9 :AUTO
NICAM :ON
ECO. MODE :OFF
IPC :ON

E N D:M E N U

Setting the VCR Output Channel

I N S T A L L A T I O N

O K E N D:M E N U

AUTO SET UP
MANUAL SET UP

VCR OUTPUT CH :CH60

E N D:M E N U

Your VCR displays most information both on the VCR and the
television.

You can choose to display or hide this information on the television
screen (except for the Index, Programming MENU and

VIDEOPLUS+ functions ★(SV-645B/SV-643B only), which cannot
be hidden).

1 Press MENU on the remote control.

Result: The programming menu is displayed.

2 Press the corresponding

USER SET option.

3 Press the OK button to select this option.

Result: The USER SET menu is displayed.

4 Press the corresponding or buttons, until the O S D option is

selected.

,

or , buttons to select the

5 To... Press or , until...

Display on-screen information O N is displayed.
Hide on-screen information O F Fis displayed.

6 On completion, press MENU twice to exit the menu.

Your VCR output channel may need to be changed if the pictures
suffer from interference or if your TV cannot find the pictures.
Also, you can change the VCR output channel to adjust the
frequency in which information is displayed on the screen.

1 Press MENU on the remote control.

Result: The programming menu is displayed.

2 Press the corresponding

I N S T A L L A T I O N option.

3 Press the OK button to select this option.

Result: The I N S T A L L A T I O N menu is displayed.

4 Press the corresponding or buttons, until the VCR OUTPUT

C H option is selected.

5 Select the required output channel (CH21~CH69) by pressing the

or buttons.

6 On completion, press MENU twice to exit the menu.

Then tune your television again (see page 14).

,

or , buttons to select the

Presetting the Stations Automatically

☛ You do not need to preset the stations if you have already

set them automatically (see Plug & Auto Set Up on
page 13).

Your VCR contains a built-in tuner used to receive television
broadcasts.

You must preset the stations received through the tuner. This can
be done:

◆ Plug & Auto Set up (see page 13)

◆ Automatically

◆ Manually (see page 18)

You can store up to 80 stations.

1 Press the MENU button on the remote control.

Result: The programming menu is displayed.

2 Press the corresponding

I N S T A L L A T I O N option.

3 Press the OK button to select this option.

Result: The INSTALLATION menu is displayed.

4 Press the corresponding or buttons, until the AUTO SET

U P

option is selected. And then press the button to select this
option.
Result: A message appears, indicating that any channels

5 Press OK to start the auto scanning.

Result: ◆ The PLEASE WAITindication flashes on the

➢ The number of stations automatically stored by the VCR

6 If you wish to cancel the auto scanning before the end, press the

MENU button three times to exit the menu.

➢ ◆ The time and date are set automatically from the

already preset on your VCR will be deleted.

television screen.

◆ The first frequency band is scanned and the first

station found is displayed and stored.

◆ The VCR then searches for the second station and

so on.

◆ When the automatic scanning procedure has

finished, the VCR switches automatically to pro­gramme 1.

depends on the number of stations that it has found.

broadcast signal. If the signal is weak or ghosting
occurs, the time and date may not be set automati­cally. In this case, they should be set manually (see
page 15).

◆ Once the auto scanning procedure has finished, some
stations may have been stored more than once; select
the stations with the best reception and delete the
ones no longer required (see page 19).

,

or , buttons to select the

I N S T A L L A T I O N

O K E N D:M E N U

AUTO SET UP

MANUAL SET UP
VCR OUTPUT CH :CH60

E N D:M E N U

YOUR DATA WILL BE LOST

PRESS O KTO CONTINUE

M E N U TO EXIT

AUTO SET UP

PLEASE WAIT

2

I - - - - - - - - - - - - - - - - - - - - I

%

E N D :M E N U

GB

16

17

01299A SV-643B/XEU-GB2 9/3/56 7:16 AM Page 18

Clearing a Preset StationPresetting the Stations Manually

GB

I N S T A L L A T I O N

O K E N D:M E N U

AUTO SET UP

MANUAL SET UP

VCR OUTPUT CH :CH60

E N D:M E N U

TV STATION TABLE

* *

PR C H N A M E

1 0 2 7 C A E B

2 - - - - - - ­3 - - - - - - ­4 - - - - - - ­5 - - - - - - -

D E L E T E :CLR/RST MENU

* *

P R : 1

C H : ---

M F T : ­N A M E : ----

S W A P P I N G :O K

MANUAL TUNING

M E M O R Y: O K

E N D:M E N U

* *

* *

☛ You do not need to preset the stations manually if you

have already set them automatically.

1 Press the MENU button on the remote control.

Result: The programming menu is displayed.

2 Press the corresponding

I N S T A L L A T I O N option.

3 Press the OK button to select this option.

Result: The I N S T A L L A T I O N menu is displayed.

4 Press the corresponding or buttons, until the MANUAL SET

U P option is selected.

5 Press the button to select a MANUAL SET UP option.

Result: The TV STATION TABLE menu is displayed.

6 Press the or buttons to select a programme number as

required.

7 Press the button to preset the station.

Result: The MANUAL TUNING menu is displayed.

8 Press the or buttons to start scanning.

Result: The frequency band is scanned and the first station

found is displayed.

9 Press the

N A M E.

The station name is set automatically from the broadcast signal.

10 To change the programme’s name, press the button.

Result: The first letter of the name flashes.

or

,

or , buttons to select the

buttons until the cursor is placed in front of the

11 To... Then...

Select a character Press the orbutton until the
in the name required character is displayed

Move to the next or Press the or buttons
previous character respectively.

(letters, numbers or “-” character).

12 If you... Then...

Wish to store the ◆
station displayed until the MFT is selected.

Do notwish to ◆
store the station until the CH is selected.
displayed ◆ Press the or buttons to go on

13 Repeat this procedure from Step 6 onwards, until all the required

stations have been stored.

14 On completion, press the MENU button three times to exit the

menu.

Press the corresponding

◆ Press the

picture, if necessary.

◆ Press OK to store the station

or buttons to adjust the

Press the corresponding

scanning the frequency band and display
the next station

◆ Go back to the beginning of Step 12

or buttons,

or buttons,

If you have stored a TV station:

◆ That you do not require

◆ At the wrong programme position

you can cancel it.

1 Press the MENU button on the remote control.
2 Press the corresponding

I N S T A L L A T I O N option.

3 Press the OK button to select this option.

Result: The I N S T A L L A T I O N menu is displayed.

4 Press the corresponding or buttons, until the MANUAL SET

U P option is selected.

5 Press the button to select this option.

Result: The TV STATION TABLE menu is displayed.

6 Press the corresponding or buttons, until the required preset

TV station (PR) is selected.

,

or , buttons to select the

7 Press the CLR/RST button.
8 Repeat the same procedure from Step 6 onwards until all the

required stations have been cleared.

9 On completion, press the MENU button three times to exit the

menu.

I N S T A L L A T I O N

O K E N D:M E N U

AUTO SET UP

MANUAL SET UP

VCR OUTPUT CH :CH60

E N D:M E N U

TV STATION TABLE

* *

PR C H N A M E

1 0 2 7 C A E B

2 - - - - - - ­3 - - - - - - ­4 - - - - - - ­5 - - - - - - -

D E L E T E :CLR/RST MENU

S W A P P I N G :O K

GB

* *

18

19

01299A SV-643B/XEU-GB2 9/3/56 7:16 AM Page 20

GB

Changing the Preset Station Table

I N S T A L L A T I O N

O K E N D:M E N U

AUTO SET UP

MANUAL SET UP

VCR OUTPUT CH :CH60

E N D:M E N U

TV STATION TABLE

* *

PR C H N A M E

1 0 2 7 C A E B

2 - - - - - - ­3 - - - - - - ­4 - - - - - - ­5 - - - - - - -

S W A P P I N G :O K

M E N U

* *

You can rearrange the Station Table and give different programme
numbers to the stations listed according to your own preferences.

1 Press the MENU button on the remote control.
2 Press the corresponding

I N S T A L L A T I O N option.

3 Press the OK button to select this option.

Result: The I N S T A L L A T I O N menu is displayed.

4 Press the or buttons to select MANUAL SET UP option.

And then press the button to select this option.
Result: The TV STATION TABLE menu is displayed.

5 Press the corresponding or buttons, until the required preset

TV programme is selected.
Result: The selected station is displayed at the same time on

the television screen.

6 To change the programme number assigned to a station press the

OK button on the remote control. (For example, To move a TV
station in programme 1 to programme 3)

7 Press the or buttons to select required position. And then

press OK again to swap the position.

8 You can modify this station by repeating the same procedure from

Step 5 onwards.

9 On completion, press the MENU button three times to exit the

menu.

,

or , buttons to select the

Selecting the Cassette Type

If you wish to use the tape counter to display the time remaining on
a cassette, you must indicate the type of cassette inserted.

1 Press MENU on the remote control.

Result: The programming menu is displayed.

2 Press the corresponding

USER SET option.

,

or , buttons to select the

3 Press the OK button to select this option.
4 Press the corresponding o r buttons, until the T A P E

S E L E C T

option is selected.

5 Press the or buttons as many times as required, until the

correct cassette length is displayed.

E180 E240
E 300 E260

6 Press MENU twice to exit the menu.

Selecting the Recording Speed

USER SET

O K E N D: M E N U

O S D : O N

TAPE SELECT : E 1 8 0

COLOUR SYSTEM :AUTO
FORMAT 16:9 :AUTO
NICAM :ON
ECO. MODE :OFF
IPC :ON

E N D:M E N U

GB

TV STATION TABLE

* *

PR C H N A M E

1 - - - - - - ­2 - - - - - - -

3 0 2 7 C A E B

4 - - - - - - ­5 - - - - - - -

S W A P P I N G :O K

20

M E N U

* *

You can record a cassette at two different speeds:

◆ SP (Standard Play)

◆ LP (Long Play)

In Long Play modes:

◆ Each cassette lasts twice as long

◆ The recording is of a slightly lower quality

To record a cassette... Press the SPEED button on the

remote control, until...

In standard play mode S P is displayed.
In long play mode L P is displayed.

T

ype Recording Time (in SP)
E-180 180 mins. or 3 hours
E-240 240 mins. or 4 hours
E-260 260 mins. or

4 hours and 20 mins.

E-300 300 mins. or 5 hours

21

01299A SV-643B/XEU-GB2 9/3/56 7:16 AM Page 22

GB

NICAM

USER SET

O K E N D: M E N U

O S D : O N
TAPE SELECT : E 1 8 0
COLOUR SYSTEM :AUTO
FORMAT 16:9 :AUTO

NICAM :ON

ECO. MODE :OFF
IPC :ON

E N D:M E N U

NICAM programmes are divided into 3 types. NICAM Stereo,
NICAM Mono and Bilingual (transmission in another language).
NICAM programmes are always accompanied by a standard mono
sound broadcast and you can select the desired sound.
Please refer to page 32.

1 Press MENU on the remote control.

Result: The programming menu is displayed.

2 Press the corresponding

,

or , buttons to select the

USER SET option.

3 Press the OK button to select this option.

Result: The USER SET menu is displayed.

4 Press the corresponding or buttons, until the N I C A M option

is selected.

5 To... Press or , until...

Mono mode O F F is displayed.

NICAM mode O N is displayed.

OFF: Only set at this position to record the

standard mono sound during a
NICAM broadcast if the stereo sound
is distorted due to inferior reception
conditions.

ON: Normally set at this position.

6 On completion, press MENU twice to exit the menu.

Protecting a Recorded Cassette

Video cassettes have a safety tab to prevent accidental erasure.
When this tab has been removed, you cannot record on the tape.

1 If you wish to protect a cassette, break off the tab using a small

screwdriver.

2 To re-record over a protected cassette (safety tab broken), cover

the hole with adhesive tape.

Recording a Programme Immediately

Before recording a programme, you must have preset the corres­ponding station (unless you are recording via an external video
source). If you have not done so, refer to pages 17 and 18.

1 Switch on the television.
2 To monitor the programme being recorded, select the television

channel reserved for use with your VCR (or the AV input if used).

3 Insert the cassette on which the programme is to be recorded,

with the window visible and the safety tab intact or the opening
covered with adhesive tape.

Result: The VCR is switched on automatically.

4 Select:

◆

The station to be recorded using
or

◆ The AV1, AV2 or AUX

INPUT button for a satellite tuner or external video source

Result: The station number is displayed and the programme

can be seen on the television.

5 Select the recording speed by pressing the SPEED button as

many times as required (see page 21).

6 Hold REC down for a while to start recording.

Result:

The record indicator appears on the television and VCR
display. An index is recorded on the tape (see page 35).

7 To stop recording, press

➢ ◆ If your VCR ejects the cassette when you start

recording, check to make sure that the cassette’s
safety tab is intact or that the opening (created by a
broken safety tab) is covered with adhesive tape.

◆ If you reach the end of the tape while recording, the
cassette rewinds automatically.

■

the PROG( or )

★

(SV-645B only) source using the

once.

buttons

GB

1

4

4

5

7

6

22

23

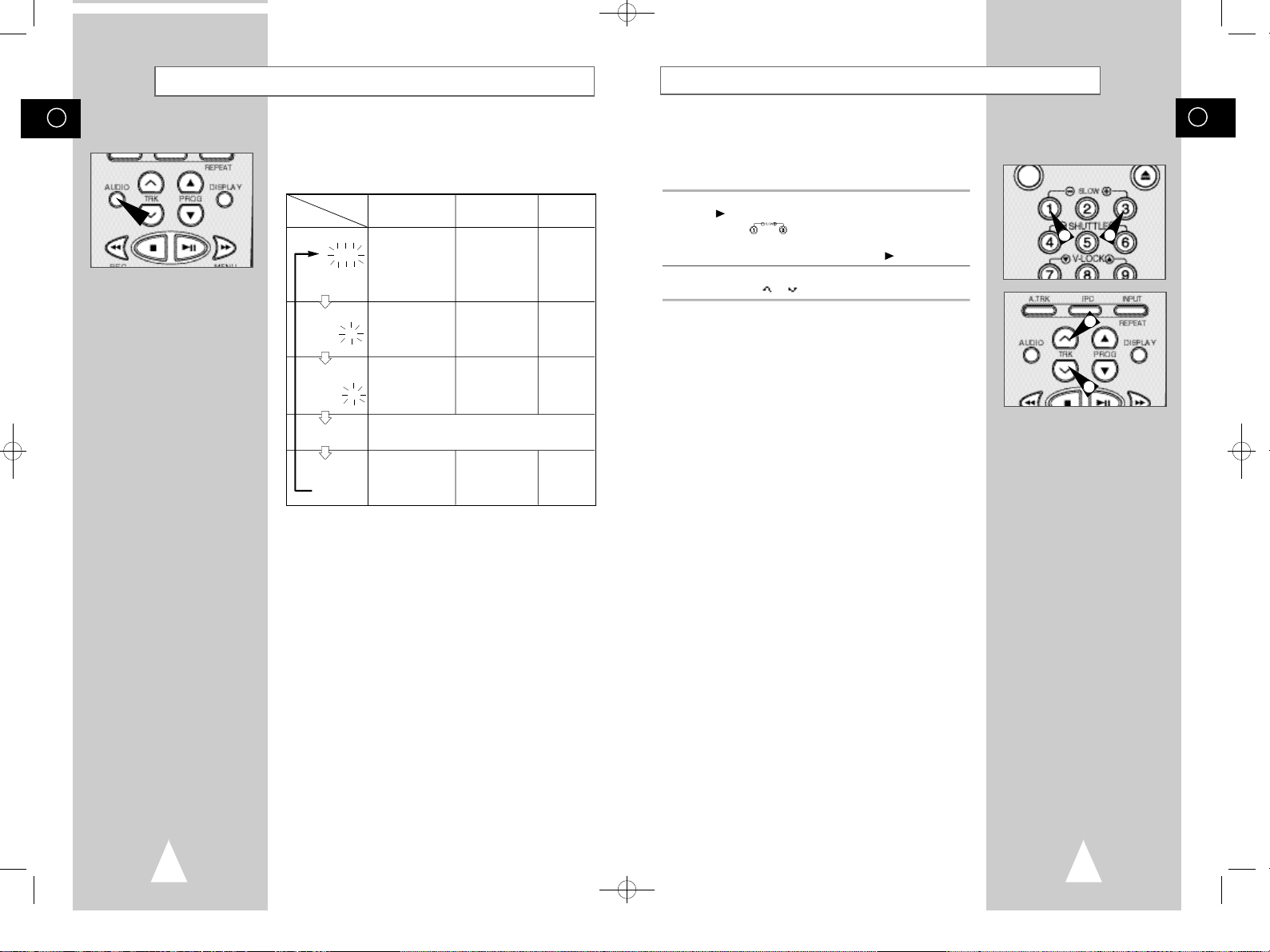

01299A SV-643B/XEU-GB2 9/3/56 7:16 AM Page 24

Recording a Programme with Automatic Stop

GB

3

4

4

4

5

6

This function enables you to record up to nine hours (LP) of
programmes.

Your VCR stops automatically after the requested length of time.

1 Switch on the television.
2 To monitor the programme being recorded, select the television

channel reserved for use with your VCR (or the AV input if used).

3 Insert the cassette on which the programme is to be recorded,

with the window visible and the safety tab intact or the opening
covered with adhesive tape.
Result: The VCR is switched on automatically.

4 Select:

◆

The station to be recorded using the
or

◆ The AV1, AV2 or AUX

INPUT button for a satellite tuner or external video source

Result: The channel number is displayed and the programme

can be seen on the television.

5 Select the recording speed by pressing the SPEED button as

many times as required (see page 21).

★

PROG( or )

buttons

(SV-645B only) source using the

6 Hold the REC button down for a while to start recording.

Result: The record indicator appears on the television screen

and VCR display. An index is recorded on the tape
(see page 35).

7 Press the REC button several times to increase the recording time

in:

◆ 30-minute intervals up to four hours

◆ 1-hour intervals up to nine hours (LP)

Result: The length is displayed on the television displays. The

selected programme is recorded for the length of time
requested. At the end of that time, the VCR stops
recording automatically.

8 If you wish to cancel the recording before the end, press

STANDBY/ON.

LENGTH 2:30

SET LENGTH :

PRESS R E C

24

☛ If the end of the tape is reached while recording:

◆ The recording stops

◆ The VCR automatically turns off

01299A SV-643B/XEU-GB3 9/3/56 7:16 AM Page 25

Using the VIDEOPLUS+ Feature ★(SV-645B/SV-643B Only)

Before presetting your VCR:

◆ Switch on both the television and your VCR

◆ Check that the date and time are correct

◆ Insert the cassette on which the programme is to be

Up to six programmes can be preset.

recorded (safety tab intact)

1 Press the TIMER button.

Result: The TIMER METHOD is displayed.

2 Press the corresponding or buttons, until the V I D E O P L U S

option is selected.

3 Press the button to select V I D E O P L U S.

Result: A message is displayed to allow you to enter the

VIDEOPLUS+ code.

☛ If all six programmes have been set, the message T I M E R

I S F U L L is displayed. Refer to page 28 if you wish to

cancel a preset recording.

4 Press the numeric buttons to enter the code opposite the

programme that you wish to record in your television magazine.

➢ If you wish to correct the VIDEOPLUS+ code that you are

entering:

◆ Press the

cleared

◆ Enter the correct digit

button until the digit to be corrected is

5 Press the MENU button.

Result:

The information concerning the programme is displayed.

☛ When using the VIDEOPLUS+ function for the first time with

stored stations, the programme number flashes. This one
time, you must enter the station number manually by
pressing the

◆ The programme number or times flash

◆ You wish to modify the programme

6

If the programme and times are correct, press the MENUbutton.

or buttons. Refer to the following page if:

7 Press the STANDBY/ON button to activate the timer.
8 Refer to page 28 if you wish to:

◆ Check that your VCR has been programmed correctly

◆ Cancel a preset recording

1

TIMER METHOD

* *

S T A N D A R D

V I D E O P L U S

E N D:M E N U

V I D E O P L U S

CODE ---------

C O D E :0 - 9 C O R R E C T :

PR DAY START

1 MO 1 1 2 : 0 0

-- ---- - - : - -

-- ---- - - : - -

-- ---- - - : - -

-- ---- - - : - -

-- ---- - - : - ­D E L E T E :C L R / R S T M E N U

E N D:M E N U

1/JAN MON 2 1 : 2 8

→

S T O P V/P

→

1 2 : 5 0S P O N

→

- - : - - - - -

→

- - : - - - - -

→

- - : - - - - -

→

- - : - - - - -

→

- - : - - - - -

GB

* *

☛ The numbers next to each TV programme listing are

VIDEOPLUS+ code numbers, which allow you to
programme your videorecorder instantly with the remote
control. Tap in the VIDEOPLUS+ code for the programme
you wish to record.

™VIDEOPLUS+ is a trademark of Gemstar Development Corporation. The VIDEOPLUS+

system is manufactured under licence from Gemstar Development Corporation.

7

25

01299A SV-643B/XEU-GB3 9/3/56 7:16 AM Page 26

GB

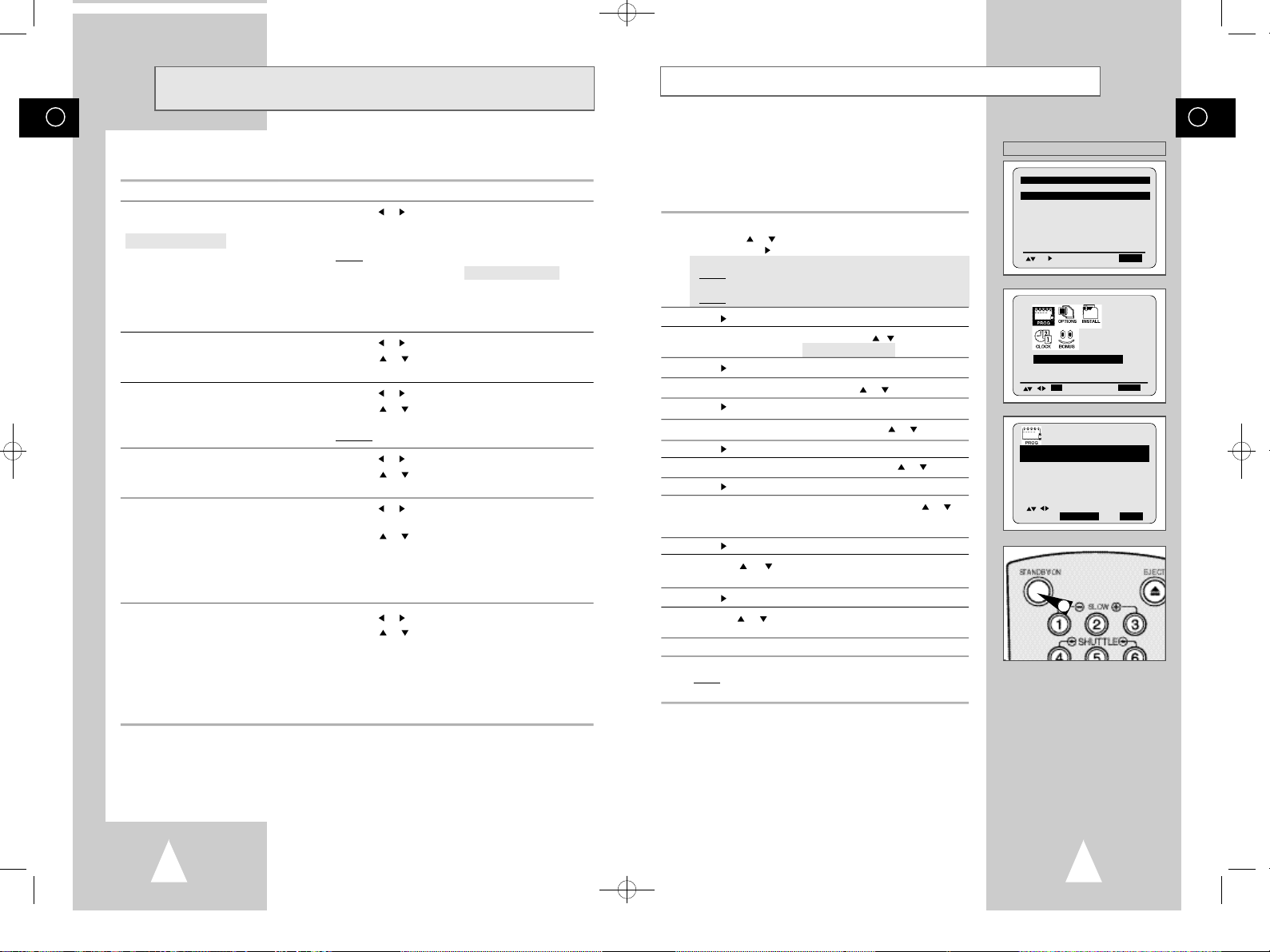

Modifying VIDEOPLUS+ Programming

★

(SV-645B/SV-643B Only)

If you wish to correct the programme displayed or modify certain elements, such as the recording
speed, you can do so before you press MENU a second time to confirm.

If you wish to... Then...

Select an input source other ◆ Press the or buttons, until the P R selection flashes.
than the tuner (AV1, AV2 or
AUX ★(SV-645B only)

Record a programme every day ◆ Press the or buttons, until the D A Y selection flashes.
(Monday to Sunday) at the same time ◆ Press the

Record a programme every week ◆ Press the or buttons, until the D A Y selection flashes.
on the same day and at the same time ◆ Press the or buttons, until the W - (Week) value is

Extend the recording time ◆ Press the or buttons, until the S T O P selection flashes.

Select the recording speed ◆ Press the or buttons, until the recording speed selection

Select the PDC recording ◆ Press the or buttons, until the V/P selection flashes.

)

◆ Press the INPUT button one or more times to change the

input source selection.

Result: The programme number is replaced by:

• The AV1, AV2

using the INPUT button for a satellite tuner or
external video source

➢ The input source must be selected before changing any

other value.

displayed.

displayed, followed by the required day.
Example: W - S A (Weekly Saturday)

◆ Press the or buttons to increase or decrease the stop

time.

flashes.

◆ Press the

displayed:

or buttons, until the D L Y (Daily) value is

or buttons until the correct indication is

or AUX ★(SV-645B only) source

• A U T O (Auto Tape Speed Select) : see page 27

•

S P (Standard Play)

• L P (Long Play)

◆ Press the or

☛

Do not select PDC unless you are sure the programme you
wish to record is broadcast with PDC. If you do set PDC ON
(by selecting “ON” in the right - hand column on the screen),
then you must set up the start-time EXACTLY according to
the published TV schedule. Otherwise the timer recording
won’t take place.

buttons until the “ON” indication is displayed.

Using the Timer Programming Feature

The Timer Programming feature allows you to preset the VCR to
record a programme up to one month before that programme is to
be broadcast. Up to six programmes can be preset.

☛ Before presetting a recording, check that the date and

time are correct.

1 - Insert the cassette. Press the TIMER button.

Press the or buttons to select the STANDARD option and
then press the

◆ Press MENU on the remote control.

Result: The programming menu is displayed.

◆ Press the OK button to select

Result: The TIMER PROGRAMMING menu is displayed.

2 Press to select the input source.
3 Select the required station by pressing the , buttons or

to select the AV1, AV2

4 Press to select the recording day.
5 Select the required day by pressing the or buttons.

6 Press to select the recording start time.
7 Select the required hour value by pressing the or buttons.
8 Press to select the minutes.

9 Select the required minute value by pressing the or buttons.
10 Press to select the recording end time.
11 Select the required recording end time by pressing the or

buttons, following the same procedure as when selecting the
recording start time.

12 Press to select the recording speed.
13 Press the or buttons to select the S P (Standard Play), L P

(Long Play), A U T O (Auto Tape Speed Select) recording speeds.

14 Press to select the PDC recording mode.
15 Press the or buttons to toggle between the PDC mode

(marked O N) and the non-PDC mode (marked -).

16 When you have finished, press the MENU button.
17 Press the STANDBY/ON button to activate the timer.

Result: Before starting recording, the VCR compares the timer

➢ Auto Tape Speed Select. The VCR’s “Auto Tape Speed

Select” function compares the duration of the timer
recording to the actual recording time remaining on the
tape loaded. If there is insufficient tape to complete a
timer recording in AUTO mode, the VCR automatically
switches to LP mode to record the whole programme.

button or,

TIMER PROGRAMMING option.

or AUX ★(SV-645B only) input sources.

duration with the remaining time on the cassette.

INPUT

★

(SV-645B/SV-643B)

TIMER METHOD

* *

S T A N D A R D

V I D E O P L U S

TIMER PROGRAMMING

O K E N D: M E N U

1/JAN MON 2 1 : 2 8

PR DAY START

1 MO 1 1 2 : 0 0

-- ---- - - : - -

-- ---- - - : - -

-- ---- - - : - -

-- ---- - - : - -

-- ---- - - : - -

D E L E T E :C L R / R S T M E N U

→

→

→
→
→
→
→

17

* *

E N D:M E N U

S T O P V/P

1 2 : 5 0S P O N

- - : - - - - -

- - : - - - - -

- - : - - - - -

- - : - - - - -

- - : - - - - -

GB

26

27

01299A SV-643B/XEU-GB3 9/3/56 7:16 AM Page 28

Playing a CassetteChecking a Preset Recording

GB

1/JAN MON 2 1 : 2 8

PR DAY START

1 MO 1 1 2 : 0 0

-- ---- - - : - -

-- ---- - - : - -

-- ---- - - : - -

-- ---- - - : - -

-- ---- - - : - ­D E L E T E :C L R / R S T M E N U

→

S T O P V/P

→

1 2 : 5 0S P O N

→

- - : - - - - -

→

- - : - - - - -

→

- - : - - - - -

→

- - : - - - - -

→

- - : - - - - ­S E T :

Cancelling a Preset Recording

1/JAN MON 2 1 : 2 8

PR DAY START

1 MO 1 1 2 : 0 0

-- ---- - - : - -

-- ---- - - : - -

-- ---- - - : - -

-- ---- - - : - -

-- ---- - - : - ­D E L E T E :C L R / R S T M E N U

3

→

S T O P V/P

→

1 2 : 5 0S P O N

→

- - : - - - - -

→

- - : - - - - -

→

- - : - - - - -

→

- - : - - - - -

→

- - : - - - - ­S E T :

You can check your preset recordings:

◆ When you have finished presetting the VCR

◆ If you have forgotten which programmes will be

recorded

1 - Insert the cassette. Press the TIMER button.

Press the or buttons to select the STANDARD option and
then press the

◆ Press MENU on the remote control.

Result: The programming menu is displayed.

◆ Press the OK button to select

Result: The TIMER PROGRAMMING menu is displayed.

button or,

TIMER PROGRAMMING option.

2 Press the or buttons to select the required programme.
3 Press the or buttons to select and change any values as

required. For more details, refer to the previous page.

4 On completion, press MENU twice.

You can cancel any programmes that are:

◆ Incorrect

◆ No longer required

1 - Insert the cassette. Press the TIMER button.

Press the
then press the button or,

◆ Press MENU on the remote control.

Result: The programming menu is displayed.

◆ Press the OK button to select TIMER PROGRAMMING option.

Result: The TIMER PROGRAMMING menu is displayed.

2 Select the programme to be cancelled by pressing the o r

buttons.

or buttons to select the STANDARD option and

3 Press the CLR/RST button to cancel the selected programme.

Result: All the recording information is deleted and the broad-

cast will not be recorded.

4 On completion, press MENU twice.

This function allows you to play back any pre-recorded cassette.

1 Switch on both the television and your VCR.
2 Insert the video cassette to be played. If the safety tab on the

cassette is intact, press ll.
Otherwise, the cassette is played automatically.

➢ When a cassette is loaded, the tape position is optimized

automatically to reduce disturbance (Digital Auto Tracking).
When playing a cassette, if the end of the tape is reached,

the cassette is rewound automatically.
NTSC tapes can be played back but cannot be recorded
with this VCR.

3 To... Then press...

Stop the playback
Eject the cassette (EJECT).

(STOP).

■

Adjusting Picture Alignment Automatically

The Picture Alignment feature enables you to optimize the tape
position automatically to obtain the best possible picture.

When noise bars or streaks appear during playback, adjust picture
alignment by pressing the A.TRK button.

Result: ◆ The tracking bar appears.

◆ The picture is automatically adjusted.

◆ The tracking bar disappears when digital auto tracking has

been completed.

Adjusting Picture Alignment Manually

The Picture Adjustment feature allows you to adjust the alignment
manually to obtain the best possible picture.

When noise bars or streaks appear during playback, adjust alignment
manually by pressing the TRK (or)buttons until the picture is clear
and stable.

Result: ◆ The tracking bar appears.

◆ The image is adjusted.

◆ The tracking bar disappears when you release the button.

GB

3

2

28

29

01299A SV-643B/XEU-GB3 9/3/56 7:16 AM Page 30

GB

Intelligent Picture Control

USER SET

O K E N D: M E N U

O S D : O N
TAPE SELECT : E 1 8 0
COLOUR SYSTEM :AUTO
FORMAT 16:9 :AUTO
NICAM :ON
ECO. MODE :OFF

IPC :ON

* *

SOFTEN SHARPEN

- - - - - - - -

P I C T U R E

IPC : OFF

- - - - -

*

O N / O F F :

30

E N D:M E N U

1

* *

The Intelligent Picture Control Feature allows you to adjust the
sharpness of the image automatically, according to your own
preferences.

1 During playback, press the MENU button on the remote control.

Result: The programming menu is displayed.

2 Press the corresponding

USER SET option.

,

or , buttons to select the

3 Press the OK button to select this option.

Result: The USER SET menu is displayed.

4 Press the corresponding or buttons, until the I P C option is

selected.

5 Press the button to select the IPC (intelligent picture control)

option.

➢ When intelligent picture control mode is O N, the sharpness

of the image is adjusted automatically.

6 To adjust the sharpness manually, press the

IPC mode

O F F.

7 Press the or buttons until the picture is displayed according to

your preferences.

➢ If you do not press a button within ten seconds, the

P I C T U R E menu disappears automatically.

button to turn the

8 On completion, press the MENU button again.

1 During playback, press the IPC button.

Result: The P I C T U R E menu is displayed.

2 Press the button to turn the IPC (Intelligent Picture Control)

option O N and O F F.

➢ When Intelligent Picture Control mode is

of the image is adjusted automatically.

O N, the sharpness

3 To adjust the sharpness manually, select Intelligent Picture

Control mode O F F.

◆ The horizontal picture adjusting appears.

4 Press the or buttons until the picture is displayed according to

your preferences.

➢ If you do not press a button within ten seconds, the

P I C T U R E menu disappears automatically.

5 On completion, press the IPC button again.

Format 16:9 (Wide Screen)

Your VCR can automatically play Wide Screen format prerecorded
tapes. It can also record Wide Screen format programmes received
from sources such as a satellite receiver.

☛

Connect equipment compatible with Wide Screen to the VCR
using the 21 pin SCART cable.

1 Press MENU on the remote control.

Result: The programming menu is displayed.

2 Press the corresponding

USER SET option.

3 Press the OK button to select this option.

Result: The USER SET menu is displayed.

4 Press the corresponding or buttons, until the

FORMAT 16:9 option is selected.

5 Press the button to select A U T O➝ O N

AUTO Set when you use a wide TV. The VCR automatically

detects if programmes being played back or recorded
are in normal or Wide Screen format.

ON The VCR always plays back and records in 16:9 Wide

Screen format. Set if the VCR cannot detect Wide
Screen TV programmes with “AUTO” set.

OFF Set if you do not use a Wide Screen TV.

,

or , buttons to select the

➝

O F F.

6 On completion, press MENU twice to exit the menu.

Selecting the Colour Mode

Before recording or playing back a cassette, you can select the
required system standard.

Otherwise, the system automatically selects the reception standard
when you select AUTO.

➢

◆ When playing back a cassette, the standard is

automatically selected by the VCR.

◆ When you playback an NTSC-recorded tape on this VCR
make a setting on the colour system according to your TV.
If your TV is a PAL system only TV, set NTPB.
If your TV is Multi System TV (NTSC 4.43 compatible), set
NT4.43 and you can record NT4.43.

1 Press MENU on the remote control.

Result: The programming menu is displayed.

2 Press the corresponding

USER SET option.

3 Press the OK button to select this option.

Result: The USER SET menu is displayed.

4 Press the corresponding or buttons, until the

COLOUR SYSTEM option is selected.

5 Press the button to select A U T O➝ P A L➝ B / W.

AUTO When playing back a cassette, the system standard is

automatically selected by the VCR.

B/W Black and White

6 On completion, press MENU twice to exit the menu.

,

or , buttons to select the

USER SET

O K E N D: M E N U

O S D : O N
TAPE SELECT : E 1 8 0
COLOUR SYSTEM :AUTO

FORMAT 16:9 :AUTO

NICAM :ON
ECO. MODE :OFF
IPC :ON

USER SET

O K E N D: M E N U

O S D : O N
TAPE SELECT : E 1 8 0

COLOUR SYSTEM :AUTO

FORMAT 16:9 :AUTO
NICAM :ON
ECO. MODE :OFF

IPC :ON

E N D:M E N U

E N D:M E N U

31

GB

01299A SV-643B/XEU-GB3 9/3/56 7:16 AM Page 32

GB

Selecting the Audio Output Mode

When monitoring a TV programme or playing back a Hi-Fi
recorded video tape, press the AUDIO button to select a desired
sound output. As the AUDIO button is pressed, the sound output
and the indicator change as below:

Sound type

OSD display

MONO

Stereo sound Bilingual sound

Heard in stereo.
(left channel and

L R

right channel)

Left channel heard

from both the left

L

and right
speakers.

Right channel
heard from both
the left and right

R

speakers.

Sound mixed the left and right channels, and the

MIX

normal audio track.

Heard in
monaural.

Channel I (MAIN)
heard from the left
speaker, channel
II (SUB) heard
from the right
speaker.

Channel I (MAIN)
heard from both
the left and the
right speakers.

Channel II-(SUB)
heard from both
the left and the
right speakers.

Channel I (MAIN)
heard from both
the left and the
right speakers.

Standard

sound

broadcast

Heard in
monaural.

Heard in
monaural.

Heard in
monaural.

Heard in
monaural.

Playing a Cassette in Slow Motion

You can play a cassette in slow motion.

➢ No sound is heard when playing back a cassette in slow

motion.

1 Press:

◆

ll

to start playing the cassette

◆ SLOW ( ) as many times as required to decrease or

increase the speed respectively

◆

o return to the normal speed, press the

T

2 When playing back in slow motion, picture interference may occur.

Press the TRK

☛ When you have been using the Slow Motion function for

(

or)buttons to minimize this effect.

more than about five minutes, the VCR will automatically
play to protect the:

◆ Cassette

◆ Video heads

ll

button twice.

GB

1

1

2

2

32

33

01299A SV-643B/XEU-GB4 9/3/56 7:17 AM Page 34

GB

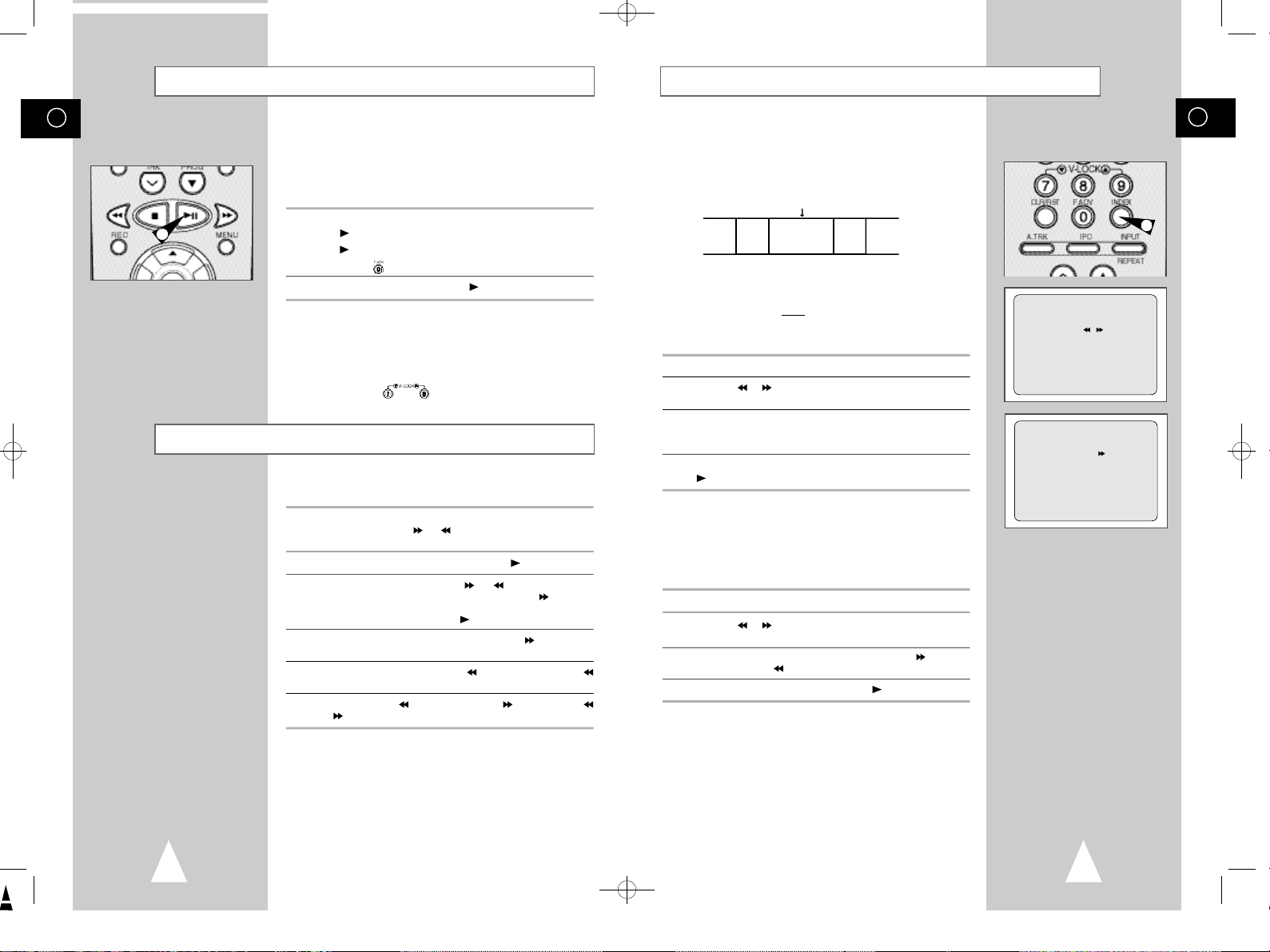

Playing a Sequence Frame by Frame

You can:

◆ Stop the cassette at a given frame (image)

◆ Advance one frame at a time

➢ No sound is heard when playing back frame by frame.

1 Press:

◆

ll

1

2 To return to normal playback, press

☛ When you have been using the Frame-by-Frame function
➢ Vertical stability: When playing back frame by frame,

Picture Search, Fast Forward/Rewind

Picture Search enables you to Fast Forward or Rewind and look for
a particular part of a tape.

1 Press PLAY, the VCR will enter normal play mode. While in play,

2 To return to normal playback mode, press the
3 If you press and HOLD down the (or ) button the VCR will

4 Whilst in Picture Search mode, if you press the button again,

5 Likewise, whilst in Picture Search mode, if you press the

6 If, when Redwing ( ) or Fast Forwarding ( ), you press the

to start playing the cassette

◆

ll

to stop the tape at a given frame

◆

F.ADV ( )

for more than about five minutes, the VCR will auto­matically play to protect the cassette and video heads.

interference may be seen on the screen. Press the
V-LOCK ( ) buttons to minimize this effect.

press and release the (or ) button. The VCR will search at 5
times the normal playback speed.

search at 9 times the normal speed. Releasing the button will
return the VCR to search at 5 times the normal speed. To return to
normal playback mode, press the

the VCR will enter normal Fast Forward mode.

button again, the VCR will enter normal Rewind mode.

(or ) button, the VCR will enter the Picture Search mode.

to advance frame by frame

ll

button.

II

Searching for a Specific Sequence

GB

Each time you record a cassette on this VCR, an “index” is
automatically marked on the tape when recording starts.

The Search function allows you to fast-forward or rewind to a
specific index and start playback from that point. Depending on the
direction selected, the indexes are numbered as follows:

Prev

etc.

.

➢ This VCR uses a standard indexing system (VISS). As a

result, it will recognize any indexes marked by other
VCRs using the same system and vice versa.

INTRO SCAN

Seq. being

Seq.

played

2 1 1 2

Next

Seq.

etc.

INDEX:

1 To search for a specific index, press INDEX.

button.

II

2 Press the

where your desired programme is located.

3 When an Index mark is found the VCR will playback the tape for 5

seconds, after which it will continue searching for the next Index
mark.

4 If you want to watch the tape from a particular Index, simply press

Index Skip Search:
This feature will enable you to fast forward/rewind to a specific
point on a tape: E.g. if you have recorded 3 different programmes
on a tape and you have rewound the tape to the beginning, by
using this feature you can go directly to the start of programme 2
simply by pressing the INDEX button.

or

buttons depending on the direction

INDEX SEARCH: +01

.

II

1 Press the INDEX to start the Index search.
2 Press the

you directly to the start of the desired programme is located.

3 These Index searches can be made forwards: (press ) or

backwards: (press ).

4

To cancel an Index search simply press the IIor ■button.

or

buttons twice more. This will take

1

34

35

01299A SV-643B/XEU-GB4 9/3/56 7:17 AM Page 36

GB

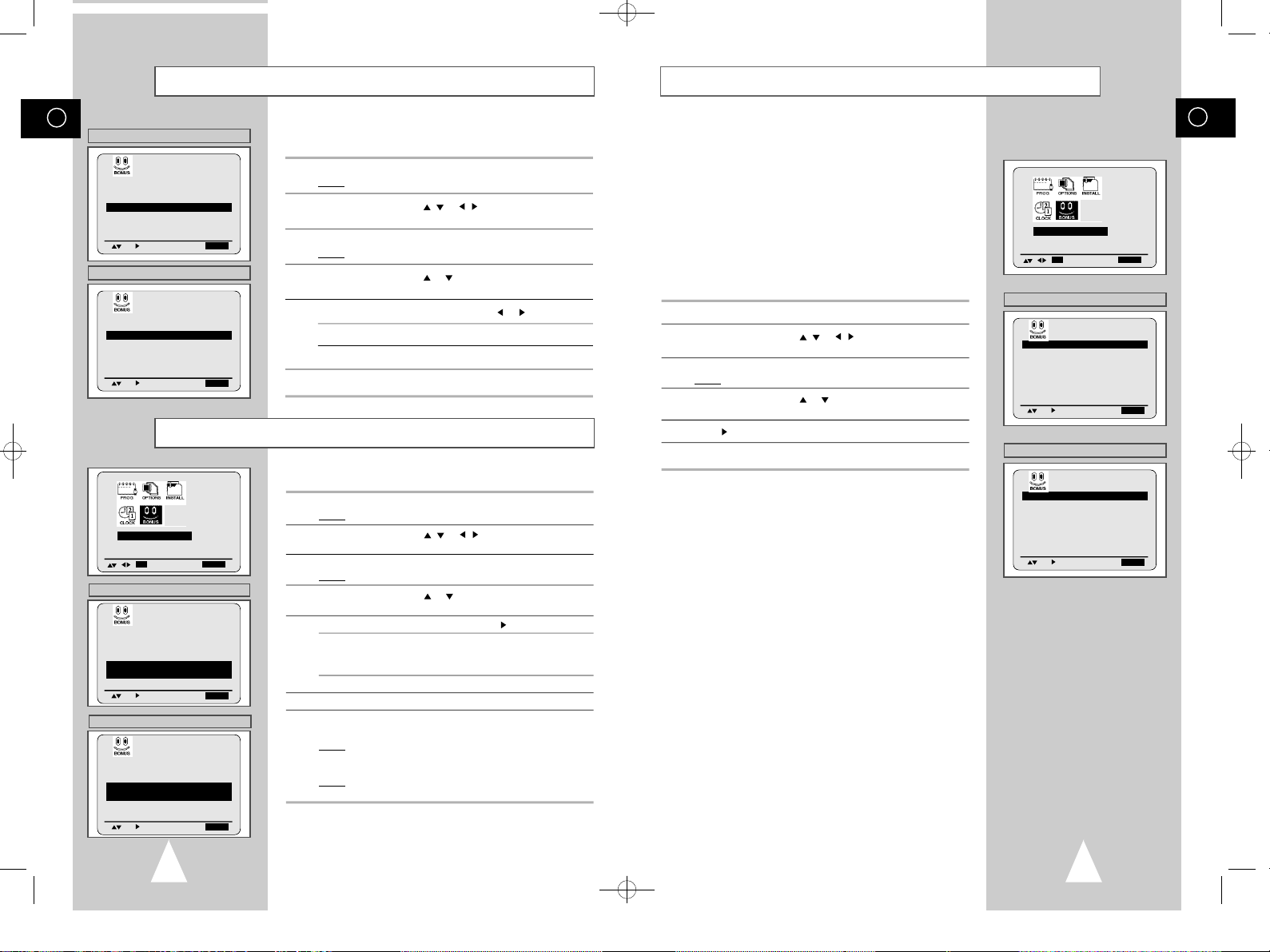

Auto Repeat Play

★

(SV-645B/SV-643B)

PDC/VPS DEFAULT : O F F
VIDEOPLUS EXTEND :OFF
AUTO POWER OFF : O F F

REPEAT PLAY : O F F

NO. OF

INTERVAL REPEAT : 5

★

(SV-640B)

PDC/VPS DEFAULT : O F F
AUTO POWER OFF : O F F

REPEAT PLAY : O F F

NO. OF

INTERVAL REPEAT : 5

Interval Repeat Play

EASY OPERATION

O K E N D: M E N U

★

(SV-645B/SV-643B)

PDC/VPS DEFAULT : O F F
VIDEOPLUS EXTEND :OFF
AUTO POWER OFF : O F F
REPEAT PLAY : O F F

NO. OF

INTERVAL REPEAT : 5

★

(SV-640B)

PDC/VPS DEFAULT : O F F
AUTO POWER OFF : O F F
REPEAT PLAY : O F F

NO. OF

INTERVAL REPEAT : 5

E N D:M E N U

E N D:M E N U

E N D:M E N U

You can set repeat play to repeat the tape continuously from

beginning to end.

1 Press MENU on the remote control.

Result: The programming menu is displayed.

2 Press the corresponding

EASY OPERATION option.

3 Press the OK button to select this option.

Result: The EASY OPERATION menu is displayed.

4 Press the corresponding or buttons, until the

REPEAT PLAY option is selected.

,

or , buttons to select the

5 To... Press or , until...

Repeat play O N is displayed.
Do not wish to repeat play O F F is displayed.

6 On completion, press MENU twice to exit the menu.

You can set Interval Repeat Play so that the cassette is repeated a
number of times according to a specified set interval.

1 Press MENU on the remote control.

Result: The programming menu is displayed.

2 Press the corresponding

EASY OPERATION option.

3 Press the OK button to select this option.

Result: The EASY OPERATION menu is displayed.

4 Press the corresponding or buttons, until the

NO. OF INTERVAL REPEAT option is selected.

,

or , buttons to select the

5 To... Press , until...

Interval Repeat Play 5, 10, 15 is displayed.

Cancel Interval Repeat Play O F F is displayed.

(choose an interval repeat of
5, 10 or 15 times)

6 On completion, press MENU twice to exit the menu.
7 To select Interval Repeat Play during playback, press the

INPUT/REPEAT button at the desired start point.
Result: “INTERVAL REPEAT SETTING” is displayed.
Press the INPUT/REPEAT button one more time at the desired
end point.
Result: The tape is automatically rewound to the start point.

“

INTERVAL REPEAT” is displayed.

VPS/PDC Default

Programme VPS/PDC is a system of telling the VCR when a
programme actually starts. Typically, when you want to record a
programme you will tell the VCR to start recording, probably, five
minutes before the advertised starting time of the programme and
to finish ten minutes or so after the programme is due to finish. So
even if the programme starts early or finishes late you will normally
still get to see what you wanted to record. However when live
programmes over-run or the day’s television schedule is changed
from that advertised, you may miss the desired programme which
may have been delayed or even cancelled. With VPS/PDC the VCR
will wait until the signal is sent to confirm the programme is
starting and the VCR will record the programme even if it is two or
more, hours late.

1 Press the MENU button on the remote control.
2 Press the corresponding

EASY OPERATION option.

3 Press the OK button to select this option.

Result: The EASY OPERATION menu is displayed.

4 Press the corresponding or buttons, until the

PDC/VPS DEFAULT option is selected.

5 Press button to select O N in PDC/VPS DEFAULT option.
6 On completion, press MENU twice to exit the menu.

,

or , buttons to select the

EASY OPERATION

O K E N D: M E N U

★

(SV-645B/SV-643B)

PDC/VPS DEFAULT : O F F

VIDEOPLUS EXTEND :OFF
AUTO POWER OFF : O F F
REPEAT PLAY : O F F
NO. OF

INTERVAL REPEAT : 5

★

(SV-640B)

PDC/VPS DEFAULT : O F F

AUTO POWER OFF : O F F
REPEAT PLAY : O F F
NO. OF

INTERVAL REPEAT : 5

GB

E N D:M E N U

E N D:M E N U

36

E N D:M E N U

37

01299A SV-643B/XEU-GB4 9/3/56 7:17 AM Page 38

GB

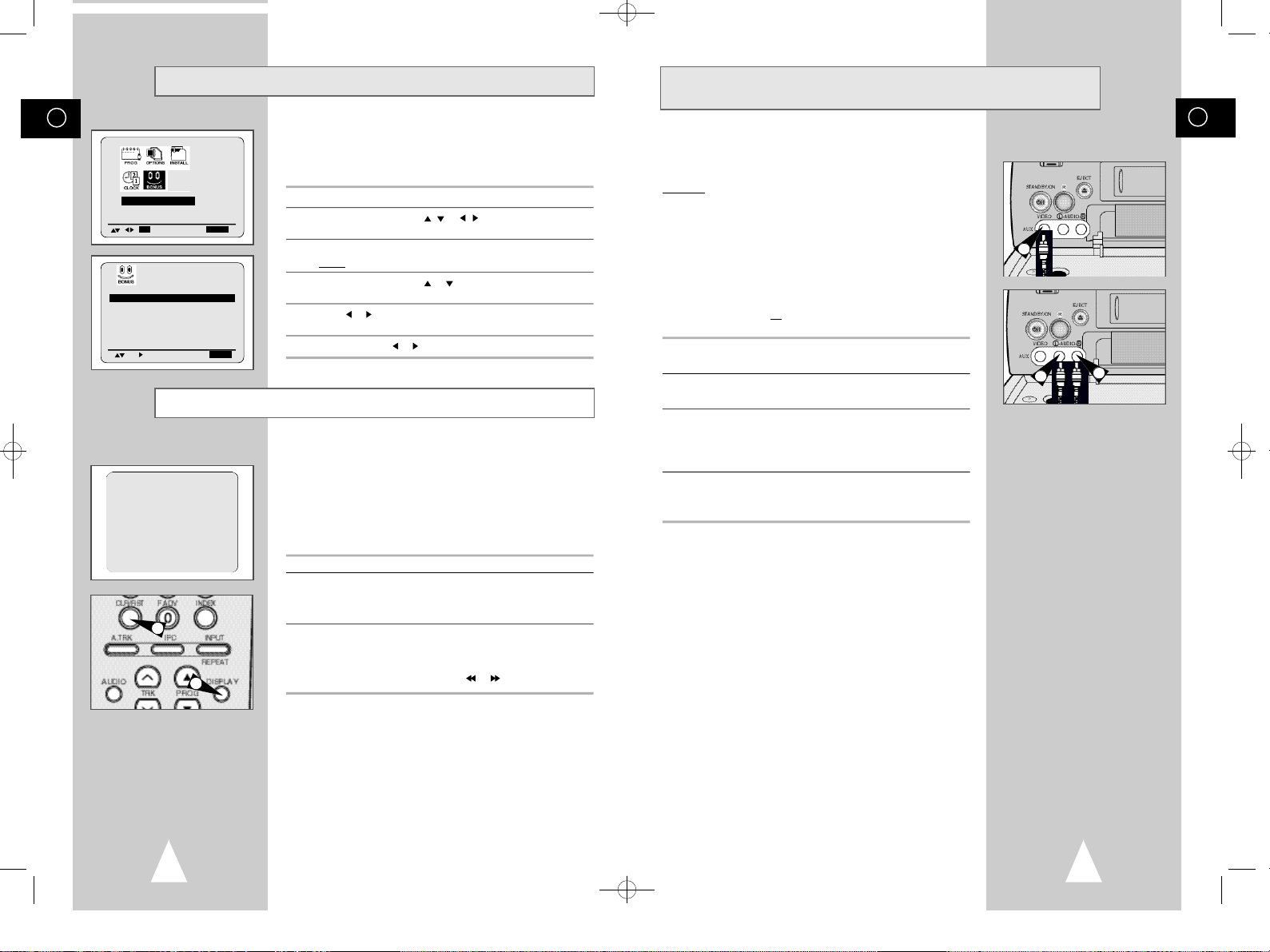

VIDEOPLUS+ EXTEND ★(SV-645B/SV-643B

EASY OPERATION

O K E N D: M E N U

PDC/VPS DEFAULT : O F F

VIDEOPLUS EXTEND :OFF

AUTO POWER OFF : O F F
REPEAT PLAY : O F F
NO. OF

INTERVAL REPEAT : 5

E N D:M E N U

Using the Tape Counter

0 : 0 0 : 0 0

2

2

38

Only)

To prevent delays or over-runs the VCR has a function called
Videoplus EXTEND allowing you to extend the recording time by
up to 60 minutes.

➢ Only use if PDC is not available or set to OFF.

1 Press the MENU button on the remote control.
2 Press the corresponding

EASY OPERATION option.

3 Press the OK button to select this option.

Result: The EASY OPERATION menu is displayed.

4 Press the corresponding or buttons, until the

VIDEOPLUS EXTEND option is selected.

5 Press or buttons to set the Videoplus EXTEND time by

increments of 10 minutes.

6 To turn off, press or buttons repeatedly until O F F shows.

The tape counter:

◆ Indicates the elapsed time in the play and record modes

(hours, minutes and seconds)

◆ Is reset when a cassette is inserted in the VCR

◆ Allows you to find the beginning of a sequence easily

☛ If the remaining time is to be calculated correctly, you

must indicate the type of cassette being used.

1 Insert a cassette in your VCR.
2 To set the tape counter to zero at the beginning of a sequence:

◆ Press DISPLAY twice to display the counter

◆ Press CLR/RST when you want to set the tape counter to

zero

3 When you are ready,

◆ Start playback or Recording.

◆ Press the

◆ To fast-froward or rewind to the sequence at which the

➢ Some VCR information, such as the counter, can be

■

counter was set to zero, press

displayed on the television screen (unless you have
deactivated the OSD mode; refer to page 16).

Press DISPLAY:

◆ Once to display the current function, programme

number, recording speed, date, time and counter

◆ Twice to display the counter only

◆ Three times to display the time remaining on the

cassette

◆ Four times to clear the display

button.

,

or , buttons to select the

or

.

Connecting an RCA Audio/Video Input Cable

★

(SV-645B

You can connect other audio/video equipment to your VCR using
audio/video cables if the appropriate outputs are available on the
equipment chosen.

Examples: ◆ You wish to copy a video cassette with the help of a

☛ ◆ Regardless of the type of connection chosen, you

1 Connect one end of the RCA audio/video cable into the VIDEO

INPUT socket on the front of the VCR.

2 Plug the other end of the audio/video cable into the appropriate

output connector on the other system (VCR or camcorder).

3 Connect one end of the RCA audio cable supplied into the AUDIO

INPUT sockets on the front of the VCR.

➢ Take care to respect the colour coding of the left and right

4 Plug the other end of the audio cable into the appropriate output

connectors on the other system (VCR, camcorder or Hi-Fi sound
system).

Only)

second VCR (see page 40).

◆ You wish to play back and/or copy pictures taken

with a camcorder (see page 40).

must always connect the coaxial cable supplied.
Otherwise, no picture will be visible on the screen
when the VCR is switched off.

◆ Make sure that both the television and the VCR are
switched

off before connecting the cables.

channels.

GB

1

3

3

39

01299A SV-643B/XEU-GB4 9/3/56 7:17 AM Page 40

GB

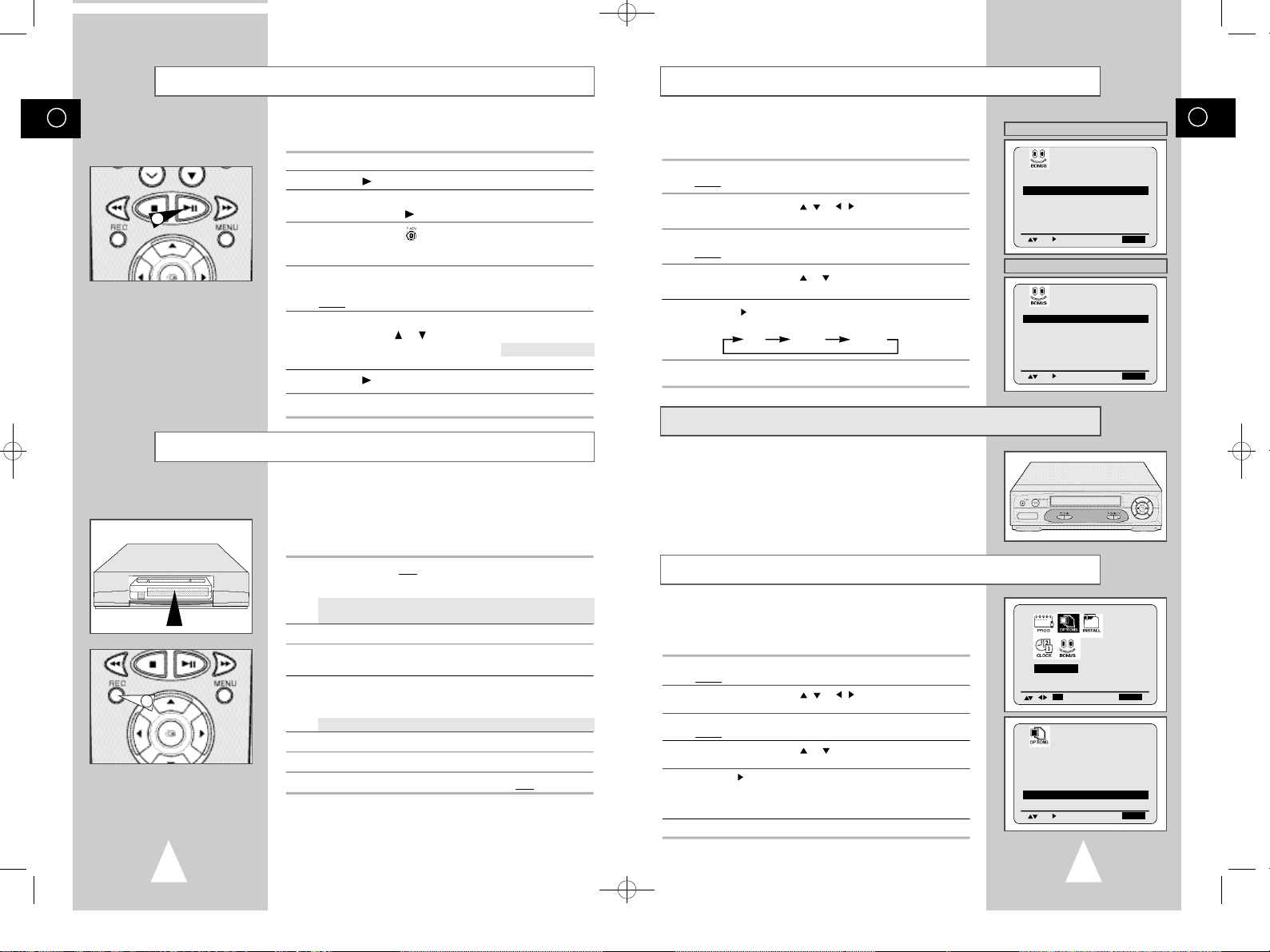

Using the Assemble Edit Function

This function allows you to start a new recording at a specific
position on the cassette while maintaining a very smooth scene
change.

1 Insert the cassette to be edited in your VCR.
2 Press the

ll

button to start playback.

3 When you reach the position from which you wish to start the new

2

recording, press the

4 Press the

F.ADV
advance frame by frame, until the exact recording position is
located.

ll

button.

( ) button again as often as necessary to

5 While the VCR is in still mode, hold the REC button down for a

while to activate the Assemble Edit function.
Result: Record symbol flashes in the display.

6 Select the source from which you wish to record by pressing:

◆ The PROG( or ) buttons for television channels

◆ The INPUT button for the AV1, AV2 or AUX

input sources

7 Press the

ll

button to start recording.

8 When you have finished recording, press

Recording from Another VCR or Camcorder

You can copy a cassette to your VCR from another video source,
such as another VCR or a camcorder.

☛

It is an infringement of copyright laws to copy prerecorded
cassettes or to re-record them in any form without the
permission of the owners of the corresponding copyright.

1 Connect the VCR, from which the cassette is to be copied, to the

appropriate SCART audio and video input connectors on the rear
of your VCR.

You can also use a RCA audio and video cable to connect the
AUX input on the front of your VCR.

2 Insert a blank cassette in your VCR.
3 Insert the pre-recorded cassette in the other video source (VCR or

camcorder).

4 Press the INPUT button to select the appropriate input on your

6

VCR:

◆ AV1 or AV2 for the SCART input

◆ AUX for the RCA input

★

5 Start playing back the cassette to be copied.
6 Hold REC down for a while to start recording on your VCR.
7 When you have finished recording, press

➢ If you wish to view the cassette being copied:

◆ Your VCR must be connected as usual to the

television (see page 11 for further details)

40

■

★

(SV-645B only)

(SV-645B only)

■

★

(SV-645Bonly)

.

on bothVCRs.

Auto Power Off

The Auto Power Off feature automatically turns off your VCR if no
signal is received and you do not press any button for the selected
time.

1 Press MENU on the remote control.

Result: The programming menu is displayed.

2 Press the corresponding

EASY OPERATION option.

3 Press the OK button to select this option.

Result: The EASY OPERATION menu is displayed.

4 Press the corresponding or buttons, until the

AUTO POWER OFF option is selected.

5 Press the button, until you select the time of Auto Power off

interval.

OFF 2HOUR 3HOUR

,

or , buttons to select the

6 On completion, press MENU twice to exit the menu.

★

Child Door Lock System

With this mechanism you can prevent children from harming
themselves or the VCR. It stops fingers and small articles from
entering your VCR.

(SV-643B/SV-640B

★

(SV-645B/SV-643B)

PDC/VPS DEFAULT : O F F
VIDEOPLUS EXTEND :OFF

AUTO POWER OFF : O F F

REPEAT PLAY : O F F
NO. OF

INTERVAL REPEAT : 5

★

(SV-640B)

PDC/VPS DEFAULT : O F F

AUTO POWER OFF : O F F

REPEAT PLAY : O F F
NO. OF

INTERVAL REPEAT : 5

Only)

ECO Mode-Reducing Standby power consumption

Low Power Mode reduces the Standby power consumption of the
VCR when in Standby mode.
Useful, for example, when you are away from the house on holiday.
It saves actually turning the VCR off.

1 Press MENU on the remote control.

Result: The programming menu is displayed.

2 Press the corresponding

USER SET option.

3 Press the OK button to select this option.

Result: The USER SET menu is displayed.

4 Press the corresponding or buttons, until the ECO. MODE

is selected.

5 Press the button to turn LOW(3Watts) mode on. Now, when the

VCR is standby mode the front display panel will shut off.
Even the clock disappears. By pressing the STANDBY/ON button
again the display panel will reappear.

,

or , buttons to select the

6 On completion, press MENU twice to exit the menu.

USER SET

O K E N D: M E N U

O S D : O N
TAPE SELECT : E 1 8 0
COLOUR SYSTEM :AUTO
FORMAT 16:9 :AUTO
NICAM :ON

ECO. MODE :OFF

IPC :ON

GB

E N D:M E N U

E N D:M E N U

E N D:M E N U

41

01299A SV-643B/XEU-GB4 9/3/56 7:17 AM Page 42

GB

Technical Specifications

Design and specifications are subject to change without notice.

Format VHS PAL standard
Heads Video: 4 rotary heads

Television system STANDARD I-NICAM STEREO
Luminance FM azimuth recording
Colour system PAL: Down converted subcarrier phase shifted direct recording

Tape speed SP 23.39 mm/sec
Recording/playback time SP 3 hours (E-180 Tape)
REW time About 60 sec in REW with E-180

VIDEO

Input 0.5 to 2.0 Vp-p; 75 ohm unbalanced
Output 1.0 ± 0.2 Vp-p; 75 ohm unbalanced
Signal-to-noise ratio Better than 43 dB (SP)
Horizontal resolution More than 240 lines

AUDIO

Input -8 dBm, 47 Kohm unbalanced
Output -8 ± 3 dBm, 1 Kohm unbalanced
Wow and flutter (WTD) 0.4% max (SP)
Signal-to-noise ratio 68 dB min (IHF A filter)
Frequency response 20Hz - 20kHz

Power requirement 230V (AC 50-60 Hz)
Power consumption Approx. 17 watts
Operation temperature 41°F-104°F (5°C-40°C)
Operation humidity 10%-75%
Weight 2.8 Kg (net)
Dimensions (WxHxD) 360 x 94 x 240 mm

Hi-Fi audio: 2 rotary heads
Audio/Control: 1 stationary head
Erase: 1 full track erase head

NTSC PB on PAL TV
LP 11.69 mm/sec
LP 6 hours (E-180 Tape)

Problems and Solutions

Before contacting the Samsung after-sales service, perform the following simple checks.

Problem Explanation/Solution

No power ◆ Check that the power plug is connected to a wall outlet.

You cannot insert a video cassette ◆ A video cassette can only be inserted with the window

The television programme was not recorded ◆ Check the VCR aerial connections.

Timer recording was unsuccessful ◆ Was the STANDBY/ON button pressed to activate the timer?

No playback picture or the picture ◆ Check to see if you are using a prerecorded tape.
is distorted

You cannot see normal broadcasts ◆ Check the TUNER/EXTERNAL setting. It should be on

Noise bars or streaks on playback ◆ Press the TRK(or)buttons to minimize this effect.
When the IIbutton is pressed ◆ A still picture may have “noise bars”, depending on the

during playback, the still picture
has severe “noise bars” streaks SLOW motion to minimize this effect.

Video Head Cleaning ◆ If poor pictures appear on a variety of cassettes, the video

If when tuning in your TV to the VCR test 1. Remove the aerial input plug from the socket marked (aerial
pattern your TV does not find the test pattern symbol) on the rear of the VCR.
or the pattern when found suffers from 2. Carry out the instructions “Tuning Your Television for the VCR”
interference, it may be due to the VCR output (see page 14).
channel clashing with the normal TV 3. Carry out the instructions “Setting the VCR output Channel”
transmissions in your area. To prevent this (see page 16), move the channel number several channels
you will need to change the VCR output down from the original setting. (example:from 60 to 57).
channel in the following way 4. Replace the aerial plug into the socket marked (aerial symbol)

If you are unable to solve the problem after reading the above instructions, note:

◆ The model and serial number on the rear of your VCR

◆ The warranty information

◆ A clear description of the problem

Then contact your nearest SAMSUNG after-sales service.

◆ Have you pressed the STANDBY/ON button?

side up and the safety tab facing you.

◆ Is the VCR tuner properly set?

◆ Check if the safety tab is intact on the cassette.

◆ Re-check the recording start/stop time settings.

◆ If there was a power failure or interruption during timer

recording, the recording will have been cancelled.

TUNER.

◆ Check the TV/VCR aerial connections.

condition of the tape. Press the

heads may need cleaning. This is not a common problem
and unless it appears, the heads should not be cleaned.
When cleaning the video heads, read all instructions
provided with the head cleaning cassette. Incorrect head
cleaning can permanently damage the video heads.

on the rear of the VCR.

5. Re-tune your TV to the VCR again by following instructions
“Tuning Your Television for the VCR” (page 14).

6. If the problem still exists repeat steps 1 to 5 moving several
more channels away from the original setting.

TRK ( or ) buttonsduring

GB

42

43

01299A SV-643B/XEU-GB4 9/3/56 7:17 AM Page 44

SAMSUNG ELECTRONICS (UK) LTD

AUTHORISED SERVICE CENTERS

In the event of warranty service being required, please contact your retailer first. If they cannot provide service, please contact
your nearest service centre listed below. Service facilities are return to base, however some agents may provide an in-home

service (there may be a cost for call out). Please refer to your warranty card or retailer for terms and conditions of the warranty.

AVON

BRISTOL

GOGGLEBOX TV
TEL: [phone]

BERKSHIRE

READING

A & W SOUND & VISION
TEL: [phone]

MAIDENHEAD

J F ASSOCIATES
TEL: [phone]

WARGRAVE

J F ASSOCIATES
TEL: [phone]

CAMBRIDGESHIRE

DRY DRAYTON

DRAYTON ELECTRONICS
TEL: [phone]

PETERBOROUGH

DEEPING TV SVCS
TEL: [phone]

CHESHIRE

CHESTER

H & H VIDEO & TV
TEL: [phone]

WARRINGTON

W L ELECTRONICS
TEL: [phone]

CORNWALL

BUDE

H B H WOOLACOTTS
TEL: [phone]

LAUNCESTON

H B H WOOLACOTTS
TEL: [phone]

NEWQUAY

GREENBANK ELECTRONICS
TEL: [phone]

WADEBRIDGE

H B H WOOLACOTTS
TEL: [phone]

CUMBRIA

BARROW IN FURNESS

KENNETH GARDNER
TEL: [phone]
SEARLE AUDIO
TEL: [phone]

PENRITH

CANNAN & BROWN
TEL: [phone]

DEVON

HOLSWORTHY

H B H WOOLACOTTS
TEL: [phone]

NEWTON ABBOT

TELLI-SCOPE ELECTRONICS
TEL: [phone]

PLYMOUTH

ARGYLE TV & VIDEO
TEL: [phone]
CTV ELECTRONICS
TEL: [phone]

DORSET

BOURNEMOUTH

M & G ELECTRONICS
TEL: [phone]

DURHAM

DURHAM

LEE TECH SVCS
TEL: [phone]

DARLINGTON

GAZE ELECTRONICS
TEL: [phone]

DYFED

CARMARTHEN

ADVANCE CONSUMER
TEL: [phone]

ST CLEARS

BEN EVANS & SON
TEL: [phone]

ESSEX

BRAINTREE

GWYNNE TV & ELECTRICAL
TEL: [phone]

ESSEX

WICKFORD

CENTRAL SERVICE
TEL: [phone]

MID GLAMORGAN

BRIDGEND

BRIDGEND SERVICE
TEL: [phone]

GLOUCESTERSHIRE

TEWKESBURY

SWITCH ELECTRONICS
TEL: [phone]

WESTON-SUB-EDGE

PROFESSIONAL ELECTRONIC
TEL: [phone]

HAMPSHIRE

FAREHAM

SOUND & VISION
TEL: [phone]

FARNBOROUGH

ICTV
TEL: [phone]

PORTSMOUTH

ICTV
TEL: [phone]

SOUTHAMPTON

OLYMPIC TV & AUDIO
TEL: [phone]

HEREFORD

HEREFORD

J P MICRO SVCS
TEL: [phone]

HERTFORDSHIRE

BALDOCK

TECHNICAL REPAIR SVC
TEL: [phone]

MARKYATE

TELETECH SVCS
TEL: [phone]

NORTH HUMBERISDE

GOOLE

HEADLAND ELECTRCS
TEL: [phone]

SOUTH HUMBERSIDE

GRIMSBY

RAYNERS SUPERSTORE
TEL: [phone]

KENT

CANTERBURY

BARRETTS OF CANTERBURY
TEL: [phone]

DARTFORD

BUDGET REPAIR CENTRE
TEL: [phone]

MAIDSTONE

AVERY ELECTRONICS
TEL: [phone]

LANCASHIRE

BLACKPOOL

KENNETH GARDNER
TEL: [phone]

LANCASTER

KENNETH GARDNER
TEL: [phone]

ROCHDALE

CTV SERVICES
TEL: [phone]

LEICESTERSHIRE

LEICESTER

SOUNT & VISION CENTRE
TEL: [phone]

LINCOLNSHIRE

BRANSTON

STUART WALLACE
TEL: [phone]

LONDON

HIGH HOLBORN

BERRYS OF HOLBORN
TEL: [phone]

LONDON

ARMSTRONG SERVICES
TEL: [phone]

WEST EALING

BABBER ELECTRONICS
TEL: [phone]

LONDON

WILLESDEN

ATLANTIC ELECTRIC
TEL: [phone]

MANCHESTER

ASHTON UNDER LYNE

VIDEOTECH UK
TEL: [phone]

NORTHENDEN

G H SUMNER LTD
TEL: [phone]

MERSEYSIDE

ELLESMERE PORT

H & H VIDEO & TV
TEL: [phone]

LIVERPOOL

P & A AUDIO VIDEO LTD

TEL: [phone]

MIDDLESEX

HAYES

A & A REPAIRS
TEL: [phone]

NORFOLK

AYLESHAM

CORTONS ELECTRICAL
TEL: [phone]

WATTON

JULIAN HORN

TEL: [phone]

NORTHAMPTONSHIRE

KETTERING

INTEGRATED SVCS

TEL: [phone]

OXFORDSHIRE

BANBURY

HITECH
TEL: [phone]

BOTLEY

SPECTRUM ELECTRON
TEL: [phone]

SHROPSHIRE

TELFORD

W OWEN

TEL: [phone]

SOMERSET

TAUNTON

ARMTECH ELECTRONICS
TEL: [phone]

YEOVIL

M J THOMAS
TEL: [phone]

STAFFORDSHIRE

STOKE ON TRENT

TELEFAULTS (S.O.T.) LTD

TEL: [phone]

SUFFOLK

IPSWICH

GGN LTD

TEL: [phone]

SURREY

WALLINGTON

SERVICECARE

TEL: [phone]

HORLEY

D K AUDIO VISUAL SVCS

TEL: [phone]

EAST SUSSEX

SEAFORD

CLEARVIEW RENTAL & RELAY

TEL: [phone]

EASTBOURNE

STARTEC SVCS
TEL: [phone]

TYNE & WEAR

NEWCASTLE UPON
TYNE

M SINGH RADIO & TV
TEL: [phone]

WEST MIDLANDS

COVENTRY

D & J HENRY
TEL: [phone]

WEST MIDLANDS

DUDLEY

J S STOREY ELECTRICAL
TEL: [phone]

WALSALL

BEAVER ELECTRONICS

TEL: [phone]

WARLEY

MERRIVALE TV SVCS
TEL: [phone]

WILTSHIRE

SWINDON

COLORITE TV LTD

TEL: [phone]

WORCESTERSHIRE

WORCESTER

THE HI FI CAR RADIO REPAIR

TEL: [phone]

SOUTH YORKSHIRE

SHEFFIELD

GRAPHIC ELECTRONIC SVCS
TEL: [phone]

BARNSLEY

ALTRA
TEL: [phone]

NORTH YORKSHIRE

YORK

DBS SERVICE CENTRE
TEL: [phone]

WEST YORKSHIRE

BRADFORD

GRAPHICK ELECTRON
TEL: [phone]

HUDDERSFIELD

GRAPHIC ELECTRONICS
TEL: [phone]

ILKLEY

R BEAUMONT
TEL: [phone]

CHANNEL ISLANDS

GUERNSEY

TELESKILL LTD
TEL: [phone]

JERSEY

ALTERNATIVE ELECT
TEL: [phone]

ISLE OF WIGHT

AUDIO VISION SVCS
TEL: [phone]

NORTHERN IRELAND

CO ARMAGH

CRAIGAVON TV SVCS
TEL: [phone]/322505

EIRE

CO CORK

TVAE REPAIRS
TEL: [phone]

GRAMPIANS

FRASERBURGH

RODGERS ELECTRICAL
TEL: [phone]

HIGHLANDS

ULLAPOOL

R & R ELECTRONICS

TEL: [phone]

LOTHIAN

EDINBURGH

RETEC AUDIO & VISUAL

TEL: [phone]

STRATHCLYDE

GLASGOW

DSC ELECTRONICS

TEL: [phone]

TAYSIDE

DUNDEE

ANCRUM ELECTRONICS

TEL: [phone]

SAMSUNG EUROPEAN BLOC WARRANTY

44

01299A SV-643B/XEU-GB4 9/3/56 7:18 AM Page 46

THIS APPLIANCE IS DISTRIBUTED BY

www.samsungvcr.com AC68-01299A
