Samsung SV-2303X, SV-6332X, SV-6333X, SV-2333X User Manual

VIDEO
CASSETTE RECORDER

SV-6333X
SV-6332X
SV-2333X
SV-2303X

Instruction Manual

PAL

www.samsungvcr.com

GB

3

Contents

◆ FOREWORD

■ Safety Instructions......................................................................................... 5

◆ VCR OVERVIEWS

■ Front View of the VCR................................................................................... 6

■ Rear View of the VCR ................................................................................... 6

■ Infrared Remote Control................................................................................ 7

■ Display Indicator............................................................................................ 8

■ Accessories................................................................................................... 8

◆ CONNECTING YOUR VIDEO CASSETTE RECORDER

■ Deciding How to Connect Your VCR............................................................. 9

■ Connecting Your VCR to the TV using the Coaxial Cable............................. 10

■ Connecting Your VCR to the TV using the SCART Cable ............................ 10

■

Connecting a Decoder for scrambled PAY TV broadcasts (SV-6333X/SV-2333X)

.. 11

■ Connecting Your VCR to the Satellite receiver or Other Equipment............. 12

■ Plug & Auto Set Up........................................................................................ 13

■ Tuning your Television for the VCR............................................................... 14

◆ S

ETTING UP YOUR VIDEO CASSETTE RECORDER

■ Inserting Batteries in the Remote Control...................................................... 15

■ Setting the Date and Time............................................................................. 15

■ Displaying/Hiding On-Screen Information ..................................................... 16

■ Choosing Your Language.............................................................................. 16

■ Setting the VCR Output Channel................................................................... 17

■ Selecting the RF OUT Sound Mode (B/G-D/K) (SV-6333X/SV-6332X)........ 17

■ Presetting the Stations Automatically............................................................ 18

■ Presetting the Stations Manually................................................................... 19

■ Clearing a Preset Station............................................................................... 20

■ Changing the Preset Station Table................................................................ 21

■ Setting the AV2 Connection (SV-6333X/SV-2333X)..................................... 22

■ Switching between the TV and VCR Modes (SV-6333X/SV-2333X) ............ 22

◆ RECORDING T

ELEVISION BROADCASTS

■ Selecting the Cassette Type.......................................................................... 23

■ Selecting the Recording Speed (SV-6333X/SV-6332X)................................ 23

■ Protecting a Recorded Cassette.................................................................... 24

■ Recording a Programme Immediately........................................................... 24

■ Recording a Programme with Automatic Stop............................................... 25

■ Using the ShowView Feature (SV-6333X/SV-6332X/SV-2333X).................. 26

■ Modifying ShowView Programming (SV-6333X/SV-6332X/SV-2333X)........ 27

■ Using the Quick Programming Feature......................................................... 28

■ Checking a Preset Recording........................................................................ 29

■ Cancelling a Preset Recording...................................................................... 29

2

About this manual

Thank you for purchasing a Samsung Video Cassette Recorder (VCR).
Your Owner’s Instructions contain much valuable information on setting up and
using your VCR. Please take the time to read them as they will help you take full
advantage of your VCR’s features.

The instructions in this manual are for models, SV-6333X, SV-6332X, SV-2333X and
SV-2303X. Before you start reading this manual please check your model number.
It is displayed on the rear of the VCR.

Features Chart

- ★(SV-6333X): Exceptions only for a certain model, for example SV-6333X.

- Gray shaded areas marked with a star indicate instructions that are

only relevant to one model.

Feature SV-6333X SV-6332X SV-2333X SV-2303X

IPC (Intelligent Picture Control)

●● ● ●

Format 16:9

●●

Changing recording speed (SP/LP)

●●

Connecting a Decoder for

●●

scrambled PAY TV broadcasts
Automatic Clock setting

●● ● ●

SHOWVIEW recording

●● ●

Hi-Fi and A2

●●

VPS (Video Programme System) /
PDC (Programme Delivery Control)

●● ● ●

GB

54

The following illustrations represent precautions.

The lightning bolt is a warning sign alerting you to dangerous voltage inside the product.

DO NOT OPEN THE VCR. Refer to service personnel.

HH

5°C

40°C

10% 75%

THIS DEVICE IS NOT FOR USE IN INDUSTRIAL

ENVIRONMENTS

Safety Instructions

Do NOT expose the VCR to
extreme temperature condi­tions (below 5°C and above
40°C) or to extreme humidity
conditions (less than 10% and
more than 75%).

Do NOT expose the VCR to
direct sunlight.

Do NOT expose the VCR to
any liquids.

Do NOT place any objects on
the VCR or remote control.

During a storm and/or light­ning, unplug the VCR from the
mains socket and aerial.

If the remote control is not
used for a long period of time,
remove the batteries and store
it in a cool, dry place.

Contents (cont.)

◆ PLAYING BACK

■ Playing a Cassette......................................................................................... 30

■ Adjusting Picture Alignment Manually........................................................... 30

■ Intelligent Picture Control .............................................................................. 31

■ FORMAT 16:9 (WIDE SCREEN) (SV-6333X/SV-2333X) ............................. 32

■ Selecting the Colour Mode............................................................................ 32

■ Selecting the Audio Output Mode (SV-6333X/SV-6332X)............................. 33

■ Selecting the Audio Mute Mode (SV-2333X/SV-2303X) ............................... 33

◆ S

EARCHING FOR A SEQUENCE

■ Playing a Cassette in Slow Motion................................................................ 34

■ Playing a Sequence Frame by Frame........................................................... 34

■ Playing a Sequence at Variable Speeds....................................................... 35

■ Searching for a Specific Sequence ............................................................... 35

■ Auto Repeat Play........................................................................................... 36

■ Interval Repeat Play...................................................................................... 36

■ Using the Tape Counter ................................................................................ 37

◆ A

DVANCED RECORDING FEATURES

■ Using the Assemble Edit Function................................................................. 38

■ Recording from Another VCR or Camcorder................................................. 38

◆ OTHER FUNCTIONS AND USEFUL RECOMMENDATIONS

■ Auto Power Off.............................................................................................. 39

■ Technical Specifications................................................................................ 40

◆ SOLVING PROBLEMS

■ Problems and Solutions................................................................................. 41

■ TV Frequency Table (System-B/G)............................................................... 42

☛

➢

NoteImportantHold downPress/push

Symbols

1

1

1

= Step number

★

Option

GB

7

Infrared Remote Control

6

Front View of the VCR

REW BUTTON

F.F BUTTON

Rear View of the VCR

AV2(DECODER/EXT.) SCART (EURO-21)

SOCKET ★(SV-6333X/SV-2333X ONLY)

AV1(EURO AV) IN/OUT

SCART (EURO-21) SOCKET

AV2(DECODER/EXT.)

AV1(EURO AV)

R

L

AUDIO

OUT

TV

AERIAL IN
CONNECTOR

OUT TO TV
CONNECTOR

EJECT

STANDBY/ON

PROG

REC STOP

REW F.F

RECORD
BUTTON

VIDEO CASSETTE
COMPARTMENT

PLAY
BUTTON

EJECT
BUTTON

STANDBY/ON
BUTTON

STOP
BUTTON

(SV-6333X/SV-6332X/SV-2303X)

(SV-2333X)

PROGRAM SELECTION
BUTTONS

RCA AUDIO L, R OUTPUT SOCKETS

★

(SV-6333X/SV-6332X ONLY)

VIDEO CASSETTE

COMPARTMENT

PLAY

BUTTON

RECORD

BUTTON
EJECT
BUTTON

F.F

BUTTON

PROGRAMME SELECTION
BUTTONS

REW

BUTTON

REC STOP

PROG

EJECT

STANDBY/ON

REW F.F

PLAY

STANDBY/ON

BUTTON

STOP

BUTTON

STANDBY/ON EJE CT

Q-PRO

SLOW

IPC

DISPLAY

SHUTTLE

V-LOCK

CLR/RST F.ADV

INPUT INDEX

TRK PROG

R

E

C

M

E

N

U

A

U

D

I

O

S

P

E

E

D

D

U

B

T

V

/

V

C

R

REPEAT

OK

STANDBY/ON BUTTON

SLOW BUTTON

SHUTTLE BUTTON

V-LOCK BUTTON

CLEAR AND RESET BUTTON

INDEX BUTTON

TUNER, AV1, AV2 ★(SV-6333X/SV-2333X ONLY)

SELECTION / REPEAT SELECTION BUTTON

MENU BUTTON

RECORD BUTTON

RECORDING SPEED SELECTION BUTTON

★

(SV-6333X/SV-6332X ONLY)

REWIND/REVERSE PICTURE SEARCH BUTTON

(MENU SELECTION BUTTON)

STOP BUTTON

(MENU SELECTION DOWN BUTTON)

EJECT BUTTON

QUICK PROGRAMME BUTTON

IPC BUTTON

DISPLAY BUTTON
FRAME ADVANCE BUTTON

PROGRAMME SELECTION BUTTONS

TRACKING BUTTONS
AUDIO MODE SELECTION BUTTON

(SV-6333X/SV-6332X)
AUDIO MUTE BUTTON

(SV-2333X/SV-2303X)
TV/VCR SELECTION BUTTON

★

(SV-6333X/SV-2333X ONLY)

SHOWVIEW ★(SV-6333X/SV-6332X/
SV-2333X ONLY)

PLAY/PAUSE/STILL BUTTON
(MENU SELECTION UP BUTTON)

FAST-FORWARD/FORWARD SEARCH
BUTTON
(MENU SELECTION BUTTON)

OK BUTTON

8

Display Indicator

Accessories

You have just purchased a SAMSUNG Video Cassette Recorder (VCR).
Together with your VCR, you will find the following accessories in the box.

STANDBY/ON

EJE

CT

Q

-PRO

S
L
O

W

IPC

DISPLAY

S
H
U

T
T
L

E

V

­L
O

C
K

CLR/R

ST F.ADV

INPUT

INDEX

TRK PROG

R

E

C

M

E

N

U

A

U

D

I

O

S

P

E

E

D

D

U

B

T

V

/

V

C

R

R

EPEAT

OK

REMOTE CONTROL

OWNER’S INSTRUCTIONS

COAXIAL CABLE RCA AUDIO CABLE

★

(SV-6333X/SV-6332X

ONLY)

GB

9

Deciding How to Connect Your VCR

You must take into account various factors when connecting audio or video systems:

◆ Types of connectors available on your systems

◆ Systems connected permanently to the VCR (satellite receiver for example) or temporarily

(camcorder for example)

Your VCR is equipped with the following connectors.

Connector Location Type Direction Recommended Use

AV1 Rear SCART In/Out ◆ Television

◆ Satellite receiver

◆ Other VCR

OUT TO TV Rear 75 Ω Out ◆ Television

coaxial

IN FROM ANT. Rear 75 Ω In ◆ Aerial

coaxial ◆ Cable television network

◆ Satellite receiver

AV2 Rear SCART In/Out ◆ Decoder for scrambled Pay TV

broadcasts
Example

: CANAL+.

◆ Satellite receiver

★

(SV-6333X/SV-2333X only) ◆ Other VCR

Audio output Rear Audio RCA Out ◆ Audio Hi-Fi system

★

(SV-6333X/SV-6332X only)

☛ Whenever you connect an audio or video system to your VCR, ensure that all elements are

switched off

.

Refer to the documentation supplied with your equipment for detailed connection instructions
and associated safety precautions.

R

L

AUDIO

OUT

AV2(DECODER/EXT.)

TV

AV1(EURO AV)

V

IPC

+

NICAM

5 6

1

3

2

4

1 Cassette loaded indicator
2 Multi-function display
3 IPC (Intelligent Picture Control) indicator
4 Timer indicator

7

5 Record indicator
6 Hi-Fi indicator

★

(SV-6333X/SV-6332X ONLY)

7 VCR indicator

★

(SV-6333X/SV-2333X ONLY)

GB

1110

Connecting Your VCR to the TV using the Coaxial Cable

To receive television programmes a signal must be received from
one of the following sources:

◆ An outdoor aerial

◆ An indoor aerial

◆ A cable television network

◆ A satellite receiver

☛ Make sure that both the television and the VCR are

switched off

before connecting the cables.

1 Remove the aerial or network input cable from the television.
2 Connect this cable to the 75Ω coaxial socket marked on the

rear of your VCR.

3 Plug the coaxial cable supplied into the socket on your VCR.
4 Plug the other end of the coaxial cable into the connector

previously used for the aerial on the television.

5 To obtain better quality pictures and sound on your television, you

can also connect your VCR to the television via the SCART cable
(see section below) if your television is equipped with this type of
connection.

TV

Connecting Your VCR to the TV using the SCART Cable

Aerial

SCART Cable

AV2(DECODER/EXT.)

AV1(EURO AV)

R

L

AUDIO

OUT

TV

RF coaxial cable

3

2

TV

Connecting a Decoder for scrambled PAY TV broadcasts

★

(SV-6333X/SV-2333X Only)

This VCR is fully equipped to receive scrambled Pay TV broadcasts.
Example

: CANAL+ or Premiere broadcasts.

You can:

◆ Record a scrambled programme while watching another channel

◆ Record another channel while watching a scrambled programme

☛ When the DECODER is connected to the AV2 socket, AV2 SET must be set to DEC (see page 22)

1 Connect the VCR to the television as indicated on page 10.
2 Plug the SCART cable with the decoder into the AV2(DECODER/EXT.) socket on the rear of the VCR.
3 Plug the other end into the decoder.

SCART Cable

SCART Cable

DECODER

Aerial

TV

Aerial Connector

3

2

4

D

G

AUDIO

ORTIE

TV

3

TV

4

2

You can connect your VCR to the television using the SCART cable if the appropriate input is available on
the television. You thus:

◆ Obtain better quality sound and pictures

◆ Simplify the setting up procedure of your VCR

☛ ◆ Regardless of the type of connection chosen, you must always connect the coaxial cable

supplied. Otherwise, no picture will be visible on the screen when the VCR is switched off.

◆ Make sure that both the television and the VCR are switched off

before connecting the cables.

You can connect your VCR to a Hi-Fi system.
Example

: You wish to take advantage of the quality of your Hi-Fi stereo system when watching a

programme or recording via your VCR.

★

(SV-6333X/SV-6332X only)

1 Connect the coaxial cable as indicated in the above section.
2 Connect one end of the SCART cable to the AV1(EURO AV) socket on the rear of the VCR.
3 Plug the other end into the appropriate connector on the television.
4

Plug the RCA Audio cable with stereo system into the Audio out socket on the rear of the VCR.

★

(SV-6333X/SV-6332X only)

SORTIE

D
AUDIO
G

TV

AV2(DECODER/EXT.)

AV1(EURO AV)

OUT

R

AUDIO

L

TV

GB

13

Plug & Auto Set Up

Your VCR will automatically set itself up when it is plugged into the
mains for the first time. TV stations will be stored in memory. The
process takes a few minutes. Your VCR will then be ready for use.

1 Connect the coaxial cable as indicated on page 10.

(Connecting Your VCR to the TV Using the Coaxial Cable)

2 Plug the VCR into the mains. It will automatically tune itself in and

store TV stations in the memory.

3 The process will finish after a few minutes. Then the VCR

automatically switches itself off.

2

12

Connecting Your VCR to the Satellite receiver or Other Equipment

SCART Cable

SCART Cable

Satellite Receiver or other Equipment

Aerial

TV

You can connect your VCR to the Satellite receiver or other VCR using the SCART cable if the appropriate
outputs are available on the equipment chosen. The following illustrations give a few examples of the
connection possibilities.

1

2

SCART Cable

Satellite Receiver or other Equipment

1. AV1(EURO AV): By means of 21-pin Scart Cable

Plug the SCART Cable with satellite receiver or other equipment into the AV1(EURO AV) socket on the rear of the
VCR.
After making this connection, select the source by pressing the INPUT button for the AV1 input sources.

2. By means of RF Coaxial Cable

After making this connection, you must preset the station received through the satellite tuner.
RF output channel of the satellite receiver should be adjusted away from channel 36, which is used by the VCR,
e.g. re-adjust to channel 33.

TV

Aerial

Aerial Connector

1

2

TV

TV

1. AV2 IN: By means of 21-pin Scart Cable ★(SV-6333X/SV-2333X only)

When the satellite receiver or other equipment is connected to the AV2 socket, AV2 SET must first be
set to EING. (see page 22)
Plug the SCART Cable with satellite receiver or other equipment into the

AV2(DECODER/EXT.)

socket on the rear
of the VCR.
After making this connection, select the source by pressing the INPUT button for the AV2 input sources.

2. By means of RF Coaxial Cable

After making this connection, you must preset the station received through the satellite tuner.

AV2(DECODER/EXT.)

AV1(EURO AV)

OUT

R

AUDIO

L

TV

AV2(DECODER/EXT.)

AV1(EURO AV)

OUT

R
AUDIO
L

TV

14

Tuning Your Television for the VCR

You must tune your television for the VCR only if you are not using
a Scart cable

➢ To view pictures from your VCR when a Scart cable is

used, the television must be set to the audio/video mode
(AV).

1 Switch on the television.
2 Switch on the VCR by pressing STANDBY/ON on the front of the

VCR or STANDBY/ON on the remote control.

3 Select a programme position on the television to be reserved for

use with your VCR.

4 Insert the video cassette in the VCR. Check that the VCR starts

reading the cassette; if not, press

❿

II

button

.

5 Start a scan on your television or set the television to UHF

channel 36.

6 Fine tune the television until the pictures and sound are obtained

clearly.

7 If you cannot find the pictures and sound, or there is interference

from nearby channels, it may be necessary to change the setting
of the VCR output channel (see Solving Problems section of this
manual).

8 When the picture and sound are perfectly clear, store this channel

at the desired programme position on the television.
Result

:

That programme is now reserved for use with your VCR.

OK

4

2

STANDBY/ON EJECT

SLOW

SHUTTLE

Q-PRO

GB

15

Setting the Date and Time

◆ Automatically stop programme recording

◆ Preset your VCR to record a programme automatically

◆ You purchase the video cassette recorder

◆ The power supply remains off for more than 1 hour

broadcast signal, but this function will not operate if
there is no Teletext signal.

◆ Do not forget to reset the time when you change
clocks from winter to summer time and vice versa.

1 Press MENU on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

",❷

or ➛, ❿buttons to select the

UHR EINSTELLEN option.

3 Press the OK button to select this option.

Result

:The UHR EINSTELLEN menu is displayed.

4 Press

➛or❿

to select the hour, minutes, day, month and year.

Result

: The option selected flashes.

5 Press the

"or❷

buttons to increase or decrease the value.

Result

: The day of the week is displayed automatically.

➢ You can hold the

"or❷

buttons down to scroll more

quickly through the values.

6 On completion, press MENU twice to exit the menu.

◆ Purchase the video cassette recorder

◆

Find that the remote control is no longer working correctly

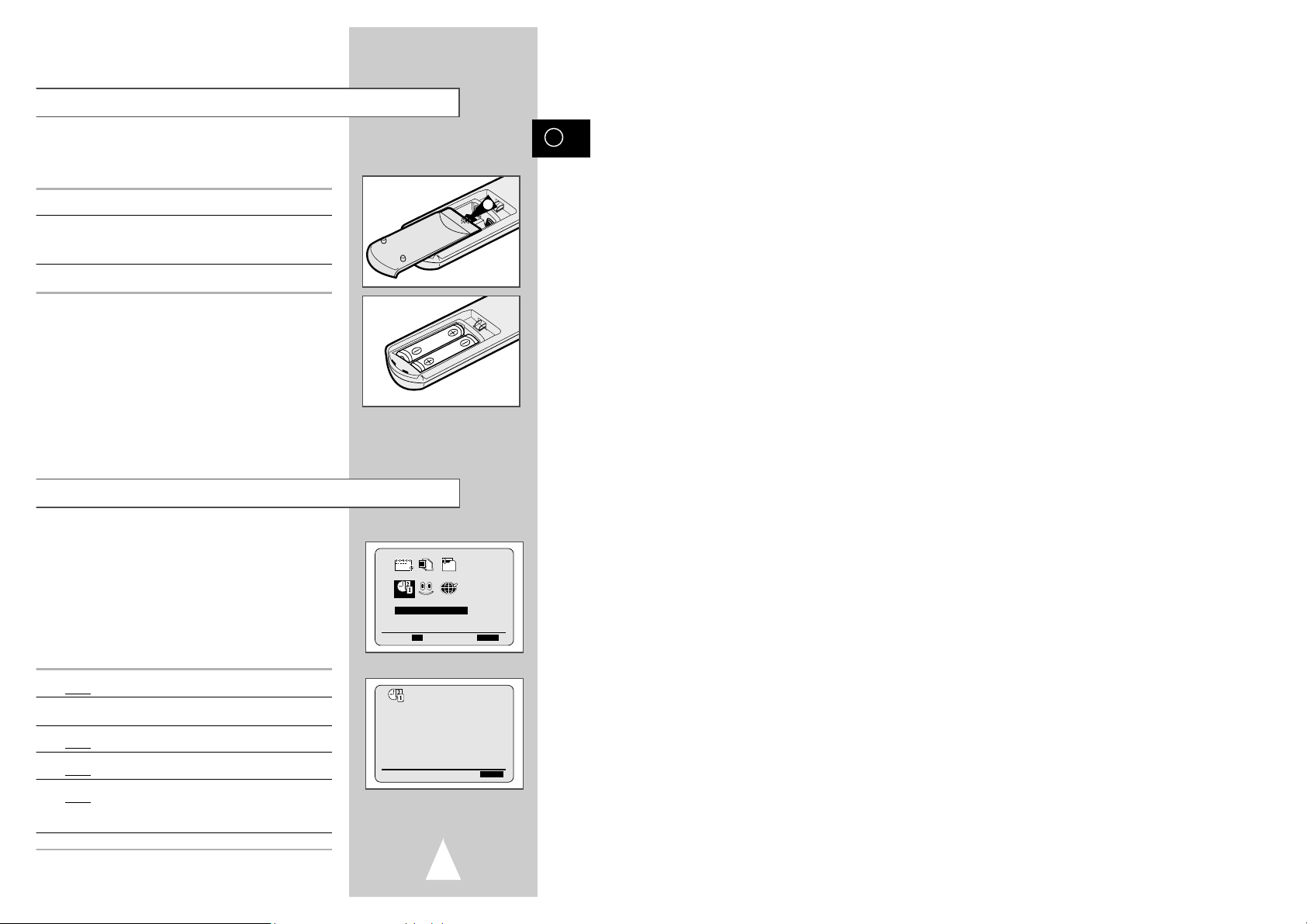

1 Push the tab in the direction of the arrow to release the battery

compartment cover on the rear of the remote control.

2 Insert two AA, R6 or equivalent batteries, taking care to respect

the polarities:

◆ + on the battery with + on the remote control

◆ – on the battery with – on the remote control

3 Replace the cover by aligning it with the base of the remote

control and pushing it back into place.

➢ Do not mix different battery types (manganese and

alkaline for example).

☛ Entsorgung von Batterien und Akkus

Batterien und Akkus gehören nicht in den Hausmüll.
Als Verbraucher sind Sie gesetzlich verpflichtet, alte
Batterien und Akkus zur umweltschonenden Entsorgung
zurückzugeben. Sie können lhre alten Batterien und
Akkus bei den öffentlichen Sammelstellen in lhrer
Gemeinde oder überall dort abgeben, wo Batterien und
Akkus der betreffenden Art verkauft werden.

Bitte achten Sie darauf, Akkus und Lithiumzellen nur im
entladenen Zustand in die Sammelbehälter zu werfen.
Sichern Sie nicht vollständig entladene Akkus gegen
Kurzschlüsse.

Inserting Batteries in the Remote Control

1

UHR EINSTELLEN

PROG OPTIONS INSTALL

CLOCK BONUS LANG

"❷!!

➛❿!!

OK BEENDEN:MENU

➛❿!!!!!!!!!!!

"❷

BEENDEN:MENU

12:01 1/JAN/2000

SA

AUTOM. ZEITEINST.: EIN

CLOCK

CLOCK

GB

1716

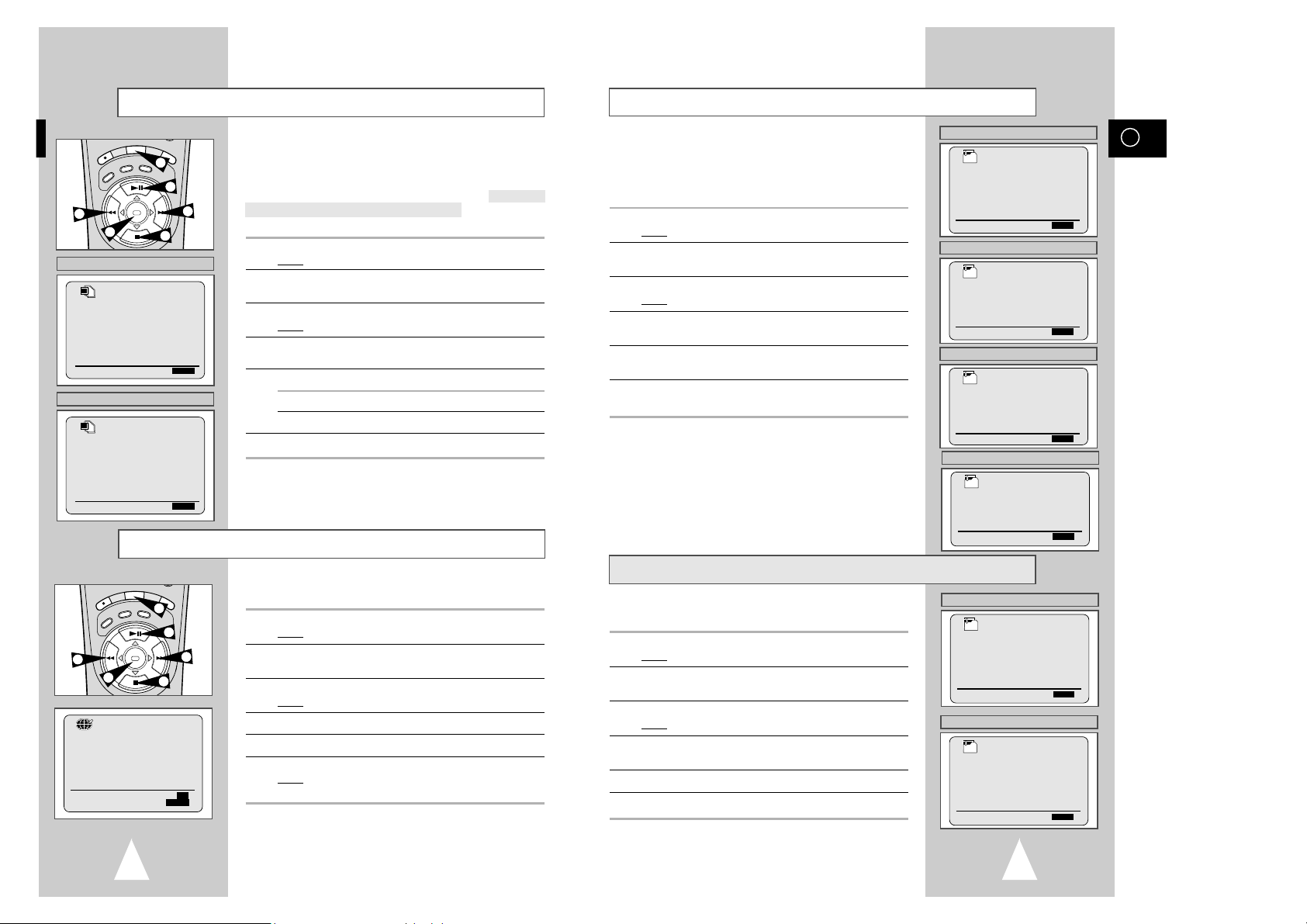

Your VCR output channel may need to be changed if the pictures
suffer from interference or if your TV cannot find the pictures.
Also, you can change the VCR output channel to adjust the
frequency in which information is displayed on the screen.

1 Press MENU on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

",❷

or ➛, ❿buttons to select the

SETUP option.

3 Press the OK button to select this option.

Result

: The SETUP menu is displayed.

4 Press the

"or❷

buttons, until the cursor is placed in front of the

HF-AUSGANG option.

5 Select the required output channel (CH21~CH69) by pressing the

➛

or ❿buttons.

6 On completion, press MENU twice to exit the menu.

Then tune your television again (see page 14).

You can choose the sound mode (B/G or D/K) according to the TV
set connected to your VCR.

1 Press MENU on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

",❷

or ➛, ❿buttons to select the

SETUP option.

3 Press the OK button to select this option.

Result

: The SETUP menu is displayed.

4 Press the corresponding

"or❷

buttons, until the cursor is placed

in front of the

TV-SYSTEM option.

5

Press the ❿button to select G or K.

6 On completion, press MENU twice to exit the menu.

Selecting the RF OUT Sound Mode (B/G-D/K)

★

(SV-6333X/SV -6332X Only)

Setting the VCR Output Channel

Displaying/Hiding On-Screen Information

1

2

2

2

2

Choosing Your Language

You can change the language in which information is displayed on
the screen.

1 Press MENU on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

",❷

or ➛, ❿buttons to select the

SPRACHE WÄHLEN option.

3 Press the OK button to select this option.

Result

: The SPRACHE WÄHLEN menu is displayed.

4 Select the required language by pressing the

"or❷

buttons.

5 Press OK to store the language selected.
6 Press MENU to exit the menu.

Result

: From now on, all the on-screen information will be

displayed in the language selected.

★

(SV-6333X/SV-2333X)

O

❿

OSD :EIN
KASS. WÄHLEN :E180
FARBSYSTEM :AUTO
IPC :EIN
16:9 :AUTO

"❷

❿

BEENDEN:MENU

★

(SV-6332X/SV-2303X)

O

❿

OSD :EIN
KASS. WÄHLEN :E180
FARBSYSTEM :AUTO
IPC :EIN

"❷

❿

BEENDEN:MENU

3

R

E

C

M

E

N

U

A

U

D

I

O

S

P

E

E

D

D

U

B

T

V

/

V

C

R

REPEAT

OK

1

2

2

2

2

3

ENGLISH DUTCH

❿

DEUTSCH NORSK
FRANÇAIS SVENSKA
ITALIANO MAGYAR
ESPAÑOL POLSKI

"❷!!!!!!

➛❿

SPEICHERN:OK
BEENDEN:MENU

Your VCR displays most information both on the VCR and the
television.

You can choose to display or hide this information on the television
screen (except for the Index, Programming MENU and Showview

function

★

(SV-6333X/SV-6332X/SV-2333X only), which cannot be

hidden).

1 Press MENU on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

",❷

or ➛, ❿buttons to select the

EINSTELLUNGEN option.

3 Press the OK button to select this option.

Result

: The EINSTELLUNGEN menu is displayed.

4 Press the corresponding

"or❷

buttons, until the cursor is placed

in front of the

OSD option.

5 To... Press

➛or❿

, until...

Display on-screen information EIN is displayed.
Hide on-screen information AUS is displayed.

6 On completion, press MENU twice to exit the menu.

AUTO-SENDERPROG.
MAN. SENDEREINST.

❿

TV-SYSTEM :G
HF-AUSGANG :CH36
AV2 :DEC.

"❷

❿

BEENDEN:MENU

AUTO-SENDERPROG.
MAN. SENDEREINST.
TV-SYSTEM :G

❿

HF-AUSGANG :CH36
AV2 :DEC.

"❷

❿

BEENDEN:MENU

★

(SV-6333X)

AUTO-SENDERPROG.
MAN. SENDEREINST.
TV-SYSTEM :G

❿

HF-AUSGANG :CH36

"❷

❿

BEENDEN:MENU

★

(SV-6332X)

AUTO-SENDERPROG.
MAN. SENDEREINST.

❿

HF-AUSGANG :CH36
AV2 :DEC.

"❷

❿

BEENDEN:MENU

★

(SV-2333X)

★

(SV-6333X)

AUTO-SENDERPROG.
MAN. SENDEREINST.

❿

TV-SYSTEM :G
HF-AUSGANG :CH36

"❷

❿

BEENDEN:MENU

★

(SV-6332X)

AUTO-SENDERPROG.
MAN. SENDEREINST.

❿

HF-AUSGANG :CH36

"❷

❿

BEENDEN:MENU

★

(SV-2303X)

PTIONS

PTIONS

LANG

REPEAT

N

U

E

M

A

C

E

R

D

E

E

P

S

U

D

I

O

T

V

/

V

B

C

U

R

D

OK

INSTALL

INSTALL

INSTALL

INSTALL

INSTALL

INSTALL

GB

1918

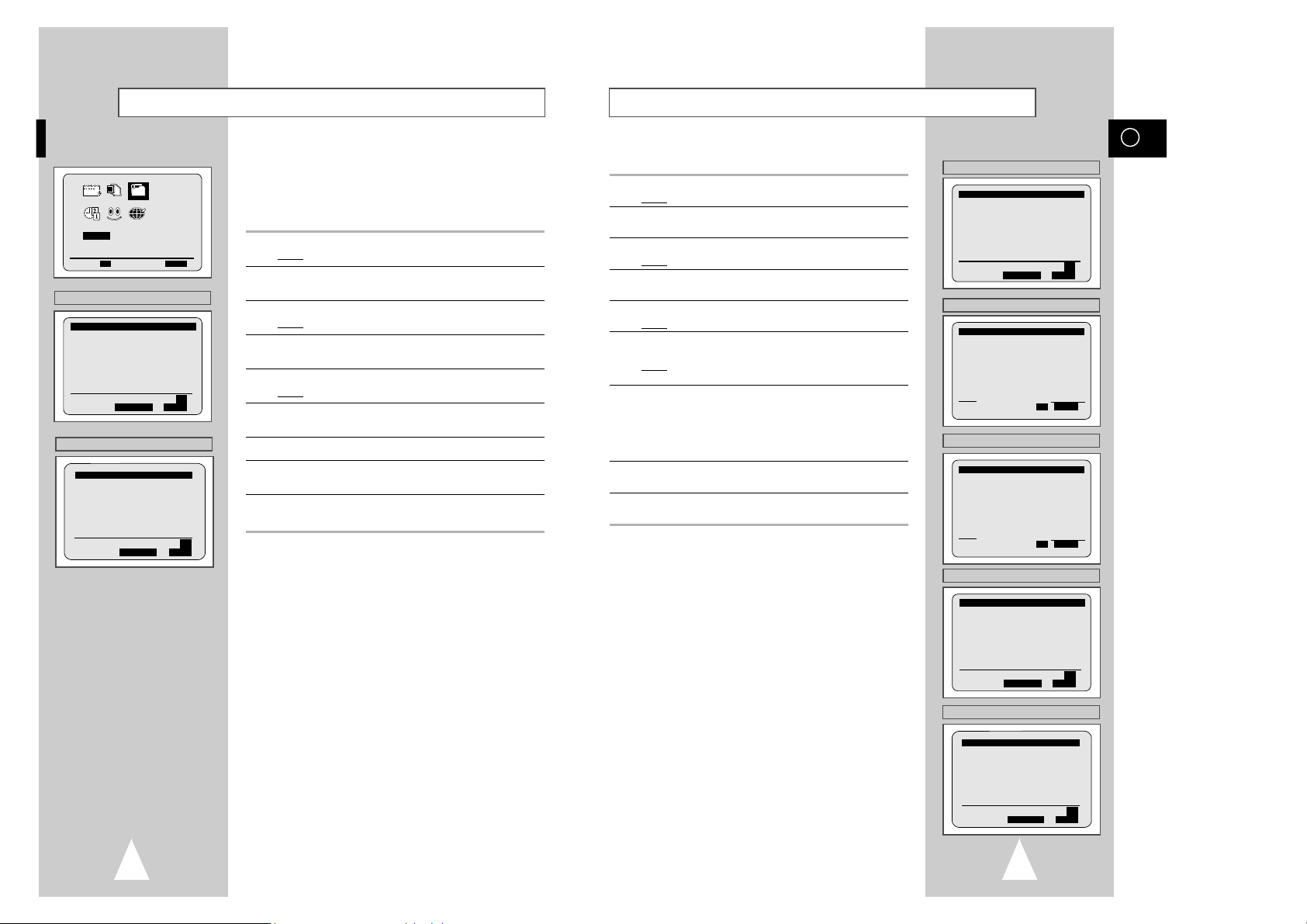

Presetting the Stations Manually

Presetting the Stations Automatically

LÄNDERWAHL

BELGIQUE ÖSTERREICH
DENMARK ❿!DEUTSCHLAND
ESPAÑA FINLAND
ITALIA NETHERLANDS
NORGE SCHWEIZ
SVERIGE ANDERE

"❷

➛❿

AUSFÜHREN:OK

BEREITS GESPEICHERTE

SENDER WERDEN GELÖSCHT

WEITER MIT OK

ABBRECHEN MIT MENU

AUTO-SENDERPORG.

BITTE WARTEN

3%

I--------------------I

BEENDEN:MENU

SETUP

PROG OPTIONS INSTALL

CLOCK BONUS LANG

"❷!!

➛❿!!

OK BEENDEN:MENU

SETUP

PROG OPTIONS INSTALL

CLOCK BONUS LANG

"❷!!

➛❿!!

OK BEENDEN:MENU

☛

You do not need to preset the stations if you have already
set them automatically (see Plug & Auto Set Up on page 13)

.

Your VCR contains a built-in tuner used to receive television
broadcasts.

You must preset the stations received through the tuner. This can
be done:

◆ Plug & Auto Set up (see page 13)

◆ Automatically

◆ Manually (see page 19)

You can store up to 99 stations.

➢

To enable the VCR to decode a scrambled TV station, the
decoder must be activated after the scan (see pages 19 or 21).

★

(SV-6333X/SV-2333X Only)

1 Press the MENU button on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

", ❷!

or ➛, ❿buttons to select the

SETUP option.

3 Press the OK button to select this option.

Result

: The SETUP menu is displayed.

4

Press the corresponding "or ❷buttons, until the cursor is placed
in front of the

AUTO-SENDERPROG. option. And then press the

❿

button to select this option.
Result:

The country selection MENU is displayed.

5 Press the

"

or ❷buttons to select your country.

☛ The VCR searches for the stations according to a preset

preference list corresponding to the country that you have
selected.

6 Press OK button.

Result

: A message appears, indicating that any channels

already preset on your VCR will be deleted.

7 Press OK to start the auto scanning.

Result

: ◆ The BITTE WARTEN indication flashes on the

television screen.

◆ The first frequency band is scanned and the first

station found is displayed and stored.

◆

The VCR then searches for the second station and so on.

◆ When the automatic scanning procedure has

finished, the VCR switches automatically to pro­gramme 1.

➢ The number of stations automatically stored by the VCR

depends on the number of stations that it has found.
(country, reception conditions, etc.)

8 If you wish to cancel the auto scanning before the end, press the

MENU button three times to exit the menu.

➢ ◆

The time and date are set automatically from the
broadcast signal. If the signal is weak or ghosting
occurs, the time and date may not be set automatically.
In this case, they should be set manually (see page 15).

◆ Once the auto scanning procedure has finished, some
stations may have been stored more than once; select
the stations with the best reception and delete the
ones no longer required (see page 20).

**

MAN. SENDEREINST.

**

PR : 1

❿!!

CH : --­FEIN : ­NAME : ----

"❷

➛❿

SPEICHERN:OK
BEENDEN:MENU

**

MAN. SENDEREINST.

**

PR : 1

❿!!

CH : ---

FEIN : ­DECODER : AUS
NAME : ----

"❷

➛❿

SPEICHERN:OK

BEENDEN:MENU

★

(SV-6333X/SV-2333X)

★

(SV-6332X/SV-2303X)

★

(SV-6333X/SV-2333X)

★

(SV-6332X/SV-2303X)

**

SENDER-TABELLE

**

PR CH NAME DECODER

❿

1 002 ---- AUS
2 005 ---- AUS
3 009 ---- AUS
4 011 ---- AUS
5 025 ---- AUS

"❷

❿

SORT.:OK

LÖSCHEN:CLR/RST MENU

**

SENDER-TABELLE

**

PR CH NAME

❿

1 002 ---­2 005 ---­3 009 ---­4 011 ---­5 025 ----

"❷

❿

SORT.:OK

LÖSCHEN:CLR/RST MENU

☛ You do not need to preset the stations manually if you

have already set them automatically.

➢

To enable the VCR to decode a scrambled TV station, the
decoder must be switched on.

★

(SV-6333X/SV-2333X Only)

1 Press the MENU button on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

", ❷!

or ➛, ❿!buttons to select the

SETUP option.

3 Press the OK button to select this option.

Result

: The SETUP menu is displayed.

4 Press the corresponding

"

or ❷buttons, until the cursor is

placed in front of the

MAN. SENDEREINST. option.

5 Press the

❿

button to select MAN. SENDEREINST. option.

Result

: The SENDER-TABELLE menu is displayed.

6 Press the

"

or ❷buttons to select a programme number as

required.

7 Press the

❿!

button to preset the station.

Result

: The MAN. SENDEREINST. menu is displayed.

8 Press the

➛

or ❿buttons to start scanning.

Result

: The frequency band is scanned and the first station

found is displayed.
If you know the number of the channel you want, press the
numeric buttons on the remote control for example, for channel
E21, first press “0” and then press “2”, “1” (see page 42).

★

With SV-6333X/SV-2333X, you can select DECODER.
a. Press the

❷

button to place the cursor in front of the DECODER.

b. Press the

❿

button to activate or deactivate use of the decoder

for the TV station, if necessary.

9 Press the

"

or ❷buttons until the cursor is placed in front of the

NAME.

The station name is set automatically from the broadcast signal.

10 To change the programme’s name, press the

❿!

button.

Result

: The first letter of the name flashes.

11 To... Then...

Select a character Press the "or ❷button until the
in the name required character is displayed

(letters, numbers or “-” character).

Move to the next or Press the ❿or ➛buttons
previous character respectively.

12 If you... Then...

Wish to store the ◆ Press the corresponding "or ❷!buttons
station displayed to place the cursor in front of the

FEIN.

◆ Press the

➛or❿

buttons to adjust the

picture, if necessary.

◆ Press OK to store the station .

Do not wish to ◆ Press the corresponding "or ❷buttons
store the station to place the cursor in front of the CH.

displayed

◆ Press the

➛or❿

buttons to go on
scanning the frequency band and display
the next station

◆ Go back to the beginning of Step 12

13 Repeat this procedure from Step 6 onwards, until all the required

stations have been stored.

14

On completion, press the MENU button three times to exit the menu.

INSTALL

INSTALL

GB

2120

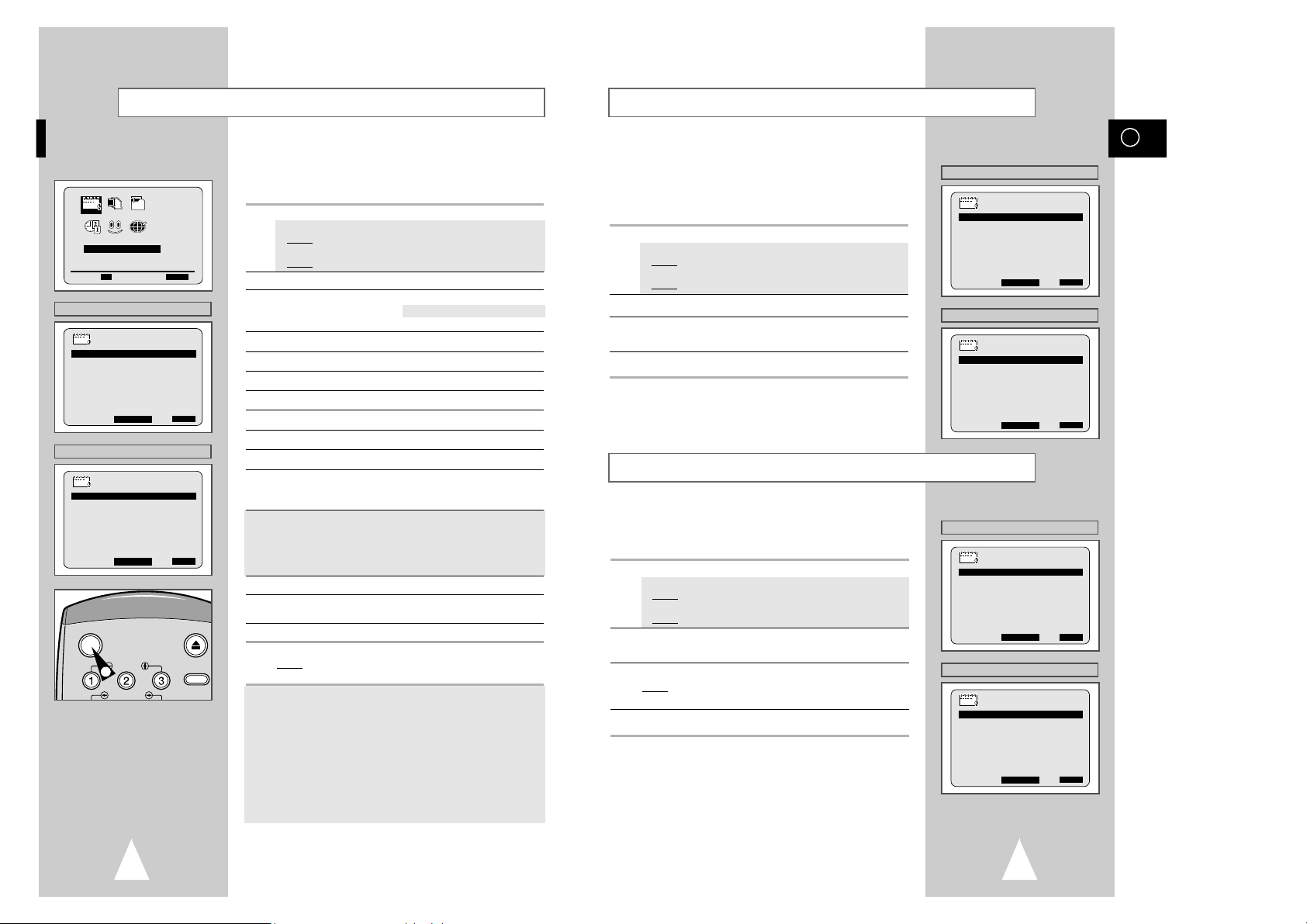

Changing the Preset Station Table

If you have stored a TV station:

◆ That you do not require

◆ At the wrong programme position

you can cancel it.

1 Press the MENU button on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

", ❷!

or ➛, ❿buttons to select the

SETUP option.

3 Press the OK button to select this option.

Result

: The SETUP menu is displayed.

4 Press the corresponding

"

or ❷buttons, until the cursor is

placed in front of the

MAN. SENDEREINST. option.

5 Press the

❿

button to select this option.

Result

: The SENDER-TABELLE menu is displayed.

6 Press the corresponding

"

or ❷buttons, until the cursor is

placed in front of the required preset TV station. (PR)

7 Press the CLR/RST button.
8 Repeat the same procedure from Step 6 onwards until all the

required stations have been cleared.

9 On completion, press the MENU button three times to exit the

menu.

Clearing a Preset Station

You can rearrange the preset TV stations according to your own
preferences programme number assigned to the station.

1 Press the MENU button on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

", ❷!

or ➛, ❿buttons to select the

SETUP option.

3 Press the OK button to select this option.

Result

: The

SETUP menu is displayed.

4 Press the corresponding

"

or ❷buttons, until the cursor is

placed in front of the

MAN. SENDEREINST. option.

5 Press the

❿

button to select this option.

Result

: The SENDER-TABELLE menu is displayed.

6 Press the corresponding

"

or ❷buttons, until the cursor is
placed in front of the required preset TV programme.
Result

: The selected station is displayed at the same time on

the television screen.

7 To change the programme number assigned to a station (PR5

instead of PR1 for example):

◆ Press OK

◆ Press the

"

or ❷buttons until the cursor is placed in front of

the programme to which the station is to be moved

◆ Press OK again

8 Repeat this procedure from Step 6onwards, until all the required

stations have been stored.

9 On completion, press the MENU button three times to exit the

menu.

SETUP

PROG OPTIONS INSTALL

CLOCK BONUS LANG

"❷!!

➛❿!!

OK BEENDEN:MENU

**

SENDER-TABELLE

**

PR CH NAME

❿

1 --- ---­2 --- ---­3 --- ---­4 --- ---­5 --- ----

"❷

❿

SORT.:OK

LÖSCHEN:CLR/RST MENU

★

(SV-6332X/SV-2303X)

**

SENDER-TABELLE

**

PR CH NAME DECODER

❿

1 --- ---- AUS
2 --- ---- AUS
3 --- ---- AUS
4 --- ---- AUS
5

"❷

❿

SORT.:OK

LÖSCHEN:CLR/RST MENU

★

(SV-6333X/SV-2333X)

**

SENDER-TABELLE

**

PR CH NAME DECODER

❿

1 002 ---- AUS
2 005 ---- AUS
3 009 ---- AUS
4 011 ---- AUS
5 025 ---- AUS

"❷

❿

SORT.:OK

LÖSCHEN:CLR/RST MENU

**

SENDER-TABELLE

**

PR CH NAME DECODER

1 002 ---- AUS
2 005 ---- AUS
3 009 ---- AUS
4 011 ---- AUS

❿

5(025 ---- AUS )

(SORT.: 5

➛

5)

"❷

AUSFÜHREN:OK MENU

**

SENDER-TABELLE

**

PR CH NAME DECODER

❿

1(025 ---- AUS )
2 005 ---- AUS
3 009 ---- AUS
4 011 ---- AUS
5 025 ---- AUS

(SORT.: 5

➛

1)

"❷

AUSFÜHREN:OK MENU

**

SENDER-TABELLE

**

PR CH NAME DECODER

❿

1 025 ---- AUS
2 002 ---- AUS
3 005 ---- AUS
4 009 ---- AUS
5 011 ---- AUS

"❷

❿

SORT.:OK

LÖSCHEN:CLR/RST MENU

★

(SV-6333X/SV-2333X)

★

(SV-6333X/SV-2333X)

★

(SV-6333X/SV-2333X)

★

(SV-6333X/SV-2333X)

**

SENDER-TABELLE

**

PR CH NAME

❿

1 025 ----
2 002 ---­3 005 ---­4 009 ---­5 011 ----

"❷

❿

SORT.:OK

LÖSCHEN:CLR/RST MENU

★

(SV-6332X/SV-2303X)

INSTALL

GB

2322

R

D

I

O

S

P

E

E

D

D

U

B

T

V

/

V

C

R

OK

Selecting the Cassette Type

If you wish to use the tape counter to display the time remaining on
a cassette, you must indicate the type of cassette inserted.

1 Press MENU on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

", ❷!

or ➛, ❿buttons to select the

EINSTELLUNGEN option.

3 Press the OK button to select this option.
4 Press the corresponding

"

or ❷buttons, until the cursor is
placed in front of the

KASS.WÄHLEN option.

5 Press the

➛

or ❿buttons as many times as required, until the

correct cassette length is displayed.

E180 E240
E 300 E260

6 Press MENU twice to exit the menu.

Selecting the Recording Speed ★(SV-6333X/SV-6332X Only)

T

ype Recording Time (in SP)
E-180 180 mins. or 3 hours
E-240 240 mins. or 4 hours
E-260 260 mins. or

4 hours and 20 mins.

E-300 300 mins. or 5 hours

You can record a cassette at two different speeds:

◆ SP (Standard Play)

◆ LP (Long Play)

In Long Play modes:

◆ Each cassette lasts twice as long

◆ The recording is of a slightly lower quality

To record a cassette... Press the SPEED button on the

remote control, until...

In standard play mode SP is displayed.
In long play mode

LP is displayed.

The TV/VCR button allows you to record one channel with the VCR
while you watch another channel on the TV.

When the VCR indicator is... Your television...

On

The television receives the picture from
the VCR and you can select channels
with the

PROG ("or ❷)

buttons on the

VCR or the remote control.

Off (or the VCR is turned off) The television receives the picture from

your home aerial or cable television
system as it did before you connected
the VCR.
You can then use the

programme("

or

❷

) buttons on your television to select

the channels.

To switch the VCR indicator on and off, simply press the TV/VCR button.

Setting the AV2 Connection ★(SV-6333X/SV-2333X Only)

If you wish to use the AV2 socket for a PAY TV DECODER, you
must change AV2 to the required position.

1 Press MENU on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

", ❷!

or ➛, ❿buttons to select the

SETUP option.

3 Press the OK button to select this option.

Result

: The

SETUP menu is displayed.

4 Press the corresponding

"

or ❷buttons, until the cursor is

placed in front of the

AV2 option.

5 When... Press

➛

or ❿, until...

Another VCR or satellite EING. is displayed.
receiver is connected to
the AV2(DECODER/EXT.) socket

The decoder is connected to DEC. is displayed.
the AV2(DECODER/EXT.) socket

6 On completion, press MENU twice to exit the menu.

R

E

C

M

E

N

U

A

U

D

I

O

S

P

E

E

D

D

U

B

T

V

/

V

C

R

REPEAT

Switching between the TV and VCR Modes

★

(SV-6333X/SV-2333X Only)

AUTO-SENDERPROG.
MAN. SENDEREINST.
TV-SYSTEM :G
HF-AUSGANG :CH36

❿

AV2 :DEC.

"❷

❿

BEENDEN:MENU

SETUP

PROG OPTIONS INSTALL

CLOCK BONUS LANG

"❷!!

➛❿!!

OK BEENDEN:MENU

★

(SV-6333X/SV-2333X)

O

OSD :EIN

❿

KASS. WÄHLEN :E180
FARBSYSTEM :AUTO
IPC :EIN
16:9 :AUTO

"❷

❿

BEENDEN:MENU

★

(SV-6332X/SV-2303X)

O

OSD :EIN

❿

KASS. WÄHLEN :E180
FARBSYSTEM :AUTO
IPC :EIN

"❷

❿

BEENDEN:MENU

AUTO-SENDERPROG.
MAN. SENDEREINST.
HF-AUSGANG :CH36

❿

AV2 :DEC.

"❷

❿

BEENDEN:MENU

★

(SV-2333X)

★

(SV-6333X)

INSTALL

INSTALL

INSTALL

PTIONS

PTIONS

Before recording a programme, you must have preset the corres­ponding station (unless you are recording via an external video
source). If you have not done so, refer to pages 18 and 19.

1 Switch on the television.
2 To monitor the programme being recorded, select the television

channel reserved for use with your VCR (or the AV input if used).

3 Insert the cassette on which the programme is to be recorded,

with the window visible and the safety tab intact or the opening
covered with adhesive tape.

Result

: The VCR is switched on automatically.

4 Select:

◆

The station to be recorded using the

PROG (

"

or ❷)

buttons

or

◆ The AV1 or AV2

★

(SV-6333X/SV-2333X only) source using

the INPUT button for a satellite tuner or external video source

Result

: The station number is displayed and the programme

can be seen on the television.

★

With SV-6333X/SV-6332X, you can select the recording speed
(SP/LP). Press the SPEED button.

5 Hold REC (

●

) down for a while to start recording.

Result

:

The record indicator appears on the television and VCR
display. An index is recorded on the tape (see page 35).

6 To stop recording, press

■

once.

➢ ◆ If the cassette is ejected when you start recording,

check that the safety tab is intact or the opening is
covered with adhesive tape.

◆ If you reach the end of the tape while recording, the
cassette rewinds automatically.

GB

2524

Recording a Programme with Automatic Stop

6

3

DAUER 2:30

DAUER EINSTELLEN:

REC DRÜCKEN

Recording a Programme Immediately

6

R

E

C

M

E

N

U

A

U

D

I

O

S

P

E

E

D

D

U

B

T

V

/

V

C

R

OK

DISPLAY

★

5

Protecting a Recorded Cassette

Video cassettes have a safety tab to prevent accidental erasure.
When this tab has been removed, you cannot

record on the tape.

1 If you wish to protect a cassette, break off the tab using a small

screwdriver.

2 To re-record over a protected cassette (safety tab broken), cover

the hole with adhesive tape.

1

4

4

DISPLAY

V-LOCK

INPUT INDEX

TRK PROG

R

E

C

M

E

N

U

A

U

D

I

O

4

4

★

This function enables you to record up to nine hours of
programmes. (LP)

Your VCR stops automatically after the requested length of time.

1 Switch on the television.
2 To monitor the programme being recorded, select the television

channel reserved for use with your VCR (or the AV input if used)

3 Insert the cassette on which the programme is to be recorded,

with the window visible and the safety tab intact or the opening
covered with adhesive tape.

Result

: The VCR is switched on automatically.

4 Select:

◆

The station to be recorded using the

PROG ("or ❷)

buttons

or

◆ The AV1 or AV2

★

(SV-6333X/SV-2333X only) source using

the INPUT button for a satellite tuner or external video source

Result

: The channel number is displayed and the programme

can be seen on the television.

★

With SV-6333X/SV-6332X, you can select the recording speed
(SP/LP). Press the SPEED button.

5 Hold the REC button (

●

) down for a while to start recording.

Result

: The record indicator appears on the television screen

and VCR display. An index is recorded on the tape
(see page 35).

6 Press the REC button (

●

) several times to increase the recording

time in:

◆ 30-minute intervals up to four hours

◆ 1-hour intervals up to nine hours (LP)

Result

: The length is displayed on the television displays. The

selected programme is recorded for the length of time
requested. At the end of that time, the VCR stops
recording automatically.

7 If you wish to cancel the recording before the end, press

STANDBY/ON.

☛ If the end of the tape is reached while recording:

◆ The recording stops

◆ The VCR automatically turns off

LR/RST F.ADV

INPUT INDEX

EPEAT

C

E

R

M

TRK PROG

N

U

E

OK

A

U

D

I

O

REPEAT

C

E

R

B

U

D

D

E

E

P

S

N

U

E

M

A

U

D

I

T

V

O

/

V

C

R

GB

2726

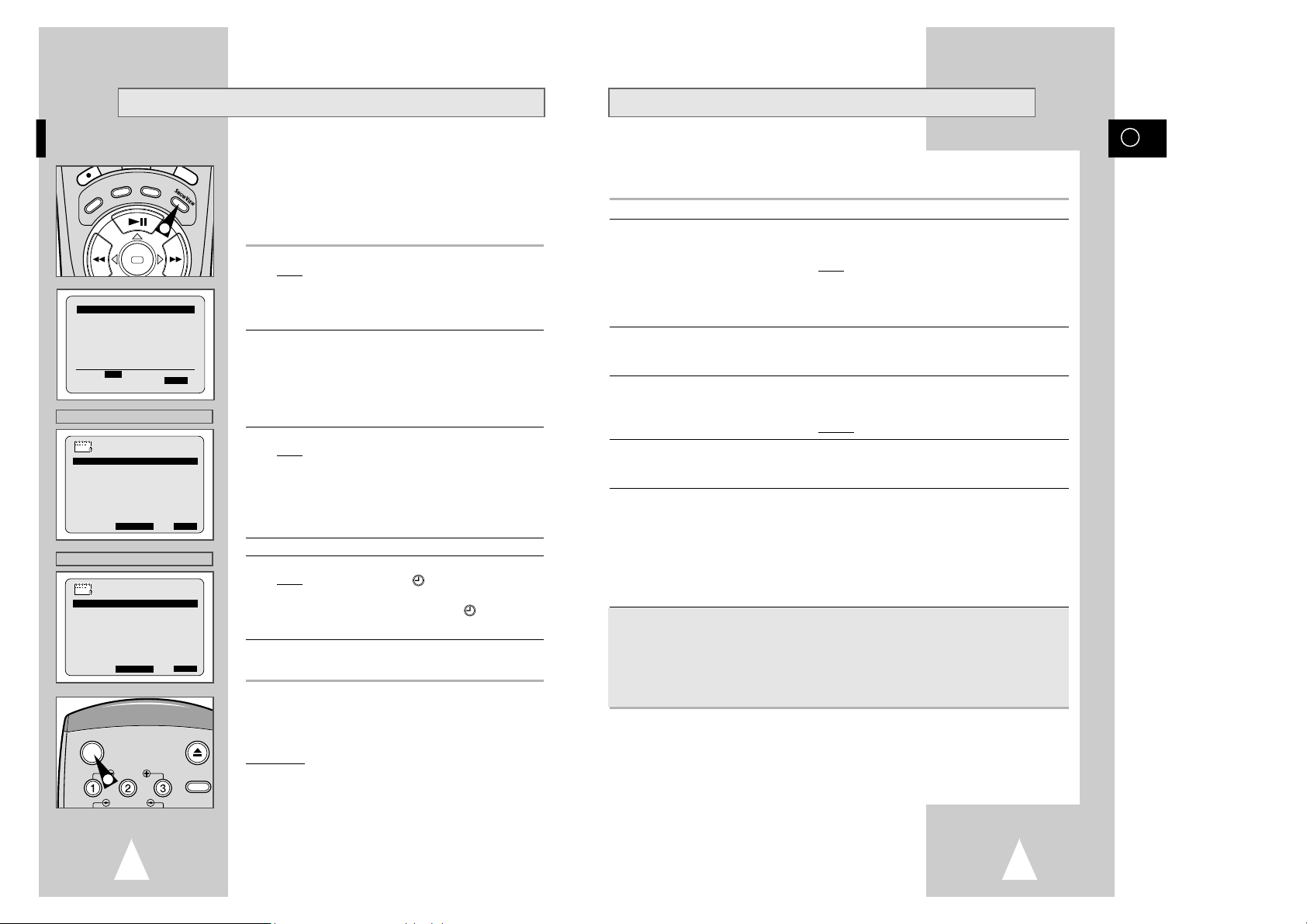

Modifying ShowView Programming ★(SV-6333X/SV -6332X/SV -2333X Only)

Using the ShowView Feature ★(SV-6333X/SV -6332X/SV -2333X Only)

Before presetting your VCR:

◆ Switch on both the television and your VCR

◆ Check that the date and time are correct

◆ Insert the cassette on which the programme is to be

recorded (safety tab intact)

Up to six programmes can be preset.

1 Press the S

HOWVIEW

button.

Result

: A message is displayed to allow you to enter the

ShowView code.

☛ If all six programmes have been set, the message ALLE

SPEICHERPLÄTZE SIND BELEGT is displayed. Refer

to page 29 if you wish to cancel a preset recording.

2 Press the numeric buttons to enter the code opposite the

programme that you wish to record in your television magazine.

➢ If you wish to correct the ShowView code that you are

entering:

◆ Press the

➛

button until the digit to be corrected is

cleared

◆ Enter the correct digit

3 Press the MENU or Showview button.

Result

:

The information concerning the programme is displayed.

☛ When using the ShowView function for the first time with

stored stations, the programme number flashes. This one
time, you must enter the station number manually by
pressing the

#

or ❷buttons. Refer to the following page if:

◆ The programme number or times flash

◆ You wish to modify the programme

4

If the programme and times are correct, press the MENU button.

5 Press the STANDBY/ON button to activate the timer.

Result

: The Record indicator ( ) is displayed.

☛ If no cassette has been inserted when you press

STANDBY/ON the Record indicator ( ) flashes. If the
safety tab on the cassette has been broken, the cassette is
ejected. Insert the appropriate cassette.

6 Refer to page 29 if you wish to:

◆ Check that your VCR has been programmed correctly

◆ Cancel a preset recording

☛ The numbers next to each TV programme listing are

ShowView code numbers, which allow you to
programme your videorecorder instantly with the remote
control. Tap in the ShowView code for the programme
you wish to record.

™ ShowView is a trademark of Gemstar Development Corporation. The ShowView system is

manufactured under licence from Gemstar Development Corporation.

R

E

C

U

D

I

O

S

P

E

E

D

D

U

B

T

V

/

V

C

R

OK

1

V

IPC

+

V

IPC

+

SHOWVIEW

CODE ---------

CODE:0-9 ÄNDERN:

➛

WEITER:MENU

PROG

1/JAN SA 13:08

PR TAG BEGINN

→→

ENDE V/P

❿

1 JA 1 17:00→18:30SP ON

-- ---- --:--

→

--:---- -

-- ---- --:--→--:---- -

-- ---- --:--→--:---- -

-- ---- --:--

→

--:---- -

-- ---- --:--→--:---- -

#❷

➛❿

LÖSCHEN:

CLR/RST MENU

5

★

(SV-6333X/SV-6332X)

1/JAN SA 13:08

PR TAG BEGINN→→ENDE V/P

❿

1 JA 1 17:00→18:30 ON

-- ---- --:--

→

--:-- -

-- ---- --:--

→

--:-- -

-- ---- --:--

→

--:-- -

-- ---- --:--

→

--:-- -

-- ---- --:--

→

--:-- -

#❷

➛❿

LÖSCHEN:

CLR/RST MENU

★

(SV-2333X)

If you wish to correct the programme displayed or modify certain elements, such as the recording
speed, you can do so before you press MENU a second time to confirm.

If you wish to... Then...

Select an input source other ◆ Press the ➛or ❿buttons, until the PR selection flashes.
than the tuner

AV1 or AV2 ◆ Press the INPUT button one or more times to change the

input source selection.
Result

: The programme number is replaced by:

•

A1 or A2 for a satellite tuner or external video
input (used by another VCR for example)

➢ The input source must be selected before changing any

other value.

Record a programme every day ◆ Press the ➛or ❿buttons, until the DAY selection flashes.
(Monday to Sunday) at the same time

◆ Press the

#

or ❷buttons, until the DLY (Daily) value is

displayed.

Record a programme every week ◆ Press the ➛or ❿buttons, until the DAY selection flashes.
on the same day and at the same time

◆ Press the

#

or ❷buttons, until the W- (Week) value is
displayed, followed by the required day.
Example

: W-SA (Weekly Saturday)

Extend the recording time ◆ Press the ➛or ❿buttons, until the STOP selection flashes.

◆ Press the

#

or ❷buttons to increase or decrease the stop
time.

Select VPS recording ◆ Press the ➛or ❿buttons, until the V/P selection flashes.

◆ Press the

#

or ❷buttons until the ON or “-” indication is
displayed.

☛

Do not select VPS unless you are sure the programme you
wish to record is broadcast with VPS. If you do set VPS ON

(by selecting “ON” in the right - hand column on the screen),
then you must set up the start-time EXACTLY according to
the published TV schedule. Otherwise the timer recording
won’t take place.

Select the recording speed ◆ Press the ➛or ❿buttons, until the recording speed selection

★

(SV-6333X/SV-6332X only) flashes.

◆ Press the

#

or ❷buttons until the correct indication is

displayed:

• AUTO (Auto Tape Speed Select) : see page 28

• SP (Standard Play)

• LP (Long Play)

PROG

STANDBY/ON EJECT

SLOW

SHUTTLE

Q-PRO

GB

2928

Checking a Preset Recording

Cancelling a Preset Recording

Using the Quick Programming Feature

TIMER-AUFNAHMEN

PROG OPTIONS INSTALL

CLOCK BONUS LANG

#❷!!

➛❿!!

OK BEENDEN:MENU

1/JAN SA 13:08

PR TAG BEGINN

→→

ENDE V/P

❿

1 JA 1 17:00→18:30SP ON

-- ---- --:--

→

--:---- -

-- ---- --:--

→

--:---- -

-- ---- --:--→--:---- -

-- ---- --:--→--:---- -

-- ---- --:--

→

--:---- -

#❷

➛❿

LÖSCHEN:

CLR/RST MENU

★

(SV-6333X/SV-6332X)

1/JAN SA 13:08

PR TAG BEGINN

→→

ENDE V/P

❿

1 JA 1 17:00→18:30 ON

-- ---- --:--→--:-- -

-- ---- --:--→--:-- -

-- ---- --:--→--:-- -

-- ---- --:--

→

--:-- -

-- ---- --:--

→

--:-- -

#❷

➛❿

LÖSCHEN:

CLR/RST MENU

★

(SV-2333X/SV-2303X)

15

The Quick Programming feature allows you to preset the VCR to
record a programme up to one month before that programme is to
be broadcast. Up to six programmes can be preset.

☛ Before presetting a recording, check that the date and

time are correct.

1 - Insert the cassette and press the Q-PRO button or

◆ Press MENU on the remote control.

Result

: The programming menu is displayed.

◆ Press the OK button to select this option.

Result

: The

TIMER-AUFNAHMEN menu is displayed.

2 Press

❿!!

to select the input source.

3 Select the required station by pressing the

#, ❷

buttons or
INPUT to select the AV1 or AV2 ★(SV-6333X/SV-2333X only)
input sources.

4 Press

❿!!

to select the recording day.

5 Select the required day by pressing the

#

or ❷buttons.

6 Press

❿!!

to select the recording start time.

7 Select the required hour value by pressing the

#

or ❷buttons.

8 Press

❿!!

to select the minutes.

9 Select the required minute value by pressing the

#

or ❷buttons.

10 Press

❿!!

to select the recording end time.

11 Select the required recording end time by pressing the

#

or

❷

buttons, following the same procedure as when selecting the
recording start time.

★

With SV-6333X/SV-6332X, you can select the recording speed
(AUTO/SP/ LP).

a. Press ❿to select the recording speed

.

b.

Press the #or ❷buttons to switch between the AUTO,

SP (Standard Play) or LP (Long Play) recording speeds.

12 Press

❿!!

to select the VPS(V/P) recording mode.

13 Press the

#

or ❷buttons to toggle between the VPS mode

(marked

ON) and the non-VPS mode (marked -).

14 When you have finished, press the MENU button.
15 Press the STANDBY/ON button to activate the timer.

Result

: Before starting recording, the VCR compares the timer

duration with the remaining time on the cassette.

☛ Auto Tape Speed Select

★

(SV-6333X/SV-6332X Only)
The VCR’s “Auto Tape Speed Select” function compares
the duration of the timer recording to the actual recording
time remaining on the tape loaded. If there is insufficient
tape to complete a timer recording in AUTO mode, the
VCR automatically switches to LP mode to record the
whole programme.

E.g. If there is a one hour Timer Recording in AUTO

mode to be started, and only 40 minutes tape
remaining, the VCR will record in SP for 20
minutes and switch to complete the remaining 40
minutes in LP mode.

1/JAN SA 13:08

PR TAG BEGINN→→ENDE V/P

❿

1 JA 1 17:00→18:30SP ON

-- ---- --:--→--:---- -

-- ---- --:--

→

--:---- -

-- ---- --:--→--:---- -

-- ---- --:--→--:---- -

-- ---- --:--→--:---- -

#❷

➛❿

LÖSCHEN:

CLR/RST MENU

★

(SV-6333X/SV-6332X)

1/JAN SA 13:08

PR TAG BEGINN

→→

ENDE V/P

❿

1 JA 1 17:00→18:30 ON

-- ---- --:--→--:-- -

-- ---- --:--

→

--:-- -

-- ---- --:--→--:-- -

-- ---- --:--

→

--:-- -

-- ---- --:--→--:-- -

#❷

➛❿

LÖSCHEN:

CLR/RST MENU

★

(SV-2333X/SV-2303X)

1/JAN SA 13:08

PR TAG BEGINN

→→

ENDE V/P

❿

1 JA 1 17:00→18:30SP ON

-- ---- --:--

→

--:---- -

-- ---- --:--→--:---- -

-- ---- --:--

→

--:---- -

-- ---- --:--

→

--:---- -

-- ---- --:--→--:---- -

#❷

➛❿

LÖSCHEN:

CLR/RST MENU

★

(SV-6333X/SV-6332X)

1/JAN SA 13:08

PR TAG BEGINN→→ENDE V/P

❿

1 JA 1 17:00→18:30 ON

-- ---- --:--

→

--:-- -

-- ---- --:--

→

--:-- -

-- ---- --:--→--:-- -

-- ---- --:--→--:-- -

-- ---- --:--→--:-- -

#❷

➛❿

LÖSCHEN:

CLR/RST MENU

★

(SV-2333X/SV-2303X)

You can check your preset recordings:

◆ When you have finished presetting the VCR

◆ If you have forgotten which programmes will be

recorded

1 - Press Q-PRO on the remote control or

◆ Press MENU on the remote control.

Result

: The programming menu is displayed.

◆ Press the OK button to select this option.

Result

: The TIMER-AUFNAHMEN menu is displayed.

2 Press the

#

or ❷buttons to select the required programme.

3 Press the

➛

or ❿buttons to select and change any values as

required. For more details, refer to the previous page.

4 On completion, press MENU twice.

You can cancel any programmes that are:

◆ Incorrect

◆ No longer required

1 - Press Q-PRO on the remote control or

◆ Press MENU on the remote control.

Result

: The programming menu is displayed.

◆ Press the OK button to select this option.

Result

: The TIMER-AUFNAHMEN menu is displayed.

2 Select the programme to be cancelled by pressing the

#

or

❷

buttons.

3 Press the CLR/RST button to cancel the selected programme.

Result

: All the recording information is deleted and the

broadcast will not be recorded.

4 On completion, press MENU twice.

PROG

PROG

PROG

STANDBY/ON EJECT

SLOW

SHUTTLE

Q-PRO

PROG

PROG

PROG

PROG

GB

3130

The Intelligent Picture Control Feature allows you to adjust the
sharpness of the image automatically, according to your own
preferences.

1 During playback, press the MENU button on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

#, ❷!

or ➛, ❿buttons to select the

EINSTELLUNGEN option.

3 Press the OK button to select this option.

Result

: The

EINSTELLUNGEN menu is displayed.

4 Press the corresponding

#

or ❷buttons, until the cursor is

placed in front of the

IPC option.

5 Press the

❿!

button to select the IPC (intelligent picture control)

option.

➢ When intelligent picture control mode is EIN, the sharpness

of the image is adjusted automatically.

6 To adjust the sharpness manually, press the

❷

button to turn the

IPC mode

AUS

.

7 Press the

➛

or ❿buttons until the picture is displayed according to

your preferences.

➢ If you do not press a button within ten seconds, the BILD

menu disappears automatically.

8 On completion, press the MENU button again.

Intelligent Picture Control

This function allows you to play back any pre-recorded cassette.

1 Switch on both the television and your VCR.
2 Insert the video cassette to be played. If the safety tab on the

cassette is intact, press

❿

II

.

Otherwise, the cassette is played automatically.

➢ When a cassette is loaded, the tape position is optimized

automatically to reduce disturbance (Digital Auto Tracking).
When playing a cassette, if the end of the tape is reached,

the cassette is rewound automatically.
NTSC tapes can be played back but cannot be recorded

with this VCR.

3 To... Then press...

Stop the playback

■

(STOP).

Eject the cassette (EJECT).

➢ One Touch Play.

For your convenience, you can playback tape with a
simple touch of the

❿

II

(PLAY) button. One Touch Play
can be used even when the power is off but a cassette is
inserted.

S

P

OK

Playing a Cassette

2

3

Adjusting Picture Alignment Manually

The Picture Alignment feature allows you to adjust the alignment
manually to obtain the best possible picture.

When noise bars or streaks appear during playback, adjust alignment
manually by pressing the TRK

(

or)buttons until the picture is clear

and stable.
Result

: ◆ The tracking bar appears.

◆ The image is adjusted.

◆ The tracking bar disappears when you release the button.

DISPLAY

V LOCK

CLR/RST F.ADV

INPUT INDEX

TRK PROG

R

E

C

M

E

N

U

A

U

D

I

O

REPEAT

★

(SV-6333X/SV-2333X)

OSD :EIN
KASS. WÄHLEN :E180
FARBSYSTEM :AUTO

❿

IPC :EIN
16:9 :AUTO

#❷

❿

BEENDEN:MENU

★

(SV-6332X/SV-2303X)

OSD :EIN
KASS. WÄHLEN :E180
FARBSYSTEM :AUTO

❿

IPC :EIN

#❷

❿

BEENDEN:MENU

The Intelligent Picture Control Feature allows you to adjust the
sharpness of the image automatically, according to your own
preferences.

1 During playback, press the IPC button on the remote control.
2 Press the

❷

button to turn the IPC (intelligent picture control)

option

EIN and AUS.

➢ When intelligent picture control mode is EIN, the sharpness

of the image is adjusted automatically.

3 To adjust the sharpness manually, select intelligent picture control

mode

AUS.

◆ The horizontal picture adjusting appears.

4 Press the

➛

or ❿buttons until the picture is displayed according to

your preferences.

➢ If you do not press a button within ten seconds, the BILD

menu disappears automatically.

5 On completion, press the IPC button again.

Intelligent Picture Control

1

**


**

IPC : EIN

WEICH SCHARF

--------*-----

➛❿

EIN/AUS:

❷

PTIONS

PTIONS

SHUTTLE

CLR/RST F.ADV

SLOW

V-LOCK

Q-PRO

IPC

DISPLAY

GB

3332

You can select the mode in which the sound is reproduced on the
loudspeakers and AV outputs. The following options are available.

Option Description

L Used to listen to the sound on the left Hi-Fi channel.
R Used to listen to the sound on the right Hi-Fi channel.

MIX Used to listen to the mixed sound of the Hi-Fi and normal

channels.

MONO Used to listen to the sound on the normal mono channel.
L R Used to listen to Hi-Fi stereo sound on the left and right

channels.

➢ When playing back tapes recorded in Hi-Fi, the

sound switches to Hi-Fi after five seconds of Mono.

To select the sound mode, simply press the AUDIO button on the remote
control until the required option is displayed.

Selecting the Audio Output Mode (SV-6333X/SV-6332X)

P

L R MIX

L R MONO

Selecting the Colour Mode

Before recording or playing back a cassette, you can select the
required system standard.

Otherwise, the system automatically selects the reception standard
when you select AUTO.

➢

◆ When playing back a cassette, the standard is

automatically selected by the VCR.

◆ When you playback an NTSC-recorded tape on this VCR
make a setting on the colour system according to your TV.
If your TV is a PAL system only TV, set NTPB.
If your TV is Multi System TV (NTSC 4.43 compatible), set
NT4.43 and you can record NT4.43.

1 Press MENU on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

#, ❷!

or ➛, ❿buttons to select the

EINSTELLUNGEN option.

3 Press the OK button to select this option.

Result

: The EINSTELLUNGEN menu is displayed.

4 Press the corresponding

#

or ❷buttons, until the cursor is

placed in front of the

FARBSYSTEM option.

5 Press the

❿

button to select AUTO

➝

PAL➝ MESECAM➝ B/W.

AUTO When playing back a cassette, the system standard is

automatically selected by the VCR.

B/W Black and White

6 On completion, press MENU twice to exit the menu.

FORMAT 16:9 (WIDE SCREEN) ★(SV-6333X/SV-2333X Only)

Your VCR can automatically read a 16:9 signal from the AV2 input
or a prerecorded 16:9 tape. It can broadcast a 16:9 signal through
a 21 pin scart cable.

1 Press MENU on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

#, ❷!

or ➛, ❿buttons to select the

EINSTELLUNGEN option.

3 Press the OK button to select this option.

Result

: The EINSTELLUNGEN menu is displayed.

4 Press the corresponding

#

or ❷buttons, until the cursor is

placed in front of the 16:9 option.

5 Press the

❿

button to select AUTO

➝

EIN

➝

AUS.

AUTO Set when you use a wide TV. The VCR detects wide TV

programmes and normal TV programmes automatically
when playing back and recording.

EIN The VCR always plays back and records in the mode

compatible with 16:9 wide screen. Set if the VCR cannot
detect wide TV programmes with “AUTO” set.

AUS Set if you do not use a wide TV.

6 On completion, press MENU twice to exit the menu.

OSD :EIN
KASS. WÄHLEN :E180
FARBSYSTEM :AUTO
IPC :EIN

❿

16:9 :AUTO

#❷

❿

BEENDEN:MENU

★

(SV-6333X/SV-2333X)

OSD :EIN
KASS. WÄHLEN :E180

❿

FARBSYSTEM :AUTO
IPC :EIN
16:9 :AUTO

#❷

❿

BEENDEN:MENU

★

(SV-6332X/SV-2303X)

OSD :EIN
KASS. WÄHLEN :E180

❿

FARBSYSTEM :AUTO
IPC :EIN

#❷

❿

BEENDEN:MENU

You can select the mode in which the sound is mute.

To select the audio mute mode on and off, simply press the AUDIO button
on the remote control.

Selecting the Audio Mute Mode (SV-2333X/SV-2303X)

E

S

X

PTIONS

PTIONS

PTIONS

EAT

C

E

EAT

P

C

E

N

U

E

M

B

U

D

D

E

E

M

B

U

D

D

E

A

U

D

I

T

V

N

U

T

V

O

/

V

C

R

A

U

D

I

O

/

V

C

R

34

Playing a Cassette in Slow Motion

You can play a cassette in slow motion.

➢ No sound is heard when playing back a cassette in slow

motion.

1 Press:

◆

❿

II

to start playing the cassette

◆ SLOW ( ) as many times as required to decrease or

increase the speed respectively

◆

T

o return to the normal speed, press the

❿

II

button twice.

2 When playing back in slow motion, picture interference may occur.

Press the TRK

(

or)buttons to minimize this effect.

☛ When you have been using the Slow Motion function for

more than about five minutes, the VCR will automatically
play to protect the:

◆ Cassette

◆ Video heads

➢ Vertical stability: When playing back slow motion,

interference may be seen on the screen. Press the
V-LOCK ( ) buttons to minimize this effect.

SLOW

SHUTTLE

V-LOCK

V-LOCK

O

11

You can:

◆ Stop the cassette at a given frame (image)

◆ Advance one frame at a time

➢ No sound is heard when playing back frame by frame.

1 Press:

◆

❿

II

to start playing the cassette

◆

❿

II

to stop the tape at a given frame

◆

F.ADV ( )

to advance frame by frame

2 To return to normal playback, press

❿

II

.

☛ When you have been using the Frame-by-Frame function

for more than about five minutes, the VCR will auto­matically play to protect the cassette and video heads.

➢ Vertical stability: When playing back frame by frame,

interference may be seen on the screen. Press the
V-LOCK ( ) buttons to minimize this effect.

Playing a Sequence Frame by Frame

1

V-LOCK

SLOW

V-LOCK

F.ADV

CLR/RST F.ADV

INPUT INDEX

REPEAT

C

E

R

N

U

E

M

DISPLAY

TRK PROG

A

U

D

I

OK

GB

35

Playing a Sequence at Variable Speeds

: You wish to analyze a sportsperson’s technique,

movement by movement.

➢ No sound is heard when playing a sequence at variable

speeds.

1 Press:

◆

❿

II

during playback

◆ SHUTTLE ( ) to play the cassette backwards

◆ SHUTTLE ( ) to play the cassette forwards

2 Each time you press a SHUTTLE ( ) button, the speed is

changed as shown in the following illustration.

Searching for a Specific Sequence

etc.

Prev

Seq.

Seq. being

played

Next

Seq.

etc.

21 12

➞

➢ This VCR uses a standard indexing system (VISS). As a

result, it will recognize any indexes marked by other
VCRs using the same

system and vice versa.

1 To search for a specific index, press INDEX.
2 Press the

➛➛

or ❿❿buttons depending on the direction where your

desired programme is located. Each time you press the

➛➛

or

❿❿

buttons, the number decreases or increases respectively.
Result

: The index number is displayed.

3 The VCR starts to search for the point you specified with the

➛➛

or

❿❿

buttons.

Result

: When the index is found, cassette playback starts.

➢ You can set an index number up to ±20.

SHUTTLE

SLOW

D

SHUTTLE

V-LOCK

1

1

REVERSE REVERSE REVERSE SLOW SLOW PLAY PLAY PLAY

PLAY PLAY PLAY

STILL

MOTION MOTION PLAY

X3 X7 X9

X9 X7 X3 X1/10 X1/5

CLR/RST

F.ADV

N

1

INDEX : --

➛➛!!!!❿❿

INDEX : - 6

➛➛!!

INPUT INDEX

REPEAT

C

E

R

E

M

GB

3736

Using the Tape Counter

V-LOCK

2

2

0:00:00

You can set repeat play to repeat the tape continuously from
beginning to end.

1 Press MENU on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

$,❷

or ➛, ❿buttons to select the

ZUSATZFUNKTIONEN option.

3 Press the OK button to select this option.

Result

: The

ZUSATZFUNKTIONEN menu is displayed.

4 Press the corresponding

$or❷

buttons, until the cursor is placed

in front of the

WIEDERHOLEN option.

5 To... Press

➛or❿

, until...

Repeat play EIN is displayed.
Do not wish to repeat play AUS is displayed.

6 On completion, press MENU twice to exit the menu.

You can set interval repeat play to repeat the cassette several times
for special interval.

1 Press MENU on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

$,❷

or ➛, ❿buttons to select the

ZUSATZFUNKTIONEN option.

3 Press the OK button to select this option.

Result

: The ZUSATZFUNKTIONENN menu is displayed.

4 Press the corresponding

$or❷

buttons, until the cursor is placed

in front of the

BER. WIEDERHOLEN option.

5 To... Press

❿

, until...

Interval repeat play 5, 10, 15 is displayed.

(choose repeat time 5 times,
10 times, 15 times)

Cancel interval repeat play AUS is displayed.

6 On completion, press MENU twice to exit the menu.
7 To select interval during playback, press the INPUT/REPEAT

button at the desired start point.
Result

:“INTERVAL REPEAT SETTING” is displayed.
Press the INPUT/REPEAT button one more time at the desired
end point.
Result

: The tape is automatically rewound to the start point.

“

INTERVAL REPEAT” is displayed.

Interval Repeat Play

Auto Repeat Play

ZUSATZFUNKTIONEN

PROG OPTIONS INSTALL

CLOCK BONUS LANG

$❷!!

➛❿!!

OK BEENDEN:MENU

AUTO-AUS :AUS

❿

WIEDERHOLEN :AUS
BER. WIEDERHOLEN : 5

$❷

❿

BEENDEN:MENU

ZUSATZFUNKTIONEN

PROG OPTIONS INSTALL

CLOCK BONUS LANG

$❷!!

➛❿!!

OK BEENDEN:MENU

AUTO-AUS :AUS
WIEDERHOLEN :AUS

❿

BER. WIEDERHOLEN : 5

$❷

❿

BEENDEN:MENU

The tape counter:

◆ Indicates the elapsed time in the play and record modes

(hours, minutes and seconds)

◆ Is reset when a cassette is inserted in the VCR

◆ Allows you to find the beginning of a sequence easily

☛ If the remaining time is to be calculated correctly, you

must indicate the type of cassette being used.

1 Insert a cassette in your VCR.
2 To set the tape counter to zero at the beginning of a sequence:

◆ Press DISPLAY twice to display the counter

◆ Press CLR/RST when you want to set the tape counter to

zero

3 To fast-forward or rewind to the sequence at which the counter

was set to zero, simply press

➛➛

or ❿❿.

Result

: The VCR stops automatically when the counter

reaches zero.

➢ Some VCR information, such as the counter, can be

displayed on the television screen (unless you have
deactivated the OSD mode; refer to page 16).

Press DISPLAY:

◆ Once to display the current function, programme

number, recording speed

★

(SV-6333X/SV-6332X only)

,

date, time and counter

◆ Twice to display the counter only

◆ Three times to display the time remaining on the

cassette

◆ Four times to clear the display

BONUS

BONUS

BONUS

BONUS

SHUTTLE

V-LOCK

RST F.ADV

UT INDEX

CLR/RST F.ADV

INPUT INDEX

REPEAT

R

C

E

IPC

DISPLAY

TRK PROG

TRK PROG

N

U

E

M

DISPLAY

A

U

D

I

O

GB

39

The Auto Power Off feature automatically turns off your VCR if no
signal is received and you do not press any button for the selected
time.

1 Press MENU on the remote control.

Result

: The programming menu is displayed.

2 Press the corresponding

$,❷

or ➛, ❿buttons to select the

ZUSATZFUNKTIONEN option.

3 Press the OK button to select this option.

Result

: The ZUSATZFUNKTIONEN menu is displayed.

4 Press the corresponding

$or❷

buttons, until the cursor is placed

in front of the

AUTO-AUS option.

5 Press the

❿

button, until you select the time of Auto Power off

interval.

AUS 2HOUR 3HOUR

6 On completion, press MENU twice to exit the menu.

Auto Power Off

ZUSATZFUNKTIONEN

PROG OPTIONS INSTALL

CLOCK BONUS LANG

$❷!!

➛❿!!

OK BEENDEN:MENU

❿

AUTO-AUS :AUS
WIEDERHOLEN :AUS
BER. WIEDERHOLEN : 5

$❷

❿

BEENDEN:MENU

38

Using the Assemble Edit Function

S

P

2

Recording from Another VCR or Camcorder

7

6

This function allows you to start a new recording at a specific
position on the cassette while maintaining a very smooth scene
change.

1 Insert the cassette to be edited in your VCR.
2 Press the

❿ll

button to start playback.

3 When you reach the position from which you wish to start the new

recording, press the

❿ll

button.

4 Press the F.ADV ( ) button again as often as necessary to

advance frame by frame, until the exact recording position is
located.

5 While the VCR is in still mode, hold the REC button (

●

) down for
a while to activate the Assemble Edit function.
Result

: Record symbol flashes in the display.

6 Select the source from which you wish to record by pressing:

◆ The PROG (

$

or ❷) buttons for television channels

◆ The INPUT button for the AV1 or AV2

★

(SV-6333X/

SV-2333X only) input sources

7 Press the

❿ll

button to start recording.

8 When you have finished recording, press

■

.

You can copy a cassette to your VCR from another video source,
such as another VCR or a camcorder.

☛

It is an infringement of copyright laws to copy prerecorded
cassettes or to re-record them in any form without the
permission of the owners of the corresponding copyright.

1 Connect the VCR, from which the cassette is to be copied, to the

appropriate SCART audio and video input connectors on the rear
of your VCR, as indicated on page 12.

2 Insert a blank cassette in your VCR.
3 Insert the pre-recorded cassette in the other video source (VCR or

camcorder).

4 Press the INPUT button to select the appropriate input on your

VCR:

◆

AV1 or AV2 ★(SV-6333X/SV-2333X only) for the SCART input

5 Start playing back the cassette to be copied.
6 Hold REC (

●

) down for a while to start recording on your VCR.

7 When you have finished recording, press

■

on both VCRs.

➢ If you wish to view the cassette being copied:

◆ Your VCR must be connected as usual to the

television (see page 12 for further details)

OK

F.ADV

BONUS

BONUS

A

C

E

R

U

D

D

E

E

P

S

U

D

I

O

T

V

/

V

B

C

R

OK

GB

4140

Problems and Solutions

Before contacting the Samsung after-sales service, perform the following simple checks.

Problem Explanation/Solution

No power ◆ Check that the power plug is connected to a wall outlet.

◆ Have you pressed the STANDBY/ON button?

You cannot insert a video cassette ◆ A video cassette can only be inserted with the window

side up and the safety tab facing you.

The television programme was not recorded ◆ Check the VCR aerial connections.

◆ Is the VCR tuner properly set?

◆ Check if the safety tab is intact on the cassette.

Timer recording was unsuccessful ◆ Was the STANDBY/ON button pressed to activate the timer?

◆ Re-check the recording start/stop time settings.

◆ If there was a power failure or interruption during timer

recording, the recording will have been cancelled.

No playback picture or the picture ◆ Check to see if you are using a prerecorded tape.

is distorted

You cannot see normal broadcasts ◆ Check the TUNER/EXTERNAL setting. It should be on

TUNER.

◆ Check the TV/VCR aerial connections.

Noise bars or streaks on playback ◆ Press the TRK (or) buttons to minimize this effect.
When the

❿

II

button is pressed ◆ A still picture may have “noise bars”, depending on the

during playback, the still picture

condition of the tape. Press the

TRK (or) buttons

has severe “noise bars” streaks during SLOW motion to minimize this effect.

Video Head Cleaning ◆ If poor pictures appear on a variety of cassettes, the video

heads may need cleaning. This is not a common problem
and unless it appears, the heads should not be cleaned.
When cleaning the video heads, read all instructions
provided with the head cleaning cassette. Incorrect head
cleaning can permanently damage the video heads.

If when tuning in your TV to the VCR test 1. Remove the aerial input plug from the socket marked (aerial

pattern your TV does not find the test pattern symbol) on the rear of the VCR.
or the pattern when found suffers from 2. Carry out the instructions “Tuning Your Television for the VCR”
interference, it may be due to the VCR output (see page 14).
channel clashing with the normal TV 3. Carry out the instructions “Setting the VCR output Channel”
transmissions in your area. To prevent this (see page 17), move the channel number several channels
you will need to change the VCR output down from the original setting. (example: from 36 to 33).
channel in the following way 4. Replace the aerial plug into the socket marked (aerial symbol)

on the rear of the VCR.

5. Re-tune your TV to the VCR again by following instructions
“Tuning Your Television for the VCR” (page 14).

6. If the problem still exists repeat steps 1 to 5 moving several
more channels away from the original setting.

If you are unable to solve the problem after reading the above instructions, note:

◆ The model and serial number on the rear of your VCR

◆ The warranty information

◆ A clear description of the problem

Then contact your nearest SAMSUNG after-sales service.

Technical Specifications

MODEL SV-6333X/SV-6332X SV-2333X/SV-2303X

Design and specifications are subject to change without notice.

Format VHS PAL standard VHS PAL standard
Heads Video: 4 rotary heads Video: 2 rotary heads

Hi-Fi audio: 2 rotary heads
Audio/Control: 1 stationary head Audio/Control: 1 stationary head
Erase: 1 full track erase head Erase: 1 full track erase head

Receiving channel VHF-I, VHF-III, UHF, lnterband/ VHF-I, VHF-III, UHF, lnterband/

Hyperband Hyperband
Television system STANDARD B/G-D/K A2 STEREO STANDARD B/G
Luminance FM azimuth recording FM azimuth recording
Colour system PAL/MESECAM/NT4.43: Down PAL/MESECAM/NT4.43: Down

converted subcarrier phase shifted converted subcarrier phase shifted

direct recording direct recording

NTSC PB on PAL TV NTSC PB on PAL TV
Tape speed SP 23.39 mm/sec 23.39 mm/sec

LP 11.69 mm/sec
Recording/playback time SP 3 hours (E-180 Tape) 3 hours (E-180 Tape)

LP 6 hours (E-180 Tape)
REW time About 60 sec in REW with E-180 About 100 sec in REW with E-180

VIDEO

Input 0.5 to 2.0 Vp-p; 75 ohm unbalanced 0.5 to 2.0 Vp-p; 75 ohm unbalanced
Output 1.0 ±0.2 Vp-p; 75 ohm unbalanced 1.0 ± 0.2 Vp-p; 75 ohm unbalanced
Signal-to-noise ratio Better than 43 dB (SP) Better than 43 dB
Horizontal resolution More than 240 lines (SP) More than 240 lines

AUDIO

Input -8 dBm, 47 Kohm unbalanced -8 dBm, 47 Kohm unbalanced
Output -8 ± 3 dBm, 1 Kohm unbalanced -8 ±3 dBm, 1 Kohm unbalanced
Wow and flutter (WTD) 0.4% max (SP) 0.4% max
Signal-to-noise ratio 68 dB min (IHF A filter) 42 dB min (IHF A filter)
Frequency response 20Hz - 20kHz

Power requirement AC 230V 50/60 Hz AC 230V 50/60 Hz
Power consumption Approx. 17 watts Approx. 15 watts
Operation temperature 41°F-104°F (5°C-40°C) 41°F-104°F (5°C-40°C)
Operation humidity 10%-75% 10%-75%
Weight 3.3 Kg (net) 3.3 Kg (net)
Dimensions (WxHxD) 360 x 94 x 285 mm 360 x 94 x 285 mm

42

THIS APPLIANCE IS DISTRIBUTED BY

www.samsungvcr.com

AC68-00486A

ELECTRONICS

TV Frequency Table (System-B/G)

002~012 :CCIR STD VHF 244~250 :MOROCO
013~020 :ITALY 251~255 :BELGUIM
021~069 :CCIR STD UHF
071~075 :CCIR CABLE
201~241 :CCIR STD CABLE

Germany Netherlands Belguim Moroco
Spain Denmark Greece Yugoslavia
Italy Finland Portugal
Austria Norway Slovenia
Switzerlands Sweden Croatia

DISP CH Band Fp STD

DISP CH Band Fp STD

DISP CH Band Fp STD

002 E02 V-L 48.25 CCIR
003 E03 V-L 55.25 CCIR
004 E04 V-L 62.25 CCIR
005 E05 V-H 175.25 CCIR
006 E06 V-H 182.25 CCIR
007 E07 V-H 189.25 CCIR
008 E08 V-H 196.25 CCIR
009 E09 V-H 203.25 CCIR
010 E10 V-H 210.25 CCIR
011 E11 V-H 217.25 CCIR
012 E12 V-H 224.25 CCIR
013 A V-L 53.75 Italy
014 B V-L 62.25 Italy
015 C V-L 82.25 Italy
016 D V-H 175.25 Italy
017 E V-H 183.25 Italy
018 F V-H 192.25 Italy
019 G V-H 201.25 Italy
020 H V-H 210.25 Italy
021 E21 UHF 471.25 CCIR
022 E22 UHF 479.25 CCIR
023 E23 UHF 487.25 CCIR
024 E24 UHF 495.25 CCIR
025 E25 UHF 503.25 CCIR
026 E26 UHF 511.25 CCIR
027 E27 UHF 519.25 CCIR
028 E28 UHF 527.25 CCIR
029 E29 UHF 535.25 CCIR
030 E30 UHF 543.25 CCIR
031 E31 UHF 551.25 CCIR
032 E32 UHF 559.25 CCIR
033 E33 UHF 567.25 CCIR
034 E34 UHF 575.25 CCIR
035 E35 UHF 583.25 CCIR
036 E36 UHF 591.25 CCIR
037 E37 UHF 599.25 CCIR
038 E38 UHF 607.25 CCIR
039 E39 UHF 615.25 CCIR
040 E40 UHF 623.25 CCIR
041 E41 UHF 631.25 CCIR
042 E42 UHF 639.25 CCIR
043 E43 UHF 647.25 CCIR
044 E44 UHF 655.25 CCIR
045 E45 UHF 663.25 CCIR
046 E46 UHF 671.25 CCIR
047 E47 UHF 679.25 CCIR
048 E48 UHF 687.25 CCIR
049 E49 UHF 695.25 CCIR
050 E50 UHF 703.25 CCIR
051 E51 UHF 711.25 CCIR
052 E52 UHF 719.25 CCIR
053 E53 UHF 727.25 CCIR
054 E54 UHF 735.25 CCIR
055 E55 UHF 743.25 CCIR
056 E56 UHF 751.25 CCIR
057 E57 UHF 759.25 CCIR
058 E58 UHF 767.25 CCIR
059 E59 UHF 775.25 CCIR

060 E60 UHF 783.25 CCIR
061 E61 UHF 791.25 CCIR
062 E62 UHF 799.25 CCIR
063 E63 UHF 807.25 CCIR
064 E64 UHF 815.25 CCIR
065 E65 UHF 823.25 CCIR
066 E66 UHF 831.25 CCIR
067 E67 UHF 839.25 CCIR
068 E68 UHF 847.25 CCIR
069 E69 UHF 855.25 CCIR
071 X V-L 69.25 CCIR
072 Y V-L 76.25 CCIR
073 Z V-L 83.25 CCIR
074 Z+1 V-L 90.25 CCIR
075 Z+2 V-L 97.25 CCIR
201 S01 V-L 105.25 CCIR
202 S02 V-L 112.25 CCIR
203 S03 V-L 119.25 CCIR
204 S04 V-L 126.25 CCIR
205 S05 V-L 133.25 CCIR
206 S06 V-L 140.25 CCIR
207 S07 V-H 147.25 CCIR
208 S08 V-H 154.25 CCIR
209 S09 V-H 161.25 CCIR
210 S10 V-H 168.25 CCIR
211 S11 V-H 231.25 CCIR
212 S12 V-H 238.25 CCIR
213 S13 V-H 245.25 CCIR
214 S14 V-H 252.25 CCIR
215 S15 V-H 259.25 CCIR
216 S16 V-H 266.25 CCIR
217 S17 V-H 273.25 CCIR
218 S18 V-H 280.25 CCIR
219 S19 V-H 287.25 CCIR
220 S20 V-H 294.25 CCIR
221 S21 V-H 303.25 CCIR
222 S22 V-H 311.25 CCIR
223 S23 V-H 319.25 CCIR
224 S24 V-H 327.25 CCIR
225 S25 V-H 335.25 CCIR
226 S26 V-H 343.25 CCIR
227 S27 V-H 351.25 CCIR
228 S28 V-H 359.25 CCIR
229 S29 V-H 367.25 CCIR
230 S30 V-H 375.25 CCIR
231 S31 V-H 383.25 CCIR
232 S32 V-H 391.25 CCIR
233 S33 V-H 399.25 CCIR
234 S34 V-H 407.25 CCIR
235 S35 V-H 415.25 CCIR
236 S36 V-H 423.25 CCIR
237 S37 UHF 431.25 CCIR
238 S38 UHF 439.25 CCIR
239 S39 UHF 447.25 CCIR
240 S40 UHF 455.25 CCIR
241 S41 UHF 463.25 CCIR
244 M4 V-H 163.25 Moroco
245 M5 V-H 171.25 Moroco

246 M6 V-H 179.25 Moroco
247 M7 V-H 187.25 Moroco
248 M8 V-H 195.25 Moroco
249 M9 V-H 203.25 Moroco
250 M10 V-H 211.25 Moroco
251 U1 V-H 226.25 Belguim
252 U2 V-H 234.25 Belguim
253 U3 V-H 242.25 Belguim
254 U4 V-H 250.25 Belguim
255 U5 V-H 258.25 Belguim
