Samsung SV-213X, SV-413X, SV-211X, SV-B80FK-XEF Specifications

Samsung Electronics 3-1

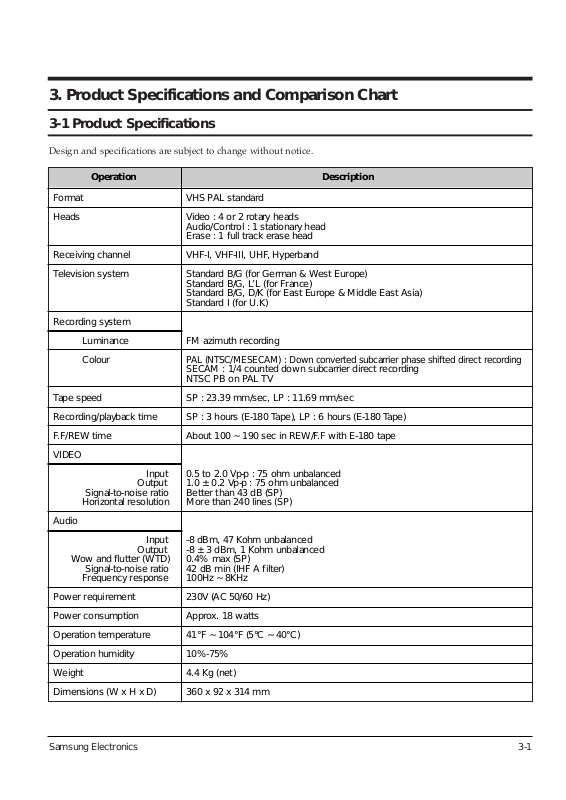

3. Product Specifications and Comparison Chart

3-1 Product Specifications

Operation Description

Format VHS PAL standard
Heads Video : 4 or 2 rotary heads

Audio/Control : 1 stationary head

Erase : 1 full track erase head
Receiving channel VHF-I, VHF-III, UHF, Hyperband
Television system Standard B/G (for German & West Europe)

Standard B/G, L’L (for France)

Standard B/G, D/K (for East Europe & Middle East Asia)

Standard I (for U.K)
Recording system

Luminance FM azimuth recording
Colour

PAL (NTSC/MESECAM) : Down converted subcarrier phase shifted direct recording

SECAM : 1/4 counted down subcarrier direct recording

NTSC PB on PAL TV
Tape speed SP : 23.39 mm/sec, LP : 11.69 mm/sec
Recording/playback time SP : 3 hours (E-180 Tape), LP : 6 hours (E-180 Tape)
F.F/REW time About 100 ~ 190 sec in REW/F.F with E-180 tape
VIDEO

Input 0.5 to 2.0 Vp-p : 75 ohm unbalanced

Output 1.0 ± 0.2 Vp-p : 75 ohm unbalanced

Signal-to-noise ratio Better than 43 dB (SP)

Horizontal resolution More than 240 lines (SP)

Audio

Input -8 dBm, 47 Kohm unbalanced

Output -8 ± 3 dBm, 1 Kohm unbalanced

Wow and flutter (WTD) 0.4% max (SP)

Signal-to-noise ratio 42 dB min (IHF A filter)

Frequency response 100Hz ~ 8KHz
Power requirement 230V (AC 50/60 Hz)
Power consumption Approx. 18 watts
Operation temperature 41°F ~ 104°F (5°C ~ 40°C)
Operation humidity 10%-75%
Weight 4.4 Kg (net)
Dimensions (W x H x D) 360 x 92 x 314 mm

Design and specifications are subject to change without notice.

Product Specifications

3-2 Samsung Electronics

3-2 Comparison Chart

COUNTRY MODEL HEADS

TAPE SPEED

S/VIEW V/PLUS VPS PDC ATS

AUTO CLOCK CANAL+ P/MIERE VCR/TV JUST REC

FINLAND SV-415X 4 SP/LP O X X O O O O X O O X
SWEDEN SV-410X 4 SP/LP X X X X X X X X X O X
NORWAY SV-215X 2 SP O X X O O O O X O X X

SV-210X 2 SP X X X X X X X X X X X

FRANCE SV-415F 4 SP/LP O X X O O O O X O O X

SV-410F 4 SP/LP X X X X X X O X O O X
SV-215F 2 SP O X X O O O O X O X X
SV-210F 2 SP X X X X X X O X O X X

NETHERLANDS SV-415X 4 SP/LP O X X O O O O X O O X

SV-410X 4 SP/LP X X X X X X O X X O X
SV-215X 2 SP O X X O O O O X O X X
SV-210X 2 SP X X X X X X O X X X X

SWITZERLAND SV-413X 4 SP/LP O X O X O O X O O O X

SV-213X 2 SP O X O X O O X X X X X
SV-210F 2 SP X X X X X X O X O X X

AUSTRIA SV-413X 4 SP/LP O X O X O O X O O O X

SV-213X 2 SP O X O X O O X X X X X

GERMANY SV-413X 4 SP/LP O X O X O O X O O O X

SV-213X 2 SP O X O X O O X X X X X

GREECE SV-410X 4 SP/LP X X X X X X X X X O X

SV-215X 2 SP O X X O O O O X O X X
SV-210X 2 SP X X X X X X X X X X X

ITALY SV-413X 4 SP/LP O X X X X X O X O O X

SV-411X 4 SP/LP X X X X X X O X O O X
SV-215X 2 SP O X X O O O O X O X X
SV-211X 2 SP X X X X X X O X O X X
SV-472X 4 SP/LP X X X X X X O X O O X
SV-471X 4 SP/LP X X X X X X O X O O X
SV-272X 2 SP X X X X X X O X O X X
SV-271X 2 SP X X X X X X O X O X X

PORTUGAL SV-411X 4 SP/LP X X X X X X O X O O X

SV-215X 2 SP O X X O O O O X O X X
SV-211X 2 SP X X X X X X O X O X X

DIAMOND HEAD

(DLC)
