Samsung SSA-R2001V User Manual

RFID Reader

User Manual

SSA-R2001V

RFID Reader

User Manual

Trademark

is the registered logo of Samsung Techwin Co., Ltd.

The name of this product is the registered trademark of Samsung Techwin Co., Ltd.

Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.

Warranty

If the product does not operate properly in normal conditions, please let us know. Samsung Techwin will resolve the problem for free of charge. The warranty period is 3 years. However, the followings are excluded:

•If the system behaves abnormally because you run a program irrelevant to the system operation.

•Deteriorated performance or natural worn-out in process of time

•Sensory phenomenon that does not affect the performance or quality of the product (ex : working noise)

safety information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.

This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

• To reduce the risk of ﬁre or electric shock, do not expose this appliance to rain or moisture.

WARNING

1.Be sure to use only the standard adapter that is speciﬁed in the speciﬁcation sheet. Using any other adapter could cause ﬁre, electrical shock, or damage to the product.

2.Incorrectly connecting the power supply or replacing battery may cause explosion, ﬁre, electric shock, or damage to the product.

3.Do not connect multiple controllers to a single adapter. Exceeding the capacity may cause abnormal heat generation or ﬁre.

4.Securely plug the power cord into the power receptacle. Insecure connection may cause ﬁre.

5.When installing the controller, fasten it securely and ﬁrmly. The fall of controller may cause personal injury.

6.Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers ﬁlled with water on top of the controller. Doing so may cause personal injury due to ﬁre, electric shock, or falling objects.

7.Do not install the unit in humid, dusty, or sooty locations. Doing so may cause ﬁre or electric shock.

8.If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately disconnect the power source and contact the service center. Continued use in such a condition may cause ﬁre or electric shock.

9.If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this product in any way. (SAMSUNG is not liable for problems caused by unauthorized modiﬁcations or attempted repair.)

10. When cleaning, do not spray water directly onto parts of the product. Doing so may cause ﬁre or electric shock.

CAUTION

1.Do not drop objects on the product or apply strong blows to it. Keep away from a location subject to excessive vibration or magnetic interference.

2.Do not install in a location subject to high temperature (over 50°C), low temperature (below -25°C), or high humidity. Doing so may cause ﬁre or electric shock.

3.If you want to relocate the already installed product, be sure to turn off the power and then move or reinstall it.

4.Remove the power plug from the outlet when there is a lighting storm. Neglecting to do so may cause ﬁre or damage to the product.

5.Keep out of direct sunlight and heat radiation sources. It may cause ﬁre.

6.Install it in a place with good ventilation.

7.Avoid aiming the controller directly towards extremely bright objects such as sun.

8.Apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with liquids, such as vases, shall be placed on the apparatus.

9.The Mains plug is used as a disconnect device and shall stay readily operable at any time.

INFORMATION SAFETY

English _ 3

safety information

FCC Statement

Caution : Any changes or modiﬁcations in construction of this device which are not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:

1)This device may not cause harmful interference, and

2)This device must accept any interference received, including interference that may cause undesired operation.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, any cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation between the equipment and receiver.

-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

-Consult the dealer or an experienced radio/TV technician for help.

IMPORTANT SAFETY INSTRUCTIONS

1.Read these instructions.

2.Keep these instructions.

3.Heed all warnings.

4.Follow all instructions.

5.Do not use this apparatus near water.

6.Clean only with dry cloth.

7.Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8.Do not install near any heat sources such as radiators, heat registers, or other apparatus (including ampliﬁers) that produce heat.

9.Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10.Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11.Only use attachments/accessories speciﬁed by the manufacturer.

12.Use only with cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with

the apparatus.

13. Unplug this apparatus when a card is used. Use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

14.Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

4_ safety information

contents

PRODUCT INTRODUCTION

INSTALLATION AND EXTERNAL

CONNECTION

INITIALIZATION

OUTPUT FORMAT

TROUBLESHOOTING

PRODUCT SPECIFICATIONS

6 Features

6What’s included

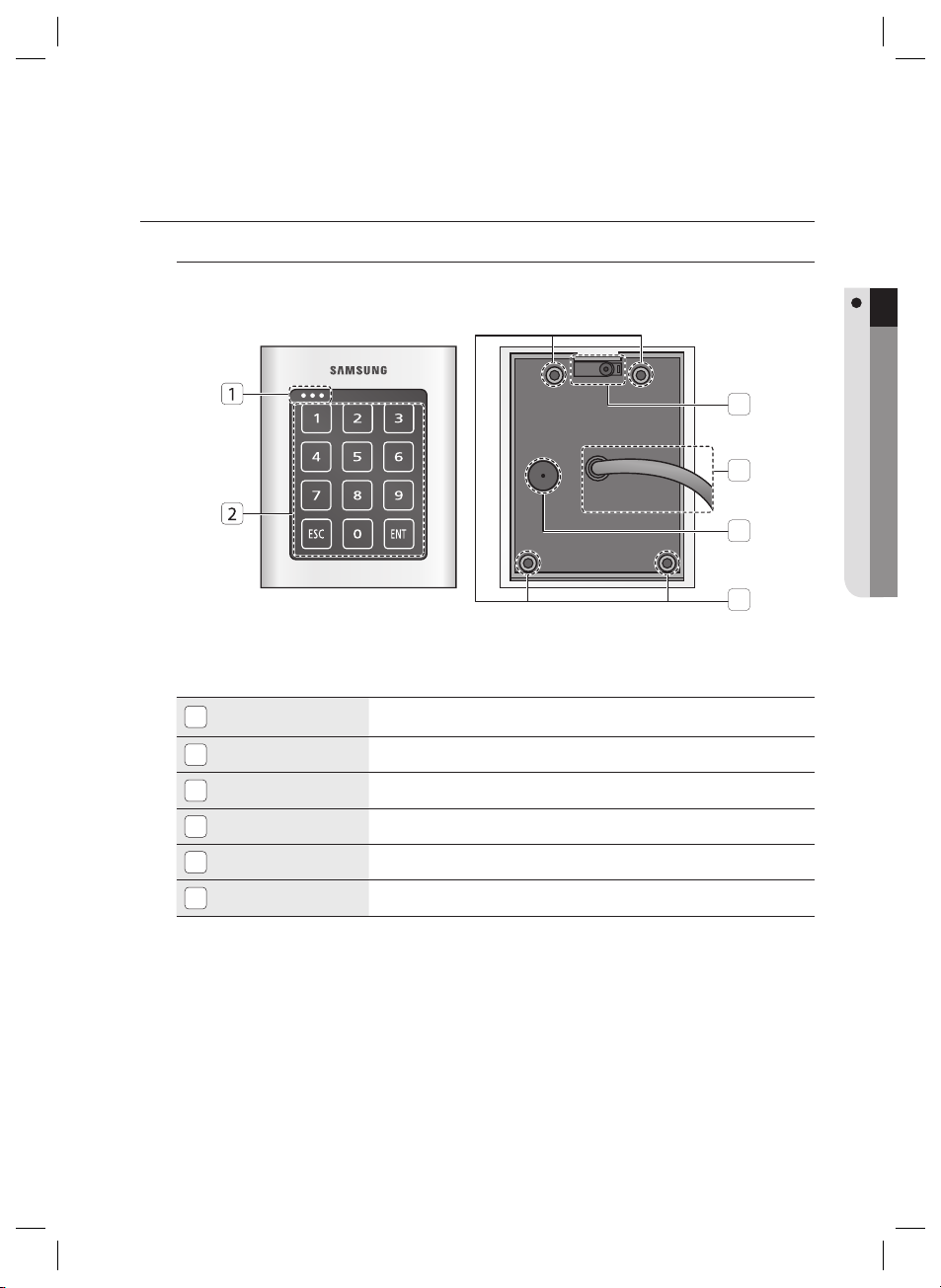

7At a Glance

8Cable Color Scheme

8Cable Selection

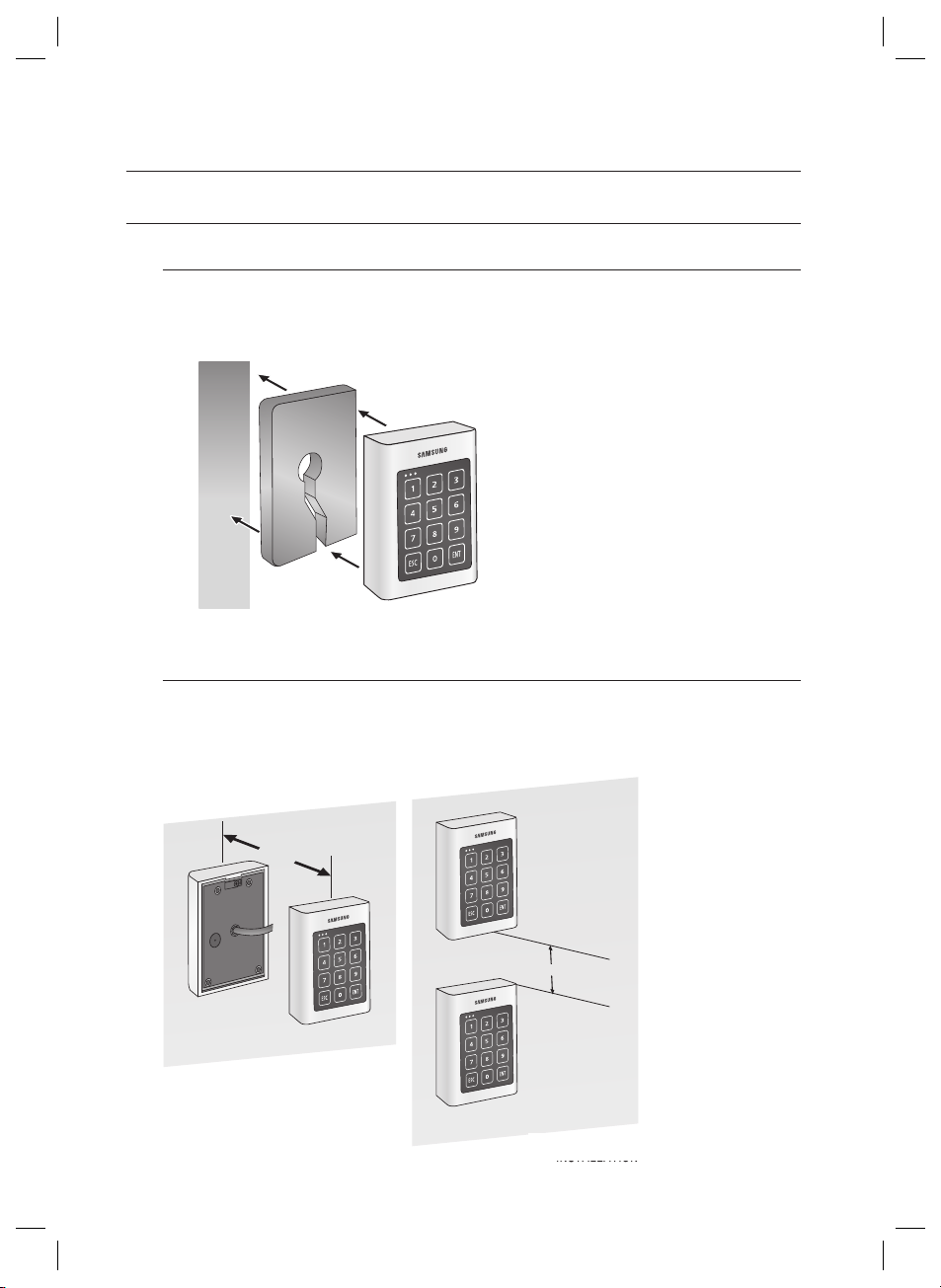

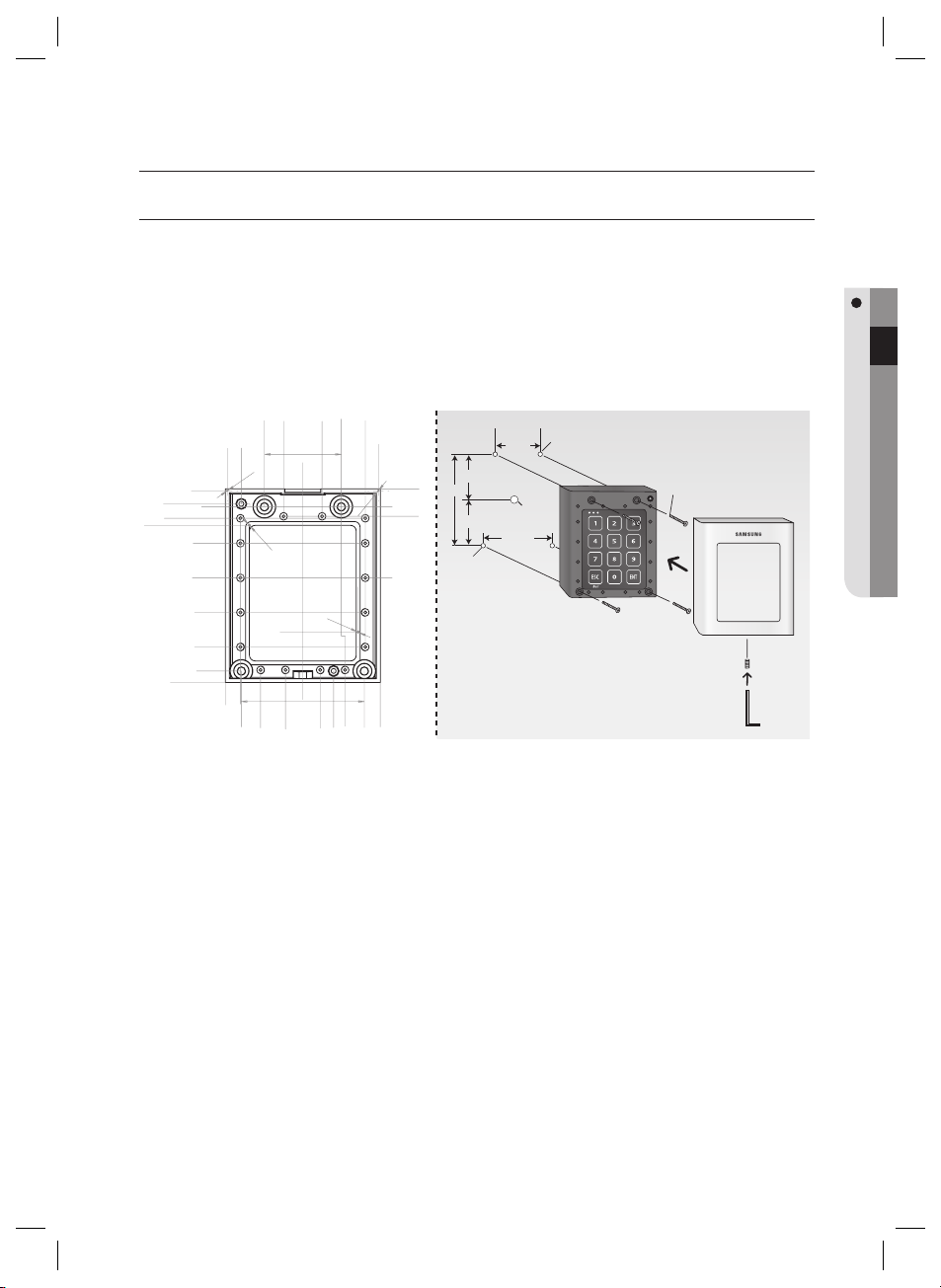

9Installation

10Precautions on installation

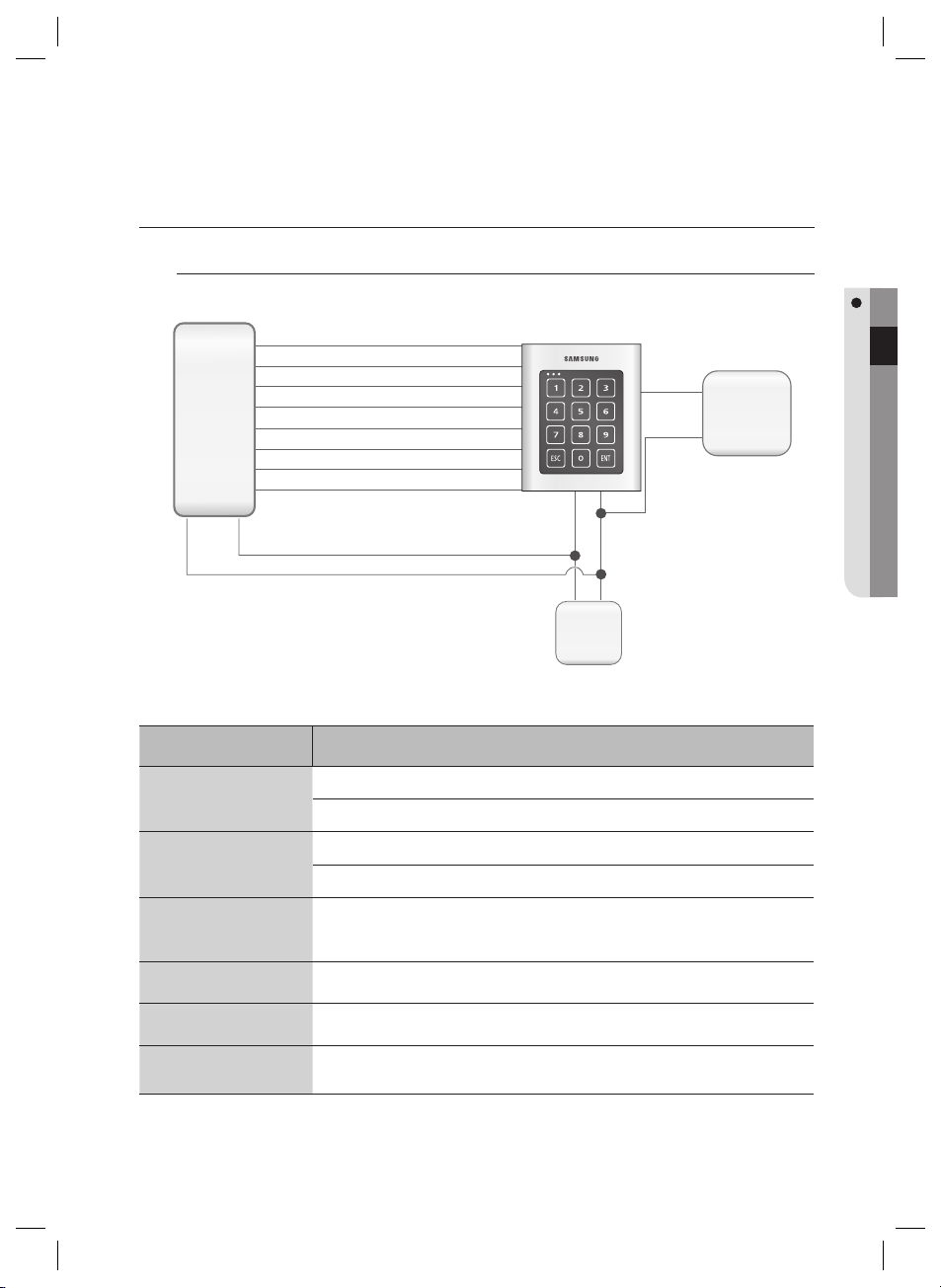

11External Connection

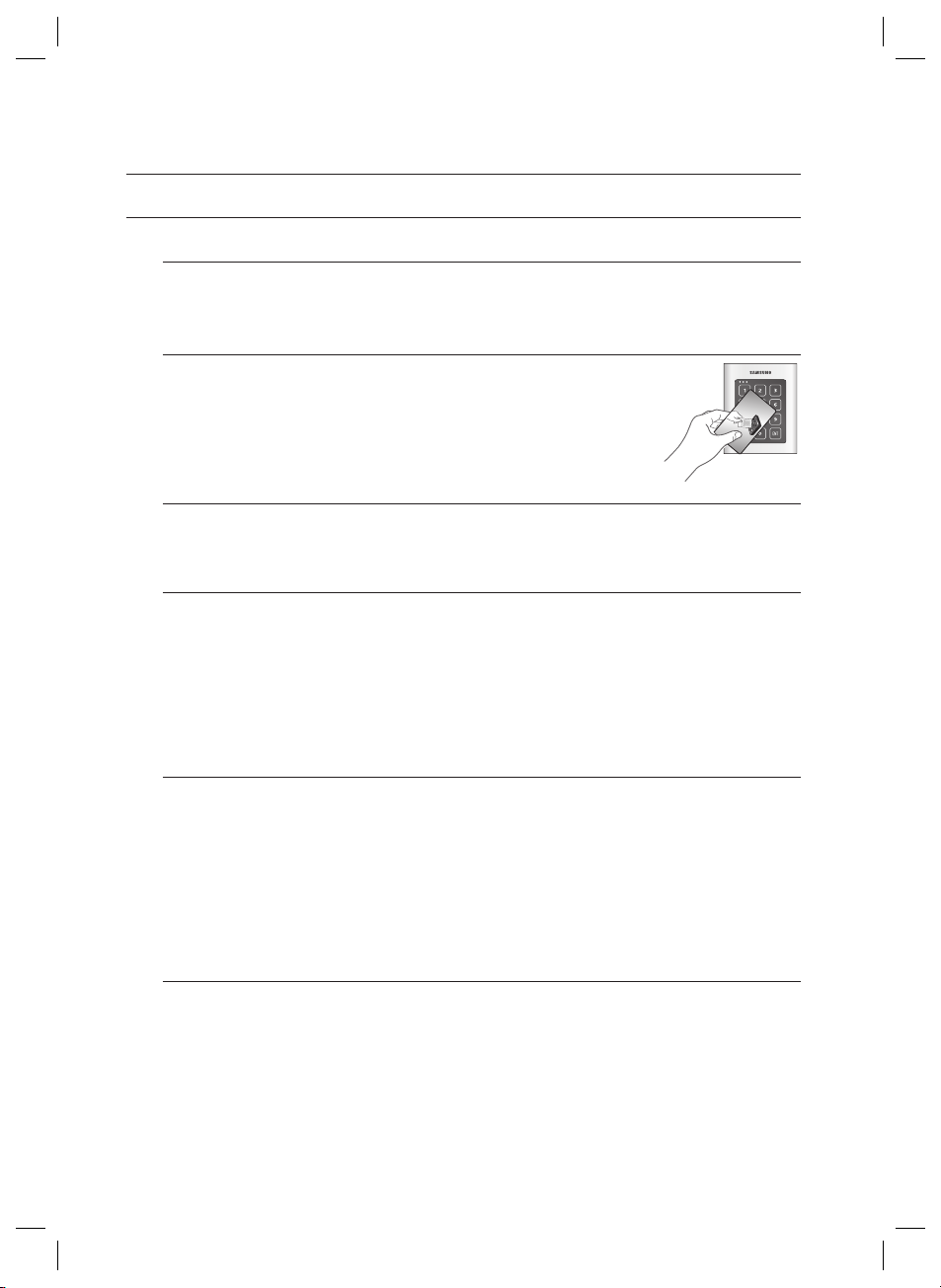

12Basic Operations

13WIEGAND Output

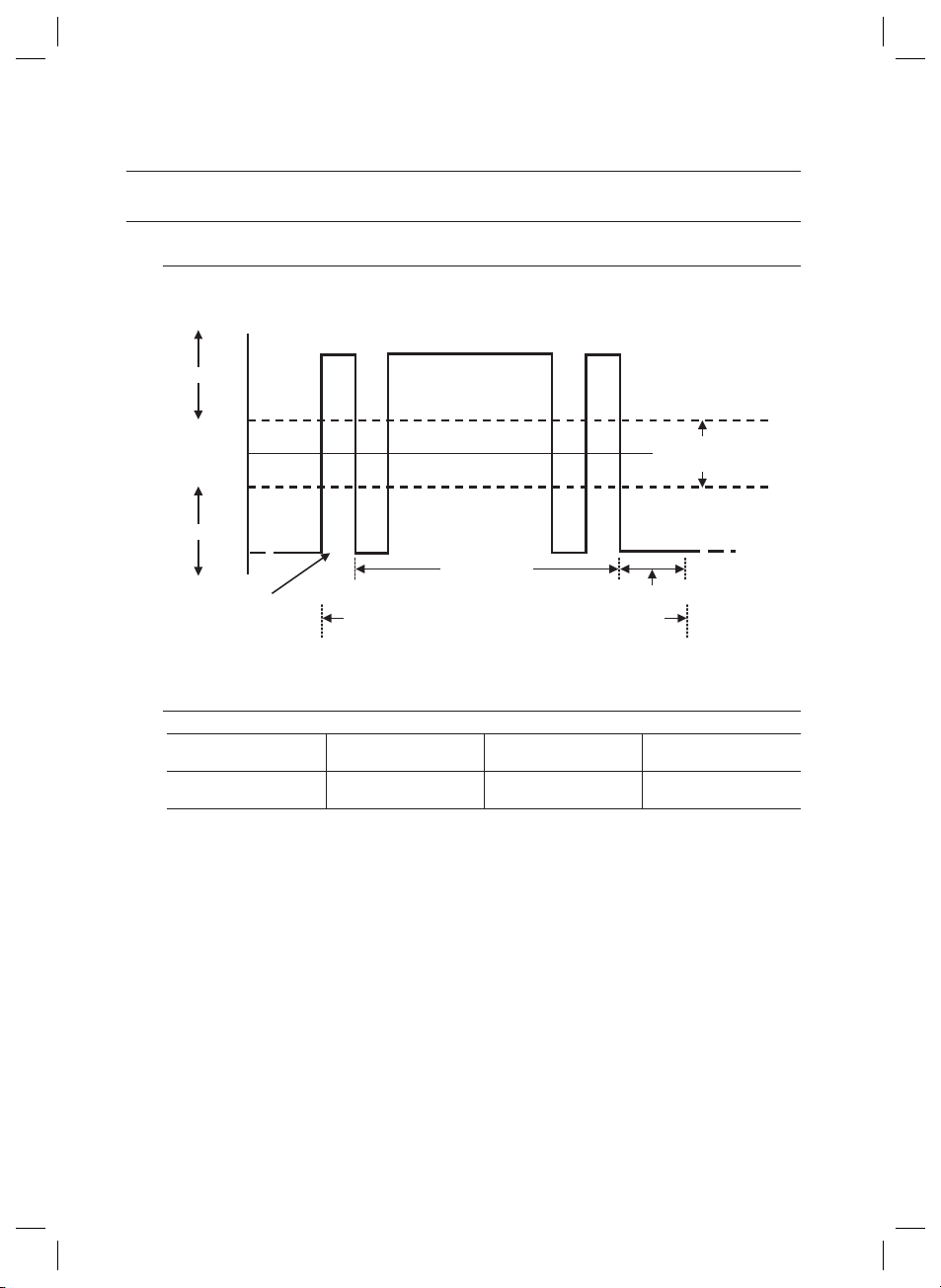

14RS-232 Output

158 Bit Burst Output Format

16Troubleshooting

17 Product Speciﬁcations

CONTENTS

English _ 5

product introduction

FEATURES

This model is an elegant-looking proximity reader that is featured by the capacitive touch-sensing keypad. The back-lighted keypad is useful especially for night operation, and its epoxy adhesion and aluminium case relieve you of worries about the rain or any other challenging weather conditions. This model permits user access through authentication of the presented proximity card and personal identiﬁ cation number using the keypad. With its red, green and orange indicators as well as the Piezo buzzer, this model is guaranteed to make a stable and correct operation.

13.56 MHz [MIFARE] Contactless Smart Card & PIN Reader

Compatible with ISO14443 Type A

34 bit Wiegand & RS-232 Data Output

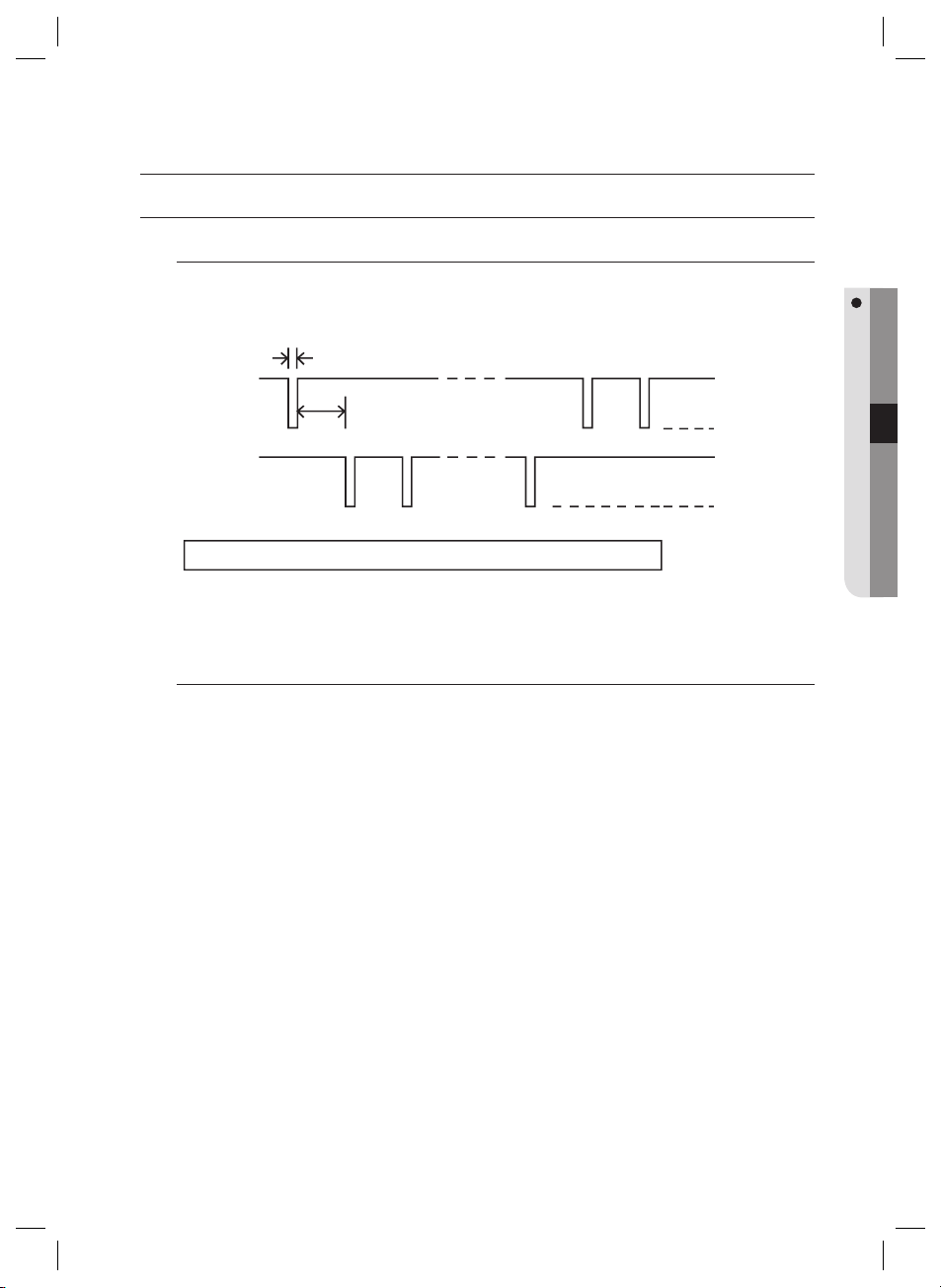

8 Bit Burst Output Format supported

Numeric keypad with backlighting for night operation

Control of External LED Indicators

Control of External Buzzer

Tamper Switch

Reverse Polarity Protection

Weatherproof and Dustproof

WHAT’S INCLUDED

Check if the following items are included in the product package.

SSA-R2001V

	3.5 x 40mm Screws (x4)
Main Unit	3.5 x 25mm Screws (x4)	CD Manual
	6 x 30mm Plastic Anchor (x4)


RFID Reader
User Manual

Quick Guide

3mm Hex Wrench (x1)

6_ product introduction
