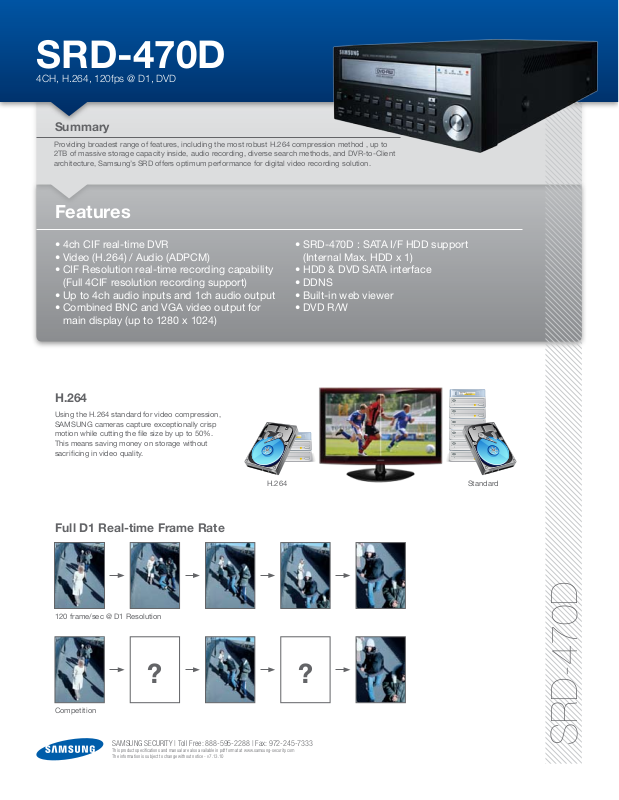

Samsung SRD-470D User Manual
SRD-470D
4CH, H.264, 120fps @ D1, DVD
Summary
Providing broadest range of features, including the most robust H.264 compression method , up to
2TB of massive storage capacity inside, audio recording, diverse search methods, and DVR-to-Client
architecture, Samsung’s SRD offers optimum performance for digital video recording solution.
Features
• 4ch CIF real-time DVR
• Video (H.264) / Audio (ADPCM)
• CIF Resolution real-time recording capability
(Full 4CIF resolution recording support)
• Up to 4ch audio inputs and 1ch audio output
• Combined BNC and VGA video output for
main display (up to 1280 x 1024)
H.264
Using the H.264 standard for video compression,
SAMSUNG cameras capture exceptionally crisp
motion while cutting the le size by up to 50%.
This means saving money on storage without
sacricing in video quality.
Full D1 Real-time Frame Rate
• SRD-470D : SATA I/F HDD support
(Internal Max. HDD x 1)
• HDD & DVD SATA interface
• DDNS
• Built-in web viewer
• DVD R/W
StandardH.264
120 frame/sec @ D1 Resolution
? ?
Competition
SAMSUNG SECURITY | Toll Free: 888-595-2288 | Fax: 972-245-7333
This product specifications and manual are also available in pdf format at www.samsung-security.com
The information is subject to change without notice - v7.13.10
SRD-470D
SRD-470D
4CH, H.264, 120fps @ D1, DVD
Specications
Video Inputs 4 composite video 0.5–1 Vpp, 75 ohm automatic termination
Live Frame rate 120FPS NTSC
Performance
Operating System Embedded Linux
Recording Compression H.264
Search & Playback Search mode Date/time, Event, Back up, Pos, Motion (*All Search Included
Network Transmission speed Up to (4)Mbps, Unlimited(4M)/2/1.5/1 Mbps/800/600/500/400
Storage Internal HDD Up to 1 SATA HDD
Security Password Protection 1Admin, 10 Group , 20 User per 1 Group, User can be assigned
Interface
Monitors VGA Analog RGB 800x600, 1024x768, 1280x1024 resolution
Audio Inputs 4 line in
Alarm Inputs Terminal 4 inputs, NO/NC
Connections Ethernet 1 RJ45 10/100/1000 Base-T
Dome Protocols Supported PTZ cameras Samsung-E/ Samsung-T/ Pelco-D/ Pelco-p/Panasonic/ Phillips/
General
Electrical Input Voltage 100 to 240 VAC ±10%; 50/60 Hz, Autoranging
Environmental Operating Temperature +32°F to +104°F (+0°C to +40°C)
Mechanical Dimensions (W x H x D) 8.46 x 3.46 x 13.86 in (215 x 88 x 352 mm)
Lauguage English, Spanish, French, German, Italian, Polish, Portuguese,
Resolution 704x480 NTSC
Resolution 704x480 NTSC
Multi Screen display 1/4/PIP
Record Rate/NTSC Up to 120FPS @ 704x480
Mode/NTSC Manual, Schedule (Continuous/Event), Event(Pre/Post), Time
Mode/PAL Manual, Schedule (Continuous/Event), Event(Pre/Post), Time
Overwrite modes Continuous
Pre-alarm Up to 30 sec. (5,10,20,30 Sec)
Post-Alarm Up to 6 hour. (5,10,20,30 sec,1,3,5,10,20 min,1,2,3,4,5,6hour)
Playback function Fast Forward/Backward , Slow Forward/Backward , Step
Bandwidth control Automatic
Multi Stream H.264(4CIF/CIF)
Remote users Maximum Search(3)/Live Unicast(10)/Live Multicast(20)
Protocol support TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Monitoring Net-I Viewer, SVM-S1, Smart viewer, Webviewer
External HDD USB HDD
DVD Writer (Back-up) YES
USB (Back-up) 3 USB Ports
File Format (Back-up) AVI, MDB(DVR Play back), EXE(Include Player)
Data Authentication Watermark
HDMI N/A
Main Composite BNC, 1 Vp-p, 75 ohm
Spot Composite 1BNC, 1 Vp-p, 75 ohm , support Multi screen and camera title
Loop Outputs 4
Output 1 line
Compression ADPCM
Sampling rate 16KHz
Outputs Terminal 4 relay outputs, NO/NC
Remote notification Notification via e-mail
Serial interface RS-232
PTZ control interface RS-485
PTZ Keyboard RS-485
USB USB 2.0, 2 ports
e-SATA N/A
Application Supoort Mouse, Remote Controller
Power consumption Max. 35 W (with 1x HDD)
Humidity 20%RH to 85%RH
Weight (2x hard disks) Approx. 8.82 lb (4.0 kg)
Rack mount kit 2 EA
Up to 120FPS @ 704x240
Up to 120FPS @ 352x240
lapse (0.9/1.9/3.8/7.5/15/30 FPS)
lapse (0.8/1.6/3.1/6.2/12.5/25 FPS)
Preview Function)
Forward/Backward
/300/200/100/50 kbps
authority for function
AD/ DIAMOND/ ERNA/ KALATEL/ VCL TP/VICON
Max. 45W (with 2x HDD)
Russian, Turkish, Japanese, Czech, Swedish,Danish, Korean,
Chinese,Netherlands
Dimensions (unit : in) Front/Rear Panel
3.5
13.9
8.5
Certications
SAMSUNG SECURITY | Toll Free: 888-595-2288 | Fax: 972-245-7333
This product specifications and manual are also available in pdf format at www.samsung-security.com
The information is subject to change without notice - v7.13.10
