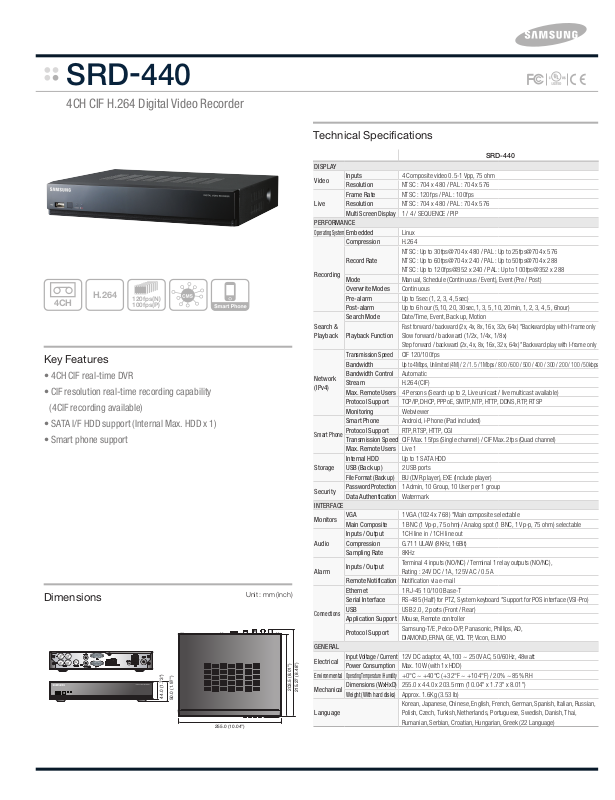

Samsung SRD-440 Specsheet

SRD-440

255.0 (10.04")

203.5 (8.01")

215.27 (8.48")

4CH CIF H.264 Digital Video Recorder

4CH

H.264

Key Features

• 4CH CIF real-time DVR

• CIF resolution real-time recording capability

(4CIF recording available)

• SATA I/F HDD support (Internal Max. HDD x 1)

• Smart phone support

Dimensions

120fps(N)
100fps(P)

44.0 (1.73")

50.0 (1.97")

255.0 (10.04")

Unit : mm (inch)

Technical Specifications

203.5 (8.01")

215.27 (8.48")

DISPLAY

Video

Live

PERFORMANCE
Operating System

Recording

Search &
Playback

Network
(IPv4)

Smart Phone

Storage

Security

INTERFACE

Monitors

Audio

Alarm

Connections

GENERAL

Electrical

Environmental

Mechanical

Language

Inputs
Resolution
Frame Rate
Resolution
Multi Screen Display

Embedded
Compression

Record Rate

Mode
Overwrite Modes
Pre-alarm
Post-alarm
Search Mode

Playback Function

Transmission Speed
Bandwidth
Bandwidth Control
Stream
Max. Remote Users
Protocol Support
Monitoring
Smart Phone
Protocol Support
Transmission Speed
Max. Remote Users
Internal HDD
USB (Back up)
File Format (Back up)
Password Protection
Data Authentication

VGA
Main Composite
Inputs / Output
Compression
Sampling Rate

Inputs / Output

Remote Notification
Ethernet
Serial Interface
USB
Application Support

Protocol Support

Input Voltage / Current
Power Consumption
Operating Temperature / Humidity
Dimensions (WxHxD)
Weight (With hard disks)

SRD-440

4 Composite video 0.5-1 Vpp, 75 ohm
NTSC : 704 x 480 / PAL : 704 x 576
NTSC : 120fps / PAL : 100fps
NTSC : 704 x 480 / PAL : 704 x 576
1 / 4 / SEQUENCE / PIP

Linux
H.264
NTSC : Up to 30fps@704 x 480 / PAL : Up to 25fps@704 x 576
NTSC : Up to 60fps@704 x 240 / PAL : Up to 50fps@704 x 288
NTSC : Up to 120fps@352 x 240 / PAL : Up to 100fps@352 x 288
Manual, Schedule (Continuous / Event), Event (Pre / Post)
Continuous
Up to 5sec (1, 2, 3, 4, 5sec)
Up to 6 hour (5,10, 20, 30sec,1, 3, 5, 10, 20min, 1, 2, 3, 4, 5, 6hour)
Date/Time, Event, Back up, Motion
Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only
Slow forward / backward (1/2x, 1/4x, 1/8x)
Step forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with I-frame only
CIF 120/100fps
Up to 4Mbps, Unlimited (4M) / 2 / 1.5 / 1Mbps / 800 / 600 / 500 / 400 / 300 / 200 / 100 / 50kbps
Automatic
H.264 (CIF)
4 Persons (Search up to 2, Live unicast / live multicast available)
TCP/IP, DHCP, PPPoE, SMTP, NTP, HTTP, DDNS, RTP, RTSP
Webviewer
Android, i-Phone (iPad included)
RTP, RTSP, HTTP, CGI
CIF Max. 15fps (Single channel) / CIF Max. 2fps (Quad channel)
Live 1
Up to 1 SATA HDD
2 USB ports
BU (DVR player), EXE (Include player)
1 Admin, 10 Group, 10 User per 1 group
Watermark

1 VGA (1024 x 768) *Main composite selectable
1 BNC (1 Vp-p, 75 ohm) / Analog spot (1 BNC, 1 Vp-p, 75 ohm) selectable
1CH line in / 1CH line out
G.711 ULAW (8KHz, 16Bit)
8KHz
Terminal 4 inputs (NO/NC) / Terminal 1 relay outputs (NO/NC),
Rating : 24V DC / 1A, 125V AC / 0.5A
Notification via e-mail
1 RJ-45 10/100 Base-T
RS-485 (Half) for PTZ, System keyboard *Support for POS interface (VSI-Pro)
USB 2.0, 2 ports (Front / Rear)
Mouse, Remote controller
Samsung-T/E, Pelco-D/P, Panasonic, Phillips, AD,
DIAMOND, ERNA, GE, VCL TP, Vicon, ELMO

12V DC adaptor, 4A,100 ~ 250V AC, 50/60Hz, 48watt
Max. 10W (with 1x HDD)
+0°C ~ +40°C (+32°F ~ +104°F) / 20% ~ 85% RH

255.0 x 44.0 x 203.5mm (10.04" x 1.73" x 8.01")
Approx. 1.6Kg (3.53 lb)
Korean, Japanese, Chinese, English, French, German, Spanish, Italian, Russian,
Polish, Czech, Turkish, Netherlands, Portuguese, Swedish, Danish, Thai,
Rumanian, Serbian, Croatian, Hungarian, Greek (22 Language)

FIRST EDITION 01-2012
