SR8980
Vacuum Cleaning Robot
user manual
This manual is made with 100% recycled paper.
Before operating this unit, please read the instructions carefully.
✻
For indoor use only.
✻
imagine the possibilities
Thank you for purchasing a Samsung product.
To receive a more complete service,
please register your product at
www.samsung.com/register
English
safety information
SAFETY INFORMATION
Before operating the appliance, please read this manual thoroughly and retain it for your •
WARNING
WARNING
reference.
Because these following operating instructions cover various models, the characteristics of your •
vacuum cleaner may differ slightly from those described in this manual.
CAUTION/WARNING SYMBOLS USED
WARNING
CAUTION
Indicates that a danger of death or serious injury exists.
Indicates that a risk of personal injury or material damage exists.
OTHER SYMBOLS USED
NOTE
Indicates that a risk of personal injury or material damage exists.
02_ safety information
IMPORTANT SAFETY INSTRUCTIONS
When using an electrical appliance, basic precautions should be observed, including the following:
READ ALL INSTRUCTIONS BEFORE USING YOUR VACUUM CLEANING
ROBOT.
Unplug from outlet when not in use and before conducting maintenance.
WARNING: to reduce the risk of fi re, electric shock, or injury:
GENERAL
Use only as described in this manual.•
Do not operate the vacuum cleaning robot or charger if it has been damaged in any way.•
If the cleaner is not working as it should, has been dropped, damaged, left outdoors, or •
dropped in water, return it to a customer care center.
Do not handle the charger or vacuum cleaning robot with wet hands.•
Use only on dry, indoor surfaces.•
This appliance is not intended for use by persons (including children) with reduced physical, •
sensory or mental capabilities, or lack of experience and knowledge, unless they have been
given supervision or instruction concerning use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they do not play with the appliance.•
BATTERY CHARGER
Do not modify the polarized plug to fi t a non-polarized outlet or extension cord.•
Do not use outdoors or on wet surfaces.•
Unplug the charger from the outlet when not in use and before servicing.•
Use only the charger supplied by the manufacturer to recharge.•
Do not use with a damaged cord or plug.•
Do not pull or carry by the cord, use the cord as a handle, close the door on the cord, or pull •
the cord around sharp edges or corners. Keep the cord away from heated surfaces.
Do not use extension cords or outlets with inadequate current carrying capacity.•
Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.•
Do not mutilate or incinerate batteries as they will explode at high temperatures.•
Do not attempt to open the charger. Repairs should only be carried out by a qualifi ed customer •
care centre.
Do not expose the charger to high temperatures or allow moisture or humidity of any kind to •
come into contact with the charger.
safety information _03
safety information
VACUUM CLEANING ROBOT
Do not pick up hard or sharp objects such as glass, nails, screws, coins, and etc. •
Do not use without a fi lter in place. When servicing the unit, never put fi ngers or other objects •
into the fan chamber in case the unit accidentally turns on.
Do not put any objects into openings. Do not use with any openings blocked; keep openings •
free of dust, lint, hair, and anything that may reduce air fl ow.
Do not pick up toxic materials (chlorine bleach, ammonia, drain cleaner, etc.).•
Do not pick up anything that is burning or smoke, such as cigarettes, matches, or hot ashes.•
Do not use to pick up fl ammable or combustible liquids such as gasoline, nor use on areas •
where they may be present.
Do not use vacuum cleaning robot in an enclosed space fi lled with vapours given off by oil •
based paint, paint thinner, moth proofi ng substances, fl ammable dust, or other explosive or
toxic vapours.
Leaks from battery cells can occur under extreme usage or temperature conditions. If the liquid •
gets on skin, wash quickly with water. If the liquid gets into the eyes, fl ush them immediately
with clean water for a minimum of 10 minutes. Seek medical attention.
SAVE THESE INSTRUCTIONS!
This vacuum cleaner is intended for household use only.
FOR RESIDENTS OF THE UNITED KINGDOM ONLY
If your appliance is fi tted with a nonrewireable BS 1363 plug it must not be used unless a 13
amp (ASTA approved to BS 1362) fuse is fi tted in the carrier contained in the plug.
If for any reason the plug is cut off, it must be disposed of, as it is an electric shock hazard
should it be inserted into a 13 amp socket.
04_ safety information
contents
SAFETY INFORMATION
02
PRODUCT FEATURES
13
ASSEMBLING THE CLEANER
15
OPERATING THE CLEANER
20
06 Power Related
07 Before Use
10 In Use
11 Cleaning and Maintenance
15 Components
16 Name of each part
20 Installing the vacuum cleaning robot
20 Installation order
20 Turning the Power Switch on or off
21 Installing the charger
22 Learn about how to use the Auto Empty
function
22 Attaching the carpet accessory
23 Charging
24 About the Battery
25 Setting the Time
26 Installing the VIRTUAL GUARD
28 Using the vacuum cleaning robot
28 Starting/Stopping Cleaning
29 Recharging
30 Auto Cleaning
31 Spot Cleaning
32 Max Cleaning
33 Manual Cleaning
34 Timer Reservation
35 Weekly Reservation
37 Additional Functions
37 Using additional functions
MAINTAIN TOOLS AND FILTERS
TROUBLESHOOTING
PRODUCT SPECIFICATION
38
47
51
38 Cleaning the vacuum cleaning robot
38 Please keep the cleaning and maintenance
methods in mind
38 Cleaning the Sensor Window and the Camera
39 Cleaning the Dust Bin and the Filters
40 Emptying the auto-emptier dustbin
40 Cleaning the cyclone of the auto-emptier dustbin
41 Cleaning the fi lter of the auto-emptier dustbin
42 Cleaning the bottom of the auto-emptier
43 Cleaning the vacuum cleaning robot
43 Cleaning the Power Brush
45 Cleaning the Edge-Cleaning Side rotating Brush
46 Cleaning the Driving Wheel
47 Checklist before SVC Calls
50 Troubleshooting for Error Codes
contents _05
safety information
POWER RELATED
Do not bend the power cord forcefully or place a heavy object
WARNING
WARNING
on it that could break it.
This may result in fi re or electric shock. -
Make sure to remove any dust or water from the power plug.
Failing to do so may result in a malfunction or electric shock. -
WARNING
WARNING
WARNING
Do not pull the power plug by the cord or touch the plug with
wet hands.
This may result in fi re or electric shock. -
Do not use multiple plugs in a single socket.
(Do not leave the cord lying exposed on the fl oor.)
This may result in fi re or electric shock. -
Do not use a damaged power cord, plug, or a loose power
outlet.
This may result in fi re or electric shock. -
06_ safety information
BEFORE USE
Before activating the vacuum cleaning robot, make sure that
CAUTION
CAUTION
CAUTION
the dust bin is assembled.
If the dust bin is not inserted, vacuum cleaning robot will not operate.
Never use vacuum cleaning robot in locations with combustible
material such as.
Locations with candles or desk lamps on the fl oor. Locations with unattended fi res (fi re or embers). Locations with gasoline, distilled alcohol, thinner, ashtrays with -
burning cigarettes, etc.
Vacuum cleaning robot is for domestic use only. Do not use it in the following
locations.
Attics, basements, warehouses, industrial buildings, separate rooms distant from the main building, locations exposed to wet or damp conditions such as bathrooms or wash
rooms, and narrow and highly situated locations such as tables or shelves. Critical damage
(abnormal operation and breakage) may occur when used in these locations.
01 SAFETY INFORMATION
CAUTION
CAUTION
CAUTION
CAUTION
Open all doors to clean all rooms.
When a door is closed, the vacuum cleaning robot will not be able to enter that room. However, make sure to close the doors to the main entrance, the veranda and the -
bathroom, and any other rooms where the vacuum cleaning robot may fall to a lower fl oor.
Do not use the cleaner on a black fl oor.
The vacuum cleaning robot may not run normally in this case. -
For carpets with long tassels, fold the tassels under the carpet.
Unfolded tassels may result in critical damage to the carpet and the machine itself, as they get caught in the driving wheel or the
power brush.
When the cliff sensor is polluted, the vacuum cleaning robot
may be in danger of falling down the stairs.
This may cause personal injury and critical damage to the
product.
To prevent risk, install the VIRTUAL GUARDs (Fence Mode
setting) in front of dagerous areas. Clean the sensor window
and camera.
safety information _07
CAUTION
CAUTION
CAUTION
Remove small objects or brittle items from the area to be
cleaned in advance.
Make sure to clear any objects before cleaning. Make sure to remove fragile items such as china, glass objects, -
fl owerpots, etc.
Vacuum cleaning robot does not recognize coins, rings or other -
valuable items such as jewelry.
Remove objects scattered on the fl oor before cleaning.
Vacuum cleaning robot is designed to detect obstacles 5cm away from it.
Bath towels, pads in front of bathrooms and sinks, entrances, utility rooms, power cords, table cloths or belts can become
entangled in the driving wheel or power brush. This can cause
objects to fall from the table.
Inform all family members (or relevant parties) to be cautious
before cleaning or when using the Scheduled Cleaning Mode.
Vacuum cleaning robot may run into children, causing them to fall. -
CAUTION
CAUTION
CAUTION
Ensure that children do not step or sit on the vacuum cleaning
robot.
Children may fall and injure themselves or critical damage may occur to the product.
When a child or pet is left alone, make sure to turn off the
Power Switch of the vacuum cleaning robot.
Vacuum cleaning robot may attract their attention. When the rotating wheel or brush catches fi ngers, feet, clothing or -
hair, this may result in injury.
If a child or pet is in the way of the vacuum cleaning robot, it may -
be identifi ed as an obstacle and the area may not cleaned.
When the Power Switch is turned off, it will cut off the power -
supply and deactivate all functions.
When installing the charger station, do not leave the power
cord exposed on the fl oor.
When the vacuum cleaning robot automatically recharges or passes by the charger station, it may drag the power cord around
with it.
Always keep the power cord of the charger plugged into the
CAUTION
outlet.
Although the vacuum cleaning robot has a self-charging function, if the power cord of the charger station is unplugged, it cannot
charge its battery automatically.
08_ safety information
CAUTION
about 0.5m
about 0.5m
about 1m
about 0.5m
about 0.5m
about 1m
Install the charger in a location that can be easily accessed by
the vacuum cleaning robot.
If the charger is installed in a corner, this may cause extra movements and may disturb the automatic recharging process.
01 SAFETY INFORMATION
CAUTION
WARNING
WARNING
WARNING
Objects in front of the charger will prevent the vacuum
cleaning robot from auto-charging itself.
Clear the area. -
There should be no obstacles and cliffs 0.5m to the left and
right and within 1m of the front.
Do not short-circuit the charge pins with metal objects such
as chopsticks, screwdrivers, and etc.
This will result in critical damage to the charger. -
Make sure that there is no trace of liquids on the charger
station.
Failing to do so may result in fi re or electric shock. -
about 0.5m
about 0.5m
about 0.5m
about 1m
about 0.5m
about 1m
Make sure the vacuum cleaning robot does not vacuum or
WARNING
move over liquids such as water, oil or pet litter.
This may result in critical damage to the product. Liquids may spread through the wheels resulting in contamination. -
Do not use the charger for other purposes.
WARNING
This may result in critical damage to the charger or cause a fi re. -
Do not install the charger station on a dark fl oor.
WARNING
If the fl oor where the charger station is installed is dark, it is hard for the vacuum cleaning robot to return to it.
safety information _09
IN USE
CAUTION
CAUTION
CAUTION
You cannot use the vacuum cleaning robot on thick carpets.
This may result in problems with the vacuum cleaning robot. This may result in damage to carpets. -
Do not use the vacuum cleaning robot on a table or other high
locations.
This may result in damage when the unit accidentally drops. -
Vacuum cleaning robot may bump into furniture such as chair
legs, table legs, thin and long furniture, etc. while operating.
For a quicker and cleaner performance, place the chairs on top of the table.
CAUTION
CAUTION
WARNING
Do not place any objects on top of the vacuum cleaning robot.
This may result in malfunction. -
Immediately remove any large pieces of paper or plastic bags
from the machine while cleaning.
Using the machine for an extended period of time with its inlet port obstructed may result in critical damage to the product.
If an unusual sound, smell or smoke is emitted from the
vacuum cleaning robot, immediately turn off the Power Switch
and call the customer care center.
10_ safety information
CAUTION
Cliff sensor
Obstacle sensor
NOTE
NOTE
NOTE
Do not move the robotic vacuum cleaner holding the dustbin
part.
This may cause the dustbin to separate, resulting in injury or serious damage to the product.
01 SAFETY INFORMATION
Vacuum cleaning robot may not be able to continue its
operation if it is stuck at the entrance or veranda doorsill.
To resume operating, turn the Power Switch off and then on again after moving it to a location where it can continue cleaning.
Vacuum cleaning robot cannot completely clean locations that
it cannot reach, such as corners, and spaces between sofas
and walls.
Please clean these locations occasionally. -
Dust clusters may remain after cleaning, when the vacuum cleaning robot fails to
pick up dust clusters that were formed while cleaning.
In this case, sweep up the dust with another cleaning tool. -
CLEANING AND MAINTENANCE
When cleaning the product, do not spray water directly onto
CAUTION
CAUTION
WARNING
the exterior or wipe it with a volatile material such as benzene,
thinner or alcohol.
This may result in critical damage to the product. -
The unit must not be disassembled or reconstructed by anyone
other than a qualifi ed service engineer.
This may result in damage to the product. -
Remove any foreign substances accumulated on the Obstacle
and Cliff sensors on a regular basis.
Dirt accumulated on the sensors will result in inaccurate functioning of the sensors.
Cliff sensor
Obstacle sensor
safety information _11
WARNING
Edge-cleaning side
brush
Power brush
WARNING
WARNING
WARNING
When removing foreign substances, always use the cleaning
brush after turning the Power Switch off.
Failing to do so may result in sudden operation of the unit and cause an injury or critical damage to the product.
If the power cord is damaged, have it replaced by a qualifi ed
service engineer from the customer care center.
Failing to do so may result in fi re or electric shock. -
Before cleaning the charger, make sure to disconnect the
power cord for safety.
Contact the Samsung Electronics customer care center to
replace the battery.
Failing to use original batteries will result in product failure. -
Edge-cleaning side
brush
Power brush
12_ safety information
1
About 1.5m
About 1.5m
2
3
4
5
6
7
Mon
Tue
W
ed
Thu
Fri
Sat
Sun
~
8
product features
CONVENIENT VIRTUAL GUARD FUNCTION
You can confi ne the vacuum cleaning robot to a particular section by using the Fence (virtual wall)
mode.
What is ceiling shape recognition (Visionary •
mapping plus™)?
This function recognizes the shape of the ceiling
using the camera on top to identify the area to be
cleaned and determines the best way to pass over
and clean every section of the fl oor.
DELICATE CLEANING OF EVERY CORNER
Since the vacuum cleaning robot cleans the fl oor in a sequential way ( ) along the map
determined by the ceiling shape recognition function, it cleans every corner of the fl oor.
VARIOUS CLEANING MODES
Various cleaning modes are provided to meet all your needs.
1
5
2
About 1.5m
6
3
7
4
8
Mon
About 1.5m
Auto Mode :1. Cleans all rooms automatically.
Spot Mode :2. Cleans a localized area intensely. It can be used to clean bread or cookie
crumbs.
Max Mode :3. Runs until the battery is nearly depleted.
Manual Mode :4. You can clean the fl oor manually by moving the cleaning robot.
Turbo Mode :5. Since the power brush rotates at maximum speed in this mode, the product will
clean more effectively.(You can switch the mode with the remote control.)
Dust Sensor Mode :6. When dust enters the vacuum cleaner, the vacuum cleanin robot starts
to clean its surroundings intensively. (You can operate this with the remote control.)
Timer Mode :7. At the specifi ed time, the cleaning robot cleans the fl oor.
Weekly Schedule Mode :8. A scheduled cleaning operation starts from the set time of a
particular day of the week.
Thu
Tue
Wed
Sat
~
Fri
Sun
product features _13
AUTO CHARGING
About 1cm
Stair type
Vertical type
stop
When the battery is low, the vacuum cleaning robot is
automatically guided to the charger to enable it to perform a
quick auto charge.
THE AUTO DUST EMPTYING FUNCTION OF THE VACUUM CLEANING
ROBOT
When the vacuum cleaning robot returns to the auto-emptier
after cleaning, dust is emptied automatically from the vacuum
cleaning robot.
DOORSILL CROSSING
The vacuum cleaning robot innovative driving system makes
it possible for it to cross over doorsills with a height of about
About 1cm
Stair type
Vertical type
1cm and clean all rooms. The vacuum cleaning robot may not
be able to pass a 1cm doorsill depending on the shape of the
doorsill.
AVOIDING OBSTACLES
ANTI-FALLING
SAFETY DEVICE
stop
When the vacuum cleaning robot encounters an obstacle while
cleaning, the obstacle sensor allows the cleaner to avoid it and
continue cleaning. (It may happen that the cleaner touches thin
or fi ne obstacles.)
The 3 Cliff sensors detect downward steps such as stairs or
the front door threshold to prevent vacuum cleaning robot from
falling down stairs.
When the vacuum cleaning robot is lifted up while cleaning,
the driving wheels, power brush, suction motor, and side
rotating brush are stopped autonati(all) by sensor.
14_ product features
(AAA-Type Batteries)
assembling the cleaner
COMPONENTS
Main Body
■
Remote Control
■
02 ASSEMBLING
Others Components
■
(AAA-Type Batteries)
User Manual /
2 Battery
Quick Start Guide Accessory for Carpet
VIRTUAL GUARD Spare Filter Cleaning Brush
■
Charger (Station)
assembling _15
NAME OF EACH PART
Virtual Guard Sensor
Dustbin Eject Button
Camera
Obstacle Sensor
Dustbin Eject Button
Dust bin
Driving Wheel
Power Switch
Power Brush
Power Brush Cover
Battery Cover
Driving Wheel
Remote Control Sensor
Obstacle Sensor
Bumper Sensor
Remote Control Sensor
Rotating Side Brush
Cliff Sensor
Charge Pin
Roller
Cliff Sensor
Charge Pin
Cliff Sensor
Display panel
Main unit
■
Display panel
Virtual Guard Sensor
Remote Control Sensor
Obstacle Sensor
Bumper Sensor
Dustbin Eject Button
Camera
Obstacle Sensor
Front
Remote Control Sensor
Cliff Sensor
Rotating Side Brush
Charge Pin
Cliff Sensor
Charge Pin
Cliff Sensor
Roller
Dustbin Eject Button
Dust bin
Side
Driving Wheel
Power Switch
Power Brush
Power Brush Cover
Battery Cover
Driving Wheel
16_ assembling
Bottom
■
Power button
Dustbin removal button
Auto Empty On/Off Select button
Dust inlet of the
vacuum cleaning
robot dustbin
Dustbin
Full lamp (red)
Auto Empty lamp (red)
Charging lamp (green)
Power lamp (red)
Cyclone cap
Charging terminals
Distance Detection Sensor
Lamp
Power Button
Main Body Detection Sensor
1
2
3
Charger (Station)
Power button
Dust inlet of the
vacuum cleaning
■
robot dustbin
VIRTUAL GUARD
Distance Detection Sensor
Auto Empty On/Off Select button
Lamp
Dustbin removal button
Dustbin
Power Button
Main Body Detection Sensor
Full lamp (red)
Auto Empty lamp (red)
Charging lamp (green)
Power lamp (red)
Cyclone cap
Charging terminals
02 ASSEMBLING
Installing the batteries
■
Batteries are not supplied with the product. You have to purchase the batteries separately. Install
the alkaline batteries (type D) before use.
1
Lift the cover of the VIRTUAL
GUARD while pressing the
locking tab.
2
Install the batteries into the
VIRTUAL GUARD as shown
by the fi gure below. (If the
batteries are installed with
3
After inserting the tip of the
cover into the slot, push the
other end to close it until it
clicks into place.
the incorrect polarity, the
VIRTUAL GUARD will not
work.)
Specifi cation: Alkaline Type D (LR20) batteries
❈
assembling _17
■
1
2
3
Power
Recharging
Max
Spot
Start/Stop
Dust Sensor
Sound
Clock
Timer/Weekly
Auto
Directional
Buttons
(moving backwards is
not supported.)
Manual
Turbo
Remote Control
Power
Auto
Directional
Buttons
(moving backwards is
not supported.)
Manual
Turbo
Recharging
Max
Spot
Start/Stop
Dust Sensor
Sound
Clock
Timer/Weekly
Installing the Remote Control Batterise
■
Batteries are not installed in the remote control when purchasing the product.
Install the batteries (type AAA) before use.
1
Lift the battery compartment
cover at the back of the
remote control, while
pressing the locking tab.
Install the batteries into the
remote control as shown
by the fi gure below. (If the
batteries are installed with
the wrong polarity, the
remote control will not work.)
2
❈
3
After inserting the tip of the
cover into the slot, push the
other end to close it until it
clicks into place.
Specifi cation: AAA type batteries
18_ assembling
■
2
1
7
3
4
5
6
8
9
10
AAB
C
Display panel
2
3
4
5
6
B
C
1
7
02 ASSEMBLING
DISPLAY PART
Number Display1.
Shows the timer display, progress status, and error codes using numbers, letters and graphics. -
Weekly Reservation2.
When you set a weekly reservation to start cleaning from the specifi ed time on the specifi ed day of the week, the icon for the selected day of the week is turned on.
Battery Level Indicator3.
Charging : Shows the charging progress in 3 steps. In Use : Shows the battery charge level. The battery charge level is reduced by each level from -
FULL while operating. (When the battery is fully discharged, one level will fl ash to display “Lo”.)
Timer4.
When cleaning is scheduled, the Timer icon is lit. -
Dust Sensor Mode5.
This icon turns on when Dust Sensor mode is enabled. -
Turbo Mode6.
This icon turns on when Turbo mode is enabled. -
Cleaning Mode Display7.
Each time the Cleaning Mode button is pressed, the corresponding cleaning mode is displayed. -
Auto Mode :(A) This icon turns on when Auto cleaning mode is selected.
Spot Mode :(B) This icon turns on when Spot cleaning mode is selected.
Max Mode :(C) This icon turns on when Max cleaning mode is selected.
8
9
10
BUTTON PART
Cleaning Mode8.
Press to select a cleaning mode. After selecting a cleaning mode, press the ( start cleaning.
Start/Stop9.
Press to start/stop cleaning. -
Recharging10.
When this button is pressed, The cleaning robot will return to the charger station to charge its battery.
) button to
assembling _19
operating the cleaner
INSTALLING THE VACUUM CLEANING ROBOT
Installation order

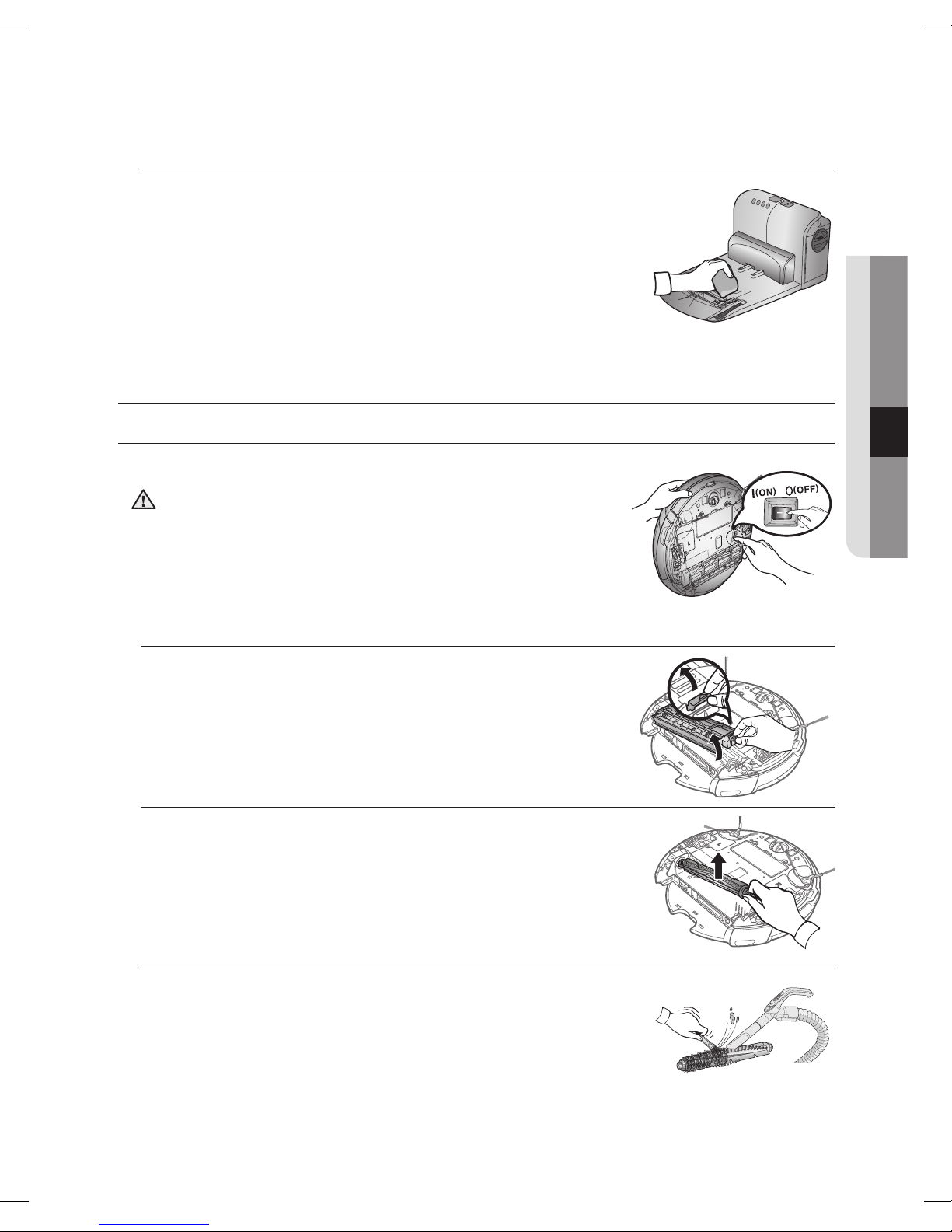

Turning the Power Switch on or off1.
To use the vacuum cleaning robot, you must turn on the Power Switch
at the bottom of the main unit.
Installing the Charger2.
To charge the vacuum cleaning robot, you must fi rst install the charger.
Since the battery is discharged when the product is purchased, you
must fully charge the battery before use.
Charging the Battery3.
You should charge the battery completely before using the vacuum
cleaning robot.
Setting the Time4.
You should set the time to use the scheduled and daily cleaning options.
Installing the VIRTUAL GUARD5.
You can confi ne the vacuum cleaning robot to a particular section by using Fence (virtual wall)
mode.
Turning the Power Switch on or off
To use the vacuum cleaning robot, you must turn the Power Switch
on.
If you turn off the Power switch, all settings except for the current
time and the Weekly reservations are reset.
Lift the body and turn on the power switch while making 1.
sure not to press any other button.
If the icons are not turned on, it indicates that the battery charge is depleted. In this case, dock the vacuum cleaning robot to the
charger station after turning the Power Switch on.
The confi gured time may be different from the current time. If the confi gure time is incorrect, set the time to the current time.
If the Power Switch is turned off, the vacuum cleaning robot will
CAUTION
not be charged even if it is docked with the charger station.
20_ operating
Installing the charger
Power lamp
Charging lamp
about 1m
about 0.5m
about 0.5m
Power lamp
Charging lamp
Install the charger on a fl at surface.1.
There should be no obstacles and cliffs 0.5m to the left and 2.
right and within 1 m of the front.
Install the charger in a location where it can be easily accessed by 3.
the vacuum cleaning robot.
about 0.5m
03 OPERATING
about 0.5m
about 1m
Arrange the power cord along the wall.4.
When the fl oor is made of wood, install the charger in the same 5.
direction as the grain of the wood.
Always keep the power cord of the charger plugged
NOTE
into the power outlet.
If no power is supplied to the charger, the vacuum cleaning robot will not be able to fi nd the charger and will
not be able to charge automatically.
If the vacuum cleaning robot is separated from the charger, the battery is automatically discharged.
operating _21
Learn about how to use the Auto Empty function
Power button
Full lamp
Auto Empty
lamp (red)
Auto Empty On/Off
Select button
Click
Turn on the Power button.1.
Power button
Turn on the Auto Empty button. 2.
If the Auto Empty button is turned off, the cleaner does not
❈
carry out the Auto Empty function.
If the dust bin was fi lled by dust, the vacuum cleaning robot
❈
return to the AutoEmptier.
And the autoemptier begin autoempty.
When the vacuum cleaning robot docks with the autoemptier, 3.
it starts to automatically empty the dust.
During cleaning run, If the vacuum cleaning robot starts the current
❈
cleaning run at the charging station and the robot’s dustbin is full
of dust , the robot will go to empty dustbin.
When the auto-emptier dustbin is full of dust, the Full lamp 4.
turns on. Empty the auto-emptier dustbin. Clean the air inlet
of bottom. Clean the fi lter.
The cleaning robot can not empty the heavy dust .
❈
Empty the cleaning robot’s Dustbin periodically.
Auto Empty On/Off
Select button
Auto Empty
Full lamp
lamp (red)
Attaching the carpet accessory
Please attach the carpet accessory so that the vacuum cleaning robot will run smoothly on the
carpet.
Make sure the protrusion on the middle of the front panel 1.
goes under the auto-emptier and then push until you hear
a “click” (following the direction of the arrows).
For all other surfaces (i.e. not carpet), draw back the 2.
fi xings on each side and pull out the accessory (following
the direction of the arrows).
22_ operating
Click
Charging
Flash
Flash
<Charge display>
Charge
complete
Charging
Required
charging
Power lamp
Charging lamp
Power lamp
Charging lamp
Charging
Fully charged
When the product is initially purchased, the battery is fully
discharged, and you must charge the vacuum cleaning
robot manually.
Turn on the Power Switch at the bottom of the product.
After aligning the charge pins of the main unit 1.
with the charge pin of the charger station, press
the main unit until you hear a Recharging power
sound from the charger.
The Charging Lamp turns green. -
Check the charge status of the vacuum cleaning robot.2.
When charging starts, “the amount of remaining battery power” -
and “
sequence.
When charging is complete, the battery level indicator and -
“FULL” will be displayed in the display panel.
” are displayed on the status display panel in this
Power lamp
Power lamp
Charging lamp
Charging
Charging lamp
03 OPERATING
Fully charged
When the battery level display fl ashes while cleaning,
Flash
■
the vacuum cleaning robot stops vacuuming and
automatically charges itself at the charger.
If the vacuum cleaning robot starts the current cleaning
■
run at a location other than the charging station and fails
to locate the charging station while cleaning, it will stop
Flash
near the location where it started cleaning.
When the battery level fl ashes and “Lo” is displayed while
■
cleaning, vacuum cleaning robot cannot be operated by
the remote control or the buttons on the main unit. In
this case, directly carry the vacuum cleaning robot to the
charger to charge the battery. (This is when the battery is
completely discharged.)
<Charge display>
Charge
complete
Charging
Required
charging
operating _23
When the product is initially purchased, it will take about 180 minutes to fully charge the •
NOTE
battery and will run for about 100 minutes.
When charging the battery while the battery is over-heated, the charging time can increase.•
Measures to take when charging is not smooth.•
When the vacuum cleaning robot cannot be automatically charged, check the following:
Turn the Power Switch at the bottom of the vacuum cleaning robot off and on. Re-plug the power of the charger. Check whether there are any foreign substances on the charge connector and wipe -
the charge connector on the main unit and the charger with a dry cloth.
Check whether there are objects near the charger that are strong refl ectors. -
When separating the vacuum cleaning robot from the charger, it will discharge naturally.•
Charge the vacuum cleaning robot through the charger, if possible. (When leaving your home unattended for a long period of time due to a business trip, travelling etc.,
turn off the Power Switch of the vacuum cleaning robot and unplug the power of the
charger to store them.)
About the Battery
The vacuum cleaning robot is powered by an environment-friendly Lithuim-ion (Li-ion)
■
rechargeable battery, and an over-charge prevention function guarantees an extended life time.
The battery warranty period is 6 months from the date
■
of purchase.
When purchasing a battery, ask the customer care center
■
for the genuine part symbol (
before purchasing it.
) and model number
This battery is only for Samsung vacuum cleaning robot. It is strictly prohibited to use it for other appliances or for other purposes.
Do not disassemble or modify the battery. Charge it in a location with good ventilation. Do not expose the battery to fi re and do not heat it. Do not connect any metallic objects to the (+) or (-) terminals of the battery. Keep it indoors (0°C~40°C). Before you discard product, dispose of batteries in an environmentally safe manner. Do not discard this batteries with your regular household trash. Follow all local regulations when disposing of old batteries. -
If the battery is out of order, do not disassemble it. Contact your nearest customer care center.
❈
An increased charging time and a shorter battery life indicates the near end of the battery life.
❈
Please contact an authorized customer care center to replace your battery.
The rechargeable battery incorporated in this product is not user replaceable.
For information on its replacement, please contact your service provider.
24_ operating
Setting the Time
Blinks
Blinks
Decrease
Increase
Blinks
Decrease
Increase
Blinks
Decrease
Increase
Blinks
The clock displays the current time. You can change the current time with the following steps.
You can only set the time using the remote control.
■
Remote Control Confi guration Sequence
Blinks
Press the Clock button.1.
The current time is displayed. -
03 OPERATING
Blinks
Blinks
Blinks
Blinks
Canceling the Settings
Remote Control
Press the Clock button. 2.
The day of the week will blink. -
Decrease
Increase
Press the Y or Z button to
set the day of the week.
Decrease
Increase
Press the Clock button. Press 3.
the Y or Z button to set the
hour.
Decrease
Increase
Press the Clock button. Press 4.
the Y or Z button to set the
minutes.
Press the Clock button.5.
The value you set will blink and the settings are
completed.
Press the Start/Stop button to cancel the settings and exit Time Set mode.
If there is no input for 1 minute while you are setting the time, the cleaner exits Time Set mode automatically.
operating _25

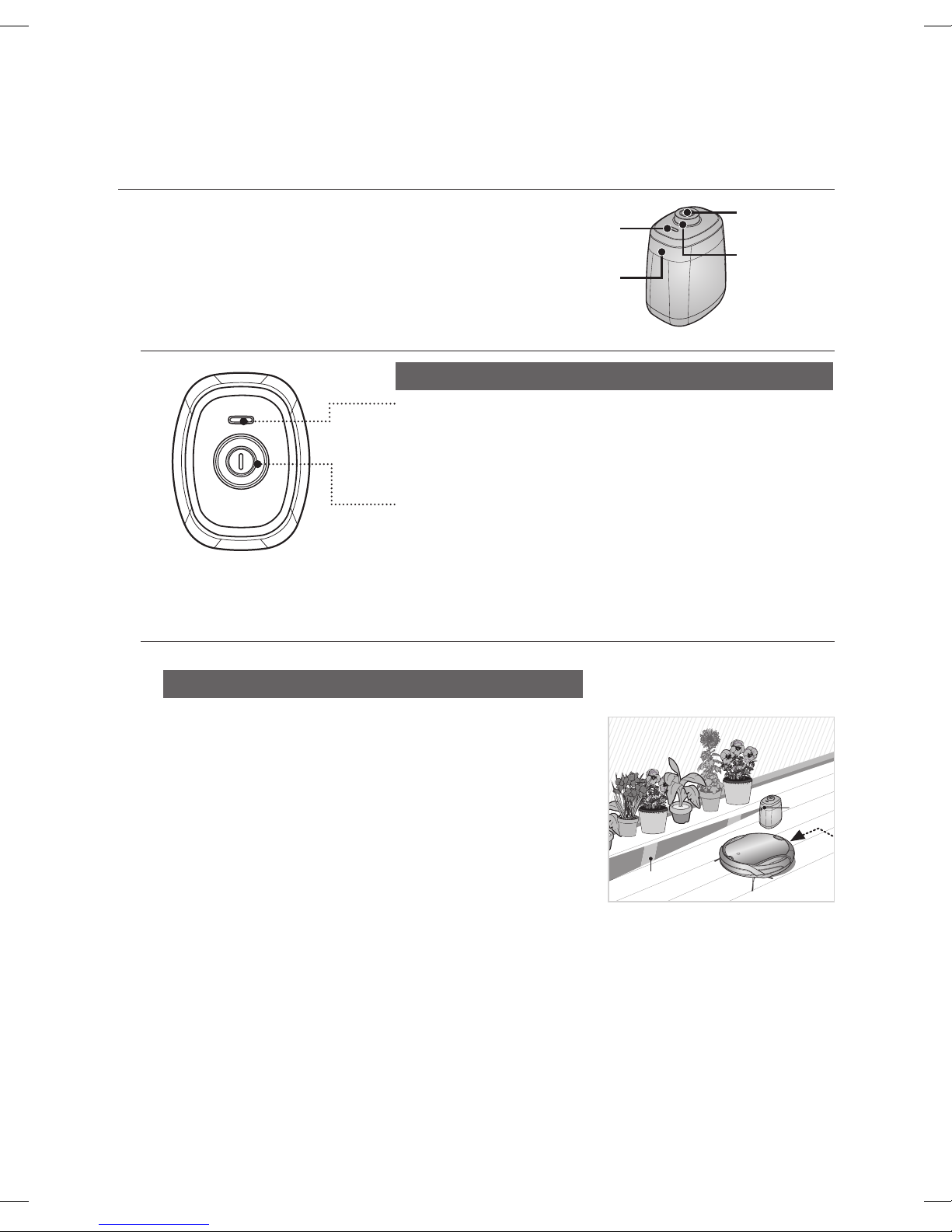

Installing the VIRTUAL GUARD
Power Button
Main Body
Detection
Sensor
Lamp
Distance
Detection
Sensor
A fence (virtual wall) is
formed.
Distance
Sensor
You can confi ne the vacuum cleaning robot to a
particular section by using Fence (virtual wall) mode.
Button operations
❈
Power Button
Lamp
Distance
Detection
Sensor
Main Body
Detection
Sensor
Lamp operations1.
Fence (virtual wall) Mode: The red lamp fl ashes. Off :The lamp is turned off. -
Turn the Power Button on2.
Whenever you press the Power button, Fence (virtual wall) mode ➝ Power off is selected in this sequence.
The distance of virtual wall is 2.5m at minimum and may
differ depending on surroundings and movement status of
the robot.
Forming a Fence (virtual wall)
VIRTUAL GUARD creates an invisible barrier that the vacuum
cleaning robot cannot cross.
E.g. in front of pots, furniture, the front door, and so on.
Turn the Fence (virtual wall) mode on using the Power 1.
button.
The mode lamp fl ashes red. -
Install the VIRTUAL GUARD in front of the area you 2.
want to block access from the vacuum cleaning robot.
Install the VIRTUAL GUARD so that the distance detection -
A fence (virtual wall) is
formed.
sensor can form an invisible barrier that the vacuum cleaning robot cannot cross.
Distance
Sensor
26_ operating
About the IrDA sensor
Remote
Control
Virtual
guard
Charger
[Infrared Signal Priority]
CAUTION
The infrared signal transmission may not be •
smooth in locations exposed to halogen lamps or
[Infrared Signal Priority]
in outdoor locations.
Vacuum cleaning robot uses 3 types of infrared •
> >
devices and a device may not work in front of
another device with a higher priority.
When controlling the vacuum cleaning robot •
with the remote control, the vacuum cleaning
Remote
Control
Virtual
guard
Charger
robot may cross the virtual fence of the VIRTUAL
GUARD or run against an obstacle, because the remote control signal has a higher priority than
the VIRTUAL GUARD signal.
When using the vacuum cleaning robot in a small location or at a close distance, it may •
malfunction due to interference of the infrared signals.
Install the VIRTUAL GUARD away from the charger as auto charging may be interrupted if the •
VIRTUAL GUARD is near the charger.
If more than one vacuum cleaning robot is used simultaneously, they may malfunction due to •
interference of the infrared signals.
03 OPERATING
operating _27
USING THE VACUUM CLEANING ROBOT
Using the main unit
buttons
Using the remote
control
Starting/Stopping Cleaning
You can run or stop all vacuum cleaning robot functions.
Each vacuum cleaning robot function only runs when the
■
Power Switch is turned on.
When the vacuum cleaning robot is operating, press the (
■
button to cancel the operation and select a function.
Turning the power on or off
Turning the power on
Main unit: Press the ( -
Turning the power off
Remote control: Press the - [Power] button.
Main unit: Press and hold the ( -
If no key is pressed for approximately 1 minute after turning the power
❈
on, the power is automatically cut to prevent the battery discharging.
To turn the power on again, press and hold the power (Start/Stop)
button on the main body.
) button.
) button down for 3 seconds.
)
Starting or stopping cleaning
Starting
Remote control : Press the Auto, Spot, Max, Manual button. Main unit : Select Auto, Spot, Max mode by using the ( and then pressing the (
When cleaning begins, the vacuum cleaning robot starts to move. -
Pressing the (
❈
to perform the Auto mode cleaning.
Stopping
To stop, press the ( -
When cleaning is stopped, the vacuum cleaning robot stops. -
) button without selecting cleaning mode starts
) button.
) remote control or main unit button.
Using the remote
) button
Using the main unit
control
buttons
28_ operating
Recharging
1.5m ahead
Using the main unit
buttons
Using the remote
control
You can have the vacuum cleaning robot return to the charger
to charge the battery by using the Recharging button.
When the vacuum cleaning robot is operating, press the (
■
button to cancel the operation and press the Recharging button.
Press the Recharging button.1.
(“ cleaning robot returns to the charging station for recharging.
To stop the vacuum cleaning robot while it is returning to the charger, 2.
press the (
To test the auto charge function, press the Recharging button when 3.
the vacuum cleaning robot is less than 1.5m from the charger.
”) is displayed on the display panel and the vacuum
) button.
)
Using the remote
03 OPERATING
control
Troubleshooting when the vacuum cleaning robot does not
return to the charger
Check the installation of the charger When the charger is in a location where the charger cannot guide -
the vacuum cleaning robot to the charger.
When the charger is more than 5m away from vacuum cleaning -
robot.
: It may require a longer time for the vacuum cleaning robot to
return to the charger.
Manually charge the vacuum cleaning robot in the following cases.
■
When the charger is installed in a corner. When the battery is fully discharged. When the vacuum cleaning robot is trapped by an obstacle -
(furniture etc.)
When the vacuum cleaning robot cannot pass over the doorsill to -
the location where the charger is installed.
buttons
1.5m ahead
Using the main unit
operating _29
Auto Cleaning
Normal Mode
Turbo Mode
Dust Sensor Mode
Cleaning Complete
1time
The vacuum cleaning robot will move by itself and automatically
clean the house until cleaning is completed once.
If you press the Start/Stop button on the main unit or remote control
■
without selecting a cleaning mode, an automatic cleaning run starts.
If cleaning begins when the vacuum cleaning robot is docked with the
■
charger station, the time to return to the charger is decreased since the
vacuum cleaning robot remembers its original position while moving.
If the vacuum cleaning robot starts the current cleaning run at a location
■
other than the charging station and fails to locate the charging station
while cleaning, it will stop near the location where it started cleaning.
If the battery level becomes too low while cleaning, the vacuum cleaning robot will automatically
■
return to the charger station and resume cleaning after charging its battery. (Number of cleaning
operations resumed : Once)
Main unit button
Remote control
button
▶
1time
About the Resume Cleaning function
If the vacuum cleaning robot has evaluated that cleaning is •
NOTE
CAUTION
complete, the resume cleaning function is not performed.
If you move the vacuum cleaning robot when it is being •
charged or press a button, the vacuum cleaning robot
judges cleaning to be complete and does not resume
cleaning.
Do not move the vacuum cleaning robot when it is cleaning •
or press a button while it is cleaning. Otherwise, the
vacuum cleaning robot judges cleaning to be complete and
starts cleaning again from the beginning.
Each time you press the Turbo button, the Turbo icon on •
the display panel is turned on or off sequentially. When the
Turbo icon is turned on, you can start cleaning in Turbo
mode.
Each time you press the Dust Sensor button, the Dust •
Sensor icon on the display panel is turned on or off
sequentially. When the Dust Sensor icon is turned on, you
can start cleaning in Dust Sensor mode.
Confi guration
Sequence
Set the mode.1.
Cancel the mode.2.
Normal Mode
Turbo Mode
Dust Sensor Mode
Cleaning Complete
30_ operating
Spot Cleaning
Normal Mode
Turbo Mode
Dust Sensor Mode
Cleaning Complete
2time
About 1.5m
About 1.5m
You can conveniently clean a specifi c area that has a a lot of
cookie crumbs, dust, and etc.
Move the vacuum cleaning robot to the location where you want to
■
perform a spot clean.
About 1.5m
03 OPERATING
About 1.5m
Main unit button
Remote control
button
▶
2time
In Spot cleaning mode, the vacuum cleaning robot cleans an area with a length of 1.5m and a width of 1.5m.
When cleaning is completed, the vacuum cleaning robot will display End, Stop, and Stand by.
When the vacuum cleaning robot is docked with the charger
station, spot cleaning is not supported.
NOTE
Each time you press the Turbo button, the Turbo icon on •
CAUTION
the display panel is turned on or off sequentially. When the
Turbo icon is turned on, you can start cleaning in Turbo
mode.
Each time you press the Dust Sensor button, the Dust •
Sensor icon on the display panel is turned on or off
sequentially. When the Dust Sensor icon is turned on, you
can start cleaning in Dust Sensor mode.
Confi guration
Sequence
Set the mode.1.
Cancel the mode.2.
Normal Mode
Turbo Mode
Dust Sensor Mode
Cleaning Complete
operating _31
Max Cleaning
Normal Mode
Turbo Mode
Dust Sensor Mode
3time
2 times in charging mode
The vacuum cleaning robot automatically moves and cleans until
the battery runs out and the battery level fl ashes only one level.
If cleaning begins when the vacuum cleaning robot is docked with
■
the charger station, the time to return to the charger is decreased
since the vacuum cleaning robot remembers its original position while
moving.
If the vacuum cleaning robot starts the current cleaning run at
■
a location other than the charging station and fails to locate the
charging station while cleaning, it will stop near the location where it
started cleaning.
If the battery level becomes low while cleaning, the vacuum cleaning robot automatically returns
■
to the charger station and resumes cleaning after charging the battery. (Number of resumed
cleaning operations: Once)
Main unit button
▶
3time
2 times in charging mode
About the Resume Cleaning function
If the vacuum cleaning robot judges cleaning to be •
NOTE
CAUTION
complete, resume cleaning is not performed.
If you move the vacuum cleaning robot while it is being •
charged or press a button, vacuum cleaning robot judges
cleaning to be complete (cleaning is not resumed).
Do not move the vacuum cleaning robot while it is cleaning •
or press a button while cleaning. Otherwise, the vacuum
cleaning robot judges cleaning to be complete and starts
cleaning again from the beginning.
Each time you press the Turbo button, the Turbo icon on •
the display panel is turned on or off sequentially. When the
Turbo icon is turned on, you can start cleaning in Turbo
mode.
Each time you press the Dust Sensor button, the Dust •
Sensor icon on the display panel is turned on or off
sequentially. When the Dust Sensor icon is turned on, you
can start cleaning in Dust Sensor mode.
Remote control
button
Confi guration
Sequence
Set the mode.1.
Cancel the mode.2.
Normal Mode
Turbo Mode
Dust Sensor Mode
32_ operating
Manual Cleaning
Directional Buttons
(Forwards, Left, Right)
A backwards function is not
supported.
You can move the vacuum cleaning robot to clean a particular
location directly by using the remote control.
Move the vacuum cleaning robot to the location where you want to
■
perform manual cleaning.
You can manually clean using the remote control only.
■
Remote control button Confi guration Sequence
Set the mode.1.
Cancel the mode.2.
03 OPERATING
NOTE
CAUTION
When the vacuum cleaning robot is docked with the •
charger station, manual cleaning is not supported.
If there is no input for about 1 minute to switch to standby •
mode.
Each time you press the Turbo button, the Turbo icon on •
the display panel is turned on or off sequentially. When the
Turbo icon is turned on, you can start cleaning in Turbo
mode.
Each time you press the Dust Sensor button, the Dust •
Sensor icon on the display panel is turned on or off
sequentially. When the Dust Sensor icon is turned on, you
can start cleaning in Dust Sensor mode.
Directional Buttons
(Forwards, Left, Right)
A backwards function is not
supported.
operating _33
Timer Reservation
Blinks
Blinks
Decrease
Increase
Blinks
Blinks
Decrease
Increase
Blinks
Blinks
Decrease
Increase
Blinks
Blinks
In this mode, you can schedule the cleaner to start a once-off
cleaning run from a particular time.
A scheduled cleaning run is only performed when the cleaner is
■
docked to the charger station.
Remote Control Confi guration Sequence
Blinks
Blinks
Decrease
Increase
Press the Timer/Weekly 1.
button.
The current setting is -
displayed and blinks.
Press the Y or Z button to
set the hour.
Cleaning Mode
❈
If there is no previous reservation, the cleaning
mode is set to Auto mode. If
a reservation exists, cleaning
mode is set to the confi gured
mode.
Blinks
Blinks
Blinks
Blinks
Canceling the Settings
Blinks
Blinks
Press the Timer/Weekly 2.
Decrease
Increase
button.
The time increases/decreases by 5 minutes. Press the Y or
button to set the minutes.
Z
Press the Timer/Weekly 3.
button. Press the Y or Z
button to set the cleaning
Decrease
Increase
mode.
You can select either Auto or Max cleaning mode.
Press the Timer/Weekly 4.
button.
The value you set will blink and the settings are
completed.
When the settings are completed, the confi gured
time and
are displayed.
If you press the Start/Stop button while the cleaner is charging or you are setting the time, the settings are canceled.
Please take note that the settings are canceled if the cleaner is detached from the charger station.
Timeout
34_ operating
If there is no input for 1 minute while you are setting the time, the cleaner exits Time Set mode automatically.
Weekly Reservation
Blinks
When there is no reservation
Blinks
When there is a reservation
Decrease
Increase
Blinks
Blinks
Decrease
Increase
Blinks
Decrease
Increase
Mon
Tue
Wed
Thu
Fri
Sat
Sun
~
In this mode, you can schedule the cleaner to start a once-off
cleaning run from the specifi ed time on the specifi ed days of
the week.
A scheduled cleaning run is only performed when the cleaner is
■
docked to the charging station.
Remote Control Confi guration Sequence
Tue
Mon
Thu
Fri
Wed
Sat
Standby mode
In Standby mode, the scheduled days of the week
are displayed.
~
Sun
03 OPERATING
When there is no reservation
Blinks
When there is a reservation
Blinks
Blinks
Blinks
Blinks
Decrease
Decrease
Decrease
Increase
Increase
Increase
Hold down the Timer/Weekly 1.
button for more than 3
seconds. Press the Y or Z
buttons to set the day of the
week.
If there is no reservation set previously, the current day of
the week is displayed.
If there is no scheduled time, -
--:-- is displayed.
Press the Timer/Weekly 2.
button. Press the Y or Z
buttons to set the hour.
If there is a scheduled hour, it
❈
is displayed.
Cleaning Mode
❈
If there is no reservation set previously, the cleaning mode
is set to Auto mode. If there
is a reservation, it is set to the
confi gured mode.
Press the Timer/Weekly 3.
button.
The time increases/decreases by 5 minutes. Press the Y or
button to set the minutes.
Z
operating _35
Remote Control Confi guration Sequence
Blinks
Blinks
Decrease
Increase
Blinks
Blinks
Blinks
Blinks
Blinks
Blinks
Canceling the Settings
Timeout
Press the Timer/Weekly 4.
button. Press the Y or Z
button to set the cleaning
Decrease
Increase
mode.
You can select either Auto or Repeat cleaning mode.
Press the Timer/Weekly 5.
button.
The value you set blinks and the settings are completed.
After the settings are
❈
completed, the day of week
you have set blinks. At this
time you can move to step ( 2 )
and add another day of the
week.
If you press the Start/Stop button while you are making a weekly reservation, the reservation for the currently set day of
the week is canceled. Then if you press the button again, the
cleaner exits reservation setting mode.
If there is no input for 1 minute while setting the time, the cleaner exits the reservation setting mode automatically.
36_ operating
ADDITIONAL FUNCTIONS
Using additional functions
You can use the cleaning robot more easily and conveniently using various additional
functions.
You can only confi gure the additional functions with the remote control.
■
Turbo Mode
Each time you press the Turbo button, the Turbo icon on the
display panel is turned on or off sequentially.
On turbo (Turbo Mode) : The power brush rotates at
maximum speed.
Off turbo (Normal Mode) : The power brush rotates at normal
speed.
Dust Sensor Mode
Each time you press the Dust Sensor button, the Dust Sensor
icon on the display panel is turned off or on sequentially.
Dust Sensor Mode On : In Auto cleaning mode, when the
vacuum cleaner senses that dust has entered a specifi c area,
the cleaner rotates and changes direction to clean that area,
and then after cleaning that area, resumes its previous course.
In Spot, Max, Manual mode, when the vacuum cleaner senses
that dust has entered a specifi c area, the boost continues to
operate for several seconds.
Dust Sensor Mode Off : The cleaner does not sense the dust
entering and continues to drive as set in the selected cleaning
mode.
03 OPERATING
Selecting a Sound Effect
Press the Sound select button to select a sound effect.
Each time you press this button, Sound Effects
■→
selected in this sequence.
Sound Effects : - Plays sound effects.
Mute : - Plays no sound or announcements.
Mute is
operating _37
Front Sensor window
Camera
maintain tools and fi lters
CLEANING THE VACUUM CLEANING ROBOT
Please keep the cleaning and maintenance methods in mind
When the Power Switch is damaged, please contact the service
■
agent so that it does not cause any accidents.
Do not use any means or mechanical devices not installed by the
■
manufacturer that could accelerate the deformation of the vacuum
cleaning robot.
Always turn off the power switch at the
■
bottom of the main unit before cleaning
the vacuum cleaning robot. The vacuum
cleaning robot could operate suddenly and
cause an injury.
Cleaning the Sensor Window and the Camera
You must turn off the Power Switch at the bottom of the main
unit before cleaning the vacuum cleaning robot.
Never spray water, thinner, benzene etc. directly onto the main unit
■
of vacuum cleaning robot.
Lightly wipe the sensor window or camera
■
using a soft cloth.
Camera
Front Sensor window
38_ maintain
Front Sensor Window and
Camera
Cliff Sensor Window Rear Sensor Window
Cleaning the Dust Bin and the Filters
Filter
Mesh fi lter
First, empty the dust bin before cleaning it.
When separating the dust bin, take care not to spill the dust out of the
■
dust bin.
Empty the dust bin in the following cases.
■
When dust has accumulated inside the dust bin.1.
When the suction power suddenly becomes weak.2.
When the noise suddenly increases.3.
Press the Dust Bin Eject (PUSH) button and pull the dust bin to 1.
separate the dust bin.
Separate the dust bin cover by pulling it in the direction of the arrow 2.
in the fi gure.
04 MAINTAIN
NOTE
CAUTION
Remove the fi lter and the mesh fi lter from the dustbin.3.
Filter
Shake the dust from the fi lter, Mesh fi lter and dustbin.4.
You can clean it with water.
❈
After cleaning it with water :
Dustbin : Wipe the water off completely.1.
Filter, Mesh fi lter : Dry them completely and then 2.
reassemble them.
Reassemble the fi lter and mesh fi lter onto the dustbin.5.
Assemble the mesh fi lter while the grid side is facing downward. If the orientation is not correct, you will not be
able to assemble it.
If the dustbin is assembled without the fi lter being mounted, the error code C08 occurs.
Make sure to mount the fi lter.
Mesh fi lter
Close the dust bin cover and install it into the main unit.6.
maintain _39
EMPTYING THE AUTO-EMPTIER DUSTBIN
1
2
3
Click
Remove the dustbin in the direction of the arrow.1.
Slide the locking bar downward to open the dustbin cover.2.
Open the cover after positioning the dustbin over a wastebasket.
❈
Slide the locking bar downward to open the dustbin cover.
Shake the dust from the dustbin.3.
Close the dustbin cover until it clicks into place, and then 4.
reassemble the dustbin on the main body.
CLEANING THE CYCLONE OF THE AUTO-EMPTIER DUSTBIN
1
Remove the dustbin and
rotate and open the cyclone
cover in the direction of the
arrow.
2
Remove any foreign
substances from the inside of
the cyclone.
3
After cleaning, rotate and
close the cyclone cover in the
direction of the arrow.
Click
40_ maintain
CLEANING THE FILTER OF THE AUTO-EMPTIER DUSTBIN
2
3
4
5
6
7
8
9
10
11
12
1
Remove the dustbin in the
direction of the arrow.
4
After removing the dustbin, shake
the dust from the fi lter.
7
2
Pull the holding part of the fi lter in
the direction of the arrow.
5
Clean the fi lter with water. Dry the fi lter in the shade.
8
3
04 MAINTAIN
Remove the fi lter from the
dustbin.
6
9
First assemble the top of the fi lter
and then assemble the bottom
holding part.
10
Clean the fi lter with water. Dry the fi lter in the shade. Reassemble the fi lter.
Pull the fi lter forward and remove
it from the dustbin.
11
Clean the fi lter with a brush.
12
maintain _41
CLEANING THE BOTTOM OF THE AUTO-EMPTIER
Turn the auto-emptier over so that its bottom is facing 1.
upward. Then open the 6 fi xing screws using a coin as
shown in the fi gure.
Remove the bottom cover from the 2.
auto-emptier using a coin, and then
clean the bottom cover.
Clean the bottom cover with water.3.
Dry the bottom cover in the shade.4.
After a cleaning run, close the bottom cover in the direction 5.
of the arrow.
Fasten the 6 fi xing screws as shown in the fi gure above in 6.
the direction of the arrow.
42_ maintain
Cleaning the lower side of the Auto-Emptier periodically.7.
CLEANING THE VACUUM CLEANING ROBOT
Cleaning the Power Brush
You must turn off the Power Switch at the bottom of the
main unit before cleaning the vacuum cleaning robot.
Because the dust in the dust bin may come out, separate the •
CAUTION
dust bin fi rst before cleaning the power brush.
04 MAINTAIN
After checking whether there are any foreign substances, press 1.
the hook that is fi xing the brush cover to separate it.
Lift the power brush up from the main unit.2.
Remove any foreign substances such as long hairs or strings 3.
wrapped around the power brush using a cleaning brush or a
vacuum cleaner.
maintain _43
CAUTION
After a cleaning run, fi rst fi x the side of the power brush 4.
opposite to the Power Switch and then fi x the other side.
Insert the side into the two grooves and assemble it by 5.
slightly sliding it down until it clicks into place.
To prevent the vacuum cleaning robot from becoming clogged, be careful not to vacuum tooth •
picks or cotton swabs.
When removing foreign substances becomes diffi cult, contact a customer care center.•
Because the power brush vacuums the dust on the fl oor, long strings or hair can become •
wrapped around the brush. Check and clean the power brush regularly.
44_ maintain
Cleaning the Edge-Cleaning Side rotating Brush
You must turn off the Power Switch at the bottom of the
main unit before cleaning the vacuum cleaning robot.
Check whether the side rotating brush is bent or whether there 1.
are any foreign substances stuck on the brush.
Wearing rubber gloves, wrap the side rotating brush with a cloth 2.
using hot water for about 10 seconds and wipe it on the cloth.
04 MAINTAIN
Turning the side rotating brush, repeat the procedures in Step 2.3.
If hair or string is wrapped between the main unit and the side 4.
rotating brush, undo the screw of the side rotating brush using
a (+) driver to remove it. When reassembling the brush, check
the “L” mark on the edge-cleaning side rotating brush and the
“L” mark on the main unit and then reassemble the side rotating
brush. (Letter “R” is carved at the right side rotating brush.)
Because the side rotating brush easily attracts hair and other foreign substances, make sure to
clean it frequently.
NOTE
Excessive foreign substances on the side rotating brush can damage the brush.
L
maintain _45
Cleaning the Driving Wheel
You must turn off the Power Switch at the bottom of the main
unit before cleaning the robot.
If the vacuum cleaning robot suddenly starts to zigzag, there may be
■
foreign substances stuck on the driving wheel.
When cleaning the driving wheel, place a soft cloth on the fl oor and 1.
fl ip the main unit, placing it down carefully.
Check for foreign substances and remove them using a stick or a 2.
pair of blunt nippers if necessary.
46_ maintain
troubleshooting
CHECKLIST BEFORE SVC CALLS
Symptom Checklist Measure to Take
Vacuum cleaning
robot does not
operate at all before
cleaning.
Is the dust bin assembled?• Install the dust bin.•
Is the Power Switch turned on?• Turn on the Power Switch.•
Is cleaning mode •
panel turned on?
in the display
Press the •
off, press and hold the
down for 3 seconds or longer.)
button. (To turn it
button
05 TROUBLESHOOTING
Vacuum cleaning
robot stopped
operating while
cleaning.
Is the battery level fl ashing only •
one level and is ‘Lo’ displayed in
the display panel?
Vacuum cleaning robot will not •
operate when the battery in the
remote control is depleted.
Is the battery level fl ashing only •
one level and is ‘Lo’ displayed in
the display panel?
Has the vacuum cleaning robot •
become hooked on wires on the
fl oor?
Is the vacuum cleaning robot stuck •
to the fl oor where there is a height
difference?
The driving wheel is lifted. -
Is there a thin towel (cloth) •
wrapped around the driving wheel?
Is the vacuum cleaning robot stuck •
on the doorsill?
Lift up the vacuum cleaning robot, •
and manually dock the vacuum
cleaning robot onto the charger to
charge it.
Replace the batteries in the remote •
control. (AAA type)
Lift up the vacuum cleaning robot, •
manually dock the robot onto the
charger to charge it.
Turn off the Power Switch and •
remove the wires.
Turn off the Power Switch and •
move the cleaning vacuum
cleaning robot to another place to
clean.
Turn off the Power Switch and •
remove the thin towel.
Turn off the Power Switch and •
move the vacuum cleaning robot
to another place to clean.
The suction power is
weak while cleaning.
Check whether the dust bin is full •
of dust.
Check whether the suction inlet is •
clogged by foreign substances.
Check whether the fi lter is clogged.• Clean the fi lter well.•
Stop the vacuum cleaning robot •
and empty the dust bin.
Turn off the Power Switch and •
remove the foreign substances on
the suction inlet.
troubleshooting _47
Symptom Checklist Measure to Take
Vacuum cleaning
robot cannot fi nd the
charger.
Vacuum cleaning
robot passes through
the VIRTUAL GUARD.
Check whether the power plug of •
the charger is plugged correctly
into the outlet.
If there are any obstacles within a •
range of about 1m in front of the
charger and about 0.5m range to
the left and right of the charger,
you should remove the obstacles.
If there are any foreign substances •
on the change pin, wipe them off
with a dry towel.
Is the VIRTUAL GUARD installed •
near the charger?
Check whether the autoemptier is •
turned on.
Are the batteries of the VIRTUAL •
GUARD worn out?
Is the lamp turned off?• Check if the VIRTUAL GUARD •
Move the VIRTUAL GUARD to •
another place so that the vacuum
cleaning robot can charge
automatically.
Turn on the power switch on the •
left side of the autoemptier.
Replace the batteries.•
(2 type D (LR20) alkaline batteries)
is turned off and then turn the
VIRTUAL GUARD on.
The battery usage
time of the VIRTUAL
GUARD is too short.
The vacuum cleaning
robot suddenly
performs its cleaning
operation in the
diagonal direction.
Are you using manganese drycell •
batteries?
The vacuum cleaning robot may •
clean in a diagonal direction in the
following cases.
After the vacuum cleaning robot has been charged while placed at
an angle in the charger station.
When the vacuum cleaning robot moves to another area by a
shortened route after cleaning an
area.
When the angle of making contact with an obstacle is not
perpendicular (90˚).
When the fl oor is made of tiles or wood.
Replace the batteries with new •
alkaline batteries.
(2 type D (LR20) alkaline batteries)
The cleaning direction is •
determined by the initial location.
Since it cleans areas by drawing a
map, it eventually covers the entire
area. (Normal operation)
Install the charging station in
the direction of the grain of the
wood, and start cleaning while the
vacuum cleaning robot is docked
with the charger station.
48_ troubleshooting
Symptom Checklist Measure to Take
The vacuum cleaning
robot frequently
collides with the
autoemptier.
The auto-emptier
does not empty
the dustbin
automatically.
Check whether the autoemptier• Turn on the power switch on the •
Check whether there is a foreign •
substance on the fi lter.
Check whether there is a foreign •
substance inside the dustbin.
The bottom of the autoemptier is •
clogged.
Check whether the dustbin •
cyclone cap exists.
Check whether the auto empty •
lamp of the auto-emptier is turned
on.
Check whether the dustbin is •
separated from the autoemptier.
Check whether the fi lter is •
separated from the autoemptier
dustbin.
left side of the autoemptier.
Plug the power plug into the outlet.•
Clean the fi lter.•
Remove the foreign substance •
from the inside of the dustbin.
Open the bottom of the auto-•
emptier using a coin and then
remove the dust clogging it.
Close the dustbin cyclone cap.•
Press the Auto Empty On/Off •
Select button on the auto-emptier.
Turn off the auto-emptier and then •
insert the dustbin fully until it is
mounted completely.
Turn off the auto-emptier and then •
mount the fi lter onto the dustbin.
05 TROUBLESHOOTING
The suction power of
the auto-emptier is
week.
The vacuum cleaning
robot is not charged.
Check whether the Power •
Brush wrapped in any foreign
substances.
Check whether the Full lamp is •
turned on.
Check whether the air inlet is •
clogged by a foreign substance.
Check whether dust has collected •
on the fi lter.
Check whether dust or hairs have •
collected on the cyclone.
Check whether there is a foreign •
substance on the charging
terminals.
Check whether the autoemptier is •
turned on.
Remove any foreign substances •
such as long hairs or strings
wrapped around the power brush.
Empty the dustbin.•
Clean the air inlet of bottom.•
Remove the foreign substance •
from the air inlet.
Clean the fi lter.•
Open the cyclone cap and then •
remove any dust and hair.
Remove the foreign substance •
from the charging terminals.
Turn on the power switch of the
auto-emptier.
troubleshooting _49
TROUBLESHOOTING FOR ERROR CODES
ERROR CODE CAUSE SOLUTION
Vacuum cleaning robot is •
caught, stuck or trapped
while navigating.
A foreign substance (string, •
paper, toy etc.) is caught in
the power brush.
A foreign substance (string, •
paper, toy etc.) is caught in
the left driving wheel.
A foreign substance (string, •
paper, toy etc.) is caught in
the right driving wheel.
Check the Bumper sensor.• Turn off the at the bottom, and then remove •
A foreign substance (dust, •
stain etc.) is on the Obstacle
sensor window.
A foreign substance (Dust, •
stain etc.) is on the Cliff sensor
window.
Turn off the Power Switch at the bottom and •
move the vacuum cleaning robot to a different
location.
Turn off the Power Switch at the bottom and •
remove the foreign substance from the power
brush.
Turn off the Power Switch at the bottom and •
remove the foreign substance from the left
driving wheel.
Turn off the Power Switch at the bottom and •
remove the foreign substance from the right
driving wheel.
the obstacle from the front of the vacuum
cleaning robot or move it to a different location.
Turn off the Power Switch at the bottom and •
wipe the foreign substance from the front and
rear sensor windows using a soft cloth.
Turn off the Power Switch at the bottom and •
wipe the foreign substance on the cilff sensor
window with a soft cloth.
Dust bin not inserted.• Insert the dust bin until you hear a “Click” •
A foreign substance (String, •
cloth etc.) is caught on the
edge-cleaning side rotating
brush.
If you press the Start/Stop button or turn off the Power Switch, the error code is cleared.
❈
50_ troubleshooting
sound.
Turn off the Power Switch at the bottom and •
wipe the foreign substance from the edgecleaning side rotating brush.
80 mm (Height)
350 mm (Length)
350 mm (Width)
357 mm (Width)
560 mm (Length)
260 mm (Height)
product specifi cation
80 mm (Height)
260 mm (Height)
350 mm (Length)
350 mm (Width)
Main Body Charger (Station)
Classifi cation Item SR8980* SERIES
Diameter 350mm
Mechanical
Specifi cations
Height 80mm
Weight 3.2kg
357 mm (Width)
06 PRODUCT SPECIFICATION
560 mm (Length)
Power voltage AC220-240V~, 50-60Hz
Charge power consumption 40 W
Electrical
Specifi cations
Main unit power consumption 40 W
Auto emptying power consumption 600 W
Battery specifi cations 14.4V / 31.68Wh
Charging type Auto Charging/Manual Charging
Cleaning mode Auto, Spot, Max, Manual, Timer, Weekly
Cleaning
Specifi cations
Charging time About 180 minutes
Cleaning time
(on the basis of hard fl oor)
Cleaning method Ceiling shape recognition
Main unit button type Touch type
This Vacuum cleaner is approved the following.
Electromagnetic Compatibility Directive : 2004/108/EEC
Low Voltage Directive : 2006/95/EC
About 100 minutes
product specifi cation _51
OPEN SOURCE ANNOUNCEMENT
Some software components of this product incorporate source code covered under the BSD.
And this software is based in part on the work of the Independent JPEG Group.
OpenCV :
■
IMPORTANT : READ BEFORE DOWNLOADING, COPYING, INSTALLING OR USING.
By downloading, copying, installing or using the software you agree to this license.
If you do not agree to this license, do not download, install, copy or use the software.
License Agreement
For Open Source Computer Vision Library
Copyright (C) 2000-2008, Intel Corporation, all rights reserved.
Copyright (C) 2008-2010, Willow Garage Inc., all rights reserved.
Third party copyrights are property of their respective owners.
Redistribution and use in source and binary forms, with or without modifi cation, are permitted provided
that the following conditions are met:
Redistribution’s of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
Redistribution’s in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
The name of the copyright holders may not be used to endorse or promote products derived from this
software without specifi c prior written permission.
This software is provided by the copyright holders and contributors “as is” and any express or implied
warranties, including, but not limited to, the implied warranties of merchantability and fitness for a
particular purpose are disclaimed.
In no event shall the Intel Corporation or contributors be liable for any direct, indirect, incidental, special,
exemplary, or consequential damages (including, but not limited to, procurement of substitute goods
or services; loss of use, data, or profi ts; or business interruption) however caused and on any theory of
liability, whether in contract, strict liability, or tort (including negligence or otherwise) arising in any way out
of the use of this software, even if advised of the possibility of such damage.
Copyright (c) 2006, 2008, 2009, 2010 Edward Rosten
■
All rights reserved.
Redistribution and use in source and binary forms, with or without modifi cation, are permitted provided
that the following conditions are met:
Redistributions of source code must retain the above copyright notice, this list of conditions and the
following disclaimer.
Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the
following disclaimer in the documentation and/or other materials provided with the distribution.
Neither the name of the University of Cambridge nor the names of its contributors may be used to
endorse or promote products derived from this software without specifi c prior written permission.
THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS “AS
IS” AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE
IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE
DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR
ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES
(INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES;
LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON
ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING
NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN
IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
memo
memo
memo
If you have any questions or comments relating to Samsung products,
please contact the SAMSUNG customer care center.
Country
U.K 0330 SAMSUNG (7267864) www.samsung.com
SOUTH AFRICA 0860 7267864 (SAMSUNG) www.samsung.com
Customer Care Center
Web Site
DJ68-00632D REV(0.0)
Loading...
