Samsung VCR8830T1R, DJ68-00518A, SR8830 User Manual

imagine the possibilities

Thank you for purchasing a Samsung product. To receive a more complete service, please register your product at

www.samsung.com/register

Robotic Vacuum Cleaner

User Manual

✻ Before operating this unit, please read the instructions carefully. ✻ For indoor use only.

English

SR8830

2_ Safety information

Safety information

CAUTION/WARNING SYMBOLS USED

WARNING

Indicates that a danger of death or serious injury exists.

CAUTION

Indicates that a risk of personal injury or material damage exists.

OTHER SYMBOLS USED

NOTE

Explains terms to help users understand how use the product properly.

SAFETY INFORMATION

• Before operating the appliance, please read this manual thoroughly and retain

it for your reference.

• Because these following operating instructions cover various models, the

characteristics of your vacuum cleaner may differ slightly from those described in this manual.

WARNING

Safety information _3

Safety information

IMPORTANT SAFETY INSTRUCTIONS

When using an electrical appliance, basic precautions should be observed, including the following:

READ ALL INSTRUCTIONS BEFORE USING YOUR ROBOTIC VACUUM CLEANER.

Always connect to a polarized outlet (left slot is wider than right). Unplug from outlet when not in use and before conducting maintenance.

WARNING: to reduce the risk of ﬁre, electric shock, or injury:

GENERAL

• Use only as described in this manual.

•

Do not operate the robotic vacuum cleaner or charger if it has been damaged in any way.

• If the cleaner is not working as it should, has been dropped, damaged, left outdoors,

or dropped in water, return it to a customer care center.

• Do not handle the charger or robotic vacuum cleaner with wet hands.

• Use only on dry, indoor surfaces.

• This appliance is not intended for use by persons (including children) with reduced

physical,sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be supervised to ensure that they do not play with the appliance.

BATTERY CHARGER

• Do not modify the polarized plug to t a non-polarized outlet or extension cord.

• Do not use outdoors or on wet surfaces.

• Unplug the charger from the outlet when not in use and before servicing.

• Use only the charger supplied by the manufacturer to recharge.

• Do not use with a damaged cord or plug.

• Do not pull or carry by the cord, use the cord as a handle, close the door on the cord,

or pull the cord around sharp edges or corners. Keep the cord away from heated surfaces.

• Do not use extension cords or outlets with inadequate current carrying capacity.

• Do not unplug by pulling on the cord. To unplug, grasp the plug, not the cord.

• Do not mutilate or incinerate batteries as they will explode at high temperatures.

• Do not attempt to open the charger. Repairs should only be carried out by a qualied

customer care centre.

• Do not expose the charger to high temperatures or allow moisture or humidity of any

kind to come into contact with the charger.

4_ Safety information

Safety information

ROBOTIC VACUUM CLEANER

• Do not pick up hard or sharp objects such as glass, nails, screws, coins, and etc.

• Do not use without a lter in place. When servicing the unit, never put ngers or other

objects into the fan chamber in case the unit accidentally turns on.

• Do not put any objects into openings. Do not use with any openings blocked; keep

openings free of dust, lint, hair, and anything that may reduce air ﬂow.

• Do not pick up toxic materials (chlorine bleach, ammonia, drain cleaner, etc.).

• Do not pick up anything that is burning or causing a smoke, such as cigarettes,

matches, or hot ashes.

• Do not use to pick up ammable or combustible liquids such as gasoline, nor use on

areas where they may be present.

• Do not use robotic vacuum cleaner in an enclosed space lled with vapours given off by oil based paint, paint thinner, moth proong substances, ammable dust, or other

explosive or toxic vapours.

• Leaks from battery cells can occur under extreme usage or temperature conditions. If the liquid gets on skin, wash quickly with water. If the liquid gets into the eyes,

ﬂush them immediately with clean water for a minimum of 10 minutes. Seek medical attention.

SAVE THESE INSTRUCTIONS FOR FUTURE USE. THIS APPLIANCE HAS A POLARIZED PLUG.

To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than

the other). This plug will t in a polarized outlet only one way. If the plug does not t fully in the outlet, reverse the plug. If it still does not t, contact a qualied electrician to install a proper

outlet. Do not change the plug in any way. This model is for household use only.

Contents _5

SAFETY INFORMATION

06 Power related 07 Before use 10 In use 11 Cleaning and maintenance

PRODUCT FEATURES

13 Product Features

TROUBLESHOOTING

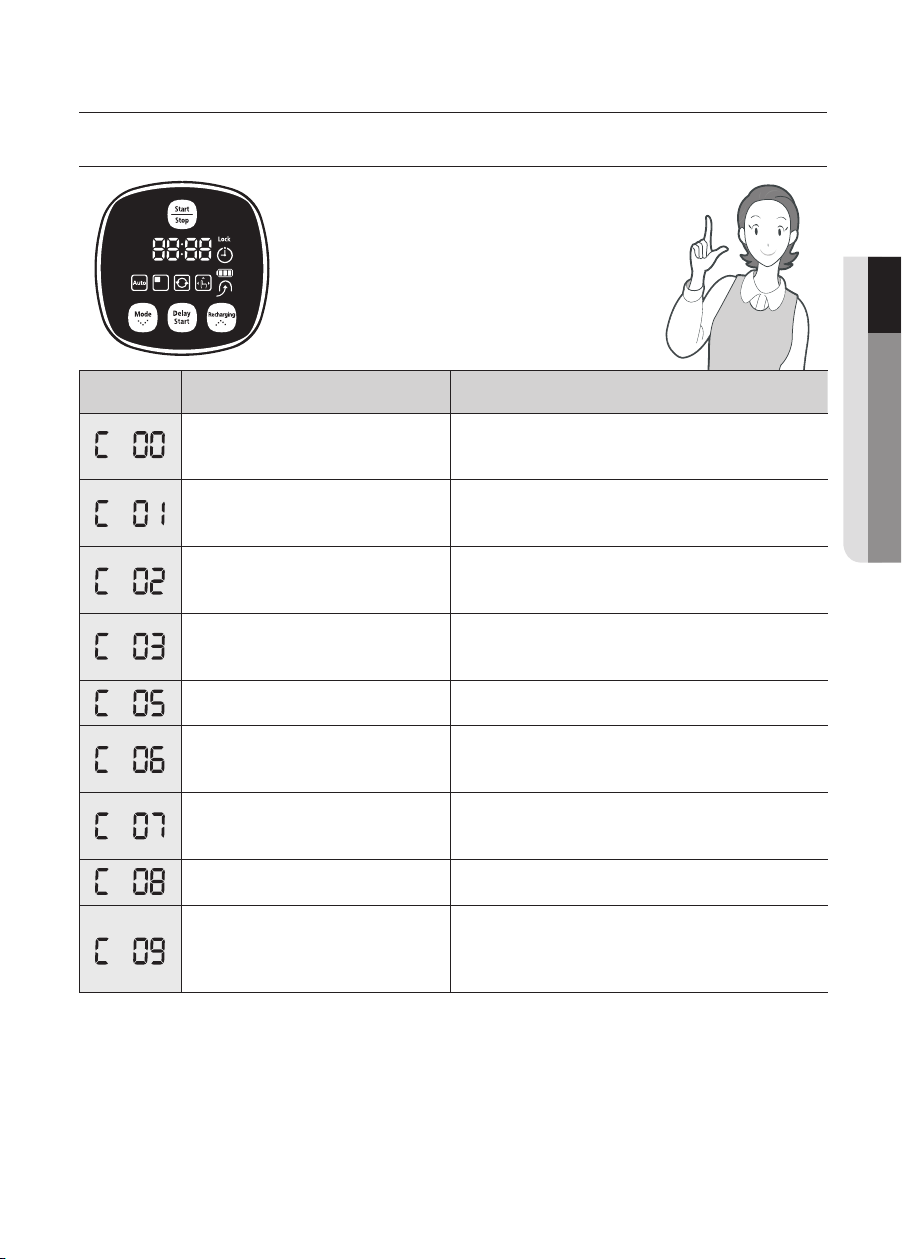

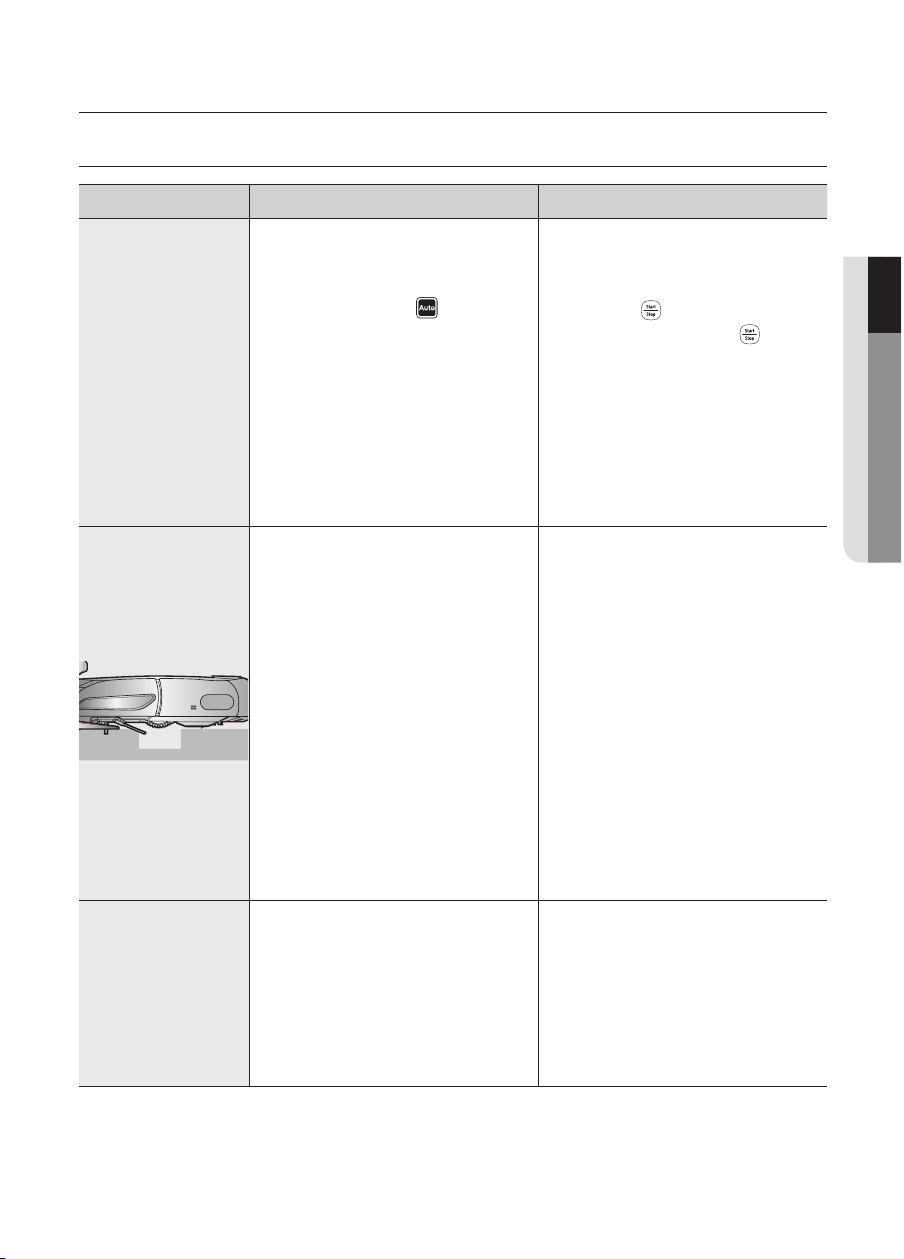

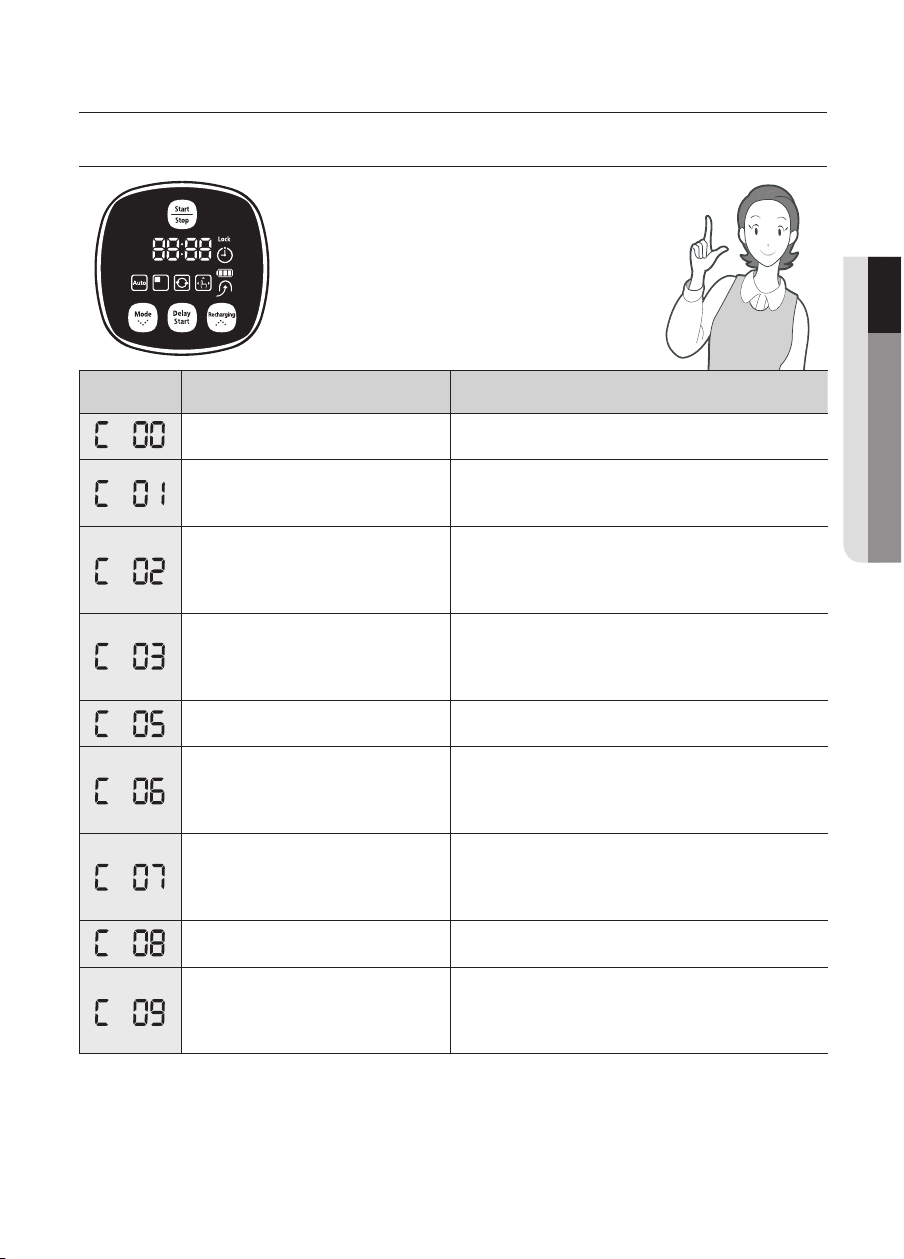

41 Checklist before svc calls 43 Troubleshooting for Error Codes

ASSEMBLING THE CLEANER

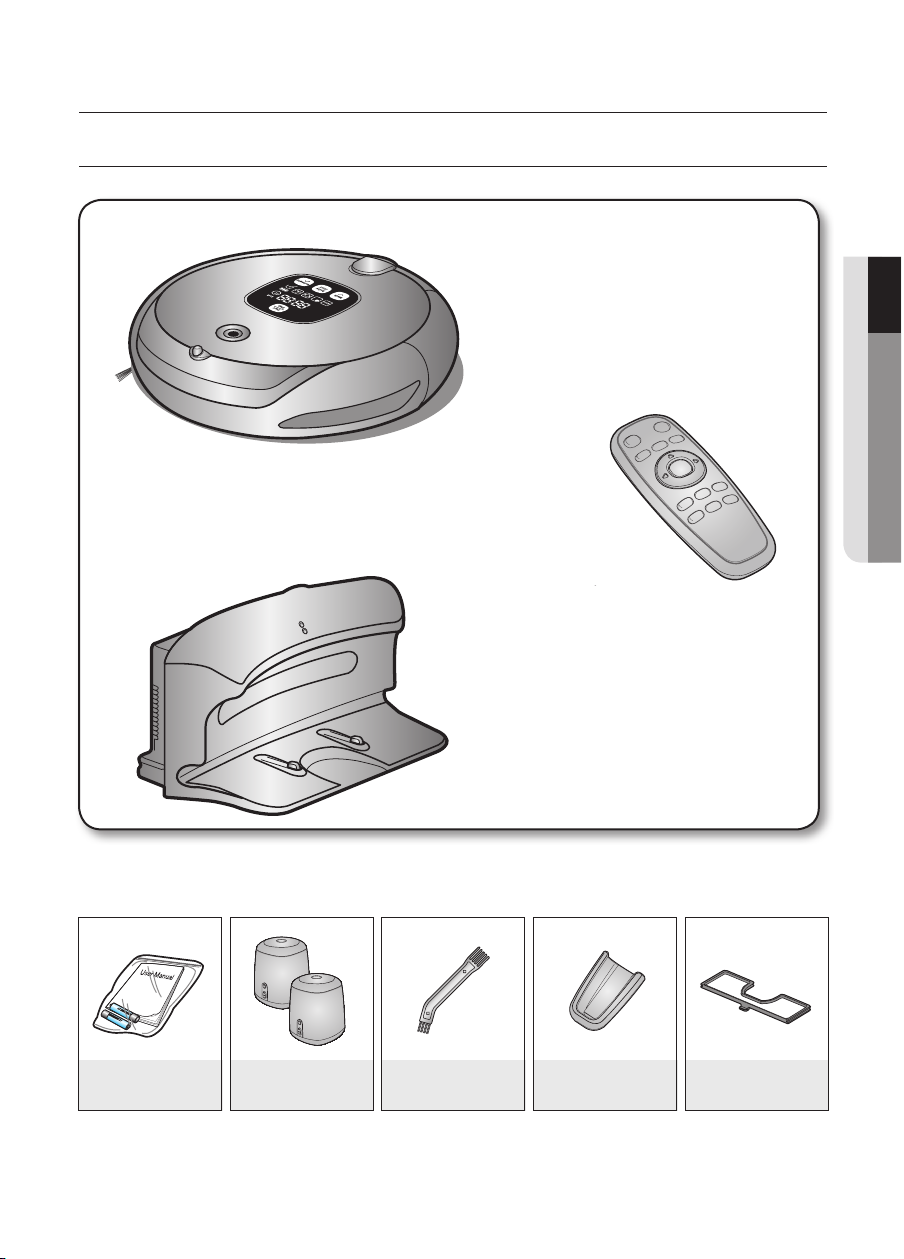

15 Components 16 Name of each part

OPERATING THE CLEANER

20 Installing robotic vacuum cleaner

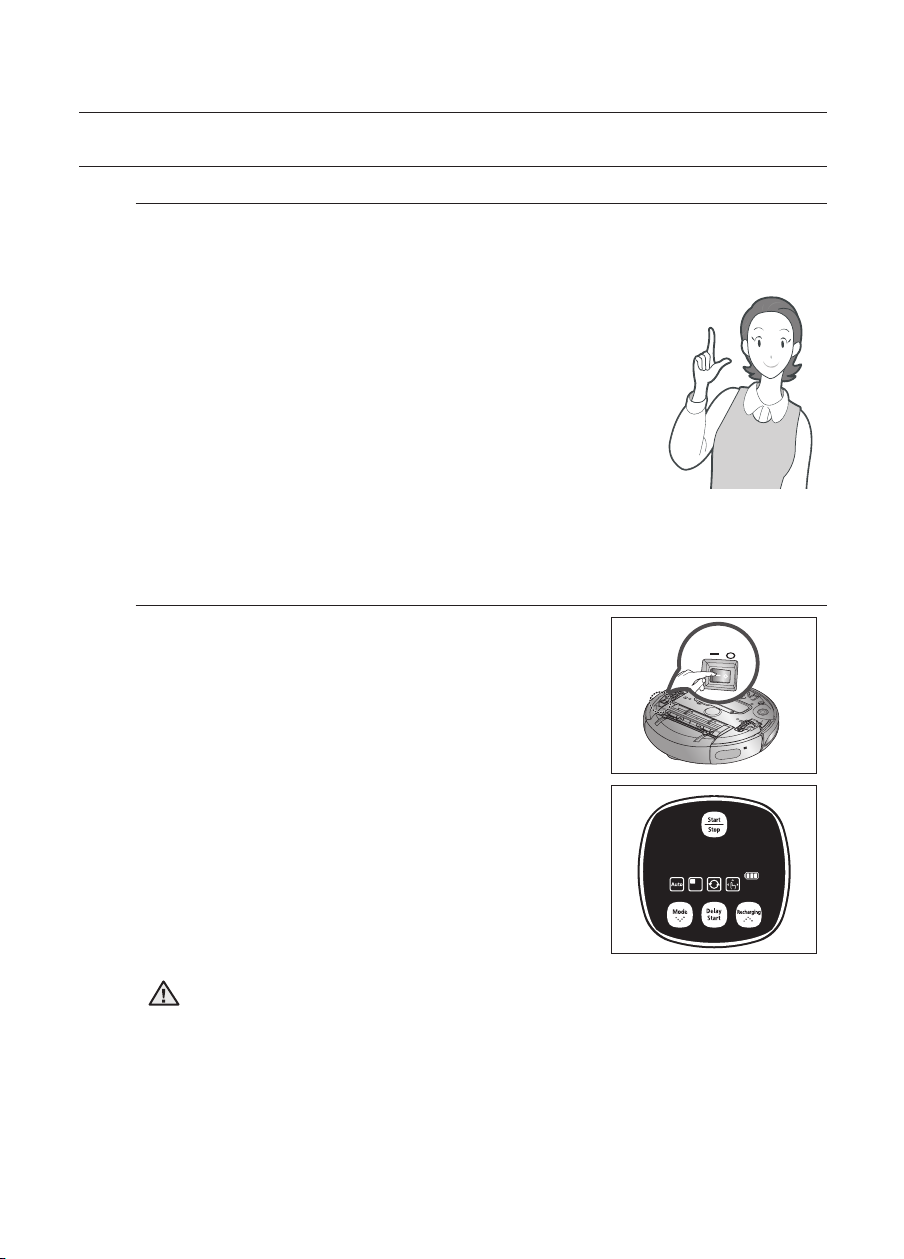

20 Installation order 20 Turning the power switch on or off 21 Installing the charger 22 Charging 23 About the battery 24 Installing the Smart gate

26 Using robotic vacuum cleaner

26 Starting/stopping cleaning 27 Recharging 28 Auto cleaning 29 Spot cleaning 30 Max cleaning 31 Manual cleaning 32 Setting a scheduled cleaning time 33 Selecting audio announcements

MAINTAIN TOOLS AND FILTER

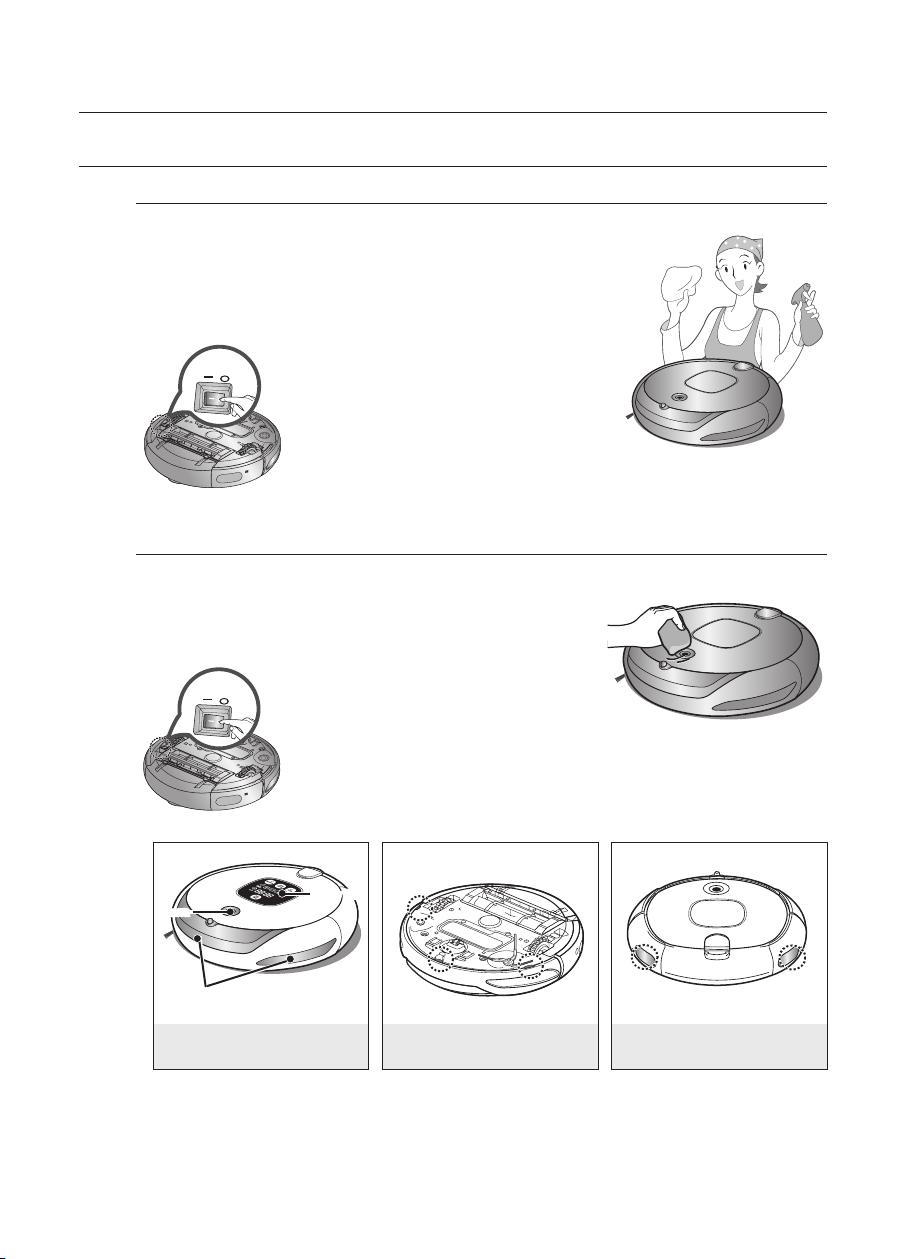

34 Cleaning robotic vacuum cleaner

Please keep the cleaning and maintenance methods in mind

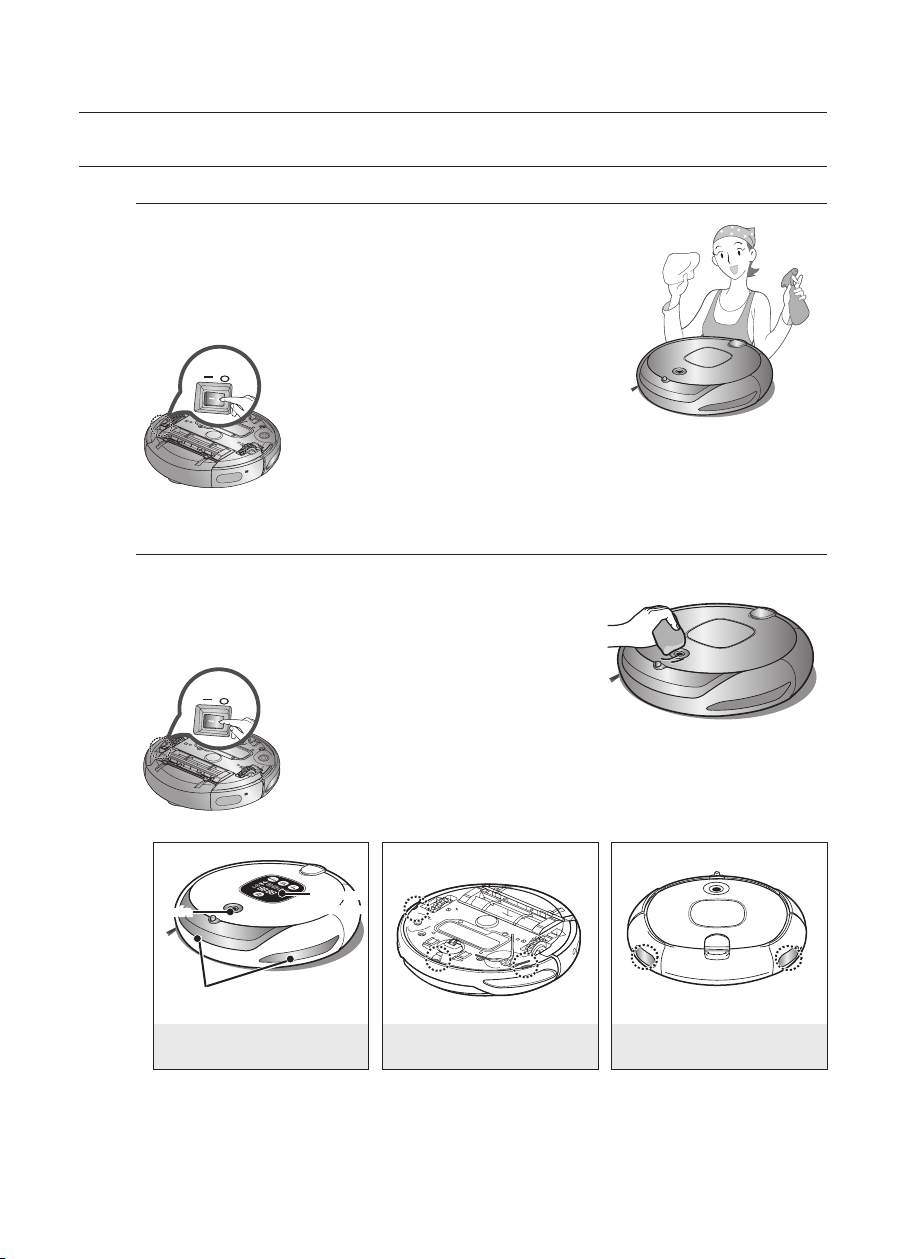

34 Cleaning the sensor window and the camera

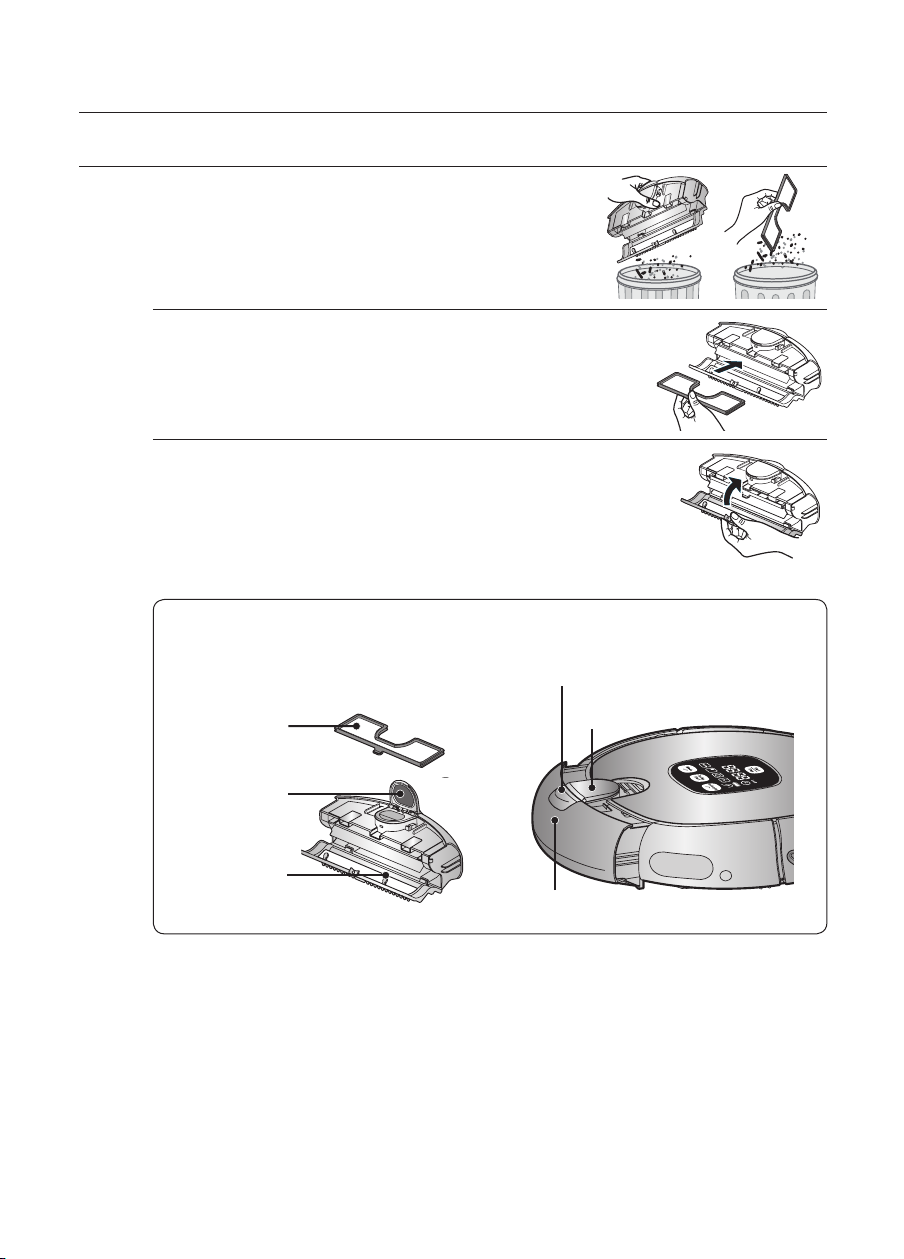

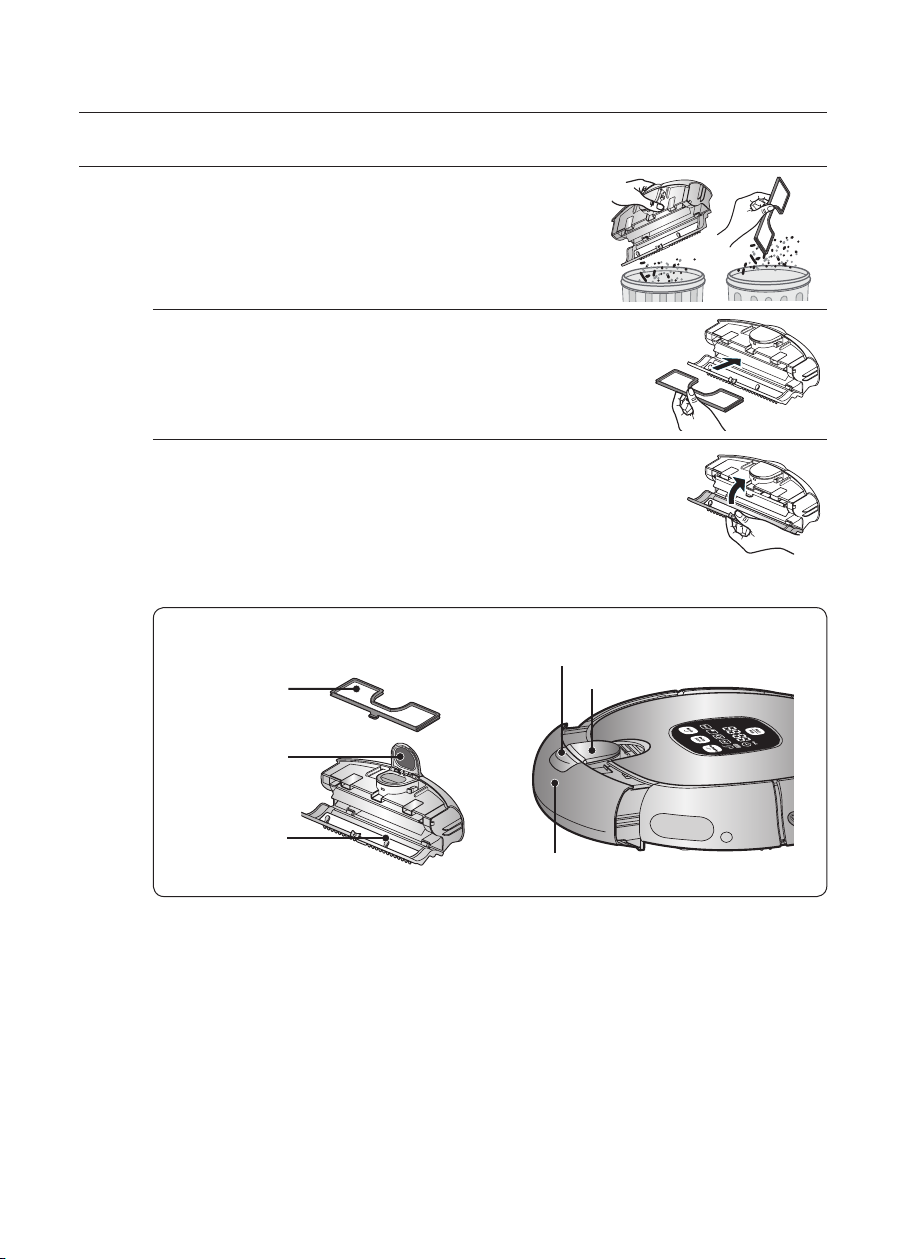

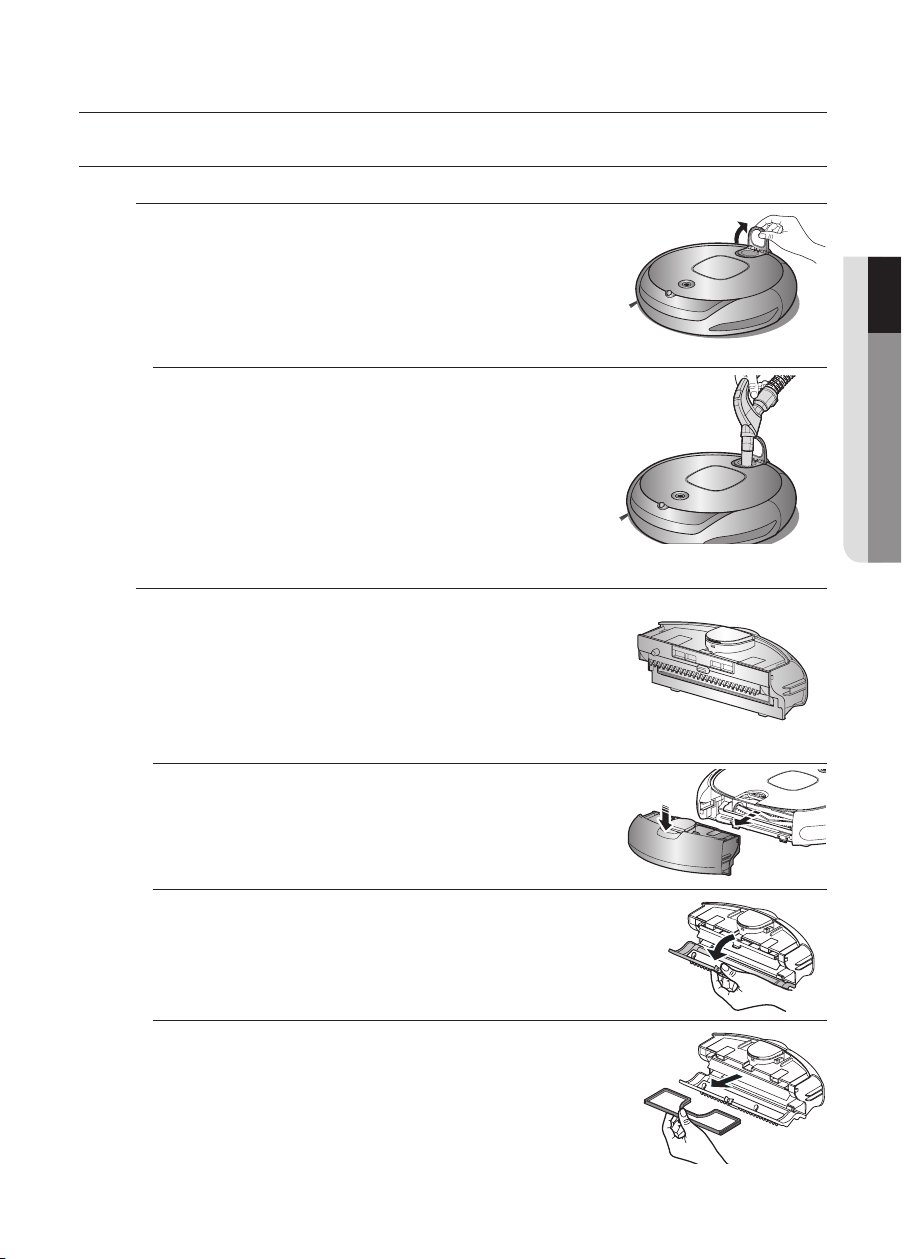

35 Emptying the dust bin quickly 35 Cleaning the dust bin and the hepa lter

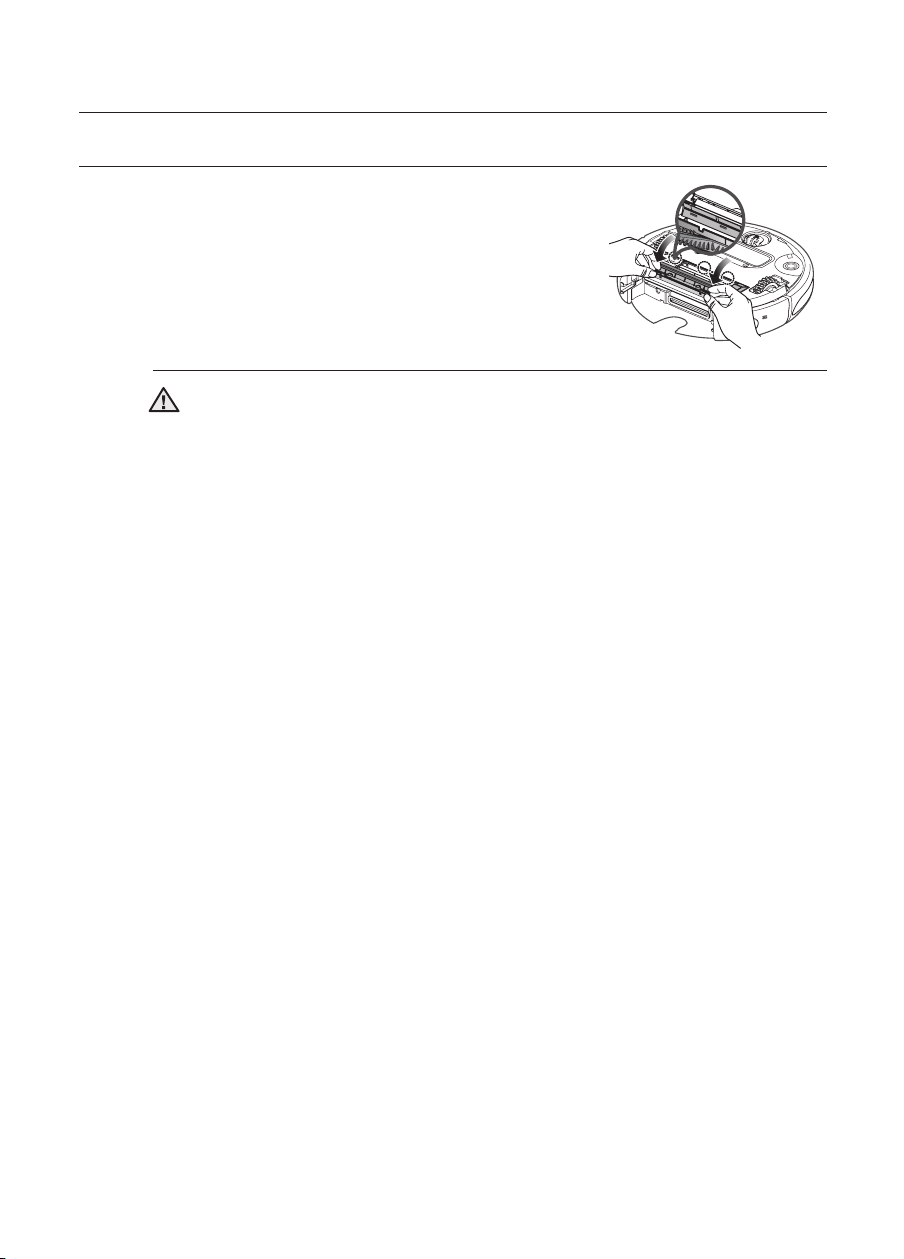

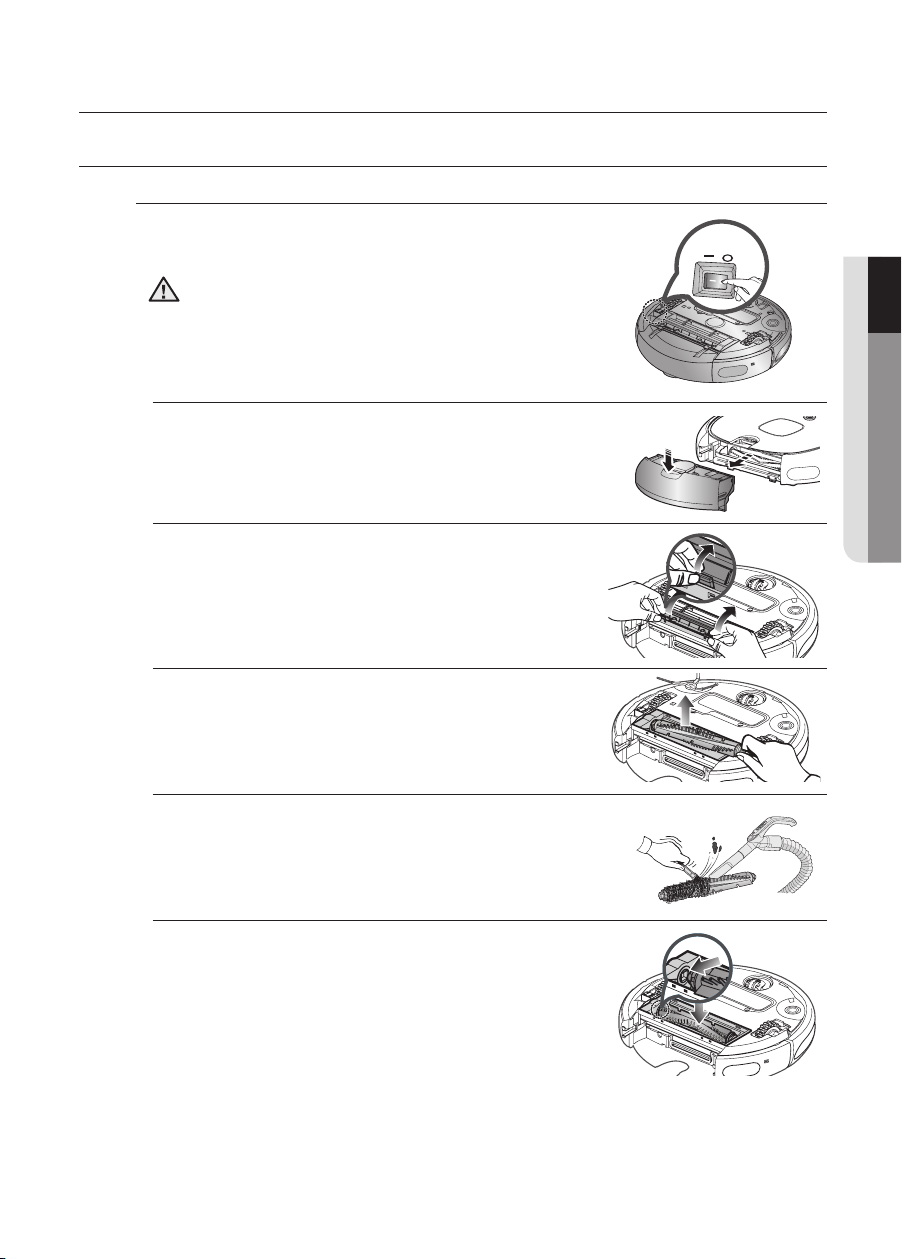

37 Cleaning the power brush

39 Cleaning the edge-cleaning side rotating brush

40 Cleaning the driving wheel

PRODUCT SPECIFICATION

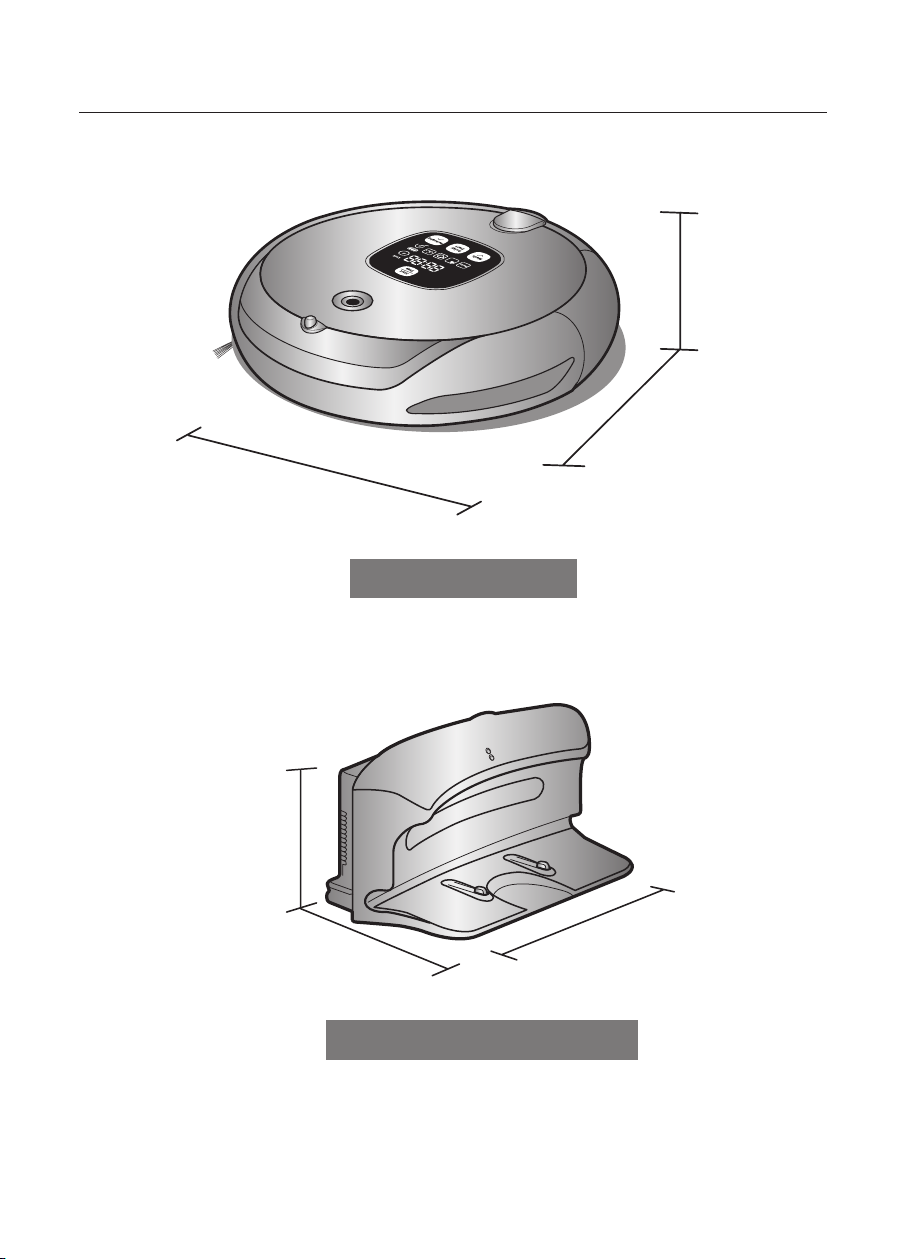

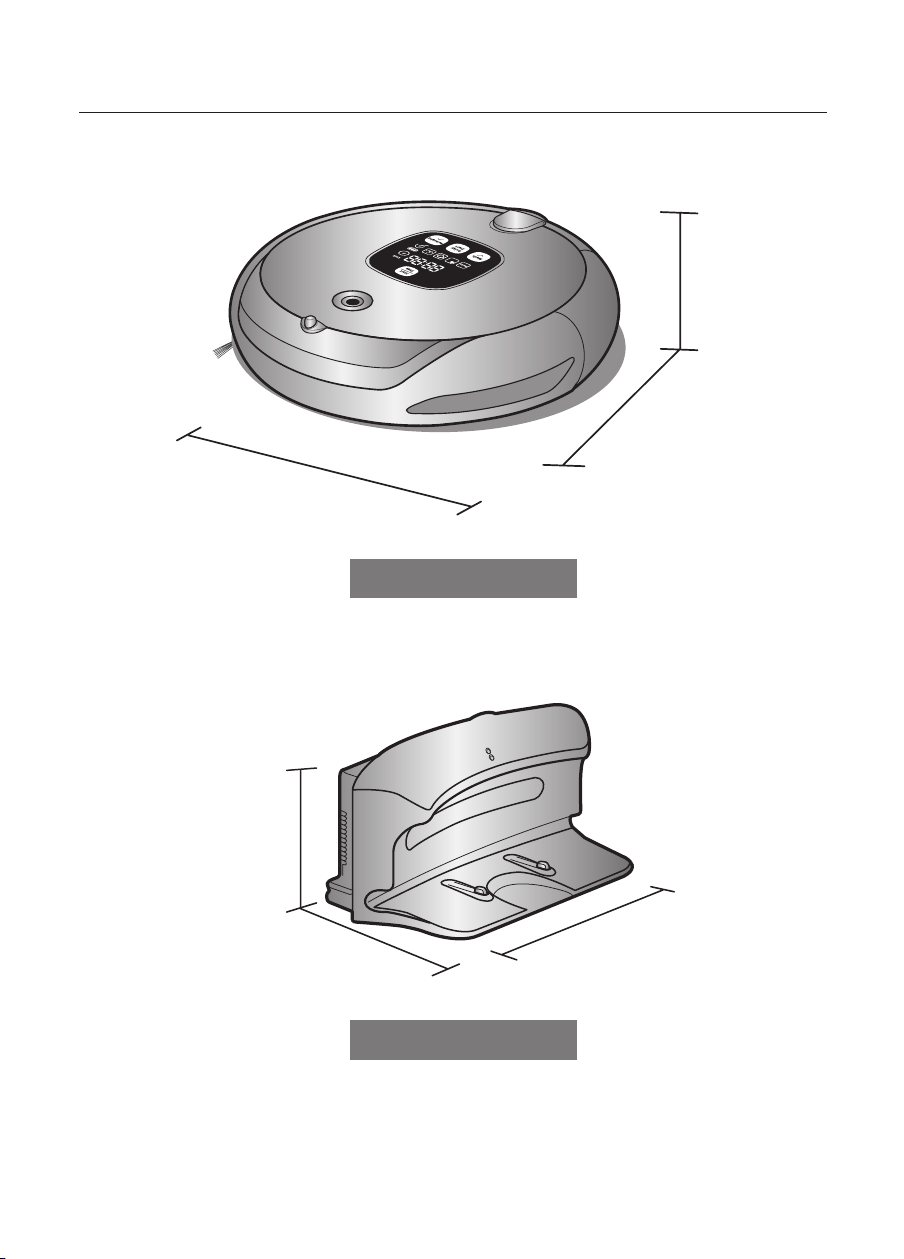

44 Product specication

6_ Safety information

Safety information

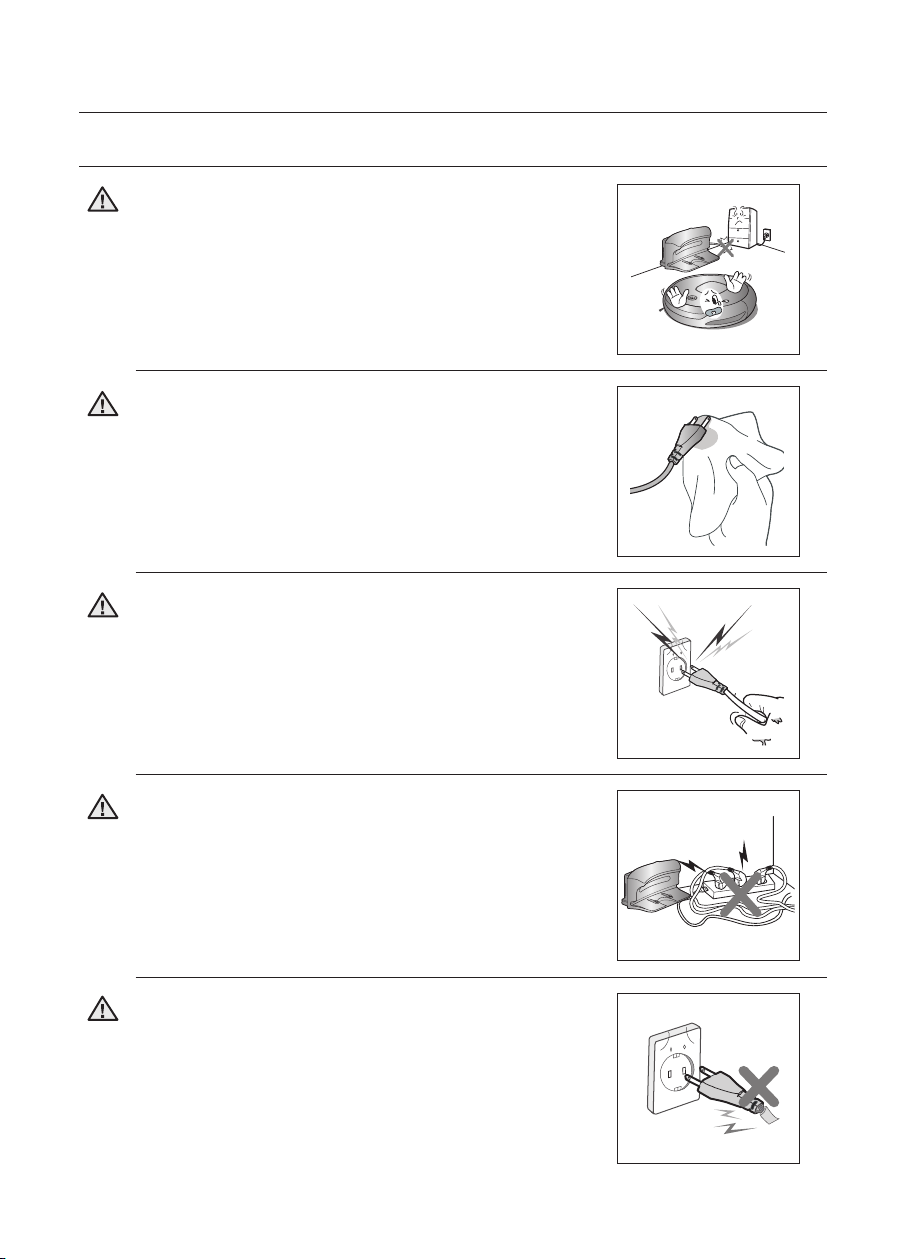

POWER RELATED

Do not bend the power cord forcefully or place a heavy object on it that could break it.

- This may result in re or electric shock.

Do not use a damaged power cord, plug, or a loose power outlet.

- This may result in re or electric shock.

Do not use a voltage other than 120V and do not use multiple plugs in a single socket. (Do not leave the cord lying exposed on the ﬂoor.)

- This may result in re or electric shock.

Do not pull the power plug by the cord or touch the plug with wet hands.

- This may result in re or electric shock.

Make sure to remove any dust or water from the power plug.

- Failing to do so may result in a malfunction or electric

shock.

WARNING

Safety information _7

Safety information

01 SAFETY INFORMATION

CAUTION

BEFORE USE

Before activating the robotic vacuum cleaner, make sure that the dust bin is assembled.

- If the dust bin is not inserted, robotic vacuum cleaner will not

operate.

Never use robotic vacuum cleaner in locations with combustible material such as:

- Locations with candles or desk lamps on the oor.

- Locations with unattended res (re or embers).

- Locations with gasoline, distilled alcohol, thinner, ashtrays

with burning cigarettes, and etc.

Robotic vacuum cleaner is for domestic use only. Do not use it in the following locations.

- Attics, basements, warehouses, industrial buildings, separate rooms distant from the

main building, locations exposed to wet or damp conditions such as bathrooms or wash rooms, and narrow and highly situated locations such as tables or shelves. Critical damage (abnormal operation and breakage) may occur when used in these locations.

Open all doors to clean all rooms.

- When a door is closed, the robotic vacuum cleaner will not be able to enter that room.

However, make sure to close the doors to the main entrance, the veranda and the bathroom, and any other rooms where the robotic vacuum cleaner may fall to a lower ﬂoor.

For carpets with long tassels, fold the tassels under the carpet.

- Unfolded tassels may result in critical damage to the carpet

and the machine itself, as they get caught in the driving wheel or the power brush.

When the cliff sensor is polluted, robotic vacuum cleaner may be falling down from entrance of stairs, handrail etc. This may cause an injury of people and the critical damage to the product. For preventing from the risk, install the Smart gates(Fence Mode setting) in front of dagerous areas. And clean the sensor window and camera not to make a wrong orders.

8_ Safety information

Safety information

BEFORE USE

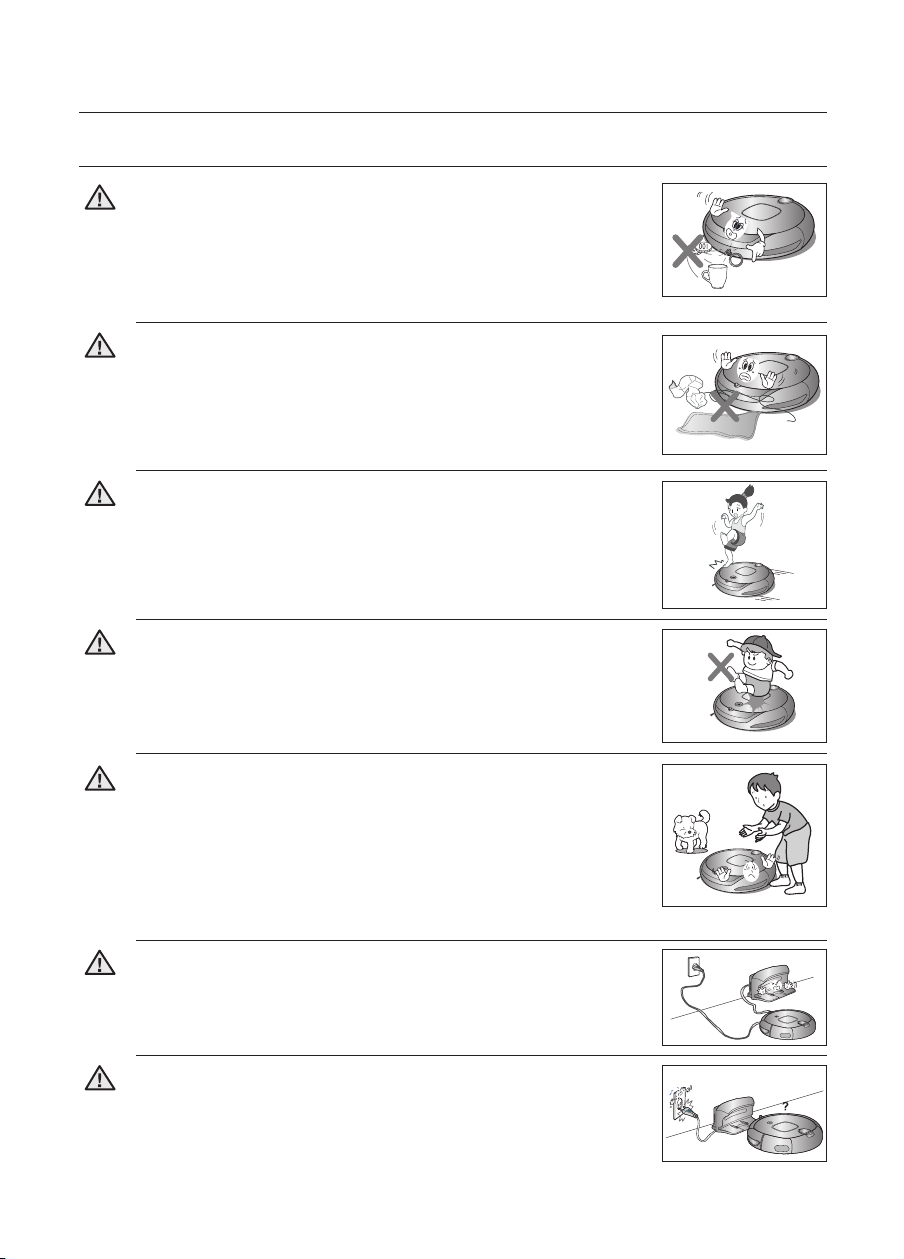

Remove objects scattered on the ﬂoor before cleaning.

Robotic vacuum cleaner is designed to detect obstacles 5cm away from them.

- Bath towels, pads in front of bathrooms and sinks, entrances, utility

rooms, power cords, table cloths or belts can become entangled in the driving wheel or power brush. This can cause objects to fall from the table.

Remove small objects or brittle items from the area to be cleaned in advance.

- Make sure to clear any objects before cleaning.

- Make sure to remove fragile items such as china, glass objects,

ﬂowerpots, and etc.

- Robotic vacuum cleaner does not recognize coins, rings or other

valuable items such as jewelry.

Inform all family members (or relevant parties) to be cautious before cleaning or when using the Scheduled Cleaning Mode.

- Robotic vacuum cleaner may run into children, causing them to fall.

Ensure that children do not step or sit on the robotic vacuum.

- Children may fall and injure themselves or critical damage may occur

to the product.

When a child or pet is left alone, make sure to turn off the Power Switch of the robotic vacuum cleaner.

- Robotic vacuum cleaner may attract their attention.

- When the rotating wheel or brush catches ngers, feet, clothing or hair,

this may result in injury.

- If a child or a pet is in the way of the robotic vacuum cleaner, it may be

identied as an obstacle and the area may not cleaned.

- When the Power Switch is turned off, it will cut off the power supply and

deactivate all functions.

When installing the charger station, do not leave the power cord exposed on the ﬂoor.

- When the robotic vacuum cleaner automatically recharges or passes

by the charger station, it may drag the power cord around with it.

Always keep the power cord of the charger plugged into the outlet.

- Although the robotic vacuum cleaner has a self-charging function, if

the power cord of the charger station is unplugged, it cannot charge its battery automatically.

CAUTION

Safety information _9

Safety information

01 SAFETY INFORMATION

CAUTION

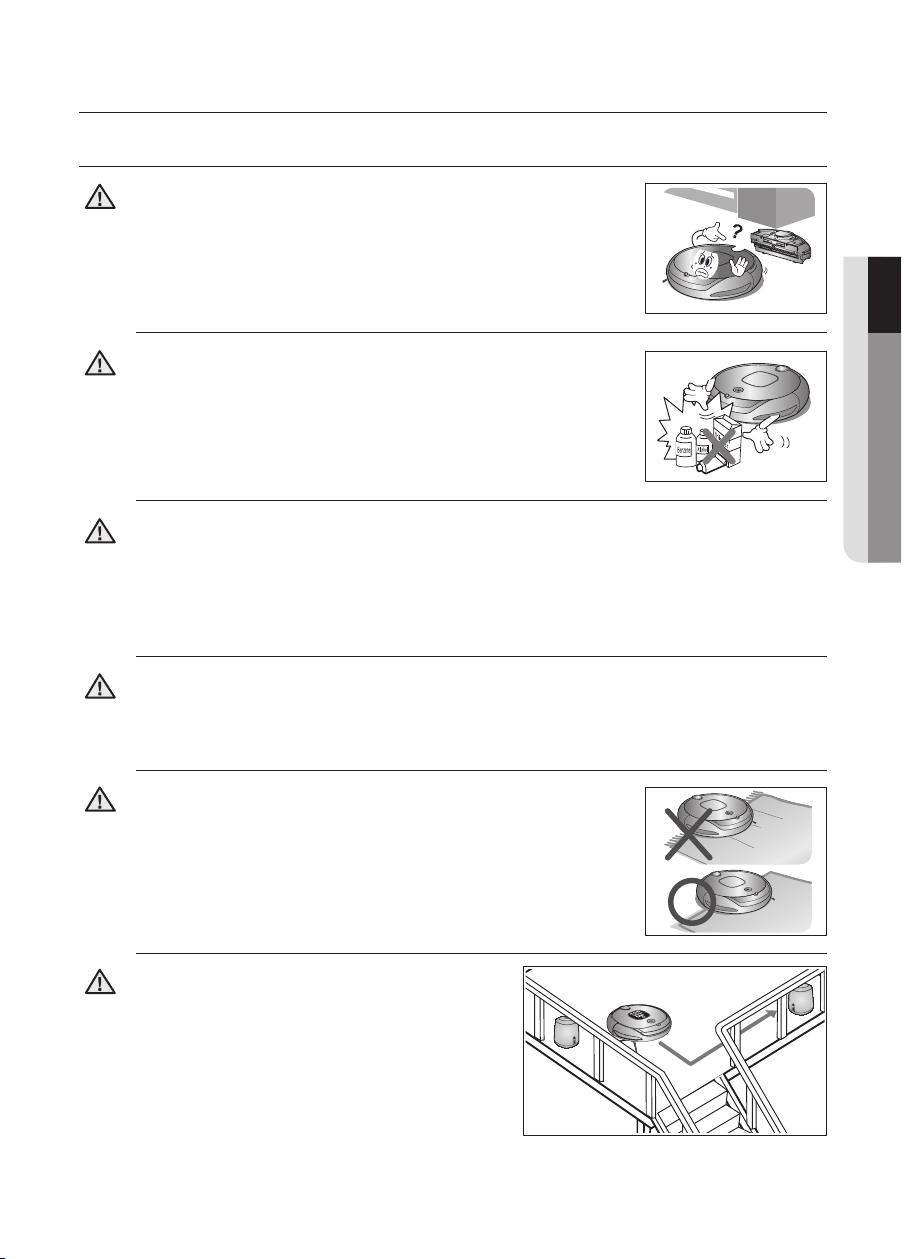

BEFORE USE

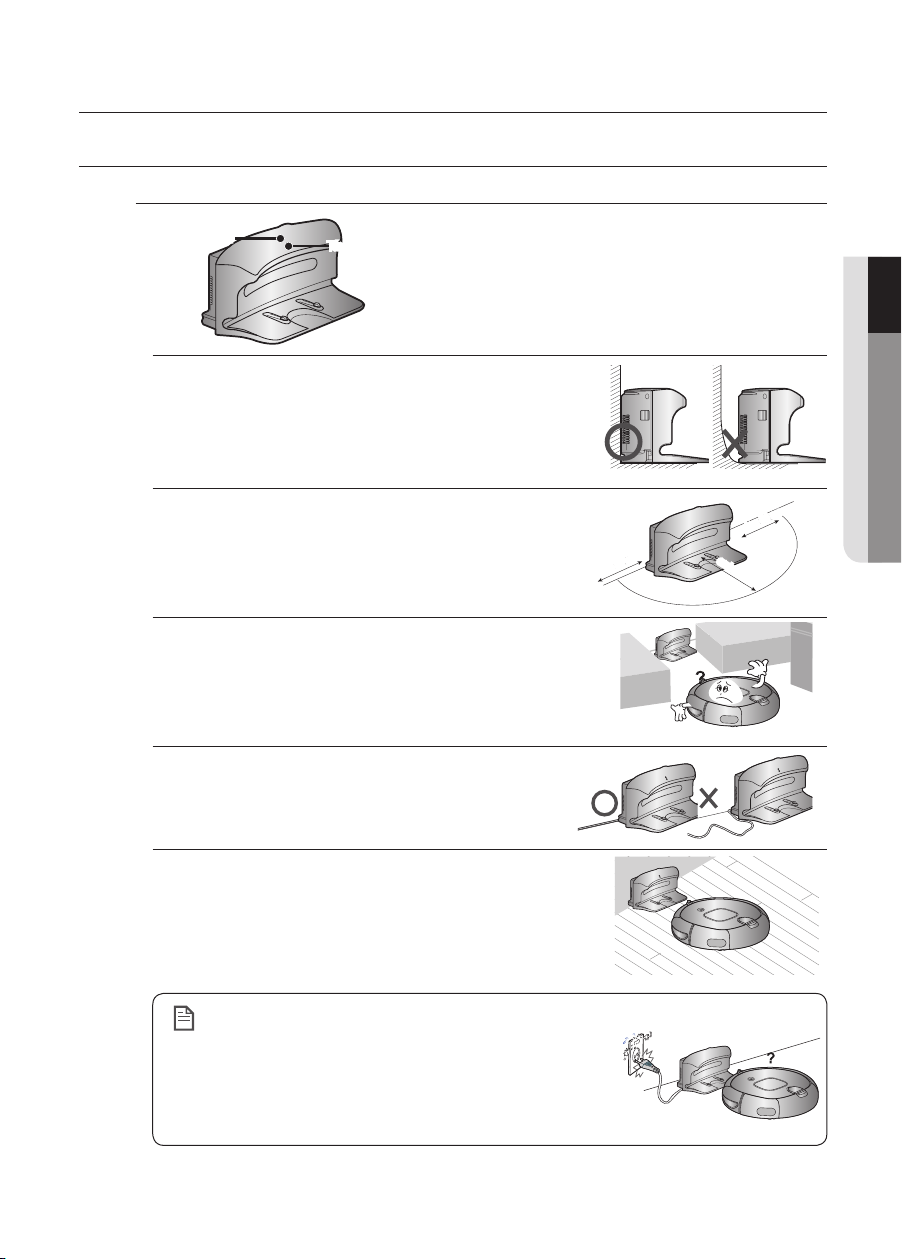

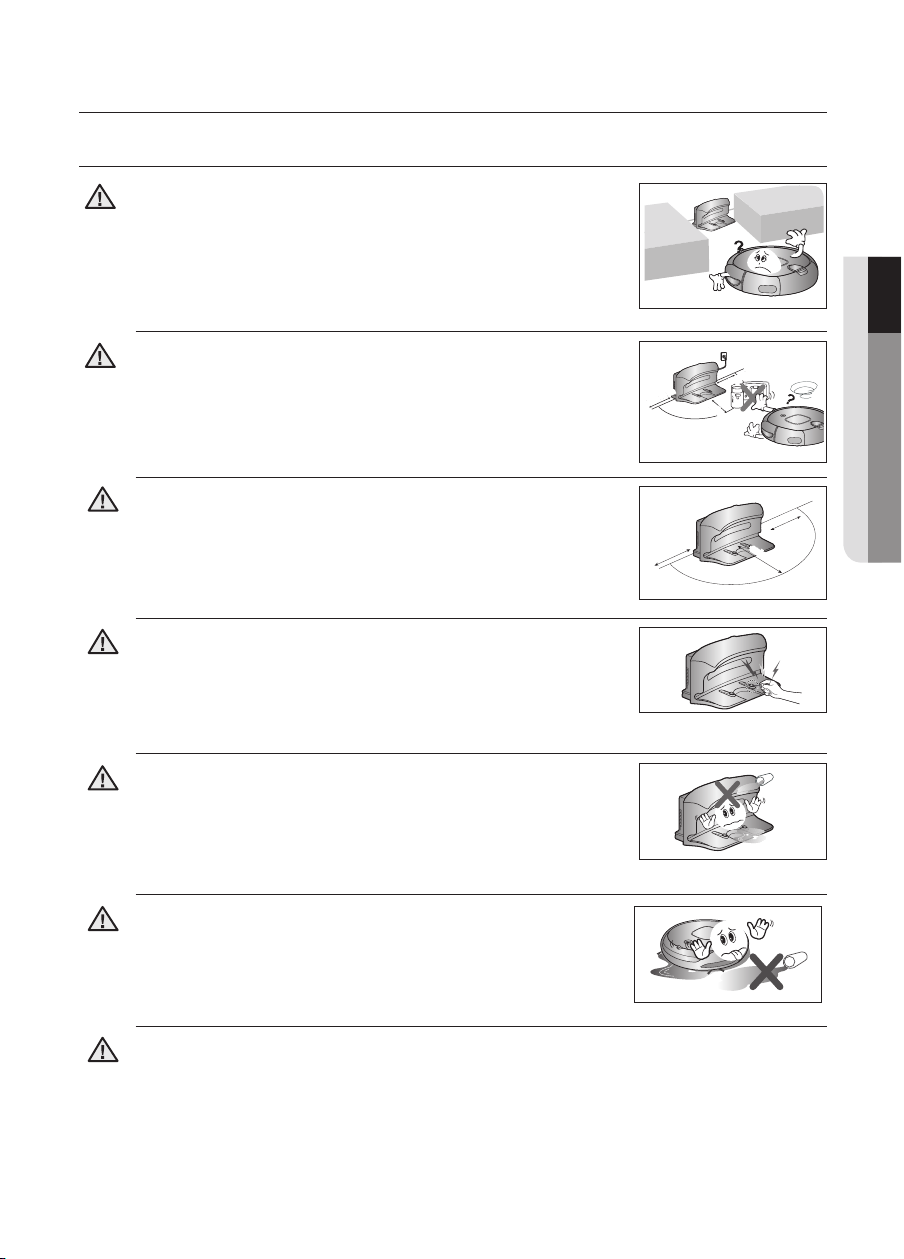

Install the charger in a location that can be easily accessed by the robotic vacuum cleaner.

- If the charger is installed in a corner, this may cause extra

movements and may disturb the automatic recharging process.

Do not use the charger for other purposes.

- This may result in critical damage to the charger or cause a re.

WARNING

Make sure the robotic vacuum cleaner does not vacuum or move over liquids such as water, oil or pet litter.

This may result in critical damage to the product.

Liquids may spread through the wheels resulting in contamination.

WARNING

Objects in front of the charger will prevent the robotic vacuum cleaner from auto-charging itself.

- Clear the area.

CAUTION

There should be no obstacles 0.5m from the side and 1m from the side of the charging station.

WARNING

Make sure that there is no trace of liquids on the charger station.

- Failing to do so may result in re or electric shock.

WARNING

Do not short-circuit the charge pins with metal objects such as chopsticks, screwdrivers, and etc.

- This will result in critical damage to the charger.

WARNING

10_ Safety information

Safety information

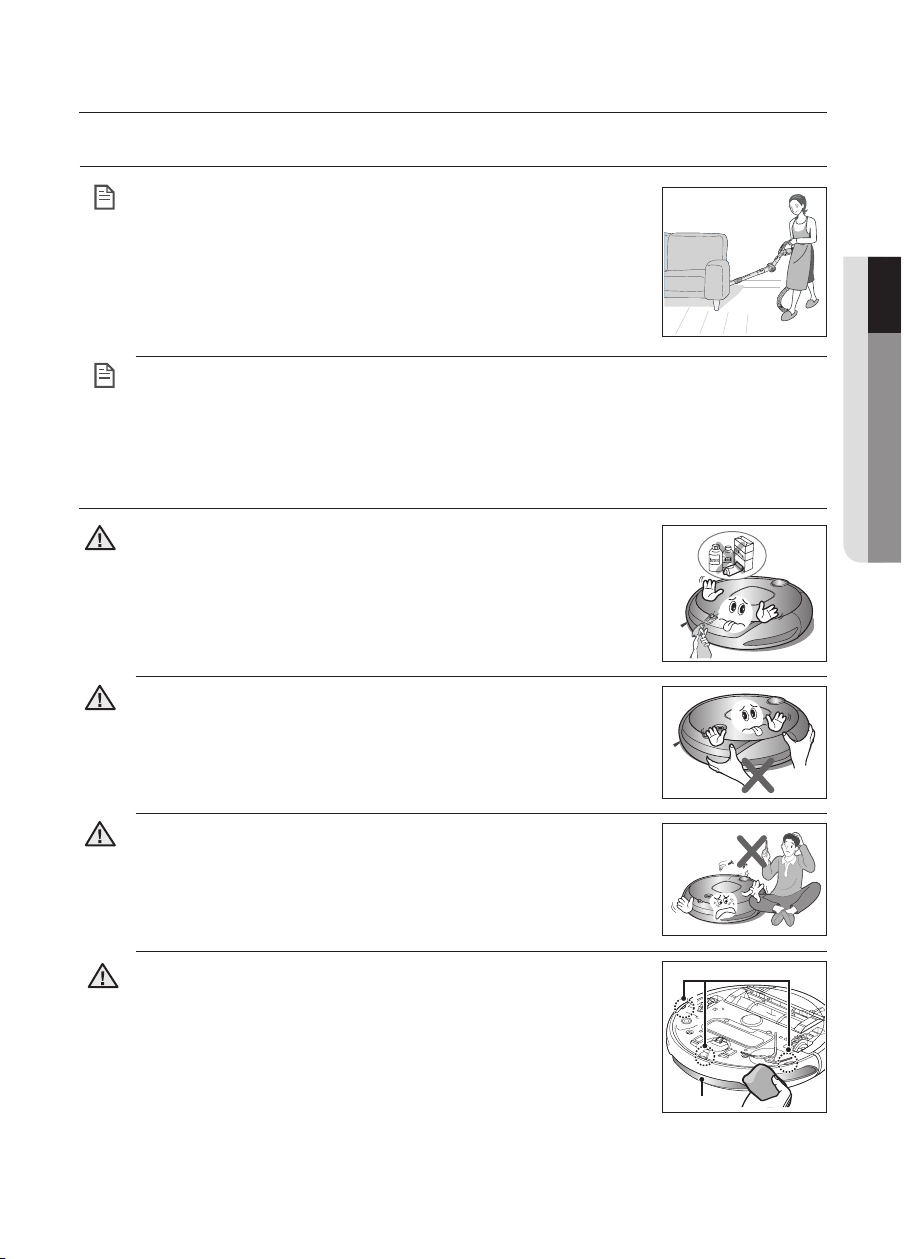

NOTE

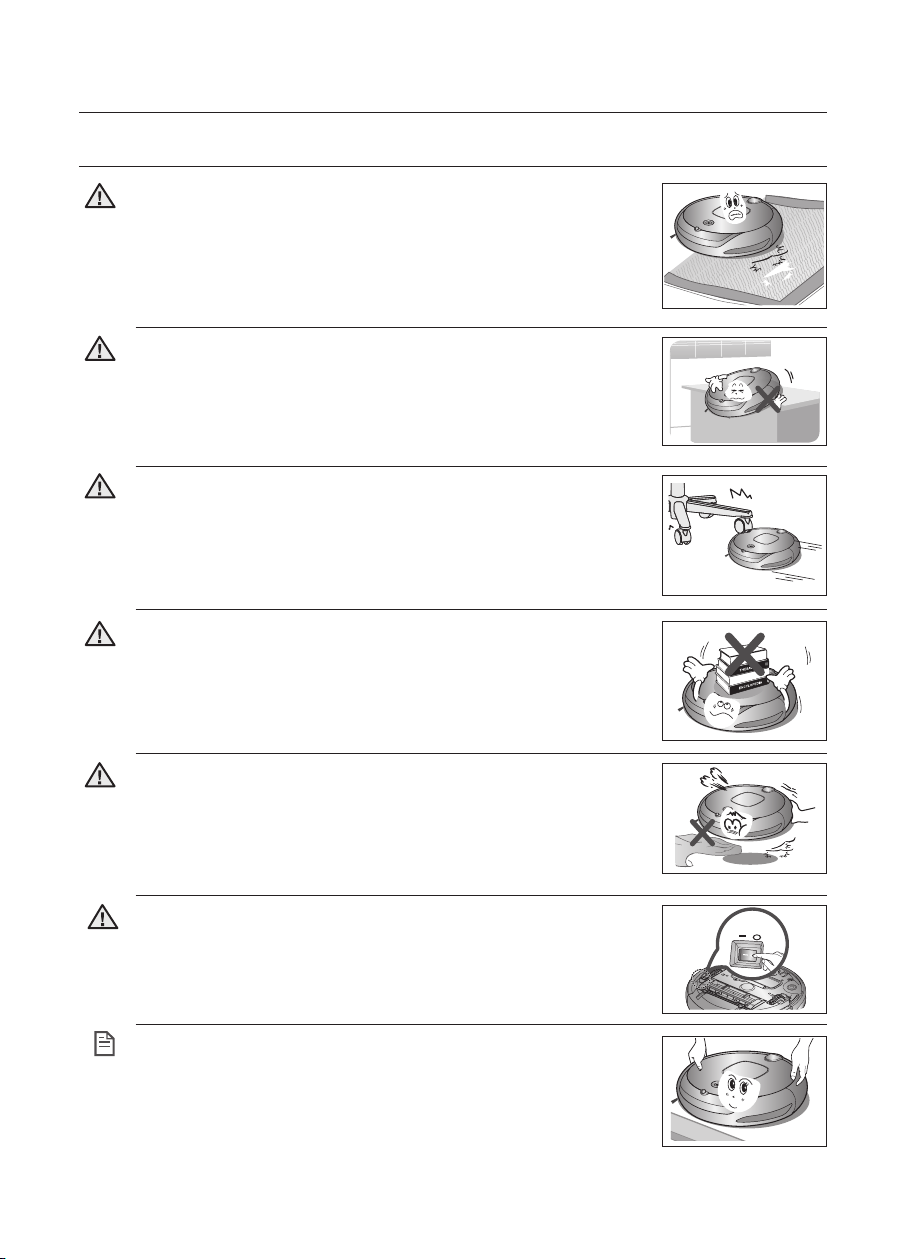

IN USE

You cannot use the robotic vacuum cleaner on thick carpets.

- This may result in problems with the robotic vacuum cleaner.

- This may result in damage to carpets.

Robotic vacuum cleaner may not be able to continue its operation if it is stuck at the entrance or veranda doorsill.

- Robotic vacuum cleaner stops operating for safety reasons if it

cannot move for more than 5 minutes.

- To resume operating, turn the Power Switch off and then on again

after moving it to a location where it can continue cleaning.

If an unusual sound, smell or smoke is emitted from the robotic vacuum cleaner, immediately turn off the Power Switch and call the customer care center.

WARNING

Do not use the robotic vacuum cleaner on a table or other high locations.

- This may result in damage when the unit accidentally drops.

CAUTION

Robotic vacuum cleaner may bump into furniture such as chair legs, table legs, thin and long furniture, and etc. while operating.

- For a quicker and cleaner performance, place the chairs on top of

the table.

Immediately remove any large pieces of paper or plastic bags from the machine while cleaning.

- Using the machine for an extended period of time with its inlet port

obstructed, may result in critical damage to the product.

Do not place any objects on top of the robotic vacuum cleaner.

- This may result in malfunction.

CAUTION

OFF

Safety information _11

Safety information

01 SAFETY INFORMATION

NOTE

IN USE

Robotic vacuum cleaner cannot completely clean locations that it cannot reach, such as corners, and spaces between sofas and walls.

- Please clean these locations occasionally.

Dust clusters may remain after cleaning, when the robotic vacuum cleaner fails to pick up dust clusters that were formed while cleaning.

- In this case, sweep up the dust with another cleaning tool.

CLEANING AND MAINTENANCE

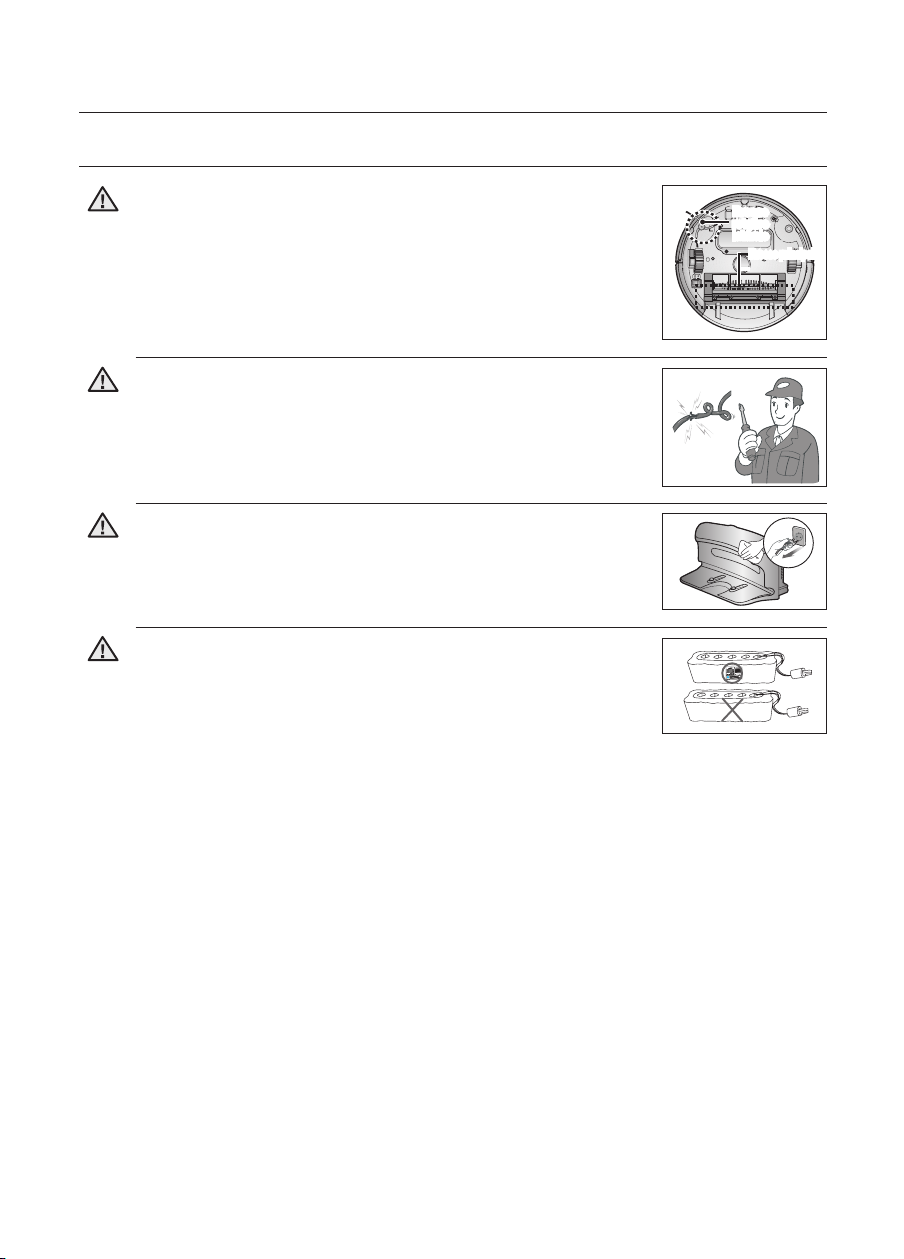

When cleaning the product, do not spray water directly onto the exterior or wipe it with a volatile material such as benzene, thinner or alcohol.

- This may result in critical damage to the product.

CAUTION

The unit must not be disassembled or reconstructed by anyone other than a qualiﬁed service engineer.

- This may result in damage to the product.

CAUTION

Do not forcefully press the bumper on the robotic vacuum cleaner.

- If the bumper sensor gets damaged, the robotic vacuum cleaner may

bump into walls or furniture.

CAUTION

Remove any foreign substances accumulated on the Obstacle and Cliff sensors on a regular basis.

- Dirt accumulated on the sensors will result in inaccurate functioning

of the sensors.

WARNING

추락방지 센서

Cliff sensor

Obstacle

sensor

12_ Safety information

Safety information

CLEANING AND MAINTENANCE

Contact the Samsung Electronics customer care center to replace the battery.

- Failing to use original batteries will result in product failure.

WARNING

If the power cord is damaged, have it replaced by a qualiﬁed service engineer from the customer care center.

- Failing to do so may result in re or electric shock.

WARNING

Before cleaning the charger, make sure to disconnect the power cord for safety.

WARNING

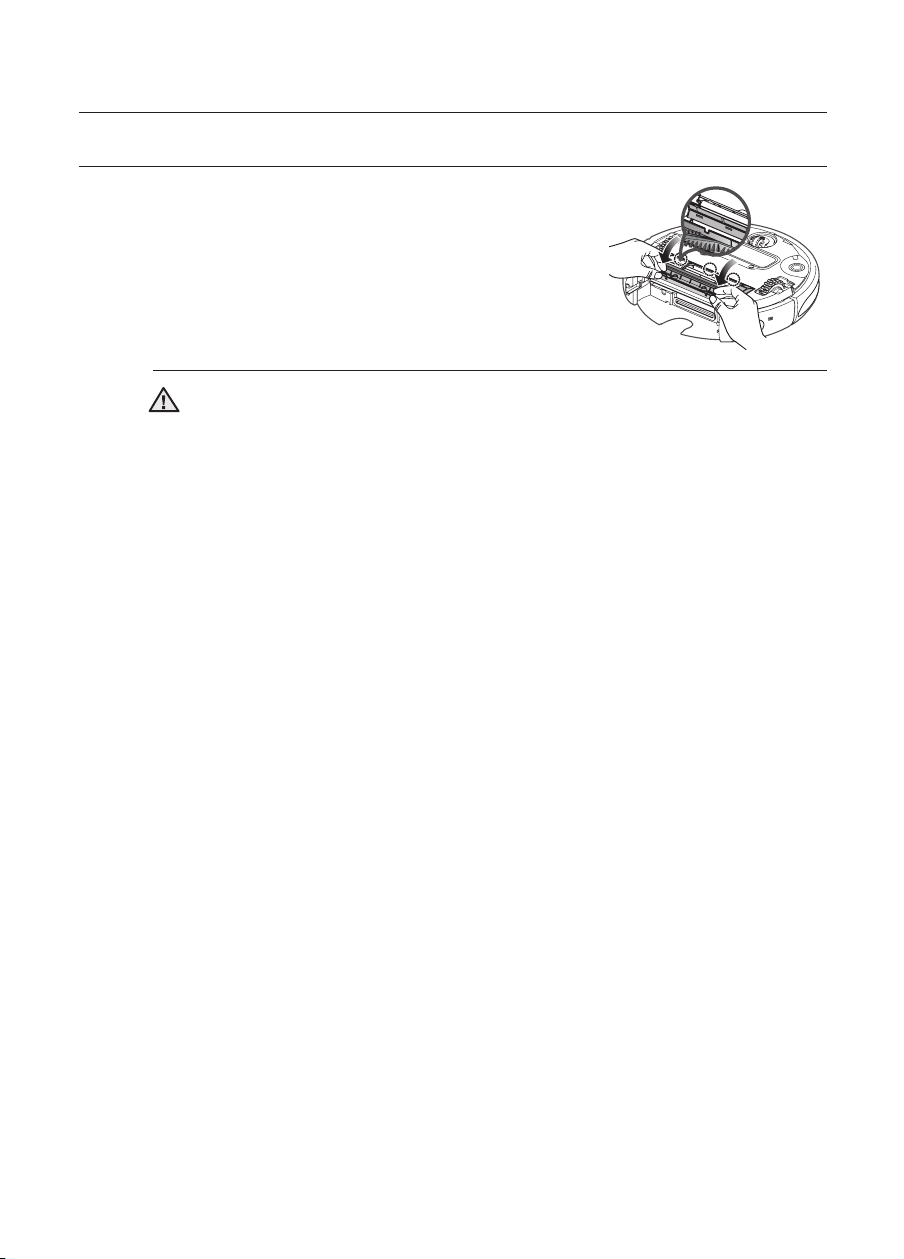

When removing foreign substances, always use the cleaning brush after turning the Power Switch off.

- Failing to do so may result in sudden operation of the unit and

cause an injury or critical damage to the product.

WARNING

측면

회전솔

측면

회전솔

측면

회전솔

측면

회전솔

측면

회전솔

측면

회전솔

측면

회전솔

측면

회전솔

측면

회전솔

측면

회전솔

측면

회전솔

Edge-

cleaning

side brush

파워브러시

Power brush

✽ Battery information :

AA Size Ni-MH, UNION SUPPO, Model HPY, 12 (EA).

Product Features _13

Product Features

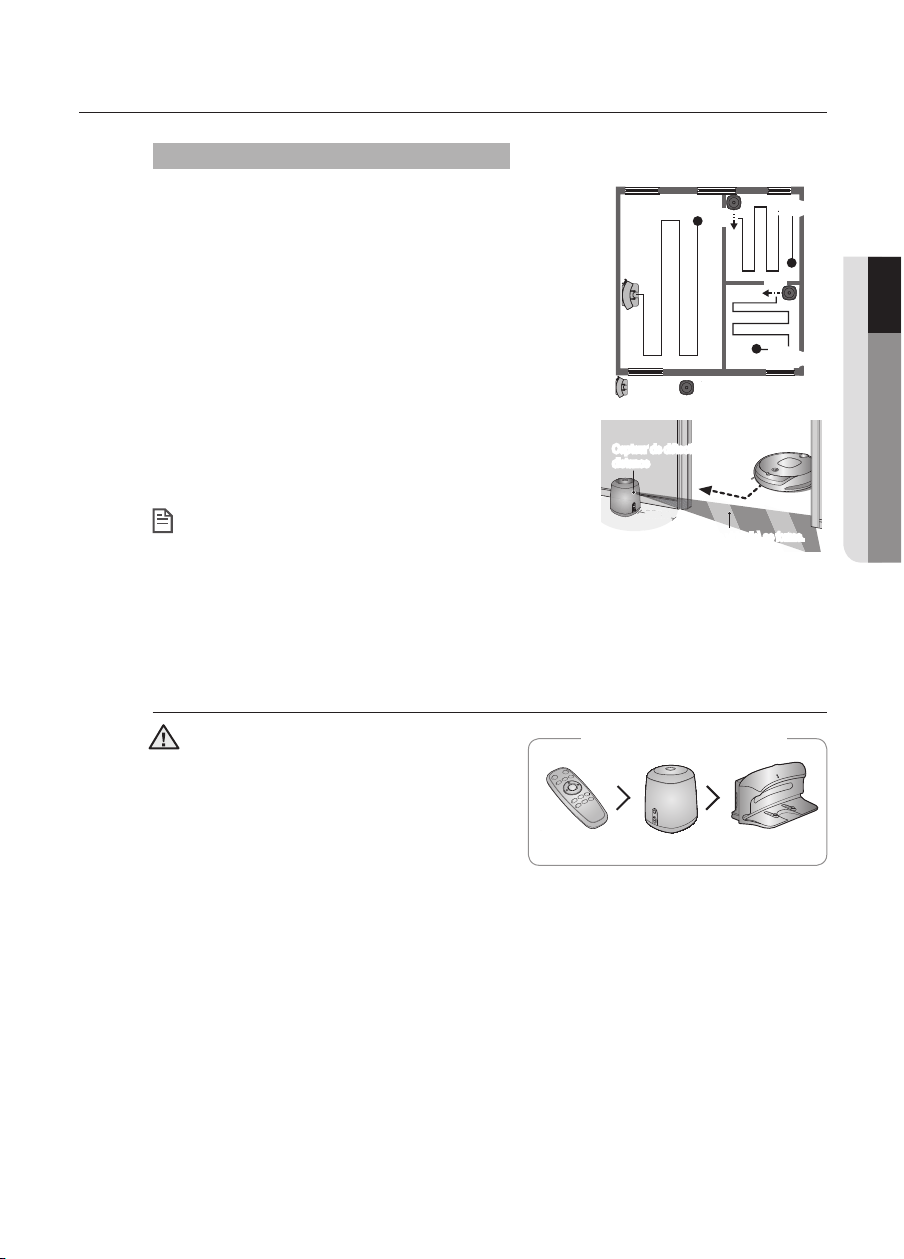

CONVENIENT SMART GATE FUNCTION

You can conne the robotic vacuum cleaner to a particular section by using the Fence (virtual

wall) mode or by cleaning several sections one by one using the Guard (virtual door) mode.

• What is ceiling shape recognition

(Visionary mapping

This function recognizes the shape of the ceiling using the camera on top to identify the area to be cleaned and determines the best way to pass over and clean every section of the ﬂoor.

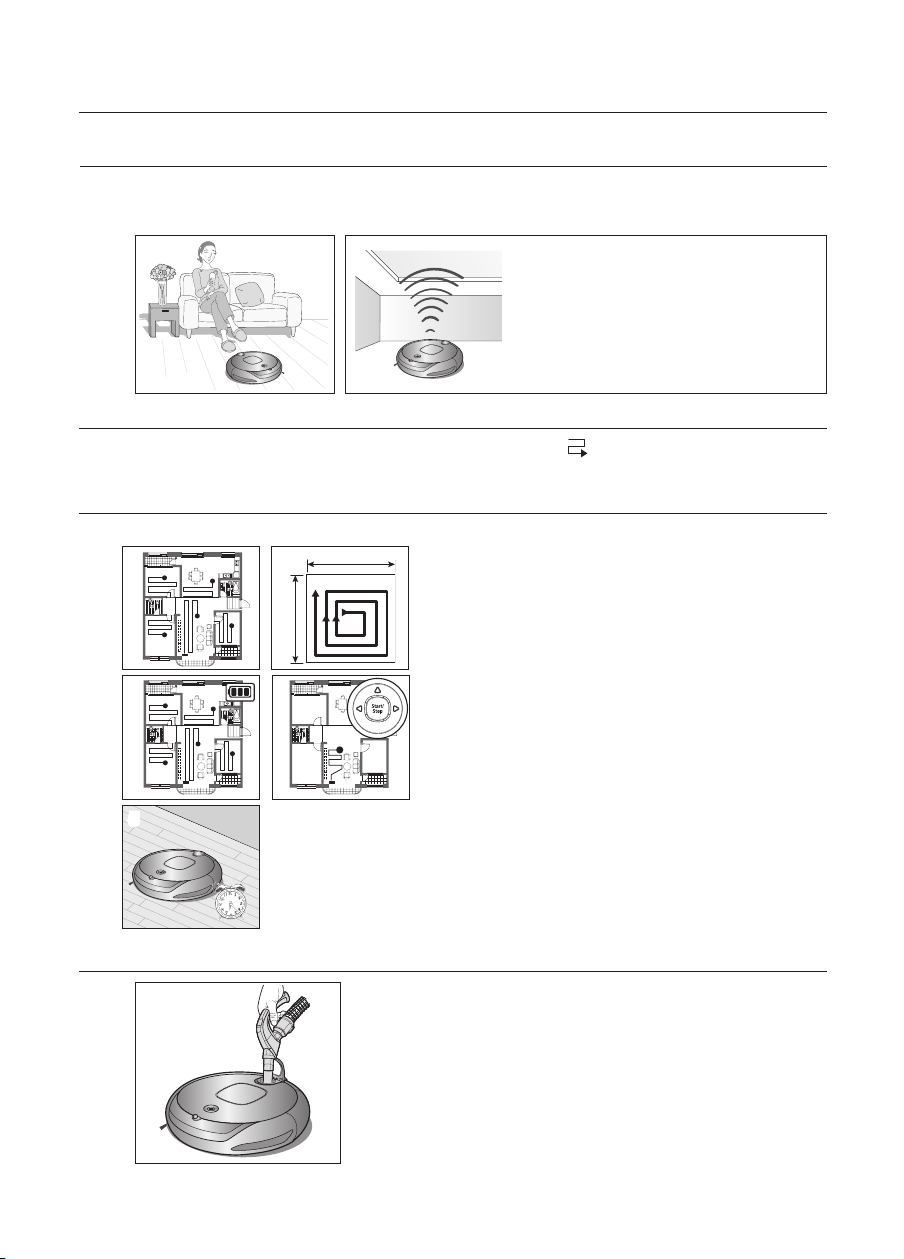

VARIOUS CLEANING MODES

Various cleaning modes are provided to meet all your needs.

DELICATE CLEANING OF EVERY CORNER

Since the robotic vacuum cleaner cleans the oor in a sequential way ( ) along the map determined by the ceiling shape recognition function, it cleans every corner of the ﬂoor.

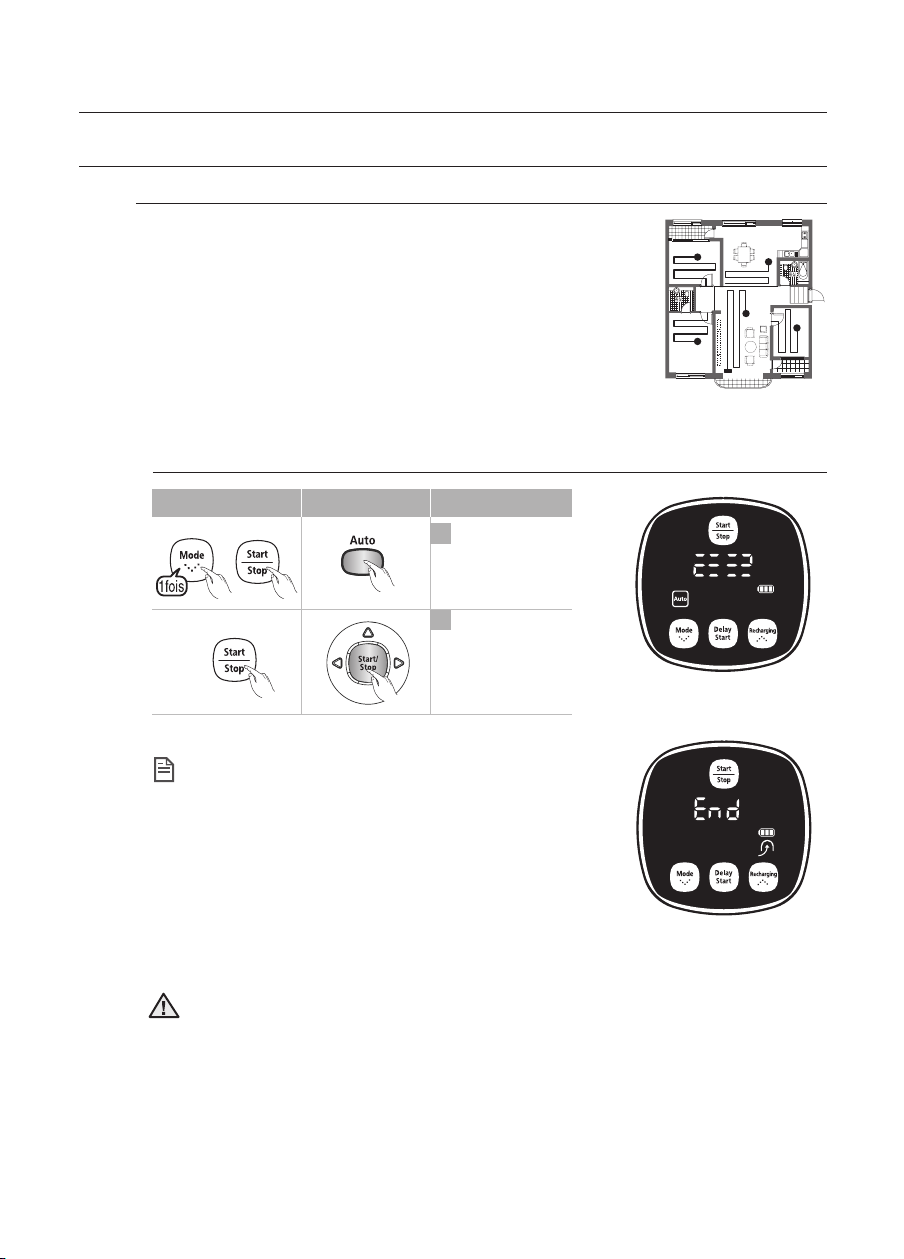

1. Auto Mode

Cleans all rooms automatically.

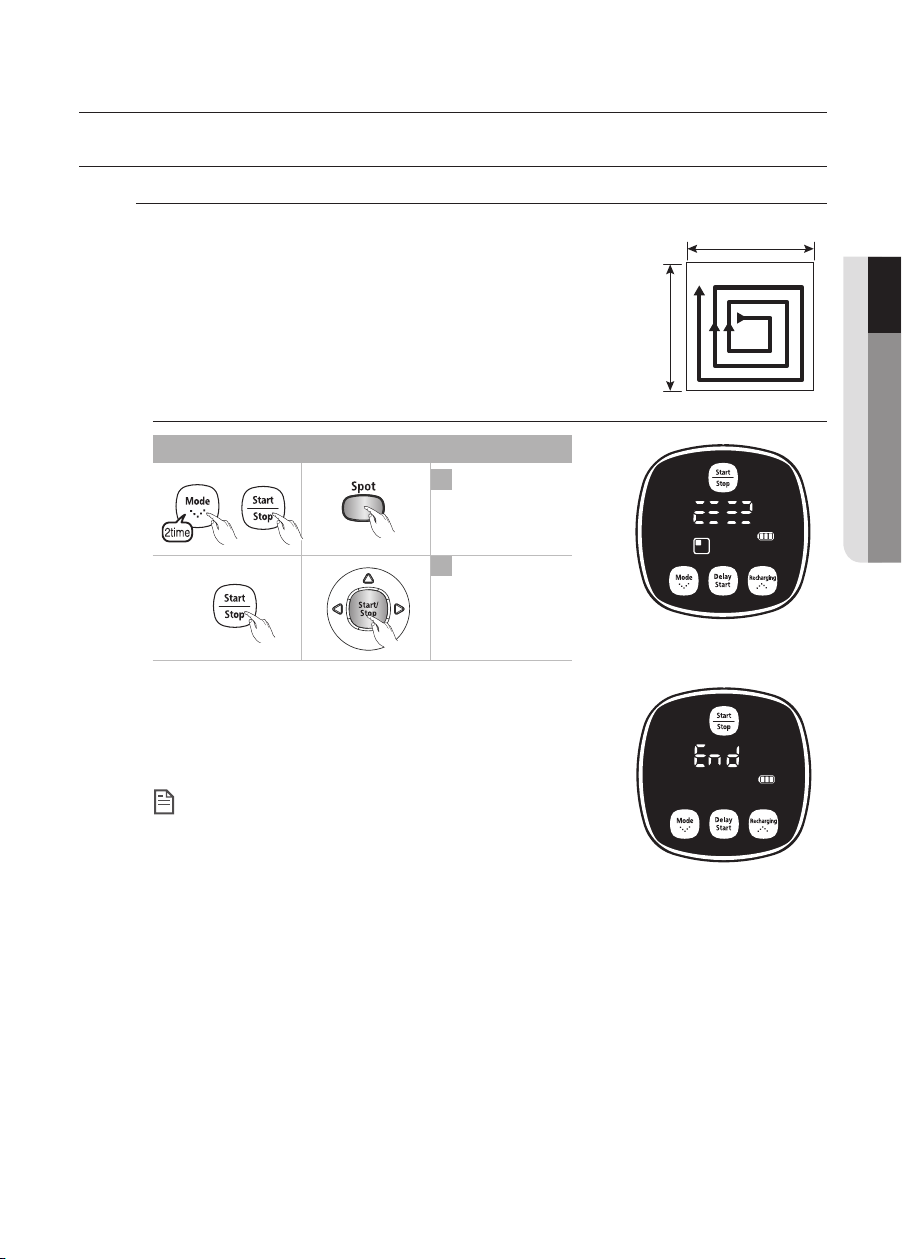

2. Spot Mode

Cleans a localized area intensely. It can be used to clean bread or cookie crumbs.

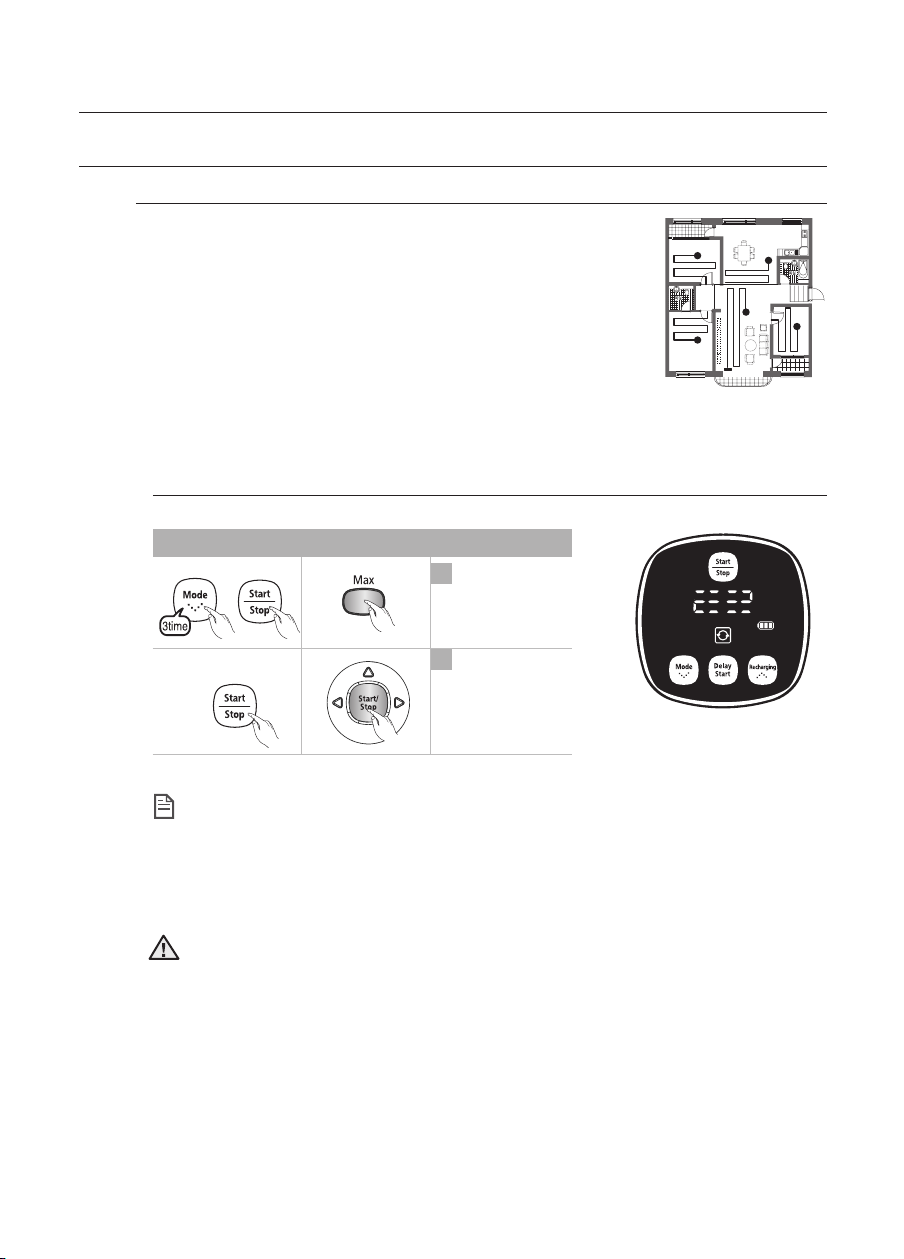

3. Max Mode

Runs until the battery is nearly depleted.

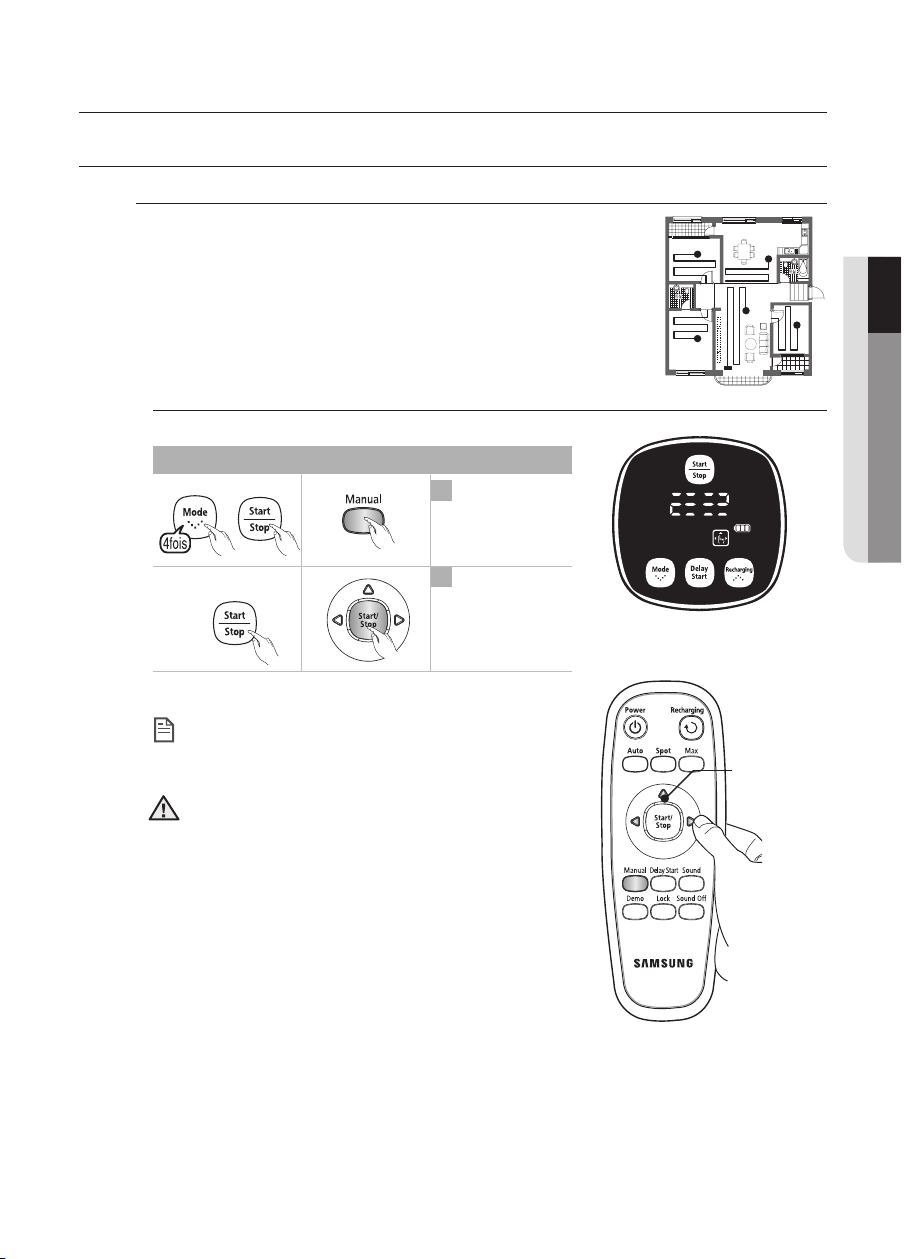

4. Manual Mode

You can clean the ﬂoor manually by moving the robotic vacuum cleaner with a remote control.

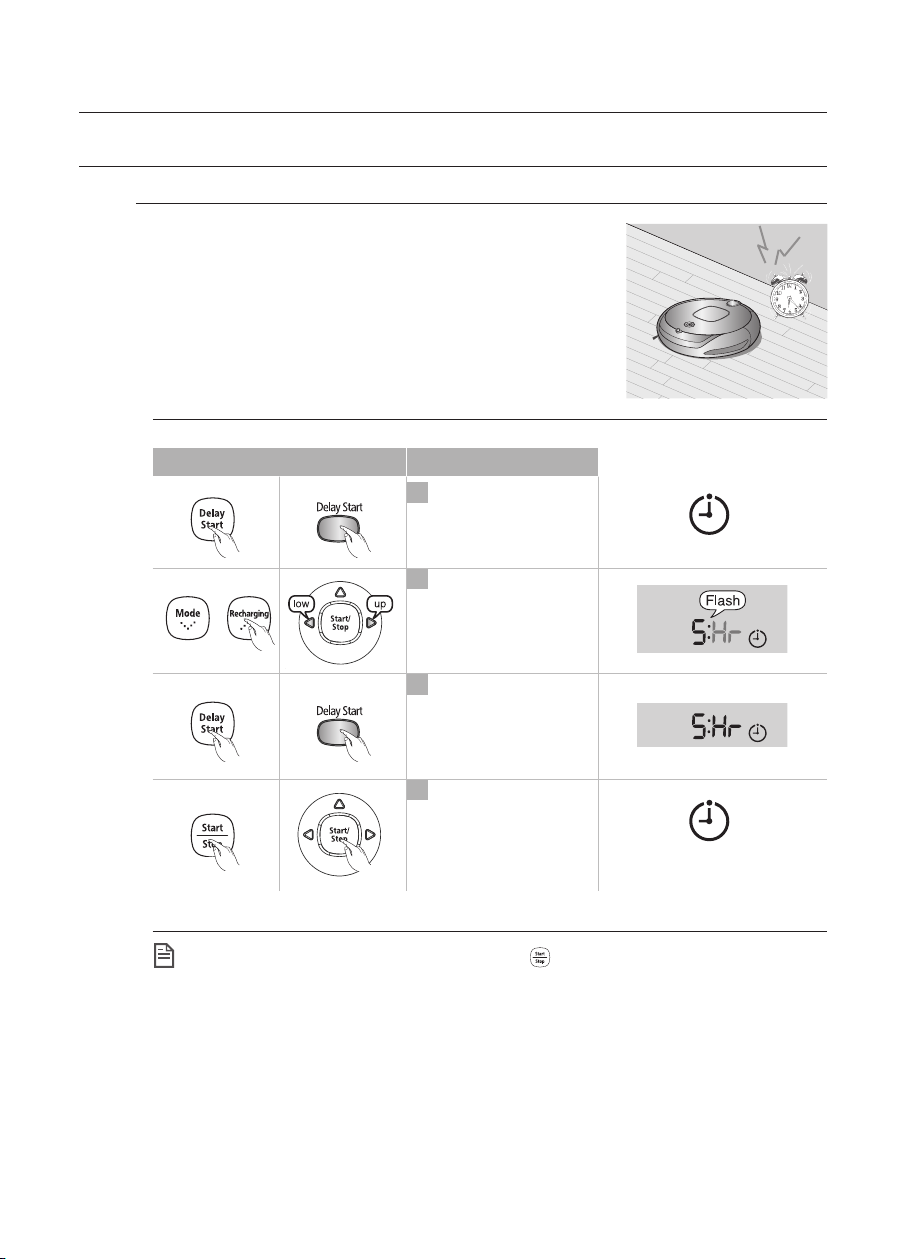

5. Scheduled Cleaning Mode

At the specied time, the robotic vacuum

cleaner cleans the ﬂoor.

QUICK DUST EMPTY

The dust outlet on top of the unit enables emptying the

dust bin quickly using a normal vacuum cleaner without

dust ﬂying around.

About 1.5m

14_ Product Features

Product Features

DOORSILL CROSSING

The robotic vacuum cleaner’s innovative driving system makes it possible for it to cross over doorsills with a height of about 1 cm and clean all rooms. The robotic vacuum cleaner has been designed so that it does not cross over doorsills that are higher than 1 cm for safety purposes.

ANTI-CRASH

The robotic vacuum cleaner detects and avoids obstacles in 2 stages. First, the 7 obstacle sensors detect obstacles in stage 1 and if the robotic vacuum cleaner does crash into an obstacle, the 2 bumper sensors absorb the impact.

EDGE-CLEANING SIDE ROTATING BRUSH

The edge-cleaning side rotating brush cleans dust from the

edges.

AUTO CHARGING

When the battery is low, the robotic vacuum cleaner is automatically guided to the charger to enable it to perform a

quick auto charge.

ANTI-FALLING

SAFETY DEVICE

The 3 Cliff sensors detect downward steps such as stairs or the front door threshold to prevent robotic vacuum cleaner from falling down stairs.

When robotic vacuum cleaner is lifted up while cleaning, automatically driving wheels, power brush, suction motor, side rotating brush are stopped by sensor’s detecting.

Stair type Vertical type

About 1 cm

Assembling the cleaner _15

Assembling the cleaner

02 ASSEMBLING THE CLEANER

COMPONENTS

■

Charger (Station)

■

Main Body

■

Others Components

■

Remote Control

User Manual /

2 Batteries

2 Smart gates

Cleaning Brush

Remote Control

Holder

Spare HEPA Filter

16_ Assembling the cleaner

Assembling the cleaner

NAME OF EACH PART

[ Main unit ]

Side

Bottom

Front

Operating Button

Dust Outlet

Smart gate Sensor

Obstacle Sensor

Display Panel

Camera

Obstacle Sensor

Bumper Sensor

Smart gate Sensor

Remote Control Sensor

Dust Bin

Dust Bin Eject

Button

Dust Outlet

Driving Wheel

Battery Cover Power Brush

Power Brush Cover

Power Switch

Driving Wheel

Cliff Sensor

Charge Pin

Cliff Sensor

Charge Pin

Roller

Assembling the cleaner _17

Assembling the cleaner

02 ASSEMBLING THE CLEANER

NAME OF EACH PART

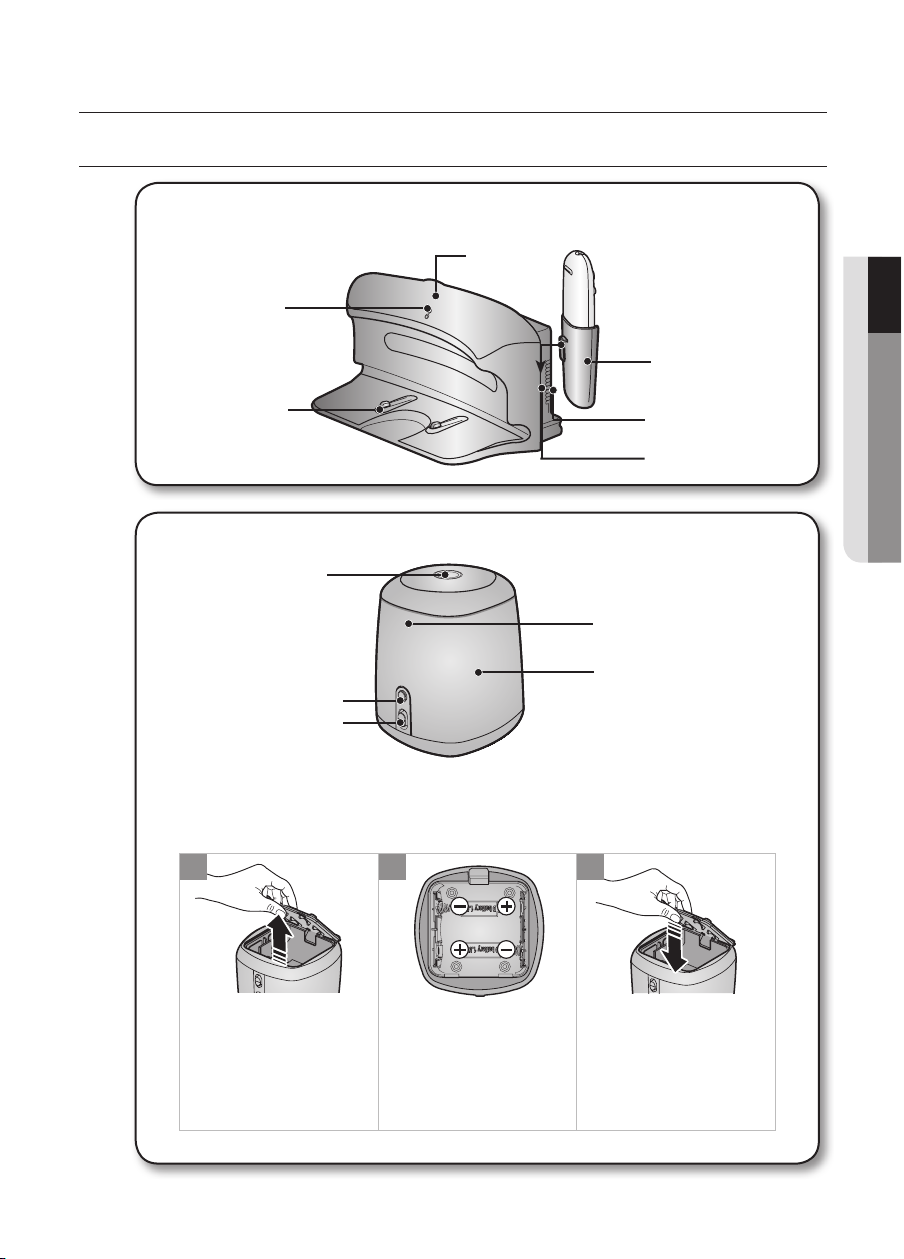

[ Charger (Station) ]

[ Smart gate ]

Mode/Power Button

Distance Control

Switch

Distance Detection Sensor

Main Body Detection Sensor

Mode Lamp

Batteries are not supplied with the product. You have to purchase the batteries additionally. Install the alkaline batteries (type D) before use.

■

Installing the batteries

Lift the cover of the Smart gate while pressing the locking tab.

Install the batteries into the Smart gate as shown

by the gure below. (If the

batteries are installed with the incorrect polarity, the Smart gate will not work.)

After inserting the tip of the cover into the slot, push the other end to close it until it clicks into place.

1 2 3

✽ Specication: Alkaline Type D (LR20) batteries

Charge Pin

Remote Control Holder

Vents

Catching Sill

Charging Lamp

Power Lamp

18_ Assembling the cleaner

Assembling the cleaner

NAME OF EACH PART

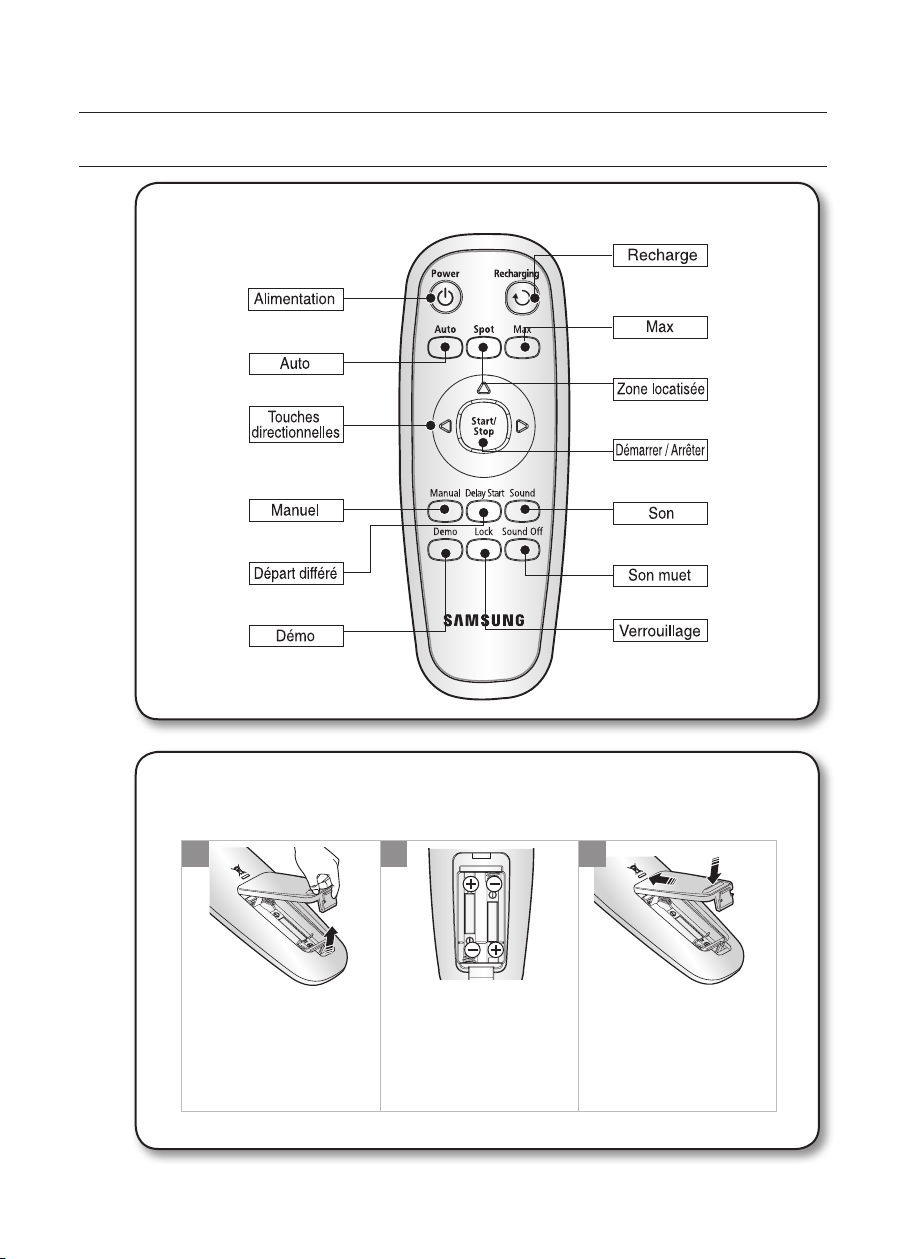

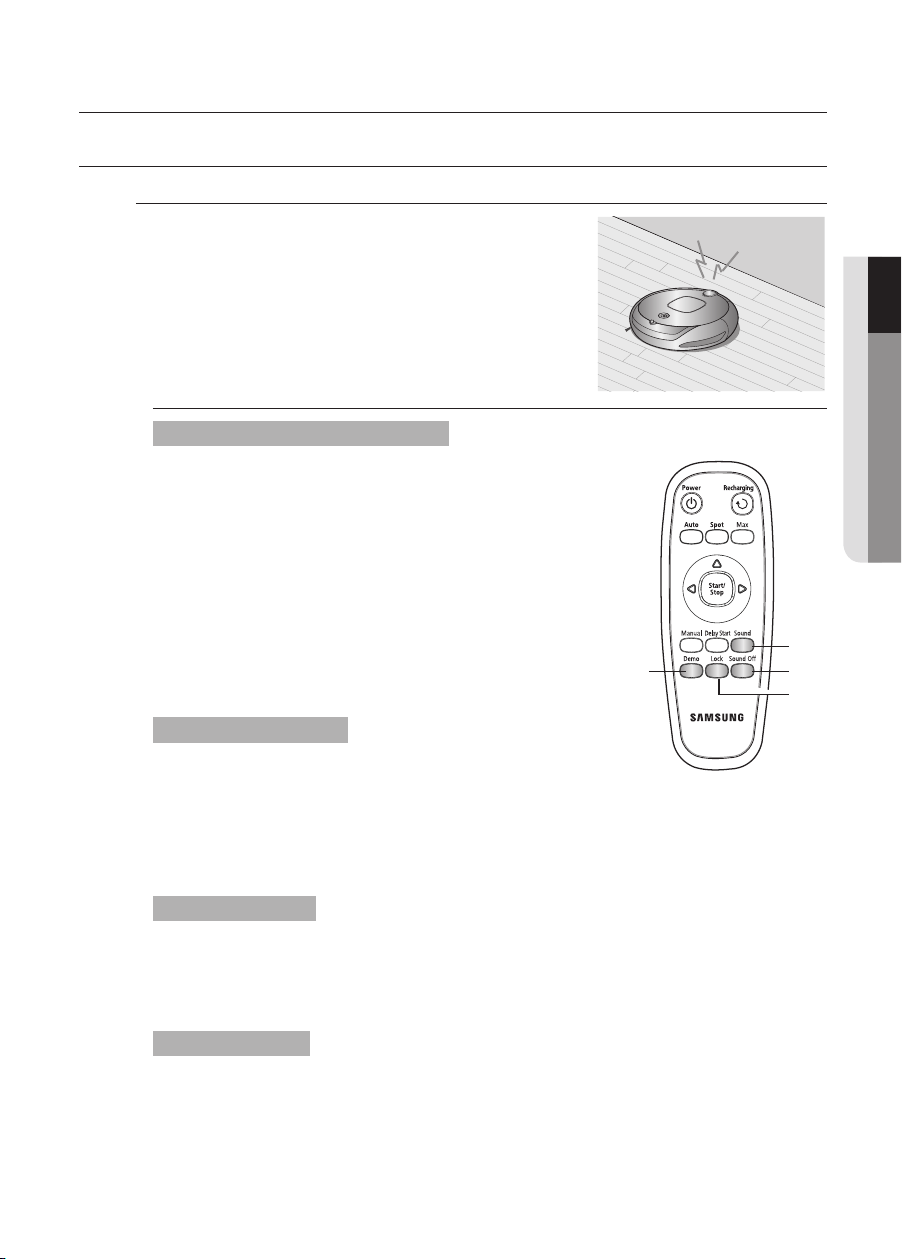

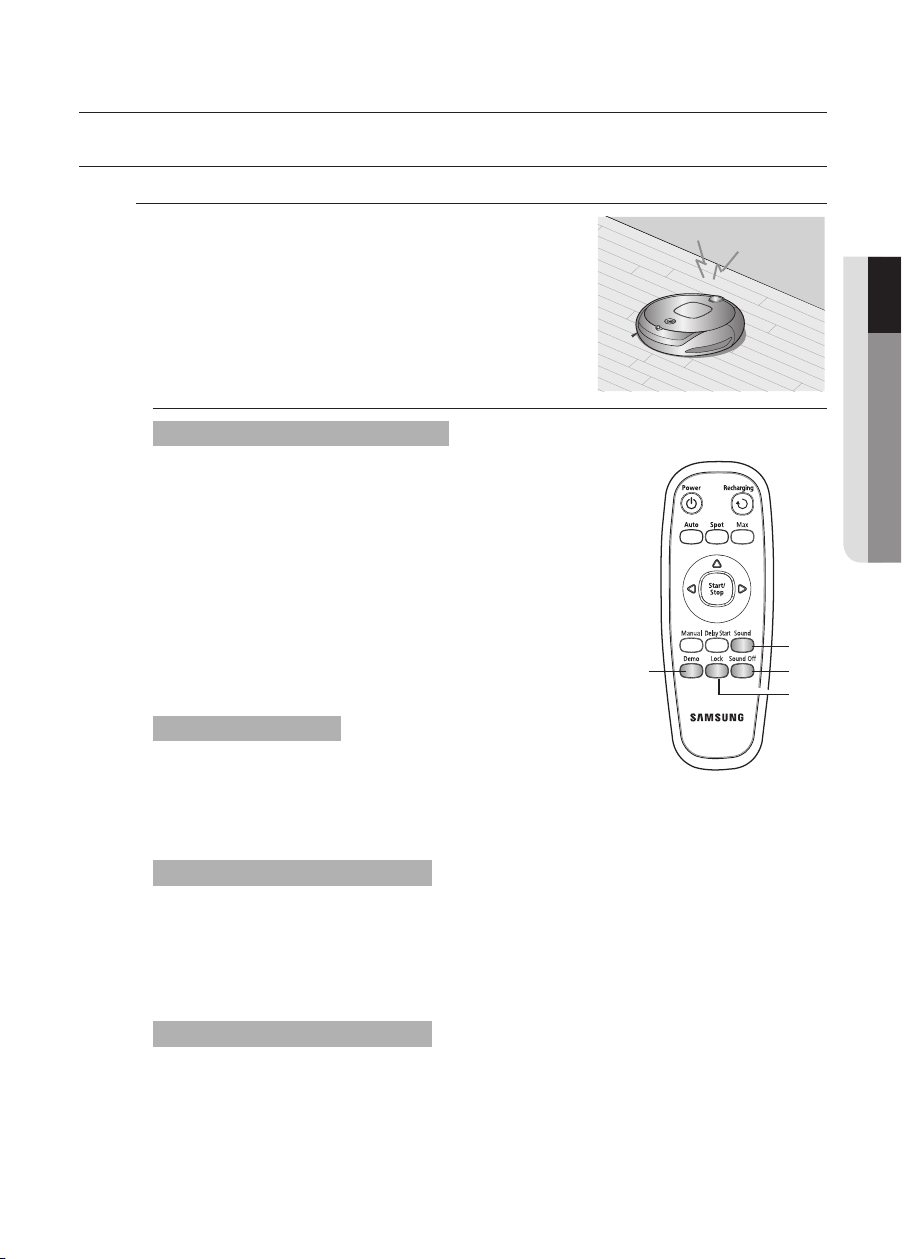

[ Remote Control ]

Power

Auto

Recharging

Max

Spot

Start/Stop

Sound

Sound Off

Lock

Directional Buttons

Delay Start

Demo

Manual

Lift the battery compartment cover at the back of the remote control, while pressing the locking tab.

Install the batteries into the remote control as shown

by the gure below. (If the

batteries are installed with the wrong polarity, the remote control will not work.)

After inserting the tip of the cover into the slot, push the other end to close it until it clicks into place.

1 2 3

✽ Specication: Alkaline type AAA batteries

Batteries are not installed in the remote control when purchasing the product. Install the alkaline batteries (type AAA) before use.

■

Installing the Remote Control Batterise

Assembling the cleaner _19

Assembling the cleaner

02 ASSEMBLING THE CLEANER

NAME OF EACH PART

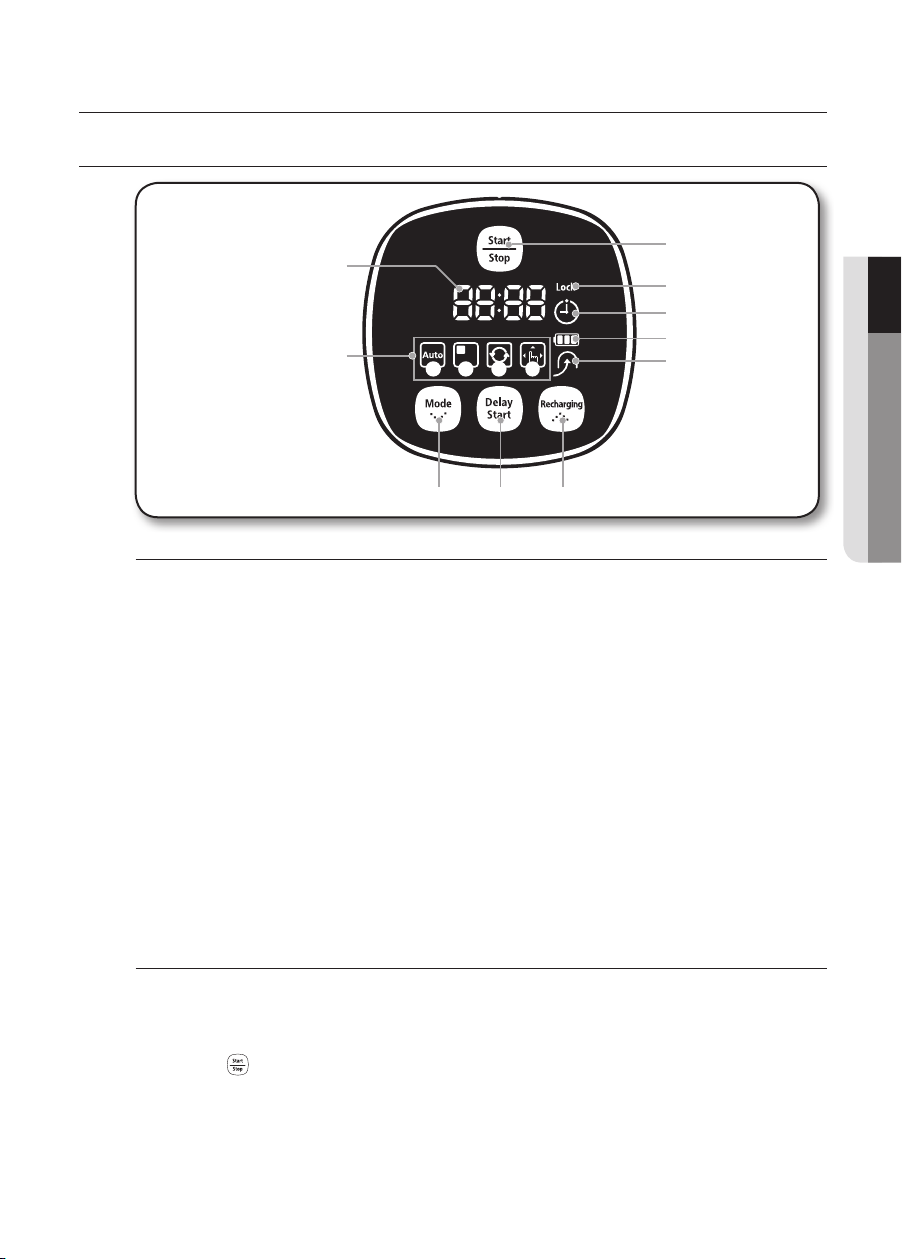

[ Display panel ]

DISPLAY PART

1. Number Display

- Shows the timer display, progress status, and error codes using numbers, letters and graphics.

2. Battery Level Indicator

- Charging: Shows the charging progress in 3 steps.

- In Use: Shows the battery charge level. The battery charge level is reduced by each level from FULL while

operating. (When the battery is fully discharged, one level will ﬂash to display “LO”.)

3. Scheduled Cleaning

- When cleaning is scheduled, the Scheduled Cleaning icon is lit.

4. Lock

- If the Lock remote control button is pressed, the main body panel buttons are locked.

5. Recharging

- This icon turns on when the robotic vacuum cleaner returns to the charger station to charge its battery.

6. Cleaning Mode Display

- Each time the cleaning mode button is pressed, the corresponding cleaning mode is displayed.

(a) Auto Mode: This icon turns on when Auto cleaning mode is selected. (b) Spot Mode: This icon turns on when Spot cleaning mode is selected. (c) Max Mode: This icon turns on when Max cleaning mode is selected. (d) Manual Mode: This icon turns on when Manual cleaning mode is selected.

BUTTON PART

7. Start/Stop

- Press to start/stop cleaning.

8. Cleaning Mode

Press to select a cleaning mode. After selecting a cleaning mode, press the ( ) button to start cleaning.

9. Delay Start

- Press to schedule a cleaning. You can delay a cleaning up to 23 hours.

10. Recharging

- When this button is pressed, the Recharging icon is turned on and robotic vacuum cleaner will return to

the charger station to charge its battery.

2 5

9 108

ⓐ ⓑ ⓒ ⓓ

20_ Operating the cleaner

Operating the cleaner

INSTALLATION ORDER

1. Turning the Power Switch on or off

To use the robotic vacuum cleaner, you must turn on the Power Switch at the

bottom of the main unit.

2. Installing the Charger

To charge the robotic vacuum cleaner, you must rst install

the charger.

Since the battery is discharged when the product is

purchased, you must fully charge the battery before use.

3. Charging the Battery

You should charge the battery completely before using the

robotic vacuum cleaner.

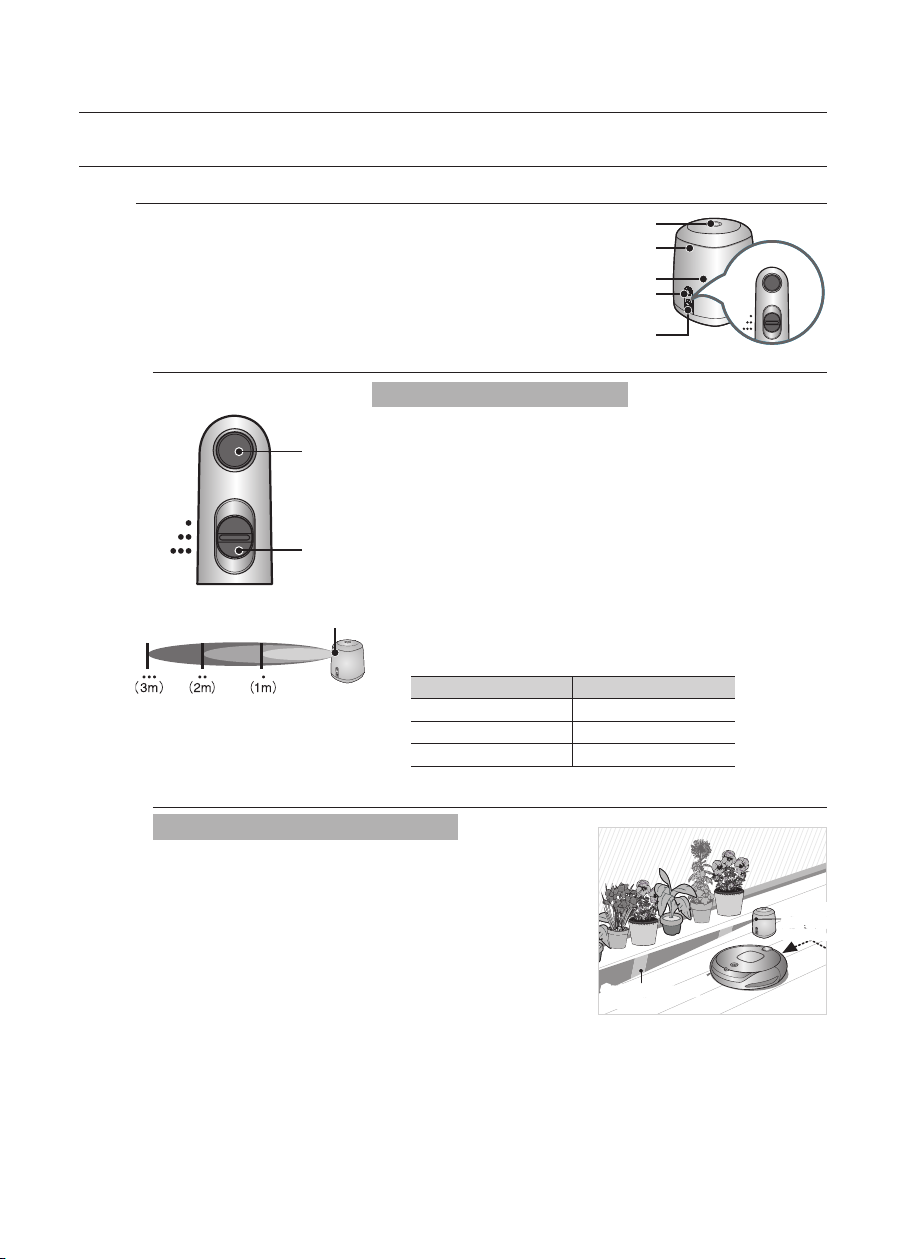

4. Installing the Smart gate

You can conne the robotic vacuum cleaner to a particular

section by using Fence (virtual wall) mode or clean several sections one by one using Guard (virtual door) mode.

INSTALLING THE ROBOTIC VACUUM CLEANER

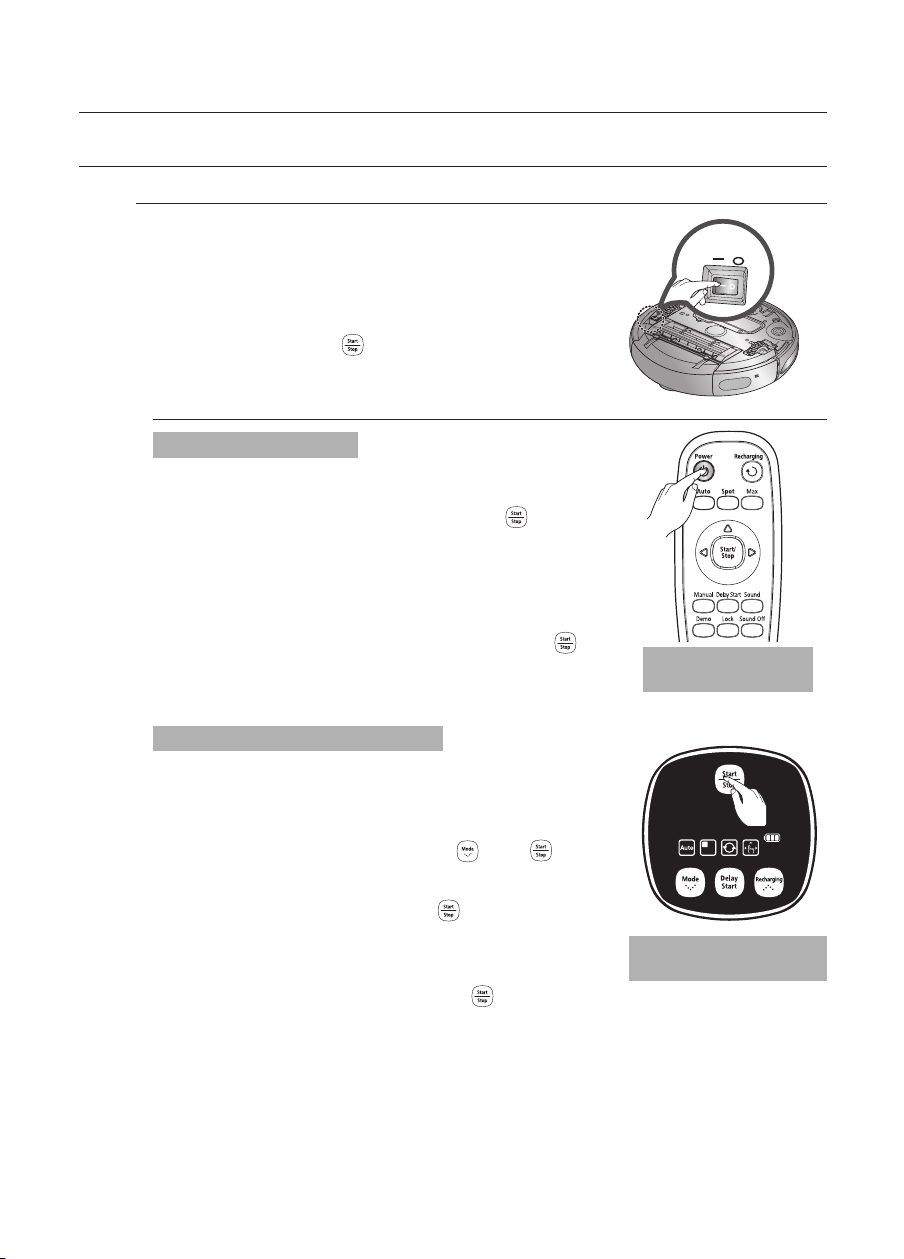

TURNING THE POWER SWITCH ON OR OFF

CAUTION

If the Power Switch is turned off, the robotic vacuum cleaner will not be charged even if it is docked with the charger station.

To use the robotic vacuum cleaner, you must turn the Power Switch on.

If you turn the Power Switch off, all settings will be reset.

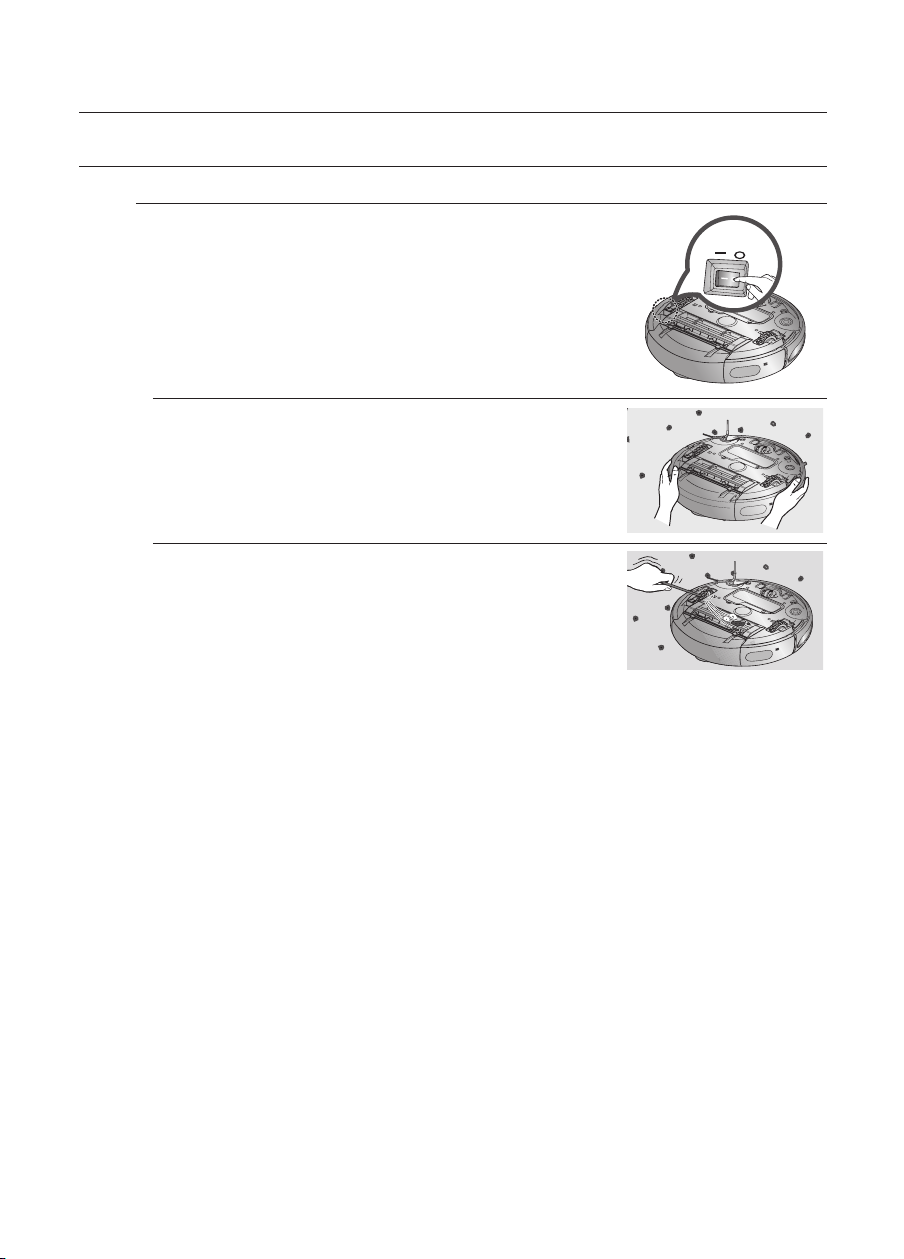

1. Turn over the main unit and turn the Power Switch on.

- If the icons are not turned on, it indicates that the

battery charge is depleted. In this case, dock the robotic vacuum cleaner to the charger station after turning the Power Switch on.

- Note that turning the Power Switch off will reset all

settings.

OFF

Operating the cleaner _21

Operating the cleaner

03 OPERATING THE CLEANER

INSTALLING THE ROBOTIC VACUUM CLEANER

INSTALLING THE CHARGER

Always keep the power cord of the charger plugged into the power outlet.

- If no power is supplied to the charger, the robotic vacuum will not be able to nd the charger and will

not be able to charge automatically.

- If the robotic vacuum cleaner is separated from the

charger, the battery is automatically discharged.

2. There should be no obstacles 0.5 m to the left and right and within 1 m of the front.

1. Install the charger on a ﬂat surface.

3. Install the charger in a location where it can be easily accessed by the robotic vacuum cleaner.

4. Arrange the power cord along the wall.

5. When the ﬂoor is made of wood, install the charger in the same direction as the grain of the wood.

Power Lamp

Charging Lamp

NOTE

22_ Operating the cleaner

Operating the cleaner

INSTALLING THE ROBOTIC VACUUM CLEANER

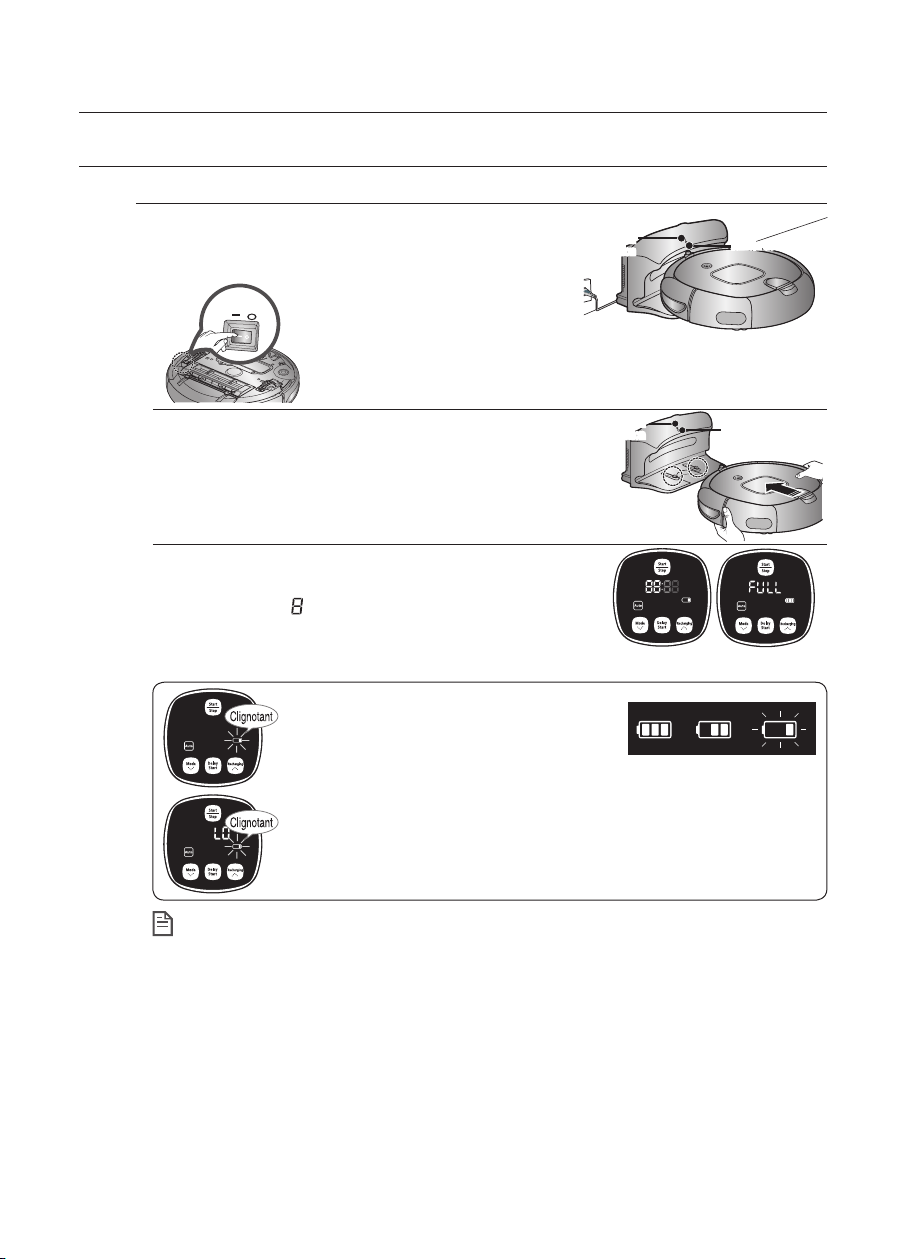

CHARGING

2. Check the charge status of the robotic vacuum cleaner.

- When charging starts, the battery level indicator and

“

” will be displayed in sequence in the display panel.

When charging is complete, the battery level indicator and “FULL” will be displayed in the display panel.

1. After aligning the charge pins of the main unit with the charge pin of the charger station, press the main unit until you hear a “Recharging power” sound from the charger.

- The Charging Lamp turns green.

When the product is initially purchased, the battery is fully discharged, and you must charge the robotic vacuum cleaner manually.

Power Lamp

Charging Lamp

Power

Lamp

Charging Lamp

NOTE

● When the product is initially purchased, it will take about 120 minutes to fully charge the battery and will run for about 90 minutes.

● When charging the battery while the battery is over-heated, the charging time can increase.

● Measures to take when charging is not smooth.

When the robotic vacuum cleaner cannot be automatically charged, check the following:

- Turn the Power Switch at the bottom of the robotic vacuum cleaner off and on (Reset).

- Re-plug the power of the charger (Reset).

- Check whether there are any foreign substances on the charge connector and wipe the

charge connector on the main unit and the charger with a dry cloth.

- Check whether there are objects near the charger that are strong reectors.

● When separating the robotic vacuum cleaner from the charger, it will discharge naturally.

- Charge the robotic vacuum cleaner through the charger, if possible. (When leaving your home

unattended for a long period of time due to a business trip, travelling etc., turn off the Power Switch of the robotic vacuum cleaner and unplug the power of the charger to store them.)

Turn on the Power Switch at the bottom of the product.

■

When the battery level display ﬂashes while cleaning, the robotic vacuum cleaner stops vacuuming and automatically charges itself at the charger.

■

When the battery level ﬂashes and “LO” is displayed while cleaning,

robotic vacuum cleaner cannot be operated by the remote controller or the buttons on the main unit. In this case, directly carry the robotic vacuum cleaner to the charger to charge the battery. (This is when the battery is completely discharged.)

Charge

complete

Charging Required

charging

OFF

Charging Fully charged

Operating the cleaner _23

Operating the cleaner

03 OPERATING THE CLEANER

INSTALLING THE ROBOTIC VACUUM CLEANER

ABOUT THE BATTERY

- This battery is only for Samsung robotic vacuums. It is strictly prohibited to use it for other

appliances or for other purposes.

- Do not disassemble or modify the battery.

- Charge it in a location with good ventilation.

- Do not expose the battery to re and do not heat it.

- Do not connect any metallic objects to the (+) or (-) terminals of the battery.

- Keep it indoors (0℃~40℃).

- Before you discard this product, dispose of batteries in an environmentally safe manner.

- Do not discard this batteries with your regular household trash.

- Follow all local regulations when disposing of old batteries.

■

The robotic vacuum cleaner is powered by an environment-friendly Nickel Metal Hydride

(NiMH) rechargeable battery, and an over-charge prevention function guarantees an

extended life time.

■

The battery warranty period is 6 months from the

date of purchase.

■

When purchasing a battery, ask the customer care

center for the genuine part symbol (

) and

model number before purchasing it.

✽ Battery information :

AA Size Ni-MH, UNION SUPPO, Model HPY, 12 (EA).

∗ If the battery is out of order, do not disassemble it. Contact your nearest customer care

center.

∗ An increased charging time and a shorter battery life indicates the near end of the battery

life. Please contact an authorized customer care center to replace your battery.

This product operates with a rated power of 120V.

WARNING

THE RBRC™ SEAL

The RBRC™ (Rechargeable Battery Recycling Corporation) Seal

on the nickel-metal hydride battery (or battery pack) indicates that the

costs to recycle the battery (or battery pack) at the end of its useful life have already been paid by Samsung Electronics. Some of local laws

may prohibit disposal of nickel-metal hydride batteries in ordinary trash. RBRC program

provides an environmentally conscious alternative. RBRC has established programs in the United States and Canada to facilitate the

collection of spent nickel-metal hydride batteries.

For speciﬁc disposal instructions of batteries, please contact: RBRC (Rechargeable Battery Recycling Corporation) 1-800-822-8837 or visit the website: www.rbrc.com

24_ Operating the cleaner

Operating the cleaner

INSTALLING THE ROBOTIC VACUUM CLEANER

INSTALLING THE SMART GATE

You can conne the robotic vacuum cleaner to

a particular section by using Fence (virtual wall) mode or clean several sections one by one using Guard (virtual door) mode.

Fence/ Guard/ Off

Distan ce

Mode Lamp

Distance Detection

Sensor

Main Unit Detection Sensor

Mode/Power Button

Distance Control Switch

✽ The distance detection sensor

forms a virtual straight barrier of the

specied fence length.

Fence/Guard/Off

Distance

Distance Detection Sensor

• (Short)

•• (Medium)

••• (Long)

About 1 m About 2 m About 3 m

Switch Setting Max Distance

✽ Set the switch according to the required fence length.

Button operations

1. Mode lamp operations

- Fence (virtual wall) Mode: The red lamp ashes.

- Guard (virtual door) Mode: The green lamp ashes.

- Off: The lamp is turned off.

2. Setting the mode

- Whenever you press the Mode/Power button, Fence

(virtual wall) mode ➝ Guard (virtual door) mode ➝

Power off is selected in this sequence.

3. Setting the Fence length

- Set the distance to restrict the access of robotic

vacuum cleaner from the Smart gate using the distance control switch.

Forming a Fence (virtual wall)

Smart gate creates an invisible barrier that the robotic vacuum cleaner cannot cross. E.g. in front of pots, furniture, the front door, and so on.

1. Select Fence (virtual wall) mode using the Mode/ Power button.

- The mode lamp ashes red.

2. Set the fence length using the distance control switch.

3. Install the Smart gate in front of the area you want to block access from the robotic vacuum cleaner.

- Install the Smart gate so that the distance detection sensor can form an invisible

barrier that the robotic vacuum cleaner cannot cross.

A fence (virtual wall) is formed.

Distance Detection Sensor

Operating the cleaner _25

Operating the cleaner

03 OPERATING THE CLEANER

Room 1

Room 3

Charger

Smart gate

Room 2

Room 3

Room 2

✽ Since an invisible barrier is formed

to prevent the robotic vacuum cleaner from running against the Smart gate, installing the Smart gate within 30 cm of the outside walls is recommended.

CAUTION

About the IrDA sensor.

● The infrared signal transmission may

not be smooth in locations exposed to halogen lamps or in outdoor locations.

● Robotic vacuum cleaner uses 3 types of

infrared devices and a device may not work in front of another device with a higher priority.

●

When controlling the robotic vacuum cleaner with the remote control, the robotic vacuum cleaner may cross the virtual fence of the Smart gate or run against an obstacle, because the remote control signal has a higher priority than the Smart gate signal.

● When using the robotic vacuum cleaner in a small location or at a close distance,

it may malfunction due to interference of the infrared signals.

● Install the Smart gate away from the charger as auto charging may be interrupted if

the Smart gate is near the charger.

● If the fence length is set to a value longer than the required distance, the robotic

vacuum cleaner may fail to clean properly.

Set the fence length to an appropriate value using the distance control switch.

● If more than one robotic vacuum is used simultaneously, they may malfunction

due to interference of the infrared signals.

● Turn the Smart gate in another direction or set the fence length to an appropriate

value if the distance detection sensor of the Smart gate faces the charger, as it may interrupt auto charging.

Using Guard (virtual door) mode

The Smart gate forms an invisible door that the robotic vacuum cleaner cannot cross until current room is complete cleaned. The Smart gate opens the invisible door when cleaning the room is complete.

1. Select Guard (virtual door) mode using the Mode/ Power button.

- The mode lamp ashes green.

2. Set the fence length using the distance control switch.

3. Install the Smart gate at the entrance of the room to be cleaned.

- Install the Smart gate so that the distance detection

sensor can form an invisible barrier that the robotic vacuum cleaner cannot cross.

30cm

30c

Distance Detection Sensor

A guard (virtual door) is formed.

[Infrared Signal Priority]

Remote Control

Smart gate Charger

NOTE

● When not using the Smart gate, turn the power off. (When not using the robotic for long periods of time,

separate the batteries to avoid discharging them.)

● If the Mode/Power button does not work, it indicates that the batteries have worn out. In this case, replace

the batteries. (Specications: Type D (LR20) alkaline

batteries )

● You can additionally purchase an Smart gate from Samsung Electronics customer care Co., Ltd.

26_ Operating the cleaner

Operating the cleaner

USING THE ROBOTIC VACUUM CLEANER

STARTING/STOPPING CLEANING

Turning the power on

- Remote control: Press the [Power] button.

- Main unit: Press the (

) button.

- The main unit buttons, battery level indicator and

cleaning mode icons are turned on.

Turning the power off

- Remote control: Press the [Power] button.

- Main unit: Press and hold the (

) button down for 3

seconds.

- All icons except for the battery level indicator are

turned off.

Starting

- Remote control: Press the Auto, Spot, Max or

Manual button.

- Main unit: Select Auto / Spot / Max / Manual mode

by using the (

) button and then pressing the ( )

button.

- When cleaning begins, the robotic vacuum cleaner

starts to move.

✽

Pressing the ( ) button without selecting cleaning

mode starts to perform a Auto mode cleaning.

Stopping

- To stop, press the (

) remote control or main unit

button.

- When cleaning is stopped, the robotic vacuum

cleaner stops.

You can run or stop all robotic vacuum functions.

■

Each robotic vacuum function only runs when the Power

Switch is turned on.

■

When the robotic vacuum is operating, press the ( )

button to cancel the operation and select a function.

Using the remote

control

Using the main unit

buttons

OFF

Turning the power on or off

Starting or stopping cleaning

Operating the cleaner _27

Operating the cleaner

03 OPERATING THE CLEANER

USING THE ROBOTIC VACUUM CLEANER

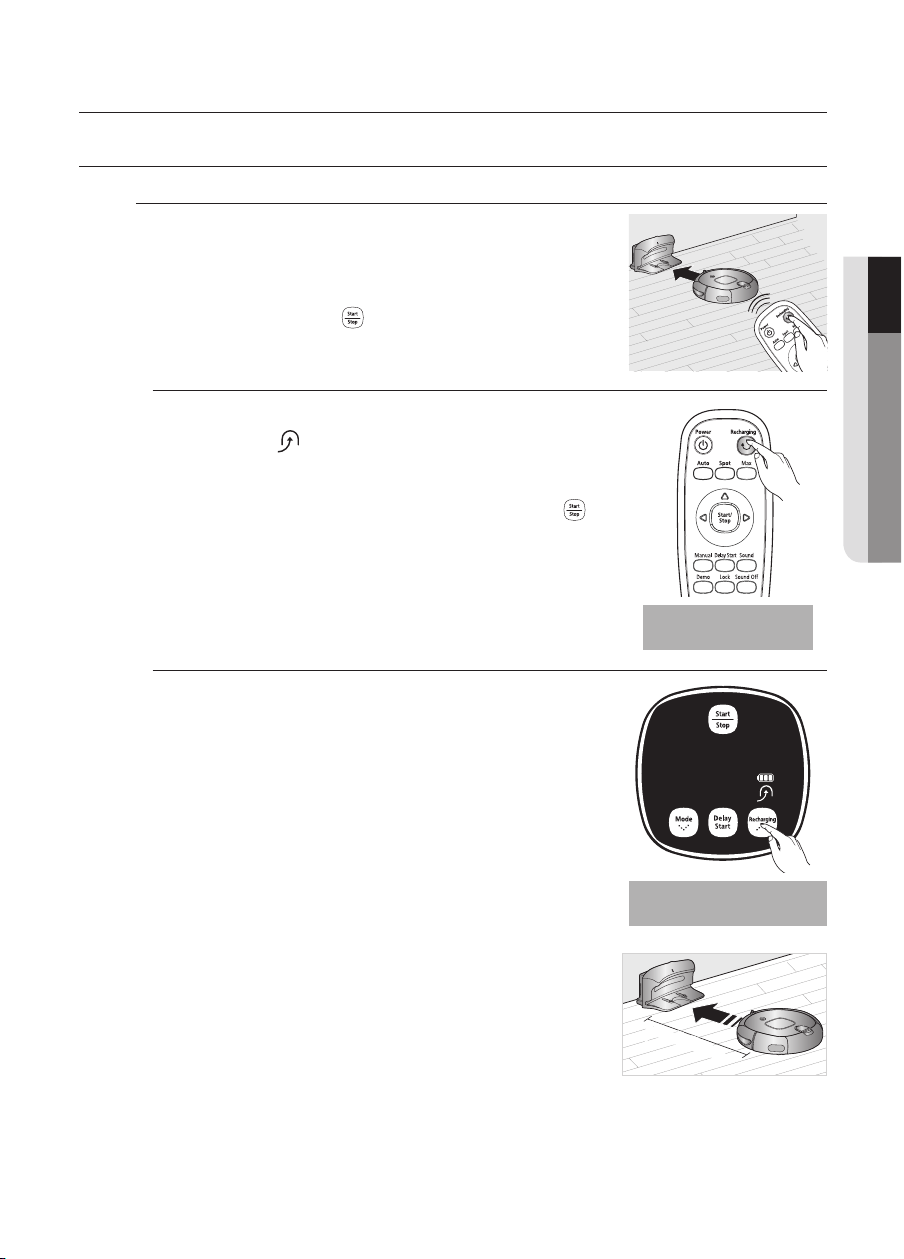

RECHARGING

1. Press the Recharging button.

- The main unit icon (

) is turned on and the robotic

vacuum cleaner will return to the charger.

2. To stop the robotic vacuum cleaner while it is returning to the charger, press the (

) button.

3. To test the auto charge function, press the Recharging button when the robotic vacuum cleaner is less than 1.5 m from the charger.

You can have the robotic vacuum cleaner return to the charger to charge the battery by using the Recharging button.

■

When the robotic vacuum cleaner is operating, press

the (

) button to cancel the operation and press the

Recharging button.

Troubleshooting when the robotic vacuum cleaner does not return to the charger

●

Check the installation of the charger

- When the charger is in a location where the charger

cannot guide the robotic vacuum cleaner to the charger.

- When the charger is more than 5m away from robotic

vacuum cleaner.

: It may require a longer time for the robotic vacuum

cleaner to return to the charger.

● Manually charge the robotic vacuum cleaner in the following

cases.

- When the charger is installed in a corner.

- When the battery is fully discharged.

- When the robotic vacuum cleaner is trapped by an

obstacle (furniture etc.)

- When the robotic vacuum cleaner cannot pass over the

doorsill to the location where the charger is installed.

(The height of the doorsill should be about 1cm or less).

Using the remote

control

Using the main unit

buttons

1.5 m ahead

28_ Operating the cleaner

Operating the cleaner

USING THE ROBOTIC VACUUM CLEANER

AUTO CLEANING

The robotic vacuum cleaner will move by itself and automatically clean the house until cleaning is completed once.

■

If cleaning begins when the robotic vacuum cleaner is docked with

the charger station, the time to return to the charger is decreased since the robotic vacuum cleaner remembers its original position while moving.

■

If the battery level becomes too low while cleaning, the robotic

vacuum cleaner will automatically return to the charger station and resume cleaning after charging its battery. (Number of cleaning operations resumed: Once)

While cleaning

When cleaning is

complete

Cancel the mode.

Set the mode.

Main unit button

Remote control button Configuration Sequence

▶

About the Resume Cleaning function

● If the robotic vacuum cleaner has evaluated

that cleaning is complete, the resume cleaning function is not performed.

● If you move the robotic vacuum cleaner when it

is being charged or press a button, the robotic vacuum cleaner judges cleaning to be complete and does not resume cleaning.

Do not move the robotic vacuum cleaner when it is cleaning or press a button while it is cleaning. Otherwise, the robotic vacuum cleaner judges cleaning to be complete and starts cleaning again from the beginning.

CAUTION

NOTE

+ 64 hidden pages
