Samsung Electronics
3

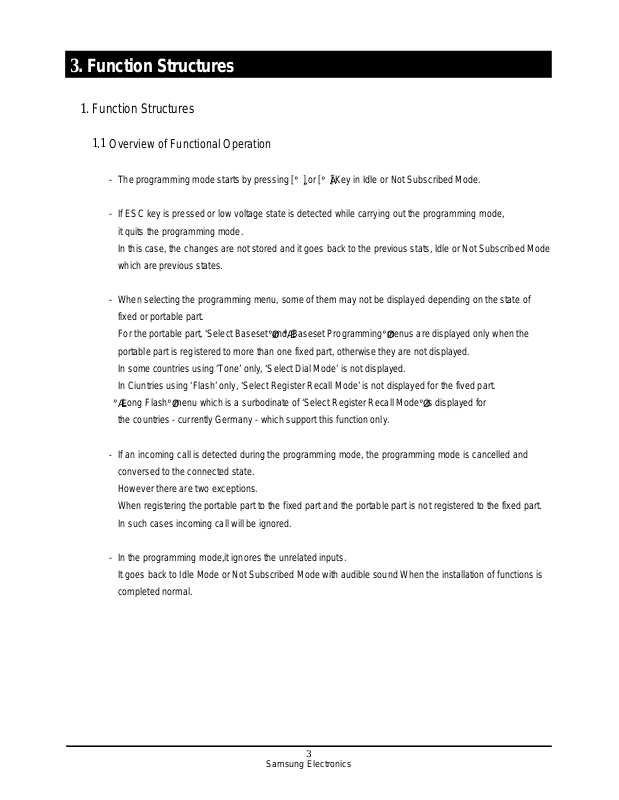

. Function Structures
1
. Function Structures
1.1
Overview of Functional Operation
- The programming mode starts by pressing [
°„
] or [
°Â
] Key in Idle or Not Subscribed Mode.
- If ESC key is pressed or low voltage state is detected while carrying out the programming mode,
it quits the programming mode.
In this case, the changes are not stored and it goes back to the previous stats, Idle or Not Subscribed Mode
which are previous states.
- When selecting the programming menu, some of them may not be displayed depending on the state of
fixed or portable part.
For the portable part, ‘Select Baseset°Øand°ÆBaseset Programming°Ømenus are displayed only when the
portable part is registered to more than one fixed part, otherwise they are not displayed.
In some countries using ‘Tone’ only, ‘Select Dial Mode’ is not displayed.
In Ciuntries using ‘Flash’ only, ‘Select Register Recall Mode’ is not displayed for the fived part.
°Æ
Long Flash°Ømenu which is a surbodinate of ‘Select Register Recall Mode°Øis displayed for
the countries - currently Germany - which support this function only.
- If an incoming call is detected during the programming mode, the programming mode is cancelled and
conversed to the connected state.
However there are two exceptions.
When registering the portable part to the fixed part and the portable part is not registered to the fixed part.
In such cases incoming call will be ignored.
- In the programming mode,it ignores the unrelated inputs.
It goes back to Idle Mode or Not Subscribed Mode with audible sound When the installation of functions is
completed normal.
3
Page 2
Function Structures
1.2
Function tree
1.2.1
Function tree related with portable part
Stand by [
] [
°Â
] [
°„
°„
[
] [
°Â
]
°„
]
Search Phone Number [PHonE no]
Store Phone Number [StorE PHonE]
Edit Baby Call Number [StorE b-CALL]
Set Baby Call On/Off [b-CALL]
Set Key Tone On/Off [bEEP]
Select Ringer Melody [ring tonE]
Stand by [
1.2.2
Function Tree of Baseset
[
]
] [
]
°„
°Â
°„
Select Ringer Volume [ring LEVEL]
Set Call Time Display On/Off [CALL TlME]
Set Base Number Display On/Off [bASE no]
Handset Reset [HS rESEt]
Select Baseset [SELECt bS]
Subscribe Handset to Baseset [rEglStEr HS]
Handset Off [HAndSEt oFF]
Baseset Programming [SEtup bs]
Search Phone Number [PHonE no]
Select Dial Mode [SEtdlAL]
Direction
of menu
scroll
[
°„
] [
°Â
Direction
of menu
scroll
]
Select Register Recall Mode
Select Call Pick Up Delay Time [ring DELAY]
Call Barring [CALL bArring]
Desubscribe Handset [CAncEL HS]
Change Baseset PIN [CAncEL PIN]
Reset Baseset [bASE rESEt]
4
Samsung Electronics
Direction
of menu
scroll
Direction
of menu
scroll
Page 3
1.3
Function table
1.3.1
Function table related with portable part
[Power]
°‹
Function Structures
Pressing [OK] button for more than a sec in power off state
Pressing [OD] button for more than a sec in power on state
...
], [
]
°‹[°Â
[
], [
°Â
1
- SEARCH PHONE NUNMBER
2
- STORE PHONE NUNMBER
3
- STORE BABY CALL NUMBER
4
- SET BABY CALL ON / OFF
5
- SET KEY CLICK TONE ON / OFF
6
- SELECT RINGER MELODY
7
- SELECT RINGER VOLUME
8
- SET CALL TIME DISPLAY ON / OFF
9
- SET BASE NUMBER DISPLAY ON / OFF
10
[Selecting the function]
°„
]
°„
-HANDSET RESET
...
[OK]
Power ON
Key lock set up / release
Calling state - Vol. adjust
Stand by state - Set up function mode
Search phone number
Store phone number
Store baby call number
Baby call set up / release
Key click tone set up / release
Select ringer melody
Select ringer volume
Call time display set up / release
Base number display set up / release
Initialize portable part
11
-SELECT BASESET
12
-SUBSCRIBE HANDSET TO BASESET
13
-HANDSET OFF
14
-BASESET PROGRAMMING MODE
1.3.2
Function table related with fixed part
BASESET PROGRAMMING MODE
°‹
1
- SELECT DIAL MODE
1
2
- SELECT REGISTER RECALL MODE
2
3
- SELECT CALL PRIORITY
3
4
- CALL BARRING
4
5
- DESUBSCRIBE HANDSET
6
- CHANGE BASESET PIN
7
- BASESET RESET
Select fixed part
Subscribe Handset to Baseset
Handset power off
Baseset programming mode
Select TONE / PULSE mode
Select FLASH / EARTH mode
Select call priority
Call barring
Desubscribe handset
Change baseset pin
Initialize fixed part
5
