Samsung SPH-M930 User Guide

©2011 Samsung. All rights reserved. BOOST and
BOOSTMOBILE and Logo are trademarks of Boost. Other
marks are the property of their respective owners.
9/2/11

User Guide

www.boostmobile.com

Consejo: Para encontrar esta guía para usuarios en español,

por favor visita a
haz clic en

To find this user guide in Spanish, please visit

www.boostmobile.com/espanol and click

www.boostmobile.com/espanol y

ASISTENCIA.

ASISTENCIA.

SPH-M930_UG_EG29_CH_090111_F11

Table of Contents

Tip: Looking for something? If you don’t see it in the headings

listed here, try the Index on page 170.

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . i

Your Device’s Menu . . . . . . . . . . . . . . . . . . . . . . . . . . i

Section 1: Getting Started . . . . . . . . . . . . . . . . . 1

1A. Setting Up Service . . . . . . . . . . . . . . . . . . . 2

Setting Up Your Device . . . . . . . . . . . . . . . . . . . . . . 2

Activating Your Device . . . . . . . . . . . . . . . . . . . . . . 5

Setting Up Your Voicemail . . . . . . . . . . . . . . . . . . . 7

Getting Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

Section 2: Your Device . . . . . . . . . . . . . . . . . . . . 9

2A. Device Basics . . . . . . . . . . . . . . . . . . . . . . 10

Your Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Viewing the Display Screen . . . . . . . . . . . . . . . . . 14

Turning Your Device On and Off . . . . . . . . . . . . . 17

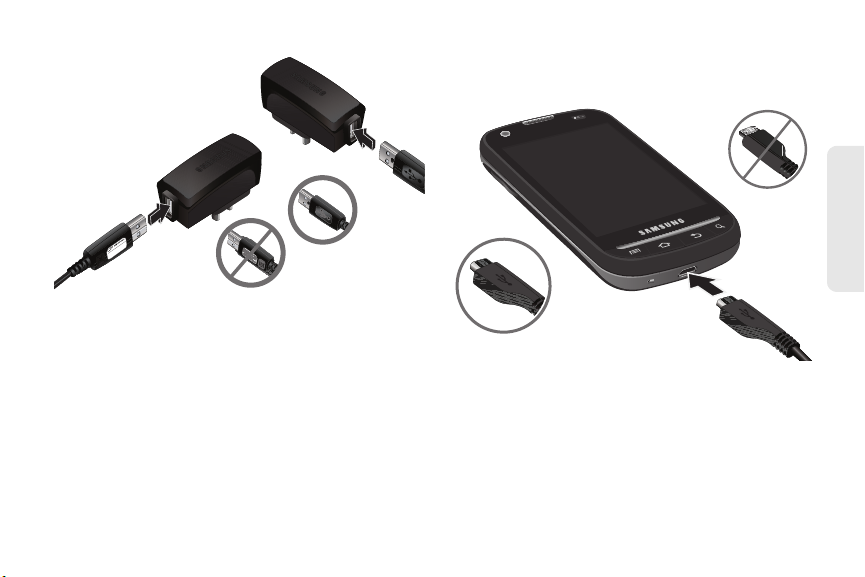

Battery and Charger . . . . . . . . . . . . . . . . . . . . . . . 17

Device Function Keys . . . . . . . . . . . . . . . . . . . . . . 20

Navigation and Customization . . . . . . . . . . . . . . 24

Displaying Your Phone Number . . . . . . . . . . . . . 39

Entering Text Using the Android Keyboard . . . . 39

Entering Text Using the Samsung QWERTY

Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Entering Text Using Swype . . . . . . . . . . . . . . . . . 45

Creating a Google Account . . . . . . . . . . . . . . . . 50

2B. Making and Answering Calls . . . . . . . . . 52

Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Dialing Options . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Answering Calls . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Missed Call Notification . . . . . . . . . . . . . . . . . . . . 54

Calling Emergency Numbers . . . . . . . . . . . . . . . 54

In-Call Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

End-of-Call Options . . . . . . . . . . . . . . . . . . . . . . . 56

Additional Calling Options . . . . . . . . . . . . . . . . . . 56

Saving a Phone Number . . . . . . . . . . . . . . . . . . . 56

Finding a Phone Number . . . . . . . . . . . . . . . . . . 57

Dialing From the Contacts List . . . . . . . . . . . . . . 57

Using Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Plus (+) Code Dialing . . . . . . . . . . . . . . . . . . . . . . 59

2C. Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Call Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

Airplane Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Table of Contents

1

TTY Use With Boost Service . . . . . . . . . . . . . . . 62

Sound Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Display Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Language Settings . . . . . . . . . . . . . . . . . . . . . . . . 69

Location Settings . . . . . . . . . . . . . . . . . . . . . . . . . 69

Security Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Android Development . . . . . . . . . . . . . . . . . . . . . 77

Synchronizing Accounts . . . . . . . . . . . . . . . . . . 77

Accessibility Settings . . . . . . . . . . . . . . . . . . . . . . . 81

Voice Input and Output Settings . . . . . . . . . . . . . 81

Search Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . 81

2D. Call Log . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Viewing Call Log . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Call Log Options . . . . . . . . . . . . . . . . . . . . . . . . . . 84

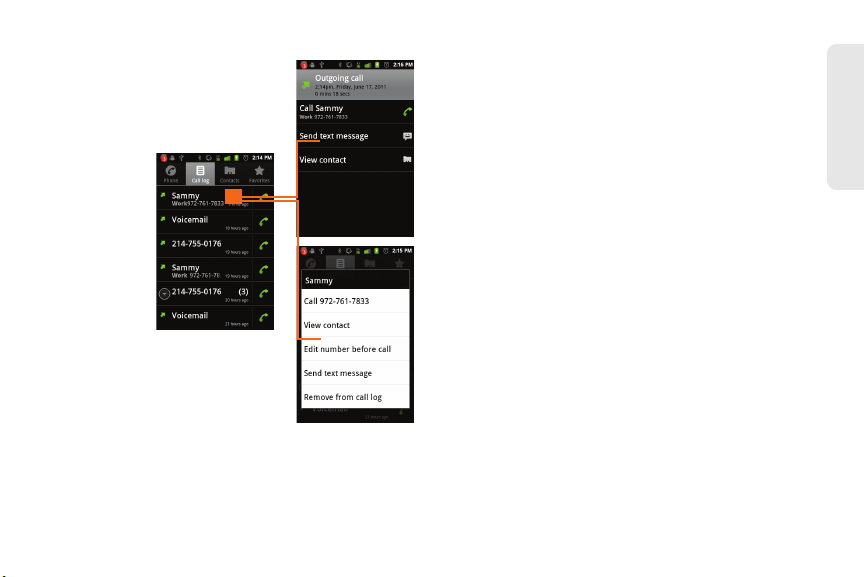

Making a Call From Call Log . . . . . . . . . . . . . . . 86

Saving a Number From Call Log . . . . . . . . . . . . 86

Altering a Number From Call Log . . . . . . . . . . . 86

Erasing the Call Log . . . . . . . . . . . . . . . . . . . . . . . . 87

2E. Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

Creating a New Contacts Entry . . . . . . . . . . . . . 88

Confirming Contact Synchronization . . . . . . . . 90

2

Contacts Menu Options . . . . . . . . . . . . . . . . . . . . 91

Contacts Entry Options . . . . . . . . . . . . . . . . . . . . . 92

Editing a Contacts Entry . . . . . . . . . . . . . . . . . . . . 92

Adding a Number to a Contacts Entry . . . . . . . 93

Editing a Contacts Entry’s Number . . . . . . . . . . . 93

Sending Contacts . . . . . . . . . . . . . . . . . . . . . . . . . 94

Assigning a Picture to an Entry . . . . . . . . . . . . . . 94

Deleting Entries . . . . . . . . . . . . . . . . . . . . . . . . . . . 95

Adding Entries to Your Favorites . . . . . . . . . . . . . 95

2F. Calendar & Tools . . . . . . . . . . . . . . . . . . . 96

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Calendar . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96

Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

My Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 104

Calculator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 105

Updating Your Device Firmware . . . . . . . . . . . . 105

Updating Your Profile . . . . . . . . . . . . . . . . . . . . . 107

Updating Your Samsung Software . . . . . . . . . . 108

2G. Services . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Voice Dialer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109

Opening Menus With Voice Dialer . . . . . . . . . . 111

Text-to-Speech . . . . . . . . . . . . . . . . . . . . . . . . . . . 111

Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112

2H. microSD Card . . . . . . . . . . . . . . . . . . . . . 113

Your Device’s microSD Card and Adapter . . . 113
Connecting Your Device to Your Computer . . 115

microSD Card Settings . . . . . . . . . . . . . . . . . . . . 118

Important Connection Information . . . . . . . . . . 118

2I. Camera . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Taking Pictures . . . . . . . . . . . . . . . . . . . . . . . . . . . 120

Recording Videos . . . . . . . . . . . . . . . . . . . . . . . . 125

2J. Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Turning Bluetooth On and Off . . . . . . . . . . . . . . 129

Using the Bluetooth Settings Menu . . . . . . . . . 130

Pairing Bluetooth Devices . . . . . . . . . . . . . . . . . 131

Sending Contacts via Bluetooth . . . . . . . . . . . . 132

Disconnecting Bluetooth Connection

During an Active Call . . . . . . . . . . . . . . . . . . . . . 133

Section 3: Boost Service . . . . . . . . . . . . . . . . 135

3A. Boost Service: The Basics . . . . . . . . . . 136

Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 136

Text Messaging (SMS) . . . . . . . . . . . . . . . . . . . . 137

Multimedia Messaging (MMS) . . . . . . . . . . . . . 138

Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Call Waiting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 143

Making a 3-Way Call . . . . . . . . . . . . . . . . . . . . . 144

Call Forwarding . . . . . . . . . . . . . . . . . . . . . . . . . . 145

3B. Web and Data Services . . . . . . . . . . . . . 146

Getting Started With Data Services . . . . . . . . . 146

Navigating the Web . . . . . . . . . . . . . . . . . . . . . . 147

Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 154

Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

Books . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Using the Android Market . . . . . . . . . . . . . . . . . 170

Boost Applications . . . . . . . . . . . . . . . . . . . . . . . 172

3C. Entertainment: Mobile ID & Music . . . 173

Getting Started with Mobile ID and Music . . . 173

Music . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

YouTube . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 175

3D. GPS Navigation . . . . . . . . . . . . . . . . . . . . 176

GPS Services . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Google Maps . . . . . . . . . . . . . . . . . . . . . . . . . . . . 177

TeleNav GPS Navigator . . . . . . . . . . . . . . . . . . . 178

Table of Contents

3

Getting Driving Directions . . . . . . . . . . . . . . . . . . 179

Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

Section 4: Safety and Warranty Information 184

4A. Important Safety Information . . . . . . . . 185

General Precautions . . . . . . . . . . . . . . . . . . . . . . 185

Maintaining Safe Use of and Access to

Your Phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 186

Using Your Phone With a Hearing Aid Device 187

Caring for the Battery . . . . . . . . . . . . . . . . . . . . 189

Radio Frequency (RF) Energy . . . . . . . . . . . . . 190

Samsung Mobile Products and Recycling . . 192

Owner’s Record . . . . . . . . . . . . . . . . . . . . . . . . . 193

User Guide Proprietary Notice . . . . . . . . . . . . . 193

4B. Manufacturer’s Warranty . . . . . . . . . . . . 194

Standard Limited Warranty . . . . . . . . . . . . . . . . 194

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

4

Introduction

Your Device’s Menu

This User Guide introduces you to Boost Mobile®
service and all the features of your new device. It’s
divided into four sections:

⽧ Section 1: Getting Started
⽧ Section 2: Your Device
⽧ Section 3: Boost Mobile Service Features
⽧ Section 4: Safety and Warranty Information

Note: Because of updates in phone software, this printed

guide may not be the most current version for your
phone. Visit
access the most recent version of the user guide.

WARNING: Please refer to the Important Safety Information

www.boostmobile.c om/userguides to

section on page 185 to learn about information
that will help you safely use your phone. Failure to
read and follow the Important Safety Information
in this phone guide may result in serious bodily
injury, death or property damage.

The following table outlines your device’s main menu
structure. For more information about using your
device’s menus, see “Navigation and Customization”
on page 24.

From the Home screen, press

to open the

menu:

䡲 Add ( )
䡲 Wallpaper ( )
䡲 Settings ( )

䡲 Mobile ID ( )
䡲 Search ( )
䡲 More ( )

Device menus with additional options (“sub-options”)
appear with adjacent to the list entry.

Tap this onscreen button to reveal these additional
options and features.

Introduction i

Introduction

> Add

1: Shortcuts

1: Applications 2: Bookmark
3: Contact 4: Direct dial
5: Direct message 6: Directions & Navigation
7: Latitude 8: Music playlist
9: Settings

2: Widgets

1: Analog clock 2: Calendar

3. Google Search 4: Home screen tips
5: Latitude 6: Market
7: Music 8: Picture frame
9: Power Control 10: Rate Places
11: Traffic 12: Tutorial #1
13: Tutorial #2 14: Tutorial #3
15: Tutorial #4 16: Tutorial #5
17: YouTu be

3: Folders

1: New folder 2: All contacts
3: Bluetooth received

4. Contacts with phone numbers
5: Google Contacts
6: Recent documents 7: Starred contacts

ii Introduction

4: Wallpapers

1: Gallery 2: ID wallpapers
3: Live wallpapers 4: Wallpapers

> Wallpapers

1: Gallery
2: ID wallpapers
3: Live wallpapers
4: Wallpapers

> Settings

Wireless & networks

1: Airplane mode
2: Wi-Fi
3: Wi-Fi settings

1: Wi-Fi (On/Off 2: Network notification
3: WPS button connection
4: Add Wi-Fi network

4: Wi-Fi Direct settings

1: Wi-Fi Direct (On/Off) 2: Configure Wi-Fi Direct
3: Status 4: Disconnect Wi-Fi Direct

5: Bluetooth (On/Off)
6: Bluetooth settings

1: Bluetooth (On/Off) 2: Device name
3: Discoverable (On/Off) 4: Scan for devices
5: <Bluetooth devices>

7: USB connection

1: Charging 2: Mass storage
3: Ask on connection

8: VPN settings

1: Add VPN 2: VPNs

9: Mobile networks

1: 3G Data (On/Off)

Call settings

1: North American dialing (On/Off)
2: International dialing
3: DDTM (On/Off)
4: TTY

1: TTY Off 2: TTY HCO
3: TTY VCO 4: TTY Full

5: DTMF Tones

1: Normal 2: Long

Sound

1: Silent mode (On/Off)
2: Vibrate

1: Always 2: Never
3: Only in Silent mode 4: Only when not in Silent mode

3: Volume

1: Rigntone 2: Media
3: Alarm 4: Notification

4: Phone ringtone
5: Notification ringtone
6: Audible touch tones (On/Off)
7: Audible selection (On/Off)
8: Screen lock sounds (On/Off)
9: Haptic feedback (On/Off)

Introduction iii

Introduction

Display

1: Brightness
2: Auto-rotate screen (On/Off)
3: Animation

1: No animations 2: Some animations
3: All animations

4: Screen timeout

1: 30 seconds 2: 1 minute
3: 2 minutes 4: 10 minutes
5: 30 minutes

5: Keyboard timeout

1: 3 seconds 2: 6 seconds
3: 15 seconds 4: Same as Screen timeout

6: Notification flash (On/Off)

Location & security

1: Use wireless networks (On/Off)
2: Use GPS satellites (On/Off)

iv Introduction

3: Set up screen lock

1: None 2: Pattern
3: PIN 4: Password

4: Visible passwords (On/Off)
5: Select device administrators
6: Use secure credentials (On/Off)
7: Install from SD card
8: Set password
9: Clear storage

Applications

1: Unknown sources (On/Off)
2: Quick launch
3: Manage applications
4: Running services
5: Storage use
6: Battery use
7: De ve lo pm ent

1: USB debugging (On/Off)
2: Stay awake (On/Off)
3: Allow mock locations (On/Off)

Accounts & sync

1: Background data (On/Off)
2: Auto-sync (On/Off)

Privacy

1: Factory data reset

Storage

1: Total space
2: Available space
3: Mount/Unmount SD card
4: Erase SD card
5: Available space

Language & keyboard

1: Select language

1: English 2: Español

2: User dictionary
3: Swype (On/Off)
4: Swype

1: Language 2: Audio feedback (On/Off)
3: Vibrate on keypress (On/Off)
4: Enable tip indicator (On/Off)
5: Word suggestion 6: Auto-spacing (On/Off)
7: Auto-capitalization (On/Off)
8: Show complete trace (On/Off)
9: Speed vs. accuracy 10: Word choice window
11: Swype help 12: Tutorial
13: Versio n

5: Android keyboard (On/Off)
6: Android keyboard settings

1: Vibrate on keypress (On/Off)
2: Sound on keypress (On/Off)
3: Popup on keypress (On/Off)
4: Touch to correct words (On/Off)
5: Auto-capitalization (On/Off)
6: Show settings key
7: Voice input 8: Input languages
9: Quick fixes (On/Off) 10: Show suggestions (On/Off)
11: Auto-complete (On/Off)

7: Built-in keyboard settings

Introduction v

Introduction

1: Auto-replace (On/Off)
2: Auto-cap (On/Off)
3: Auto-punctuate (On/Off)

Voice input & output

1: Voice recognizer settings

1: Language 2: SafeSearch
3: Block offensive words (On/Off)
4: Personalized recognition (On/Off)
5: Google Account dashboard

2: Text-to-speech settings

1: Listen to an example
2: Always use my settings (On/Off)
3: Default Engine
4: Install voice data 5: Speech rate
6: Language 7: Pico TTS

Accessibility

1: Accessibility
2: Talk Back
3: Power button ends call (On/Off)

Date & time

1: Automatic (On/Off)
2: Set date

vi Introduction

3: Select time zone
4: Set time
5: Use 24-hour format (On/Off)
6: Select date format

About phone

1: System Updates

1: Update Firmware 2: Update Profile
3: Update PRL 4: Update Samsung Software

2: Status

1: Battery status 2: Battery level
3: My phone number 4: MSID
5: PRL Version 6: MEID
7: Network 8: Signal strength
9: Mobile network type 10: Service state
11: User name 12: Mobile network state
13: Wi-Fi MAC address 14: Bluetooth address
15: Up time

3: Battery use
4: Legal information

1: Open source licenses 2: Google legal
3: Privacy Alert from Boost Mobile

5: System tutorial

6: Model number
7: Android version
8: Baseband version
9: Kernel version
10: Build number
11: Hardware version

> Switch ID
> Search

> More > Manage apps
> More > Notifications

In Use Menu

1: Add call/Merge 2: End
3: Dialpad 4: Bluetooth
5: Mute/Unmute 6: Speaker

Quick Search Box

When the Quick Search Box is active, press >

Search settings to display the following options:

1: Google search

1: Show web suggestions (On/Off)
2: Use My Location (On/Off)
3: Search history (On/Off)
4: Manage search history (On/Off)

2: Searchable items

1: Web (On/Off) 2: Apps (On/Off)
3: Contacts (On/Off) 4: Messaging (On/Off)
5: Music (On/Off) 6: Voice Search (On/Off)

3: Clear shortcuts

WARNING: Device has a touchscreen display, please note

that a touchscreen responds best to a light touch
from the pad of your finger. Using excessive force
or a metallic object when pressing on the
touchscreen may damage the tempered glass
surface and void the warranty. See “4B.
Manufacturer’s Warranty” on page 194.

Introduction vii

Introduction

Section 1

Getting Started

⽧ Setting Up Your Device (page 2)

1A. Setting Up Service

⽧ Activating Your Device (page 5)
⽧ Setting Up Your Voicemail (page 7)
⽧ Getting Help (page 7)

Setting Up Your Device

1. Install the battery.

䡲 Remove the battery from its packaging.
䡲 Grasp the device firmly and locate the cover

release latch.

䡲 Place your fingernail in the opening and firmly

“pop” the cover off the device (similar to a soda
can).

2 1A. Setting Up Service

䡲 Insert the battery into the opening in the back of

the device, making sure the connectors align.
Gently press down to secure the battery.

2. Install the (optional) memory card.

䡲 Position the battery cover over the battery

compartment and press down until you hear a
click.

Setting Up Service

1A. Setting Up Service 3

3.

Power
Button

Unlock
Screen

Press and hold to turn on the device.

䡲 If your device is activated, it will turn on, search for

Boost service and enter standby mode.

Unlocking Your Device Screen

䊳 To unlock your phone from this screen, touch and

drag the lock icon across the screen or slide the
QWERTY keyboard out.

4 1A. Setting Up Service

Activating Your Device

To activate your new phone, please refer to the “Activation Kit”
documentation included in your original device packaging.

For additional support information visit us at:

www.boostmobile.com

– or –

Call Boost Customer Care at
(

1-888-266-7848).

Mobile ID

ID Packs are bundles of applications, ringtones,
wallpapers, settings, and more. ID Packs are installed
using an application called Mobile ID.

You can install as many as six ID packs including MyID
at any one time, and you can easily switch from one ID
Pack to another without losing any applications already
installed.

1-888-BOOST-4U

The Boost Mobile ID Pack brings the best Boost
applications and services in an easy to use experience.
Manage your Boost Mobile Account; Keep up with
email and text messages; Connect with friends on
Facebook, MySpace and Hookt; and access popular
applications and services like Telenav GPS Navigator,
SCVNGR; Poynt; and popular websites like MTV, E!,
Univision, CNN and many more.

It is not necessary to install a Mobile ID Pack in order
tomove forward with the activation process.

The screens you see are your MyID basic Android
screens. These are the screens you will use unless you
decide to install a Mobile ID at a later time.

For more information about installing a Boost ID pack
at a later time, see “Switching ID Packs” on page 6. To
view an example of My ID screens, see “Your Device”
on page 10.

Installing Your First ID Pack

Note: Your device must be activated, your battery should be

fully charged, and you should be in a network coverage
area before you install an ID Pack.

1. Press and tap (Mobile ID).

1A. Setting Up Service 5

Setting Up Service

2.

On the Choose Your ID screen, tap Get New.

䡲 If the lock screen displays, unlock it by dragging

the

Unlock icon to the right side of the

screen.)

3. Touch an ID Pack on the Mobile ID screen.

4. Read the information screen for a description of

the ID Pack and touch

Install.

5. Tou ch Agree to accept the Terms & Conditions of

the ID Pack.

6. If prompted, touch Continue on any following

screens until you see the Downloading... progress
icon in the upper-left corner of your screen.

Switching ID Packs

1. Press and tap (Mobile ID).

2. Tap an ID Pack to replace your current pack.

– or –

Get New to install a new ID Pack and follow

Tap
steps 4-8 of “Installing Your First ID Pack” on
page 5.

6 1A. Setting Up Service

Note: Your device must be activated, your battery should be

fully charged, and you should be in a network coverage
area before you install an ID Pack.

The Boost ID pack comes with wallpapers, ringtones,
and applications such as Telenav GPS Navigator,
SCVNGR, and Poynt.

Certain features of Mobile ID are subject to change. For
the most up-to-date information about using Mobile ID,
please visit

www.boostmobile.com/id.

Making Your First Call

1. If the device is locked, touch and drag the lock

icon to the right to unlock the device.

䡲 Press to access the Home screen and

touch to access the onscreen keypad.

䡲 Use the onscreen dialpad to enter a phone

number and touch .

WARNING: Device has a touchscreen display, please note

that a touchscreen responds best to a light touch
from the pad of your finger. Using excessive force
or a metallic object when pressing on the
touchscreen may damage the tempered glass
surface and void the warranty.
(See “4B. Manufacturer’s Warranty” on
page 194.)

Setting Up Your Voicemail

Your device automatically transfers all unanswered
calls to your voicemail, even if your device is in use or
turned off. You should set up your Voicemail and
personal greeting as soon as your device is activated.
Always use a password to protect against unauthorized
access.

Note: Your device’s battery should have enough charge for

your device to turn on and find a signal, set up your
voicemail and make a call. You should fully charge
your battery as soon as possible.

1. Tap and then touch and hold .

2. Follow the system prompts to:

䡲 Create your password.
䡲 Record your name announcement.
䡲 Record your greeting.

Note: Voicemail Password

Boost strongly recommends that you create a
password when setting up your voicemail to protect
against unauthorized access. Without a password,
anyone who has access to your device is able to
access your voicemail messages.

Getting Help

Managing Your Account

Online: www.boostmobile.com

䢇 Access your account information.
䢇 Check your minutes used (depending on your Boost

service plan).

䢇 View and add money to your account.
䢇 Enroll in Auto Re-Boost to make automatic

payments.

䢇 Purchase accessories.

1A. Setting Up Service 7

Setting Up Service

䢇 Shop for the latest Boost phones.
䢇 View available Boost service plans and options.
䢇 Learn more about data services and other products

like games, ringtones, wallpapers, and more.

From Any Other Phone

䢇 1-888-BOOST-4U (1-888-266-7848).

Boost 411

Boost 411 gives you access to a variety of services and
information, including residential, business and
government listings, movie listings or showtimes,
driving directions, restaurant reservations and major
local event information. You can get up to three pieces
of information per call, and the operator can
automatically connect your call at no additional charge.

A per-call charge and standard airtime fee may apply
depending on your plan.

1. Press and then tap >

.

8 1A. Setting Up Service

Boost Accessories

To purchase accessories, go to www.boostmobile.com/
accessories.

Section 2

Your Device

Your Device

2A. Device Basics

1. Earpiece

3.Status
Bar
Icons

4. Display
Screen

6. MENU
Key

5. HOME

Key

7. Search
Key

8. Back
Key

9. Proximity
/Light

11. Lock
/Power

10. Front
Light
Indicator
(LED)

2. Camera

Sensor

⽧ Your Device (page 10)
⽧ Viewing the Display Screen (page 14)
⽧ Turning Your Device On and Off (page 17)
⽧ Battery and Charger (page 17)
⽧ Device Function Keys (page 20)
⽧ Navigation and Customization (page 24)
⽧ Displaying Your Phone Number (page 39)
⽧ Entering Text Using the Android Keyboard (page 39)
⽧ Entering Text Using the Samsung QWERTY Keyboard

(page 42)

⽧ Entering Text Using Swype (page 45)
⽧ Creating a Google Account (page 50)

10 2A. Device Basics

Key Functions

1. Earpiece lets you hear the caller and automated

prompts.

2. Front Camera functions as the front facing camera

lens.

3. Status Bar Icons provide information about your

device’s status and options, such as signal
strength, ringer setting, messaging, signal strength,
and battery charge.

4. Display Screen displays all the information needed

to operate your device, such as the call status, the
Contacts list, and the date and time.

5. HOME Key returns you to the Home screen. Press

and hold to open the recently-used applications
window.

6. MENU Key allows you to access your device’s main

functions menu: Add, Wallpaper, Settings, Switch
ID, Search, and More(Manage apps, Notifications).
While in a menu, touch to open a list of actions
available from the current screen or onscreen
option.

䡲 During an active call, press to open additional call

options such as: Contacts or Send msg.

7. SEARCH Key displays the Quick Search box that

can be used to search for a key term both on the
phone or online. It’s the ultimate search field
(page 21).

䡲 For example, entering the word “Pa,” will display

any matching entries from your device’s Contacts
list, current device applications, online Android/
Google apps, or from any online Web page via
Google search.

䡲 Press and hold to launch Voice Search where you

can initiate a Google™ search by verbally entering
a text string. The device recognizes your spoken
words and initiates a Web search.

8. BACK Key deletes characters from the display in

text entry mode. When in a menu, pressing the
Back key returns you to the previous menu, closes
a dialog box, or exits an onscreen menu/option.

9. Proximity/Light Sensor This is typically used to

detect when your face is pressed up against the
LCD, such as during a phone call. Blinks red when

2A. Device Basics 11

Device Basics

you receive a new voice message, prompting you

Landscape Mode

to call your voicemail.

10. Front Indicator Light (LED) displays a device

notification, charging status, or alert.

11. Lock/POWER Key lets you turn the device on or off,

end a call, or turn off the LCD.

䡲 When the screen is turned off, press once to

return to Screen lock mode.

䡲 While the device is unlocked and not on an active

call, press and hold to display the Phone options
menu (Silent mode, Airplane mode, Power off).

Landscape Phone Features

1. QWERTY Keyboard provides an alphanumeric

character keyboard layout. Lets you enter numbers,
letters, and characters, as well as navigate within
menus.

2. Shift Key lets you toggle alphabet characters

between mixed case, uppercase and lowercase.
Character case remains as selected until the Shift
key is pressed again.

12 2A. Device Basics

3. Fn Key (Function) key , toggles to access the

numbers/symbols atop each key on the QWERTY
keyboard.

1. QWERTY
Keyboard

7. Delete Key

2. Shift
Key

3. Fn Key

hift

4. Smiley
Key

5. Space/
Search Key

6. Enter Key

4. Smiley Key (when used with the key) lets you

access Smiley icons (Emoticons).

5. Space/Search Key lets you add spaces between

words and characters when in text mode. Press
and hold to display Google Search.

6. Enter Key lets you enter additional lines of text.

7. Delete Key deletes characters from the display in

1. Volume
Button

2. Camera
Button

1. Earpiece

2. microSD
Card Slot

3. Microphone

4. Charger/
Accessory
Jack

6. Headset
Jack

5. Power
Button

text entry mode.

2. Camera Button activates the camera and

camcorder and takes pictures and videos.

Side View Phone Features

1. Volume Button adjusts the ringer volume in standby

mode, the voice volume during a call, and media
playback volume.

External Phone Views

Device Basics

1. Earpiece lets you hear the caller and automated

prompts.

2A. Device Basics 13

2.

microSD Card Slot lets you use a microSD card to

expand the memory of your phone. (A 2GB
microSD card comes pre-installed in your
Samsung Transform™ Ultra.)

3. Microphone allows other callers to hear you clearly

when you are speaking to them.

4. Charger/Accessory Jack allows you to connect the

phone charger or a USB cable (included).

CAUTION! Inserting an accessory into the incorrect

jack may damage the device.

5. Power Button lets you turn the device on or off, or

turn off the touchscreen display.

䡲 When the screen is turned off, press once to

return to Screen lock mode.

䡲 While the device is unlocked and not on an active

call, press and hold to display the Phone options
menu (Silent mode, Airplane mode, Power off).

6. Headset Jack allows you to plug in an optional

headset for convenient, hands-free conversations.

CAUTION! Inserting an accessory into the incorrect

jack may damage the device.

14 2A. Device Basics

Viewing the Display Screen

Your device’s display screen provides information
about the device’s status and options. This list identifies
the symbols you’ll see on your device’s display screen:

Status Bar – Service Icons

Activation Not Completed – Your automatic

device activation process failed, please retry.

Signal Strength – Shows your current signal

strength. (More bars = stronger signal.)

No Service – Your device cannot find a usable

signal.

Airplane Mode On – Your device will not make or

receive calls or provide data access. Local
applications are still available.

3G Available – Boost 3G data service is

available.

3G Communicating – Boost 3G data service is

active and communicating.

Status Bar – Status Icons

Call in Progress – A voice call is in progress.

Audio is routed through either the earpiece or
external speaker.

Bluetooth Call in Progress – A voice call is being

routed through a Bluetooth headset.

Missed Call – You have missed an incoming

call.

Call Muted – The device microphone has been

muted.

Speaker – Speakerphone feature is enabled.

Battery Strength – Shows your current battery

charge level. (Icon shown is fully charged.)

Battery Charging – Shows your current battery

charge level and indicates it is charging.

Battery Low – Shows your current battery

charge level is very low.

Device Power Critical – Shows your current

battery only has three percent power remaining
and will immediately shut down.

Bluetooth Active – Bluetooth technology is

active and enabled.

Status Bar – Status Icons

Bluetooth Connected – Bluetooth technology is

active and communicating with an external
device.

GPS Location On – Device location feature is on

and available for location-based services such
as GPS Navigation.

GPS Communicating – Device location feature is

on and communicating.

Wi-Fi Connected – Wi-Fi is connected, active

and communicating with a Wireless Access
Point (WAP).

Wi-Fi Connection Issue – Wi-Fi is active but there

is a communication issue with the target
Wireless Access Point (WAP).

microSD Unmounted – The internal microSD

card has been disconnected from the device
and is now ready for either removal or
formatting.

USB Connection – The device has detected an

active USB connection.

2A. Device Basics 15

Device Basics

Status Bar – Status Icons

Sign-in/Sync Error – There has been an issue

with your connection to the Google server or
you were not properly signed into your account.
In order to use Google application or sync
features, you must set up and sign into an active
Google account.

Alarm Event – Shows you have an upcoming

alarm event.

Silent Mode – All incoming sounds are turned

off.

Vibrate Only – The ringer is set to vibrate during

Silent Mode.

Data Synchronization – Application sync is

active and synchronization is in progress for
Gmail, Calendar and Contacts.

Android OS Update Available – A new Android

operating system update is available for
download.

System Updates Available – A new system

update is available for download.

Files Downloading – The device is downloading

selected files.

16 2A. Device Basics

Status Bar – Status Icons

Download Successful – A recent software

download was successfully downloaded.

Calendar Reminder – Shows you have a

reminder of an upcoming Calendar event.

Status Bar – Messaging Icons

Text Message – You have new text (SMS) or

multimedia (MMS) messages.

Voicemail Message – You have new voicemail

messages.

New Email Message – Shows you have received

either a new Internet email message or
Microsoft® Outlook® email message via an
Exchange server.

New Gmail Message – Shows you have received

a new Gmail Message.

Turning Your Device On and Off

Battery and Charger

Turning Your Device On

䊳 Press and hold .

Once your device is on, it enters standby mode – the
device’s idle state. At this point, you are ready to begin
making and receiving calls.

Turning Your Device Off

1. Press and hold for two seconds until you

see the powering-down animation on the display
screen.

2. At the prompt, touch Power off > OK.

Your screen remains blank while your device is off
(unless the battery is charging).

WARNING: Use only Samsung-approved batteries and

chargers with your device. The failure to use a
Samsung-approved battery and charger may
increase the risk that your device will overheat,
catch fire or explode, resulting in serious bodily
injury, death or property damage.

Battery Capacity

Your device is equipped with a Lithium Ion (Li-Ion)
battery. It allows you to recharge your battery before it is
fully drained. The battery provides up to 7 hours of
continuous talk time.

Tip: Watch your device’s battery level indicator and charge the

battery before it runs out of power.

At 10% of charge capacity, the battery icon blinks.
At 3% of charge capacity, there are only a few minutes
of talk time left, the device sounds an audible alert,
displays a critical charge icon ( ), then turns off.

Important: Long backlight settings, searching for service,

vibrate mode, browser use and other variables
may reduce the battery’s talk and standby times.

2A. Device Basics 17

Device Basics

Installing the Battery

䊳 See “Setting Up Your Device” on page 2.

Removing the Battery

1. Make sure the power is off so that you don’t lose

any stored numbers or messages.

2. Grasp the device firmly, locate the cover release

latch, and then place your fingernail in the opening
and firmly “pop” the cover off the device.

3. Carefully remove the battery from the device.

18 2A. Device Basics

Charging the Battery

Keeping track of your battery’s charge is important. If
your battery level becomes too low, your device
automatically turns off and you will lose any information
you were just working on.

Note: Although the battery comes partially charged, it is

recommended you fully charge the battery before
using your device for the first time.

1. Connect the USB cable to the charging head.

2. Insert the USB cable into the device’s Charger/

Accessory jack.

3. Plug the charging head into a standard AC

power outlet.

Always use a Samsung-approved desktop charger,

Incorrect

Correct

Incorrect

Correct

travel charger, or vehicle power adapter to charge your
battery.

䊳 Plug the flat end of the charger into the device’s

charger jack and the other end into an electrical
outlet. The device turns on with the screen locked
and indicates both its charge state and percent of
charge.

Your device is equipped with a Lithium Ion (Li-Ion)
battery. The charger allows you to recharge your
battery before it is fully drained.

Extending Your Battery Life

Active applications, light levels, Bluetooth usage and
GPS functionality all act to drain your battery. The
following is a list of helpful tips that can help conserve
your battery power:

Device Basics

2A. Device Basics 19

䢇 Reduce your backlight on time. (See “Changing the

Backlight Time Length” on page 67.)

䢇 Turn Bluetooth off when not in use. (See “Turning

Bluetooth On and Off” on page 129.)

䢇 Turn Wi-Fi off when not in use. (See “Turning Wi-Fi

On and Off” on page 154.)

䢇 Deactivate the GPS when not needed. Most

applications using this function will periodically query
the GPS satellites for your current location; each
query drains your battery. (See “Activating Location
Mode” on page 176.)

䢇 When taking pictures, do not use a flash unless you

have to. (See “Camera Settings” on page 121.)

䢇 When your device seems to slow down due to

background applications (not properly closed or
shutdown), the Task Manager lets you view the
running applications and choose which to close to
conserve the battery. (See “Manage Running
Services” on page 75.)

䢇 Do not wait until your battery is completely depleted

before charging your device. Repeating this process
of a complete discharge and recharge can over time
reduce the storage capacity of any battery.

20 2A. Device Basics

Device Function Keys

The Samsung Transform™ Ultra comes equipped with
four main function keys that can be used on any
screen.

Menu Key

The Menu key ( ) activates an available menu
function for the current screen or application. When on
the Home screen, the following menu options are
available:

䡲 Add ( ) adds one of the following functions to

a selected screen: Shortcuts, Widgets, Folders,
and Wallpapers. (See “Customizing Your Home
Screen” on page 31.)

䡲 Wallpaper ( ) lets you to customize the current

screen’s wallpaper image. You can obtain this
image from your installed ID wallpapers, your
Pictures folder, or from any of the available
images within the device’s Wallpaper gallery. (See
“Changing the Display Screen” on page 68.)

䡲 Settings ( ) provides quick access to the

device’s settings menu. (See “2C. Settings” on
page 60.)

䡲 Mobile ID ( ) lets you quickly change the ID

packet you're currently using. Touch an installed
pack and the screens will automatically swtich to
the pack you choose. Touch

Get New to download

and install a new ID. (See “Mobile ID” on page 5.)

Tip: Press and tap to access the settings menu.

䡲 Search ( ) displays the Quick Search box that

you can use to search for a key term both on the
phone and online. (See “Search Key” on
page 21.)

● For example, entering the word “Pa,” will

display any matching entries from your
device’s Contacts list, current device
applications, or from any online Web page via
Google search.

䡲 More accesses the following:

● Manage apps allows you to manage the

downloaded applications, All applications,

applications on the SD card, or Running
applications.

● Notifications ( ) Allows you to open the

notifications panel to provide more detailed
information about the current onscreen
notification icons. (See “Using the Notifications
Panel” on page 38.)

Home Key

The Home key ( ) takes you back to your Home
screen.

Back Key

The Back key ( ) returns you to the previously
active screen. If the onscreen keyboard is currently
open, this key closes the keyboard.

Search Key

The Search key ( ) displays the Google Search
box that can be used to search for a key term both on
the device and online. In some instances, this key
opens a search box specific only to the current
application.

2A. Device Basics 21

Device Basics

䡲 Tap to la unch the Voice Search function.

Search FieldSearch Options

(All/Web/Apps/Contacts)

Voice Search

Voic e

Device

Google
Search
Box

&
Web

Search

Search Matches

Using Your Device to Search

Use the Google Search box
to manually search for a
term on both your device
and on the Web.

1. Press to launch

the

Google Search box.

2. Tap to select a

search area.

䡲 All searches your

device, the Web, and
the Android Market for
your search term.

䡲 Web searches for your

term only on the Web
using the Google
search engine.

䡲 Apps searches for your term only within the

Android Market.

䡲 Contacts searches for your term only within your

current Contacts entries.

22 2A. Device Basics

● Search preferences and settings can be

configured to display suggestions in a
different manner.

Note: To hide the onscreen keyboard and see more of your

search matches, press .

3. Tap a match from the list of suggestions, phone

search results, or previously chosen search
matches. Once touched, the item opens in the
appropriate application.

– or –
Touching

Voice Search ( ) lets you speak into

your device's microphone to enter a search term.

To search the phone and Web by entering text:

1. Press to launch the Google Search box.

Note: There might be instances within an application where

pressing reveals only an application-specific
search. Press twice to open the Quick Search
box.

2. Use either the QWERTY or onscreen keyboard to

enter your search term. (See either “Entering Text
Using the Android Keyboard” on page 39 or

“Entering Text Using the Samsung QWERTY
Keyboard” on page 42.)

䡲 As you type, matching items on your device and

matches from Google’s Web search are added to
the onscreen list of previously chosen search
results.

䡲 Search preferences and settings can be

configured to display suggestions in a different
manner. (See “Search Settings” on page 81.)

Note: To hide the onscreen keyboard and see more of your

search matches, press .

3. Tap a match from the list of suggestions, phone

search results, or previously chosen search
matches. Once touched, the item opens in the
appropriate application.

To search the phone and Web using Voice Search:

1. Press and tap (microphone icon on the

side of the

Note: Tapping in an application’s search box searches

Google Search box).

the application by voice, not the Web.

2. From the open dialog, say what you want to search

for.

2A. Device Basics 23

Device Basics

3.

Once complete, the Voice Search application
analyzes your spoken words and displays a list of
matching keyword terms.

Note: It is recommended that you use this feature in a quiet

room. Loud ambient or background noises can
confuse the application and result in inaccurate search
results.

To use additional Voice Search functions:

䊳 From an open Voice Search dialog, speak the

following words to access additional features:

䡲 Voice actions allows you to search the web by

speaking the search parameters.

䡲 Send text allows you to open the Messaging

screen.

䡲 Navigate to allows you to receive directions via

Google™ Maps. Use either an Address name,
Business name, business type, or other
navigation information to get the desired
directions.

䡲 Call allows you to automatically dial the number

of a business or location.

● For example, say, “johnny’s pizzeria.”

24 2A. Device Basics

䡲 Send email allows you to open your email

account and compose a new email message.

䡲 Map of allows you to view a map of an area via

Google™ Maps. Use either an Address name,
Business name, zip code, or other navigation
information.

䡲 Go to allows you to navigate to any component of

your device.

䡲 Note to self allows you to send a message to

yourself.

䡲 Directions to allows you to receive a list of

websites that contain the spoken address via
Google™. Use an Address name for the desired
result list.

Navigation and Customization

The Samsung Transform™ Ultra is a touch-sensitive
device which allows you to not only select an onscreen
option with a single tap, but also scroll through long
menu lists. Simply slide up and down through the
display with your fingertip.

Tip: Some menu options are also accessed by pressing and

Status bar

Main Home

Shortcuts

Notification area

Status area

Screen

Call Key

Application Tab

Mobile ID

Page Navigation

holding an onscreen item, such as a Contact entry from
the Contacts tab.

Home Screen Overview

The Home screen is the starting point for many
applications and functions, and it allows you to add
items like application icons, shortcuts, folders, or
widgets to give you instant access to information and
applications.

This is the default page and accessible from any menu
by pressing .

䢇 Status bar, located at the top of the screen, displays

both Notification and Status icons.

Device Basics

䢇 Notification area displays icons associated with

end-user notifications such as: email messages,
calls (missed, call in progress), new voicemail,
upcoming events, a USB connection, and text/MMS

2A. Device Basics 25

messages. (See “Using the Notifications Panel” on
page 38.)

䡲 These notifications appear at the top-left of the

screen (within the Status bar) and display
important user information.

䡲 This information can be accessed by either

swiping down from the Status bar (page 38) or by
accessing the Notifications panel

> More >

Notifications ().

䢇 Status area displays icons associated with the status

of the device such as communication, coverage,
Bluetooth and Wi-Fi communication, battery levels,
GPS, etc.

䢇 Home Screen is a customizable screen (#3) that

provides information about notifications and device
status, and allows access to application widgets.

䢇 Extended Home Screens extend beyond the current

visible screen width to provide more space for
adding icons, widgets, and other customization
features.

䡲 There are five available screens, each of which

may be populated with its own shortcuts or
widgets.

26 2A. Device Basics

䡲 Press to access the main Home screen

which appears as the default “page” on the
device and then slide your finger horizontally
across the screen to go to the left or right
extended screens. There are four additional
screens on either side of the main Home screen.

䡲 Think of it as having a desktop so wide that your

screen can only display a portion at a time.

Tip: While on an extended Home screen, press to

return to the main Home screen.

Note: Both the status bar and primary shortcuts are visible

across all screens (Home and Extended).

Screen #3 is the Home screen.

䢇 Google search is an onscreen Internet search engine

powered by Google™. Touch to access the Voice
Search feature where you can verbally enter a search
term and initiate an online search.

䢇 Widgets are self-contained onscreen applications

(not shortcuts). These can be placed onto any of the
available screens (Home or Extended). (See “Adding
and Removing Widgets” on page 33.)

䢇 Shortcuts are icons that launch available device

Quick Screen AccessPages on left Pages on right

(touch and hold)

applications such as Voicemail, Contacts, Phone,
Email, Alarm Clock, etc. These function the same as
shortcuts on your computer.

䡲 Although some are already found on the

Extended Home screens, the majority can also be
found within the Applications tab.

䡲 Shortcuts can be pulled out from this tab or

pulled into it (removed from an Extended Home
screen). (See “Creating Shortcuts” on page 31.)

䢇 Page Navigation are a visual indication of the

currently active page. The onscreen dots (located at
the bottom left and right of the screens) indicate your
current page location.

䡲 When on the Home screen, two dots display at

both locations (this indicates there are two pages
at either side of the current page).

䡲 Touch and hold to reveal the Quick Screen

Access. Tap a preview to launch the selected
screen.

Device Basics

䢇 Application tab ( ) houses all of your available

applications. Some of these applications also exist as
Widgets. Some Widgets are placed onto an available
screen. Some sample widgets are:

䡲 Phone ( ) launches the phone-related screen

functions (Phone, Call log, Contacts, and
Favorites.)

䡲 Contacts ( ) launches the Contacts-related

screens (Phone, Call log, Contacts, and Favorites).

2A. Device Basics 27

䡲 Email ( ) launches the email application that

manages both Internet-based and Microsoft®
Outlook® (Exchange Server-based) email
accounts.

Using the Applications Tab

All of your device’s applications are located within the
Applications tab. This tab houses shortcuts to your
currently available applications.

Note: This tab houses all default and downloaded

applications (installed from Android Market or from the
Web).

28 2A. Device Basics

1. Press and tap to

open the tab loaded with every
available local application.

䡲 Press to close the

Applications screen.

2. Scroll though the list and tap

an icon to launch the
associated application.

䡲 The screen contains device

applications such as

Calculator, Camera, Email,
Gallery, Market, Navigation,
Phone, Settings, Voice Search,
YouTu be, and much more.

Browser,

Applications

The following is a listing of some sample applications
available via the Applications tab.

Note: Applications that appear on the Home Screens will

depend on which ID Pack you choose to install.

Application Icons

Books – Allows you to purchase and download

ebooks from the Google ebooks Website.

Browser – Launches the Web browser

(page 148). The browser is fully optimized and
comes with advanced features to enhance
Internet browsing on your device.

Calculator – Launches the onscreen calculator

application (page 105).

Calendar – Launches the Calendar applications

that syncs itself to either your Google or
Exchange Server (Microsoft® Outlook®
calendar (page 96). Events can only be synced
to a managed account (page 77).

Camera – Launches the built-in camera

(page 120).

®)

Application Icons

Clock – Accesses the alarm and media

application screen (page 102).

Contacts – Displays the Contacts tab listing

current contacts, synced from either your
Google or Microsoft® Outlook® account
(page 88). Contacts can only be synced to a
managed account (page 88).

Downloads – Allows you to view your

downloaded applications.

Email – Provides access to both your Microsoft®

Outlook® (Exchange Server-based) email and
Internet email accounts (such as Google, Yahoo,
etc). (page 161).

Gallery – Displays a Gallery of camera images

and video stored in the microSD card
(page 122).

Gmail – Provides access to your Gmail account

(page 158).

Google Search – Provides an onscreen Internet

search engine powered by Google™.

2A. Device Basics 29

Device Basics

Application Icons

Latitude – Lets you see your friends' locations

and share yours with them. The application also
lets you See your friends' locations on a map or
in a list.

Maps – Launches a Web-based dynamic map

that helps you find local businesses, locate
friends, view maps and get driving directions
(page 177).

Market – Browse and search for applications on

Android Market (page 170).

Messaging – Provides access to your text

messaging application (SMS) (page 137).

Mobile ID – Mobile ID delivers the very best

applications for your phone, hand-picked by
major ID partners, in one easy-to-use pack.
Mobile IDs are free to download and install.

Music – Launches the built-in Music Player

(page 173).

My Files – Lets you view supported image files

and text files on your microSD card (page 104).

30 2A. Device Basics

Application Icons

Navigation – Launches a built-in GPS feature,

giving you access to a number of location­based services (page 176).

Phone – Access the phone dialpad (page 52).

Places – Allows others to find your business on

local search results using either Google Search
or

Google™ Maps.

Settings – Access the device’s built-in Settings

menu (page 60).

Tal k – Launches a Web-based Google Talk

talk

application that lets you chat with family and
friends over the Internet for free.

ThinkFree Office – A Microsoft® Office

compatible office suite that provides a central
place for managing your documents online or
offline.

Voice Dialer – Launches your device’s built-in

automatic speech recognition (ASR) software,
called Voice Control, to dial a phone number in
your Contacts or to launch phone functions
(page 109).

Application Icons

Voice Search – Launches your device’s built-in

automatic speech recognition (ASR) software
and initiates a Google search based on the
recognized text (page 112).

Voicemail – Allows you to access voicemail

messages (page 136).

YouTu be – Launches the YouTube webpage via

the Browser (page 175).

Note: The Email application includes access to both

Exchange Server-based email (Microsoft® Outlook®)
and other Internet-based email providers such as
Yahoo! Mail.

Customizing Your Home Screen

You can customize your Home screen by doing the
following:

䢇 Creating Shortcuts
䢇 Adding and Removing Widgets
䢇 Repositioning Widgets
䢇 Creating Folders
䢇 Changing the Background (Wallpaper)

Creating Shortcuts

Shortcuts are different than the current Home screen
Widgets that only launch an application. Shortcuts
activate a feature, action, or launch an application.

Note: To move a shortcut from one screen to another, delete it

from its current screen, activate the new screen, and
then add the shortcut. Or touch and hold the shortcut
and drag it to the new screen.

2A. Device Basics 31

Device Basics

To add a shortcut from the Applications tab:

1. Press to activate

the Home screen.

2. Select a location (screen)

for your new shortcut by
scrolling across your
available screens until
you reach the desired
one.
(See “Home Screen
Overview” on page 25.)

3. Tap th e Applications

( ) tab to reveal all
your current applications.
By default, the
applications are listed in
a Grid view.

4. Scroll down through the list and locate your

desired application.

32 2A. Device Basics

5. Touch and hold the onscreen icon. This creates an

immediate shortcut of the selected icon and closes
the Applications tab. The new shortcut then
appears to hover over the currently active screen.

Note: The same shortcut can be added to any of the

available screens (Home or Extended). The application
you add to the screen will still appear within the

Applications tab.

6. While still holding the onscreen icon, position it on

the current screen. Once complete, release the
screen to lock the shortcut into its new position.

To add a shortcut using the Add to Home screen:

1. Press to activate

the Home screen.

2. Touch and hold on an

empty area of the
screen.

3. From the Add to Home

screen window tap
Shortcuts.

4. Tap a selection from the

available list:

䡲 Applications
䡲 Bookmark
䡲 Contact
䡲 Direct dial
䡲 Direct message
䡲 Directions & Navigation
䡲 Latitude
䡲 Music playlist
䡲 Settings

5. Follow the onscreen instructions to add the new

shortcut to your current Home screen.

To delete a shortcut:

1. Press to activate

the Home screen.

2. Touch and hold the

desired shortcut. This
unlocks it from its
location on the current
screen.

3. Drag the icon over the

Delete tab ( ) and
release it.

Adding and Removing
Widgets

Widgets are self-contained applications that reside in
either your Applications tab or on the Home or
Extended screens. Unlike a shortcut, this widget
appears as an onscreen application.

2A. Device Basics 33

Device Basics

Note: To move a widget from one screen to another, it must

first be deleted from its current screen. Activate the new
screen, and then add the widget.

To add a Widget:

1. Press to activate the Home screen.

2. Touch and hold on an empty area of the screen.

3. From the Add to Home screen window tap Widgets.

4. Tap an available widget to place it on your current

screen.

䡲 Choices include: Analog clock, Calendar, Google

Search, Home screen tips, Latitude, Market, Music,
Picture frame, Power Control, Rate Places, Tra ffi c,
Tutorial #1, Tutorial #2, Tutorial #3, Tutorial #4,
Tutorial #5, and Yo uTube .

To remove a Widget:

1. Touch and hold a widget until you can move it

around on the screen.

2. Drag the widget over the Delete tab ( ) and

release it.

䡲 As you place the widget into the Trash, both items

turn red.

34 2A. Device Basics

䡲 This action does not delete the widget, just

removes it from the current screen.

To place a widget onto a different screen:

1. Touch and hold the widget until it becomes

transparent.

2. Drag it to the edge of your screen.

3. Slowly drag it past the edge of the screen until it

turns light blue.

4. Add the widget to the new screen.

5. Repeat these steps to continue moving it to other

adjacent screens.

Creating and Managing Folders

Folders are located on any of the three available
screens and contain both files (such as data and
images) and Contact or entries.

To create a folder onscreen:

1. Press to activate the Home screen.

2. Touch and hold on an empty area of the screen.

3. From the Add to Home screen window tap Folders.

4. Tap an available folder type to place it on your

current screen.

䡲 Choices include New folder, All contacts, Bluetooth

received, Contacts with phone numbers, Google
Contacts, Recent documents, or Starred contacts.

Note: Starred contacts are those Contact entries tagged as

very important.

Accessing Recently-Used Applications

Your device keeps a running list of your six most
recently used applications.

1. Press and hold

to open the recently-used
applications window.

2. Tap an icon to open an

application.

Changing the Screen Orientation

The Samsung Transform™
Ultra is capable of
automatically changing the
orientation
of some onscreen content. The device’s built-in
accelerometer senses movement and changes its
angle/orientation.

This allows the device to change the onscreen content
(images, video, Web pages) to properly display based
on the current angle (some screens may not
automatically change).

2A. Device Basics 35

Device Basics

Portrait

Landscape

Although most screens will change orientation once
the QWERTY keyboard is opened, this feature can be

36 2A. Device Basics

manually enabled to change the orientation for all
applicable screens when rotation is detected.

Note: An example of a screen that does not automatically

re-orient is the Home screen. This screens requires you
slide out the QWERTY keyboard.

An example of a screen that automatically re-orients by
moving the device is the Contacts screen. This only
requires you to turn the device on its side.

To manually activate the auto-rotate feature:

1. Press > and tap > Display.

2. Scroll down and tap Auto-rotate screen. A

checkmark indicates the feature is enabled.

䡲 Clear the Auto-rotate screen checkmark to disable

this automatic orientation adjustment.

Menu Navigation

There are two ways to navigate through a menu:

䢇 Using your finger (page 37)
䢇 Using the keyboard’s navigation/arrow keys

(page 37)

Selecting Menu Items

As you navigate through the menu, you activate menu
options by tapping the onscreen entry. Select any
option by tapping it.

1. Tap an onscreen icon to

launch a menu or
feature.

2. Scroll your finger across

the screen to navigate
through a menu list
(bottom up or top down).

3. Tap a menu item to

make a selection or
activate a field.

To launch the dialpad:

䊳 Tap from t he

Home screen.

Selecting Menu Items Using Your Keyboard

Access the QWERTY keyboard and locate the
navigation keys, located at the right of the keyboard.

As you navigate through a menu with these navigation
keys, options are highlighted. Select any option by
pressing a directional arrow from the QWERTY
keyboard and moving the onscreen selection,
highlighting it and pressing .

䡲 If the option is numbered, you can select it by

pressing the corresponding number on the
phone’s dialpad.

Viewing the Previous Menu

To go to the previous menu:

䊳 Press .

To return to Home screen:

䊳 Press .

2A. Device Basics 37

Device Basics

Using Context Menus

Context menus (also called popup menus) contain
tools that apply to a specific item on the screen. They
function similar to those menu options available on
your computer when you use a right-mouse click.

You open a context menu by touching and holding an
onscreen item.

Note: Not all items have context menus. If you touch and hold

an item that has no context menu, nothing happens.

38 2A. Device Basics

Using the Notifications Panel

The Notification area indicates new message events
(data sync status, new messages, calendar events, call
status, etc). You can expand this area to provide more
detailed information about the current onscreen
notification icons.

1. Touch and hold the Status bar, and then slide your

finger down the screen.

2. Tap a notification entry to open the associated

application.

Note: The Notifications panel can also be opened on the

Home screen by pressing

Notifications.

>

> > More

Displaying Your Phone Number

䊳 Press > and tap Settings >

About phone > Status. (Your phone number and

other information about your device and account is
displayed.)

Entering Text Using the Android Keyboard

Selecting a Text Input Mode

Note: Some characters and types, such as some symbols

and emoticons, are not accessible from the onscreen
keyboard.

1. From a screen where you can enter text, tap the

input field to reveal the onscreen keyboard.

2. Select one of the following Text mode options:

䡲 ABC to use alphabetic characters from the

onscreen keyboard (See page 41.)

䡲 ?123 to enter numbers by pressing the numbers

on the onscreen keyboard. (See page 41.)

Tip: When entering text, tap to change letter capitalization.

䡲 Voice Input allows the device to use its built-

in voice recognition software to hear your voice
and transcript it directly into text.

2A. Device Basics 39

Device Basics

Android Keyboard Overview

Entry field

Delete

Caps/ALT

Text mode

Voice Input

Enter

Recipient

Send

Suggested

words

Settings

䢇 Entry field: a field where text, numbers, or other

characters can be entered.

䢇 Suggested Word choices: a row of selectable word

choices based on the current set of entered text. Tap
an onscreen choice to insert the selection into your
text entry field at the current cursor position. Tap the
gray left and right arrows on this field to reveal
additional word choices.

䢇 Delete: deletes characters from the entry field.
䢇 CAPS/ALT: When in ABC mode, this key changes the

capitalization of the subsequent entered characters.
When in
symbol characters.

?123 mode, this key can show additional

䡲 Capitalization in Abc mode can be altered by

using the Caps button.

䡲 Symbols used in ?123 mode can be enhanced

by accessing additional symbol characters.

40 2A. Device Basics

䢇 Text mode: There are two available modes: ABC and

?123.

䡲 ABC mode contains only letters. Text mode button

?123

?123

?123

ABC

indicates .

䡲 ?123 mode contains only numbers and symbols.

Text mode button indicates

䢇 Voice Input mode: Tapping this button activates the

ABC

built-in microphone and voice recognition software.

䡲 Speak clearly into the microphone. When

complete, your spoken words are recognized,
converted to text, and inserted into your current
cursor position.

Note: It is recommended that to avoid incorrect conversion,

you use this feature in an area relatively free from
background noises.

ABC Mode

In ABC mode, you can enter only letters from the
on-screen keyboard. The text mode key shows

1.

Select the ABC mode ( ). See “Selecting a Text
Input Mode” on page 39.

䡲 Capitalization in ABC mode can be altered by

using the Caps button.

next character is lowercase.

only the next character is uppercase.
all subsequent characters are uppercase.

.

Note: A green dot on the shift key above indicates the

keyboard is set to “Shift-Lock” where all characters are
entered in uppercase.

2. Tap the corresponding onscreen keys to begin

typing your word.

䡲 If you make a mistake, tap to erase a single

character. Touch and hold to erase all text.

By default, the first letter of an entry is capitalized and
the following letters are lower case. After a character is

Device Basics

entered, the cursor automatically advances to the next
space after two seconds or when you enter a character
on a different key.

Entering Numbers and Symbols

.

By using the onscreen keyboard in Portrait mode,
some symbols are not available (such as Emoticons or
Smileys). In ?123 mode, you can only enter numbers
and symbols from the onscreen keyboard. The text
mode key shows

.

2A. Device Basics 41

To enter numbers:

?123

?123

ALT

1. Tap to enter the ?123 mode.

2. Tap the appropriate numeric key.

To e nt er s ymb ol s:

1. Tap to enter the ?123 mode.

2.

Tap the appropriate symbol key.
– or –
Tap to select from additional symbol

characters. The key shows when the
additional character set is active.

ALT

Entering Text Using the Samsung QWERTY Keyboard

Accessing the QWERTY Keyboard

The Samsung Transform™ Ultra has a full, slide-out
QWERTY keyboard. The keyboard is located beneath
the display screen and is accessed by sliding it open.
This orients the device's display to Landscape
(widescreen) mode.

42 2A. Device Basics

With the QWERTY keyboard, you can type letters,
numbers, punctuation, and other special characters
into text entry fields or other applications as easily as
with your computer.

To open the device and access the keyboard:

1. Rotate the device 90 degrees counter-clockwise.

2. Slide the top section of the device up to open, as

shown in the illustration. When you slide the device
open, the display rotates from a vertical viewing
mode (Portrait) to a horizontal viewing mode
(Landscape).

To reveal additional QWERTY text editing options:

Del

1. Touch and hold an active text entry field.

2. From the Edit text context menu, tap an available

function:

䡲 Select word highlights the characters of the last

entered word in the text message field.

䡲 Select all highlights all characters in the text

message field.

䡲 Input method provides additional text input

methods, if available. The default is the

keyboard.

䡲 Add “device” to dictionary adds the currently

highlighted word to your device’s dictionary.

Using the Keyboard

In this section we’ll cover the steps necessary to enter
text using the QWERTY keyboard. Using your device's
QWERTY keyboard is just like using any standard
computer keyboard.

The following keys perform special functions when
entering text:

Swype

FN: Allows you to use alternate characters

displayed at the top of the QWERTY keys.
Examples: $, @, #, !

Shift: Changes the text input mode

among Upper/Lower/Mixed case mode.

Smiley: Launches the Smileys page.

Scroll down and tap an entry from the
extensive list of emoticons.

Space: Inserts an empty space.

OK/Enter: Selects or accepts a currently

highlighted option.

Delete: Deletes the previous character,

similar to the backspace key on a
computer keyboard.

Return: Inserts a new line into the text

field.

From a text entry screen, use the keyboard to enter
different character types. Select one of the following
character types:

䡲 Letters to enter the alphabetic characters

associated with each key. (See page 44.)

2A. Device Basics 43

Device Basics

䡲 Numbers to enter numbers by pressing the

numbers on the keyboard. (See page 44.)

䡲 Symbols to enter symbols. (See page 44.)
䡲 Smileys to enter smileys or “emoticons.”

(See page 44.)

Tip: When entering text, press to change letter

capitalization (Abc > ABC > abc).

The keyboard provides dual-use keys labeled with
alphabetic characters on the lower half and numbers
and symbols on the upper half. Press the key
corresponding to the blue character you want to enter.

Entering Letters

The first letter entered (of a field or new sentence) is
always an initial uppercase letter. By default, text is
entered in lowercase characters unless altered by
pressing .

To enter uppercase and lowercase characters:

1. Press to make the next character uppercase.

Characters revert back to lowercase after the next
character is typed.

– or –

44 2A. Device Basics

Press

twice to make all subsequent

characters uppercase (all new characters are in
uppercase).

䡲 Pressing cycles through the capitalization

modes (all lowercase, initial uppercase, and all
uppercase).

2. Press the corresponding keys.

Entering Numbers

The keyboard's number keys are alternate characters
located along the top on the QWERTY keyboard.

䊳 Press and then press the key corresponding

to your desired number choice. (Press twice
to enter consecutive numbers or alternate
characters.)

Entering Symbols and Smileys

Most symbols and punctuation marks appear as
alternate characters above the primary letters and
numbers on the QWERTY keyboard. To access these
symbols, press and then press the appropriate
key.

Smileys (emoticons) are accessed by pressing
and then selecting an image from the Insert smiley
page that is then inserted at your current cursor
position.

To enter symbols:

1. Position the cursor where you want the symbol to

display within your message.

2. Press and then press the key corresponding

to the symbol you want to insert.
– or –
Press and tap an onscreen symbol.

To enter “smileys” (emoticons):

1. Position the cursor where you want the symbol to

display within your message.

2. Press to open the onscreen smiley page.

3. Select a smiley by tapping the onscreen icon.

Entering Text Using Swype

Swype™ is a unique text input method that allows a
user to enter a word by sliding a finger from letter to
letter, lifting only between words. It uses error-correcting
algorithms and a language model to guess the word
intended. It also includes a tapping predictive text
system in the same interface.

The onscreen keyboard options are different between
the Android keyboard and Swype onscreen input
methods.

Enabling and Configuring Swype

The onscreen Android keyboard is the default
touchscreen input method on the Samsung
Trans form
a normal keyboard.

You must enable Swype as the Text Input method
before you can use it.

To enable Swype:

™ Ultra. This method of text input is similar to

䊳 Press > and tap > Language &

keyboard > Swype.

2A. Device Basics 45

Device Basics

To configure Swype settings:

1. Press > and tap > Language &

keyboard.

2. Tap Swype settings.

3. Scroll down the list of available options and touch

a corresponding entry to either activate or
configure the settings.

䡲 Preferences allows configuration of the Swype text

input and feedback parameters:

● Language: allows you to select the current text

input language. Default language is

US

English.

● Audio feedback: turns on/off sounds

generated by the Swype application during
use.

● Vibrate on keypress: activates a vibratory

sensation as you enter text via the onscreen
keypad.

● Enable tip indicator: turns on an onscreen

flashing indicator that provides helpful usage
information.

46 2A. Device Basics

䡲 Swype Advanced Settings provides access to

Swype advanced options:

● Word suggstion uses a built-in word database

to predict and suggest words while entering
text in Swype.

● Auto-spacing: automatically inserts spaces

between words. When you finish a word, just
lift your finger to start the next word.

● Auto-capitalization: automatically capitalizes

the first letter of the first word in a sentence.

● Show complete trace: determines whether to

show the entire path formed by the letters you
are sliding over to form a given word.

● Speed vs. accuracy: sets how quickly Swype

responds to your onscreen input. Do you
prefer more accurate text entry or is your
desire for speed? Move the slider between

Fast Response (speed) or Error Tolerance

(accuracy) and touch

● Word choice window: sets how often the word

OK.

choice selection window appears onscreen.
Move the slider between
touch

OK.

Never or Always and

䡲 Help provides access to Swype help.

● Swype help: to access Swype Help

information and user manual.

● Tut or ial : provides access to onscreen Swype

tutorials.

䡲 About displays the current software version.

Text Entry tips:

䢇 To create double letters like pp in "apple," draw a

“squiggle” on the P key.

䢇 To enter punctuation, touch and hold a key to view a

punctuation menu and make a selection.

䢇 To enter contractions, move your finger over the

apostrophe.

䢇 To correct a misspelled word, double-tap on the

word you want to change and then tap to erase a
single character. Touch and hold

to erase an

entire word.

Selecting a Text Input Mode in Swype

Note: Certain characters and types, such as some symbols

and emoticons, are not accessible from the onscreen
keyboard.

1. From a screen where you can enter text, tap the

input field to display the onscreen keyboard.

2. With Swype as your text input method, select one

of the following text mode options:

䡲 123 ABC to use Swype with alphanumeric

characters from the onscreen keyboard.

Tip: When entering text, tap to toggle capitalization.

䡲 SYM (Symbol) to enter symbols from the

onscreen keyboard.

Important: Even if Swype is enabled from within the

Language & keyboard menu, you must enable
Swype from the Select Input Method context
menu.

2A. Device Basics 47

Device Basics

Swype Keyboard Overview

Entry field

Delete

Caps/ALT

Text mode

Enter

Send

Recipient

Enter

Swyp tips

Voice Input

䢇 Entry field a screen area where text, numbers, or

other chacters are entered.

䢇 Delete deletes characters from the entry field.

䢇 CAPS/ALT: When in ABC mode, this key changes the

capitalization of the subsequent entered characters.
When in

SYM mode, this key displays additional

symbol characters.

䢇 Text Input mode: There are two available modes: 123

ABC and SYM.

䡲 123 ABC mode contains only letters. In this mode,

the text mode button displays .

䡲 SYM mode contains only numbers and symbols.

In this mode, the text mode button displays .

䢇 Swype tips Tapping this button displays the

SYM

ABC

123

Swype tips and tutorial screen.

䢇 Voice Input mode: Tapping this button activates the

built-in microphone and voice recognition software.

䡲 Speak clearly into the microphone. When

complete, your spoken words are recognized,
converted to text, and inserted into your current
cursor position.

48 2A. Device Basics

123 ABC Mode

SYM

ABC

123

ABC

123

In 123 ABC mode, you can enter only letters and a few
common punctuation marks from the on-screen
keyboard. The text mode key shows .

While in this mode, the text mode key displays .

1.

Select the 123 ABC mode (showing letters and
numbers on the onscreen keys).

䡲 Capitalization in this mode can be altered by

using the Caps button.

first character is uppercase
all characters are uppercase
next character is lowercase

2. Swipe your finger continuous (without lifting your

finger) over the letters to form a word.

䡲 If you make a mistake, tap to erase a single

character.

䡲 Touch and hold to erase an entire word.

By default, the first letter of an entry is capitalized and
the following letters are lower case. After a word is
entered and you lift your finger, the cursor automatically
adds a space after the word.

Entering Numbers and Symbols

By using the onscreen keyboard in Portrait mode,
some symbols are not available (such as Emoticons or
Smileys). In SYM mode using Swype, you can only
enter symbols and numbers from the onscreen
keyboard. The text mode key shows .

While in this mode, the text mode key displays .

To enter numbers and symbols:

1. Tap to enter the SYM (symbol) mode.

SYM

2. Touch the key for the number or symbol you want

to enter.

3. Tap to enter alternate symbols displayed at the

top of the key.

To enter text:

This example shows a user entering the word “there”.
Put your finger down on the “t”, and without lifting, glide
it to the “h”, and then to the “e”, and then over to the “r”,
and back to the “e”. When complete, lift your finger off
the screen to allow the device to determine the closest
word match.

SYM

Device Basics

2A. Device Basics 49

Note: If multiple word choices exist for your Swype entry, an

onscreen popup appears to provide additional word
choices.

Touch an onscreen character, and without lifting

1.

your finger, drag your fingertip to the next character
in the word.

2. Repeat this process until the desired characters

are traced.

䡲 If prompted, select from an onscreen list of

possible word matches. This occurs when the
keystrokes generates more than one possible
word match.

Touch for Swype tips and follow the onscreen
information.

Creating a Google Account

You will need a Google account to access several
device features such as Gmail, Google Talk, and the
Android Market applications. Before you are able to
access Google applications, you must enter your
account information. These applications sync between
your device and your online Google account.

50 2A. Device Basics

Note: A Google account can be created from either your

device or from a computer.

1. From a computer, launch a Web browser and

navigate to

www.google.com.

2. On the main page, click Sign-in > Create an

account now.

3. Follow the onscreen prompts to create your free

account.

4. Look for an email from Google, and respond to the

new email to both confirm and activate your new
account.

Signing In to Your Google Account

1. Launch an application that requires a Google

account (such as Android Market or Gmail).

2. Click Next > Sign in.

Note: If you do not already have a Google account, tap

Create and follow the onscreen prompts to create your

new account.

3. Tap th e Username and Password fields and enter

your information.

4. Create a new Gmail username by entering a prefix

for your

@gmail.com email address.

– or –

Sign in. Your device then communicates with

Tap
the Google servers to confirm your information.

For additional information about synchronizing
accounts, see “Synchronizing Accounts” on page 77.

Device Basics

2A. Device Basics 51

⽧ Making Calls (page 52)

2B. Making and Answering

Calls

End

⽧ Dialing Options (page 52)
⽧ Answering Calls (page 53)
⽧ Missed Call Notification (page 54)
⽧ Calling Emergency Numbers (page 54)
⽧ In-Call Options (page 55)
⽧ End-of-Call Options (page 56)
⽧ Additional Calling Options (page 56)
⽧ Saving a Phone Number (page 56)
⽧ Finding a Phone Number (page 57)
⽧ Dialing From the Contacts List (page 57)
⽧ Using Favorites (page 58)
⽧ Plus (+) Code Dialing (page 59)

52 2B. Making and Answering Calls

Making Calls

1. Press and then tap .

2. Enter a phone number using the onscreen dialpad

and tap .

䡲 If you make a mistake while dialing, tap to

erase the numbers.

3. Select to end a call.

Tip: To redial your last outgoing call, tap from the Call log

list.

You can also place calls from your device by speed
dialing numbers from your Contacts (page 58) and
using your Call log listings (page 83).

Dialing Options

When you enter numbers within the dialpad, you will
see three onscreen options.

䢇 Voicemail ( ) to place a call to your voicemail.
䢇 Call ( ) to place a new call to the current

number.

䢇 Delete ( ) to delete the digits from the current

number.

To see additional options,
tap .

䢇 Add to contacts to add the

current number to a new or
existing Contacts entry.

䢇 Add 2 sec pause: to insert a

two-second pause to enter
a 2-second delay within a
number string (the phone
continues dialing after 2
seconds without any
additional keys being
pressed).

䢇 Add wait to insert a hard pause within the number

string (the phone waits for your input). A wait requires
that any consecutive numbers be manually sent by
tapping

Yes .

Answering Calls

䊳 Touch and drag to the right to answer an

incoming call.

Note: All incoming call options listed below require you to

touch and hold the button to activate the function.

When unlocked, some functions can be activated by
tapping the onscreen button.

Tip: To silence the ringer on an incoming call, press either the

up or down Volume button.

Your device notifies you of incoming calls in the
following ways:

䢇 The phone rings or vibrates.
䢇 The backlight illuminates.
䢇 The screen displays an incoming call message.

If the incoming call is from a number stored in your
Contacts, the entry’s name is displayed. You may also
see the caller’s phone number, if available.

2B. Making and Answering Calls 53

Making Calls

Ending a Call

End

9

W X Y Z

1

1

䊳 Select to end a call.

– or –
Press and then tap

End call.

Missed Call Notification

When you do not answer an incoming call, the Status
bar indicates .

To display a Missed Call entry from the Home screen:

1. Touch and hold the Status bar, and then slide your

finger down the screen.

2. Tap the Missed call entry ( ). This opens the

Call log screen.

3. Tap next to the entry to make the call.

– or –
Touch and hold an entry from the Call Log list and

from the context menu, select
“Using Context Menus” on page 38.)

54 2B. Making and Answering Calls

Call [number]. (See

Calling Emergency Numbers

You can place calls to 911 (from the dialpad, enter

), even if your device is

locked or your account is restricted.

Note: When you place an emergency call, your device

automatically enters Emergency mode.

During an emergency call, press to display your
options. Select an option.

䢇 Speaker On to activate speakerphone mode. (If you

are in speakerphone mode, the option is displayed
as

Speaker Off to deactivate.)

䢇 Dialpad/Hide dialpad to show or hide the onscreen

dialpad.

䢇 End call to end the current call.

To exit Emergency mode:

1. Touch and drag across the screen to end a

911 call.

2. Tap Exit on the Emergency Call Back mode.

Note: When you end the 911 call, you are returned to the

555-555-2525

Emergency Call Back mode.

Within the Emergency Call Back mode, press the

Home key to use another menu.

Enhanced 911 (E911) Information

This device features an embedded Global Positioning
System (GPS) chip necessary for utilizing E911
emergency location services where available.

When you place an emergency 911 call, the GPS
feature of your device seeks information to calculate
your approximate location.

Note: Depending on several variables, including availability

and access to satellite signals, it may take up to 30
seconds or more to determine and report your
approximate location.

Important: Always report your location to the 911 operator

when placing an emergency call.

designated emergency call takers, known as
Public Safety Answering Points (PSAPs) may not
be equipped to receive GPS location information
from your device.

Some

In-Call Options

Once you initiate a call, you
will see six onscreen options.
Tap an option to select it.

䢇 Add call touch and hold to

initiate a 3-way call.

䢇 End to end the current call.
䢇 Dialpad/Hide to toggle the

appearance of the onscreen
dialpad.

䢇 Bluetooth to route the

device’s audio through a
connected Bluetooth
headset (On) or through the speaker (Off).

䢇 Mute to mute the microphone during an active call.

Tap again to unmute the microphone.

䢇 Speaker to route the device’s audio through the

speaker (On) or through the earpiece (Off).

2B. Making and Answering Calls 55

Making Calls

End-of-Call Options

1. After you receive a call from or make a call to a

phone number that is not in your Contacts, locate
the number in your Call log list.

2. Tap the number to view options, or tap to

redial the entry.

Additional Calling Options

To obtain additional options such as phone number
and the duration of the call, you must access the Call
log screen. (See “2D. Call Log” on page 83.)

1. Press and then tap >

Call log).

(

2. Touch and hold the entry to reveal an onscreen

context menu where you can choose from the
following options:

䡲 Call [Number] to redial the current phone number.
䡲 View contact to view contact information.

56 2B. Making and Answering Calls

Call log

䡲 Edit number before call to make alterations to the

current phone number prior to redial. (See
“Altering a Number From Call Log” on page 86.)

䡲 Send text message allows you to create a new text

message to the selected entry.

䡲 Add to contacts adds this number to the Contacts

list (if the contact is not already added).

䡲 Remove from call log to delete the entry from the

Call Log list.

Note: The End-of-Call options are not displayed for calls

identified as No ID, Restricted, or Unknown.

Saving a Phone Number

The number of Contacts entries you can store in your
device is limited only by available memory space. Your
device automatically sorts the Contacts entries
alphabetically. Each entry’s name can contain an
unlimited number of characters. (For more information,
see “2E. Contacts” on page 88.)

To save a new number from the Home screen:

1. Press and then tap .

Contacts

2. Enter the new number.

3. Press and tap Add to contacts.

4. Tap Create new contact.

5. If prompted, tap a

destination for your new
contact to synchronize.

䡲 The new contact can be

created under either
your

Google (Gmail)

account, or Microsoft®
Outlook®-Exchange
Server account).

Note: You will not see the above option to select a destination

unless you have previously established a Google or
Exchange Server-based accounts on the device. (See
“Synchronizing Accounts” on page 77.)

6. Tap the First name and Last name fields and use

the onscreen or QWERTY keyboard to enter the
new contact name.

7. Populate any of the other fields.

8. Tap Done to store and update the new entry.

Finding a Phone Number

You can search Contacts for entries by name.

1. Press and then tap (Contacts).

2. Touch and scroll the screen to locate the contact.

Dialing From the Contacts List

1. Press and tap > (Contacts).

Shortcut: From Phone screen, tap Contacts ( ) to list

2. Scroll through the list and tap the entry you want to

3. Tap a phone number.

entries.

call.

2B. Making and Answering Calls 57

Making Calls

Using Favorites

Favorites

Dialing From Favorites

You can quickly dial contacts you call frequently by
adding them to your Favorites list. Although not
assigned to a speed dial number, this is a quick and
easy way to dial your favorite Contacts. (See “Adding
Entries to Your Favorites” on page 95.)

To dial a contact from Favorites:

1. Press and then tap > Favorites

().

Favorites

2. Scroll through the list and tap the contact.

3. Tap to place a call, to send a text to the

contact, or to send an email.

Dialing a number from the
dialing one from the
the Contacts List” on page 57.)

58 2B. Making and Answering Calls

Favorites tab is similar to

Contacts tab. (See “Dialing From

Assigning Favorites

Only an existing Contacts entry can be assigned as a
Favorite contact.

To assign a Contacts entry as a Favorite:

1. Press and tap > .

– or –
Press and then tap

().

Contacts

2. Tap and hold a Contacts entry to display its

onscreen context menu (page 38).

3. Tap the star to add this contact to the Favorites list.

4. Tap th e Favorites tab ( )to confirm your entry

was added.

> Contacts

Plus (+) Code Dialing

0

+

When placing international calls, Plus Code Dialing
automatically enters the international access code for
your location (for example, 011 for international calls
made from the U.S.). (See “Activating Plus Code
Dialing” on page 60.)

1. Press and then tap .

2. Touch and hold until you see a “+” on the

display screen.

3. Dial the country code and phone number, and

then tap . (The device automatically
prepends the access code for international dialing,
followed by the country code and phone number.)

Making Calls

2B. Making and Answering Calls 59

⽧ Call Settings (page 60)

2C. Settings

0

+

⽧ Airplane Mode (page 62)
⽧ TTY Use With Boost Ser vice (page 62)
⽧ Display Settings (page 66)
⽧ Language Settings (page 69)
⽧ Location Settings (page 69)
⽧ Security Settings (page 70)
⽧ Synchronizing Accounts (page 77)
⽧ Search Settings (page 81)

60 2C. Settings

The Settings menu can be accessed by one of two
ways on the Samsung Transform™ Ultra.

䊳 Press > and tap .

– or –
Press and tap

> .

Call Settings

Your device allows you to configure call settings such
as Plus code dialing usage, other international dialing
options, and TTY configuration.

Activating Plus Code Dialing

Plus Code dialing allows you to have the phone
automatically dial the international access code for
your location once you touch and hold .
(See “Plus (+) Code Dialing” on page 59.)

1. Press > and tap > Call settings.

2. Tap North American dialing to activate the feature

(a green checkmark displays in the adjacent field).

Changing the International Dialing Code

Del

By default, the international dialing prefix (code) is set
to 011. This code can not be changed until the feature
is temporarily disabled. Once disabled, the field
becomes accessible and can be altered.

1. Press > and tap > Call settings.

2. Tap North American dialing to deactivate the

feature. This enables the

3. Tap International Dialing.

4. Tap the entry field and press from the

onscreen keyboard to delete the previous value.
– or –
Press and hold on the QWERTY keyboard

to delete the current prefix.

5. Enter a new value and tap OK.

6. Tap North American dialing to reactivate the feature.

This disables the

International Dialing field.

International Dialing field.

Device Administration

This Device Administration feature allows you to select
one or more administration applications that control
your device for security purposes (for example, if your
phone is lost of stolen). These applications enforce
remote or local device security policies.

Some of the features a device administration
application might control are:

䡲 Setting the number of failed password attempts

before the device is restored to factory settings.

䡲 Automatically locking the device.
䡲 Restoring factory settings on the device.

Note: If a device uses multiple enabled administration

applications, the strictest policy is enforced.

To uninstall an existing device administration
application, you must first unregister the application as
an administrator.

1. Press > and tap > Location &

security.

2. Tap Select device administrators.

2C. Settings 61

Settings

3.

Select a device administrator and follow the
prompts.

Airplane Mode

Airplane Mode (Flight mode) allows you to use many of
your device’s features, such as Games, Camera, and
Music, when you are in an airplane or in any other area
where making or receiving calls or data is prohibited.
When you set your device to Airplane Mode, it cannot
send or receive any calls or access online information.

1. Press and hold to reveal the Phone

options.
– or –
Press

networks.

2. Tap Airplane mode to place a checkmark in the

adjacent field.

While in Airplane Mode, your device’s Status area
displays ( ).

62 2C. Settings

> and tap > Wireless &

To deactivate Airplane Mode:

1. Press and hold to reveal the Phone

options.

2. Tap Airplane mode (Airplane mode is ON).

– or –
Press

networks.

> and tap > Wireless &

3. Tap Airplane mode to remove the checkmark.

TTY Use With Boost Service

A TTY (also known as a TDD or Text Telephone) is a
telecommunications device that allows people who are
deaf, hard of hearing, or who have speech or language
disabilities, to communicate by telephone.

Your device is compatible with select TTY devices.
Please check with the manufacturer of your TTY device
to ensure that it is compatible with digital cell phones.
Your device and TTY device will connect via a special
cable that plugs into your phone’s headset jack.

If this cable was not provided with your TTY device,
contact your TTY device manufacturer to purchase the
connector cable.

To turn TTY Mode on or off:

1. Press > and tap >

Call settings > TTY. (An informational message

displays.)

Note: If TTY mode is enabled, the audio quality of non-TTY

devices connected to the headset jack may be
impaired.

2. Read the onscreen disclaimer and tap Ye s.

3. Tap TTY Off to turn TTY mode off.

– or –
Tap any of the following to enable the feature:

䡲 TTY HCO, TTY VCO, or TTY Full.

Note: In TTY Mode, your device will display the TTY access

icon.

If TTY mode is enabled, the audio quality of non-TTY
devices connected to the headset jack may be
impaired.

WARNING: 911 Emergency Calling

Boost recommends that TTY users make
emergency calls by other means, including
Telecommunications Relay Services (TRS),
analog cellular, and landline communications.
Wireless TTY calls to 911 may be corrupted
when received by public safety answering points
(PSAPs), rendering some communications
unintelligible. The problem encountered appears
related to software used by PSAPs. This matter
has been brought to the attention of the FCC,
and the wireless industry and the PSAP
community are currently working to resolve this.

Sound Settings

Ringtones

Ringtones help you identify incoming calls and
messages. You can assign ringtones to individual
Contacts entries, types of calls, and types of messages.

Selecting Ringtones for Voice Calls

Your device provides a variety of ringer options that
allow you to customize your ring and volume settings.

2C. Settings 63

Settings

1.

Press > and tap > Sound >

Phone ringtone.

2. Tap a ringtone from the available list. The ringtone

briefly plays when selected.

3. Tap OK to assign a ringtone.

Selecting Ringtones for Notifications

The notification area displays icons associated with
user notifications such as: email messages, missed
calls, new voicemail, upcoming event, USB
connections, SMS (text)/MMS messages.
You can select the ringtone that plays when your
device receives new notifications.

1. Press > and tap > Sound >

Notification ringtone.

2. Tap a notification ringtone from the available list.

The ringtone then briefly plays when selected.

3. Tap OK to assign a ringtone.

64 2C. Settings

Activating Feature Sounds

You can select whether your device plays a sound
when using the dialpad, when making an onscreen
selection, and when an SD card notification occurs.

1. Press > and tap > Sound.

2. Tap a feature to enable it. (If a green checkmark

displays to the right of the feature, it is already
enabled.)

䡲 Audible touch tones plays a tone while using the

dialpad.

䡲 Audible selection plays a sound when making any

onscreen selection.

䡲 Screen lock sounds plays a sound when locking

or unlocking the screen.

䡲 Haptic feedback causes the device to vibrate

when pressing onscreen keys or with certain UI
interactions.

Adjusting the Volume Settings

Adjust the volume settings to suit your needs and your
environment.

1. Press > and tap > Sound >

Sound.

2. Touch and drag the onscreen slider to assign the

volume settings for any of the following volume
levels and tap

䡲 Ringtone, Media, Alarm, or Notification volume.

Note: By default, the Use incoming call volume for

notifications field is active, in this case, the Notification

slider is not accessible until it is disabled.

OK.

3. Tap OK to assign the volume levels.

Vibrate

To set your device to vibrate for incoming calls and silent
for notifications:

䊳 Press the volume button down in standby mode

until you see on the screen.

To set your device to always vibrate for incoming calls:

1. Press > and tap > Sound >

Vibrate.

2. Tap a feature to enable or disable it. A checkmark

indicates the feature is enabled:

䡲 Always: your device vibrates for all incoming calls

and notifications.

䡲 Never: your device uses sound only for all

notifications and alerts.

䡲 Only in silent mode: your device vibrates for

notifications and alerts when Silent mode is
active.

䡲 Only when not in Silent mode: your device only

vibrates for notifications and alerts when Silent
mode is not active.

To set your device to vibrate while using the dialpad:

1. Press > and tap > Sound.

2. Tap Haptic feedback. (If you have already checked

the option, tapping it again deselects the option.)

2C. Settings 65

Settings

Silent Mode

The Silent Mode option allows you to mute all sounds
without turning your device off (except for Media
volume).

To activate Silent Mode:

䊳 Press and hold the volume button down in standby

mode until you see on the screen.

To deactivate Silent Mode:

䊳 Press the volume button up repeatedly to select a

volume level.

To set your device to Silent mode:

1. Press > and tap > Sound.

2. Tap Silent mode. This option silences all audio on

the device except for media and alarms. (If you
have already checked the option, tapping it again
deselects this option.)

66 2C. Settings

Display Settings

Changing the Screen Orientation

Although most screens will change orientation once
the QWERTY keyboard is opened, this feature can be
manually enabled to change the orientation for all
screens when rotation is detected.

1. Press > and tap > Display.

2. Tap Auto-rotate screen (enabled by default). A

green checkmark indicates the feature is enabled.

䡲 Clear the Auto-rotate screen checkmark to disable

this automatic orientation adjustment.

Window Animation

This feature provides the use of animation when
onscreen windows are opened and closed. If
deactivated, windows pop on and off and no transitions
are applied.

1. Press > and tap > Display.

2. Tap Animation and select No animations, Some

animations, or All animations.

Changing the Backlight Time Length

Select how long the display screen remains lit after you
press any key.

1. Press > and tap > Display >

Screen timeout.

2. Tap a time setting (15 seconds - 30 minutes).

Note: Long screen backlight settings reduce the battery’s talk

and standby times.

Changing the Keyboard Backlight Time Length

Select how long the keyboard stays lit after you press
any key.

1. Press > and tap > Display >

Keyboard timeout.

2. Tap a time setting (3 seconds - 15 seconds or

Same as Screen Timeout).

Note: Long keyboard backlight settings reduce the battery’s

talk and standby times.

Changing the Brightness

Adjust your screen’s brightness to suit your
surroundings.

1. Press > and tap > Display.

2. Scroll down and tap Brightness.

3. Touch and drag Brightness slider left or right to

adjust the screen contrast and tap

Note: Not available when the Automatic brightness is

enabled.

OK.

Changing the Automatic Brightness

Automatically adjusts your screen’s brightness to
provide the best display within the current lighting
condition.

1. Press > and tap > Display >

Brightness.

2. Tap Automatic brightness. A green checkmark

indicates the feature is enabled.

䡲 Enabling this feature disables the manual

Brightness option.

2C. Settings 67

Settings

Changing the Display Screen

Choose what you see on the Home screen (behind
your shortcuts and Widgets) while powering on or off
the device, and when in standby mode.

1. Press > and tap (Wallpaper).

2. Tap Gallery, ID wallpapers, Live Wallpapers, or

Wallpapers.

䡲 Gallery lets you choose from images available in

the Gallery.

䡲 ID wallpapers lets you choose from wallpapers

available from any of the installed ID packs.

䡲 Live Wallpapers choose from pre-loaded

interactive animated wallpapers.

䡲 Wallpapers provides a selection of

pre-loaded wallpaper images.

3. Scroll through available images and tap a

selection to preview it.

4. Tap Set wallpaper to assign an preset image.

– or –

Save to assign a picture as a wallpaper.

Tap

68 2C. Settings

Adjusting the Date and Time

Your device obtains its time and date information by
using the network-provided date, time, and time zone.
These values can be manually altered.

1. Press > and tap > Date & time.

2. Tap Automatic to disable the feature.

Note: If enabled, you can not alter the date, time zone or time

values.

3. Tap Set date. Adjust the date, month, and year by

tapping or . Tap

4. Tap Select time zone, and then select a time zone

from the onscreen list. Scroll down the list to view
additional time zones.

5. Tap Set time. Adjust the hour and minute by

tapping or . Tap the
change the value. Tap

6. Tap Use 24-hour format to toggle between using a

12-hour or a 24-hour format.

7. Tap Select date format to select how the date

information is displayed on your device. The

Set when finished.

AM or PM icon to

Set when finished.

selected date format is also applied to the date
displayed within the device’s Alarm Clock.

Language Settings

To assign the default language used by the Android
operating system.

1. Press > and tap > Language &

keyboard > Select language.

2. Tap either English or Español. All menus are then

updated to the new language.

Location Settings

Your device is equipped with a Location feature for use
in connection with location-based services.

The Location feature allows the network to detect your
position. Turning Location off will hide your location
from everyone except 911.

Note: Turning Location on will allow the network to detect

your position using GPS technology, making some
Boost applications and services easier to use. Turning
Location off will disable the GPS location function for all
purposes except 911, but will not hide your general
location based on the cell site serving your call. No
application or service may use your location without
your request or permission. GPS-enhanced 911 is not
available in all areas.

To enable your device’s GPS Location feature:

1. Press > and tap >

Location & security.

2. Tap Use GPS satellites. A green checkmark

indicates the GPS location feature is enabled.

To enable Location via wireless networks:

1. Press > and tap >

Location & security.

2. Tap Use wireless networks. A green checkmark

indicates the feature is enabled.

䡲 This service uses available wireless networks to

pinpoint your location within certain applications
such as Google™ Maps (page 177).

2C. Settings 69

Settings

3.

Tap Agree. Enabling this feature allows Google to
collect anonymous location data whether or not
any location application or other related feature is
active or in use.

䡲 Tap Use wireless networks > disagree to disable

the collection of data. Enabling this feature can
utilize more resources and slow performance.

Security Settings

Unblocking Unknown Installations

There may be instances where you choose to install
applications or packs from sources other than the
Android Market.

Before these applications can be installed, you must
allow the installation of "non-Market applications".

1. Press > and tap >

Applications.

2. Tap Unknown sources to enable it. (If a green

checkmark displays to the right of the feature, it is
already enabled.)

70 2C. Settings

3. Tap OK to acknowledge the change in setting.

Accessing the Security Menu

All of your device’s security settings are available
through the Security menu. You can secure your data
and limit phone access by requiring a screen unlock
pattern every time your device is turned on or every
time it wakes up from sleep mode (screen where the
screen turns off).

1. Press > and tap >

Location & security.

2. Tap Set up screen lock to set the method by which

you unlock your phone. Select one of the following
options:

䡲 None to disable the screen unlock security

feature.

䡲 Pattern to create a dynamic pattern by moving

your finger in specific directions across the
screen.

䡲 PIN to use a 4-digit, numeric PIN code (up to 16

characters).

䡲 Password to use a 4-digit, alphanumeric

password (up to 16 characters).

Your Device’s Screen Lock Feature

Locking Your Device Screen

When your device is locked, you can only receive
incoming calls or make calls to 911.

䊳 Press . Locking the screen prevents

accidental screen touches from activating phone
functions.

Unlocking Your Device

1. Press to awaken the device.

2. Touch and drag the lock icon across the screen or

slide the QWERTY keyboard out.

Your Device’s Unlock Pattern Feature

You can increase your device’s security by creating a
screen unlock pattern (disabled by default). When
enabled, you must draw the correct unlock pattern on
the screen to unlock and regain access to the device.

Creating an Unlock Pattern

1. Press > and tap >

Location & security.

2. Scroll down to the menu list and tap Set up screen

lock > Pattern.

3. Read the information on the screen, and then tap

Next.

4. Review the onscreen tutorial on pattern creation,

and then tap

Next.

5. Draw your pattern by touching your first onscreen

point. Then,

screen, drag your finger over adjacent points until

the grey trace line overlaps each point and they are
highlighted with a green circle.

Important: You must slide your finger on the screen to create

without removing your finger from the

the pattern and not touch individual dots. If you
make a mistake or a point is not properly
selected, a red circle displays.

2C. Settings 71

Settings

6.

When you have connected at least four dots in a
vertical, horizontal or diagonal direction, lift your
finger from the screen.

7. Tap Continue to record the pattern.

8. Confirm the new pattern by redrawing it and then

tap

Confirm.

Once the feature is enabled, additional unlock pattern
options are then enabled from within the

location menu list.

Security &

72 2C. Settings

Configuring the Unlock Pattern Settings

To require the pattern for access:

1. Press > and tap >

Location & security.

2. Place a checkmark adjacent to the Use visible

pattern field.

To remove the visible unlock pattern from the Lock screen:

1. Press > and tap >

Location & security.

2. Remove the checkmark adjacent to the Use visible

pattern field.

䡲 Removing this checkmark prevents the unlock

pattern from displaying on the unlock screen
when drawn to unlock the screen.

What to do if you have forgotten your pattern:

If you fail to draw the correct unlock pattern on the
screen after five attempts, you are prompted to wait for
30 seconds before you can try again.

䊳 If you have forgotten your screen unlock pattern,

tap

Forgot pattern.

䡲 Sign in using your Google account name and

password, and create a new screen unlock
pattern before regaining access to the Home
screen.

Changing the Unlock Pattern

1. Press > and tap >

Location & security > Change screen lock.

2. Draw the current pattern on the screen.

3. Draw a new pattern. (See “Creating an Unlock

Pattern” on page 71.)

Calling in Lock Mode

When your device is locked, you can only receive
incoming calls or make calls to 911or Boost Customer
Service.

1. Press to reveal the lock screen.

Note: The Unlock Pattern applies if the Require Pattern

setting is enabled.

2. Tap Emergency call to reveal the Emergency

dialpad to place your emergency call.

䡲 Draw your unlock pattern to regain access to the

full dialer and unlock the device.

Using Visible Passwords

When enabled, this feature allows you to view the text
being entered into a password field as you type it. So
many times there are other applications that insert an
asterisk (*) as your type. This can be confusing and
can cause issues. What if you mistyped the password
or used the wrong case? When enabled, you can see
what you are entering. This feature is enabled by
default.

To disable visible passwords:

1. Press > and tap >

Location & security.

2. Tap Visible passwords (to remove the checkmark

on the option).

Disabling Screen Lock Settings

1. Press > and tap >

Location & security.

2. Tap Change screen lock.

2C. Settings 73

Settings

3.

Tou ch None. All screen lock settings clear.

Device Administration

Activating this feature allows Google to administrate
your device in a way similar to IT security settings on a
corporate PC. This feature is beneficial in case your
device is lost or stolen.

The device could be “deactivated” or “restricted”
(through administration) from a remote location.

1. Press > and tap >

Location & security.

2. Tap Select device administrators.

3. Select a device administrator and follow the

prompts.

Credential Storage

This option allows certain applications to access
secure certificates and other credentials. Certificates
and credentials can be installed to the SD card and
password protected.

1. Press > and tap >

Location & security.

74 2C. S et tings

Note: You must set a credential password the first time you

use this feature. After password creation this field is
used to change the credential password.

2. Tap Use secure credentials.

3. Tap Install from SD card to install encrypted

certificates from the memory card.

4. Tap Set password to set a credential storage

password.

5. Touch Clear storage to clear the storage (SD card

memory) of all contents and reset the credentials
password.

Managing Your Available Memory

You can manage the information and configuration
related to both your microSD card and built-in device
storage memory. The available device memory
provided by these two locations is called

storage.

To view your device’s total available memory:

1. Press > and tap >

Storage.

Internal phone

2. Review the two memory sections for available

space information:

䡲 SD card displays the memory information specific

to an installed microSD card. This amount of
space can be altered by replacing the current
microSD card.

䡲 Internal phone storage displays the memory

information specific to the built-in device memory.
This memory amount can not be altered because
it is part of the device hardware.

To view your microSD card storage information:

1. Press > and tap >

Storage.

2. Locate the SD card section.

3. Review both the Total space and Available space

fields:

䡲 Total space indicates the total size of the currently

inserted microSD card. This includes both
available and used space information.

● To determine the amount of memory currently

used on the card, take the total space and
subtract the remaining available space.

Note: Not all of the microSD card is registered in the available

space, as a small percentage of the storage is unread.

䡲 Available space indicates the amount of remaining

free memory space available on the microSD
card.

To view your device’s storage information:

1. Press > and tap >

Storage.

2. Locate the Internal phone storage section.

3. Review the Available space field:

䡲 Available space indicates the total size of the

internal memory.

Manage Running Services

This service is an efficient method for managing power
consumption and processor/memory resources.
Processes can be stopped until the device is restarted.

To stop a currently running service:

1. Press > and tap >

Applications > Running services.

2C. Settings 75

Settings

2.

Select a process you want and select Stop.

Note: These stopped processes are restarted once the

device is restarted (power cycled).

Third-party Task Manager applications are also
available from the Google Marketplace.

Erasing Device Content

Use the Manage applications menu to quickly erase
selected content and uninstall third-party applications
stored in your device.

To clear an application’s cache:

1. Press > and tap >

Applications > Manage applications.

2. Press and tap Sort by size. This option sorts

the current
those applications by amount of memory or cache
usage.

3. Tap the application whose cache you wish to

delete.

4. From the Application info screen, tap Clear cache

and/or

76 2C. Settings

Manage applications listing to display

Clear defaults.

To uninstall third-party applications:

1. Press > and tap >

Applications > Manage applications.

Important: Only third-party applications can be uninstalled.

Applications preinstalled on the device can not be
removed.

2. Tap Downloaded, and from the Application info

screen, tap

Uninstall.

Resetting Your Device

Resetting the device restores all the factory defaults,
including the ringtones and display settings. All data,
including added applications are deleted.

Important: Back up your important data before you perform

1. Press > and tap > Privacy >

2. Read the disclaimer and tap Reset phone.

3. If you are certain that you would like to restore all

a factory reset of the device.

Factory data reset. (You will see a disclaimer.)

factory settings, tap

Erase everything.

Quick Launch

Allows you to set keyboard shortcuts that launch
assigned applications.

1. Press > and tap > Applications

2. Tap Quick launch to activate the feature.

3. Tap an onscreen letter from the list.

4. Select an available application. This changes the

selected hotkey to launch the new application.

Android Development

Android development features are used for
development purposes only.

䊳 Press > and tap > Applications

> Development.

䡲 USB Debugging is used for development

purposes. When activated, this allows debugging
tools on a computer to communicate witht his
device through a USB connection.

䡲 Stay awake is used for development purposes.

When you activate this feature, the screen does
not dim or lock while the phone is charging.

䡲 Allow mock locations is used by developers

testing a GPS application. This feature allows the
phone to “mock” the coordinates for a specific
location.

Synchronizing Accounts

Your device provides the ability to synchronize data
from a variety of different sources or sites. These
accounts can range from Google, an Exchange Email
Server, and other social sites such as Facebook,
Twitter, and MySpace.

Exchange Email and Google accounts provide the
ability to synchronize Calendar events and Contacts.

To enable the auto-sync feature:

1. Press > and tap >

Accounts & sync.

2. Tap Background data. A green checkmark

indicates the feature is enabled.

2C. Settings 77

Settings

3.

Tap Auto-sync. A green checkmark indicates the
feature is enabled.

䡲 This feature enables the synchronization of data

between your device and external sites or servers.

䡲 The two main components are Contacts and

Calendar Events. Before these can be
synchronized, they must be added to the
managed accounts list.

Synchronizing Your Google Account

By default, there are no accounts managed by the
device. These must be manually added.

To add manage an existing Google account:

1. Press > and tap >

Accounts & sync.

2. Tap Add account > Google.

3. Click Next > Sign in.

Note: If you do not already have a Google account, tap

Create and follow the onscreen prompts to create your

new account.

78 2C. Settings

4. Tap th e Username (@gmail.com) and Password

fields and enter your information.

5. Tap Sign in. Your device then communicates with

the Google servers to confirm your information.
Your existing Gmail account then appears within
the

Managed accounts area of the screen.

䡲 Any changes or updates to your Gmail account

are then automatically updated to your device.

To configure the Google management settings:

1. Press > and tap >

Accounts & sync.

2. Tap within the Google account field to reveal

the account’s synchronization settings screen.

3. Tap the parameters you wish to synchronize (Sync

Books, Sync Contacts, Sync Gmail, Sync Calendar).

A green checkmark indicates the feature is
enabled.

4. Press to return to the previous screen.

Synchronizing Your Microsoft Exchange ActiveSync Account

By default, there are no Calendar events managed by
the device. These must be manually added. (See
“Synchronizing Calendar Events Through Microsoft
Exchange ActiveSync” on page 96.)

Note: Once an Exchange server email account is created, it is

automatically added as a managed account.

To add a Microsoft Exchange account:

1. Press > and tap >

Accounts & sync.

2. Tap Add account > Microsoft Exchange ActiveSync.

3. Follow the onscreen prompts to create your new

Microsoft® Exchange ActiveSync email account.
See “Exchange Server Email (Outlook)” on
page 164.

䡲 Any changes or updates to your Microsoft®

Exchange ActiveSync/Microsoft® Outlook®
account are then automatically updated to your
device.

To configure the Microsoft Exchange ActiveSync
management settings:

1. Press > and tap >

Accounts & sync.

2. Tap within the Microsoft® Exchange

ActiveSync account field to reveal the account’s
synchronization settings screen.

3. Tap the parameters you wish to synchronize.

䢇 Account settings allows you to configure the current

email account settings such as:

䡲 General settings allows you to configure:

● Account name displays the name used by the

device to track the account.

● Your name displays the name used in the

From field within your outgoing emails.

● Amount to synchronize to assign the sync

range for your incoming and outgoing emails
between your device and your external
exchange server. Choose how many days
worth of emails should the device and server
synchronize. Choose from:

days, One week, Two weeks, or One month.

One day, Three

2C. Settings 79

Settings

● Default account assigns this account as the

default used when sending out new emails.

● Out of office settings: Configures your out of

office notifications.

● Empty server trash: Allows you to delete your

email account’s trash bin remotely.

● Sync schedule: Allows you to configure your

email sync schedule.

● Email size: Configures the incoming email size

allowed to pass through to your device
automatically without user interaction. Larger
emails will have to be retrieved manually.

䡲 Notification settings allows you to configure:

● Email notifications enables the device to

display a status bar icon when new
emails have been received.

● Select ringtone assigns an audible ringtone

when a new or upcoming event is pending.

● Vibrate assigns a vibration when a new or

upcoming event is pending.

80 2C. Settings

䡲 Server settings allows you to configure:

● Incoming settings provides access to the

Domain, password, and exchange server
parameter fields.

● Sync contacts synchronizes the contacts

between your device and the remote
exchange server. A green checkmark
indicates the feature is enabled.

● Sync calendar synchronizes your exchange

calendar entries between your device and the
remote exchange server. A green checkmark
indicates the feature is enabled.

● Sync calendar history assigns the calendar

sync period.

䡲 Common settings allows you to configure:

● Forward with files causes any outgoing email

replay to include any currently attached files. A
green checkmark indicates the feature is
enabled.

● Add signature: Activates the email signature

feature.

● Signature allows you to create an outgoing

email signature attached to new emails sent
from your device.

4. Press to return to the previous screen.

For more detailed Microsoft® Exchange ActiveSync
email information, see “Exchange Server Email
(Outlook)” on page 164.
For more information on Calendar synchronizing, see
“Synchronizing Calendar Events Through Microsoft
Exchange ActiveSync” on page 96.

Accessibility Settings

This service collects all the text you type, including
personal data credit card numbers except passwords. It
may also log your user interface interactions.

1. Install a screen reader (such as Kickback,

Soundback, or Talkback) from the Android Market.

2. Press > and tap > Accessibility.

Note: You must first install a screen reader from the Android

Market such as Kickback, Soundback, or Talkback in
order for this feature to work.

3. Tap Accessibility then select a service for which

you want to log data.

Voice Input and Output Settings

These settings allow the Samsung Transform™ Ultra to
provide a verbal readout of onscreen data such as
messages and incoming caller information, see “Text­to-Speech” on page 111.

Search Settings

You can use your device’s search preferences to
configure some aspects of Google Web search (for
example, whether it makes suggestions below the
Quick Search Box as you type), and what phone
features you want to include in searches.

Configuring the Search Settings

1. Press > and tap > Search.

2. Press and tap Search settings.

2C. Settings 81

Settings

3.

Tap any of the following search parameters to then
alter the settings:

䡲 Google search opens a screen where you can set

your Google search preferences.

● Show web suggestions also includes search

matches from Google’s online search engine.

● Use My Location uses your My Location

information for Google search results and
services.

● Search history determines whether you also

wish to included personalized search history
results in the list of matches.

● Manage search history helps to manage the

personalized search history associated with
your current registered Google account.

䡲 Searchable items opens a screen where you can

choose the search categories included in device
searches.

● Categories include: Web, Apps, Contacts,

Messaging, Music, or Voice Search.

䡲 Clear shortcuts erases the history of recently

selected search results.

82 2C. Settings

⽧ Viewing Call Log (page 83)

2D. Call Log

Call log

⽧ Call Log Options (page 84)
⽧ Making a Call From Call Log (page 86)
⽧ Saving a Number From Call Log (page 86)
⽧ Altering a Number From Call Log (page 86)
⽧ Erasing the Call Log (page 87)

Viewing Call Log

Call Log (History) is a list of the phone numbers (or
Contacts entries) for calls you placed, accepted, or
missed. Call log makes redialing a number fast and
easy. It is continually updated as your device
automatically adds new numbers to the beginning of
the list and removes the oldest entries from the bottom
of the list.

The Notification area of the Home screen (upper-left)
displays phone notifications, status, or alerts such as:

Call in progress: Indicates there is

a call currently active and in
progress.

Missed Call: Indicates an incoming

call was missed.

To access the Call log:

1. Press and tap > Call log ().

2. Tap an entry to view available options.

Note: Call log records only calls that occur while the device is

turned on. If a call is received while your device is
turned off, it will not be included in history.

From within the Call log screen, each entry contains the
phone number (if it is available) and Contacts entry
name (if the number is in your Contacts).

Dialed: Indicates all outgoing calls

made from your device.

Received: Indicates any received

calls that were answered.

2D. Call Log 83

Call Log

Missed: Indicates any missed calls.
These are routed to your voicemail.

Accessing Call Log From Notifications

You can also access the Call log from a Missed Call
notification. (See “Using the Notifications Panel” on
page 38.)

To access these call notifications:

1. Locate from the Notifications area of the

Status bar.

2. Touch and hold the Status bar, and then slide your

finger down the screen.

3. Tap the Missed call entry to open the Call log

screen.

84 2D. Call Log

Call Log Options

This list provides easy access to redial an entry, or you
can also choose to access two types of history entry
lists depending on how they are touched.

䢇 Highlight an entry from the list and tap to

quickly redial the selected entry. (See “Making a Call
From Call Log” on page 86.)

call options
(tap)

Logs screen

entry-specific
menu
(touch and hold)

䢇 Tap a contact entry name or number to reveal the

call options screen:

䡲 Time provides the time and date of the call and its

duration.

䡲 Call again allows you to redial the entry by name

or number.

䡲 Send text message allows you to create a new text

message to the selected entry.

䡲 Add to contacts to save the number if it is not

already in your Contacts. (See “Saving a Number
From Call Log” on page 86.)

䡲 Touch and hold an entry to display the following

entry-specific options:

● Call <number> to redial the current phone

number.

● Edit number before call allows you to edit the

number before you call it.

● Send text message allows you to create a new

text message to the selected entry.

● Add to contacts adds this number to the

Contacts list.

● Remove from call log removes this number

from the call log.

2D. Call Log 85

Call Log

Making a Call From Call Log

1. Press and tap > Call log ().

2. Tap adjacent to a desired entry.

– or –
Touch and hold an entry name/number from the

list, and then tap

Note: You cannot make calls from History to entries identified

Unknown, No ID, Restricted or Private Number.

as

Call.

Call log

Saving a Number From Call Log

1. Tap a Call log entry > Add to contacts > Create new

contact.

2. Enter a First name and Last name for this contact.

3. Tap Done when you finish entering information for

the contact.

Note: The option to select a destination is only available if you

have previously established a Google or Microsoft®
Exchange Server account on the device.

86 2D. Call Log

After you save the number, your device displays the
new Contacts entry in place of the previous number.
(See “Contacts Entry Options” on page 92.)

Note: You cannot save phone numbers already in your

Contacts or from calls identified as

Restricted or Private Number.

Unknown, No ID,

Altering a Number From Call Log

If you need to make a call from Call log and you need
to alter the number prior to dialing, you can add the
appropriate prefix by prepending the number.

1. Press and tap > Call log ().

2. Touch and hold an entry to access the

entry-specific options menu.

3. Tap Edit number before call.

4. Edit the number using the onscreen dialpad or

delete digits by pressing to erase the
numbers.

5. Tap once the number is changed.

Call log
