Page 1
2-1

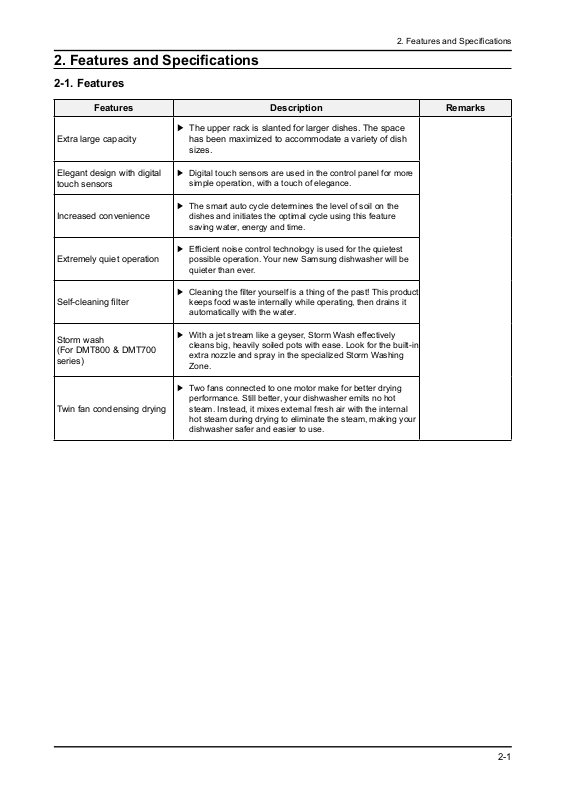

2. Features and Specications
2. Features and Specications
2-1. Features
Features Description Remarks
Extra large capacity
The upper rack is slanted for larger dishes. The space ሪ
has been maximized to accommodate a variety of dish
sizes.
Elegant design with digital
touch sensors
Digital touch sensors are used in the control panel for more ሪ
simple operation, with a touch of elegance.
Increased convenience
The smart auto cycle determines the level of soil on the ሪ
dishes and initiates the optimal cycle using this feature
saving water, energy and time.
Extremely quiet operation
Efcient noise control technology is used for the quietest ሪ
possible operation. Your new Samsung dishwasher will be
quieter than ever.
Self-cleaning lter
Cleaning the lter yourself is a thing of the past! This product ሪ
keeps food waste internally while operating, then drains it
automatically with the water.
Storm wash
(For DMT800 & DMT700
series)
With a jet stream like a geyser, Storm Wash effectively ሪ
cleans big, heavily soiled pots with ease. Look for the built-in
extra nozzle and spray in the specialized Storm Washing
Zone.
Twin fan condensing drying
Two fans connected to one motor make for better drying ሪ
performance. Still better, your dishwasher emits no hot
steam. Instead, it mixes external fresh air with the internal
hot steam during drying to eliminate the steam, making your
dishwasher safer and easier to use.
Page 2
2-2
2. Features and Specications
2-2. Specications
Wash capacity
14 place settings
Type
Dishwasher
Model
DMT800 Series, DMT700 Series, DMT400 Series
Power
Single-phased alternating current of 60Hz, 15A at 120V
Used water pressure
20 ~ 120 psi (140 ~ 830 kPa)
Wash type
Rotating nozzle spray
Dry type
Air diffusion condensing dry system
Power usage
Main Motor : (2-step) 185W/150W, Heater : 1100W
Standard amount of used water
5.3~7.9 gallon (20~30L), Normal Cycle
Size (W×D×H)
23 ⅞” x 24 ¾” x 33 ⅞” inch (605 x 627 x 860 mm )
Above images might differ in the dishwasher models.
Middle nozzle
Upper rack Lower rack Cutlery basket
Air brake
Base
Dispenser
Door
Lower nozzle
Vapor vent cover
Control panel
Page 3
2-3
2. Features and Specications
2-3. Comparing Specications with Existing Models
Model
NEW MODEL BASIC MODEL
DMT800RHS/B/W DMT700RFS/B/W DMT400RHS/B/W DMR78AHS/B/W DMT300RFS/B/W
Design Specications
Panel Control
Black Silver/Black /White Black Black Silver/Black /White
Control Type
Touch Touch Touch Touch Button
Frame Front
STS/Black/White
Basket Handle
Blue + STS Blue + STS Blue + Gray Gray Blue + Gray
Function Specications
Soil Detection Sensors
O O O O O
Drying method
Air diffusion condensing
Basket Height Adjustment
One-touch One-touch 2-stage One-touch 2-stage
Leakage Sensor
O O O O O
Programs
6 (Normal, Heavy,
Delicate, Pot & Pans,
Quick+, Smart Auto)
6 (Normal, Heavy,
Delicate, Pot & Pans,
Quick, Smart Auto)
4 (Normal, Heavy,
Delicate, Smart Auto)
6 (Normal, Heavy,
Delicate, Rinse, Quick,
Smart Auto)
4 (Normal, Heavy,
Delicate, Quick)
Options
6 (Delay Start,
Sanitize, Half Load,
Storm Wash, Child
Lock, Cancel & Drain)
6 (Delay Start,
Sanitize, Half Load,
Storm Wash, Child
Lock, Cancel & Drain)
3
(Sanitize, Child Lock,
Cancel & Drain)
5 (Delay Start,
Sanitize, Half Load,
Child Lock, Cancel &
Drain)
3
(Sanitize, Child Lock,
Cancel & Drain)
Page 4
2-4
2. Features and Specications
2-4. Options Specications
Photo Item Code Quantity Remarks
Bracket-install DD61-00176A 2
Provided with
the dishwasher
Assy-install kit for Top
mounting
(Bracket-install + Screw)
DD94-01002A 2+2
Screw for side mounting 2
User Manual
DD68-00050A (DMT800)
DD68-000xxA (DMT700)
DD68-00074A (DMT400)
1
Installation Guide DD68-00046A 1
Elbow - 1
Sold separately
Water Supply Line
(Flexible STS supply line is
recommend)
- 1
Air Gap - 1
Rubber Connector - 1
Hose Clamp - 1
Strain Relief - 1
2-4
2. Features and Specications
Page 5
2-5
2. Features and Specications
Memo
