Product Specification
Samsung Electronics 2-1

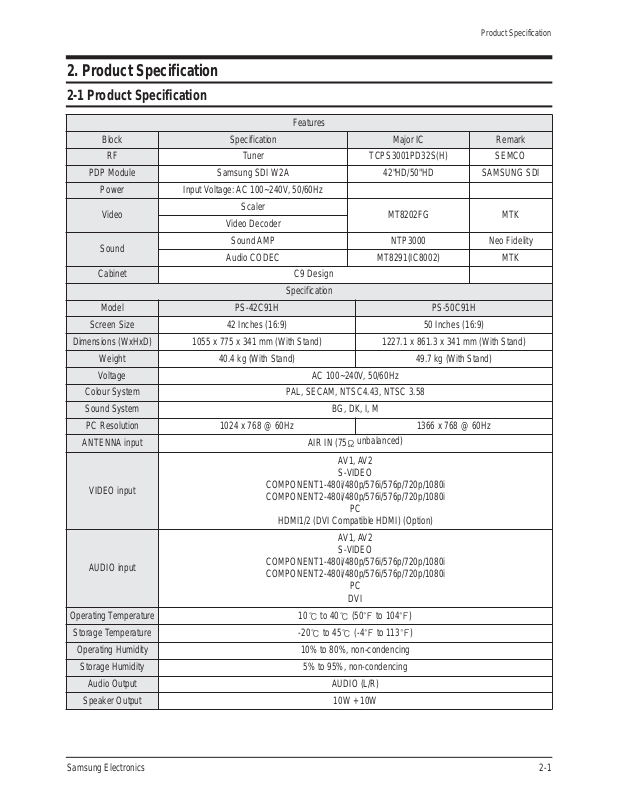

2. Product Specification
2-1 Product Specification
Features
Block Specification Major IC Remark
RF Tuner TCPS3001PD32S(H) SEMCO
PDP Module Samsung SDI W2A 42"HD/50"HD SAMSUNG SDI
Power Input Voltage: AC 100~240V, 50/60Hz
Video
Scaler
MT8202FG MTK
Video Decoder
Sound
Sound AMP NTP3000 Neo Fidelity
Audio CODEC MT8291(IC8002) MTK
Cabinet C9 Design
Specification
Model PS-42C91H PS-50C91H
Screen Size 42 Inches (16:9) 50 Inches (16:9)
Dimensions (WxHxD) 1055 x 775 x 341 mm (With Stand) 1227.1 x 861.3 x 341 mm (With Stand)
Weight 40.4 kg (With Stand) 49.7 kg (With Stand)
Voltage AC 100~240V, 50/60Hz
Colour System PAL, SECAM, NTSC4.43, NTSC 3.58
Sound System BG, DK, I, M
PC Resolution 1024 x 768 @ 60Hz 1366 x 768 @ 60Hz
ANTENNAinput AIR IN (75
Ω
unbalanced)
VIDEO input
AV1, AV2
S-VIDEO
COMPONENT1-480i/480p/576i/576p/720p/1080i
COMPONENT2-480i/480p/576i/576p/720p/1080i
PC
HDMI1/2 (DVI Compatible HDMI) (Option)
AUDIO input
AV1, AV2
S-VIDEO
COMPONENT1-480i/480p/576i/576p/720p/1080i
COMPONENT2-480i/480p/576i/576p/720p/1080i
PC
DVI
Operating Temperature 10℃to 40℃(50℉to 104℉)
Storage Temperature -20℃to 45℃(-4℉to 113℉)
Operating Humidity 10% to 80%, non-condencing
Storage Humidity 5% to 95%, non-condencing
Audio Output AUDIO (L/R)
Speaker Output 10W + 10W
Page 2
Product Specification
2-2 Samsung Electronics
2-2 Specifications Analysis
Model PS-42C91H (Lily-42HD) PS-50C91H (Lily-50HD) PL-42P7HP (Spirra-42HD)
Design
Basic
Display Type PDP TV PDP TV PDP TV
Built-In Tuner O O O
PC Resolution 1024 x 768 @ 60Hz 1366 x 768 @ 60Hz 1024 x 768 @75Hz
PDP Module W2A W2A V5.1
Screen Size 42 inches 50 inches 42 inches
Aspect Ratio 16 : 9 16 : 9 16 : 9
Dimensions (WxHxD) 1055 x 775 x 341 mm (With Stand) 1227.1 x 861.3 x 341 mm (With Stand) 1055 x 775 x 341 mm (With Stand)
Weight 40.4 Kg (With Stand) 49.7 Kg (With Stand) 40.4 kg (With Stand)
Brightness 1,100 Cd/m2 1,100 Cd/m2 1,100 Cd/m2
Contrast Ratio 10000:1 10000:1 10000:1
Image Enhacer FBE2 FBE2 FBE
Audio
Equalizer O O O
Auto Volume O O O
Surround Sound SRS TruSurround SRS TruSurround SRS TruSurround
Speaker Output 10 W + 10 W 10 W + 10 W 15 W + 15 W
Speaker Included Included Included
Features
PIP O O O
Double Screen O O X
Caption O O X
Still Image O O O
My Color Control O O X
Color Weakness X X X
Energy Saving O O O
Screen Burn Protection O O O
Connections
Antenna 1 Input 1 Input 1 Input
CVBS AV1(Rear)/AV2(Side) AV1(Rear)/AV2(Side) 1AV (Rear)
S-Video 1 Input 1 Input 1 Input
Component(Y/PB/PR) 2 Input 2 Input 2 Input
PC(D-SUB) 1 Input 1 Input 1 Input
DVI O O X
HDMI 2 Input 2 Input 1 Input
Sub Woofer X X X
Optical X X X
Coaxial X X X
※○: application, X: non-application
※ For the power supply and power consumption, refer to the label attached to the product.
Page 3
Product Specification
Samsung Electronics 2-3
2-3 Accessories
Accessories Item Item code Remark
SuppliedAccessories
Remote Control
Batteries
BN59-00613A
4301-000103
Samsung Service center
Power Cord 3903-000172
Owner's Instructions BN68-01192M
Safety Guide Manual AA68-03242H
Cloth-Clean BN63-01798A
Ferrite Core for
Earphone/Power Cord
3301-001110
Ferrite Core for
S-Video//Power Cord
3301-001305
Cover-Bottom
Screws (2ea)
BN63-03055A
6003-001621
Accessories that can be purchased
additionally
S-VIDEO Cable
1200mm
BN39-00149A
Electronics Store/
Internal shopping mall
HDMI Cable
3000mm
BN39-00641A
HDMI/DVI cable
3000mm
BN39-00643A
Component Cables (RCA)
1500mm
BN39-00279A
Page 4
Product Specification
2-4 Samsung Electronics
Accessories Item Item code Remark
Accessories that can be purchased
additionally
PC Cable
1830mm
BN39-00115A
Electronics Store/
Internal shopping mall
PC Audio Cable
2000mm
BN39-00061B
Antenna Cable
3000mm
BN39-00333A
