Samsung SPD-151 Quick Guide

NETWORK VIDEO DECODER

Quick Guide

SPD-151

ACT

DC12V

NETWORK

HDMI

VGA

VIDEO OUT

NETWORK

ACT

LINK

1

2

FRONT

USB

VIDEO

DC 12V

RESET

1 2 3 4 5 6 7

English

Features

This product can monitor the video and audio from network cameras.
Provides an environment in which you can set this product on your PC.

~ Convenient Web UIs

~ 4K camera resolution support

~ Outputs a 4K high definition image using HDMI

~ Supports ONVIF Profile S standard and RTP / RTSP protocols

~ 49 channels simultaneous output (HDMI: 32 channels, VGA: 16 channels, CVBS: 1 channel)

~ Various user defined layout support

~ SSM VM sync

IMPORTANT

Please check ‘Manuals’ from our website, before connecting to the Supply,

https://www.hanwha-security.com/en/data-center/download-data/

Package Contents

Please unwrap the product, and place the product on a flat place or in the place to be installed.
Please check the following contents are included in addition to the main unit.

Connecting to an external device

Network

ACTLINK

Microphone

Camera

VGA VIDEO OUTHDMI NETWORK

VGA OUT VIDEO OUT HDMI OUT

※ Unrated or improper power source may cause damage to the system. Ensure that you use only the rated

power source before pressing the POWER button.

NETWORK

ACTLINK

DC12V

ACTLINK

VGA VIDEO OUTHDMI NETWORK

SPD-151

DC12V

Quick Guide Terminal block

Taping screw Plastic Anchor

1

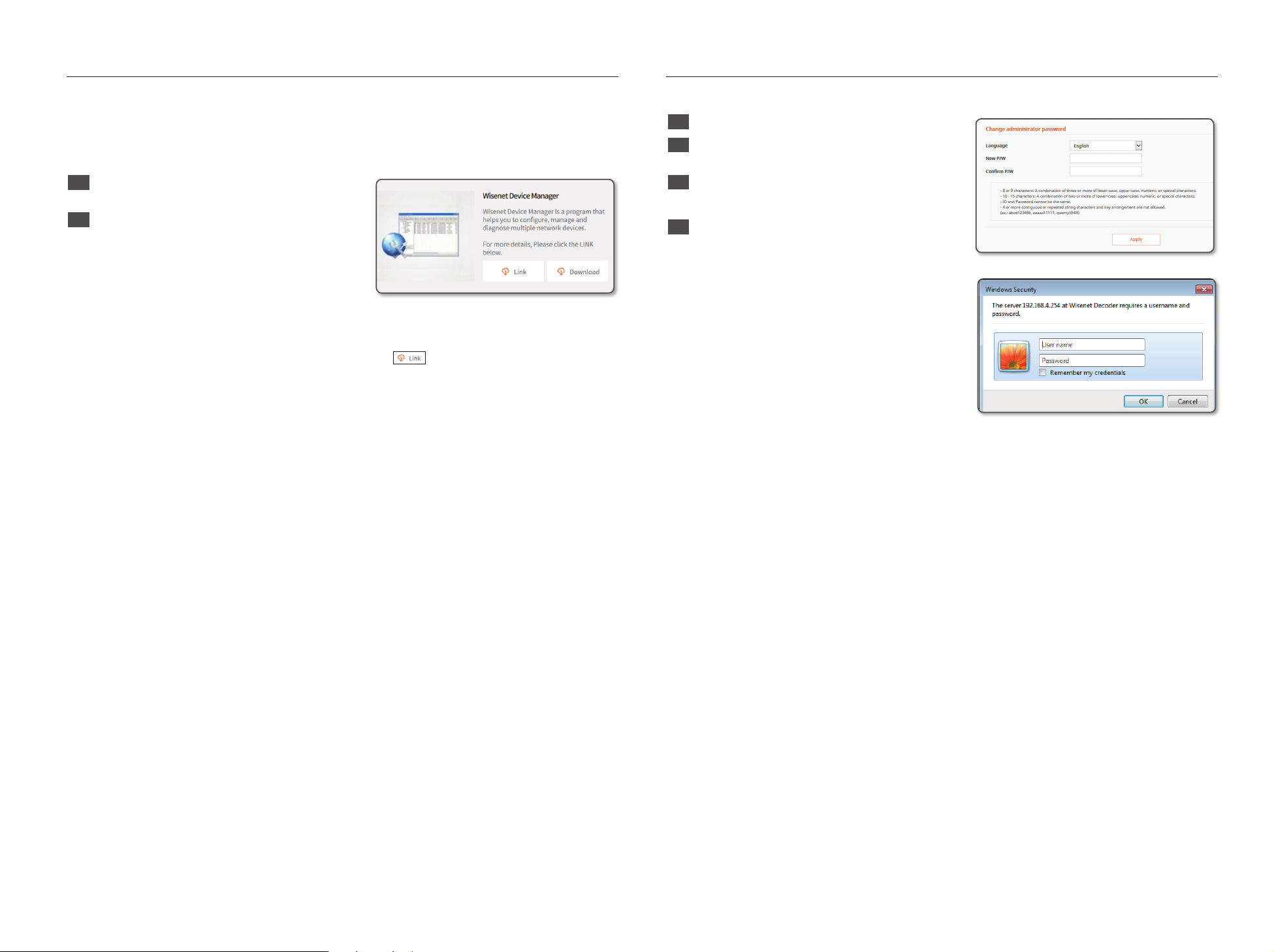

Using Device Manager

Login

Wisenet Device Manager allows you to set up and run your network and easily check the network status.

❖Installing Device Manager

To download the Device Manager program, visit the official website of Hanwha Techwin (http://www.hanwha­security.com).

1 On the website, go to <Technical Guides> - <Online

Tool> to download Device Manager.

2 Download and install the Device Manager program.

~ Once installed, the program will run automatically.

~ For the details of how to use Device Manager, see

<Help> in the main menu.

❖Watch the video guide of Device Manager

On the Download screen of the Device Manager program, click < >.

You can learn about the following in the video.

~ Device Manager intro

~ Product login and password change

~ Use project

~ Change product IP

~ Check product information report

~ Save and restore product settings

~ Camera video settings

~ Camera setup settings

~ Download/update firmware

Your preferred language and a new password must be entered during your initial connection after purchase.

1 Select a language for the <Language> field.

2 In the <New P/W> field, enter a new password for the

admin account.

3 In the <Confirm P/W> field, reenter the new password

for the admin account.

4 Click the [Apply] button.

After the new password is successfully registered, a
login screen appears.

※ For security, be sure to change the password in

<User>-<Administrator> in the setting screen.

※ If you enter a user name and password, and then

check the ‘Save password in the password list’
checkbox, the user name and password will be
automatically set for the next time you connect.

` You cannot double-login with the "admin" account.

J

` It takes about five minutes after you disconnect from the “admin” account to access the user account.

2

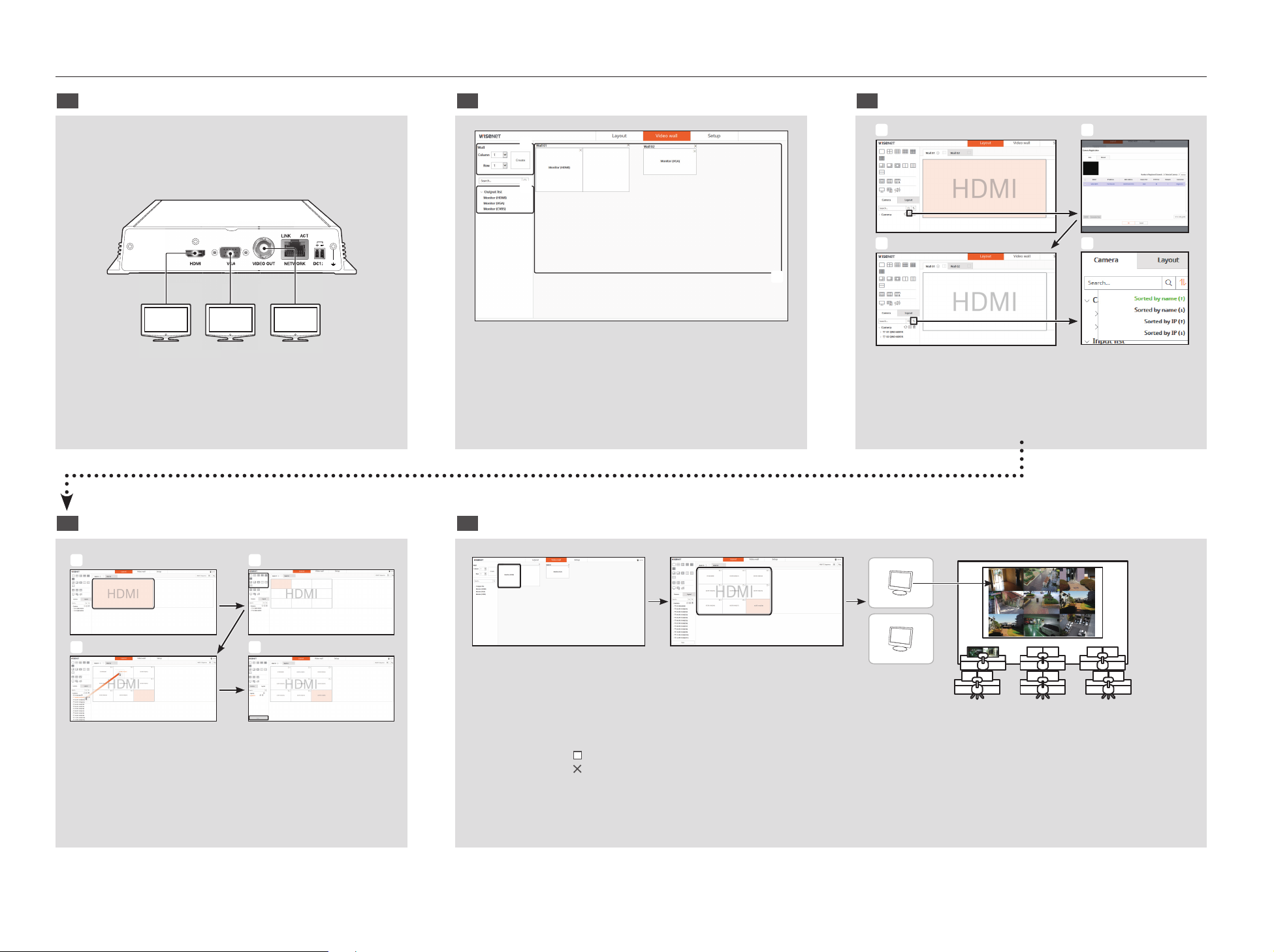

Video wall configuration guide

ACT

DC12V

NETWORK

HDMI

VGA

VIDEO OUT

Wall 1 Wall 2

1 Monitor output for each decoder after the set boots 2 Configure the video walls and allocate monitors. 3 Registering camera

VGA VIDEO OUTHDMI NETWORK

VGA OUT CVBS OUTHDMI OUT



b



c

ACTLINK

DC12V



b



 Create video walls.
b Add video walls (Wall 01 2X1, Wall 02 1X1)
c Assign monitors

c



 Add a camera
b Add cameras with automatic/manual registration
c Select the camera list sort function
 Sort by name()/IP or ascending()descending.

4 Setting Video Wall Layout 5 Monitoring by video wall



c

b



 Specify the monitor of the corresponding video wall to be

applied by clicking it

Select and apply a split mode to the selected monitor (Can

b

be applied to each monitor)

c

Assign it to the corresponding tile with the mouse in the camera list

 Repeat steps 1 to 4 if a layout is added after saving your layout

Monitor (HDMI)

Monitor (VGA)



 Select a monitor on the Wall tab
b Set the layout of the selected monitor on the Layout tab

 When this is [ ] clicked, the video wall is enlarged to full screen.

When this is [ ] clicked, the video wall zoom changes to the original size.

c The layout is applied in real time

3

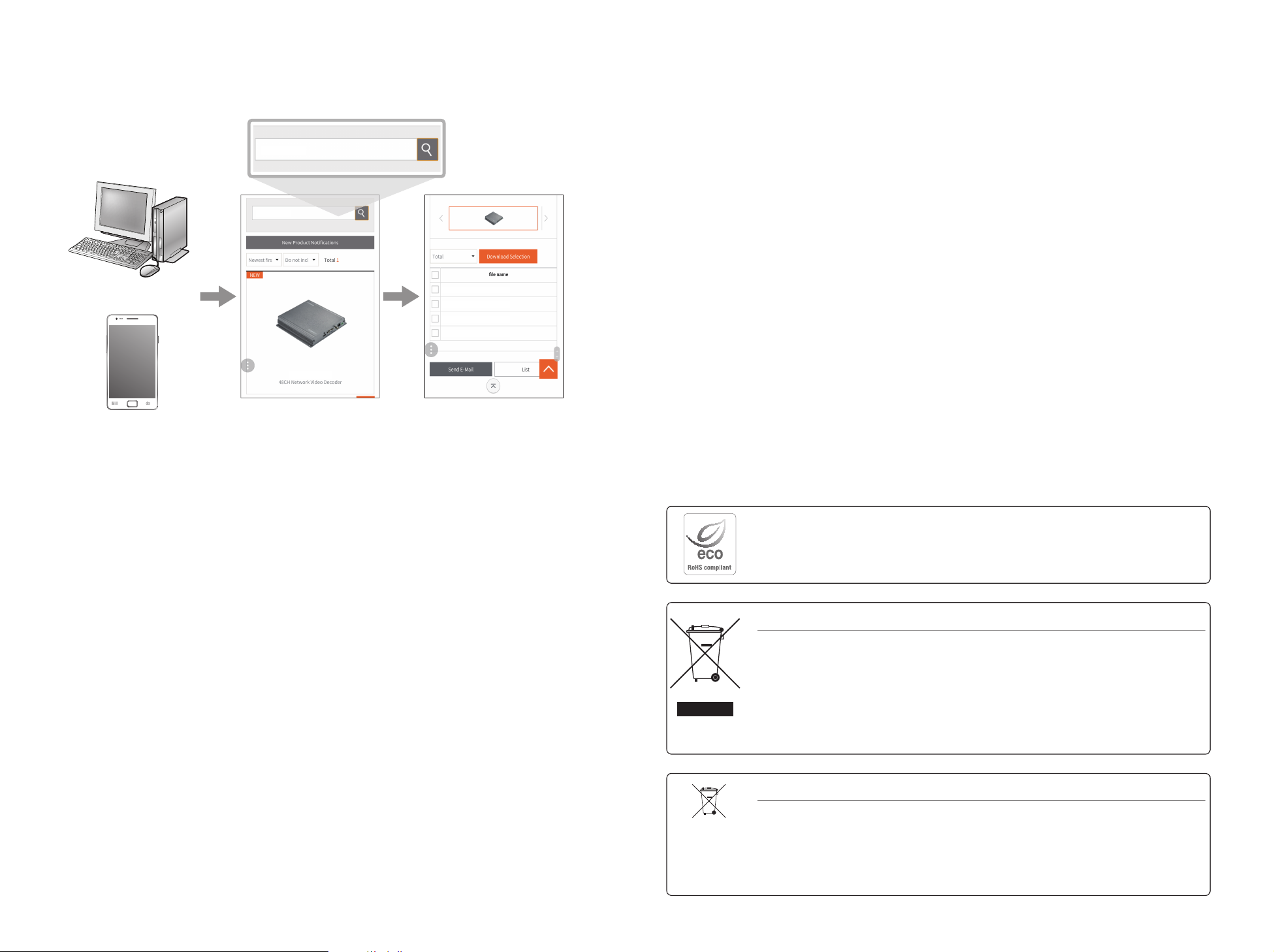

Use product information

You can check product information/manual/firmware information/FAQ through homepage or mobile web on your
smartphone.

SPD-151

SPD-151

http://hanwha-security.com

http://hanwha-security.com

SPD-151

SPD-151_datasheet_170629.pdf

SPD-151_CAD_170321.dxf

SPD-151_CAD_170321.pdf

SPD-151_AE_170717.doc

Hanwha Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide
customers with more environmentally friendly products.
The Eco mark represents Hanwha Techwin's devotion to creating environmentally friendly products, and indicates
that the product satisfies the EU RoHS Directive.

Correct Disposal of This Product

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB
cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment
or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly
to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of
where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic
accessories should not be mixed with other commercial wastes for disposal.

(Waste Electrical & Electronic Equipment)

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their
working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive
2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery
return system.

4
