PRELIMINARY

• Max. 2M (1920 x 1080) resolution

• Built-in 32x optical zoom lens (4.44 ~ 142.6mm) optical zoom,

16x digital zoom

• Color : 0.3Lux (1/30sec, F1.6, 50IRE)

B/W : 0.03Lux (1/30sec, F1.6, 50IRE)

• H.264, MJPEG dual codec, Multiple streaming

• Day & Night (ICR), WDR (120dB)

• Auto tracking, Intelligent video analytics

• PoE+, SD memory card, Bi-directional audio support

• IP66, IK10 (SNP-6320 + SHP-3701H only)

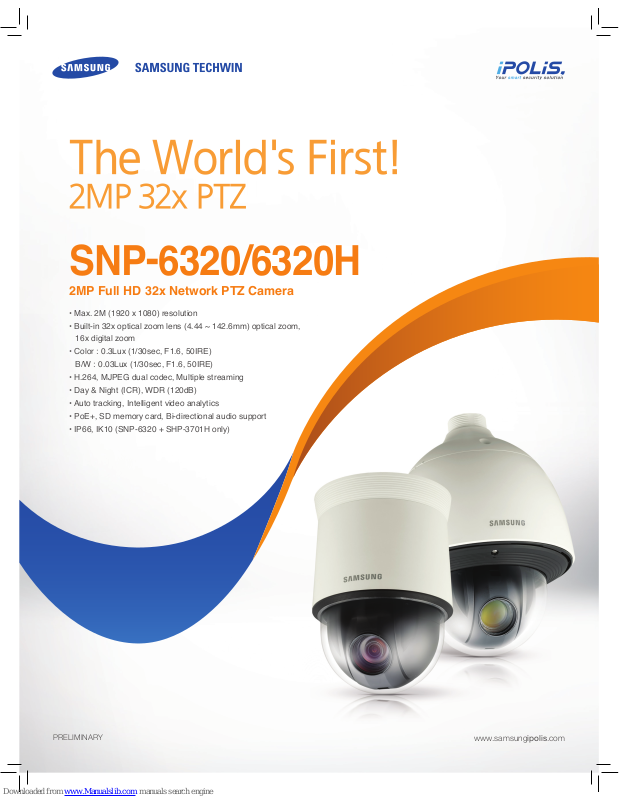

The World's First!

2MP 32x PTZ

SNP-6320/6320H

2MP Full HD 32x Network PTZ Camera

The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.

Design and specifications are subject to change without notice.

2MP Full HD 32x Network PTZ Camera

SNP-6320/6320H

I.H-1403

DISTRIBUTED BY

SAMSUNG TECHWIN CO., LTD.

6, Pangyo-ro 319beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, SEOUL 463-400 Rep. of KOREA

Tel : [phone]~8749, 8752~8760 Fax : [phone] www.samsungsecurity.com www.samsungcctv.com
COPYRIGHT BY SAMSUNG TECHWIN. ALL RIGHT RESERVED

SAMSUNG TECHWIN EUROPE LTD.

2nd Floor, No. 5 The Heights, Brooklands, Weybridge,
Surrey, KT13 0NY, UK
Tel : [phone] Fax : [phone]

SHANGHAI SAMSUNG TECHWIN CO., LTD.

32F, Blk B, International Business Center,
No. 391 Guiping Rd., Shanghai, China, 200233
Tel : [phone] Fax : [phone]

SAMSUNG TECHWIN AMERICA Inc.

100 Challenger Rd. Suite 700 Ridgefield Park, NJ 07660
Toll Free : [phone] Direct : [phone]
Fax : [phone]

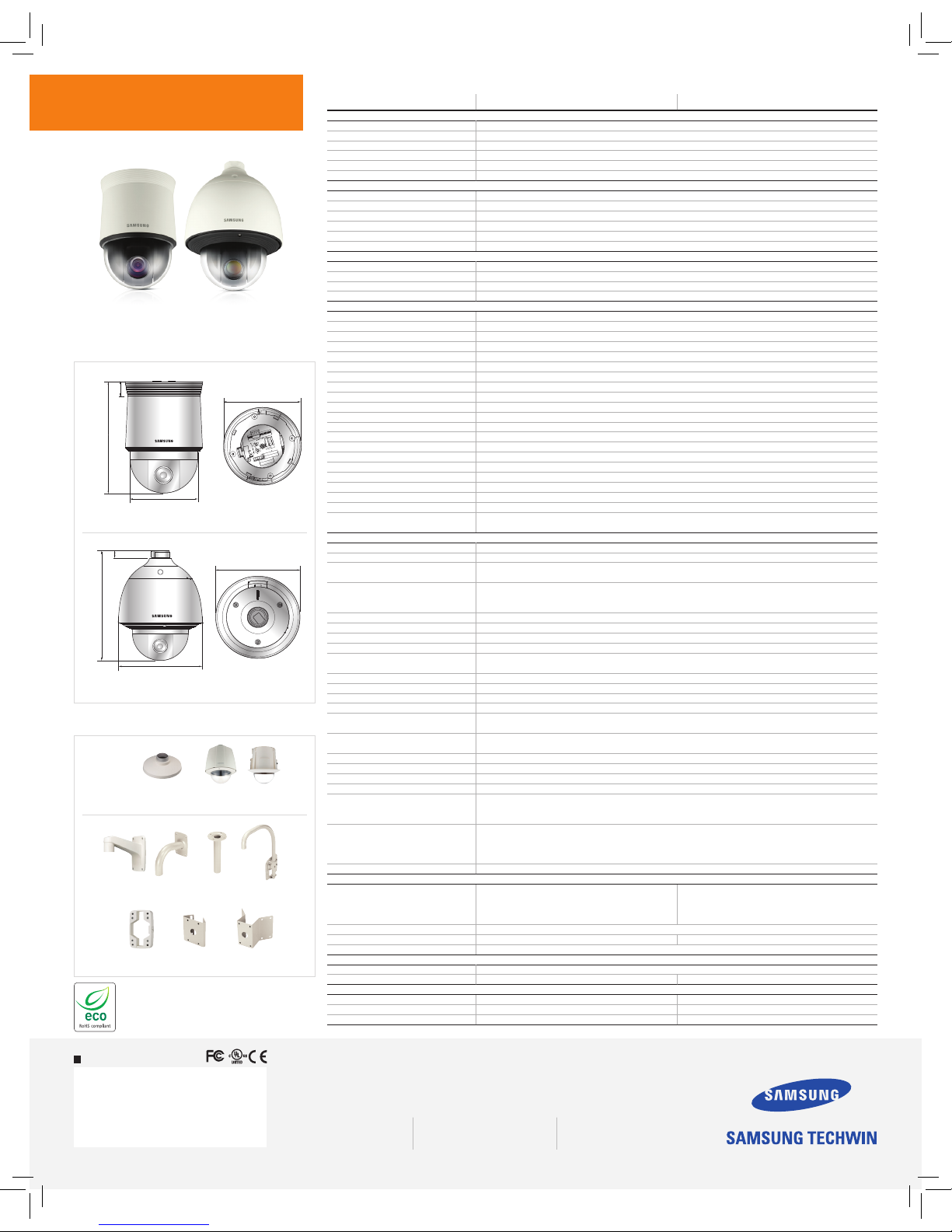

Dimensions

Accessories (Optional)

Unit : mm (inch)

SNP-6201

SNP-6201

SNP-6201H

SNP-6201 SNP-6201H

27.6 (1.09")

218.0 (8.58")

Ø133.2 (5.24")

Ø152.0 (5.98")

Ø133.2 (5.24")

Ø152.0 (5.98")

218.0 (8.58")

27.6 (1.09")

20.0 (0.79")

293.6 (11.56")

Ø220.0 (8.66")

Ø220.0 (8.66")

Ø220.0 (8.66")

Ø220.0 (8.66")

293.6 (11.56")

20.0 (0.79")

SBP-300WMSBP-300WM1 SBP-300CM SBP-300LM

SBP-300B SBP-300PM SBP-300KM

SBP-301HM3 SHP-3701H SHP-3701F

SNP-6320N/P SNP-6320HN/HP

VIDEO

Imaging Device

1/2.8" 2M PS CMOS

Total Pixels / Effective Pixels

1,952(H) x 1,236(V), 2.41M pixels / 1,944(H) x 1,224(V), 2.38M pixels

Scanning System

Progressive

Min. Illumination

Color : 0.3Lux (1/30sec, F1.6, 50IRE), B/W : 0.03Lux (1/30sec, F1.6, 50IRE)

S / N Ratio

50dB

Video Output

CVBS : 1.0 Vp-p / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation

LENS

Focal Length (Zoom Ratio)

4.44 ~ 142.6mm (32x)

Max. Aperture Ratio

F1.6(Wide) / F4.4(Tele)

Angular Field of View

H : 62.8˚(Wide) ~ 2.23˚(Tele) / V : 36.8˚(Wide) ~ 1.26˚(Tele)

Min. Object Distance

Wide : 10m (32.81ft), Tele : 1.5m (4.92ft)

Focus Control

Auto / Manual / One push

Lens / Mount Type

DC auto iris / Board-in type

PAN / TILT / ROTATE

Pan / Tilt Range

360˚ Endless / 210˚ (-15˚ ~195˚ )

Pan / Tilt Speed

Preset : 700˚/sec, Manual : 0.024˚/sec ~ 120˚/sec

Preset / Preset Accuracy

255ea / ±0.2˚

Auto Tracking

Off / On, Schedule mode, Auto tracking mask mode

OPERATIONAL

Camera Title

Off / On (Displayed up to 45 characters)

Day & Night

Auto (ICR) / Color / B/W / External / Schedule

Backlight Compensation

Off / BLC / HLC / WDR

Wide Dynamic Range

120dB

Contrast Enhancement

SSDR (Samsung Super Dynamic Range) (Off / On)

Digital Noise Reduction

SSNR

III

(2D+3D noise filter) (Off / On)

Digital Image Stabilization

Off / On

Defog

Off / Auto / Manual

Motion Detection

Off / On (4ea rectangle zone)

Privacy Masking

Off / On (32 zones of rectangle zone)

Gain Control

Off / Low / Middle / High

White Balance

ATW / AWC / Manual / Indoor / Outdoor

Electronic Shutter Speed

Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)

Digital Zoom

16x

Flip / Mirror

Off / On

Intelligent Video Analytics

Tampering, Virtual line, Enter / Exit, Appear / Disappear, Audio detection, Face detection

Alarm I/O

Input 4ea / Output 2ea (Relay)

Remote Control Interface

RS-485

RS-485 Protocol

Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, Bosch, GE

Alarm Triggers

Motion detection, Tampering, Audio detection, Face detecton, Video analytics, Alarm input, Network disconnection

Alarm Events

File upload via FTP and E-mail, Notification via E-mail, TCP and HTTP,
local storage (SD/SDHC/SDXC) recording at network disconnected & event (Alarm triggers), External output

NETWORK

Ethernet

RJ-45 (10/100BASE-T)

Video Compression Format

H.264 (MPEG-4 part 10 / AVC), MJPEG

Resolution

1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180

Max. Framerate

H.264 : Max. 60fps at all resolutions
MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max. 30fps

Smart Codec

Yes

Video Quality Adjustment

H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control

Bitrate Control Method

H.264 : CBR or VBR, MJPEG : VBR

Streaming Capability

Multiple streaming (Up to 10 profiles)

Audio In

Selectable (Mic in / Line in), Max output level : 1 Vrms
Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm

Audio out

Line out (3.5mm stereo mini jack)

Audio Compression Format

G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz, G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps

Audio Communication

Bi-directional audio

IP

IPv4, IPv6

Protocol

TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE
FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour

Security

HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication

Streaming Method

Unicast / Multicast

Max. User Access

15 users at unicast mode

Memory Slot

SD/SDHC/SDXC memory slot - Motion Images recorded in the SD/SDHC/SDXC memory card can be downloaded.

Application Programming Interface

ONVIF profile S & G, SUNAPI 2.0, SVNP 1.2

Webpage Language

English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish, Danish,
Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek, Finnish, Norwegian

Web Viewer

Supported OS : Windows XP / VISTA / 7 / 8 or higher, MAC OS X 10.7 or higher
Supported Browser : Microsoft Internet Explorer (Ver. 8 ~ 11) or higher, Mozilla Firefox (Ver. 9 ~ 19) or higher,
Google Chrome (Ver. 15 ~ 25) or higher, Apple Safari (Ver. 6.0.2 (Mac OS X 10.8, 10.7 Only), 5.1.7) or higher
* Mac OS X only

Central Management Software

Smart Viewer, SSM (Samsung Security Manager)

ENVIRONMENTAL

Operating Temperature / Humidity

-10°C ~ +55°C (+14°F ~ +131°F) /
Less than 90% RH

PoE+ : -30°C ~ +55°C (-22°F ~ +131°F) /
Less than 90% RH (Heater on)
24V AC : -50°C ~ +55°C (-58°F ~ +131°F) /
Less than ~ 90% RH (Heater on)

Storage Temperature / Humidity

-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH

Ingress Protection

N/A IP66 grade

Vandal Resistance

IK9 (SNP-6320 only, SHP-3701H : IK10 accessary housing)

ELECTRICAL

Input Voltage / Current

24V AC, PoE+ (IEEE802.3at class3)

Power Consumption

Max. 22W Max. 26W (Heater off), Max. 60W (Heater on, 24V AC)

MECHANICAL

Color / Material

Ivory / Plastic Ivory / Aluminum, Plastic sun-shield

Dimensions (WxH)

Ø152.0 x 218.0mm (Ø5.98" x 8.58") Ø220.0 x 293.6mm (Ø8.66" x 11.56")

Weight

1.9Kg (4.19 lb) 3.4Kg (7.5 lb)
