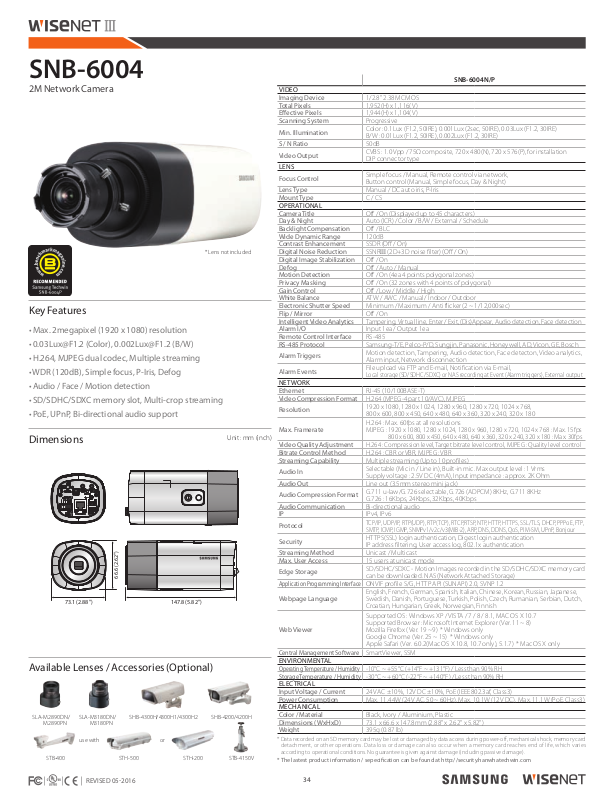

Samsung SNB-6004 Specsheet
73.1 (2.88") 147.8 (5.82")
66.6 (2.62")
SNB-6004
2M Network Camera
Key Features
• Max. 2megapixel (1920 x 1080) resolution
• 0.03Lux@F1.2 (Color), 0.002Lux@F1.2 (B/W)
• H.264, MJPEG dual codec, Multiple streaming
• WDR (120dB), Simple focus, P-Iris, Defog
• Audio / Face / Motion detection
• SD/SDHC/SDXC memory slot, Multi-crop streaming
• PoE, UPnP, Bi-directional audio support
Dimensions
66.6 (2.62")
73.1 (2.88") 147.8 (5.82")
Available Lenses / Accessories (Optional)
SLA- M2890DN/
M2890PN
SLA- M3180DN/
M3180PN
use with or
REVISED 052016
SHB-4300H/4300H1/4300H2 SHB-4200/4200H
STH-500 STH-200STB-400 STB-4150V
* Lens not included
Unit : mm (inch)
VIDEO
Imaging Device 1/2.8" 2.38M CMOS
Total Pixels 1,952(H) x 1,116(V)
Effective Pixels 1,944(H) x 1,104(V)
Scanning System Progressive
Min. Illumination
S / N Ratio 50dB
Video Output
LENS
Focus Control
Lens Type Manual / DC auto iris, P-Iris
Mount Type C / CS
OPERATIONAL
Camera Title Off / On (Displayed up to 45 characters)
Day & Night Auto (ICR) / Color / B/W / External / Schedule
Backlight Compensation Off / BLC
Wide Dynamic Range 120dB
Contrast Enhancement SSDR (Off / On)
Digital Noise Reduction SSNR
Digital Image Stabilization Off / On
Defog Off / Auto / Manual
Motion Detection Off / On (4ea 4 points polygonal zones)
Privacy Masking Off / On (32 zones with 4 points of polygonal)
Gain Control Off / Low / Middle / High
White Balance ATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter Speed Minimum / Maximum / Anti flicker (2 ~ 1/12,000sec)
Flip / Mirror Off / On
Intelligent Video Analytics
Alarm I/O Input 1ea / Output 1ea
Remote Control Interface RS-485
RS-485 Protocol Samsung-T/E, Pelco-P/D, Sungjin, Panasonic, Honeywell, AD, Vicon, GE, Bosch
Alarm Triggers
Alarm Events
NETWORK
Ethernet RJ-45 (10/100BASE-T)
Video Compression Format H.264 (MPEG-4 part 10/AVC), MJPEG
Resolution
Max. Framerate
Video Quality Adjustment
Bitrate Control Method H.264 : CBR or VBR, MJPEG : VBR
Streaming Capability Multiple streaming (Up to 10 profiles)
Audio In
Audio Out Line out (3.5mm stereo mini jack)
Audio Compression Format
Audio Communication Bi-directional audio
IP IPv4, IPv6
Protocol
Security
Streaming Method Unicast / Multicast
Max. User Access 15 users at unicast mode
Edge Storage
Application Programming Interface
Webpage Language
Web Viewer
Central Management Software
ENVIRONMENTAL
Operating Temperature / Humidity
Storage Temperature / Humidity
ELECTRICAL
Input Voltage / Current 24V AC ±10%, 12V DC ±10%, PoE (IEEE802.3af, Class3)
Power Consumption Max. 11.44W (24V AC, 50 ~ 60Hz), Max. 10.1W (12V DC), Max. 11.1W (PoE, Class3)
MECHANICAL
Color / Material Black, Ivory / Aluminium, Plastic
Dimensions (WxHxD) 73.1 x 66.6 x 147.8mm (2.88" x 2.62" x 5.82")
Weight 395g (0.87 lb)
* Data recorded on an SD memory card may be lost or damaged by data access during power-off, mechanical shock, memory card
detachment, or other operations. Data loss or damage can also occur when a memory card reaches end of life, which varies
according to operational conditions. No guarantee is given against damage (including passive damage).
* The lastest product information / sepecication can be found at http://security.hanwhatechwin.com
34
Color : 0.1Lux (F1.2, 50IRE), 0.001Lux (2sec, 50IRE), 0.03Lux (F1.2, 30IRE)
B/W : 0.01Lux (F1.2, 50IRE), 0.002Lux (F1.2, 30IRE)
CVBS : 1.0 Vpp / 75Ω composite, 720 x 480(N), 720 x 576(P), for installation
DIP connector type
Simple focus / Manual, Remote control via network,
Button control (Manual, Simple focus, Day & Night)
III
(2D+3D noise filter) (Off / On)
Tampering, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Face detection
Motion detection, Tampering, Audio detection, Face detecton, Video analytics,
Alarm input, Network disconnection
File upload via FTP and E-mail, Notification via E-mail,
Local storage (SD/SDHC/SDXC) or NAS recording at Event (Alarm triggers), External output
1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768,
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180
H.264 : Max. 60fps at all resolutions
MJPEG : 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768 : Max. 15fps
800 x 600, 800 x 450, 640 x 480, 640 x 360, 320 x 240, 320 x 180 : Max. 30fps
H.264 : Compression level, Target bitrate level control, MJPEG : Quality level control
Selectable (Mic in / Line in), Built-in mic. Max output level : 1 Vrms
Supply voltage : 2.5V DC (4mA), Input impedance : approx. 2K Ohm
G.711 u-law/G.726 selectable, G.726 (ADPCM) 8KHz, G.711 8KHz
G.726 : 16Kbps, 24Kbps, 32Kbps, 40Kbps
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP,
SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour
HTTPS(SSL) login authentication, Digest login authentication
IP address filtering, User access log, 802.1x authentication
SD/SDHC/SDXC - Motion Images recorded in the SD/SDHC/SDXC memory card
can be downloaded. NAS (Network Attached Storage)
ONVIF profile S/G, HTTP API (SUNAPI) 2.0, SVNP 1.2
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese,
Swedish, Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch,
Croatian, Hungarian, Greek, Norwegian, Finnish
Supported OS : Windows XP / VISTA / 7 / 8 / 8.1, MAC OS X 10.7
Supported Browser : Microsoft Internet Explorer (Ver. 11 ~ 8)
Mozilla Firefox (Ver. 19 ~9) * Windows only
Google Chrome (Ver. 25 ~ 15) * Windows only
Apple Safari (Ver. 6.0.2(Mac OS X 10.8, 10.7 only), 5.1.7) * Mac OS X only
SmartViewer, SSM
-10°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH
-30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH
SNB-6004N/P
