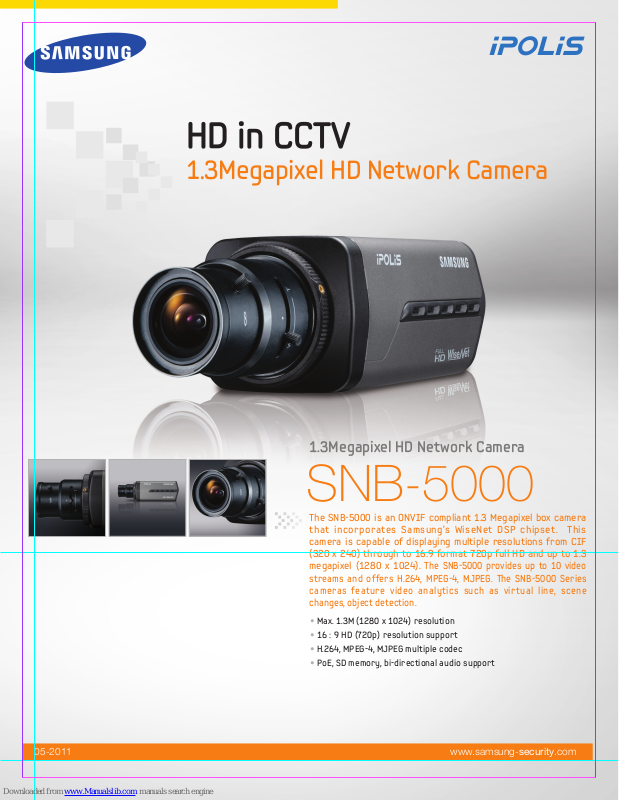

Samsung SNB-5000N, SNB-5000P Specifications
HD in CCTV
1.3Megapixel HD Network Camera
1.3Megapixel HD Network Camera
SNB-5000
The SNB-5000 is an ONVIF compliant 1.3 Megapixel box camera
that incorporates Samsung’s WiseNet DSP chipset. This
camera is capable of displaying multiple resolutions from CIF
(320 x 240) through to 16:9 format 720p full HD and up to 1.3
megapixel (1280 x 1024).
streams and offers H.264, MPEG-4, MJPEG. The SNB-5000 Series
cameras feature video analytics such as virtual line, scene
changes, object detection.
• Max. 1.3M (1280 x 1024) resolution
• 16 : 9 HD (720p) resolution support
• H.264, MPEG-4, MJPEG multiple codec
• PoE, SD memory, bi-directional audio support
The SNB-5000 provides up to 10 video
05-2011
www.samsung-security.com
1.3Megapixel HD Network Camera
SNB-5000
1.3M
Specifications
VIDEO
Imaging Device
Total Pixels
Effective Pixels
Scanning System
Min. Illumination
S / N Ratio
Video Output
Dimensions
AUDIO OUT AUDIO IN
SD CARD
SYSTEM
SD
POWER
VIDEO
RESET
NETWORK
1 2 3 4 5
1,2 : ALARM IN 1,2
ACT LINK
AC 24V
3 : GND
DC 12V
GND
4,5 : ALARM OUT 1,2
60 (2.36")
72 (2.83") 138.6 (5.46")
Unit : mm (inch)
Available Lenses /
Accessories (optional):
SLA-M3180
STB-400
STB-4150V
USE
WITH
SHB-4300H1
STH-500
SAMSUNG TECHWIN AMERICA Inc.
100 Challenger Road, Suite 700, Ridgefield Park, NJ 07660, UNITED STATES
Tol Free : 1-877-213-1222 Fax : 1-201-373-0124
www.samsungsecurityusa.com
OR
SHB-4200/
SHB-4200H
STH-200
LENS
Lens Type
Mount Type
OPERATIONAL
Camera Title
Day & Night
Backlight Compensation
Contrast Enhancement
Digital Noise Reduction
Motion Detection
Privacy Masking
Sens-up (Frame Integration)
Gain Control
White Balance
Electronic Shutter Speed
Flip / Mirror
Intelligent Video Analytics
Alarm I/O
NETWORK
Ethernet
Video Compression Format
Resolution
Max. Framerate
Video Quality Adjustment
Bitrate Control Method
Streaming Capability
Audio I/O
Audio Compression Format
Audio Communication
IP
Protocol
Security
Streaming Method
Max. User Access
Memory Slot
ONVIF Conformance
Webpage Language
Web Viewer
Central Management Software
ENVIRONMENTAL
Operating Temperature / Humidity
ELECTRICAL
Input Voltage
Power Consumption
MECHANICAL
Color / Material
Dimensions (WxHxD)
Weight
D/N ICR
PoE
SNB-5000N/P
1/3" 1.3M PS CMOS
1,384(H) x 1,076(V)
1,329(H) x 1,049(V)
Progressive
Color : 0.3Lux (F1.2, 50IRE), 0.005Lux (Sens-up 60x)
B/W : 0.01Lux (F1.2, 50IRE), 0.0002Lux (Sens-up 60x)
50dB
CVBS : 1.0 Vp-p / 75Ω composite, 704 x 480(N), 704 x 576(P), for installation
Manual / DC auto iris
C / CS
Off / On (Displayed up to 15 characters)
Auto (ICR) / Color / B/W
Off / BLC / HLC
SSDR (Samsung Super Dynamic Range) (Off / On)
SSNR
III
(2D+3D noise filter) (Off / On)
Off / On (4 programmable zones)
Off / On (12 programmable zones)
Off / Auto (2x ~ 60x)
Off / Low / Medium / High / Manual
ATW / AWC / Manual / Indoor / Outdoor
Auto / A.FLK / Manual (1/30 ~ 30,000sec)
Off / On
Scene change, Virtual line, Enter / Exit, Appear / Disappear
Input 1ea / Output 1ea (Relay)
RJ-45 (10/100BASE-T)
H.264, MPEG-4, MJPEG
1280 x 1024, 1280 x 720P (HD), 800 x 600, 640 x 480, 320 x 240
22fps (1280 x 1024), 30fps (720P HD)
H.264, MPEG-4 : Compression level, Target bitrate level control
MJPEG : Quality level control
H.264, MPEG-4 : CBR or VBR, MJPEG : VBR
Multiple streaming (Up to 10 profiles)
Mic / Line in, Line out
G.711 u-law
Bi-directional audio
IPv4, IPv6
TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP, HTTP, HTTPS, SSL, DHCP, PPPoE FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/
v3(MIB-2), ARP, DNS, DDNS, ONVIF
HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log
Unicast / Multicast
10 users at unicast mode
SD/SDHC memory slot
Yes
English, French, German, Spanish, Italian, Chinese, Korean, Russian, Japanese, Swedish,
Danish, Portuguese, Turkish, Polish, Czech, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek
Supported OS : Windows XP / VISTA / 7, MAC OS
Supported Browser : Internet Explorer 6.0 or Higher, Firefox, Google Chrome, Apple Safari
NET-i viewer
-10°C ~ +50°C (+14°F ~ +122°F) / 20% ~ 80% RH
12V DC, 24V AC, PoE (IEEE802.3af)
Max. 6W
Dark gray / Metal
72.0 x 60.0 x 136.8mm (2.83" x 2.36" x 5.39")
440g (0.97 Ib)
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
Design and specifications are subject to change without notice.
