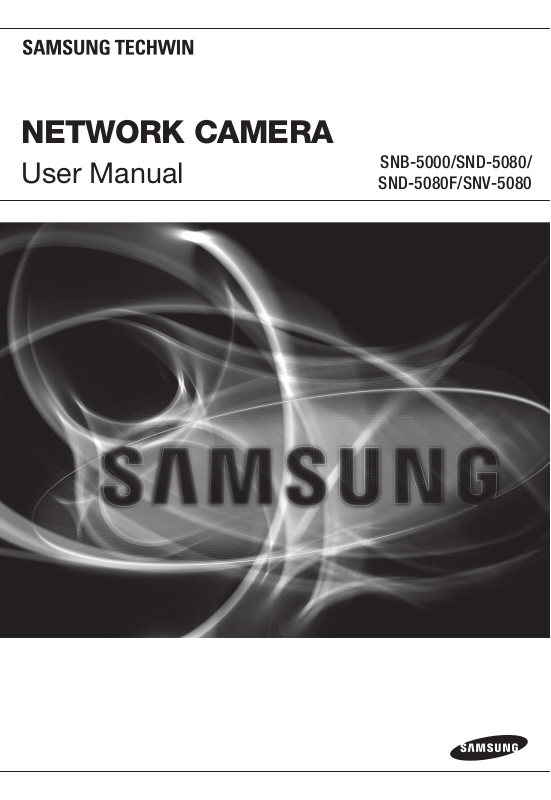

Page 1

NETWORK CAMERA

User Manual

SNB-5000/SND-5080/

SND-5080F/SNV-5080

Page 2

Network Camera

User Manual

Trademark

The name of this product is the registered trademark of Samsung Techwin Co., Ltd. Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verify the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.

Warranty

If the product does not operate properly in normal conditions, please let us know. Samsung Techwin will resolve the problem for free of charge. The warranty period is 3 years. However, the followings are excluded:

If the system behaves abnormally because you run a program irrelevant to the system operation.

•

Deteriorated performance or natural worn-out in process of time

•

is the registered logo of Samsung Techwin Co., Ltd.

Page 3

overview

IMPORTANT SAFETY INSTRUCTIONS

Read these instructions.

Keep these instructions.

Heed all warnings.

Follow all instructions.

Do not use this apparatus near water.

Clean only with dry cloth.

Do not block any ventilation openings, Install in accordance with the manufacturer’s

instructions.

Do not install near any heat sources such as radiators, heat registers, stoves, or other

apparatus (including ampliﬁers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized

plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs, conve-

10.

nience receptacles, and the point where they exit from the apparatus.

Only use attachments/ accessories speciﬁed by the manufacturer.

11.

Use only with the cart, stand, tripod, bracket, or table speciﬁed by

12.

the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

Unplug this apparatus during lighting storms or when unused for

13.

long periods of time.

Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus

14.

has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

● OVERVIEW

English _3

Page 4

overview

WARNING

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE. DO NOT INSERT ANY METALLIC OBJECT THROUGH THE VENTILATION GRILLS OR OTHER OPENNINGS ON THE EQUIPMENT.

Apparatus shall not be exposed to dripping or splashing and that no objects filled with liquids, such as vases, shall be placed on the apparatus.

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

: TO REDUCE THE RISK OF ELECTRIC SHOCK.

DO NOT REMOVE COVER (OR BACK).

NO USER SERVICEABLE PARTS INSIDE.

EXPLANATION OF GRAPHICAL SYMBOLS

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

4_ overview

Page 5

Class construction

An apparatus with CLASS construction shall be connected to a MAINS socket outlet with a protective earthing connection.

Battery

Batteries(battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

Disconnection Device

Disconnect the main plug from the apparatus, if it’s defected. And please call a repair man in your location.

When used outside of the U.S., it may be used HAR code with fittings of an approved agency is employed.

CAUTION

These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

The BNC Out terminal of the product is provided for easier installation, and is not recommended for monitoring purposes. If you keep the BNC cable connected, a risk of lightening may cause damage or malfunction to the product.

Please use the input power with just one camera and other devices must not be connected.

● OVERVIEW

English _5

Page 6

overview

Please read the following recommend safety precautions carefully.

Do not place this apparatus on an uneven surface. Do not install on a surface where it is exposed to direct

Do not place this apparatus near conductive material. Do not attempt to service this apparatus yourself.

Do not place a glass of water on the product. Do not install near any magnetic sources.

Do not block any ventilation openings. Do not place heavy items on the product.

User’s Manual is a guidance book how to use the products

The meaning of the using sign in the book is following



Reference : In case of providing information for helping of product’s usages



Notice : If there’s any possibility to occur any damages for the goods and human caused by not following the instruction



Please read this manual for the safety before using of goods and keep it in

the safe place.

sunlight, near heating equipment or heavy cold area.

6_ overview

Page 7

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

Samsung Techwin cares for the environment at all product manufacturing stages, and is taking measures to provide customers with more environmentally friendly products. The Eco mark represents Samsung Techwin’s devotion to creating environmentally friendly products, and indicates that the product satisfies the EU RoHS Directive.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking on the product, accessories or literature indicates that the product and its electronic accessories (e.g. charger, headset, USB cable) should not be disposed of with other household waste at the end of their working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate these items from other types of waste and recycle them responsibly to promote the sustainable reuse of material resources.

Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take these items for environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the purchase contract. This product and its electronic accessories should not be mixed with other commercial wastes for disposal.

Correct disposal of batteries in this product

(Applicable in the European Union and other European countries with separate battery return systems.)

This marking on the battery, manual or packaging indicates that the batteries in this product should not be disposed of with other household waste at the end of their working life. Where marked, the chemical symbols Hg, Cd or Pb indicate that the battery contains mercury, cadmium or lead above the reference levels in EC Directive 2006/66. If batteries are not properly disposed of, these substances can cause harm to human health or the environment.

To protect natural resources and to promote material reuse, please separate batteries from other types of waste and recycle them through your local, free battery return system.

● OVERVIEW

English _7

Page 8

overview

CONTENTS

OVERVIEW

INSTALLATION &

CONNECTION

NETWORK CONNECTION

AND SETUP

3 Important Safety Instructions 10 Product Features 10 Recomended PC Speciﬁcations 10 Recomended SDHC/SD Memory

Card Speciﬁcations

11 What’s Included 13 At a Glance (SNB-5000) 16 At a Glance (SND-5080) 19 At a Glance (SND-5080F) 22 At a Glance (SNV-5080)

25 Installation (SND-5080) 27 Installation (SND-5080F) 29 Installation (SNV-5080) 34 Mounting the Lens 35 Inserting/Removing an SD

Memory Card

38 Memory Card Information

(Not Included)

39 Connecting with other Device

44 Connecting the Camera Directly

to Local Area Networking

45 Connecting the Camera Directly

to a DHCP Based DSL/Cable Modem

46 Connecting the Camera Directly

to a PPPoE Modem

47 Connecting the Camera to an

IP Router with the PPPoE/Cable Modem

48 Buttons used in IP Installer 49 Static IP Setup 52 Dynamic IP Setup 53

Port Range Forward (Port Mapping) Setup

55 Connecting to the Camera from a

Shared Local PC

55 Connecting to the Camera from a

Remote PC via the Internet

8_ overview

Page 9

WEB VIEWER

56 Connecting to the Camera 57 Login 58 Installing Silverlight Runtime 60 Using the Live Screen 63 Playback 64 Playing the backup recordings

● OVERVIEW

SETUP SCREEN

APPENDIX

65 Setup 65 Audio & Video Setup 72 Network Setup 77 Event Setup 85 System Setup

90 Speciﬁcation 95 Troubleshooting 97 Open Source Announcement 99 GPL/LGPL Software License

English _9

Page 10

overview

PRODUCT FEATURES



HD Video Quality



Multi-Streaming

This network camera can display videos in different resolutions and qualities simultaneously using different CODECs.

However, MPEG4 video can not be played on a web page. Use CMS software if you want to play



the video on a web page.



Web Browser-based Monitoring

Using the Internet web browser to display the image in a local network environment.



Alarm

If an event occurs, the event-related video will be transferred to the email speciﬁed by the user or saved to the SD memory, or the event signal will be sent to the Alarm Out port.



Intelligent Video Analysis

Analyzes the event video according to the user-speciﬁed rules to recognize the event.



ONVIF (Spec 1.01) Compliance

This product supports ONVIF Core Spec. 1. 01. For more information, refer to www.onvif.org.

RECOMENDED PC SPECIFICATIONS



CPU : Intel(R) Core(TM)2 2.00 GHz or higher



Operating System : Windows XP, VISTA, 7



Resolution : 1280X1024 pixels or higher



RAM : 1GB or higher



Web Browser : Internet Explorer 6.0 or higher



Video Memory : 128MB or higher

Mac OS

Firefox, Google Chrome, Safari

RECOMENDED SDHC/SD MEMORY CARD SPECIFICATIONS



2GB ~ 32GB



To ensure proper recording of video data, we recommend you use a memory card that supports at least read/write speed 10Mbps and Class 6.

10_ overview

Page 11

WHAT’S INCLUDED

Please check if your camera and accessories are all included in the product package.

Appearance Item Name

User Manual,

Installer S/W DVD,

CMS S/W DVD

Quick Guide 1

Jack Modular 1 LAN cable gender

Quantity

Description Model Name

SNB-5000

SND-5080/5080F

SNV-5080

● OVERVIEW

Cable for the testing

monitor

Alarm Cable 1 Used to connect to Alarm I/O

Template 1 Product installation guide

Iron Screw 3 Used for fixing to an iron plate SND-5080/5080F

Dustproof Plate 1 Preventing dust inflow SND-5080

Used to test the camera

connection to a portable display

device

SND-5080/5080F

SNV-5080

SND-5080F

SNV-5080

English _11

Page 12

overview

Appearance Item Name

C Mount Adapter

Auto Iris Lens Connector

Camera Holder (Mount) 1

Camera Holder (Mount)

Screws

ASSY-Tapping Screw

L Wrench

Plastic Anchor

Rubber cap 3

Tapping Screw 1

Bracket Safety 1

Quantity

Description Model Name

Used to install the camera lens

Used to install the camera holder

Used to install the mount

Used for installation on the wall or

Used to remove/fix the dome

For fixing a screw, Inserted in

a hole (reinforced anchoring

Insulation cap for improved

EMC performance.

SNB-5000

ceiling

cover

SNV-5080

force)

SND-5080F

12_ overview

CS/C Lens

Lens Options (not included)

Optional lens to be inserted in a

camera

SNB-5000

Page 13

The Test Monitor Cable is connected to a portable displayer and used for testing the camera.

www.samsungcctv.com

SNB-5000

www.samsungcctv.com

SNB-5000

www.samsungcctv.com

SNB-5000



If you intend to use it for an actual monitoring camera, use the BNC cable instead.

For improved EMC performance, it is recommended to use the insulation cap provided as an



accessory.

AT A GLANCE (SNB-5000)

Front Side

Item Description

Camera Holder

(Mount) Holes

Auto Iris Lens

(Optional)

Auto Iris Lens

Connector

● OVERVIEW

Used when you mount the camera onto the bracket by fixing the camera holder (mount) adaptor with the bracket.

Installed on the lens adaptor.

Used to supply power and output signal to control the iris of the lens.

Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied



ethanol.

English _13

Page 14

overview

SD CARD

AUDIO OUT

VIDEO

1 2 3 4 5

SD SYSTEM POWER

RESET

NETWORK

ACT

LINK

GND

1 : ALARM IN 4 :

2 : ALARM OUT 5 : GND 3 : ALARM COM

AC 24V

DC 12V

AUDIO IN

Rear Side

Item Description

SD Memory Card

Compartment

Audio terminal

System, Power,

SD Indicators

Compartment for the SD memory card.

AUDIO OUT Terminal for audio output.

AUDIO IN Terminal for audio input.

SYSTEM

ON : A memory card is inserted and operates normally.

Flashing : Failed to record, insufficient space, or inserted

abnormally.

OFF : Camera is off, camera is restarting, or memory card is

not in place.

ON : The camera is turned on and connected to the network

properly.

Flashing : During DDNS setup, or in case of setup failure, or

in a state of unstable network connection.

OFF : When the system is rebooting, or turned off.

14_ overview

Page 15

Item Description

System, Power,

SD Indicators

Reset Button

Power Port Used to plug the power cable.

GND Used for earth-grounding.

POWER

Resets the camera settings to the default. Press and hold it for about 5 seconds to turn off the system indicator and restart the system.

ON : While the power is on

OFF : If the power is off

If you reset the camera, the network settings will be adjusted so that DHCP can be enabled. If there is no DHCP server in the network, you must run the IP Installer program to change the basic network settings such as IP address, Subnet mask, Gateway, etc., before you can connect to the network.

● OVERVIEW

Network Port

I/O Port

Video Out Port

Used to connect a PoE or LAN cable.

ALARM IN Used to connect the alarm input signal.

ALARM OUT Used to connect the alarm output signal.

ALARM COM Common port where the alarm output signal is connected.

GND Used for earth-grounding.

Analog video output port. (for installation)

English _15

Page 16

overview

AT A GLANCE (SND-5080)

Appearance

Item Description

Dome Cover Dome cover for the lens and unit protection.

Main unit Main unit includes the lens, switch board, PCB boards and screws.

Power Port Used to plug the power cable.

Video Out Port Analog video output port. (for installation)

Network Port Used to connect a PoE or LAN cable.

Audio In Jack Used to connect to a microphone.

Audio Out Jack Used to connect to speakers.

16_ overview

Page 17

Inside

Item Description

ALARM IN Used to connect the alarm input signal.

Alarm In / Out terminals

SD Memory Card Compartment

Reset Button

ALARM OUT Used to connect the alarm output signal.

ALARM COM Common port where the alarm output signal is connected.

GND Used for earth-grounding.

Compartment for the SD memory card.

Resets the camera settings to the default. Press and hold it for about 5 seconds to turn off the system indicator and restart the system.

If you reset the camera, the network settings will be adjusted so that

DHCP can be enabled. If there is no DHCP server in the network, you must run the IP Installer program to change the basic network settings such as IP address, Subnet mask, Gateway, etc., before you can connect to the network.

● OVERVIEW

English _17

Page 18

overview

SND-5080-2

SND-5080-3 SND-5080-4

Components

Item Description

Inner Cover Cover for the main unit’s protection.

Side wing hooks

ZOOM lever

Focus lever

SD Memory Card

Compartment

Monitor Out

Wiring Cover

Lock Release

By lifting it while gently pressing the both ends, you can separate the inner cover.

Turn the barrel left or right to adjust the zoom, and turn the knob clockwise to lock the zoom.

Turn the barrel left or right to adjust the focus, and turn the knob clockwise to lock the focus.

Compartment for the SD memory card.

Using the test monitor cable, you can connect to a mobile display for camera test.

If you drill a hole in the wiring cover for wiring, remove the cover and attach the provided dustproof plate to it, and arrange the cables through the plate. The dust-proof plate is to prevent outside dust from inflow to the wiring compartment.

To separate the bracket from the main unit for the installation or to separate the camera from an installed camera, push this release and turn the main unit in the marked direction of <UNLOCK>.

3 4 5 6

18_ overview

Page 19

AT A GLANCE (SND-5080F)

Appearance

Item Description

Dome Cover Dome cover for the lens and unit protection.

Main unit Main unit includes the lens, switch board, PCB boards and screws.

Power Port Used to plug the power cable.

Video Out Port Analog video output port. (for installation)

Network Port Used to connect a PoE or LAN cable.

Audio In Jack Used to connect to a microphone.

Audio Out Jack Used to connect to speakers.

● OVERVIEW

English _19

Page 20

overview

< SND-5080F >

Inside

Item Description

ALARM IN Used to connect the alarm input signal.

Alarm In / Out

terminals

SD Memory Card

Compartment

Reset Button

ALARM OUT Used to connect the alarm output signal.

ALARM COM

GND Used for earth-grounding.

Compartment for the SD memory card.

Resets the camera settings to the default. Press and hold it for about 5 seconds to turn off the system indicator and restart the system.

Common port where the alarm output signal is connected.

20_ overview

Page 21

Components

Item Description

Inner Cover Cover for the main unit’s protection.

Side wing hooks

By lifting it while gently pressing the both ends, you can separate the inner cover.

3 4

● OVERVIEW

ZOOM lever

Focus lever

Monitor Out

Turn the barrel left or right to adjust the zoom, and turn the knob clockwise to lock the zoom.

Turn the barrel left or right to adjust the focus, and turn the knob clockwise to lock the focus.

Using the test monitor cable, you can connect to a mobile display for camera test.

English _21

Page 22

overview

AT A GLANCE (SNV-5080)

Appearance

Item Description

Dome Cover Dome cover for the lens and unit protection.

Main unit Main unit includes the lens, switch board, PCB boards and screws.

Power Port Used to plug the power cable.

Video Out Port Analog video output port. (for installation)

Network Port Used to connect a PoE or LAN cable.

Audio In Jack Used to connect to a microphone.

Audio Out Jack Used to connect to speakers.

22_ overview

Page 23

Inside

< SNV-5080 >

● OVERVIEW

Item Description

ALARM IN

Alarm In / Out

terminals

SD Memory Card

Compartment

Reset Button

ALARM OUT

ALARM COM

GND Used for earth-grounding.

Compartment for the SD memory card.

Resets the camera settings to the default. Press and hold it for about 5 seconds to turn off the system indicator and restart the system.

If you reset the camera, the network settings will be adjusted so that

Used to connect the alarm input signal.

Used to connect the alarm output signal.

Common port where the alarm output signal is connected.

English _23

Page 24

overview

Components

Item Description

Inner Cover Cover for the main unit’s protection.

Side wing hooks

3 4

By lifting it while gently pressing the both ends, you can separate the inner cover.

ZOOM lever

Focus lever

Monitor Out

24_ overview

Turn the barrel left or right to adjust the zoom, and turn the knob clockwise to lock the zoom.

Turn the barrel left or right to adjust the focus, and turn the knob clockwise to lock the focus.

Using the test monitor cable, you can connect to a mobile display for camera test.

Page 25

installation & connection

INSTALLATION (SND-5080)

Precautions before installation

Ensure you read out the following instructions before installing the camera:



Select an installation site (ceiling or wall) that can endure at least 5 times of the camera weight.



Stuck-in or peeled-off cables can cause damage to the product or a fire.



For safety purposes, keep anyone else away from the installation site. And put aside personal belongings from the site, just in case.

Installing the camera

Hold down the bottom lock lever while

removing the cover with the other hand. Removing the cover reveals the main unit and inner cover.

● INSTALLATION & CONNECTION

English _25

Page 26

installation & connection

To ﬁx the camera position, hold down either

hook of the inner cover and lift it up.

Push the release lock out while turning the main unit in

the <UNLOCK> direction to remove the bracket. If this doesn't work, use the hole on the bottom of the bracket to turn the bracket in the <LOCK> direction.

Use the provided screws (x3) to ﬁx the bracket to a

desired position (ceiling or wall).

Ensure that the <CAMERA FRONT> label on the bracket faces



the direction for camera monitoring.

Arrange the cables through the bracket to the

ceiling or wall. If you drill a hole in the ceiling cover for wiring, press hard to remove the cover and attach the dust-proof plate to it, and arrange the cables through the plate. If you intend to arrange the cables without drilling a hole, use the empty area opposite to the <CAMERA FRONT> label side for the wiring purpose.

Mount the main unit onto the bracket.

Align the marking hole of the main unit with the <CAMERA FRONT> label of the bracket, and turn the unit in the <LOCK> direction.

Adjust the lens in a desired direction.

7. For adjusting the lens direction, refer to “Adjusting the monitoring direction for the camera”. (page 33)

Secure the inner cover to the main unit.

Fit the two holes of the wing-side locks on the inner cover into the corresponding hole of the main unit, and press it down until you hear a click.

Fix the cover to the main unit.

Fit the protruding part inside the cover into the corresponding hole of the main unit, and turn the cover to ﬁx it.

26_ installation & connection

Wiring Cover

Page 27

INSTALLATION (SND-5080F)

Removing the dome cover

Hold down the bottom lock lever while removing

the cover with the other hand. Removing the cover reveals the main unit and inner cover.

To ﬁx the camera position, hold down both

hooks of the inner cover while lifting it up.

Ceiling Mount

Use the provided template to drill one hole

for the camera, and one for the screw (5 mm in diameter, at least 35 mm in depth), and insert the plastic anchor (HUR 5) to the end of the screw hole.

Connect and arrange the necessary cables

(power, video, etc) lest that they should be damaged or caught while installing the camera.

● INSTALLATION & CONNECTION

English _27

Page 28

installation & connection

Insert the camera assembly into the hole

so that it ﬁts to the camera hole, and ﬁx the assembly using the assembly screw tappings (TH, M4xL30). (x3)

Close the dome cover.

Fix the cover to the main unit. Fit the

protruding part inside the cover into the corresponding hole of the main unit, and turn the cover to ﬁx it.

To add an alarm cable

For this, ﬁrst you should remove the dome

cover from the housing.

Pull out the protruding rubber bar as shown.

This will reveal a hole in the place of the rubber

bar, through which you insert the cable, and connect it to the alarm terminal on the PCB.

Connect and arrange the necessary cables

(power, video, etc) lest that they should be damaged or caught while installing the camera. Then, install the camera assembly in the reverse order of the disassembly.

Adjust the lens in a desired direction and close

the dome cover.

28_ installation & connection

Page 29

INSTALLATION (SNV-5080)

SNV-5080-1

SNV-5080-2

SNV-5080-3

SNV-5080-4

Disassembling

To connect the alarm in/out, the dome cover and lens cover are to be separated.

Using the L-wrench provided, loosen 3 screws by turning them counterclockwise and separate the dome cover.

Lift up the inner cover while gently pressing its both ends to separate it from the unit.

Dome Cover

● INSTALLATION & CONNECTION

Inner Cover

Loosen 3 screws by turning them counterclockwise, press both left and right lock releases inwards (in arrow direction) to unlock the stopper, and then separate the camera from the case.

Camera Body

Case

English _29

Page 30

installation & connection

Optional Accessories for Installation

For your easier installation, you can purchase appropriate optional accessories available.

WALL MOUNT ADAPTOR(SCX-300WM)/

HANGING MOUNT(SCX-300HM) This adaptor is used when installing the dome camera onto a wall.

CEILING MOUNT ADAPTOR(SCX-300CM)/

HANGING MOUNT(SCX-300HM) This adaptor is used when installing the dome camera on a concrete ceiling.

POLE MOUNT ADAPTOR(SCX-300PM)

This is an adaptor for WALL MOUNT ADAPTOR (SCX-300WM) installation on a pole whose diameter is bigger than 80mm.

30_ installation & connection

Page 31

CORNER MOUNT ADAPTOR (SCX-300KM)

This is an adaptor for WALL MOUNT ADAPTOR (SCX-300WM) installation on the corner of wall joint.

Installing on the ceiling directly

Using the L-wrench provided, loosen 3 screws

by turning them counterclockwise and separate the dome cover.

Loosen 3 screws by turning them counterclock-

wise, press both left and right lock releases inwards (in arrow direction) to unlock the stopper, and then separate the camera from the case.

● INSTALLATION & CONNECTION

English _31

Page 32

installation & connection

Drill a hole (diameter: 5mm, depth: min 35mm) at a

desired position while aligning to a hole of the case bottom and fully insert the provided plastic anchor (HUD 5) into the hole. Align the hole of the case bottom to the inserted anchor, and fasten the ASSY taping screw (TH M4xL30).

When assembling the camera case to a junction box,



select appropriate screw holes on the case bottom for installation.

Connect power and video cables and arrange cable running not to damage or

squeeze them, and assemble the camera unit in the reverse way.

Adjust the lens aiming to your desired direction.

Assemble the Dome Cover.

For waterproof purpose, ﬁx and secure the bolt using L-wrench provided.

For improved EMC performance, it is recommended



to use the insulation cap provided as an accessory.

For the wall mounting installation and how to connect the alarm cables, refer to the installation



instructions of SND-5080F. (pages 27~28)

32_ installation & connection

Page 33

Adjusting the monitoring direction for the camera (SND-5080/ SND-5080F/SNV-5080)

Panning

0˚

Tilting

Lens rotation

❖

Adjusting the monitoring direction

You can adjust the camera direction only when the camera is fixed on the ceiling. Then, turning the camera to the left or right is referred to as “Panning”, while tilting the angle is “Tilting”. For panning, the panning limit is 220° for the clockwise, and 135° for the counterclockwise, a total of 355° enabled; further rotation is stopped by the stopper.

Adjust the panning angle so that the camera settles in the right horizontal position.

You can adjust the panning up to 135° in each one direction, and 220° in the other direction, a total of 355°.

Adjust the tilting angle so that the camera settles in the right vertical position. You can

adjust the tilting between 0° and 90°.

The total rotation range is 355°. You can make adjustment in one direction up to

125°, and 230° in the other direction.

❖

Methods of adjustment



The case of wall installation

①

After mounting the camera on the wall, adjust the panning angle so that the camera

faces a desired direction when tilting.

②

Adjust the Rotate position to fit the video to the screen borders.

③

Then, adjust the tilting angle so that the camera faces the monitoring direction.



The case of ceiling installation

①

After mounting the camera on the ceiling, adjust the panning angle according to

the monitoring direction. You should adjust the panning angle lest that the video be displayed upside down on the monitor.

②

Adjust the Rotate position to fit the video to the screen borders.

③

Then, adjust the tilting angle so that the camera faces the monitoring direction.

For smoother Rotate adjustment, set the Tilt position between 60° ~ 80°.



60˚ ~ 80˚

English _33

● INSTALLATION & CONNECTION

Page 34

installation & connection

www.samsungcctv.com

SNB-5000

www.samsungcctv.com

SNB-5000

www.samsungcctv.com

SNB-5000

www.samsungcctv.com

SNB-5000

www.samsungcctv.com

SNB-5000

www.samsungcctv.com

SNB-5000

MOUNTING THE LENS

Disconnect the power before proceeding.

The C lens and CS lens are not included in the product package.



It is recommended that megapixel lens are use on this camera to optimise performance.

Mounting the CS lens

Turn the optional CS lens clockwise to insert it.

Mounting the C lens

Turn the C mount adaptor clockwise to insert it and do the same with the C lens.

CS Lens

34_ installation & connection

C Lens

Page 35

Connecting the Auto Iris Lens connector

www.samsungcctv.com

SNB-5000

www.samsungcctv.com

SNB-5000

www.samsungcctv.com

SNB-5000

Insert the lens connector into the corresponding hole of the camera.

Focusing

Turn the lens left or right to control the zoom and focus the lens so that you can view a clear, sharp object.

INSERTING/REMOVING AN SD MEMORY CARD

Inserting an SD Memory Card

Push the SD memory card in the direction of the arrow shown in the diagram.

● INSTALLATION & CONNECTION

English _35

Page 36

installation & connection

www.samsungcctv.com

SNB-5000

Do not insert the SD memory card while it’s upside down by force. Otherwise, it may damage the



SD memory card.

Removing an SD Memory Card

Gently press down on the exposed end of the memory card as shown in the diagram to eject the memory card from the slot.

36_ installation & connection

Page 37

Pressing too hard on the SD memory card can cause the card to shoot out uncontrollably from the



slot when released.

To remove the SD memory card, set <Record> to <Off> from <SD record> and press [Apply



( )]. (page 78)

If you have saved data in the SD memory card, removing the SD memory card prior to setting



record to OFF will cause damage to the data stored in the card.

If the SD memory is inserted, the SD LED indicator on the rear of the camera will turn on.



If there occurs a problem in the SD memory, the SD LED indicator will blink.



● INSTALLATION & CONNECTION

English _37

Page 38

installation & connection

MEMORY CARD INFORMATION (NOT INCLUDED)

What is a memory card?

The memory card is an external data storage device that has been developed to offer an entirely new way to record and share video, audio, and text data using digital devices.

Selecting a memory card that’s suitable for you

Your camera supports SDHC memory cards. You may, however, experience compatibility issues depending on the model and make of the memory card.

For your camera, we recommend you use a memory card from the following manufacturers: SDHC/SD Memory Card : Sandisk, Transcend, Kingston

Playback performance can be affected depending on the speed of memory card, so use the high-speed memory card.

Memory Card Use

SD and SDHC memory cards feature a switch that disables writing data on to the media. Having this switch to the Lock position will prevent accidental deletion of data stored in the memory card but at the same time will also prevent you from writing data on to the media.

❖

Memory Card Components

Contacts

Lock Switch

SD/SDHC

38_ installation & connection

Page 39

CONNECTING WITH OTHER DEVICE

SD CARD

AUDIO OUT

VIDEO

1 2 3 4 5

SD SYSTEM POWER

RESET

NETWORK

ACT

LINK

GND

1 : ALARM IN 4 :

2 : ALARM OUT 5 : GND 3 : ALARM COM

AC 24V DC 12V

AUDIO IN

Ethernet

● INSTALLATION & CONNECTION

Monitor

Power

Monitor Out

Power

Monitor

Ethernet

English _39

Page 40

installation & connection

Connecting to the monitor

Connect the video out port of the camera to the video input port of the monitor.

In the initial installation of the camera, you can connect the camera to the monitor for checking



the connection status. You must set <Video output> to <On> before the display screen can be activated. (page 67)

Connect the monitor test cable to the output port of the monitor.



Ethernet Connection

Connect the Ethernet cable to the local network or to the Internet.

Power Supply

Use the screwdriver to connect each line (+, –) of the power cable to the corresponding power port of the camera.

Be careful not to reverse the polarity when you connect the power cable.



You can also use a router featuring PoE (Power over Ethernet) to supply power to the camera.

If using PoE, the heater will not operate at all.



Use an adaptor if the installation site requires heater operations. Adaptor is sold separately. For the power speciﬁcations, refer to the “Appendix”. (page 94)

The instructions above are also applied to SND-5080/SND-5080F/SNV-5080.



40_ installation & connection

Page 41

Connecting to Audio Input/Output

www.samsungcctv.com

SNB-5000

Microphone

Speaker

● INSTALLATION & CONNECTION

Microphone

Network

Microphone

Speaker Amp

Amp

Microphone

Speaker

Amp

Microphone

English _41

Page 42

installation & connection

ALARM IN

ALARM OUT

ALARM COM

GND

Connect the AUDIO IN port of the camera with the microphone directly or LINE OUT

port of the ampliﬁer that the microphone is connected to.

Connect the AUDIO OUT port of the camera with the LINE IN port of the speaker.

Check the speciﬁcations for audio input.



Audio Codec G.711 PCM. μ-law 64kbps 8kHz sampling



Full duplex Audio



Audio in Used for mono signal line input (Max.2.4 Vpp)



Audio out Used for mono signal line output (Max.2.4 Vpp)



Line out impedance

600Ω

Alarm I/O Wiring Diagram

(5mA sink)

(30VDC 2A, 125VAC 0.5A MAX)

42_ installation & connection

Page 43

Connecting to the I/O port box

SD CARD

AUDIO OUT

VIDEO

1 2 3 4 5

SD SYSTEM POWER

RESET

NETWORK

ACT

LINK

GND

1 : ALARM IN 4 :

2 : ALARM OUT 5 : GND 3 : ALARM COM

AC 24V DC 12V

AUDIO IN

1 2 3 4 5

1 : ALARM IN 4 :

2 : ALARM OUT 5 : GND 3 : ALARM COM

1 : ALARM IN 4 :

2 : ALARM OUT 5 : GND 3 : ALARM COM

Connect the Alarm I/O signal to the corresponding port of the rear port box.

<SNB-5000>

● INSTALLATION & CONNECTION



ALARM IN : Used to connect the alarm input signal.



ALARM OUT : Used to connect the alarm output signal.



ALARM COM : Common port where the alarm output signal is connected.



GND : Used for earth-grounding.

<SND-5080/SND-5080F/SNV-5080>

English _43

Page 44

network connection and setup

www.samsungcctv.com

SNB-5000

www.samsungcctv.com

SNB-5000

You can set up the network settings according to your network configurations.

CONNECTING THE CAMERA DIRECTLY TO LOCAL AREA NETWORKING

Connecting to the camera from a local PC in the LAN

Launch an Internet browser on the local PC.

Enter the IP address of the camera in the address bar of the browser.

Camera

INTERNET

Camera

Firewall

External Remote PC

Local PC

A remote PC in an external Internet out of the LAN network may not be able to connect to the



camera installed in the intranet if the port-forwarding is not properly set or a ﬁrewall is set. In this case, to resolve the problem, contact your network administrator.

By factory default, the IP address will be assigned from the DHCP server automatically. If there is



no DHCP server available, the IP address will be set to 192.168.1.100. To change the IP address, use the IP Installer. For further details on IP Installer use, refer to “Static IP Setup”. (Page 49)

44_ network connection and setup

DDNS Server (Data Center, KOREA)

Page 45

CONNECTING THE CAMERA DIRECTLY TO A DHCP

www.samsungcctv.com

SNB-5000

BASED DSL/CABLE MODEM

DSL/Cable

Camera

Use the cross LAN cable to connect the network cable directly to your PC.

Run the IP Installer and change the IP address of the camera so that you can use

Modem

INTERNET

DDNS Server

(Data Center, KOREA)

External Remote PC

the web browser on your desktop to connect to the Internet.

Use the Internet browser to connect to the camera.

Move to [Setup] page.

Move to [Network] – [DDNS] and conﬁgure the DDNS settings.

Move to [Network] – [Interface], and set the network type to [DHCP].

Connect the camera, which was removed from your PC, directly to the modem.

Restart the camera.

For registering the DDNS settings, refer to “Registering with DDNS”. (page 74)



For conﬁguring the DDNS settings, refer to “DDNS”. (page 74)



For setting the network type, refer to “Interface”. (page 72)



●

NETWORK CONNECTION AND SETUP

English _45

Page 46

network connection and setup

www.samsungcctv.com

SNB-5000

CONNECTING THE CAMERA DIRECTLY TO A PPPOE MODEM

Camera

Use the cross LAN cable to connect the network cable directly to your PC.

Run the IP Installer and change the IP address of the camera so that you can use

the web browser on your desktop to connect to the Internet.

Use the Internet browser to connect to the camera.

Move to [Setup] page.

Move to [Network] – [DDNS] and conﬁgure the DDNS settings.

Move to [Network] – [Interface], and set the network type to [PPPoE].

Connect the camera, which was removed from your PC, directly to the modem.

Restart the camera.

For registering the DDNS settings, refer to “Registering with DDNS”. (page 74)



For conﬁguring the DDNS settings, refer to “DDNS”. (page 74)



For setting the network type, refer to “Interface”. (page 72)



PPPoE Modem

INTERNET

DDNS Server

(Data Center, KOREA)

External Remote PC

46_ network connection and setup

Page 47

CONNECTING THE CAMERA TO AN IP ROUTER WITH THE

www.samsungcctv.com

SNB-5000

www.samsungcctv.com

SNB-5000

PPPOE/CABLE MODEM

This is for a small network environment such as homes, SOHO and ordinary shops.

Camera

INTERNET

PPPoE or

Cable Modem

External Remote

Camera

IP Router

PPPoE or

Cable Modem

●

NETWORK CONNECTION AND SETUP

Local PC

DDNS Server

(Data Center, KOREA)

Configuring the network settings of the local PC connected to an IP router

Configuring the network settings of the local PC connected to an IP router, follow the instructions below.



Select : <Network Neighborhood>  <Properties>  <Local Area Connection>



<Obtain an IP address automatically> or <Use the following IP address>.





Follow the instructions below if you select <Use the following IP address>: ex1) If the address (LAN IP) of the IP router is 192.168.1.1

IP address : 192.168.1.100 Subnet Mask : 255.255.255.0 Default Gateway : 192.168.1.1

ex2) If the address (LAN IP) of the IP router is 192.168.0.1

IP address : 192.168.0.100 Subnet Mask : 255.255.255.0 Default Gateway : 192.168.0.1

ex3) If the address (LAN IP) of the IP router is 192.168.xxx.1

IP address : 192.168.xxx.100 Subnet Mask : 255.255.255.0 Default Gateway : 192.168.xxx.1

For the address of the IP router, refer to the product’s documentation.



Refer to the “Port Range Forward (Port Mapping) Setup” section of the IP Router’s



documentation. (Page 53)

English _47

Page 48

network connection and setup

BUTTONS USED IN IP INSTALLER

Item Description

Device Name

Mode

MAC(Ethernet)

Address

IP Address

Protocol

UPnP Status This function is not currently implemented.

Model name of the connected camera. Click the column to sort the list by model name. However, search will be stopped if clicked during the search.

Displays either <Static> or <Dynamic> for the current network connection status.

Ethernet address for the connected camera. Click the column to sort the list by Ethernet address. However, search will be stopped if clicked during the search.

IP address. Click the column to sort the list by IP address. However, search will be stopped if clicked during the search. The factory default is “192.168.1.100”.

Network setting for the camera. The factory default is “IPv4”. Cameras with the IPv6 setting will be displayed “IPv6”.

48_ network connection and setup

Page 49

Item Description

URL

IPv4 Scans for cameras with the IPv4 setting.

IPv6 Scans for cameras with the IPv6 setting.

Auto Set The IP Installer automatically configures the network settings.

Manual Set You should configure the network settings manually.

Exit Exits the IP Installer program.

For the IP installer, use only the installer version provided in the installation DVD or use the latest



one if available. You can download the latest version from the product website.

DDNS URL address enabling access from the external Internet. However, this will be replaced with the <IP Address> of the camera if DDNS registration has failed.

Scans for cameras that are currently connected to the network. However, this button will be grayed out if neither IPv4 nor IPv6 is checked.

STATIC IP SETUP

Manual Network Setup

Run <IP Installer_vX.XX.exe> to display the camera search list. At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.

For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not



support this function.

Select a camera in the search list.

Find the MAC (Ethernet) address labeled on the rear of the camera. Both the [Auto Set] and [Manual Set] buttons will be activated.

Click [Manual Set].

The Manual Setting dialog appears. The default values of <IP Address>, <Subnet Mask>, <Gateway>, <HTTP Port> and <VNP Port> of the camera will be displayed. The default <Password> is “4321”.

●

NETWORK CONNECTION AND SETUP

English _49

Page 50

network connection and setup

In the <Address> pane, provide the

necessary information.



MAC (Ethernet) Address : The MAC (Ethernet) address of the applicable camera will be set automatically so you don't need to input it manually.

You can conﬁgure the static IP settings



only if the DHCP checkbox is unchecked.

If using an IP router



IP Address : Enter an address falling in the IP range provided by the IP router. ex) 192.168.1.2~254,

192.168.0.2~254,

192.168.XXX.2~254



Subnet Mask : The <Subnet Mask> of the IP router will be the <Subnet Mask> of the camera.



Gateway : The <Local IP Address> of the IP router will be the <Gateway> of the camera.

The settings may differ depending on the connected IP router model.



For more information, refer to the user manual of the applicable router.

Refer to the “Port Range Forward (Port Mapping) Setup” section of the IP Router’s



documentation. (Page 53)

If not using an IP router

For setting <IP Address>, <Subnet Mask>, and <Gateway>, contact your network administrator.

In the <Port> pane, provide

necessary information.



HTTP Port : Used to access the camera using the Internet browser, defaulted to 80. Use the spin button to change the HTTP Port value.



VNP Port : Used to control the video signal transfer, defaulted to 4520.

Enter the password.

This is the login password for the “admin” user who accesses the camera. The default password is “4321”.

50_ network connection and setup

Page 51

Click [OK]. Manual network setup will be completed.

When the manual setup including IP is completed, the camera will restart.

If the IP router has more than one camera connected

Configure the IP related settings and the Port related settings distinctly with each other.

Category Camera #1 Camera #2

●

NETWORK CONNECTION AND SETUP

IP related settings

Port related settings

If the <HTTP Port> is set other than 80, you must provide the <Port> number in the address



bar of the Internet browser before you can access the camera. ex) http://IP address : HTTP Port

IP Address Subnet Mask Gateway

HTTP Port VNP Port

http://192.168.1.100:8080

192.168.1.100

255.255.255.0

192.168.1.1

8080 4520

Auto Network Setup

Run <IP Installer_vX.XX.exe> to display the camera search list. At the initial startup, both [Auto Set] and [Manual Set] will be grayed out.

For cameras found with the IPv6 setting, these buttons will be grayed out as the cameras do not



support this function.

Select a camera in the search list.

Find the MAC (Ethernet) address labeled on the rear of the camera. Both the [Auto Set] and [Manual Set] buttons will be activated.

Click [Auto Set].

The Auto Setting dialog appears. The <IP Address>, <Subnet Mask>, and <Gateway> will be set automatically.

192.168.1.101

255.255.255.0

192.168.1.1

8081 4521

English _51

Page 52

network connection and setup

Enter the password.

This is the login password for the “admin” user who accesses the camera. The default password is “4321”.

Click [OK].

Auto network setup will be completed.

DYNAMIC IP SETUP

Dynamic IP Environment Setup



Example of the Dynamic IP environment

If an IP router, with cameras connected, is assigned an IP address by the DHCP

server

If connecting the camera directly to modem using the DHCP protocols

If IPs are assigned by the internal DHCP server via the LAN

Checking the Dynamic IP

Run the IP Installer on the user’s local

machine to display cameras allocated with <Dynamic IP> addresses in the list.

Select a camera in the list, and click

2. [Manual Set] to check the <Dynamic IP> of the camera.

If you uncheck <DHCP>, you can change IP or <Port> to <Static>.

52_ network connection and setup

Page 53

PORT RANGE FORWARD (PORT MAPPING) SETUP

If you have installed an IP router with a camera connected, you must set the port range forwarding on the IP router so that a remote PC can access the camera in it.

Manual Port Range Forwarding

From the Setup menu of the IP router,

select <Applications & Gaming> <Port Range Forward>. For setting the port range forward for a third-party IP router, refer to the user guide of that IP router.

Select <TCP> and <UDP Port> for

each connected camera to the IP router. Each port number for the IP router should match that speciﬁed in <Network> - <Port> from the camera's Setup menu.

When done, click [Save Settings].

Your settings will be saved.

Above sample instructions are based on the CISCO’s IP Router (Model: LINKSYS).



The settings may differ depending on the connected IP router model.



For more information, refer to the user manual of the applicable router.

●

NETWORK CONNECTION AND SETUP

English _53

Page 54

network connection and setup

Setting up Port Range Forward for several network cameras

When several network camera connect to one IP router device, you should forward the TCP 943 port of the router to the TCP 943 port of a connected camera.

If you don't set properly the TCP 943 port of the router, you cannot get any video stream from



the web page of the camera.



TCP 943 port is a port for the Silverlight policy server of a camera.

When Camera1 and Camera2 are connected to a router :

User Internet

Start End Protocol IP Address

943 943 TCP 192.168.1.100 3000 3000 TCP/UDP 192.168.1.100 3001 3001 TCP/UDP 192.168.1.101 4520 4520 TCP/UDP 192.168.1.100 4521 4521 TCP/UDP 192.168.1.101 8080 8080 TCP/UDP 192.168.1.100 8081 8081 TCP/UDP 192.168.1.101



You can set a rule of Port Forwarding on the IP router device through its conﬁguration web page.



You cannot change the Silverlight policy server port of a camera.



You can change the ports of the camera except the policy server port through its conﬁguration web pages.

54_ network connection and setup



IP router



Camera1 (192.168.1.100)

Web Server Port 8080



VNP Port 4520

RTSP Port 3000

Policy Server Port 943

Camera2 (192.168.1.101)

Web Server Port 8081

VNP Port 4521

RTSP Port 3001

Policy Server Port 943

Page 55

CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC

Run the IP Installer.

It will scan for connected cameras and display a list of them.

Double-click a camera to access.

The Internet browser starts and connects to the camera.

Access to the camera can also be gained by typing the camera's IP address in the address bar of



the Internet browser.

CONNECTING TO THE CAMERA FROM A REMOTE PC VIA THE INTERNET

Since using the IP Installer on a remote computer that is not in the IP Router’s network cluster is not allowed, users can access cameras within an IP Router’s network by using the camera’s DDNS URL.

Before you can access a camera in the IP router network, you should have set the

port range forward for the IP router.

From the remote PC, launch the Internet browser and type the DDNS URL address

of the camera, or the IP address of the IP router in the address bar. ex) http://www.samsungipolis.com/[Product ID]

●

NETWORK CONNECTION AND SETUP

English _55

Page 56

web viewer

CONNECTING TO THE CAMERA

Normally, you would

Launch the Internet browser.

Type the IP address of the camera in

the address bar. ex) • IP address (IPv4) : 192.168.1.100

http://192.168.1.100



- the Login dialog should appear.

IP address (IPv6) : 2001:230:abcd:

•

ffff:0000:0000:ffff:1111

http://[2001:230:abcd:ffff:0000



:0000:ffff:1111]

If the HTTP port is other than 80

Launch the Internet browser.

Type the IP address and HTTP port number of the camera in the address bar.

ex) IP address : 192.168.1.100:HTTP Port number(8080)

http://192.168.1.100:8080 - the Login dialog should appear.



Using URL

Launch the Internet browser.

Type the DDNS URL of the camera in the address bar.

ex) URL address : http://www.samsungipolis.com/[Product ID]

- the Login dialog should appear.

56_ web viewer

Page 57

To check the DDNS address

If the camera is connected directly to the DHCP cable modem, DSL modem, or PPPoE modem, the IP address of your network will be changed each time you try to connect to the ISP (Internet Service Provider) server. If this is the case, you will not be informed of the IP address changed by DDNS.

Once you register a dynamic IP-based device with the DDNS server, you can easily check the changed IP when you try to access the device. To add the IP address to the <DDNS> server, visit www.samsungipolis.com and register your device, and set the DDNS option to <Samsung DDNS> before providing the host name for the DDNS server.

The default user ID is “admin”, and the default password is “4321”.

Enter “admin” in the <User Name>

input box.

Enter “4321” in the <Password> input

box. If the password is changed, enter the changed password instead.

Click [OK].

If you have logged in successfully, you will the Live Viewer screen.

For security purposes, ensure that you change the password in <System> - <User>.



The administrator ID, “admin”, is ﬁxed and can not be changed.

If you check the “Save this password in your password list” option when your input is done, in



future you will be logged in automatically without being prompted to enter the login information.

● WEB VIEWER

If you are using Internet Explorer 7.0 or 8.0 as the default web browser, you can view the best



quality image with a screen ratio of 100%. Reducing the ratio may cut the image on the borders.

English _57

Page 58

web viewer

This network camera uses Microsoft Silverlight for displaying the video.

INSTALLING SILVERLIGHT RUNTIME

If your PC has not installed Silverlight Runtime or has just installed an old runtime version, you will be redirected to the Silverlight Runtime installation page automatically when accessing the web viewer.

Click <Click Here>.

When the ﬁle download dialog pops up,

click <Run>.

When the download is completed, click

<Run>.

The Silverlight Runtime installation page

will be displayed. <Install now> to proceed with the installation.

58_ web viewer

Page 59

When done, click <Close>.

Close and restart the web browser, and

try to access the Web Viewer. When Silverlight Runtime is properly installed, you will see the Live screen.

For normal installation, set the Block



Popup setting as follows:

Internet Explorer  Tools  Block Popup  Always allow popups from the current site(A)

However, MAC OS X users who are not connected to the Internet can use the provided installation



DVD to install Silverlight Runtime (Run the executable “Silverlight_xxx.dmg” in the DVD. You will be guided through installation of the software).

● WEB VIEWER

English _59

Page 60

web viewer

USING THE LIVE SCREEN

Item Description

Monitoring Move to the monitoring screen.

Playback Switch to the monitoring screen that plays recording data in the SD memory.

Setup Move to the Setup screen.

Viewer Screen Displays the Live video on the screen.

Alarm Output Activate the Alarm Out port.

Audio Display the audio Listen and Talk toggle button on the screen.

Hide the alarm

indicator

Digital PTZ You can use the mouse wheel to activate the digital zooming.

60_ web viewer

Hides the alarm indicator near the border of the viewer screen.

Page 61

Item Description

Screen Optimization,

Full Screen

Capture Saves the snapshot as an image file in the .bmp format.

Video Format

If the temperature drops below the operational range, video signal may not be produced. In such



cases, please wait for the video.

Adjust the screen to the optimal size, and display the Full Screen icon on the Live screen.

You can select a profile type in <Video profile> under the <Audio & Video> setup menu.

For IE 6.0 users, press the Browse button next to the <Video profile> dialog

and select a profile type again if the selected profile is not played.

If the “Invalid codec” message is displayed, select a profile type from the profile

list again.

To capture the snapshot

Click [ ] on the scene to capture.

The Capture dialog should appear.

Click [Save] button.

The screenshot will be saved in the speciﬁed path.

If you are using the IE8 as the default web



browser, select “Tools-Internet OptionsSecurity” and uncheck “Use protected mode”.

● WEB VIEWER

English _61

Page 62

web viewer

To toggle the audio sound

Click the [Audio ( )] button. The corresponding button will be displayed in the Viewer.

Click the button to listen to / mute the

sound as you wish. This button operates as a toggle button.

To toggle the microphone sound

Click the [Mic ( )] button.

The corresponding button will be displayed in the Viewer.

“Cannot ﬁnd audio recording device”



message appears if there is no Microphone.

Click the button to start / stop talking.

This button operates as a toggle button. The Silverlight permission dialog appears when you click the microphone button.

To fit the full screen

Click the [Full Screen ( )] button.

The corresponding button will be displayed in the Viewer.

Click the button.

This will ﬁt the Viewer to the full screen.

To exit the full screen mode, press [Esc] on the keyboard.

62_ web viewer

Page 63

PLAYBACK

Click the [Playback ( )] button.

Specify the start time and end time of

your search.

Select a search type.

Click the [Search ( )] button.

The search results will be displayed in the list.

If more than 500 events are recorded



within the search period, your search will be limited up to the date when the 500th event is recorded. For instance, if the search period is between 10th and 15th day of the month, and more than 800 events were recorded 10th through 11th, your search will be limited up to 11th day with a total of 800 events, and events after then (from 12th) will not be found.

Select a data item to play in the search

list.

Click the [Play ( )] button.

To stop playing the video, click [Stop

( )].

To return to the search screen, click [Exit ( )].

To check time information of the playing video

Click the [About ( )] button.

Date and time information appears on the screen.

● WEB VIEWER

English _63

Page 64

web viewer

To back up the searched video

Click [ ] on the scene to back up.

Save as window appears.

Click [Save].

The screenshot will be backed up to the specified path.

If you are using the IE8 as the default web



browser, select “Tools-Internet OptionsSecurity” and uncheck “Use protected mode”.

PLAYING THE BACKUP RECORDINGS

You can play backup recordings by using the SlimPlayer.

To download SlimPlayer

Click [SlimPlayer ( )].

You will see a download dialog where you can specify the download path.

Specify the path with a proper ﬁle name

and click [Save].

Unzip the downloaded file and run the

executable.

64_ web viewer

Page 65

setup screen

SETUP

You can configure the audio & video, network, event and system settings of the camera in the network.

In the Live screen, click [Setup ( )].

The Setup screen appears.

AUDIO & VIDEO SETUP

Video profile

From the Setup menu, select the <Audio

& Video (

Click <Video proﬁle>.

Select a <Video proﬁle> number.

Click the input box of each item and

enter / select a desired value.

The context menu may differ depending on the



selected codec type.



Default proﬁle : This is the default video proﬁle.



Fixed framerate proﬁle : Fix the frame rate of the selected proﬁle regardless of the settings of other proﬁles.



E-mail/FTP proﬁle : Video proﬁle to be transferred to the speciﬁed email or FTP site.





Record proﬁle : This is the proﬁle that is applied to video recording.

When done, click [Apply

)> tab.

Only the MJPEG codec can be set as the E-mail/FTP proﬁle.

( )

● SETUP SCREEN

Proﬁles using H.264 codec can be stored in the SD memory only in resolutions of 640x480 or



less. MPEG4 videos can not be stored in the SD memory.

English _65

Page 66

setup screen

To add a video profile

You can add as many codecs as necessary so that a variety of profiles can be applied according to the recording condition.

Select a proﬁle number.

Provide the name and select a codec.

Specify the conditions under which the codec will be applied.

Specify the details of the selected codec including resolution and frame rate.



Resolution : Set the video size of the MPEG4, H.264, and MJPEG ﬁles.



Framerate : Specify the frame rate.



Compression : Specify the compression rate of the video.



Bitrate control : You can select one from constant bit rate and variable bit rate for compression. Constant bit rate (CBR) varies the video quality and ﬁxes network transfer bit rate, while variable bit rate emphasizes the quality by varying network transfer bit rate.

If you set the resolution to 1280X1024, the maximum frame rate is 22 fps.





Target bitrate : Specify the bit rate at which you will transfer the video.



Encoding priority : You can set the video transfer method to Framerate or Compression.



GOP size : Select a GOP size between 1 and 15.



Proﬁle : The H.264 proﬁling method is ﬁxed to <High>.



Entropy coding : Reduce the possible compression loss due to encoding.



Multicast(VNP) : Specify the use of the VNP protocol.

IPv4 : Enter an IPv4 address with which you can connect to the IPv4 network. Port : Specify the video communication port.

TTL : Set the TTL for the VNP packet.



Multicast(RTP) : Specify the use of the RTP protocol.

IPv4 : Enter an IPv4 address with which you can connect to the IPv4 network.

Port : Specify the video communication port. TTL : You can set the TTL for the RTP packet.

What is GOP size?

GOP (Group of Pictures) is a set of video frames for MPEG4 and H.264 format compression, indicating a collection of frames from the initial I-Frame (key frame) to the next I-Frame. GOP consists of 2 kinds of frames: I-Frame and P-Frame. I-Frame is the basic frame for the compression, also known as Key Frame, which contains one complete image data. P-Frame contains only the data that has changed from the preceding I-Frame. You can set between 1 and 15 for the MPEG4 and H.264 CODEC.

66_ setup screen

Page 67

Video setup

From the Setup menu, select the

1. <Audio & Video

Click <Video setup>.

Select a <Video source> mode.



Flip mode : Turn upside down the image that is captured by the camera.



Mirror mode : Flip horizontal the image that is captured by the camera.

Click the input box of each item in <Privacy area conﬁguration> and enter / select a desired value.

You can set up to 12 privacy zones.



Set the <Video output>.

If you select <Off>, the video signal will not be output via the VIDEO OUT port.

When done, click [Apply

To set the privacy zone

You can specify a certain area of the camera video to be protected for your privacy.

Set it to <Enable>.

Place the cursor at a point in the video

and drag it to whatever you need.

Specify the <Color> that will ﬁll the privacy area.

To cancel your selection, simply click

4. [Clear].

When done, click [Apply

( )

> tab.

( )

● SETUP SCREEN

English _67

Page 68

setup screen

Audio setup

You can configure the I/O settings of the audio source from the camera.

From the Setup menu, select the

<Audio & Video ( )> tab.

Click <Audio setup>.

Adjust the audio I/O levels to your

preference.



Audio-In : Set the audio input value.



Audio-Out : Set the audio output value.

When done, click [Apply

Camera setup

You can change the camera settings according to the environment where the camera is located.

From the Setup menu, select the

<Audio & Video

Click <Camera setup>.

Conﬁgure the settings of: SSDR, White

balance, Backlight, Exposure and Special.

When done, click [Apply ( )

( )

> tab.

68_ setup screen

Page 69

SSDR (Samsung Super Dynamic Range) Setup

In a scene where the difference between bright and dark is severe, you can increase the brightness of the dark area alone to regulate the overall brightness.

Select <SSDR>.

Set <Mode> to <On>.

Conﬁgure the <Level> and <D-Range>

settings as necessary.



Level : Adjust the level of the dynamic range.



D-Range : Select the amplitude area of the dynamic range.

White balance Setup

You can correct the image colors based on white under any lighting conditions.

Select <White balance>.

Select <Mode>.



ATW : Corrects the colors of the camera video automatically.



Manual : You can adjust the red and blue gains of the camera video manually.



AWC : Corrects the colors of the camera video to be optimized to the current lighting condition and screen mode. You may need readjustment if the lighting condition is changed.



Outdoor : Automatically corrects the video colors of the camera to be optimized to the outdoor environment.



Indoor : Automatically corrects the video colors of the camera to be optimized to the indoor environment.



In AWC mode, click the AWC Set button if you want to keep the white balance level of the current

image.

● SETUP SCREEN

English _69

Page 70

setup screen

BLC Setup

You can specify a desired area on the video manually and set the area to be displayed more clearly.

Select <Backlight>.

Set <Mode> to <BLC>.

Set <BLC level>.

You can change the level to adjust the brightness of the monitoring area.

Set the <Top, Bottom, Left, Right>

levels to specify the target area.

HLC (Highlight Compensation) Setup

When a strong light such as streetlamp or headlight faces forward to the camera, you can mask that exposed area in order to protect it from being saturated.

Select <Backlight>.

Set <Mode> to <HLC>.

Set the <HLC level> and the <Mask

3. tone>.



HLC level : Adjust the brightness level so as to remove the incoming highlight from a speciﬁc condition.



Mask tone : Adjust the mask tone of the highlighted area.

At night operation, this function will be activated only if the incoming highlight exceeds a certain



area in a low contrast environment.

At night, HLC will not function if the scene is either too bright or too dark.



70_ setup screen

Page 71

Exposure Setup

You can adjust the exposure level of the camera.

Select <Exposure>.

Select each item and set it properly.



Brightness : Adjust the screen brightness.



Shutter mode : Adjust the electronic shutter of the camera.

ESC : Adjust the shutter speed

automatically according to the ambient brightness.

Manual : Adjust the shutter speed of the camera manually.

A.FLK : This will prevent the screen from ﬂickering.



Shutter speed : Control the shutter speed manually.



SSNR3 : Specify the use of noise reduction.



SSNR3 level : Adjust the noise reduction level.



Sens-up mode : Automatically senses the darkness level at night or in a low contrast scene and extends the accumulation time accordingly for a bright and sharp image.

If you set the shutter mode to Manual/A.FLK, SENS-UP mode will be deactivated.



The greater the video accumulation factor is, the brighter the screen is but the afterimage of a



moving object grows accordingly.



Sens-up limit : Set the work condition to Auto mode in a low contrast scene.



Iris : You can set the camera iris to AUTO or MANUAL to your preference.

For a camera with the shutter type of ESC, the iris will operate properly only if it is set to



<Manual>. If the iris is set to <Auto>, the shutter speed will be ﬁxed to 1/30 second in ESC mode.



AGC mode : Specify the level according to the screen luminance.

Special Setup

Select <Special>.

Select each item and set it properly.



Day & night : You can switch the mode to adjust the black and white level as well as the colors.

Color : Always displays the video in

colors.

B/W : Always displays the video in

black and white.

● SETUP SCREEN

English _71

Page 72

setup screen

Auto : Displays in color mode during normal daytime and switches to black and

white mode in a low contrast scene at night.

If you set the AGC mode to OFF from <Exposure>, the AUTO DAY/NIGHT mode will be disabled



accordingly.



Dwell time : This is the time while each applicable lighting condition is kept in order to enable the switch between day and night modes.



Duration : Adjust the brightness of the lighting where the mode switch occurs.



Sharpness mode : Adjust the overall sharpness of the image. If selecting <On>, you can adjust the sharpness of the image.



Sharpness level : The higher the level is, the sharper and clearer the outline of the image becomes.



Gamma : Adjust the contrast of the image.



Color level : Adjust the color level of the image.



Camera title : Use alphanumeric characters in the list and enter a desired title in the bottom input line.

You can enter up to 15 characters for the title.





Camera title position x, y : Select the position where the camera name will be displayed.

NETWORK SETUP

Interface

From the Setup menu, select the <Network ( )> tab.

Click <Interface>.

Set the <Interface> and <IPv6 setup> as necessary.



IP type : Select an IP connection type.

Manual : Specify the IP address, Subnet mask, Gateway, DNS1, and DNS2.

DHCP : Specify the DNS1 and DNS2.

PPPoE : Specify the DNS1, DNS2, Name and Password.

If you set it to <Manual>, you should specify the IP, Subnet mask, Gateway, DNS 1 & 2 manually.





MAC address : Shows the MAC address.



IP address : Displays the current IP address.



Subnet mask : Displays the <Subnet mask> for the set IP.



Gateway : Displays the <Gateway> for the set IP.

72_ setup screen

Page 73



DNS1/DNS2 : Displays the DNS(Domain Name Service) server address.



IPv6 use : Specify the use of IPv6.



Mode : If you select <IPv6 use>, the mode is enabled.



IPv6 address : Obtains the IPv6 address to access the IPv6 network.

When done, click [Apply

The IP addressing system will be defaulted to DHCP. However, if the DHCP server is still not found



after 1 minute, the IP system will switch to Static automatically.

( )

Port

From the Setup menu, select the <Network ( )> tab.

Click <Port>.

Type in each item in the Port menu as

necessary.

Neither the port range between 0 and 1023



nor port 3702 is available.



HTTP port : HTTP port used to access the camera via the web browser. The default is 80(TCP).



VNP port : Set a port used to transfer video signals with the Samsung protocols.



RTSP port : Used to transfer videos in the RTSP mode; the default is 554.



Viewer port : Used to transfer videos to the Web Viewer; the default is 4520.



Silverlight policy port : Silverlight is used to permit to acquire a network connection; the default is 943.

The port range of the Viewer is between 4502 and 4532. If the VNP port is with this effective



range, the Viewer port should be speciﬁed the same as the VNP port.

You cannot change the Viewer/Silverlight policy server port of a camera.



When done, click [Apply

( )

● SETUP SCREEN

English _73

Page 74

setup screen

DDNS

DDNS is an abbreviation of Dynamic Domain Name Service that converts the IP address of a camera into a general Host Name so that the user can easily remember it.

From the Setup menu, select the

<Network ( )> tab.

Click <DDNS>.

Select <DDNS>.

Type in the DDNS items according to

the selected type.



Samsung DDNS : Select this if you use the DDNS server provided by Samsung Techwin.



Public DDNS : Select one of provided public DDNS servers when you use a public DDNS server.

Host name : Enter the name of the host (i.e., host name of Dyndns) that is registered

with the DDNS server.

User name : Enter the user name for the DDNS service. (i.e., user ID that is regis-

tered with Dyndns)

Password : Enter the password for the DDNS service. (i.e., password that is

registered with Dyndns)

When done, click [Apply

Registering with DDNS

To register your product with the Samsung DDNS

Visit the iPOLiS web site(www.

samsungipolis.com) and sign in with a registered account.

( )

74_ setup screen

Page 75

From the top menu bar, select <DDNS

2. SERVICE

>-<MY DDNS>.

Click [PRODUCT REGISTRATION].

Enter the product domain.

You must perform the duplicate check for the



domain that you entered.

Select a <CLASSIFICATION> and

specify the <MODEL NUMBER>.

Specify the product location with a

description if necessary.

Click [REGISTRATION].

The product will be added to the product list that you can check.

To connect to the Samsung DDNS in camera setup

From the DDNS setup page, set

<DDNS> to <Samsung DDNS>.

Provide the <Host name> that you

registered product domain with the DDNS site.

Click [Apply

When the connection is successfully made, you will see the message of <(Success)> on the screen.

( )

● SETUP SCREEN

English _75

Page 76

setup screen

Configuring public DDNS in Camera Settings

Open the DDNS settings page and select <Public DDNS> for <DDNS>.

Enter the corresponding site’s host name, user name and password.

Click [Apply

3. If the connection properly establishes, <(Success)> appears.

When done, click [Apply

IP filtering

You can create a list of IPs that you want to grant or deny access to them.

From the Setup menu, select the

1. <Network ( )> tab.

Click <IP ﬁltering>.

Select <Filtering type>.



Provide the IP that you want to grant or

deny access from.

When done, click [Apply

SSL

You can select a secure connection system or install the public certificate for this purpose.

From the Setup menu, select the

<Network ( )> tab.

Click <SSL>.

Select a secure connection system.



( )

] button.

( )

Deny : If selecting this, access from those IPs that are added to the ﬁltering will be restricted.

Allow : If selecting this, access from only those IPs that are added to the ﬁltering will be accepted.

( )

To access the camera using HTTPS mode, you have to type the IP address for the camera in the form of “https://<Camera_IP>”.

76_ setup screen

Page 77

Search for the public certiﬁcate that you want to install on the camera.

To install the certiﬁcate on the camera, you need to provide a certiﬁcate name (it can be arbitrarily assigned by the user), certiﬁcate ﬁle issued from the certiﬁcation authority and a key ﬁle.

The <HTTPS (Secure connection mode using the public certiﬁcate)> item will be active only if



there exists a public certiﬁcate installed.

When done, click [Apply

Installing the certificate

Enter the certiﬁcate name.

Select the certiﬁcate ﬁle to be installed and certiﬁcate key, and click [Install ( )]

button.

Deleting the certificate

Click [Delete ( )] button.

( )

EVENT SETUP

FTP / E-mail

You can configure the FTP/E-mail server settings so that you can transfer the images stored in the camera to your PC if an event occurs.

From the Setup menu, select the

<Event ( )> tab.

Click <FTP / E-mail>.

Select <FTP conﬁguration> or

<E-mail conﬁguration> and enter / select a desired value.



FTP conﬁguration

Server address : Enter the IP ad-

dress of the FTP server that you transfer the alarm images to.

User ID : Enter the user ID with

which you will log in to the FTP server.

Password : Enter the user account

password for logging into the FTP server.

● SETUP SCREEN

English _77

Page 78

setup screen

Upload directory : Specify the FTP path where you will transfer the alarm images.

Port : The default port of the FTP server is 21; however, you can use a different

port number according to the FTP server settings.

Passive mode : Select <On> if you need to connect in passive mode due to the

ﬁrewall or the FTP server settings.



E-mail conﬁguration

Server address : Enter the IP address of the email server that you use for the

email transfer. ex) SMTP. hotmail. com

Use authentication : Select whether to use authorization.

User ID : Enter the user ID for logging into the email server.

Password : Enter the user account password for logging into the email server.

Port : The default port of the email server is 25; however, you can use a different

port number according to the email server settings.

Recipient : Enter the address of the email recipient.

Sender : Enter the address of the email sender. If the sender address is incor-

rect, the email from the sender may be classiﬁed as SPAM by the email server and thus may not be sent.

Subject : Enter a subject for your email.

Body : Provide the text for the massage. Attach the alarm images to the email

that you are preparing.

When done, click [Apply

SD record

You can set the record conditions or the use of recording for the SD memory, check the size of stored data, or format the SD memory itself.

From the Setup menu, select the

<Event ( )> tab.

Click <SD record>.

( )

78_ setup screen

Page 79

To make recording on the SD memory

Check the <Total size> and the <Free size>.

If the SD memory has a sufﬁcient free space, set <Record> to <On>.

Otherwise, check the stored data and if you ﬁnd them not important, then click <Format> to format the SD memory.

If your SD memory card writes slowly, only one frame per second will be stored.



For a SD memory card with a large capacity, the formatting will be slowed down accordingly.



Note that only one frame per second (1 fps) will be stored for the following resolutions : 1280x1024,



1280x720, 800x600.

If the size of data grows with time, only 1 fps can be stored even if you set the record quality to Full



Frame.

Specify the record conditions.



Record 1 fps forcibly : Only one frame per second will be recorded regardless of the existing record proﬁle.



Overwrite : If the SD memory is full, this will delete old data and store new data in replacement.



Pre-alarm duration : Specify the time point before the occurrence of the alarm; starting from the time point, the images will be transferred. You can specify up to 5 seconds before the occurrence of the alarm.



Post-alarm duration : Specify the time point after the occurrence of the alarm; to the speciﬁed time point, the images will be transferred. You can specify up to 120 seconds after the occurrence of the alarm.

When done, click [Apply

( )

● SETUP SCREEN

English _79

Page 80

setup screen

Alarm input

You can set the alarm input type, activation time, and operation mode.

From the Setup menu, select the

<Event ( )> tab.

Click <Alarm input>.

Specify an input device.



Type

Normal Open : It is normally open,

but if it is closed, an alarm will be triggered.

Normal Close : It is normally

closed, but if it is open, an alarm will be triggered.

Specify the <Activation time>.



Always : Always check if an alarm occurs. It activates in operated mode when the alarm occurs.



Only scheduled time : Check if an alarm occurs at a speciﬁed day of the week for a speciﬁed time period. It activates in operated mode when the alarm occurs.

Specify an operation that will perform if an alarm occurs.



Alarm output : Specify the alarm output time in the alarm input setup.



E-mail sending : Specify the use of email transfer in the alarm input setup.



Record : Specify the use of recording in the alarm input setup.

When done, click [Apply

( )

80_ setup screen

Page 81

Video analysis

From the Setup menu, select the

1. <Event ( )> tab.

Click <Video analysis>.

To set the Motion Detection

Select a motion detection mode.

Specify the use of motion detection.

Select a sensitivity level of the motion

detection.

Place the cursor at a point in the video

and drag it to whatever you need.

You can specify up to 4 motion detection



areas.

Specify the activation time and activation

condition.

For more information about <Activation



time> and <Action>, refer to “Alarm input”. (page 80)

When done, click [Apply

( )

● SETUP SCREEN

English _81

Page 82

setup screen

To set the Intelligent Video Analysis

Select an Intelligent Video Analysis

mode.

Set whether to use the Intelligent Video Analysis function.

Specify the event rules.

You can set a total of 3 rules including the



virtual line and the speciﬁed area.

Set whether you want to use the over-

lay or not.

If you set it to <Enable>, the event

rules will be shown on the screen.

Select a sensitivity level of the camera’s

object detection.

Specify the object size.

Specify whether or not the event area is

displayed.

If you set it to <On>, the suspect

area where the event occurs will be marked in a red box.

Specify the activation time and activation

condition.

For more information about <Activation time> and <Action>, refer to “Alarm input”.



(page 80)

When done, click [Apply

Motion Detection and Intelligent Video Analysis cannot be used simultaneously.



If camera is capturing a close object, the video analysis capability may degrade. In the following



cases, the video analysis function may not produce a proper result on the default event and motion detections.

The object color or brightness is similar to the background.

Multiple movements continue occurring at random due to a scene change or other reasons.

A ﬁxed object continues moving in the same position.

An object hides other objects behind.

( )

82_ setup screen

Page 83

Two or more objects overlap or one object divides in multiple portions.

Too fast object (for a proper detection, one object should be found overlapping between

contiguous frames).

Reﬂection / blur / shadow due to a strong light such as direct sunlight, illumination, or headlamp.

In severe snow, rain, wind or in dawn / dusk.

A moving object comes close to the camera.

To use the IV analysis function according to the virtual line based rule

Set <IV analysis function> to

<Enable>.

Set the event rule to <Virtual line based

2. rules>.

Click a desired point in the video and

drag it to the end point. Then, the popup window appears.

Select a desired <Virtual Line Based Rules>.

You can specify up to 3 event rules for the virtual line.





Right : A movement from left to right in the virtual line will be detected.



Left : A movement from right to left in the virtual line will be detected.



Both : A movement in any direction in the virtual line will be detected.

Click [OK].

To cancel the existing line, right-click on the line and select [Delete] in the context menu.

When done, click [Apply

To use the IV analysis function according to the defined area based rule

Set <IV analysis function> to

<Enable>.

Set the event rule to <Deﬁned area

2. based rules>.

Click a corner point of a desired area in

the video to display the popup window.

( )

● SETUP SCREEN

English _83

Page 84

setup screen

Select a desired <Deﬁned Area Based Rules>.

You can specify up to 3 deﬁned area event rules.





Entering : An event where a moving object passes through the deﬁned area and enters inside will be detected.



Exiting : An event where a moving object passes through the deﬁned area and exits outside will be detected.



Appearing/Disappearing : An event will be detected where an object that has not existed in the area until the previous frame, suddenly appears or disappears in the area without passing through the deﬁned area.

Click [OK]. To cancel the speciﬁed area, right-click on the area and select [Delete] in the context menu.

When done, click [Apply

To use the IV analysis function according to the whole area based rule

Set <IV analysis function> to <Enable>.

If you set the event rule to <Entire

2. area based rules>, this will display the

popup window.

Select a desired <Entire Area Based Rules>.



Appearing : An event where an object that has not existed suddenly appears will be detected.



Disappearing : An event where an object that has existed suddenly disappears will be detected.



Scene Change : An event where the screen is changed at more than a certain time interval will be detected.



You can set the <Scene Change> rule along with rules : <Appearing> and <Disappearing>.

Click [OK].

When done, click [Apply

( )

84_ setup screen

Page 85

Time schedule

You can configure so that an event will occur at a scheduled time regardless of the actual occurrence of the event.

From the Setup menu, select the

<Event ( )> tab.

Click <Time schedule>.

To set the timer event

Set <Timer event setup> to <Enable>.

Specify the <Activation time>.



Always : Always activates in operated mode at the set interval.



Only scheduled time : Periodically activates in operated mode at a speciﬁed time and date.

Specify the <Transfer interval>.

Specify the activation conditions.



FTP sending : Specify the use of the FTP transfer if an event occurs.



Record : Specify the use of recording if an event occurs.

When done, click [Apply

( )

SYSTEM SETUP

Product information

From the Setup menu, select the

<System ( )> tab.

Click <Product information>.

Check the camera information, or

provide details according to your network environment.



Location : Specify the location where the camera is installed.



Description : Provide detailed information about the camera location.

● SETUP SCREEN

English _85

Page 86

setup screen



Memo : Provide an explanation about the camera for better understanding.



Language : Select a preferred language for the Web Viewer OSD.

When done, click [Apply



Product related information only allows English for input.

Date & Time

From the Setup menu, select the <System ( )> tab.

Click <Date & Time>.

Specify the time and date that will be applied to the camera.



Current system time : Displays the current time settings of your system.



Timezone : Specify the local time zone based on the GMT.



Use daylight saving time : If checked, the time will be set one hour before the local time zone for the speciﬁed time period. This option will be displayed only in areas where DST is applied.



System time setup : Specify the time and date that will be applied to your system.

Manual : Specify the time manually.

Synchronize with NTP server : Sync with the time of the speciﬁed server address.

Synchronize with PC viewer : Synchronize the time with the connected PC.

When done, click [Apply

( )

86_ setup screen

Page 87

User

From the Setup menu, select the

<System ( )> tab.

Click <User>.

Provide the necessary user information.



Administrator Password Change : Change the current password for the administrator.



Guest setup : If <Guest access> is permitted, any guest can access the Web Viewer screen but can view only the Live viewer screen.



Current users : You can change the user information and adjust the permission level for a user who is set to <Enable>.

Video : You can select a video proﬁle in the Liver viewer screen.

Audio-In : The audio input option will be activated in the Live Viewer screen. Controls : You can control MIC and alarm button.

When done, click [Apply

( )

Upgrade / Reboot

From the Setup menu, select the <System ( )> tab.

Click <Upgrade / Reboot>.

Select a desired item and set it appropriately.



Upgrade : Performs upgrading the system.



Factory default : Resets the system to the factory default.

Except network parameter : Reset

the other settings except for the interface/port/DDNS/IP ﬁltering settings.

All : Resets all settings including the camera settings. (however, the log information will not be reset)

If you reset the camera, the network settings will be adjusted so that DHCP can be enabled.



If there is no DHCP server in the network, you must run the IP Installer program to change the basic network settings such as IP address, Subnet mask, Gateway, etc., before you can connect to the network.

● SETUP SCREEN

English _87

Page 88

setup screen



Conﬁguration backup & Restore : Backs up the current system settings before performing the restoration process. The system is automatically restarts after backup or restoration.



Restart : Restarts the system.

To perform the upgrade

Click [Upgrade].

Click [Browse] and specify a ﬁle to

upgrade.

Click [Send].

The “Upgrade” dialog appears where

the progression will be shown in the bottom.



If you forcibly terminate the upgrade

process, upgrade will not be completed properly.

To save the current settings and restore the backup settings

Click [Backup].

The Save As dialog should appear.

Specify the backup path with a proper ﬁle name, and click [Save]. The backup ﬁle will be saved to the speciﬁed path in the format of “.bin”.

To restore the backup settings, click

3. [Restore].

88_ setup screen

Page 89

Select a backup ﬁle and click [Open].

Log

You can check the system log or event log.

From the Setup menu, select the

<System ( )> tab.

Click <Log>.

Select a log type.



Syslog : You can check the system logs where any system changes are recorded including the time information.



Evtlog : You can check the event logs including the time information.

From the right log list, select an item to

search for.



If you select <All> in the top left dropdown list, all logs for the applicable log type will be displayed.

If one page can not display all the logs available, use the bottom buttons to move to

the previous, next, or the last item.

● SETUP SCREEN

If you want to view the details of a log, click [Info ( )] in the right column of the log; the log



information will be shown in the bottom pane.

Each page displays 15 logs with the latest one displayed at the top.



The event/system log list can contain up to 1000 logs; after that, the existing logs will be deleted



from the oldest one each time a new log is created.

English _89

Page 90

appendix

SPECIFICATION

Video

Lens

Items

Imaging Device 1/3" 1.3M PS CMOS

Total Pixels 1,384(H) x 1,076(V)

Effective Pixels 1,329(H) x 1,049(V)

Scanning System Progressive

Synchronization -

Frequency -

Horizontal Resolution -

Min. Illumination

S / N Ratio 50dB

Video Out

Focal Length (Zoom Ratio) - 2.8~10mm (3.6X) Vari-focal

Max. Aperture Ratio - F1.2

Angular Field of View -

Min. Object Distance -

Focus Cotrol -

Zoom Movement Speed -

Lens Type

Mount Type C/CS Board Type

SNB-5000N/P SND-5080(F)N/P SNV-5080N/P

Color : 0.3 Lux (F1.2, 50IRE), 0.005 Lux (Sens up 60X)

B/W : 0.01Lux (F1.2, 50IRE), 0.0002 Lux (Sens up 60X)

CVBS : 1.0 Vp-p / 75Ω composite, 704x480(N), 704x576(P) (for installation)

Manual / DC Auto Iris

Description

H: 94.6°(Wide)~28.8°(Tele), V: 68.4°(Wide)~21.6°(Tele)

DC Auto Iris

90_ appendix

Page 91

Pan / Tilt / Rotate

Operational

Items

SNB-5000N/P SND-5080(F)N/P SNV-5080N/P

Description

Pan Range - 0°~355°

Pan Speed -

Tilt Range - 0°~90°

Tilt Speed -

Rotate Range - 0°~355°

Preset -

Preset Accuracy -

Auto Tracking -

Camera Title Off / On (Displayed up to 15 characters)

Day & Night Auto (ICR) / Color / B/W

Backlight Compensation Off / BLC / HLC

Wide Dynamic Range -

Contrast Enhancement SSDR (Samsung Super Dynamic Range) (Off / On)

Digital Noise Reduction SSNRIII (2D+3D Noise Filter) (Off / On)

Digital Image Stabilization -

Motion Detection Off / On (4 Programmable zones)

Privacy Masking Off / On (12 programmable zones)

Sens-up (Frame Integration)

Off / Auto (2X ~ 60X)

● APPENDIX

English _91

Page 92

appendix

Operational

Network

Items

Gain Control Off / Low / Medium / High / Manual

White Balance ATW / AWC / Manual / Indoor / Outdoor

Electronic Shutter Speed Auto / A.FLK / Manual (1/30 ~ 30,000sec)

Digital Zoom -

Flip / Mirror Off / On

Profile -

VPS -

Intelligent Video Analytics

PIP -

Schedule -

Alarm I/O Input 1ea / Output 1ea (Relay)

Remote Control Interface -

RS-485 Protocol -

Ethernet RJ-45 (10/100BASE-T)

Video Compression Format H.264, MPEG4, MJPEG

Resolution

Max. Framerate 22fps (1280x1024), 30fps (720P HD)

Video Quality Adjustment

Bitrate Control Method

Streaming Capability

Audio I/O

SNB-5000N/P SND-5080(F)N/P SNV-5080N/P

Scene Change, Virtual Line, Enter / Exit, Appear / Disappear

1280x1024, 1280x720P(HD), 800x600, 640x480, 320x240

H.264/MPEG4 : Compression Level, Target Bitrate Level

MJPEG : Quality Level Control

H.264/MPEG4 : CBR or VBR

MJPEG : VBR

Multiple Streaming (Up to 10 Profiles)

Mic / Line in, Line out

Description

Control

92_ appendix

Page 93

Network

Items

Audio Compression Format

Audio Communication

SNB-5000N/P SND-5080(F)N/P SNV-5080N/P

G.711 μ-law

2-Way

IPv4, IPv6

TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTSP, NTP,

Protocol

HTTP, HTTPS, SSL, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS

HTTPS(SSL) Login Authentication

Security

Digest Login Authentication

IP Address Filtering

User access Log

Streaming Method Unicast / Multicast

Max. User Access

Memory Slot

ONVIF Conformance

10 users at Unicast Mode

SD/SDHC Memory Slot

Yes

English, French, German, Spanish, Italian, Chinese, Korean,

Language

Russian, Japanese, Swedish, Denish, Portuguese, Czech, Polish, Turkish, Rumanian, Serbian, Dutch, Croatian, Hungarian, Greek

Supported OS : Windows XP / VISTA / 7, MAC OS

Web Viewer

Central Management Software

Supported Browser : Internet Explorer 6.0 or Higher, Firefox

NET-i viewer

Description

● APPENDIX

Google Chrome, Apple Safari

English _93

Page 94

appendix

Environmental

Electrical

Mechanical

Items

Operating Temperature / Humidity

Ingress Protection -

Input Voltage / Current 12V DC, 24V AC, PoE(IEEE802.3af)

Power Consumption Max. 6W Max. 7W

Color / Material

Dimension

Weight 440g

SNB-5000N/P SND-5080(F)N/P SNV-5080N/P

-10°C ~ +50°C (+14°F ~ +122°F) / ~ 90% RH

Body : Dark Gray / Metal

W72 x H60 x D138.6 mm

Description

Body : White / Plastic

SND-5080 : H129.4 x Ø133mm

SND-5080F : H127 x Ø159.9mm (Flush Mounting Type)

SND-5080 : 523g

SND-5080F : 650g

-40°C ~ +50°C (-40°F ~ +122°F) / ~ 90% RH

IP66 Grade (Waterproof)

Max. 8W (Heater Off), Max. 11W (Heater On)

Body : Light Gray / Aluminum

H134.5 x Ø160mm

1.28Kg

94_ appendix

Page 95

TROUBLESHOOTING

PROBLEM SOLUTION

I can’t access the camera from a web browser.

Viewer got disconnected during monitoring.

I cannot connect to the system using a tab browser of Internet Explorer 7.0.

The camera connected to the network is not detected in the IP installer program.

Images overlap.

No image appears.

Check to make sure that the camera’s Network settings are appropriate.



Check to make sure that all network cables have been connected



properly.

If connected using DHCP, verify that the camera is able to acquire



dynamic IP addresses without any problem.

If connected using a DDNS URL, verify that the MAC address has been



properly entered.

If the camera is connected to a router, verify that port forwarding is



properly configured.

Connected Viewers become disconnected upon any change to camera or



network configurations.

Check all network connections.



If the camera is connected over an PPPoE network, it’ s possible for



Viewer to disconnect under poor network conditions.

When you try to connect to the system using a tab browser, the same



cookie information is shared, resulting in errors when connected. Therefore, instead of using a tab browser, open a new browser window to connect to the system.

Turn off the firewall settings on your PC and then search the camera



again.

Check whether two or more cameras are set to a single multicast address



instead of different addresses. If a single address is used for multiple cameras, the images may overlap.

If the transmission method is set to multicast, check whether there is a



router that supports multicast in the LAN the camera is connected to.

● APPENDIX

English _95

Page 96

appendix

PROBLEM SOLUTION

No JPEG file is transferred via e-mail on occurrence of intelligent video analysis event of camera even when the <IV analysis function> is set to <Enable>.

Can <Set Rules> be configured even when the <IV analysis function> is set to <Disable>?

No signal is found at the Alarm Output port even when an intelligent video analysis event is generated.

Cannot record into the SD memory card.

SD memory indicator does not turn on even when the SD memory card is inserted.

SD memory card is inserted but the camera does not operate properly.

Cannot format the SD memory card.

Verify the settings in the following sequence:



A. Check <Data & Time> settings. B. The <IV analysis function> should be set to <Enable>. C. Alarm Video Transmission must be enabled.

Yes, it can be. You can set rules for events despite of the intelligent



video analysis setting.

Check alarm output port settings.



Check if the memory card is defective.



Check if the write protection tab of the memory card is set to “Lock”.



Check if the memory card is defective.



Check if the <Record> is checked in <Setup>  <Event>  <SD Record>



menu.

Check if the memory card is inserted in the proper direction. Operation



of memory card that is formatted by other devices is not guaranteed with this camera unit

Format the memory card again in <Setup>  <Event>  <SD Record>



menu.

Check if the write protection tab of the memory card is set to “Lock”.



96_ appendix

Page 97

OPEN SOURCE ANNOUNCEMENT

Some software components of this product incorporate source code covered under the BSD license as follows.

Component Name License License URL

lighttpd 1.4.25 librtp 1.20

lighttpd is a secure, fast, compliant, and very ﬂexible web-server that has been optimized for high-performance environments. It has a very low memory footprint compared to other webservers and takes care of cpu-load. Its advanced feature-set (FastCGI, CGI, Auth, Output-Compression, URL-Rewriting and many more) make lighttpd the perfect webserversoftware for every server that suffers load problems.

For more additional information, send email to help.cctv@samsung.com.

Redistribution and use in source and binary forms, with or without modiﬁcation, are permitted provided that the following conditions are met :

- Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

- Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

- Neither the name of the 'incremental' nor the names of its contributors may be used to endorse or promote products derived from this software without speciﬁc prior written permission.

THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

BSD 2.0 BSD 1.0

http://www.opensource.org/licenses/bsd-license.html

Page 98

Redistribution and use in source and binary forms, with or without modiﬁcation, is permitted provided that the following conditions are met :

1. Redistributions of source code must retain the above copyright notice, this list of conditions and the following disclaimer.

2. Redistributions in binary form must reproduce the above copyright notice, this list of conditions and the following disclaimer in the documentation and/or other materials provided with the distribution.

3. All advertising materials mentioning features or use of this software must display the following acknowledgement: This product includes software developed by the Computer Science Department at University College London.

4. Neither the name of the University nor of the Department may be used to endorse or promote products derived from this software without speciﬁc prior written permission.

THIS SOFTWARE IS PROVIDED BY THE AUTHORS AND CONTRIBUTORS ``AS IS'' AND ANY EXPRESSED OR IMPLIED WARRANTIES, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSEARE DISCLAIMED. IN NO EVENT SHALL THE AUTHORS OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL, SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.

Page 99

GPL/LGPL SOFTWARE LICENSE

The software included in this product contains copyrighted software that is licensed under the GPL/LGPL. You may obtain the complete Corresponding Source code from us for a period of three years after our last shipment of this product by sending email to help.cctv@samsung.com

If you want to obtain the complete Corresponding Source code in the physical medium such as CD-ROM, the cost of physically performing source distribution might be charged.



GPL S/W

Base Kernel, Busybox, Sysvinit, dosfstools



LGPL S/W

gLibc, Inetutils

GNU GENERAL PUBLIC LICENSE

Everyone is permitted to copy and distribute verbatim copies of this license document, but changing it is not allowed.

Preamble

The licenses for most software are designed to take away your freedom to share and change it. By contrast, the GNU General Public License is intended to guarantee your freedom to share and change free software-- to make sure the software is free for all its users.

This General Public License applies to most of the Free Software Foundation's software and to any other program whose authors commit to using it. (Some other Free Software Foundation software is covered by the GNU Lesser General Public License instead.) You can apply it to your programs, too.

When we speak of free software, we are referring to freedom, not price.

Our General Public Licenses are designed to make sure that you have the freedom to distribute copies of free software (and

charge for this service if you wish), that you receive source code or can get it if you want it, that you can change the software or use pieces of it in new free programs ; and that you know you can do these things.

To protect your rights, we need to make restrictions that forbid anyone to deny you these rights or to ask you to surrender the rights. These restrictions translate to certain responsibilities for you if you distribute copies of the software, or if you modify it.

For example, if you distribute copies of such a program, whether gratis or for a fee, you must give the recipients all the rights that you have.

You must make sure that they, too, receive or can get the source code. And you must show them these terms so they know their rights.

We protect your rights with two steps :

(1)copyright the software, and (2)offer you this license which gives you legal permission to copy, distribute and/or modify the software.

Also, for each author's protection and ours, we want to make certain that everyone understands that there is no warranty for this free software. If the software is modiﬁed by someone else and passed on, we want its recipients to know that what they have is not the original, so that any problems introduced by others will not reﬂect on the

Page 100

original authors' reputations.

Finally, any free program is threatened constantly by software patents. We wish to avoid the danger that redistributors of a free program will individually obtain patent licenses, in effect making the program proprietary. To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all.

The precise terms and conditions for copying, distribution and modiﬁcation follow.

TERMS AND CONDITIONS FOR COPYING, DISTRIBUTION AND MODIFICATION

0. This License applies to any program or other work which contains a notice placed by the copyright holder saying it may be distributed under the terms of this General Public License. The "Program", below, refers to any such program or work, and a "work based on the Program" means either the Program or any derivative work under copyright law : that is to say, a work containing the Program or a portion of it, either verbatim or with modiﬁcations and/or translated into another language. (Hereinafter, translation is included without limitation in the term "modiﬁcation".) Each licensee is addressed as "you". Activities other than copying, distribution and modiﬁcation are not covered by this License ; they are outside its scope. The act of running the Program is not restricted, and the output from the Program is covered only if its contents constitute a work based on the Program (independent of having been made by running the Program). Whether that is true depends on what the Program does.

1. You may copy and distribute verbatim copies of the Program's source code as

you receive it, in any medium, provided that you conspicuously and appropriately publish on each copy an appropriate copyright notice and disclaimer of warranty; keep intact all the notices that refer to this License and to the absence of any warranty ; and give any other recipients of the Program a copy of this License along with the Program. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee.

2. You may modify your copy or copies of the Program or any portion of it, thus forming a work based on the Program, and copy and distribute such modiﬁcations or work under the terms of Section 1 above, provided that you also meet all of these conditions :

a) You must cause the modiﬁed ﬁles to

carry prominent notices stating that you changed the ﬁles and the date of any change.

b) You must cause any work that you

distribute or publish, that in whole or in part contains or is derived from the Program or any part thereof, to be licensed as a whole at no charge to all third parties under the terms of this License.

c) If the modiﬁed program normally

reads commands interactively when run,you must cause it, when started running for such interactive use in the most ordinary way, to print or display an announcement including an appropriate copyright notice and a notice that there is no warranty (or else, saying that you provide a warranty) and that users may redistribute the program under these conditions, and telling the user how to view a copy of this License. (Exception:if the Program itself is interactive but does not normally print such an announcement, your work
