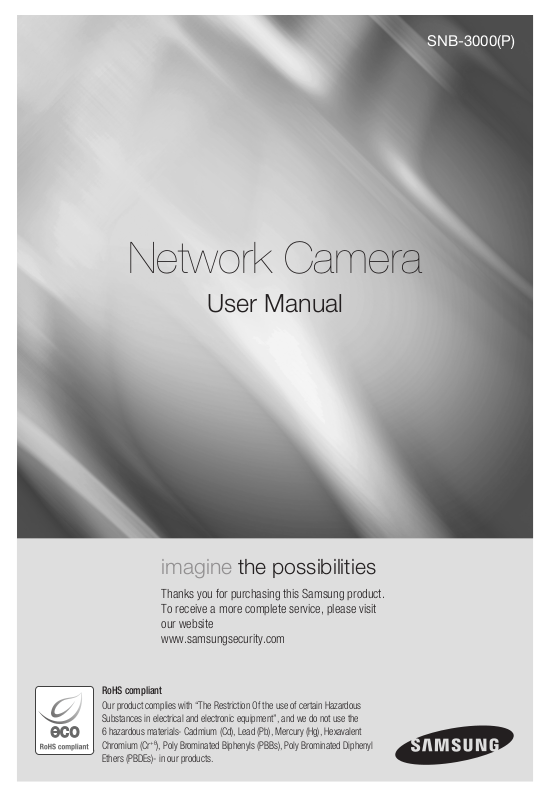

Samsung SNB-3000P User Manual

Network Camera

User Manual

SNB-3000(P)

imagine the possibilities

Thanks you for purchasing this Samsung product.
To receive a more complete service, please visit
our website
www.samsungsecurity.com

RoHS compliant

Our product complies with “The Restriction Of the use of certain Hazardous
Substances in electrical and electronic equipment”, and we do not use the
6 hazardous materials- Cadmium (Cd), Lead (Pb), Mercury (Hg), Hexavalent
Chromium (Cr+6), Poly Brominated Biphenyls (PBBs), Poly Brominated Diphenyl
Ethers (PBDEs)- in our products.

overview

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

:

CAUTION

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a
risk of electric shock is present within this unit.

This symbol indicates that there are important operating and
maintenance instructions in the literature accompanying this unit.

WARNING



To reduce the risk of fire or electric shock, do not expose this appliance
to rain or moisture.



To prevent injury, this apparatus must be securely attached to the floor/
wall in accordance with the installation instructions.



If this power supply is used at 24V ac, a suitable plug adapter should be
used.



The camera is to be only connected to PoE networks without routing to
the outside plant.

WARNING

Be sure to use only the standard adapter that is specified in the

1.

specification sheet.
Using any other ada pter could cause fire, electrical shock, or damage to
the product.

Incorrectly connecting the power supply or replacing battery may cause

2.

explosion, fire, electric shock, or damage to the product.
Do not connect multiple cameras to a single adapter. Exceeding the

3.

capacity may cause abnormal heat generation or fire.
Securely plug the power cord into the power receptacle. Insecure

4.

connection may cause fire.

2_ overview

When installing the camera, fasten it securely and firmly. The fall of

5.

camera may cause personal injury.

Do not place conductive objects (e.g. screwdrivers, coins, metal parts,

6.

etc.) or containers filled with water on top of the camera. Doing so may
cause personal injury due to fire, electric shock, or falling objects.

Do not install the unit in humid, dusty, or sooty locations. Doing so may

7.

cause fire or electric shock.

If any unusual smells or smoke come from the unit, stop using the

8.

product. In such case, immediately disconnect the power source and
contact the service center. Continued use in such a condition may cause
fire or electric shock.

If this product fails to operate normally, contact the nearest service

9.

center. Never disassemble or modify this product in any way. (SAMSUNG
is not liable for problems caused by unauthorized modifications or
attempted repair.)

When cleaning, do not spray water directly onto parts of the product.

10.

Doing so may cause fire or electric shock

Do not expose the product to the direct airflow from an air conditioner.

11.

Otherwise, it may cause moisture condensation inside the Clear Dome
due to temperature difference between internal and external of the dome
camera.

If you install this product in a low-temp area such as inside a cold store,

12.

you must seal up the wiring pipe with silicon, so that the external air can
not flow inside the housing.
Otherwise, external high, humid air may flow inside the housing, pooling
moisture or vapor inside the product due to a difference between internal
and external temperature.

● OVERVIEW

English _3

overview

CAUTION

Do not drop objects on the product or apply strong blows to it. Keep

1.

away from a location subject to excessive vibration or magnetic
interference.

Do not install in a location subject to high temperature (over 50°C), low

2.

temperature (below -10°C), or high humidity. Doing so may cause fire or
electric shock.

If you want to relocate the already installed product, be sure to turn off

3.

the power and then move or reinstall it.

Remove the power plug from the outlet when there is a lighting storm.

4.

Neglecting to do so may cause fire or damage to the product.

Keep out of direct sunlight and heat radiation sources. It may cause fire.

5.

Install it in a place with good ventilation.

6.

Avoid aiming the camera directly towards extremely bright objects such

7.

as sun, as this may damage the CCD image sensor.

Apparatus shall not be exposed to dripping or splashing and no objects

8.

filled with liquids, such as vases, shall be placed on the apparatus.

The Mains plug is used as a disconnect device and shall stay readily

9.

operable at any time.

When using the camera outdoors, moisture may occur inside the camera

10.

due to temperature difference between indoors and outdoors. For this
reason, it is recommended to install the camera indoors. For outdoor
use, use the camera with built-in fan and heater.

4_ overview

FCC STATEMENT

This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions :

1) This device may not cause harmful interference, and

2) This device must accept any interference received including interference that
may cause undesired operation.

CAUTION

This equipment has been tested and found to comply with the
limits for a Class A digital device, pursuant to part 15 of FCC Rules.
These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial
environment.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instruction
manual, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause
harmful interference in which case the user will be required to correct
the interference at his own expense.

IC Compliance Notice

This Class A digital apparatus meets all requirements of the
Canadian Interference.-Causing Equipment Regulations of
ICES-003.

● OVERVIEW

English _5

overview

IMPORTANT SAFETY INSTRUCTIONS

Read these instructions.

1.

Keep these instructions.

2.

Heed all warnings.

3.

Follow all instructions.

4.

Do not use this apparatus near water.

5.

Clean only with dry cloth.

6.

Do not block any ventilation openings. Install in accordance with the manufacturer’s

7.

instructions.

Do not install near any heat sources such as radiators, heat registers, or other apparatus

8.

(including amplifiers) that produce heat.

Do not defeat the safety purpose of the polarized or grounding-type plug.

9.

A polarized plug has two blades with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide blade or the third prong is
provided for your safety. If the provided plug does not fit into your outlet, consult an
electrician for replacement of the obsolete outlet.

Protect the power cord from being walked on or pinched particularly at plugs,

10.

convenience receptacles, and the point where they exit from the apparatus.

Only use attachments/accessories specified by the manufacturer.

11.

Use only with the cart, stand, tripod, bracket, or table specified by

12.

the manufacturer, or sold with the apparatus. When a cart is used,
use caution when moving the cart/apparatus combination to avoid
injury from tip-over.

Unplug this apparatus during lightning storms or when unused for

13.

long periods of time.

Refer all servicing to qualified service personnel. Servicing is required when the

14.

apparatus has been damaged in any way, such as powersupply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.

6_ overview

Apparatus shall not be exposed to dripping or splashing and no objects
filled with liquids, such as vases, shall be placed on the apparatus

CONTENTS

overview

2

installation &

connection

14

camera setup

22

network connection

and setup

31

6 Important Safety Instructions
9 Product Features
9 Precautions – Installation And

Use

9 Recommended PC Specifications
10 What’s Included
11 At a Glance

14 Mounting the lens
15 Inserting/Removing an SD

Memory Card

16 Memory Card Information

(not included)

18 Connecting with other Device

22 How to use the menu key
23 Main Menu
23 Profile
24 Camera Setup
28 Privacy Zone
29 Others
30 System Info
30 Language

31 Connecting the Camera to an

IP Router with the XDSL/Cable
Modem

32 Connecting the Camera to

an IP Router with Local Area
Networking

33 Connecting the Camera Directly

to a DHCP-Based XDSL/Cable
Modem

34 Connecting the Camera Directly

to Local Area Networking

35 IP Address Setup
36 Static IP Setup
39 Dynamic IP Setup
40 Port Range Forward (Port

Mapping) Setup

41 Connecting to the Camera From

a Shared Local PC

41 Connecting to the Camera From

a Remote PC via the Internet

● OVERVIEW

English _7

overview

web viewer

42

setup screen

50

appendix

67

42 Connecting to the camera
43 Login
44 Installing ActiveX
45 Using the Live Screen
46 Backup
49 Using the SD Search Viewer

Screen

50 Accessing the Setup screen
50 Default Setup
55 System Setup
58 Overlay Setup
59 Event Setup
66 Network Setup

67 Profile
68 Terminology
70 Specifications
74 Frame Rate (NTSC)
80 Frame Rate (PAL)
86 Troubleshooting

8_ overview

PRODUCT FEATURES



Support various communication protocols

Supports TCP/IP, UDP, RTP/RTSP, SMTP for email, and FTP protocols as well as various
internet protocols such as ARP, HTTP, HTTPS and DHCP.



Web Browser-based Monitoring

Using the Internet web browser to display the image in a local network environment.



Automatic Local IP Setup

Even a network novice can install it with minimum operations.



Alarm

If an alarm sensor is connected and it detects a motion, a message is sent to the
registered address via FTP/email (SMTP) or stored in the SD memory card, or an alarm
will signal to the alarm out terminal.



Intelligent Video Analysis (the event rule and the motion rectangle box are displayed
only in the MJPEG Live screen.)

If an event rule is defined for the video analysis and it detects a motion in the configured rule
area, a message is sent to the registered address via FTP/email (SMTP) or stored in the SD
memory card, or an alarm will signal to the alarm out terminal.

PRECAUTIONS – INSTALLATION AND USE



Do not bend or drop the SD memory card.



Do not store or use the SD memory card in a high temperature, high humidity or dusty
place.



Be careful not to apply foreign substances on the terminals of SD memory card.



In case of cleaning terminals, wipe gently with a soft cloth.



Before ejecting the SD memory card, release the checkbox <SD Card Record> in
<Alarm image> and press [Apply] button. (page 61)



If SD memory card have reached its lifespan, no data will be saved.
In this case, purchase a new one and replace the SD memory card.

● OVERVIEW

RECOMMENDED PC SPECIFICATIONS



CPU : Pentium4 / 2.4GHz or higher



Operating System : Windows XP(Service Pack2, Service Pack3) / Windows Vista / Windows 7



Resolution : 1024X768 pixels or higher



RAM : 512MB or higher



Web Browser : Internet Explorer 6.0 or higher



Video Card : Radeon, Nvidia



Video Memory: 128MB



DirectX 8.1 or higher

English _9

overview

Compatible IP Routers



Linksys



D-Link



Netgear

Compatible PoE Switches



Linksys SRW224G4P



D-Link DES-1316



SMC SMCPWR-INJ3

WHAT’S INCLUDED

Please check if your camera and accessories are all included in the product package.

Camera

User Manual/

IP INSTALLER DVD

Lens Options

CS Lens C Lens

10_ overview

C Mount Adapter

Auto Iris Lens Connector

User Manual

Camera Holder (Mount)

& Screws (2EA)

AT A GLANCE

Front Side

Item Description

● OVERVIEW

Camera Holder
(Mount) Holes

Auto Iris Lens
(Optional)

Auto Iris Lens
Connector

Wipe out a dirty surface of the lens softly with a lens tissue or cloth to which you have applied



M

ethanol.

Used when you mount the camera onto the bracket by fixing the camera
holder (mount) adaptor with the bracket.

Installed on the lens adaptor.

Used to supply power and output signal to control the iris of the lens.

English _11

overview

SD CARD

AUDIO OUT

VIDEO

1 2 3 4 5

SD SYSTEM POWER

RESET

NETWORK

ACT

LINK

GND

1,2 : ALARM IN 1,2
3 : GND
4,5 : ALARM OUT 1,2

AC 24V
DC 12V

AUDIO IN

Rear Side

Item Description

SD Memory Card
Compartment

Compartment for the SD memory card.

12_ overview

Audio Out terminal

System, Power
Indicators

AUDIO OUT Terminal for audio output.

AUDIO IN Terminal for audio input.

: A memory card is inserted and operates normally.

ON
Flashing: Failed to record, insufficient space, or inserted

SD

OFF: Camera is off, camera is restarting, or memory card

not in place.

ON: The camera is turned on and connected to the network

properly.

SYSTEM

Blinking: During DDNS setup, or in case of setup failure, or

OFF: When the system is rebooting, or turned off

ON: While the power is on
OFF: If the power is off

POWER

abnormally.

in a state of unstable network connection

Reset Button

Resets the camera settings to the default. Press and hold it for about 3
seconds to turn off the system indicator and restart the system.

Power Port Used to plug the power cable.

GND Used for earth-grounding.

Network Port Used to connect to the Network cable.

I/O Port

ALARM IN
1,2

GND Used for earth-grounding.

ALARM OUT
1,2

Used to connect the alarm input signal.

Used to connect the alarm output signal.

Video Out Port Video signal output port connected to the monitor.

● OVERVIEW

English _13

installation & connection

MOUNTING THE LENS

Disconnect the power before proceeding.

Mounting the CS lens

Turn the optional CS lens clockwise to insert it.

Mounting the C lens

Turn the C mount adaptor clockwise to insert it and do the same with the C lens.

CS Lens

C Lens

14_ installation & connection

Connecting the Auto Iris Lens connector

Insert the lens connector into the corresponding hole of the camera.

Focusing

Turn the lens left or right to control the zoom and focus the lens so that you can view a clear,
sharp object.

INSERTING/REMOVING AN SD MEMORY CARD

Inserting an SD Memory Card

Push the SD memory card in the direction of the arrow shown in the diagram.

● INSTALLATION & CONNECTION

Do not insert the SD memory card while it’s upside down by force. Otherwise, it may damage the



J

SD memory card.

English _15

installation & connection

Removing an SD Memory Card

Gently press down on the exposed end of the memory card as shown in the diagram to
eject the memory card from the slot.

Pressing too hard on the SD memory card can cause the card to shoot out uncontrollably from the



J

slot when released.

Before ejecting the SD memory card, release the checkbox <SD Card Record> in <Alarm



image> and press [Apply] button. (page 61)

MEMORY CARD INFORMATION (NOT INCLUDED)

What is a memory card?

The memory card is an external data storage device that has been developed to offer an
entirely new way to record and share video, audio, and text data using digital devices.

Selecting a memory card that’s suitable for you

Your camera supports SDHC memory cards.
You may, however, experience compatibility issues depending on the model and make of
the memory card.

Your camera supports SD memory cards.
Note that supported memory card capacity is up to 2GB.

For your camera, we recommend you use a memory card from the following manufacturers:
SDHC/SD Memory Card: Panasonic, Sandisk, Toshiba

Your camera supports 128MB to 16GB (SD Card : 2GB) of memory card capacity.

Playback performance can be affected depending on the speed of memory card, so use
the high-speed memory card.
To ensure proper recording of video data, we recommend you use a memory card that
supports at least read/write speed 10Mbps and Class 6.

16_ installation & connection

Memory Card Use

SD and SDHC memory cards feature a switch that disables writing data on to the media.
Having this switch to the Lock position will prevent accidental deletion of data stored in the
memory card but at the same time will also prevent you from writing data on to the media.

❖

Memory Card Components

Contacts

Lock Switch

SDHC

● INSTALLATION & CONNECTION

English _17

installation & connection

SD CARD

AUDIO OUT

VIDEO

1 2 3 4 5

SD SYSTEM POWER

RESET

NETWORK

ACT

LINK

GND

1,2 : ALARM IN 1,2
3 : GND
4,5 : ALARM OUT 1,2

AC 24V
DC 12V

AUDIO IN

CONNECTING WITH OTHER DEVICE

Monitor

Power

Network

Connecting to the monitor

Connect the [VIDEO] port of the camera to the video input port of the monitor.

Network Connection

Connect the Network cable to the local network or to the Internet.

Power Supply

Use the screwdriver to connect each line of the power cable to the corresponding port of
the camera.

Be careful not to reverse the polarity when you connect the power cable.



J

You can also use a router featuring PoE (Power over Ethernet) to supply power to the camera.

18_ installation & connection

Connecting to Audio Input/Output

Microphone

LINE-IN

Connect the AUDIO IN port of the camera with the microphone directly or LINE OUT

1.

port of the amplifier that the microphone is connected to.



Direct Mic Connection



Line Out Connection

Connect the AUDIO OUT port of the camera with the LINE IN port of the speaker.

2.

: Set Audio Input Gain high (10). (Refer to page 51)

: Set Audio Input Gain low (1). (Refer to page 51)

LINE-OUT

Pre-Amp

MicrophonePre-AmpSpeaker

● INSTALLATION & CONNECTION

English _19

installation & connection

Audio I/O Block Diagram

Network

Microphone

Microphone

Speaker Pre-Amp

Pre-Amp



Audio Codec
G.711 PCM. μ-law 64kbps 8kHz sampling



Full duplex Audio



Audio in
Used for mono signal line input (Max.2.4 Vpp)



Audio out
Used for mono signal line output (Max.2.4 Vpp)



Line out impedance

600Ω

PC

20_ installation & connection

Connecting to the I/O port box

1

ALARM IN 1

ALARM OUT 1

ALARM OUT 2

ALARM IN 2

GND

2

3

4

5

External Relay

External Relay

SD CARD

AUDIO OUT

VIDEO

1 2 3 4 5

SD SYSTEM POWER

RESET

NETWORK

ACT

LINK

GND

1,2 : ALARM IN 1,2
3 : GND
4,5 : ALARM OUT 1,2

AC 24V
DC 12V

AUDIO IN

1 2 3 4 5

1,2 : ALARM IN 1,2
3 : GND
4,5 : ALARM OUT 1,2

Connect the Alarm I/O signal to the corresponding port of the rear port box.



ALARM IN 1, 2 : Used to connect the alarm input signal.



GND : Used for earth-grounding.



ALARM OUT 1, 2 : Used to connect the alarm output signal.

Alarm I/O Wiring Diagram

● INSTALLATION & CONNECTION

English _21

camera setup

You can configure the camera settings using the Web Viewer.

For accessing the Web Viewer, refer to "Network Connection and Setup". (page 31)



M

HOW TO USE THE MENU KEY

Follow the steps below if you run the Web Viewer for setting the menus.

Launch the Web Viewer.

1.

From the [Camera OSD] menu in the left

2.

pane, click [Menu].
The <MAIN MENU> screen appears.

Click the Up/Down ($%) buttons to move to a

3.

desired item.

Click the four direction (

4.

To change the value of a selected item, click the Left/Right (

5.

Click [ ].

6.

Your changes will be applied.

: Exits the menu setup screen.

Before exiting the setup screen, select [SAVE] to save your settings, or [QUIT] to
cancel them.

: Saves your settings and returns to the previous screen.

: Returns to the main menu.

: Use this icon if you want to save your settings after you specified the mask area and

privacy area, etc.
Once you saved your settings, the changes remain intact even if you select [QUIT] on
exit.

: Use this icon if you want to delete a mask, or privacy area, etc.

Once you deleted your settings, the deletions remain valid even if you select [QUIT] on
exit.

: This arrow appears next to a menu that contains sub items.

$%_ +

) buttons to navigate through the menu items.

_ +

) buttons.

For the items with the "*" mark on the right, You can get help from "Terminology". (page 68)

If intelligent video analysis is enabled, camera’s OSD menu operation can be set as an event.



J

22_ camera setup

MAIN MENU

You can configure the camera settings to your preference.



PROFILE

You can select a mode that is appropriate to the
camera installation environment.



CAMERA SET

Configure the camera functions and settings.



PRIVACY ZONE

** MAIN MENU * *

PROFILE

CAMERA SET

PRIVACY ZONE

OTHER S ET

SYSTEM INFO

LANGUAG E

You can configure the privacy settings.



OTHER SET

You can configure more settings including
FACTORY DEFAULTS.



SYSTEM INFO

Shows the camera version and type.



LANGUAGE

Select a preferred one from the supported languages.

PROFILE

You can select one from the pre-determined modes as appropriate to your specific camera installation
environment.

Your selection on each item in PROFILE will affect all other settings of the camera. For the
setting, refer to "PROFILE". (page 67)

For selecting and saving each menu item, refer to "How to use the menu key". (page 22)



STANDARD

Automatically optimizes the camera settings to
the normal environment.



ITS

This setting enables you to analyze the traffic
situation and take the traffic information at a glance.



BACKLIGHT

This setting enables you to view a sharp background
and object even in a severe backlight scene.



DAY/NIGHT

Automatically optimizes the camera settings to the day and night scene.



GAMING

This automatically configures the settings so that you can work in a stable illumination
condition as indoors.



CUSTOM

Your change to any of the PROFILE settings will switch the display to CUSTOM.

◄

PROFIL E

*STANDARD

ITS

BACKLIG HT

DAY/NIGHT

GAMING
CUSTOM

►

● CAMERA SETUP

English _23

camera setup

CAMERA SETUP

You can configure the general settings of the camera module.

For selecting and saving each menu item, refer to "How to use the menu key". (page 22)

CAMERA ID

Provide the ID and position for a camera that displays on the screen.

Select <CAMERA SET> - <CAMERA ID>.

1.

$%_ +

2.

Use the four direction (
select a desired character.
In the lower input box of the screen, the
selected character will be entered.

You can enter up to 54 characters including alphabets,



numbers and special characters.

When done, continue to select <LOCATION>

3.

to specify the display position of the camera ID.

) buttons to

IRIS

You can set the iris to control the intensity of radiation incoming to the camera.

Select <CAMERA SET> - <IRIS>.

1.

Use the left/right (

2.
<ALC> or <ELC>.



ALC : Controls the luminance automatically.

LENS : Select a lens to use.

­LEVEL

­BACKLIGHT

­WDR : Define the composition for weight

­factor, the shutter speed in WDR level, and
select outdoor or indoor for white balance
setup.
BLC (Backlight compensation) : Configure the backlight compensation area by

­defining the area size and location.



ELC : Controls the level electronically.

LEVEL : Select an overall brightness level.

­BACKLIGHT

­If you select <USER> for <AREA>, you can select the area size and location.

_ +

) buttons to select either

: Select the global brightness level.

: Select WDR or BLC.

: Set the area for the backlight compensation.

CAMERA ID

ABC DEF GHIJKLMN OPQ RSTUVWXY ZO

123 456 789

: ?_+*( )/

SP►► ◄◄ S P LOCATION

- - - - - - - - - - - - - - - - - - - - - - - - -

- - - - - - - - - - - - - - - - - - - - - - - - -

LENS DC

LEVEL
BACKLIG HT OFF

ALC

[ 00] ----

----

I

If the iris is set to <ALC>, fixing the iris is your priority when you adjust AE and the shutter speed.



M

24_ camera setup

MOTION

You can specify a level of AGC for controlling the
camera motion.
Select F.FAST if you want to monitor a very fast
moving object in a low contrast scene, and S.SLOW
if monitoring a very slow moving, inanimate object in
the same condition.
As long as DAY/NIGHT is set to AUTO, the

◄

CAMERA SET

CAMERA ID ON
IRIS ALC
MOTION (F.FAST)
DNR MID
SHUTTER OFF
SENS-UP AUTO X4
FLICKER LESS OFF
XDR MID
DIS OFF

►

---

<MOTION> menu is not available.

DNR

Reduces the noise on the screen.
This is useful, especially for a noisy screen.
Set it to <USER>, you can specify the level.

SHUTTER

The SHUTTER menu is used to set the fixed fast
electronic shutter or auto fast electronic shutter.

DAY/NIGHT AUTO

WHITE B AL
DIGITAL ZOOM OFF
DETAIL
AGC COL OR SUP MID
REVERSE OFF
POSI/NE GA +
PIP OFF

[2]

SENS-UP

If the brightness of the video signal is too low, the Slow Shutter function will be activated.
Slow Shutter can collect the individual max frame rate to adjust the setting.

FLICKERLESS

If set to <ON>, the shutter speed will be fixed to 1/100 second. This will prevent possible
screen distortion due to a mismatch between the vertical sync frequency and the blinking
frequency of the lighting.

If IRIS is set to ELC / SHUTTER to AUTO, FIX, EXT mode / SENSE UP to FIX / AGC to FIX, the <DIS> menu



will be disabled.

XDR

This will correct a brightness difference between different scenes for the optimal visibility.
The higher the value is, the higher the correction level is.

DIS

Automatically compensates for the flicker on the screen.
If set to <ON>, the image will be enlarged with digital zoom as much area as
compensated.

● CAMERA SETUP

English _25

camera setup

DAY/NIGHT

You can specify a recording mode according to the scene.

Select <CAMERA SET> - <DAY/NIGHT>.

1.

Select a screen transition mode according to

2.

the illumination, and set options as appropriate.



DAY : Fixed to DAY mode, regardless of the
scene.



NIGHT : Fixed to NIGHT mode, regardless
of the scene.
If BURST is set to <ON>, the burst signal will
output.



AUTO : According to the luminance, this will
switch DAY to NIGHT mode, or vice versa.



DAYNIGHT / NIGHTDAY : If set to
<AUTO>, you can specify the brightness
level triggering the mode switch between
DAY and NIGHT as well as the interval.



MASK AREA : If there exists a bright spot
light source in a night scene, you can specify
the size and position as needed.
Any excessively bright area in a night scene
will be masked.

WHITE BAL

If you need to adjust the screen brightness, use the WHITE BALANCE function.

Select <CAMERA SET> - <WHITE BAL>.

1.

Select a mode where you set the balance.

2.



DAY : You can set the RED, and BLUE value
in DAY mode.



NIGHT : You can adjust the <WHITE BAL>
according to the ambient luminance.

BURST OFF

DAYNIGHT

BRIGHTN ESS MID
DWELL TIME 2S

NIGHTD AY

BRIGHTN ESS MID
DWELL TIME 5S

MASK AREA 1 2

<SIZE>

<LOCATION>

DAY/NIGHT DAY

MODE ATW2

[ 00] ----

RED
BLUE

AUTO

MASK AREA

WHITE BAL

[ 00] ----

----

I

----

I

26_ camera setup

According to the specified recording mode,

3.

select a WHITE BAL mode with necessary
options.



BRIGHTNESS : Specify a brightness level
triggering the switch from DAY to NIGHT
mode.



MODE : According to the selected mode,

WHITE BAL

DAY/NIGHT NIGHT
BRIGHTNESS MID

MODE AWC

[ 00] ----

RED

[ 00] ----

BLUE

[

R-GAIN

[

B-GAIN

0040]
0133]

----

I

----

I

you can adjust the RED and BLUE color
level.

RED : Adjust the strength of the red color.

­BLUE : Adjust the strength of the blue color.

­R-GAIN/B-GAIN : Specify the current color temperature manually.

-

You can set the R-GAIN, and B-GAIN value only in AWC mode.



DIGITAL ZOOM

You can set the digital zoom factor and position.
When the zoom factor and position are defined, the digital zoom function will operate.

If you set the digital zoom to a larger factor than the actual enlargement for compensation, the DIS



function will be disabled.

DETAIL

You can adjust the vertical and horizontal sharpness, respectively.

AGC COLOR SUP

This will adjust the color scheme according to the AGC value.

REVERSE

This will reverse the signal left to right, top to bottom, or a combination of the preceding.

POSI/NEGA

This will display the video brightness signal either normally or reversely.

PIP

You can view a main image with a sub image on the same screen.

● CAMERA SETUP

English _27

camera setup

PRIVACY ZONE

You can set up to 12 privacy zones that will be hided for privacy of the subject when recording.

For selecting and saving each menu item, refer to "How to use the menu key". (page 22)

ZONE SETUP

Select <MAIN MENU> - <PRIVACY ZONE>.

1.

$%_ +

$%_ +

) buttons to

) buttons to

2.

Use the four direction (
select a desired number.
The Zone setup screen appears.

Select the <PIXEL LEVEL>.

3.

Specify the pixel unit level for the POSITION
setting.

Select <POINT>.

4.

You will see dots on the screen.

Use the four direction (

5.

specify the position for each of the four dots.

Select <POSITION> and use the four direction

6.

$%_ +

(

) buttons to specify the position for

each of the four dots.

Save the changes and move to the previous screen and select the <STYLE>.

7.
Select <COLOR> and pick a desired color.

◄

PRIVACY ZONE

1 2 3 4 5 6

7 8 9 10 11 12

PRIVACY SET
STYLE

PRIVACY ZONE SET 1

PIXEL LEVEL [4]

<POINT>
<POSITI ON>

►

MOSAIC1

ON

Setting one or more privacy zone and enabling privacy function will disable the PIP function.



M

28_ camera setup

OTHERS

You can reset the camera, or select the OSD font color to your preference.

For selecting and saving each menu item, refer to "How to use the menu key". (page 22)

FACTORY DEFAULT

Select <MAIN MENU> - <OTHER SET>

1.

- <FACTORY DEFAULTS>.
The FACTORY DEFAULTS setup screen
appears.

Select <OK>.

2.

All the settings will be restored to the factory
default.
However, the language setting will not be
restored.

OSD COLOR

You can set the font color of the user interface.

◄

OTHER SET

FACTORY DEFAULTS
OSD COL OR BW

FACTORY DEFAULTS

OK

►

CANCEL

● CAMERA SETUP

English _29

camera setup

SYSTEM INFO

You can check the system information.

For selecting and saving each menu item, refer to "How to use the menu key". (page 22)

Select <MAIN MENU> - <SYSTEM INFO>.

1.

The current system information is displayed.

2.

The camera type may different, depend on the video



M

signal.

LANGUAGE

You can select a language to your preference.

For selecting and saving each menu item, refer to "How to use the menu key". (page 22)

Select <MAIN MENU> - <LANGUAGE>.

1.

Select your preferred language using the

2.

up/down ($%) buttons.

Supported language may different.



M

◄

SYSTEM INFO

TYPE 3_IPB_P
CAMERA VER. v1.00_090828

◄

LANGUA GE

*ENGLIS H

FRANÇAI S

DEUTSCH
ESPAÑOL

ITALIANO

►

►

30_ camera setup
