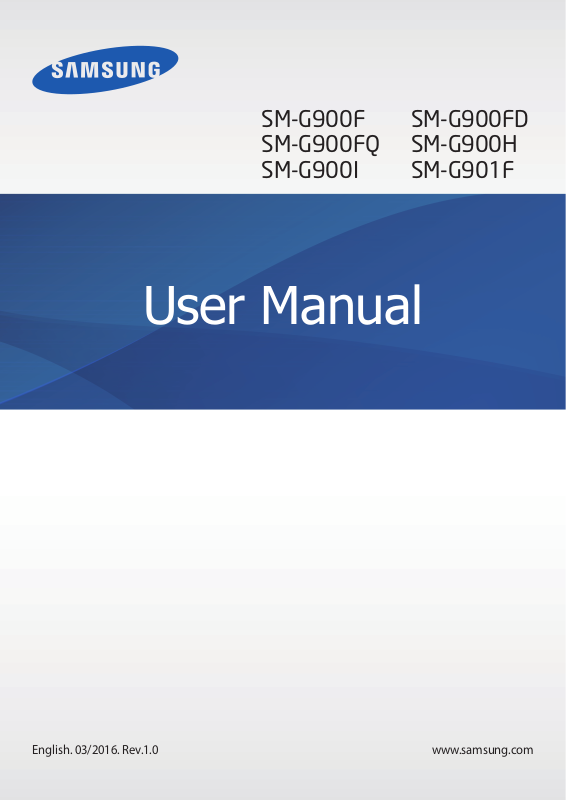

Samsung SM-G900F, SM-G900FQ, SM-G900I, SM-G900FD, SM-G900H User Guide
...
SM-G900F
SM-G900FD
SM-G900FQ
SM-G900I
SM-G900H
SM-G901F
User Manual
English. 03/2016. Rev.1.0
www.samsung.com
Table of Contents
Read me first
Getting started
8 Device layout
10 Buttons
11 Package contents
12 Installing the SIM or USIM card and
battery
16 Using dual SIM or USIM cards (dual SIM
models)
17 Charging the battery
20 Inserting a memory card
22 Turning the device on and off
22 Holding the device
23 Locking and unlocking the device
Personalising
40 Switching to easy mode
40 Managing the Home and Apps screens
43 Changing the screen lock method
44 Setting wallpaper
44 Changing ringtones
45 Setting up accounts
45 Moving contacts from other devices to
your device
Network connectivity
47 Connecting to a mobile network
47 Connecting to a Wi-Fi network
48 Using Download booster
49 Using Smart network switch
Basics
24 Using the touch screen
27 Indicator icons
28 Notifications and quick setting panels
31 Home and Apps screens
34 Opening apps
34 Installing or uninstalling apps
36 Entering text
38 Using the power saving feature
39 Accessing help information
49 Tethering devices and using mobile
hotspots
Motions & usability features
52 Control motions
56 Air view
56 Multi window
60 Toolbox
61 One-handed operation
62 Increasing touch screen sensitivity
2
Table of Contents
Phone
63 Making calls
67 Receiving calls
68 During a call
Contacts
69 Adding contacts
69 Managing contacts
Messages & email
71 Messages
73 Email
Gallery
88 Viewing content on the device
90 Modifying content on the device
Internet & SNS
93 Internet
94 Chrome
94 Hangouts
S Health
95 About S Health
95 Starting S Health
74 Gmail
Camera
75 Taking photos or videos
77 Using the HDR (Rich tone) effect
77 Using selective focus mode
79 Launching Camera on the locked
screen
79 Using the shooting mode
80 Using shot & more mode
82 Using dual camera mode
83 Using virtual tour mode
85 Applying filter effects
85 Using the zoom feature
86 Using remote viewfinder mode
87 Changing Camera settings
96 Using S Health
97 Measuring steps taken
98 Using the additional menus
Voice features
99 S Voice
101 Voice Recorder
103 Voice Search
103 Car mode
Multimedia
108 Music
110 Video
111 YouTube
112 Flipboard
112 Google+
3
Table of Contents
112 Photos
113 Play Games
113 Play Music
113 Play Newsstand
Security
114 Finger Scanner
117 Private mode
Safety
119 Emergency mode
121 Sending help messages
122 Severe weather notification (Geo
News)
Connecting with other
devices
136 NFC
138 Bluetooth
140 S Beam
141 Quick connect
143 Peel Smart Remote
146 Screen Mirroring
148 Using the mobile printing feature
Device & data manager
149 Upgrading the device
150 Transferring files between the device
and a computer
151 Backing up and restoring data
Utilities
124 S Finder
125 S Planner
127 Calculator
128 Clock
129 Drive
129 Dropbox
130 Google
131 Kids Mode
132 Magnifier
133 Maps
133 Memo
134 My Files
152 Performing a data reset
Settings
153 About Settings
153 Quick settings
153 Network connections
157 Connect and share
158 Sound and display
163 Personalisation
164 Motion
165 User and backup
166 System
173 Applications
4
Table of Contents
Accessibility
174 Accessibility
175 Using the Home button to open
accessibility menus
175 TalkBack
185 Changing the font size
186 Magnifying the screen
186 Setting notification reminders
186 Reversing the display colours
187 Colour adjustment
187 Setting flash notification
187 Turning off all sounds
188 Customising caption settings
188 Adjusting the sound balance
189 Using mono audio
189 Using baby crying detector
189 Using the assistive menus
191 Turning on the screen with the air
gesture feature
191 Setting tap and hold delay options
191 Using interaction control mode
192 Answering or ending calls
192 Using single tap mode
193 Configuring accessibility settings
194 Using other useful features
Troubleshooting
5
Read me first
This device provides mobile communication and media services using Samsung’s latest
standards and technological expertise. This user manual and the information available at
www.samsung.com contain details about the device’s functions and features.
•
Please read this manual before using the device to ensure safe and proper use.
•
Descriptions are based on the device’s default settings.
•
Some content may differ from your device depending on the region, service provider, or
device’s software.
•
Content (high quality content) that requires high CPU and RAM usage will affect the
overall performance of the device. Apps related to the content may not work properly
depending on the device’s specifications and the environment that it is used in.
•
Samsung is not liable for performance issues caused by apps supplied by providers other
than Samsung.
•
Samsung is not liable for performance issues or incompatibilities caused by edited
registry settings or modified operating system software. Attempting to customise the
operating system may cause the device or apps to work improperly.
•
Software, sound sources, wallpapers, images, and other media provided with this device
are licensed for limited use. Extracting and using these materials for commercial or other
purposes is an infringement of copyright laws. Users are entirely responsible for illegal
use of media.
•
You may incur additional charges for data services, such as messaging, uploading and
downloading, auto-syncing, or using location services. To avoid additional charges, select
an appropriate data tariff plan. For details, contact your service provider.
•
Default apps that come with the device are subject to updates and may no longer be
supported without prior notice. If you have questions about an app provided with
the device, contact a Samsung Service Centre. For user-installed apps, contact service
providers.
•
Modifying the device’s operating system or installing softwares from unofficial sources
may result in device malfunctions and data corruption or loss. These actions are violations
of your Samsung licence agreement and will void your warranty.
•
Depending on the region, you can view the regulatory information on the device. To view
Apps
→
the information, tap
Settings
→
About device
6
→
Regulatory information
.
Read me first
Instructional icons
Warning: situations that could cause injury to yourself or others
Caution: situations that could cause damage to your device or other equipment
Note: notes, usage tips, or additional information
7
Getting started
Infrared LED
Headset jack
Device layout
Notification light
Proximity/Light/Gesture
sensor
Earpiece
Touch screen
Home button
Recent apps button
Microphone
GPS antenna
Front camera
Power button
Back button
Multipurpose jack
Microphone
Rear camera
Flash
Back cover
Speaker
Volume button
NFC antenna (on the
battery)
Main antenna
8
Getting started
•
Do not cover the antenna area with your hands or other objects. This may cause
connectivity problems or drain the battery.
•
Do not use a screen protector. This causes sensor malfunctions.
Maintaining water and dust resistance
The device may be damaged if water or dust enters the device. Follow these tips carefully to
prevent damage to the device and to maintain the water- and dust-resistant performance of
the device.
•
Do not immerse the device in water deeper than 1 m and keep it submerged for more
than 30 minutes.
•
Ensure that the back and multipurpose jack covers are tightly closed. Otherwise, they
may not provide protection from water and dust.
•
Do not immerse the device in water for extended periods.
•
Do not expose the device to water moving with force, such as water running from a tap,
ocean waves, or waterfalls.
•
Do not open the device’s covers when the device is in water or in very humid places, such
as swimming pools or bathrooms.
•
Do not open the back cover using wet hands or when the device is wet.
•
The rubber seal fitted to the back cover is an important component of the device. Take
care when opening and closing the back cover to avoid damaging the rubber seal. Also,
ensure that the rubber seal is free from debris, such as sand or dust to prevent damage to
the device.
•
Do not detach or remove the multipurpose jack cover from the device.
•
If the device is exposed to freshwater, dry it thoroughly with a clean, soft cloth. If the
device is exposed to any liquid other than freshwater, rinse the device with freshwater
immediately and dry it thoroughly with a clean, soft cloth. Failure to rinse the device
in freshwater and dry it as instructed may cause the device to suffer from operability
or cosmetic issues.
•
The back and multipurpose jack covers may be loosened if the device is dropped or
receives an impact. Ensure that all the covers are properly aligned and tightly closed.
9
Getting started
•
If the device has been immersed in water or the microphone or the speaker is wet,
sound may not be heard clearly during a call. Ensure that the microphone or the speaker
is clean and dry by wiping it with a dry cloth.
•
The water-resistant design of the device causes it to vibrate slightly in certain conditions.
Vibrations in these conditions, such as when the volume level is high are normal and do
not affect the device’s performance.
•
The touch screen and other features may not work properly if the device is used in water
or in other liquids.
•
Your device has been tested in a controlled environment and certified to be waterand dust-resistant in specific situations (meets requirements of classification IP67 as
described by the international standard IEC 60529 - Degrees of Protection provided
by Enclosures [IP Code]; test conditions: 15 - 35 °C, 86 - 106 kPa, 1 metre, 30 minutes).
Despite this classification, your device is not impervious to water damage in any
situation.
Buttons
Button Function
•
Press and hold to turn the device on or off.
Power
Recent apps
Home
•
Press to lock or unlock the device. The device goes into
lock mode when the touch screen turns off.
•
Tap to open the list of recent apps.
•
Tap and hold to access additional options for the current
screen.
•
Press to unlock the device. The device goes into lock
mode when the touch screen turns off.
•
Press to return to the Home screen.
Back
•
Press twice to launch
•
Press and hold to launch
•
Tap to return to the previous screen.
10
S Voice
Google
.
.
Getting started
Button Function
Volume
•
Press to adjust the device volume.
Package contents
Check the product box for the following items:
•
Device
•
Battery
•
Quick start guide
•
The items supplied with the device and any available accessories may vary
depending on the region or service provider.
•
The supplied items are designed only for this device and may not be compatible
with other devices.
•
Appearances and specifications are subject to change without prior notice.
•
You can purchase additional accessories from your local Samsung retailer. Make
sure they are compatible with the device before purchase.
•
Use only Samsung-approved accessories. Some accessories, such as docking
devices, may not have the same water- and dust-resistance certification.
•
Availability of all accessories is subject to change depending entirely on
manufacturing companies. For more information about available accessories, refer
to the Samsung website.
11
Getting started
Installing the SIM or USIM card and battery
Insert the SIM or USIM card provided by the mobile telephone service provider, and the
included battery.
•
Only microSIM cards work with the device.
•
Some LTE services may not be available depending on the service provider. For
details about service availability, contact your service provider.
Remove the back cover.
1
Be careful not to damage your fingernails when you remove the back cover.
Do not bend or twist the back cover excessively. Doing so may damage the cover.
12
Getting started
►
2
Single SIM models: Insert the SIM or USIM card with the gold-coloured contacts
facing downwards.
►
Dual SIM models: Insert the SIM or USIM card with the gold-coloured contacts facing
downwards.
Insert the primary SIM or USIM card into SIM card slot 1 (
USIM card into SIM card slot 2 (
2 ).
1 ) and the secondary SIM or
1
2
•
Do not insert a memory card into the SIM card slot. If a memory card happens to
be lodged in the SIM card slot, take the device to a Samsung Service Centre to
remove the memory card.
•
Use caution not to lose or let others use the SIM or USIM card. Samsung is not
responsible for any damages or inconveniences caused by lost or stolen cards.
13
Getting started
Insert the battery.
3
Replace the back cover.
4
2
1
2
1
Press
Align
•
Ensure that the back cover is closed tightly.
•
Use only Samsung-approved back covers and accessories with the device.
14
Getting started
Removing the SIM or USIM card and battery
Remove the back cover.
1
Pull out the battery.
2
3
►
Single SIM models: Press the SIM or USIM card with your finger, and then pull it out.
►
Dual SIM models: Press the SIM or USIM card with your finger, and then pull it out.
15
Getting started
Using dual SIM or USIM cards (dual SIM models)
If you insert two SIM or USIM cards, you can have two phone numbers or service providers for
a single device.
Activating SIM or USIM cards
On the Home screen, tap
switches for the SIM or USIM cards to the right.
If both cards are activated, you can receive calls and messages on each card. However,
if you are on a call using one card, the other card cannot be used to receive new calls.
Apps
→
Settings
→
SIM card manager
. Drag one or both of the
Changing the display name and icon of SIM or USIM cards
On the Home screen, tap
and tap
Register name
or
Apps
Select
→
Settings
icon. Set a display name and icon for each card.
→
SIM card manager
. Select a SIM or USIM card
Switching between cards
When two SIM or USIM cards are activated, card selection icons appear on the dashboard of
the notifications panel. Open the notifications panel and then select a card.
16
Getting started
Charging the battery
Use the charger to charge the battery before using it for the first time. A computer can be also
used to charge the device by connecting them via the USB cable.
Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or
cables can cause the battery to explode or damage the device.
•
When the battery power is low, the battery icon appears empty.
•
If the battery is completely discharged, the device cannot be turned on
immediately when the charger is connected. Allow a depleted battery to charge for
a few minutes before turning on the device.
•
If you use multiple apps at once, network apps, or apps that need a connection
to another device, the battery will drain quickly. To avoid disconnecting from the
network or losing power during a data transfer, always use these apps after fully
charging the battery.
Connect the USB cable to the USB power adaptor.
1
Open the multipurpose jack cover.
2
When using a USB cable, plug the USB cable into the right side of the multipurpose jack
3
as shown in the image below.
17
Getting started
•
Connecting the charger improperly may cause serious damage to the device. Any
damage caused by misuse is not covered by the warranty.
•
Ensure that the back cover and the multipurpose jack cover are closed tightly to
prevent water and dust entering the device. Open or loose covers may allow water
and dust to enter the device and cause damage.
•
Be careful not to damage or detach the multipurpose jack cover. A damaged or
missing cover can result in water damage to the device.
Plug the USB power adaptor into an electric socket.
4
•
The device can be used while it is charging, but it may take longer to fully charge
the battery.
•
If the device receives an unstable power supply while charging, the touch screen
may not function. If this happens, unplug the charger from the device.
•
While charging, the device may heat up. This is normal and should not affect the
device’s lifespan or performance. If the battery gets hotter than usual, the charger
may stop charging.
•
If the device is not charging properly, take the device and the charger to a
Samsung Service Centre.
After fully charging, disconnect the device from the charger. First unplug the charger
5
from the device, and then unplug it from the electric socket.
Do not remove the battery before removing the charger. This may damage the
device.
To save energy, unplug the charger when not in use. The charger does not have a
power switch, so you must unplug the charger from the electric socket when not in
use to avoid wasting power. The charger should remain close to the electric socket
and easily accessible while charging.
18
Getting started
Close the multipurpose jack cover.
6
Ensure that the multipurpose jack cover is closed tightly.
Reducing the battery consumption
Your device provides options that help you save battery power. By customising these options
and deactivating features in the background, you can use the device longer between charges:
•
When you are not using the device, switch to sleep mode by pressing the Power button.
•
Close unnecessary apps with the task manager.
•
Deactivate the Bluetooth feature.
•
Deactivate the Wi-Fi feature.
•
Deactivate auto-syncing of apps.
•
Decrease the backlight time.
•
Decrease the brightness of the display.
19
Getting started
Inserting a memory card
Your device accepts memory cards with maximum capacities of 128 GB. Depending on the
memory card manufacturer and type, some memory cards may not be compatible with your
device.
•
Some memory cards may not be fully compatible with the device. Using an
incompatible card may damage the device or the memory card, or corrupt the data
stored in it.
•
Use caution to insert the memory card right-side up.
•
The device supports the FAT and the exFAT file systems for memory cards. When
inserting a card formatted in a different file system, the device asks to reformat the
memory card.
•
Frequent writing and erasing of data shortens the lifespan of memory cards.
•
When inserting a memory card into the device, the memory card’s file directory
appears in the
Remove the back cover.
1
Insert a memory card with the gold-coloured contacts facing downwards.
2
My Files
→
SD card
folder.
Replace the back cover.
3
20
Getting started
Removing the memory card
Before removing the memory card, first unmount it for safe removal. On the Home screen, tap
Apps
→
Settings
Remove the back cover.
1
Pull out the memory card.
2
Replace the back cover.
3
Do not remove the memory card while the device is transferring or accessing
information. Doing so can cause data to be lost or corrupted or damage to the
memory card or device. Samsung is not responsible for losses that result from the
misuse of damaged memory cards, including the loss of data.
→
Storage
→
SD card
→
Unmount
.
Formatting the memory card
A memory card formatted on a computer may not be compatible with the device. Format the
memory card on the device.
On the Home screen, tap
Before formatting the memory card, remember to make backup copies of all
important data stored on the device. The manufacturer’s warranty does not cover loss
of data resulting from user actions.
Apps
→
Settings
→
Storage
→
SD card
→
Format
→
FORMAT
.
21
Getting started
Turning the device on and off
When turning on the device for the first time, follow the on-screen instructions to set up your
device.
Press and hold the Power button for a few seconds to turn on the device.
To turn off the device, press and hold the Power button, and then tap
Follow all posted warnings and directions from authorised personnel in areas where
the use of wireless devices is restricted, such as aeroplanes and hospitals.
Holding the device
Power off
.
Do not cover the antenna area with your hands or other objects. This may cause connectivity
problems or drain the battery.
22
Getting started
Locking and unlocking the device
Pressing the Power button turns off the screen and puts the device into lock mode. The
device automatically gets locked if it is not used for a specified period.
To unlock the device, press the Power button or the Home button and flick your finger in any
direction within the unlock screen area.
You can change the unlock code to unlock the device. Refer to Changing the screen lock
method for details.
23
Basics
Using the touch screen
•
Do not allow the touch screen to come into contact with other electrical devices.
Electrostatic discharges can cause the touch screen to malfunction.
•
To avoid damaging the touch screen, do not tap it with anything sharp or apply
excessive pressure to it with your fingertips.
•
The device may not recognise touch inputs close to the edges of the screen, which
are outside of the touch input area.
•
Leaving the touch screen idle for extended periods may result in afterimages
(screen burn-in) or ghosting. Turn off the touch screen when you do not use the
device.
•
It is recommended to use fingers when you use the touch screen.
Tapping
To open an app, to select a menu item, to press an on-screen button, or to enter a character
using the keyboard on the screen, tap it with a finger.
24
Basics
Tapping and holding
Tap and hold an item for more than 2 seconds to access available options.
Dragging
To move an icon or thumbnail, tap and hold it and drag it to the target position.
Double-tapping
Double-tap on a webpage or image to zoom in a part. Double-tap again to return.
25
Basics
Flicking
Flick left or right on the Home screen or the Apps screen to see another panel. Flick up or
down to scroll through a webpage or a list, such as contacts.
Spreading and pinching
Spread two fingers apart on a webpage, map, or image to zoom in a part. Pinch to zoom out.
26
Basics
Indicator icons
The icons displayed on the status bar provide information about the status of the device. The
icons listed in the table below are most common.
The status bar may not appear at the top of the screen in some apps. To display the
status bar, drag down from the top of the screen.
Icon Meaning
No signal
/
/
/
Signal strength
Currently accessing SIM or USIM card (dual SIM models)
Roaming (outside of normal service area)
GPRS network connected
EDGE network connected
UMTS network connected
HSDPA network connected
HSPA+ network connected
LTE network connected (for models that support LTE service)
Wi-Fi connected
Bluetooth feature activated
GPS activated
Call in progress
Missed call
Air browse feature activated
Smart stay or smart pause feature activated
Synced with the web
Connected to computer
No SIM or USIM card
New text or multimedia message
27
Basics
Icon Meaning
Alarm activated
Mute mode activated
Vibration mode activated
Flight mode activated
Error occurred or caution required
Battery power level
Notifications and quick setting panels
Using the notifications panel
When you receive new notifications, such as messages or missed calls, indicator icons appear
on the status bar. To see more information about the icons, open the notifications panel and
view the details.
To open the notifications panel, drag the status bar downwards.
To close the notifications panel, swipe upwards on the screen.
28
Basics
Launch Settings.
Launch Settings.
You can use the following functions on the notifications panel.
►
Single SIM models:
Activate or deactivate options.
Tap and hold options to view
more detailed settings.
View all quick setting buttons.
Launch S Finder.
Adjust the brightness.
►
Dual SIM models:
Activate or deactivate options.
Tap and hold options to view
more detailed settings.
Launch Quick connect.
Tap a notification and perform
various actions.
Clear all notifications.
View all quick setting buttons.
Adjust the brightness.
Launch S Finder.
Select a SIM or USIM card.
29
Launch Quick connect.
Tap a notification and perform
various actions.
Clear all notifications.
Basics
Using the quick setting panel
A number of quick setting buttons are available on the notifications panel. To view or access
more quick setting buttons, open the quick setting panel. When you open the quick setting
panel, you can activate or deactivate various features or configure settings.
To open the quick setting panel, drag the status bar downwards with two fingers.
To close the quick setting panel, swipe upwards on the screen.
To rearrange quick setting buttons on the notifications panel, tap
and then drag the item to another location.
, tap and hold an item,
30
Loading...
