Samsung SM-A205F, SM-A205FN, SM-A205GN, SM-A205YN, SM-A305F User Guide

...

SM-A205F SM-A205F/DS SM-A205FN/DS SM-A205GN SM-A205GN/DS SM-A205YN SM-A305F SM-A305F/DS SM-A305FN/DS SM-A305GN SM-A305GN/DS SM-A305YN

USER MANUAL

English. 04/2019. Rev.1.0

www.samsung.com

Table of Contents

Basics

4 Read me first

6 Device overheating situations and

solutions

10 Device layout and functions

17 Battery

19 SIM or USIM card (nano-SIM card)

25 Memory card (microSD card)

29 Turning the device on and off

30 Initial setup

32 Samsung account

34 Transferring data from your previous

device (Smart Switch)

35 Understanding the screen

48 Notification panel

70 Messages

73 Internet

75 Email

76 Camera

88 Gallery

93 AR Emoji (Galaxy A30)

99 Always On Display (Galaxy A30)

102 Multi window

105 Kids Home (Galaxy A30)

107 Galaxy Wearable

107 Samsung Members

108 Samsung Notes

109 Calendar

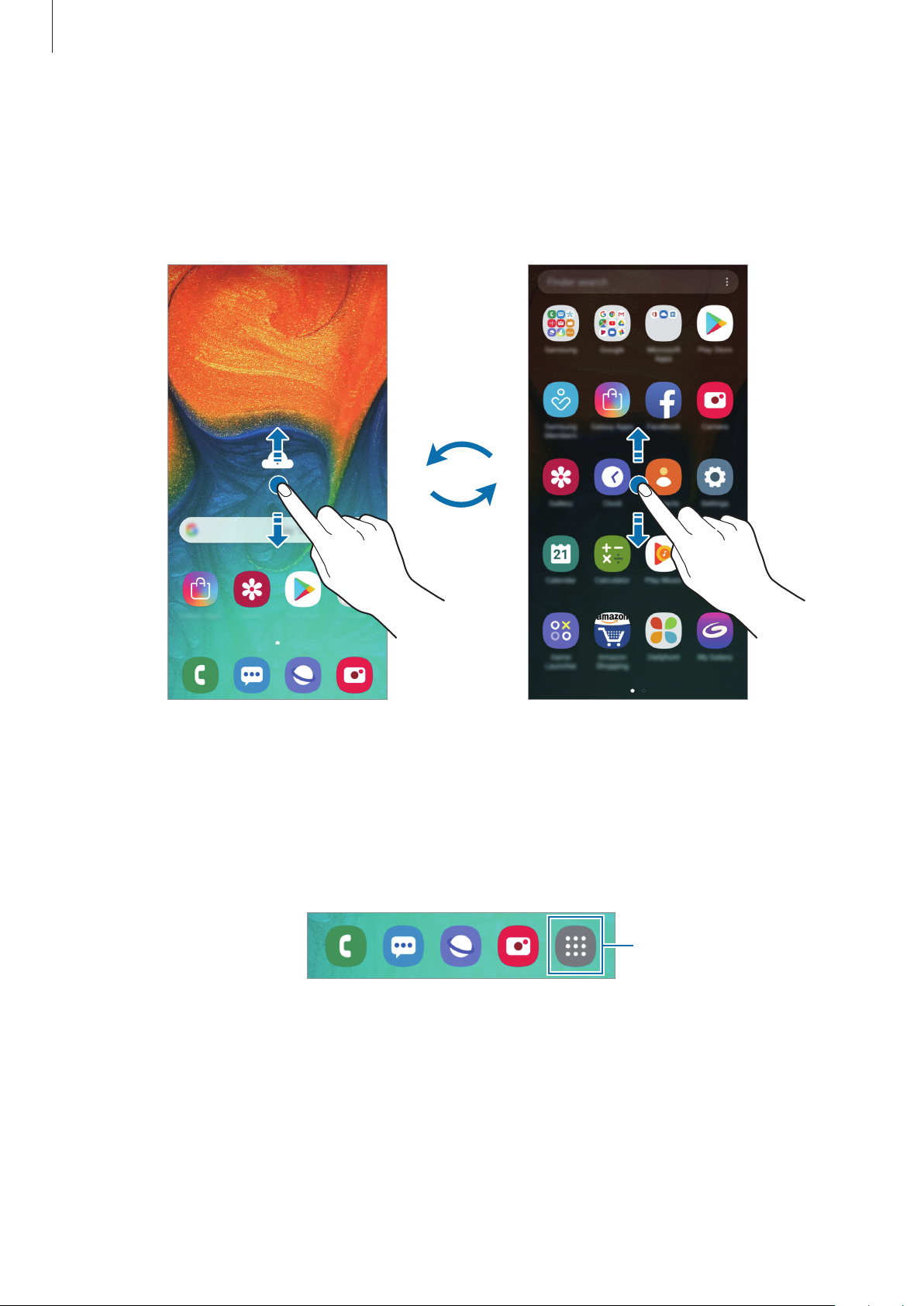

110 Samsung Health

114 Radio

50 Entering text

Apps and features

53 Installing or uninstalling apps

55 Bixby Home (Galaxy A30)

57 Reminder

61 Phone

66 Contacts

115 Voice Recorder

116 My Files

116 Clock

118 Calculator

119 Game Launcher

122 SmartThings

126 Sharing content

127 Google apps

Table of Contents

Settings

129 Introduction

129 Connections

131 Wi-Fi

133 Bluetooth

135 NFC and payment (NFC-enabled

models)

137 Data saver

138 SIM card manager (dual SIM

models)

138 Mobile Hotspot and Tethering

140 More connection settings

142 Sounds and vibration

143 Dolby Atmos (surround sound)

143 Separate app sound

144 Notifications

144 App icon badges

170 Google

171 Advanced features

172 Dual Messenger

173 Digital wellbeing

175 Device care

178 Apps

179 General management

180 Accessibility

180 Software update

181 User manual

181 About phone

Appendix

182 Troubleshooting

189 Removing the battery

145 Display

146 Blue light filter

147 Changing the screen mode or

adjusting the display colour

148 Screensaver

149 Wallpapers and themes

149 Lock screen

150 Smart Lock

151 Biometrics and security

152 Face recognition

155 Fingerprint recognition

158 Samsung Pass

163 Secure Folder

168 Accounts and backup

169 Samsung Cloud

Basics

Read me first

Please read this manual before using the device to ensure safe and proper use.

•

Descriptions are based on the device’s default settings.

•

Some content may differ from your device depending on the region, service provider, model specifications, or device’s software.

•

Content (high quality content) that requires high CPU and RAM usage will affect the overall performance of the device. Apps related to the content may not work properly depending on the device’s specifications and the environment that it is used in.

•

Samsung is not liable for performance issues caused by apps supplied by providers other than Samsung.

•

Samsung is not liable for performance issues or incompatibilities caused by edited registry settings or modified operating system software. Attempting to customise the operating system may cause the device or apps to work improperly.

•

Software, sound sources, wallpapers, images, and other media provided with this device are licensed for limited use. Extracting and using these materials for commercial or other purposes is an infringement of copyright laws. Users are entirely responsible for illegal use of media.

•

You may incur additional charges for data services, such as messaging, uploading and downloading, auto-syncing, or using location services depending on your data plan. For large data transfers, it is recommended to use the Wi-Fi feature.

•

Default apps that come with the device are subject to updates and may no longer be supported without prior notice. If you have questions about an app provided with the device, contact a Samsung Service Centre. For user-installed apps, contact service providers.

Basics

•

Modifying the device’s operating system or installing softwares from unofficial sources may result in device malfunctions and data corruption or loss. These actions are violations of your Samsung licence agreement and will void your warranty.

•

Depending on the region or service provider, a screen protector is attached for protection during production and distribution. Damage to the attached screen protector is not covered by the warranty.

•

You can see the touchscreen clearly even in strong outdoor sunlight by automatically adjusting the contrast range based on the surrounding environment. Due to the nature of the product, displaying fixed graphics for extended periods may result in afterimages (screen burn-in) or ghosting.

–

It is recommended not to use fixed graphics on part or all of the touchscreen for extended periods and turn off the touchscreen when not using the device.

–

You can set the touchscreen to turn off automatically when you are not using it. Launch the of time you want the device to wait before turning off the touchscreen.

–

To set the touchscreen to automatically adjust its brightness based on the surrounding environment, launch the

Adaptive brightness

•

Depending on the region or model, some devices are required to receive approval from the Federal Communications Commission (FCC). If your device is approved by the FCC, you can view the FCC ID of the device. To view the FCC ID, launch the

About phone

tap

•

Depending on the region, you can view the regulatory information on the device. To view the information, launch the

information

Settings

→

app, tap

switch to activate it.

Status

Display

Settings

→

Screen timeout

Settings

app and tap

app, tap

, and then select the length

Display

About phone

, and then tap the

Settings

→

Regulatory

app and

Basics

Instructional icons

Warning: situations that could cause injury to yourself or others

Caution: situations that could cause damage to your device or other equipment

Notice: notes, usage tips, or additional information

Device overheating situations and solutions

When the device heats up while charging the battery

While charging, the device and the charger may become hot. During wireless charging or fast charging, the device may feel hotter to the touch. This does not affect the device’s lifespan or performance and is in the device’s normal range of operation. If the battery becomes too hot, the charger may stop charging.

Do the following when the device heats up:

•

Disconnect the charger from the device and close any running apps. Wait for the device to cool down and then begin charging the device again.

•

If the lower part of the device overheats, it could be because the connected USB cable is damaged. Replace the damaged USB cable with a new Samsung-approved one.

•

When using a wireless charger, do not place foreign materials, such as metal objects, magnets, and magnetic stripe cards, between the device and the wireless charger.

The wireless charging or fast charging feature is only available on supported models.

Basics

When the device heats up during use

When you use features or apps that require more power or use them for extended periods, your device may temporarily heat up due to increased battery consumption. Close any running apps and do not use the device for a while.

The following are examples of situations in which the device may overheat. Depending on the functions and apps you use, these examples may not apply to your model.

•

During the initial setup after purchase or when restoring data

•

When downloading large files

•

When using apps that require more power or using apps for extended periods

–

When playing high-quality games for extended periods

–

When recording videos for extended periods

–

When streaming videos while using the maximum brightness setting

–

When connecting to a TV

•

While multitasking (or, when running many apps in the background)

–

When using Multi window

–

When updating or installing apps while recording videos

–

When downloading large files during a video call

–

When recording videos while using a navigation app

•

When using large amount of data for syncing with the cloud, email, or other accounts

•

When using a navigation app in a car while the device is placed in direct sunlight

•

When using the mobile hotspot and tethering feature

•

When using the device in areas with weak signals or no reception

•

When charging the battery with a damaged USB cable

•

When the device’s multipurpose jack is damaged or exposed to foreign materials, such as liquid, dust, metal powder, and pencil lead

•

When you are roaming

Basics

Do the following when the device heats up:

•

Keep the device updated with the latest software.

•

Conflicts between running apps may cause the device to heat up. Restart the device.

•

Deactivate the Wi-Fi, GPS, and Bluetooth features when not using them.

•

Close apps that increase battery consumption or that run in the background when not in use.

•

Delete unnecessary files or unused apps.

•

Decrease the screen brightness.

•

If the device overheats or feels hot for a prolonged period, do not use it for a while. If the device continues to overheat, contact a Samsung Service Centre.

Device limitations when the device overheats

When the device heats up, the features and performance may be limited or the device may turn off to cool down. The feature is only available on supported models.

•

If the device becomes hotter than usual, a device overheating message will appear. To lower the device’s temperature, the screen brightness and the performance speed will be limited and battery charging will stop. Running apps will be closed and you will only be able to make emergency calls until the device cools down.

•

If the device overheats or feels hot for a prolonged period, a power off message will appear. Turn off the device, and wait until it cools down.

Basics

Precautions for operating environment

Your device may heat up due to the environment in the following conditions. Use caution to avoid shortening the battery’s lifespan, damaging the device, or causing a fire.

•

Do not store your device in very cold or very hot temperatures.

•

Do not expose your device to direct sunlight for extended periods.

•

Do not use or store your device for extended periods in very hot areas, such as inside a car in the summertime.

•

Do not place the device in any areas that may overheat, such as on an electric heating mat.

•

Do not store your device near or in heaters, microwaves, hot cooking equipment, or high pressure containers.

•

Never use a damaged charger or battery.

Basics

Device layout and functions

Package contents

Refer to the quick start guide for package contents.

•

The items supplied with the device and any available accessories may vary depending on the region or service provider.

•

The supplied items are designed only for this device and may not be compatible with other devices.

•

Appearances and specifications are subject to change without prior notice.

•

You can purchase additional accessories from your local Samsung retailer. Make sure they are compatible with the device before purchase.

•

Use only Samsung-approved accessories. Using unapproved accessories may cause the performance problems and malfunctions that are not covered by the warranty.

•

Availability of all accessories is subject to change depending entirely on manufacturing companies. For more information about available accessories, refer to the Samsung website.

Basics

Speaker

Proximity sensor

Device layout

►

Galaxy A20:

Front camera

Volume key

Power key

Touchscreen

Multipurpose jack

(USB Type-C)

Basics

NFC antenna

(NFC-enabled models)

GPS antenna

Rear camera

(Dual)

Flash

Fingerprint recognition

sensor

Speaker

Microphone

SIM card / Memory card tray

Main antenna

Earphone jack

Microphone

Basics

Speaker

►

Galaxy A30:

Proximity sensor

Front camera

Touchscreen

Multipurpose jack

(USB Type-C)

Light sensor

Volume key

Power key

Basics

NFC antenna

(NFC-enabled models)

GPS antenna

Rear camera

(Dual)

Flash

Fingerprint recognition

sensor

Speaker

Microphone

SIM card / Memory card tray

Main antenna

Earphone jack

Microphone

•

When using the speakers, such as when playing media files or using speakerphone, do not place the device close to your ears.

•

Be careful not to expose the camera lens to a strong light source, such as direct sunlight. If the camera lens is exposed to a strong light source, such as direct sunlight, the camera image sensor may be damaged. A damaged image sensor is irreparable and will cause dots or spots in pictures.

•

If you use the device with its glass or acrylic body broken, there may be a risk of injury. Use the device only after it has been repaired at a Samsung Service Centre.

Basics

•

Connectivity problems and battery drain may occur in the following situations:

–

If you attach metallic stickers on the antenna area of the device

–

If you attach a device cover made with metallic material to the device

–

If you cover the device’s antenna area with your hands or other objects while using certain features, such as calls or the mobile data connection

•

Using a Samsung-approved screen protector is recommended. Unapproved screen protectors may cause the sensors to malfunction.

•

Do not cover the proximity/light sensor area with screen accessories, such as a screen protector or stickers. Doing so may cause the sensor to malfunction.

•

Do not allow water to contact the touchscreen. The touchscreen may malfunction in humid conditions or when exposed to water.

Hard keys

Key Function

•

Press and hold to turn the device on or off.

Power

•

Press to turn on or lock the screen.

Volume

•

Press to adjust the device volume.

Volume key

Power key

Basics

Home button

Soft buttons

Recents button

Back button

When you turn on the screen, the soft buttons will appear at the bottom of the screen. The soft buttons are set to the Recents button, Home button, and Back button by default. Refer to

Navigation bar (soft buttons) for more information.

Basics

Battery

Charging the battery

Charge the battery before using it for the first time or when it has been unused for extended periods.

Use only Samsung-approved chargers, batteries, and cables. Unapproved chargers or cables can cause the battery to explode or damage the device.

•

Connecting the charger improperly may cause serious damage to the device. Any damage caused by misuse is not covered by the warranty.

•

Use only USB Type-C cable supplied with the device. The device may be damaged if you use Micro USB cable.

To save energy, unplug the charger when not in use. The charger does not have a power switch, so you must unplug the charger from the electric socket when not in use to avoid wasting power. The charger should remain close to the electric socket and easily accessible while charging.

Connect the USB cable to the USB power adaptor.

Plug the USB cable into the device’s multipurpose jack.

Basics

Plug the USB power adaptor into an electric socket.

After fully charging, disconnect the charger from the device. Then, unplug the charger

from the electric socket.

Reducing the battery consumption

Your device provides various options that help you conserve battery power.

•

Optimise the device using the device care feature.

•

When you are not using the device, turn off the screen by pressing the Power key.

•

Activate power saving mode.

•

Close unnecessary apps.

•

Deactivate the Bluetooth feature when not in use.

•

Deactivate auto-syncing of apps that need to be synced.

•

Decrease the backlight time.

•

Decrease the screen brightness.

Battery charging tips and precautions

•

When the battery power is low, the battery icon appears empty.

•

If the battery is completely discharged, the device cannot be turned on immediately when the charger is connected. Allow a depleted battery to charge for a few minutes before turning on the device.

•

If you use multiple apps at once, network apps, or apps that need a connection to another device, the battery will drain quickly. To avoid losing power during a data transfer, always use these apps after fully charging the battery.

•

Using a power source other than the charger, such as a computer, may result in a slower charging speed due to a lower electric current.

•

The device can be used while it is charging, but it may take longer to fully charge the battery.

•

If the device receives an unstable power supply while charging, the touchscreen may not function. If this happens, unplug the charger from the device.

Basics

•

While charging, the device and the charger may heat up. This is normal and should not affect the device’s lifespan or performance. If the battery gets hotter than usual, the charger may stop charging.

•

If you charge the device while the multipurpose jack is wet, the device may be damaged. Thoroughly dry the multipurpose jack before charging the device.

•

If the device is not charging properly, take the device and the charger to a Samsung Service Centre.

Fast charging

The device has a built-in fast charging feature. You can charge the battery more quickly while the device or its screen is turned off.

Increasing the charging speed

To increase the charging speed, turn the device or its screen off when you charge the battery. While charging the battery when the device is turned off, the

If the fast charging feature is not activated, launch the

Battery

→ →

•

Settings

You cannot use the built-in fast charging feature when you charge the battery using a standard battery charger.

If the device heats up or the ambient air temperature rises, the charging speed may decrease automatically. This is a normal operating condition to prevent damage to the device.

, and then tap the

Fast cable charging

Settings

icon appears on the screen.

app, tap

switch to activate it.

Device care

→

SIM or USIM card (nano-SIM card)

Installing the SIM or USIM card

Insert the SIM or USIM card provided by the mobile telephone service provider.

For dual SIM models, you can insert two SIM or USIM cards so you can have two phone numbers or service providers for a single device. In some areas, data transfer speeds may be slower if two SIM cards are inserted in the device than when one SIM card is inserted.

Use caution not to lose or let others use the SIM or USIM card. Samsung is not responsible for any damages or inconveniences caused by lost or stolen cards.

Basics

Some LTE services may not be available depending on the service provider. For more information about service availability, contact your service provider.

►

Single SIM models:

Basics

►

Dual SIM models:

Basics

Insert the ejection pin into the hole next to the tray to loosen the tray.

Ensure that the ejection pin is perpendicular to the hole. Otherwise, the device may be damaged.

Pull out the tray gently from the tray slot.

►

Single SIM models: Place the SIM or USIM card on the SIM card tray with the gold-

coloured contacts facing downwards.

►

Dual SIM models: Place the SIM or USIM card on the SIM card tray with the gold- coloured contacts facing downwards. Place the primary SIM or USIM card on the SIM card tray 1 (

1 ) and the secondary SIM or USIM card on the SIM card tray 2 ( 2 ).

SIM card tray 1

Gently press the SIM or USIM card into the SIM card tray to secure it.

If the card is not fixed firmly into the tray, the SIM card may leave or fall out of the tray.

Insert the tray back into the tray slot.

SIM card tray 2

•

If you insert the tray into your device while the tray is wet, your device may be damaged. Always make sure the tray is dry.

•

Fully insert the tray into the tray slot to prevent liquid from entering your device.

Basics

Correct card installation

►

Single SIM models:

Nano-SIM card

►

Dual SIM models:

microSD card

Nano-SIM card 2

Nano-SIM card 1

Use only a nano-SIM card.

microSD card

Basics

Removing the SIM or USIM card

Insert the ejection pin into the hole next to the tray to loosen the tray.

Pull out the tray gently from the tray slot.

Remove the SIM or USIM card.

Insert the tray back into the tray slot.

Using dual SIM or USIM cards (dual SIM models)

If you insert two SIM or USIM cards, you can have two phone numbers or service providers for a single device.

Activating SIM or USIM cards

Launch the card and tap the switch to activate it.

Settings

app and tap

Connections

→

SIM card manager

. Select a SIM or USIM

Customising SIM or USIM cards

Launch the USIM card to access the following options:

•

Icon

•

Name

•

Network mode

Settings

: Change the icon of the SIM or USIM card.

: Change the display name of the SIM or USIM card.

app, tap

: Select a network type to use with the SIM or USIM card.

Connections

→

SIM card manager

, and then select a SIM or

Setting preferred SIM or USIM cards

When two cards are activated, you can assign voice calls, messaging, and data services to specific cards.

Launch the preferences for your cards in

Settings

app, tap

Connections

Preferred SIM card

→

SIM card manager

, and then set the feature

Basics

Memory card (microSD card)

Installing a memory card

Your device’s memory card capacity may vary from other models and some memory cards may not be compatible with your device depending on the memory card manufacturer and type. To view your device’s maximum memory card capacity, refer to the Samsung website.

•

Some memory cards may not be fully compatible with the device. Using an incompatible card may damage the device or the memory card, or corrupt the data stored in it.

•

Use caution to insert the memory card right-side up.

•

The device supports the FAT and the exFAT file systems for memory cards. When inserting a card formatted in a different file system, the device will ask to reformat the card or will not recognise the card. To use the memory card, you must format it. If your device cannot format or recognise the memory card, contact the memory card manufacturer or a Samsung Service Centre.

•

Frequent writing and erasing of data shortens the lifespan of memory cards.

•

When inserting a memory card into the device, the memory card’s file directory appears in the

My Files

→

SD card

folder.

Basics

Insert the ejection pin into the hole next to the tray to loosen the tray.

Ensure that the ejection pin is perpendicular to the hole. Otherwise, the device may be damaged.

Pull out the tray gently from the tray slot.

When you remove the tray from the device, the mobile data connection will be disabled.

Basics

Place a memory card on the memory card tray with the gold-coloured contacts facing

downwards.

Memory card tray

Gently press the memory card into the memory card tray to secure it.

If the card is not fixed firmly into the tray, the memory card may leave or fall out of the tray.

Insert the tray back into the tray slot.

•

If you insert the tray into your device while the tray is wet, your device may be damaged. Always make sure the tray is dry.

•

Fully insert the tray into the tray slot to prevent liquid from entering your device.

Removing the memory card

Before removing the memory card, first unmount it for safe removal.

Launch the

→

card

Insert the ejection pin into the hole next to the tray to loosen the tray.

Pull out the tray gently from the tray slot.

Settings

Unmount

app and tap

Device care

→

Storage

→ →

Storage settings

→

Basics

Remove the memory card.

Insert the tray back into the tray slot.

Do not remove external storage, such as a memory card or USB storage, while the device is transferring or accessing information, or right after transferring data. Doing so can cause data to be corrupted or lost or cause damage to the external storage or device. Samsung is not responsible for losses, including loss of data, resulting from the misuse of external storage devices.

Formatting the memory card

A memory card formatted on a computer may not be compatible with the device. Format the memory card on the device.

Launch the

→

card

Format

Before formatting the memory card, remember to make backup copies of all important data stored in the memory card. The manufacturer’s warranty does not cover loss of data resulting from user actions.

Settings

app and tap

Device care

→

Storage

→ →

Storage settings

→

Basics

Turning the device on and off

Press and hold the Power key for a few seconds to turn on the device.

When you turn on your device for the first time or after performing a data reset, follow the on-screen instructions to set up your device.

To turn off the device, press and hold the Power key, and then tap

Follow all posted warnings and directions from authorised personnel in areas where the use of wireless devices is restricted, such as aeroplanes and hospitals.

Power off

Restarting the device

To restart the device, press and hold the Power key, and then tap

If your device is frozen and unresponsive, press and hold the Power key and the Volume Down key simultaneously for more than 7 seconds to restart it.

Restart

Volume Down key

Power key

Basics

Emergency mode

You can switch the device to emergency mode to reduce battery consumption. Some apps and functions will be restricted. In emergency mode, you can make an emergency call, send your current location information to others, sound an emergency alarm, and more.

Activating emergency mode

To activate emergency mode, press and hold the Power key, and then tap

The usage time left shows the time remaining before the battery power runs out. Usage time left may vary depending on your device settings and operating conditions.

Deactivating emergency mode

To deactivate emergency mode, tap → hold the Power key, and then tap

Emergency mode

Turn off Emergency mode

Emergency mode

. Alternatively, press and

Initial setup

When you turn on your device for the first time or after performing a data reset, follow the on-screen instructions to set up your device.

The initial setup procedures may vary depending on the device’s software and your

region.

Turn on the device.

+ 160 hidden pages
