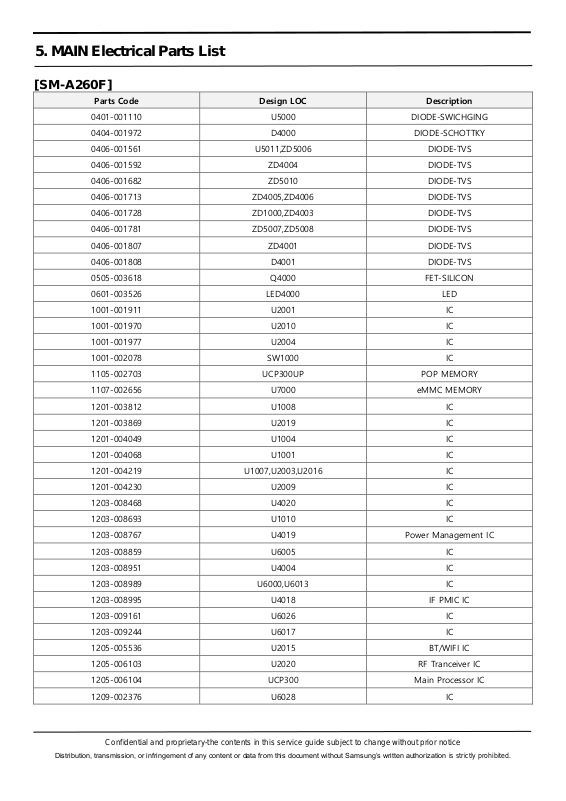

5. MAIN Electrical Parts List
Parts Code
Design LOC
Description
0401-001110
U5000
DIODE-SWICHGING
0404-001972
D4000
DIODE-SCHOTTKY
0406-001561
U5011,ZD5006
DIODE-TVS
0406-001592
ZD4004
DIODE-TVS
0406-001682
ZD5010
DIODE-TVS
0406-001713
ZD4005,ZD4006
DIODE-TVS
0406-001728
ZD1000,ZD4003
DIODE-TVS
0406-001781
ZD5007,ZD5008
DIODE-TVS
0406-001807
ZD4001
DIODE-TVS
0406-001808
D4001
DIODE-TVS
0505-003618
Q4000
FET-SILICON
0601-003526
LED4000
LED
1001-001911
U2001
IC
1001-001970
U2010
IC
1001-001977
U2004
IC
1001-002078
SW1000
IC
1105-002703
UCP300UP
POP MEMORY
1107-002656
U7000
eMMC MEMORY
1201-003812
U1008
IC
1201-003869
U2019
IC
1201-004049
U1004
IC
1201-004068
U1001
IC
1201-004219
U1007,U2003,U2016
IC
1201-004230
U2009
IC
1203-008468
U4020
IC
1203-008693
U1010
IC
1203-008767
U4019
Power Management IC
1203-008859
U6005
IC
1203-008951
U4004
IC
1203-008989
U6000,U6013
IC
1203-008995
U4018
IF PMIC IC
1203-009161
U6026
IC
1203-009244
U6017
IC
1205-005536
U2015
BT/WIFI IC
1205-006103
U2020
RF Tranceiver IC
1205-006104
UCP300
Main Processor IC
1209-002376
U6028
IC
[SM-A260F]
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 2
5. MAIN Electrical Parts List
1209-002645
U6027
IC
1404-001664
TH3000,TH3001
THERMISTOR
1404-001724
TH1000
THERMISTOR
2007-002796
R5016,R5020
R-CHIP
2007-003015
R4013,R4014
R-CHIP
2007-003025
R5026,R5027
R-CHIP
2007-007107
R3021,R4000
R-CHIP
2007-007136
R4011
R-CHIP
2007-007142
R3023,R6011
R-CHIP
2007-007318
R5017
R-CHIP
2007-007489
R5033,R5034
R-CHIP
2007-007741
R3000,R3005,R3007
R-CHIP
2007-007741
R3008,R3009,R5024
R-CHIP
2007-007741
R5032,R7001
R-CHIP
2007-007798
R4015
R-CHIP
2007-007942
R4008,R6010
R-CHIP
2007-007946
R4009
R-CHIP
2007-008043
R1011
R-CHIP
2007-008045
R3028,R3029,R3030
R-CHIP
2007-008045
R3031
R-CHIP
2007-008056
R1002,R1003
R-CHIP
2007-008516
R2002,R5018,R6008
R-CHIP
2007-008531
R2003
R-CHIP
2007-008579
R2012
R-CHIP
2007-008736
R5015
R-CHIP
2007-008774
R6009
R-CHIP
2007-008785
R1000
R-CHIP
2007-008800
R3012,R3013,R3024
R-CHIP
2007-008800
R3025,R5019
R-CHIP
2007-009111
R2001,R7002
R-CHIP
2007-009157
C4089,R1010,R3001
R-CHIP
2007-009157
R3019,R3020
R-CHIP
2007-009158
R4001,R5028
R-CHIP
2007-009171
R3018,R4010,R7000
R-CHIP
2007-009201
R5002,R5005
R-CHIP
2007-009212
R4002,R4003,R7003
R-CHIP
2007-009408
R3016,R3017,R3026
R-CHIP
2007-009408
R3027,R5013,R5014
R-CHIP
2007-009408
R6000,R6001,R6002
R-CHIP
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 3
5. MAIN Electrical Parts List
2007-009408
R6003,R6004,R6006
R-CHIP
2007-009408
R6007
R-CHIP
2007-009410
R5022
R-CHIP
2007-009793
R5021
R-CHIP
2007-009801
R4007
R-CHIP
2007-009805
R1001,R2004
R-CHIP
2007-009866
R5025
R-CHIP
2007-009920
R3006,R3011,R3014
R-CHIP
2007-010202
R5023,R5030
R-CHIP
2007-011043
R3015
R-CHIP
2007-012068
R4005
R-CHIP
2203-000425
C6014
C-CERAMIC,CHIP
2203-001153
C4053,C4098
C-CERAMIC,CHIP
2203-001239
C6017
C-CERAMIC,CHIP
2203-005682
C4066,C4067,C4068
C-CERAMIC,CHIP
2203-005682
C4069,C5024,C6012
C-CERAMIC,CHIP
2203-005719
C1017,C1066
C-CERAMIC,CHIP
2203-005725
C2073
C-CERAMIC,CHIP
2203-005727
C1005
C-CERAMIC,CHIP
2203-005729
C2062,C5009,C6000
C-CERAMIC,CHIP
2203-005729
L1013
C-CERAMIC,CHIP
2203-005731
C2013,C2014,C3074
C-CERAMIC,CHIP
2203-005731
C3075,C3076,C3077
C-CERAMIC,CHIP
2203-005731
C6001
C-CERAMIC,CHIP
2203-005732
C1038,C5008
C-CERAMIC,CHIP
2203-005734
C1002,C1007,C4094
C-CERAMIC,CHIP
2203-005736
C1006,C1040,C1070
C-CERAMIC,CHIP
2203-005736
C1073,C1094,C2000
C-CERAMIC,CHIP
2203-005736
C2001,C2020,C2021
C-CERAMIC,CHIP
2203-005736
C2028,C2035,C2039
C-CERAMIC,CHIP
2203-005736
C2040,C2044,C2060
C-CERAMIC,CHIP
2203-005736
C2083,C2099,C2100
C-CERAMIC,CHIP
2203-005736
C6020,L1024
C-CERAMIC,CHIP
2203-005789
C1037,C1077,C2084
C-CERAMIC,CHIP
2203-005789
L1015,L1059,U2026
C-CERAMIC,CHIP
2203-005792
C6035,C6037
C-CERAMIC,CHIP
2203-005806
C1022,C1028
C-CERAMIC,CHIP
2203-006121
C5018,U5006
C-CERAMIC,CHIP
2203-006123
C2002
C-CERAMIC,CHIP
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 4
5. MAIN Electrical Parts List
2203-006187
C1004
C-CERAMIC,CHIP
2203-006194
C1082,C2049,C2050
C-CERAMIC,CHIP
2203-006194
C2055,C2056,C2058
C-CERAMIC,CHIP
2203-006194
C2065,C2086,C2087
C-CERAMIC,CHIP
2203-006194
C5028
C-CERAMIC,CHIP
2203-006305
C2003,C2006,C2018
C-CERAMIC,CHIP
2203-006305
C2030,C2078,C2085
C-CERAMIC,CHIP
2203-006305
L1002,L1016
C-CERAMIC,CHIP
2203-006400
C1069,C1083,C2011
C-CERAMIC,CHIP
2203-006400
C2032,C2069,C2070
C-CERAMIC,CHIP
2203-006400
C2079,C3027,C3071
C-CERAMIC,CHIP
2203-006400
C5025,U2024
C-CERAMIC,CHIP
2203-006410
L1012
C-CERAMIC,CHIP
2203-006423
C1014,C1068,C2053
C-CERAMIC,CHIP
2203-006423
C3068,C4036,C4037
C-CERAMIC,CHIP
2203-006423
C4070,C4080,C4085
C-CERAMIC,CHIP
2203-006423
C4086,C6039,C6040
C-CERAMIC,CHIP
2203-006556
C1098,C1099,C4076
C-CERAMIC,CHIP
2203-006556
C4077,C5014,C5019
C-CERAMIC,CHIP
2203-006642
C2082,C5005,C5006
C-CERAMIC,CHIP
2203-006648
C5021
C-CERAMIC,CHIP
2203-006665
C1060,C6030,C6031
C-CERAMIC,CHIP
2203-006665
C6032,C6033,C6036
C-CERAMIC,CHIP
2203-006665
C6038
C-CERAMIC,CHIP
2203-006668
C1084,C1088,C3032
C-CERAMIC,CHIP
2203-006668
C5026,C5027
C-CERAMIC,CHIP
2203-006674
L1032,L1034
C-CERAMIC,CHIP
2203-006707
C2081
C-CERAMIC,CHIP
2203-006839
C1033,C1055,C1056
C-CERAMIC,CHIP
2203-006839
C1065,C2033,C4039
C-CERAMIC,CHIP
2203-006839
C6015,C6025
C-CERAMIC,CHIP
2203-006872
C2036,C2037
C-CERAMIC,CHIP
2203-006979
C5015,C5020
C-CERAMIC,CHIP
2203-007194
C1000
C-CERAMIC,CHIP
2203-007210
C2022,C3028,C3029
C-CERAMIC,CHIP
2203-007210
C7001,C7002
C-CERAMIC,CHIP
2203-007240
C4044,C4045,C4052
C-CERAMIC,CHIP
2203-007240
C4055,C4057
C-CERAMIC,CHIP
2203-007271
C4073
C-CERAMIC,CHIP
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 5
5. MAIN Electrical Parts List
2203-007279
C1023,C4072,C6011
C-CERAMIC,CHIP
2203-007279
C6013,C6018,C6023
C-CERAMIC,CHIP
2203-007279
C6044
C-CERAMIC,CHIP
2203-007295
C2023
C-CERAMIC,CHIP
2203-007317
C3014,C3018,C3020
C-CERAMIC,CHIP
2203-007317
C3030,C4001,C4002
C-CERAMIC,CHIP
2203-007317
C6008,C6010,C6021
C-CERAMIC,CHIP
2203-007317
C6034,C7000,U6009
C-CERAMIC,CHIP
2203-007391
C2052
C-CERAMIC,CHIP
2203-007393
C1087,C2015,C2034
C-CERAMIC,CHIP
2203-007393
C2038,C4000,C4027
C-CERAMIC,CHIP
2203-007393
C4030,C4031,C4032
C-CERAMIC,CHIP
2203-007393
C4033,C4034,C4035
C-CERAMIC,CHIP
2203-007393
C4038,C4047,C4048
C-CERAMIC,CHIP
2203-007393
C4051,C4056
C-CERAMIC,CHIP
2203-007474
C2051,C2057,C2061
C-CERAMIC,CHIP
2203-007474
C2064,C3036,C3042
C-CERAMIC,CHIP
2203-007474
C3055
C-CERAMIC,CHIP
2203-007796
C1044,C1086,C2012
C-CERAMIC,CHIP
2203-007796
C2016,C2024,C2025
C-CERAMIC,CHIP
2203-007796
C2029,C2048,C2054
C-CERAMIC,CHIP
2203-007796
C2059,C2063,C3000
C-CERAMIC,CHIP
2203-007796
C3001,C3002,C3003
C-CERAMIC,CHIP
2203-007796
C3005,C3008,C3009
C-CERAMIC,CHIP
2203-007796
C3011,C3012,C3013
C-CERAMIC,CHIP
2203-007796
C3016,C3017,C3019
C-CERAMIC,CHIP
2203-007796
C3021,C3022,C3023
C-CERAMIC,CHIP
2203-007796
C3025,C3031,C3034
C-CERAMIC,CHIP
2203-007796
C3035,C3037,C3038
C-CERAMIC,CHIP
2203-007796
C3040,C3043,C3046
C-CERAMIC,CHIP
2203-007796
C3047,C3048,C3049
C-CERAMIC,CHIP
2203-007796
C3050,C3051,C3053
C-CERAMIC,CHIP
2203-007796
C3061,C3063,C3066
C-CERAMIC,CHIP
2203-007796
C3067,C3072,C4004
C-CERAMIC,CHIP
2203-007796
C4005,C4009,C4010
C-CERAMIC,CHIP
2203-007796
C4011,C4012,C4013
C-CERAMIC,CHIP
2203-007796
C4015,C4018,C4019
C-CERAMIC,CHIP
2203-007796
C4020,C4021,C4022
C-CERAMIC,CHIP
2203-007796
C4026,C4041,C4059
C-CERAMIC,CHIP
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 6
5. MAIN Electrical Parts List
2203-007796
C4060,C4061,C4062
C-CERAMIC,CHIP
2203-007796
C4063,C4075,C6005
C-CERAMIC,CHIP
2203-007796
C6006,C6007,C6022
C-CERAMIC,CHIP
2203-007796
C6024,C6027,C6028
C-CERAMIC,CHIP
2203-007796
C6029,C6041,C7004
C-CERAMIC,CHIP
2203-007796
C7007,U4009,U4010
C-CERAMIC,CHIP
2203-007796
U6006
C-CERAMIC,CHIP
2203-008095
C4091
C-CERAMIC,CHIP
2203-008097
C5000,C5003,C5011
C-CERAMIC,CHIP
2203-008177
C4042
C-CERAMIC,CHIP
2203-008242
C2074,C3010,C3044
C-CERAMIC,CHIP
2203-008242
C3056,C3059,C4014
C-CERAMIC,CHIP
2203-008242
C4024,C7005,C7006
C-CERAMIC,CHIP
2203-008572
C4046,C4050
C-CERAMIC,CHIP
2203-008654
C4088,C4097
C-CERAMIC,CHIP
2203-008749
C6016
C-CERAMIC,CHIP
2203-008860
C4028,C4049,C4064
C-CERAMIC,CHIP
2203-008860
C4081,C4084,C4090
C-CERAMIC,CHIP
2203-008860
C6003,C6004,C6009
C-CERAMIC,CHIP
2203-008860
C6026,C6042,U6010
C-CERAMIC,CHIP
2203-008876
C1010,C1016,C4016
C-CERAMIC,CHIP
2203-008876
C4065,C4078,C4092
C-CERAMIC,CHIP
2203-008876
C4095,C4096,C5001
C-CERAMIC,CHIP
2203-009733
C1085,C4058,C6019
C-CERAMIC,CHIP
2203-009733
C6043
C-CERAMIC,CHIP
2703-002649
L1020
INDUCTOR-SMD
2703-002858
L1052
INDUCTOR-SMD
2703-002901
L2006
INDUCTOR-SMD
2703-002903
L1050,L2010,L2036
INDUCTOR-SMD
2703-002903
L2062
INDUCTOR-SMD
2703-002907
C2026,L1010,L1011
INDUCTOR-SMD
2703-002907
L2005
INDUCTOR-SMD
2703-002953
L6007,L6009
INDUCTOR-SMD
2703-002955
C1031
INDUCTOR-SMD
2703-002958
L1005
INDUCTOR-SMD
2703-002959
C2004,L1003,L1022
INDUCTOR-SMD
2703-002959
L2013,L2063,L2069
INDUCTOR-SMD
2703-002959
L6000
INDUCTOR-SMD
2703-002999
C1019,L1018,U2027
INDUCTOR-SMD
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 7
5. MAIN Electrical Parts List
2703-002999
U2028
INDUCTOR-SMD
2703-003004
L2011
INDUCTOR-SMD
2703-003064
L1040
INDUCTOR-SMD
2703-004000
L2060
INDUCTOR-SMD
2703-004001
L6008,L6010,L6011
INDUCTOR-SMD
2703-004001
L6012,L6013,L6014
INDUCTOR-SMD
2703-004012
C1072,C2010,L1006
INDUCTOR-SMD
2703-004012
L1047,L1055,L2021
INDUCTOR-SMD
2703-004014
L1027,L1031,L1053
INDUCTOR-SMD
2703-004014
L2001,L2030,L2035
INDUCTOR-SMD
2703-004018
C1041,L1000,L1008
INDUCTOR-SMD
2703-004018
L1019,L2002
INDUCTOR-SMD
2703-004033
L1014,L1037
INDUCTOR-SMD
2703-004036
L2017,L2020
INDUCTOR-SMD
2703-004038
L1001,L1033,L1056
INDUCTOR-SMD
2703-004286
C1039,L1025,L1029
INDUCTOR-SMD
2703-004286
L1054,L1061,L1067
INDUCTOR-SMD
2703-004287
L2038
INDUCTOR-SMD
2703-004288
L1048,L2061
INDUCTOR-SMD
2703-004289
L1036,L2003,L2064
INDUCTOR-SMD
2703-004298
C1035,L2016
INDUCTOR-SMD
2703-004299
L1023,L2008,L2019
INDUCTOR-SMD
2703-004302
C2031,L1017,L2039
INDUCTOR-SMD
2703-004317
L1007,L1026,L1035
INDUCTOR-SMD
2703-004328
L1068,L2000,L2023
INDUCTOR-SMD
2703-004362
L2018
INDUCTOR-SMD
2703-004703
L5006
INDUCTOR-SMD
2703-004763
C1071,L2004,L2012
INDUCTOR-SMD
2703-004763
L2037
INDUCTOR-SMD
2703-004901
L4000,L4001,L4002
INDUCTOR-SMD
2703-004901
L4003,L4004
INDUCTOR-SMD
2703-004914
L2027
INDUCTOR-SMD
2703-005066
L1065
INDUCTOR-SMD
2703-005109
U4015
INDUCTOR-SMD
2703-005116
L6004
INDUCTOR-SMD
2703-005118
L6002
INDUCTOR-SMD
2801-005167
OSC2000
CRYSTAL-UNIT
2801-005254
OSC4000
CRYSTAL-UNIT
2805-001106
OSC2001
CRYSTAL-UNIT
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 8
5. MAIN Electrical Parts List
2809-001419
TCX1000
TCXO-UNIT
2901-001798
F6000,F6001,F6002
FILTER-SAW
2904-002137
F2003
FILTER-SAW
2904-002143
F1007,F2004
FILTER-SAW
2904-002161
F2001
FILTER-SAW
2904-002280
F2002
FILTER-SAW
2904-002355
F2006,F2007
FILTER-SAW
2904-002381
F2000
FILTER-SAW
2910-000342
F1002
FILTER
2910-000363
F1001
FILTER
2910-000379
F1000
FILTER
2910-000385
F1003
FILTER
2910-000390
F1006
FILTER
3003-001233
MIC5000
MIC-CONDENSOR
3301-001438
L2022
CORE-FERRITE BEAD
3301-001534
L2040
CORE-FERRITE BEAD
3301-001729
L5001
CORE-FERRITE BEAD
3301-001812
L6003
CORE-FERRITE BEAD
3301-001885
L5003,L5010
CORE-FERRITE BEAD
3301-001946
U6023
CORE-FERRITE BEAD
3301-002035
L5011
CORE-FERRITE BEAD
3301-002078
L5000,L5002,L5004
CORE-FERRITE BEAD
3301-002078
L5005,L5007,L5008
CORE-FERRITE BEAD
3301-002078
L5012,L5013
CORE-FERRITE BEAD
3301-002122
L1063,L1064,L6001
CORE-FERRITE BEAD
3301-002122
R5001,R5004
CORE-FERRITE BEAD
3301-002236
L5009
CORE-FERRITE BEAD
3301-002237
L1028,L1062,L2015
CORE-FERRITE BEAD
3301-002237
L2026,L6005,L6006
CORE-FERRITE BEAD
3301-002237
U1009,U2023
CORE-FERRITE BEAD
3301-002238
L1041,L1042,L1066
CORE-FERRITE BEAD
3301-002238
L2045,L2047,L2048
CORE-FERRITE BEAD
3301-002238
L2051,L2053
CORE-FERRITE BEAD
3301-002254
U4012
CORE-FERRITE BEAD
3301-002312
L2044,L2046,L2050
CORE-FERRITE BEAD
3301-002312
L2052,L3000
CORE-FERRITE BEAD
3404-001550
TAC5000,TAC5001
TACT SWITCH
3404-001550
TAC5002
TACT SWITCH
3705-001708
RFS1000
RF SWITCH CONNECTOR
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 9
5. MAIN Electrical Parts List
3708-003254
HDC6000,HDC6001
CONNECTOR-HEADER
3709-001936
SIM6000
CONNECTOR-CARD
3710-003193
SOC6000
CONNECTOR-HEADER
3711-008737
BTC4000
BATTERY CONNECTOR
3712-001621
ANT1000,ANT1001
CONTACT PIN
3712-001621
ANT2000,ANT2001
CONTACT PIN
3712-001621
ANT2002,ANT2003
CONTACT PIN
3712-001634
ANT5001,U5003
CONTACT PIN
3712-001666
ANT5000,ANT5002
CONTACT PIN
3722-003954
IFC4000
IF CONNECTOR
3722-004146
EAR5000
EAR-JACK UNIT
4709-002412
CPL1000
RF-MODULE
GH63-17141A
SC1002
SHIELD CAN
GH63-17142A
SC1000
SHIELD CAN
GH63-17143A
SC1001
SHIELD CAN
GH63-17144A
SC1003
SHIELD CAN
GH02-18259A
SC1002SP
TAPE
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 10
5. MAIN Electrical Parts List
Parts Code
Design LOC
Description
0401-001110
U5000
DIODE-SWICHGING
0404-001972
D4000
DIODE-SCHOTTKY
0406-001561
U5011,ZD5006
DIODE-TVS
0406-001592
ZD4004
DIODE-TVS
0406-001682
ZD5010
DIODE-TVS
0406-001713
ZD4005,ZD4006
DIODE-TVS
0406-001728
ZD1000,ZD4003
DIODE-TVS
0406-001781
ZD5007,ZD5008
DIODE-TVS
0406-001807
ZD4001
DIODE-TVS
0406-001808
D4001
DIODE-TVS
0505-003618
Q4000
FET-SILICON
0601-003526
LED4000
LED
1001-001911
U2001
IC
1001-001969
U2030
IC
1001-001970
U2010
IC
1001-001977
U2004
IC
1001-002078
SW1000
IC
1105-002703
UCP300UP
POP MEMORY
1107-002548
U7000
eMMC MEMORY
1201-003869
U2019
IC
1201-004049
U1004
IC
1201-004068
U1001
IC
1201-004109
PAM1000
IC
1201-004219
U1007,U2003,U2016
IC
1201-004230
U2009
IC
1203-008468
U4020
IC
1203-008693
U1010
IC
1203-008767
U4019
Power Management IC
1203-008859
U6005
IC
1203-008951
U4004
IC
1203-008989
U6000,U6013
IC
1203-008995
U4018
IF PMIC IC
1203-009161
U6026
IC
1203-009244
U6017
IC
1205-005536
U2015
BT/WIFI IC
1205-006103
U2020
RF Tranceiver IC
1205-006104
UCP300
Main Processor IC
[SM-A260G]
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 11
5. MAIN Electrical Parts List
1209-002376
U6028
IC
1209-002645
U6027
IC
1404-001664
TH3000,TH3001
THERMISTOR
1404-001724
TH1000
THERMISTOR
2007-002796
R5016,R5020
R-CHIP
2007-003015
R4013,R4014
R-CHIP
2007-003025
R5026,R5027
R-CHIP
2007-007107
R3021,R4000
R-CHIP
2007-007136
R4011
R-CHIP
2007-007142
R3023,R6011
R-CHIP
2007-007318
R5017
R-CHIP
2007-007489
R5033,R5034
R-CHIP
2007-007741
R3000,R3005,R3007
R-CHIP
2007-007741
R3008,R3009,R5024
R-CHIP
2007-007741
R5032,R7001
R-CHIP
2007-007798
R4015
R-CHIP
2007-007942
R4008,R6010
R-CHIP
2007-007946
R4009
R-CHIP
2007-008043
R1011
R-CHIP
2007-008045
R3028,R3029,R3030
R-CHIP
2007-008045
R3031
R-CHIP
2007-008056
R1002,R1003
R-CHIP
2007-008516
R2002,R5018,R6008
R-CHIP
2007-008531
R2003
R-CHIP
2007-008579
R2012
R-CHIP
2007-008736
R5015
R-CHIP
2007-008774
R6009
R-CHIP
2007-008785
R1000
R-CHIP
2007-008800
R3012,R3013,R3024
R-CHIP
2007-008800
R3025,R5019
R-CHIP
2007-009111
R2001,R7002
R-CHIP
2007-009157
C4089,R1010,R3001
R-CHIP
2007-009157
R3019,R3020
R-CHIP
2007-009158
R4001,R5028
R-CHIP
2007-009171
R3018,R4010,R7000
R-CHIP
2007-009201
R5002,R5005
R-CHIP
2007-009212
R4002,R4003,R7003
R-CHIP
2007-009408
R3016,R3017,R3026
R-CHIP
2007-009408
R3027,R5013,R5014
R-CHIP
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 12
5. MAIN Electrical Parts List
2007-009408
R6000,R6001,R6002
R-CHIP
2007-009408
R6003,R6004,R6006
R-CHIP
2007-009408
R6007
R-CHIP
2007-009410
R5022
R-CHIP
2007-009793
R5021
R-CHIP
2007-009801
R4007
R-CHIP
2007-009805
R1001,R2004
R-CHIP
2007-009866
R5025
R-CHIP
2007-009920
R3006,R3011,R3014
R-CHIP
2007-010202
R5023,R5030
R-CHIP
2007-011043
R3015
R-CHIP
2007-012068
R4005
R-CHIP
2203-000425
C6014
C-CERAMIC,CHIP
2203-001153
C4053,C4098
C-CERAMIC,CHIP
2203-001239
C6017
C-CERAMIC,CHIP
2203-002677
C2090
C-CERAMIC,CHIP
2203-005682
C4066,C4067,C4068
C-CERAMIC,CHIP
2203-005682
C4069,C5024,C6012
C-CERAMIC,CHIP
2203-005719
C1017
C-CERAMIC,CHIP
2203-005725
C2073
C-CERAMIC,CHIP
2203-005727
C1005
C-CERAMIC,CHIP
2203-005729
C2062,C5009,C6000
C-CERAMIC,CHIP
2203-005729
L1013
C-CERAMIC,CHIP
2203-005731
C2013,C2014,C3074
C-CERAMIC,CHIP
2203-005731
C3075,C3076,C3077
C-CERAMIC,CHIP
2203-005731
C6001
C-CERAMIC,CHIP
2203-005732
C1038,C5008
C-CERAMIC,CHIP
2203-005734
C1002,C1007,C4094
C-CERAMIC,CHIP
2203-005736
C1006,C1040,C1050
C-CERAMIC,CHIP
2203-005736
C1053,C1073,C1092
C-CERAMIC,CHIP
2203-005736
C2000,C2001,C2021
C-CERAMIC,CHIP
2203-005736
C2028,C2035,C2039
C-CERAMIC,CHIP
2203-005736
C2044,C2060,C2083
C-CERAMIC,CHIP
2203-005736
C2099,C2100,C6020
C-CERAMIC,CHIP
2203-005736
L1017,L1024,L1038
C-CERAMIC,CHIP
2203-005777
C1035
C-CERAMIC,CHIP
2203-005789
C1037,C1091,C1095
C-CERAMIC,CHIP
2203-005789
C2084,C2092,L1015
C-CERAMIC,CHIP
2203-005789
L1049,U2026
C-CERAMIC,CHIP
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 13
5. MAIN Electrical Parts List
2203-005792
C6035,C6037
C-CERAMIC,CHIP
2203-005806
C1022,C1028
C-CERAMIC,CHIP
2203-006121
C5018,U5006
C-CERAMIC,CHIP
2203-006123
C2002,C2041
C-CERAMIC,CHIP
2203-006187
C1004
C-CERAMIC,CHIP
2203-006194
C1082,C2049,C2050
C-CERAMIC,CHIP
2203-006194
C2055,C2056,C2058
C-CERAMIC,CHIP
2203-006194
C2065,C2086,C2087
C-CERAMIC,CHIP
2203-006194
C5028
C-CERAMIC,CHIP
2203-006305
C2003,C2006,C2018
C-CERAMIC,CHIP
2203-006305
C2030,C2078,C2085
C-CERAMIC,CHIP
2203-006305
L1002
C-CERAMIC,CHIP
2203-006318
C2091
C-CERAMIC,CHIP
2203-006400
C1048,C1049,C1051
C-CERAMIC,CHIP
2203-006400
C1069,C1083,C2011
C-CERAMIC,CHIP
2203-006400
C2032,C2069,C2070
C-CERAMIC,CHIP
2203-006400
C2079,C3027,C3071
C-CERAMIC,CHIP
2203-006400
C5025,U2024
C-CERAMIC,CHIP
2203-006410
C2093,L1012
C-CERAMIC,CHIP
2203-006423
C1014,C2053,C3068
C-CERAMIC,CHIP
2203-006423
C4036,C4037,C4070
C-CERAMIC,CHIP
2203-006423
C4080,C4085,C4086
C-CERAMIC,CHIP
2203-006423
C6039,C6040
C-CERAMIC,CHIP
2203-006556
C1098,C1099,C4076
C-CERAMIC,CHIP
2203-006556
C4077,C5014,C5019
C-CERAMIC,CHIP
2203-006642
C2082,C5005,C5006
C-CERAMIC,CHIP
2203-006648
C5021
C-CERAMIC,CHIP
2203-006665
C1060,C6030,C6031
C-CERAMIC,CHIP
2203-006665
C6032,C6033,C6036
C-CERAMIC,CHIP
2203-006665
C6038
C-CERAMIC,CHIP
2203-006668
C1084,C1088,C3032
C-CERAMIC,CHIP
2203-006668
C5026,C5027
C-CERAMIC,CHIP
2203-006674
C1046,L1032,L1034
C-CERAMIC,CHIP
2203-006707
C2081
C-CERAMIC,CHIP
2203-006839
C1033,C2033,C4039
C-CERAMIC,CHIP
2203-006839
C6015,C6025
C-CERAMIC,CHIP
2203-006872
C2036,C2037
C-CERAMIC,CHIP
2203-006979
C5015,C5020
C-CERAMIC,CHIP
2203-007194
C1000
C-CERAMIC,CHIP
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 14
5. MAIN Electrical Parts List
2203-007210
C2022,C3028,C3029
C-CERAMIC,CHIP
2203-007210
C7001,C7002
C-CERAMIC,CHIP
2203-007240
C4044,C4045,C4052
C-CERAMIC,CHIP
2203-007240
C4055,C4057
C-CERAMIC,CHIP
2203-007271
C4073
C-CERAMIC,CHIP
2203-007279
C1023,C4072,C6011
C-CERAMIC,CHIP
2203-007279
C6013,C6018,C6023
C-CERAMIC,CHIP
2203-007279
C6044
C-CERAMIC,CHIP
2203-007295
C2023,C2089
C-CERAMIC,CHIP
2203-007317
C3014,C3018,C3020
C-CERAMIC,CHIP
2203-007317
C3030,C4001,C4002
C-CERAMIC,CHIP
2203-007317
C6008,C6010,C6021
C-CERAMIC,CHIP
2203-007317
C6034,C7000,U6009
C-CERAMIC,CHIP
2203-007391
C2052
C-CERAMIC,CHIP
2203-007393
C1087,C2015,C2034
C-CERAMIC,CHIP
2203-007393
C2038,C4000,C4027
C-CERAMIC,CHIP
2203-007393
C4030,C4031,C4032
C-CERAMIC,CHIP
2203-007393
C4033,C4034,C4035
C-CERAMIC,CHIP
2203-007393
C4038,C4047,C4048
C-CERAMIC,CHIP
2203-007393
C4051,C4056
C-CERAMIC,CHIP
2203-007474
C2051,C2057,C2061
C-CERAMIC,CHIP
2203-007474
C2064,C3036,C3042
C-CERAMIC,CHIP
2203-007474
C3055
C-CERAMIC,CHIP
2203-007796
C1044,C1086,C2012
C-CERAMIC,CHIP
2203-007796
C2016,C2024,C2025
C-CERAMIC,CHIP
2203-007796
C2029,C2048,C2054
C-CERAMIC,CHIP
2203-007796
C2059,C2063,C3000
C-CERAMIC,CHIP
2203-007796
C3001,C3002,C3003
C-CERAMIC,CHIP
2203-007796
C3005,C3008,C3009
C-CERAMIC,CHIP
2203-007796
C3011,C3012,C3013
C-CERAMIC,CHIP
2203-007796
C3016,C3017,C3019
C-CERAMIC,CHIP
2203-007796
C3021,C3022,C3023
C-CERAMIC,CHIP
2203-007796
C3025,C3031,C3034
C-CERAMIC,CHIP
2203-007796
C3035,C3037,C3038
C-CERAMIC,CHIP
2203-007796
C3040,C3043,C3046
C-CERAMIC,CHIP
2203-007796
C3047,C3048,C3049
C-CERAMIC,CHIP
2203-007796
C3050,C3051,C3053
C-CERAMIC,CHIP
2203-007796
C3061,C3063,C3066
C-CERAMIC,CHIP
2203-007796
C3067,C3072,C4004
C-CERAMIC,CHIP
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 15
5. MAIN Electrical Parts List
2203-007796
C4005,C4009,C4010
C-CERAMIC,CHIP
2203-007796
C4011,C4012,C4013
C-CERAMIC,CHIP
2203-007796
C4015,C4018,C4019
C-CERAMIC,CHIP
2203-007796
C4020,C4021,C4022
C-CERAMIC,CHIP
2203-007796
C4026,C4041,C4059
C-CERAMIC,CHIP
2203-007796
C4060,C4061,C4062
C-CERAMIC,CHIP
2203-007796
C4063,C4075,C6005
C-CERAMIC,CHIP
2203-007796
C6006,C6007,C6022
C-CERAMIC,CHIP
2203-007796
C6024,C6027,C6028
C-CERAMIC,CHIP
2203-007796
C6029,C6041,C7004
C-CERAMIC,CHIP
2203-007796
C7007,U4009,U4010
C-CERAMIC,CHIP
2203-007796
U6006
C-CERAMIC,CHIP
2203-008095
C4091
C-CERAMIC,CHIP
2203-008097
C5000,C5003,C5011
C-CERAMIC,CHIP
2203-008177
C4042
C-CERAMIC,CHIP
2203-008242
C2074,C3010,C3044
C-CERAMIC,CHIP
2203-008242
C3056,C3059,C4014
C-CERAMIC,CHIP
2203-008242
C4024,C7005,C7006
C-CERAMIC,CHIP
2203-008394
C2094
C-CERAMIC,CHIP
2203-008572
C4046,C4050
C-CERAMIC,CHIP
2203-008654
C4088,C4097
C-CERAMIC,CHIP
2203-008749
C6016
C-CERAMIC,CHIP
2203-008860
C1052,C4028,C4049
C-CERAMIC,CHIP
2203-008860
C4064,C4081,C4084
C-CERAMIC,CHIP
2203-008860
C4090,C6003,C6004
C-CERAMIC,CHIP
2203-008860
C6009,C6026,C6042
C-CERAMIC,CHIP
2203-008860
U6010
C-CERAMIC,CHIP
2203-008876
C1010,C1016,C4016
C-CERAMIC,CHIP
2203-008876
C4065,C4078,C4092
C-CERAMIC,CHIP
2203-008876
C4095,C4096,C5001
C-CERAMIC,CHIP
2203-009733
C1085,C4058,C6019
C-CERAMIC,CHIP
2203-009733
C6043
C-CERAMIC,CHIP
2703-002649
L1020
INDUCTOR-SMD
2703-002858
L1052
INDUCTOR-SMD
2703-002901
L2006
INDUCTOR-SMD
2703-002903
L1050,L2010,L2036
INDUCTOR-SMD
2703-002903
L2062
INDUCTOR-SMD
2703-002907
C2026,L1010,L1016
INDUCTOR-SMD
2703-002907
L2005,L2042
INDUCTOR-SMD
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 16
5. MAIN Electrical Parts List
2703-002953
L1018,L6007,L6009
INDUCTOR-SMD
2703-002958
L1005
INDUCTOR-SMD
2703-002959
C2004,L1003,L1022
INDUCTOR-SMD
2703-002959
L2013,L2063,L2069
INDUCTOR-SMD
2703-002959
L6000
INDUCTOR-SMD
2703-002999
C1019,C1036,U2027
INDUCTOR-SMD
2703-002999
U2028
INDUCTOR-SMD
2703-003004
L2011
INDUCTOR-SMD
2703-003064
L1040
INDUCTOR-SMD
2703-003970
L1058
INDUCTOR-SMD
2703-004000
L2060
INDUCTOR-SMD
2703-004001
L6008,L6010,L6011
INDUCTOR-SMD
2703-004001
L6012,L6013,L6014
INDUCTOR-SMD
2703-004012
C2010,L1006,L1045
INDUCTOR-SMD
2703-004012
L1046,L1047,L1055
INDUCTOR-SMD
2703-004012
L1073,L2021,L2023
INDUCTOR-SMD
2703-004012
L2068
INDUCTOR-SMD
2703-004014
L1027,L1031,L2001
INDUCTOR-SMD
2703-004014
L2030,L2035
INDUCTOR-SMD
2703-004018
C1041,L1000,L1008
INDUCTOR-SMD
2703-004018
L1011,L1019,L2002
INDUCTOR-SMD
2703-004018
L2043
INDUCTOR-SMD
2703-004033
L1014,L1037
INDUCTOR-SMD
2703-004036
L2017,L2020
INDUCTOR-SMD
2703-004038
C2020,L1001,L1033
INDUCTOR-SMD
2703-004038
L1056
INDUCTOR-SMD
2703-004286
C1039,L1025,L1029
INDUCTOR-SMD
2703-004286
L1054,L1061,L1067
INDUCTOR-SMD
2703-004286
L1069,L1071
INDUCTOR-SMD
2703-004287
L1044,L2038
INDUCTOR-SMD
2703-004288
L1039,L1048,L2061
INDUCTOR-SMD
2703-004288
L2066
INDUCTOR-SMD
2703-004289
L1036,L2003,L2064
INDUCTOR-SMD
2703-004298
L2016
INDUCTOR-SMD
2703-004299
L1023,L2008,L2019
INDUCTOR-SMD
2703-004299
L2024
INDUCTOR-SMD
2703-004301
L1070
INDUCTOR-SMD
2703-004302
C2031,C2095,L1051
INDUCTOR-SMD
2703-004302
L2039
INDUCTOR-SMD
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 17
5. MAIN Electrical Parts List
2703-004317
L1007,L1026,L1035
INDUCTOR-SMD
2703-004328
L1068,L2000,L2059
INDUCTOR-SMD
2703-004362
L2018,L2067
INDUCTOR-SMD
2703-004703
C1075,L5006
INDUCTOR-SMD
2703-004763
L2004,L2012,L2037
INDUCTOR-SMD
2703-004763
L2065,U2029
INDUCTOR-SMD
2703-004901
L4000,L4001,L4002
INDUCTOR-SMD
2703-004901
L4003,L4004
INDUCTOR-SMD
2703-004914
L2027
INDUCTOR-SMD
2703-005066
L1065
INDUCTOR-SMD
2703-005109
U4015
INDUCTOR-SMD
2703-005116
L6004
INDUCTOR-SMD
2703-005118
L6002
INDUCTOR-SMD
2801-005167
OSC2000
CRYSTAL-UNIT
2801-005254
OSC4000
CRYSTAL-UNIT
2805-001106
OSC2001
CRYSTAL-UNIT
2809-001419
TCX1000
TCXO-UNIT
2901-001798
F6000,F6001,F6002
FILTER-SAW
2904-002137
F2003
FILTER-SAW
2904-002143
F1007,F2004
FILTER-SAW
2904-002161
F2001
FILTER-SAW
2904-002198
F2008
FILTER-SAW
2904-002262
F2002
FILTER-SAW
2904-002350
F1005
FILTER-SAW
2904-002355
F2006,F2007
FILTER-SAW
2904-002381
F2000
FILTER-SAW
2904-002397
U1011
FILTER-SAW
2910-000342
F1002
FILTER
2910-000379
F1000
FILTER
2910-000385
F1003
FILTER
2910-000390
F1006
FILTER
2910-000391
F1001
FILTER
3003-001233
MIC5000
MIC-CONDENSOR
3301-001438
L2022
CORE-FERRITE BEAD
3301-001534
L2040
CORE-FERRITE BEAD
3301-001729
L5001
CORE-FERRITE BEAD
3301-001812
L6003
CORE-FERRITE BEAD
3301-001885
L5003,L5010
CORE-FERRITE BEAD
3301-001946
U6023
CORE-FERRITE BEAD
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Page 18
5. MAIN Electrical Parts List
3301-002035
L5011
CORE-FERRITE BEAD
3301-002078
L5000,L5002,L5004
CORE-FERRITE BEAD
3301-002078
L5005,L5007,L5008
CORE-FERRITE BEAD
3301-002078
L5012,L5013
CORE-FERRITE BEAD
3301-002122
L1063,L1064,L6001
CORE-FERRITE BEAD
3301-002122
R5001,R5004
CORE-FERRITE BEAD
3301-002236
L5009
CORE-FERRITE BEAD
3301-002237
L1028,L1062,L2015
CORE-FERRITE BEAD
3301-002237
L2026,L6005,L6006
CORE-FERRITE BEAD
3301-002237
U1009,U2023
CORE-FERRITE BEAD
3301-002238
L1042,L1066,L2045
CORE-FERRITE BEAD
3301-002238
L2047,L2048,L2051
CORE-FERRITE BEAD
3301-002238
L2053
CORE-FERRITE BEAD
3301-002254
U4012
CORE-FERRITE BEAD
3301-002312
L2044,L2046,L2050
CORE-FERRITE BEAD
3301-002312
L2052,L3000
CORE-FERRITE BEAD
3404-001550
TAC5000,TAC5001
TACT SWITCH
3404-001550
TAC5002
TACT SWITCH
3705-001708
RFS1000
RF SWITCH CONNECTOR
3708-003254
HDC6000,HDC6001
CONNECTOR-HEADER
3709-001936
SIM6000
CONNECTOR-CARD
3710-003193
SOC6000
CONNECTOR-HEADER
3711-008737
BTC4000
BATTERY CONNECTOR
3712-001621
ANT1000,ANT1001
CONTACT PIN
3712-001621
ANT2000,ANT2001
CONTACT PIN
3712-001621
ANT2002,ANT2003
CONTACT PIN
3712-001634
ANT5001,U5003
CONTACT PIN
3712-001666
ANT5000,ANT5002
CONTACT PIN
3722-003954
IFC4000
IF CONNECTOR
3722-004146
EAR5000
EAR-JACK UNIT
4709-002412
CPL1000
RF-MODULE
GH63-17141A
SC1002
SHIELD CAN
GH63-17142A
SC1000
SHIELD CAN
GH63-17143A
SC1001
SHIELD CAN
GH63-17144A
SC1003
SHIELD CAN
GH02-18259A
SC1002SP
TAPE
Please consult the GSPN website (Samsung Portal) for the most recent version of the product's part list.
Confidential and proprietary-the contents in this service guide subject to change without prior notice
Distribution, transmission, or infringement of any content or data from this document without Samsung’s written authorization is strictly prohibited.
Loading...
