Samsung SM-352BENB User Manual

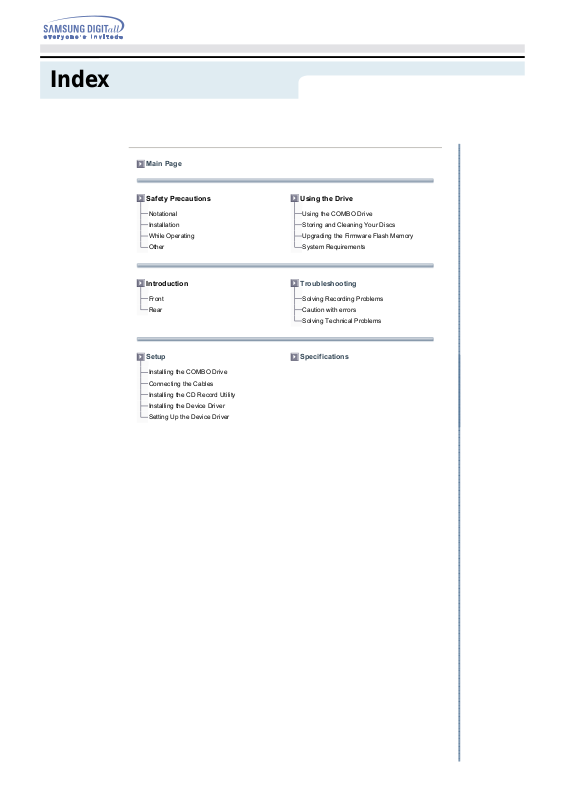

Index

Main Page

Safety Precautions

Notational

Installation

While Operating

Other

Introduction

Front

Rear

Setu

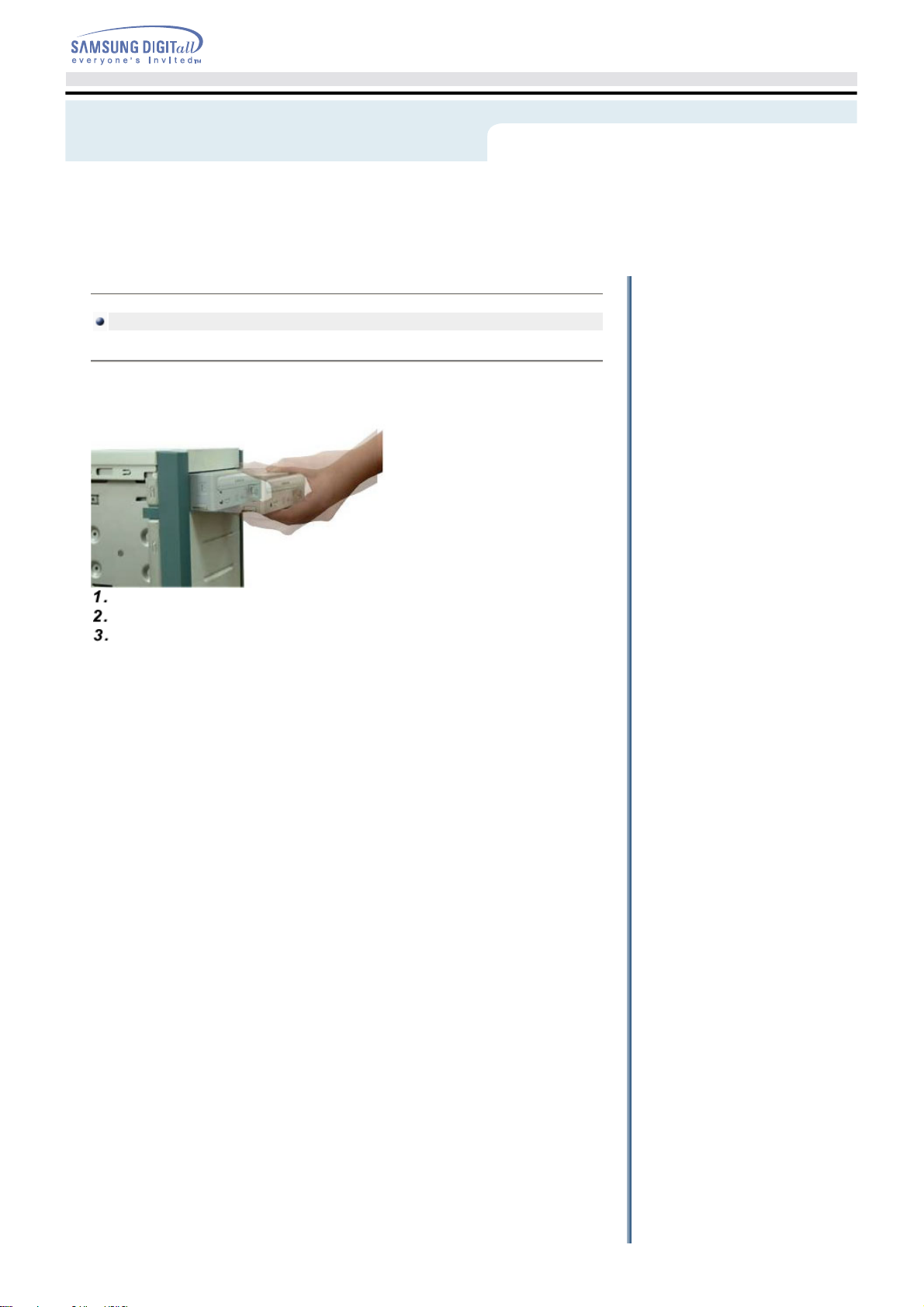

Installing the COMBO Drive

Connecting the Cables

Installing the CD Record Utility

Installing the Device Driver

Setting Up the Device Driver

Using the Drive

Using the COMBO Drive

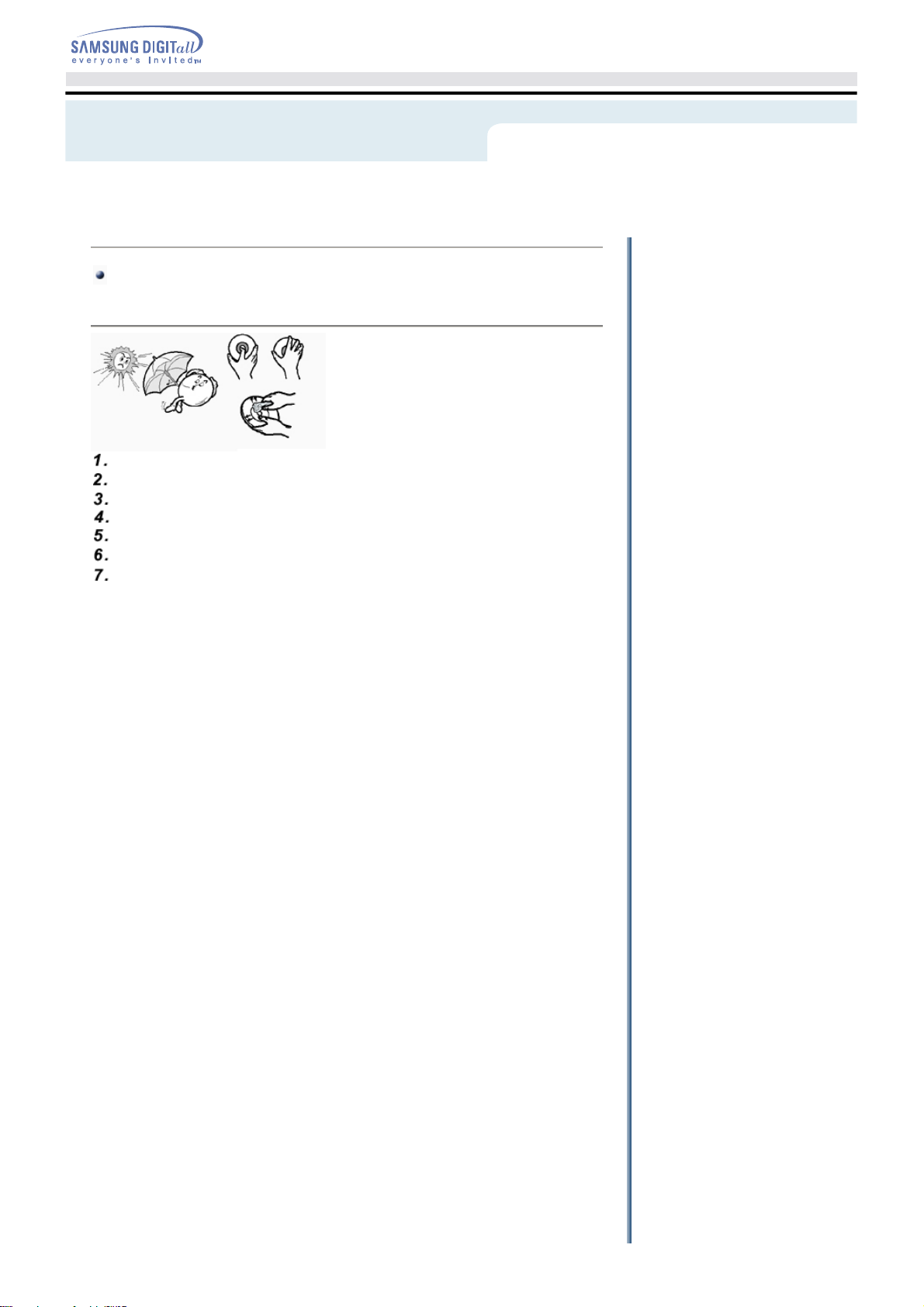

Storing and Cleaning Your Discs

Upgrading the Firmware Flash Memory

System Requirements

Troubleshootin

Solving Recording Problems

Caution with errors

Solving Technical Problems

Specifications

Safety Precautions

Notational

Warning / Caution

: This symbol indicates explanations about extremely dangerous matters.

Warning

Caution

If users ignore this symbol and handle the device the wrong way, serious injury or death could result.

: This symbol indicates explanations about dangerous matters.

If users ignore this symbol and handle the device the wrong way, damage to home or property could result.

Notational

Failure to follow directions noted by this symbol could result in bodily harm or damage to equipment.

Prohibited

Important to read and understand at all times

Do not disassemble

Any change or modification not expressly approved by designated qualified personnel could void your authority to operate this device.

Always make sure that the disc does not have a crack before use. If the disc has a crack (especially around the center hole), it is recommended to make a copy immediately and use the copy instead. When a cracked disc is used continuously, the size of the crack is likely to grow and this will eventually result in irreparable damage to the disc.

Important to read and understand at all times.

Safety Precautions

Installation

Place the drive on a level surface.

Failure to do so may cause the device to fall onto a hard surface, resulting in damage or malfunction.

Do not place the drive in direct sunlight.

void low- or high-temperature environments.

void high-humidity environments.

Safety Precautions

While Operating

Handle with caution to prevent damage from external shock.

Do not drop the drive, and protect it fromsevere shocks.

- It can damage the drive or cause it to malfunction.

Do not move the drive while in operation and do not attempt to open the disc tray byforce. Make sure to close all working programs before attempting to open the tray and always usethe open/close button.

- Do not insert a pin into the emergency opening while in operation.

Do not use cracked, distorted or damaged discs.

- In particular, a disc with a crack on the inner tracks may break while in use.

Safety Precautions

Other

Never allow food particles or foreign substances to enter the drive casing.

To protect against the risk of fire, do ot spill such liquids as alcohol and benzene on the drive.

Do not disassemble, attempt to repair or modify the device without express approval as directed in the manual.

- To reduce the risk of damage, electric shock, and fire,

2003-10-30file://F:\yongwork(MasterCD)\Master(OMS)\Combo\MASTER\SM-348_352_352F\ver_04\manual\...

Introduction

Front

Connector for stereo headphones with a 3.6 mm stereo mini-jack.

Headphone volume control.

Emergency eject hole. (if the compartment does not open when you press the Eject button, power off the computer, insert a pin or unfolded paper clip in the hole and push firmly)

Indicator Light.

Eject button.

Disc compartment. (the compartment opens and closes automatically when you press the Eject button)

Design and specifications are subject to change without prior notice.

IntroductionIntroduction

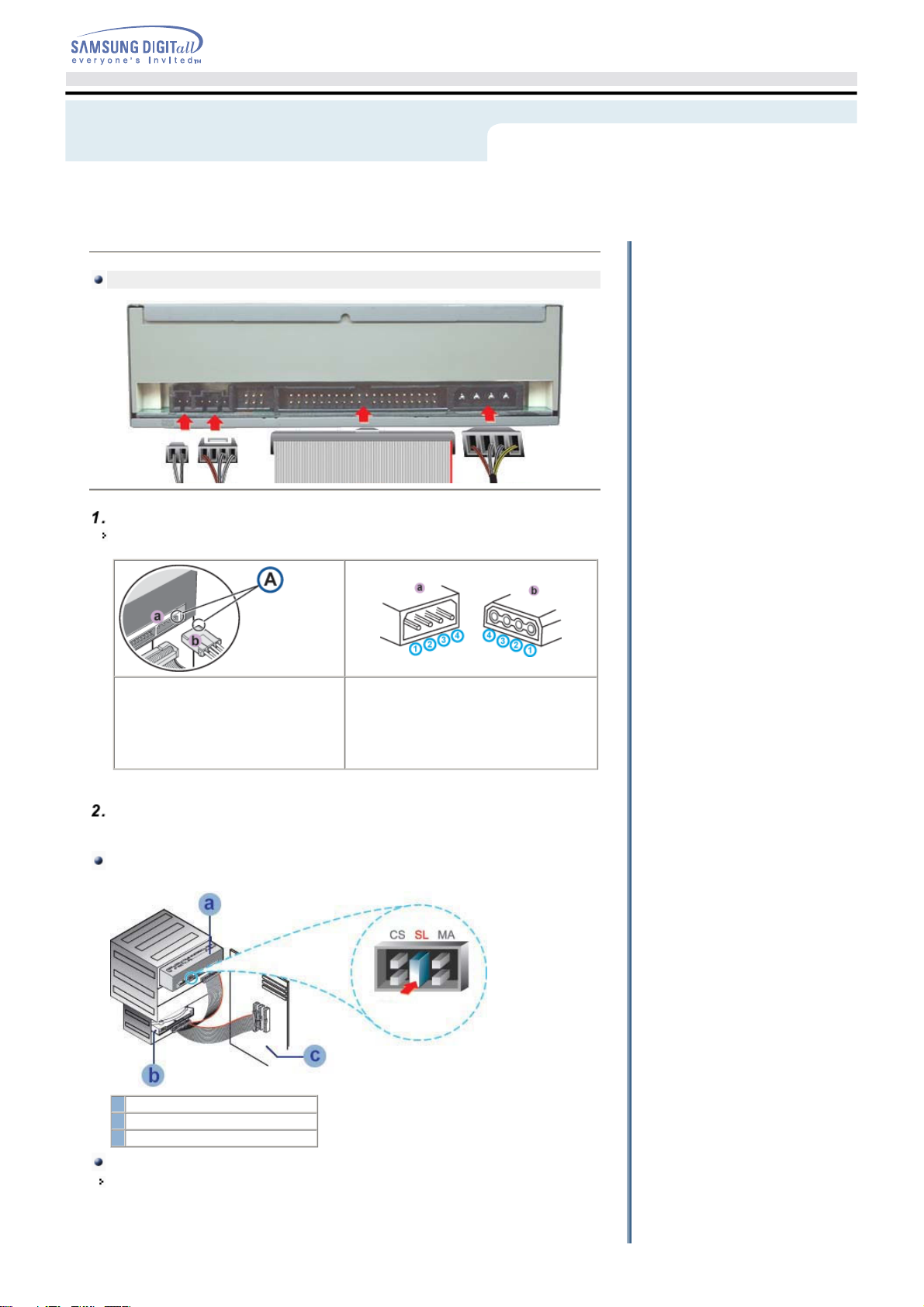

Two-pin digital audio output terminal for use with a sound or MPEG card supporting digital audio features.

Four-pin sound output terminal for use with a sound card. (refer to the sound card documentation for further details)

Master/slave select terminal.

40pin host E-IDE interface connector.

4pin power terminal. (A : +5V DC) (B : +12V DC)
