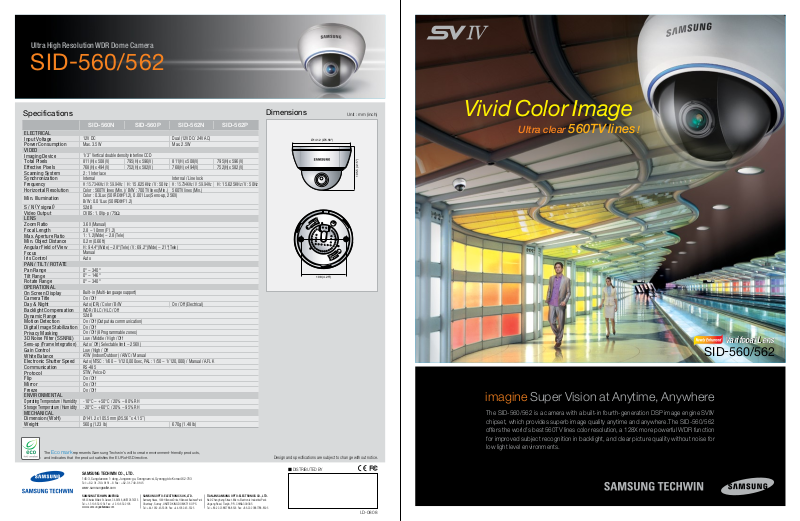

Samsung SID-560-N, SID-562-N Specsheet

Ultra High Resolution WDR Dome Camera

SID-560/562

Unit : mm (inch)

Dimensions

Specifications

SID-560N SID-560P SID-562N SID-562P

Ø141.2 (Ø5.56")

105.5 (4.15")

108 (4.25")

12V DC Dual (12V DC/ 24V AC)
Max. 3.5W

Max. 2.5W

1/3” Vertical double density interline CCD
811(H) x 508(V) 795(H) x 596(V) 811(H) x 508(V) 795(H) x 596(V)
768(H) x 494(V) 752(H) x 582(V)

768(H) x 494(V) 752(H) x 582(V)
2 : 1 Interlace
Internal Internal / Line lock
H : 15.734KHz / V : 59.94Hz

H : 15.625KHz / V : 50Hz

H : 15.734KHz / V : 59.94Hz

H : 15.625KHz / V : 50Hz
Color : 560TV lines (Min.) / B/W : 700TV lines (Min.) 560TV lines (Min.)
Color : 0.3Lux (50 IRE@F1.2), 0.001Lux (Sens-up, 256X)
B/W : 0.01Lux (50 IRE@F1.2)
52dB
CVBS : 1.0Vp-p / 75Ω

3.6X (Manual)

2.8 ~ 10mm (F1.2)
1 : 1.2(Wide) ~ 2.8(Tele)

0.2m (0.66ft)
H : 94.4°(Wide) ~ 28°(Tele) / V : 69.2°(Wide) ~ 21°(Tele)
Manual
Auto

0°

~ 340°
0° ~ 146°
0° ~ 340°

Built-in (Multi-language support)
On / Off
Auto (ICR) / Color / B/W On / Off (Electrical)
WDR / BLC / HLC / Off
52dB
On / Off (Output via communication)
On / Off
On / Off (8 Programmable zones)
Low / Middle / High / Off
Auto / Off (Selectable limit ~ 256X )
Low / High / Off
ATW (Indoor/Outdoor) / AWC / Manual
Auto (NTSC : 1/60 ~ 1/120,000sec, PAL : 1/50 ~ 1/120,000) / Manual / A.FLK
RS-485
STW, Pelco-D
On / Off
On / Off
On / Off

-10°C

~ +50°C / 20% ~ 80% RH

-20°C ~ +60°C / 20% ~ 95% RH

Ø141.2 x 105.5mm (Ø5.56” x 4.15”)
560g (1.23 lb)

670g (1.48 lb)

ELECTRICAL
Input Voltage
Power Consumption
VIDEO
Imaging Device
Total Pixels
Effective Pixels
Scanning System
Synchronization
Frequency
Horizontal Resolution

Min. Illumination

S / N (Y signal

)

Video Output
LENS
Zoom Ratio
Focal Length
Max. Aperture Ratio
Min. Object Distance
Angular Field of View
Focus
Iris Control
PAN / TILT / ROTATE
Pan Range
Tilt Range
Rotate Range
OPERATIONAL
On Screen Display
Camera Title
Day & Night
Backlight Compensation
Dynamic Range
Motion Detection
Digital Image Stabilization
Privacy Masking
3D Noise Filter (SSNRII)
Sens-up (Frame Integration)
Gain Control
White Balance
Electronic Shutter Speed
Communication
Protocol
Flip
Mirror
Freeze
ENVIRONMENTAL
Operating Temperature / Humidity
Storage Temperature / Humidity
MECHANICAL
Dimension (WxH

)

Weight

imagine Super Vision at Anytime, Anywhere

The SID-560/562 is a camera with a built-in fourth-generation DSP image engine SVIV
chipset, which provides superb image quality anytime and anywhere.The SID-560/562
offers the world’s best 560TV lines color resolution, a 128X more powerful WDR function
for improved subject recognition in backlight, and clear picture quality without noise for
low light level environments.

SID-560/562

Vivid Color Image

Ultra clear 560TV lines !

Varifocal Lens

Varifocal Lens

The Eco mark represents Samsung Techwin’s will to create environment-friendly products,
and indicates that the product satisfies the EU RoHS Directive.

SAMSUNG TECHWIN CO., LTD.

145-3, Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do Korea 462-703

Tel : [phone]~8 Fax : [phone]

www.samsungcctv.com

SAMSUNG TECHWIN AMERICA

1480 Charles Willard St. Carson, CA 90746, UNITED STATES
Tel : [phone] Fax : [phone]

www.samsungcctvusa.com

SAMSUNG OPTO-ELECTRONICS UK, LTD.

Samsung House, 1000 Hillswood Drive, Hillswood Business Park
Chertsey, Surrey, UNITED KINGDOM KT16 OPS
Tel : [phone] Fax : [phone]

TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD.

No.9 Zhangheng Street. Micro-Electronic Industrial Park
Jingang Road, Tianjin, P.R. CHINA 300385
Tel : [phone]-8503 Fax : [phone]-8505

Design and specifications are subject to change without notice.

DISTRIBUTED BY

I.D-0808

The SID-560/562 cameras provide super clear picture quality for surveillance,
achieving a horizontal resolution of 560TV lines in color and 700TV lines in B/W.

An exceptional resolution of 560TV lines for color

The best picture quality

in any light or environment !

The SID-560/562 compensates for backlight 128 times more effectively than
standard cameras, by applying an powerful pixel control image analysis
technology ensuring clear video and better color representation.

Powerful 128X WDR by pixel unit image processing

The camera can operate in an ultra low light level of 0.001Lux in color mode,
by implementing up to 256X Sens-up and three-dimensional noise reduction
technology, SSNRII.

Clean, clear images without noise in an ultra low
light of 0.001Lux

0.001

The SID-560 provides the ICR Day & Night function that detects changes in the
level of light at any time of day, and then switches to the optimum operation
mode according to the light level.

ICR Day & Night for clear images 24 hours a day

WDR Off

WDR Off

WDR On

Day Night

Conventional Camera SID-560

Conventional Camera SID-560

The dome can set a backlight blocking zone that is optimized for the
user environment through an User BLC function.

Flexible backlight zone setting

The SID-560/562 is equipped with a Varifocal lens of 2.8 ~ 10mm that ensures
optimum video image and focus setting, and ensures the optimum view in a
variety of installation environments with 3-Axis rotating dome mechanism.

3.6X Varifocal lens, 3-Axis rotating dome mechanism

The d o m e supports t h e multiple
languages for OSD setting, resulting in
easy, quick, user-friendly setting.

Multi-language OSD
for user convenience

The dome provides a built-in DIS (Digital Image Stabilization) that
effectively stabilizes images when strong vibrations can affect the
camera, causing blurring or flickering of images.

Built-in (Digital Image Stabilization) for clear images

The SID-560/562 supports an upgraded motion detection function by
enabling the user to make different color and sensitivity settings for up
to 8 areas, and up to 8 unwanted areas within the operation area can
be masked with 6 different colors.

Upgraded motion detection & Privacy masking

Users can make changes to the
settings of the camera menu by
remote control via an RS-485 port.

Supporting RS-485
remote control

560TV lines

resolution, outstanding images of super high picture quality

Powerful

128X WDR

, overcoming natural light limitations

Brighter and clearer images even at a low light level of

0.001 Lux

The next generation

DSP image engine,

Ultra high resolution WDR dome camera

SID-560/562

Clear Images 24 hours a day!

Normal 3.6X

BLC OnBLC Off

Powerful DSP Engine

DIS OnDIS Off

Privacy MaskingMotion Detected

Wall

Slope
