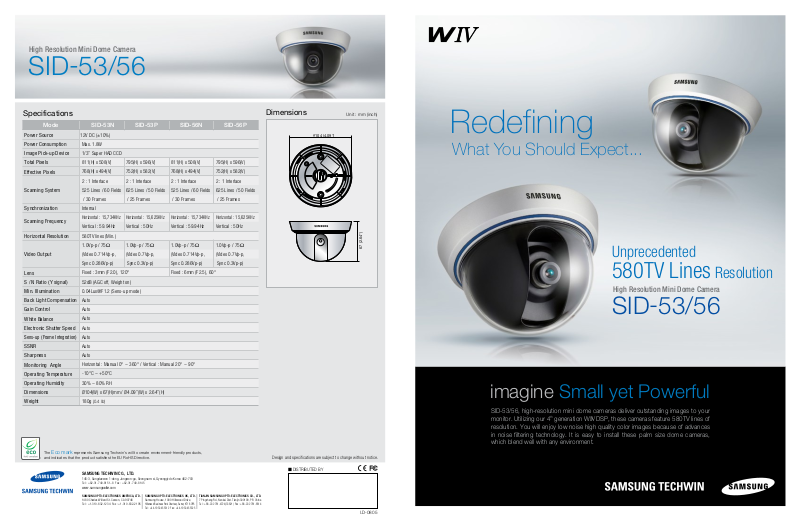

Samsung sid-53-N Specsheet

High Resolution Mini Dome Camer

a

SID-53/56

Unit : mm (inch)

Dimensions

12V DC (±10%)

Max. 1.8W

1/3” Super HAD CCD

811(H) x 508(V) 795(H) x 596(V) 811(H) x 508(V) 795(H) x 596(V)

768(H) x 494(V) 752(H) x 582(V) 768(H) x 494(V) 752(H) x 582(V)

2 : 1 Interlace 2 : 1 Interlace 2 : 1 Interlace 2 : 1 Interlace

525 Lines / 60 Fields 625 Lines / 50 Fields

525 Lines / 60 Fields 625 Lines / 50 Fields

/ 30 Frames / 25 Frames / 30 Frames / 25 Frames

Internal

Horizontal : 15,734KHz Horizontal : 15,625KHz

Horizontal : 15,734KHz Horizontal : 15,625KHz

Vertical : 59.94Hz Vertical : 50Hz Vertical : 59.94Hz Vertical : 50Hz

580TV lines (Min.)

1.0Vp-p / 75Ω

1.0Vp-p / 75Ω

1.0Vp-p / 75Ω 1.0Vp-p / 75Ω

(Video 0.714Vp-p, (Video 0.7Vp-p, (Video 0.714Vp-p, (Video 0.7Vp-p,

Sync 0.286Vp-p) Sync 0.3Vp-p) Sync 0.286Vp-p) Sync 0.3Vp-p)

Fixed : 3mm (F2.0), 120°

Fixed : 6mm (F2.5), 60°

52dB (AGC off, Weight on)

0.04Lux@F1.2 (Sens-up mode)

Auto

Auto

Auto

Auto

Auto

Auto

Auto

Horizontal : Manual 0°

~ 360° / Vertical : Manual 20° ~ 90°

-10°C ~ +50°C

30% ~ 80% RH

Ø104(W) x 67(H)mm / Ø4.09”(W) x 2.64”(H)

180g

(0.4 lb)

Specifications

Power Source

Power Consumption

Image Pick-up Device

Total Pixels

Effective Pixels

Scanning System

Synchronization

Scanning Frequency

Horizontal Resolution

Video Output

Lens

S / N Ratio (Y signal)

Min. Illumination

Back Light Compensation

Gain Control

White Balance

Electronic Shutter Speed

Sens-up (Frame Integration)

SSNR

Sharpness

Monitoring Angle

Operating Temperature

Operating Humidity

Dimensions

Weight

Mode SID-53N SID-53P SID-56N SID-56P

67 (2.64")

104 (4.09")

Design and specifications are subject to change without notice.

SAMSUNG TECHWIN CO., LTD.

145-3, Sangdaewon 1-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do Korea 462-703

Tel : [phone]~8 Fax : [phone]

www.samsungcctv.com

SAMSUNG OPTO-ELECTRONICS AMERICA, LTD.

1480 Charles Willard St. Carson, CA 90746
Tel : [phone] Fax : [phone]

SAMSUNG OPTO-ELECTRONICS UK, LTD.

Samsung House, 1000 Hillswood Drive,
Hillswood Business Park Chertsey, Surrey KT16 OPS
Tel : [phone] Fax : [phone]

I.D-0805

DISTRIBUTED BY

The Eco mark represents Samsung Techwin’s will to create environment-friendly products,
and indicates that the product satisfies the EU RoHS Directive.

TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD.

7 Pingchang Rd., Nankai Dist. Tianjin 300190, P.R China
Tel : [phone](33821) Fax : [phone]

imagine

Small yet Powerful

SID-53/56, high-resolution mini dome cameras deliver outstanding images to your
monitor. Utilizing our 4thgeneration WIV DSP, these cameras feature 580TV lines of
resolution. You will enjoy low noise high quality color images because of advances
in noise filtering technology. It is easy to install these palm size dome cameras,
which blend well with any environment.

SID-53/56

High Resolution Mini Dome Camera

Unprecedented

580TV Lines Resolution

Redefining

What You Should Expect...

SID-53/56 mini dome cameras have been designed to generate outstanding images
in various indoor installation environments. During the day you will enjoy discriminative images
of unprecedented 580TV lines resolution and at night it will produce clear images in the dark.
The low noise image saves DVR storage capacity and enables your system to record images
for a longer term

SID-53/56 cameras produce high quality images of 580TV lines resolution
applying Samsung Techwin's own image processing technology, which
controls brightness signals precisely depending upon surveillance
conditions.

Unprecedented 580TV Lines Resolution

Conventional Camera SID-53/56

Conventional Camera SID-53/56

High Resolution

The SID-53/56 detects the slightest level of light even in an environment
with a poorlight source, and can operate in an ultra low light level of

0.04Lux in color mode, by implementing Sens-up, frame integration
functions.

Minimum Illumination of 0.04Lux with Sens-up

0.04

High Sensitivity

SID-53/56

Compact Size
with Superb Performance
Revolutionary Combination of
Design & Function

High Resolution Mini Dome Camera

Crystal clear images everywhere

Compact Mini Dome

The SID-53/56 series utilizes the WIVDSP developed by Samsung Techwin specifically for CCTV
applications. The WIVis the fourth-generation chipset in the Winner series. WIVprovides the industry's
only 3D noise reduction technology (SSNRII) which produces an industry-leading S/N specification of
52dB. This noise reduction technology enables compression engines in DVRs to work much more
efficiently, achieving as much as 70% reduction in recording space. This translates to either lower
storage cost or significantly longer storage times.

The SID-53 comes with a 3mm fixed lens that provides a horizontal field of
view of 120° which is ideal for small areas such as elevators. The SID-56
has a 6mm lens which affords a 60° horizontal field of view which is ideal
for most indoor applications.

Wide Angle View with 3mm/6mm lenses

3mm

6mm

There is no need to program or adjust camera settings such as exposure control or back light
compensation. The SID-53/56 combines electronic shutter, frame integration, and backlight
compensation with its advanced WIVDSP to automatically adjust to a wide range of indoor
application conditions without the need for programming. Installation is literally just mount, aim,
focus, and walk away.

Mount, Aim, Focus, and Walk Away

The SID-53/56 includes many advanced features and performance normally
found only in expensive system cameras :

- Electronic shutter

- Frame integration (sens-up)

- Backlight compensation (BLC)

- Wide range white balance

Redefining what you should expect as standard features

Easy to Install

Advanced Features

Nomal White Balance

The advanced 3D noise filtering system in the SID-53/56 allows it to provide
good color in much lower lighting levels. Reducing noise in the picture also
reduces the amount of storage space required to record the video on a DVR.
It also provides a signal to noise ratio of 52dB.

Low Noise Clear Images with

SSNRII

Super Noise Reduction

Conventional Camera SID-53/56

Samsung Te

chwin's Exclusive DSP,

SID-53

SID-56

SID-53/56

Wide View
