Samsung SH-B083L, TS-HB33 User Manual

페이지 1 / 1SAMSUNG BD-ROM/DVD Writer User's Manual

Samsung's OMS (Optical Media Solution) Customer Support Website
(http://www.samsung-ODD.com) offers the latest versions of firmware for ODD products,
user instructions and product information.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

g

g

페이지 1 / 1SAMSUNG DVD Writer User's Manual

Main Page

Safety Precautions

Safety Precautions

During Installation

During Operating

Others

RoHS & WEEE

Installing BD-ROM/DVD Writer and
Connectin

Installing Drive

Cables

Select Languages

English

Features

Exterior

System Requirements

Features

Installing Device Driver and Confirming
The Installation

Firmware Update

Connecting Cables

How To Use The BD-ROM/DVD Writer

How to Use the Drive

How to Use DVD±R/RW and Other Discs

MAGIC SPEED

Deleting Utilities

Troubleshootin

Troubleshooting

Caution: Possible Errors

Product Specifications

Confirming the Installation of Device Driver

Installing the MS-DOS device driver

Storing/Cleaning Drive and Disc

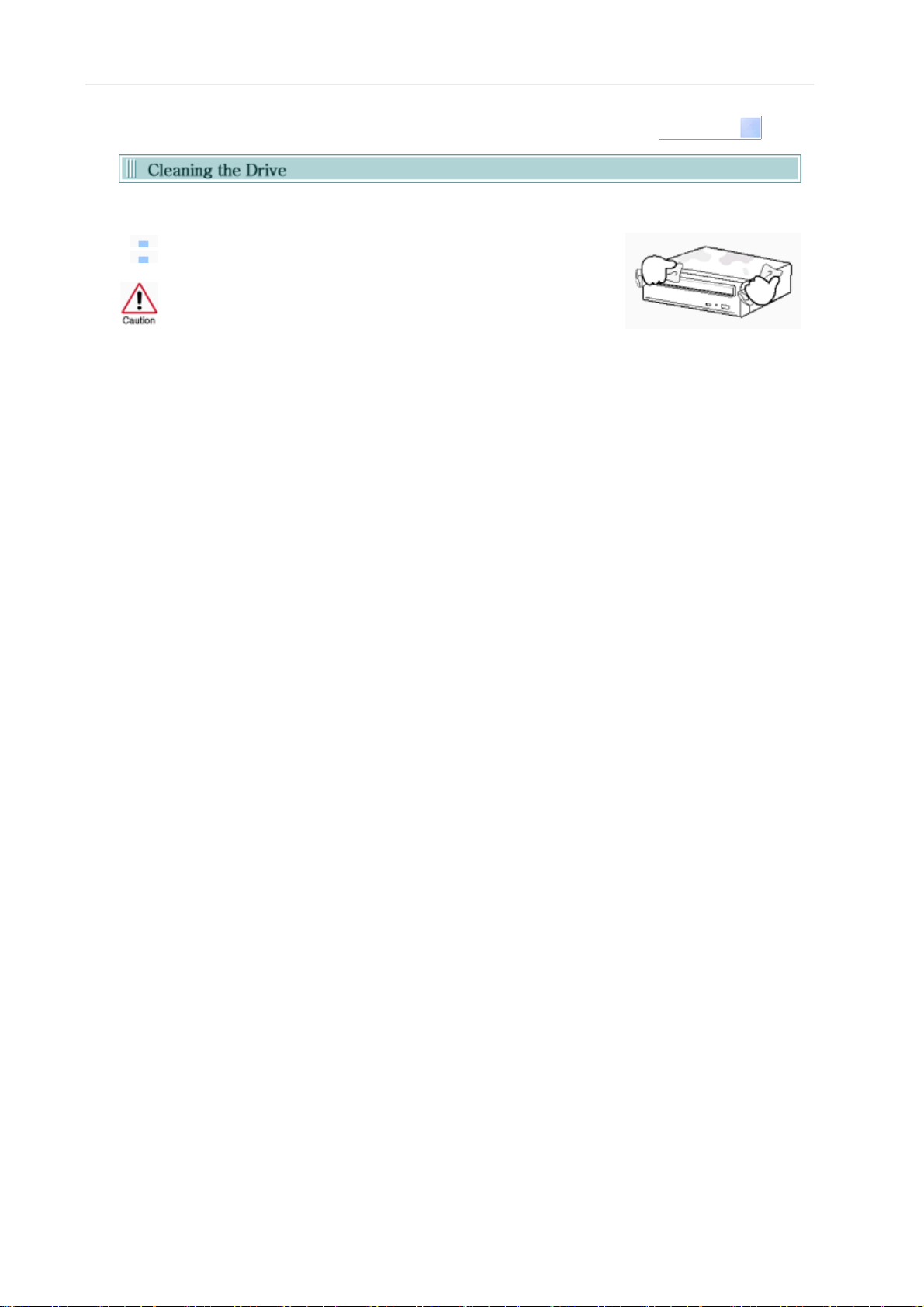

Cleaning the Drive

Storing the Disc

Cleaning the Disc

When the LED Blinks

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1SAMSUNG DVD Writer User's Manual

Select Languages

English

This symbol indicates explanations about extremely dangerous matters. If users ignore this
symbol and handle the device the wrong way, serious injury or death could result.

This symbol indicates explanations about dangerous matters. If users ignore this symbol and
handle the device the wrong way, damage to home or property could result.

Important to read and understand at all times

Do not disassemble

Always make sure that the disc does not have a crack before use. If the disc has a crack (especially
around the center hole), it is recommended to make a copy immediately and use the copy instead.
When a cracked disc is used continuously, the size of the crack is likely to grow and this will
eventually result in irreparable damage to the disc.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

A

A

페이지 1 / 1SAMSUNG DVD Writer User's Manual

Select Languages

English

Do not drop the drive, and protect it from severe shocks.

- It can damage the drive or cause it to malfunction.

Do not place the drive in direct sunlight.

void low or high temperature environments.

void high-humidity environments.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1SAMSUNG DVD Writer User's Manual

Select Languages

English

Handle with caution to prevent damage from external shock.

Do not drop the drive, and protect it from severe shocks.

- It can damage the drive or cause it to malfunction.

Do not move the drive while in operation and do not attempt to open
the disc tray by force.
Make sure to close all working programs before attempting to open the
tray and always use the open/close button.

Do not insert a pin into the emergency opening while in operation.

Do not insert hands in the tray while in operation.
This may cause damage to the product or human body

Do not use cracked, distorted or damaged discs.

In particular, a disc with a crack on the inner tracks may break
while in use.

Always check to be sure the disc is not cracked before use. If you find a crack on the disc
(especially around the center hole), make a copy of the disc immediately and use the copy instead.
Continued use of a cracked disc will cause the crack to become bigger, resulting in irreparable damage
to the disc.

Do not use low-quality discs (illegal, scratched, damaged, etc.).

Samsung is not responsible for any loss resulting from the use of such discs.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1SAMSUNG DVD Writer User's Manual

Select Languages

English

Never allow food particles or foreign substances to enter the drive
casing.

To protect against the risk of fire, do not spill such liquids as
alcohol and benzene on the drive.

Do not disassemble, attempt to repair or modify the device
without express approval as directed in the manual.

- To reduce the risk of damage, electric shock, and fire.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1SAMSUNG DVD±R/RW Drive User's Manual

Select Languages

English

Samsung Eco-mark
The Samsung’s own Eco mark helps consumers
to easily understand that Samsung develops
eco-friendly products. This mark represents
Samsung’s continuous effort to develop eco­friendly products.

(Restriction of the use of certain hazardous substances in electrical and electronic equipment)The

RoHS

RoHS, the environment regulation announced by European Union, restricts the use of lead, mercury,
cadmium, hexavalent chromium, PBB, and PBDE in products put on the market in The European Union
after July 1, 2006.

Correct Disposal of This Product (Waste Electrical & Electronic Equipment)

(Applicable in the European Union and other European countries with separate collection systems)

This marking shown on the product or its literature, indicates that it should not be disposed
with other household wastes at the end of its working life. To prevent possible harm to the
environment or human health from uncontrolled waste disposal, please separate this from
other types of wastes and recycle it responsibly to promote the sustainable reuse of
material resources.

Household users should contact either the retailer where they purchased this product, or
their local government office, for details of where and how they can take this item for
environmentally safe recycling.

Business users should contact their supplier and check the terms and conditions of the
purchase contract. This product should not be mixed with other commercial wastes for
disposal.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

A

페이지 1 / 2SAMSUNG DVD Writer User's Manual

Select Languages

English

Emergency Hole

1.

Door Tray

3.

z

Design and specifications are subject to change without prior notice.

LED/Eject Button

2.

S-ATA Power Port

1.

BD-ROM/DVD Writer
S-ATA Data Cable
Mounting Screw
Quick Installation Guide

pplication Software & User Manual CD

S-ATA Data Port

2.

2009-01-02file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 2 / 2SAMSUNG DVD Writer User's Manual

z

In case you need to return the purchased product, be sure to include all the accessories provided
with the product to receive a refund.

z

The type of accessories varies depending on product model.

2009-01-02file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1SAMSUNG DVD Writer User's Manual

You need to have an IBM-compatible PC with the following specifications.

Item Description

OS

CPU

RAM

Microsoft Windows XP(SP2 or above)/Vista

Pentium Dual or quad core processor

1 GB or more

Select Languages

English

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 2SAMSUNG DVD Writer User's Manual

Select Languages

English

Versatile Multimedia Features

DVD-R : Read / Write DVD+RW : Read / Write / Rewrite allowed

DVD+R : Read / Write DVD+R Dual : Read / Write

DVD-ROM : Read DVD-RAM : Read / Write / Rewrite allowed

DVD-R Dual : Read / Write CD-R : Read / Write

CD-RW : Read / Write / Rewrite allowed

BD-RE SL/DL : Read BD-R SL/DL : Read

DVD-RW : Read / Write / Rewrite allowed BD-ROM SL/DL : Read

See table below for details

Supports Read (playback) for various types of
discs

Disc Type Writable Rewritable Read

CD-STAMP × × O

CD

DVD

BD

Writable :
Rewritable :

DVD Recommended Disc Types

DVD-R Media

Taiyo-Yuden, TDK, MKM, Hitachi,, Maxell, FujiFilm, Panasonic, RiTEK, CMC

CD-R O × O
CD-RW O O O
DVD-STAMP × × O
DVD-R For General Ver 2.1 O × O
DVD-RW Ver 1.1 O O O
DVD+R(Dual) Basic Ver 1.11 O × O
DVD-R(Dual) O × O
DVD+RW Basic Ver 1.2 O O O
DVD-RAM O O O
BD-ROM × × O
BD-RE 2.0 × × O
BD-R 1.0 × × O

write once, read many times.

write data one or more times.

DVD-RW Media

TDK, MKM, JVC, PVC, RiTEK, CMC

DVD+R Media

RICOH, Taiyo-Yuden, MKM, RiTEK, CMC, Prodisc, Optdisc

DVD+RW Media

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

RICOH, MKM, RiTEK, CMC

DVD±R Dual

MKM

DVD-RAM

Maxell

CD Recommended Disc Types

CD-R Media

Taiyo-Yuden, RICOH, MKM, Hitachi,, Maxell, FujiFilm, RiTEK(Phtharo), CMC, Pioneer, Princo, TDK

CD-RW Media

RICOH, MKM, RiTEK, CMC

HS CD-RW Media

RICOH, MKM, CMC

US CD-RW Media

MKM

Buffer underrun prevention technology included

What is "Buffer underrun prevention technology "?

A technology to prevent
fast as the data writing speed when data is being recorded on a disc.

Reading / Recording Speed

"Buffer underrun"

페이지 2 / 2SAMSUNG DVD Writer User's Manual

errors in which the data transmission speed is not as

Reading Speed(MAX)

DVD-ROM(S)(16X), DVD-ROM(D)(12X), DVD-R(16X), DVD-RW(12X), DVD+R(16X), DVD+RW(12X),
DVD-RAM(12X), CD-ROM(48X), CD-R(40X), CD-RW(40X), DVD+R DUAL(12X), DVD-R DUAL(12X),
BD-ROM/R(8X), BD-RE(6X), BD-ROM/R/RE DUAL(4X)

Recording Speed(MAX)

DVD+R DUAL(8X), DVD+RW(8X), DVD-R(16X), DVD+R(16X), DVD-RW(6X), DVD-RAM(12X), CD-R
(48X), CD-RW(32X), DVD-R DUAL(8X)

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1SAMSUNG DVD Writer User's Manual

Turn the PC off.

1.

Open the cover as shown in the picture.

2.

If necessary, attach the support devices on both sides of

3.

the drive

- The support devices are PC accessories. Purchase a
pair if necessary.
(SCREW : M3 X 6 X 4 )

Select Languages

English

Insert the BD-ROM/DVD Writer after removing the plate as below

4.

Be sure to use the screws (M3x6) provided with the product.

- Using screws other than M3x6 may cause malfunction.

Be sure that the screws are tightened securely in place.
Loosely tightened screws may result in an increased level of noise.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 2SAMSUNG DVD Writer User's Manual

Select Languages

English

Connecting S-ATA Cable

When you use one S-ATA cable

a : Drive
b: Mainboard

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

y

페이지 2 / 2SAMSUNG DVD Writer User's Manual

When

a : Drive (S-ATA 1)
b : Drive (S-ATA 2)
c: Mainboard

ou have one DVD Writer and the other ODD products.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1SAMSUNG DVD Writer User's Manual

Go to http://www.samsung-ODD.com

1.

Click Firmware on the menu bar (in the upper right-hand corner).

2.

Click Firmware Downloads. Check for your drive model and start downloading.

3.

Select Languages

English

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1SAMSUNG DVD Writer User's Manual

Confirming Using [Device Manager]

Windows XP

Select Languages

English

Go to [Start] - [Settings] - [Control

1.

Panel] - [Performance and
Maintenance]

Click [Administrative Tools] icon in the

2.

Performance and Maintenance
window.

Click [Computer Management] icon in

3.

the Administrative Tools window.

Click [Device Manager] icon in the

4.

Administrative Tools window and then
click BD-ROM/DVD Writer drive.

in the left picture appears if the driver is
installed properly.

Windows Vista

Click [Start] - [Control Panel] - [System]

1.

- [Device Manager].

Click BD-ROM/DVD Writer drive in the

2.

Device Manager window.

in the left picture appears if the driver is
installed properly.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1SAMSUNG DVD Writer User's Manual

Automatic Setup

The device driver is located in the
Writer.

Insert the CD provided with the BD-ROM/DVD Writer and open the

1.

Run the

2.

When Setup is successfully completed, click

3.

Reboot the computer.

4.

CDSETUP.EXE

The MS-DOS device driver is used to detect a BD-ROM/DVD Writer in MS-DOS and
supports only the read function as in the case of a CD-ROM drive. We recommend that
you not install the MS-DOS device driver when you use the record function.

'Dos_driver'

file in the

Select Languages

English

folder of the CD which is provided with the BD-ROM/DVD

folder.

key.

'Dos_driver'

'OK'

folder.

button or press the

'Dos_driver'

'Enter'

Manual Setup

Make the

1.

Copy the files from the CD provided with the BD-ROM/DVD Writer to the

2.

To do so, type "

Edit the

3.

Add the

Edit the

4.

Add the

Reboot the computer.

5.

C:\SAMSUNG

COPY D:\Dos_driver *.* C:\SAMSUNG

'CONFIG.SYS'
DEVICE=C:\SAMSUNG\SSCDROM.SYS \D:SSCD000 /UDMA

'AUTOEXEC.BAT'
C:\SAMSUNG\MSCDEX/D:SSCD000

directory.

file.

file.

entry.

" after the

prompt and press [

C:\

C:\SAMSUNG

entry.

directory.

].

Enter

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1SAMSUNG DVD Writer User's Manual

Select Languages

English

When the LED is Blue, do not turn the PC off or remove the BD-ROM/DVD Writer as it may cause
damage in the drive.

How to Use a Horizontally Installed Drive

You can use

disc.

The drive cannot read the disc properly if any part of the
disc is place outside the tray guiding line.

3.15 Inch or 4.72 Inch (8cm or 12cm)

How to Use a Vertically Installed Drive

This drive can be installed vertically.

You can use only the

(You cannot use the 3.15 Inch (8cm) disc)

The drive cannot read the disc properly if any part of the
disc is place outside the tray guiding line.

4.72 Inch (12cm) disc.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1SAMSUNG DVD Writer User's Manual

Select Languages

English

The BD-ROM/DVD Writer allows writing DVD±RW discs using Cyberlink Power2go and enables
"packet writing" (high-speed recording) using Instant Burn.

The drive also allows writing DVD±R discs using Cyberlink Power2go.

Unauthorized copying of DVD or software titles is ille ga l and the individuals that make
illegal copies will be held responsible for any copyright infringement.
Using low-quality discs may lengthen the recording time or not supporting due to
reduction in double speed.

You can use the BD-ROM/DVD Writer to playback music CDs, CD-ROM, CD-R/RW, or DVD-ROM discs,
like a CD-ROM drive or a DVD-ROM drive. If your computer recognizes the [CD-ROM] icon designated to
the BD-ROM/DVD Writer as the 'E:' drive, insert a CD-ROM or a DVD-ROM disc and access the 'E:' drive.

(The actual drive letter of the BD-ROM/DVD Writer may vary depending on the user's system
environment.)

To Playback a DVD Video Disc :

You need a DVD decoder board or the DVD decoder software program.
(Provided with Power DVD)
Use Power DVD to change the region code of the BD-ROM/DVD Writer.

DVD Region Protection Coding (RPC):

The RPC feature is supported on DVD players and is used with DVD-video discs (such as movies).
Currently, the motion picture industry has divided the world into different regions or zones that
correspond to the regional markets intowhich the motion picture industry releases movies. Simply put,
RPC codes are placed on movies marketed throughout the world, based on the region of the world
inwhich they are being sold. These RPC codes help control and prevent pirating of new movies into
other motion picture regions prior to their true release dates within those markets.
The DVD Writer supports RPC phase II. In the RPC-2 mode, the local code can be changed by users.
RPC-2 is selected by default for The DVD Writer.
You can change the region code up to five times via an MPEG application.

Please contact your dealer or local SAMSUNG representative if you wish to change the local code
more than five times.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1

Select Languages

English

What is a MAGIC SPEED?

MAGIC SPEED is a program that supports users to select at his or her discretion the reading speed of
CD disc between two modes offered by drive: Maximum Speed Mode (Max Mode) and Silent Mode.

Development Background

ODD products launching nowadays are providing a high reading speed.
With the increased reading speed, faster data processing has become possible. However, high rotation
speed often causes louder noise, and it is more possible to crash the cracked or bent discs. Against this
backdrop, our Company has developed a speed-down algorithm and applied this technology to new
launching products to provide safer and more comfortable environments for PC users.

※ What is Speed-down Algorithm?

It establishes a safer disc reading speed in operating the device in order to prevent possible disc
crashes in using CDs with cracks in start. In addition, for customers who want to play CDs at its
maximum speed, MAGIC SPEED program offers the function of selecting reading speed, so that
customers can set the speed as they want. (Recording speed will run at recordable speed without
limit)

What Are MAGIC SPEED Modes and How to Use

MAGIC SPEED Modes

●

Max Mode: Setting reading speed to its maximum level provided by drive.

●

Silent Mode: Setting reading speed to a stable low speed.

●

Any mode set by Magic Speed will be reset to "Low nosie mode" when the PC restarts, so please
check the current mode if you want to use “The maximum speed mode” and change the settings
where necessary.

Caution

such disc in Silent Mode, or make a copy immediately before use.

How to Use MAGIC SPEED

●

●

●

●

※ We recommend you to use "Max Mode" for data copy or disc copy, and "Silent Mode" for normal

※ Other functions

: A disc with crack may be crashed in playing with Max Mode. We recommend you to use

First, install MAGIC SPEED program registered on our website.

On MAGIC SPEED tray icon, select right-click to execute the program.

Select the mode you want to use on Program Execution Window and select “settings”. Then,
reading speed of the drive will run in selected mode.

Select “Close” to exit Program Execution Window.
In this occasion, reading speed will be run in the set speed if there is no separate mode change or
program exit.

operation.

▶

To disable Auto Run

This is a default program that automatically runs in every PC booting.
If you want to quit this auto run function, deselect the auto run item selected on tray icon
menu.

Where Can I Download MAGIC SPEED?

Visit our website for customer support (URL:http://www.samsung-ODD.com), and select Firmware →
MAGIC SPEED.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1SAMSUNG DVD Writer User's Manual

Select Languages

English

Click [Start] - [Setting] - [Control Panel] - [Add/Remove Programs] and a window as shown
below appears.

[ Windows XP ]

Click the [Add/Remove] button to remove the program.

[ Windows Vista ]

Click the [Uninstall/Change] button to remove

the program.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1SAMSUNG DVD Writer User's Manual

Turn the PC off and pull out the drive.
Remove any foreign objects from the surface of the drive using soft cloth.

- Do not use benzene, paint thinner, or any other solvents.

- Cleaning the interior of the unit with such things as a cotton
swab may cause failure or loss of functionality.

Select Languages

English

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1SAMSUNG DVD Writer User's Manual

This part of the manual is to prevent damage s or data loss.
Read carefully and use the device properly.

Do not place it under the direct sunlight.

Place it so that it sits on its side on a flat surface.

Do not scratch or place a label on the disc.

Handle the disc with caution to prevent damage from external shock.

Do not expose it to severe temperature fluctuations.

(Exposure to such environment may cause congealing.)

Select Languages

English

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

prop

페이지 1 / 1SAMSUNG DVD Writer User's Manual

Select Languages

English

This part of the manual is to prevent damage s or data loss.
Read carefully and use the device properly.

Do not touch the surface of the disc.
Place your fingers on the edge of the disc to hold.

Clean the disc lightly with soft cotton cloth, starting from the center and move to
the edge of the disc.

Use only disc cleaning liquids. Do not use benzene, paint thinner, or any other solvents.

If the disc surface becomes dirty with fingerprints, foreign substances or dust, the disc may not
function

erly.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1SAMSUNG DVD Writer User's Manual

LED Meaning
Disc Lead-In
Writing
Reading
Audio Playback [Digital Mode]
Standby
No Disc

The indicator light turns off when the drive is not in use (standby) after disc lead-in.

Blue : Blinks every 0.3 seconds.

Blue : Blinks every 0.3 seconds.

Blue : Blinks every 0.3 seconds.

Blue : Blinks every 0.3 seconds.

Off

Off

Select Languages

English

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 1SAMSUNG DVD Writer User's Manual

Problem Meaning / Solution

The tray doesn't open.

The tray doesn't close.
The PC is not working properly.

The drive is not working properly.

The Window OS can't detect the
drive.

The system doesn't read the disc.

Select Languages

English

See if the PC on.

Make sure the power cable within the PC is connected properly.

If the tray still won't open with the power on, turn the power off and
insert a pin(paper clip) into the emergency hole to open.

Make sure the disc has been inserted properly.

See if the drive is properly connected to the PC.
See if the floppy disc remains in the PC.

See if the drive is connected properly to the PC.

See if the device drive program has been installed properly.

See if the device drive program has been installed properly.

Can be an OS problem. Try reinstalling the Windows OS program.

See if the system detects the drive.

Make sure you use the types of discs that are supported by the drive.

See if the LED turns into Blue.

Make sure you inserted the disc with the label facing up.

Make sure you are using the right program for disc playback.

See if the disc is clean.

See if any congealing has occurred.

Make sure the region code of the drive matches the disc number.

You can confirm the use of software at the site of our customer support.
Address: www.samsung-ODD.com

- See “ SUPPORT > Download Center > Web User Manual ”.

- See “ INFORMATION > Flash Manual > Recording Software ”.

- See “ INFORMATION > Flash Manual > Software Quick Manual ”.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 2SAMSUNG DVD Writer User's Manual

Select Languages

English

BD-ROM/DVD Writer record data on the disc by applying laser light onto the surface of the disc, and
therefore writing errors may occur if you use a damaged disc, for example. Be sure to eliminate the following
error-causing elements before you start writing:
* The following settings are recommended for all BD-ROM/DVD Writer:

Avoid a situation that requires multitasking, and remove turn off the screen saver .

A Buffer underrun may occur if the system multitasks while the BD-ROM/DVD Writer is
writing/erasing.

Block any outside attempt to access the host PC during a writing session.

An error may occur if another user accesses the printer connected to his/her the system via the
network during a writing session.

Disable the CD auto-run feature of the CD.

Inserting an auto-run-enabled CD in to another drive connected to the same system during a
writing/erasing session may cause an error.

It is recommended that you use the image file format when you write a large number of small­sized files.

When there are a large number of small-sized files to write, the system's transmission rate drops
and the Superlink feature works at a more frequent rate, resulting in lower writing quality.

If you are doing a on the fly write, it is not necessary to check to see if you have available space on
your hard disc beforehand.

However, in the case of image files, it is recommended that you be sure you have at least twice the
amount of space needed for the data on your hard disc, as image files are copied to the hard disc
before they are copied to the Media.

Use a regulation-length (50cm) or shorter S-ATA cable.

Using an

Do not use more than one type of writing software.

Before you install a writing program, be sure to first uninstall existing versions of the program or
other writing program(s) and reboot the system first .

(The Windows operating system may be damaged if you install the Korean version while the
English version remains on the system.)

Use only the writing software provided by Samsung.
You may experience writing errors if you use with other writing programs.

The disc has bad properties data, and or there are other discs with different properties
available under the same ID.

The drive's write strategy is set in a way that the drive examines to examine the disc properties and
determines the optimal write conditions for those properties.

For example, many disc makers do not bother to insert property information distinguishing 46X
discs from 32X discs. Since the two types of discs have the same properties data, although they
actually have different properties, it is often impossible to respond to the situation with a single write
strategy. In order to ensure stable writing, it is necessary to downgrade the write speed.

cable longer than

S-ATA

may cause a transmission error.

50cm

If discs from two different disc makers have the same write speed according to the labels, but
actually have different write speeds, it is necessary to downgrade the write speed to ensure stable
writing.

Samsung' s Standards for Write Speed Restriction.

Write speed is downgraded for the sake of write stability, if high-speed discs

Standards 1

available in the market have particularly bad properties data, or there are
low-speed discs available under the same ID.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 2 / 2SAMSUNG DVD Writer User's Manual

Speed-restricted discs go through further examination and adjustments
later. If high-speed discs are available under the same ID with as low-speed

Standards 2

You may experience lower write quality in case if you use disc products by some disc makers
which that are not registered with the product's firmware.
Therefore, it is recommended that you use only discs by recommended companies. Even, and
even if the write session is completed successfully, check the write quality before you put the disc
in storage, especially in case of an important data backup.
(Samsung is not responsible for any loss resulting from data backup failure.)

We update the list of supported media on a regular basis through our firmware upgrades

discs (speed restricted at present), the speed restriction is removed when
the low-speed counterparts become no longer a una vailable in the market
under the same ID.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 1 / 2SAMSUNG DVD Writer User's Manual

Category

DISC

Interface Support

Access Time

(Random)

Data Transfer Speed

(Max)

Buffer Memory
Drive Installation

Operating
Environment

Size(Width x Height x Length)
Weight

Note

Do not support DVD-R for Authoring.

Cannot playback or record on both sides of a dual layer disc simultaneously.

Usable Discs

Disc Diameter 4.72 Inch or 3.15 Inch (120mm or 80mm)

Interface Port S-ATA

Burst Transfer Rate SATA 1.5Gbps

CD-ROM 140ms (Random)

DVD-ROM 140ms (Random)

BD-ROM 210ms (Random)

DVD+R CAV 16X(21.6MB/sec) CAV 16X(21.6MB/sec)

DVD+RW ZCLV 8X(10.8MB/sec)

DVD+R DUAL ZCLV 8X(10.8MB/sec)

DVD-R DUAL ZCLV 8X(10.8MB/sec)

DVD-R CAV 16X(21.6MB/sec) CAV 16X(21.6MB/sec)

DVD-RW ZCLV 6X(8.1MB/sec) CAV 12X(16.2MB/sec)

DVD-ROM(Single) - CAV 16X(21.6MB/sec)

DVD-ROM(Dual) - CAV 12X(16.2MB/sec)

CD-ROM - CAV 48X(7.2MB/sec)

CD-R CAV 48X(7.2MB/sec) CAV 40X(6.0MB/sec)

US-RW ZCLV 32X(4.8MB/sec) CAV 40X(6.0MB/sec)

HS-RW CLV 10X (1.5MB/sec) CAV 40X(6.0MB/sec)

CD-RW CLV 4X (0.6MB/sec) CAV 40X(6.0MB/sec)

BD-ROM/R SL - CAV 8X(36.0MB/sec)

BD-ROM RE SL - CAV 6X(27.0MB/sec)

BD-ROM/R/RE DL - CAV 4X(18.0MB/sec)

Temperature 41°F ~ 122°F (5°C ~ 45°C)

Humidity 5% ~ 80% (RH)

Media Type

Select Languages

English

SH-B083

BD-ROM/DVD Writer

DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-

:

DVD

ROM,DVD-RAM
DVD-Video, DVD+R (Dual), DVD-R (Dual)

: CD-ROM, CD-R, CD-RW, CD-DA, CD+E(G)

CD

CD-MIDI, CD-TEXT, CD-ROM XA, Mixed Mode
CD
CD-I, CD-I Bridge (Photo-CD, Video-CD),
Multisession CD (Photo-CD, CD-EXTRA,
Portforio)

: BD-ROM, BD-RE SL/DL, BD-R SL/DL

BD

2MB

Horizontal / Vertical

148.2 X 42 X 184mm

780g

Write

Read

CAV 12X

(16.2MB/sec)

CAV 12X

(16.2MB/sec)

CAV 12X

(16.2MB/sec)

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...

페이지 2 / 2SAMSUNG DVD Writer User's Manual

The read/write capacity of the supported discs depends on the condition of the disc
and the recording format of the drive. Therefore, the read/write quality may not be perfect.

FCC information to the user

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation.
If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one or more of the following measures:

Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

Consult the dealer or an experienced radio/TV technician for help.

CAUTION

Change or modifications not expressly approved by the manufacturer responsible for compliance
could void the user's authority to operate the equipment.

Laser Standard

IEC 60825-1 : 1993 + A1 : 1997 + A2 : 2001

The product specifications above may be ch anged to improve device performance without
prior notice.

2008-12-30file://D:₩CD₩SH-B083L 12월 중순 스타트₩SH-B083L 번체 추가중_1...
