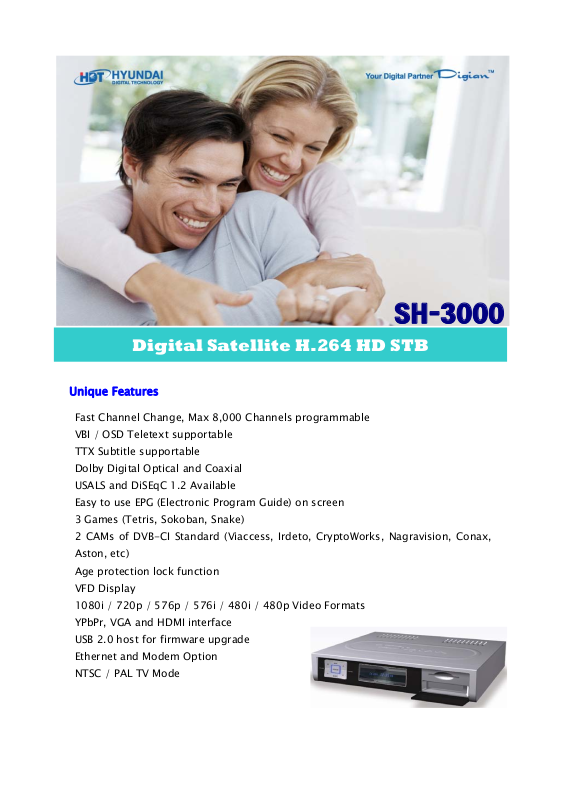

SH-3000

Digital Satellite H.264 HD STB

Unique Features

Fast Channel Change, Max 8,000 Channels programmable

VBI / OSD Teletext supportable

TTX Subtitle supportable

Dolby Digital Optical and Coaxial

USALS and DiSEqC 1.2 Available

Easy to use EPG (Electronic Program Guide) on screen

3 Games (Tetris, Sokoban, Snake)

2 CAMs of DVB-CI Standard (Viaccess, Irdeto, CryptoWorks, Nagravision, Conax,

Aston, etc)

Age protection lock function

VFD Display

1080i / 720p / 576p / 576i / 480i / 480p Video Formats

YPbPr, VGA and HDMI interface

USB 2.0 host for firmware upgrade

Ethernet and Modem Option

NTSC / PAL TV Mode

Basic Features

Fully compliant with MPEG-2, H.264/AAC and DVB standard

Fast Auto-programming and User-friendly Installation

Powerful Channel Control by Favorites, Delete, Lock, Move and Skip

Channel Sorting by Satellite, Name, CAS, Alphabet order

16 bit true color OSD & Convenient GUI (Graphic User Interface) Architecture

Variable Aspect Ratio with 4:3,16:9, Letter-Box & Pan-Scan,Ignore

Multi language support for OSD & Manual / Help menu support

Sleep Timers Programmable

Calcurator and Calendar function

Software download via Satellite (OTA)

PIG (Picture in Graphic)

Class

Core Hardware

Tuner & Channel

MPEG Transport
Stream A/V
Decoding

A/V & Data
In/Out

Power Supply

Front

Specification

CPU 32bit RISC CPU DDR RAM 128Mbyte

Flash ROM 8Mbyte EEPROM 2Kbyte

Input Connector IEC 169-24 Female Signal Level -65dBm to -25dBm

Frequency Range 950MHz to 2150MHz Demodulation QPSK, 8QSK

Input Impedance 75Ω unbalanced Symbol Rate 1M~45M/s (DVB-S)

10M~30M/s (DVB-S2)

LNB Power supply 13/18V/Off, Max.400mA Band Switching

Transport Stream H.264HP@L4.0 Video Resolution

Profile Level

Input Rate Max.100Mbit/s Audio Mode

Aspect Ratio 4:3, 16:9, Auto Sampling Rate

TV SCART RGB, CVBS,Y/C Audio L/R SPDIF Digital Audio Output

VCR SCART CVBS, RGB, Y/C Audio L/R RS-232C Transfer rate 115Kbps

S-VHS DIN jack/S-Video Output VGA D-SUB RGB, HV

Component RCA/Cinch Video Output Modem Option

Composite RCA/Cinch Video Output LAN

Audio R/L

HDMI Digital A/V Output

Input Voltage 98~220VAC@50Hz/60Hz

Type SMPS Stand by 3W

Display

LED / Button 1LED / 7 Button Smart Card 1 Slot (Option)

MPEG-2MP@HL, MPEG­4/AVC MP@L4

RCA/Cinch Volume and
Mute control

12Digit VFD Dot Matrix

Audio Decoding

USB 2.0 Host x 1EA (Front)

Power
Consumption

PCMCIA 2 Slot

22KHz Tone,
DiSEqC1.0,1.1,1.2, USALS

480i/p, 576i/p, 720p,
1080i

Dolby AAC, AC-3, MPEG­1 Layer 1,2 and 3

Mono, Left, Right, Stereo,
Dolby AC-3

32, 44.1 and 48KHz
(According to input
stream)

10/100Mbps Ethernet
(Option)

Max.40W

Physical
Specification

Size [W x H x D] 335 x 58.5 x 268 (mm) Weight [Net] TBD

Operation
Temperature

0℃ ~ 45

℃

Storage
Temperature

-20℃ ~ + 70℃

<System Information> <TP Edit / Scan>

<System Setting> <Game>

<Calendar> <Calcurator>

Head Office:

223-22, Sangdaewon-1dong, Jungwon-ku, Seongnam-si, Kyoungki-do, Korea 462-807

T.+82-31-737-7567 F.+82-2-431-1085 Email. [e-mail]
