Samsung SGH-E630 Expoioded View and Parts List

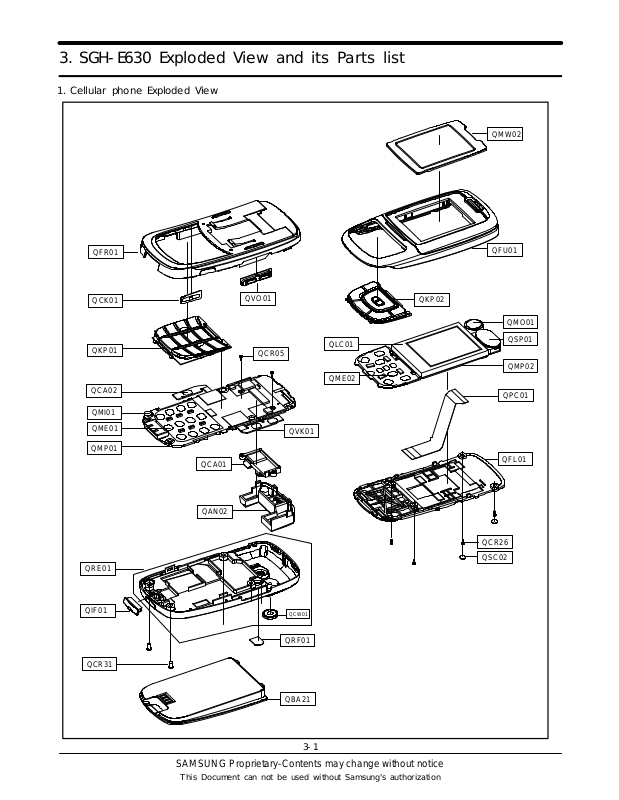

3.SGH-E630 Exploded View and its Parts list
1.Cellular phone Exploded View
QMW02
QFR01 |
QFU01 |
QCK01 |
QVO01 |
|
QKP02 |
|
|
|
QMO01 |
|
|
QLC01 |
QSP01 |
QKP01 |
|
|
|
QCR05 |
|
|
|
|
|
|
|
|
|
|
QMP02 |
|
QME02 |
QCA02 |
QPC01 |
|
|
QMI01 |
|
QME01 |
QVK01 |
|
|
QMP01 |
|
|
QFL01 |
|
QCA01 |
QAN02
QCR26
QSC02
QRE01
QIF01 |
QCW01 |
QRF01
QCR31
QBA21
3-1
SAMSUNG Proprietary-Contents may change without notice
This Document can not be used without Samsung's authorization
Exploded view and its Part list
2. Cellular phone Parts list
Location |
Description |
SEC CODE |
Remark |
|
NO. |
||||
|
|
|
||
|
|
|
|
|
QMW02 |
WINDOW LCD |
GH72-15021A |
|
|
|
|
|
|
|
QFU01 |
MEC-SLIDE UPPER |
GH75-04606A |
|
|
|
|
|
|
|
QKP02 |
KEYPAD SUB |
GH75-04612A |
|
|
|
|
|
|
|
QMP02 |
LCD PBA |
GH92-01846A |
|
|
|
|
|
|
|
QME02 |
LCD METAL DOME |
GH59-01438A |
|
|
|
|
|
|
|
QFL01 |
MEC-SLIDE LOWER |
GH75-04607A |
|
|
|
|
|
|
|
QSP01 |
SPEAKER |
3001-001575 |
|
|
|
|
|
|
|
QMO01 |
MOTOR |
GH31-00098A |
|
|
|
|
|
|
|
QLC01 |
LCD |
GH07-00561A |
|
|
|
|
|
|
|
QCR26 |
SCREW MACHINE |
6001-001850 |
|
|
|
|
|
|
|
QFR01 |
FRONT COVER |
GH75-04605A |
|
|
|
|
|
|
|
QKP01 |
KEYPAD MAIN |
GH75-04611A |
|
|
|
|
|
|
|
QIF01 |
IF CONN COVER |
GH72-15017A |
|
|
|
|
|
|
|
QMP01 |
MAIN PBA |
GH92-01889A |
|
|
|
|
|
|
|
QVK01 |
UNIT VOLUME KEY |
GH59-01436A |
|
|
|
|
|
|
|
QME01 |
UNIT METAL DOME |
GH59-01437A |
|
|
|
|
|
|
|
QCA02 |
UNIT CAM KEY |
GH59-01435A |
|
|
|
|
|
|
|
QCR05 |
SCREW |
6001-001478 |
|
|
|
|
|
|
|
QMI01 |
MICROPHONE ASSY |
GH30-00134A |
|
|
|
|
|
|
|
QCK01 |
MEC CAM KEY |
GH75-04610A |
|
|
|
|
|
|
|
QCR31 |
SCREW |
6001-001795 |
|
|
|
|
|
|
|
QVO01 |
MEC SIDE KEY |
GH75-04609A |
|
|
|
|
|
|
|
QRE01 |
MEC REAR COVER |
GH75-04608A |
|
|
|
|
|
|
|
QRF01 |
RF COVER |
GH74-09508A |
|
|
|
|
|
|
|
QBA21 |
BATTERY |
GH43-01447A |
|
|
|
|
|
|
|
QPC01 |
PCB-FPCB |
GH41-00637A |
|
|
|
|
|
|
|
QCA01 |
UNIT CAMERA |
GH59-01464A |
|
|
|
|
|
|
|
QSC02 |
SCREW CAP |
GH74-11226A |
|
|
|
|
|
|
|
QAN02 |
INTENNA |
GH42-00457A |
|
|
|
|
|
|
|
QCW01 |
WINDOW CAMERA |
GH75-05299A |
|
|
|
|
|
|
3-2
