Samsung SERIES 3 19 INCH (LA19C350), LA26C350D1M, LA32C350D1M, LA22C350D1D, LA26C350D1 User Manual

LCD TV

quick start guide

imagine the possibilities

Thank you for purchasing a Samsung product.
To receive a more complete service, please
register your product at

www.samsung.com/global/register

(350ASIA)_CMS.indd i(350ASIA)_CMS.indd i 2010-05-12  8:00:322010-05-12  8:00:32

connections

Caution

● When connecting an external device, match the colour of the connection terminal to the cable.

● The product colour and shape may vary depending on the model.

● Each Cable Box/Satellite receiver (Set-Top Box) has a different back panel confi guration.

● Whenever you connect an external device to your TV, make sure that power on the unit is turned off.

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA HDMI

LA19C350 / LA22C350

Satellite receiver (Set-Top Box)

LA26C350 / LA32C350

Satellite receiver (Set-Top Box)

DVD Player or Cable Box /

HDMI Cable (Not supplied)

DVD Player or Cable Box /

TV REAR PANEL

1

TV REAR PANEL

HDMI Cable (Not supplied)

1.

Connect an HDMI Cable(Not supplied) between the HDMI IN (1or 2(DVI)) jack on the TV and the HDMI jack on

the Cable Box/Satellite receiver (Set-Top Box).

➢

No additional Audio connection is needed for an HDMI to HDMI connection.

➢

When using an HDMI/DVI cable connection, you must use the HDMI IN 2(DVI) jack.

1

(350ASIA)_CMS.indd 1(350ASIA)_CMS.indd 1 2010-05-12  8:00:402010-05-12  8:00:40

1

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA DVI

LA19C350 / LA22C350

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

TV REAR PANEL

LA26C350 / LA32C350

Audio Cable (Not supplied)

HDMI/DVI Cable (Not supplied)

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

Audio Cable (Not supplied)

2

1

TV REAR PANEL

2

HDMI/DVI Cable (Not supplied)

1

1.

Connect an HDMI Cable(Not supplied) between the HDMI IN 2(DVI) jack on the TV and the HDMI jack on the

Cable Box/Satellite receiver (Set-Top Box).

2.

Connect Audio Cables(Not supplied) between the DVI AUDIO IN jack on the TV and the Cable Box/Satellite

receiver (Set-Top Box).

➢

When using an HDMI/DVI cable(Not supplied) connection, you must use the HDMI IN 2 jack.

2

(350ASIA)_CMS.indd 2(350ASIA)_CMS.indd 2 2010-05-12  8:00:402010-05-12  8:00:40

CONNECTING A CABLE BOX/SATELLITE RECEIVER (SET-TOP BOX)
VIA COMPONENT CABLES

LA19C350 / LA22C350

DVD Player or Cable Box /

Satellite receiver (Set-Top Box)

1

LA26C350 / LA32C350

Satellite receiver (Set-Top Box)

1

2

Audio Cable (Not supplied)

Component Cable (Not supplied)

DVD Player or Cable Box /

2

Audio Cable (Not supplied)

Component Cable (Not supplied)

1.

Connect a Component Cable(Not supplied) between the COMPONENT IN 1, 2 [Y, PB, PR] jacks on the TV and the
COMPONENT jacks on the Cable Box/Satellite receiver (Set-Top Box).

2.

Connect Audio Cables(Not supplied) between the COMPONENT IN 1, 2 [R-AUDIO-L] jacks on the TV and the AUDIO
OUT jacks on the Cable Box/Satellite receiver (Set-Top Box).

3

(350ASIA)_CMS.indd 3(350ASIA)_CMS.indd 3 2010-05-12  8:00:412010-05-12  8:00:41

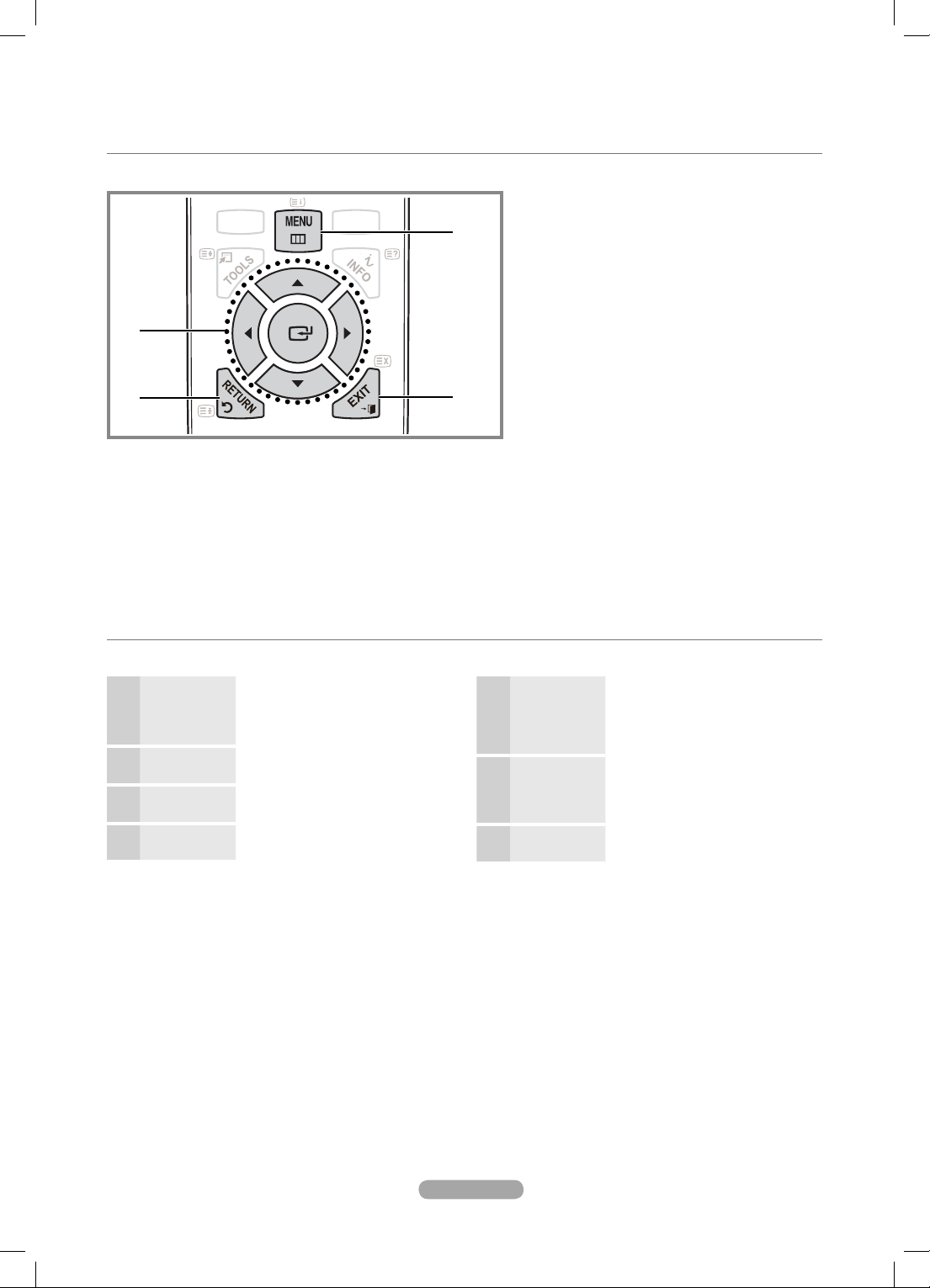

How to Navigate Menus

MEDIA.P

HDMI

Before using the TV, follow the steps below to learn how to navigate the menu and select and adjust different functions.

1 MENU button: Displays the main on-screen
menu.
2

ENTERE / Direction button: Move the cursor

and select an item. Confi rm the setting.

RETURN button: Returns to the previous menu.

3
4 EXIT button: Exits the on-screen menu.

2

1

3

4

HOW TO OPERATE THE OSD (ON SCREEN DISPLAY)

The access step may differ depending on the selected menu.

1

2
3
4

MENU

/

▲

ENTER

/

▲

The main menu options appears on
the screen:

m

Picture, Sound, Channel, Setup,
Input

.

Select an icon with the ▲ or ▼

▼

button.

Press ENTERE to access the sub-

E

menu.

Select the desired submenu with the

▼

or ▼ button.

▲

5

6

7

/

◄

ENTER

EXIT

Adjust the value of an item with the

or ► button. The adjustment in

◄

►

the OSD may differ depending on the
selected menu.

Press ENTERE to complete the

E

confi guration.

Press EXIT.

e

4

(350ASIA)_CMS.indd 4(350ASIA)_CMS.indd 4 2010-05-12  8:00:422010-05-12  8:00:42

Contact SAMSUNG WORLDWIDE

If you have any questions or comments relating to Samsung products, please contact the SAMSUNG customer care centre.

Country Customer Care Centre Web Site

AUSTRALIA 1300 362 603 www.samsung.com

BAHRAIN 8000-4726

CHINA

400-810-5858
010-6475 1880

HONG KONG (852) 3698-4698

-

www.samsung.com

www.samsung.com/hk
www.samsung.com/hk_en/

3030 8282

INDIA

1800 110011
1800 3000 8282

www.samsung.com

1800 266 8282

INDONESIA

0800-112-8888
021-5699-7777

www.samsung.com

JAPAN 0120-327-527 www.samsung.com

JORDAN 800-22273

-

MALAYSIA 1800-88-9999 www.samsung.com

NEW ZEALAND 0800 SAMSUNG (0800 726 786) www.samsung.com

1-800-10-SAMSUNG(726-7864)

PHILIPPINES

1-800-3-SAMSUNG(726-7864)
1-800-8-SAMSUNG(726-7864)

www.samsung.com

02-5805777

SINGAPORE 1800-SAMSUNG(726-7864) www.samsung.com

SOUTH AFRICA 0860-SAMSUNG(726-7864 ) www.samsung.com

TAIWAN 0800-329-999 www.samsung.com

THAILAND

1800-29-3232
02-689-3232

www.samsung.com

U.A.E 800-SAMSUNG (726-7864) www.samsung.com

VIETNAM 1 800 588 889 www.samsung.com
