4/8/16 CHANNEL DVR

User Manual

SDS-P3042/P4042/P4082/P5082/P5102/P5122

4/8/16 Channel DVR

User Manual

Trademark

The name of this product is the registered trademark of Samsung Techwin Co., Ltd. Other trademarks mentioned in this manual are the registered trademark of their respective company.

Restriction

Samsung Techwin Co., Ltd shall reserve the copyright of this document. Under no circumstances, this document shall be reproduced, distributed or changed, partially or wholly, without formal authorization of Samsung Techwin.

Disclaimer

Samsung Techwin makes the best to verif y the integrity and correctness of the contents in this document, but no formal guarantee shall be provided. Use of this document and the subsequent results shall be entirely on the user's own responsibility. Samsung Techwin reserves the right to change the contents of this document without prior notice.

Design and specifications are subject to change without prior notice.

The initial administrator ID is “admin” and the password should be set when logging in for the first t ime.

Set password for your wireless network if you use the product with a wireless router. Being not protected with pa ssword or using the default wireles s router password may expose your video dat a to potential threat. Please change your password ever y three months to safely protect personal information and to prevent the damage of t he information theft. Please, take note that it’s a user’s responsibility for the securit y and any other problems caused by mismanaging a password.

is the registered logo of Samsung Techwin Co., Ltd.

overview

IMPORTANT SAFETY INSTRUCTIONS

Read these operating instructions carefully before using the unit. Follow all the safety instructions listed below. Keep these operating instructions handy for future reference.

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings, Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding- type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms or when unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

! overview

English _3

overview

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN

CAUTION

: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK) NO USER

SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates that dangerous voltage consisting a risk of electric shock is present within this unit.

This exclamation point symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

•

To reduce the risk of fire or electric shock, do not expose this appliance to rain or moisture.

•

To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

WARNING

1. Be sure to use only the standard adapter that is specified in the specification sheet.

Using any other adapter could cause fire, electrical shock, or damage to the product.

2. Incorrectly connecting the power supply or replacing battery may cause explosion, fire, electric shock, or

damage to the product.

3. Securely plug the power cord into the power receptacle. Insecure connection may cause fire.

4. When installing the camera, fasten it securely and firmly. The fall of camera may cause personal injury.

5. Do not place conductive objects (e.g. screwdrivers, coins, metal parts, etc.) or containers filled with water on

top of the camera. Doing so may cause personal injury due to fire, electric shock, or falling objects.

6. Do not install the unit in humid, dusty, or sooty locations. Doing so may cause fire or electric shock.

7. If any unusual smells or smoke come from the unit, stop using the product. In such case, immediately

disconnect the power source and contact the service center. Continued use in such a condition may cause fire or electric shock.

8. If this product fails to operate normally, contact the nearest service center. Never disassemble or modify this

product in any way. (SAMSUNG is not liable for problems caused by unauthorized modifications or attempted repair.)

9. When cleaning, do not spray water directly onto parts of the product. Doing so may cause fire or electric shock.

10. Do not expose the product to the direct airflow from an air conditioner.

Otherwise, it may cause moisture condensation inside the Clear Dome due to temperature difference between internal and external of the dome camera.

11. If you install this product in a low-temp area such as inside a cold store, you must seal up the wiring pipe with

silicon, so that the external air can not flow inside the housing. Otherwise, external high, humid air may flow inside the housing, pooling moisture or vapor inside the product due to a difference between internal and external temperature.

4_ overview

BEFORE START

This user manual provides Information for using the DVR such as brief introduction, part names, functions, connection to other equipment, menu setup, etc. You have to keep in mind the following notices :

• SAMSUNG retains the copyright on this manual.

• This manual cannot be copied without SAMSUNG’s prior written approval.

• We are not liable for any or all losses to the product incurred by your use of non-standard product or violation

of instructions mentioned in this manual.

• Prior to opening the case, please consult a qualified technician first. Whenever this is needed power must be removed from the unit.

• Before installing an additional HDD or connecting an external storage device (USB HDD) to this DVR, check the compatibility. Consult your provider for the compatibility list.

Warning

❖ Battery

It is essential that when changing the battery in the unit, the replacement battery must be of the same type otherwise there may be a possibility of an explosion. The following are the specifications of the battery you are using now.

• Normal voltage : 3V

• Normal capacity : 170mAh

• Continuous standard load : 0.2mA

• Operating temperature : -20°C ~ +85°C

Caution

• Connect the power cord into a grounded outlet.

• The Mains plug is used as a disconnect device and shall stay readily operable at any time.

• Batteries shall not be exposed to excessive heat such as sunshine, fire or the like

• Risk of Explosion if Battery is replaced by an Incorrect Type. Dispose of Used Batteries According to the

Instructions.

(-4°F ~ +185°F)

CALIFORNIA USA ONLY

This Perchlorate warning applies only to primary CR (Manganese Dioxide) Lithium coin cells in the product sold or distributed ONLY in California USA.

“Perchlorate Material - special handling may apply, See www.dtsc.ca.gov/ hazardouswaste/perchlorate.”

! overview

❖ System Shutdown

Turning off the power while the product is in operation, or undertaking improper actions may cause damage or malfunction to the hard drive or the product. Please turn off the power, please right-click to display the context sensitive menu and select <Shutdown>. After selecting <OK> in the pop-up menu, you can pull off the power cord. You may want to install a UPS system for safe operation in order to prevent damage caused by an unexpected power stoppage. (Any questions concerning UPS, consult your UPS retailer.)

❖ Operating Temperature

The guaranteed operating temperature range of this product is 0°C ~ 40°C (32°F ~ 104°F). This product may not work properly if you run right after a long period of storage at a temperature below the guaranteed one. Prior to using a device that has been stored for a long period in low temperatures, allow the product to stand at room temperature for a period. Especially for the built-in HDD in the product, its guaranteed temperature range is 5°C ~ 55°C (41°F ~ 131°F). Likewise, the hard drive may not work at a temperature below the guaranteed one.

❖ Ethernet Port

DVR is designed for indoor use only and all the communication wirings are limited to inside of the building.

English _5

over

view

ConTenTS

overvIeW

ConneCTInG WITh oTher devICe

LIve

3 Important Safety Instructions 5 Befor

Contents

Featur

Part Names and Functions (Fr

Part Names and Functions (Rear)

11 12 Remote Contr

14 installation 14 Checking the Installation Envir 15

Connecting External Devices

15 Connecting the USB

Connecting Exter

15 16

Connecting the Camera (SDC-7340BC)

18 Connecting the RS-485 Device 18 Connecting the Network

20 Getting Started 22 Live Screen Configuration 27 Live Mode 30 Zoom 30 Audio On/Off 30 Freeze 31 Event Monitoring

e Start

ont)

onment

nal SATA HDD

6_ overview

mAIn menu

32 System Setup 44 Setting the Device 53 Setting the Recor 56

Setting the Event

58 Backup 60 Network Configuration 73 Contr

olling a PTZ Device

ding

SEARCH & PLAY

76 Search 79 Playback

! overview

WEB VIEWER

BACKUP VIEWER

111

APPENDIX

113

81 Introducing Web Viewer 82 Connecting Web Viewer (Windows) 84 Using Live Viewer (Windows) 92 Using Search Viewer 95 Viewer Setup 106 About 107 Connecting Web Viewer (Mac) 108 Using Live Viewer (Mac) 110 Mobile Viewer

111 SEC Backup Viewer

113 Product Specification (Camera) 114 Product Specification(DVR) 120 Product Overview 123 Default Setting 126 Troubleshooting 129 Open Source License Report on the Product

English _7

overview

FEATURES

The DVR employs H.264 video encoding for 4, 8 or 16 channel inputs and G.711 audio encoding for 4, 8 or 16 channels while simultaneously supports hard disc recording and playback. These DVRs also supports network connectivity, providing remote monitoring from a remote PC transferring video and audio data.

•

Provides a convenient User Interface

•

4/8/16 CH Composite Input Connectors

•

Supports WD1/CIF/2CIF/4CIF recording formats

•

With the network specific codec, network transfer enabled regardless of the recording conditions

•

De-interlacing processor for better picture quality

•

Display of HDD information and status by using HDD SMART

•

Hard Disk overwrite function

•

Mass storage hard disk backup through high-speed USB 2.0

•

Simultaneous Record and Playback of 4/8/16-channel video data

•

Various Search Modes (Search by Time, Event, Backup and Motion Detection)

•

Various Recording Modes (Manual, Event, Scheduled Recording)

•

Alarm Interface

•

Remote Monitoring function by Network Viewer, Smart Viewer and Mobile Viewer

Standards Approvals

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the

FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

8_ overview

Package Contents

Please unwrap the pr

oduct, and place the product on a flat place or in the place to be installed.

Please check the following contents are included in addition to the main unit.

POWER REC NETWORK

DVR (1SET) Ada

Remote Control (1EA) / Ba

Camera Power Cable*

(5 splitter or 9 splitter)

ttery (2EA) SDC-7340BC * Camera Cable * (

pter * / Power Cable * Mouse (1EA)

Network Cable (1EA) HDMI Cable(1EA)

60FT or 90FT

! OVER

VIEW

)

Expansion pipe and Screw * Manual CD (1EA) Quick Start Guide (1EA)

arranty Card (1EA)

odel SDC-7340BC Adapter/Power cable Camera Cable

SDS-P3042 4EA 1EA 60FT: 4EA 12EA/12EA 5 splitter 1EA SDS-P4042 4EA 1EA 60FT: 4EA 12EA/12EA 9 splitter 1EA SDS-P4082 8EA 1EA 60FT: 6EA, 90FT: 2EA 24EA /24EA 9 splitter 1EA SDS-P5082 8EA 2EA 60FT: 6EA, 90FT: 2EA 24EA /24EA 5 splitter 1EA

SDS-P5102 10E A 2EA 60FT: 8EA, 90FT: 2EA 30EA/30EA 5 splitter 1EA

SDS-P5122 12E A 2EA 60FT: 9EA, 90FT: 3EA 36EA/36EA 5 splitter 1EA

Expansion pipe and Screw

Camera Power ca

9 splitter 1EA

English _9

ble

overview

PART NAMES AND FUNCTIONS (FRONT)

POWER REC NETWORK

Part Names Functions

USB Port Connects the USB devices.

Remote Control

Receiver

LED Indicator

All functions are operable with mouse control, since there are no front buttons.

Input the remote control signal.

POWER : Displays the power ON/OFF status.

REC : Lights on when recording is in progress.

NETWORK : Displays both network connection and data transfer status.

10_ overview

PART NAMES AND FUNCTIONS (REAR)

VGA

LAN

RS485

IN1

CH1 CH2

CH3 CH4

IN2

IN3 IN4

AUDIO INVIDEO IN

HDMI DC 12 V

USB

eSATA

AUDIO OUT

VGA

LAN

RS485

IN1

CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8

CH9 CH10 CH11 CH12 CH13 CH14 CH15

IN2

IN3 IN4

AUDIO INVIDEO IN

HDMI DC 12 V

USB

eSATA

AUDIO OUT

CH16

VGA

LAN

RS485

IN1

CH1 CH2

CH3 CH4

IN2

IN3 IN4

AUDIO INVIDEO IN

HDMI DC 12 V

USB

eSATA

AUDIO OUT

SDR-5102

CH1 CH2 CH3 CH4 CH5 CH6 CH7 CH8

CH9 CH10 CH11 CH12 CH13 CH14 CH15

CH16

IN1

IN3 IN4

AUDIO INVIDEO IN

IN2

VGA

HDMI DC 12 V

AUDIO OUT

d e

eSATA

RS485

LAN

USB

! overview

SDR-4102

a b

CH1 CH2 CH3 CH4

CH5 CH6 CH7 CH8

SDR-3102

CH1 CH2

CH3 CH4

Part Names Functions

VIDEO IN Input port for the composite video signal.

AUDIO IN Input ports (RCA jack) for the audio signal.

IN1

IN2

IN3 IN4

AUDIO INVIDEO IN

AUDIO OUT

IN1

IN2

IN3 IN4

AUDIO INVIDEO IN

AUDIO OUT

VGA

e d

LAN

HDMI DC 12 V

USB

e d

LAN

HDMI DC 12 V

USB

fghij

eSATA

RS485

hgij

hgi

eSATA

RS485

VGA OUT Output port for VGA video signal.

e-SATA Ports used for external storage device connections.

NETWORK NETWORK connector port.

DC 12V DVR power input port.

USB USB connector port.

RS-485 Used to establish RS-485 communications.

HDMI HDMI connector port.

AUDIO OUT Output port (RCA jack) for the audio signal.

English _11

overview

REMOTE CONTROL

Displays the search menu.

Changes the screen mode.

Displays the Exit pop up screen.

Used as the numeric input keys, or displays a single

Skip Backward (by unit time),

Slow Rewind, Slow Forward,

Skip Forward (by unit time)

Goes to the system menu screen.

Up/Down/Left/Right(

Moves the cursor up/down/left/right, and runs the

Freezes the screen temporarily.

Runs the digital zoom (x2) function.

Starts or ends the live recording.

Runs the View function in the PTZ mode.

MODE

POWER

NUMBER [0~+10]

channel.

T/W

Zooms in or out.

$%_ +

)/ENTER

Select Menu.

FREEZE

ZOOM

REC

VIEW

BACKUP

Displays the Backup Menu.

DVR

Activates the DVR function.

Sets the ID of the system. Select 2 digits from 0 ~ 9 while pressing the ID Key.

Move Frame

While paused, moves to the previous/next frame.

FR, STOP, PLAY/PAUSE, FF

PTZ

Displays or ends PTZ.

SCROLL

Moves the menu scroll.

RETURN

Returns to the previous screen.

AUDIO

Turns Audio on/off.

ALARM

Cancels the Alarm.

REC LOCK

Selects the recording lock function.

PRESET

Displays the Preset Setup.

Using the numeric buttons

CHANNEL 1–9 Press each button between 1 to 9. (8CH : 8)

CHANNEL 10 Press the [0/+10] button first, then press the [0/+10] within 1 second.

CHANNEL 11–16 Press the [0/+10] button first, then press any number between 1 to 6.

12_ overview

Changing the Remote Control ID

1. Press the [ID] button of the remote control and check the ID displayed on the DVR screen.

The factory default ID of the remote control is 00.

2. Enter 2 digits of your selection in order, while pressing the system [ID] button.

3. When ID input is done, press the system [ID] button again to check the setting.

If you want to change the remote control ID to 08: Press 0 and 8 in order while the system [ID] button is pressed.

Remote control's ID and DVR’s ID should be matched for proper operation. Refer to “Remote Devices”. (Page 50)

! overview

English _13

connecting with other device

INSTALLATION

Please take note of the followings before using this product.

•

Do not use the product outdoor.

•

Do not spill water or liquid in the connection part of the product.

•

Do not impose the system to excessive shock or force.

•

Do not pull out the power plug forcefully.

•

Do not disassemble the product on your own.

•

Do not exceed the rated input/output range.

•

Use a certified power cord only.

•

For the product with an input ground, use a grounded power plug.

CHECKING THE INSTALLATION ENVIRONMENT

Samsung Digital Video Recorder (“DVR” hereinafter) is a stateof-art security device, and contains mass storage hard disk(s) and critical circuits inside.

When the temperature rises inside the product, the product may breakdown and the product life be shortened. Please pay attention to the following recommendations before installation.

The followings are the recommendations when Samsung DVR is installed on a rack.

1. Please ensure that the rack inside is not sealed.

2. Please ensure the air is circulated through the inlet/outlet as shown in the picture.

3. If the DVR or other devices on a rack is to be stacked as in the picture, provide a

suitable space or install a ventilating opening for air circulation.

4. For natural air convection, place the inlet at the bottom of the rack and the outlet on top.

5. It is strongly recommended that a fan motor is installed at the inlet and the outlet for air

circulation. (Please fit a filter at the inlet to screen dust or foreign substances.)

6. Please maintain the temperature inside the rack or surrounding areas between

0°C ~ 40°C (32°F ~ 104°F) as shown in the figure 1.

Rack Mount Instructions - The following or similar rack-mount instructions are included with the installation instructions :

A) Elevated Operating Ambient - If installed in a closed or multi-unit rack assembly, the

operating ambient temperature of the rack environment may be greater than room ambient. Therefore, consideration should be given to installing the equipment in an environment compatible with the maximum ambient temperature specified by the manufacturer.

B) Reduced Air Flow - Installation of the equipment in a rack should be such that the

amount of air flow required for safe operation of the equipment is not compromised.

C) Mechanical Loading - Mounting of the equipment in the rack should be such that a

hazardous condition is not achieved due to uneven mechanical loading.

D) Circuit Overloading - Consideration should be given to the connection of the equipment to the supply

circuit and the effect that overloading of the circuits might have on overcurrent protection and supply wiring. Appropriate consideration of equipment nameplate ratings should be used when addressing this concern.

E) Reliable Earthing - Reliable earthing of rack-mounted equipment should be maintained. Particular attention should

be given to supply connections other than direct connections to the branch circuit (e.g. use of power strips).

Temperature Unit: ºC

One Year: 24HR X 365 DAY =8,760 HR

Life (Unit: HOURS)

[Figure 1]

[Figure 2]

14_ connecting with other device

CONNECTING EXTERNAL DEVICES

CONSOLE

AUDIO IN

CH1

CH2

VGA OUT

DC 12V

NETWORK

AUDIO IN

VIDEO IN

CH3

CH4

AUDIO OUT

+ -

RS 485

! CONNECTING WITH OTHER DEVICE

VIDEO IN

IN1

IN3

AUDIO IN

IN4

IN2

AUDIO OUT

eSATA

RS485

LAN

USB

DC 12 V

VGA

HDMI

CONNECTING THE USB

1. By factory default, a USB port is provided for external connection.

2. You can connect a USB HDD, USB memory or mouse to the USB port.

3. If a USB HDD is connected to the system, recognition and settings are available in “Main Menu > Setting the

Device > Storage Device”. (Page 47)

4. This product supports hot-plugging, which connects/removes the USB device during the system operation.

If you use the USB device for Backup purposes, format it with FAT32 on PC if it is not formatted on the DVR.

CONNECTING EXTERNAL SATA HDD (ESATA)

External SATA port is provided on the rear panel. If connected to the system, the external SATA HDD (eSATA) can be recognized and configured in “Main Menu > Device > Storage Device”.

Use a cable shorter than 1 m for the external external SATA HDD (eSATA) connections.

Unexpected disconnection to a device in use which is connected via eSATA may restart the system. Check whether the

device is in use before disconnecting it.

In the event of replacing an HDD of an external SATA HDD, please power off the external SATA HDD to change the HDD.

English _15

connecting with other device

CONNECTING THE CAMERA (SDC-7340BC)

Equipped with the IR LED and the illumination sensor, enables you to monitor at night as well as in daytime. The camera is suitable for both internal and external use.

Please make sure not to fully expose the camera to rain. The camera must be installed under a shelter to avoid exposure to excessive rain

or moisture.

b c

Name Description

IR LED These infrared LED's are controlled by the illumination sensor.

Lens

Illumination Sensor Detects incoming light to control the IR LED.

BNC Cable BNC terminal for video signal output.

Power Cable Used to plug the power cable.

Focal length of 3.6mm enables you to cover relatively longer range of monitoring.

16_ connecting with other device

Connecting with DVR

SDC-7340BC : M4 X L20

bracket.

IN1

IN3

IN4

AUDIO IN

AUDIO OUT

VGA

LAN

RS485

IN2

HDMI

DC 12 V

USB

eSATA

VIDEO IN

The following figures are based on Model SDR-5102.

Installing the camera

The camera can be installed on the wall, ceiling, shelf or a desired position using the provided bracket.

1. Select a position where you want to install the camera.

Make sure the selected position can sustain the weight of the camera.

2. Attach the camera bracket to the wall using the supplied screws.

•

! CONNECTING WITH OTHER DEVICE

M4 X L20

sized screws

wall or ceiling

3. Adjust the camera to target the video location and tighten the camera bracket handle on the camera

Handle

4. Connect the camera cable to the camera.

You should be careful when installing the camera outdoors because the cable connectors may be wet with moisture or pile

up with impurities.

The camera satisfies the IP66 standard, and direct exposure to water or moisture may cause problem such as

condensation.

English _17

connecting with other device

IN1

IN3

IN4

AUDIO IN

AUDIO OUT

VGA

LAN

RS485

IN2

HDMI

DC 12 V

USB

eSATA

VIDEO IN

CONNECTING THE RS-485 DEVICE

Connect the rear [RS-485 +, –] port to the PTZ camera.

You can connect and control the PTZ camera which supports the RS-485 communication.

Check if the RS-485 device is compatible with the product first.

Pay attention not to change the polarity (+/-) of the RS-485 device when connecting it.

Depending on camera’s type, connection polarity can be different. For further information,

refer to the respective PTZ Camera’s documentation.

CONNECTING THE NETWORK

The following figures are based on Model SDR-5102.

Connecting to network through Ethernet (10/100BaseT)

RS485

18_ connecting with other device

Hub/Switcher

Windows Network Viewer

RJ-45 Ethernet Cable (Direct Cable)

Back Bone

NETWORK

Hub/Switcher

Connecting to the Network using the router

IN1

IN3

IN4

AUDIO IN

AUDIO OUT

VGA

LAN

RS485

IN2

HDMI

DC 12 V

USB

eSATA

VIDEO IN

IN1

IN3

IN4

AUDIO IN

AUDIO OUT

VGA

LAN

RS485

IN2

HDMI

DC 12 V

USB

eSATA

VIDEO IN

Broadband Router

External Remote PC

xDSL or Cable Modem

DDNS Server (Data Center)

NETWORK

xDSL or Cable Modem

! CONNECTING WITH OTHER DEVICE

Connecting to Network through ADSL

ADSL MODEM

Windows Network Viewer

RJ-45 Ethernet Cable (Direct Cable)

Phone(ADSL) Line

Hub/Switcher

NETWORK

English _19

live

GETTING STARTED

Starting the system

1. Connect the power cable of the DVR to the wall outlet.

It takes about 10 seconds to display the start screen after

booting.

2. You will see the initialization screen.

The initialization process will last about 1 minute. If a new HDD is installed, the initialization process may take longer.

REC

3. The live screen appears with a beep.

2013-01-01 01:10:25

Shutting Down the System

You can shut down the system only if you have logged in to the DVR. You require permission to shut down the system if you are not logged in as admin.

1. Press the [POWER] button on the remote control, or

right-click to display the context sensitive menu and select <Shutdown>.

2. The “Shutdown” confirmation window appears.

3. Use the arrow keys on the remote control to move to

<OK> and press the [ENTER] button or click <OK>. The system will shut down.

For the permission management, refer to “Permission

Management > Setting Permissions”. (Page 39)

2013-01-01 01:10:25

Shutdown

2013-01-01 01:10:25

Are you sure to shutdown?

OK Cancel

20_ live

To access a DVR or restricted menu, you should have logged in to the DVR.

1. In live mode, right-click any area of the screen.

You will see the context sensitive menu as in the right figure.

2. Click <Login>.

The login dialog appears. You can also see the login dialog to access a desired menu by pressing the [MENU] button on the remote control.

The login dialog will also appear if you press a menu button on

the remote control when the corresponding menu requires logging in.

After logged in, press [RETURN] on the remote control to display

the logout dialog.

2013-01-01 01:10:25

ID admin



Password



OK Cancel

Scene Mode

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher



! LIVE

The initial administrator ID is “admin” and the password should be set when logging in for the first time.

Set password for your wireless network if you use the product with a wireless router. Being not protected with password or

using the default wireless router password may expose your video data to potential threat.

Please change your password every three months to safely protect personal information and to prevent the damage of the

information theft. Please, take note that it’s a user’s responsibility for the security and any other problems caused by mismanaging a password.

For the restricted permission, refer to “Permission Management > Setting Permissions”. (Page 39)

Locking All Buttons

This will restrict access to all buttons available in the DVR.

1. In Live mode, press buttons on the remote control in the order of [STOP (@)] [MENU]. All buttons will be locked.

2. In the lock condition, press any button to display a dialog where you are prompted to enter the password for unlocking the buttons. The button lock will be released if you enter the admin password.

[FREEZE][STOP (@)][FREEZE]



2013-01-01 01:10:25

Key Lock Password

ID admin



Password



OK Cancel

English _21

live

LIVE SCREEN CONFIGURATION

Icons on the Live Screen

You can check the status or operation of the DVR with the icons on the live screen.

a b

2013-01-01 00:00:01

CAM 01

Name Description

Current Date, Time Displays the current time and date.

Displayed if the zoom function is activated.

Freezes the screen temporarily.

Screen Mode

Displayed in Auto Sequence mode where all channels are switched at the specific time interval.

This icon is displayed if a user with restricted access to the Record button tries to make manual recording.

Only the user with the applicable permission can release (stop) the recording.

22_ live

System Operation

Video Input Status

Displayed if the HDD is full and the DVR has an insufficient space to record.

Displayed if no HDD is installed or the existing HDD should be replaced.

Displayed if the HDD needs a technical examination.

This will be displayed if the backup operation is in process.

Displayed if a new firmware is found from the network.

Displayed if no input is entered in the condition that the camera is set to <ON>.

Nothing will be displayed on the screen if the camera is set to <OFF>.

Name Description

Camera Name/ Channel Displays the camera name and the changed channel, if any.

Displayed in PTZ setting, and highlighted yellow if PTZ is in operation.

Displays AUDIO ON/MUTE. Not displayed in video mode if deactivated.

Camera Operation

Displayed if a motion detected in the condition that the motion detection is set to <ON>.

Appears when the Tampering Detection is set to <ON> and a tampering attempt is detected.

Displays the current record mode from Record/Event/Schedule.

Error Information

• If the internal HDD is not connected, the “NO HDD”( ) message will appear; if there occurs a problem,

you will see the “HDD FAIL”(

) message in the top left corner. In this case, make sure you contact the

service center for assistance as this may cause a failure of recording, playback or backup.

If you see NO HDD, HDD FAIL icons on the screen, contact the service center for more details.

Live Screen Menu

In addition to the buttons on the remote control, you can access a desired menu by right-clicking the mouse any area in live mode. The context sensitive menu that appears by right-clicking the screen may differ, depending on the login/ logout, screen split mode and DVR operation mode.

! LIVE

Menu items of Search, Record, Backup and Shutdown can be deactivated, depending on the user permission.

2013-01-01 01:10:25

Scene Mode

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout

< Split Mode Menu >



2013-01-01 01:10:25

Scene Mode

PTZ Control

Zoom In

Audio off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout



< Single Mode Menu >

English _23

live

Split Mode Menu

The context sensitive menu in split mode differs, depending on the login/logout status.

a b c

Menu Description

Scene Mode Refer to “Live Mode”. (Page27)

Audio On/Off Refer to “Audio On/Off”. (Page 30)

Freeze Refer to “Freeze”. (Page 30)

Scene Mode

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout

2013-01-01 01:10:25



Stop Alarm Stops the alarm output and the event monitoring. Refer to “Event Monitoring”.(Page 31)

Record/Stop Starts/stops the standard recording.

Play Plays the search result (data). Refer to “Search & Play > Play”. (Page 79)

Search Refer to “Search & Play > Search”. (Page 76)

Backup Refer to “Main Menu > Setting the Backup”. (Page 58)

Main Menu Accesses the main menu. Refer to the Using the DVR section. (Page 32)

Shutdown

Show/Hide Launcher

Turns down the DVR.

Shows or hides the launcher. Refer to “View the Launcher Menu”. (Page 26)

24_ live

Single Mode Menu

The single mode menu is available only in Single Mode. The context sensitive menu for the One Channel mode, in Split mode is different from that of the Single mode.

Full Screen

PTZ Control

Zoom In

Audio On

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout

Menu Description

Full Screen

Zoom In Enlarges the selected image. (Page 30)

Select and click a desired channel in Split mode to switch to the full screen of the selected channel.

2013-01-01 01:10:25

! LIVE

Alarm Freeze

English _25

live

2013-01-01 01:10:25

View the Launcher Menu

The Launcher menu appears on the bottom of the live screen.

1. In Live mode, right-click to display the context menu and select <Show Launcher>.

2. Move the cursor to the bottom and click a desired item in the Launcher menu.

If no input is entered for 10 seconds, the menu will disappear.

The Launcher menu can be accessed only by using the mouse.

SDR-4102, SDR-3102 does not support the 16-split screen

mode.

a c d e f g h ijb

2013-01-01 01:10:25

Menu Description

Displays the current time and date.

Date/Time

Screen Mode

Menu Expansion Button Click to display the hidden menu to the right.

Audio Turns ON/OFF the sound of the selected channel.

Zoom Enlarges the selected area. This is available only in Single Live mode.

PTZ

Alarm Stops the alarm if it's activated.

Freeze Freezes the Live screen temporarily.

Play Enters Play mode if a file to play exist, and if not, enters Search mode.

Record Start/End recording the Live screen.

The indication of AM/PM is displayed if you set 12 hours for the time format in “System > Date/Time/Language > Time”. (Page 32)

Press this button to switch the screen mode in sequence. The current mode is highlighted in white.

Runs the PTZ Control launcher. The PTZ control launcher will be active on the Live screen after you select a single channel.

26_ live

LIVE MODE

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH7 CH8 CH9

CH15

CH16

CH13

CH14

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH15

CH11

CH16

CH12

CH7

CH3

CH8

CH4

CH13

CH9

CH14

CH10

CH5

CH1

CH6

CH2

CH3 CH4

CH6 CH7

CH4

CH5

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH15

CH11

CH16

CH12

CH7

CH3

CH8

CH4

CH13

CH9

CH14

CH10

CH5

CH1

CH6

CH2

CH1 CH2

CH3 CH4

CH6 CH7

CH3

CH2

CH4

CH1

CH5

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH15

CH11

CH16

CH12

CH7

CH3

CH8

CH4

CH13

CH9

CH14

CH10

CH5

CH1

CH6

CH2

CH1 CH2

CH3 CH4

CH6 CH7

CH3

CH2

CH4

CH1

CH5

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH10 CH11 CH12 CH13 CH14 CH15 CH16

CH12

CH1

CH13

CH9

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH1

SDR-5102 display Live images from 16 channels in a total of 8 layout of split screens.

Switching the screen mode

To switch the split mode, select a screen mode in the launcher menu, or right-click to select a screen mode in the context menu. Press the [MODE] button on the remote control to switch the mode in the sequence of the launcher menu items.

SDR-4102, SDR-3102 does not support the 16-split screen mode.

CH3

CH7

CH11

CH4

CH12

CH4

CH8

CH12

CH5

CH7

CH9

CH13

CH2

CH1 CH3

CH4 CH5

CH1 CH3

CH4 CH5

CH10 CH11 CH12 CH13 CH14 CH15 CH16

CH7 CH8 CH9

CH6

CH2

CH6

CH1 CH2

CH1

CH2

CH1

Auto Sequence

CH2

CH3

CH1

CH2

CH5

CH6

CH9

CH10

16-split mode 9-split mode 4-split mode 7-split mode

CH2 CH3

CH6

CH1

CH8

CH10

CH11

13-split mode 16(A)-split mode PIP

! live

Switching the split mode

SDR-5102 display 16 Live images in the sequence of Single, 4-split and 9-split modes.

Auto Sequence

CH1

Single mode

CH1

CH1 CH2

CH3 CH4

CH1 CH2

CH3 CH4

13-16

9-12

5-8

1-4

4-split mode

CH2

CH1 CH3

CH2

CH1 CH3

CH4 CH5

CH7 CH8 CH9

9-split mode

CH6

10-16

1-9

English _27

live

CH1 CH2

CH3 CH4

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH2

CH3 CH4

CH1

CH1CH7 CH8

CH4

CH3

CH2

CH5

CH1

CH6 CH12

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH1

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH3

CH2

CH4 CH5 CH6

CH1 CH2

CH3 CH4

CH1

CH1CH7 CH8

CH4

CH3

CH2

CH5

CH1

CH6 CH12

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH9 CH10

CH11 CH12

CH13 CH14

CH15 CH16

CH1

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH13 CH14

CH11

CH15

CH10 CH12

CH16

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1

CH13

CH19

CH4

CH7

CH5

CH2

CH6

CH1 CH2

CH3 CH4

CH13 CH14

CH15 CH16

CH2

CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

In Single mode, If you have set <SEQ-Dwell Time> in “Setting the Device > Camera”, Auto Sequence will be conducted

at the set interval. (Page 44) In a split mode, If you have set <Multi CH SEQ Time> in “Setting the Device > Monitor”, Auto Sequence will be

conducted at the set interval. (Page 51)

Manual Switching

Press the left/right button on the remote control, or click the arrow <_/+> key to move to the next split mode.

• If pressing the right [

9-split (CH 1~9) mode  9-split (CH 10~16) mode  Auto Sequence

CH1 CH3

CH4 CH5

CH7 CH8 CH9

• If pressing the right [

Channel (CH 1~4)  Channel (CH 5~8)  Channel (CH 9~12)  Channel (CH 13~16)  Auto Sequence

CH1 CH2

CH3 CH4

] button in 9-split mode :

CH2

CH6

; ;

] button in 4-split mode :

CH5 CH6

; ; ;

CH7 CH8

CH11

CH10 CH12

CH13 CH14

CH16

CH15

CH9 CH10

CH11 CH12

CH1 CH3

CH4 CH5

CH7 CH8 CH9

CH2

CH6

10-16

1-9

CH13 CH14

CH15 CH16

;

CH1 CH2

CH3 CH4

CH1 CH2

CH3 CH4

CH1 CH2

CH3 CH4

13-16

9-12

5-8

1-4

28_ live

Channel Setting

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH4

CH3

CH2

CH5

CH1

CH6 CH12

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH5 CH6

CH7 CH8

CH9 CH10

CH11 CH12

CH13 CH14

CH15 CH16

CH1

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH13 CH14

CH11

CH15

CH10 CH12

CH16

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH1CH15

CH16

CH13

CH14

CH15

CH11

CH16

CH12

CH7

CH3

CH8

CH4

CH13

CH9

CH14

CH10

CH5

CH1

CH6

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH4

CH3

CH2

CH5

CH1

CH6 CH12

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH5 CH6

CH7 CH8

CH9 CH10

CH11 CH12

CH13 CH14

CH15 CH16

CH1

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH13 CH14

CH11

CH15

CH10 CH12

CH16

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH1CH15

CH11

CH16

CH12

CH7

CH3

CH8

CH4

CH13

CH9

CH14

CH10

CH5

CH1

CH6

CH2

CH15

CH11

CH16

CH12

CH7

CH3

CH8

CH4

CH13

CH9

CH14

CH10

CH5

CH1

CH6

CH2

CH15

CH16

CH13

CH14

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH4

CH3

CH2

CH5

CH1

CH6 CH12

CH1

CH13

CH19

CH4

CH7

CH5

CH10

CH8

CH11

CH6

CH2 CH3

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH1 CH2

CH3 CH4

CH5 CH6

CH7 CH8

CH9 CH10

CH11 CH12

CH13 CH14

CH15 CH16

CH1

CH4 CH5

CH2

CH6

CH1 CH3

CH7 CH8 CH9

CH13 CH14

CH11

CH15

CH10 CH12

CH16

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH3 CH1

CH15

CH11

CH16

CH12

CH7

CH3

CH8

CH4

CH13

CH9

CH14

CH10

CH5

CH1

CH6

CH2

CH1 CH2

CH3 CH4

CH1CH7 CH8

CH1

CH13

CH19

CH4

CH7

CH5

CH11

CH2

CH6

CH1 CH2

CH3 CH4

CH9 CH10

CH11 CH12

CH13 CH14

CH15 CH16

CH2

CH6

CH1 CH3

CH2

CH4 CH5 CH6

CH1

CH2

CH1 CH2

CH1CH15

You can display the channel in a desired area of a split screen.

1. Place the cursor over the camera name of each channel to display the <

2. Click a camera name to display a channel list where you can select a different channel.

3. Select a desired channel and click it.

Switching to Single Mode

When in split mode, select and double-click a desired channel to switch to its Single mode. Press the number corresponding to a desired channel on the remote control to switch to its Single mode.

• CHANNEL 1–9 : Press each button between 1 to 9. (8CH : 8)

• CHANNEL 10 : Press the [0/+10] button.

• CHANNEL 11–16 : Press the [0/+10] button first, then press any number between 1 to 6 within 1 second.

Refer to “Remote Control > Using the numeric buttons”. (Page 12)

Ex : If double-clicking CH 3 or pressing the number “3” on the remote control.

The current channel will be switched to the selected one.

> key to the right on the screen.

Use the cursor to select a channel to move, and drag and drop it to a desired channel; this can also change the channel position.

Ex : if switching CH 1 to CH 7

CH1

CH5

CH9

CH2

CH6

CH10

CH3

CH7

CH11

CH4

CH8

CH12

;

CH3

CH7

CH5

CH9

CH2

CH6

CH10

CH4

CH1

CH8

CH11

CH12

! live

CH1

CH5

CH9

CH13

CH3

CH7

CH11

CH15

CH4

CH8

CH12

CH16

;

CH3

CH2

CH6

CH10

CH14

English _29

live

2013-01-01 01:10:25

ZOOM

This is available only in Single Live mode. In Single mode, select a desired area and use the Zoom function to enlarge it twice.

1. Select <Zoom In> in the right-click menu. Press the [ZOOM] button on the remote control, or simply click < box appears.

2. Use the direction keys, or drag and drop to specify an area to enlarge.

3. Press the [ENTER] button, or double-click the selected area to enlarge it twice.

In the enlarged image, use the direction buttons ($%_ +) on the remote control to move the enlarged area.

4. Press the [ZOOM] button on the remote control, or simply click < > in the launcher menu to release the zoom.

2013-01-01 01:10:25

;

> in the launcher menu. The zoom

AUDIO ON/OFF

You can turn the sound on/off corresponding to the channel in Live mode.

AUDIO On/Off in Single mode

Click the audio icon (

Only the channel where <Audio> is set to <ON> in “Device > Camera” displays the audio icon ( ) in Live mode that

you can use to turn the sound on/off.

) on the screen, or press the [AUDIO] button on the remote control to turn it on/off.

FREEZE

This is available only in Live mode, this pauses playing the Live image temporarily.

1. Press the [FREEZE] button on the remote control, or click < > in the launcher menu. The playback of the image is stopped temporarily.

2. Press the [FREEZE] button again, or click < >. This will release the freeze.

30_ live

EVENT MONITORING

CH1

CH2

CH1

CH2

CH1

CH2

This will display the channel in sync with a specific event (Motion/Tampering/Video Loss) if it occurs. In “Monitor > Event Display”, set the event monitoring to ON/OFF and specify the event display time. (Page 51)

• If multiple events occur simultaneously, the screen will switch to a split mode.

- 2~4 events : 4-split mode

- 5~9 events : 9-split mode

- 10~16 events : 16-split mode

• If the second event occurs within the set time of <Event Display>, the first event will last until the second

one is terminated. (Page 51)

Ex : If you set <Event Display> to 5 seconds, and only one event occurs in CH 1.

Event occurrence 5 seconds

Stop alarm

Ex : If you set <Event Display> to 5 seconds, and the second event occurs in CH 2 within the set time after the first

event occurred in CH 1.

Event occurrence 4 seconds 9 seconds

! live

Stop alarm

CH1 CH2

Press the [ALARM] button to reset the alarm settings and to release the event mode.

If an alarm activates in the condition you have set the event record, and pre/post alarm times, the event record will be

performed.

In case of continuous events such as motion detection, switching to another split mode display may not immediate if

concatenating events follow, even when you stopped alarm of the event.

English _31

main menu

You can setup the system properties, devices, and options for recording, event, backup and network.

SYSTEM SETUP

You can setup Date/Time/Language, Permission, System Properties and Log.

Date/Time/Language

You can check and setup the current Date/Time and time related properties, as well as the language used for the interface on the screen.

Setting the Date/Time/Language

Set the Date/Time/Language

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control.

If not logged in, it prompts with login window. Refer to “Login”. (Page 21)

2013-01-01 01:10:25

2. Use the left/right buttons ( System property setup menu is selected.

3. Use the up/down buttons ( Language> and press the [ENTER] button.

4. Select <Date/Time/Language>. A dialog to setup Date, Time and Language.

5. Use direction buttons ( and make your changes.

_ +

▲▼

▲▼_ +

) to select the <System>.

) to select <Date/Time/

) to select an item to set

System

Date/Time/Language

Permission Management

System Management

Log Information

Logout

Return

32_ main menu

• Date : Sets the date that will appear on the screen. You can select the date format.

• Time : Sets the time and its format that will appear on the screen. Select either one from <24 Hours, 12 Hours (AM/PM)>.

• Time Zone : Sets the time zone of your area based on the Greenwich Mean Time (GMT).

GMT (Greenwich Mean Time) is standard World Time and the basis of world time zone.

•

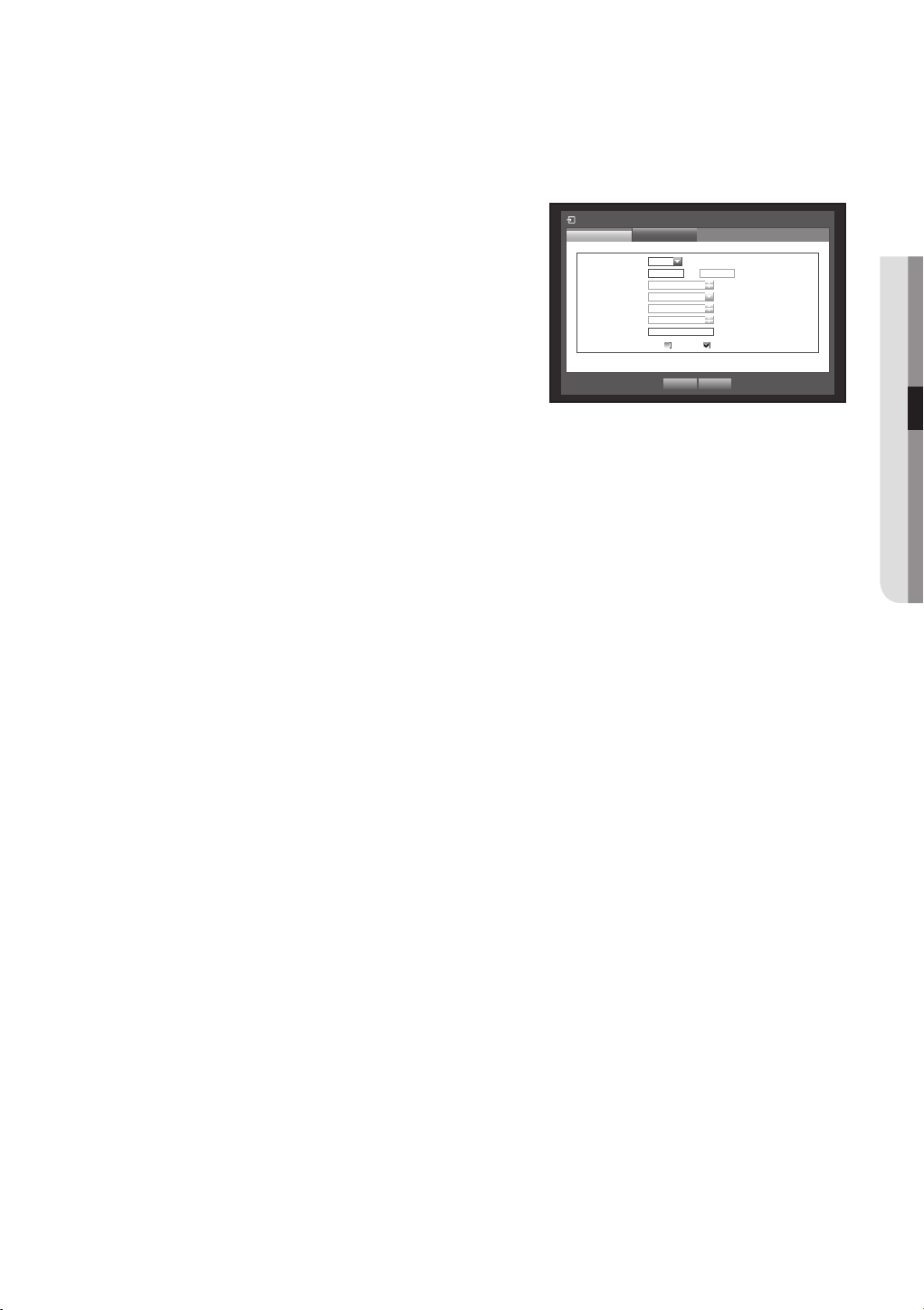

Time Sync. : You can set the DVR’s current time synchronized to a selected <Time Server> regularly if you select to use <Time Server>.

Date/Time/Language

Date 2013-01-01 YYYY-MM-DD



Time 08:14:24 24 Hours



Time Zone GMT



Time Sync. Setup



DST Dec First (Sun) 0 Dec First (Sun) 0



Language English



Holiday

OK Cancel

In this case, <Date/Time/Language> setup does not allow time adjustment.

- Time Server : Enter an IP or URL address of the time server.

- Last Sync Time : Displays the most recent synchronization time from the selected time server.

- Activate as Server : Set to <Use> to allow the DVR to act as a Time Server for other DVRs.

• DST : Set up Daylight Saving Time with its period to make the time earlier than the GMT of its time zone by 1 hour during the set period.

Date/Time/Language

Date 2013 -01-01 YYYY-MM-DD



Time Synchronization Setup

Synchronization Use



Time 08:14:24 24 Hours



Time Server 203.248.240.103



Time Zone GMT+08:00



Last Sync Time Fail



Time Sync. Setup Not Used



Activate as Server Use



DST Dec First (Sun) 0H Dec First (Sun) 0H



Language English



Holiday

OK Cancel

• Language : Select your language. Sets the language for the interface. English, French, German, Spanish, Italian, Chinese(Simplified), Russian, Korean, Polish, Japanese, Dutch, Portuguese, Turkish, Czech, Danish, Swedish, Thai, Romanian, Serbian, Croatian, Hungarian, Greek, Chinese (Traditional), Finnish and Norwegian are available.

6. When the Date/Time/Language setup is done, press <OK>.

! MAIN MENU

You can also use numeric buttons on the remote control to enter values for Date, Time and other numeric fields.

English _33

main menu

Setting Holiday

You can set specific dates to Holidays according to your preferences. Holidays are applied to <Recording Schedule> and <Alarm Schedule> too.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Date/Time/Language> window to select <Date/Time/Language>, and press the [ENTER] button.

2. Select <Holiday>. A calendar for Holiday setup appears.

3. Use the left/right <

> buttons to select year or month,

and press the [ENTER] button.

Date/Time/Language

2013 Jan

Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5

6 7 8 9 10 11 12

13 14 15 16 17 18 19

20 21 22 23 24 25 26

27 28 29 30 31

Holiday

OK Cancel

4. Use direction buttons ( and press the [ENTER] button. You will see the “Setting Holiday” screen.

Ex : Select January 9th and check on <1/9> only to make every January 9th a holiday. Check both on <1/9> and <Jan 2nd Wed> to make every January 9th and 2nd Wednesday of January holidays.

▲▼_ +

) to select a desired date,

Date/Time/Language

2013 Jan

Setting Holiday

Sun Mon Tue Wed Thu Fri Sat 1 2 3 4 5

6 7 8 9 10 11 12

13 14 15 16 17 18 19

20 21 22 23 24 25 26

27 28 29 30 31

Holiday

1 / 9

Jan 2nd Wed

OK Cancel

5. When the Holiday setup is done, press <OK>.

OK Cancel

Using the Calendar

Using the mouse may help make setup easier.



Select year and month. Select the left/right < > key on the left/right side of year/month and press [ENTER] button to adjust by 1 year/month.



Use direction buttons to select a date and press [ENTER] button.

A date with recorded data to be searched will appear in yellow in the System Log, Event Log, Time Search and Event Search.

34_ main menu

Permission Management

You can set permissions of each user over the DVR's specific function and settings.

Setting the Administrator

You can set and change Administrator’s ID and password. The administrator can use and set all menu items and functions.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <System> window to move to <Permission Management>, and press [ENTER] button.

2. Select <Admin>. A dialog for Admin ID and Password input appears.

3. Use direction buttons (

▲▼_ +

) to move to a desired

item, and set the ID and password.

The initial administrator ID is “admin” and the password

should be set when logging in for the first time.

Please change your password every three months to safely protect personal information and to prevent the damage of the information theft. Please, take note that it’s a user’s responsibility for the security and any other problems caused by mismanaging a password.

4. When the administrator setup is done, press <OK>.

Using Virtual Keyboard



For alphanumeric inputs, the virtual keyboard window

appears.



Use direction buttons (

character, and press the [ENTER] button.



In the upper text input box of the virtual keyboard, there

displays a list of candidate words containing the selected character.



Select a word from the list, or use the keyboard to enter the

whole word.

If there are many of candidate words, use < , > buttons to move between them forward and backward.

Select <OK>.



Entered word is applied.

For upper case letters, use <Caps Lock> button.

For special characters, use <Shift> button.

Using the virtual keyboard is the same to a normal keyboard use in your region.

You can enter only lower-case alphabets and numeric values for the user ID.

For the password, use alphabets and special characters excluding < \ > and <“>.

You can use number buttons on the remote control.

▲▼_ +

) to move to a desired

Permission Management

Admin

ID admin



New Password



Conﬁ rm P/W



` 1 2 3 4 5 6 7 8 9 0 - =

q w e r t y u i o p [ ] \

a s d f g h j k l ; ‘

z x c v b n m , . /

Space Ctrl

Group

************

OK Cancel

User Setup

Caps Lock

Shift

! MAIN MENU



Del

English _35

main menu

Setting the Group

You can create user groups and setup permissions for those user groups. You can register a user for each group in <User>.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <System> window to move to <Permission Management>, and press [ENTER] button.

2. Select <Group>. A window for <Add>, <Delete>, <Rename>, and <Group Authority> setup appears.

3. Use direction buttons (

▲▼_ +

item, and set the value.

• Add, Delete, Rename : You can add, delete, rename a

group or modify the permissions given to the group. The virtual keyboard appears when <Add> or <Rename> was selected. You can add up to 10 groups.

- Add : When you first run the DVR with the admin account, only the admin account exists. Add has already

been deactivated. Select <Add> to display the virtual keyboard. Enter a group name. You can add up to 10 groups.

- Delete : Deletes a user group that is already registered. Selecting Delete will delete all user accounts belonging to that group.

- Rename : Renames a group that is already registered. Select <Rename> to display the virtual keyboard.

For entering a group name, refer to “Using Virtual Keyboard”. (Page 35)

• Group Authority : Sets permissions to access menu items of each group. Users of a group can access checked functions.

4. When the group setup is done, press <OK>.

) to move to a desired

Permission Management

Admin

Group



Group Authority

Live View

Backup

Group

Setup

OK Cancel

User

Add Delete Rename

Setup

To set the group authority

You can set the permissions of the group users to access the menu according to the channel.

1. Select a menu to which the group permission is assigned.

The menu where the group permission is assigned will be displayed in the Live menu when a group user logs in.

• Live View : You can set the permission to access the Live screen according to the channel.

SDR-4102 shows a list of 8 channels in Channel Setup window.

• Search : You can set the permission to access the Search menu according to the channel.

• Backup : You can set the permission to access the Backup menu according to the channel.

2. Select <OK>.

Select and assign a group user so that the user can access the specified menu.

36_ main menu

Permission Management

Admin

Group ABC



Group Authority

Group

Channel Setup

Live View

All

1 2 3 4

Backup

5 6 7 8

9 10 11 12

13 14 15 16

Setup

OK Cancel

User

Add Delete Rename

Setup

To restrict the user permissions

If the admin restricts all permissions of an added group, the users belonging to that group can access only the default minimum menus and can change the user’s own password only.

1. Start the DVR.

If all permissions are restricted, only the Login dialog should appear.

2. Log in with a registered user ID.

ID abc



Password



OK Cancel

! MAIN MENU

3. Right-click any area on the screen.

If all permissions are restricted, only the accessible context

2013-01-01 01:10:25

menus should appear.

Scene Mode



Audio Off

Freeze

Stop Alarm

Record

User Menu

Hide Launcher

Logout

To change the user password

If you log in with a user account that is restricted to access the menu, you can change your own password only.

1. Log in with your account.

2. Select <User Menu>.

The Permission Management setup screen appears.

3. Select <Permission Management>.

The Password setup dialog appears.

4. Enter a new password.

5. Select <OK>.

You change to the password will be applied.

Permission Management

User

ID abc



New Password



Conﬁ rm P/W



************

OK Cancel

English _37

main menu

Setting the User

Users can be added only if a group was created in <Group> menu.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <System> window to

move to <Permission Management>, and press [ENTER] button.

2. Select <User>.

A window for Add User appears.

3. Use direction buttons (

▲▼_ +

window. A window for “Add User” appears. You can configure the Network Viewer settings including name, ID, viewer, Select Group and password. Result of the user setup appears in the <User> window. To change the user property, use “Edit User”. The “Edit User” window appears when you select a desired item to be changed in the <User> window.

• Viewer : If you select <Use>, you will be given access to the Web Viewer and Network Viewer.

Refer to “Connecting Web Viewer”. (Page 82)

For more information about use of SmartViewer, refer to the SmartViewer's user guide.

4. When the user setup is done, press <OK>.

) to select <Add> from the

Permission Management

Admin

Group All Group



Group Name ID Viewer Del

Permission Management

Admin

Group All Group



Group Name ID Viewer Del

Group

Add User

Name



Viewer Not Used



Select Group ABC



Password



Conﬁ rm P/W



User

OK Cancel

User

OK Cancel

Setup

Previous/Next Page

Setup

Previous/Next Page

Add

38_ main menu

Setting Permissions

You can set restricted access for all general users. Items with restrictions will require logging in for use.

Using the mouse may help make setup easier.

▲▼

1. Use the up/down buttons ( move to <Permission Management>, and press [ENTER] button.

2. Select <Setup>. The Restricted Access, Restriction on Network Access, Auto Log out, Manual Input of ID setup screen appear.

3. Use direction buttons (

▲▼_ +

item, and set the value.

• Restricted Access : All menu items allowed for a user can

be set with restricted access.

- Checked (

- Not checked (

If it is not checked ( ) in <Restricted Access>, any user can access the item no matter what the <Group Authority>

) : Restricted

) : Accessible

setting.

If it is checked ( ) in <Restricted Access>, a user can access the item only if the user has permission in <Group Authority> setting.

• Restriction on Network Access : Restricts remote access from a <Restricted Access> network.

- All Network : Restricts all access instances via Network Viewer and Web Viewer.

- Web Viewer : Restricts access via the Web Viewer.

• Auto Log out : A user will be automatically logged out if there is no operation on DVR for over set period of

time.

• Manual Input of ID : Prompts you to enter the user ID

manually for the login process.

- Checked (

) : Encloses the registered user IDs with the [] symbols. Use the virtual keyboard to enter the user ID.

4. When the permission setup is done, press <OK>.

) in <System> window to

) to move to a desired

Permission Management

Admin

Restricted Access



Restriction on Network Access



Auto Log out OFF



Manual Input of ID ON OFF



Group

Live View Search Backup All

All Network Web Viewer

OK Cancel



*****

Password



OK Cancel

User

Setup

! MAIN MENU

English _39

main menu

System Management

You can check the system version, update to a newer version, as well as data backup and initialization.

Checking the System Information

You can check the current system version, broadcasting system, MAC address. You can update the system.

Using the mouse may help make setup easier.

▲▼

1. Use the up/down buttons ( move to <System Management>, and press [ENTER] button.

2. Check the Software Version, Broadcast Format, and MAC Address.

• System Information : Shows the current system’s

information. The values can not be changed by a user.

• S/W Upgrade : Updates the DVR’s software up to date.

• DVR Name : Assigned name will be displayed in Network

Viewer, when connected to the DVR.

• Updating the Software

1. Connect a device storing the software to be updated. (It may take about 10 seconds to recognize the device.)

Upgradeable devices include USB memory and network device.

To update the network, the current DVR should have been connected to the network. Upgrade via the proxy server may not be enabled due to the restricted access.

2. Select <System Management> from <System> window.

3. Select <System Information>.

4. When the recognized device appears, select <Upgrade>.

The <Upgrade> button will be activated only if the current <Software Version> of the <System Information> is same to or older than that of <S/W Upgrade>.

) in <System> window to

System Management

System Information



Software Version v1.0xh_yymmddhhmmss



Broadcast Format



MAC Address 00:00:F0:54:FF:FF



S/W Upgrade



Device Network



Version No S/W Data



DVR Name DVR



Settings

NTSC

System Management

System Information



Software Version v1.0xh_yymmddhhmmss



System Upgrade

Broadcast Format



MAC Address 00:00:F0:54:FF:FF



Current Version v1.0xh_yymmddhhmmss New Version v1.0xh_yymmddhhmmss

S/W Upgrade



Device Network



Version No S/W Data



DVR Name DVR



Settings

NTSC

Do you want to upgrade?

OK Cancel

5. Press <OK> in the “System Upgrade” window.

While updating, it shows the progress.

40_ main menu

System Management

System Information

System Information

Software Version V1.0xh_yymmddhhmmss



Broadcast Format



S/W Upgrade

MAC Address 00:00:F0:54:FF:FF



Software upgrading...

S/W Upgrade

Device USB2FlashStorage



Version V1.0xh_yymmddhhmmss



Settings

NTSC

Upgrade

6. When the updating is done, it automatically restarts.

Do not turn the power off until it finishes restarting.

If “Upgrade Failed” appears, retry from the step 4.

When you experience continued failure, consult the service center for assistance.

When you perform S/W update remotely using Smart Viewer, it may take a max of 3 minutes to complete the update since Smart Viewer popped up a confirmation message. This is to guarantee that the DVR set operates stably. For a faster update, use the USB cable to connect to the DVR set.

! MAIN MENU

English _41

main menu

Settings

You can copy and import the DVR settings by using a storage media.

Using the mouse may help make setup easier.

▲▼

1. Use the up/down buttons ( move to <System Management>, and press [ENTER] button.

2. Select <Settings>. A window of storage device and load factory default appears.

3. Use direction buttons (

▲▼_ +

item, and export or import settings data to a storage device.

• Storage Device : Shows the connected storage device.

• DVRUSB : Exports DVR settings to the connected storage device.

• USBDVR : Imports DVR settings from the storage device and applies to the DVR.

If <Include Network Settings> is checked, the network settings will be imported too.

• Load Factory Default : If <Default> is selected, a

confirmation dialog for “Load Factory Default” prompts. Press <OK> to initialize the system to the factory default.

4. To move to the previous menu, press <Previous>.

) in <System> window to

) to move to a desired

System Management

System Information

Storage Device 0 MB (Remained Capacity)



DVRUSB 38010100



USBDVR No data



Include Network Settings

Load Factory Default



System Management

System Information

Storage Device 0 MB (Remained Capacity)



DVRUSB 38010100



USBDVR No date



Include Network Settings

Load Factory Default



Settings

Default

Settings

Load Factory Default

Sure to Default Setting?

OK Cancel

Default

Export

Import

Export

Import

Log Information

You can browse logs on the system and events.

System Log

System Log shows log and timestamp on every system start up, system shutdown, and changes on system settings.

Using the mouse may help make setup easier.

▲▼

1. Use the up/down buttons ( move to <Log Information>, and press [ENTER] button.

2. Select <System Log>.

Refer to “Using the Calendar”. (Page 34) Click on the calendar < > to display the calendar window.

• Type : When there are too many logs, you can display logs

of the desired format by selecting the type.

• Export : All logs recorded in the DVR are exported to the

storage media.

3. Use direction buttons (▲▼_ +) to move to a desired item, and press <Search>.

) in <System> window to

Log Information

System Log

Search Day 2013-01-01

First Page

No. Log List Date/Time

Export

Event Log

Last Page

Backup Log

Type View all

Previous/Next Page

42_ main menu

Event Log

Event log shows recorded events on alarms, motion detections and video loss. It also shows the log and its timestamp.

Using the mouse may help make setup easier.

▲▼

1. Use the up/down buttons ( move to <Log Information>, and press [ENTER] button.

2. Select <Event Log>.

3. Use direction buttons (

▲▼_ +

item.

4. Set Search Day, Channel and Type and the press <Search>.

Refer to “Using the Calendar”. (Page 34)

) in <System> window to

) to move to the desired

Log Information

System Log

Search Day 2013-01-01

First Page

No. Log List Date/Time

7 Motion Detection [CH 7] 2013-01-01 00:02:18

6 Motion Detection [CH 6] 2013-01-01 00:02:18

5 Motion Detection [CH 5] 2013-01-01 00:02:18

4 Motion Detection [CH 4] 2013-01-01 00:02:18

3 Motion Detection [CH 3] 2013-01-01 00:02:18

2 Motion Detection [CH 2] 2013-01-01 00:02:18

1 Motion Detection [CH 1] 2013-01-01 00:02:18

Export

Event Log

Last Page

CH All CHs Type View all

Backup Log

Click on the calendar < > to display the calendar window.

Backup Log

You can find out who backed up and the details (backup time, channel, device to use, file format, etc.).

Using the mouse may help make setup easier.

▲▼

1. In the <System> window, press the up/down ( to move to <Log Information> and press the [ENTER] button.

2. Select <Backup Log>.

3. Use the four direction buttons (

▲▼_ +

) to move to a

desired item.

4. Specify a search term and select <Search> in the right corner. Backup details for the search term will be listed.

) button

Log Information

System Log

Search Day 2013-01-01 ~ 2013-01-02

First Page

No. User Date/Time

Event Log

Last Page

Export

Backup Log

Previous/Next Page

! main menu

English _43

main menu

SETTING THE DEVICE

You can configure the settings of: Camera, Storage Device, Remote Device and Monitor.

Camera

Setting the Camera

You can set Video, Audio, Channel Name and Dwell Time of a Camera.

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control.

_ +

2. Use the left/right button (

Device setting menu is selected.

3. Use the up/down buttons ( and press [ENTER] button.

4. Select <Camera>. You will see a window where you can configure the camera settings including Video, Audio, Channel Name, SEQ-Dwell Time and Privacy Region.

5. Use direction buttons ( item, and set the value.

• Video

- <ON/OFF> : You can turn ON/OFF the selected channel’s

camera.

- <Covert1> : Shows information other than the video of

the selected channel.

For privacy protection, it does not display the video while the recording continues.

- <Covert2> : Shows nothing but an empty screen while the recording continues.

) to select <Device>.

▲▼

) to move to <Camera>,

▲▼_ +

) to move to a desired

Device

Camera

Storage Device

Remote Device

Monitor

Camera

CH Video  Audio CH Name SEQ-Dwell Time

1 ON  OFF  CAM 01 5 sec

2 ON  OFF  CAM 02 5 sec

3 ON  OFF  CAM 03 5 sec

4 ON  OFF  CAM 04 5 sec

5 ON  OFF  CAM 05 5 sec

6 ON  OFF  CAM 06 5 sec

7 ON  OFF  CAM 07 5 sec

8 ON  OFF  CAM 08 5 sec

Screen Setup Privacy Region

PTZ

OK Cancel

Logout

Previous/Next Page

Return



If the channel is set to <Covert1> or <Covert2> mode, the channel’s sound is not hearable.

However, the channel’s sound is recorded if its Audio setting is set to <ON>, even the sound is not heard in Live mode.

• Audio

- If set to <ON>, you can turn the audio of the channel ON on the Live screen.

- If set to <OFF>, the channel’s audio is off on the Live screen and not recorded.

Audio output is available for only 1 channel.

SDR-4102/5102 support audio of 1 to 4 channels only.

• CH Name : Up to 15 characters including blanks are allowed.

Refer to “Using Virtual Keyboard”. (Page 35)

• SEQ-Dwell Time : You can set the dwell time between channels for the Live screen.

If set to <OFF>, the channel is not listed in the Auto Sequence mode.

44_ main menu

• Screen Setup : The video appeared on the screen may vary depending on the channel’s camera, configure the DVR display to your preferences. Select a channel and adjust the <(Brightness)>, <

(Contrast)>, and <(Color)> of the selected channel.

Press the <Init> to initialize settings back to the default 50.

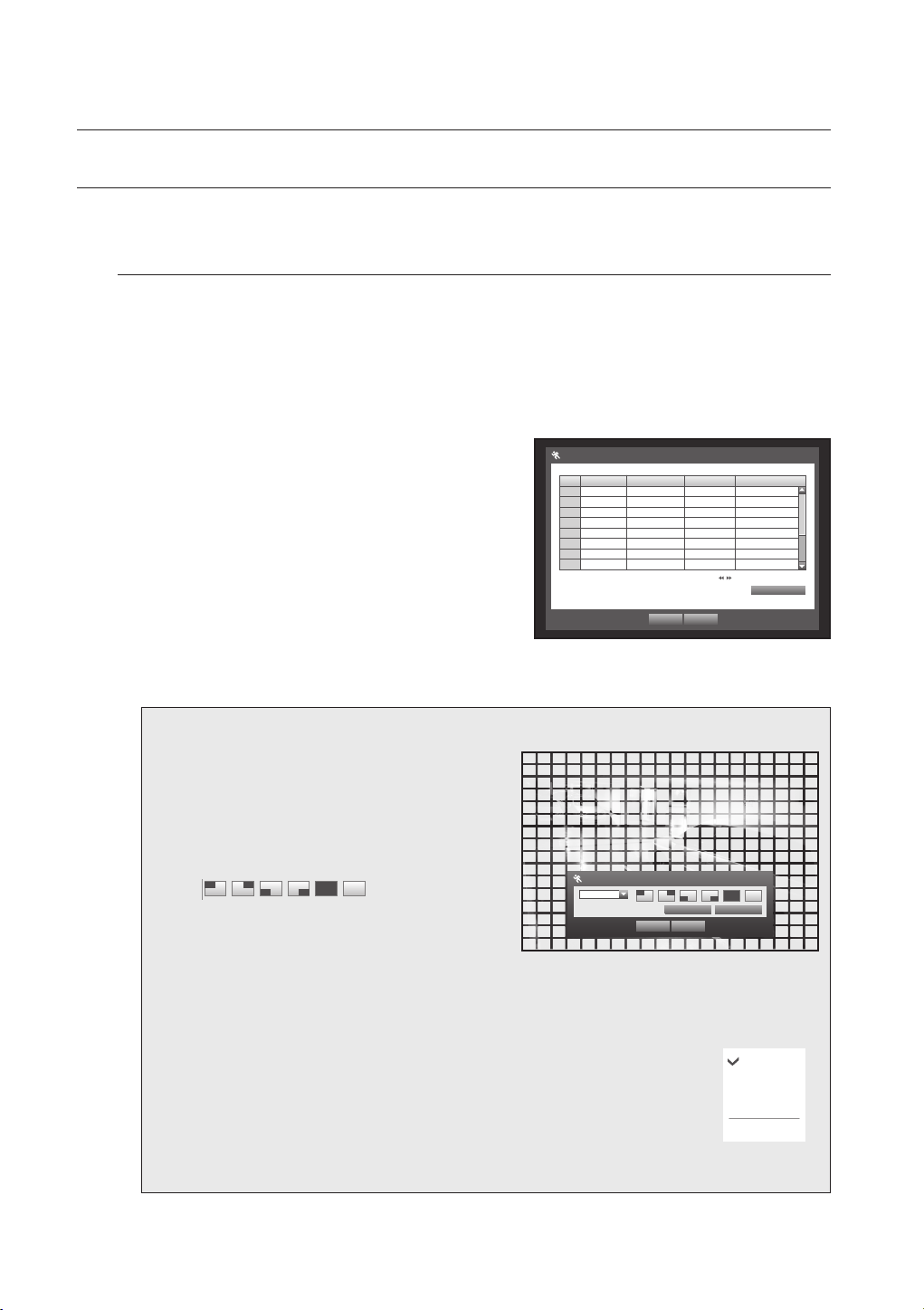

• Privacy Region : You can specify a certain area of the camera video to be protected for your privacy.

6. When the camera setup is done, press <OK>.

Screen Setup

CH1 50 50 50

OK Cancel

Init Apply to All CH

To set the privacy region



Select <Privacy Region>.



When “Privacy Region” window appears, select a

channel for detection and set the area of motion detection.

• To set the area in “Privacy Region” window

In the “Privacy Region” window, select desired region from <

• Privacy Region

You can specify up to 4 privacy zones for each channel, which can be identified by the color.

Purple 2 Green 3 Blue 4 Yellow

• To set the area using <Individual> selection

When selected <Individual>, “Privacy Region” window disappears and you can select cells one by one. When the motion area setup is done, Right-click to select <Menu> in the context menu or the [MENU]

button on the remote control to display the “Privacy Region” window again.

- Clear All : Selected cell is removed from the Privacy Region.

- Menu : After selecting individual motion areas, move to the “Privacy Region”

window.

If selected <Apply to All CH>, selected motion area is applied to all channels.

When completing the privacy zone settings, click <OK>.



Privacy Region

CH1

Privacy Region1

Individual

OK Cancel

Apply to All CH

Clear All

! MAIN MENU

English _45

main menu

Setting the PTZ

To use Camera’s PTZ functions, ID and protocols of each camera and DVR should be matched. For other settings, refer to the <Remote Device> settings. (Page 50)

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Device> window to move to <Camera>, and press [ENTER] button.

2. Select <PTZ>. A window of PTZ settings appears.

3. Use direction buttons (

▲▼_ +

) to move to a desired

item, and select it.

• Port : Select a port control method for the camera that is

connected to a channel.

You have two choices : <RS-485> and <Coaxial>.

For the <Coaxial> type, only SDR-5102 is supported.

• ID : Set the ID of the connected camera of each channel.

You can easily setup by using the numeric buttons on the remote control.

• Protocol : Set the protocol of the connected camera of each channel.

You can check the camera’s ID and protocol if you turn the camera off and on after connecting it to the DVR.

For the <Coaxial> type, CCVC and PELCO-C protocols are supported.

For the <Coaxial> type, only SDR-5102 is supported.

Camera

CH Port

1 RS-485  0 > None

2 RS-485  1 > None

3 RS-485  2 > None

4 RS-485  3 > None

5 RS-485  4 > None

6 RS-485  5 > None

7 RS-485  6 > None

8 RS-485  7 > None

PTZ

 

ID Protocol

OK Cancel

Previous/Next Page



4. When the PTZ setup is done, press <OK>.

46_ main menu

Storage Device

You can check information on storage devices.

Confirming Devices

You can check storage devices and their free space, usage as well as status. Devices available are HDD, and USB devices (Memory, HDD).

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Device> window to move to <Storage Device>, and press [ENTER] button.

2. Select <Device>.

• No. : Shows the assigned number of the internal HDD.

To see the detailed positioning of the HDD according to the number, refer to <HDD Map>.

• Used/Total : Shows the used/total capacity of the storage

device.

• Usage : Sets the storage device’s usage.

- USB memory is used only for backups.

External USB HDD, SATA HDD are used for extension and backup.

A maximum of 2TB for each port is supported for backup on a high capacity SATA HDD such as RAID equipment.

If an eSATA HDD device is used for extended storage or backup purposes, disconnecting eSATA device may restart the system. For backup use, the device can be disconnected if it’s not in use.

• Status/Management : Shows the current status of the HDD, as in Normal/Check/Replace.

- Normal : Available to use

- Check : Available to use but recommended to replace

- Replace : Requires immediate replacement.

3. To move to the previous menu, press <OK>.

Storage Device

Device

Device No. Used/Total Usage Status/Management

HDD 1 3.92G/0.98T Internal Normal

Format

OK Cancel

HDD Alarm

! main menu

English _47

main menu

Formatting

You can format a storage device.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Device> window to move to <Storage Device>, and press [ENTER] button.

2. Select <Format>. A window for selection of device for formatting appears.

3. Use direction buttons ( formatted.

▲▼_ +

) to select a device to be

Storage Device

Device

Device Select Used/Total Usage

HDD 1 3.92G/0.98T Internal

Format

OK Cancel

HDD Alarm

4. Select <Format> on the bottom of the screen. Press <OK> on the “Manage” confirmation window will start formatting the selected device.

5. When the formatting is done, press <OK>.

Storage Device

Device

Device Select Used/Total Usage

HDD 1 3.92G/0.98T Internal

Format

Manage

Format

HDD Alarm

Formatting deletes all recordings.

Proceed formatting?

Recording stops few second.

OK Cancel

48_ main menu

HDD Alarm

You can set alarm settings for HDD defects such as Check Alarm Output Port, Replace Alarm Output Port, and its duration.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Device> window to move to <Storage Device>, and press [ENTER] button.

2. Select <HDD Alarm>. A window for setting HDD check and replace output ports and their durations appears.

3. Use direction buttons (

▲▼_ +

) to move to the desired

item.

• Check Alarm Output Port : If HDD generates check alarm,

the alarm signal will output to the specified alarm output port.

• Replace Alarm Output Port : If HDD generates replace alarm, the alarm signal will output to the specified

alarm output port.

• Duration : Sets the alarm duration for the alarm signal and beep sound.

- If <BEEP> was selected, a beep will sound.

<Check> status means that the HDD is operating but it has problems that require technical examination.

(

) appears on the Live screen.

<Replace> status means that the HDD has defect and requires immediate replacement. (

) appears on the Live screen.

If the installed HDD is not recognized properly, a confirmation popup will appear.

Storage Device

Device

Check Alarm Output Port



Duration OFF



Replace Alarm Output Port



Duration OFF



Format

OK Cancel

HDD Alarm

BEEP

! main menu

4. When the HDD Alarm setup is done, press <OK>.

English _49

main menu

Remote Devices

You can set the RS-485 communication for use of PTZ Camera and system keyboard with the DVR.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Device> window to move to <Remote Device>, and press [ENTER] button.

2. Use direction buttons ( item, and press [ENTER] button.

3. Set the values of each communication setup of the remote device.

• Baudrate : Baud rate settings of the DVR, PTZ camera and

system keyboard should be matched for proper operations.

4. Make sure to match IDs of the DVR, System Keyboard and Remote Control, and press <OK>.

For changing the remote control’s ID, refer to “Changing the Remote Control ID”. (Page 13)

▲▼_ +

) to move to the desired

Remote Device

Baudrate Parity Data Stop Bit Transfer type

9600 None  8 1 Half Duplex

Remote Control ON ID 0

OK Cancel

50_ main menu

Monitor

You can configure information to be displayed and its format for Spot Out monitor.

Setting the Monitor

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Device> window to move to <Monitor>, and press [ENTER] button.

2. Select <Monitor>.

3. Use direction buttons (

▲▼_ +

) to move to a desired

item, and set the value.

• Event Display : Sets the dwell time of the event channel

display on the monitor when an event occurs. If selected <Continuous>, it displays the channel until you press [ALARM] button to release it.

Monitor

Event Display OFF



Display Date Time CH Name Icon



Multi CH SEQ Time



VGA/HDMI



HDMI Resolution Auto Detection ON



Display Position Setup

Mode

5 sec

1280X720

OK Cancel

• Display : Displays only checked items on the monitor

screen.

• Multi CH SEQ Time : Sets the interval between automatic display switching in 4-split and 9-split mode of

the Live screen.

• VGA/HDMI : Set your preferred screen resolution to <VGA> or <HDMI>.

If the monitor does not support selected resolution of <VGA> or <HDMI>, it may not display video properly.

• HDMI Resolution Auto Detection: If the option is checked on and the HDMI is available, DVR will

automatically adjust optimized resolution based on monitor's setting. If you need to configure the resolution manually, please turn the option off.

4. When the monitor setup is done, press <OK>.

Screen Setup

! main menu

Some monitors many not display information (camera name, icon, time information, etc.) about the DVR, depending on the condition. Then, you can change the display position of the data.

▲▼

1. In the <Device> window, press the up/down (

) button

2013-01-01 01:10:25

to move to <Monitor> and press the [ENTER] button.

2. Select the <Monitor> item.

3. Select <Display Position Setup> in the bottom.

You will move to the <Display Position Setup> window.

4. Use the four direction buttons or the number buttons on

Display Position Setup

30 30

OK Cancel

the remote control to adjust the data position.

English _51

main menu

Setting the Screen Mode

You can configure the Live screen and Split Screens.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Device> window to move to <Monitor>, and press [ENTER] button.

2. Select <Mode>.

3. Use direction buttons (

▲▼_ +

item, and set the value.

• Live Screen : Select split modes for the Live screen.

16-, 9-, and 4-split screens are included by default.

• Play Screen : Select split modes for the playback screen.

Only the 13-split screen is optional. Black shows the playback while white shows the Live screen.

4. When the screen mode setup is done, press <OK>.

) to move to a desired

Monitor

Live Screen



Play Screen



Mode

Live Play

OK Cancel

52_ main menu

SETTING THE RECORDING

You can setup scheduled recording, event recording and other recording related settings.

Recording Schedule

Make your reservation on a date and time to schedule the recording on specified time.

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control.

_ +

2. Use the left/right button (

Record menu is selected.

3. Use the up/down buttons ( Schedule>, and press [ENTER] button.

4. Select <Recording Schedule>. A window of scheduled recording setup appears.

5. Use direction buttons ( item, and set the value.

• Channel : Select a channel to set the recording schedule

time and date format.

• Recording type : Select each time cell, and then select a

type to start recording.

) to select <Record>.

▲▼

) to move to <Recording

▲▼_ +

) to move to a desired

Record

Recording Schedule

Event Record Duration

REC Quality & Resolution

Record Option

Recording Schedule

CH1

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23

All

Sun

Mon

Tue

Wed

Thu

Fri

Sat

Hol

No Recording Continuous

Event Both(Cont&Evnt)

OK Cancel

Logout

! main menu

Return

Apply to All CH

• Apply to All CH : If selected <Apply to All CH>, “Apply to

All CH” window appears. Press <OK> to apply the setup to all channels.

6. When the recording schedule setup is done, press <OK>.

Event recording and scheduled recording starts about 3

seconds prior to the event/schedule for guaranteed recording.

Recording Schedule

CH1

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23

All

Sun

Apply to All CH

Mon

Tue

Wed

Thu

Fri

Sat

Hol

No Recording Continuous

Event Both(Cont&Evnt)

Apply recording schedule to all channels?

OK Cancel

Apply to All CH

OK Cancel

English _53

main menu

Recording Color Tags

Color Part Names Functions

White No Recording No schedule / event recording

Orange Continuous Scheduled recording only

Blue Event Event recording only

Green Both(Cont&Evnt) Both scheduled / event recordings

Each press of a selected cell will cycle through <No Recording>-<Continuous>-<Event><Both(Cont&Evnt)>.

Event Record Duration

You can set the beginning and ending point of a recording on an event.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Record> window to move to <Event Record Duration>, and press [ENTER] button.

2. Use direction buttons (

▲▼_ +

item, and set the value.

•

Pre Event : The recording of an event will start at a pre-determined time prior to the actual occurrence of the event. If it is set to 5 seconds, the recording begins from 5 seconds before the event.

• POST Event : The recording will continue for a

pre-determined time after the actual end of an event. If it is set to 5 seconds, the recording ends in 5 seconds after an event.

3. When the event recording duration setup is done, press <OK>.

) to move to a desired

Event Record Duration

CH Pre Event  POST Event

1 OFF

2 OFF

3 OFF

4 OFF

5 OFF

6 OFF

7 OFF

8 OFF

OK Cancel

1 min



1 min



1 min



1 min



1 min



1 min



1 min



1 min



Previous/Next Page



REC Quality / Resolution

You can set resolution, FPS, and quality of recordings by channel, and by recording type of standard / event.

For more information about the resolution, refer to the “Product Specification” section. (Page 114)

Setting Standard Recording Properties

You can set each channel’s resolution, quality and FPS for normal recordings.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Record> window to move to <REC Quality & Resolution>, and press [ENTER] button.

2. Select <Standard>.

3. When the recording setup is done, press <OK>.

54_ main menu

REC Quality & Resolution

Standard

CH Resolution  Record Rate  Record Quality

1 CIF  7fps  Level4

2 CIF  7fps  Level4

3 CIF  7fps  Level4

4 CIF  7fps  Level4

5 CIF  7fps  Level4

6 CIF  7fps  Level4

7 CIF  7fps  Level4

8 CIF  7fps  Level4

Event

OK Cancel

Previous/Next Page



Setting Event Recording Properties

You can set each channel’s resolution, quality and FPS for event recordings.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Record> window to move to <REC Quality & Resolution>, and press [ENTER] button.

2. Select <Event>. Event recording setup window appears.

3. Use direction buttons (

▲▼_ +

) to move to a desired

item, and select it.

• Resolution : Sets the resolution of the recorded screen.

• Record Rate : Image Per Second, means the frames

REC Quality & Resolution

Standard

CH Resolution  Record Rate  Record Quality

1 4CIF  7fps  Level4

2 4CIF  7fps  Level4

3 4CIF  7fps  Level4

4 4CIF  7fps  Level4

5 4CIF  7fps  Level4

6 4CIF  7fps  Level4

7 4CIF  7fps  Level4

8 4CIF  7fps  Level4

Event

Previous/Next Page

OK Cancel

recorded per a second.

• Record Quality : Sets the recording quality.

You cannot increase the remaining count if the current remaining count has reached zero or there is no available

remaining count from any other page. If this is the case, reduce the remaining count for the current page, or do so for the same channel on any other page.

4. When the Event recording setup is done, press <OK>.

Record Option

You can set the recording to stop or overwrite when the HDD is full.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Record> window to move to <Record Option>, and press [ENTER] button.

2. Use direction buttons (

▲▼_ +

) to move to a desired

item, and set the value.

• Disk End Mode : If selected <Overwrite>, recording will

continue despite the HDD full while overwriting the oldest. If selected <Stop>, the recording will stop when the HDD is full.

• Disk End Beep : If selected <Stop>, the button is activated.

If you check it, the beep will sound on the disk full and the recording stops.

• Auto Delete : If you check it, Record Period setup is activated.

If you specify the auto deletion period, the recording data before the period will be deleted automatically.

This option will be enabled only if Disk End Mode is set to <Overwrite>.

• HDD Free Space : Shows remaining free space available on the HDD.

• Recordable (days/hours) : Shows estimation of remaining days and hours for recording, based on the

remaining free space.

3. When the recording option setup is done, press <OK>.

Record Option

Disk End Mode Overwrite



Disk End Beep

Auto Delete

Auto Delete 180 day



The recording information will be deleted.

Record Status

HDD Free Space : 986 GB / 989 GB



Recordable (Date/Time) :



Do you want to proceed?

OK Cancel

! main menu



English _55

main menu

SETTING THE EVENT

You can set recording options when motion, image loss detection or tampering event occurs.

Motion Detection

You can set target detection region and motion, as well as the alarm signal output. When the motion detection region is set, it detects motion within the area.

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control.

2. Use the left/right button (

Event setting menu is selected.

3. Use the up/down buttons ( move to <Motion Detection>, and press [ENTER] button. A window of motion detection area setup appears.

4. Use direction buttons ( item, and set the value.

• Mode : Sets whether to activate motion detection.

• Sensitivity : Sets the sensitivity level of the motion detection.

• Alarm : Sets the alarm output method.

For further information on alarm output, refer to “HDD Alarm > Alarm”. (Page 49)

• Alarm Duration : Sets the duration of alarm signal and alarm sound.

_ +

) to select <Event>.

▲▼

) in <Event> window to

▲▼_ +

) to move to a desired

Motion Detection

CH Mode  Sensitivity  Alarm  Alarm Duration

1 OFF  Level10(High)  None 10 sec

2 OFF  Level10(High)  None 10 sec

3 OFF  Level10(High)  None 10 sec

4 OFF  Level10(High)  None 10 sec

5 OFF  Level10(High)  None 10 sec

6 OFF  Level10(High)  None 10 sec

7 OFF  Level10(High)  None 10 sec

8 OFF  Level10(High)  None 10 sec

OK Cancel

Previous/Next Page

Motion Region



5. When the motion detection setup is done, press <OK>.

Setting the Motion Detection Area



Select <Motion Region>.



When “Motion Region” window appears, select a

channel for detection and set the area of motion detection.

• To set the area in “Motion Region” window

In the “Motion Region” window, select desired region from <

• To set the area using <Individual> selection

In the “Motion Region” window, you can select cells individually by using <Individual>.

When selected <Individual>, “Motion Region” window disappears and you can select cells one by one.When the motion area setup is done, press the <Menu> on the screen or the [MENU] button on the remote control to display the “Motion Region” window again.

- Select : Selected cell is set to be a part of motion detection area.

- Unselect : Selected cell is removed from the motion detection area.

- Inverse : Unselected cells are set to be the motion detection area.

- Menu : After selecting individual motion areas, move to the “Motion Region” window.

If selected <Apply to All CH>, selected motion area is applied to all channels.



When the motion detection setup is done, press <OK>.

Motion Region

CH1

Individual

OK Cancel

Apply to All CH

Select

Unselect

Inverse

56_ main menu

Video Loss Detection

You can set the alarm to be generated on a camera disconnection, which causes a video loss.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Event> window to move to <Video Loss Detection>, and press [ENTER] button. A window of video loss detection area setup appears.

2. Use direction buttons (

▲▼_ +

) to move to a desired

item, and set the value.

• Video Loss State : Sets whether to activate video loss

detection.

• Alarm : Sets the alarm output method.

For further information on alarm output, refer to “HDD Alarm >

Video Loss Detection

CH Video Loss State  Alarm  Alarm Duration

1 OFF  None 10 sec

2 OFF  None 10 sec

3 OFF  None 10 sec

4 OFF  None 10 sec

5 OFF  None 10 sec

6 OFF  None 10 sec

7 OFF  None 10 sec

8 OFF  None 10 sec

OK Cancel

Previous/Next Page



Help

Alarm”. (Page 49)

• Alarm Duration : Sets the duration of alarm signal and alarm sound.

3. When the video loss detection setup is done, press <OK>.

Tampering Detection

You can set to detect tampering attempts and trigger events, such as sudden change of camera’s framing direction, blocked lens and other overall change of scenes from the video.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Event> window to move to <Tampering Detection>, and press [ENTER] button. Tampering detection settings screen appears.

2. Use direction buttons (

▲▼_ +

) to move to a desired

item, and set the value.

• Mode : Set whether to use Tampering Detection or not.

• Sensitivity : Set the sensitivity level of tampering detection.

• Alarm : Set the alarm output method.

•

Duration : Set the alarm signal output and its dwell time.

3. When the tampering detection setup is done, press <OK>.

Tampering Detection

CH Mode  Sensitivity  Alarm  Duration

1 OFF  Medium  None 10 sec

2 OFF  Medium  None 10 sec

3 OFF  Medium  None 10 sec

4 OFF  Medium  None 10 sec

5 OFF  Medium  None 10 sec

6 OFF  Medium  None 10 sec

7 OFF  Medium  None 10 sec

8 OFF  Medium  None 10 sec

OK Cancel

Previous/Next Page



! main menu

Since the tampering detection is designed and optimized to function in accordance with the user defined sensitivity

level, it may not render a significant difference in detection with varied sensitivity in general monitoring situations.

When the tampering detection mode is set <ON>, it is recommended that the pre event recording time of the corresponding channel should be set to 10 seconds or longer.

English _57

main menu

Alarm Schedule

You can set the conditions and operating hours for scheduled alarms.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Event> window to move to <Alarm Schedule>, and press [ENTER] button.

2. Use direction buttons (

▲▼_+

and set the value.

• Alarm : Sets the alarm output method.

For further information on alarm output, refer to “HDD Alarm > Alarm”. (Page 49)

• ON : Marked in orange, and always generates alarm on

scheduled time.

• OFF : Marked in white, no alarm is generated even if an

event occurs.

• Event Sync : Marked in Blue, generates alarm only when an event occurs.

When the alarm is generated on the scheduled time, you can stop the alarm by canceling the schedule.

3. When the Alarm Schedule setup is done, press <OK>.

) to move to a desired item,

Alarm Schedule

BEEP

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 17 18 19 20 21 22 23

All

Sun

Mon

Tue

Wed

Thu

Fri

Sat

Hol

OFF ON Event Sync

OK Cancel

BACKUP

You can check the backup device and set the backup schedule by channel or by time. The product only supports external HDD of USB memory and USB/SATA type. (Page 114)

Setting the Backup

You can backup the desired data to a connected device.

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control.

_ +

2. Use the left/right button ( Backup menu is selected.

3. Press the [ENTER] button.

) to select <Backup>.

Backup

Logout

Backup

Return

58_ main menu

A backup window appears. You can directly access it from the “Live screen menu”. (Page 23)

4. Use direction buttons (

▲▼_ +

) to move to a desired

item, and set the value.

• Backup Range : Sets the <Start> and <End> time for the

backup.

• Channel : Sets the channel to backup. You can select multiple channels.

Backup

Start 2013-01-01 00:01:06  End 2013-01-01 08:25:45



Overlap List0



1 2 3 4 5 6 7 8

ALL

9 10 11 12 13 14 15 16

Device USB-Storage



Folder \20120101\



Check capacity

Type SEC



File Name 0001



OK Cancel

Backup :

Used :

Free :

Change

• Device : Select a backup device from the recognized devices.

• Type : Sets the backup data format.

- DVR : Saved data can be played back only by the DVR.

- AVI : You can set recording options when sensor, motion, image loss detection or tampering event occurs.

If you need to install a codec in Windows, run the x264_dvr.exe file in the codec folder that is created when you back up an AVI file.

- SEC : Saves data in the Samsung’s proprietary format with built-in viewer, which supports immediate playback on a PC.

• File Name : You can set the back file name.

Refer to “Using Virtual Keyboard”. (Page 35)

• Check capacity : Shows the size of the selected backup data, used and available capacity of the selected backup device.

• Overlap : Shows a list of overlapping data on a same time according to the number of data. It appears when one channel has multiple data on a certain time point due to changing of time or time zone settings, etc.

Refer to time and time zone of “Setting the Date/Time/Language”. (Page 32)

! main menu

5. When the backup setup is done, press <OK>.

If no available device is recognized for backup, <OK> button is not activated.

The application may slow down during the backup.

You can switch to the menu screen during the backup in operation, but playback of data is not available.

The data can be played back on a Webviewer while the backup is in progress but audio does not function.

When a memory device is used for backup, it is not available to use the full capacity of the media since the system consumes a part of its capacity.

If backup has failed, select “Device > Storage Device” and check the free space of the HDD and check also if the HDD is properly connected.

Pressing the <Exit> during the backup will return to the previous menu, while the backup progresses.

English _59

main menu

NETWORK CONFIGURATION

It provides networked monitoring of Live screen from a remote place, and supports mail forwarding function with events. You can configure the network environment which enables such functions.

Connection Mode

You can set the network connection route and protocol.

Setting the Connection

Sets the protocol and environment of the network.

Using the mouse may help make setup easier.

1. Press the [MENU] button on the remote control.

Logout

2. Use the left/right button (

_ +

Network menu is selected.

3. Use the up/down buttons (

▲▼

Mode>, and press [ENTER] button.

) to select <Network>.

) to move to <Connection

Connection Mode

DDNS

Live Transfer

Mailing Service

Return

Network

4. Select <Interface>.

A window of connection mode setup appears.

5. Use direction buttons (

▲▼_ +

) to move to a desired

item, and set the value.

• IP Type : Sets the network connection mode.

• Transfer Bandwidth : Sets the maximum data flow to be

transferred. (Upload speed) Options will vary depending on the selected connection mode.

- For <Static>, <DHCP> : Select one from 50 kbps ~

2Mbps, and Unlimited.

- For <PPPoE>, select one from 50 kbps ~ 600 kbps.

• IP Address, Gateway, Subnet Mask, and DNS

- For <Static> : You can directly input IP Address, Gateway,

Subnet Mask and DNS.

- For <DHCP> : IP Address, Gateway, and Subnet Mask

are set automatically.

- For <PPPoE> : IP Address, Gateway, and Subnet Mask

are set automatically.

• ID, Password : In case you selected PPPoE, provide the

“ID” and its “Password”.

DNS server for <DHCP> and <PPPoE> can be set by user

only if you selected <Manual>.

Connection Mode

Interface

IP Type Static



Transfer Bandwidth 2Mbps



IP Address 192.168.1.200



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



Connection Mode

Interface

IP Type PPPoE



Transfer Bandwidth 600kbps



IP Address 192.168.1.200



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



Port

OK Cancel

Port

OK Cancel

6. When the connection setup is done, press <OK>.

60_ main menu

Setting the Port

1. Use the up/down buttons (▲▼) in <Network> window to

move to <Connection Mode>, and press [ENTER] button.

2. Select <Port>.

3. Use direction buttons (

▲▼_ +

) to move to a desired

item, and set the value.

• Protocol Type : Select the protocol type between TCP and UDP.

- TCP : If compared to UDP, TCP connection is more stable

Connection Mode

Interface

Protocol Type TCP



Device Port 4520 ~ 4524



UDP Port 8000 ~ 8160



Unicast/Multicast Unicast



Multicast IP Address 224.126.63.1



Multicast TTL 5



HTTP Port 80



Secure Video Transmission ON OFF



* Multi Browser Support: Device Port 4505~4530, HTTP Port 80

Port

OK Cancel

but slow. Recommended for Internet connection.

- UDP : If compared to TCP, UDP connection is less stable but fast. Recommended for use in LAN environment.

If selected UDP, selections of Device Port, UDP Port and Unicast/Multicast are activated.

If setting the connection mode to PPPoE, you cannot select UDP for the protocol type.

• Device Port : Initially, <4520~4524> is set. It increases / decreases by 5.

- TCP: It has better stability and lower speed when compared to UDP, and recommended for internet environments.

• UDP Port : Initially, <8000~8160> is set. It increases / decreases by 160.

• Unicast/Multicast : Select one between UDP-Unicast and UDP-Multicast.

If selected Multicast, Multicast IP and TTL are activated.

- UDP- Unicast : Transfers data packet to an individual client.

- UDP-Multicast : Allows data communication to multiple clients causing no additional traffic to the network.

• Multicast IP Address : User can directly input.

• Multicast TTL : Select from 0 ~ 255. Initial value for the TTL is set to <5>.

• HTTP Port : Enter the port number for the Web Viewer. Initially, it is set to <80>.

• Multi Browser Support : The Web Viewer can be used with a browser that supports the Silverlight.

The multi viewer can be used only if the HTTP port is set to 80, protocol type is TCP and device ports range within 4505-4530. This is for the Siliverlight’s security purposes.

• Secure Video Transmission: Determine the network video transmission data is encrypted or not. Encrypt: ON, Not Encrypt: OFF.

If you set the secure video transmission mode, the max bandwidth performance will be limited.

When ON is selected, multi browser is not supported.

4. When the protocol setup is done, press <OK>.

! main menu

English _61

main menu

Notification

In a multi-browser environment, the <HTTP Port> should be set to 80 (private port).

Select one between 4505 and 4530 for RTSP

• Network Overview

Router (External IP: 109.112.92.133,

Local IP: 192.168.1.1

POWER REC NETWORK POWER REC NETWORK

DVR 1

Local PC

Cable/ADSL

Modem

Internet

DDNS Server (www.samsungipolis.com)

DVR 2

System

DVR 1 DVR 2

WEB RTSP WEB RTSP

IP 192.168.1.200 192.168.1.200 192.168.1.202 192.168.1.202

Protocol TCP TCP TCP TCP

Private Port 80 4520~4524 81 4525~4529

Public Port 80 4520~4524 81 4525~4529

Connection Mode

Interface

IP Type Static



Transfer Bandwidth 2Mbps



IP Address 192.168.1.200



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



Port

OK Cancel

Connection Mode

Interface

Protocol Type TCP



Device Port 4520 ~ 4524



UDP Port 8000 ~ 8160



Unicast/Multicast Unicast



Multicast IP Address 224.126.63.1



Multicast TTL 5



HTTP Port 80



Secure Video Transmission ON OFF



* Multi Browser Support: Device Port 4505~4530, HTTP Port 80

Port

OK Cancel

Connection Mode

Interface

IP Type Static



Transfer Bandwidth 2Mbps



IP Address 192.168.1.202



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



Port

OK Cancel

Connection Mode

Interface

Protocol Type TCP



Device Port 4525 ~ 4529



UDP Port 8000 ~ 8160



Unicast/Multicast Unicast



Multicast IP Address 224.126.63.1



Multicast TTL 5



HTTP Port 81



Secure Video Transmission ON OFF



* Multi Browser Support: Device Port 4505~4530, HTTP Port 80

Port

OK Cancel

62_ main menu

• 1st Set Port Forwarding Setting

Port Forwarding is 4520~4524

(4520, 4521, 4522, 4523, 4524)

Port Forwarding is 80

! main menu

SDR-5102

192. 168. 1. 200

• 2nd Set Port Forwarding Setting

Port Forwarding is 4525~4529

(4525, 4526, 4527, 4528, 4529)

SDR-5102

192. 168. 1. 202

4525 81

SDR-5102

192. 168. 1. 200

Port Forwarding is 81

SDR-5102

192. 168. 1. 202

814525

English _63

main menu

Connecting and Setting the Network

Networking may differ from the connection method, check your environment before setting the connection mode.

When no router is used

• Static mode

- Internet connection : Static PPPoE, leased line, and LAN environments allows connection between the DVR and remote user.

- DVR Network Settings : Set the <Connection Mode> in <Interface> menu of the connected DVR to <Static>.

Consult your network manager for IP Address, Gateway and Subnet Mask.

• DHCP mode

- Internet connection : Connect the DVR directly to a cable modem, DHCP PPPoE modem or FTTH network.

- DVR Network Settings : Set the <Connection Mode> in <Interface> menu of the connected DVR to <DHCP>.

• PPPoE mode

- Internet connection : An PPPoE modem is directly connected to the DVR, where the PPPoE connection requires user ID and password.

- DVR Network Settings : Set the <Connection Mode> in <Interface> menu of the connected DVR to <PPPoE>.

<ID> and <Password> should be the same to the PPPoE user information. If you don’t know the ID and password, consult your PPPoE service provider.

Connection Mode

Interface

IP Type Static



Transfer Bandwidth 2Mbps



IP Address 192.168.1.200



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



Connection Mode

Interface

IP Type PPPoE



Transfer Bandwidth 600kbps



IP Address 192.168.1.200



Gateway 192.168.1.1



Subnet Mask 255.255.255.0



DNS Manual 168.126.63.1



ID ID



Password



Port

OK Cancel

Port

************

OK Cancel

64_ main menu

When a router is used

To avoid IP address conflict with the DVR's static IP, check followings :

• Setting the DVR with a static IP

- Internet connection : You can connect the DVR to a router which is connected to an PPPoE/Cable modem or a router in a Local Area Network (LAN) environment.

• Setting the DVR Network

1. Set the <Connection Mode> in <Interface> menu of the connected DVR to <Static>.

2. Check whether the set IP address is in the static IP range provided by the Broadband Router.

IP Address, Gateway, and Subnet Mask : Consult your network manager.

Check whether the set IP address is in the static IP range provided by the Broadband Router.

If a DHCP server is configured with starting address (192.168.0.100) and end address (192.168.0.200), you should

set the IP address out of the configured DHCP range (192.168.0.2 ~ 192.168.0.99 and 192.168.0.201 ~

192.168.0.254).

3. Check the Gateway address and subnet mask are equal to those set in the Broadband Router.

• Setting the DHCP IP Address of the Broadband Router

1. To access the Broadband Router’s configurations, open a web browser on the local PC that is connected

to the Broadband Router and enter the router’s address (ex : http://192.168.1.1).

2. At this stage, make the local PC's windows network configurations to the below example :

Ex) IP Address : 192.168.1.2

Subnet Mask : 255.255.255.0 Gateway : 192.168.1.1

- Once connected to the Broadband Router, it prompts with password. While entering nothing to the User Name field, enter “admin” into the password field and press <OK> to access the router configurations.

- Access the router’s DHCP configuration menu and set its DHCP server activation, and provide the start and end address. Set the start address (192.168.0.100) and end address (192.168.0.200).

! main menu

Above steps may differ from the router devices depending on the manufacturer.

English _65

main menu

• Setting Router’s Port Forwarding

1. Set the protocol to <TCP>.

2. External Port Range : Enter the TCP Port set in the

<Device Port> in <Port> menu of the connected DVR. If more than one DVRs are connected to the router, the TCP port can be different.

3. Internal PC IP Address : Enter the IP address set to the <IP Address> in <Interface> menu of the connected DVR.

4. Internal Port Range : Set the same to the “External Port Range”.

Above steps may differ from the router devices depending on the manufacturer.

Port forwarding is required when you want to access the DVR connected to the router from outside of the router’s network.

DDNS

You can set the DDNS site for a remote user’s network connection.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Network> window to move to <DDNS>, and press [ENTER] button. DDNS Setup screen appears.

2. Use the virtual keyboard to enter the <Product ID>.

Refer to “Using Virtual Keyboard”. (Page 35)

If selected <OFF> input fields are deactivated.

If selected <iPOLiS>, the server name field is disabled.

• DDNS Site : Set whether to use DDNS or not, and select

the DDNS site if enabled.

• Server Name : Enter the server name of the selected DDNS site.

• Product ID : Enter the product ID which was registered to the DDNS site.

• Quick Connect : Appears if the <DDNS Site> is set to <iPOLiS>.

To use this feature, connect the DVR to a UPnP router and set to <Use>.

Connection Mode

Interface

Protocol Type TCP



Device Port 4520 ~ 4524



UDP Port 8000 ~ 8160



Unicast/Multicast Unicast



Multicast IP Address 224.126.63.1



Multicast TTL 5



HTTP Port 80



Secure Video Transmission ON OFF



* Multi Browser Support: Device Port 4505~4530, HTTP Port 80

DDNS

DDNS Site iPOLiS



Server Name www.samsungipolis.com



Product ID



Quick Connect Not Used Use



DDNS Host Address http://www.samsungipolis.com/



Port

OK Cancel

If the quick connect setup has been cancelled while progressing, it is automatically set to <Not Used>.

3. When the DDNS setup is done, press <OK>.

66_ main menu

DDNS Setting

DDNS is a short form of Dynamic Domain Naming System. DNS (Domain Name System) is a service that routes a domain name consisting of user friendly characters (ex : www.google.com) to an IP address consisting of numbers (64.233.189.104). DDNS (Dynamic DNS) is a service that registers a domain name and the floating IP address with the DDNS server so that the domain name can be routed to the IP address even if the IP is changed in a dynamic IP system.

• Setting DDNS in the DVR

Set <Protocol Type> in the <Port> menu of the connected DVR to the following :

Ex) Protocol Type : TCP

Device Port : 4520~4524 DDNS Site : iPOLiS

• DDNS Settings of the Router

Select the corresponding menu for the network transfer protocol of the router.

• SETTING UP SAMSUNG iPOLiS DDNS

Go to Your PC

1. Open your browser and go to http://www.samsungipolis.com and click <LOGIN>.

2. You first need to create an account.

Click <SIGN UP>.

3. Follow the account registration instructions on the website.

4. After completing the account registration, login to your

account.

! main menu

5. Add your DVR to your account. Click <PRODUCT REGISTRATION>.

6. Create a name(Product ID) for your DVR. Use 4 to 20 alphanumeric characters without spaces. Select classification, model number of the DVR and click <REGISTER>.

7. After registration, you should see your product in the list.

English _67

main menu

Go back to DVR

1. From network tab, click on <DDNS>.

Connection Mode

DDNS

Live Transfer

Mailing Service

Logout

Return

Network

2. Under DDNS Site, select <iPOLiS>.

3. Under Product ID, enter the product ID you created on the

Samsung iPOLiS website. Under Quick Connect, select <Use> and click <OK>.

If the connection was not successful, your router may not be

supporting UPNP. For more information on enabling UPNP on your router, please see Router manual.

DDNS

DDNS Site iPOLiS



Server Name www.samsungipolis.com



Product ID



Quick Connect Not Used Use



DDNS Host Address http://www.samsungipolis.com/



OK Cancel

DDNS

DDNS Site iPOLiS



Server Name www.samsungipolis.com



Product ID sdr5102dhome



Quick Connect Not Used Use



DDNS Host Address http://www.samsungipolis.com/srd1673dhome



OK Cancel

DDNS

DDNS Site iPOLiS



Server Name www.samsungipolis.com



Connection

Product ID srd1673dhome



Quick Connect Not Used Use



DDNS Host Address http://www.samsungipolis.com/srd1673dhome



Quick Connect Success

68_ main menu

OK Cancel

Live Transfer

Sets the quality of the image that is transferred from the DVR to the network.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Network> window to move to <Live Transfer>, and press [ENTER] button. The Live Transfer window appears.

2. Use direction buttons (

▲▼_ +

) to move to a desired

item, and set the value.

• Resolution: Shows the selected network profile’s resolution

setting.

• Quality: Shows the selected network profile’s image quality

setting.

3. When the live transfer is done, press <OK>.

Live Transfer

CH Resolution  Quality

1 CIF

2 CIF

3 CIF

4 CIF

5 CIF

6 CIF

7 CIF

8 CIF

Low



Low



Low



Low



Low



Low



Low



Low



OK Cancel



Previous/Next Page

! main menu



English _69

main menu

Mailing Service

You can send an e-mail to a DVR-registered user at a specific time interval, or if an event occurs.

If an event occurs with a channel where the camera’s video is set to <OFF> or the remaining recording count is set

to <OFF>, only the text notification will be sent to the applicable email address.

If you set the interval of the e-mail notice too short, the e-mail server may consider it as spam that will not be

transferred normally.

SMTP Setting

Sets the SMTP mail server.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Network> window to move to <Mailing Service>, and press [ENTER] button.

2. Select <SMTP>. You will see the SMTP setting window.

3. Use direction buttons (

▲▼_ +

) to move to a desired

item, and set the value.

• ServerType : Displays the connected server type.

• Server Address : Enter a server to connect to.

• Port : Sets the communication port.

• Use Authentication : Check this if the SMTP server uses

user authentication. The account input box will be activated.

• ID : Enter a user to use authentication when connecting to the SMTP server.

• Password : Enter the password of the SMTP server user.

• Secure Transfer : Select one from <Never> and <TLS (if available)>.

• Sender Address : Use the virtual keyboard to enter the sender’s e-mail address.

Refer to “Using Virtual Keyboard”. (Page 35)

• E-mail Test : Conducts the test on the server settings.

4. When the SMTP setup is done, press <OK>.

Mailing Service

SMTP

ServerType SMTP mail Server



Server Address



Port 25



Password

Secure Transfer Never



Sender Address ex. user@example.net



E-mail Test

Event

Use Authentication

OK Cancel

Group Recipient

70_ main menu

Event Setting

You can set the interval and type of the event that will be sent to the user.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Network> window to move to <Mailing Service>, and press [ENTER] button.

2. Select <Event>.

3. Use direction buttons (

▲▼_ +

) to move to a desired

item, and set the value.

Mailing Service

SMTP

Event Interval 10 min



Use Event Transfer



Event

Motion Tampering

Change P/W HDD Info Video Loss

Power On/Off Manual Record

Group

• Event Interval : Set the event interval.

If a series of events occurs, the e-mail will be sent at the specified interval, not on each event.

OK Cancel

• Use Event Transfer : Select an event type to send if an event

occurs. If the selected event occurs, the e-mail will be sent to the group that has the recipient authority.

4. When the event setup is done, press <OK>.

Group Setting

You can set the group to whom the e-mail is sent, and specify the permission for each group. You can add recipients for each group in the <Recipient> menu item. The recipient is set separately from the DVR user group.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Network> window to move to <Mailing Service>, and press [ENTER] button.

2. Select <Group>.

3. Use direction buttons (

▲▼_ +

) to move to a desired

item, and set the value.

• Add : Select <Add> and use the virtual keyboard to add a

group.

Refer to “Using Virtual Keyboard”. (Page 35)

• Delete : Deletes the selected group.

• Rename : You can reset the recipient permission of an

existing group.

• Recipient Permission : Set the permission of the recipient group.

4. When the group setup is done, press <OK>.

Mailing Service

SMTP

Group



Recipient Permission

Event

Motion Tampering

Change P/W HDD Info Video Loss

Power On/Off Manual Record

Group

Add Delete Rename

OK Cancel

! main menu

Recipient

English _71

main menu

Recipient Setting

You can add/remove a recipient(s) to/from the specified group and edit the group if necessary.

Using the mouse may help make setup easier.

1. Use the up/down buttons (▲▼) in <Network> window to move to <Mailing Service>, and press [ENTER] button.

2. Select <Recipient>.

3. Use direction buttons (

▲▼_ +

) to move to a desired

item, and set the value.

Mailing Service

SMTP

Group All Group



Group Name e-Mail Address Delete

Event Group

OK Cancel

Recipient

Add

Previous/Next Page

• Add : You can select a recipient name, e-mail address or

group. You should have created a group in the <Group> menu item before you can add a user to the group.

For inputting the recipient name and email address, refer to “Using Virtual Keyboard”. (Page 35)

4. When the recipient setup is done, press <OK>.

Mailing Service

SMTP

Group ABC



Group Name e-Mail Address Delete

Event Group

Add recipient

Name



Select Group ABC



OK Cancel

Recipient

Previous/Next Page

Add

72_ main menu

CONTROLLING A PTZ DEVICE

2013-01-01 01:10:25

The DVR enables you to adjust the settings of a PTZ camera as well as an ordinary one to your preference.

PTZ Device

The PTZ device can be activated only if a channel in connection with the PTZ camera is selected.

Getting started with PTZ

The PTZ camera is available, only if a channel is selected, in the following way :

Using the remote control buttons Press the [PTZ] button on the remote control.

Using the launcher menu

PTZ

Click <

Using the right-click menu in Live mode

> to display the live launcher.

Right-click any area on the screen to display the context menu, and select <PTZ Control>.

Using icons on the live screen Click the < > icon on the live screen.

The PTZ function is available only if the PTZ camera is

connected so that the < > icon is displayed on the screen.

Scene Mode

PTZ Control

Zoom In

Audio

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout

! main menu



English _73

main menu

2013-01-01 01:10:25

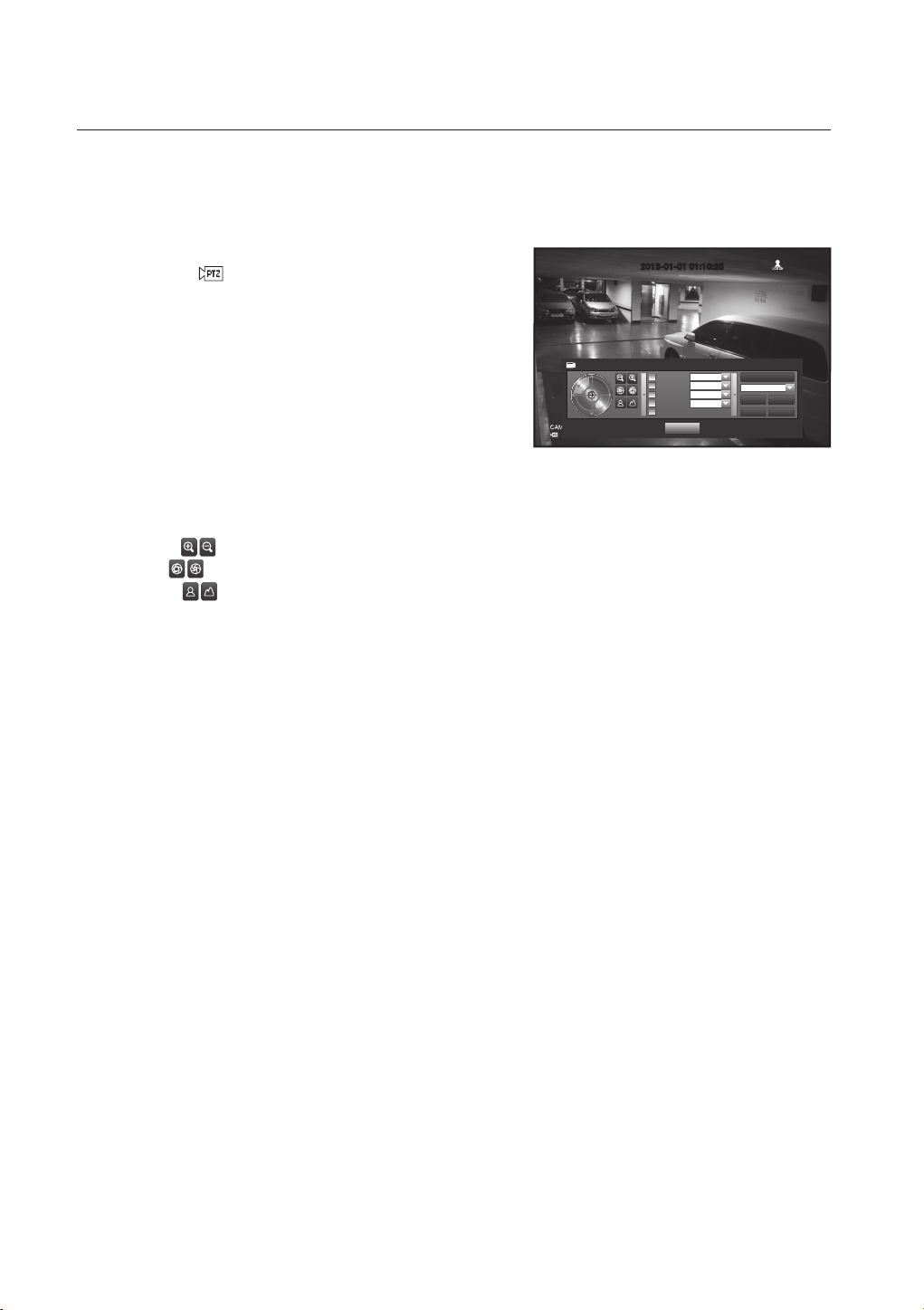

Using the PTZ camera

You can use one camera to perform all functions of PAN, TILT and ZOOM for monitoring multiple places and set the preset to your preference in a desired mode.

1. Launch the <PTZ Control> menu. As the < yellow, you access the “PTZ Control” mode to display the “PTZ Control” menu.

2. Use the PTZ wheel in the launcher menu to adjust the monitoring area, or use the direction buttons ( the remote control to move the camera to a desired place.

• PTZ Wheel : Clicking a nearer point to the center will move in that direction slowly; clicking a farther point

from the center will move fast.

Keep clicking left to rotate the lens counter clockwise; keep clicking right to rotate the lens clockwise.

• Zoom ( ) : You can use the Zoom function of the PTZ camera.

• IRIS (

• Focus (

• Swing : Moves between the preset start point and end point.

• Group : Moves in the path specified by combining the preset, pattern and auto pan.

• Trace : Moves camera’s framing in the predefined path.

• Preset : Sets the preset position for camera framing and moves to designated preset position when

selecting a desired preset.

• Tour : Moves in the path specified by combining multiple groups.

For the coaxial communications, the operation may differ depending on the protocol.

For the <Coaxial> type, only SDR-5102 are supported.

> icon on the bottom right corner turns

Be sure to configure PTZ working environments before operation, since the PTZ Working(Active) mark can be appeared to be activated even when PTZ is not operative.

▲▼_ +

) on

) : Adjusts the intensity of radiation incoming to the iris.

) : Enables you to adjust the focus manually.

PTZ Control CAM01

Swing Group Trace Preset Tour

Select Select Select Select

Exit

Camera Setup

Select Preset

Save Rename

Delete Delete All

Before entering the PTZ device control mode, set the values of the PTZ device in the <Setting the PTZ> menu.

(Page 46)

For camera specifications that supports PTZ comtrol depending on communication method, refer to our web site.

74_ main menu

Preset Setting

2013-01-01 01:10:25

A preset is a set of specific target points of a PTZ camera, and up to 127 presets per a camera can be stored.

Using the mouse may help make setup easier.

1. In PTZ Control mode, use the direction buttons to adjust the camera in a desired direction.

2. Select the <Save> key.

The virtual keyboard for inputting the preset will appear.

Refer to “Using Virtual Keyboard”. (Page 35)

• Save : You can add and save the preset.

• Rename : You can change the settings of the existing presets.

• Delete : Deletes the selected preset.

• Delete All : Deletes all existing presets.

If you replace the camera of the channel that stores the preset list with a new one, you should reset the preset

accordingly.

3. Press <OK>.

The preset will be saved as a name that you entered.

Camera Setting

A PTZ camera has its own menu system. Optimize the PTZ camera according to the DVR.

Using the mouse may help make setup easier.

• Select <Camera Setup> in the PTZ Control menu.

The camera-specific menu appears.

You can configure the settings of only those cameras that support the protocols of Samsung, Pelco D/P, AD and Panasonic.

If you are setting Auto Pan or Pattern in the camera menu, press and hold the appropriate button for a certain time so that the button operation can be different from that in normal PTZ setting.

Camera Setup



Exit

! main menu

English _75

search & play

2013-01-01 01:10:25

search & play

You can perform the search for recorded data by the time or by the search criteria such as an event. You can access the <Search> menu directly in Live mode.

1. In Live mode, right-click any area of the screen. The Live menu appears.

2. Select <Search>. Or, press the [SEARCH] button on the remote control.

3. The Search menu appears.

4. The search can be restricted by the Auto Delete function.

Refer to “Setting the Recording > Record Option”. (Page 55)

Overlapped data : It only appears if there exists overlapped

data on a certain time, produced due to the change of DVR’s time setup. The latest data comes first, from <List0>. It does not appear in <Backup Search>.

Time Search

Event Search

Backup Search

Motion Search

Return

Scene Mode

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout



Time Search

You can search for recorded data of a desired time. As the time to display may be different depending on the time zone and the DST standard time, the time of data recorded in the same time can be displayed differently depending on time zone and DST settings.

Using the mouse may help make setup easier.

1. Select <Time Search> in the <Search> menu.

2. Select a date to search.

Refer to “Using the Calendar”. (Page 34)

3. The record data on the specific date will be listed. The display bar is different according to the data type. So check the data type for the color in the left pane.

4. Use direction buttons (

▲▼_ +

) to set the search criteria

and press the [ENTER] button.

• Go to First : Moves to the earliest date.

• Go to Last : Moves to the most recent date.

• Time : Enter a time to perform the search or use the up/down button <

• Previous/Next Page : Moves to the previous / next page. (Use the remote control)

• Zoom In : The map enlarges in detail.

Time Search

2013-01-01

2013/01/01 00:01:17

Standard Schedule

Motion Etc

V.Loss

Tampering

> to select one.

Go to First Go to Last

Overlapped Data List1

00:01

All Data

CAM 01

CAM 02

CAM 03

CAM 04

CAM 05

CAM 06

CAM 07

Play Return

Zoom In Zoom Out

Previous/Next Page

76_ search & play

It will switch in the sequence of 24 hours - 16 hours - 8 hours

- 4 hours.

• Zoom Out : The map will switch in the reverse order of the detailed mode above.

Time Search

2013-01-01

Go to First

Overlapped Data List1

All Data

It will switch in the sequence of 4 hours - 8 hours - 16 hours

- 24 hours.

Double-click a desired time to zoom it in/out.

2013/01/01 00:01:17

Standard Schedule

Motion Etc

V.Loss

Tampering

• Preview : Click <Channel> and select (click, drag) a time in <Duration> to display a still image for the portion.

- If the selected channel does not contain any recorded data, it will be marked black.

5. Select a data item and click <Play>.

The screen switches to the data playback mode.

Event Search

You can search for events by the channel and play them.

Using the mouse may help make setup easier.

1. Select <Event Search> in the <Search> menu.

2. Use direction buttons (

▲▼_ +

and press the [ENTER] button.

All record events on a specific date will be found. (Normal/ Schedule recording included)

• Date/Time Preview : If you select a data item in the list, the still image of the selected data will be displayed in the left preview pane.

• Event : Displays the type of the event that occurred.

3. Select a data item and click <Play>.

The screen switches to the event data playback mode.

) to set the search criteria

Event Search

CAM 01

2013-01-01 View all

Overlapped Data List1

2013/01/01 00:01:22

No. Date/Time Preview Event

3 02:47:54 ~ 02:48:59 Motion

2 00:39:06 ~ 00:40:30 Motion

1 00:01:22 ~ 00:02:28 Motion

Go to Last

00:01

CAM 01

CAM 02

CAM 03

CAM 04

CAM 05

CAM 06

CAM 07

Play Return

Zoom In Zoom Out

! search & play

Previous/Next Page

Go to First Go to Last

Previous/Next Page

Backup Search

Searches for backup data in the connected backup device. Only data in the format of DVR is included in the search. Refer to <Type> in “Backup > Setting the Backup”. (Page 58)

Using the mouse may help make setup easier.

1. Select <Backup Search> in the <Search> menu.

2. Use direction buttons (

▲▼_ +

and press the [ENTER] button.

• Record Period : Displays the record period.

• Channel info : Displays the recorded channel.

• Play Start Time : Select a time that you start playing.

3. Select a data item and click <Play>.

The screen switches to the backup data playback mode.

) to set the search criteria

Backup Search

No. Folder Name File Name

1 20130101 16190000

File Name  Channel info



Record Period 2013-01-01 01:01:01 - 2013-01-01 01:01:10



Play Start Time 2013-01-01 16:30:52



USB:USB2FlashStorage

Previous/Next Page

Play Return

English _77

search & play

Motion Search

If a motion is detected in each channel, you can set a desired area to perform the search.

You can use the mouse to select the related items.

1. Select <Motion Search> in the <Search> menu.

2. Use direction buttons (

▲▼_ +

) to set the search criteria

and press the [ENTER] button.

If you set the motion area to <Manual Area>, the <Setup> button will be activated.

• Motion Region : Select an area to perform the search.

- All Area : Searches for all areas of the selected channel.

- Current Area : Searches for the motion area for each

channel specified in “Motion Detection > Setting the Motion Detection Area”. (Page 56)

- Manual Area : You can set the motion area manually.

• Setup : The Setup button will be activated only if you have set the motion area to Manual. Press this button to display the area setting window.

• Date/Time : The Date/Time will be automatically set by the hour, and the end time will be automatically set to one hour later than the start time if it is set.

• Preview : Select a data item in the list to display the still image of the item.

3. Select a data item and click <Play>.

The screen switches to the motion data playback mode.

Motion Search

Channel CAM 01 Motion Region All Area

Date/Time 2013-01-01 03:41:18 2013-01-01 05:11:44

2013/01/01 01:01:30

Motion Region

CH1

Individual

Go to First Go to LastOverlapped Data List1

Apply to All CH

No. Start Time

7 01:01:30

6 01:01:25

5 01:01:20

4 01:01:15

3 01:01:10

2 01:01:05

1 01:01:01

Play Return

OK Cancel

Setup

Previous/Next Page

78_ search & play

PLAYBACK

2013-01-01 01:10:25

Play

You can play data stored in the HDD and backup a desired portion of the data.

Using the mouse may help make setup easier.

1. In Live mode, click <Play> in the right-click menu or

< > in the launcher menu, or press the Play button on the remote control.

▲▼

2. Use the up/down button (

For data search, refer to <Search>. (Page 76)

) to select a menu.

3. Select a data item and click <Play> in the Search menu.

The selected data is played and the play launcher appears on the screen.

If there is an existing data, <Play> will start immediately without performing the search.

• Playback Information : Displays the date and time of the current data in the top corner.

Scene Mode

Audio Off

Freeze

Stop Alarm

Record

Play

Backup

Main Menu

Shutdown

Hide Launcher

Logout

! SEARCH & PLAY



REC

• Backup : Click <

> to set the current time to the start time of backup; you can specify a backup area using the mouse (yellow triangle). Click < > again to set the current time to the end time of the backup and the “Backup Range” window appears.

- Type : Supports formats of DVR, AVI and SEC.

Refer to a list of formats in “Setting the Backup”. (Page 58)

- Device : Select a backup device.

- Check Capacity : Enables you to check the capacity of the selected storage device.

4. If you want to return to the Live screen in Play mode, click <

[@] button on the remote control.

Backup Range

Start 2013-01-01 00:01:06  End 2013-01-01 01:10:25



Device USB-Storage  Type SEC



Folder \20130101\



Check capacity

> in the launcher menu or press the

File Name 0001



OK Cancel

Backup :

Used :

Free :

Change

English _79

search & play

Using the Playback Button

Part Names Functions

REC

a b

e f g h

j k l

Play Timeline Indicates the current playback point, and can be used to move.

Skip Backward Moves backward by unit time. (Move by 10 minutes)

Backward Fast

Play

Backward Slow

Play

Step Backward Moves backward by one frame at a time.

Pause Stops playing the current video temporarily.

Stop Stops playback and moves to the live screen.

Step Forward Moves forward by one frame at a time.

Forward Slow

Play

Forward Fast Play Used for quick forward playback. (2 - 64x speed)

Skip Forward Moves forward by unit time. (Move by 10 minutes)

Return Return to the search setup screen.

Used for quick backward playback. (2 - 64x speed)

Used for backward frame-by-frame search while in PAUSE. (1/2 - 1/8x speed)

Ensured to play forward up to 4 channels simultaneously at a low speed. (1/2 - 1/8x speed)

In a split mode, the real time playback may not be supported, depending on the record quality, resolution and number of channels. And some frame rates may be supported.

m n

80_ search & play

Partial Backup

Mode Switch

Audio Sets Audio ON/OFF.

REC Records all channels in Live mode.

Begins backup of the selected section of the video being played, with the specified starting/ ending point.

Click a desired playback mode or press [MODE] to switch the screen mode in sequence.

The grey area in the center of the 13-split mode plays the Live channel. The default channel of the Live mode is CH1, which can be changed later.

web viewer

INTRODUCING WEB VIEWER

What is Web Viewer?

Web Viewer allows remote access to your DVRs. You have access to li ve video, archived video, PTZ control (if configured), etc.

Product Features

• Remote access from a standard browser

• Supports PTZ camera controls

• Supports 1, 4, 9, 16 camera viewing formats (maximum of

16 cameras in the list).

• Gets jpeg, bmp or png format images to print and save to “Print or Save jpeg, bmp or png format images”.

• Record video in AVI format-compatible with popular media players. (needed the H.264 codec)

Network

System Requirements

The following lists the minimum suggested hardware and operating system requirements needed to run the Web Viewer.

Windows XP Professional

Web Browser

Windows Vista Home Basic / Premium Windows 7 Mac OS 10.6 and later versions

- Windows OS : Internet Explorer 7.0 or higher, Firefox 9 or higher, Chrome 15 or higher

- Mac OS : Safari 5 or higher

● Web VieWer

CPU Intel Pentium 4.2 GHz

Memory 512 MB

Monitor High Color 16-bit 1024 x 768

HDD

50 MB (Installation space required) * Additional HDD space required for recording.

Recorded file size will vary depending on recording quality settings.

English _81

web viewer

CONNECTING WEB VIEWER (Windows)

1. Open your web browser and type the IP address or URL of

DVR into the URL address box.

“192.168.1.200” is set to IP by default.

Set to an available IP address in "Network > Connection Mode”.

The URL connection will be enabled only when the DDNS connection settings have been completed.

2. A user with the admin permissions should provide the

admin ID and password. A registered user should provide the user ID and password.

The default password can be exposed to a hacking thread so

it is recommended to change the password after installing the product.

Please change your password every three months to safely protect personal information and to prevent the damage of the information theft.

Please, take note that it’s a user’s responsibility for the security and any other problems caused by mismanaging a password.

It allows up to 10 simultaneous access including the Admin and general users.

It does not allow multiple login of the Admin user.

Password of the Admin and general users can be changed in <Permission Management> menu of the DVR.

Normal users should have set <Viewer> under <Permission Management> to “Use” before connecting to the Web Viewer. (Page 35)

All settings are applied by the DVR’s settings.

If you change such as the permission settings with logged in to the Web Viewer, you may go back to the log in screen.

3. Click <Install ActiveX Control...>.

4. When the installation confirm message appear, click [Yes]

button.

82_ web viewer

5. When a program installation wizard window appears, press

the [Install] button to install the program.

6. When the program installation is complete, the Explorer

window closes. Open the web viewer window again to log in. Live Viewer's main screen appears when you log in successfully after installing the program.

● Web VieWer

English _83

web viewer

USING LIVE VIEWER (Windows)

The Live Viewer screen consists of following :

b c

d e

Menu Functions

Menu Selection

Switches into corresponding menu screen by clicking each menu.

Address, Name, Time

DVR Time, PC Time

Split Mode Selection

Change Channel

CAPTURE

AVI Save

Audio

OSD

PTZ

OSD Menu

Displays the IP, model name, time, etc. of connected DVR.

Select <DVR Time> or <PC Time> for the OSD time information display setting of the Live Viewer.

Selects the type of split screen and specify the channel displayed in Display Pane.

Switches into previous/next channel or perform Auto Sequence. Click Auto Sequence button to display the Time Interval Selection menu.

Saves current video for selected channel in designated path.

Prints current video image for selected channel through designated printer.

Records the live video in AVI file format in designated path, and then stops recording. Recording status icon is displayed on screen during recording.

Sets the sound connected to each channel to ON/OFF.

Select the format of OSD information that will be displayed.

Controls connect PTZ camera(s).

Goes to the relevant menu screen of a camera, which supports OSD menu and changes the menu.

84_ web viewer

Menu Functions

h i

Display Pane

User ID, Logout

Displays the video of camera connected to DVR.

Displays the user's ID. Click Logout icon for logout.

OSD Information Display

a The channel number of the connected DVR are displayed. b Either the <DVR Time> or the <PC Time> will be displayed as the

current date and time, according to your configuration.

c It displays whether the PTZ controls are active. d Shows Audio On/Off status. e Motion icon appears when a motion is detected. f Tampering icon appears when a tampering is detected. g Shows the recording status.

If you have set PTZ cameras for the DVR, “PTZ” is displayed on the

screen. Select a PTZ camera channel and use the [PTZ] button for camera control.

Connected DVR

This displays the IP address and the status of the connecting DVR.

● Web VieWer

a b

d e fc g

Connection failure message

No Response : Appears when the DVR does not respond. Access Denied : Appears when the maximum number of

users is exceeded.

The number of simultaneous connections are limited to 10.

Setting the Display of the OSD Time Information

Select <DVR Time> or <PC Time> for the OSD time information display setting.

• DVR Time : Based on the time of the connected DVR

• PC Time : Based on the time of the PC currently running

the Web Viewer.

English _85

web viewer

Split-Screen

Click split mode selection button to switch to the corresponding screen mode.

SINGLE MODE SIXTEEN MODENINE MODEQUAD MODE

To switch to full screen mode

Click <

Current split screen appears in full screen. Press the [ESC] key to exit the full screen mode.

86_ web viewer

Changing the Live Screen Mode

16-split mode does not support “Sequence”, “Previous” and “Next”.

• : When this button is clicked, the previous screen appears.

- In SINGLE MODE, the channel numbers are switched in reverse order.

- In QUAD MODE, the screens are changed like 1st 4 channels (1~4)  2nd 4 channels (13~16)  3rd 4 channels (9~12)  4th 4 channels (5~8).

- In NINE MODE, the screens are changed from 9 channels (1~9) to 7 channels (10~16).

: When this button is clicked, the next screen appears.

•

- In SINGLE MODE, the channel numbers are sequentially switched from 1 to 16.

- In QUAD MODE, the screens are changed like 1st 4 channels (1~4)  2nd 4 channels (5~8)  3rd 4 channels (9~12)  4th 4 channels (13~16).

- In NINE MODE, the screens are changed from 9 channels (1~9) to 7 channels (10~16).

•

: When this button is clicked, screens are switched at a preset interval.

- In SINGLE MODE, the channel numbers are sequentially switched from 1 to 16.

- In QUAD MODE, the screens are changed like 1st 4 channels (1~4)  2nd 4 channels (5~8)  3rd 4 channels (9~12)  4th 4 channels (13~16).

- In NINE MODE, the screens are changed from 9 channels (1~9) to 7 channels (10~16).

Default setting time (10 seconds)

● Web VieWer

To capture a screen

1. Click <

2. Select the path and name the file. And then click the <Save>

3. Save current camera’s video image as .bmp, .jpg or .png file.

> button. When a pop-up window appears, select the saving path for captured image.

button.

If the viewer is running without the administrator’s permission in

Windows Vista/7, you may not save the captured image as . bmp, .jpg or .png file.

English _87

web viewer

To print a screen

1. Click < > button.

2. Print current camera’s video image with the printer

connected to the PC operating the Web Viewer.

To save as AVI

1. Click <

2. Select a desired path, enter the maximum recording

> button. When “AVI Setup” window appears, select the record saving path and capacity.

capacity, and then click <OK> button.

Save current channel’s video as AVI file. For playing a video clip, you can use the free video player to play the video. (ex: GOM Player, KM Player, etc.)

After saving an AVI file, install the CODEC when playing it in Windows Media Player.

However, the video may not played properly, depending on the CODEC compliance of the player. At least 1GB of free space is required for recording.

While recording current data in Web Viewer, you cannot select Split Mode buttons, switch to the previous/next

screen, or activate Auto Sequence function.

If the viewer is running without the administrator’s permission in Windows Vista / 7, you may not change a folder when saving a video as AVI file.

Audio

• : Sets audio of each connected channel to On/Off.

OSD

• : Select Show OSD on the Live screen.

88_ web viewer

CONTROLLING A CONNECTED PTZ CAMERA

Controlling PTZ

If PTZ camera is connected, the < channel, the PTZ tab is provided to allow you to control the PTZ.

Part Names Functions

Direction Adjustment

PT Speed

Preset

> icon appears on screen. When selecting corresponding camera

dc e f g h

Adjusts the direction of a camera.

Adjusts the PAN, TILT reaction speed.

Sets the preset position for camera framing and moves to designated preset position when selecting a desired preset.

● Web VieWer

d e f g h i j k

Swing

Group

Tour

Trace

PowerPTZ

Focus

IRIS

ZOOM

Moves between the preset start point and end point.

Moves in the path specified by combining the preset, pattern and auto pan.

Moves in the path specified by combining multiple groups.

Moves camera’s framing in the predefined path.

Click or drag on the screen to control PTZ.

Adjusts the focus of the camera.

Adjusts image’s brightness by controling the camera’s iris.

Zooms in/out the image by controling camera’s zoom.

English _89

web viewer

To set a preset

1. Click <

2. Click <

3. Enter the name of preset.

4. Use direction keys to adjust the direction which camera

5. Click the <RECORD> button.

aims at.

> button to display “Preset” window.

> to select a desired preset number.

To activate the preset

1. Click <

2. Select a desired preset to activate from the list.

> button to display “Preset” window.

The camera’s framing moves to the preset position.

To activate Swing, Group, Tour and Trace

You can activate listed functions in the same manner as using a preset. For more information, refer to corresponding user manul of applicable camera.

Only selective functions of the camera can be supported, depending on camera.

90_ web viewer

Controlling OSD Menu

If connected PTZ camera supports the OSD menu, press the < change its settings.

Part Names Functions

Direction Adjustment

You can go to a desired menu.

ENTER

Menu On/Off

Selects a desired item.

You can On/Off camera’s OSD menu settings.

> to enter camera’s menu screen to

● Web VieWer

For more information about camera’s OSD menu, refer to corresponding user manul of each camera.

English _91

web viewer

USING SEARCH VIEWER

The Search Viewer screen consists of following :

Up to 3 users can access simultaneously.

c d

Menu Selection

Address, Name, Time

Split Mode Selection

CAPTURE

AVI Save

Audio

OSD

Calendar

Overlapped Data

Menu Functions

Switches to the corresponding menu screen by clicking each menu.

Displays the IP, model name, time, etc. of connected DVR.

Selects the type of split screen and selects the channel displayed in Display Pane.

Saves current video for selected channel in designated path.

Prints current video image for selected channel through designated printer.

Records the live video in AVI file format in designated path, and then stops recording. Recording status icon is displayed on screen during recording.

Sets the sound connected to each channel to ON/OFF.

Select the format of OSD information that will be displayed.

Displays the video-recorded date in blue and today in white. Click the date in blue color to display the recorded video information in timeline.

Displays and zooms in/out recorded video data. If overlapping data found, this function selects one of them to play.

92_ web viewer

Menu Functions

i j

Play Control

Recording Color

Display Pane

User ID, Logout

Adjusts current video’s playback speed and played time position.

Displays the corresponding color depending on recorded data type if you place your mouse cursor on that area.

Plays corresponding data on the screen if you select a search result.

Displays the user's ID. Click Logout icon for logout.

Searching the Recorded Video in the Calendar

Dates having recorded video are marked in blue. Click a date marked blue to display video information on the timeline. When you click < the system time (date) of the current PC.

>, it will be synchronized with

To search by date

You can select the search date by using calendar.

> or <

1. Click <

2. Click <

The date including data appears in blue and today appears in red.

3. Click the date to search in calendar.

The first image of searched video data on the date is displayed on screen and the data is displayed in the timeline.

4. To search video data on today, click <

Today’s date is selected.

> or <

> to select the year to search.

> to select the month to search.

● Web VieWer

To adjust timeline

If searched data are overlapping, you can select a desired data, move its playback time point, and zoom in/ out the timeline.

1. Select the number of data to search if data is overlapping. It appears only when data are overlapped and assigns <0> to the most recent data.

2. Click your desired time point to play on the timeline. The playback start point is moved.

3. Click <

4. To show the previous/next timeline in zoomed-in status, click <

>, < > to zoom in/out the zoom factor to display time.

> or < > to go to the left or right.

English _93

web viewer

Names and Functions of Play Buttons

a Moves backward by 10 minutes from the current playing

point.

b Plays in reverse at doubled speed. The playback speed is

doubled up to 64x speed.

c Moves backward by 1 second from current playing point. d Moves forward by 1 second from current playing point.

Plays at doubled speed. The playback speed is doubled up to 64x speed.

e f Moves forward by 10 minutes from the current playing point. g Moves to the recording start point on the corresponding timeline. h Plays in reverse. i Stops playing. When resuming playback, it is played from the recording start point. j Pauses playing. When resuming playback, it is played from the stopped point. k Plays normally. l Moves to the recording end point on the corresponding timeline.

a b c d e f

g h i j k l

94_ web viewer

VIEWER SETUP

You can configure the DVR settings remotely on the network.

To configure the DVR settings, click <Setup>.

System

You can configure the various settings of the DVR system.

Date/Time/Language

For more information, refer to <Date/Time/Language> in the <System Setup> menu. (Page 32)

1. Select <Date/Time/Language> in the System menu.

2. Configure the DVR settings according to your system environment.

• Date/Time

Set the date and time.

• Time Synchronization Setup

Set the time synchronization.

• Display

Date Format : Set the date type.

Time : Select a time format to display on the screen.

• DST (Daylight Saving Time)

DST is displayed an hour ahead of the standard time of the time zone.

• Language

Select a preferred language for the DVR.

● Web VieWer

English _95

web viewer

Holiday

You can set specific dates to Holidays according to your preferences. For more information, refer to <Setting Holiday> in the <System

Setup> menu. (Page 32)

Permission Management

For more information, refer to <Permission Management> in the <System Setup> menu. (Page 35)

• Admin

You can change the admin ID or the password.

You can type the ID with alphanumeric characters only.

For the password, use alphabets and special characters excluding <\> and <">.

• Group

Users are classified into groups and the permission can be set according to the group.

First of all, add a group.

96_ web viewer

• User

You can add, change or remove a user or users.

• Setup

You can set the user permission.

System Management

● Web VieWer

For more information, refer to <System Management> in the <System Setup> menu. (Page 40)

• System Information

You can see information of the current system. Check the Software Version, Broadcast Format, MAC Address, DVR name and S/W Upgrade.

English _97

web viewer

Device

You can check a list of devices that are connected to the DVR and configure the necessary settings. Click <Device> in the menu screen. For more information, refer to “Setting the Device”. (Page 44)

Camera

• Camera

You can configure the settings of the camera that is connected to the DVR.

• Privacy Region

You can specify a certain area of the camera video to be protected for your privacy.

• PTZ

You can configure the settings of the PTZ camera that is connected to the DVR. Set the ID and protocol.

98_ web viewer

Storage Device

You can check and change the settings of the storage device.

• Device

You will see a list of storage devices that are connected to the DVR. You can check the type, used/total, usage and status of the device.

• HDD Alarm

You can set the alarm output channel and the alarm duration for an error.

● Web VieWer

Remote Device

You can see a list of remote devices including PTZ cameras that are connected to the RS-485 port of the DVR and configure the necessary settings.

English _99

web viewer

Monitor

• Monitor

You can configure the monitoring screen settings and set the output system.

• Mode

You can switch between live mode and play mode.

100_ web viewer

Samsung SDS-P4082, SDS-P5082, SDS-P5102, SDS-P4042, SDS-P3042 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
