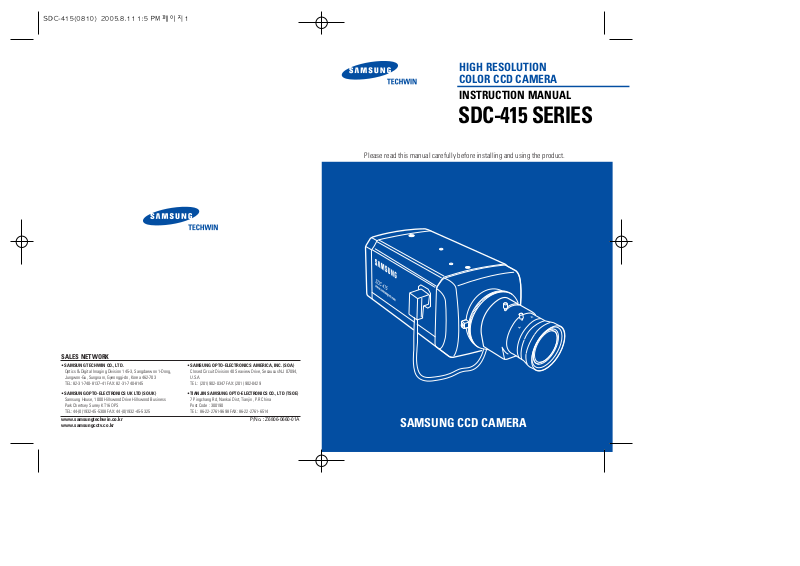

Samsung SDC-415 User Manual
HIGH RESOLUTION
COLOR CCD CAMERA
INSTRUCTION MANUAL
SDC-415 SERIES
Please read this manual carefully before installing and using the product.
SALES NETWORK
•SAMSUNG TECHWIN CO., LTD.
Optics & Digital Imaging Division 145-3, Sangdaewon 1-Dong,
Jungwon-Gu, Sungnam, Gyeonggi-do, Korea 462-703
TEL: 82-31-740-8137~41 FAX: 82-31-740-8145
•SAMSUNG OPTO-ELECTRONICS UK LTD (SOUK)
Samsung House, 1000 Hillswood Drive Hillswood Business
Park Chertsey Surrey KT16 OPS
TEL: 44-(0)1932-45-5308 FAX: 44-(0)1932-45-5325
www.samsungtechwin.co.kr
www.samsungcctv.co.kr
•SAMSUNG OPTO-ELECTRONICS AMERICA, INC. (SOA)
Closed Circuit Division 40 Seaview Drive, Secaucus NJ 07094,
U.S.A
TEL : (201) 902-0347 FAX: (201) 902-0429
•
TIANJIN SAMSUNG OPTO-ELECTRONICS CO., LTD (TSOE)
7 Pingchang Rd, Nankai Dist, Tianjin, P.R China
Post Code : 300190
TEL : 86-22-2761-9698 FAX: 86-22-2761-6514
P/No. : Z6806-0660-01A
SAMSUNG CCD CAMERA
Thank you for purchasing a SAMSUNG CCD CAMERA.
This installation should be made by a qualified service person and
should conform to all local codes.
The lightning flash with an arrowhead symbol, within an equilateral triangle is
intended to alert the user to the presence of uninsulated dangerous voltage
within the product’s enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing)
instructions in the literature accompanying the appliance.
INFORMATION-This equipment has been tested and found to comply with
limits for a Class A digital device, pursuant to part 15 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful
interference when the equipment is operated in a commercial environment.
This equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instruction manual, may
cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference
at his own expense.
WARNING -Changes or modifications not expressly approved by the
manufacturer could void the user s authority to operate the equipment.
CAUTION : To prevent electric shock and risk of fire hazards:
Do NOT use power sources other than that specified.
Do NOT expose this appliance to rain or moisture.
Before operating the camera, confirm the camera model and proper input
power voltage. In order to that you can understand this manual thoroughly,
we'll introduce our model description.
■ SDC-415 SERIES
• NTSC MODELS • PAL MODELS
SDC-415ND SDC-415PD
SDC-415NA SDC-415PA
■ MODEL DESCRIPTION
• SDC-415X X
• SIGNAL SYSTEM
• POWER SOURCE
__
POWER SOURCE
SIGNAL SYSTEM
N --> NTSC MODEL
P --> PAL MODEL
D --> DC 12V
A --> AC 24V
Features
Warning
Horizontal Resolution 530 TV
Lines
Clear image quality has been achieved by
employing a SONY CCD with 410,000
(effective) pixels, which provides a
horizontal resolution of 530 TV lines.
DAY & NIGHT
This camera has a function that automatically selects the mode that is
appropriate for daytime or night-time
conditions. The COLOR mode operates in
daytime conditions to provide optimum
colors, and BW mode operates in nighttime conditions to enhance the definition
of the image.
Electronic IRIS
The electronic IRIS function enables
continuous automatic control of the
shutter between 1/60~1/120,000 seconds.
PRIVACY Function
The PRIVACY function enables you to
select and record only choosen area
among four areas.
VIDEO/DC Drive Lens
The video drive lens and the DC drive lens
can be selected by the touch of a switch.
High Sensitivity
The built-in high sensitivity SONY COLOR
CCD enables a clear image even in
0.3Lux(0.1Lux B/W) or lower illumination.
SSNR (Samsung Super Noise
Reduction)
By using the SSNR chip manufactured by
SAMSUNG TECHWIN, the amount of low
illuminance noise has been significantly
reduced, and the signal-to-noise ratio (S/N
ratio) as well as horizontal resolution have
been improved, resulting in a clear and
sharp image display even in the dark.
Controlled by OSD Menu
The camera can be controlled by selecting
text displayed on the monitor screen.
Additional Functions
SENS-UP, MOTION DETECTION, MIRROR,
SHARPNESS and SYNC(INT/LL) functions are
also available.
The camera needs periodic inspection.
Contact an authorized technician for inspection.
Stop using your camera when you find a malfunction.
If you use your camera around smoke or unusual heat for a long time,
fire may be caused.
Do not Install the camera on a surface that can not support it.
Unless the surface is suitable, it could cause falling or other hazards.
Do not hold plug with wet hands.
It could cause an electric shock.
Do not disassemble the camera.
It may result in fire, electric shock or other hazards.
Do not use the camera close to a gas or oil leak.
It may result in fire or other hazards.
COLOR CCD CAMERA User’s Manual
4
COLOR CCD CAMERA User’s Manual
5
Contents
Features
Warnings and precautions
Components
Names and functions of parts
■ Front
■ Side
■ Bottom
■ Back
Installation
■ Lens
• Using auto iris
• Using C/CS mount lens
■ Connecting to a monitor
■ Connecting to power
4
5
10
11
11
12
13
14
15
15
Camera operation
■ Menu
■ Settings
• LENS (selection)
• SHUTTER (condition and speed control)
• WHITE BALANCE control
• BACKLIGHT (Backlight Compensation)
• AGC (Auto gain compensation)
• SSNR (Samsung Super Noise Reduction)
• SENS-UP
• SPECIAL
• EXIT
Troubleshooting
20
20
21
22
24
25
26
27
27
28
30
35
36
18
19
Specifications
37
COLOR CCD CAMERACOLOR CCD CAMERA User’s ManualUser’s Manual
76
Precautions
Do not install the camera in
extreme temperature conditions.
Only use the camera under conditions
where temperatures are between -10°C
and +50°C. Be especially careful to
provide ventilation when operating
under high temperatures.
Do not install the camera under
unstable lighting conditions.
Severe lighting change or flicker can
cause the camera to work improperly.
Do not install or use the camera in an
environment where the humidity is high.
It can cause the image quality to be
poor.
Do not touch the front lens of the
camera.
It is one of the most important parts of
the camera. Be careful not to be stained
by fingerprint.
Do not drop the camera or subject
them to physical shocks.
It can cause malfunctions to occur.
Do not expose the camera to rain
or spill beverage on it.
If it gets wet, wipe it dry immediately.
Liquids can contain minerals that
corrode the electronic components.
Never keep the camera face to
strong light directly.
It can damage the CCD.
Do not expose the camera to
radioactivity.
If it is exposed to radioactivity,
For heated CCD, it will be out of order.
Note
• If the camera is exposed to spotlight or object reflecting strong light, smear or
blooming may occur.
• Please check that the power satisfies the normal specification before connecting
the camera.
COLOR CCD CAMERACOLOR CCD CAMERA User’s ManualUser’s Manual
98
Components
1. COLOR CCD CAMERA
SDC-415 SERIES
2. Auto iris lens connection plug
3. C-Mount adaptor
4. Instruction manual
Names and Functions of Parts
Front
Lens protection cap
Please cover the lens when not using it.
C-Mount lens adaptor
Please attach the C-Mount lens here.
CS-Mount lens adaptor
Please remove the C-MOUNT lens adaptor and then attach it.
Back Focus clamp screw
Please loosen the clamp screw with a screwdriver before adjusting the Back
Focal length.
COLOR CCD CAMERACOLOR CCD CAMERA User’s ManualUser’s Manual
1110
Names and Functions of Parts
L
Side
Auto iris lens connector
This is the connection terminal for the auto iris
lens.
Bottom
Mounting bracket screw hole
Please use the screw hole when fixing the
camera onto the mounting bracket. Please use
the clamp screw as specified below.
The mounting bracket can be separated and attached
to the top of the camera.
In this instance please do not tighten the
screw to a depth of more than 5mm,
otherwise serious damage can occur
to the inside of the camera.
Note
• This camera package does not include the mounting bracket. Please refer to the
user's manual for installation of the mounting bracket.
1/4"-20 UNC (20 THREAD)
L:4.5mm±0.2mm (ISO standard),
or 0.197" (ASA standard)
COLOR CCD CAMERACOLOR CCD CAMERA User’s ManualUser’s Manual
1312
