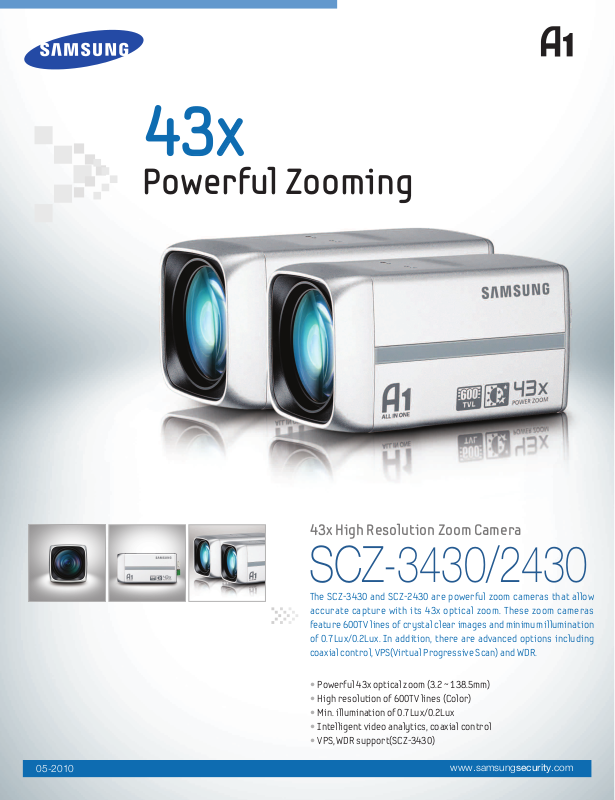

43x High Resolution Zoom Camera
SCZ-3430/2430
The SCZ-3430 and SCZ-2430 are powerful zoom cameras that allow
accurate capture with its 43x optical zoom. These zoom cameras
feature 600TV lines of crystal clear images and minimum illumination
of 0.7Lux/0.2Lux. In addition, there are advanced options including
coaxial control, VPS(Virtual Progressive Scan) and WDR.
• Powerful 43x optical zoom (3.2 ~ 138.5mm)
• High resolution of 600TV lines (Color)
• Min. illumination of 0.7Lux/0.2Lux
• Intelligent video analytics, coaxial control
• VPS, WDR support(SCZ-3430)
www.samsungsecurity.com
0.2L
ux
0.7Lux
2
Lux
4
3x
Dimensions
144.2
59
59
1
13.9
59
59
SCZ-3430/2430(DC Voltage)
SCZ-3430/2430(Dual Voltage)
Unit : mm (inch)
43x High Resolution Zoom Camera
SCZ-3430/2430
Specifications
SCZ-3430N/2430N SCZ-3430ND/2430ND SCZ-3430P/2430P SCZ-3430PD/2430PD
Electrical
Input Voltage
Power Consumption
IDEO
V
maging Device
I
otal Pixels
T
Effective Pixels
Scanning System
Synchronization
Frequency
orizontal Resolution
H
in. Illumination
M
S / N (Y signal)
Video Output
LENS
oom Ratio
Z
ocal Length
F
Max. Aperture Ratio
Min. Object Distance
Angular Field of View
Focus
OPERATIONAL
On Screen Display
Camera Title
Day & Night
Motion Detection
Wide Dynamic Range
Digital Image Stabilization
Backlight Compensation
Extended Dynamic Range
Digital Image StabilizationProtocol
Privacy Masking
2D+3D Noise Filter (A1)
Sens-up (Frame Integration)
White Balance
Electronic Shutter Speed
Digital Zoom
AGC
PIP
Schedule
Communication
Protocol
ENVIRONMENTAL
Operating Temperature / Humidity
MECHANICAL
Dimension (WxHxD)
Weight
Certifications
Dual (12V DC / 24V AC) 12V DC Dual (12V DC / 24V AC) 12V DC
ax 5.6W Max 4.2W Max 5.6W Max 4.2W
M
/4" Ex-view HAD PS CCD : SCZ-3430 / 1/4”super HAD CCD : SCZ-2430
1
811(H) x 508(V) 795(H) x 596(V)
768(H) x 494(V) 752(H) x 582(V)
2 : 1 Interlace / Progressive
Internal / Line lock Internal Internal / Line lock Internal
: 15.734KHz / V : 59.94Hz H : 15.625KHz / V : 50Hz
H
olor : 600TV line(Min.) / B/W : 700TV line(Min.)
C
CZ-3430 : Color : 0.7Lux(50IRE@F1.65),0.001Lux(Sens-up, 512x), B/W : 0.07Lux(50IRE@F1.65)
S
SCZ-2430 : Color : 0.2Lux(50IRE@F1.65),0.0004Lux(Sens-up, 512x), B/W : 0.02Lux(50IRE@F1.65)
52dB (AGC off, Weight on)
CVBS : 1.0 Vp-p / 75Ω composite
3x (Optical), 16x (Digital)
4
.2 ~ 138.5mm (F1.65 ~ 3.7)
3
: 1.65(Wide) ~3.7(Tele)
1
100cm (3.28ft)
H : 61.22°(Wide) ~ 1.47°(Tele) / V : 47.16°(Wide) ~ 1.1°(Tele)
Auto / Manual / One AF
English, Japanese, Spanish English, Japanese, German, Spanish, Italian, Chinese
French, Portuguese, Taiwanese, Korean Russian, Polish, Czech, Danish, Turkish
On / Off (Max. 54ea / 2 lines)
Auto (ICR) / Extern / Color / B/W
Sensitivity 1~ 7 level
128x : SCZ-3430 160x : SCZ-3430
On/Off
BLC (On / Off) / WDR (SCZ-3430)
Low / Medium / High / Off
On / Off
On / Off (12 polygonal programmable zones)
Off / Very low / Low / Medium / High / Very high / User / Fix
On / Off (Selectable limit ~ 512x)
ATW1 / ATW2 / AWC (Manual) / 3200°K / 5600°K
1/60~1/10,000sec 1/50~1/10,000sec
On / Off (2x ~ 16x)
On / Off (Very Low / Low / Medium / High / Very High / User / Fix)
On / Off
Day / Time schedule
RS-485, Coaxial control
Samsung-T, Samsung-E, Pelco-D, Pelco-P, Bosch, Honeywell, Vicon, Panasonic, AD, GE
-10°C ~ +50°C (+14°F ~ +122°F) / Less than 90%
59 x 59 x 144.2mm 59 x 59 x 113.9mm 59 x 59 x 144.2mm 59 x 59 x 113.9mm
(2.32" x 2.32" x 5.68") (2.32" x 2.32" x 4.48") (2.32" x 2.32" x 5.68") (2.32" x 2.32" x 4.48")
508g (1.12 lb) 383g (0.83 lb) 508g (1.12 lb) 383g (0.83 lb)
FCC (Class A), UL/cUL listed CE (Class A)
The Eco mark represents
Samsung Techwin’s will to create
environment-friendly products,and indicates
that the product satisfies the EU RoHS Directive.
SAMSUNG TECHWIN CO., LTD.
701, Sampyeong-dong, Bundang-gu, Seongnam-si, Gyeonggi-do Korea 463-400
Tel : +82-70-7147-8741~8749, 8752~8760 Fax : +82-31-8018-3745
www.samsungsecurity.com www.samsungcctv.com
SAMSUNG TECHWIN AMERICA Inc.
1480 Charles Willard St, Carson, CA 90746, UNITED STATES
Tol Free : +1-877-213-1222 Fax : +1-310-632-2195
www.samsungcctvusa.com
SAMSUNG TECHWIN EUROPE LTD.
Samsung House, 1000 Hillswood Drive, Hillswood Business Park
Chertsey, Surrey, UNITED KINGDOM KT16 OPS
Tel : +44-1932-45-5300 Fax : +44-1932-45-5325
TIANJIN SAMSUNG TECHWIN OPTO-ELECTRONICS CO., LTD.
No.11 Wei 6 Street. Micro-Electronic Industrial Park
Jingang Road, Tianjin, P.R. CHINA 300385
Tel : +86-22-23887788 Fax : +86-22-23887788
Design and specifications are subject to change without notice.
