Samsung SCH-R970C User Manual

Download

Page 1

SCH-R970C

ANDROID SMARTPHONE

User Manual

Please read this manual before operating your

phone and keep it for future reference.

GH68_3XXXXA Printed in Korea

Page 2

Intellectual Property

All Intellectual Property, as defined below, owned by or which is otherwise the property of Samsung or its respective suppliers relating to the SAMSUNG Phone, including but not limited to, accessories, parts, or software relating there to (the “Phone System”), is proprietary to Samsung and protected under federal laws, state laws, and international treaty provisions. Intellectual Property includes, but is not limited to, inventions (patentable or unpatentable), patents, trade secrets, copyrights, software, computer programs, and related documentation and other works of authorship. You may not infringe or otherwise violate the rights secured by the Intellectual Property. Moreover, you agree that you will not (and will not attempt to) modify, prepare derivative works of, reverse engineer, decompile, disassemble, or otherwise attempt to create source code from the software. No title to or ownership in the Intellectual Property is transferred to you. All applicable rights of the Intellectual Property shall remain with SAMSUNG and its suppliers.

Open Source Software

Some software components of this product incorporate source code covered under GNU General Public License (GPL), GNU Lesser General Public License (LGPL), OpenSSL License, BSD License and other open source licenses. To obtain the source code covered under the open source licenses, please visit:

http://opensource.samsung.com

Disclaimer of Warranties; Exclusion of Liability

EXCEPT AS SET FORTH IN THE EXPRESS WARRANTY CONTAINED ON THE WARRANTY PAGE ENCLOSED WITH THE PRODUCT, THE PURCHASER TAKES THE PRODUCT "AS IS", AND SAMSUNG MAKES NO EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT, INCLUDING BUT NOT LIMITED TO THE MERCHANTABILITY OF THE PRODUCT OR ITS FITNESS FOR ANY PARTICULAR PURPOSE OR USE; THE DESIGN, CONDITION OR QUALITY OF THE PRODUCT; THE PERFORMANCE OF THE PRODUCT; THE WORKMANSHIP OF THE PRODUCT OR THE COMPONENTS CONTAINED THEREIN; OR COMPLIANCE OF THE PRODUCT WITH THE REQUIREMENTS OF ANY LAW, RULE, SPECIFICATION OR CONTRACT PERTAINING

CRT_SCH-R970C_UM_Eng_ME5_CB_060313_F4

Page 3

THERETO. NOTHING CONTAINED IN THE INSTRUCTION MANUAL SHALL BE CONSTRUED TO CREATE AN EXPRESS OR IMPLIED WARRANTY OF ANY KIND WHATSOEVER WITH RESPECT TO THE PRODUCT. IN ADDITION, SAMSUNG SHALL NOT BE LIABLE FOR ANY DAMAGES OF ANY KIND RESULTING FROM THE PURCHASE OR USE OF THE PRODUCT OR ARISING FROM THE BREACH OF THE EXPRESS WARRANTY, INCLUDING INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES, OR LOSS OF ANTICIPATED PROFITS OR BENEFITS.

Modification of Software

SAMSUNG IS NOT LIABLE FOR PERFORMANCE ISSUES OR INCOMPATIBILITIES CAUSED BY YOUR EDITING OF REGISTRY SETTINGS, OR YOUR MODIFICATION OF OPERATING SYSTEM SOFTWARE.

USING CUSTOM OPERATING SYSTEM SOFTWARE MAY CAUSE YOUR DEVICE AND APPLICATIONS TO WORK IMPROPERLY. YOUR CARRIER MAY NOT PERMIT USERS TO DOWNLOAD CERTAIN SOFTWARE, SUCH AS CUSTOM OS.

Samsung Telecommunications America (STA), LLC

Headquarters: 1301 E. Lookout Drive Richardson, TX 75082

Customer Care Center: 1000 Klein Rd. Plano, TX 75074 Toll Free Tel: 1.888.987.HELP (4357)

Page 4

Internet Address:

http://www.samsung.com

For 24 hour information and assistance, we offer a new FAQ/ARS System (Automated Response System) at:

www.samsung.com/us/support

The Bluetooth® word mark, figure mark (stylized “B Design”), and combination mark (Bluetooth word mark and “B Design”) are registered trademarks and are wholly owned by the Bluetooth SIG.

, VSuite™, T9® Text Input, and the Nuance logo are trademarks or registered trademarks of Nuance Communications,

Nuance Inc., or its affiliates in the United States and/or other countries.

microSD™, microSDHC™ and the microSD logo are Trademarks of the SD Card Association. Adobe and Flash are either registered trademarks or trademarks of Adobe Systems Incorporated in the United States and/or other

countries.

, DivX Certified® and associated logos are trademarks of Rovi Corporation or its subsidiaries and are used under license.

DivX DivX Certified ABOUT DIVX VIDEO: DivX

Certified

to play DivX® video up to HD 720p, including premium content.

device that plays DivX video. Visit

is a digital video format created by DivX, LLC, a subsidiary of Rovi Corporation. This is an official DivX

www.divx.com

for more information and software tools to convert your files into DivX

videos.

ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified

device must be registered in order to play purchased DivX Video-onDemand (VOD) movies. To obtain your registration code, locate the DivX VOD section in License settings under Settings > About device > Legal information. Go to

vod.divx.com

for more information on how to complete your registration.

Page 5

Wi-Fi®, the Wi-Fi CERTIFIED logo, and the Wi-Fi logo are registered trademarks of the Wi-Fi Alliance. LTE is a trademark of ETSI. Google, the Google logo, Google Search, Gmail, Maps, Navigation, Places, Google Talk, YouTube, Picasa, Android and Google Play

are trademarks of Google, Inc. ©Samsung Telecommunications America, LLC (“Samsung”). Samsung and Super AMOLED are both trademarks of Samsung

Electronics Co., Ltd. and/or its related entities. All product and brand names are trademarks or registered trademarks of their respective companies. Screen images simulated. Appearance of the phone may vary.

Page 6

Page 7

Section 1: Getting Started .......................... 4

Understanding this User Manual . . . . . . . . . . . . 4

Setting Up Your Phone . . . . . . . . . . . . . . . . . . . 6

Turning Your Phone On . . . . . . . . . . . . . . . . . 13

TTY Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Voicemail . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Displaying Your Phone Number . . . . . . . . . . . 15

Your Google™ Account . . . . . . . . . . . . . . . . . 16

Creating a Samsung Account . . . . . . . . . . . . . 17

Roaming . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Securing Your Phone . . . . . . . . . . . . . . . . . . . 18

Section 2: Understanding Your Phone ..... 19

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Front View . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Side Views . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Back View . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Navigation . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Motions and gestures . . . . . . . . . . . . . . . . . . . 24

Using Multi window . . . . . . . . . . . . . . . . . . . . 27

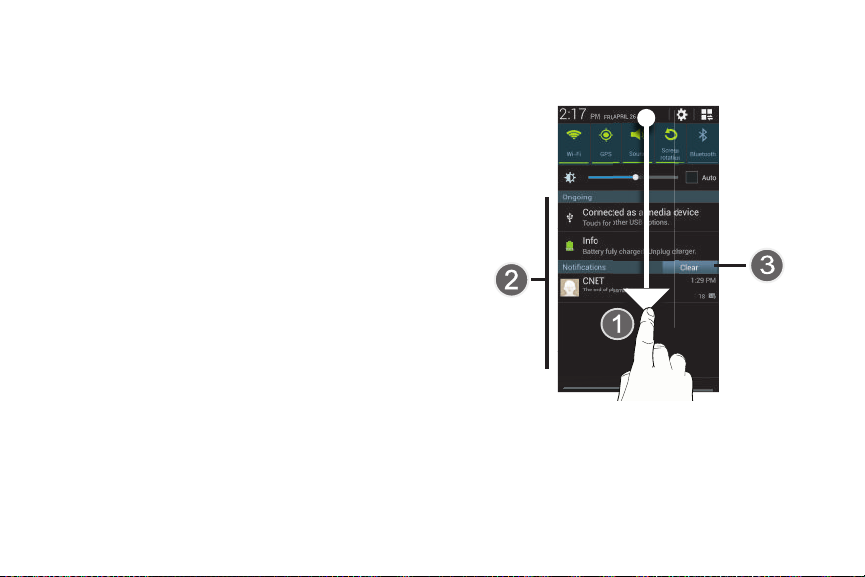

Notifications . . . . . . . . . . . . . . . . . . . . . . . . . . 32

Home Screen . . . . . . . . . . . . . . . . . . . . . . . . . 35

Customizing the Home Screen . . . . . . . . . . . . 38

Wallpaper . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Apps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41

Entering Text . . . . . . . . . . . . . . . . . . . . . . . . . 43

Section 3: Accounts and Contacts ...........50

Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50

Contacts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Section 4: Calling ......................................63

Making Calls . . . . . . . . . . . . . . . . . . . . . . . . . 63

Multi-party Calling . . . . . . . . . . . . . . . . . . . . . 65

Answering Calls . . . . . . . . . . . . . . . . . . . . . . . 66

Ending a Call . . . . . . . . . . . . . . . . . . . . . . . . . 67

Recent Calls . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Call Settings . . . . . . . . . . . . . . . . . . . . . . . . . . 70

Page 8

Section 5: Messaging ................................75

Types of Messages . . . . . . . . . . . . . . . . . . . . .75

Text and Multimedia Messaging . . . . . . . . . . .75

Emergency alerts . . . . . . . . . . . . . . . . . . . . . .79

Email . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80

Gmail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Google Talk . . . . . . . . . . . . . . . . . . . . . . . . . . . 82

Messenger . . . . . . . . . . . . . . . . . . . . . . . . . . . 83

Section 6: Applications and Widgets .......84

Accessing Applications . . . . . . . . . . . . . . . . . . 84

Applications List . . . . . . . . . . . . . . . . . . . . . . . 86

Accessing Widgets . . . . . . . . . . . . . . . . . . . .128

Section 7: Connections ...........................132

Wi-Fi . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 132

Wi-Fi Direct . . . . . . . . . . . . . . . . . . . . . . . . . . 133

Bluetooth . . . . . . . . . . . . . . . . . . . . . . . . . . .134

VPN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .135

PC Connections . . . . . . . . . . . . . . . . . . . . . . . 136

Tethering . . . . . . . . . . . . . . . . . . . . . . . . . . .138

Portable Wi-Fi Hotspot . . . . . . . . . . . . . . . . . . 138

Beaming . . . . . . . . . . . . . . . . . . . . . . . . . . . .140

Nearby devices . . . . . . . . . . . . . . . . . . . . . . .142

Screen Mirroring . . . . . . . . . . . . . . . . . . . . . .143

Memory Card . . . . . . . . . . . . . . . . . . . . . . . . .143

Section 8: Settings .................................. 144

Accessing Settings . . . . . . . . . . . . . . . . . . . .144

Connections . . . . . . . . . . . . . . . . . . . . . . . . .146

My device . . . . . . . . . . . . . . . . . . . . . . . . . . .160

Accounts . . . . . . . . . . . . . . . . . . . . . . . . . . . .185

More . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .195

Section 9: Health and Safety

Information ........................................203

Exposure to Radio Frequency (RF) Signals . . .203 Specific Absorption Rate (SAR) Certification

Information . . . . . . . . . . . . . . . . . . . . . . . . .208

FCC Part 15 Information to User . . . . . . . . . . .210

Commercial Mobile Alerting System (CMAS) .210

Smart Practices While Driving . . . . . . . . . . . .210

Battery Use and Safety . . . . . . . . . . . . . . . . .212

Samsung Mobile Products and Recycling . . . .214

UL Certified Travel Charger . . . . . . . . . . . . . .215

Display / Touch-Screen . . . . . . . . . . . . . . . . .215

GPS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .216

Emergency Calls . . . . . . . . . . . . . . . . . . . . . .216

Page 9

Care and Maintenance . . . . . . . . . . . . . . . . . 217

Responsible Listening . . . . . . . . . . . . . . . . . 218

Operating Environment . . . . . . . . . . . . . . . . 220

FCC Hearing Aid Compatibility (HAC)

Regulations for Wireless Devices . . . . . . . 222

Restricting Children's Access to

Your Mobile Device . . . . . . . . . . . . . . . . . . 224

FCC Notice and Cautions . . . . . . . . . . . . . . . 224

Other Important Safety Information . . . . . . . 225

Section 10: Warranty Information ..........227

Standard Limited Warranty . . . . . . . . . . . . . . 227

End User License Agreement for Software . . 232

Index .........................................................240

Page 10

Section 1: Getting Started

This section allows you to quickly start using your Samsung SCH-R970C phone by installing the SIM and (optional) microSD cards, installing and charging the battery, activating your service, and setting up your voicemail account.

Understanding this User Manual

The sections of this manual generally follow the features of your phone. A robust index for features begins on page 240.

Also included is important safety information that you should know before using your phone. Most of this information is near the back of the guide, beginning on page 203.

This manual gives navigation instructions according to the default display settings. If you select other settings, navigation steps may be different.

Unless otherwise specified, all instructions in this manual assume that you are starting from the Home screen. To get to the Home screen, you may need to unlock the phone or keypad. (For more information, refer to “Securing Your Phone” on page 18.)

Note:

Instructions in this manual are based on default settings, and may vary from your phone, depending on the software version on your phone, and any changes to the phone’s Settings.

Unless stated otherwise, instructions in this User Manual start with the phone unlocked, at the Home screen.

All screen images in this manual are simulated. Actual displays may vary, depending on the software version of your phone and any changes to the phone’s Settings.

Page 11

Special Text

In this manual, you’ll find text that is set apart from the rest. These are intended to point out important information, share quick methods for activating features, to define terms, and more. The definitions for these methods are as follows:

•

Notes

: Presents alternative options for the current feature, menu,

or sub-menu.

•

Tips

: Provides quick or innovative methods, or useful shortcuts.

•

Example

: Gives an example of the feature or procedure.

•

Important

: Points out important information about the current

feature that could affect performance.

•

Warning

: Brings to your attention important information to prevent loss of data or functionality, or even prevent damage to your phone.

Text Conventions

This manual provides condensed information about how to use your phone. To make this possible, the following text conventions are used to represent often-used steps:

➔

Arrows are used to represent the sequence of selecting successive options in longer, or repetitive, procedures.

Example:

“Press

Settings

➔

Home

, then touch Menu

Connections ➔ Wi-Fi

Getting Started 5

➔

.”

Page 12

Setting Up Your Phone

Before using your phone, you need to install the SIM card, the microSD™ card, and the battery into their respective internal slots and compartment.

Caution!

Do not bend or twist the back cover excessively. Doing so may damage the cover.

Important!

Before removing or replacing the battery cover, make sure the phone is switched off. To turn the phone off, hold down the power key until the power-off image displays, then touch

Power off

Removing the battery cover

1. Locate the cover removal opening (1).

2. Place your fingernail in the opening and pry the cover

away from the device (2).

Page 13

Installing the battery cover



Align the cover (1) and press it firmly into place (2),

making sure it snaps into place at the corners.

Installing the SIM Card

When you subscribe to a 4G LTE cellular network, you are provided with a plug-in SIM card loaded with your subscription details, such as your PIN, available optional services, and many others features. This SIM card will only work with this device.

Important!

The SIM card must be installed for your phone to establish a network connection.

The plug-in SIM card information and its contacts can be easily damaged by scratching or bending, so be careful when handling, inserting, or removing the card. Keep all SIM cards out of reach of small children.

1. Remove the battery cover. (See “Removing the battery

cover” on page 6.)

2. Locate the SIM card slot on the top inside of the phone.

3. Make sure the gold contacts of the SIM card face

downward and that the notched corner of the card faces outward to the right (as shown).

4. Carefully slide the SIM card into the SIM card socket

(as shown) until the card locks into place.

Getting Started 7

Page 14

Note:

Correct

Incorrect

If the SIM card is not inserted correctly, the phone cannot make a network connection.

Once the SIM card is inserted, do not remove it.

Removing the SIM Card

1. Remove the battery cover.

2. Remove the battery.

3. Firmly press the card into the slot and release it. The

card should pop partially out of the slot.

4. Remove the card from the slot.

5. Replace the battery cover.

Installing a Memory Card

Your device lets you install an (optional) microSD (SD) or microSDHC memory card to expand available memory to store images, videos, music, applications, and data.

1. Remove the battery cover. (See “Removing the battery

cover” on page 6.)

2. Locate the microSD card slot on the top inside of the

phone.

3. With the gold contacts facing down, carefully slide the

memory card into the slot (as shown), pushing gently until it clicks into place.

Page 15

Important!

Correct

Be sure to align the gold contact pins on the

memory card with the phone’s contacts.

Incorrect

Removing a Memory Card

Important!

To prevent damage to information stored on the memory card, unmount the card before removing it from the phone.

1. Press

, then touch Menu

➔

Home

Settings ➔ More ➔ Storage ➔ Unmount SD card

more information, refer to “Storage” on page 200.)

2. Remove the battery cover. (See “Removing the battery

cover” on page 6.)

3. Firmly press the Memory card into the slot and

carefully release it. The card should pop partially out of the slot.

4. Remove the card from the slot.

5. Replace the battery cover. For more information, refer

to “Installing the battery cover” on page 7.

Getting Started 9

. (For

Page 16

Battery

Your phone is powered by a rechargeable, standard Li-Ion battery. A Wall/USB Charger (Charging Head and USB cable) is included with the phone, for charging the battery.

Note:

The battery comes partially charged. You must fully charge the battery before using your phone for the first time. A fully discharged battery requires up to 4 hours of charge time.

After the first charge, you can use the phone while charging.

Warning!

Use only Samsung-approved charging devices and

batteries. Samsung accessories are designed to

maximize battery life. Using other accessories may

invalidate your warranty and may cause damage.

Note:

Failure to unplug the wall charger before you remove the battery, can cause damage to the phone.

Battery Indicator

The battery icon in the Annunciator Line shows battery power level. Two to three minutes before the battery becomes too low to operate your phone, the empty battery icon will flash and a tone will sound. If you continue to operate the phone without charging the battery, the phone will power off.

Installing the Battery

1. Remove the battery cover. (See “Removing the battery

cover” on page 6.)

2. Slide the battery into the compartment (1) so that the

tabs on the end align with the slots at the bottom of the phone, making sure the connectors align.

3. Gently press down to secure the battery (2).

Page 17

Removing the Battery

1. Remove the battery cover. (See “Removing the battery

cover” on page 6.)

2. Lift the battery up by the slot provided (1).

3. Lift the battery up and out of the phone (2).

Charging the Battery

Your phone is powered by a rechargeable Li-ion battery. A wall charger, which is used for charging the battery, is included with your phone. Use only approved batteries and chargers. Ask your local Samsung dealer for further details.

Before using your phone for the first time, you must fully charge the battery. A discharged battery recharges fully in approximately 4 hours.

Note:

Verify that the battery is installed prior to connecting the wall charger. If both the wall charger is connected and the battery is not installed, the handset will power cycle continuously and prevent proper operation. Failure to unplug the wall charger before you remove the battery, can cause the phone to become damaged.

Important!

It is recommended you fully charge the battery before using your device for the first time.

Getting Started 11

Page 18

1. Insert the USB cable into the device’s Charger/

Correct

Incorrect

Correct

Accessory jack at the bottom of the device.

Note:

This illustration displays both the orientation for connecting the USB cable. If the USB cable is incorrectly connected, damage to the accessory port will occur therefore voiding the phone’s warranty.

correct

and

incorrect

2. Connect the USB cable to the charging head.

Incorrect

3. Plug the charging head into a standard AC power

outlet. The device turns on with the screen locked and indicates both its charge state and percent of charge.

Warning!

While the device is charging, if the touch screen does not function due to an unstable power supply unplug the USB power adapter from the power outlet or unplug the USB cable from the device.

Page 19

4. When charging is finished, first unplug the charger’s

power plug from the AC wall outlet, then disconnect the USB cable connector from the device.

Important!

If your handset has a touch screen display, please

note that a touch screen responds best to a light

touch from the pad of your finger or a non-metallic

stylus. Using excessive force or a metallic object

when pressing on the touch screen may damage

the tempered glass surface and void the warranty.

For more information, refer to “Standard Limited

Warranty” on page 227.

Turning Your Phone On



Press and hold the the upper right side of the phone) for three seconds. While powering on, the phone connects with the network, then displays the Locked screen and any active Notification alerts.

Power/Lock

key (on

Note:

Your phone’s internal antenna is located along the bottom back of the phone. Do not block the antenna; doing so may affect call quality or cause the phone to operate at a higher power level than necessary.

Getting Started 13

Page 20

Unlocking Your Phone

1. If needed, press Press Home

to wake

the screen.

2. If there are no

Notification alerts on your phone, swipe the screen to unlock it. The Home screen appears.

Note:

If you have purchased your phone online, the first time you power your phone on and unlock the screen, the Activation Wizard

Follow the prompts to activate and set-up your phone.

Welcome

screen appears.

Turning Your Phone Off

1. Press and hold the

the upper right side of the device) for two seconds.

2. At the prompt, touch

appears.

3. At the prompt, touch

Power off

Power/Lock Key

. The

Power off

(on

pop-up

Page 21

TTY Mode

Your phone is fully TTY-compatible, allowing you to connect a TTY device to the phone’s headset jack. Before you can use your phone with a TTY device, you’ll need to enable TTY Mode.

(For more information, refer to “Other call settings” on page

74.)

Voicemail

All unanswered calls to your phone are sent to voicemail, even if your phone is turned off, so you’ll want to set up your voicemail and personal greeting as soon as you activate your phone.

Setting up Voicemail

1. Press

and hold .

2. Follow the automated instructions to set up your new

password and record a greeting.

Home

, then touch

Phone

, then touch

Checking Voicemail

1. Press

and hold .

2. Follow the automated instructions to manage

voicemail.

Tip:

You can also access number from any touch-tone phone.

Home

, then touch

Voicemail

Phone

by dialing your phone

Displaying Your Phone Number



Press

Settings

Your phone number displays under

Home

, then touch Menu

➔

More ➔ About device ➔ Status

My phone number

Getting Started 15

, then touch

➔

Page 22

Your Google™ Account

Your new phone uses your Google account to fully utilize its Android features, including Gmail, Google Maps, Google Talk, and the Google™ Play apps. When you turn on your phone for the first time, you should set up a connection with your existing Google account, or create a new Google account.

1. Press

The

2. Touch

3. Follow the on-screen instructions to sign in if you

already have a Google account, or to create a Google Account.

Home

, then touch

Gmail

Add a Google Account

Existing

New

to continue.

Applications

screen displays.

➔

Resetting your Google Account Password

A Google account password is required for Google applications. If you misplace or forget your Google Account password, follow these instructions to reset it:

1. From your computer, use an Internet browser to

navigate to

2. Once the Web Page loads, click on the your account?

3. Under

reset prompts.

http://google.com/accounts

link.

Having trouble signing in?

Can’t access

, follow the password

Page 23

Creating a Samsung Account

An active Samsung account is required to use applications such as AllShare Play and Media Hub.

1. From the Home screen, touch

The

Settings

screen appears in the display.

2. Touch

3. From the

4. From the

5. Touch Use your Facebook account and follow the

6. Touch

7. Read the Terms and conditions, then touch the

8. Touch

Accounts ➔ Add account

Add account

account

Samsung account

. The

account

appears.

prompts to create a Samsung account from your Facebook account information. – or – Enter the requested information in the Required fields [marked with an asterisk (*)].

all the terms

Check for verification email

screen, touch

Samsung account

above

check box.

Menu ➔ Settings

screen, touch

creation screen

Samsung

Create new

I accept

9. To uch

10. Follow the on-screen instructions to verify your email

address and activate your account.

Roaming

When you travel outside your home network’s coverage area, your phone can roam to acquire service on other compatible digital networks. When Roaming is active, the Roaming icon ( ) appears in the Status Bar of the display.

Tip:

You can set your phone’s roaming behavior. (For more information, refer to “Mobile networks” on page 153.)

During roaming, some services may not be available. Depending on your coverage area and service plan, extra charges may apply when making or receiving calls.

Note:

Contact your Wireless Provider for more information about your coverage area and service plan.

Getting Started 17

Page 24

Securing Your Phone

By default, the phone locks automatically when the screen times out, or you can lock it manually. You can unlock the phone using one of the default Unlock screens, or for increased security, use a personal screen unlock pattern, a Personal Identification Number (PIN), or a password.

For more information about creating and enabling a Screen unlock pattern, see “Lock screen” on page 160.

Note:

Unless stated otherwise, instructions in this User Manual start with the phone unlocked, at the Home screen.

Locking the phone manually



Press the side of the phone.

Power/Lock

key on the top right

Unlocking the phone

For information on unlocking your phone, see “Unlocking Your Phone” on page 14.

Unlocking with a Personal Screen Unlock Pattern

1. Press

2. Draw your personal unlock pattern on the screen.

For more information, refer to “Lock screen” on page 160.

Unlocking with a Password

1. Press

2. Enter your Password.

3. Press

Home

to wake the screen.

Page 25

Section 2: Understanding Your Phone

Features

•

5.0-inch 1920x1080 Super AMOLED Full HD touch screen

•

CDMA 1X/EV-DO Rev-A /LTE Wireless Technology

•

1.9 gigahertz quad-core processor

•

Android® 4.2 platform

•

Google Play™ Store, plus pre-loaded applications

•

SAFE™ Certified

•

Connections

–

Wi-Fi 802.11 a/b/g/n (2.4 GHz band or 5 GHz band)

–

Portable Wi-Fi Hotspot

–

Bluetooth 4.0

–

Tethering (USB and Bluetooth)

–

VPN

–

NFC

–

Android Beam

–

S Beam

–

Wi-Fi Direct

–

AllShare Cast

–

DLNA

–

USB 2.0

•

Messaging Services

–

Text Messaging

–

Picture Messaging

–

Video Messaging

–

Voice Messaging

–

Mobile Instant Messenger (IM)

–

Chat

•

13 Megapixel Camera-Camcorder with LED flash + 2 Megapixel Front Camera-Camcorder

•

Picture Gallery

•

Video Player (1080p — MP4 and 3GP)

•

DivX Certified® to play DivX® video up to HD 1080p, including premium content

•

Music Player (AAC, AAC+, eAAC+, MP3, and WMA)

•

Speakerphone

•

Support for microSD™ and microSDHC™ Memory Cards up to 64GB capacity

Understanding Your Phone 19

Page 26

Front View

1 2

3 4

Earpiece:

Use during calls to listen to callers.

LED Indicator

: Flashes or glows to alert you to alert

notifications or phone status.

Menu Key

: Press to display options for the current

screen.

Home Key

: Press to display the Home screen, or Lock screen if the phone is locked. Press and hold to display recent applications or to launch Task Manager.

Microphone

: Use during calls to allow callers to hear

your voice, and when recording.

Back Key

: Press to return to the previous screen or

option.

2 Megapixel Front Camera

: Use for taking pictures and

recording video.

Proximity and Light Sensors

: Detect the presence of nearby objects to control device functions or blank the screen display, such as when you hold the phone to your ear during a phone call. Detect ambient light to determine screen brightness when

Automatic brightness

(see “Brightness” on page 163),

Brightness

is set to

and when taking pictures with the Front camera.

Page 27

Side Views

Volume Key

Master Volume. During calls or music playback, press to adjust volume. Press to mute the ringtone of an incoming call.

USB Power/Accessory Port

charging or to sync music and files.

Power/Lock Key

off. Press to lock the phone, or to wake the screen for unlocking.

: From the Home screen, touch to adjust

: Connect a USB cable for

: Press and hold to turn the phone on or

Understanding Your Phone 21

Page 28

Back View

Infrared Lens

: Use when controlling media devices

remotely.

13 Megapixel Camera Lens

: Use when taking photos or

recording videos.

Camera Flash

3. External Speaker

: Use when taking photos.

: Play ringtones, call audio when in Speakerphone mode, media sounds (music and video), and other sounds.

3.5mm Headset Jack

: Plug in an optional headset or

TTY equipment.

Noise cancelation microphone

: Captures background noise that the phone uses to produce a quiet background during calls and video chats.

Page 29

Navigation

Navigate your phone’s features using the command keys and the touch screen.

Warning!

Please note that a touch screen responds best to a light touch from the pad of your finger or a nonmetallic stylus. Using excessive force or a metallic object when pressing on the touch screen may damage the tempered glass surface and void the warranty. (For more information, see “Warranty Information” on page 227.)

Context-sensitive Menus

While using your phone, context-sensitive menus offer options for the feature or screen currently in use.

To access context-sensitive menus:

•

Touch

•

Touch and hold on an item.

Command Keys

Menu Key

To uch Menu options for the current screen or feature.

Home Key

Press the Press and hold the

recent applications, or to launch Task Manager.

Back Key

To uch Back step.

to display a context-sensitive menu of

Home Key

to display the Home screen.

Home Key

to launch a menu of

to return to the previous screen, option or

Understanding Your Phone 23

Page 30

Motions and gestures

Finger motions

Touch

Touch items to select or launch them. For example:

•

Touch the on-screen keyboard to enter characters or text.

•

Touch an item to select it.

•

Touch an app’s icon to launch the application.

Touch and hold

Activate on-screen items by a touch and hold gesture. For example:

•

Touch and hold a widget or icon on the Home screen to move it.

•

Touch and hold on a field to display a pop-up menu of options.

Swipe

Swipe your finger vertically or horizontally across the screen. For example:

•

Unlocking the screen

•

Scrolling the Home screen or a menu

•

Combine touch and hold with swipe to drag an item to a new location.

Pinch

Using two fingers, make a pinch motion on the screen. For example:

•

Pinch in to zoom in on pictures or screens.

•

Pinch out to zoom out on pictures or screens.

Page 31

Air gestures

Your phone recognizes motion near its screen. You can control several functions of your phone by moving your hand near the screen. (To enable Air gestures, see “Motions and gestures” on page 182.)

•

Quick glance

lying on its back with the screen is off, you can see selected important information (such as the time and date, notification icons, missed calls, unread messages, battery charge level, and current music information) by reaching upward toward your phone’s screen.

•

Air jump

or email messages by moving the edge of your hand up or down near the screen.

: When this option is set to On and your phone is

: When this option is set to On, you can scroll web pages

•

Air browse

pictures, pages, or music tracks by moving the edge of your hand left or right near the screen.

•

Air move

shortcuts to other home screen panels or Apps screen panels by touching and holding a shortcut with one hand, then moving the edge of your hand left or right near the screen.

•

Air call-accept

incoming calls by waving your hand left and right parallel to the screen.

: When this option is set to On, you can browse

: When this option is set to On, you can move app

: When this option is set to On, you can answer

Understanding Your Phone 25

Page 32

Motions

Your phone can sense when you move it. You can navigate screens and access features by moving the phone in specific patterns.

To use motions to control your phone, enable the settings. (For more information, see “Motions and gestures” on page 182.)

•

Pick up

–

Direct call

: When this option is set to On, you can lift the phone to your ear to call a contact displayed in a Messaging, Contacts, or Call Log screen.

–

Smart alert

phone to be automatically notified of missed calls, messages, and alerts that occurred while the phone was stationary.

•

Tilt

–

Zoom

your thumbs on the screen while in Gallery or Internet, then tilting the phone forward and back causes the screen to zoom in or out.

: When this option is set to On, you can lift the

: When this option is set to On, touching and holding with

Motion

•

Pan

–

Browse an image

phone in a panning motion while viewing an image moves focus around in the image.

•

Tur n ove r

–

Mute/pause

screen-down automatically mutes incoming call ringtones and alerts sounds.

Palm motions

Use your hand to swipe across the screen, or cover the screen.

•

Capture screen

screen with the side of your hand (left to right, or right to left) captures a screen shot.

•

Mute/pause

with your hand mutes or pauses media playback.

: When this option is set to On, moving the

: When this option is set to On, turning the phone

: When this option is set to On, swiping the

: When this option is set to On, covering the screen

Page 33

Using Multi window

This feature allows you to run multiple applications on the current screen at the same time. This feature works with the phone in portrait or landscape mode.

Note:

Only applications found within the Multi window tray can be active atop or beside another application currently running on the screen.

When running two applications that play multimedia files (music/video), audio from both applications will be played at the same time.

Enabling Multi Window

1. Press

2. Touch the

appears.

3. Under Multi window

appears in the check box to indicate that the

Multi window

Home

, then touch Menu ➔ Settings

My device

tab. The

Personalization

, touch

Display

to enable the feature. A check mark

feature is enabled.

My device

, then touch

Displaying and hiding the Multi window tab

To display the Multi window tab and tray:

1. With Multi window enabled, touch and hold

The Multi window tray appears briefly (by default) on the left side of the screen, then closes, leaving only the Multi window tab ( ) showing.

2. To open the Multi window tray, touch the tab . You

can now browse and launch the apps.

3. To browse the Multi window apps, Swipe the tray

upwards.

To hide the Multi window tab:



With the Multi window tab showing, touch and hold

Back

. This action hides the Multi window tab

from view.

Understanding Your Phone 27

Back

Page 34

Using Multi Window to run multiple apps on the same screen

You can run any of the apps found in the Multi window tray on the screen at the same time as another app.

Once two apps are running on the same screen, you can then choose to swap their positions or to maximize a desired app.

Note:

Only apps found in the Multi-window tray can be active on the screen at the same time as another app.

If you run two apps that play multimedia files (music/ video), sound from both apps will play at the same time.

1. Launch an app.

Example:

From the Home screen, touch

2. Position the phone in either portrait or landscape

orientation.

3. Display the Multi window tab. (See “To display the

Multi window tab and tray:” on page 27.)

4. Touch the Multi window tab to display the apps tray.

5. Touch and hold the desired app, such as

until it detaches from the tray.

Internet

Maps

6. Drag the new Multi window app over the currently

running app and drop the new app onto one of the following screen areas, depending on your phone’s orientation:

•

Top or bottom area (portrait orientation)

•

Left or right area (landscape orientation)

Note:

Once two applications are running, the device displays a split screen view, containing both the initial app and the new Multi window app.

Each app runs independent of the other.

Page 35

To swap the locations of the

App #1 Max

App #2 Border

Swap apps

bar

applications:

1. With the two

applications shown in a split screen, touch the Border bar to show the on-screen icons.

2. Touch the desired application area (top or bottom).

3. Touch The current apps swap places.

To increase the size of a desired application window:



With the two applications shown in a split screen, touch and hold the Border bar, then drag it to resize the desired window.

Swap apps

To seperate the current applications:

1. With the two applications shown in a split screen,

touch the Border bar to show the on-screen icons.

2. Touch the desired application area (top or bottom).

3. Touc h

both maximized.

To close an application:

1. With the two applications shown in a split screen,

touch the Border bar to show the on-screen icons.

2. Touch the desired application area (top or bottom).

3. Touc h

Maximize apps

Close app

. The current apps are the

. The current apps swap places.

Understanding Your Phone 29

Page 36

Moving the Multi Window tab

The Multi window feature has two components: the tab and the apps tray. You can move the tab along a side or move the tab to any other side of the screen (top, bottom, left, or right). This lets you launch the apps tray (containing the scrollable apps) from any side of the screen.

To move the tab along a side:

1. Display the Multi window tab. (See “To display the

Multi window tab and tray:” on page 27.)

2. Touch and hold the tab for approximately one-

second, then slowly drag it to its new location

current

screen edge.

Tip:

This can get the tab out of the way of a button or option behind it.

along the

To move the tab and tray to another side:

1. Display the Multi window tab. (See “To display the

Multi window tab and tray:” on page 27.)

2. Touch the tab to display the apps tray (containing the

scrollable apps).

Note:

Notice that when the apps are visible, touching and holding the tab turns it a dark grey. Its only then that you can move the Multi window tray to another side.

Page 37

3. In a single motion, touch and hold the Multi window tab for approximately one-second to detach it from the screen (1), then slowly drag it to its new location

along any other

move it to the top, bottom, or either side.

available screen edge (2). You can

Customizing the Multi Window tray

The applications found within the Multi window tray can be organized by either being rearranged or removed.

To rearrange the Multi window applications:

1. Activate the Multi window feature.

2. Touch the tab to display the apps tray (containing the

scrollable apps).

3. In a single motion, touch and hold a desired app until it

detaches from the tray, then carefully drag it to a new location in the list of apps. Lift your finger or stylus off the screen to let go of the app and drop it into its new location.

To remove a Multi window application:

1. Activate the Multi window feature.

2. Touch the tab to display the Multi window tray

(containing the scrollable apps).

Edit

3. To uch

4. Follow the prompt to remove apps from the Multi

window tray to the revealed staging area.

5. Ta p

process.

(located at the bottom of the list).

Done

once you have completed the removal

Understanding Your Phone 31

Page 38

To restore a Multi window application:

1. Activate the Multi window feature.

2. Tap the tab to display the apps panel (containing the

scrollable apps).

Edit

3. Tap the

reveal the staging area containing any previously removed apps.

4. Locate the desired application.

5. In a single motion, touch and hold a desired app until it

detaches from the staging area, then carefully drag it to a new location in the current list of apps.

button (located at the bottom of the list) to

Notifications

Notifications shows information about connections, alerts and other items.

1. Touch and drag downward from the top of the screen

to display notifications.

2. Touch an item to open that item, or to launch a related

app or feature.

Clear

3. Tou ch

to clear all Notifications.

Page 39

Quick Setting Bar

Touch the selected Quick Setting toggles at the top of the Notifications screen to enable or disable frequently used settings. The following toggles are the default Quick Setting toggles:

•

Wi-Fi

: Turn Wi-Fi On or Off. (For more information about using

“Wi-Fi”

Wi-Fi, see

•

GPS

: Turn Standalone GPS services on or off. (For more

information, see

•

Sound

: Touch to switch between your sound settings, and the

two Silent modes, Mute and Vibrate. (For more information, see

“Volume”

•

Screen rotation

control whether the screen automatically updates when you rotate the phone. (See

•

Bluetooth

using Bluetooth, see

•

Mobile data

mobile data. (For more information, see page 153.)

on page 132.)

“Location services”

on page 166.)

: Enable or disable the Auto rotation setting, to

“Auto-rotate screen”

: Turn Bluetooth On or Off. (For more information about

“Bluetooth”

: Activate or deactivate your phone’s access to

on page 195.)

on page 163.)

on page 134.)

“Mobile networks”

•

Blocking mode

control which notifications you receive. (For more information, refer to

•

Power saving

information, see

•

Screen Mirroring

devices. (For more information, refer to page 143.)

•

Multi window

information, refer to

•

S Beam

(For more information, refer to

•

NFC

: Enable or disable NFC interface. (For more information, refer

“NFC”

•

Air view

“Air view”

•

Air gesture

refer to

•

Driving mode

information, refer to

: Enable or disable the Blocking mode setting, to

“Blocking mode”

: Enable or disable Power saving mode. (For more

: Enable or disable Multi window mode. (For more

: Enable or disable sharing apps content using S Beam.

on page 157.)

: Enable or disable Air view. (For more information, refer

on page 184.)

: Enable or disable Air gesture. (For more information,

“Motions and gestures”

: Enable or disable Driving mode. (For more

on page 171.)

“Power saving mode”

: Enable or disable Screen Mirroring to other

“Using Multi window”

“Vision”

on page 175.)

Understanding Your Phone 33

“Screen Mirroring”

“S Beam”

on page 182.)

on page 172.)

on page 27.)

on page 158.)

Page 40

•

Smart stay

refer to

•

Smart pause

information, refer to

•

Smart scroll

information, refer to

•

Sync

more information, refer to

•

Airplane mode

information, refer to

: Enable or disable Smart stay. (For more information,

“Smart screen”

: Enable or disable Smart pause. (For more

: Enable or disable Smart scroll. (For more

: Enable or disable synchronization with your accounts. (For

on page 183.)

“Smart screen”

“Accounts”

: Enable or disable Airplane mode. (For more

“Airplane mode”

on page 183.)

on page 185.)

on page 152.)

Changing Quick Settings Bar

You view and use all of the available Quick Setting buttons, and select which buttons appear at the top of the Notifications screen.

1. Display the notifications panel by touching and

dragging downward from the top of the screen.

2. Touch . The Notifications screen is replaced by an

array of the available Quick Setting buttons.

3. Touch

4. Follow the instructions under buttons

Edit

Set the quick setting

Clearing Notifications

1. Sweep your finger downward from the top of the screen to display Notifications.

2. Touch a notification to clear it, or to launch an app. – or –

Clear

Tou ch

to clear all notifications.

Page 41

Home Screen

The Home screen is the starting point for using your phone.

Note:

Unless stated otherwise, instructions in this User Manual start with the phone unlocked, at the Home screen.

All screen images in this manual are simulated. Actual displays may vary, depending on the software version of your phone and any changes to the phone’s Settings.

Status Bar

: Presents icons to show network status, battery power, and connection details. (For a list of icons, see “Status Bar Icons” on page 36.)

Home screen

: The starting point for using your phone. Place shortcut icons, widgets, and other items to customize your phone to your needs. (See “Home Screen” on page 35.)

Multi window tab

: Access Multi window tray. (See

“Using Multi window” on page 27.)

Primary Shortcuts

: Shortcuts to your phone’s common

apps. (See “Primary Shortcuts” on page 39.)

Panel Indicator

: Shows what panel of 7 available Home

screen panels appears in the display.

Shortcuts

: Shortcuts to common apps.These shortcuts are found on the Home screen by default, and you can add more shortcuts to your favorite apps. (See “Shortcuts” on page 39.)

Widget

: Apps that run on the Home screen. This widget is found on the Home screen by default, and you can add your favorites. (See “Widgets” on page 40.)

Understanding Your Phone 35

Page 42

Status Bar Icons

The Status Bar shows network and battery status and other details.

Airplane Mode Active

are disabled. See “Airplane mode” on page 152.

USB Connected

computer using a USB cable.

Voice Call

: A voice call is in progress.

: All wireless communications

: The phone is connected to a

Device Power Critical

remaining. Charge immediately.

GPS Location Active

services are active. See “Location services” on page 195.

Missing SIM

No Network

: Battery has very little power

: One or more GPS location

: No LTE SIM is installed.

: No wireless network is available.

Speakerphone

Missed Call

Mute

Battery Level

Battery Charging

: Speakerphone is enabled.

: Displays when there is a missed call.

: Voice or playback volume is muted.

: Shown fully charged.

: Battery is charging.

3G connection

4G LTE Connection

system.

Signal Strength

greater the number of bars, the stronger the signal.

New Message

New Voicemail

indicates the number of new messages.

: Phone is active on a 3G system.

: Phone is active on a 4G LTE

: Current signal strength. The

: You have new message(s).

: You have new voicemail. A number

Page 43

New Email Message

Silent mode

are silenced, and Vibrate is not active. See “Volume” on page 166.

Vibrate

: All sounds are silenced, and Vibrate is

active. See “Vibrations” on page 168.

SD Card Ready

to prepare the card for use.

SD Card Removed

Bluetooth Active

Bluetooth Headset Connected

connected with a Bluetooth headset.

Wi-Fi Active

Fi network.

: You have new email.

: All sounds except media and alarms

: A memory card scan is underway,

: A memory card was un-installed.

: Bluetooth is turned on.

: Your device is

: Wi-Fi is active, and connected to a Wi-

Wi-Fi Action Needed

Wi-Fi network. For more information about configuring Wi-Fi, see “Wi-Fi Settings” on page 147.

TTY

: TTY Mode is active.

: Action needed to connect to

Display settings

You can customize display settings to your preferences. For more information, see “Display” on page 162.

Extended Home Screen

The Home screen consists of the Home panel, plus up to 5 additional panels that extend beyond the display width to provide more space for adding shortcuts, widgets and folders.

Slide your finger horizontally across the screen to scroll to the left or right side panels. As you scroll, the indicator at the bottom of the display shows your current position.

Understanding Your Phone 37

Page 44

Customizing the Home Screen

Customize the Home screen to suit your preferences.

•

Add Shortcuts

page 39.

•

Add Widgets

•

Add Folders

•

Change the Wallpaper

on page 41.

: For more information, see

“Shortcuts”

“Widgets”

“Folders”

on page 40.

“Wallpaper”

Adding and removing Home screen panels

Your phone comes with 5 active Home screen panels. You can customize the Home screen to include up to the seven default panels, and set one panel as the Home panel.

1. From the Home screen, touch Edit page

Tip:

You can also “pinch” the Home screen to display Edit options.

2. Use these controls to configure panels:

Remove

: Touch and hold on a panel, then drag

it to

Remove

Add

: Touch a previously-removed panel to add

it, up to the maximum of seven.

Home panel set

as the Home panel.

3. To change the order the panels appear, touch and drag each panel you want moved in place of the panel in the desired sequence.

: Touch to set an available panel

, then touch

Page 45

Primary Shortcuts

Primary Shortcuts appear at the bottom of the display. You can edit the Primary Shortcuts, except for

Editing the Primary Shortcuts

To add Primary Shortcuts:

1. To a Home screen panel, add a shortcut that you want

to make a Primary Shortcut. (For more information, see “Shortcuts”.)

2. Touch and hold the added shortcut, then drag it from

the Home screen to the Primary Shortcuts. If the Primary Shortcuts bar already holds five shortcuts, adding another shortcut automatically

moves the closest existing Primary Shortcut to the Home screen.

To remove Primary Shortcuts:



Touch and hold the shortcut until appears, then drag the shortcut to the Home screen

Remove

panel or to the

icon.

Apps

Remove

Shortcuts

Use App shortcuts to launch applications from the Home screen. Your phone comes with app shortcuts already placed on the Home screen, and you can add your favorites.

Adding Shortcuts to the Home Screen

Adding shortcuts from the Home screen

1. Press the

Screen panel, then touch and hold on the screen to display the

2. Under Apps

tab.

3. Touch and hold on an app until it appears on the Home screen.

Adding Shortcuts from Apps

1. Press the

2. Touc h

3. Touch and hold on an app until it appears on the Home

screen.

Home

key, swipe to the desired Home

Home screen

Add to Home screen

Home

key.

Apps

menu.

, touch

Apps and widgets

Removing Shortcuts



Touch and hold the shortcut until appears, then drag the shortcut to the Remove icon.

Understanding Your Phone 39

Remove

➔

Page 46

Widgets

Widgets are self-contained applications that you can place on the Home screen for quick, direct access.

Adding Widgets to the Home screen

1. Press the

panel, then touch and hold on the screen to display the

Home screen

2. Under Widgets

3. Touch a widget and follow the prompts to place and

configure the widget on the Home screen.

Adding Widgets from Apps

1. Press the screen panel.

2. Touch

3. Touch a widget and follow the prompts to place and

configure the widget on the Home screen.

Removing Widgets



Touch and hold the widget until then drag the widget to the

Home

key, swipe to a Home screen

menu.

Add to Home screen

tab.

Home

key, and swipe to a Home

Apps

, then touch the

, touch

Apps and widgets

Widgets

Remove

icon.

tab.

appears,

➔

Folders

Place folders on the Home screen to organize items.

Adding Folders

1. Press the

2. Touch and hold on the screen to display the screen Folder

. – or – Tou ch

3. The folder appears on the Home screen. Touch the

folder to name it.

Removing Folders



Touch and hold the folder until then drag the folder to the Remove icon.

Home

key.

menu, then under

Menu ➔

Create folder

Add to Home screen

Remove

Home

touch

appears,

Page 47

Wallpaper

Choose a picture to display in the background of the Home screen. You can choose from pre-loaded wallpaper images, or select a picture you’ve taken with the Camera or downloaded.

1. Press the

screen to display the

Set wallpaper ➔ Home screen lock screens

2. Choose a source:

•Gallery

optional installed memory card. Touch a picture to select it, then use the crop tool to resize the picture, if desired. Touch

Done

•Live wallpapers

images. Touch a wallpaper, then touch

• Wallpaper

a wallpaper, then touch

Tip:

You can also set Wallpaper in Settings. (For more information, see “Wallpaper” on page 162.)

Home

key, touch and hold on the

Home screen

: Choose a picture stored on your phone or on an

to save the picture as wallpaper.

: Choose from pre-loaded animated wallpaper

: Choose from pre-loaded wallpaper images. Touch

Set wallpaper

menu, then select

Lock screen

Set wallpaper

Home and

Apps

Apps holds all applications installed on your phone. Applications that you download and install from the Google Play™ Store or from the web are also added to Apps.

The Apps screen is like the Home screen, it consists of panels that extend beyond the display width to provide more space. Slide your finger horizontally across the screen to scroll to the left or right side panels. As you scroll, the indicator at the bottom of the display shows your current position.

(For more information about applications, see “Applications and Widgets” on page 84.)

You can place shortcuts to apps on the Home screen, for quick access to the app. (For more information, see “Adding Shortcuts from Apps” on page 39.)

1. Press the

2. Slide your finger left or right to scroll the Apps screens.

3. Touch an icon to launch the application.

Home

key, then touch

Understanding Your Phone 41

Apps

Page 48

Customizing the Apps Screens

Choosing a view

By default, app icons appear in Grid view. You can change the view to list view.

1. Press the

2. Touch Menu ➔ View type

3. Choose an option:

• Customizable Grid

touch and hold on apps to move them from screen to screen.

• Alphabetical grid

• Alphabetical list

Home

key, then touch

: The default view, which allows you to

: Icons are arranged in a grid, in A-Z order.

: Icons display in a list, sorted from A-Z.

Apps.

Apps screen options

1. Press the

2. Tou ch Menu

•Play Store

•Edit

: Launch Google Play™ Store, to browse for new

apps to download.

: Touch and hold an app icon for these options:

–

Drag it to a new location.

–

Drag it to to create a new folder to contain the icon.

–

Drag it to to create a new apps screen and place the icon on it.

–

Drag it to to launch Application manager to view information about the app. (For more information, refer to

“Application manager”

–

Drag it to (if available) to Uninstal the app.

Note:

The your downloaded apps. Pre-loaded apps cannot be uninstalled.

Home

key, then touch

for options:

on page 199.)

Uninstall

icon is only available for

Apps.

• Create folder

: Add folders in which to group your apps.

Page 49

• Uninstall

: Remove an app that you downloaded from your

phone. Pre-loaded apps cannot be un-installed.

• Downloaded applications

downloaded.

•View type

• Share apps

• Hide applications

: Configure the apps screen.

: Select apps you’ve downloaded (not available for pre-loaded apps) to share via Bluetooth, ChatON, Dropbox, Email, Flipboard, Gmail, Google, Google+, Messaging, S Memo, Wi-Fi Direct.

whether selected apps icons appear on Apps panels. Hiding an icon does not uninstall the app from your phone.

: Display all apps you’ve

Show hidden applications

: Control

Entering Text

This sub-section describes how to enter words, letters, punctuation, and numbers when you need to enter text in a message, a note, or any other text entry field.

Keyboards and Input Methods

There are three text input methods available:

•

Google Voice typing

•

Samsung keyboard

keypad that can be used in both portrait and landscape orientation.

•

Swype

: Instead of touching each key, use your finger to trace

over each letter of a word.

(To change the input method, see “Keyboards and input methods” on page 177.)

: Enter text by speaking.

(default): Samsung’s on-screen QWERTY

Understanding Your Phone 43

Page 50

Using the Google Voice Typing Feature

New Paragraph

Text Input Mode

Shift Key

Delete Key

Space Bar

Voice Typing and Settings

You can use your voice to enter text using the Google Voice typing feature.

1. Touch

2. At the

into the microphone.

3. If the red microphone turns gray, the feature has timed

out. To start again, touch the microphone icon. The text is displayed in the message as you are

speaking.

4. Touch to return to the keyboard.

Note:

The feature works best when you break up your message into short segments.

on the keyboard.

Speak now

prompt, speak clearly and distinctly

Entering Text Using the Samsung Keyboard

From a screen where you can enter text, rotate your phone counterclockwise to a Landscape orientation. The on-screen QWERTY keypad will display.

Page 51

Changing the Text Input Mode - Keypad

Sym

ABC

There are two main keypad layout keys that will change the on-screen keys within the QWERTY keypad.

The available Text Input modes are:

ABC

Symbol/Numeric Mode

symbol, and emoticon keys.

ABC Mode

Can also be set to (

Note:

When in

Abc

mode, the

Sym

mode, the

When in

: Activates the default alphabet keys.

) key.

Symbol/Numeric

: Activates the number,

Abc

abc

by using the shift

Sym

button appears.

ABC

button appears.

and

Using ABC Mode

1. If desired, rotate your phone counterclockwise to a

Landscape orientation.

2. When you touch a text entry field, such as the message

field for a new text message, the following

keyboard image appears:

3. Touch the desired letter or number keys.

Note:

The screen initially opens in Abc mode. After typing the first letter, the shift key ( ) changes to lower case.

and succeeding letters are

Understanding Your Phone 45

Enter

Page 52

4. Touch once to input another upper-case letter

Sym

1/2

ABC

or touch

twice to switch to ABC mode. The

shift key will change to . All following letters will be upper case until you touch the shift key again.

Using Symbol/Numeric Mode

Use Symbol/Numeric Mode to add numbers or symbols.

1. Rotate your phone counterclockwise to a Landscape

orientation.

2. Touch

at the bottom of the keyboard. The

following keyboard appears:

3. Touch the desired number or symbol.

4. Touch the

button to access additional symbols.

5. Touch to return to Abc mode.

Predictive Text

By using the Predictive Text option, you can have next-letter prediction and regional error correction, which compensates for pressing the wrong keys on the QWERTY keyboard.

Note:

Predictive text is turned ON by default.

Turning Predictive Text ON:

1. Touch and hold on the keyboard, then touch

. The Samsung keyboard settings screen

appears.

2. Touch the

Predictive text

ON/OFF slider .

Page 53

3. In the text portion of the message screen, begin typing

a word. A list of word options is displayed. Touch one of the words to replace the word that has already been typed or scroll the line of words to the left for more word choices.

4. Continue typing your message. Touch to send the

message or press more information, refer to “Creating and Sending Messages” on page 75.)

Note:

You can also use Predictive Text mode with your phone

in portrait orientation.

for more options. (For

Entering Text Using Handwriting

You can enter text simply by using your finger to handwrite letters on your screen.

1. Touch and hold

on the keyboard, then touch

2. Use your finger tip to write out each character. You can print or use cursive.

3. You can write out your entire message using the Handwriting feature or touch to switch back to Samsung keyboard mode.

Samsung Keyboard Settings

For information on how you can configure your Samsung keyboard settings, see “Keyboards and input methods” on page 177.

Understanding Your Phone 47

Page 54

Entering Text Using Swype

Swype™ is a text input method that allows you to enter a word by sliding your finger or stylus from letter to letter, lifting your finger between words. Swype uses error correcting algorithms and a language model to predict the next word. Swype also includes a predictive text system.

The following example shows how to enter the word “This”. Put your finger down on the “T”, and without lifting, glide it to the “h”, then to the “i” then over to the “s”.

Swype Text Entry Tips

You can access the SwypeTips application and watch a video or tutorial on using Swype. You can also use the following Swype text entry tips.

•

Create a squiggle (like an S shape) to create a double letter (such as pp in apple).

•

Touch and hold a key to view the punctuation menu then make a selection.

•

Move your finger or stylus over the apostrophe to enter contractions.

•

Double-tap on the word you want to change to correct a misspelled word, then tap the delete key to erase one character. Touch and hold the delete key to erase an entire word.

Page 55

Enabling and Configuring Swype

The Samsung keyboard is the default text input method, so to use Swype, you must first change the default keyboard setting.

To enable Swype:

1. From a screen where you can enter text, touch a text

input field.

2. Touch the Status Bar and drag down the the

Notifications screen.

3. Touch

method menu pops up.

4. Touch the

The Swype keyboard appears.

Select input method

Swype

radio button, which turns green.

. The Select input

Swype Settings

For information on how you can configure your Swype settings, see “Keyboards and input methods” on page 177.

Understanding Your Phone 49

Page 56

Section 3: Accounts and Contacts

Accounts

Your phone provides the ability to synchronize information, from a variety of accounts, including Email, Facebook, Google, and your Samsung account. Depending on the account, you can choose to synchronize your calendar, contacts, and other types of content.

Contacts from your accounts appear in your phone’s Contacts.

With synchronization, you can ensure that information on your phone is updated with any information that changes in your accounts.

Setting Up Your Accounts

Set up and manage your accounts with the settings.

(For information about setting up other, non-synchronized email accounts, see “Configuring Email Accounts” on page 80.)

Tip:

For more information on setting up your email, contact your Wireless Provider.

Adding an account

1. From the Home screen, touch Menu Settings

➔

2. Under

3. Select an account type, then follow the prompts to

4. The phone communicates with the provider’s server to

My accounts

enter your credentials and sign in.

set up your account on the phone.

Accounts

, touch

Add account

Accounts

, then touch

Page 57

Controlling Synchronization

You can choose to have your phone automatically synchronize with your accounts, or manually synchronize each account when you want to check messages.

You may also choose to limit automatic or background synchronization to extend battery life.

1. From the Home screen, touch Settings

2. Under

➔

My accounts

Accounts

, touch the desired account type.

, then touch

The related account type screen appears.

Accounts

3. Under Sync settings

, touch the desired account ID. The

screen for the selected account appears listing some or all of the following synchronization settings:

•Sync Calendar

•Sync Contacts

•Sync Email

•Sync Gmail

• Sync Google Photos

• Sync Google Play Books

• Sync Google Play Magazines

• Sync Google Play Movies & TV

• Sync Google Play Music

• Sync Internet

• Sync Picasa Web Albums

• Sync Tasks

4. Touch these settings to enable/disable synchronization

of the associated file types. When enabled, a check mark appears in each setting check box.

•

With automatic synchronization enabled, your phone automatically synchronizes its related files with similar files on on-line file servers.

•

With automatic synchronization disabled, you can manually sync accounts by touching

Sync all

in the account type screen

for each account.

Tip:

You can control automatic synchronization using the toggle in the Quick Settings menu on the Notifications screen. (For more information, refer to “Quick Setting Bar” on page 33.)

Accounts and Contacts 51

Sync

Page 58

Google Account Privacy Settings

Personalize the Privacy settings for Google accounts:

. The

, then touch

Google

1. From the Home screen, touch Settings

2. Under

➔

My accounts

Accounts

, touch

Google

type screen appears.

Privacy

3. Under

•Maps & Latitude

, the following options are available:

: Tailor

Location settings

for Google

accounts.

•Search

: Manage Google accounts location histories and

search histories.

• Location settings

: Choose whether Google apps can access

location information for Google accounts.

•Google+

: Manage Google+ information for Google accounts.

•Ads

: Choose whether to personalize Google and AdMob

advertisements for Google accounts.

account

Managing accounts

1. From the Home screen, touch Menu Settings

2. Under

➔

My accounts

Accounts

, touch the desired account type.

, then touch

The related account type screen appears.

Accounts

3. Under Sync settings

, touch the desired account ID. The

screen for the selected account appears. (For more information, refer to “Controlling Synchronization” on page 51.)

4. To enable or disable a synchronization setting, touch it.

When enabled, a check mark appears in the check box.

5. To invoke the enabled synchronization settings for the Sync now

selected account, touch

6. To remove the selected account from your phone,

Remove account

touch

. A

Remove account?

pop-up prompts you to confirm the removal. To remove the selected account, touch

account

Remove

Page 59

Contacts

To a ccess C ontacts:



From the Home screen, touch

Contact tips:

•

Swipe your finger left-to-right across a contact to make a call to

the contact.

•

Swipe right-to-left across a contact to create a message

addressed to the contact.

Adding Contacts

1. From the Home screen, touch Add contact

•

If you have defined accounts (Google, Samsung, and so on), the

Save contact to

account to receive the new Contact entry.

•

If you have not defined any accounts, the up appears. The following options are available:

–

: Saves your contacts in

–

Add new account

device will save your contacts. The appears. (For more information, refer to

Accounts”

pop-up appears. Select

: Lets you define an account to which your

on page 50.)

Contacts

Device

Save contact

“my device contacts”

Add new account

“Setting Up Your

➔

or the

pop-

screen

2. Touch contact fields to select or enter information:

•

Tou c h contact.

•

Tou c h enter

Name suffix

•

Touch

Label Work Fax, Home Fax, Pager, Other, Custom

add another number, touch .

•

Touch information about Groups, see

•

Touch

•

Touch you receive a message from this contact.

•

Touch when you receive a call or message from this contact.

•

Touch

Phonetic Name, Organization, Email

up an Email account),

Website, Events

Add photo ID

Name

to enter a name for the contact. Touch to

Name prefix, First name, Middle name, Last name,

Phone number

button to choose a label, from

Groups

to assign the contact to a group. (For more

Ringtone Message alert

Vibration pattern

Add another field

to choose a picture to identify the

to enter a phone number, then touch the

Mobile, Home, Work

, or

Callback

“Groups”

on page 60.)

to choose a ringtone for the contact.

to select the alert tone to be played when

to choose a vibration pattern to play

to add more fields, including

(appears after you set-

IM, Address, Notes, Nickname

, or

Relationship

Accounts and Contacts 53

, . To

Page 60

3. When you finish selecting and entering information, Save

touch

Creating Contacts from Recent calls

Save a phone number from a recent call to create a new contact, or update an existing contact.

For more information, refer to “Creating or Updating Contacts Using Recent calls” on page 68.

Creating Contacts from the Phone Keypad

Enter a phone number with the Phone Keypad, then save it.

1. From the Home screen, touch

2. Touch the digits of the phone number on the

3. Touch

the pop-up menu.

4. Continue entering contact information. (For more

information, refer to “Adding Contacts” on page 53.)

Tip:

While entering a phone number, you can add waits or pauses. Enter the number up to the pause or wait, then touch Menu

Add to Contacts

to select

, then select

Add 2-sec pause

Phone

Keypad

Create contact

Add wait

from

Updating Contacts

Make changes to update an existing contact.

1. From the Home screen, touch

2. Touch a contact to view its information, then touch Edit

– or – Touch and hold a contact, then select menu.

3. Continue entering contact information. (For more

information, refer to “Adding Contacts” on page 53.)

Updating Contacts from the Phone Keypad

Enter a phone number with the Phone Keypad, then save it.

1. From the Home screen, touch

2. Touch the digits of the phone number on the

3. Tou ch

4. Select a contact to update, then continue entering

Add to Contacts

the pop-up menu.

contact information. (For more information, refer to “Adding Contacts” on page 53.)

, then select

Contacts

Edit

from the

Phone

Keypad

Update existing

from

Page 61

Updating Contacts from Recent calls

Save a phone number from a recent call to create a new contact, or update an existing contact.

For more information, refer to “Creating or Updating Contacts Using Recent calls” on page 68.

Choosing Contacts to Display

1. From the Home screen, touch Menu

2. Touch

•

Choose

•

Touch

•

Choose an account to only display contacts from that account.

•

Choose account, or the phone.

, then touch

All contacts

Device

Customized list

to show all contacts.

to show only show contacts saved to the phone.

to select contact types for each

Contacts

Contacts to display

Contacts Settings

1. From the Home screen, touch Menu

2. To uch

•

Select least one stored phone number.

•

Touch

•

Touch

•

Touch sending contacts namecards to other accounts or devices. (For more information about sending contacts, see

Namecards”

, then touch

Only contacts with phones

List by

to sort contacts by first or last name.

Display contacts by Contact sharing settings

on page 59.)

Settings

to show contacts with at

to list contacts by first or last name.

to set your preference for

Accounts and Contacts 55

Contacts

“Sending

Page 62

Other Contacts Options

1. From the Home screen, touch

2. Touch a contact to display it, then touch

•History

: View calls and messages to and from this contact.

•Edit

: Modify contact information. (For more information, refer to

“Updating Contacts”

•Delete

: Erase the contact record.

•Join contact

as one. (For more information, refer to page 57.)

• Mark as default

(such as IM or email address). Defaults are the contact method used when creating a message or calling a contact. You can also set a default by touching and holding on a contact field.

• Share namecard via

information, refer to

• Add to reject list

from the contact are rejected automatically. To remove a contact from the reject list, touch and hold on the contact in the main contacts screen, then choose

on page 54.)

Separate contact

: Set a default phone number or other field

“Sending Namecards”

: Mark the contact so that calls or messages

: Manage multiple contacts

: Send the namecard. (For more

Remove from reject list

Contacts

“Joining Contacts”

on page 59.)

• Print contact info

compatible Samsung Bluetooth-enabled printer.

• Place to home screen

screen.

: Print the namecard via Bluetooth to a

: Add shortcut to this contact to Home

Page 63

My Local Profile

My local profile is your own contact record, listed under ME in Contacts. You can send My local profile as a vCard via Bluetooth or as an attachment to messages.

Creating My Local Profile

1. From the Home screen, touch ME

2. Under

3. Enter your information in the contact fields.

Sending My Local Profile

You can send your profile as a vCard via Bluetooth to other Bluetooth devices, or as an attachment.

1. From the Home screen, touch

2. Touch your profile to display your contact information.

3. Touch

4. Choose a sending method or app from the

touch your Google account name or

profile

information, refer to “Adding Contacts” on page 53.)

, then touch

namecard via

the profile.

pop-up, then follow the prompts to send

Contacts

(

For more

Contacts

Share namecard via

Set up

Joining Contacts

Your phone can synchronize with multiple accounts, including Google, Corporate, and other providers, plus social networking sites like Facebook. When you synchronize contacts from these accounts with your phone, you may have multiple contacts for one person.

Joining contact records allows you to see all the contact’s numbers and addresses together. Joining also helps you keep your contacts updated, because any changes to information in the respective accounts is automatically updated the next time you synchronize with the account.

Joining contacts

1. From the Home screen, touch

2. Touch a contact to display its information. Menu

3. To uch

available contacts appears.

4. Select a contact to join to the displayed contact. The

joined contact appears.

, then touch

Accounts and Contacts 57

Contacts

Join contact

. A list of

Page 64

5. To join another contact, touch the

Joined contact screen appears.

Join another contact

Touch appears.

Select a contact to join to the displayed contact. The joined contact appears.

Separating contacts

1. From the Home screen, touch

2. Touch a contact to display its information.

3. Touch the

4. Touch to the right of a contact to remove it from

the selected joined contact.

Connection

field to display joined contacts.

Connection

. A list of available contacts

Contacts

field. The

Exporting and Importing Contacts

You can export your contact list to an installed memory card, or import a list of contacts (previously exported) from a memory card.

1. From the Home screen, touch Menu

2. Tou ch

3. Select an option, then follow the prompts to complete

the operation:

• Import from USB storage

installed mass storage.

• Export to USB storage

storage.

• Import from SD card

installed memory card.

• Export to SD card

• Share namecard via

more information, refer to

59.)

, then touch

: Copy contacts that are saved in

: Copy contacts to installed mass

: Copy contacts that are saved on an

: Copy contacts to an installed memory card.

: Share contacts as Namecards. (For

“Sending Namecards”

Contacts

Import/Export

on page

Page 65

Sending Namecards

You can send a contact entry as a namecard using a Bluetooth connection to another device, or as an attachment to a Gmail or Email message.

Important!

Not all Bluetooth devices will accept contacts, and not all devices support transfers of multiple contacts. Check the target device’s documentation.

Contacts

1. From the Home screen, touch Menu

2. Touch

namecard via

3. Touch contacts to mark them for sending, or touch

Select all

the check box for marked contacts.

4. Touch

5. Choose a sending method from the

pop-up, then follow the prompts to send the profile.

, then touch

to mark all contacts. A check mark appears in

Done

Import/Export

➔

Share namecard via

Favorites

Mark contacts with a star to identify them as Favorites.

Favorites

Favorites display on the

Contacts

screens for fast dialing or messaging, and are

indicated by the .

Creating Favorites

1. From the Home screen, touch

2. Touch and hold on a contact, then select favorites

from the pop-up menu. – or – Touch a contact to display it, then touch at the top

right of the screen, it changes color to .

tab in the

Accounts and Contacts 59

Phone

Contacts

Add to

and

Page 66

Groups

Assign contacts to Groups to make searching for contacts faster, or to quickly call or send messages to group members. Your phone comes with pre-loaded groups you can use to add your contacts.

Adding a New Group

1. From the Home screen, touch Groups

➔

2. Touch

•

Touch

Group name

•

Touch

Group ringtone

members of this group.

•

Touch

Message alert

from members of this group.

•

Touch

Vibration pattern

from members of this group.

•

Touch

Add member

3. Touch

Save

Create

to enter a Group Name.

to choose a ringtone for calls from

to choose the tone to play for messages

to choose a vibration to play for calls

to select members from Contacts.

to save the new group.

Contacts

➔

, then enter information:

Editing a Group

1. From the Home screen, touch Groups

2. Touch a Group to display it.

➔

Edit

3. Tou ch

the group. For more information, see “Adding a New Group” on page 60.

Deleting a Group

Tip:

You can only delete groups that you have created.

1. From the Home screen, touch Groups

2. Tou ch

3. Touch a Group to mark it for deletion, or touch

to mark all groups. When selected, a check mark appears in the check box. You cannot delete preloaded groups.

4. Tou ch

group members

Delete

, then choose

, then update information for

➔

Delete groups

Contacts

Group only

Group and

➔

Select all

Page 67

Adding Contacts to a Group

1. From the Home screen, touch Groups

2. Touch a Group to display it, then touch .

3. Touch contact(s) to mark them for addition, or touch

Select all

to mark all contacts. When selected, a check

mark appears in the check box.

Done

4. Touch

Removing Contacts from a Group

1. From the Home screen, touch

2. Touch a Group to display it.

3. Touch

4. Touch contact(s) to mark them for removal, or touch

Select all

mark appears in the check box.

5. Touch

to add the selected contact(s).

Groups

➔

Remove member

to mark all contacts. When selected, a check

Done

to remove the selected contact(s).

Contacts

➔

Sending a Message to Group Members

Create a new text or email message, addressed to the group’s members.

1. From the Home screen, touch

2. Touch and hold a Group, then touch Send email

3. Touch contacts to mark them as recipients for the new

message, then touch

4. The new message opens, with the marked contacts as recipients. Continue creating the message, as desired. (For more information, refer to “Creating and Sending

Messages” on page 75, or “Composing and Sending Email” on page 80.)

Done

Accounts and Contacts 61

Contacts

➔

Send message

Groups

Page 68

Speed Dials

Speed dials are 1-, 2-, or 3-digit shortcuts (1 to 100) you assign to contacts, to allow you to quickly call the contact.

For more information about calling using speed dials, see “Making Calls using Speed Dials” on page 63.

Note:

Speed dial 1 is reserved for Voicemail, and cannot be assigned.

Assigning Speed Dials

1. From the Home screen, touch Menu

2. Touch

3. A list of speed dials displays.Touch a speed dial, then

touch a contact to assign the speed dial to the contact.

Removing or Reassigning a Speed Dial

1. From the Home screen, touch

2. Touch

3. Touch and hold an assigned Speed dial setting, the

following options pop-up:

• Replace

contact.

•Remove

, then touch

: Touch a new speed dial location to assign it to the

: Un-assign the speed dial from the contact.

Contacts

Speed dial setting

Contacts

Speed dial setting

Page 69

Section 4: Calling

Making Calls

Your phone offers multiple ways to make calls:

•

Use the touch screen

or speed dial.

•

Call a contact from

•

Call a contact from

•

Return a call, or call a recent caller, from

•

Voice dial using

Phone Keypad

Contacts Favorites

Voice Dialer

to enter the phone number

Recent

Making Calls Using the Phone Keypad

1. From the Home screen, touch

2. Touch the digits of the telephone number on the Keypad

3. Touch to place the call.

Phone

Making Calls using Speed Dials

Speed Dials are 1-, 2-, or 3-digit shortcuts (1 to 100) you assign to contacts, to allow you to quickly call the contact.

(For more information about setting speed dials, see “Speed Dials” on page 62.)

1. From the Home screen, touch

2. Touch the digits of the speed dial number on the Keypad

, holding the last digit until the number dials.

Phone

Calling 63

Page 70

Making Calls from Contacts

A contact is an entry that you have created to store the name, numbers, and other information for people or groups of interest.

(For more information, refer to “Contacts” on page 53.)

Contacts

1. From the Home screen, touch

2. Find the contact and touch it to open the Contact entry.

3. Swipe your finger from left to right across the contact

to dial their default number. – or –

Touch a contact, then touch to dial the number.

Making Calls using S Voice

Place a call by speaking the name or number.

1. From the Home screen, touch S Voice

2. The first time you access S Voice, follow the prompts to

confirm the license agreement, and view information about S Voice.

3. Follow the prompts to speak a command. You can say

commands such as:

• Call <Name >

• Dial <Phone number>

•Redial

: Call an entry in your Contacts list.

: Call a spoken phone number.

: Repeat a recent call.

Phone

. then touch

Page 71

Making Calls using Favorites

Favorites are contacts that you designate as favorites by starring them. (For more information about creating favorites, see “Favorites” on page 59.)

1. From the Home screen, touch Favorites

2. Touch

3. Find the contact and touch it to open the Contact entry.

4. Swipe your finger from left to right across the contact

to dial their default number. – or –

Touch a contact, then touch to dial the number.

to display favorites.

Phone

Making Calls from Recent calls

Return a call, or call a number from a recent call stored in Recent calls.

(For more information, refer to “Recent Calls” on page 68.)

Multi-party Calling

Use multi-party call features to set up a call between multiple callers, such as for a conference call.

1. Establish the first call, by answering an incoming call

or making a call.

Add call

2. To uch

3. Make the second call by touching the phone number

digits, then press .

4. To uch

call.

5. To end the call touch

. The first call is placed on hold.

Merge

to merge the calls into one conference

Calling 65

Page 72

Answering Calls

You can answer incoming calls when the phone is locked or unlocked.



Touch and drag the

Tip:

To silence the ringtone for an incoming call, press the

Volume

key Up or Down.

Answer

icon to the right.

Sending Calls to Voicemail

When your phone alerts you to an incoming call, you can reject the call to send the caller to voice mail, or reject the call and send a message to the caller.

Rejecting a call



Touch and drag the

Rejecting a call with a message



Touch and drag middle of the screen, then select an existing message,

Create new message

Note:

For more information about creating reject messages, see “Set up call rejection messages” on page 70.

Reject

icon to the left.

Reject call with message

toward the

Answering Call-Waiting Calls

When you receive a call while on a call:

•

Touch and drag the incoming call. The original call is placed on hold, and remains on hold until you end the second call, or swap calls back to the original call.

•

To uch

Swap

to place a call on hold and return to the original call.

Answer

icon to the right to answer the

Page 73

Options During a Call

Personalize call sound

Noise reduction

Extra volume

While in a call, you can use these features:

•

Personalize call sound

audio, in cases where you might need the sound softer or clear, or optimized for your right or left ear.

•

Noise reduction

call audio quality in noisy environments.

•

Extra volume

earpiece. Compensates for low sound from the other caller.

: Apply a sound equalizer to the call

: Enable or disable noise reduction, to improve

: Enable or disable increased volume in the

•

Add call

: Display the Dialer to set up a multi-party call.

•

Keypad

: Display a keypad to enter numbers.

•

End call

: End the phone call.

•

Speaker

: Enable or disable speakerphone.

•

Mute

: Mute or unmute your voice on the call.

•

Headset

: Switch the call’s audio to a Bluetooth headset.

•

Tou ch

– – –

for options:

Contacts

: Launch Contacts.

Message

: Launch Messaging to view or create messages.

Memo

: Launch S Memo to take notes in text, or create a

drawing.

Ending a Call



Tou ch .

Calling 67

Page 74

Recent Calls

When you place, answer, or miss a call, a record of the call is saved in Recent calls.

Accessing Recent calls



From the Home screen, touch

Recent

to display recent calls.

Making Calls using Recent calls

1. From the Home screen, touch Recent

2. Touch

3. Swipe your finger from left to right across the call to

redial. – or –

Touch a call, then touch to dial the number.

to display recent calls.

Phone

➔

Sending Messages using Recent calls

1. From the Home screen, touch Recent

2. Swipe your finger from right to left across the call.

– or – For a contact call, touch the picture ID icon, then touch

to create a message to the number.

Phone

➔

Creating or Updating Contacts Using Recent calls

1. From the Home screen, touch Recent

2. Touch and hold on a call, then select

from the pop-up menu.

3. Choose

4. Continue entering contact information. (For more

Create contact

information, see “Contacts” on page 53.)

Phone

Add to Contacts

Update existing

➔

Page 75

Managing Recent calls

Deleting records

1. From the Home screen, touch Recent

2. While viewing the calls, touch

Delete

3. Touch call records to mark them for deletion, or touch

Select all

. A check indicates marked records.

Delete

4. Touch

to delete marked records.

Filtering records

1. From the Home screen, touch Recent

2. While viewing the calls, touch

View by

3. Select a filter type, from

All calls and messages, All calls Missed calls, Dialed calls, Received calls, Rejected calls All messages, Sent messages

Phone

, or

Received messages

➔

, then touch

➔

, then touch

Viewing call durations

View the length of the Last call, all Dialed calls, all Received calls, or All calls.

1. From the Home screen, touch Recent

2. While viewing calls, touch

Call duration

Phone

➔

, then touch

Calling 69

Page 76

Call Settings

Configure settings for calling with your phone.



To access Call settings, from the Home screen, touch

Phone

➔

➔ Call Settings

Call rejection

Create and manage a list of phone numbers, to have your phone automatically reject calls you receive from those numbers.



From the

Call Settings

these options:

• Auto reject mode

numbers. When set to Auto reject numbers, calls from numbers on the Auto reject list will be rejected.

• Auto reject list

Auto reject mode is set to Auto reject numbers. Touch then follow the prompts to enter numbers to reject, or select them from Contacts. Touch using the reject number list. Enable with no caller ID (that is, Unknown callers).

screen, touch

: Choose Off, All numbers, or Auto reject

: Enter telephone numbers to be rejected when

Match criteria

Call rejection

to set options for

Unavailable

to reject calls

for

Create

Set up call rejection messages

Create and manage text messages to send to callers when you select screen.

Reject call with message

1. From the

2. Manage messages:

Call Settings

rejection messages

•

To create new rejection messages, touch the prompts.

•

To modify an existing rejection message, touch the message, then edit the text.

•

To erase an existing rejection message, touch , select the message to be erased, then touch

in the

screen, touch

Delete

Incoming call

Set up call

Create

, then follow

Page 77

Answering/ending calls

Manage settings for answering and ending calls.

1. From the

Turn off screen during calls

When enabled, the screen automatically turns off during phone calls, and the proximity sensor on the front of the phone is used to turn the screen back on when the phone is moved or brought close to another surface, such as when you move the phone to your ear.



Call Settings

calls

. The following options are available:

• The home key answers calls

an incoming call by pressing

• Voice control

S Voice wake-up command.

• The power key ends calls

From the

Call Settings

during calls

When this option is enabled, a check mark appears in the check box.

to enable or disable this option.

screen, touch

: When enabled, you can answer calls using the

: When enabled, pressing

Power/Lock

screen, touch

Answering/ending

: When enabled, you can answer

Home

ends a call.

Turn off screen

Call alerts

Set options for sounds and vibrations to occur during calls.



From the

Call Settings

following options are available:

• Call vibrations

have your phone vibrate when it connects to the network.

Call-end vibration

Enable on the other caller ends the call.

• Call status tones

calls. Enable when the other caller answers a call. Enable have a tone play once per minute during a call. Enable

to have the phone play a tone when the other caller ends

tone

the call.

• Alerts on call

messages play during phone calls. When disabled, these notifications will be muted during a call.

screen, touch

: Enable

Vibrate on connection to network

: Choose options for sounds to play during

Call connect tone

: Enable to have notifications for alarms and new

Call alerts

. The

to have the phone vibrate when

to have the phone play a tone

Minute minder

Call end

Calling 71

Page 78

Call accessories

Configure headset options for calls.



From the

Call Settings

The following options are available:

• Headset settings for incoming calls

–

Automatic answering

headset connected to the Headset Jack, incoming calls are answered automatically after a delay, set at Automatic answering timer.

–

Automatic answering timer

before automatically answering an incoming call when Automatic answering is enabled and a headset is connected to the phone.

• Bluetooth headset settings

–

Outgoing call conditions

Bluetooth headset, you can choose to make calls even when the phone is locked.

screen, touch

: When enabled, and you have a

Call accessories

: Choose a time period to delay

: : When the phone is paired with a

Ringtones and keypad tones

Select incoming call ringtone and vibration, and enable or disable call vibration and keypad tones.



From the

Call Settings

sound settings

following options are available:

•Ringtones

•Vibrations

• Vibrate when ringing

• Keypad tones

: Select the ringtone your phone plays to alert you of

incoming calls.

: Select the vibration pattern your phone uses to alert

you of incoming calls.

selected

Vibrations

the check box.

when you enter numbers with the Phone keypad. When enabled, a check mark appears in the check box.

screen, under

, touch

Ringtones and keypad tones

: Touch to enable/disable use of your

. When enabled, a check mark appears in

: Touch to enable/disable playing of DTMF tones

Ringtone and

. The

Page 79

Personalize call sound

When enabled, you can select a sound profile for use during calls.



From the

Call Settings

sound settings

Adapt Sound, Soft sound, Clear sound, or Off (sound set with the Volume key).

Noise reduction

When enabled, the phone uses both of its microphones to detect background noise from your environment and suppress it during calls.



From the

Call Settings

sound settings

disable the option.

screen, under

, touch

Personalize call sound

screen, under

, touch

Noise reduction

Ringtone and

and select

Ringtone and

to enable or

Increase volume in pocket

When enabled, the phone uses the proximity sensor to detect when the phone is in a pocket or other close-fitting location such as a purse or bag, and increases the volume for incoming call ringtones.



From the

Call Settings

pocket

to enable or disable the option.

screen, touch

Increase volume in

Calling 73

Page 80

Voicemail

Configure options for voicemail.



From the

Call Settings

following options are available:

• Voicemail service

service provider’s voicemail service. If you have another option for voicemail installed, select it here.

• Voicemail settings

voicemail (speed dial 1) is set to your phone number. If you wish to use another Voicemail service, touch set a new one.

•Sound

: Choose sound to play for a voicemail notification.

•Vibrate

: Choose an option for vibration to play for a voicemail

notification.

screen, under

: By default, your phone uses your wireless

: By default, the speed dial for calling

Voicemail

, the

Voicemail number

Other call settings



From the

Call Settings

the following options are available:

•Auto retry

• TTY mode

•DTMF tones

• Voice privacy

: When enabled, the phone will automatically redial a

call if it receives a busy signal from the network.

: Choose a TTY mode to enable TTY mode, for use

with optional TTY equipment.

tones, which play when you use the keypad during a call, such as when navigating phone menus.

improve the security of phone calls.

screen, under

: Set the length of Dual-tone Multi-frequency

: Enable or disable Enhanced voice privacy, to

Other call settings

Page 81

Section 5: Messaging

This section describes how to send and receive messages, and other features associated with messaging.

Types of Messages

Your phone supports these types of messages:

•

Text messages

text to other mobile phones or email addresses (also known as SMS).

•

Multimedia messages

pictures, video, and/or sound to other mobile phones or email addresses (also known as MMS).

•

Mobile IMs

popular messaging sites.

•

including Corporate mail.

•

Gmail

•

Voicemail

•

Google Talk

: Send and receive simple messages containing

: Send and receive text messages with

: Exchange Instant Messages with other users of

: Send and receive email from your email accounts,

: Send and receive Gmail from your Google account.

: Retrieve voice messages from callers.

: Chat with other Google Talk users.

Text and Multimedia Messaging

Your phone can send and receive text and multimedia messages.

Creating and Sending Messages

1. From the Home screen, touch

New message

2. To uch

3. To uch

Enter recipient

or email address, or touch to add recipients from Contacts. As you enter text, matching contacts appear. Touch a contact to add it to the list.

Enter message

following options are available (which options are available depends on whether you include an attachment):

•

Touch Attach Record video, Audio, Record audio files) or content (S Memo text, Calendar events, Locations, Contacts) to the message (converts the message to MMS).

and enter a name, phone number

, then enter the message text. The

to add media (Image, Take a picture, Video,

Messaging

Messaging 75

➔

Page 82

•

Touch Menu

–

Insert smiley

–

Add text

Contacts or Text templates to add.

–

Preview

–

Add to Contacts

save the info as a new contact, or update an existing contact.

–

Add slide

pictures or other media (adding a slide converts the message to MMS).

–

Add subject

MMS.)

–

Duration (5sec)

displays.

–

Layout (bottom)

above (Text on top) of the attachment(s), or after (Text on bottom).

–

Scheduled message

–

Discard

–

Tra n sl at e

4. Touch to send the message.

for options:

: Add a text emoticon to the message.

: Select text from S Memo, Calendar, Location,

: View the message and attachments before sending.

: If the recipients are not saved in Contacts,

Remove slide

: Add a subject field (converts the message to

: Erase this message.

: Launches the Translator app.

: Add or remove a slide. Slides hold

: Set the length of time the media on the slide

: Choose whether the message text appears

: Select a delivery date and time.

Managing Messages

Messages you send and receive to the same contact, number or address are grouped together as a “conversation”. Threads allow you to see all the messages you exchanged with a recipient in one place.

1. From the Home screen, touch

2. Message threads display by contact, number, or

address. While viewing message threads, you have these options:

•

Touch and hold a thread to choose options, including:

–

View Contact

save the sender/recipient’s information.

–

Delete thread

–

reject list. Messages from this number are automatically placed in the Spam messages folder.

•

Tou c h

–

Delete threads

erasure, or touch

Add to Contacts

: Erase the entire message thread.

for options, including:

: Enter characters to search messages and recipients.

: Touch message threads to mark them for

Select all

Messaging

: View the contact record, or

: Add this number to message

to mark all message threads.

Page 83

–

Draft messages

later reuse and/or to be sent to a recipient.

–

Locked messages

them from accidental deletion.

–

Scheduled messages

at a selected date and time.

–

Spam messages

registered as spam senders.

–

Settings

: Messages you have composed and saved for

: Messages you have locked to protect

: Messages you have set to be delivered

: Messages received from numbers you have

: Configure Messaging settings.

Message Settings

Configure settings for message storage, delivery, or alerts.

1. From the Home screen, touch

2. To uch

• General settings

–

Delete old messages

automatically erased when storage reaches default limits. When disabled, the phone will prompt you to delete old messages to make room.

–

Text message limit

conversation.

–

Multimedia message limit

messages per thread.

–

Text templates

to your messages. Use a pre-loaded text template, or create your own.

• Text message (SMS) settings

–

Delivery reports

for text messages you send.

, then touch

: When enabled, messages are

: Set the number of SMS messages per

: Text templates are phrases that you can add

: When enabled, you receive a delivery report

Messaging

Settings

: Set the number of MMS

Messaging 77

for options:

Page 84

• Multimedia message (MMS) settings

–

Goup messaging

message to multiple recipients.

–

Delivery reports

for multimedia messages you send.

–

Auto-retrieve

automatically. When disabled, the phone prompts for download.

–

Roaming auto-retrieve

download and display automatically when roaming. When disabled, the phone prompts you to download new MMS messages.

–

MMS alert

changes mode to MMS.

•Display

–

Bubble style

message thread. Touch a bubble style for each side of the conversation, then touch

–

Background style

behind message threads. Touch a style, then touch

–

Use the volume key

of message text while viewing by pressing the Volume Key.

: When enabled, you can send a single

: When enabled, you receive a delivery report

: When enabled, MMS messages download

: When enabled, MMS messages

: When enabled, alerts you when a message

: Choose the appearance of messages in a

Save

: Choose the appearance of the screen

: When enabled, you can change the size

Save

• Notification settings

–

Notifications

Status bar.

–

Select ringtone

–

Vibrate

–

Message alert repetition

repeat Once, Every 2 minutes, or Every 10 minutes.

–

Preview message

message appears in the Status bar.

• Emergency message settings

–

Emergency alerts

Emergency Alerts from the Commercial Mobile Alert Service (CMAS), including Presidential Alerts, Imminent Alerts (Severe or Extreme), and AMBER Alerts (missing persons). You may choose not to receive Imminent and AMBER alerts, but Presidential Alerts cannot be disabled. All alerts are enabled by default (check mark shown). For more information about Emergency Alerts see

–

Emergency notification preview

Emergency Alert tone (and vibration, if enabled). The Emergency Alert tone plays at the same volume as your call ringtone.

: When enabled, message alerts display in the

: Choose a sound for message alerts.

: Configure vibration for message alerts.

: Choose to have message alert

: When enabled, a preview of a received

: This device is designed to receive Wireless

“Emergency alerts”

on page 79.

: Listen to an example of a

Page 85

–

Vibrate

: Configure vibration for Emergency Alerts.

–

Alert sound

alerts.

–

Alert reminder

phone plays a sound to notify you of a Emergency Alert after the Emergency Alert tone has stopped.

• Signature settings

–

Add signature

end of your outgoing messages.

–

Signature text

outgoing messages.

• Spam message settings

–

Spam settings

are activated.

–

Add to spam numbers

messages are blocked automatically.

–

Add to spam phrases

cause messages to be blocked automatically.

–

Block unknown senders

“Unknown” senders are blocked automatically.

: When enabled, a sound plays for emergency

: Choose whether, and at what interval, your

: When enabled, adds your signature text to the

: Enter text to be added to the end of your

: When enabled, the Spam message settings

: Enter sender numbers whose

: Enter message text phrases that will

: When enabled, messages from

Emergency alerts

This device is designed to receive Wireless Emergency Alerts from the Commercial Mobile Alert Service (CMAS). Emergency Alerts are geographically-targeted, and alert customers of imminent threats to their safety within their area. There is no charge for receiving an Emergency Alert.

There are four types of Emergency Alerts:

•

Presidential

•

Extreme

•

Severe

•

AMBER Alerts (missing person alert)

You may choose not to receive Extreme Alerts, Sever Alerts, and AMBER Alerts. Presidential Alerts, however, cannot be disabled. To disable Extreme and Severe Threat Alerts and AMBER Alerts, do the following:

1. From the Home screen, touch

2. To uch

3. All alerts are enabled by default (check mark showing).

To disable alerts, touch an alert to remove the check mark.

Menu ➔ Settings ➔ Emergency alerts

Messaging

Messaging 79

Page 86

Email

Send and receive email using popular email services.

Configuring Email Accounts

You can configure Email for most accounts in just a few steps.

Apps

➔

to enter

Tip:

For better management of Microsoft Exchange ActiveSync email accounts, configure them using the

Accounts

setting. (See “Microsoft Exchange ActiveSync”

on page 192.)

Configuring the first email account

1. From the Home screen, select

2. Touch

[email protected]

address, then touch

Pass word

to enter your email or touch

your password.

3. Touch a setup option:

•Manual setup IMAP

: Configure the account manually. Touch

Exchange

, then enter the account details. (For account details, contact your Email service provider or your organization’s IT support.

POP3

•Next: Connect to the server to set up the account

automatically. Follow the prompts to complete set-up, then

Done

touch

Tip:

For more information on setting up your email, contact your Wireless Provider and your Email Service Provider.

Adding More Email Accounts

For information on adding additional Email accounts, see “Email” on page 187.

Composing and Sending Email

1. From the Home screen, select Email

➔

Compose

2. Touch fields to enter recipients and the email text.

3. While composing a message, touch

options.

4. Touch

5. Touch

Attach

Send

to send the message.

to add a file to the message.

Apps

➔

for

Page 87

Managing Emails

Refreshing Your Email Account

Refresh your account to update your phone from the servers.

Apps

➔

1. From the Home screen, select Refresh

2. Touch

Email Account Settings

Use Account settings to configure handling of your email.

Note:

Available settings depend on the email provider.

1. From the Home screen, select

Apps

2. Touch an account to view it, then touch

Settings

➔ General settings

for options.

Gmail

Send and receive emails via Gmail, Google’s web-based email.



From the Home screen, select

Setting Up Your Gmail Account

The first time you launch Gmail, your phone will prompt you to set up your Google account.

1. From the Home screen, select

2. Follow the prompts to sign in, or create a new account.

3. The phone communicates with the Google server to set

➔

up your account and synchronize your email.

Note:

You can use more than one Google account on your phone. To add another account, from within Gmail, touch

➔ Settings

➔ ADD ACCOUNT

Apps

➔

Gmail

Apps ➔

Gmail

option.

Messaging 81

Page 88

Refreshing Your Gmail Account

Refresh your account to update messages on your phone.

1. From the Home screen, touch Gmail

Refresh

2. Touch

Apps

➔

Managing Your Gmail Account

Use menu options to manage your Gmail.

1. From the Home screen, touch Gmail

2. Touch

for options.

Apps

➔

Composing and Sending Gmail

1. From the Home screen, touch Gmail

➔

New message

2. Touch fields and to compose the message. While

composing, touch

3. When your message is complete, touch

Apps

for options.

➔

Send

Google Talk

Google Talk is a free Windows and web-based application for instant messaging offered by Google. Conversation logs are automatically saved to a Chats area in your Gmail account. This allows you to search a chat log and store them in your Gmail accounts.

1. Log on to your Google account if you have not already

done so. (For more information, refer to “Your Google™ Account” on page 16.)

2. From the Home screen, touch

3. Begin using Google Talk. Help

4. Press ➔

Google Talk.

Note:

The Network confirms your login and processes. This

could take up to 5 minutes to complete.

for more information on using

Apps ➔

Tal k

Page 89

Messenger

Messenger allows you to bring groups of friends together into a simple group conversation. When you get a new conversation in Messenger, Google+ sends an update to your phone.

1. Sign on to your Google account. For more information,

refer to “Your Google™ Account” on page 16

2. From the Home screen, touch Messenger

– or – From the Google+ application, select

3. Select the account you want to use to sign in to

Google+. – or –

Touch

Create a new account

Apps

➔

Messenger

to create another account.

4. At the

5. In the upper text field, enter a name, email address, or

6. In the bottom message field, enter a message then

7. From the

Messenger

message.

circle.

touch .

detailed information.

screen, touch to start a new

Messenger

screen, touch

Learn more

Messaging 83

for more

Page 90

Section 6: Applications and Widgets

This section contains a description of each application and widget that is available in the Apps and Widget menus, the function, and how to navigate through that particular application or widget. If the application or widget is already described in another section of this user manual, then a cross reference to that particular section is provided.

This section contains a description of each application available in the Apps menu and how to launch it. For applications provided by Samsung, this section also describes functions and navigation.

If an application is described in another section of this user manual, a cross reference to that particular section is provided.

Note:

This manual only addresses applications that have been loaded on your device as of the date of purchase. Information concerning third party applications that you may choose to download from the Google Play Store or other sources should be obtained from the application provider directly and not from Samsung.

Tip:

To open applications quickly, add the icons of frequentlyused applications to one of the Home screens. (For details, see “Customizing the Home Screen” on page 38.)

You can also add an application icon as a Primary Shortcut that will display on all Home screens. If you add an application as a primary shortcut, the application icon will not be displayed in the Apps menu. (For more information, refer to “Editing the Primary Shortcuts” on page 39.)

Accessing Applications

1. Press Apps

2. Sweep your finger right or left to scroll the Apps

screens.

3. To launch an application, touch the application’s icon.

tab. The

Home

, then touch

Apps

screen appears in the display.

Apps

, and the

Page 91

Customizing the Applications Screens

Choosing a view

By default, application icons appear in Customizable grid view. You can change the view to Alphabetical grid view or Alphabetical list view.

1. From the

Apps

screen, touch Menu ➔ View type

The available options are:

• Customizable grid

prefer.

• Alphabetical grid

alphabetical order.

• Alphabetical list

alphabetical order.

: Arrange application icons in the order you

: Application icons automatically arranged in

: Application icons automatically listed in

Moving Application icons

With the

Apps

screen in Customizable grid view, you can

arrange the application icons to suit yourself.

1. From the

Note:

The

View type

2. Touch and hold an application icon, then drag it to a

3. When you are finished, then touch

Apps

screen, touch Menu

Edit

option is not available with the

set to

Alphabetical list

new location.

, then touch

Apps

screen

Save

Applications and Widgets 85

Page 92

Filtering Application icons

You can select which icons appear in the



From the

Apps

screen, touch Menu

either of the following options:

• Downloaded applications

have downloaded and installed on your phone.

• Hide applications

appear on the marks appear in their check boxes), then touch

Apps

screen appears without the hidden applications.

: Shows only those applications you

: Mark those applications you do not want to

screen by touching their icons (check

Apps

screen.

, then touch

Done

Applications List

Calculator

Use your phone’s Calculator to perform arithmetical calculations (addition, subtraction, multiplication, and division).

1. From the

2. Enter the first number using the on-screen numeric

3. Enter the operation for your calculation by touching the

4. Enter the second number.

Apps

screen, touch

keys.

corresponding on-screen arithmetic function key.

Calculator

. The

5. To view the result, touch equals (

6. To view calculator history, touch

the top of the calculator buttons. A history of your past calculations is displayed. Touch display the calculator keypad.

7. To clear the calculator history, touch Clear history

8. To change the text size, touch

Tap Small, Medium, or Large.

9. To display the scientific calculator, rotate your phone to the landscape (horizontal) position.

located at

again to

➔

Text size

Page 93

Calendar

Record events and appointments to manage your schedule.

Tip:

A Calendar widget is available in Widgets. (For more information about placing widgets on the Home screen, see “Widgets” on page 40.)

Apps

1. From the

2. Touch a tab to choose a calendar view:

•Year

•Month

• Week

•Day

•List

•Task

3. Touch Menu

•Go to

•Delete

•Search

screen, touch

: Display the current year and scroll to other years.

: Display the current month and scroll to other months.

: Display the current week, and scroll to other weeks.

: Display today’s schedule, and scroll to other days.

: Display events and tasks in a chronological list.

: Display tasks in a chronological list.

for these options:

: Display a specific date.

: Delete an event.

: Search for calendar events.

Calendar

•Sync

: Synchronize your phones calendar with your account

calendars. (For more information, refer to

Accounts”

on page 50.)

•Settings

: Customize the calendar.

Customizing the Calendar

1. From the

2. To uch

Apps

screen, touch

➔

Settings

settings:

•View settings

–

– – –

–

View styles

: Choose Month view styles (Calendar view + list,

Calendar view +pop-up), or Week view (Timeline or Analog).

First day of week Hide declined events Lock time zone

a specified time zone, so that times and dates will not change if you move to another time zone.

Select time zone

time zone for all events.

Show week number

column to the left of

in a

Calendars

: Choose a day to begin each week.

: When enabled, sets event times and dates to

: When Lock time zone is enabled, specify the

: Select calendars to display.

Applications and Widgets 87

“Setting Up Your

Calendar

to configure these

: Enable or disable display of events.

: Display the number of the week (1 – 52)

Sun

Page 94

• Event notification

–

Set alerts & notifications

Status bar notification to display notifications in the Status bar, or Off for no notifications or alerts.

–

Select ringtone

touch

–

Vibration

–

Quick responses

notifications to meeting attendees, guests, and so on.

: Choose Alert to receive alerts,

: Choose a ringtone for event notifications, then

: Enable/disable vibration for event notifications.

: Pre-composed text to include with email

Sending Events

Send events as vCalendar files to other compatible devices.

Apps

1. From the

2. Touch an event to display its details.

3. Tou ch

4. Select the desired Sharing method from the

pop-up.

5. Follow the prompts to send a copy of a Calendar event to another device. (For more information, refer to “Connections” on page 132.)

screen, touch

Menu ➔ Share via

Calendar

Share via

Page 95

Camera

1 2 3 5

6 7

11 10

Use your 13.0 megapixel Camera feature to take photos and save them in JPEG format. Your phone also functions as a camcorder to record videos and save them in MPEG format.



From the

Apps

screen, touch

view finder screen appears.

Camera

. The Camera

Important!

Do not take photos of people without their permission.

Do not take photos in places where cameras are not allowed.

Do not take photos in places where you may interfere with another person’s privacy.

Camera Controls

Front/Rear Camera toggle

: Touch to select either the

Rear camera (default) or the Front camera.

Frame

: Touch to place the camera view, and the next

picture, in a pre-selected frame.

Applications and Widgets 89

Page 96

Options

: Touch to access Camera Settings and Options (Flash, Night Shot, Voice Control, Video Recording Mode, and Sharing).

Focal Point

change the focal point, touch a new point on the view finder image.

Camera MODE indicator

Mode setting. To change the Mode setting, touch the Mode button.

Battery level indicator

charge when the phone is connected to a charger.

Camcorder button

the subject in the view finder screen. Displays video recording controls.

Take button

the view finder screen.

MODE button

shooting mode (Auto, Beauty face, Best photo, Best face, Sound & shot, Drama, Animated photo, Rich tone (HDR), Eraser, Panorama, Sports, or Night).

: Indicates the Camera focal point. To

: Indicates the current Camera

: Indicates the available battery

: Touch to start recording a video of

: Touch to take a picture of the subject in

: Touch to review or select the camera’s

10.

Effects tray

applied to pictures (No effect, Vignette, Grey-scale, Sepia, Vintage, Faded color, Turquoise, Tint, Cartoon, Moody, Rugged, Oil pastel, or Fisheye).

Gallery

11.

video you have taken or recorded. Touch to access the thumbnail image or the Gallery (see “Gallery” on page 102).

: Touch to review or select the color affect

: Shows a thumbnail image of the last picture or

Page 97

Launching the Camcorder

1 2 3 5

6 7



From the Camera view finder screen, touch . The Camcorder view finder screen appears.

Camcorder Controls

Auto Focus button

: Indicates that the Focus Point has been changed. Touch to return to default (image center) Focus Point.

Recording Status indicator

: Indicates whether recording

(as shown) or paused.

Recording Length counter

: Indicates the current length

(in minutes and seconds) of this video.

Focal Point

: Indicates the Camcorder focal point. To change the focal point, touch a new point on the view finder image. This causes the Auto Focus button to appear.

Recording Size counter

: Indicates the size of your

recording (in kilobytes).

Battery level indicator

: Indicates the available battery

charge when the phone is connected to a charger.

Recording Stop button

: Stops and saves the current video recording and returns you to the Camera viewfinder.

Recording Pause button

recording. Replaced by the Recording Resume button.

Image Capture button

the video while recording. (Not available with

stabilization

10.

Gallery

set to On.)

: Shows a thumbnail image of the last picture or

: Interrupts the current video

: Touch to capture an image from

Video

video you have taken or recorded. Touch to access the thumbnail image or the Gallery (see “Gallery” on page 102).

Applications and Widgets 91

Page 98

Taking Pictures

Note:

When taking a photo in direct sunlight or in bright conditions, shadows may appear on the photo.

Apps

1. From the

2. Using the display as a viewfinder, compose your

picture by aiming the lens at the subject.

•

Touch the screen to focus on the area you touched.

•

“Pinch” the screen, or press the

•

To configure settings, see

3. To take the picture, touch

screen, touch

“Camera Settings”

Camera

Volume

key, to zoom in or out.

Tak e

on page 94.

Recording Videos

1. From the

2. Using the display as a viewfinder, compose your shot

3. To start recording, touch

4. To pause recording, touch .

5. To resume recording, touch .

6. To capture an image from the video while recording,

7. To stop recording, touch .

Apps

screen, touch

by aiming the lens at the subject.

•

Touch the screen to focus on the area you touched.

•

“Pinch” the screen, or press the

•

To configure settings, see

touch . This feature is not available when the AntiShake feature is activated.

“Camera Settings”

Camera

Volume

key, to zoom in or out.

Camcorder

on page 94.

Page 99

Reviewing Pictures and Videos



After taking a picture, touch While viewing the picture, use these options:

•

“Pinch” the screen, or touch the zoom icons, to zoom in or out, or double-touch to zoom all the way in or out.

•

Touch Play, Bluetooth, Dropbox, Email, Flipboard, Gmail, Google+, Messaging, Picasa, S Memo, Wi-Fi Direct, or YouTube.

•

Touch

•

Tou ch

•

Touch with the screen in landscape mode).

•

Touch Slideshow, Photo frame, Photo note, Copy to clipboard, Print, Rename, Set as, Buddy photo share, Rotate left, Rotate right, Crop, Detect text, Scan for nearby devices, Details, or Settings.

to send the picture using ChatON, Group

Edit

to change the appearance of your picture.

Trim

to cut frames from your video.

Delete

to access added options: Favorite,

Gallery

to erase the picture or video (only visible

to view the picture.

Picture Options

Use these view finder options to configure the camera:

•

Self portrait

camera, for self-portraits.

•

Dual camera

within the rear facing camera view finder screen.

•

Quick Settings

– –

setting. On or Off.

– –

video recording. Selections: Normal, Limit for MMS, Slow motion, and Fast motion.

–

Off, Share shot, Buddy photo share, ChatON photo share, or Remote viewfinder.

: Switch between the back camera and the front

: Displays the front facing camera in a frame

: Displays the following, configurable options:

Flash

: Choose Off, On, or Auto flash.

Auto night detection

Voice Commands Recording mode

: Determines the Share method or mode. Selections:

: Displays the auto night detection

: Displays when Voice control is enabled.

: Determines the recording speed for

Applications and Widgets 93

Page 100

Camera Settings

Values you choose for these settings become the new default values until you change or

Camera tab

•Photo size

• Burst shot

pictures to create a panorama.

• Face detection

take a picture.

• Metering

: Select a method for measuring light.

•ISO

: Choose a setting for imaging sensitivity.

•Anti-Shake

movement.

• Auto night detection

Night Shot exposure according to available light.

•Save as

: Delivers images with greater intensity which is

effective for reducing overexposure in bright conditions.

Reset

them.

: Choose a size (in pixels) for the image. : Detects action to automatically take multiple

: Detects a face with eyes open to automatically

: Choose On to minimize the effect of camera

: Choose On to automatically enable

Camcorder tab

•Video size

• Video stabilization

Common Settings tab

• GPS tag

•Review

•Volume key

•Timer

• White balance

•Exposure value

• Guidelines

•Flash: Choose Off, On, or Auto flash.

• Voice control

: Choose 1920x1080 (16:9), 1440x1080 (4:3),

1280x720 (16:9), or 320x240 (4:3).

: Choose On to minimize the effect of

camera movement.

: Add GPS location information to photo or video

details.

: When set to On, displays each picture after you take it.

: Choose the shortcut assigned to the Volume key

(Zoom, Camera Take, Camcorder Record).

: Set a delay before taking a picture or starting a video

recording.

: Choose a setting to match the light source.

: Adjust the picture brightness level by moving

the slider.

: Enable or disable an on-screen grid to aid in photo

composition.

: Choose OFF or ON, then enable or disable voice

commands Smile, Cheese, Capture, and Shoot.

Samsung SCH-R970C User Manual

Open Source Software

Table of Contents

Section 1: Getting Started

Understanding this User Manual

Special Text

Text Conventions

Setting Up Your Phone

Removing the battery cover

Installing the battery cover

Installing the SIM Card

Removing the SIM Card

Installing a Memory Card

Removing a Memory Card

Battery

Battery Indicator

Installing the Battery

Removing the Battery

Charging the Battery

Turning Your Phone On

Unlocking Your Phone

Turning Your Phone Off

TTY Mode

Voicemail

Setting up Voicemail

Checking Voicemail

Displaying Your Phone Number

Your Google™ Account

Resetting your Google Account Password

Creating a Samsung Account

Roaming

Securing Your Phone

Locking the phone manually

Unlocking the phone

Unlocking with a Personal Screen Unlock Pattern

Unlocking with a Password

Section 2: Understanding Your Phone

Features

Front View

Side Views

Back View

Navigation

Context-sensitive Menus

Command Keys

Menu Key

Home Key

Back Key

Motions and gestures

Finger motions

Touch

Touch and hold

Swipe

Pinch

Air gestures

Motions

Palm motions

Using Multi window

Enabling Multi Window

Displaying and hiding the Multi window tab

Using Multi Window to run multiple apps on the same screen

Moving the Multi Window tab

Customizing the Multi Window tray

Notifications

Quick Setting Bar

Changing Quick Settings Bar

Clearing Notifications

Home Screen

Status Bar Icons

Display settings

Extended Home Screen

Customizing the Home Screen

Adding and removing Home screen panels

Primary Shortcuts

Editing the Primary Shortcuts

Shortcuts

Adding Shortcuts to the Home Screen

Adding shortcuts from the Home screen

Adding Shortcuts from Apps

Removing Shortcuts

Widgets
